Code 3 Excalibur User Manual

INSTALLATION &
OPERATION
MANUAL
EXCALIBUR® LIGHTBARS
EXCALIBUR
DUAL LEVEL LIGHT BAR
CONTENTS:
Introduction...................................................................................2
Unpacking & Pre-Installation.........................................................3
Installation & Mounting..........................................................3-5
Wiring Instructions.................................................................5-6
Options & Specifications.........................................................................6-11
Maintenance...........................................................................11-15
Parts List (Replacement Parts / Exploded View).................16-19
Trouble Shooting.................................................................20-21
Notes..................................................................................................21-23
Warranty.....................................................................................24
®
For future reference record your lightbar's serial no. here __________________________________________
Read all instructions and warnings before installing and using.
INSTALLER: This manual must be delivered to the end user of this equipment.
1
Introduction
The Excalibur® Light Bar is a dual-level light bar that is approximately 4 1/2" high, yet delivers unobstructed 360° warning and more signal power and versatility than any other light bar of its size.
The low profile and aerodynamic lines reduce air drag, which results in fuel savings and stability at high speeds. This light bar has a strong extruded internal frame, shock-resistant polycarbonate lenses, and warning signals that exceed SAE standards.The Excalibur is designed on a modular basis, which means that the light bar can be customized to meet any requirements. Because of its dual-level design, the Excalibur has room for an incredible number of options: standard or high speed rotators, an OsciLaser up to 12 locations for special purpose stationary lights in the lower deck. While we do not recommend a light installed in every location, the design of the Excalibur offers the ultimate flexibility in the location of warning and auxiliary lights.
The use of this or any warning device does not ensure that all drivers can or will observe or react to an emergency warning signal. Never take the right-of-way for granted. It is your responsibility to be sure you can proceed safely before entering an intersection, driving against traffic, responding at a high rate of speed, or walking on or around traffic lanes. The effectiveness of this warning device is highly dependent upon correct mounting and wiring.
!
WARNING!
Read and follow the manufacturer’s instructions before installing or using this device. The vehicle operator should insure daily that all features of the device operate correctly. In use, the vehicle operator should insure the projection of the warning signal is not blocked by vehicle components (i.e.: open trunks or compartment doors), people, vehicles, or other obstructions. This equipment is intended for use by authorized personnel only. It is the user’s responsibility to understand and obey all laws regarding emergency warning devices. The user should check all applicable city, state and federal laws and regulations. Code 3, Inc., assumes no liability for any loss resulting from the use of this warning device. Proper installation is vital to the performance of this warning device and the safe operation of the emergency vehicle. It is important to recognize that the operator of the emergency vehicle is under psychological and physiological stress caused by the emergency situation. The warning device should be installed in such a manner as to: A) Not reduce the output performance of the system, B) Place the controls within convenient reach of the operator so that he can operate the system without losing eye contact with the roadway. Emergency warning devices often require high electrical voltages and/or currents. Properly protect and use caution around live electrical connections. Grounding or shorting of electrical connections can cause high current arcing, which can cause personal injury and/or severe vehicle damage, including fire. PROPER INSTALLATION COMBINED WITH OPERATOR TRAINING IN THE PROPER USE OF EMERGENCY WARNING DEVICES IS ESSENTIAL TO INSURE THE SAFETY OF EMERGENCY PERSONNEL AND THE PUBLIC.
TM
in the top deck, alley lights and intersections in the lower corners, and
Wiring Instructions (read Carefully Before Installation)
2
Unpacking & Pre-installation
Carefully remove the light bar and place it on a flat surface, taking care not to scratch the lenses or damage the cable coming out of the bottom. Examine the unit for transit damage, broken lamps, etc. Report any damage to the carrier and keep the shipping carton.
Standard light bars are built to operate on 12 volt D.C. negative ground (earth) vehicles. If you have an electrical system other than 12 volt D.C. negative ground (earth), and have not ordered a specially wired light bar, contact the factory for instructions.
Test the unit before installation. To test, touch the black wire to the ground (earth) and the other wires to +12 volts D.C., in accordance with the instructions attached to the cable (an automotive battery is preferable for this test). A battery charger may be used, but please note that some electronic options (flashers, stingrays, etc.) may not operate normally when powered by a battery charger. If problems occur at this point, contact the factory.
Installation & Mounting
WARNING!
!
number of screws may result in loss of warranty coverage on the equipment.
MOUNTING HARDWARE - All mounting hardware is packed in a small box inside the main carton. Four standard kits are available: (1) Hook-On Type, (1) Tow and Recovery and (2) Permanent Types. These are discussed in detail later. Note: Hook-on mounting for "gutterless" type vehicles will require a special hook for mounting. Several special application hooks are available. Contact the factory for details.
Hook-on Mounting
Begin the installation by attaching the rubber feet to the mounting brackets using the black 1/4" carriage bolts and 1/4" nuts provided. See Figure 1. (Do not install shims at this time). Place the light bar upside down on a table or other work surface, being careful not to scratch the lenses. Slide the 5/16" carriage bolts into the frame. Secure the mounting brackets finger tight so they support the weight of the light bar, but still are positionable. Locate the vehicle on a level surface. Place the light bar on the roof of the vehicle. Place a soft pad in the center of the roof to protect the paint. The mounting brackets must be placed so that the rubber feet are resting on the curved section of the roof, see Figure 2. This is the strongest part of the roof. Once the light bar is centered, tighten the mounting bracket to the light bar. Using a tape measure and a level, center the light bar from side to side and locate a position on the roof where the light bar is level.
Utilizing non-factory supplied screws and/or mounting brackets and/or the improper
5/16" Cap Screw
5/16" Nut
5/16-18 Carriage Bolt
Bottom of Lightbar Mounting Bracket
1/4-20 Carriage Bolt Gutter Hook 5/16" Split Lockwasher 5/16" Trim Nut (Do Not Overtighten) Plastic Shim (if needed)
Rubber Foot 1/4" Acorn Nut
FIGURE 1
3
Curved Feet on Curved Portion
Vehicle Gutter
Vehicle Roof
FIGURE 2
The shims provided may be used here to help level the light bar, see Figure 1. Also, the tabs on the mounting brackets may be bent at any angle to match the curvature of the roof. Select the appropriate length cap screw and insert through the holes in the gutter hook and mounting bracket, and into a lockwasher and acorn nut as shown in Figure 1. If a special hook for a "gutterless" vehicle is used, refer to the instructions for that hook at this time. The stainless steel cap screws supplied are sized for the most common installations, but longer and shorter bolts are available at any hardware store. Tighten the cap screws on both sides evenly keeping the light bar centered and level.
NOTE: Tighten only until the bar is secure (bar does not move when bumped sharply with the heel of the palm). It is NOT necessary to dimple the roof to obtain a stable attachment. If the light bar "bows" more than 3/16" (determined by placing a straightedge along the front, bottom part of the frame and measuring downward at the center of the frame), loosen the 5/16" trim nut sightly.
Re-Installation: When moving a light bar from one vehicle to another, we suggest that new rubber feet be used. These are standard hardware items, and can usually be found at any hardware store, or can be ordered from the factory. The special hooks are stainless steel and should be saved and reused. Mounting kit parts are available to permit remounting on vehicles of different design or make. Consult your local dealer or Code 3, Inc. for detailed information.
Permanent Mounting
Typical Mounting: Refer to Figure 3. Place the light bar upside down on a table or other work
surface, being careful not to scratch the lenses. Slide the 5/16" carriage bolts into the frame. Secure the mounting brackets finger tight so they support the weight of the light bar. Place the unit on the roof of the vehicle. Place a soft pad in the center of the roof to protect the paint. The mounting brackets must be placed so that they are resting on the curved section of the roof, see Figure 4. This is the strongest part of the roof. Once the light bar is centered, tighten mounting brackets to light bar. Using a tape measure and a level, center the light bar from side to side and locate a position of the roof where the light bar is level. The shims provided may be used here to help level the light bar. Also, the tabs on the mounting bracket may be bent at any angle to match the curvature of the roof (see Figure 4).
5/16" Nut
5/16-18 Carriage Bolt
Bottom of Lightbar
Mounting Bracket Customer Supplied Bolt
Plastic Shim (if needed) Rubber Foot
FIGURE 3
4
Place Feet on
Curved Portion
Once the light bar is level and centered, mark the holes through the mounting tabs and remove the light bar from the vehicle. Make sure that the drill will not damage anything when penetrating the roof. Drill the mounting holes and remove any burrs. Attachment can be made using 1/4" cap screws, toggle bolts, or other fasteners as may be convenient. Use sealant as necessary to prevent water leakage into the vehicle.
Curved Roof
FIGURE 4
Flat Roof
Wiring Instructions
Larger wires and tight connections will provide longer service life for components. For high current wires it is highly recommended that terminal blocks or soldered connections be used with
!
WARNING!
shrink tubing to protect the connections. Do not use insulation displacement connectors (e.g. 3M® Scotchlock type connectors). Route wiring using grommets and sealant when passing through compartment walls. Minimize the number of splices to reduce voltage drop. High ambient temperatures (e.g. underhood) will significantly reduce the current carrying capacity of wires, fuses, and circuit breakers. Use "SXL" type wire in engine compartment. All wiring should conform to the minimum wire size and other recommendations of the manufacturer and be protected from moving parts and hot surfaces. Looms, grommets, cable ties, and similar installation hardware should be used to anchor and protect all wiring. Fuses or circuit breakers should be located as close to the power takeoff points as possible and properly sized to protect the wiring and devices. Particular attention should be paid to the location and method of making electrical connections and splices to protect these points from corrosion and loss of conductivity. Ground terminations should only be made to substantial chassis components, preferably directly to the vehicle battery. The user should install a fuse sized to approximately 125% of the maxi­mum Amp capacity in the supply line to protect against short circuits. For example, a 30 Amp fuse should carry a maximum of 24 Amps. DO NOT USE 1/4" DIAMETER GLASS FUSES AS THEY ARE NOT SUITABLE FOR CONTINUOUS DUTY IN SIZES ABOVE 15 AMPS. Circuit breakers are very sensitive to high temperatures and will "false trip" when mounted in hot environments or operated close to their capacity.
Before attempting to connect wiring refer to wire tag attached to the lightbar's main cable. Each wire in the cable controls a separate lightbar function as described in the wire tag.
The only significant difference between the Excalibur with optional ArrowStik® and a conventional Excalibur®, is the additional, thinner cable exiting the bottom of the lightbar. The larger cable is the lightbar power cable. Route the wiring cable into the engine or passenger compartment, taking care to use grommets and to apply sealant around openings to keep water out. It is advisable to leave an extra loop of cable when installing the light bar to allow for future changes or reinstallations. Connect the black lead to a solid frame ground (earth), preferably, the (-) or ground (earth) side of the battery. Connect the wires as directed by the wiring instructions on the cable.
5
Arrowstik® / Narrowstik®
OPTIONAL HALOGEN ARROWSTIK® (7-wire) / L.E.D. NARROWSTIK® (11-wire) WIRING AND CONTROL HEAD INSTALLATION ­After installation of the lightbar, route the smaller of the two power cables through the vehicle to the location chosen for the control head. Cut the cable to length and strip back the outer insulation to expose the seven or eleven colored wires. Strip back 1/8” - 1/4” of colored insulation from each of the wires in the cable. Connect these wires to the seven position / eleven position terminal plug enclosed in the user parts bag, according to the diagram on the bottom of the control head.
- Refer to the control head manual packaged with the lightbar for control head installation and operation instruction.
OPTIONAL STROBE WIRING INSTRUCTIONS - For all configurations the strobe power supply(s) will be powered
by the #14 AWG Red and Red/Black wires in the lightbar main cable. For 2 or 4 head configurations only the Red or Red/Black wire will be utilized. For 6, 8, 10 and 12 head configurations both wires will be utilized. These wires will supply DC power to each strobe power supply(s) so all user supplied switches and wiring connected to the Red and/or Red/Black wires should be rated for a minimum of 10 Amps and fused at a maximum of 15 Amps, for each wire used. Two additional wires in the main cable (typically Green and Green/Black) are used to control the flash mode of the power supply. These wires are low current connections at typically less than 1 Amp. (See lightbar "wire tag" for wire color).
OPTIONS & SPECIFICATIONS
Many options are available for the LED X 2100. This section is designed to describe the function of the various LED X 2100 options.
LED WARNING MODULES
L.E.D. Fusing Considerations
Although the average current draw per module is very low, due to the type of circuit used to power each module the instantaneous peak current to a module can be significantly higher during low voltage conditions. To avoid prematurely blowing ATO style fuses or tripping breakers it is recommended the following rule-of-thumb be used to size fuses or breakers. This is especially important in lightbars with many LED modules running off a single fused source wire,
Minimum fuse size calculation:
1.5 x (number of modules being fused) Example:
Excalibur™ Lightbar with 2 corner modules (2 per module) and 4 directional modules.
Minimum fuse requirement for single fuse - 1.5 (2+2+4) = 10A minimum
WARNING!
!
This Product contains high intensity LED devices. To prevent eye damage, DO NOT stare into light beam at close range.
6
Dim Operation
Lightbar LED modules are equipped with a low power "Dimming" mode as standard. Dimming will be controlled by applying +12V by way of the appropriate wire(color) in the wire harness/wire list. When DIM is engaged the LED's will operate in a reduced power mode.
For safety purposes, the corner modules in lightbars are not connected to the dimming circuit. This ensures that when corner modules are turned on, full 360 degree coverage and compliance with SAE warning light standards is provided.
The DIM control wires( two white wires) located on each of the modules are connected from one module to the next. To disable the dimming function on a particular module, disconnect the white wires. Then reconnect the white wire to the white wire on another module that has dimming enabled.
The Dim setting reduces the light output of emergency warning lights reducing the effectiveness of
!
WARNING!
them especially in brightly lit areas. Failure to use adequate light for the circumstances can cause motorists to fail to see the emergency vehicle and lead to serious personal injury or death. Never use the DIM setting in a brightly lit area. Use of the DIM setting may cause emergency lights to not comply with applicable emergency warning light standards. Use caution when using the DIM setting to assure that motorists can clearly see the emergency vehicle.
Code 3® OPTIX™ 360 DEGREE CORNER MODULES
The Excalibur™ Lightbar may be equipped with Code 3® OPTIX™ 360 degree corner LED modules that provide a full 360 degree of warning.The optic has been designed to exceed all applicable requirements for 360 degree warning devices in Red, Blue, Amber and White. The new OPTIX corner module is a ( 1" X 6" ) module and uses larger, higher efficiency, TIR optics to produce an enhanced corner signal over the exisitng ( 1" X 4" ) Code 3 LED X™ corner module. While the OPTIX will become the standard corner module for most configurations, the LED X corner module will still be available and may be required for some configurations. Installation and Operation for both modules will be the same. Consult the factory for further information.
Operating Specifications for 360 degree module:
Operating Voltage: 10-16 VDC, Reverse Polarity Protection Current Draw : Red/Amber - .5A avg @ 12.8 Volts
Blue/White - .8A avg @ 12.8 Volts
Available Colors - Red, Blue, Amber and White
7
Master/Slave Operation
Each 360 degree corner module consists of a "master" and a "slave" driver circuit board, 360 degree optics and LED light engines along with a single integrated heatsink bracket.
The "master" circuit board (rear position) must always be powered for the "slave"(front position) to flash. The "master" is always located in the rear position of the module. The lightbar is wired to allow running only the rear facing LED on each module by removing power to the front facing "slave" module. This gives a "front-cutoff" function. The flash pattern for each corner pair can be selected by shorting together the 2-pin header J1, on the "master" , momentarily and releasing. The module is set-up for "Cycleflash" as a standard. Holding down the 2-pin header for 5 sec., or longer, and releasing will return the pattern to Cycleflash. The following chart describes the available patterns and order;
360 Degree Module Flash Pattern - Table 1
See Figure 5, page 9, for header location.
Flash Pattern Description
Cycle Flash Cycles through various patterns @ 70 fpm Five Flash Five Pulses per flash @ 70 fpm Quad Flash Four Pulses per flash @ 70 fpm NFPA Four Pulses, 70% Duty Cycle @ 75 fpm Triple Flash Three Pulses per flash @ 70 fpm Quad Pop Flash Four Pulses per flash ( 3 equal, 1 extended) @ 70 fpm
Both heads will be in the mode selected. Both heads will flash together unless in Front Cut-off mode.
LED DIRECTIONAL MODULES
In addition to the 360 warning modules the lightbar may be equipped with a number of single head directional warning LED modules. These modules are available in either the existing LED X™ ( 1" X 4" ) or the new Code 3® OPTIX™ ( 1" X 6" ) and LC-LED directional modules in stationary and flashing versions ( see figure 8). The stationary versions can be flashed by connecting the module(s) to any flasher that does not require ground through the load (example: Code 3® 700 series relay flasher). The flashing modules will have "Cycleflash" as the standard pattern. The OPTIX and LEDX flash pattern can be changed by shorting the 2-pin header, J1 as shown in Figure 5, momentarily then releasing. Table 2 shows the available patterns and the order when stepping through patterns. The module can be reset to "Cycleflash" by shorting the header for greater than 5 seconds and releasing.
Operating Specifications for directional module:
Operating Voltage: 10-16 VDC, Reverse Polarity Protection Current Draw : Flashing Module
Red/Amber - .25A avg @ 12.8 Volts Blue/White - .4A avg @ 12.8 Volts
Steady Burn Module Red/Amber - .5A avg @ 12.8 Volts Blue/White - .8A avg @ 12.8 Volts
Available Colors - Red , Blue, Amber, and White
8
Directional module Flash Pattern - Table 2
Flash Pattern Description
Cycle Flash Cycles through various patterns @ 70 fpm Steady-Burn Steady-Burn Five Flash Five Pulses per flash @ 70 fpm Quad Flash Four Pulses per flash @ 70 fpm Triple Flash Three Pulses per flash @ 70 fpm Double Flash Two Pulses per flash @ 70 fpm Fast Double Flash Two Pulses per flash @ 85 fpm NFPA Four Pulses, 70% Duty Cycle @ 75 fpm Quad Pop Flash Four Pulses per flash ( 3 equal, 1 extended) @ 70 fpm Triple Pop Flash Three Pulses per flash ( 2 equal, 1 extended) @ 70 fpm Double Pop Flash Two Pulses per flash ( 1 equal, 1 extended) @ 70 fpm

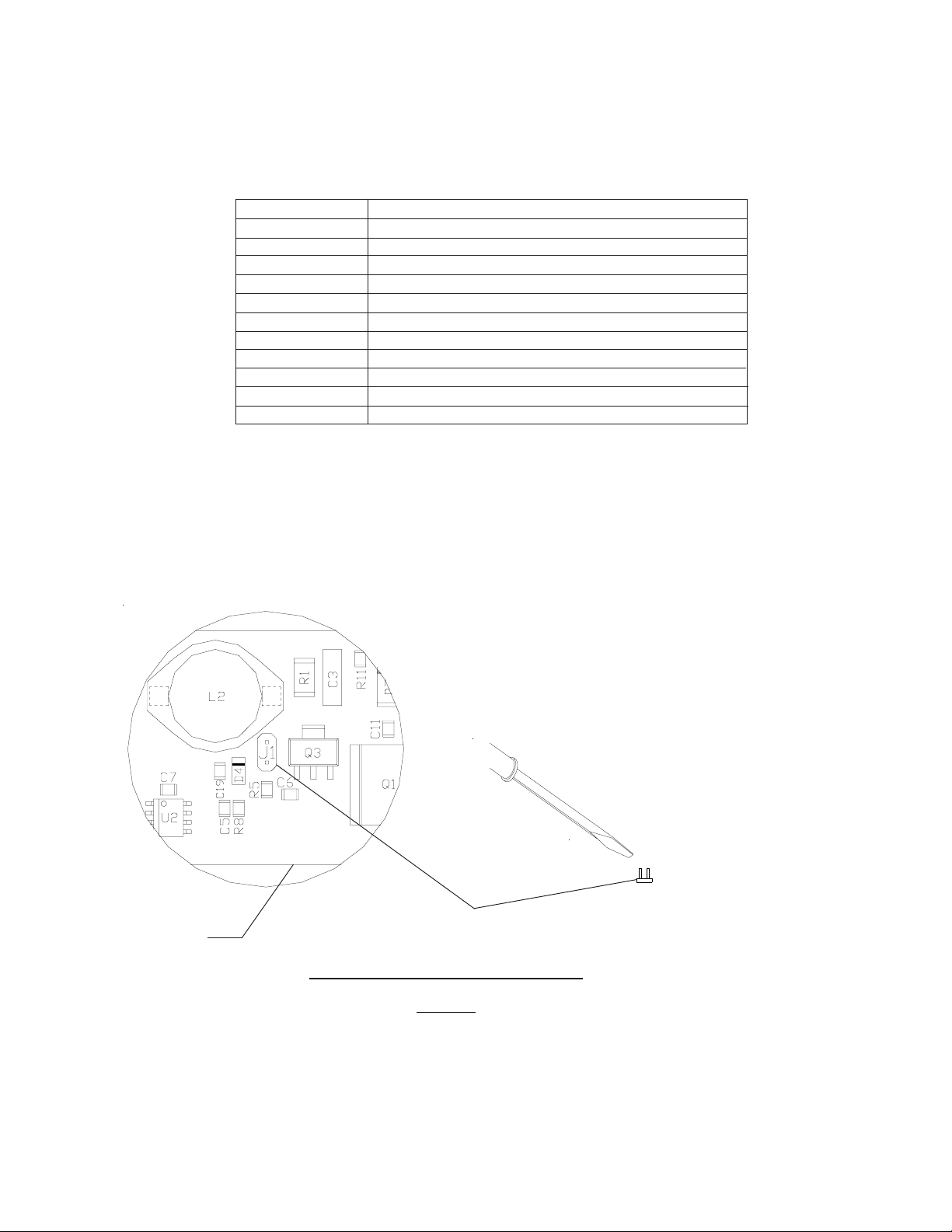

PCB
Momentarily short and release to change patterns
J1
Flash Pattern Header for OPTIX/LEDX
FIGURE 5
9
STROBE LIGHTING CONNECTIONS
POWER CONNECTION
For all configurations the strobe power supply(s) will be powered by the #16AWG RED, and/or RED/BLK wires. For 2 or 4 head configurations, one wire will be used, 6, 8, 10 and 12 head configurations will use two wires. These wires supply power to each strobe power supply. All user switches and wiring connected to the RED,RED/BLK and or RED/WHT wires must be rated for a
minimum of 10 Amps and fused at a maximum of 15 Amps for each wire used.
Flash Patterns - All power supplies offer "Quad Flash" and "Random Flash".The flash patterns are controlled by jumpers on
the power supply and can be changed by first removing the power supply from the lightbar and then setting the jumpers.Refer to the following tables:
6-Head Flash Patterns (FIG.9)
Jumper
J9
J36
Rear Only Flash Pattern
Connect the RED and/or RED/BLK wire in the 16 wire cable to +12 VDC through a user supplied switch.
4/6 Head: Rear inboard and outboard strobes on each side will flash at a minimum rate of 70 FPM
(flashes per minute).
2 Head: If rear inboard strobes are present, strobes will flash at a minimum rate of 70 FPM.
Alternating Flash Pattern
Connect the RED and/or RED/BLK wire and the GREEN wire in the 16 wire cable to +12 VDC through a user supplied switch. This mode overrides REAR ONLY MODE. 4/6 Head: Front and Rear inboard and outboard strobes on each side will flash at a minimum rate of 70FPM (flashes per minute).
2 Head: Front and rear inboard strobes will flash at a rate of 70 FPM.
Pursuit Flash Pattern
Connect the RED and/or RED/BLK wire and the GRN/BLK wire in the 16 wire cable to +12 VDC through a user supplied switch. This mode overrides ALL OTHER MODES.
4/6 Head: Front inboard and outboard strobes on each side will flash at a minimum rate of 70 FPM. 2 Head: If front inboard strobes are present, strobes will flash at a minimum rate of 70 FPM.
Quad
2 - 3 2 - 3
Random
1 - 2 2 - 3
Jumper
J31
Quad
Random
2 - 3 1 - 2
4-Head Flash Patterns (FIG.9)
PSE 490E (FIG.9A)
Quad
YELLOW
N/C +12
Random
10
INTERSECTION LIGHTS - A high intensity 120° oscillator, located in the lower outboard corner of the light bar. Maintenance of these units is much the same as for a typical rotator. The lamps used here are the Bi-Pin type. Two mounting screws hold the assembly in place.
Intersection Light. ALLEY LIGHTS - Located in the lower section of the light bar at each end, to provide light to the side of the vehicle.
The lamps used are a bayonet type. The mounting bracket and reflector are adjustable to allow aiming the unit.
HIGH SPEED ROTATOR - A rotator that produces twice as many flashes as a conventional assembly. The only significant differences between this unit and a normal assembly are that a fast motor is used. Maintenance is the same as for a typical rotator.
STATIONARY LAMPS/TAKEDOWN LIGHTS - A stationary reflector assembly used for ArrowStik flashing, takedown, and/or work light applications. These are located in the lower section of the light bar. Lamps in these units are bayonet type and the units are mounted with two screws.
STOP/TURN/TAIL LIGHTS - Located in the upper section of the light bar facing rear, one on the driver side, one on the passenger side, these lights provide stop, turn and tail signals to following traffic when connected to the vehicle lighting system. Lamps used are an 1157 bayonet type.
D.O.T. LIGHTS - A set of three marker lights as required by the Department of Transportation for truck application. Lamps are wedge base '194' type.
Caution: Never install a black worm on the 120°
OSCILASERTM - This is a highly effective warning light that features a constant 50 watt halogen signal that covers
every area within it's field of illumination at least once per second. It has an up and down as well as a side to side signal. Maintenance for these units is much the same as a typical rotator. The lamps used are bayonet type. This unit is located in the upper center section and/or in the center position in the outboard sections of the light bar.
Maintenance
Lens Cleaning
Use plain water and a soft cloth, or Code 3 lens polish and a very soft paper towel or facial tissue. Because plastic scratches easily, cleaning is recommended only when necessary (about every six months). Do not subject the lenses to car washes that use brushes, as these will scratch the lenses.
Lens Removal
First, disengage the lens clips (4 per lens) as shown in Figure 6. Finally, insert a screwdriver into the inside edge or corner of the lens, and twist the screwdriver to lift the lens.
Twist to
Lift Lens
Pry Up to Remove Lens Clip
11
Figure 6
Changing Rotating Reflector Lamps
Lamps are extremely hot! Allow to cool completely before attempting to remove.
WARNING!
!
Gloves and eye protection should be worn when handling halogen lamps as they are pressurized and accidental breakage can result in flying glass.

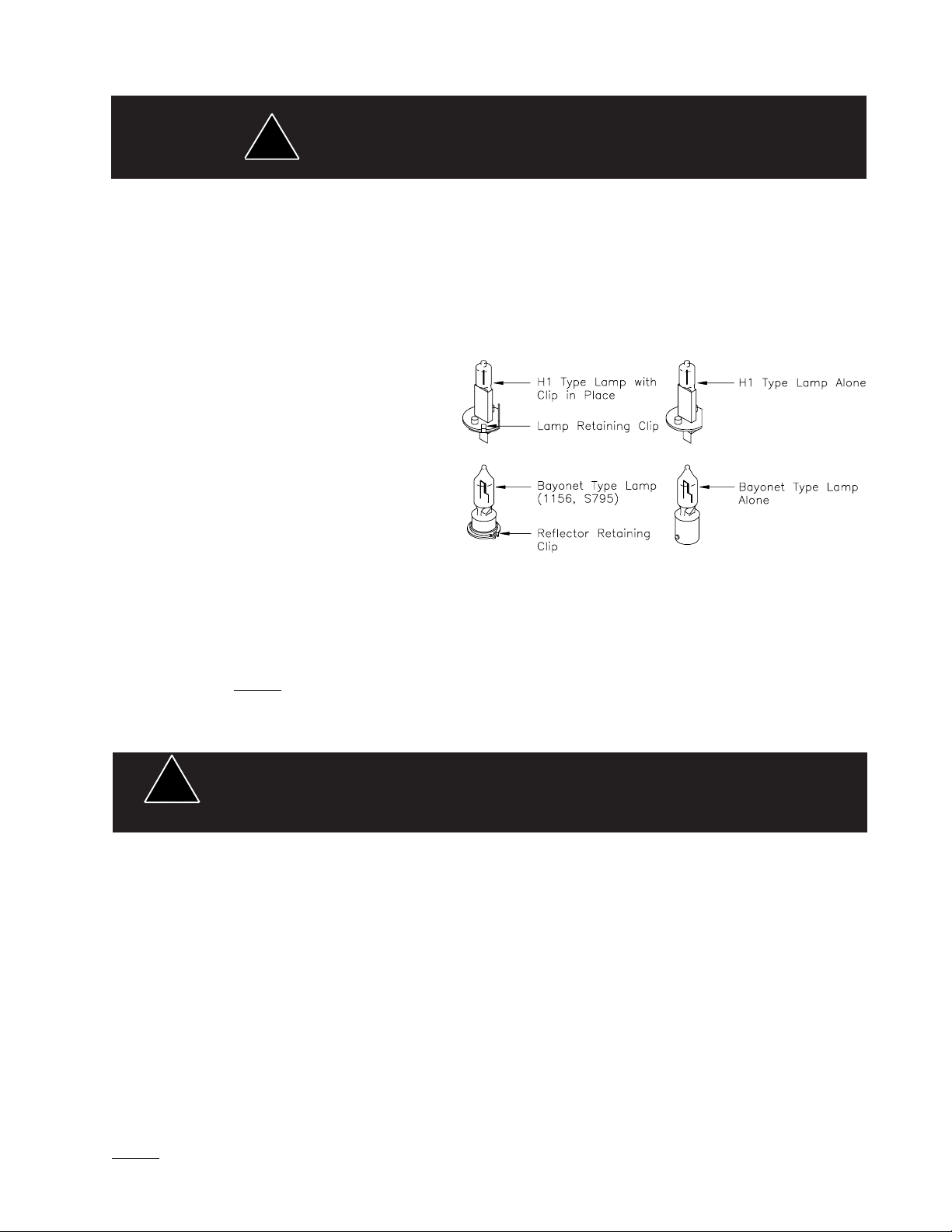

Remove the lens as outlined above. Next, inspect the lamp and compare to Figure 7 to determine lamp type. It may be necessary to remove any rotating or cylindrical filters to make access easier. Note: Make sure lamp is cool before attempting to change it. Also, when installing a new lamp, be sure not to touch the glass with fingers. If contact is made, clean the glass with a soft cloth after inspection. H-1: First grasp lamp at base and turn until retaining clip tab is accessible. Using a blade screwdriver, remove retaining clip and pull lamp straight up. Replace with new lamp. Insure that the power lead and retaining clip is fully seated.
S-795 (Bayonet Style): Push down and turn to remove lamp. Install a new lamp the same way. Note: If attempting to clean the reflector, use only a mild glass cleaner and a very soft cloth. Do not attempt to use any wax type products as these will burn onto the reflector.
Changing Lower Unit Lamp and/or Filter
Refer to Figure 10. Remove the reflector assembly by removing the appropriate fasteners, then remove the snap-on filter if necessary. In most cases, these lamps will be a bayonet style, so simply push in and turn counterclockwise to remove.
Figure 7
Replacement for Upper and Lower Level Components
See exploded view "Parts Section" for fastener removal, component location, and assembly configuration. Caution, extreme care must be taken when installing components to prevent pinching wire connections
and to avoid interference with moving assemblies.
High voltages and/or temperatures are present inside the unit. Disconnect from power
!
WARNING!
Strobe Filter Replacement
Refer to figure 8. The filter can be removed by unsnapping it from the light head and by removing the mirror if present for clearance. Prying the filter from the front may damage the glass strobe tube or reflector. To replace the filter, reverse the above procedure. The filter should be fully engaged on the light head assembly. Care should be taken to not damage the strobe tube or to scratch the reflective surface of the reflector when replacing the filter.
Strobe Light Head Replacement
Refer to figure 8. Disconnect the light head assembly from the strobe power supply and remove the filter if any. Unfasten the screws attaching the light head mounting bracket to the light bar chassis and remove the light head from the light bar. On a bench or other work suitable work surface unfasten the screws attaching the strobe light head assembly from the light head mounting bracket. Install the new strobe light head assembly to the light head mounting bracket and reinstall the light head back onto the light bar chassis. Reconnect the light head wiring to the strobe power supply and reattach the filter. It is important to reroute and secure the wiring as close as possible to its original position.
and wait 10 minutes prior to servicing or troubleshooting. Use hand and eye protection when changing halogen lamps or flashtubes.
Caution, verify that no wires are interfering with the operation of the fan located at the end of the power supply.
12
Electronics Module Removal In the event that the power supply or a strobe lighthead assembly must be returned to the factory for service, mark each wire
with a tag to identify each function and note the proper location before disconnecting the wiring. Figure 9 can be used to mark the locations of the individual connections as well.
Refer to Figure 9 for power supply removal. Remove the four (4) screws holding the power supply. Disconnect the wire leads, and move the power supply to the side. Remove the 2 screws holding the capacitor assembly and lift the strobe power supply/ capacitor assembly from the lightbar as a unit. To reinstall the power supply reverse the above steps.
Caution: Verify that wires are not pinched or damaged when reinstalling power supply.
Strobe Lighthead
Assembly
Filter (if supplied)
FIGURE 8
13
Passenger's Side Front (Org,Blk,Blk/Wht) Driver's Side Front (Brn,Blk,Blk/Wht) Passenger's Side Rear (Grn,Blk,Blk/Wht) Driver's Side Rear (Yel,Blk,Blk/Wht)
Control Wire Harness (Yel/Blk,Brn/Blk)
+12VDC (Red)
4-Head Power Supply
Ground Wire (Blk)
Rear Aux. Output (Red,Blk,Blk/Wht) Rear Output (Grn,Blk,Blk/Wht) Rear Output (Yel,Blk,Blk/Wht)
Control Wire Harness (Yel/Blk,Brn/Blk)
+12VDC (Red)
Front Output (Brn,Blk,Blk/Wht) Front Output (Org,Blk,Blk/Wht) Front Aux. Output (Wht,Blk,Blk/Wht)
Ground Wire (Blk)
6-Head Power Supply
1
2
FRONT
FIGURE 9
3
REAR
4
+12v(RED)
GND(BLK)
N/C(GREY)
FRONT(GRN)
REAR(BLUE)
RANDOM FLASH (YEL)
5 N/C
14
PSE 490E
FIGURE 9A
FIGURE 10
6.00
4.00
3.05
10.95
3.30 .400
FIGURE 11
15
EXCALIBUR EXPLODED VIEW
1
2
3
7
4
6
5
16
8
7
9
10
18
17
FIGURE 12
14
13
11 12
15
16
Note: All screws are part no. 1215 unless otherwise indicated
17
Parts List
(Reference numbers identify items shown in Figures on previous pages)
Ref No. Description Part No.
8 #8 x .250" Sheet Metal Screw T05029
#8 x .270" Sheet Metal Screw T01215
1 #8 x .375" Sheet Metal Screw T00243
5/16" Cable Clamp T00346 1/2" Cable Clamp T00903 3/8" Cable Clamp T00938
H-1 Lamp Retaining Clip T00928 H-1 55W 12V Halogen Lamp T01543 S795 50W 12V Halogen Lamp T01540 S795 27W 12V Halogen Lamp T05077 S795 20W 12V Halogen Lamp T05076
1156 28W 12V Incandescent Lamp T01538 3 Rotating Reflector Assembly S95977 6 Rotator Motor Assy--(Does not include Reflector Assy)
Rotator Motor Assy 55W H-1 Std Speed S95978
Rotator Motor Assy 55W H-1 Fast Speed S95979
Rotator Motor Assy 50W Bayonet Std Speed S95980
Rotator Motor Assy 50W Bayonet Fast Speed S95981
Rotator Motor Assy 24V S95982 9 Rotating Filter
Green S95988 Red S95989 Blue S95990 Amber S95991
2+4 Excalibur Cyl. Filter Assy (Front and Rear)
Green S50870 Red S50872 Blue S50873 Amber S50874
Lens Clip T01777
Excalibur Top Outboard Lens
Clear T02101 Red T02102 Blue T02103 Amber T02104
Excalibur Top Center Lens
Clear T02131 Red T02132 Blue T02133
Amber T02134 16 Excalibur Bottom Outboard Lens - Clear T02361 17 Excalibur Bottom Center Lens - Clear T02371
Excalibur Full Diamond Mirror S50836 Excalibur 2-Step Cascade Mirror Dr. Front Flash S50791 Excalibur 2-Step Cascade Mirror Pass Front Flash S50792 Excalibur Flat Mirror Dr. Front or Pass Rear Flash S50787 Excalibur Flat Mirror Dr. Rear or Pass Front Flash S50788 Excalibur 104° V-Mirror S50793
18
13 Excalibur 20W Halogen Stationary Module S50849
Excalibur 27W Halogen Stationary Module S50850
Excalibur 28W Incandescent Stationary Module S50851 10 Excalibur 28W Incandescent Arrowstik Module S50848 18 Excalibur 20W Halogen Alley Light Driver S50855 14 Excalibur 20W Halogen Alley Light Pass S50856
Excalibur 27W Halogen Alley Light Driver S50863
Excalibur 27W Halogen Alley Light Pass S50864 15 Halogen Lower Light Head Filter
Green T05170 Clear T05171 Red T05179 Blue T05173
Amber T05174 Excalibur External D.O.T. Strip Assembly S50838 Excalibur Stop/Turn/Tail Light W/Adapter Plate S50837 OsciLaser Module S50343 Upper Level 50W Halogen Stationary Module S50839
5 Strobe 2-Head Power Supply S80318
Strobe 4-Head Power Supply S80313 Strobe 6-Head Power Supply S80341
7 Strobe Upper Light Head Assembly – End Signal Position T09424
Strobe Up Lt Hd Assy – End Sig Pos Mirror – DS Frt/PS Rr T09409 Strobe Up Lt Hd Assy – End Sig Pos Mirror – PS Frt/DS Rr T09406 Strobe Upper Light Head Assy – End Signal Pos Filter
Red T09442
Blue T09443
Amber T09444 Strobe Upper Light Head Assembly – Directional Position T09425 Strobe Upper Light Head Assy – Directional Pos Filter
Red T09432
Blue T09433
Amber T09434
11 Strobe Lower Corner Light Head Assembly S50892 12 Strobe Lower Front/Rear Light Head Assembly S50888
Strobe Lower Light Head Tube Assembly T03893 Strobe Lower Light Head Filter
Green T03910
Red T03912
Blue T03913
Amber T03914
22.5" Beacon Lens Part Numbers
LEDX 2100 22.5" Upper Beacon Lens (Clear) T07971 LEDX 2100 22.5" Lower Beacon Lens (Clear) T07961 LEDX 2100 22.5" Lower Beacon Lens (Amber) T07964
22.5" Upper Excalibur Lens (Clear) T07951
22.5" Upper Excalibur Lens (Red) T07952
22.5" Upper Excalibur Lens (Blue) T07953
22.5" Upper Excalibur Lens (Amber) T07954
19
Troubleshooting
All Excalibur® Strobe Lightbars are thoroughly tested prior to shipment. However, should you encounter a problem during installation or during the life of the product, follow the guide below for information on repair and troubleshooting. Additional information may be obtained from the factory technical help line at 314-426-2700 ext. 2131.
NO STROBE LIGHTS IN THE LIGHTBAR OPERATE - Check the following: 1) +12 VDC source connection for the control switch box and any in line fuse 2) Connection of the RED and RED/BLK wire at the control switch box 3) Check the 15 Amp ATO fuse on each power supply. If the fuse is blown, replace it with another 15 Amp fuse and test the lightbar. If the fuse continues to blow, return the power supply only, NOT the entire lightbar, to the factory for service. For instructions on power supply removal see the " Electronics Module Removal " section of this manual.
!
Do not replace the fuse with one of a higher rating. This will damage the power supply and void all warranties.
WARNING!
ONE STROBE LIGHT MODULE DOES NOT OPERATE - Check the defective strobe light module by switching it with a module that
is known to be working.
STROBE OPTION
TROUBLESHOOTING GUIDE
PROBLEM
Light heads do not fire.
Only front strobes flash.
a. Harness that connects power
supply to strobe head has loose connections or damaged
harness. b. Faulty strobe Lighthead. c. High voltage shorting to ground (earth) through harness.
a. GRN/BLK control wire connected
to +12VDC overrides other
modes.
CAUSE
SOLUTION
a. Check all connections.
Check harness by switching harness with functioning
strobe head.
Replace harness. b. Check with known good Lighthead. c. Isolate shorted harness by disconnecting one at a time.
Replace harness.
a. See "Strobe Lighting Connections" section.
Reconnect switching.
Led module won't Dim
a. White wire on module not connected
to a +12V source.
20
Follow the guide below for information on repair and trouble shooting for the arrowstik option.
ARROWSTIK® OPTION
TROUBLESHOOTING GUIDE
PROBLEM
ArrowStik does not function when turned on
Lamp does not come on when it should.
Right most lamp does not come on in Arrow Left mode or left most lamp does not come on in Arrow Right mode.
QUESTION
Are LED's func­tioning properly?
Yes
No
Are LED's function­ing properly?
Yes
No
CAUSE
a. Plug in rear of control box is
loose or disconnected. b. Poor ground connection a. Power from battery has been
disconnected or the control
box has been damaged.
a. Lamp has burned out. b. Bad wiring connection.
a. Control box has been
damaged. a. Normal operation
SOLUTION
a. Reconnect plug. b. Reconnect ground.
a. Check connections at the battery and
plug. If connections are good and voltage is at least 10 volts, the control box has been damaged. Repair or return to Code 3.
a. Replace lamp. b. Repair connection.
a. Repair or return to Code 3.
a. None
ArrowStik runs opposite pattern than selected.
Lamp looks dim.
a. Defective Wiring.
b. Control box has been
damaged. a. Defective lamp.
b. Low voltage. c. Poor ground d. Product is in "Dim" mode.
NOTES:
a. Check that the cable exit is on the
driver's side b. Repair or return to Code 3. a. Repair or return to Code 3.
a. Replace lamp. b. Check connections or battery. c. Check ground and wire gauge. d. Select appropriate mode.
21
NOTES
22
NOTES
23
WARRANTY
Code 3®, Inc. emergency devices are tested and found to be operational at the time of manufacture. Provided they are installed and operated in accordance with manufacturer's recommendations, Code 3®, Inc. guarantees all parts and components except the lamps to a period of 1 year (unless otherwise expressed) from the date of purchase or delivery, whichever is later. Units demonstrated to be defective within the warranty period will be repaired or replaced at the factory service center at no cost.
Use of lamp or other electrical load of a wattage higher than installed or recommended by the factory, or use of inappropriate or inadequate wiring or circuit protection causes this warranty to become void. Failure or destruction of the product resulting from abuse or unusual use and/or accidents is not covered by this warranty. Code 3®, Inc. shall in no way be liable for other damages including consequential, indirect or special damages whether loss is due to negligence or breach of warranty.
CODE 3®, INC. MAKES NO OTHER EXPRESS OR IMPLIED WARRANTY INCLUDING, WITHOUT LIMITATION, WARRANTIES OF FITNESS OR MERCHANTABILITY, WITH RESPECT TO THIS PRODUCT.
If a product must be returned for repair or replacement*, please contact our factory to obtain a Return Goods Authorization Number (RGA number) before you ship the product to Code 3®, Inc. Write the RGA number clearly on the package near the mailing label. Be sure you use sufficient packing materials to avoid damage to the product being returned while in transit.
*Code 3®, Inc. reserves the right to repair or replace at its discretion. Code 3®, Inc. assumes no responsibility or liability for expenses incurred for the removal or reinstallation of products requiring service or repair.
Code 3 is a registered trademark of Public Safety Equipment, Inc.
PRODUCT RETURNS
St. Louis, Missouri 63114-2029—USA
Ph. (314) 426-2700 Fax (314) 426-1337
Revision 10, 07/05 - Instruction Book Part No. T05075
24
10986 N. Warson Road
©2005 Code 3®, Inc. Printed in USA
Code 3®, Inc.
www.code3pse.com
Loading...
