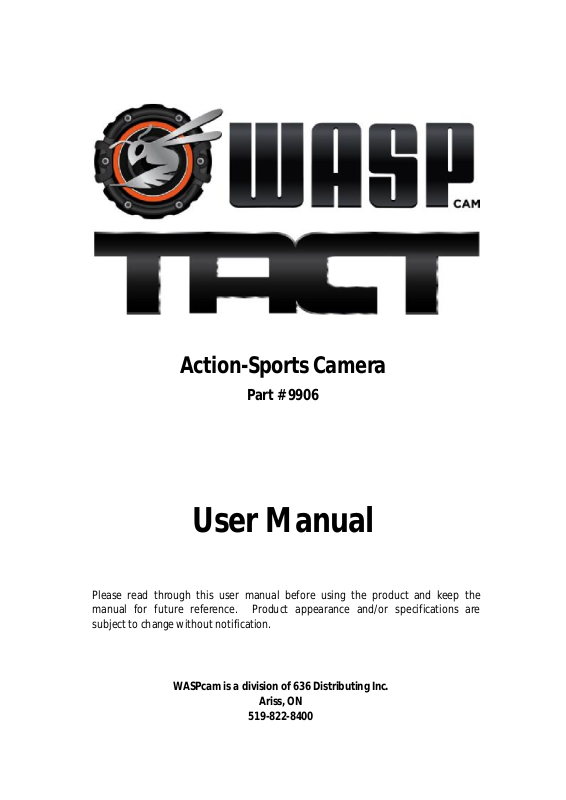

Action-Sports Camera
Part # 9906
User Manual
Please read through this user manual before using the product and keep the
manual for future reference. Product appearance and/or specifications are
subject to change without notification.
WASPcam is a division of 636 Distributing Inc.
Ariss, ON
519-822-8400
TABLE OF CONTENTS
Safety Precautions 3
System Requirements / Features 4
Accessories 5
Camera Function Quick Guide Diagram 6-7
Button Functions 7
Installing SD Card 8
Using the LED Lights 8
Charging the Battery 8
Turning the Camera On/Off 8
LCD Screen 8
Maintaining Waterproof Seal 9
Recording Functions 9-10
Image Rotation 10
Photos 10-12
Zoom / Playback Mode 11
Deleting / Protecting Files / Slide Show 12
Menu Interface Introduction 12
Video Menu Settings 12-13
System Menu Settings 13
Photo Menu Settings 13-14
Using the Camera’s Wi-Fi 14-16
Installing the WASPcam TACT App 14
WASPcam TACT App Interface 16-17
Remote Control (Functions & Indicators) 18
Connecting to External Devices 19
Technical Specifications 20
Copyright Notice 20
2
Safety Precautions
• Read the following guidelines before using this camera
• Refer to the manual instructions to operate the camera properly. Improper
operation may cause damage to camera internal components
• Do not store the product in dusty, dirty, or sandy areas, as its components
may be damaged
• Do not leave the camera in places exposed to extremely high temperatures, such
as direct sunlight for extended periods of time. High temperatures can shorten
the life of electronic devices, damage batteries and warp or melt certain plastics
• Do not store the product in cold areas. When the product warms up to its
normal temperature, moisture can form inside, which may damage the
electronic circuits
• Do not attempt to open the casing or attempt your own repairs. High-voltage
internal components create the risk of electric shock when exposed
• Do not drop or knock the product. Rough handling may damage the
internal components
• Do not use harsh chemicals, cleaning solvents or strong detergents to
clean the product. Wipe the product with a slightly damp soft cloth
• Do not open the battery cover while an image is being recorded. Doing so will
not only make storage of the current image impossible, it can also corrupt
other image data already stored on file
• If the product or any of its accessories are not working properly, please
contact 636 Distributing Inc. and our tech team will assist you and if necessary,
arrange for the product to be repaired or replaced
• It is recommend to use the camera in temperatures between 0°C to 40°C
• Turn off the camera before removing the memory card, to avoid damaging the
card or storage data
• It is normal for the camera to be warm after long periods of use
• Do not touch the lens while using the camera or it can affect video/picture
quality
• Please use the air blower (special lens blowing equipment) to clean lens or use
special lens-cleaning cloth to clean fingerprint or dust on the surface
• Always test for proper operation before using the camera
• 636 Distributing Inc. is not responsible for any damage or personal injuries
resulting from the use of the WASPcam TACT or for replacing it if lost or stolen
• 636 Distributing is not responsible for any legal repercussions from the use
of the WASPcam TACT or from the sharing of footage
3
System Requirements
The camera requires a PC with the following specifications for full HD 1080p
30fps and 720p 60fps playback
Windows® 8 /Windows® 7 /Vista / XP (SP2) / MAC OS X 10.5 and later
Intel® / AMD Dual-Core CPU and later
At least 1 GB of RAM or higher
At least DirectX 9 video card, DirectX 10 is recommended
Standard USB 1.1 port and later
At least 2GB or greater available hard disk space
Features
The camera offers a variety of features and functions including
2K 1440P (30fps), Full HD 1080p (60fps.)
H.264 Video Clip
170° Wide Angle Lens
WLAN 802.11 b/g/n
2.4GHz RF remote control
16 Megapixel Photos
Li-ion Rechargeable Battery
Smartphone App Supported – WASPcam TACT App
4
ACCESSORIES
The following items should be in your the package. If any items are missing or
damaged, contact your dealer immediately.
Micro USB Cable
Bar Mount
Helmet Mount
Tripod Mount Adapter
User Manual
Li-Ion Battery
Straight Joint Mount
3M Stickers
Wrist Remote
J-Hook Buckle
Wall Charger
Flat Mount w/3M Tape
Curved Mount w/3M Tape
5
Camera Function Quick Guide Diagram
Refer to the following illustrations to familiarize yourself with the buttons and
controls of this camera
6
BUTTON FUNCTIONS
Button Function
Power Button (Top Left)
Mode Button
M
Record Button (Top Right)
Menu Button
OK Button
To turn the camera on & off
To capture pictures when recording
To switch to picture mode, video mode and playback
mode
Start and stop taking photos/videos,
Returns to the photo/video mode when you are in
the menu
To enter / exit menu settings
To browse photos and videos, to enter and confirm
settings under setting mode
OK
Left Button
Right Button To choose the next menu or file,
LED Light On/Off Button
To choose the last menu or file,
To zoom in image.
To Reverse playback under playback mode.
To zoom out image.
To fast forward playback under playback mode.
To turn the LED light on and switch between bright,
normal, flashing and off
B
ASIC CAMERA FUNCTIONS
7
