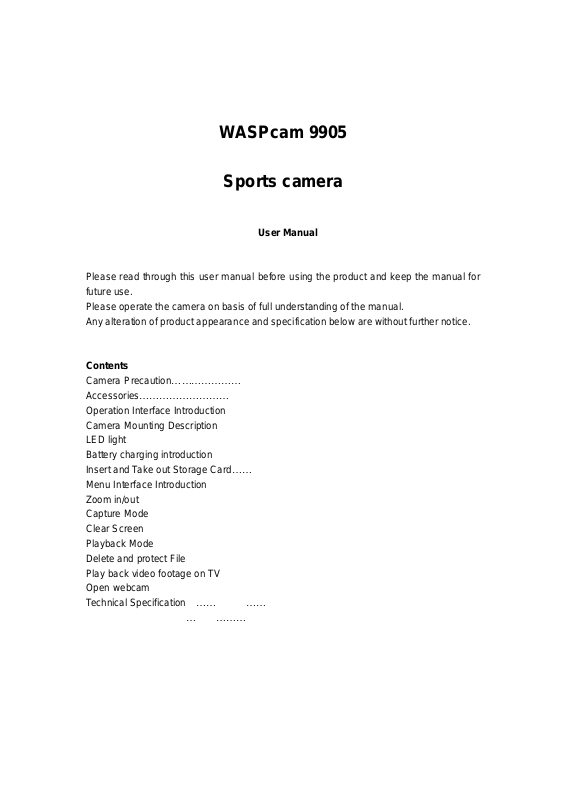

WASPcam 9905

Sports camera

User Manual

Please read through this user manual before using the product and keep the manual for
future use.
Please operate the camera on basis of full understanding of the manual.
Any alteration of product appearance and specification below are without further notice.

Contents

Camera Precaution…………………
Accessories………………………
Operation Interface Introduction
Camera Mounting Description
LED light
Battery charging introduction
Insert and Take out Storage Card……
Menu Interface Introduction
Zoom in/out
Capture Mode
Clear Screen
Playback Mode
Delete and protect File
Play back video footage on TV
Open webcam
Technical Specification

…

……

………

……

Precaution

Pls be well noted with the following guidelines before you use this camera,
* Pls refer to manual instruction and operate the camera correctly. Illegal operation may
cause damage to camera internal components.
* Do not fall or hit the camera, it may damage the internal components.
* For your safety, please keep the camera from the children and animals, in order to avoid
accident
* Do not place the camera in a damp or dusty location for extended periods of time. This
may cause a fire or an electrical shock.
* Do not leave the camera in places exposed to extremely high temperatures, such as
under direct sunlight for extended periods of time. This may affect the camera housing
and internal components
*We recommend using batteries in temperatures between 0 to 40.℃℃
Turn off the camera before removing the memory card, in case of the damage of card or
storage data.
*The camera is matched with waterproof case. Pls use it when the camera needs to keep
water away. We should take no responsibilities for the damage of camera or leakage
because of it.
* The temperature rise is normal after using the digital cameras for a long time
*Do not touch the lens during using the camera, so as not to influence the photography
effect
* Please use the air blower (special lens blowing equipment) to clean lens or use special
lens-cleaning cloth to clean fingerprint or dust on the surface.

Accessories

Standard Accessories
1, USB cable

2,Handlebar mount
3, Helmet pedestal
4, Helmet activity pedestal
5, Long screw
6, User manual
7, Battery

8

, Watch remote control

, 3M pads

9

, Nylon velcro strap

10

, Waterproof USB cable

11

Operation Interface Introduction

1) Interface Introduction

1, Lens
2, Led night
3, Power key
4, REC key
5, LCD screen
6, Mode key
7, Menu key
8, OK key
9, LED on/off key
10, Left key
11, Right key
12, Working indicator
13, Charge indicator
14, USB port
15, HDMI port
16, Back cover
17, Locker
18, SD slot

Button function Introduction

Power key（ ）：To turn on/off the camera; to clear screen character, to delete files
under playback mode
Mode key ( ): to switch to capture mode, video mode and the playback mode
REC key ( ): take photos and videos, and stop taking videos, return capture and video
mode under menu mode.
Menu key ( ): to enter into and exit menu setting,
OK key ( ): to browse photos and videos, to enter and confirm settings under setting
mode.
Left key ( ): to choose the last menu or file, zoom out the image, and reduce voice
volume under playback mode. Back to the last frame under one frame playback
Right key ( ): to choose the next menu or file, to zoom in the image, and increase
sound volume under playback mode. Enter to the next frame under one frame playback.

LED light“ ” :to switch strong, normal, flash and off light

Power on/off camera

1, Turn on

Press “ ” key for 3 secs, with one beeping sound, the working indicator light up,
and “welcom” show on screen. Camera starts up and enter standby(default is record
mode) .
On the top of LCD screen it displays the record icon,anti-shaking icon, remaining
recording time of card icon;
at the bottom of LCD screen it displays the battery icon, date and time icon.
At the left of LCD screen it display loop-recording, white-balance and sound
recording icon,
At the left of LCD screen it display resolution, SD card icon.
2, Turn off

Press “ ”key for 3 secs, it will turn off after one beeping sound.

Mounting Description

The camera can be mounted in many ways. The methods of mounting are suggested as
below:
1, Mount to the top of helmet
Thread the nylon strap into helmet pedestal, then thread the nylon strap into helmet and

fasten it, then fix pedestal more firmly using 3M pads. (Pic. 1, 2, 3, 4)

Pic. 1: Pic. 2, Pic. 3: Pic. 4:

2, Mount handlebar grip
As shown in below pictures insert the camera to the handlebar mount then install onto the
motorcycle or bike.

LED light

Press once “ ” to open stronger light, press again to open normal light, press
the 3rd time to open flash, and press the 4th time to off light,

Battery charging

Connect camera and power supply using USB and charger. During charging, the red
indicator is on. When it is fully charged, the indicator will be off.

Notice:

1, To improve the charging efficiency, please turn off camera during charging.

2, Please make sure power is on during charging.
