Cobra Electronics 9902 User Guide

User’s Manual

HD Action Camera

i

Table of Contents

About this manual ............................................................ iv!

Copyright ........................................................................... iv!

Precautions ........................................................................ v!

Operating conditions ............................................... vi!

Notes on Waterproof Case ............................................... vii!

Before You Start ................................................................ x!

1! Introducing the Camera ............................ 1!

1.1! System Requirements .............................................. 1!

1.2! Features ................................................................... 1!

1.3! Unpacking the Camera ........................................... 2!

1.4! About the Camera ................................................... 4!

1.4.1! Camera Views ............................................. 4!

1.4.2! Button Functions ........................................ 5!

1.4.3! LED Indicators ............................................ 6!

2! Getting Started ........................................... 7!

2.1! Installing the Micro SD Card ................................. 7!

2.1.1! Removing the Micro SD card ................... 8!

2.2! Installing the Battery .............................................. 8!

2.2.1! Removing the battery ................................ 9!

2.3! Charging the Battery ............................................ 10!

2.4! Turning ON/ OFF the Camera ............................ 11!

2.5! OLED Screen ........................................................ 12!

2.6! Changing Modes ................................................... 15!

2.7! Connecting to TV (HDMI Cable) ......................... 16!

ii

2.8! Connecting to PC (Micro USB Cable) ................. 16!

3! Capturing Videos and Photos .................. 17!

3.1! Recording Videos .................................................. 17!

3.2! Taking Photos ....................................................... 17!

3.2.1! WiFi ............................................................ 18!

3.2.2! Burst Shooting .......................................... 18!

3.2.3! Time Lapse Shooting ............................... 19!

3.2.4! Self-Timer .................................................. 19!

3.2.5! Loop Recording ........................................ 19!

4! Adjusting the Settings .............................. 21!

4.1! Video Resolution ................................................... 23!

4.2! Photo ...................................................................... 25!

4.3! Timer ..................................................................... 28!

4.4! Shooting Interval .................................................. 29!

4.5! Up/Down ................................................................ 31!

4.6! Loop ....................................................................... 32!

4.7! Delete ..................................................................... 35!

4.8! OSD Up/Down ....................................................... 37!

4.9! LED ....................................................................... 38!

4.10! Brightness .............................................................. 39!

4.11! Beep ....................................................................... 40!

4.12! Auto-Off ................................................................ 41!

4.13! Date and Time ....................................................... 42!

4.14! RF .......................................................................... 44!

iii

4.15! Factory Default ..................................................... 46!

5! Using the Accessories ............................... 47!

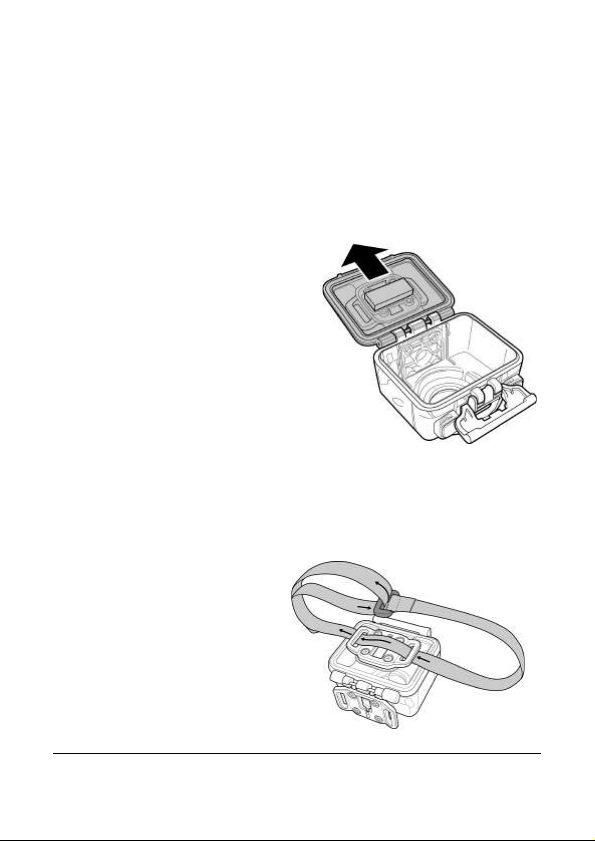

5.1! Waterproof Case ................................................... 47!

5.1.1! Using the Waterproof Case ..................... 47!

5.1.2! Changing the T Tip Adapter ................... 49!

5.1.3! Changing the Housing Back Door ......... 50!

5.2! Velcro Strap ........................................................... 50!

5.3! Assembling the Camera Accessories .................... 50!

5.4! RF Watch Remote Control ................................... 52!

Appendix ............................................................ 54!

Specifications ................................................................... 54!

Troubleshooting ............................................................... 56!

FCC Statement ................................................................. 57!

Radiation Exposure Statement ........................................ 57!

iv

Preface

Congratulations on your purchase of this advanced camera. Ensure
that you read this manual carefully and keep it in a safe place for
future reference.

About this manual

Every effort has been made to ensure that the contents of this
manual are correct and up to date. However, no guarantee is made
regarding the accuracy of the contents. The manufacturer reserves
the right to change the contents, technology, and specifications
without notice.

Copyright

© Copyright 2013.

All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system or translated
into any language or computer language, in any form or by any
means, electronic, mechanical, magnetic, optical, manual or
otherwise, without the prior written permission of the
manufacturer.

v

Precautions

General precautions

• Do not store the product in dusty, dirty, or sandy areas, as its

components may be damaged.

• Do not store the product in a hot environment. High

temperatures can shorten the life of electronic devices, damage
batteries and warp or melt certain plastics.

• Do not store the product in cold areas. When the product

warms up to its normal temperature, moisture can form inside,
which may damage the electronic circuits.

• Do not attempt to open the casing or attempt your own repairs.

High-voltage internal components create the risk of electric
shock when exposed.

• Do not drop or knock the product. Rough handling may

damage the internal components.

• Do not use harsh chemicals, cleaning solvents or strong

detergents to clean the product. Wipe the product with a
slightly damp soft cloth.

• Do not open the battery cover while an image is being

recorded. Doing so will not only make storage of the current
image impossible, it can also corrupt other image data already
stored on file.

• If the product or any of its accessories are not working

properly, take them to your nearest qualified service center.
The personnel there will assist you and if necessary, arrange
for the product to be repaired.

• Test for proper operation before using the camera.

vi

Operating conditions

• This camera is designed for use in temperatures ranging from

0°C to 40°C (32°F to 104°F).

• Do not use or keep the camera in the following areas:

- In areas subject to direct sunlight

- In areas subject to high humidity or dust

- Near air conditioners, heaters, or other areas subject to
temperature extremes

- Inside of a closed vehicle, especially one parked in the sun.

- In areas subject to strong vibration

Power supply

• Use only the type of battery that came with your camera.

Using any other type of battery may damage the equipment
and invalidate the warranty.

• Do not short the battery terminals. The battery could overheat.

• Do not attempt to split or peel the outer casing.

• Remove the battery if the camera is not going to be used for a

long time. If the battery is left unused for more than 3 months,
you need to charge the battery before use.

vii

Notes on Waterproof Case

Waterproof Case performance

• The waterproof case performance is equivalent to

IPX8

(60m/1hr).

• Underwater time limit: Do not use the waterproof case

underwater for more than 60 minutes and 60 meters to ensure
water resistance.

• The waterproof case is not dust-proof.

• The camera and other accessories are not waterproof unless

enclosed by the waterproof case.

• When using the camera in cold or humid environments or

when going underwater, use the anti-fog insert to prevent
fogging. The anti-fog insert only provides a certain degree of
prevention, results vary depending on the actual environment.
The anti-fog insert is not for long-term use, it must be replaced
regularly.

Notes before going underwater:

(Do the following actions indoors. Do not do these actions on sandy
or dusty environment or near the water’s edge.)

• Check if the area surrounding the waterproof case lock is

clean, do not allow dirt or sand or foreign objects around it.

• Ensure that the waterproof case is closed.

• Ensure that the waterproof case has no cracks or scratches. If

the waterproof case has been dropped, contact your dealer for
a replacement.

viii

Notes for general use:

• Avoid opening or closing the waterproof case near the water’s

edge (sea, lake, beach, lake, etc.). Do not open or close the
waterproof case lock with wet hands, or hands with sand or
dust.

• The accessories (batteries, etc.) used with the camera are not

water resistant, be careful in using them.

• Do not drop the waterproof case to ensure waterproof

durability.

• Do not place the waterproof case in temperatures above 40°C

or below 0°C to ensure waterproof durability.

• Do not attempt to make alterations on the waterproof case or

seal the vents yourself, doing so may damage its ability to
maintain the camera waterproof.

When using the camera

• The waterproof properties of the waterproof case apply to

fresh water and saltwater only; they do not apply to cleaning
substances, chemicals, or water from spas, etc. Any such
liquids should be wiped off immediately.

• Do not immerse the waterproof case in water at a depth

greater than 60 meters.

• Do not subject the waterproof case to highly pressurized

water.

• Do not immerse in water for longer than 60 minutes. After 60

minutes of use in water, allow the waterproof case to dry for at
least 10 minutes.

• Do not immerse in water warmer than 40°C (104°F).

• Do not open or close the waterproof case lock with wet hands.

• Do not open the waterproof case lock next to water or a pool.

• The waterproof case is not dust-proof.

ix

• Do not bump or knock the waterproof case underwater,

otherwise the lock may open.

Notes on waterproof case maintenance

• The waterproof of sealing material is replaceable for a fee. The

material should be replaced once a year to maintain its water
resistance.

After using the waterproof case

• Be sure to come ashore within 60 minutes after going

underwater, this will maintain the appearance, quality and
water resistance of the waterproof case.

• After taking pictures underwater, clean the waterproof case

with running tap water. Do not use any soapy water, mild
detergents, alcohol or similar liquids to clean the case.

• Wipe off water drops on the waterproof case with a soft

lint-free cloth (avoid fiber). Be sure to wait until the waterproof
case is completely dry before opening the waterproof case
lock.

• After removing the camera from the waterproof case, soak the

waterproof case in a bucket of clean water for about 10
minutes. After 10 minutes, wipe the waterproof case dry with
a lint-free cloth. Place the waterproof case in a well ventilated
cool place to dry naturally (do not place under direct sunlight).

Other notes

• If water accidentally enters the camera or any problem occurs

when it is in water, please get it out of the water immediately
and take proper actions. Dry the camera and send it for repair,
if required.

• Information is subject to change without notice. Refer to the

important notes in the manual supplied with the camera.

x

Before You Start

Take some test shots before you use your camera.

Before taking pictures with this camera, test the camera beforehand
to ensure that it functions properly. Any additional loss caused by
the malfunction of this product (such as costs of photography or
any loss of benefit generated by the photography) is not the
responsibility of the manufacturer and no compensation will be
given for it.

Copyright information

Take care to observe "No Photography" notices in certain locations.
In these cases, you cannot record any live performance,
improvisation or exhibits, even for personal purposes. Any transfer
of pictures or memory card data must be conducted under the
constraints of copyright law.

1

1 Introducing the Camera

Read this section to learn about the features and functions of the
camera. This chapter also covers system requirements, package
contents, and descriptions of the hardware components.

1.1 System Requirements

The camera requires a PC with the following specifications for full
HD 1080p 30fps and 720p 60fps playback:

• Windows

®

8 /Windows® 7 /Vista / XP (SP2) / MAC OS X

10.5 and later

• Intel

®

/ AMD Dual-Core CPU and later

• At least 1 GB of RAM or higher

• At least DirectX 9 video card, DirectX 10 is recommended

• Standard USB 1.1 port and later

• At least 2GB or greater available hard disk space

1.2 Features

The camera offers a variety of features and functions including:

• Full HD 1080p (60fps.)

• H.264 Video Clip

• 140° Wide Angle Lens

• WLAN 802.11 b/g/n

• 2.4GHz RF remote control

• 16 Megapixel Photos

• Sports Camera functionality

! Note:

A USB 1.1 port will enable you to transfer files to and from your
host PC, but transfer speeds will be faster with a USB 2.0 port.

2

• Li-ion Rechargeable Battery

• External Waterproof Case/Standard Mounts/Watch Remote

• Smartphone App Supported

1.3 Unpacking the Camera

The following items should be present in the package. If any item is
missing or appears damaged, contact your dealer immediately.

Camera

Li-ion Battery

User Manual

CD-ROM

Micro USB Cable

HDMI Cable

(optional)

AC Adapter

3

Standard Accessories

Waterproof Case

Vented Housing

Backdoor

Waterproof

Housing Backdoor

T Tip Adapter

Flat Adhesive

Socket

Curved Adhesive

Socket

Secure Tether

Velcro Strap

Swivel T Tip

Anti-fog Inserts

Safety Lock

4

1.4 About the Camera

Refer to the following illustrations to familiarize yourself with the
buttons and controls of this camera.

1.4.1 Camera Views

Power/Status
LED 1

Lens

Speaker

HDMI port

Shutter button

Power/Status/
Battery LED 2

Power / Mode
button

OLED screen

Micro SD

card slot

Battery compartment
cover

Power/Status LED 4

Microphone

jack

Micro USB

port

Microphone

Power/Status

LED 3

5

1.4.2 Button Functions

Power / Mode

Button

• Press and hold for 3 seconds to turn the

camera on or off.

• Press to switch to different modes: Video,

Photo, WiFi, Burst, Time Lapse,
Self-timer, and Set mode.

• In Set mode, press to scroll through menu

items.

Shutter Button

• In Video mode, press to start/stop video

recording.

• In Photo mode, press to take a photo.

• In Set mode, press to select an item.

6

1.4.3 LED Indicators

The camera has four LED indicators.

The Power/Status LEDs are located on top, on the bottom, and on
the back of the camera. These LEDs are designed for users to see the
status of the camera whichever way the camera is held or mounted.

LED

Color

Description

Power / Status
LED

Green

During startup

Green Blinking

Taking photos/ WiFi initial
setup is complete and
connection is in progress

Red Blinking

Video recording in progress

Red Blinking
Rapidly

Self-timer

Battery LED

Red Blinking

Battery is charging

Off

Full charge

7

2 Getting Started

Read this section to learn how to start using the camera. This
section covers basic functions such as switching on, installing the
battery and micro SD card, and configuring preliminary settings.
See later chapters for advanced functions.

2.1 Installing the Micro SD Card

A micro SD card is required to capture photos and videos. The
camera supports micro SDHC cards up to 32GB.

1. Insert the micro SD card into the card slot with the gold

contacts facing the front of the device.

2. Push the micro SD card until it clicks into place.

" Warning: Do not remove the micro SD card while data is being

recorded. Doing so may corrupt the saved data and damage the
card.

8

2.1.1 Removing the Micro SD card

1. Turn off the camera.

2. With a fingertip, push the micro SD card to eject it from

the slot.

3. Remove the micro SD card.

2.2 Installing the Battery

" Warning: Use only the supplied battery or a similar battery

recommended by the manufacturer or the dealer.

1. Push down the battery compartment cover to open it.

2. Align the battery contacts and then insert the battery into

the compartment with the ribbon underneath the battery.

9

3. Close the battery compartment cover.

2.2.1 Removing the battery

1. Open the battery compartment cover.

2. Pull the ribbon to remove the battery.

10

2.3 Charging the Battery

You can charge the battery using the micro USB cable that came
with the camera. Follow the steps below to charge the battery.

1. Install the battery into the

battery compartment.

2. Plug the micro-USB

connector to the USB port
of your device.

3. Plug the other end of the

USB cable to a computer.

Note:

" The battery LED blinks red. After a full charge, the LED turns

off.

" Approximate charging time is 240 minutes with a USB

connection. Actual charging time depends on current battery
capacity and charging conditions.

" You may also use the supplied

AC adapter to charge your camera
battery.
