Cobra MR HH475 FLT BT, MR HH475 FLT ET, MR HH475 FLT EU Serivce Manual

MARINE HANDHELD TRANSCEIVER

CatalogNumber:MRHH475FLTBT/EU

CONTENTS

MRHH475FLTBT/EU

Page

Specifications........................................................................................................................................................2

Theory of Operation...............................................................................................................................................4

Block Diagram.......................................................................................................................................................7

Disassembly Instructions................................................................... ..................................................................8

Alignment Procedures...........................................................................................................................................9

Adjustment Procedure.........................................................................................................................................10

Wiring Diagram....................................................................................................................................................11

Printed Circuit Board............................................................................................................................................12

Troubleshooting..................................................................................................................................................15

Exploded View.....................................................................................................................................................16

Exploded View Part List......................................................................................................................................18

Electrical &Packing &Other Parts List..................................................................................................................20

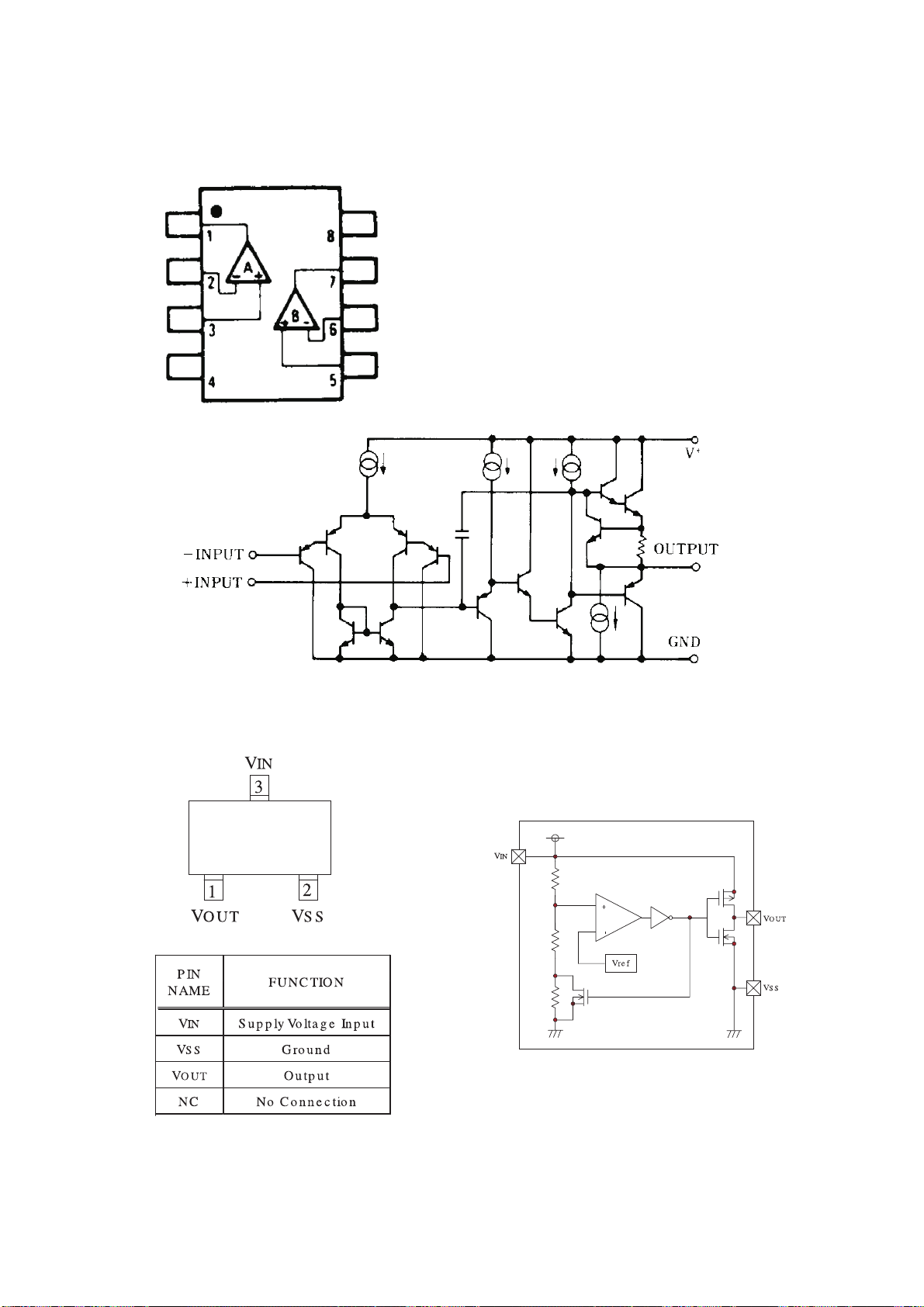

IC Lead Identification and Internal Diagram.........................................................................................................52

Transistor Lead Identification...............................................................................................................................61

VoltageChart.......................................................................................................................................................62

Schematic Diagram.............................................................................................................................................66

Version:01Date:Mar16,2010

SPECIFICATIONS

2

DESCRIPTION Unit LIMIT

Frequency Range: Transmit MHz 156.025 To 157.425.

Frequency Range: Receive MHz 156.050 To 162.025 (Eu)

Number Of Channels 59 INT, 57 USA, 57 Canada

100 Memory Channels

10 Weather Channels (Us)

Oscillate Mode PLL

Modulation FM(16K0G3E)

Channel Spacing KHz 25

Frequency Stability PPM ±10

Standard Operation Temperature °C -15 To +55 (Eu), -20 To +50 (Us)

Normal Working Voltage V 7.4

Low Limit Working Voltage V 7.35

( Tx 5% / Rx 5% / Standby 90%)

Memory Resented Flash

Antenna Socket FIXED

156.050 To 163.275 (Us)

Hour 8 ( 6W @ 7.4V / 1000mAH ) Battery Lifetime

Hour 16 ( 1W @ 7.4V / 1000mAH )

Display LCD With Background Light

Built-ln Speaker Diameter 40mm / Impedance 8 Ohm

Dimension : 123 X 62 X 36 mm (not including antenna)

Weight : ( Without Battery) 228g

VHF RECEIVER

Sensitivity For 12dB Sinad dBm ≤ -100

Rated audio output@5% Thd Speaker mW ≥ 250

Deviation sens.For rated output (VR @ max.) ±kHz ≤ 2.5

Max.S/N ratio @ 1mV dB ≥ 40

Audio frequency resp.

@300HZ dB 9 ± 3

@2500HZ dB -9 ± 3

Speaker output 8Ω load @ Max Vol mW ≥ 400

Standby Current mA ≤ 50 (Eu), 68 (Us)

Receiver Current @ Max Vol. mA ≤ 200

Charging current mA 180 ± 30

TRANSMITTER

3

Carrier power(no mod)

Hi W 6±0.8

Mid W 3±0.5

Lo W 0.8±0.2

Carrier freq. Tolerance ppm ± 10

Modulation limiting ±kHz 4.3~ 4.9

Modulation sens.For ±3 kHz dev. mV 7±3

Audio frequency response ( 1KHz / 0dB ref )

@300HZ dB -12 ± 3

@2500HZ dB +7 ± 3

Audio distortion @ 2.5 kHz dew. % ≤ 5

Hum and noise ratio dB ≥ 35

Current drain

Transmit(High) A ≤ 2.0

Transmit(Mid) A ≤ 1.5

Transmit(Low) A ≤ 0.9

Mic Modulation Sen. ( at Sound level of 94 dBA ) ±kHz ≥ 1.5

Mic Modulation Limiting ( at Sound level of 110

±kHz 4.0 ~ 4.9

dBA )

Bluetooth part

TX Average Power dBm -6 ~ 4

Max. Drift (DH1) KHz -25 ~ 25

Max. Drift (DH3/DH5) KHz -40 ~ 40

Frequency Deviation (average) KHz 115 ~ 175

Frequency Tolerance (offset) KHz -75 ~ 75

RX Sensitivity (@ 0.1% BER) dBm ≤ -70

Weather RECEIVER (for Us)

Sensitivity For 12dB Sinad dBm ≤ -100

Sensitivity For WX Alarm ( 1050Hz Dev.3KHz ) dBm ≤ -100

Note: Nominal specifications represent the design specifications. All units should be able to approximate these

specs. Some will exceed these specs, and others may drop slightly below them. Limit specs represent the

absolute worst condition that might still be considered acceptable. A unit should never fail to meet limit specs.

THEORY OF OPERATION

4

This PLL - controlled VHF marine transceiver provides an accurate and stable multi-channel operation.

The transceiver consists of 8 main sections:

 Transmitter

 Receiver

 Low voltage detection

 Voice recorder

 Local oscillator PLL (Phase Lock Loop) Circuit

 Memory backup

 Bluetooth

 ATIS(Automatic Transmitter Identification System) Only for HH475Eu

 Transmitter

The audio is picked up from the internal MIC, the audio signal is then amplified by Audio Amplifier, U4

LM324 (2/4), U4 (3/4) and filtered by a low pass filter U4 (4/4). The audio is adjusted with VR2 to obtain a

suitable Audio frequency response, and then modulated with the carrier by VCO, through Varicap (D11).

The modulated signal output from the VCO is pre-amplified by Q5, Q4 and Q3. Then it is amplified by Q12,

Q6 .The amplified signal then passes through a low -pass filter network which consists of C72, L8, C66,

C15, L6, C4 filters out spurious emission, and the antenna switching circuit, D1, D2. The signal is filtered

by another low-pass filter circuit which consists of C16, L2, C62, C12, L1, C5, C1. These low pass filters

are necessary to suppress the second and third harmonics. The signal is then fed into the antenna input

and radiated out.

TX current is converted into a voltage signal, that signal fed into U2 LM2904 (2/2) for sampling. U2 is the

Automatic power control (APC) circuit.

When the unit is transmitting, the audio signal is added to the TX VCO Varicap D11. The capacitance of

D11 is varied following the audio signal and when mixed with the carrier to form the modulated signal.

 Receiver

The receiver uses a double frequency super-heterodyne circuit. The first Immediate Frequency (IF) is 21.4

MHz and the second is 450 kHz.

The RF signal is received by the antenna, and passes through a low-pass filter network C1, L1, C5, C12,

L2, C62, C16, C20, L7, C67 to filter out the unwanted signals, the antenna switching circuit D1, D2

switching circuit to receive. The received RF signal is sent to a SAW filter F1 to filter out-of-band signals.

The RF amplifier Q7 amplifies signals within the range of the frequency coverage and passes though

another saw filter F2 to further filter out-of-band signals. The RF signal then is mixed with the local

oscillation frequency by the mixer Q8. A first IF (Immediate Frequency) 21.4 MHz is produced. The IF is

passed through a pair of crystal filter F3 (1/2), F4 (2/2) to further filter other unwanted signals. The first IF

then is amplified by Q2 and the IF amplifier U1 (BA4116). U1 is a integrated RF amplifier which consists

5

of a local oscillator, a demodulator, a second mixer, squelch control circuit, and RF amplifier. The 21.4

MHz IF then is mixed here with second mixer and converted into 2nd Immediate Frequency (IF) 450 kHz.

The 2nd IF passes through a ceramic filter F5 to filter out the residue unwanted signal at pin 5 of U1

(BA4116) output this final IF signal and the Audio signal is output at pin 9 of U1 (BA4116).

The audio signal is fed through a volume control VR3 and finally amplified by Audio amplifier U11

(NJM2070) and heard in the speaker.

The squelch control is also controlled by U1 (BA4116). The second IF passes through U1 (BA4116)

internal squelch control R90, C141, C142 form as a squelch amplifier. The ceramic filter produces a

squelch signal (RF noise). Pin 14 of U1 sends the digital squelch control signal to the CPU mute the audio

speaker path. Pin 12 of U1 output a RSSI level to the CPU.

 Low Voltage Detection

The battery voltage, divided by R148, R149 is input to U7 Pin

11 for voltage level sample.

 Voice recorder

Voice recorder consists of U5(4/4) LM324,U9(AT4SDBD41B)and MCU U7.Voice source from AF via

U5(4/4) LM324 amplifies then pass to MCU U7 pin 13,or voice signal from MIC via U4(1/4,2/4,3/4) then

pass to MCU U14,they will be transformed to voice data up to 20 seconds, U9(AT4SDBD41B) stores these

voice data. When recorder play, the voice come out form MCU U7 Pin43. Then pass to U4(4/4), after that

pass to U11(NJM2070) to amplify the recorder voice signal.

 PLL (Phase Lock Loop) Circuit:

The receiver and transmitter both share the same PLL (Phase Lock Loop) Circuit to produce the carrier or

the receive frequency. The local oscillator consists of a fundamental frequency oscillator X1 20.95MHz and

U6 (KB8825). A phase Lock Loop (PLL) U6 (KB8825), TX VCO Q14 and RX VCO Q13. The fundamental

frequency is frequency divided by U6 and a 12.5 kHz signal is produced. When the VCO frequency

applied to and frequency divided by U6 produces a frequency comparable to 12.5 kHz, PLL will control the

VCO. When these two frequencies are matched, a constant control voltage is output from PLL to lock

VCO in desired frequency. The PLL also will output a lock indication to MCU to indicate the PLL is in

frequency lock state.

 Memory Backup

U9 is an EEPROM AT4SDB41B which acts as a memory backup for the working channel code and the

system parameters. Every time when the unit is switched on, the MCU will reset the system, clear the

RAM, and recall in the memory from the EEPROM to refresh the RAM in CPU U7.

 Bluetooth

Bluetooth circuit consists of U13(BT_MODULE)and CPU U7.When Bluetooth transmitting the voice from

U13 Pin7 and 5 input, then via U7 controls and U13 transforms to Bluetooth RF signal then radiates out by

BT-ANT; When Bluetooth receiving, Bluetooth RF signal comes from BT-ANT via U7 and U13 then

6

changes to voice signal from U13 Pin 4 output.

 ATIS(Automatic Transmitter Identification System) ONLY for HH475EU

ATIS circuit consists of U5(1/4),U4(4/4) and CPU U7, when receiving the AF signal from U1 Pin 9 via

U5(1/4) then pass to CPU U7 Pin 43, when transmitting AITS PWM signal form U7 Pin 45 output then via

U4(4/4) pass to TX VCO Varicap D11 then mixes with the carrier to form the modulated signal.

BLOCK DIAGRAM (for HH475)

7

VCC 5V

VCC 5V

B+7.4V

LAMP

RSSI

SQL

AUDIO

SQL

VR1

U1 BA4116

R77

C142

BPF

R90

C141

Q2

IF AMPCRYSTAL BPF

F3,F4

Q8

1st MIX

SAW BPF

156-163MHz

2nd LOCAL MIXER,SQL

2SC4901

D10

F.CONT

HUV307

21.4MHz
Q13

2SK302

RX VCO

3SK318

F2:HDF160B

X1

2nd-IF DET

CBD450C24

BPF

F5 450KHz

2nd-if

20.95MHz

LPF

MOD

PD

D12

F.CONT

HUV307

Q14

TX VCO

2SK210

Q5

2SC4901

BUFFER AMP

D9

DAN235E

RX/TX SW

X2

20.95MHz

CS

U6

PLL

CLK

DATA

KB8825

TX/RX TRANS

Q26:BT3906

Q9:BT3906

D11

HVU307

MOD

LOCK

RX SW

VTX VCO

MOD

PTT

CALL/SQL

TRI

16/9

DOWN

KEY BOARD

UP

DATA BACKUP

CPU PART

APC

RX SW

Q24:BT3906

RX 5V

AUDIO

AF MUTE

AF SW

RX SW

VTX VCO

AF MUTE

V TXPOW

BT_AUDIO SW

V TXPOW

VCC 5V

Q25:BT3906

TX 5V

Q27

BT3904

BT REW

MEM

SCAN

H/M/L

U9

AT4SDBD41B

SQL

CALL/BEEP

WX_ALERT/BURP

SAVE

Q17:Bt3904

D16: BAW56

Q18:S8550

LPF

U5:D

LM324(1/4)

RSSI

CALL DET

AF_REC_IN

MIC_REC_IN

1050Hz&ATIS

B+7.4V

CALL DET

U5:C

CALL DET

LM324(1/4)

LCD

U402

HT1621

LCD DRIVER

U205

PIC24FJ64GA006

PWM OUT

REW/ATIS

U4:D

PWM LPF

LM324(1/4)

ATIS

REW AUDIO

1050HZ&ATIS

U5:A

LM324(1/4)

1050Hz&ATIS DET

D4

D7

D3

LCD BACK LAMP

CLONE

BT_TXD/RXD

D6

KEY BACK LAMP 1

Q28

LED DRIVER

RESET

LOB BAT

LOW BAT

B+7.4V

MOD

CALL

ATIS

MIC_REC_IN

B+7.4V

D7

D19

D6

KEY BACK LAMP 2

LED DRIVER

R149R148

B+7.4V

VR3:B

D17

BT KEY BACK LAMP

Q30

Q29

LED DRIVER

X3

7.3728MHz

U3

RESET

XC61CN2702M

+5V

CPU 3.3V

U8:XC6204B502

U10:XC6204B332

BATTERIES

Li-POLYMER_7.4V

VR2

LPF

U4:C

LM324(1/4)

Q7

2SC4901

RF AMP

Q4

AMP

2SC4901

SAW BPF

156-163MHz

F1:HDF160B

D1,D2

ANT SW

1SS356

Q1

2SC4901

LPF

LPF

L1,L2

C62,C16

C1,C5,C12

ANT

Q3

2SC4901

BUFFER AMP

Q12

2SK3078

TX YOUNGER

Q6

RD07MVS1

TX POWER AMP.

RF PART

APC

U2: LM2904

Q10: MB3904

Q11: MB3904

H/M/L POWER CONTROL

R103R102

R104

CURRENT DET

B+7.4V

AF_REC_IN

REW AUDIOBT_AUDIO

CALL/BEEP

WX_ALERT/BURP

R17

10K

R16

10K

R49

10K

VOL

330

VR3:A

R198

VOL 10K

B+7.4V

10K

R192

U11

AF POWER AMP

B+7.4V

S8550

Q16,Q21,Q22

NJM2070

R138

47

47

R41

U112:XC6204B332

BT_AUDIO SW

Q23

2SC4097

AF SW

BT3904 X 2

BT_AUDIO

BT 3.3V

U13

BLUETOOTH

BLUETOOTH MOEULE TXB206AR

BT_ANT

SPEAKER

BT_MIC

U4:A,B

LM324(2/4)

MIC AMP

13456

2

J2

SP/MIC JACK

VHF_MIC

DISASSEMBLY INSTRUCTIONS

8

To remove the front and rear panels from the main chassis:

1. Remove the SPK/MIC and VOL/SQL knob from the main unit.

2. Remove 4 screws from the rear housing for main unit.

3. Detach the rear housing from the front housing.

ALIGNMENT PROCEDURES

METER

COUNTER

METER

9

This transceiver is completely aligned at the factory and does not require any adjustments for installation.

However it is considered as good practice to verify that none of the adjustments have changed.

The test equipment listed below are used for the test setup shown in Fig. 3.1.

This test setup used either partially or totally during the following adjustments.

A.TEST EQUIPMENT

1) DC Power Supply (7.2V DC) 0 - 15V 3A max.

2) RF Power Meter 10 W 50 Ohm 100-200 MHz

3) RF Signal Generator 100-200 MHz, 50 ohm termination

4) FM Linear Detector (FMLD) 100-200 MHz

5) Frequency Counter 1-500 MHz

6) Oscilloscope 20 MHz

7) Distortion Meter

8) SINADDER (Trademark of Helper Instruments Co.)

9) Audio Oscillator

10) Toggle Switch (for use as PTT switch).

Fig. 3.1

AUDIO OSC

PTT

SWITCH

DC POWER

SUPPLY

MIC

UNIT

UNDER TEST

ANT

RX

RY

RF SG

SPEAKER

JACK

COUPLER

RF POWER

OSCILLOSCOPE

SINADDER

FMLD

FREQ

DISTORT

ADJUSTMENT PROCEDURE

10

Step Adjustment Test Point Procedure

1. Connect digital voltmeter to TP1 on RF PCB.

1 L18 Receive *1 TP1

2 L20 Transmit *1 TP1

3 VC1 *2

VR2

4

Modulation *2

2. Set CH01 .

3. Adjust L18.

4. TP1 voltage 1.2~1.6V DC.

1. Connect a digital voltmeter to TP1 on RF PCB.

2. Set CH01 .

3. Adjust L20.

4. TP1 voltage 1.2~1.6V DC.

1. Connect the antenna coupler output to a frequency counter.

2. Set channel to CH01 (156.050 MHz).

3. Adjust VC1 to obtain a frequency reading 156.050 MHz±200Hz.

1. Connect the antenna coupler output to an FM linear detector.

2. Connect Audio Oscillator to Microphone Jack.

3. Set unit to transmit mode.

4. Set audio oscillator output to -23dBm 1 kHz.

5. Adjust VR2 to obtain ±4.5 kHz deviation.

Remark:
*1: Please reference the “Main PCB Bottom View” drawing in page 13.

*2: Please reference the “Main PCB Top View” drawing in page 12.

WIRING DIAGRAM

11

MainPCBTopView

12

PRINTEDCIRCUITBOARD

VR2

VC1

MainPCBBottomView

13

PRINTEDCIRCUITBOARD

L18

L20

CradleChargerPCBView

14

PRINTEDCIRCUITBOARD

TopView

BottomView

15

TROUBLESHOOTING

Item Symptom Possible Cause

 Defective power switch VR3.

1 Unit does not turn on.

Speaker no sound with

2

AF signal applied to

volume control

3 Squelch circuit inoperative

4 No receive (RX)

5 Low receiver sensitivity

6 No transmit (TX)

7 Low RF power output

8 Poor or no modulation

Deviation of transmit

9

frequency

 Check the battery voltage.

 Defective regulator U8.

 Defective volume control.

 Defective speaker.

 Defective U11 and/or associated components.

 Check squelch control.

 Defective U1 and/or associated circuitry between pin 9, 10 and

11.

 Defective regulator U8.

 Check TP1 voltage 0.5 – 4V;

 Check second OSC 20.95MHz, pin9 of U6;

 Defective Q7, Q8, Q2.

 Check U1 audio output voltage at pin 9.

 Defective F1 and F2;

 Check antenna and connector for possible corrosion or bad

connection.

 Failure of the output from Q7, Q8, Q2, U1

 Check the output level of local OSC.

 Defective PTT switch.

 Defective regulator U8.

 Check TP1 voltage 0.5 – 4V;

 Check power transmits circuit Q12, Q6, D1, D2 and Q1;

 Check power control circuit Q17, Q18, Q24;

 Check power control circuit U2;

 Check RF power output from Q6, If it checks good, then check

and antenna switching diode D1, D2.

If not good then check the voltage level outputs of the drive

amplifiers Q3 and Q12 as well as the associated circuitry.

 Defective microphone.

 Defective U4 and/or its associated components.

 Check crystal X2 and VC1.

EXPLODEDVIEW(forHH475MainPart)

16

EXPLODEDVIEW(forBatteryand Antenna)

17

Main Radio Part

Location Codes

Description

Mfr's Part No.

EXPLODED VIEW PART LIST

18

1 D-LENS PMMA MU TM833FBUSL 270100034-12003-10
2 P-FCAB MU PC BK TM833FBUSL 3U2X 270100031-12002-10
3 P-KEY VOL MU ABS BK TM833FBUSL 3U2X 270100530-11001-10
4 M-SLEE MU SS L5.15 W5 H4.4 SW 260301122-00001-10
5 P-KEY C/F MU ABS BK TM832EUL MIC 3U2X 270101280-12001-10
6 FOAM-HDR RUBB L34.1W26.3T4.7 GREY DS022 320100108-00001-10
7 INSU-SHET FILM W L-- W-- D6.4 WATERPROOF 270110610-00000-10
8 PCB SS FR4 GP MIC 1-4 L6W8T1.0 TM833FBEU 250102596-00003-10

9 MIC CDR -U -38dB 10V D6.0 T2.7 EM-27PX-5 290100345-00000-10
10 P-PLATE MU PC BK TM832 PTT MOUNT 3U2X 270102092-12001-10
11 KEY-P MAIN RUB DG 6K TM833FBEUL 433C (only for EU) 270200054-11008-10

KEY-P MAIN RUB DG 6K TM833FBUSL 433C (only for US) 270200054-11005-10
12 KEY PTT RUB G 1K TM832 270200131-11001-10
13 KEY FUN SR T 2K TM832FEUL RIGHT 433U/201 (only for EU) 270200016-11004-10

KEY FUN SR T 2K TM832FUSL RIGHT 433U/201 (only for US) 270200016-11003-10
14 KEY FUN SR T 2K TM832FEUL LEFT 433U 270200118-11002-10
15 M-MOUN MU SS L39.3 W37.8 H10.6 LCD 260301094-12001-10
16 LCD TN TSF P 5V 1/4D 1/3B L38.5W37T1.8 - 220100028-00000-10
17 INSU-SHET PVC W L36 W36 D-- ASTIGMATISM 270102604-00001-10
18 D-LENS PMMA MU TM832FEUL Transparent L40 270101425-11002-10
19 SCREW-TS WRH L5 D2 + CZ F RWB (Four) 260100191-00000-10
20 TM833FBEUL /PCBA MAIN/PCBA /R0 COBRA/EU/ 330200008-00000-10
21 M-COVR MU AL L67 W33.2 H6 260300141-11001-10
22 O-RING MU BK RUB H1.4OD--L118.5W62 3U2X 270200053-12001-10
23 M-WASH MU CU NI L10.55 W1.09 H0.2 (Two) 260300005-11001-10
24 SCREW-TS RH L8 D2.6 + SUS C (Two) 260100022-00000-10
25 M-BRKT MU SS L20 W19 H10 SUS304 260302983-11000-10
26 M-SHAF MU PB GD L10.7 W3.6 H-- (Two) 260300007-00001-10
27 P-HOLDER MU ABS BK TM833FBUSL CONNECTOR (Two) 270100532-11001-10
28 P-RCAB MU PC O TM833FBUSL 021U 270100529-11001-10
29 P-CLIP BU PC BK TM832/TM833 ATTACHMENT 3 270102095-12001-10
30 SCREW-TS RH L10 D3 + BZ SUS F BLACK 260101177-00000-10
31 SCREW-TS PH L12 D-- + BZ SUS F TM832FEUL(Four) 260101179-00001-10
32 FOAM-HDR RUBB D1.8T1 NA Black SCREW CAP (Five) 320100751-00001-10
33 M-SPPT MU SS L20 W1 H1 LOCK PIN 260301096-00001-10
34 P-COVER MU PC BK TM832EUL 3U2X/WITH PAIN 270100455-12002-10
35 M-SHIE MU TP NI L20.4 W14.1 H8.5 VCO 260301003-00001-10
36 INSU-SHET PVC W L35.4 W33.4 D0.1 TM832FE 270110041-00001-10
37 INSU-SHET PAP S L40 W1.3 D0.1 TM832FEUL (Three) 270110039-00001-10
38 P-PLATE MU PMMA BK TM832/TM833 KEYBOARD 270102091-12001-10
39 SPK M 8OHM 1W D40 T5.2 TEK404P-8 OHM1W 290100070-00000-10
40 FOAM-SPK NYL D37.3T-- SS BLACK TM833FBEU 320101847-00001-10
41 INSU-TAPE FILM BK L-- W-- D9.4 WATERPROO 270110368-00000-10
42 FOAM-CUH SPNG D9.5T1.4 SS BLACK TM833FBE 320101869-00001-10

Battery Part

Location Codes

Description

Mfr's Part No.

Antenna Part

Location Codes

Description

Mfr's Part No.

EXPLODED VIEW PART LIST - CONTINUED

19

43 P-BATT-DR BU ABS BK TM832EUL 3U2X 270101071-12001-10
44 FOAM-HDR SPNG L40W8T1 Black (Two) 320100666-00001-10
45 BAT-R PRISM LI 7.4V 1000MAH TP603450 TEC 230400180-00000-10
46 O-RING BD BK RUB H5.4OD--L94.05W59 270200380-13001-10
47 P-RCAB BT ABS BK TM833 3U 2X 270100953-11001-10
48 CON-COMM PB T0.2H5WD-- GD C (Two) 260300377-11001-10
49 CON-CHAR PB T0.2H3.5WD-- GD UNIT (Three) 260300380-11001-10

50 P-CAP BU ABS BK TM833/832 ANT 3U2X 270102110-11001-10
51 P-SLV-ANT BU PU BK TM832EUL ANT 3U2X 270102093-12001-10
52 SPRING COS ANT SW CU WD1 L158.5 OD:6.8MM 260200009-00000-10

Location Codes

Description

Mfr's Part No.

TM833FBEUL /U- U-M /R0 COBRA/EU

330100058-00000-10

TM833FBEUL /U- MAIN/UNIT /R0 COBRA/EU

330100062-00000-10

TM833USL /E&M ALK BATT COMP /R0 COBRA-US

330503423-00000-10

20

TM833FBEUL /PCBA MAIN/PCBA /R0 COBRA/EU/

330200008-00000-10

TM833FBEUL /PCBA MAIN/SOLDERING/PCBA /R0

330201917-00000-10

TM832EUL /COBA LCD BONDING PCBA /R0 COBR

330301732-00000-10

TM832EUL /SMTA LCD PCBA /R0 COBRA-EUR

330401965-00000-10

Alkaline Battery Assembly

20

SPRING COS GD WD0.6 L31.2 260200065-00000-10
SPRING COS GD WD0.6 L22.1(Two) 260200066-00000-10
SPRING COS GD WD0.6 L22.1(Two) 260200067-00000-10
SPRING COS GD WD0.6 L23.3 260200068-00000-10
CON-POST PB T0.2H14.1WD-- GD BATT B 260300376-11001-10
CON-COMM PB T0.2H75.3WD-- GD A 260300379-12001-10
P-RCAB BT ABS BK TM833USL 3U 2X 270100527-13001-10
INSU-SHET FIBER BK L75.3 W3.9 D-- 0.15 270102608-00001-10
O-RING BD BK RUB H5.4OD--L94.05W59 270200380-13001-10

Main PCB Assembly

16 LCD TN TSF P 5V 1/4D 1/3B L38.5W37T1.8 - 220100028-00000-10

RUBCON SRI PIT0.10 L30.1 W2.0 H5.2 240300313-00000-10
21 M-COVR MU AL L67 W33.2 H6 260300141-11001-10
35 M-SHIE MU TP NI L20.4 W14.1 H8.5 VCO 260301003-00001-10
15 M-MOUN MU SS L39.3 W37.8 H10.6 LCD 260301094-12001-10

SHIELD VCOC MS NI L21.7 W14.7 T3.8 SILVE 260302892-11001-10
18 D-LENS PMMA MU TM832FEUL Transparent L40 270101425-11002-10
17 INSU-SHET PVC W L36 W36 D-- ASTIGMATISM 270102604-00001-10

INLAY MKEY PVC L34 W22 TM832/TM833 UNIT 270102692-11001-10

INLAY MKEY PET L25.4 W7.6 TM832/833 (Two) 270102693-11001-10
37 INSU-SHET PAP S L40 W1.3 D0.1 TM832FEUL (Three) 270110039-00001-10
36 INSU-SHET PVC W L35.4 W33.4 D0.1 TM832FE 270110041-00001-10

FOAM-CUH SILI L12W6.5T3 GREY 320100009-00001-10

FOAM-HDR SPNG L40W4T3 Grey (Four) 320100664-00001-10

FOAM-CUH SPNG L9W7T1 White 320100696-00000-10

FOAM-SPON SPNG L33.4W3.0T2.0 BLACK TM832 320101829-00001-10

PARTS LIST (HH475 Eu)

C109 CAP-RELE 100 uF M 10V D5 H8 280201079-00000-10
C178 CAP-RELE 100 uF M 10V D5 H8 280201079-00000-10
C179 CAP-RELE 100 uF M 10V D5 H8 280201079-00000-10
C180 CAP-RELE 100 uF M 16V D6 H5 280201082-00000-10
C185 CAP-RELE 10 uF M 25V D4 H5 280201073-00000-10

F3 XTL 21.4M 2.5 2pF L3.2 W8 H6 -20C ~ 70C 280700099-00000-10
F4 XTL 21.4M 2.5 2pF L3.2 W8 H6 -20C ~ 70C 280700099-00000-10
F5 FLTR-REC LEAD 450 K +/-7.5 KHz@ 6dB LTM4 280700243-00000-10

U13 RF-MOD BLUETOOTH TXB-206AR 2.4GHZ TXBANG 320200029-00000-10

VR3 VR-ST LOG 10 Kohm P DIP H R A;JIS;W/S 280101743-00000-10

X1 FLTR-REC LEAD 450 K +/-4 KHz@ 3dB CDB450 280700253-00000-10
X2 XTL 20.95M 2.5 15pF L8 W7.8 H3 -30C ~ 50 280700161-00000-10
X3 XTL 7.3728 M 30 12.5pF D3.0 H8.0 -10+60 280700031-00000-10

MIC CDR -O -52dB 3V D9.7 T4.5 LYS-M9745- 290100001-00000-10

U401 A-IC ANA HT1621(DICE-SD1706) CHIP 48 BON 210100060-00000-10

PCB DS FR4 GP LCD3 L32W20T1 250100356-00003-10

C401 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C407 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10

Location Codes

Description

Mfr's Part No.

TM832EUL /SMTA PTT PCBA /R0 COBRA-EUR

330401964-00000-10

TM833FBEUL /SMTA MAIN/TOP/SMD/PCBA /R0 C

330401411-00000-10

PARTS LIST (HH475 Eu) - CONTINUED

21

Main PCB Assembly

C409 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
R401 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R402 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10

SW-TACT SMD V 12V 5mA TSUY-2SL 1P2T HUA (Two) 240400313-00000-10

PCB DS FR4 GP PTT2 L33W8T1 250100355-00002-10

C14 CAP-CCER 27 pF J 50 VDC 0603 COG 280200800-00000-10
C31 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C33 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C35 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C37 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C40 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C41 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C54 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C61 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C71 CAP-CCER 56 pF J 50 VDC 0402 COG 280200859-00000-10

C88 CAP-CTAN 22 uF M 10 VDC CASEA 280201245-00000-10
C100 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C101 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C102 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C110 CAP-CCER 2 pF C 50 VDC 0402 COG 280200779-00000-10
C113 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C114 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C117 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C118 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C119 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C120 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C126 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C129 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C136 CAP-CCER 220 nF Z 16 VDC 0402 Y5V 280200303-00000-10
C137 CAP-CCER 33 nF K 16 VDC 0402 X7R 280200428-00000-10
C138 CAP-CCER 33 nF K 16 VDC 0402 X7R 280200428-00000-10
C139 CAP-CCER 33 nF K 16 VDC 0402 X7R 280200428-00000-10
C141 CAP-CCER 220 pF J 50 VDC 0402 COG 280200786-00000-10
C142 CAP-CCER 220 pF J 50 VDC 0402 COG 280200786-00000-10
C146 CAP-CCER 820 pF J 50 VDC 0402 COG 280200888-00000-10
C153 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C166 CAP-CCER 47 nF K 25 VDC 0402 X7R 280200453-00000-10
C168 CAP-CTAN 2.2 uF M 16 VDC CASEA 280201248-00000-10
C176 CAP-CCER 10 pF J 50 VDC 0402 NPO 1570-03 280200583-00000-10
C177 CAP-CCER 10 pF J 50 VDC 0402 NPO 1570-03 280200583-00000-10
C181 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C199 CAP-CCER 3 pF C 50 VDC 0402 COG 280200811-00000-10
C203 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C208 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C209 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C216 CAP-CTAN 22 uF M 10 VDC CASEA 280201245-00000-10
C217 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C225 CAP-CCER 1 uF Z 10 VDC 0603 Y5V 280200293-00000-10
C227 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10

Location Codes

Description

Mfr's Part No.

PARTS LIST (HH475 Eu) - CONTINUED

22

Main PCB Assembly

C233 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C234 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C236 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C237 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C242 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C243 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C244 CAP-CCER 100 pF J 50 VDC 0402 COG 1553-0 280200729-00000-10
C245 CAP-CCER 100 pF J 50 VDC 0402 COG 1553-0 280200729-00000-10
C246 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C247 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10

D3 LED- SMD- 0805 OR 2.1V 200mcd KPA-3010SE 280500100-00000-10
D4 LED- SMD- 0805 OR 2.1V 200mcd KPA-3010SE 280500100-00000-10
D5 LED- SMD- 0603 OR 2.1V 20mcd 280500008-00000-10
D6 LED- SMD- 0603 OR 2.1V 20mcd 280500008-00000-10
D7 LED- SMD- 0603 OR 2.1V 20mcd 280500008-00000-10

D8 LED- SMD- 0603 OR 2.1V 20mcd 280500008-00000-10
D17 LED- SMD- 0603 BLU 3V 105mcd LH06034P1-B 280500112-00000-10
D19 LED- SMD- 0603 BLU 3V 105mcd LH06034P1-B 280500112-00000-10

L31 IND-SMD 2.2 uH +-10% Q35 0603 SDFL1608Q2 280300666-00000-10

Q9 TRS-BP PNP SOT23 MMBT3906LT1 4823-30669- 280400122-00000-10
Q26 TRS-BP PNP SOT23 MMBT3906LT1 4823-30669- 280400122-00000-10
Q28 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q29 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q30 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10

R9 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R23 RES TFC 68 ohm 0402 J 1/16W 280101403-00000-10
R26 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R40 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R41 RES TFC 47 ohm 0402 J 1/16W 280101305-00000-10
R42 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R53 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R58 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R59 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R61 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R62 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R63 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R77 RES TFC 3.3 Kohm 0402 J 1/16W 280101201-00000-10
R79 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R86 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R87 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R89 RES TFC 3.3 Kohm 0402 J 1/16W 280101201-00000-10
R90 RES TFC 300 Kohm 0402 J 1/16W 280101186-00000-10
R91 RES TFC 200 Kohm 0402 F 1/16W 280101079-00000-10

R121 RES TFC 3.3 Kohm 0402 J 1/16W 280101201-00000-10
R122 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R123 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R127 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R132 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R134 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R138 RES TFC 47 ohm 0402 J 1/16W 280101305-00000-10
R148 RES TFC 200 Kohm 0402 F 1/16W 280101079-00000-10

Location Codes

Description

Mfr's Part No.

TM833FBEUL /SMTA MAIN/BTM/SMD/PCBA /R0 C

330400028-00000-10

PARTS LIST (HH475 Eu) - CONTINUED

23

Main PCB Assembly

R149 RES TFC 100 Kohm 0402 F 1/16W 280100939-00000-10
R153 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R154 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R156 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R162 RES TFC 22 Kohm 0402 J 1/16W 280101107-00000-10
R163 RES TFC 22 Kohm 0402 J 1/16W 280101107-00000-10
R171 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R174 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R175 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R179 RES TFC 150 ohm 0402 J 1/16W 280101007-00000-10
R182 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R183 RES TFC 220 ohm 0402 J 1/16W 280101096-00000-10
R184 RES TFC 5.6 Kohm 0402 J 1/16W 280101346-00000-10
R185 RES TFC 5.6 Kohm 0402 J 1/16W 280101346-00000-10
R187 RES TFC 12 Kohm 0402 J 1/6W 280100981-00000-10
R188 RES TFC 12 Kohm 0402 J 1/6W 280100981-00000-10
R189 RES TFC 68 Kohm 0402 J 1/16W 280101395-00000-10
R190 RES TFC 68 Kohm 0402 J 1/16W 280101395-00000-10
R194 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R195 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R196 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R197 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R202 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R203 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R207 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R208 RES TFC 150 ohm 0402 J 1/16W 280101007-00000-10
R209 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R211 RES TFC 0 ohm 0402 J 1/16W 280100909-00000-10
R217 RES TFC 330 ohm 0402 J 1/16W 280101196-00000-10
R219 RES TFC 330 ohm 0402 J 1/16W 280101196-00000-10
R220 RES TFC 330 ohm 0402 J 1/16W 280101196-00000-10
R304 RES TFC 0 ohm 0402 J 1/16W 280100909-00000-10

RT2 THERM- NTC 10 Kohm +/-1% SMD 125TO -40C 280800011-00000-10

U1 O-IC RF BA4116FV SOT23 16 210100475-00000-10

U3 O-IC PWR XC61CN2702MR SOT23 3 TOREX 210100586-00000-10

U7 C-IC MMCU TQFP 64 PIC24FJ64GA006-I/PT MI 210201346-00000-10

U9 M-IC MEM AT45DB041D-SU SOIC 8 210100438-00000-10
U12 O-IC PWR XC6204B332MR SOT25 5 TOREX 210100646-00000-10
VC1 CAP-TRM 3 pF- 10 pF 100V SMD N750 TZC3R1 280202416-00000-10
VR1 VR-ST LIN 10 Kohm P 0.15W SMD H R EVM3YS 280101763-00000-10
VR2 VR-ST LIN 50 Kohm P 0.15W SMD V R EVM3YS 280101767-00000-10

PCB 4L FR4 GP MAIN 1-4 L112.5W57T1.0 L2- 250100103-00004-10
C1 CAP-CCER 18 pF J 50 VDC 0603 COG 280200768-00000-10
C2 CAP-CCER 30 pF J 50 VDC 0402 COG 280200807-00000-10
C3 CAP-CCER 30 pF J 50 VDC 0402 COG 280200807-00000-10
C4 CAP-CCER 10 pF J 50 VDC 0603 COG 280200728-00000-10
C5 CAP-CCER 10 pF J 50 VDC 0603 COG 280200728-00000-10
C6 CAP-CCER 10 pF J 50 VDC 0402 NPO 1570-03 280200583-00000-10
C7 CAP-CCER 10 pF J 50 VDC 0402 NPO 1570-03 280200583-00000-10
C8 CAP-CCER 10 pF J 50 VDC 0402 NPO 1570-03 280200583-00000-10

Location Codes

Description

Mfr's Part No.

PARTS LIST (HH475 Eu) - CONTINUED

24

Main PCB Assembly

C9 CAP-CCER 3 pF C 50 VDC 0402 COG 280200811-00000-10

C10 CAP-CCER 10 pF J 50 VDC 0402 NPO 1570-03 280200583-00000-10
C11 CAP-CCER 10 pF J 50 VDC 0402 NPO 1570-03 280200583-00000-10
C12 CAP-CCER 33 pF J 50 VDC 0603 NPO 280200236-00000-10
C13 CAP-CCER 100 pF J 50 VDC 0402 COG 1553-0 280200729-00000-10
C15 CAP-CCER 47 pF J 50 VDC 0603 COG 280200839-00000-10
C16 CAP-CCER 47 pF J 50 VDC 0603 COG 280200839-00000-10
C17 CAP-CCER 47 pF J 50 VDC 0402 COG 280200838-00000-10
C18 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C19 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C20 CAP-CCER 1000 pF K 50 VDC 0603 X7R 280200328-00000-10
C21 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C22 CAP-CCER 1000 pF K 50 VDC 0603 X7R 280200328-00000-10
C23 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C24 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C25 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C26 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C27 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C28 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C29 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C30 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C32 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C34 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C36 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C38 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C39 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C42 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C43 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C44 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C45 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C46 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C47 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C48 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C49 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C50 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C51 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C52 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C53 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C55 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C56 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C57 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C58 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C59 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C60 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C62 CAP-CCER 12 pF J 50 VDC 0603 COG 280200742-00000-10
C63 CAP-CCER 12 pF J 50 VDC 0603 COG 280200742-00000-10
C64 CAP-CCER 47 pF J 50 VDC 0402 COG 280200838-00000-10
C65 CAP-CCER 560 pF J 50 VDC 0402 COG 280200861-00000-10
C66 CAP-CCER 27 pF J 50 VDC 0603 COG 280200800-00000-10
C67 CAP-CCER 18 pF J 50 VDC 0603 COG 280200768-00000-10
C68 CAP-CCER 22 pF J 50 VDC 0402 COG 280200783-00000-10

Location Codes

Description

Mfr's Part No.

PARTS LIST (HH475 Eu) - CONTINUED

25

Main PCB Assembly

C69 CAP-CCER 22 pF J 50 VDC 0402 COG 280200783-00000-10
C70 CAP-CCER 68 pF J 50 VDC 0603 NPO 280200268-00000-10
C72 CAP-CCER 22 pF J 50 VDC 0603 NPO 280200214-00000-10
C73 CAP-CCER 8 pF D 50 VDC 0402 COG 280200883-00000-10
C74 CAP-CCER 8 pF D 50 VDC 0402 COG 280200883-00000-10
C75 CAP-CTAN 2.2 uF M 16 VDC CASEA 280201248-00000-10
C76 CAP-CTAN 2.2 uF M 16 VDC CASEA 280201248-00000-10
C77 CAP-CCER 33 pF J 50 VDC 0603 NPO 280200236-00000-10
C79 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C80 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C81 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C82 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C83 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C84 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C85 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C86 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C87 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C89 CAP-CCER 1800 pF K 50 VDC 0402 X7R 280200379-00000-10
C90 CAP-CCER 2200 pF K 50 VDC 0402 X7R 1570- 280200169-00000-10
C91 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C92 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C93 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C94 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C95 CAP-CTAN 10 uF K 6.3 VDC CASEA 280201318-00000-10
C96 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C97 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C98 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10

C99 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C103 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C104 CAP-CCER 1.5 pF C 50 VDC 0402 COG 280200760-00000-10
C105 CAP-CCER 100 pF J 50 VDC 0402 COG 1553-0 280200729-00000-10
C106 CAP-CCER 100 pF J 50 VDC 0402 COG 1553-0 280200729-00000-10
C107 CAP-CCER 100 pF J 50 VDC 0402 COG 1553-0 280200729-00000-10
C108 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C111 CAP-CTAN 22 uF M 10 VDC CASEA 280201245-00000-10
C112 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C115 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C116 CAP-CCER 220 nF Z 16 VDC 0402 Y5V 280200303-00000-10
C121 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C122 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C123 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C124 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C125 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C127 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C128 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C130 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C131 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C132 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C133 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C134 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C135 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10

Location Codes

Description

Mfr's Part No.

PARTS LIST (HH475 Eu) - CONTINUED

26

Main PCB Assembly

C140 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C143 CAP-CCER 220 pF J 50 VDC 0402 COG 280200786-00000-10
C144 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C145 CAP-CCER 220 pF J 50 VDC 0402 COG 280200786-00000-10
C147 CAP-CCER 56 pF J 50 VDC 0603 UJ 280200901-00000-10
C148 CAP-CCER 4700 pF K 50 VDC 0402 X7R 280200447-00000-10
C149 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C150 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C151 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C152 CAP-CCER 15 pF J 50 VDC 0402 COG 280200756-00000-10
C154 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C155 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C156 CAP-CCER 180 pF J 50 VDC 0402 COG 280200770-00000-10
C157 CAP-CCER 3 pF C 50 VDC 0402 COG 280200811-00000-10
C158 CAP-CCER 5 pF C 50 VDC 0402 COG 280200852-00000-10
C159 CAP-CCER 5 pF C 50 VDC 0402 COG 280200852-00000-10
C160 CAP-CCER 1 pF C 50 VDC 0402 COG 280200734-00000-10
C161 CAP-CCER 1.2 pF C 50 VDC 0402 COG 280200750-00000-10
C162 CAP-CCER 3300 pF K 50 VDC 0402 X7R 1570- 280200423-00000-10
C163 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C164 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C165 CAP-CCER 47 nF K 25 VDC 0402 X7R 280200453-00000-10
C167 CAP-CCER 47 nF K 25 VDC 0402 X7R 280200453-00000-10
C169 CAP-CTAN 22 uF M 10 VDC CASEA 280201245-00000-10
C170 CAP-CTAN 22 uF M 10 VDC CASEA 280201245-00000-10
C171 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C172 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C173 CAP-CCER 220 pF J 50 VDC 0402 COG 280200786-00000-10
C174 CAP-CCER 22 pF G 50 VDC 0603 NPO 280200638-00000-10
C175 CAP-CCER 8 pF D 50 VDC 0402 COG 280200883-00000-10
C182 CAP-CCER 3300 pF K 50 VDC 0402 X7R 1570- 280200423-00000-10
C183 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C184 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C186 CAP-CTAN 10 uF K 6.3 VDC CASEA 280201318-00000-10
C187 CAP-CCER 4700 pF K 50 VDC 0402 X7R 280200447-00000-10
C188 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C189 CAP-CCER 470 nF Z 10 VDC 0402 Y5V 280200317-00000-10
C190 CAP-CCER 2200 pF K 50 VDC 0402 X7R 1570- 280200169-00000-10
C191 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C192 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C193 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C194 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C195 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C196 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C197 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C198 CAP-CCER 2 pF C 50 VDC 0402 COG 280200779-00000-10
C200 CAP-CCER 10 pF J 50 VDC 0603 COG 280200728-00000-10
C201 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C202 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C204 CAP-CCER 47 nF K 25 VDC 0402 X7R 280200453-00000-10
C205 CAP-CCER 47 nF K 25 VDC 0402 X7R 280200453-00000-10

Location Codes

Description

Mfr's Part No.

PARTS LIST (HH475 Eu) - CONTINUED

27

Main PCB Assembly

C206 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C207 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C210 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C211 CAP-CCER 2 pF C 50 VDC 0402 COG 280200779-00000-10
C212 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C214 CAP-CCER 18 pF J 50 VDC 0402 COG 280200767-00000-10
C215 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C218 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C219 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C220 CAP-CCER 470 nF Z 10 VDC 0402 Y5V 280200317-00000-10
C221 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C222 CAP-CCER 5 pF C 50 VDC 0402 COG 280200852-00000-10
C223 CAP-CCER 4.7 pF B 50 VDC 0402 COG 280200848-00000-10
C224 CAP-CCER 47 pF J 50 VDC 0402 COG 280200838-00000-10
C226 CAP-CCER 4700 pF K 50 VDC 0402 X7R 280200447-00000-10
C228 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C229 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C230 CAP-CCER 220 pF J 50 VDC 0402 COG 280200786-00000-10
C231 CAP-CCER 47 pF J 50 VDC 0402 COG 280200838-00000-10
C232 CAP-CCER 2200 pF K 50 VDC 0402 X7R 1570- 280200169-00000-10
C235 CAP-CCER 2200 pF K 50 VDC 0402 X7R 1570- 280200169-00000-10
C238 CAP-CCER 2200 pF K 50 VDC 0402 X7R 1570- 280200169-00000-10
C239 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C240 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C241 CAP-CCER 10 pF J 50 VDC 0402 NPO 1570-03 280200583-00000-10
C248 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C249 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C250 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C251 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10

D1 DIO-SW ISS356 1V 0.1 A USM 280600248-00000-10
D2 DIO-SW ISS356 1V 0.1 A USM 280600248-00000-10

D9 DIO-SW DAN235E 1V 0.01 A SOT416 280600246-00000-10
D10 DIO-VAR HVU307TRU 12.5 32V SOD-323 280600090-00000-10
D11 DIO-VAR HVU307TRU 12.5 32V SOD-323 280600090-00000-10
D12 DIO-VAR HVU307TRU 12.5 32V SOD-323 280600090-00000-10
D13 DIO-SCK HSC278TRF-E 0.95V 0.15 A UFP 280600258-00000-10
D14 DIO-VAR HVU307TRU 12.5 32V SOD-323 280600090-00000-10
D15 DIO-VAR HVU307TRU 12.5 32V SOD-323 280600090-00000-10
D16 DIO-SW BAW56 1.25V 0.215 A SOT-23 280600254-00000-10
D18 DIO-ZNR UDZS 5.1B 5.1V 0.2 W SC-76 280600144-00000-10
D20 DIO-SW ISS356 1V 0.1 A USM 280600248-00000-10

F1 FLTR-REC SAW SMD 159.5 M +/-4 MHz@ -3dB 280700029-00000-10
F2 FLTR-REC SAW SMD 159.5 M +/-4 MHz@ -3dB 280700029-00000-10
J2 CON-PHON F RT-S D2.6 BK TG-2866D-PA6T-G 240300192-00000-10
L1 AIR-COIL SMD D2 L2.2 T4 0.5WR - 280300169-00000-10
L2 AIR-COIL SMD D2 L2.2 T4 0.5WR - 280300169-00000-10
L3 AIR-COIL SMD D2 L2.2 T4 0.5WR - 280300169-00000-10
L4 IND-SMD 2.2 uH +-5% Q30 2520 NLV25T-2R2J 280300620-00000-10
L5 IND-SMD 56 nH +-2% Q50 2520 C2520C-56NG 280300637-00000-10
L6 AIR-COIL SMD D1.6 L1.05 T3 0.35WR + 280300166-00000-10
L7 IND-SMD 56 nH +-2% Q50 2520 C2520C-56NG 280300637-00000-10

Location Codes

Description

Mfr's Part No.

PARTS LIST (HH475 Eu) - CONTINUED

28

Main PCB Assembly

L8 AIR-COIL SMD D2 L2 T3 0.5WR + 280300167-00000-10

L9 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L10 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L11 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L12 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L13 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L14 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L15 MAG-CORE Ferrite L1.6 W0.8 H0.8 47-NH +/ 280300289-00000-10
L16 MAG-CORE Ferrite L1.6 W0.8 H0.8 47-NH +/ 280300289-00000-10
L17 IND-SMD 2.2 uH +-5% Q30 2520 NLV25T-2R2J 280300620-00000-10
L18 IND-SMD 2.2 uH +-5% Q30 2520 NLV25T-2R2J 280300620-00000-10
L19 IND-SMD 2.2 uH +-5% Q30 2520 NLV25T-2R2J 280300620-00000-10
L20 IND-SMD 2.2 uH +-5% Q30 2520 NLV25T-2R2J 280300620-00000-10
L21 IND-SMD 2.2 uH +-5% Q30 2520 NLV25T-2R2J 280300620-00000-10
L22 IND-SMD 56 nH +-2% Q50 2520 C2520C-56NG 280300637-00000-10
L23 IND-SMD 39 nH +-5% Q50 2520 1808-20013-6 280300628-00000-10
L24 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L25 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L26 IND-SMD 4.7 nH +-5% Q8 0603 SDCL1608C4N7 280300675-00000-10
L27 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L28 IND-SMD 22 nH +-5% Q12 0603 280300671-00000-10
L29 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L30 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L33 IND-SMD 2.2 uH +-5% Q30 2520 NLV25T-2R2J 280300620-00000-10
L34 IND-SMD 2.2 uH +-5% Q30 2520 NLV25T-2R2J 280300620-00000-10

Q1 TRS-BP NPN SOT23 2SC4901 280400127-00000-10
Q2 TRS-BP NPN SOT23 2SC4901 280400127-00000-10
Q3 TRS-BP NPN SOT23 2SC3356 280400117-00000-10
Q4 TRS-BP NPN SOT23 2SC4901 280400127-00000-10
Q5 TRS-BP NPN SOT23 2SC4901 280400127-00000-10
Q6 TRS-FET/MOS N L6.0W4.9H0.9 RD07MUS2B-T11 280400512-00000-10
Q7 TRS-BP NPN SOT23 2SC4901 280400127-00000-10

Q8 TRS-FET/MOS N CMPAK-4 3SK318YB 280400262-00000-10
Q10 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q11 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q12 TRS-FET/MOS N SC62 2SK3078 280400258-00000-10
Q13 TRS-FET/MOS N 2SK302GR 280400250-00000-10
Q14 TRS-FET/MOS N SC59 2SK210-Y 280400249-00000-10
Q15 TRS-BP PNP SOT23 MMBT3906LT1 4823-30669- 280400122-00000-10
Q16 TRS-BP PNP SOT23 MPS8550S 280400133-00000-10
Q17 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q18 TRS-BP PNP SOT23 MPS8550S 280400133-00000-10
Q19 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q20 TRS-BP NPN SC70 2SC4097R 280400124-00000-10
Q21 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q22 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q23 TRS-BP NPN SC70 2SC4097R 280400124-00000-10
Q24 TRS-BP PNP SOT23 MPS8550S 280400133-00000-10
Q25 TRS-BP PNP SOT23 MPS8550S 280400133-00000-10
Q27 TRS-BP NPN SC70 2SC4097R 280400124-00000-10

R1 RES TFC 220 ohm 0402 J 1/16W 280101096-00000-10

Location Codes

Description

Mfr's Part No.

PARTS LIST (HH475 Eu) - CONTINUED

29

Main PCB Assembly

R2 RES TFC 220 ohm 0402 J 1/16W 280101096-00000-10

R3 RES TFC 220 ohm 0402 J 1/16W 280101096-00000-10

R4 RES TFC 220 ohm 0402 J 1/16W 280101096-00000-10

R5 RES TFC 220 ohm 0402 J 1/16W 280101096-00000-10

R6 RES TFC 220 ohm 0402 J 1/16W 280101096-00000-10

R7 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10

R8 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R10 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R11 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R12 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R13 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R14 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R15 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R16 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R17 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R18 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R19 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R20 RES TFC 3.9 Kohm 0402 J 1/16W 280101251-00000-10
R21 RES TFC 47 ohm 0402 J 1/16W 280101305-00000-10
R22 RES TFC 47 ohm 0402 J 1/16W 280101305-00000-10
R24 RES TFC 47 ohm 0402 J 1/16W 280101305-00000-10
R25 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R27 RES TFC 3.3 ohm 0603 J 1/10W 280100527-00000-10
R28 RES TFC 1 ohm 0603 J 1/16W 280100956-00000-10
R29 RES TFC 33 Kohm 0402 J 1/16W 280101205-00000-10
R30 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R31 RES TFC 3.3 Kohm 0402 J 1/16W 280101201-00000-10
R32 RES TFC 8.2 Kohm 0402 J 1/16W 280101431-00000-10
R33 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R34 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R35 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R36 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R37 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R38 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R39 RES TFC 20 Kohm 0402 J 1/16W 280101076-00000-10
R43 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R44 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R45 RES TFC 150 ohm 0402 J 1/16W 280101007-00000-10
R46 RES TFC 330 ohm 0402 J 1/16W 280101196-00000-10
R47 RES TFC 3.3 Kohm 0402 J 1/16W 280101201-00000-10
R48 RES TFC 15 Kohm 0402 J 1/16W 280101016-00000-10
R49 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R50 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R51 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R52 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R54 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R55 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R56 RES TFC 56 Kohm 0402 J 1/16W 280101350-00000-10
R57 RES TFC 56 Kohm 0402 J 1/16W 280101350-00000-10
R60 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R64 RES TFC 820 ohm 0402 J 1/16W 280101428-00000-10

Location Codes

Description

Mfr's Part No.

PARTS LIST (HH475 Eu) - CONTINUED

30

Main PCB Assembly

R65 RES TFC 330 ohm 0402 J 1/16W 280101196-00000-10
R66 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R67 RES TFC 220 ohm 0402 J 1/16W 280101096-00000-10
R68 RES TFC 33 Kohm 0402 J 1/16W 280101205-00000-10
R69 RES TFC 200 Kohm 0402 F 1/16W 280101079-00000-10
R70 RES TFC 56 ohm 0402 J 1/16W 280101361-00000-10
R71 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R72 RES TFC 56 ohm 0402 J 1/16W 280101361-00000-10
R73 RES TFC 0 ohm 0402 J 1/16W 280100909-00000-10
R74 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R75 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R76 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R78 RES TFC 56 Kohm 0402 J 1/16W 280101350-00000-10
R80 RES TFC 20 Kohm 0402 J 1/16W 280101076-00000-10
R81 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R82 RES TFC 330 Kohm 0402 J 1/16W 280101211-00000-10
R83 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R84 RES TFC 15 Kohm 0402 J 1/16W 280101016-00000-10
R85 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R88 RES TFC 1.5 Kohm 0402 J 1/16W 280101011-00000-10
R92 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R93 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R94 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R95 RES TFC 3.3 ohm 0603 J 1/10W 280100527-00000-10
R96 RES TFC 100 Kohm 0402 F 1/16W 280100939-00000-10
R98 RES TFC 200 Kohm 0402 F 1/16W 280101079-00000-10
R99 RES TFC 200 Kohm 0402 F 1/16W 280101079-00000-10

R100 RES TFC 100 Kohm 0402 F 1/16W 280100939-00000-10
R101 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R102 RES TFC 0.39 ohm 1206 J 1/8W 280101263-00000-10
R103 RES TFC 0.39 ohm 1206 J 1/8W 280101263-00000-10
R104 RES TFC 0.39 ohm 1206 J 1/8W 280101263-00000-10
R105 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R106 RES TFC 33 Kohm 0402 J 1/16W 280101205-00000-10
R107 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R108 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R109 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R110 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R111 RES TFC 470 Kohm 0402 J 1/16W 280101299-00000-10
R112 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R113 RES TFC 22 Kohm 0402 F 1/16W 280100338-00000-10
R114 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R115 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R116 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R117 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R118 RES TFC 39 Kohm 0402 J 1/16W 280101254-00000-10
R119 RES TFC 120 Kohm 0402 J 1/16W 280100984-00000-10
R120 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R124 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R125 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R126 RES TFC 33 Kohm 0402 J 1/16W 280101205-00000-10

Location Codes

Description

Mfr's Part No.

PARTS LIST (HH475 Eu) - CONTINUED

31

Main PCB Assembly

R128 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R129 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R130 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R131 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R133 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R135 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R136 RES TFC 1 Mohm 0402 J 1/16W 280100948-00000-10
R137 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R139 RES TFC 820 Kohm 0402 J 1/16W 280101437-00000-10
R140 RES TFC 36 Kohm 0402 J 1/16W 280101235-00000-10
R141 RES TFC 56 Kohm 0402 J 1/16W 280101350-00000-10
R142 RES TFC 36 Kohm 0402 J 1/16W 280101235-00000-10
R143 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R144 RES TFC 39 Kohm 0402 J 1/16W 280101254-00000-10
R145 RES TFC 120 Kohm 0402 J 1/16W 280100984-00000-10
R146 RES TFC 18 Kohm 0402 J 1/16W 280101051-00000-10
R147 RES TFC 4.7 ohm 0402 J 1/6W 280101303-00000-10
R150 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R151 VDR CER 18V 40&30V&A 750W 0603 SUNLORD S 280101800-00000-10
R152 RES TFC 22 Kohm 0402 F 1/16W 280100338-00000-10
R155 RES TFC 22 Kohm 0402 F 1/16W 280100338-00000-10
R157 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R158 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R159 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R160 RES TFC 36 Kohm 0402 J 1/16W 280101235-00000-10
R161 RES TFC 36 Kohm 0402 J 1/16W 280101235-00000-10
R164 RES TFC 22 Kohm 0402 F 1/16W 280100338-00000-10
R165 RES TFC 22 ohm 0402 J 1/16W 280101123-00000-10
R166 RES TFC 33 Kohm 0402 J 1/16W 280101205-00000-10
R167 RES TFC 33 Kohm 0402 J 1/16W 280101205-00000-10
R168 RES TFC 820 ohm 0402 J 1/16W 280101428-00000-10
R170 RES TFC 33 Kohm 0402 J 1/16W 280101205-00000-10
R172 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R173 RES TFC 120 Kohm 0402 J 1/16W 280100984-00000-10
R176 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R177 RES TFC 470 Kohm 0402 J 1/16W 280101299-00000-10
R178 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R180 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R181 RES TFC 1 Mohm 0402 J 1/16W 280100948-00000-10
R186 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R191 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R192 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R193 RES TFC 10 ohm 0402 J 1/16W 280100960-00000-10
R198 RES TFC 330 ohm 0402 J 1/16W 280101196-00000-10
R199 RES TFC 33 Kohm 0402 J 1/16W 280101205-00000-10
R200 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R201 RES TFC 3.3 Kohm 0402 J 1/16W 280101201-00000-10
R204 RES TFC 33 Kohm 0402 J 1/16W 280101205-00000-10
R205 RES TFC 200 Kohm 0402 F 1/16W 280101079-00000-10
R206 RES TFC 22 Kohm 0402 F 1/16W 280100338-00000-10
R210 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10

Location Codes

Description

Mfr's Part No.

TM833FBEUL /E&M LI BATTERY /R0 COBRA/EU

330500022-00000-10

TM833FBEUL /E&M FRONT HOUSING /R0 COBRA/

330500023-00000-10

TM833FBEUL /PCBA MIC PCBA /R0

330202786-00000-10

TM833FBEUL /E&M BACK HOUSING /R0 COBRA/E

330500024-00000-10

PARTS LIST (HH475 Eu) - CONTINUED

32

Main PCB Assembly

R212 RES TFC 0 ohm 0402 J 1/16W 280100909-00000-10
R213 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R214 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R215 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R216 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R218 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10

RT1 THERM- NTC 100 ohm +/-3% SMD 125TO -40C 280800018-00000-10

U2 A-IC ANA NJM2904M SOP 8 210100238-00000-10

U4 A-IC ANA NJM324V SSOP 14 210100241-00000-10

U5 A-IC ANA NJM324V SSOP 14 210100241-00000-10

U6 O-IC RF GP214D TSSOP 16 210100497-00000-10

U8 O-IC PWR XC6204B502MR SOT25 5 210100555-00000-10
U10 O-IC PWR XC6204B332MR SOT25 5 TOREX 210100646-00000-10
U11 A-IC ANA NJM2070M DMP 8 210100211-00000-10
VR4 VR-ST LIN 50 Kohm P 0.15W SMD V R EVM3YS 280101767-00000-10

Li - Polymer Battery Assembly

45 BAT-R PRISM LI 7.4V 1000MAH TP603450 TEC 230400180-00000-10

MAG-CORE Ferrite D8.0 H4.0 IR4H0804-4.5T 280301131-00000-10
TUBE ROLL OD1.4 ID1 BK 320100122-00000-10

FOAM-HDR SPNG L15W15T12 Black 320100683-00001-10
48 CON-COMM PB T0.2H5WD-- GD C (Two) 260300377-11001-10
49 CON-CHAR PB T0.2H3.5WD-- GD UNIT (Three) 260300380-11001-10
47 P-RCAB BT ABS BK TM833 3U 2X 270100953-11001-10
43 P-BATT-DR BU ABS BK TM832EUL 3U2X 270101071-12001-10
46 O-RING BD BK RUB H5.4OD--L94.05W59 270200380-13001-10
44 FOAM-HDR SPNG L40W8T1 Black (Two) 320100666-00001-10

HH475E Front Housing Assembly

41 INSU-TAPE FILM BK L-- W-- D9.4 WATERPROO 270110368-00000-10

7 INSU-SHET FILM W L-- W-- D6.4 WATERPROOF 270110610-00000-10

42 FOAM-CUH SPNG D9.5T1.4 SS BLACK TM833FBE 320101869-00001-10

TAPE-A DS L6.4 W6.4 T0.3 320101941-00000-10

2 P-FCAB MU PC BK TM833FBUSL 3U2X 270100031-12002-10

1 D-LENS PMMA MU TM833FBUSL 270100034-12003-10
10 P-PLATE MU PC BK TM832 PTT MOUNT 3U2X 270102092-12001-10
13 KEY FUN SR T 2K TM832FEUL RIGHT 433U/201 270200016-11004-10
11 KEY-P MAIN RUB DG 6K TM833FBEUL 433C 270200054-11008-10
14 KEY FUN SR T 2K TM832FEUL LEFT 433U 270200118-11002-10
12 KEY PTT RUB G 1K TM832 270200131-11001-10
39 SPK M 8OHM 1W D40 T5.2 TEK404P-8 OHM1W 290100070-00000-10
40 FOAM-SPK NYL D37.3T-- SS BLACK TM833FBEU 320101847-00001-10

BlueTooth Mic PCB Assembly

8 PCB SS FR4 GP MIC 1-4 L6W8T1.0 TM833FBEU 250102596-00003-10

9, MI MIC CDR -U -38dB 10V D6.0 T2.7 EM-27PX-5 290100345-00000-10

Back Housing Assembly

WASHER MS NI OD6.2 ID3.3 1 -- LOCK(Two) 260200163-00001-10
INSU-WASH FIBER R L-- W-- D6.0 ID3.0xOD4 270102267-00001-10

24 SCREW-TS RH L8 D2.6 + SUS C (Two) 260100022-00000-10

Location Codes

Description

Mfr's Part No.

TM833FBEUL /E&M OTHER CASING /R0 COBRA/E

330500025-00000-10

TM833FBEUL /E&M ANT /R0 COBRA/EU

330500026-00000-10

TM833FBEUL /U- CHG/UNIT /R0 COBRA/EU

330100063-00000-10

TM832FEUL /E&M CRADLE CHG COMP /R0 COBRA

330503710-00000-10

TM833FBEUL /PCBA CHG/PCBA /R0 COBRA/EU

330200036-00000-10

TM833FBEUL /SMTA CHG/TOP/PCBA /R0 COBRA/

330400027-00000-10

Back Housing Assembly

33

30 SCREW-TS RH L10 D3 + BZ SUS F BLACK 260101177-00000-10
23 M-WASH MU CU NI L10.55 W1.09 H0.2 (Two) 260300005-11001-10
26 M-SHAF MU PB GD L10.7 W3.6 H-- (Two) 260300007-00001-10
25 M-BRKT MU SS L20 W19 H10 SUS304 260302983-11000-10

INSU-SHET PVC O L18.5 W10.4 D0.4 8B35/14 270100035-00001-10
28 P-RCAB MU PC O TM833FBUSL 021U 270100529-11001-10
27 P-HOLDER MU ABS BK TM833FBUSL CONNECTOR (Two) 270100532-11001-10
29 P-CLIP BU PC BK TM832/TM833 ATTACHMENT 3 270102095-12001-10

Other Casing Assembly

19 SCREW-TS WRH L5 D2 + CZ F RWB (Four) 260100191-00000-10
31 SCREW-TS PH L12 D-- + BZ SUS F TM832FEUL(Four) 260101179-00001-10

WASHER SS OD8.5 ID6.2 0.2 -- PLATE 260200179-00001-10

CON-PLAT PB T--H4.7WD0.4 GD TM833FBEUL (Two) 260303025-00000-10

5 P-KEY C/F MU ABS BK TM832EUL MIC 3U2X 270101280-12001-10

NUT-LOK CU NI D9 T1.8 P0.75 mm 260100066-00000-10

NUT-HEX CU NI D8.2 T15.5 P0.75 mm SEND T 260100091-00000-10
52 SPRING COS ANT SW CU WD1 L158.5 OD:6.8MM 260200009-00000-10
33 M-SPPT MU SS L20 W1 H1 LOCK PIN 260301096-00001-10

4 M-SLEE MU SS L5.15 W5 H4.4 SW 260301122-00001-10

34 P-COVER MU PC BK TM832EUL 3U2X/WITH PAIN 270100455-12002-10

3 P-KEY VOL MU ABS BK TM833FBUSL 3U2X 270100530-11001-10
38 P-PLATE MU PMMA BK TM832/TM833 KEYBOARD 270102091-12001-10
22 O-RING MU BK RUB H1.4OD--L118.5W62 3U2X 270200053-12001-10

6 FOAM-HDR RUBB L34.1W26.3T4.7 GREY DS022 320100108-00001-10

FOAM-HDR SPNG L30W15T1 Yellow 320100727-00000-10

32 FOAM-HDR RUBB D1.8T1 NA Black SCREW CAP (Five) 320100751-00001-10

Antenna Assembly

PARTS LIST (HH475 Eu) - CONTINUED

51 P-SLV-ANT BU PU BK TM832EUL ANT 3U2X 270102093-12001-10
50 P-CAP BU ABS BK TM833/832 ANT 3U2X 270102110-11001-10

Cradle Charger Assembly

SCREW-TS PH L8 D3 + F PB 260100126-00000-10
CON-CHAR PB T0.3H6.8WD-- GD (Three) 260300378-11001-10
P-FCAB CH ABS BK TM833FBEUL CM110-020 3U 270100716-12005-10
P-RCAB CH ABS BK TM833/832 3U 2X 270100954-11001-10
G-LENS PMMA TM832EUL CHG 270101573-11002-10
P-MOUNT BT ABS BK TM833/832 PACK 270102096-11001-10
RUBB D10T1.6 DS Black KE941-U (Four) 320100140-00003-10

C101 CAP-RELE 47 uF M 25V D5 H11 280202379-00000-10
C103 CAP-RELE 47 uF M 25V D5 H11 280202379-00000-10
D102 DIO-REC IN4001 1.1V 1 A DO-41 280600044-00000-10
D103 DIO-REC IN4001 1.1V 1 A DO-41 280600044-00000-10

J1 CON-DC M ST-T D1mm BK DC-005 240300158-00000-10

LED LED-MULTI RECT P L7.0W5.0H2.0 2.2V M519R 280500482-00000-10

Q107 TRS-BP PNP TO126 ST 2SB772 FUKUCOM 280400224-00001-10

C102 CAP-CCER 0.1 uF K 25 VDC 0603 X7R 1570-0 280200604-00000-10

Location Codes

Description

Mfr's Part No.

TM833FBEUL /PKG -BOX /R0 COBRA/EU

330700047-00000-10

PARTS LIST (HH475 Eu) - CONTINUED

34

Cradle Charger Assembly

C104 CAP-CCER 0.1 uF K 25 VDC 0603 X7R 1570-0 280200604-00000-10
C105 CAP-CCER 100 pF J 50 VDC 0603 COG 280200730-00000-10
C106 CAP-CCER 100 pF J 50 VDC 0603 COG 280200730-00000-10
C107 CAP-CCER 4700 pF K 50 VDC 0603 X7R 280200448-00000-10
C108 CAP-CCER 100 pF J 50 VDC 0603 COG 280200730-00000-10
C109 CAP-CCER 4700 pF K 50 VDC 0603 X7R 280200448-00000-10
C110 CAP-CCER 0.01 uF K 25 VDC 0603 X7R 280200599-00000-10
C111 CAP-CCER 100 pF J 50 VDC 0603 COG 280200730-00000-10
Q101 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q102 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q103 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q104 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q105 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q106 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
R101 RES TFC 2 Kohm 0603 J 1/16W 280101071-00000-10
R102 RES TFC 820 ohm 0603 J 1/16W 280101429-00000-10
R103 RES TFC 1 Kohm 0603 J 1/16W 280100930-00000-10
R104 RES TFC 4.7 Kohm 0603 J 1/16W 280101288-00000-10
R105 RES TFC 1 Kohm 0603 J 1/16W 280100930-00000-10
R106 RES TFC 180 Kohm 0603 J 1/16W 280101055-00000-10
R107 RES TFC 910 ohm 0603 J 1/16W 280101451-00000-10
R108 RES TFC 51 Kohm 0603 J 1/16W 280101330-00000-10
R109 RES TFC 12 Kohm 0603 J 1/16W 280100982-00000-10
R110 RES TFC 10 Kohm 0603 J 1/16W 280100938-00000-10
R111 RES TFC 1 Kohm 0603 J 1/16W 280100930-00000-10
R112 RES TFC 82 Kohm 0603 F 1/16W 280101433-00000-10
R113 RES TFC 1 Kohm 0603 J 1/16W 280100930-00000-10
R114 RES TFC 1.5 Kohm 0603 J 1/16W 280101012-00000-10
R115 RES TFC 910 ohm 0603 J 1/16W 280101451-00000-10
R116 RES TFC 10 Kohm 0603 J 1/16W 280100938-00000-10
R117 RES TFC 3.3 Kohm 0603 J 1/16W 280101202-00000-10
R118 RES TFC 3.3 Kohm 0603 J 1/16W 280101202-00000-10
R119 RES TFC 4.7 Kohm 0603 J 1/16W 280101288-00000-10
R120 RES TFC 910 ohm 0603 J 1/16W 280101451-00000-10
R121 RES TFC 100 Kohm 0603 F 1/16W 280100940-00000-10
R122 RES TFC 100 Kohm 0603 F 1/16W 280100940-00000-10
R123 RES TFC 2 Mohm 0603 J 1/16W 280101084-00000-10
R124 RES TFC 22 Kohm 0603 F 1/16W 280101105-00000-10
R125 RES TFC 1 ohm 0603 J 1/16W 280100956-00000-10
R126 RES TFC 1 ohm 0603 J 1/16W 280100956-00000-10
R127 RES TFC 1 ohm 0603 J 1/16W 280100956-00000-10
R128 RES TFC 1 ohm 0603 J 1/16W 280100956-00000-10
R129 RES TFC 1 ohm 0603 J 1/16W 280100956-00000-10
R130 RES TFC 4.7 Kohm 0603 J 1/16W 280101288-00000-10
U101 A-IC ANA NJM3403AM-#ZZZB DMP 14 210100215-00000-10
U102 O-IC PWR TL431IDBVR SOT23 3 TI 210100636-00000-10

PCB DS FR4 GP CHG 1-1 L54.5W38T1.0 250100101-00001-10

HH475E Packing Material

ML-AS TM308USL Open L148.5W105 PRODUCT R 300100572-00001-10
ML-IN TM833FBUSL COBRA L162W26 300102316-00001-10

Location Codes

Description

Mfr's Part No.

TM833USL /ACSY /R0 COBRA-USA/BLK/PKG MAT

330800722-00000-10

TM833FBEUL /PKG -BOX /R0 COBRA/EU

330700048-00000-10

TM886BEUG /ACSY /R0 COBRA-EUR/BLK/PKG MA

330800663-00000-10

TM833FBEUL /ACSY /R0 COBRA-EUR/BLK

330800772-00000-10

HH475E Packing Material

35

ML-QSG TM833FBUSL COBRA L127W179 300102318-00001-10
LB-S LENS TM833FBEUL LENS L24W33 300205359-00001-10
LB-B TM833FBEUL EAN128 COBRA V1(Two) 300205430-00001-10
LB-G CTN TM308USL CAUT L120W110 COBRA RE 300205769-00001-10
P-BAG PELD W127L406.4T0.05 300301803-00002-10
P-BAG PELD W600L750T0.08 300301990-00001-10
IS-CTN L320W310 B=B TM833FBEUL 300609360-00001-10
ML-IB TM833FBEUL COBRA L179W127 REV2.0 300100185-00002-10
ML-LL TM832FEUL COBRA L216W93 REV2. Engl 300100187-00002-10
LB-R MU TM833FBEUL L35.6W27 300200282-00001-10
LB-G BAT TM832FUSL WARN L33W24 300200286-00001-10
^LB-G GB TM308EUL SENSR L45W11 300201330-00001-11
^LB-G GB TM308EUL CP L39.5W38 300201331-00001-11
LB-G TM833USL WARN L49.5W11 REPLACEMENT 300201332-00001-10
P-BAG PELD W90L150T0.03 300301950-00001-10
P-BAG PELD W155L265T0.05 300301977-00001-10
GBX TM833FBEUL COBRA L330W190H80 REV.1 300309181-00001-10
PULP-TY TM833FBEUL L315 W185 H75 COBRA R 300309231-01001-10
CTN-OT B=B L345W335H220 TM833FBEUL REV2. 300600222-00002-10
WIRING TIE NYLON L240 BK 320100137-00001-10

PARTS LIST (HH475 Eu) - CONTINUED

SPRING TES BELT SS WD0.6 L12.5 260200095-00000-10
M-SHAF MU SS L26 W32 H32 FOR BELT CLIP 260300953-00001-10
P-CLIP BU ABS+PC BK TM833/832 TOP 3U2X 270102098-11001-10
P-CLIP BU ABS+PC BK TM833/832 BASE 3U2X 270102099-11001-10
P-BAG PELD W80L120T0.03 300301946-00001-10

LB-R CHR TM833FBEUL L34.6W24.6 300200285-00001-10
P-BAG PELD W165L180T1 300301904-00001-10

SCREW-TS PH L23 D3 + NI S PH- +SH (Two) 260100128-00000-10
P-BAG PELD W40L60T0.04 300301937-00001-10

ADT-L 230- 12 200 mA DC EU BK VERT ED351 230100450-00002-10
PLUG AC F ST USA ## W/FUSE 5A 240300370-00000-10
CIG PLUG PVC D3.5 2A 20# 1.83 m A42WM902 230100022-00000-10
P-BAG PELD W120L150T0.03 (Two) 300301951-00001-10

Location Codes

Description

Mfr's Part No.

TM833FBUSL /U- U-M /R0 COBRA/US

330100057-00000-10

TM833FBUSL /U- MAIN/UNIT /R0 COBRA/US

330100061-00000-10

TM833USL /E&M ALK BATT COMP /R0 COBRA-US

330503423-00000-10

TM833FBEUL /PCBA MAIN/PCBA /R0 COBRA/EU/

330200008-00000-10

TM833FBEUL /PCBA MAIN/SOLDERING/PCBA /R0

330201917-00000-10

TM832EUL /COBA LCD BONDING PCBA /R0 COBR

330301732-00000-10

TM832EUL /SMTA LCD PCBA /R0 COBRA-EUR

330401965-00000-10

Alkaline Battery Assembly

36

SPRING COS GD WD0.6 L31.2 260200065-00000-10
SPRING COS GD WD0.6 L22.1(Two) 260200066-00000-10
SPRING COS GD WD0.6 L22.1(Two) 260200067-00000-10
SPRING COS GD WD0.6 L23.3 260200068-00000-10
CON-POST PB T0.2H14.1WD-- GD BATT B 260300376-11001-10
CON-COMM PB T0.2H75.3WD-- GD A 260300379-12001-10
P-RCAB BT ABS BK TM833USL 3U 2X 270100527-13001-10
INSU-SHET FIBER BK L75.3 W3.9 D-- 0.15 270102608-00001-10
O-RING BD BK RUB H5.4OD--L94.05W59 270200380-13001-10

Main PCB Assembly

20
16 LCD TN TSF P 5V 1/4D 1/3B L38.5W37T1.8 - 220100028-00000-10

RUBCON SRI PIT0.10 L30.1 W2.0 H5.2 240300313-00000-10
21 M-COVR MU AL L67 W33.2 H6 260300141-11001-10
35 M-SHIE MU TP NI L20.4 W14.1 H8.5 VCO 260301003-00001-10
15 M-MOUN MU SS L39.3 W37.8 H10.6 LCD 260301094-12001-10

SHIELD VCOC MS NI L21.7 W14.7 T3.8 SILVE 260302892-11001-10
18 D-LENS PMMA MU TM832FEUL Transparent L40 270101425-11002-10
17 INSU-SHET PVC W L36 W36 D-- ASTIGMATISM 270102604-00001-10

INLAY MKEY PVC L34 W22 TM832/TM833 UNIT 270102692-11001-10

INLAY MKEY PET L25.4 W7.6 TM832/833 (Two) 270102693-11001-10
37 INSU-SHET PAP S L40 W1.3 D0.1 TM832FEUL (Three) 270110039-00001-10
36 INSU-SHET PVC W L35.4 W33.4 D0.1 TM832FE 270110041-00001-10

FOAM-CUH SILI L12W6.5T3 GREY 320100009-00001-10

FOAM-HDR SPNG L40W4T3 Grey(Four) 320100664-00001-10

FOAM-CUH SPNG L9W7T1 White 320100696-00000-10

FOAM-SPON SPNG L33.4W3.0T2.0 BLACK TM832 320101829-00001-10

PARTS LIST (HH475 US)

MIC CDR -O -52dB 3V D9.7 T4.5 LYS-M9745- 290100001-00000-10

C109 CAP-RELE 100 uF M 10V D5 H8 280201079-00000-10
C178 CAP-RELE 100 uF M 10V D5 H8 280201079-00000-10
C179 CAP-RELE 100 uF M 10V D5 H8 280201079-00000-10
C180 CAP-RELE 100 uF M 16V D6 H5 280201082-00000-10
C185 CAP-RELE 10 uF M 25V D4 H5 280201073-00000-10

F3 XTL 21.4M 2.5 2pF L3.2 W8 H6 -20C ~ 70C 280700099-00000-10
F4 XTL 21.4M 2.5 2pF L3.2 W8 H6 -20C ~ 70C 280700099-00000-10

F5 FLTR-REC LEAD 450 K +/-7.5 KHz@ 6dB LTM4 280700243-00000-10
U13 RF-MOD BLUETOOTH TXB-206AR 2.4GHZ TXBANG 320200029-00000-10
VR3 VR-ST LOG 10 Kohm P DIP H R A;JIS;W/S 280101743-00000-10

X1 FLTR-REC LEAD 450 K +/-4 KHz@ 3dB CDB450 280700253-00000-10
X2 XTL 20.95M 2.5 15pF L8 W7.8 H3 -30C ~ 50 280700161-00000-10
X3 XTL 7.3728 M 30 12.5pF D3.0 H8.0 -10+60 280700031-00000-10

U401 A-IC ANA HT1621(DICE-SD1706) CHIP 48 BON 210100060-00000-10

PCB DS FR4 GP LCD3 L32W20T1 250100356-00003-10
C401 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C407 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10

Location Codes

Description

Mfr's Part No.

TM832EUL /SMTA PTT PCBA /R0 COBRA-EUR

330401964-00000-10

TM833FBEUL /SMTA MAIN/TOP/SMD/PCBA /R0 C

330401411-00000-10

PARTS LIST (HH475 US) - CONTINUED

37

Main PCB Assembly

C409 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
R401 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R402 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10

SW-TACT SMD V 12V 5mA TSUY-2SL 1P2T HUA (Two) 240400313-00000-10

PCB DS FR4 GP PTT2 L33W8T1 250100355-00002-10

C14 CAP-CCER 27 pF J 50 VDC 0603 COG 280200800-00000-10
C31 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C33 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C35 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C37 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C40 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C41 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C54 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C61 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C71 CAP-CCER 56 pF J 50 VDC 0402 COG 280200859-00000-10

C88 CAP-CTAN 22 uF M 10 VDC CASEA 280201245-00000-10
C100 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C101 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C102 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C110 CAP-CCER 2 pF C 50 VDC 0402 COG 280200779-00000-10
C113 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C114 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C117 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C118 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C119 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C120 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C126 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C129 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C136 CAP-CCER 220 nF Z 16 VDC 0402 Y5V 280200303-00000-10
C137 CAP-CCER 33 nF K 16 VDC 0402 X7R 280200428-00000-10
C138 CAP-CCER 33 nF K 16 VDC 0402 X7R 280200428-00000-10
C139 CAP-CCER 33 nF K 16 VDC 0402 X7R 280200428-00000-10
C141 CAP-CCER 220 pF J 50 VDC 0402 COG 280200786-00000-10
C142 CAP-CCER 220 pF J 50 VDC 0402 COG 280200786-00000-10
C146 CAP-CCER 820 pF J 50 VDC 0402 COG 280200888-00000-10
C153 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C166 CAP-CCER 47 nF K 25 VDC 0402 X7R 280200453-00000-10
C168 CAP-CTAN 2.2 uF M 16 VDC CASEA 280201248-00000-10
C176 CAP-CCER 10 pF J 50 VDC 0402 NPO 1570-03 280200583-00000-10
C177 CAP-CCER 10 pF J 50 VDC 0402 NPO 1570-03 280200583-00000-10
C181 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C199 CAP-CCER 3 pF C 50 VDC 0402 COG 280200811-00000-10
C203 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C208 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C209 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C216 CAP-CTAN 22 uF M 10 VDC CASEA 280201245-00000-10
C217 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C225 CAP-CCER 1 uF Z 10 VDC 0603 Y5V 280200293-00000-10
C227 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10

Location Codes

Description

Mfr's Part No.

PARTS LIST (HH475 US) - CONTINUED

38

Main PCB Assembly

C233 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C234 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C236 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C237 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C242 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C243 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C244 CAP-CCER 100 pF J 50 VDC 0402 COG 1553-0 280200729-00000-10
C245 CAP-CCER 100 pF J 50 VDC 0402 COG 1553-0 280200729-00000-10
C246 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C247 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10

D3 LED- SMD- 0805 OR 2.1V 200mcd KPA-3010SE 280500100-00000-10
D4 LED- SMD- 0805 OR 2.1V 200mcd KPA-3010SE 280500100-00000-10
D5 LED- SMD- 0603 OR 2.1V 20mcd 280500008-00000-10
D6 LED- SMD- 0603 OR 2.1V 20mcd 280500008-00000-10
D7 LED- SMD- 0603 OR 2.1V 20mcd 280500008-00000-10

D8 LED- SMD- 0603 OR 2.1V 20mcd 280500008-00000-10
D17 LED- SMD- 0603 BLU 3V 105mcd LH06034P1-B 280500112-00000-10
D19 LED- SMD- 0603 BLU 3V 105mcd LH06034P1-B 280500112-00000-10

L31 IND-SMD 2.2 uH +-10% Q35 0603 SDFL1608Q2 280300666-00000-10

Q9 TRS-BP PNP SOT23 MMBT3906LT1 4823-30669- 280400122-00000-10
Q26 TRS-BP PNP SOT23 MMBT3906LT1 4823-30669- 280400122-00000-10
Q28 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q29 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q30 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10

R9 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R23 RES TFC 68 ohm 0402 J 1/16W 280101403-00000-10
R26 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R40 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R41 RES TFC 47 ohm 0402 J 1/16W 280101305-00000-10
R42 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R53 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R58 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R59 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R61 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R62 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R63 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R77 RES TFC 3.3 Kohm 0402 J 1/16W 280101201-00000-10
R79 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R86 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R87 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R89 RES TFC 3.3 Kohm 0402 J 1/16W 280101201-00000-10
R90 RES TFC 300 Kohm 0402 J 1/16W 280101186-00000-10
R91 RES TFC 200 Kohm 0402 F 1/16W 280101079-00000-10

R121 RES TFC 3.3 Kohm 0402 J 1/16W 280101201-00000-10
R122 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R123 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R127 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R132 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R134 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R138 RES TFC 47 ohm 0402 J 1/16W 280101305-00000-10
R148 RES TFC 200 Kohm 0402 F 1/16W 280101079-00000-10

Location Codes

Description

Mfr's Part No.

TM833FBEUL /SMTA MAIN/BTM/SMD/PCBA /R0 C

330400028-00000-10

PARTS LIST (HH475 US) - CONTINUED

39

Main PCB Assembly

R149 RES TFC 100 Kohm 0402 F 1/16W 280100939-00000-10
R153 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R154 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R156 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R162 RES TFC 22 Kohm 0402 J 1/16W 280101107-00000-10
R163 RES TFC 22 Kohm 0402 J 1/16W 280101107-00000-10
R171 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R174 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R175 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R179 RES TFC 150 ohm 0402 J 1/16W 280101007-00000-10
R182 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R183 RES TFC 220 ohm 0402 J 1/16W 280101096-00000-10
R184 RES TFC 5.6 Kohm 0402 J 1/16W 280101346-00000-10
R185 RES TFC 5.6 Kohm 0402 J 1/16W 280101346-00000-10
R187 RES TFC 12 Kohm 0402 J 1/6W 280100981-00000-10
R188 RES TFC 12 Kohm 0402 J 1/6W 280100981-00000-10
R189 RES TFC 68 Kohm 0402 J 1/16W 280101395-00000-10
R190 RES TFC 68 Kohm 0402 J 1/16W 280101395-00000-10
R194 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R195 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R196 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R197 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R202 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R203 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R207 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R208 RES TFC 150 ohm 0402 J 1/16W 280101007-00000-10
R209 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R211 RES TFC 0 ohm 0402 J 1/16W 280100909-00000-10
R217 RES TFC 330 ohm 0402 J 1/16W 280101196-00000-10
R219 RES TFC 330 ohm 0402 J 1/16W 280101196-00000-10
R220 RES TFC 330 ohm 0402 J 1/16W 280101196-00000-10
R304 RES TFC 0 ohm 0402 J 1/16W 280100909-00000-10

RT2 THERM- NTC 10 Kohm +/-1% SMD 125TO -40C 280800011-00000-10

U1 O-IC RF BA4116FV SOT23 16 210100475-00000-10

U3 O-IC PWR XC61CN2702MR SOT23 3 TOREX 210100586-00000-10

U7 C-IC MMCU TQFP 64 PIC24FJ64GA006-I/PT MI 210201346-00000-10

U9 M-IC MEM AT45DB041D-SU SOIC 8 210100438-00000-10
U12 O-IC PWR XC6204B332MR SOT25 5 TOREX 210100646-00000-10
VR1 VR-ST LIN 10 Kohm P 0.15W SMD H R EVM3YS 280101763-00000-10
VR2 VR-ST LIN 50 Kohm P 0.15W SMD V R EVM3YS 280101767-00000-10
VC1 CAP-TRM 3 pF- 10 pF 100V SMD N750 TZC3R1 280202416-00000-10

PCB 4L FR4 GP MAIN 1-4 L112.5W57T1.0 L2- 250100103-00004-10
C1 CAP-CCER 18 pF J 50 VDC 0603 COG 280200768-00000-10
C2 CAP-CCER 30 pF J 50 VDC 0402 COG 280200807-00000-10
C3 CAP-CCER 30 pF J 50 VDC 0402 COG 280200807-00000-10
C4 CAP-CCER 10 pF J 50 VDC 0603 COG 280200728-00000-10
C5 CAP-CCER 10 pF J 50 VDC 0603 COG 280200728-00000-10
C6 CAP-CCER 10 pF J 50 VDC 0402 NPO 1570-03 280200583-00000-10
C7 CAP-CCER 10 pF J 50 VDC 0402 NPO 1570-03 280200583-00000-10
C8 CAP-CCER 10 pF J 50 VDC 0402 NPO 1570-03 280200583-00000-10

Location Codes

Description

Mfr's Part No.

PARTS LIST (HH475 US) - CONTINUED

40

Main PCB Assembly

C9 CAP-CCER 3 pF C 50 VDC 0402 COG 280200811-00000-10

C10 CAP-CCER 10 pF J 50 VDC 0402 NPO 1570-03 280200583-00000-10
C11 CAP-CCER 10 pF J 50 VDC 0402 NPO 1570-03 280200583-00000-10
C12 CAP-CCER 33 pF J 50 VDC 0603 NPO 280200236-00000-10
C13 CAP-CCER 100 pF J 50 VDC 0402 COG 1553-0 280200729-00000-10
C15 CAP-CCER 47 pF J 50 VDC 0603 COG 280200839-00000-10
C16 CAP-CCER 47 pF J 50 VDC 0603 COG 280200839-00000-10
C18 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C19 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C20 CAP-CCER 1000 pF K 50 VDC 0603 X7R 280200328-00000-10
C21 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C22 CAP-CCER 1000 pF K 50 VDC 0603 X7R 280200328-00000-10
C23 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C23 CAP-CCER 47 pF J 50 VDC 0402 COG 280200838-00000-10
C24 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C25 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C26 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C27 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C28 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C29 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C30 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C32 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C34 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C36 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C38 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C39 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C42 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C43 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C44 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C45 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C46 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C47 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C48 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C49 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C50 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C51 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C52 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C53 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C55 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C56 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C57 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C58 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C59 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C60 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C62 CAP-CCER 12 pF J 50 VDC 0603 COG 280200742-00000-10
C63 CAP-CCER 12 pF J 50 VDC 0603 COG 280200742-00000-10
C64 CAP-CCER 47 pF J 50 VDC 0402 COG 280200838-00000-10
C65 CAP-CCER 560 pF J 50 VDC 0402 COG 280200861-00000-10
C66 CAP-CCER 27 pF J 50 VDC 0603 COG 280200800-00000-10
C67 CAP-CCER 18 pF J 50 VDC 0603 COG 280200768-00000-10
C68 CAP-CCER 22 pF J 50 VDC 0402 COG 280200783-00000-10

Location Codes

Description

Mfr's Part No.

PARTS LIST (HH475 US) - CONTINUED

41

Main PCB Assembly

C69 CAP-CCER 22 pF J 50 VDC 0402 COG 280200783-00000-10
C70 CAP-CCER 68 pF J 50 VDC 0603 NPO 280200268-00000-10
C72 CAP-CCER 22 pF J 50 VDC 0603 NPO 280200214-00000-10
C73 CAP-CCER 8 pF D 50 VDC 0402 COG 280200883-00000-10
C74 CAP-CCER 8 pF D 50 VDC 0402 COG 280200883-00000-10
C75 CAP-CTAN 2.2 uF M 16 VDC CASEA 280201248-00000-10
C76 CAP-CTAN 2.2 uF M 16 VDC CASEA 280201248-00000-10
C77 CAP-CCER 33 pF J 50 VDC 0603 NPO 280200236-00000-10
C79 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C80 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C81 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C82 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C83 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C84 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C85 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C86 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C87 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C89 CAP-CCER 1800 pF K 50 VDC 0402 X7R 280200379-00000-10
C90 CAP-CCER 2200 pF K 50 VDC 0402 X7R 1570- 280200169-00000-10
C91 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C92 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C93 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C94 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C95 CAP-CTAN 10 uF K 6.3 VDC CASEA 280201318-00000-10
C96 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C97 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C98 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10

C99 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C103 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C104 CAP-CCER 1.5 pF C 50 VDC 0402 COG 280200760-00000-10
C105 CAP-CCER 100 pF J 50 VDC 0402 COG 1553-0 280200729-00000-10
C106 CAP-CCER 100 pF J 50 VDC 0402 COG 1553-0 280200729-00000-10
C107 CAP-CCER 100 pF J 50 VDC 0402 COG 1553-0 280200729-00000-10
C108 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C111 CAP-CTAN 22 uF M 10 VDC CASEA 280201245-00000-10
C112 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C115 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C116 CAP-CCER 220 nF Z 16 VDC 0402 Y5V 280200303-00000-10
C121 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C122 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C123 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C124 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C125 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C127 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C128 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C130 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C131 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C132 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C133 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C134 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C135 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10

Location Codes

Description

Mfr's Part No.

PARTS LIST (HH475 US) - CONTINUED

42

Main PCB Assembly

C140 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C143 CAP-CCER 220 pF J 50 VDC 0402 COG 280200786-00000-10
C144 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C145 CAP-CCER 220 pF J 50 VDC 0402 COG 280200786-00000-10
C147 CAP-CCER 56 pF J 50 VDC 0603 UJ 280200901-00000-10
C148 CAP-CCER 4700 pF K 50 VDC 0402 X7R 280200447-00000-10
C149 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C150 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C151 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C152 CAP-CCER 15 pF J 50 VDC 0402 COG 280200756-00000-10
C154 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C155 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C156 CAP-CCER 180 pF J 50 VDC 0402 COG 280200770-00000-10
C157 CAP-CCER 3 pF C 50 VDC 0402 COG 280200811-00000-10
C158 CAP-CCER 5 pF C 50 VDC 0402 COG 280200852-00000-10
C159 CAP-CCER 5 pF C 50 VDC 0402 COG 280200852-00000-10
C160 CAP-CCER 1 pF C 50 VDC 0402 COG 280200734-00000-10
C161 CAP-CCER 1.2 pF C 50 VDC 0402 COG 280200750-00000-10
C162 CAP-CCER 3300 pF K 50 VDC 0402 X7R 1570- 280200423-00000-10
C163 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C164 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C165 CAP-CCER 47 nF K 25 VDC 0402 X7R 280200453-00000-10
C167 CAP-CCER 47 nF K 25 VDC 0402 X7R 280200453-00000-10
C169 CAP-CTAN 22 uF M 10 VDC CASEA 280201245-00000-10
C170 CAP-CTAN 22 uF M 10 VDC CASEA 280201245-00000-10
C171 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C171 CAP-CCER 47 pF J 50 VDC 0402 COG 280200838-00000-10
C172 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C173 CAP-CCER 220 pF J 50 VDC 0402 COG 280200786-00000-10
C174 CAP-CCER 22 pF G 50 VDC 0603 NPO 280200638-00000-10
C175 CAP-CCER 8 pF D 50 VDC 0402 COG 280200883-00000-10
C182 CAP-CCER 3300 pF K 50 VDC 0402 X7R 1570- 280200423-00000-10
C183 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C184 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C186 CAP-CTAN 10 uF K 6.3 VDC CASEA 280201318-00000-10
C187 CAP-CCER 4700 pF K 50 VDC 0402 X7R 280200447-00000-10
C188 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C189 CAP-CCER 470 nF Z 10 VDC 0402 Y5V 280200317-00000-10
C190 CAP-CCER 2200 pF K 50 VDC 0402 X7R 1570- 280200169-00000-10
C191 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C192 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C193 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C194 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C195 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C196 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C197 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C198 CAP-CCER 2 pF C 50 VDC 0402 COG 280200779-00000-10
C200 CAP-CCER 10 pF J 50 VDC 0603 COG 280200728-00000-10
C201 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C202 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C204 CAP-CCER 47 nF K 25 VDC 0402 X7R 280200453-00000-10

Location Codes

Description

Mfr's Part No.

PARTS LIST (HH475 US) - CONTINUED

43

Main PCB Assembly

C205 CAP-CCER 47 nF K 25 VDC 0402 X7R 280200453-00000-10
C206 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C207 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C210 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C211 CAP-CCER 2 pF C 50 VDC 0403 COG 280200779-00000-11
C212 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C214 CAP-CCER 18 pF J 50 VDC 0402 COG 280200767-00000-10
C215 CAP-CCER 1000 pF K 50 VDC 0402 X7R 1570- 280200327-00000-10
C218 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C219 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C220 CAP-CCER 470 nF Z 10 VDC 0402 Y5V 280200317-00000-10
C221 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C222 CAP-CCER 5 pF C 50 VDC 0402 COG 280200852-00000-10
C223 CAP-CCER 4.7 pF B 50 VDC 0402 COG 280200848-00000-10
C224 CAP-CCER 47 pF J 50 VDC 0402 COG 280200838-00000-10
C226 CAP-CCER 4700 pF K 50 VDC 0402 X7R 280200447-00000-10
C228 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C229 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10
C230 CAP-CCER 220 pF J 50 VDC 0402 COG 280200786-00000-10
C232 CAP-CCER 2200 pF K 50 VDC 0402 X7R 1570- 280200169-00000-10
C235 CAP-CCER 2200 pF K 50 VDC 0402 X7R 1570- 280200169-00000-10
C238 CAP-CCER 2200 pF K 50 VDC 0402 X7R 1570- 280200169-00000-10
C239 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C240 CAP-CCER 10 nF K 25 VDC 0402 X7R 280200336-00000-10
C241 CAP-CCER 10 pF J 50 VDC 0402 NPO 1570-03 280200583-00000-10
C248 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C249 CAP-CCER 470 pF J 50 VDC 0402 COG 280200840-00000-10
C250 CAP-CCER 1 uF Z 6.3 VDC 0402 Y5V 280200290-00000-10
C251 CAP-CCER 100 nF K 16 VDC 0402 X7R 280200343-00000-10

D1 DIO-SW ISS356 1V 0.1 A USM 280600248-00000-10
D2 DIO-SW ISS356 1V 0.1 A USM 280600248-00000-10

D9 DIO-SW DAN235E 1V 0.01 A SOT416 280600246-00000-10
D10 DIO-VAR HVU307TRU 12.5 32V SOD-323 280600090-00000-10
D11 DIO-VAR HVU307TRU 12.5 32V SOD-323 280600090-00000-10
D12 DIO-VAR HVU307TRU 12.5 32V SOD-323 280600090-00000-10
D13 DIO-SCK HSC278TRF-E 0.95V 0.15 A UFP 280600258-00000-10
D14 DIO-VAR HVU307TRU 12.5 32V SOD-323 280600090-00000-10
D15 DIO-VAR HVU307TRU 12.5 32V SOD-323 280600090-00000-10
D16 DIO-SW BAW56 1.25V 0.215 A SOT-23 280600254-00000-10
D18 DIO-ZNR UDZS 5.1B 5.1V 0.2 W SC-76 280600144-00000-10
D20 DIO-SW ISS356 1V 0.1 A USM 280600248-00000-10

F1 FLTR-REC SAW SMD 159.5 M +/-4 MHz@ -3dB 280700029-00000-10
F2 FLTR-REC SAW SMD 159.5 M +/-4 MHz@ -3dB 280700029-00000-10
J2 CON-PHON F RT-S D2.6 BK TG-2866D-PA6T-G 240300192-00000-10
L1 AIR-COIL SMD D2 L2.2 T4 0.5WR - 280300169-00000-10
L2 AIR-COIL SMD D2 L2.2 T4 0.5WR - 280300169-00000-10
L3 AIR-COIL SMD D2 L2.2 T4 0.5WR - 280300169-00000-10
L4 IND-SMD 2.2 uH +-5% Q30 2520 NLV25T-2R2J 280300620-00000-10
L5 IND-SMD 56 nH +-2% Q50 2520 C2520C-56NG 280300637-00000-10
L6 AIR-COIL SMD D1.6 L1.05 T3 0.35WR + 280300166-00000-10
L7 IND-SMD 56 nH +-2% Q50 2520 C2520C-56NG 280300637-00000-10

Location Codes

Description

Mfr's Part No.

PARTS LIST (HH475 US) - CONTINUED

44

Main PCB Assembly

L8 AIR-COIL SMD D2 L2 T3 0.5WR + 280300167-00000-10

L9 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L10 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L11 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L12 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L13 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L14 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L15 MAG-CORE Ferrite L1.6 W0.8 H0.8 47-NH +/ 280300289-00000-10
L16 MAG-CORE Ferrite L1.6 W0.8 H0.8 47-NH +/ 280300289-00000-10
L17 IND-SMD 2.2 uH +-5% Q30 2520 NLV25T-2R2J 280300620-00000-10
L18 IND-SMD 2.2 uH +-5% Q30 2520 NLV25T-2R2J 280300620-00000-10
L19 IND-SMD 2.2 uH +-5% Q30 2520 NLV25T-2R2J 280300620-00000-10
L20 IND-SMD 2.2 uH +-5% Q30 2520 NLV25T-2R2J 280300620-00000-10
L21 IND-SMD 2.2 uH +-5% Q30 2520 NLV25T-2R2J 280300620-00000-10
L22 IND-SMD 56 nH +-2% Q50 2520 C2520C-56NG 280300637-00000-10
L23 IND-SMD 39 nH +-5% Q50 2520 1808-20013-6 280300628-00000-10
L24 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L25 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L26 IND-SMD 4.7 nH +-5% Q8 0603 SDCL1608C4N7 280300675-00000-10
L27 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L28 IND-SMD 22 nH +-5% Q12 0603 280300671-00000-10
L29 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L30 IND-SMD 0.1 uH +-5% Q8 0603 SDCL1608CR10 280300668-00000-10
L33 IND-SMD 2.2 uH +-5% Q30 2520 NLV25T-2R2J 280300620-00000-10
L34 IND-SMD 2.2 uH +-5% Q30 2520 NLV25T-2R2J 280300620-00000-10

Q1 TRS-BP NPN SOT23 2SC4901 280400127-00000-10
Q2 TRS-BP NPN SOT23 2SC4901 280400127-00000-10
Q3 TRS-BP NPN SOT23 2SC3356 280400117-00000-10
Q4 TRS-BP NPN SOT23 2SC4901 280400127-00000-10
Q5 TRS-BP NPN SOT23 2SC4901 280400127-00000-10
Q6 TRS-FET/MOS N L6.0W4.9H0.9 RD07MUS2B-T11 280400512-00000-10
Q7 TRS-BP NPN SOT23 2SC4901 280400127-00000-10

Q8 TRS-FET/MOS N CMPAK-4 3SK318YB 280400262-00000-10
Q10 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q11 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q12 TRS-FET/MOS N SC62 2SK3078 280400258-00000-10
Q13 TRS-FET/MOS N 2SK302GR 280400250-00000-10
Q14 TRS-FET/MOS N SC59 2SK210-Y 280400249-00000-10
Q15 TRS-BP PNP SOT23 MMBT3906LT1 4823-30669- 280400122-00000-10
Q16 TRS-BP PNP SOT23 MPS8550S 280400133-00000-10
Q17 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q18 TRS-BP PNP SOT23 MPS8550S 280400133-00000-10
Q19 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q20 TRS-BP NPN SC70 2SC4097R 280400124-00000-10
Q21 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q22 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q23 TRS-BP NPN SC70 2SC4097R 280400124-00000-10
Q24 TRS-BP PNP SOT23 MPS8550S 280400133-00000-10
Q25 TRS-BP PNP SOT23 MPS8550S 280400133-00000-10
Q27 TRS-BP NPN SC70 2SC4097R 280400124-00000-10

R1 RES TFC 220 ohm 0402 J 1/16W 280101096-00000-10

Location Codes

Description

Mfr's Part No.

PARTS LIST (HH475 US) - CONTINUED

45

Main PCB Assembly

R2 RES TFC 220 ohm 0402 J 1/16W 280101096-00000-10

R3 RES TFC 220 ohm 0402 J 1/16W 280101096-00000-10

R4 RES TFC 220 ohm 0402 J 1/16W 280101096-00000-10

R5 RES TFC 220 ohm 0402 J 1/16W 280101096-00000-10

R6 RES TFC 220 ohm 0402 J 1/16W 280101096-00000-10

R7 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10

R8 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R10 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R11 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R12 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R13 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R14 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R15 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R16 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R17 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R18 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R19 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R20 RES TFC 3.9 Kohm 0402 J 1/16W 280101251-00000-10
R21 RES TFC 47 ohm 0402 J 1/16W 280101305-00000-10
R22 RES TFC 47 ohm 0402 J 1/16W 280101305-00000-10
R24 RES TFC 47 ohm 0402 J 1/16W 280101305-00000-10
R25 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R27 RES TFC 3.3 ohm 0603 J 1/10W 280100527-00000-10
R28 RES TFC 1 ohm 0603 J 1/16W 280100956-00000-10
R29 RES TFC 33 Kohm 0402 J 1/16W 280101205-00000-10
R30 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R31 RES TFC 3.3 Kohm 0402 J 1/16W 280101201-00000-10
R32 RES TFC 8.2 Kohm 0402 J 1/16W 280101431-00000-10
R33 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R34 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R35 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R36 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R37 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R38 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R39 RES TFC 20 Kohm 0402 J 1/16W 280101076-00000-10
R43 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R44 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R45 RES TFC 150 ohm 0402 J 1/16W 280101007-00000-10
R46 RES TFC 330 ohm 0402 J 1/16W 280101196-00000-10
R47 RES TFC 3.3 Kohm 0402 J 1/16W 280101201-00000-10
R48 RES TFC 15 Kohm 0402 J 1/16W 280101016-00000-10
R49 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R50 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R51 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R52 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R54 RES TFC 1 Kohm 0402 J 1/16W 280100929-00000-10
R55 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R56 RES TFC 56 Kohm 0402 J 1/16W 280101350-00000-10
R57 RES TFC 56 Kohm 0402 J 1/16W 280101350-00000-10
R60 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R64 RES TFC 820 ohm 0402 J 1/16W 280101428-00000-10

Location Codes

Description

Mfr's Part No.

PARTS LIST (HH475 US) - CONTINUED

46

Main PCB Assembly

R65 RES TFC 330 ohm 0402 J 1/16W 280101196-00000-10
R66 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R67 RES TFC 220 ohm 0402 J 1/16W 280101096-00000-10
R68 RES TFC 33 Kohm 0402 J 1/16W 280101205-00000-10
R69 RES TFC 200 Kohm 0402 F 1/16W 280101079-00000-10
R70 RES TFC 56 ohm 0402 J 1/16W 280101361-00000-10
R71 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R72 RES TFC 56 ohm 0402 J 1/16W 280101361-00000-10
R73 RES TFC 0 ohm 0402 J 1/16W 280100909-00000-10
R74 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R75 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R76 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R78 RES TFC 56 Kohm 0402 J 1/16W 280101350-00000-10
R80 RES TFC 20 Kohm 0402 J 1/16W 280101076-00000-10
R81 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R82 RES TFC 330 Kohm 0402 J 1/16W 280101211-00000-10
R83 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R84 RES TFC 15 Kohm 0402 J 1/16W 280101016-00000-10
R85 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R88 RES TFC 1.5 Kohm 0402 J 1/16W 280101011-00000-10
R92 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R93 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R94 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R95 RES TFC 3.3 ohm 0603 J 1/10W 280100527-00000-10
R96 RES TFC 100 Kohm 0402 F 1/16W 280100939-00000-10
R98 RES TFC 200 Kohm 0402 F 1/16W 280101079-00000-10
R99 RES TFC 200 Kohm 0402 F 1/16W 280101079-00000-10

R100 RES TFC 100 Kohm 0402 F 1/16W 280100939-00000-10
R101 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R102 RES TFC 0.39 ohm 1206 J 1/8W 280101263-00000-10
R103 RES TFC 0.39 ohm 1206 J 1/8W 280101263-00000-10
R104 RES TFC 0.39 ohm 1206 J 1/8W 280101263-00000-10
R105 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R106 RES TFC 33 Kohm 0402 J 1/16W 280101205-00000-10
R107 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R108 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R109 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R110 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R111 RES TFC 470 Kohm 0402 J 1/16W 280101299-00000-10
R112 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R113 RES TFC 22 Kohm 0402 F 1/16W 280100338-00000-10
R114 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R115 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R116 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R117 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R118 RES TFC 39 Kohm 0402 J 1/16W 280101254-00000-10
R119 RES TFC 120 Kohm 0402 J 1/16W 280100984-00000-10
R120 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R124 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R125 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R126 RES TFC 33 Kohm 0402 J 1/16W 280101205-00000-10

Location Codes

Description

Mfr's Part No.

PARTS LIST (HH475 US) - CONTINUED

47

Main PCB Assembly

R128 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R129 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R130 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R131 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R133 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R135 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R136 RES TFC 1 Mohm 0402 J 1/16W 280100948-00000-10
R137 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R139 RES TFC 820 Kohm 0402 J 1/16W 280101437-00000-10
R140 RES TFC 36 Kohm 0402 J 1/16W 280101235-00000-10
R141 RES TFC 56 Kohm 0402 J 1/16W 280101350-00000-10
R142 RES TFC 36 Kohm 0402 J 1/16W 280101235-00000-10
R143 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R144 RES TFC 39 Kohm 0402 J 1/16W 280101254-00000-10
R145 RES TFC 120 Kohm 0402 J 1/16W 280100984-00000-10
R146 RES TFC 18 Kohm 0402 J 1/16W 280101051-00000-10
R147 RES TFC 4.7 ohm 0402 J 1/6W 280101303-00000-10
R150 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10
R151 VDR CER 18V 40&30V&A 750W 0603 SUNLORD S 280101800-00000-10
R152 RES TFC 22 Kohm 0402 F 1/16W 280100338-00000-10
R155 RES TFC 22 Kohm 0402 F 1/16W 280100338-00000-10
R157 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R158 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R159 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R160 RES TFC 36 Kohm 0402 J 1/16W 280101235-00000-10
R161 RES TFC 36 Kohm 0402 J 1/16W 280101235-00000-10
R164 RES TFC 22 Kohm 0402 F 1/16W 280100338-00000-10
R165 RES TFC 22 ohm 0402 J 1/16W 280101123-00000-10
R166 RES TFC 33 Kohm 0402 J 1/16W 280101205-00000-10
R167 RES TFC 33 Kohm 0402 J 1/16W 280101205-00000-10
R168 RES TFC 820 ohm 0402 J 1/16W 280101428-00000-10
R170 RES TFC 33 Kohm 0402 J 1/16W 280101205-00000-10
R172 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R173 RES TFC 120 Kohm 0402 J 1/16W 280100984-00000-10
R176 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R177 RES TFC 470 Kohm 0402 J 1/16W 280101299-00000-10
R178 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R180 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10
R181 RES TFC 1 Mohm 0402 J 1/16W 280100948-00000-10
R186 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R191 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R192 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R193 RES TFC 10 ohm 0402 J 1/16W 280100960-00000-10
R198 RES TFC 330 ohm 0402 J 1/16W 280101196-00000-10
R199 RES TFC 33 Kohm 0402 J 1/16W 280101205-00000-10
R200 RES TFC 47 Kohm 0402 J 1/16W 280101294-00000-10
R201 RES TFC 3.3 Kohm 0402 J 1/16W 280101201-00000-10
R204 RES TFC 33 Kohm 0402 J 1/16W 280101205-00000-10
R205 RES TFC 200 Kohm 0402 F 1/16W 280101079-00000-10
R206 RES TFC 22 Kohm 0402 F 1/16W 280100338-00000-10
R210 RES TFC 100 Kohm 0402 J 1/16W 280100941-00000-10

Location Codes

Description

Mfr's Part No.

TM833FBEUL /E&M LI BATTERY /R0 COBRA/EU

330500022-00000-10

TM833FBEUL /E&M BACK HOUSING /R0 COBRA/E

330500024-00000-10

TM833FBEUL /E&M OTHER CASING /R0 COBRA/E

330500025-00000-10

PARTS LIST (HH475 US) - CONTINUED

48

Main PCB Assembly

R212 RES TFC 0 ohm 0402 J 1/16W 280100909-00000-10
R213 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R214 RES TFC 100 ohm 0402 J 1/16W 280100919-00000-10
R215 RES TFC 10 Kohm 0402 J 1/16W 280100937-00000-10
R216 RES TFC 4.7 Kohm 0402 J 1/16W 280101287-00000-10
R218 RES TFC 2.2 Kohm 0402 J 1/16W 280101100-00000-10

RT1 THERM- NTC 100 ohm +/-3% SMD 125TO -40C 280800018-00000-10

U2 A-IC ANA NJM2904M SOP 8 210100238-00000-10

U4 A-IC ANA NJM324V SSOP 14 210100241-00000-10

U5 A-IC ANA NJM324V SSOP 14 210100241-00000-10

U6 O-IC RF GP214D TSSOP 16 210100497-00000-10

U8 O-IC PWR XC6204B502MR SOT25 5 210100555-00000-10
U10 O-IC PWR XC6204B332MR SOT25 5 TOREX 210100646-00000-10
U11 A-IC ANA NJM2070M DMP 8 210100211-00000-10
VR4 VR-ST LIN 50 Kohm P 0.15W SMD V R EVM3YS 280101767-00000-10

Li - Polymar Battery Part

45 BAT-R PRISM LI 7.4V 1000MAH TP603450 TEC 230400180-00000-10

MAG-CORE Ferrite D8.0 H4.0 IR4H0804-4.5T 280301131-00000-10
TUBE ROLL OD1.4 ID1 BK 320100122-00000-10

FOAM-HDR SPNG L15W15T12 Black 320100683-00001-10
48 FOAM-HDR SPNG L15W15T12 Black 260300377-11001-10
49 CON-CHAR PB T0.2H3.5WD-- GD UNIT (Three) 260300380-11001-10
47 P-RCAB BT ABS BK TM833 3U 2X 270100953-11001-10
43 P-BATT-DR BU ABS BK TM832EUL 3U2X 270101071-12001-10
46 O-RING BD BK RUB H5.4OD--L94.05W59 270200380-13001-10
44 FOAM-HDR SPNG L40W8T1 Black (Two) 320100666-00001-10

Back Housing Assembly

WASHER MS NI OD6.2 ID3.3 1 -- LOCK(Two) 260200163-00001-10

INSU-WASH FIBER R L-- W-- D6.0 ID3.0xOD4 270102267-00001-10
24 SCREW-TS RH L8 D2.6 + SUS C (Two) 260100022-00000-10
30 SCREW-TS RH L10 D3 + BZ SUS F BLACK 260101177-00000-10
23 M-WASH MU CU NI L10.55 W1.09 H0.2 (Two) 260300005-11001-10
26 M-SHAF MU PB GD L10.7 W3.6 H-- (Two) 260300007-00001-10
25 M-BRKT MU SS L20 W19 H10 SUS304 260302983-11000-10

INSU-SHET PVC O L18.5 W10.4 D0.4 8B35/14 270100035-00001-10
28 P-RCAB MU PC O TM833FBUSL 021U 270100529-11001-10
27 P-HOLDER MU ABS BK TM833FBUSL CONNECTOR (Two) 270100532-11001-10
29 P-CLIP BU PC BK TM832/TM833 ATTACHMENT 3 270102095-12001-10

Other Casing Part

19 SCREW-TS WRH L5 D2 + CZ F RWB (Four) 260100191-00000-10
31 SCREW-TS PH L12 D-- + BZ SUS F TM832FEUL (Four) 260101179-00001-10

WASHER SS OD8.5 ID6.2 0.2 -- PLATE 260200179-00001-10

CON-PLAT PB T--H4.7WD0.4 GD TM833FBEUL (Two) 260303025-00000-10

5 P-KEY C/F MU ABS BK TM832EUL MIC 3U2X 270101280-12001-10

NUT-LOK CU NI D9 T1.8 P0.75 mm 260100066-00000-10

NUT-HEX CU NI D8.2 T15.5 P0.75 mm SEND T 260100091-00000-10
52 SPRING COS ANT SW CU WD1 L158.5 OD:6.8MM 260200009-00000-10
33 M-SPPT MU SS L20 W1 H1 LOCK PIN 260301096-00001-10

Location Codes

Description

Mfr's Part No.

TM833FBEUL /E&M ANT /R0 COBRA/EU

330500026-00000-10

TM833FBUSL /E&M FRONT HOUSING /R0 COBRA/

330500072-00000-10

TM833FBEUL /PCBA MIC PCBA /R0

330202786-00000-10

TM833FBEUL /U- CHG/UNIT /R0 COBRA/EU

330100063-00000-10

TM832FEUL /E&M CRADLE CHG COMP /R0 COBRA

330503710-00000-10

TM833FBEUL /PCBA CHG/PCBA /R0 COBRA/EU

330200036-00000-10

TM833FBEUL /SMTA CHG/TOP/PCBA /R0 COBRA/

330400027-00000-10

PARTS LIST (HH475 US) - CONTINUED

49

Other Casing Part

4 M-SLEE MU SS L5.15 W5 H4.4 SW 260301122-00001-10

34 P-COVER MU PC BK TM832EUL 3U2X/WITH PAIN 270100455-12002-10

3 P-KEY VOL MU ABS BK TM833FBUSL 3U2X 270100530-11001-10
38 P-PLATE MU PMMA BK TM832/TM833 KEYBOARD 270102091-12001-10
22 O-RING MU BK RUB H1.4OD--L118.5W62 3U2X 270200053-12001-10

6 FOAM-HDR RUBB L34.1W26.3T4.7 GREY DS022 320100108-00001-10

FOAM-HDR SPNG L30W15T1 Yellow 320100727-00000-10

32 FOAM-HDR RUBB D1.8T1 NA Black SCREW CAP (Five) 320100751-00001-10

Antenaa Part

51 P-SLV-ANT BU PU BK TM832EUL ANT 3U2X 270102093-12001-10
50 P-CAP BU ABS BK TM833/832 ANT 3U2X 270102110-11001-10

HH475U Front Housing Assebmly

41 INSU-TAPE FILM BK L-- W-- D9.4 WATERPROO 270110368-00000-10

7 INSU-SHET FILM W L-- W-- D6.4 WATERPROOF 270110610-00000-10
42 FOAM-CUH SPNG D9.5T1.4 SS BLACK TM833FBE 320101869-00001-10

TAPE-A DS L6.4 W6.4 T0.3 320101941-00000-10
2 P-FCAB MU PC BK TM833FBUSL 3U2X 270100031-12002-10
1 D-LENS PMMA MU TM833FBUSL 270100034-12003-10

10 P-PLATE MU PC BK TM832 PTT MOUNT 3U2X 270102092-12001-10
13 KEY FUN SR T 2K TM832FUSL RIGHT 433U/201 270200016-11003-10
11 KEY-P MAIN RUB DG 6K TM833FBUSL 433C 270200054-11005-10
14 KEY FUN SR T 2K TM832FEUL LEFT 433U 270200118-11002-10
12 KEY PTT RUB G 1K TM832 270200131-11001-10
39 SPK M 8OHM 1W D40 T5.2 TEK404P-8 OHM1W 290100070-00000-10
40 FOAM-SPK NYL D37.3T-- SS BLACK TM833FBEU 320101847-00001-10

BlueTooth Mic Assembly

8 PCB SS FR4 GP MIC 1-4 L6W8T1.0 TM833FBEU 250102596-00003-10

9,MI MIC CDR -U -38dB 10V D6.0 T2.7 EM-27PX-5 290100345-00000-10

Cradle Charger Part

SCREW-TS PH L8 D3 + F PB 260100126-00000-10

CON-CHAR PB T0.3H6.8WD-- GD (Three) 260300378-11001-10

P-FCAB CH ABS BK TM833FBEUL CM110-020 3U 270100716-12005-10

P-RCAB CH ABS BK TM833/832 3U 2X 270100954-11001-10

G-LENS PMMA TM832EUL CHG 270101573-11002-10

P-MOUNT BT ABS BK TM833/832 PACK 270102096-11001-10

RUBB D10T1.6 DS Black KE941-U (Four) 320100140-00003-10

C101 CAP-RELE 47 uF M 25V D5 H11 280202379-00000-10
C103 CAP-RELE 47 uF M 25V D5 H11 280202379-00000-10
D102 DIO-REC IN4001 1.1V 1 A DO-41 280600044-00000-10
D103 DIO-REC IN4001 1.1V 1 A DO-41 280600044-00000-10

J1 CON-DC M ST-T D1mm BK DC-005 240300158-00000-10

LED LED-MULTI RECT P L7.0W5.0H2.0 2.2V M519R 280500482-00000-10

Q107 TRS-BP PNP TO126 ST 2SB772 FUKUCOM 280400224-00001-10

C102 CAP-CCER 0.1 uF K 25 VDC 0603 X7R 1570-0 280200604-00000-10

Location Codes

Description

Mfr's Part No.

TM833FBUSL /PKG -BOX /R0 COBRA/US

330700046-00000-10

PARTS LIST (HH475 US) - CONTINUED

50

Cradle Charger Part

C104 CAP-CCER 0.1 uF K 25 VDC 0603 X7R 1570-0 280200604-00000-10
C105 CAP-CCER 100 pF J 50 VDC 0603 COG 280200730-00000-10
C106 CAP-CCER 100 pF J 50 VDC 0603 COG 280200730-00000-10
C107 CAP-CCER 4700 pF K 50 VDC 0603 X7R 280200448-00000-10
C108 CAP-CCER 100 pF J 50 VDC 0603 COG 280200730-00000-10
C109 CAP-CCER 4700 pF K 50 VDC 0603 X7R 280200448-00000-10
C110 CAP-CCER 0.01 uF K 25 VDC 0603 X7R 280200599-00000-10

C111 CAP-CCER 100 pF J 50 VDC 0603 COG 280200730-00000-10
Q101 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q102 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q103 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q104 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q105 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10
Q106 TRS-BP NPN SOT23 MMBT3904LT1 280400121-00000-10

R101 RES TFC 2 Kohm 0603 J 1/16W 280101071-00000-10

R102 RES TFC 820 ohm 0603 J 1/16W 280101429-00000-10

R103 RES TFC 1 Kohm 0603 J 1/16W 280100930-00000-10

R104 RES TFC 4.7 Kohm 0603 J 1/16W 280101288-00000-10

R105 RES TFC 1 Kohm 0603 J 1/16W 280100930-00000-10

R106 RES TFC 180 Kohm 0603 J 1/16W 280101055-00000-10

R107 RES TFC 910 ohm 0603 J 1/16W 280101451-00000-10

R108 RES TFC 51 Kohm 0603 J 1/16W 280101330-00000-10

R109 RES TFC 12 Kohm 0603 J 1/16W 280100982-00000-10

R110 RES TFC 10 Kohm 0603 J 1/16W 280100938-00000-10

R111 RES TFC 1 Kohm 0603 J 1/16W 280100930-00000-10

R112 RES TFC 82 Kohm 0603 F 1/16W 280101433-00000-10

R113 RES TFC 1 Kohm 0603 J 1/16W 280100930-00000-10

R114 RES TFC 1.5 Kohm 0603 J 1/16W 280101012-00000-10

R115 RES TFC 910 ohm 0603 J 1/16W 280101451-00000-10

R116 RES TFC 10 Kohm 0603 J 1/16W 280100938-00000-10

R117 RES TFC 3.3 Kohm 0603 J 1/16W 280101202-00000-10

R118 RES TFC 3.3 Kohm 0603 J 1/16W 280101202-00000-10

R119 RES TFC 4.7 Kohm 0603 J 1/16W 280101288-00000-10

R120 RES TFC 910 ohm 0603 J 1/16W 280101451-00000-10

R121 RES TFC 100 Kohm 0603 F 1/16W 280100940-00000-10

R122 RES TFC 100 Kohm 0603 F 1/16W 280100940-00000-10

R123 RES TFC 2 Mohm 0603 J 1/16W 280101084-00000-10

R124 RES TFC 22 Kohm 0603 F 1/16W 280101105-00000-10

R125 RES TFC 1 ohm 0603 J 1/16W 280100956-00000-10

R126 RES TFC 1 ohm 0603 J 1/16W 280100956-00000-10

R127 RES TFC 1 ohm 0603 J 1/16W 280100956-00000-10

R128 RES TFC 1 ohm 0603 J 1/16W 280100956-00000-10

R129 RES TFC 1 ohm 0603 J 1/16W 280100956-00000-10

R130 RES TFC 4.7 Kohm 0603 J 1/16W 280101288-00000-10

U101 A-IC ANA NJM3403AM-#ZZZB DMP 14 210100215-00000-10

U102 O-IC PWR TL431IDBVR SOT23 3 TI 210100636-00000-10

PCB DS FR4 GP CHG 1-1 L54.5W38T1.0 250100101-00001-10

Packing Material Part

ML-IN TM833FBUSL COBRA L162W26 300102316-00001-10
ML-QSG TM833FBUSL COBRA L127W179 300102318-00001-10

Location Codes

Description

Mfr's Part No.

TM833USL /ACSY /R0 COBRA-USA/BLK/PKG MAT

330800722-00000-10

TM832FBUSL /PKG -BOX /R0 COBRA/US/CHG

330700051-00000-10

TM886BEUG /ACSY /R0 COBRA-EUR/BLK/PKG MA

330800663-00000-10

TM833FBUSL /ACSY /R0 COBRA-USA/BLK

330800773-00000-10

Packing Material Part

51

LB-R MU TM833FBUSL L35.6W27 COBRA 002 300200280-00002-10
LB-G TM833USL WARN L49.5W11 REPLACEMENT 300201332-00001-10
LB-S LENS TM833FBUSL TRANS L24W33 300205358-00001-10
LB-B TM833FBUSL EAN128 COBRA V1(Two) 300205427-00001-10
LB-G CTN TM308USL CAUT L120W110 COBRA RE 300205769-00001-10
P-BAG PELD W127L406.4T0.05 300301803-00002-10
IS-CTN L320W155 B=B TM833FUSL 300609359-00001-10
ML-IB TM833FBUSL COBRA L179W127 300100184-00001-10
ML-LL TM832FUSL COBRA L216W93 300100186-00001-10
ML-AS TM308USL Open L148.5W105 PRODUCT R 300100572-00001-10
LB-G BAT TM832FUSL WARN L33W24 300200286-00001-10
^LB-G GB TM308EUL SENSR L45W11 300201330-00001-11
^LB-G GB TM308EUL CP L39.5W38 300201331-00001-11
P-BAG W550L550T0.08 300301921-00002-10
P-BAG PELD W90L150T0.03 300301950-00001-10
P-BAG PELD W155L265T0.05 300301977-00001-10
GBX TM833FBUSL COBRA L330W190H80 300309180-00001-10
PULP-TY TM833FBEUL L315 W185 H75 COBRA R 300309231-01001-10
CTN-OT B=B L345W180H220 TM833FBUSL REV2. 300600221-00002-10
WIRING TIE NYLON L240 BK 320100137-00001-10

PARTS LIST (HH475 US) - CONTINUED

SPRING TES BELT SS WD0.6 L12.5 260200095-00000-10
M-SHAF MU SS L26 W32 H32 FOR BELT CLIP 260300953-00001-10
P-CLIP BU ABS+PC BK TM833/832 TOP 3U2X 270102098-11001-10
P-CLIP BU ABS+PC BK TM833/832 BASE 3U2X 270102099-11001-10
P-BAG PELD W80L120T0.03 300301946-00001-10

LB-R CHR TM833FBUSL L34.6W24.6 300200284-00001-10
P-BAG PELD W165L180T1 300301904-00001-10

SCREW-TS PH L23 D3 + NI S PH- +SH (Two) 260100128-00000-10
P-BAG PELD W40L60T0.04 300301937-00001-10

ADT-L 120- 12 200 mA DC USA BK VERT UD35 230100449-00000-10
CIG PLUG PVC D3.5 2A 20# 1.83 m A42WM902 230100022-00000-10
P-BAG PELD W120L150T0.03 300301951-00001-10

U BA FV1- 4116

52

IC LEAD IDENTIFICATION AND INTERNAL DIAGRAM

1

2

3

4

5

6

7

8

16TSSOP

16

15

14

13

12

10

11

PIN FU NCTION

1. 1OSC

2. 2OSC

3. MIX ER OUT

4. VCC

5. IF IN

6. BY PASS

7. FILTER OUTPUT

8. FILTER INPUT

9. AUDIO

10. DI SCRIMINATOR

11. IF OUTPUT

12. RS SI

9

13. CO MP OUTPUT

14. CO MP INPUT

15. GN D

16. MI XER

U NJM M2- 2904

53

PINFU NCTION

1.A OUTPUT

2.A -INPUT

3.A +INPUT

4.GN D

5.B+I NPUT

6.B-IN PUT

7.BOU TPUT

+

8.V

U3-XC61CN2702MR

BlockDiagramCMOSOutput

U4,U5- 324NJM V

54

U GP214D6-

55

BlockDiagram

PINDescription

PinNo. Symbol FunctionDescription

1 Fin1 RF input,channel1.

2,15 Vcc

3

4,13 GND Ground. Twopinsareconnected.

5 LD Outputoflockdetection.Itistheopendrain output.

6 Clock input.
7 DATA Serial data input.
8 EN Inputofenable signal.

9 BO Outputofbufferamplifier. Thelocalsignalpassesthroughthebufferamplifier.

10 Oscillator output.

11

12

14 CP2 Chargepumpoutput,channel2.

16 Fin2 RF input,channel2.

CP1

CK

OSCO

OSCI

SW

Powersupply.
Twopinsareconnectedeach other.
Chargepum poutput,cha nnel1.Charg e pu mpcurrentisselecte d by th einp ut
serialdata.

Serialdata interface.

PLL referenceinput.
Typicallyconnectedtoa TCXOoutput.
Switchoverterminaltocontr oltimecons tantofloopfilter . Itistheopendrain
output.Whenswitched off,its normal output.

I/ O

I

-

O

-

O

I

O

O

I

O

O

I

U7-PIC24FJ64GA006

56

PMA5/SCK2/CN8/RG6

PMA4/SDI2/CN9/RG7

PMA3/SDO2/CN10/RG8

PMA2/SS2

C1IN+/AN5/CN7/RB5

C1IN-/AN4/CN6/RB4

C2IN+/AN3/CN5/RB3

PGC1/EMUC1/V

PGD1/EMUD1/PMA6/V

C2IN-/AN2/SS1

REF-/AN1/CN3/RB1

REF+/AN0/CN2/RB0

PMD5/RE5
PMD6/RE6
PMD7/RE7

MCLR

/CN11/RG9

VSS

V

/CN4/RB2

CAP/VDDCORE

CN15/RD6

PMRD/CN14/RD5

PMWR/OC5/IC5/CN13/RD4

PMBE/OC4/RD3

OC3/RD2

PMD4/RE4

PMD3/RE3

PMD2/RE2

PMD1/RE1

RF0

V

ENVREG

PMD0/RE0

RF1

636261596058575654555352514950

64

CN16/RD7

1

2

3

4

5

6

7

8

9

DD

10

PIC24FJXXGA006

PIC24FJXXXGA006

11

12

13

14

15

16

2244242526272829303132

17

192021

18

23

OC2/RD1

48

47

46

45

43

42

41

40

39

38

37

36

35

34

33

SOSCO/T1CK/CN0/RC14

SOSCI/CN1/RC13

OC1/RD0
IC4/PMCS1/INT4/RD11

IC3/PMCS2/INT3/RD10

IC2/U1CTS

/INT2/RD9

IC1/RTCC/INT1/RD8

Vss
OSC2/CLKO/RC15

OSC1/CLKI/RC12

V

DD

SCL1/RG2

SDA1/RG3

/BCLK1/SCK1/INT0/RF6

U1RTS

U1RX/SDI1/RF2

U1TX/SDO1/RF3

PGD2/EMUD2/AN7/RB7

PGC2/EMUC2/AN6/OCFA/RB6

AVDD

SS

AV

DD

VSS

V

REF/AN10/RB10

/BCLK2/AN14/RB14

PMA7/C2OUT/AN9/RB9

TDO/PMA12/AN11/RB11

U2CTS/C1OUT/AN8/RB8

TMS/PMA13/CV

TDI/PMA10/AN13/RB13

TCK/PMA11/AN12/RB12

PMA8/U2TX/SCL2/CN18/RF5

PMA9/U2RX/SDA2/CN17/RF4

PMA0/AN15/OCFB/CN12/RB15

PMA1/U2RTS

U8-XC6204B502MR

57

U A9- 45 041 -T DB D SU

WP

SCK

CS

RESET

VCC

GND

SI

SCK

RESET

CS

PAGE BYTES(256/264 )

1
2
3
4

FLASHMEMORYARRAY

IOINTERFACE/

8
7
6
5

SO
GND
VCC
WP

BUFFER BYTES2(256/264 )BUFFER BYTES1(256/264 )

SOSI

U10,U12-XC6204B332MR

58

U11-NJM 2070

NC

+INPUT

-INPUT

GND

1

NC

300

BIAS

+

-

50K

100K

8

7

6

5

NC

V+

OUTPUT

GND

+INPUT

-INPUT

2

3

4

1

2

3

4

8

7

6

5

NC

V+

OUTPUT

GNDGND

U101-NJM3403AM

59

-INPUT

+INPUT

V+

V-

A OUTPUT

A -INPUT

A +INPUT

V+

B+INPUT

B-INPUT

BOUTPUT

A D

-

+

+

­B

DOUTPUT

-

+

D-INPUT

D+INPUT

V-

C+INPUT

+

-

C

C-INPUT

COUTPUT

OUTPUT

U1 TL D BVR02 431

U401-HT1621-DICE

60

TRANSISTORLEADIDENTIFICATION

61

3 318SK

1 2

U7

3

2 4901 8550SC MPS S

2SC4097R2SC3356

4

3

1

2

1.Ga te1

2.Ga te2

3.Drain

4.Source

1.Base

2.Emitter

3.Collector

MMBT3904 MMBT3906

2 302SK

1

2

3

1. Base

2. Emitter

3. Collector

1.Ga te

2.Drain

3.Source

2SK210Y

1

KTC9014

RD MVS07 1

2

1.

Drain

2.

Gate

3

3.

Source

1

2

3

2 772SB P

TerminalNo.

1.Drain(output)

2.Source(GND)

3.Ga te(input)

3

2

1

1.

Emitter

2.

Base

3.

Collector

1.

Emitter

2.

Collector

3.

Base

U1 BA4116FV

62

PIN

Rx(V)

4.78 4.20 3.45 4.81 4.38 4.39 0.64 0.60 / / / /

VOLTAGE CHART

1 2 3 4 5 6 7 8 9 10 11 12

PIN

Rx(V)

U2 NJM2904M

PIN

Tx(V)

U3 XC61CN2702MR

PIN

Tx(V)

Rx(V)

U4 NJM324V

PIN

Tx(V)

Rx(V)

PIN

Tx(V)

Rx(V)

13 14 15 16

/ SQL GND RFIN

0 0 0 0.94

1 2 3 4 5 6 7 8

4.5 0.48 0.48 0 4.70 4.80 0.40 7.20

1 2 3

5.00 0 5.00

5.00 0 5.00

1 2 3 4 5 6 7 8 9 10 11 12

/ / / 4.80 1.86 1.86 1.86 1.86 1.86 1.86 0 1.78

Pulse 1.56 1.30 4.80 / / / / / / / /

13 14

1.80 1.80

5.00 0

U5 NJM324V

PIN

Rx(V)

PIN

Rx(V)

U6 GP214D

PIN

Rx(V)

PIN

Rx(V)

1.70 1.70 1.70 4.80 2.40 2.40 2.40 2.40 2.40 2.38 0 1.70

1.70 1.70

FIN1 VCC GND EN BO OSCO OSCI SW

4.82 4.82 1.63 0 4.81 0 0 0 3.65 3.89 4.73 0

GND VCC FIN2

1 2 3 4 5 6 7 8 9 10 11 12

13 14

1 2 3 4 5 6 7 8 9 10 11 12

13 14 15 16

0 0 4.82 4.82

U8 XC6204B502MR

63

PIN

Rx(V)

U9 AT45DB041D

PIN

Tx(V)

U10 XC6204B332MR

PIN

U11 NJM2070M

PIN

Rx(V)

1 2 3 4 5

VIN VSS VOUT

7.20 0 7.20 0 4.99

1 2 3 4 5 6 7 8

A0 A1 A2 GND SDA SCL WP VCC

0 0 0 0 4.98 0 0 4.99

1 2 3 4 5

5 0 5 0 3.30

1 2 3 4 5 6 7 8

NC IN FIL GND GND OUT VCC NC

0 0 0.60 0 0 3.26 7.16 0

VOLTAGE CHART-CONTINUED

U12 XC6204B332MR

PIN

Tx

Rx

U101 NJM3403AM

PIN

Char

Stan

PIN

Char

Stan

U102 TL431IDBVR-CHARGER

PIN

Charging

Standby

1 2 3 4 5

7.2 0 3.30 0 3.30

7.2 0 3.30 0 3.30

1 2 3 4 5 6 7 8 9 10 11 12

0 4.00 2.50 12.00 0.50 4.00 0.00 4.00 0 0 0 2.50

0 5.7 2.50 12.00 1 0 10 0 0 0 0 2.50

13 14

3.40 0.30

0 0

1 2 3 4 5

2.5 0 0 0 2.50

2.5 0 0 0 2.50

VOLTAGE CHART-CONTINUED

64

Q1 2SC4901YK Q2 2SC4901YK Q3 2SC3356 Q4 2SC4901YK

PIN

Tx(V)

Rx(V)

PIN

Tx(V)

Rx(V)

PIN

Tx(V)

Rx(V)

PIN

B E C B E C B E C B E C

0.70 0 0 / / / 0.80 0.25 4.54 0.74 0 3.76

/ / / 0.71 0 1.5 / / / / / /

Q5 2SC4901YK

B E C G S D B E C B E C

/ / / 2.30 0 6.80 / / / 4.00 4.10 0.00

0.70 0 3.90 / / / 0.78 0 2.32 3.40 4.10 4.02

Q8 3SK318

G1 G2 S D

/ / / /

1.57 1.57 0.48 4.29

Q10 MMBT3904LT1 Q11 MMBT3904LT1 Q12 2SK3078

B E C B E C G S D

Q6 RD07MVS1 Q7 2SC4901YK Q9 MMBT3906LT1

Tx(V)

Rx(V)

PIN

Tx(V)

Rx(V)

PIN

SPK(ON)

PIN

Tx(V)

Rx(V)

0.65 0 0 0 0 3.80 1.08 0 7.20

/ / / 0.68 0 0 / / /

Q13 2SK302 Q14 2SK210Y Q15 MMBT3906LT1 Q17 MMBT3904LT1

G S D G S D B E C B E C

/ / / 0 0.56 4.1 / / / 5.00 0 6.64

0 0.60 4.00 / / / 4.90 4.90 0 5.00 0 6.64

Q16 MPS8550S Q21 MMBT3904LT1 Q22 MMBT3904LT1

B E C B E C B E C B E C

6.58 7.20 7.20 4.99 4.28 6.65 4.96 4.28 7.20 0.7 0 0

Q18 MPS8550S Q20 2SC4097R Q24 MPS8550

B E C B E C B E C B E C

6.61 7.20 4.91 / / / 4.00 4.90 4.54 4.95 4.18 4.72

6.61 7.20 4.91 0.68 0 0 / / / 4.95 4.18 4.72

Q19 MMBT3904LT1

Q25 MPS8550

VOLTAGE CHART-CONTINUED

65

Q23 2SC4097R Q27 2SC4097R

PIN

Moto(on)

PIN

Tx(V)

Rx(V)

CHARGER

PIN

Charging 1.70 12.00 2.50 12.00 10.00 8.20 9.00 10.00 12.00 0 0 10.00

Standby

PIN

B E C

4.50 3.20 6.80

Q26 MMBT3906LT1

B E C B E C B E C B E C

3.48 4.10 4.10 0 0 2.20 0 0 3.30 0 0 5.00

0 4.00 4.00 0 0 2.20 0 0 3.40 0 0 5.00

Q101 MMBT3904LT1 Q107 2SB772 Q102 MMBT3904LT1 Q104 MMBT3904LT1

B E C S G D B E C B E C

0 12.00 0 12.00 7.40 12.00 3.90 7.40 12.00 0.70 0 0

Q105 MMBT3904LT1 Q106 MMBT3904LT1 Q103 MMBT3904LT1

B E C B E C B E C

PIN

Mate

Q28 MMBT3904 Q29 MMBT3904 Q30 MMBT3904

B E C

0.65 0 0

Charging 0 0 0.70 0.70 0 0 0 0 0.8

Standby

0.70 0 0 0 0 10.00 0.7 0 0.00

ANT

66

C1

18P

R102

0.39

VCC 5V

D3

KPA-3010

B+ 7.4V

Vcc_3V3

TO LCD MODULE

J3

LCD MODULE

1

2

3

4

5

6

7

8

9

10

J1

PROGRAM

L1

4T-L24T-

C5

10P

D1

1SS356

L4

2.2uH

C4

10P

R103

0.39

R96

100K+/-1%

C143

220p

R98

200K+/-1%

D7

Y2C-CPQB

LH06034P1

1

2

3

4

5

6

7

8

9

10

11

PGC

PGD

RESET

BT_SO

BT_SI

BT_CLK

BT_CS

BT3V3

D17

R203

10K

Vcc_3V3

C39

1n

5V

C12

33P

R100

100K+/-1%

DA

CK

CS

C62

12P

C16

47P

R1

220

C19

1n

L6

3T-/1.6

C15

47P

R104

0.39

U2B

LM2904

5

6

C107

100p

R99

200K+/-1%

R101

2K2

R23

68

D4

KPA-3010

C37

1n

D6

Y2C-CPQB

C41

1n

D19

LH06034P1

C227

1n

R202

47K

3

C208

100n

U3

XC61CN2702M

B+ 7.4V

100K 1%

Vcc_3V3

C237

100n

MCU PROGRAM

F_SCK2

F_CS

BT PROGRAM

C38

1n

7

R62

1K

I

R148

200K 1%

R149

R182

10K

RT2

10KT

C201nL7

C21

1n

C70

68P

C66

27P

R105

10K

R63

1K

Y2C-CPQB

1

O

G

2

Ut82=0.45V
Ut100=0.3V

R134

10K

TX 5V

C84

10n

R208

150

R179

150

CPU_3V3

1SS356

Q30

BT3904

Q29

BT3904

C119

100n

5

6

7

8

56nH

C22

1n

C151

470p

R128

47K

D5

C209

U14

24C16

D2

3T-

100n

C54

SCL

WP

VCC

L8

C72

22P

1n

Q28

BT3904

SCHEMATIC DIAGRAM (for Main Radio)

SQL RSSI

C203

C138

1n

C137

33n

15

16

U1

1

2

C111

C136

22u

220n

C113

100n

R79

R9

2K2

4K7

R89

3K3

C139

C166

33n

47n

R165

22

C51

C52

1n

1n

U4B

LM324

R30

47K

7

R173

C145

120K

220P

R178

AF

10K

C92

1u

Item

C93

470p

HH330(TM832F)

HH475(TM833FB)

R199

C125

33K

100n

C140

U5D

100n

14

LM324

R69

200K

C220

C231

470n

47p

R18

10K

C210

100n

C229

100n

R88

33n

SQL

1K5

R174

1K

RSSI

12

13

14

BA4116

3

4

5

C114

100n

F5

450K

C106

100P

R61

100

TP1

PD

C168

2.2uF

C169

C241

22u

10P

C99

C247

470p

100n

R155

5

6

C167

R120

10K

47n

NC NC

R200

RX 5V

47K

R75

100

R191

Q27

47K

BT3904

12

13

C187

4n7

R201

4K7

4 5

VR3

1 3

10K

R49

10K

R198

330

C150

AF_MUTE

BT_AUDIO

1n

R2110R212

X1

CDB450C24

C71

56P

10

11

6

7

R90

300K

C141

C142

220P

220P

11

13

16

14

15

12

SW

Vcc

CP2

Fin2

GND

OSCI

U6

GP214D

Fin11Vcc2CP13GND4LD5CK6DATA7EN

CPU_3V3

R132

47K

C118

100n

PLD

PCK

C171

22K

411

1u

1

R139

820K

C11

10P

U14U9

24C16

NC XC6204B332AT4SDBD41B

BT_MODULE

B+ 7.4V

C188

100n

AF

C194

1n

C134

2

100n

R192

10K

C155

10n

R82

330K

CALL/BEEP

8 9

C127

100n

C91

10

PDA

10n

RX 5V

OSCO

3

2

U13

C189

470n

+B

DC7.4V

9

8

PCS

R91

200K

BO

C100

470p

C101

470p

C102

470p

R70

56

R166

33K

U4A

LM324

C98

10n

R180

100K

NC

R28

1

BT3904

C190

2n2

C146

820P

VR1

3

10K

1 2

R77

3K3

003LC55605-05560

C147

56P(UJ)

*

C14

C199

27P

3P

VCC 5V

2SC4097

C108

10n

C170

MPS8550

22u

Q21

R135

47K

R54

1K

C154

10n

R78

56K

WX_ALERT/BURP

AF_SW

R53

1K

X2
R301
R302
C175
C199 2 P NC
C174 22 P ( UJ ) 22 P

X2

*

20.95MHz(G)

VC1

10PF

EXT_PTT

C53

10n

Q20

R84

15K

C248

470p

U12

Q16

R71

100

Q22

BT3904

U11

NJM2070

1

2

3

4

C186

10u

B,W,Y G,BG

0
NC
7 P 8 P

003LC2206E-10009

22P(UJ)

C174

Q15

BT3906

R133

47K

R81

4K7

C149

10n

R121

3K3

MIC_MUTE

3

R85

4K7

C239

470p

R20

3K9

8

7

6

5

C96

10n

C148

4n7

R302(B,W,Y)*

R304(G,BG)*

RT1

100T

C175

8P

*

Vcc_3V3

C191

1u

C103

470p

1 2

VR4

50K

C181

1u

C180

100U/16v

C135

100n

R193

10

NC

0

C211

2P

R168

820

R113

22K

C196

1u

1W/D40MM

2
3
4
5
6
1

R114

10K

AF

C172

1u

R64

VCC 5V

820

R32

8.2K

+

-

M2

MIC

SP2

J2

SP MIC2.5-JACK

CLONE

RX_SW

TX_VCO

C33

1n

C161

1.2P

L23

39nH

C117

100n

R131

47K

R215

10K

R176

10K

R126

33K

U10

XC6204B332MR

1

Vin

NC

4

B+ 7.4V

C133

100n

R138

47

R41

47

R154

2K2

R153

1K

C206

470p

BT_AUDIO

BT_SPK-EN

R76

2K2

C218

10n

PD

R35

100K

C3

30P

C223

4.7P

C156

180P

C207

100n

U5C

LM324

8

C185

10u

B+ 7.4V

BT_PWR

C212

100n

M1

MIC

+

-

C13

100P

C83

R5

10n

220

R22

47

C34

1n

C112

100n

1.3V+/-0.2 1.3V+/-0.2

R164

22K

D11

HVU307

1n

D15

HVU307

2.2uH

L34

2.2uH

D12

HVU307

MOD

C87

10n

R161

R160

36K

36K

C184

1n

C128

100n

10

9

5

Vout

VSS

C95

10U

2NC3

C60

1n

C217

100n

C250

1u

C50

L21

R181

1M

Vcc_3V3

AF_REC_IN

REW/ATIS_OUT

TXRXCH16

VCC 5V

VCC 5V

R142

36K

C165

47n

R29

33K

R177

470K

C94

100n

R216

4K7

R17

10K

R16

10K

C228

100n

0

R74

R4

47K

220

F4

21.4MHz

Q2

2SC4901

R68

R67

33K

C110

220

2P

R195

R197

R196

2K2

2K2

4K7

Q26

BT3906

TX

C49

1n

Q14

L19

2.2uH

1 2

C57

1n

R117

10K

C182

3n3

5V

C179

100U

C88

22u

R80

20K

7

5

5

R156

C226

4n7

C160

1P

R45

150

L20

2.2uH

3

8

MIC_REC_IN

U5B

LM324

C124

AF

1u

U8

XC6204B502

Vout

VSS

2NC3

Vout

VSS

2NC3

1K

C205

47n

C193

470p

2SK210

D

S G

C74

C159

VR2

50K

U4C

LM324

5

6

Vin

NC

4

Vin

4

XC6204B332MR

C204

47n

Q23

2SC4097

BLUE TOOTH

8P

5P

CALL_IN

NC

U12

R47

4K7

C162

3n3

10

9

1

C216

22u

1

D14

R141

56K

MOD_ATT

BT3V3

C61

C251

100n

R172

10K

R94

10K

R66

2K2

C192

100n

C10

10P

R115

10K

Q8

3SK318

G1
G2DS

VCC 5V

L14

100nH

2SC4901

VCC 5V

12

13

C230

220p

R92

100K

R73

0

C122

1u

C178

100U

D16

BAW56

27

GND

GND45ANT46GND

100K

Q5

U4D

LM324

R15

4K7

26

RESET

R59

100

C31

1n

R38

R19

4K7

C173

220P

U5A

LM324

25

R3

220

C81

10n

R72

56

C47

1n

C157

3P

L18

2.2uH

14

R205

200K

Q19

BT3904

C163

10n

R167

33K

1

Q18

S8550

C130

100n

23

TX24RX

U13

BT_MODULE

48

47

L17

2.2uH

100uF

R6

220

C158

5P

C195

1u

411

C224

47P

RTS22CTS

R51

1K

R60

100

C82

10n

C109

RX

Q13

2SK302

D

S G

C73

8P

56nH

REW/ATIS_OUT

R39

20K

R43

100K

3

2

20

19

21

3V3

USB_D-

USB_D+

L22

C235

R83

47K

C35

1n

2.2n

R146

18K

C123

100n

Q17

BT3904

18

GND

PCM_OUT

PCM_CLK

PCM_SYN

PCM_IN

C69

22P

C32

10n

1n

C222

5P

R95

3.3

AIO3

AIO1

AIO0

1V8

MICR-

MICR+

MICL+

MICL-

GND

SPR+

SPR-

SPAL+

SPL-

R52

1K

R194

4K7

Q9

BT3906

C48

C2

30P

HVU307

C219

100n

R112

100K

WX RX 1050HZ

ATIS RX

R111

470K

R116

10K

C131

100n

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

F3

21.4MHz

HVU307

L33

2.2uH

D10

R118

39K

C89

1n8

B+ 7.4V

C132

100n

100n

F1

C63

L9

C183

12P

100nH

1n

C67

18P

Q1

2SC4901

L3

4T-

B+ 7.4V

C36

1n

U2A

8

LM2904

3

+

2

-

R136

4

1M

D8

C40

Y2C-CPQB

1n

R207

R209

4K7

R175

10K

R26

4K7

R109

47K

R110

47K

C246

100n

GND4SDA

3

A2

2

A1

1

A0

R106

33K

10K

CPU_3V3

Vcc_3V3Vcc_3V3

Q6

RD07

1

C129

R7

4K7

C234

1n

R157

47K

R158

47K

100n

R214

100

D20

1SS356

2.2uF

C200

10P

R129

47K

R107

2K2

VCC 5V

R40

10K

C120

100n

AT4SDBD41B

6

7

8

R159

10K

C240

10n

TX 5V

C23

1n

C75

C77

33P

R21

47

C42

100n

C76

2.2uF

Q10

BT3904

C233

1n

AUDIO_MOD_EN

BT_SPK-EN

MOD_ATT

F_SCK

F_SO

F_SI

RESET

F_CS

LO_BATT

TEMP_MON

AF_REC_IN

MIC_REC_IN

RX ATT

CPU_3V3

L31

2.2uH

C153

1n

U9

GND

A2

A1

A0

VCC

F_SO

1 2

R218

2K2

C24

1n

L28

22nH

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

Vcc_3V3

45

3

2

1

L10

HDF160F

RX ATT

R27

3.3

L5

56nH

Q12

2SK3078

C201

R36

1n

100K

C85

10n

R137

10K

R108

10K

TX 5V

C43

1n

TX 5V

Q24

MPS8550

R13

4K7

TX_SW

FOR PLL

PCS

AF_SW

64

PMD5

PMD6/RE6

PMD7/RE7

PMA5/SCK2/CN8/RG6

PMA4/SDI2/CN9/RG7

PAM3/SDO2/CN10/RG8

MCLR

PMA2/SS2/CN11/RG9

VSS

VDD

C1IN+/AN5/CN7/RB5

C1IN-/AN4/CN6/RB4

C2IN+/AN3/CN5/RB3

C2IN-/AN2/SS1/CN4/RB2

PGC1

PGD1

PGC217PGD218AVDD19AVSS20U2CTS/C1OUT/AN8/RB821PMA7/C2OUT/AN9/RB922TMS/PMA13/CVREF/AN10/RB1023TDO/PMA12/AN11/RB1124VSS25VDD26TCK/PMA11/AN12/RB1227TDI/PMA10/AN13/RB1328PMA129PMA030U2RX31U2TX

PGC

PGD

Vcc_3V3

R127

10K

F_CS

F_SCK2

F_SI

R219

330

C244

100p

R31

100nH

3K3

L24

L25

100nH

100nH

C78

NC

R25

C97

4K7

470p

TX 5V

C26

C79

1n

10n

C25

C68

1n

L15

47nH

22P

C104

1.5P

R24

C202

47

1n

R140

36K

C44

100n

Q11

BT3904

R11

R10

4K7

4K7

PDA

R130

47K

C86

R145

10n

120K

VCC 5V

R124

R125

2K2

2K2

R14

4K7

C58

1n

CPU_3V3

C243

C242

100n

1n

R58

PLD

PCK

100

330

R220

SAVE

MIC_MUTE

AF_MUTE

55

57

59

61

56

RF058RF1

VCAP

PMD262PMD363PMD4

ENVREG

PMD0/RE060PMD1/RE1

U7

PIC24FJ64GA006

SQL

RSSI

KEY1

KEY2

C126

100n

R122

10K

R184

5K6

0.10V 0.9V 1.8V 2.7V 3.4V 4.45V

SW1

Down

R123

10K

R87

R217

330

2K2

F_SCK

LAMP 0.9V

SW4

C245

LAMP

100p

2SC4901

R44

100

C45

1n

RX 5V

Q25

MPS8550

C59

1n

WX_ALERT/BURP

CN15/RD654CN16/RD7

RX_VCO

R86

2K2

SW3

CH16/9

Q7

RX_SW

CALL/BEEP

53

TX_VCO

D18

5.1V

R144

39K

C116

220n

52

PMRD

RX_SW

C115

1n

L16

47nH

R147

4.7

LCD_LED

51

PMBE/OC4

PMWR/OC5

U1RTS/BCLK1/SCK1

TX_SW

R185

5K6

R46

330

L26

4.7nH

Q3

2SC3356

KEY_LED

APC

50

SOSCO

SOSC/CN1

OC1/RD0

IC1/RTCC

OSC2/CLK0

OSC1/CLK1

SCL1/RG2

SDA1/RG3

32

BT_TXD

BT_RXD

R183

220

SW6

CALL/SQL

1.8V

SW5

UP

F2

HDF160F

C64

1 2

47P

L27

L11

100nH

100nH

C198

2P

R55

100

C27

C80

1n

10n

R2

C197

C215

1n

R48

15K

C28

1n

OC249OC3

IC4

IC3

IC2

VSS

VDD

U1RX

U1TX

220

1n

L12

C6

100nH

10P

C152

15P

2SC4901

R206

22K

C238

2.2n

REW/ATIS_PWM OUT

BT_LED

1050Hz/ATIS

48

47

46

CALL_IN

45

44

EXT_PTT

43

BT_PWR

42

41

40

39

38

CPU_3V3

CS

37

DA

36

CK

35

34

CLONE1

33

D13

HSC278

PTT

SW2

R151

PTT

SDV

KEY2

KEY1

R187

R162

12K

22K

SW8

SW9

MEM/ESC

REW

R163

R188

22K

12K

2.7V

3.4V 4.45V

SW10

SW7

H/M/L:WX

SCAN

Q4

R171

47K

C236

1n

7.3728M

C17

L13

47P

100nH

R33

100K

2SK318

G1

G2

YB-

D S

C65

560p

C29

1n

R37

R8

100K

4K7

C7

10P

D9

DAN235E

QC

QC

C221

R213

100n

10K

R210

100K

AUDIO_MOD_EN

CALL/BEEP

CPU_3V3

C177

X3

10P

C176

10P

Vcc_3V3

C144

R152

100n

22K

R150

2K2

C18

1n

CLONE

R189

68K

SW11

TRI

R190

68K

SW12

BT

100nH

100nH

100K

R57

R56

56K

R34

56K

L29

C105

100P

C214

18p

L30

Pb

C232

2.2n

C30

1n

R50

1K

1n

C46

C8

10P

R12

C9

4K7

3P

R65

330

R186

C164

47K

100n

R143

R204

100

33K

R119

C90

120K

2.2n

C249

470p

R93

100K

RX 5V

C56

1u

R170

33K

VCC 5V

C121

C55

100n

1n

SAVE

BT_TXD
BT_RXD

BT3V3

R42

28

10K

PIO4

29

PIO5

C225

30

PIO6

1U

31

PIO7

BT_SI

32

MOSI

BT_CS

33

CSB

BT_CLK

34

CLK

BT_SO

35

MIOO

36

PIO10

37

PIO11

38

PIO3

39

PIO2

40

PIO1

41

PIO0

42

PIO8

43

PIO9

44

GND

BT_ANT

C213

NC

SCHEMATIC DIAGRAM (for Cradle Charger)

67

J1

DC_JACK

Input:12VDC

Q102

3904

VCC

R102

820

RedGreen

R103

1K

D101LED(R/G)

Q101

3904

D102

1N4001

C101

47uF/25V

R104

10K

Q103

3904

VCC

R105

3.3K

C102

104

R107

910

7

U101B

NJM3403

R106

100K

VCC

C105

100P

6

5

R109

12K

R101

4.7K

C103

47uF/25V

+2.5V

R108

51K

R110

10K

VCC

C104

104

Q104

3904

R111

1K

C107

4700p

U102

TL431A

R115

910

12

+2.5V

13

+2.5V

U101D

NJM3403

U101C

NJM3403

8

R112

100K

C108

100P

C106

100P

14

9

10

R116

10K

R113

1K

R114

1.5K

C109

4700p

Q106

3904

R125

1

R117

3.3K

Q105

3904

R126

1

R119

4.7K

Q107

2SB772

R123

2M

R127

1

C111

100P

1

U101A

NJM3403

R130

4.7K

R128

1

1

VCC

VCC

R124

22KF

R129

1

R120

910

4 11

D103

1N4001

C110

103

2

3

2

3

+2.5V

R118

3.3K
47K

R121

100K

R122

100K

7.4V 1000MAH

7.4V Li-Polymer Batt 200mA Charger

Charging: RED LED Light

STANDBY & Full charged: GREEN LED Light
