COATS Select-O-Lug User Manual

8112784 Kit

Select-O-Lug Adapter 40mm

Hennessy Industries • 1601 J. P. Hennessy Drive, LaVergne, TN USA 37086-3565 [phone] • [phone] • [phone] FAX • www.ammcoats.com

CAUTION

Do not use air tools when tightening the lug nuts to the swivel plate studs. Using air tools can
break the studs. Use only the wrench provided to tighten the lug nuts to the swivel plate studs.

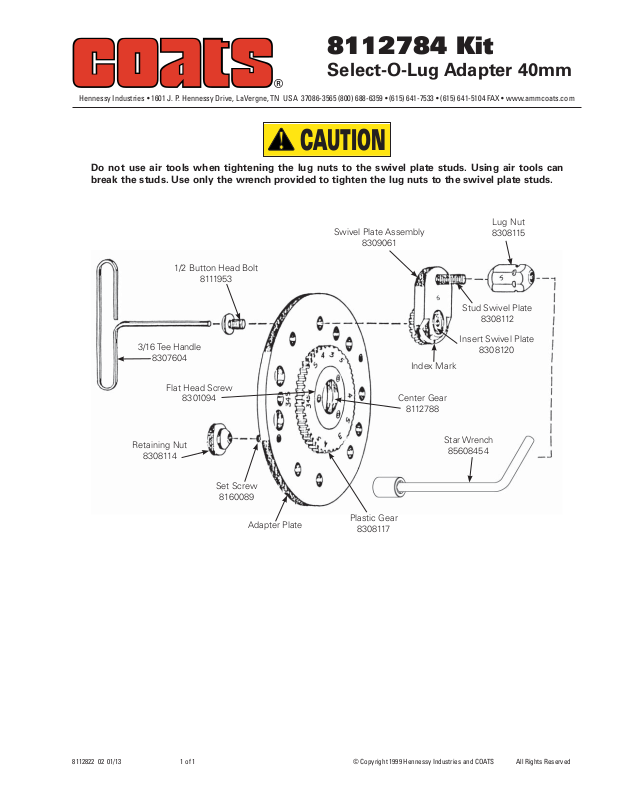

1/2 Button Head Bolt

3/16 Tee Handle

8307604

Flat Head Screw

Retaining Nut

8308114

8111953

8301094

Set Screw

8160089

Swivel Plate Assembly

8309061

Index Mark

Center Gear

8112788

Lug Nut

8308115

Stud Swivel Plate

8308112

Insert Swivel Plate

8308120

Star Wrench

85608454

Adapter Plate

8112822 02 01/13 1 of 1 © Copyright 1999 Hennessy Industries and COATS All Rights Reserved

Plastic Gear

8308117
