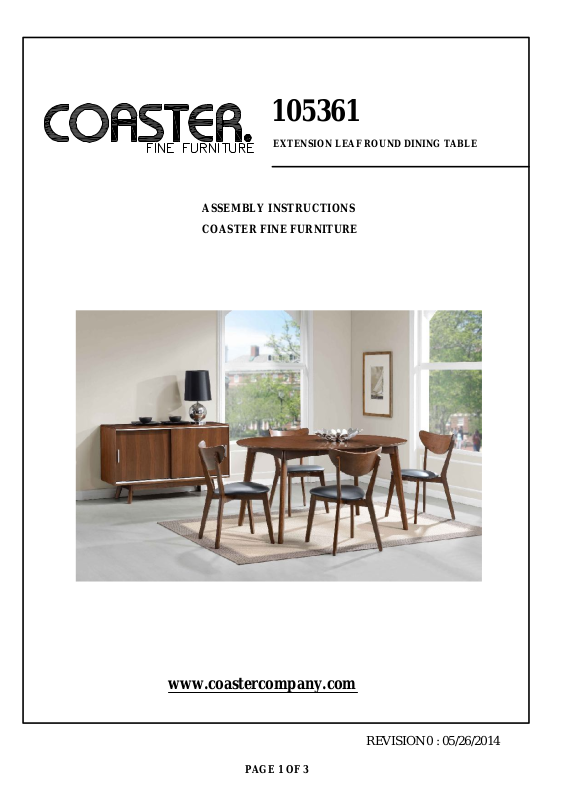

EXTENSION LEAF ROUND DINING TABLE
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 3
REVISION 0 : 05/26/2014
Page 2
ITEM :
ASSEMBLY TIPS :
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instruction in the same sequence as numbered to assure fast & easy assembly.
105361
Warning !
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2. This product is for home use only and not intended for commercial establishment.
ASSEMBLY INSTRUCTIONS
PARTS IDENTIFICATION:
A
B
C 1PC
D 2PCS
TABLE TOP
TABLE LEG
EXTENSION LEAF
APRON
1PC
4PCS
HARDWARE IDENTIFICATION:
1
WRENCH
1PC
2
3
4
5
6
ALLEN WRENCH
HEX BOLT
LOCK WASHER
FLAT WASHER
BOLT
PAGE 2 OF 3
1PC
8PCS
8PCS
8PCS
4PCS
www.coastercompany.com
Page 3
ITEM :
105361
ASSEMBLY INSTRUCTIONS
STEP 1
Place table top (A) upside down on soft surface. Align and
fasten all table legs (B) to table top (A) using hex bolt (3),
lock washer (4) and flat washer (5). Then fully tighten with
wrench (1).
5
4
3
1
B
STEP 2
Place extension leaf (C) upside down on soft surface. Align
and fasten aprons (D) to extension leaf (C) using bolts (6).
Then fully tighten with Allen wrench (2).
2
6
D
A
STEP 3 STEP 4
Flip table over using two people to lift and flip this table.
Then unlock table and pull apart.
Place extension leaf onto the middle of the table. Push table
top together making sure pins line up and table top close
tightly.
C
Then tighten all locks underneath the table top.
PAGE 3 OF 3
www.coastercompany.com
