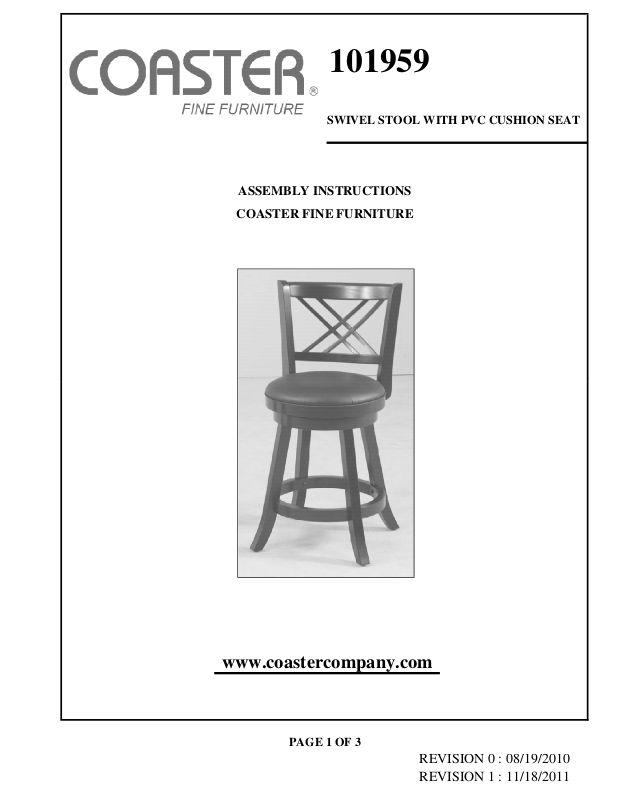

Page 1
101959
REVISION 0 : 08/19/2010
SWIVEL STOOL WITH PVC CUSHION SEAT
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 3
REVISION 1 : 11/18/2011
Page 2
ITEM :
E
5
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size
2. Please check to see that all hardware and parts are present prior start of assembly.
3. Please follow attached instruction in the same sequence as numbered to assure fast & easy assembly.
!
101959
Warning!
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.
2. This product is for home use only and not intended for commercial establishment
ASSEMBLY INSTRUCTIONS
PARTS IDENTIFICATION HARDWARE IDENTIFICATION
A
B
C
D
STEP 1
Align and fasten chair leg to footrest using medium bolt, lock washer and flat washer, then tighten
with Allen wrench
CHAIR LEG 8PCS
FOOTREST 2PCS
CONNECTOR WITH
SWIVEL PLATE
CUSHION SEAT
WITH FRAME
BACK REST 2PCS FLAT WASHER
NOTE : QUANTITIES SHOWN ARE FOR TWO STOOLS
2PCS LONG BOLT
2PCS
1
2
3
4
6
SHORT BOLT
MEDIUM BOLT
LOCK WASHER
ALLEN WRENCH
8 PCS
16 PCS
12 PCS
28 PCS
28 PCS
1 PC
www.coastercompany.com
PAGE 2 OF 3
Page 3
ITEM :
STEP 2
Align and fasten chair leg to connector with swivel plate using medium bolt, lock washer and flat
washer, then tighten with Allen wrench
STEP 3
Align and hand tighten back rest to cushion seat with frame using long bolt, lock washer and flat
washer, then fully tighten with Allen wrench.
101959
ASSEMBLY INSTRUCTIONS
STEP 4 STEP 5
Align and fasten cushion seat with frame to
swivel plate using short bolt and tighten with
Allen wrench.
Complete
PAGE 3 OF 3
www.coastercompany.com
