R
FINE FURNITURE
102889

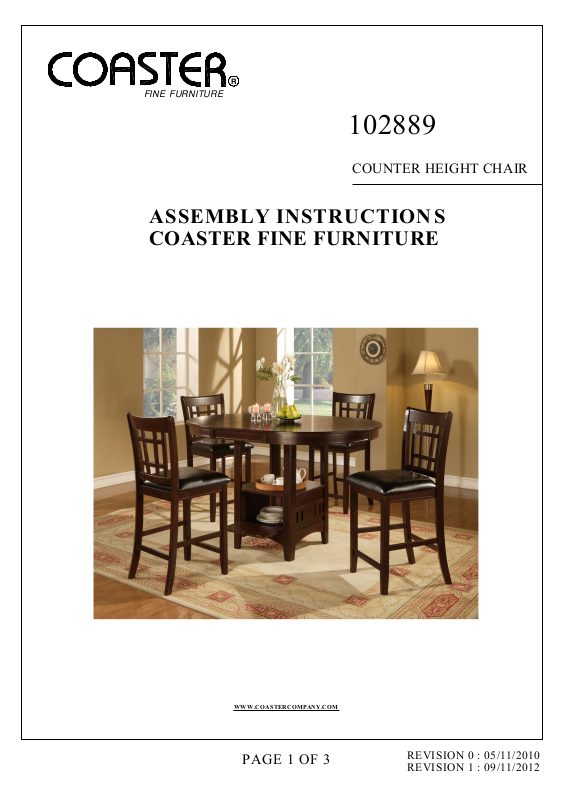

COUNTER HEIGHT CHAIR
ASSEMBLY INSTRUCTION S
COASTER FINE FURNITURE
WW W.COAS TERCOM PAN Y.C OM
PAGE 1 OF 3
REVISION 0 : 05/11/2010
REVISION 1 : 09/11/2012
Page 2
ASSEMBLY TIPS :
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the sam e sequence as numbered to ensure fast & easy
assembly.
! Warning !
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2. This product is for home use only and not intended for commercial establishmemts.
PARTS IDENTIFICATION :
NO DESCRIPTION FIGURE Q'TY
CHAIR BACK
1 2 PCS
CUSH ION SEAT
2 2 PCS
WIT H FRAME
3L
3R
RIG HT SIDE STRETCHER
4L
LEF T FRONT LEG
RIG HT FRONT LEG4R
FRON T STRETCH ER
5
2 PCSLEF T SID E STRETCHER
2 PCS
2 PCS
2 PCS
2 PCS
NO DESCRIPTION FIGURE Q'TY
A LONG BOLT 8 PCS
B
C
D
E
F
G
HARDWARE IDENTIFICATION :
1/4 "x75 mm
MEDIUM BOLT 8 PCS
SHORT BOLT
LOCK WASHER
FLAT WASHER
SCREW
ALLEN WRE NCH
1/4"x 60m m
1/4"x 38m m
5/1 6"x1 3mm
5/1 6"x 19mm
NOTE : QUANTITIES SHOWN ARE FOR TW O CHAIRS
STEP 1
1.1 Align & hand tighten cushion seat with frame to chair back bottom rail using short bolt, lock
washer & flat washer.
1.2 Align &hand tighten cushion seat with frame to chair back leg using long bolt, lock washer &
flat washer.
1.3 Tighten all bolts with Allen wrench.
1.4 Insert left and right side stretchers to chair back legs.
4x4 0mm
M4x 59m m
2 PCS
18 P CS
18 P CS
12 PCS
1 PC
FINE FUR NITUR E
G
A
D
E
C
D
E
3R
2
F
3L
1
R
PAGE 2 OF 3
www .coast erc o m pany.com
Page 3
STEP 2
2.1 Insert front, left & right side stretchers to left and right front legs.
2.2 Then align & fasten left and right front legs to cushion seat with frame using medium bolt,
lock washer & flat washer.
Tignten with Allen wrench.
2.3 Fasten front, left & right side stretchers to back, left & right front legs using screw.
Tighten with screw driver ( not included ).
STEP 3
Complete
2
E
D
1
4R
B
G
3R
5
3L
F
4L
FINE FURNITU RE
R
PAGE 3 OF 3
ww w .coastercompany.com
