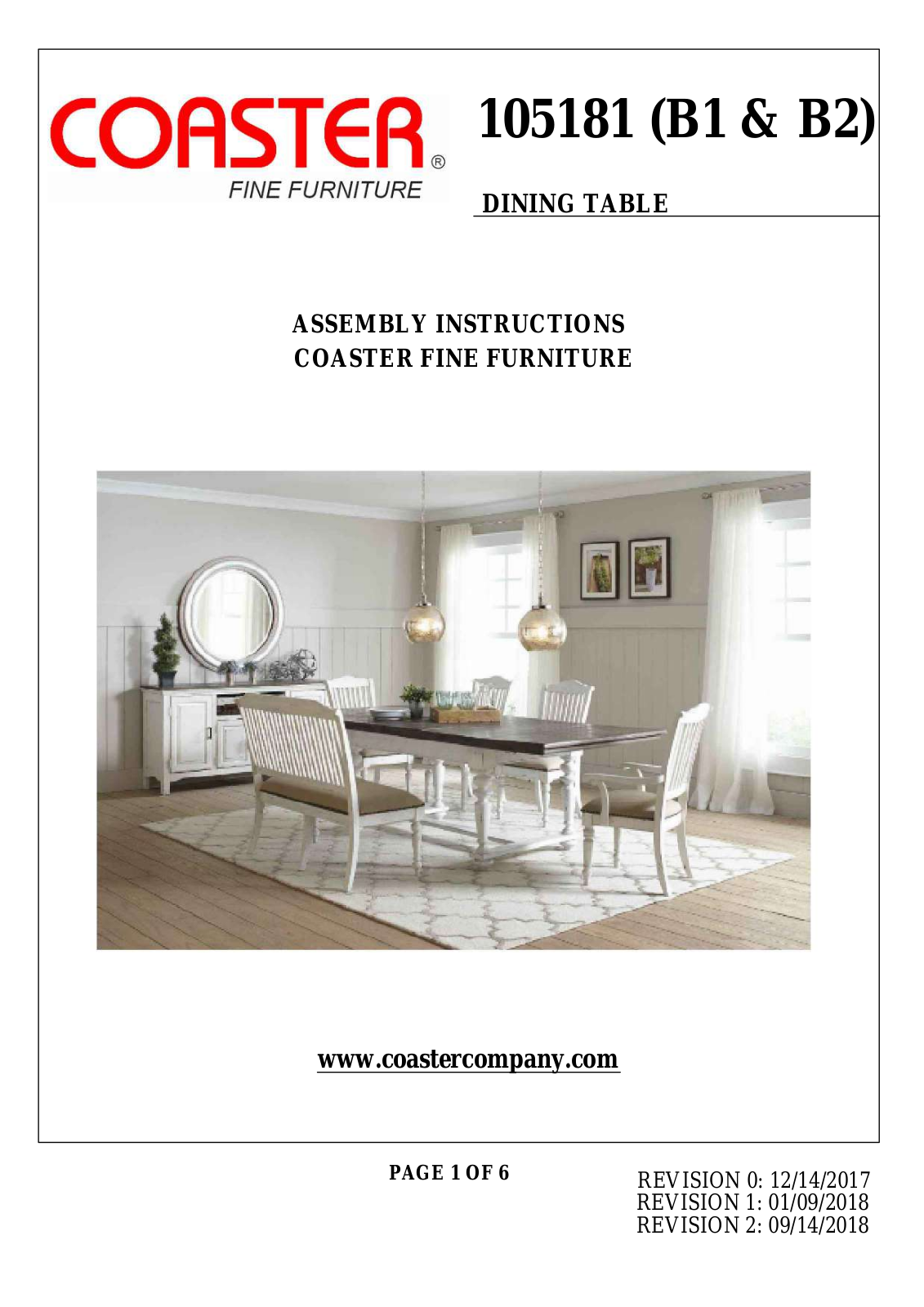

105181 (B1 & B2)
DINING TABLE
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 6
REVISION 0: 12/14/2017
REVISION 1: 01/09/2018
REVISION 2: 09/14/2018
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
Warning!
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.
2. This product is for home use only and not intended for commercial establishments.

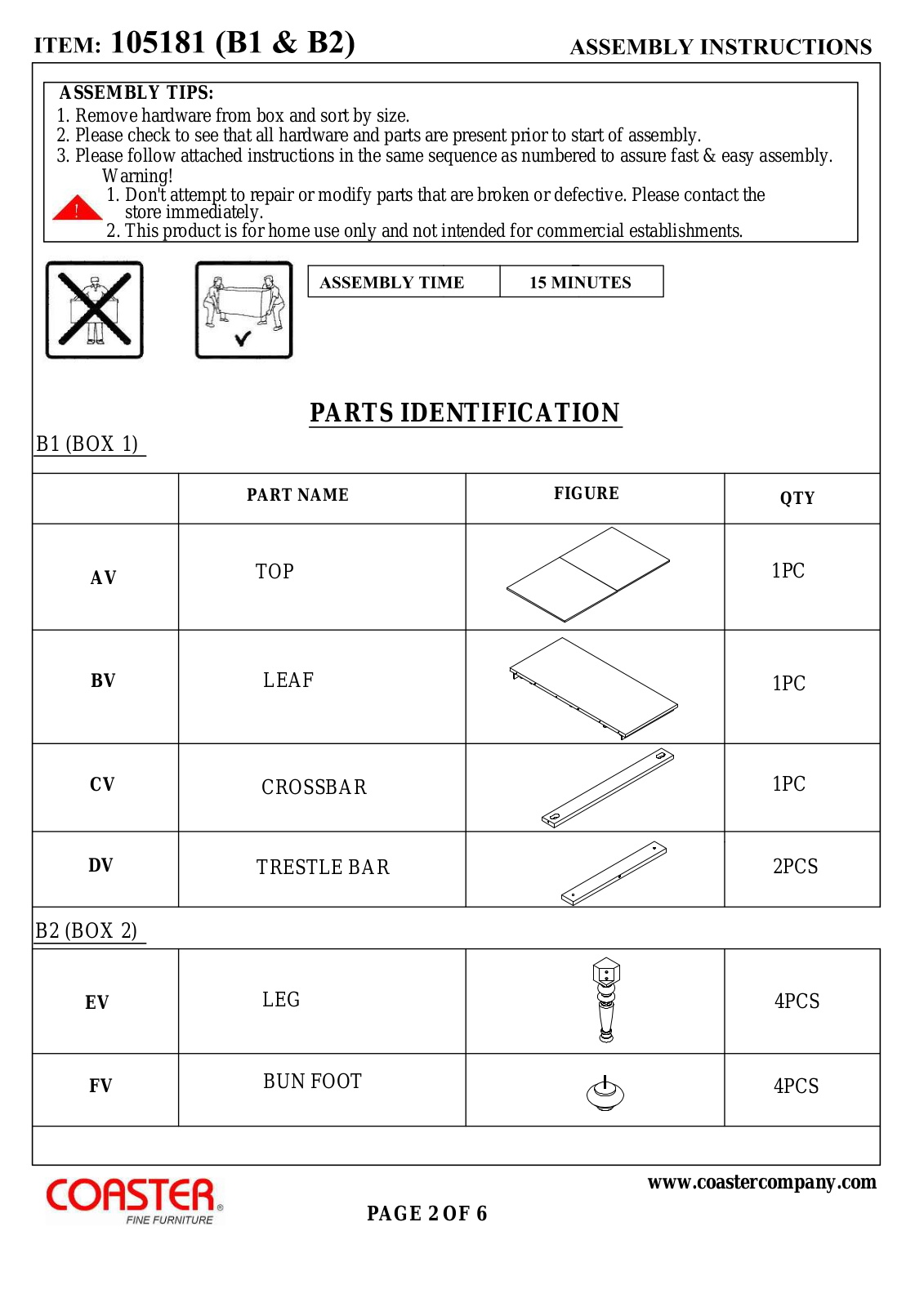

PARTS IDENTIFICATION
B1 (BOX 1)
AV
BV
CV
DV
B2 (BOX 2)
PART NAME
TOP
LEAF
CROSSBAR
TRESTLE BAR
FIGURE
QTY
1PC
1PC
1PC
2PCS
EV
FV
LEG
BUN FOOT
4PCS
4PCS
www.coastercompany.com
PAGE 2 OF 6
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
Warning!
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.
2. This product is for home use only and not intended for commercial establishments.

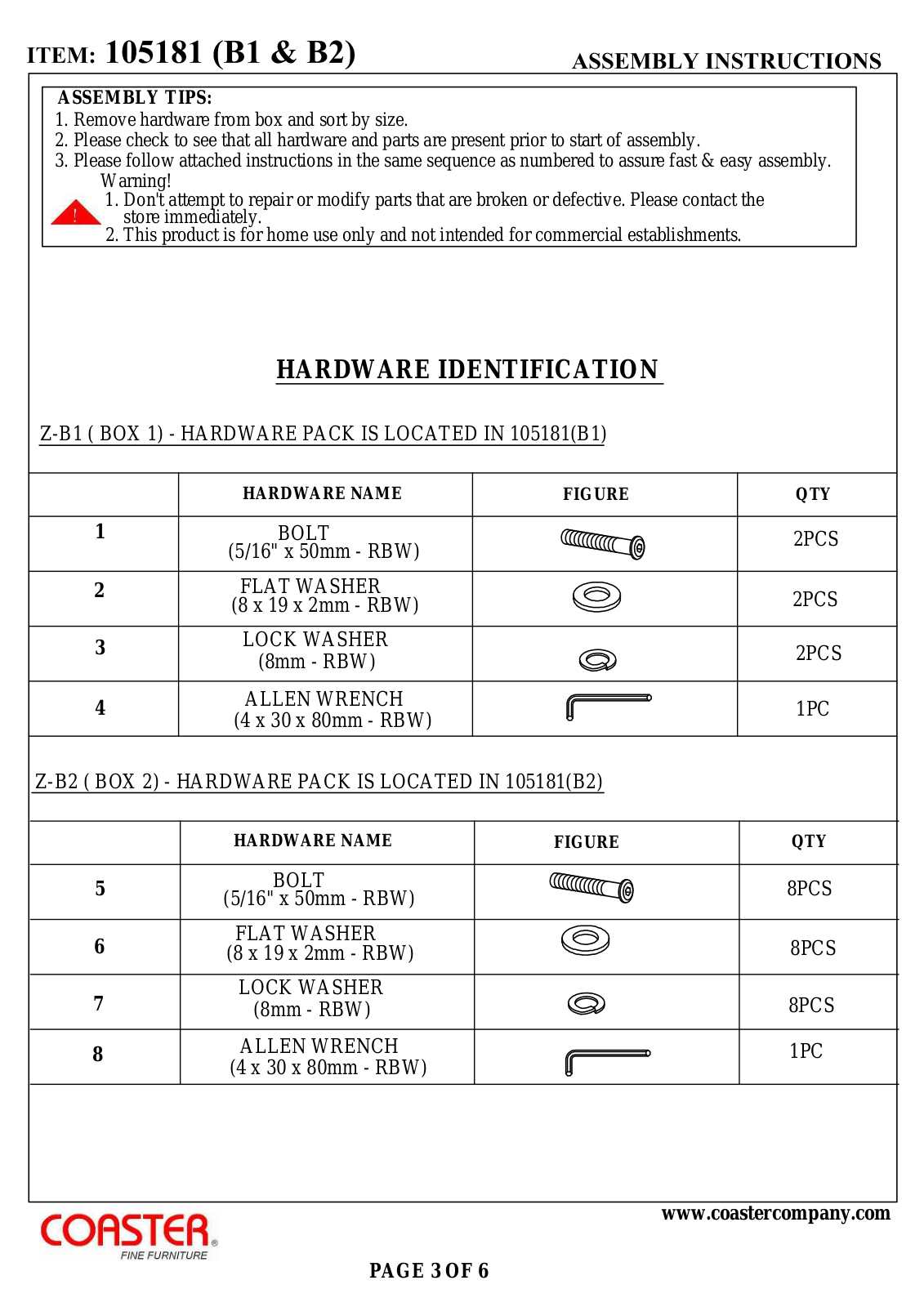

HARDWARE IDENTIFICATION
Z-B1 ( BOX 1) - HARDWARE PACK IS LOCATED IN 105181(B1)
HARDWARE NAME
1
BOLT
FIGURE
(5/16" x 50mm - RBW)
2
FLAT WASHER
(8 x 19 x 2mm - RBW)
3
LOCK WASHER
(8mm - RBW)
4
ALLEN WRENCH
(4 x 30 x 80mm - RBW)
Z-B2 ( BOX 2) - HARDWARE PACK IS LOCATED IN 105181(B2)
HARDWARE NAME
5
(5/16" x 50mm - RBW)
BOLT
FIGURE
FLAT WASHER
6
(8 x 19 x 2mm - RBW)
QTY
2PCS
2PCS
2PCS
1PC
QTY
8PCS
8PCS
LOCK WASHER
7
8
(8mm - RBW)
ALLEN WRENCH
8PCS
1PC
(4 x 30 x 80mm - RBW)
www.coastercompany.com
PAGE 3 OF 6

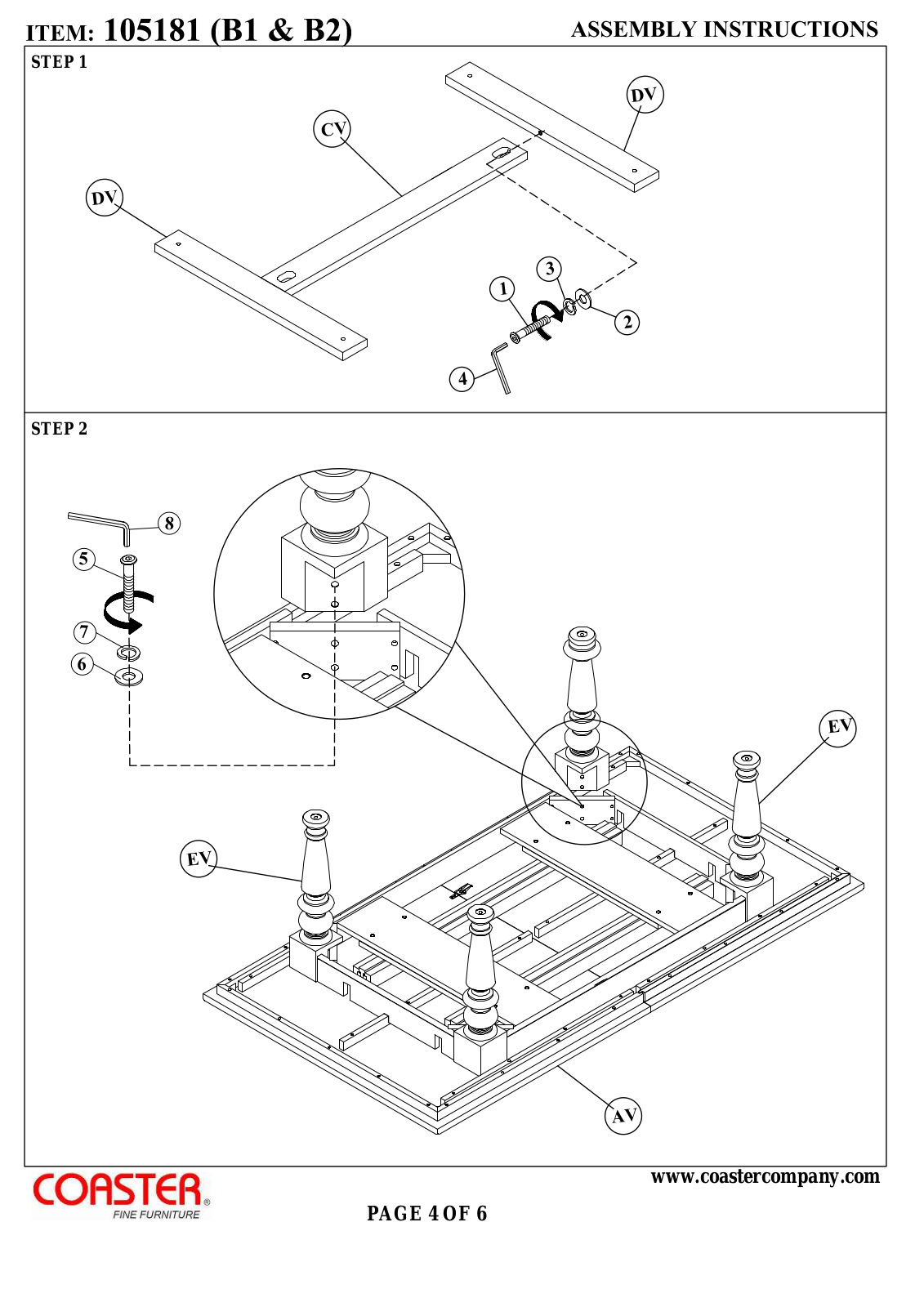

STEP 1
STEP 2
PAGE 4 OF 6
www.coastercompany.com

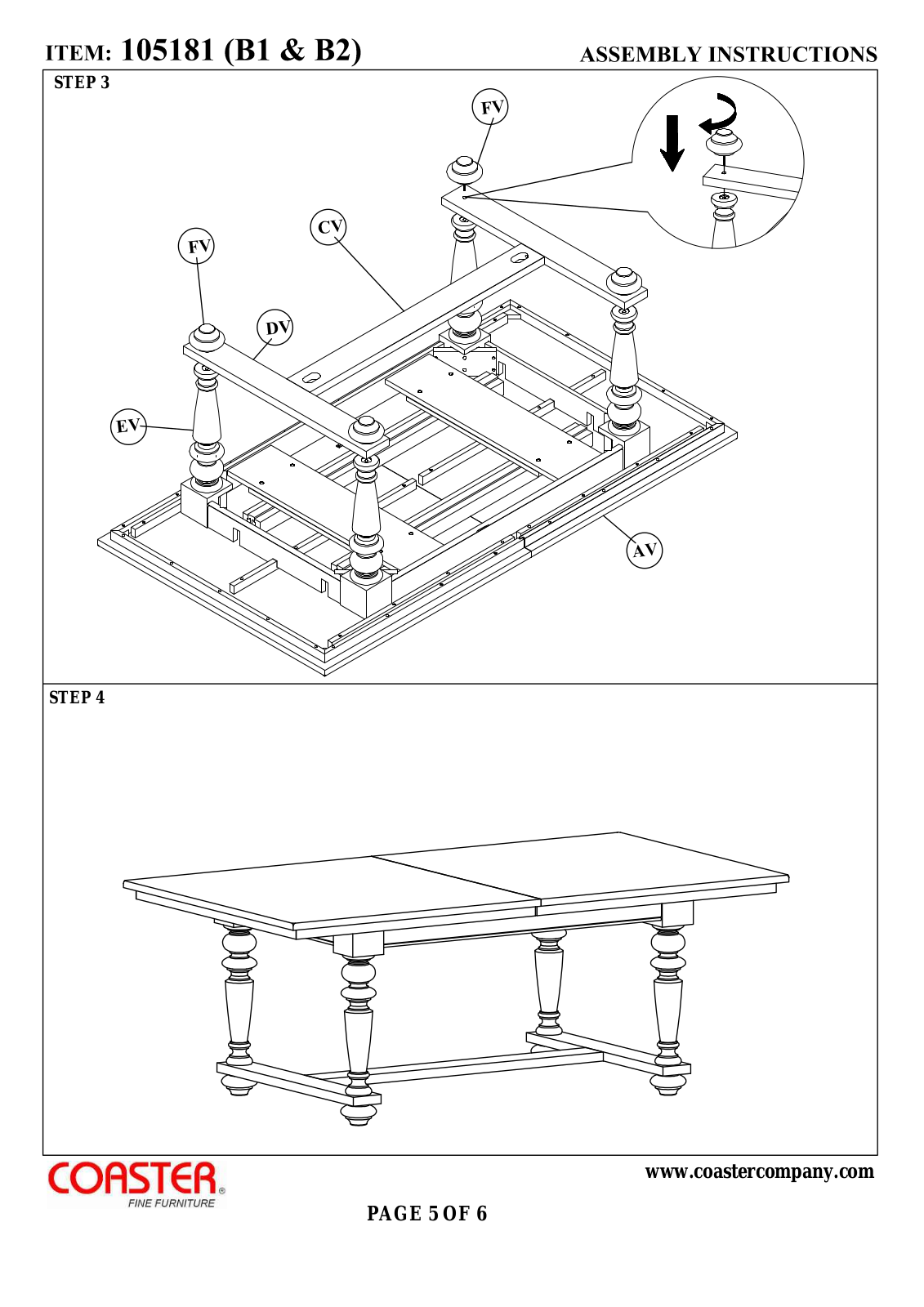

STEP 3
STEP 4
PAGE 5 OF 6
www.coastercompany.com

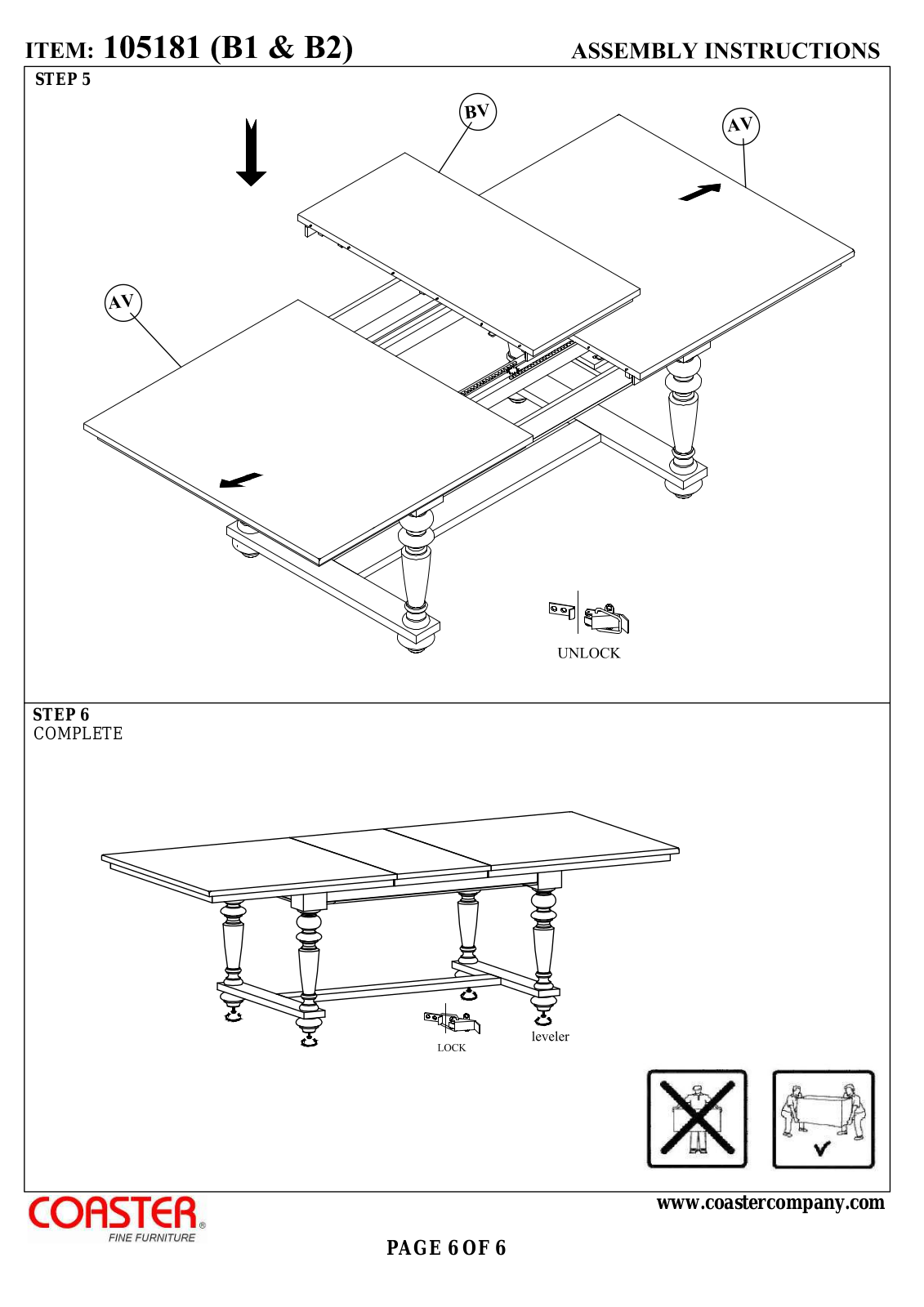

STEP 5
STEP 6
COMPLETE
PAGE 6 OF 6
www.coastercompany.com
