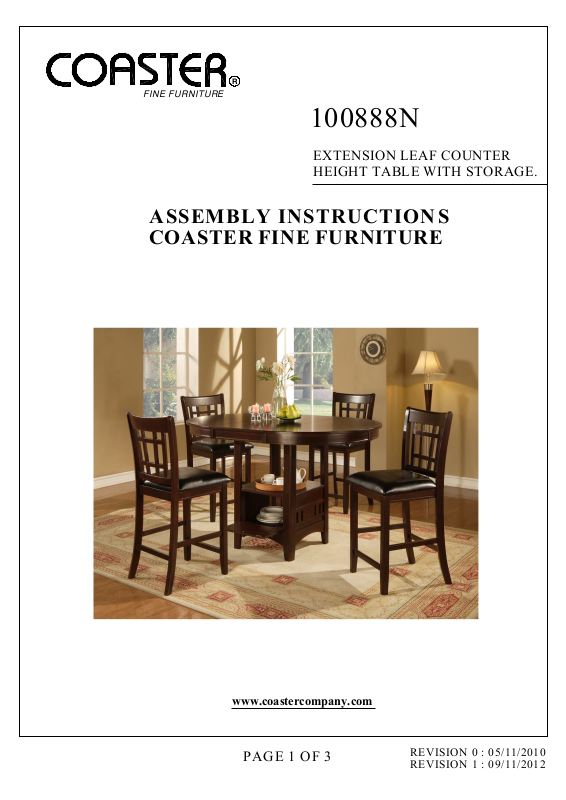

Coaster 100888N Assembly Guide
R
FINE FURN ITURE
100888N
EXTENSION LEAF COUNTER
HEIGHT TABLE WITH STORAGE.
ASSEMBLY INSTRUCTION S
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 3
REVISION 0 : 05/11/2010
REVISION 1 : 09/11/2012
ASSEMBLY TIPS :
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to ensure fast & easy
assembly.
! Warning !
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2. This product is for home use only and not intended for commercial establishmemts.
PARTS IDENTIFICATION :
NO DESCRIPTION FIGURE Q'TY
SIDE PANEL
1
WITH EX TRA CLEAT
SIDE PANEL
2
DOOR PANEL
3
TABLE TOP
4
TABLE LEAF
5
TABLE LEG
6
TOP PANEL
7
BOTTOM PANEL
8
1 PC
2 PCS
1 PC
1 PC
1 PC
4 PCS
1 PC
1 PC
STEP 1
Align & fasten side panels to table legs
using bolts, lock washers & small flat washers.
Tighten with Allen wrench.
B
H
D
C
2
HARDWARE IDENTIFICATION :
NO DESCRIPTION FIGURE Q'TY
A 4 PCS
HEX NUT
BOLT
B 14 PCS
LOCK WASHER
C
SMALL FLAT
D
WASHER
LARGE FLAT
E
WASHER
SCREWF 4 PCS
DOOR HINGEG 1 PC
ALLEN WRENCH
WRENCH
H
I
5/16" x12mm
1/4"x 40mm
5/16" x13mm
5/16"x 19mm
5/16" x22mm
3x15mm
120m m
M4x5 9mm
M4x5 0mm
STEP 2
2.1 Align & fasten door panel to table legs
using bolts, lock washers & small flat washers.
Tighten with Allen wrench.
2.2 Align & fasten door hinge to extra cleat on
side panel using screw. Tighten with screw
driver ( not included)
B
F
H
1
18 PCS
14 PCS
4 PCS
1 PC
1 PC
D
C
6
2
G
6
1
FINE FURNITU RE
R
2
3
ww w.coasterco mpany.com
2
PAGE 2 OF 3
