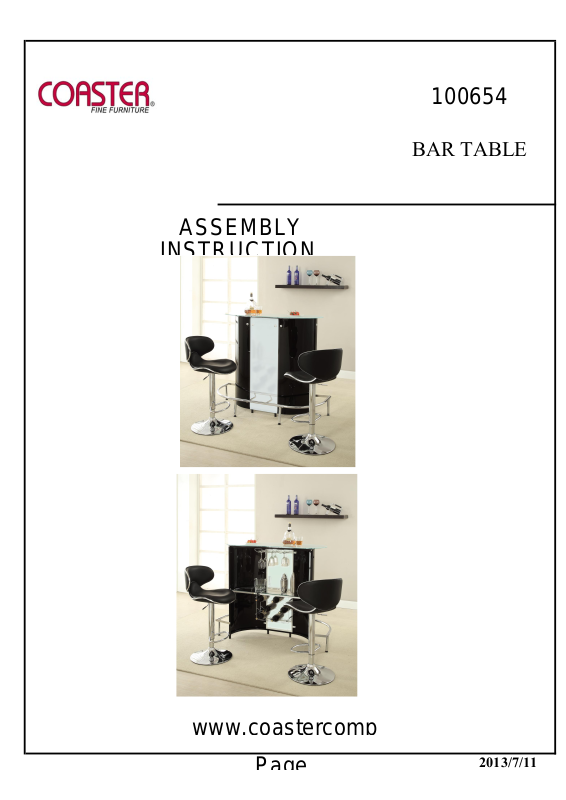

100654
ASSEMBLY
2013/7/11
BAR TABLE
TOP
MIDDLE
BOTTOM FOOT
FOOT REST
LEFT CROSS
RIGHT CROSS
FOOT REST SIDE
FRONT
TOP GLASS
SHELF
FRONT
SIDE
BOTTOM LEG
BOTTLE
BOTTLE RACK BOTTOM
GLASS
BOTTLE RACK TOP
BOL
SMALL ALLEN
ALLEN
MEDIUM ALLEN
NU
FLOOR LEVELER
ROUND
CA
SMALL
ALLEN
PLASTIC
SUCTION
HEXAGONAL
WASHE
SMALL BOLT
LARGE ALLEN
4

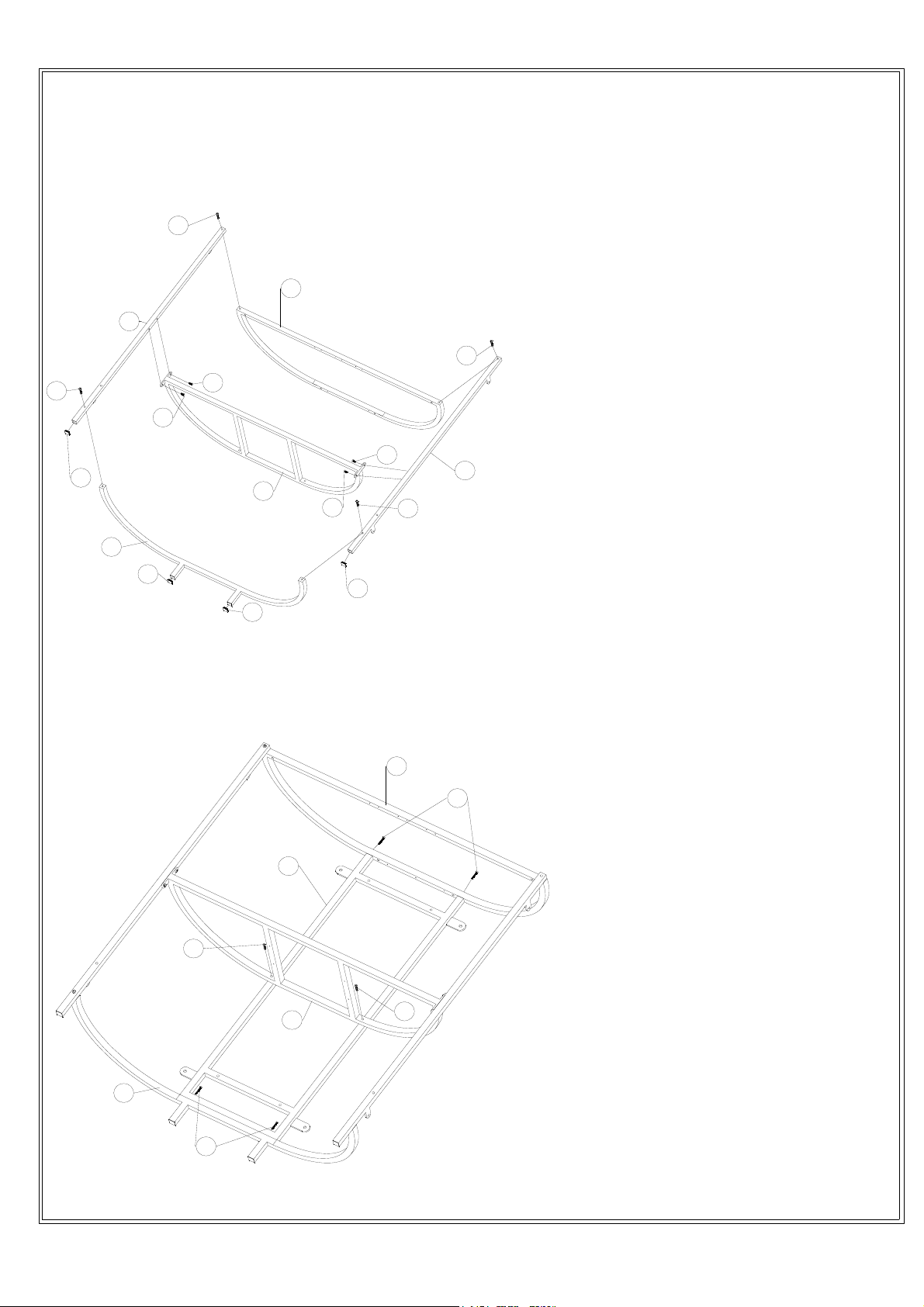

STEP 1
STEP 1
1. Attach TOP FRAME (A) and BOTTOM FOOT BAR (C) to LEFT CROSS BAR (E)
and RIGHT CROSS BAR (F) by screwing MEDIUM ALLEN BOLT (4).
2. Attach MIDDLE FRAME (B) to LEFT CROSS BAR (E) and
RIGHT CROSS BAR (F) by screwing SMALL ALLEN BOLT (2).
3. Insert CAP (8) into the hole at BOTTOM FOOT BAR (C) and LEFT CROSS BAR (E)
and RIGHT CROSS BAR (F).
STEP 2
STEP 2
1. Attach FRONT FRAME (H) to TOP FRAME (A) and MIDDLE FRAME (B) and BOTTOM FOOT BAR (C)
by screwing MEDIUM ALLEN BOLT (4).
A
E
4
4
2
8
C
8
2
2
F
B
2
8
8
4
A
4
H
4
B
C
4
4
1
STEP 3
1. Attach SIDE ACRYLIC (L) to FRONT FRAME (H) and LEFT CROSS BAR (E)
by screwing BOLT (1) and NUT (5) and SMALL WASHER (9).
2. Attach SIDE ACRYLIC (L) to FRONT FRAME (H) and RIGHT CROSS BAR (F)
by screwing BOLT (1) and NUT (5) and SMALL WASHER (9).
STEP 4
1. Insert ROUND CAP (7) into BOTTOM LEG SUPPORT (M), then screw on FLOOR LEVELER (6).
2. Attach BOTTOM LEG SUPPORT (M) to FRONT FOOT REST BAR (D) by screwing
SMALL ALLEN BOLT (2).
H
1
9
L
9
5
5
L
1
1
5
F
9
9
9
5
9
5
E
D
2
M
2
7
6
2
M
7
6
2
2
M
7
6
2
M
7
6
2
2
D
STEP 5
1. Attach FRONT GLASS (K) to FOOT REST BAR (D) and
FRONT FRAME (H) by screwing BOLT (1) and
LARGE ALLEN BOLT (16) and PLASTIC WASHER (11) and WASHER (14).
STEP 6
1. Attach TOP GLASS (I) to TOP FRAME (A) by screwing ALLEN BOLT (3).
2. Place SUCTION CUP (12) on the MIDDLE FRAME (B).
3. Attach FOOT REST SIDE PLATE (G) to FOOT REST BAR (D) LEFT CROSS BAR (E) and
RIGHT CROSS BAR (F) by using SMALL ALLEN BOLT (2) and ALLEN BOLT (3).
1
1
K
14
11
14
16
I
3
12
B
D
3
2
G
3
12
2
G
3
J
STEP 7
1. Place SHELF GLASS (J) on the MIDDLE FRAME (B).
STEP 8
1. Attach BOTTLE RACK BOTTOM BAR (O) to BOTTLE RACK (N) by screwing SMALL BOLT (15).
2. Attach BOTTLE RACK TOP BAR (Q) to BOTTLE RACK (N) by screwing SMALL BOLT (15).
B
Q
15
15
O
O
15
N
A
STEP 9
1. Attach GLASS HOLDER (P) to TOP FRAME (A) by using SMALL BOLT (15).
2.Attach BOTTLE RACK TOP BAR (Q) to MIDDLE FRAME (B) by using SMALL BOLT (15).
FINISH
P
P
15
15
15
15
P
B
15
Q
15
