NeoSynth

Audio expansion card for CME

VX and UF keyboard range

Version 1.1

Special messages section

This product utilizes batteries or an external power supply (adapter). Do NOT connect this product to any power supply or adapter other than one described in the manual, on the product, or specifically recommended by CME.

Warning

Do not place this product in a position where anyone could walk on, trip over, or roll anything overpower or connecting cords of any kind.The use of an extension cord is not recommended! If you must use an extension cord, make sure that the cord has the ability to handle maximum current needed by this product. Please consult a local electrician when possible. This product should be used only with the components supplied or recommended by CME. When used with any components, please observe all safety markings and instructions that accompany the accessory product.

Specifications subject to change

The information contained in this manual is believed to be correct at the time of printing. However, CME reserves the right to change or modify any of the specifications without notice orobligation to update existing units. This product, either alone or in combination with an amplifier and headphones or speaker(s), may be capable of producing sound levels that could cause permanent hearing loss. Do NOT operate for long periods of time at a high volume level or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should consult an audiologist.

Important

The louder the sound, the shorter the time period before damage occurs. Some CME products may have stands and/or accessory mounting fixtures that are either supplied with the product or as optional accessories. Some of these items are designed to be dealer assembled or installed. Please make sure that stands are stable and any optional fixtures (whereapplicable) are well secured BEFORE using. Stands supplied by CME are designed for the respect products only. No other uses are recommended.

Notice

Service charges incurred due to a lack of knowledge relating to how a function or effect works (when the unit is operating as designed) are not covered by the manufacturer’s warranty,and are therefore the owners responsibility. Please study this manual carefully and consult your dealer before requesting service.

environmental issues

CME strives to produce products that are both user safe and environmentally friendly. We sincerely believe that our products and the production methods used to produce them, meet these goals. In keeping with both the letter and the spirit of the law, we want you to be aware of the following:

Battery notice

This product MAY contain a small non-rechargeable battery which (if applicable) is soldered in place. The average life span of this type of battery is approximately five years. When replacement becomes necessary, contact a qualified service representative to perform the replacement. This product may also use “household”type batteries. Some of these may be rechargeable. Make sure that the battery being charged is a rechargeable type and that the charger is intended for the battery being charged. When installing batteries, do not mix batteries with new,or with batteries of different type. Batteries MUST be installed correctly. Mismatches of incorrect installation may result in overheating and battery case rupture.

Warning

Do not attempt to disassemble, or incinerate any battery. Keep all batteries away from children. Dispose of used batteries promptly and as regulated by the laws in your area. Note: Check with any retailer of household type batteries in your area for battery disposal information.

Disposal notice

Should this product become damaged beyond repair, or for some reason its useful life is considered to be at an end, please observe all local, state, and federal regulations that relate to the disposal of products that contain lead, batteries, plastics, etc. If your dealer is unable to assist you, please contact CME directly.

FCC information (U.S.A.)

Important notice: do not modify this unit!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by CME may void your authority, granted by the FCC, to use the product.

Important

When connecting this product to accessories and/or another product use only high quality shielded cables. Cable(s) supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

Note

This product has been tested and found to comply with the limits for a Class B Digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF”and “ON”, please try to eliminate the problems by using one of the following measures:

- Relocate either this product or the device that is being affected by the interference.

- Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter(s).

- In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to co-axial type cable. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you cannot locate the appropriate retailer, please contact CME.

The above statements apply ONLY to those products distributed in the USA.

Table of contents

Introduction 6

Terminology 6 What’s in the box? 6

Installing the Neosynth expansion board into your CME keyboard 8

NeoSynth inputs and outputs 9

Connections 9

General 12

Leds behaviour 12 Sound bank upgrade 12 USB MIDI driver 12

The patch editor software 13

Preference Screen 14 Routing screen 16 Inputs FX screen 19 Synth FX screen 23 Synth channels A screen 28 Synth channels B screen 29 Synth channels C screen 31 Sound bank screen 33 The menu items of the patch editor 35

The NeoSynth features 39

MIDI implementation of the NeoSynth 40

Introduction

First of all, congratulations with the purchase of the Neosynth! With this expansion board from WaveIdea you will add great sonic possibilities to your CME VX or UF keyboard.

In short the expansion board gives you the possibility to play high quality sounds in various music styles provided in sound banks that can be loaded from an optional SD card that fits into the expansion board. You can also change settings for sounds, MIDI channels etc. with the provided software patch editor.

With an external MIDI sequencer you can use the NeoSynth in multitimbral mode up to 16 MIDI channels. Wave Idea will develop new sound banks in the future to fulfill all your sonic needs! Depending on the sound bank, variations may also exist, so more than 128 sounds can be available.

Terminology

As a reference here is a short list of specific NeoSynth terms used in this manual.

Soundbank. This is what you have loaded into the NeoSynth. It’s a set of (multi)samples, created by professional sound designers and determines how each of the instruments will sound.

Instrument: one sound from a sound bank with specific (multi)samples creating the sound plus specificsettings for the instrument (for instance FX, filter, etc.).

Preset or patch: a set of parameters that describes all settings for a sound bank. It contains the 16 possible sounds for each MIDI channel, the effect settings, the audio routing settings etc.You create presets with the additional patch editor software and can save them on your computer.

Synthesizer channel: A term used to describe one of the 16 possible instruments that can sound at the same time in a so-called multitimbral setting. Because the NeoSynth listens to MIDI you can play 16 instruments at the same time over a maximum of 16 different MIDI channels. One of those instruments with its specific settings and MIDI channel is called a synthesizer channel.

What’s in the box?

Before you go on installing the expansion board please check if your box contains all the shipped items.

– NeoSynth Board; – Rear plate for UF keyboard;

– Rear plate for VX keyboard; – CD-ROM; – Manual; – SD-card with GM sound Bank; – USB cable.

Installing the Neosynth expansion board into your CME VX or UF keyboard

First of all, be sure to unplug the power plug and USB cable from your keyboard to avoid electrical shortcuts during installation. Also be sure to ground yourself to avoid static electricity which could damage your NeoSynth expansion board. Do not touch electronic parts of the expansion board either since this can damage the expansion card as well.

Step 1: Unscrew the metal plate on your VX or UF keyboard on the back. The plate is holded by 4 screws on the VX keyboard and 5 screws on the UF keyboard ( next three pictures shows the VX version).

Step 2: Locate the power/communication connector that should be connected to the Neosynth expansion board (1 connector on the VX keyboard, 2 smaller connectors on the UF keyboard). Connectors feature a mounting direction, the right direction must be respected, no force must be applied while inserting the connector(s).

Step 3: Gently insert the Neosynth expansion board into the VX or UF keyboard and place the 4 respectively 5 screws to tighten the Neosynth expansion board.

Step 4: The quickest way to be able to make sure your Neosynth is installed correctly is to plug in a headphone in the NeoSynth’s headphones output and play the demo on your VX or UF keyboard (see the respective VX or UF keyboard manual how to do that. On the VX press the expansion link button). Another way is to attach one or two audio cables from your Neosynth to your DAW, computer or amplifier to be able to hear the synth. Attach a USB cable from your Neosynth to your computer to be able to edit instruments etc. with the provided patch editor software.

Step 5: Power on the VX or UF keyboard. While doing that watch the back of the keyboard and see if the two leds on the Neosynth expansion board lit up (one yellow and one red one should go on for a few seconds and then go off again). When a USB cable is connected to your computer the red led will burn.

For more information about selecting the NeoSynth and choosing the various sounds please read the manual provided with your VX/UF keyboard. By now it should be possible to play and hear the sounds of the Neosynth.

NeoSynth inputs and outputs

Connections

The Neosynth expansion board has several connection possibilities to increase the use in all kinds of settings (Grey NeoSynth: UF version, Red NeoSynth: VX version).

From left to right:

Headphones output (stereo):

A stereo output, mirrored from the main outputs with it’s own dedicated mixer in the patch editor. Note : By default, this output is connected to the synthesizer part of the NeoSynth.

Master output (L+R):

These outputs can be connected to your DAW, audio card, amplifier etc. Note : By default, this output is connected to the synthesizer part of the NeoSynth

Auxilliary (Aux) output (L+R):

These outputs can be connected to your DAW, audio card, amplifier etc. and can be used as an extra pair of outputs, but also as a send/return together with the inputs to be able to use an external effect box with your Neosynth.

Audio in (L+R):

Here you connect any audio signal for various applications:

1. Make use of the FX section of the Neosynth. Since the synthesizer has a nice Reverb and Delay effect, you can route any audio through those effects

2. Same as 1, but now mixed with your synthesizer track! With the use of the patch editor you can make extensive mixes of both the input and synthesizer audio signal.

3. You can even use the inputs for karaoke! Connect a microphone through a microphone amplifier, use a GM soundset, play a General Midi songfile and sing along with it.

Digital output (stereo):

This is a mirror of the Analog Auxiliary Outputs and can be connected to a digital input on your audiocard, DAW, etc. it provides a 16 bit/48 kHz signal. Note : By default, this output is connected to the inputs part, passing through the input FX engine of the NeoSynth. Note 2: The equipment connected to the NeoSynth S/PDIF output must be configured to recover the S/PDIF clock from the NeoSynth S/PDIF output (slave equipment)

Red and orange leds

These two leds will help you to see the in which mode the NeoSynth is acting. You’ll find more info in this manual about the various possible combinations for on/off or blinking leds.

USB connector

For use with a hardware expander to be able to edit instrument, FX and routing parameters using the provided patch editor software. The Neosynth is class compliant with the USB MIDI specification, thus it does not need any driver to work with Xp-Sp2, Vista, Mac and Linux. A special driver is available for Win Xp, it is not mandatory to install it, it is just used to replace the generic device name “USB audio device” by “WaveIdea Neosynth”

SD-card slot

Here you can put in a SD card for loading various sound banks. As soon as the sound bank has been updated, the SD card can be removed from the slot. There are two ways for loading a sound bank from a SD card:

Software-less

The update can be done by inserting the card, reboot the VX or UF keyboard while holding the button besides the SD card slot. The Neosynth will read the sound bank from the SD card that way.

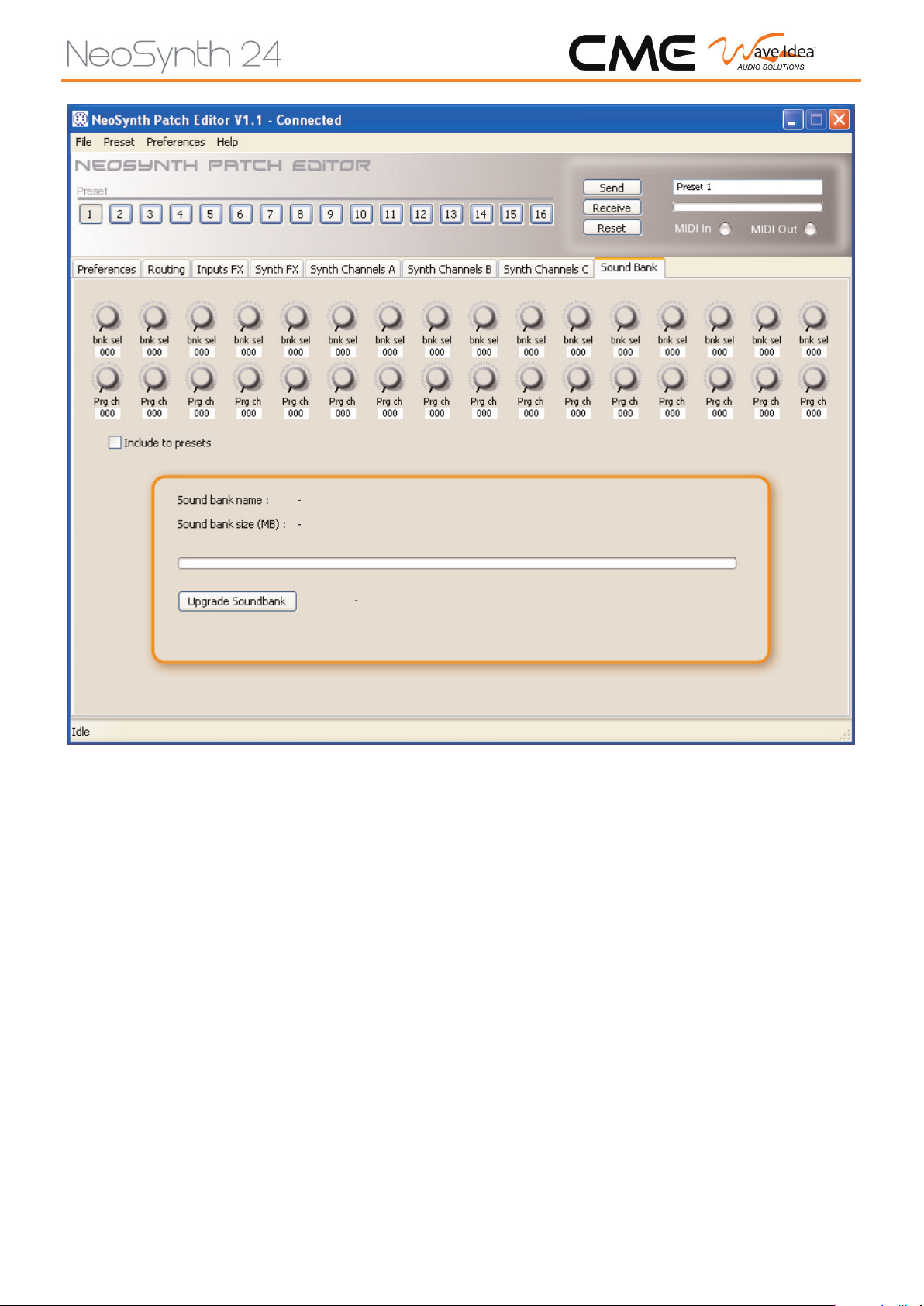

Using the patch editor

To update from the SD-card using the patch editor: put the card into your VX or UF keyboard.

Connect the Neosynth through USB to your computer, open the patch editor software and connect to the NeoSynth in the Preferences tab. Go to the sound bank panel (last tab) and click the button. A window will appear explaining how to upgrade. See also the next chapter about the patch editor

General

Leds behaviour

The behaviour of the leds on the Neosynth says something about the status of the NeoSynth in various conditions:

Status 1 led Status 2 led Yellow Red

Normal mode

Neosynth is booting On On Neosynth idle Off Off Neosynth idle – USB attached Off On Neosynth playing – USB attached/not attached Lighting On/Off

Sound bank or firmware upgrade mode

Previous sound bank erase Ping pong fast Sound bank upgrading Ping pong slow Firmware upgrading Ping pong fast Firmware upgrade finished - Success On On Sound bank upgrade finished - Success On On Sound bank upgrade finished – Invalid SD card Off Off Sound bank upgrade finished - Error On Off

Sound bank upgrade

This is done in 2 steps :

1. Erasing of previous sound bank : Leds will ping pong fast : requires about 7 minutes. If using patch editor software, a progression bar is available for this first step;

2. Upgrade of new sound bank : Leds will ping pong slow : requires about 13 minutes.

If using patch editor software, a progression bar is available for this second step

See the next chapter about the patch editor software for details on this.

USB MIDI driver

TheWave Idea NeoSynth USB MIDI driver forWindows XP can be installed if you want to change the generic WindowsXP USB MIDI driver name.But it is not demanded. For a description of the installation progressvisit WaveIdea’s website (http://www.waveidea.com)to download and read the PDF manual for that.

The patch editor software

The fun of the Neosynth doesn’tstop here!When you haveattached a USB cable to the Neosynthfrom your computer and installed the patch editor software (both Windows and Macintosh versions are available), you can change the sounds, store them, and make all kinds of settings for multitimbral use of the synthesizer in conjuction with a MIDI sequencer.

In this manual we will take an extensive look at the parameters that can be changed using the patch editor.

To do so, you need to connect your computer with the Neosynth through a USB-connection. There is no need for a driver, it is plug and play. Even in Windows XP, although you could use the provided driver to change the “universal USB device”-name into “Neosynth”as device name.

Installing the editor (Windows): Unzip the editor file on the CD onto your harddrive. Then run the installer.

Installing the editor (Macintosh): Unzip the editor file from the CD onto your harddrive. That will create a DMG file on the desktop from which you can copy the program into the programs folder on your Mac.

If you have made the USB-connection and turned on the VX or UF keyboard you can start up the patch editor. It will start up with this first screen, the “Preferences” screen.

The upper part of every screen in the patch editor will have the same parameters: In here you can select various MIDI settings etc.We will go throughevery parameter of this screen first (see screen shot next page):

First you can select one of the 16 preset slots. A preset will contain all settings for the 16 channels.You can see a preset as a container for a multitimbral setup with a maximum of 16 (MIDI)channels. It contains the audio routing settings for the synth and the external inputs, the effect settings, the MIDIchannel settings, the so-called synth channel settings, containing parameters like filter cutoff, resonance, attack, decay, release etc. You can create as many as 16 presets.

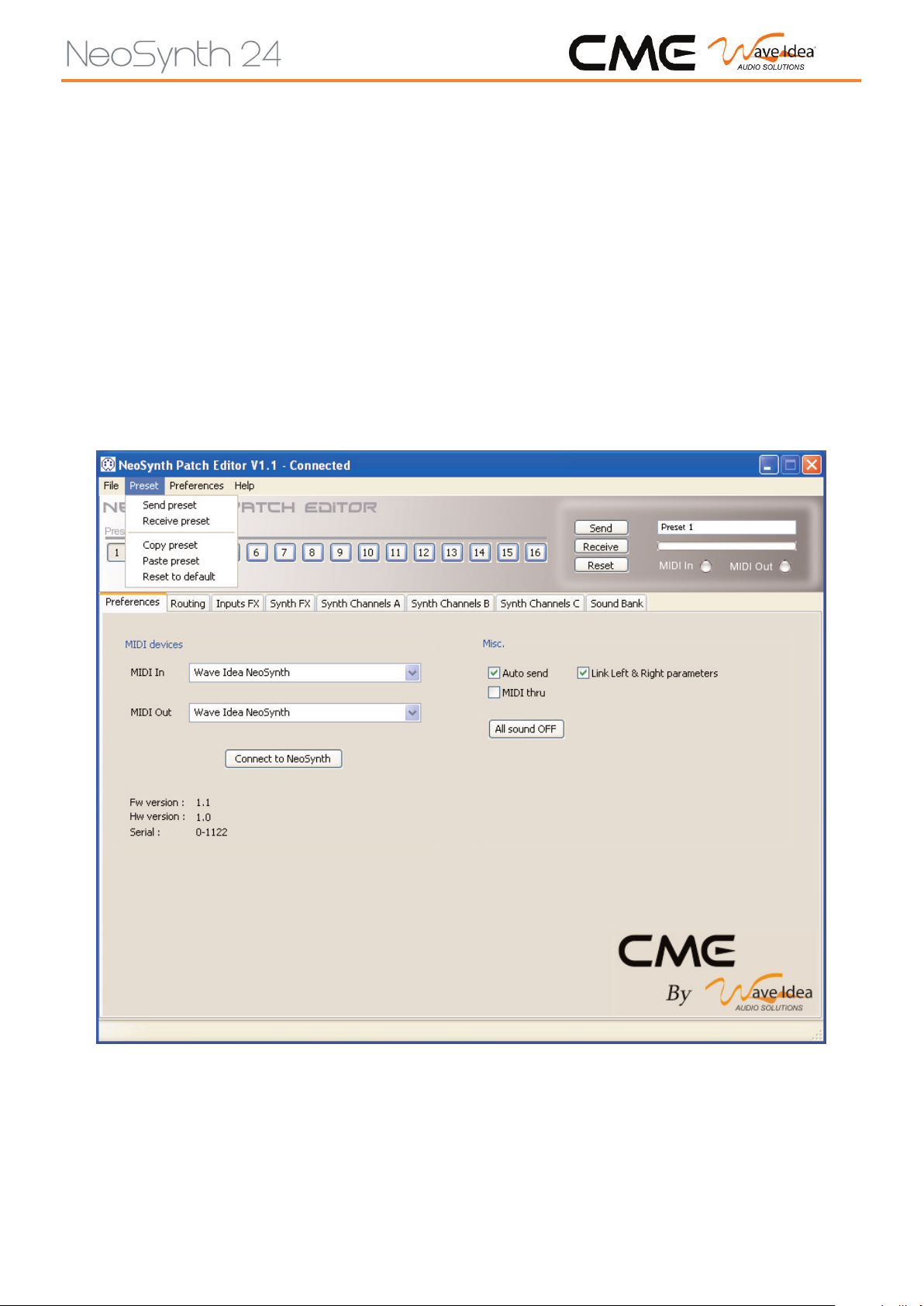

Furthermore there are three buttons “Send”, “Receive”and“Reset”. With these three buttons you can send a preset to the NeoSynth, receive a preset from the NeoSynth and reset the NeoSynth to the factory preset. To the right of these knobs you see the preset number that is selected for sending or receiving, a progressbar which shows the progress of sending or receiving a preset plus two MIDI indicators, telling you if there is action going on on the MIDI in and/or MIDI out port. The user can change the name of the preset in the textfield. By default the names are Preset 1, Preset 2 etc.

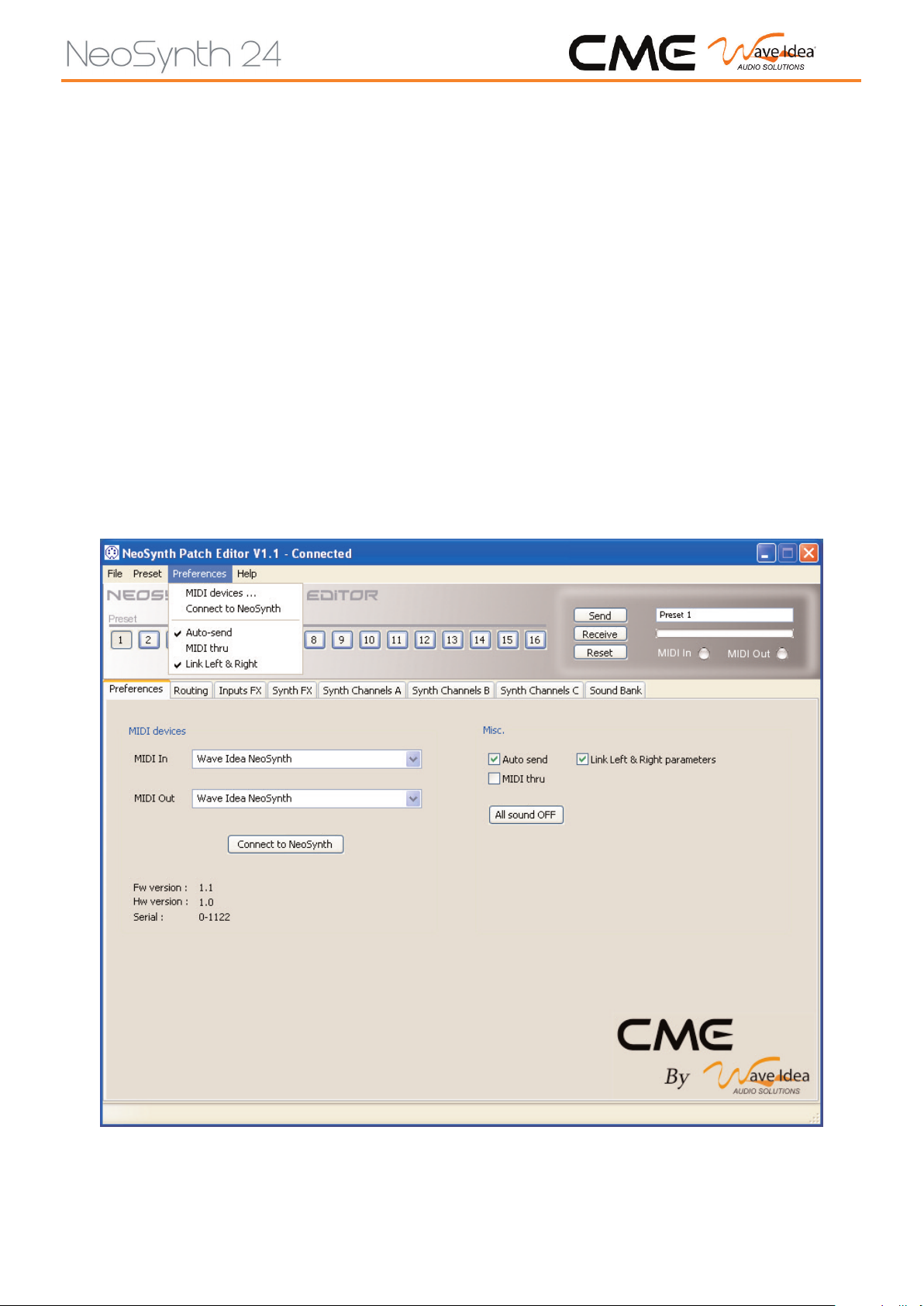

Preference Screen

MIDI devices – MIDI In

In this pop-up screen you can choose the available MIDI device to send preset data to, in our case the NeoSynth. Midi in & out selections are saved so thet are retrieved next time you start the software.

MIDI devices – MIDI Out

In this pop-up screen you can choose the available MIDI device to receive preset data from, in our case the NeoSynth. Midi in & out selections are saved so thet are retrieved next time you start the software.

MIDI devices - Connect to NeoSynth

Clicking this button will make a connection with the NeoSynth to show you the firmware version, the hardware version and the serial number (under the knob). As soon as you see that info appear you know that the connection has been made with the Neosynth.

Misc. – Auto send

When selected, the software editor will send every parameter change made in the editor immediately. When unselected you will have to use the “Send” button in the upper screen to send the whole preset to Neosynth. Also you can right click on a knob or any other control to send it indiviually. (On OSX controlclick).

Misc. – Link Left & Right parameters

With this one selected all parameters that have a left and right version are linked, meaning if you change one of them, the other one will change too with the same value.When unselected you can make complete individual settings for the left and right version of a parameter.

Misc. – MIDI thru

When the box is checked, all incoming MIDI data in the software will be forwarded to the MIDI out, so this has to be used with care since it can result in a MIDI loop (a confirmation box appears in the software mentioning this possible MIDI loop). The MIDI thru can be used with a MIDI file player connected to the soft input. This way you can change the sounds by turning knobs in the software while the MIDI song is playing.

Misc. – All sounds off

Pressing this button will send a all notes off message to all 16 MIDI channels. This comes in handy when somehow the MIDI messages are messed up and you hear notes that won’t stop anymore.

Routing screen

There are two stereo audio paths that can be mixed and panned in all kinds of ways. One stereo path (from here called external audio) is the line in left and right analog inputs going through a effects section which is then routed to the S/PDIF output (stereo) and mirrored on the left and right auxilary outputs. On top of that you can mix this external audio signal into the synth audio path.

The second audio path is the stereo synthesizer audio path (from here called synth audio) coming out of the synthesizer engine and is going through the effects section, then going through a mixer where you can make settings for the 16 channels and then going out of the Master left and right outputs and Headphones output (stereo). This audio path can also be mixed into the external audio path.

You can even connect externally with two short audio cables the master L+R master outputs to the Line in L+R inputs to make use of an extra external FX box! First, let’s go through all the controls possible in this screen. We are going from left to right and from up

to down.

LINE IN L+R level control

This knob controls how much signal that comes in from the line inputs will be fed into the stereo signal path.

Enable inputs

This checkbox enables/disables the inputs.

The external audio path is split into left and right paths each with its own panning and level control. This makes it possible to have two completely independend mono signals going through the external audio effects section where they can have different settings.

Summed external audio left channel pan control

This knob controls the panning of the audio signal from the left external audio path. So you can feed something or a lot into the right channel as well. It is fed into the external audio path after the level control of the right channel.

Summed external audio left channel level control

This knob controlsthe level of the audiosignal fromtheleft external audio pathgoing into the effects section.

Summed external audio right channel pan control

This knob controls the panning of the audio signal from the right external audio path. So you can feed something or a lot into the left channel as well. It is fed into the external audio path after the level control of the left channel.

Summed external audio right channel level control

This knob controls the level of the audio signal from the right external audio path going into the effects section.

After these controls the external audio goes into the dedicated effects section. See further on for details the Inputs FX section. When the audio comes out of the effects section there are even more controls!

External audio output level control

First there is a level control which controls the amount of signal going to the digital S/PDIF output (stereo) and the auxiliary outputs (left and right).

External audio mixing level control

This is a level control which controls the amount of the external audio signal that comes out of the effects section which will be fed into the synth audio path.

Now we are going to take a look at the synth audio path.

The left and right output of the synthesizer channels (16 at maximum) are fed into the dedicated synthesizer effects section. Later on in this manual the effects are explained in the Synth FX section. After the synth FX section you see two controls.

Synth audio post effects panning control

This control determines how much of the stereo signal from the synthesizer channels goes left and right. You can see it as a main panning control for all synthesizer channels.

Synth audio post effects level control

This control gives control over the combined level of all 16 synthesizer channels coming out of the synthesizer effects section. You an see it as a main output level control for the synthesizer audio paths.

Please be aware that you can control panning and level for each individual synthesizer channel in the Synth Channels B screen!

Synth audio path switches

Here you see a block with two rows of 16 checkboxes. These boxes control if the audio coming out of the synth effects section will go to the digital S/PDIF and auxiliary outputs or go to the Master and headphones outputs. The 16 boxes corresponds to the 16 MIDI channels of the synth. This way you can for instance direct a drum section of GM channel 10 to the aux outputs while the rest of the channels go to the main outputs.

The last control in this screen is the level control for the headphones output.

It’s your own brain that can come up with good use of these possibilities. It is for instance possible to route one or more of the 16 synth channels to the auxiliary outputs so you can put this signal through a dedicated outboard effect. For instance having a dedicated outboard delay on one or more tracks. Or a compressor on the drumtrack (when you use a GM sound bank). You can even use it as a send/return by routing something to the auxiliary outputs, put it through an effect and send that signal back into the NeoSynth using the line in inputs, make use of it’s dedicated effects block and bleed it into the master out mix!

Inputs FX screen

In this screen you can make all the effects settings of the external inputs dedicated effects blocks. There is a stereo reverb, stereo delay and a stereo equalizer available, to sculpt your sounds in detail.

Let us take look at all the controls:

First there are three checkboxes to enable/disable each effect. If you don’t need one or more of the effects it is wise to turn them off, since that will increase polyphony of the synth module.

Enable Reverb

This checkbox enables/disables the Reverb effect.

Enable Delay

This checkbox enables/disables the Delay effect.

Enable Eq

This checkbox enables/disables the Equalizer effect.

REVERB

The reverb effects gives space to a sound and is mostly used to make a sound more natural, by adding simulated reflection signals like they exist in the real world. We all know how our voice sounds inside a cathedral or the bathroom. That effect is called reverb. The sound of our voice reflects against walls, ceilings, floors, objects and gets back to our ears with a very small delay in time. All those thousands(!) of reflections together make the reverb effect. The bigger the hall or room the longer the reverb sounds.

Reverb – level control

This slider controls the level of the Reverb signal going out of the Reverb FX.

Reverb – Time control

This slider controls the decay of the reverb effect. Higher settings give longer reverb tails.

Reverb – send controls (left and right)

These two sliders control the level of the dry signal going into the Reverb FX. they have a close relations with the Reverb level control on the left. Remember: under the Preferences tab you can set to link the two sliders by enabling the checkbox Link left & right parameters.

ELAY

Delay (or echo) is an effect similar to reverb, but the time the sounds needs to get back to our ears from walls, ceilings, floors, mountains(!) etc. is so long that we “hear” the silence in between. It is the effect of screaming in the mountains: after some time you hear your voice coming back from the mountain walls it reflected on. In the early days of electronics this effect was created by recording the audio on a tape and playing it back from that same tape with a gap from about 200 ms to sometimes several seconds. Later on this effect could be simulated electronically and digitally. You can do nice rhythmical things with it!

Delay – level control

This slider determines the level of the delay signal going out of the Delay FX.

Delay – Time control

This slider dertermines the“gaps”between the dry signal and the delayed signal. It various from 0 to about 1000 milliseconds. With very small settings you can thicken up your sounds. With higher settings you can create rhythmical sounds.

Delay – Send controls (left and right)

These two sliders (L+R) determine how much of the dry signal will be fed into the Delay FX.

Delay – Feedback control

This slider determines how much of the Delay signal is fed back into the Delay FX. With higher settings it takes a longer time for the delay signal to fade out.

Delay – Filter control

This slider determines how much filtering will take place on the delay signal. With higher settings you can simulate old tape machines that loose high frequencies on the delay signal by their nature. The filter is a 6 dB lowpass filter inserted in the feedback loop.

Delay – Delay into Reverb control

This slider determines how much of the Delay signal will be fed back into the Reverb FX. Set to 0 only the dry signal will go through the Reverb FX. Higher settings will have a reverb on the delay signal as well.

Delay – Delay line 1 level controls (left and right)

This slider determines the level of the main delay line whose delay time has been set with the Delay Time slider. So maximum delay times (1000 ms) will be made with this delay line.

Delay – Delay line 2 level controls (left and right)

This slider sets the level of a second delay line, whose time is derived from the Delay time setting. The delay time for delay line 2 is 1/3 of the time made with the Delay time setting. For instance, if the delay time of delay line 1 is about 750 ms, this delay line will produce a delay signal after 250 ms.

Delay – Delay line 3 level controls (left and right)

QUALIZER

This effect is actually a number of filters that control specific parts of the soundspectrum. With an equalizer you can enhance or push back certain frequency ranges like the bass frequencies, middle frequencies or high frequencies of a sound. It’s a perfect effect to make a sound stand out in a mix of various sounds. Or to cut off some irritating frequencies in a sound. It’s a 4 band equalizer with gain and frequency controls and a bandwith control for the two mid bands.

Note that you have a complete independent equalizer effect for both the left and right audio channel.

Equalizer – low gain control

This knob controls the level of the gain for the low frequency. 0 = -12 dB, 127 = +12 dB.

Equalizer – low frequency control (up to 1.25 Khz)

This knob controls the low frequency that can be level controlled by the low gain control.

Equalizer – mid 1 gain control

This knob controls the level of the gain for the medium 1 frequency. 0 = -12 dB, 127 = +12 dB.

Equalizer – mid 1 frequency control (up to 1.4 Khz)

This knob controls the medium 1 frequency that can be level controlled by the medium 1 gain control.

Equalizer – mid1 bw control

This knob controls the slope or bandwidth of the medium 1 frequency that can be set by the mid 1 frequency control. Low values give a small bandwith (1/6 octave), high values give a broad bandwith (3 octaves).

Equalizer – mid 2 gain control

This knob controls the level of the gain for the medium 2 frequency. 0 = -12 dB, 127 = +12 dB.

Equalizer – mid 2 frequency control (up to 1.4 Khz)

This knob controls the medium 2 frequency that can be level controlled by the medium 2 gain control.

Equalizer – mid2 bw control

This knob controls the slope or bandwidth of the medium 2 frequency that can be set by the mid 2 frequency control. Low values give a small bandwith (1/6 octave), high values give a broad bandwith (3 octaves).

Equalizer – high gain control (up to 5.2 Khz)

This knob controls the level of the gain for the high frequency. 0 = -12 dB, 127 = +12 dB.

Equalizer – high frequency control

This knob controls the high frequency that can be level controlled by the high gain control.

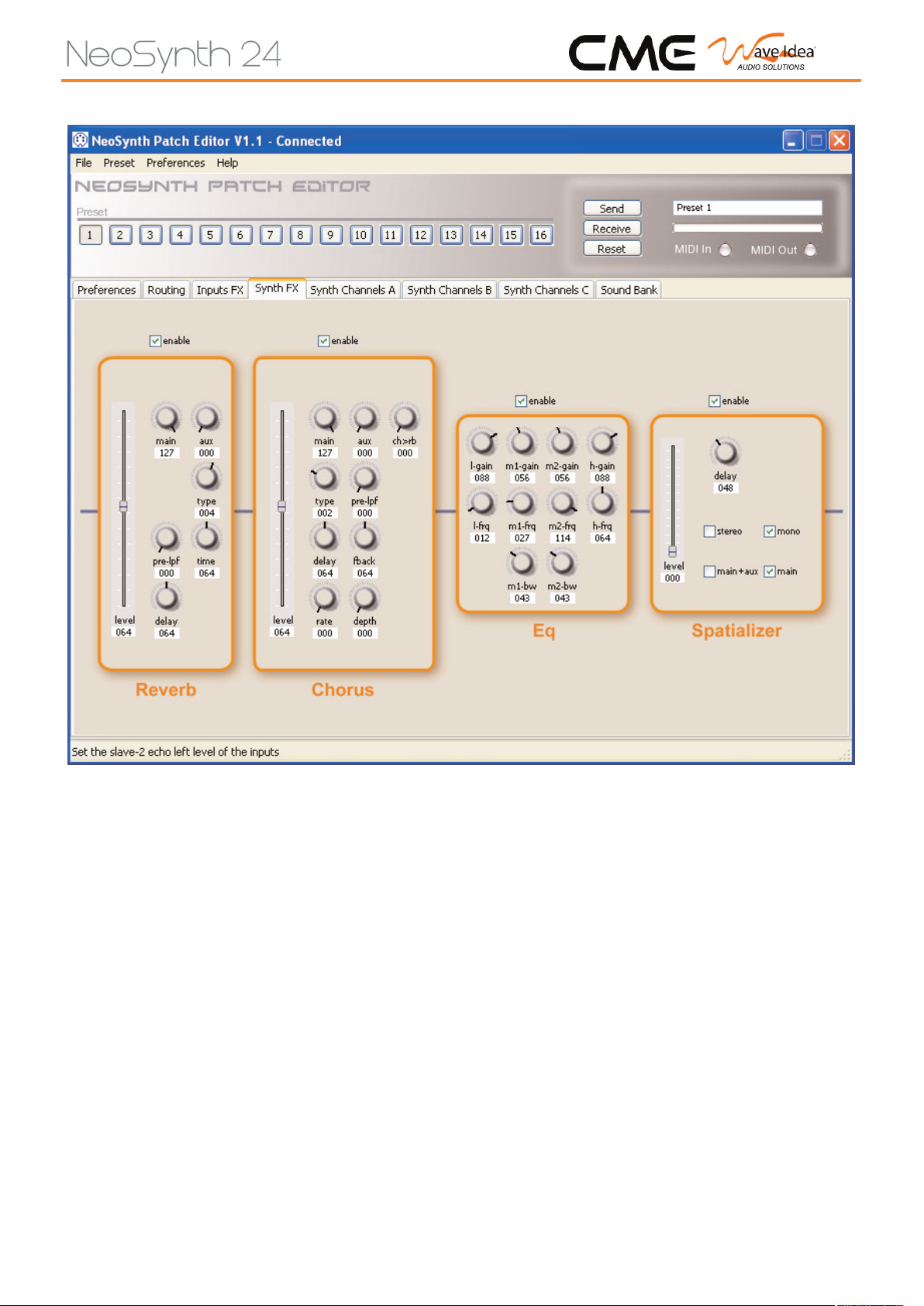

Synth FX screen

In this screen you can make all the effects settings for the synthesizer channels. The effects are globally used for all 16 synthesizer channels. The provided effect blocks are different from the ones in the external audio path.

There is a stereo reverb, stereo chorus, a stereo equalizer and a so called spatializer available to sculpt your synthesizer sounds in detail. In this synth audio path effects section the controls are always combined controls for left and right

Let us take look at all the controls in this section.

First there are four checkboxes to enable/disable each effect. If you don’t need one or more of the effects it is wise to turn them off, since that will increase polyphony of the synth module.

Enable Reverb

This checkbox enables/disables the Reverb effect.

Enable Chorus

This checkbox enables/disables the Delay effect.

Enable Eq

This checkbox enables/disables the Equalizer effect.

Enable Spatializer

This checkbox enables/disables the Spatializer effect.

REVERB

For a overall function of the reverb effect see the description at the Input FX section above. The reverb controls here differs from the reverb controls in the external audio path effects section. It has more extended controls.

Reverb – level control

This slider controls the amount of dry signal going into the reverb effect.

Reverb – main level control

This knob controls the amount of reverb signal going to the main outputs.

Reverb – aux level control

This knob controls the amount of reverb signal going to the aux outputs.

Reverb – type control

This knob sets the type of the reverb. There are 8 settings:

0. Room 1

1. Room 2

2. Room 3

3. Hall 1

4. Hall 2

5. Plate

6. Delay

7. Pan Delay

Reverb – pre-low pass filter control

This knob controls the cutoff frequency of the signal that is going into the reverb effect.

Reverb – time control

This knob controls the time of the reverb tail. Low settings have a short reverb tail, high settings make a long reverb tail.

Reverb – delay control

This knob controls the delay time for the reverb types 6 and 7.

HORUS

In simple terms the chorus effect thickens a sound by adding a slightly changed copy of the orginal to the original. The change is in the pitch of the copy. Because it is very little difference, our ears do not perceive the sound as out of tune. Parameters like delay and pitch modulation will add to this effect. Extreme settings can create real different sounds though.

Chorus – main level control

This knob controls the amount of chorus signal going to the main outputs.

Chorus – aux level control

This knob controls the amount of chorus signal going to the aux outputs.

Chorus – chorus into reverb level control

This knob controls the amount of chorus signal going back into the reverb effect.

Chorus – type control

This knob sets the type of chorus. There are 8 different types.

0. Chorus 1

1. Chorus 2

2. Chorus 3

3. Chorus 4

4. Feedback

5. Flanger

6. Short delay

7. Feedback delay

Chorus – pre-low pass filter control

This knob controls the cutoff frequency of the signal that is going into the chorus effect.

Chorus – delay control

This knob controls the delay time

Chorus – feedback control

This knob sets the amount of chorus signal that is fed back into the chorus effect.

Chorus – rate control

This knob controls the rate of the chorus effect.

Chorus – depth control

This knob controls the depth of the chorus effect.

EQUALIZER

Note that you have a complete independent equalizer effect for both the left and right audio channel.

Equalizer – low gain control

This knob controls the level of the gain for the low frequency. 0 = -12 dB, 127 = +12 dB.

Equalizer – low frequency control (up to 1.25 Khz)

This knob controls the low frequency that can be level controlled by the low gain control.

Equalizer – mid 1 gain control

This knob controls the level of the gain for the medium 1 frequency. 0 = -12 dB, 127 = +12 dB.

Equalizer – mid 1 frequency control (up to 1.4 Khz)

This knob controls the medium 1 frequency that can be level controlled by the medium 1 gain control.

Equalizer – mid1 bw control

Equalizer – mid 2 gain control (up to 1.4 Khz)

This knob controls the level of the gain for the medium 2 frequency. 0 = -12 dB, 127 = +12 dB.

Equalizer – mid 2 frequency control

This knob controls the medium 2 frequency that can be level controlled by the medium 2 gain control.

Equalizer – mid2 bw control

Equalizer – high gain control (up to 5.2 Khz)

This knob controls the level of the gain for the high frequency. 0 = -12 dB, 127 = +12 dB.

Equalizer – high frequency control

This knob controls the high frequency that can be level controlled by the high gain control.

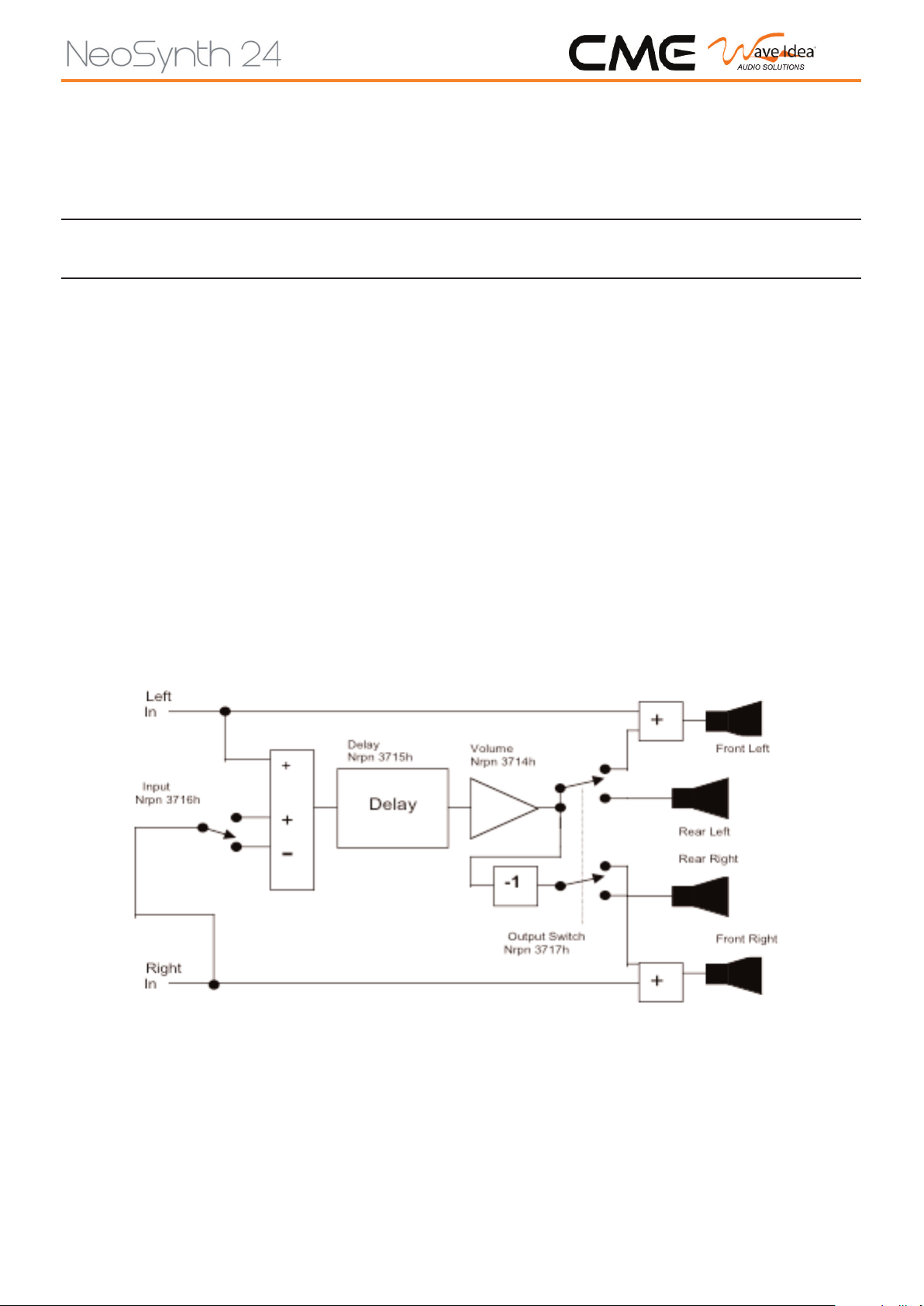

PATIALIZER

This effect can enhance the “stereo feeling”of a sound or sounds. You can also use it with a 4 speaker setting when you use both the main outputs and the aux outputs together.

Spatializer – level control

This slider controls the amount of signal going into the spatializer effect.

Spatializer – Delay control

This control sets the amount of delay signal that creates the spatial effect. Higher settings give a more pronounced spatial effect.

Spatializer – stereo/mono checkboxes

These checkboxes determine if a stereo or mono signal goes into the spatializer effect.

Spatializer – main+aux/main checkbox

These checkboxes determine if the spatializer signal goes to the main outputs plus the aux outputs or only to the main outputs.

Synth channels A screen

In this first of three synth channels screens you can alter various parameters that will change a synthesizer sound. You can make these changes for each of the 16 individual synthesizer channels.

Synth channel A – portamento checkbox

With this checkbox you can turn the portamento on or off. Portamento is also called glide. It is an effect where the pitch of the sound ‘glides’ from one key to the other.

Synth channel A – wheel level control

This knob sets the modulation depth of the modulation wheel on your controller keyboard

Synth channel A – portamento control

This knob sets the portamento or glide rate, i.e. how fast the pitch glides from one to the other note.

Synth channel A – express level control

This knob sets the level of the expression pedal.

Synth channel A – panning control

This knob sets the panning of each individual synthesizer channel in the stereo field.

Synth channel A – level control

This slider controls the level of each individual synthesizer channel.

Synth channels B screen

In this second screen you can alter level settings for the various effects plus an additional effect: vibrato. Vibrato is an effect where you change the pitch of the original sound using a so called low frequency oscillator. It is used to simulatevariousreal world instruments like flutes, where you make this effect with your lips and fingers, or on a string from a violin, by stretching the snare with your finger in a rhythmic way.

Synth channel B – reverb level control

This knob sets the amount of signal that is going into the reverb effect for each of the 16 individual synth channels.

Synth channel B – chorus level control

This knob sets the amount of signal that is going into the chorus effect for each of the 16 individual synth channels.

Synth channel B – vibrato rate control

This knob sets the rate of the vibrato for each of the 16 individual synth channels.

Synth channel B – vibrato depth control

This knob controls the depth of the vibrato effect for each of the 16 individual synth channels.

Synth channel B – vibrato delay control

This knob sets the time before the vibrato effect is coming up after a key is pressed. Again you can set this for each of the 16 individual synth channels.

Synth channel B – pitch control

This knob sets the global pitch for each of the 16 individual synth channels.

Synth channels C screen

In this screen you can change the cutoff and resonance of the built-in low pass filter. Such a filter can have great effect on a sound by removing certain parts of the soundspectrum of that sound, in this case by filteringout high frequencies.The effect gets even greaterby an extra parameter,the resonance control.With this control you enhance the frequencies around the the point from where frequencies are cut off.

Synth channel C – filter cutoff control

This control sets the cutoff value of the filter. The higher the value the brighter the sound.

Synth channel C – filter resonance control

This control sets the resonance level of the filter, the higher the value the more resonance you hear.

Synth channel C – amplifier attack control

The control sets the time it take for the level of the sound to reach it’s maximum value. At zero the sound

will sound immediately at it’s maximum value, higher values makes the sound come up in level in a certain time.

Synth channel C – amplifier decay control

Decay control sets the time a sound will go on while a key is pressed. Low values makes that a short time, the highest value will make the sound go on until you release the key.

Synth channel C – amplifier release control

This control sets the time a sound will go on after you have released the key. A low value will drop the soundlevel immediately while a high value will make the sound go on for some time after you released the key.

With the Attack, Decay and Release controls you “shape”the volume of the sound in time. These controls are very important. A pad or string sound needs slow attack and a longer release, while a piano or organ sound needs a fast attack and a slower release for instance.

-->

x-->

Here you see a typical ADSR curve. On the x-axe time is represented, on the y-axe it’s the amplitude of the volume of the sound.

The standard envelope form is ADSR, which start with Attack time (A) from minimum level to maximum, falls back to Sustain level (S) with Decay (D) time. After key release with Release time (R) the signal will go back to 0 (if Sustain level was 0 nothing happens after Decay time has passed). On the NeoSynth there is no sustain control and the sound falls in the release time back to zero after the decay time has passed.

Sound bank screen

In this screen you can make various settings for bank and program selection on the 16 MIDI channels. You can also upgrade a sound bank from this field. Beware that we are talking about two different types of banks here! The first control (bank select) is a controllerto select a bank which contains a maximum of 128 programs (or instruments). The upgrade sound bank button refers to a sound bank which contains all the (multi)samples which provides the raw material for the synthesizer to process and create sound with. So a sound bank is a file and container for the (multi)samples which can be loaded into the NeoSynth. A bank is a container for 128 programs. A sound bank can contain 4 banks of 128 sounds for instance.

Sound bank – bank select control

With this control you can select various banks on the NeoSynth per MIDI channel. Each bank can contain a maximum of 128 progams.

Sound bank – program channel

With this control you can select the program for every midi channel within the chosen bank. There are a

maximum of 128 programs in a bank.

Sound bank – include to presets

This checkbox determines if the made settings for bank select and program channel will be included in the active preset when saved.

Sound bank – sound bank name

Here you can see the name of the sound bank that is going to be uploaded to the NeoSynth.

Sound bank – sound bank size (MB)

Here you can see the size of the sound bank that is going to be uploaded to the NeoSynth.,

Sound bank – upgrade sound bank

This knob starts the upload of the sound bank to the NeoSynth.

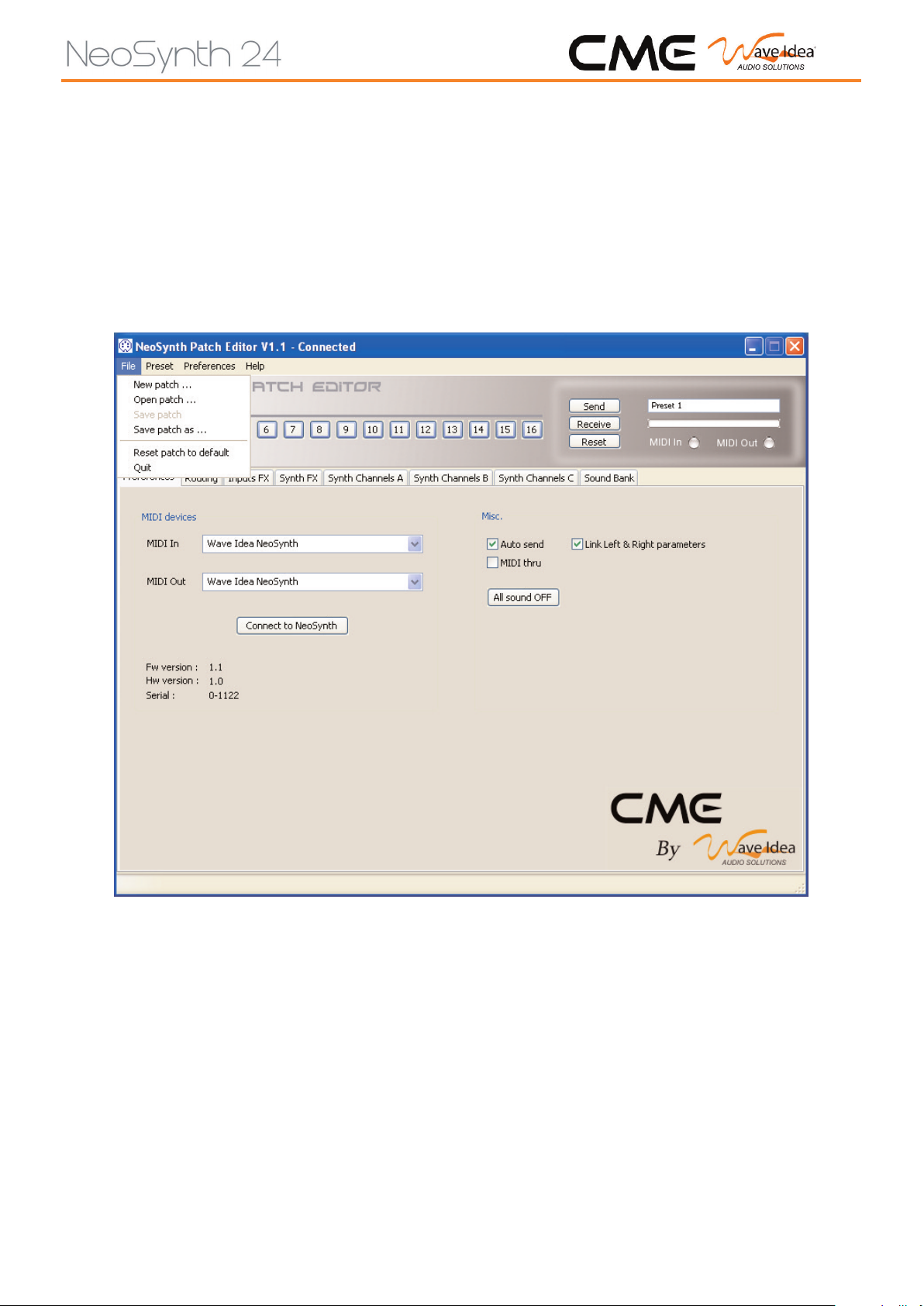

The menu items of the patch editor

In the main menu bar there are some global parameters like saving, opening, connecting and other features. We will shortly describe them here, since most of them are pretty obvious.

ILE

File – New patch

This will create a new patch. A patch is a complete setting of 16 presets which can be made with the NeoSynth patch editor. You can save these patches on your computer.

File – Open patch

With this command you can open a saved patch.

File – Save patch

With this command you can save a newly made patch on your computer.

File – Save patch as

With this command you can save an existing patch with a different name, to be able to keep the original patch.

File – Reset patch to default

With this command you can reset all 16 presets to default values.

File – Quit

This command quits the patch editor software.

RESET

Preset – Send

A preset is a complete setting for the NeoSynth, including the synthchannel settings etc. With this command you can send a preset to the NeoSynth (remember, in the preferences tab you can choose to automatically send every change you make in the software, including sending presets!)

Preset – Receive

With this command you can request the preset settings that are in the NeoSynth.

Preset – Copy

With this command you can make copy of the preset settings and paste it into another preset with the preset paste command.

Preset – Paste

With this command you can paste a copied preset into another preset.

Preset – Reset to default

This command resets the active preset in the software to default values.

REFERENCES

MIDI devices – MIDI In

MIDI devices – MIDI Out

In this pop-up screen you can choose the available MIDI device to receive preset data from, in our case the NeoSynth.Midi in & out selections are saved so thet are retrieved next time you start the software.

MIDI devices - Connect to NeoSynth

Activating this line will make a connection with the NeoSynth to show you the firmware version, the hardware version and the serial number (under the knob). As soon as you see that info appear you know that the connection has been made with the Neosynth.

Misc. – Auto send

Misc. – MIDI thru

When the box is checked, all incoming midi data in the software will be forwarded to the MIDI out, so this has to be used with care since it can result in a midi loop (a confirmation box appears in the software mentioning this possible midi loop). The midi thru can be used with a midi file player connected to the soft input. This way you can change the sounds by turning knobs in the software while the midi song is playing.

Misc. – Link Left & Right parameters

ELP

choosing this menu item you will get into a help file that basicly contains the same info as this manual as far as it concerns the use of the patch editor software.

The NeoSynth features

The Neosynth from WaveIdea is an expansion card suitable for the CME VX and UF keyboard range.

– It is a MIDI/USB expander; – It has up to 124 voice of polyphony; – There are built-in effect engines for both the input audio path as well as the synthesizer audio path; – Effects are Reverb, Delay, Equalizer, Chorus, Spatializer; – Each sound bank can contain up to 64 MB of sounds; – Soundbanks are updatable from a SD card. The software editor (both Mac and Windows are available)

shows the progress of this; – WaveIdea has various sound banks available for all kinds of musical styles; – USB is MIDI class compliant (no driver needed); – The audio paths are 24 bits / 48 KHz; – Main stereo audio outputs (24 bits DA convertors, DAC output voltage is 3.0V peak to peak); – Auxilliary stereo audio outputs (24 bits DA convertors, DAC output voltage is 3.0V peak to peak); – Stereo Headphones output. 50 mW at 16 Ohms; – Analog stereo audio input (24 bits A/D converters); – S/PDIF stereo audio output; – Large MIDI implementation; – Editable by a software patch editor.

MIDI implementation of the NeoSynth

NRPN Description Power-up default (High|Low)

GENERAL

3755h Effects on/off See paragraph 1-11 for details 37h 3756h Input modules on/off See paragraph 1-12 for details 01h 3707h Master Volume 0 to 7Fh 7Fh

MIDI

3708h Midi Equalizer Low band gain 0 = -12dB, 40h = 0dB, 7Fh = +12dB 3709h Midi Equalizer Med1 band gain 0 = -12dB, 40h = 0dB, 7Fh = +12dB 370Ah Midi Equalizer Med2 band gain 0 = -12dB, 40h = 0dB, 7Fh = +12dB 370Bh Midi Equalizer High band gain 0 = -12dB, 40h = 0dB, 7Fh = +12dB 370Ch Midi Equalizer Low band freq 0 = 0Hz to 7Fh = 1.25Khz 370Dh Midi Equalizer Med1 band freq 0 = 0Hz to 7Fh = 1.4Khz 370Eh Midi Equalizer Med2 band freq 0 = 0Hz to 7Fh = 1.4Khz 370Fh Midi Equalizer High band freq 0 = 0Hz to 7Fh = 5.2Khz 3710h Midi Equalizer Med1 band width 0 to 7Fh 3711h Midi Equalizer Med2 band width 0 to 7Fh

3713h Midi Ambience Preset 3714h Midi Spatializer effect volume 0 = no effect, 7Fh = maximum effect 3715h Midi Spatializer effect delay 0 = 0 to 7Fh = 13.65ms 3716h Midi Spatializer effect input 0 = stereo 7Fh = mono 3717h Midi Spatializer effect output mode 0 = 2 ouputs mode 7Fh = 4 outputs mode 3718h Midi Master volume 0 to 7Fh 7Fh 3719h Midi Master pan 0 = left, 40h = center, 7Fh = right 40h 371Ah General Midi reverb send 0 = no send, 40h = default send, 7Fh = max 40h 371Bh General Midi chorus send 0 = no send, 40h = default send, 7Fh = max 40h

INPUTS (see paragraph 1.2 for details)

371Ch Input1 delay send 371Dh Input2 delay send 371Eh Input1 reverb send 371Fh Input2 reverb send 3720h Input1 volume 0 to 7Fh 7Fh 3721h Input2 volume 0 to 7Fh 00h 3722h Input1 pan 0 = hard left, 40h = center, 7Fh = hard right 40h 3723h Input2 pan 0 = hard left, 40h = center, 7Fh = hard right 40h 3725h Input1 Equalizer Presets 0 to 2 3726h Input1 Equalizer Low band gain 0 = -12dB, 40h = 0dB, 7Fh = +12dB 3727h Input1 Equalizer Med1 band gain 0 = -12dB, 40h = 0dB, 7Fh = +12dB 3728h Input1 Equalizer Med2 band gain 0 = -12dB, 40h = 0dB, 7Fh = +12dB

3729h Input1 Equalizer High band gain 0 = -12dB, 40h = 0dB, 7Fh = +12dB 372Ah Input1 Equalizer Low band freq 0 = 0Hz to 7Fh = 1.25Khz 372Bh Input1 Equalizer Med1 band freq 0 = 0Hz to 7Fh = 1.4Khz 372Ch Input1 Equalizer Med2 band freq 0 = 0Hz to 7Fh = 1.4Khz 372Dh Input1 Equalizer High band freq 0 = 0Hz to 7Fh = 5.2Khz

372Eh Input1 Equalizer Med1 band width 0 to 7Fh 372Fh Input1 Equalizer Med2 band width 0 to 7Fh

3730h Input2 Equalizer Presets 0 to 2 3731h Input2 Equalizer Low band gain 0 = -12dB, 40h = 0dB, 7Fh = +12dB 3732h Input2 Equalizer Med1 band gain 0 = -12dB, 40h = 0dB, 7Fh = +12dB 3733h Input2 Equalizer Med2 band gain 0 = -12dB, 40h = 0dB, 7Fh = +12dB 3734h Input2 Equalizer High band gain 0 = -12dB, 40h = 0dB, 7Fh = +12dB 3735h Input2 Equalizer Low band freq 0 = 0Hz to 7Fh = 1.25Khz 3736h Input2 Equalizer Med1 band freq 0 = 0Hz to 7Fh = 1.4Khz 3737h Input2 Equalizer Med2 band freq 0 = 0Hz to 7Fh = 1.4Khj 3738h Input2 Equalizer High band freq 0 = 0Hz to 7Fh = 5.2Khz 3739h Input2 Equalizer Med1 band width 0 to 7Fh 373Ah Input2 Equalizer Med2 band width 0 to 7Fh 373Bh Input reverb presets 0 to 7 373Ch Input reverb volume 0 to 7Fh 373Eh Input reverb time 0 to 7Fh 3740h Input1&2 input volume 0 to 7Fh 7Fh 3741h 2nd stereo audio in input volume 0 to 7Fh 7Fh 3743h Input delay presets 0 to 2 00h 3744h Input delay level 0 to 7Fh 30h

3745h Input delay time 0 = shortest to 7Fh = longest 3Bh 3746h Input delay feed-back 0 = no feed back to 7Fh = maximum 34h

feedback 3747h Input delay filter 0 = open to 7Fh = close 08h 3749h Slave1 delay right volume 0 to 7Fh 00h 374Ah Slave1 delay left volume 0 to 7Fh 00h 374Bh Slave2 delay right volume 0 to 7Fh 00h 374Ch Slave2 delay left volume 0 to 7Fh 00h 374Dh Master delay right volume 0 to 7Fh 78h 374Eh Master delay left volume left 0 to 7Fh 78h 374Fh Delay send to reverb 3750h Input module mixing to Main Outputs 0 to 7Fh 7Fh 3751h Input module mixing to Auxiliary Output 0 to 7Fh 0h

4 OUTPUTS SETTINGS (see paragraph 1.13 for details)

38xxh Midi channel master or auxiliary output 0 = master or 7Fh = auxiliary, 0

xxh = midi channel (0 to 1Fh) 3828h Reverb master volume 0 to 7Fh 7Fh 3829h Reverb auxiliary volume 0 to 7Fh 00h 3830h Chorus master volume 0 to 7Fh 7Fh 3831h Chorus auxiliary volume 0 to 7Fh 00h

1.11 Nrpn 03755h: Effects on/off

Midi message:

control 99 = 55 (37h), control 98 = 85 (55h), control 6 = vv

Midi message code (in hexadecimal):

B0h 63h 37h, B0h 62h 55h, B0h 06h vv

Each bit of vv byte is used for selecting an effect ON or OFF as following:

76543210 0 0 REV CHR 0 3D EQ2 EQ1

REV bit = 1: Reverb ON CHR bit = 1: Chorus ON 3D bit = 1: Spatializer ON EQ2, EQ1 bits: Equalizer

EQ2 = 0, EQ1 = 0: equalizer off EQ2 = 1, EQ1 = 0: 2 band equalizer EQ2 = 1, EQ1 = 1: 4 band equalizer Default power-on values are: Rev = 1, Chr = 1 (Reverb/Chorus ON) 3D = 1 (Spatializer ON) EQ2 = 1, EQ1 = 1 (4 Band equalizer)

1.12 Nrpn 03756h: Input modules on/off

Midi message:

control 99 = 55 (37h), control 98 = 86 (56h), control 6 = vv

Midi message code (in hexadecimal):

B0h 63h 37h, B0h 62h 56h, B0h 06h vv

Each bit of vv byte is used for selecting a Input module ON or OFF as following:

76543210 0 0 REV 0 0 EQU ECH INPUT

INPUT bit = 1: Input1, Input2 ON ECH bit = 1: Stereo delay on inputs ON (set only if using 128Kx16 RAM, always 0 if using 64Kx16 RAM) EQ bit = 1: Input1 and 2 Equalizer ON – bit = 1: not implemented – bit = 1: not implemented REV bit = 1: Input1 and 2 Reverb ON (set only if using 128Kx16 RAM, always 0 if using 64Kx16 RAM)

Default power on values are: Rev = 0, Equ = 0, Ech = 0, Input = 1

1.13 Midi output on 4 outputs

A) Each midi channel can be output to master or auxiliary outputs using nrpn 3800h till 380Fh:

nrpn 38xxh = 0h: midi channel xxh is master output

nrpn 38xxh = 7Fh: midi channel xxh is auxiliary output

Midi message:

control 99 = 56 (38h) control 98 = xx: xx = 0 select midi channel 0 xx = 1 selects midi channel 1 … xx = 15 selects midi channel 15 control 6 = 0 (master) or 127 (auxiliary)

Midi message code (in hexadecimal):

B0h 63h 38h, B0h 62h xxh, B0h 06h vv Default value = 0 (master)

Note

Nrpn 3820h assigns all midi channels of first port (midi channels 0 to Fh). Nrpn 3821h assigns all midi channels of second port (midi channels 10h to 1Fh) nrpn 3820h(3821h) = 0h: all midi channels of first (second) port are master outputs nrpn 3820h(3821h) = 07Fh: all midi channels of first (second) port are auxiliary outputs

Midi message:

control 99 = 56 (38h), control 98 = 32 (33) (20h,21h), control 6 = vv (0 or 127)

Midi message code (in hexadecimal):

B0h 63h 38h, B0h 62h 20h (21h), B0h 06h vv

B) Reverb and Chorus can be simultaneously output to master and auxiliary outputs:

nrpn 3828h = reverb master output volume

Midi message:

control 99 = 56 (38h), control 98 = 40 (28h), control 6 = vv

Midi message code (in hexadecimal):

B0h 63h 38h, B0h 62h 28h, B0h 06h vv vv in range 0 (no sound) to 127 (maximum) Default value = 127

nrpn 3829h = reverb auxiliary output volume

Midi message:

control 99 = 56 (38h), control 98 = 41 (29h), control 6 = svv

Midi message code (in hexadecimal):

B0h 63h 38h, B0h 62h 29h, B0h 06h vv vv in range 0 (no sound) to 127 (maximum) Default value = 0

nrpn 3830h = chorus master output volume

Midi message:

control 99 = 56 (38h), control 98 = 48 (30h), control 6 = vv

Midi message code (in hexadecimal):

B0h 63h 38h, B0h 62h 30h, B0h 06h vv vv in range 0 (no sound) to 127 (maximum) Default value = 127

nrpn 3831h = chorus auxiliary oputput volume

Midi message:

control 99 = 56 (38h), control 98 = 49 (31h), control 6 = vv

Midi message code (in hexadecimal):

B0h 63h 38h, B0h 62h 31h, B0h 06h vv vv in range 0 (no sound) to 127 (maximum) Default value = 0

Table 3 Input Volume and Pan

Nrpn # Midi MIdi Code Description Default High|Low Message (Hexadecimal) Value

3750h Control 99 = 55 B0h 63h 37h Input Module Mixing to Main Outputs 127

Control 98 = 80 B0h 62h 50h vv = 0 to 127 Control 6 = vv B0h 06h vvh

3751h Control 99 = 55 B0h 63h 37h Input Module Mixing to Auxiliary Output 0

Control 98 = 81 B0h 62h 51h vv = 0 to 127 Control 6 = vv B0h 06h vvh

3720h Control 99 = 55 B0h 63h 37h Input 1 volume 127

Control 98 = 32 B0h 62h 20h vv = 0 to 127 Control 6 = vv B0h 06h vvh

3721h Control 99 = 55 B0h 63h 37h Input 2 volume 0

Control 98 = 33 B0h 62h 21h vv = 0 to 127 Control 6 = vv B0h 06h vvh

3722h Control 99 = 55 B0h 63h 37h Input 1 pan 64

Control 98 = 34 B0h 62h 22h vv = 0 to 127: 00 = all left, 64 = center, 127 = all right Control 6 = vv B0h 06h vvh

3723h Control 99 = 55 B0h 63h 37h Input 2 pan 64

Control 98 = 35 B0h 62h 23h vv = 0 to 127: 00 = all left, 64 = center, 127 = all right Control 6 = vv B0h 06h vvh

Table 4 Input Equalizer

Nrpn # Midi MIdi Code Description High|Low Message (Hexadecimal)

INPUT 1 EQUALIZER

3725h Control 99 = 55 B0h 63h 37h Input Equalizer presets

Control 98 = 37 B0h 62h 25h vv = 0: preset 1 Control 6 = vv B0h 06h vvh vv = 1: preset 2

vv = 2: preset 3

3726h Control 99 = 55 B0h 63h 37h Low band gain

Control 98 = 38 B0h 62h 26h vv = 0 to 127, linear scale in dB: Control 6 = vv B0h 06h vvh 0h = -12dB, 20h = -6dB, 40h = 0dB, 60h = +6dB, 7Fh = +12dB

3727h Control 99 = 55 B0h 63h 37h Medium 1 band gain

Control 98 = 39 B0h 62h 27h vv = 0 to 127, linear scale in dB: Control 6 = vv B0h 06h vvh 0h = -12dB, 20h = -6dB, 40h = 0dB, 60h = +6dB, 7Fh = +12dB

3728h Control 99 = 55 B0h 63h 37h Medium 2 band gain

Control 98 = 40 B0h 62h 28h vv = 0 to 127, linear scale in dB: Control 6 = vv B0h 06h vvh 0h = -12dB, 20h = -6dB, 40h = 0dB, 60h = +6dB, 7Fh = +12dB

3729h Control 99 = 55 B0h 63h 37h High band gain

Control 98 = 41 B0h 62h 29h vv = 0 to 127, linear scale in dB: Control 6 = vv B0h 06h vvh 0h = -12dB, 20h = -6dB, 40h = 0dB, 60h = +6dB, 7Fh = +12dB

372Ah Control 99 = 55 B0h 63h 37h Low band frequency

Control 98 = 42 B0h 62h 2Ah vv = 0 to 127 (frequency at -3dB): Control 6 = vv B0h 06h vvh 16 = 152Hz, 32 = 305Hz, 64 = 610Hz, 127 = 1.25Khz

372Bh Control 99 = 55 B0h 63h 37h Medium 1 band frequency

Control 98 = 43 B0h 62h 2Bh vv = 0 to 127 (center frequency): Control 6 = vv B0h 06h vvh 16 = 175Hz, 32 = 350Hz, 64 = 700Hz, 127 = 1.4Khz

372Ch Control 99 = 55 B0h 63h 37h Medium 2 band frequency

Control 98 = 44 B0h 62h 2Ch vv = 0 to 127 (center frequency): Control 6 = vv B0h 06h vvh 16 = 175Hz, 32 = 350Hz, 64 = 700Hz, 127 = 1.4Khz

372Dh Control 99 = 55 B0h 63h 37h High band frequency

Control 98 = 45 B0h 62h 2Dh vv = 0 to 127 (frequency at -3dB): Control 6 = vv B0h 06h vvh 16 = 670Hz, 32 = 1.3Khz, 64 = 2.6Khz, 127 = 5.2Khz

372Eh Control 99 = 55 B0h 63h 37h Medium 1 band width

Control 98 = 46 B0h 62h 2Eh vv = 0 to 127 (band width at -3dB): Control 6 = vv B0h 06h vvh 5 = 1/6 octave, 7 = 1/4 octave, 10 = 1/3 octave,

15 = 1/2 octave, 22 = 3/4 octave, 30 = 1 octave, 46 = 3/2 octaves, 64 = 2 octaves, 107 = 3 octaves

372Fh Control 99 = 55 B0h 63h 37h Medium 2 band width

Control 98 = 47 B0h 62h 2Fh vv = 0 to 127 (band width at -3dB): Control 6 = vv B0h 06h vvh 5 = 1/6 octave, 7 = 1/4 octave, 10 = 1/3 octave,

15 = 1/2 octave, 22 = 3/4 octave, 30 = 1 octave, 46 = 3/2 octaves, 64 = 2 octaves, 107 = 3 octaves

INPUT 2 EQUALIZER

3730h Control 99 = 55 B0h 63h 37h Input 2 Equalizer presets

Control 98 = 48 B0h 62h 30h vv = 0: preset 1 Control 6 = vv B0h 06h vvh vv = 1: preset 2

vv = 2: preset 3

3731h Control 99 = 55 B0h 63h 37h Low band gain

Control 98 = 49 B0h 62h 31h vv = 0 to 127, linear scale in dB: Control 6 = vv B0h 06h vvh 0h = -12dB, 20h = -6dB, 40h = 0dB, 60h = +6dB, 7Fh = +12dB

3732h Control 99 = 55 B0h 63h 37h Medium 1 band gain

Control 98 = 50 B0h 62h 32h vv = 0 to 127, linear scale in dB: Control 6 = vv B0h 06h vvh 0h = -12dB, 20h = -6dB, 40h = 0dB, 60h = +6dB, 7Fh = +12dB

3733h Control 99 = 55 B0h 63h 37h Medium 2 band gain

Control 98 = 51 B0h 62h 33h vv = 0 to 127, linear scale in dB: Control 6 = vv B0h 06h vvh 0h = -12dB, 20h = -6dB, 40h = 0dB, 60h = +6dB, 7Fh = +12dB

3734h Control 99 = 55 B0h 63h 37h High band gain

Control 98 = 52 B0h 06h vvh vv = 0 to 127, linear scale in dB: Control 6 = vv 0h = -12dB, 20h = -6dB, 40h = 0dB, 60h = +6dB, 7Fh = +12dB

3735h Control 99 = 55 B0h 63h 37h Low band frequency

Control 98 = 53 B0h 62h 35h vv = 0 to 127 (frequency at -3dB): Control 6 = vv B0h 06h vvh 16 = 152Hz, 32 = 305Hz, 64 = 610Hz, 127 = 1.25Khz

3736h Control 99 = 55 B0h 63h 37h Medium 1 band frequency

Control 98 = 54 B0h 62h 36h vv = 0 to 127 (center frequency): Control 6 = vv B0h 06h vvh 16 = 175Hz, 32 = 350Hz, 64 = 700Hz, 127 = 1.4Khz

3737h Control 99 = 55 B0h 63h 37h Medium 2 band frequency

Control 98 = 55 B0h 62h 37h vv = 0 to 127 (center frequency): Control 6 = vv B0h 06h vvh 16 = 175Hz, 32 = 350Hz, 64 = 700Hz, 127 = 1.4Khz

3738h Control 99 = 55 B0h 63h 37h High band frequency

Control 98 = 56 B0h 62h 38h vv = 0 to 127 (frequency at -3dB): Control 6 = vv B0h 06h vvh 16 = 670Hz, 32 = 1.3Khz, 64 = 2.6Khz, 127 = 5.2Khz

3739h Control 99 = 55 B0h 63h 37h Medium 1 band width

Control 98 = 57 B0h 62h 39h vv = 0 to 127 (band width at -3dB): Control 6 = vv B0h 06h vvh 5 = 1/6 octave, 7 = 1/4 octave, 10 = 1/3 octave,

15 = 1/2 octave, 22 = 3/4 octave, 30 = 1 octave, 46 = 3/2 octaves, 64 = 2 octaves, 107 = 3 octaves

373Ah Control 99 = 55 B0h 63h 37h Medium 2 band width

Control 98 = 58 B0h 62h 3Ah vv = 0 to 127 (band width at -3dB): Control 6 = vv B0h 06h vvh 5 = 1/6 octave, 7 = 1/4 octave, 10 = 1/3 octave,

15 = 1/2 octave, 22 = 3/4 octave, 30 = 1 octave, 46 = 3/2 octaves, 64 = 2 octaves, 107 = 3 octaves

Table 5 Input Delay

Nrpn # Midi MIdi Code Description High|Low Message (Hexadecimal)

371Ch Control 99 = 55 B0h 63h 37h Input 1 send to delay

Control 98 = 28 B0h 62h 1Ch vv = 0 to 127 Control 6 = vv B0h 06h vvh

371Dh Control 99 = 55 B0h 63h 37h Input 2 send to delay

Control 98 = 29 B0h 62h 1Dh vv = 0 to 127 Control 6 = vv B0h 06h vvh

3743h Control 99 = 55 B0h 63h 37h Delay presets

Control 98 = 67 B0h 62h 43h vv = 0: Mono Delay Control 6 = vv B0h 06h vvh vv = 1: Stereo Delay

vv = 2: Triple Delay

3744h Control 99 = 55 B0h 63h 37h Delay level

Control 98 = 68 B0h 62h 44h vv = 0 to 127 Control 6 = vv B0h 06h vvh

3745h Control 99 = 55 B0h 63h 37h Delay time

Control 98 = 69 B0h 62h 45h vv = 0 (min = 0) to 127 (max = 446ms), linear scale Control 6 = vv B0h 06h vvh

3746h Control 99 = 55 B0h 63h 37h Delay Feedback

Control 98 = 70 B0h 62h 46h vv = 0 to 127 Control 6 = vv B0h 06h vvh

3747h Control 99 = 55 B0h 63h 37h Delay Filter

Control 98 = 71 B0h 62h 47h Delay Filter Control 6 = vv B0h 06h vvh vv: 0 = filter open to 127 = filter close

Filter is a 6dB low pass filter inserted in feedback loop

3749h Control 99 = 55 B0h 63h 37h Slave1 Delay right volume

Control 98 = 73 B0h 62h 49h vv = 0 to 127 Control 6 = vv B0h 06h vvh

374Ah Control 99 = 55 B0h 63h 37h Slave1 Delay left volume

Control 98 = 74 B0h 62h 4Ah vv = 0 to 127 Control 6 = vv B0h 06h vvh

374Bh Control 99 = 55 B0h 63h 37h Slave2 Delay right volume

Control 98 = 75 B0h 62h 4Bh vv = 0 to 127 Control 6 = vv B0h 06h vvh

374Ch Control 99 = 55 B0h 63h 37h Slave2 Delay left volume

Control 98 = 76 B0h 62h 4Ch vv = 0 to 127 Control 6 = vv B0h 06h vvh

374Dh Control 99 = 55 B0h 63h 37h Master Delay right volume

Control 98 = 77 B0h 62h 4Dh vv = 0 to 127 Control 6 = vv B0h 06h vvh

374Eh Control 99 = 55 B0h 63h 37h Master Delay left volume

Control 98 = 78 B0h 62h 4Eh vv = 0 to 127 Control 6 = vv B0h 06h vvh

374Fh Control 99 = 55 B0h 63h 37h Delay send to Reverb

Control 98 = 79 B0h 62h 4Fh vv = 0 to 127 Control 6 = vv B0h 06h vvh

Delay presets

Preset # Preset NAME Level Time Feedback Filter Slave1 Slave2 Master

Left Right Left Right Left Right

0 Mono Delay 48 59 52 8000120 120 1 Stereo Delay 48 70 52 8 120 103 00 103 120 2 Triple Delay 48 80 70 8 120 103 103 120 112 112

Nrpn # Midi MIdi Code Description High|Low Message (Hexadecimal)

371Eh Control 99 = 55 B0h 63h 37h Input 1 reverb send

Control 98 = 30 B0h 62h 1Eh vv = 0 to 127 Control 6 = vv B0h 06h vvh

371Fh Control 99 = 55 B0h 63h 37h Input 2 reverb send

Control 98 = 31 B0h 62h 1Fh vv = 0 to 127 Control 6 = vv B0h 06h vvh

373Bh Control 99 = 55 B0h 63h 37h Reverb preset:

Control 98 = 59 B0h 62h 3Bh vv = 0 to 7 Control 6 = vv B0h 06h vvh 0, 1, 2: room 1, room 2, room 3

3, 4, 5: hall 1, hall 2, hall 3 7, 8: cathedral 1, cathedral 2

373Ch Control 99 = 55 B0h 63h 37h Reverb volume:

Control 98 = 60 B0h 62h 3Ch vv = 0 to 127 Control 6 = vv B0h 06h vvh

373Eh Control 99 = 55 B0h 63h 37h Reverb time:

Control 98 = 62 B0h 62h 3Eh vv = 0 to 127 Control 6 = vv B0h 06h vvh

Table 6 MIDI Equalizer

Nrpn # Midi MIdi Code Description High|Low Message (Hexadecimal)

3708h Control 99 = 55 B0h 63h 37h Low band gain

Control 98 = 8 B0h 62h 08h vv = 0 to 127, linear scale in dB: Control 6 = vv B0h 06h vvh 0h = -12dB, 20h = -6dB, 40h = 0dB, 60h = +6dB, 7Fh = +12dB

3709h Control 99 = 55 B0h 63h 37h Medium 1 band gain

Control 98 = 9 B0h 62h 09h vv = 0 to 127, linear scale in dB: Control 6 = vv B0h 06h vvh 0h = -12dB, 20h = -6dB, 40h = 0dB, 60h = +6dB, 7Fh = +12dB

370Ah Control 99 = 55 B0h 63h 37h Medium 2 band gain

Control 98 = 10 B0h 62h 0Ah vv = 0 to 127, linear scale in dB: Control 6 = vv B0h 06h vvh 0h = -12dB, 20h = -6dB, 40h = 0dB, 60h = +6dB, 7Fh = +12dB

370Bh Control 99 = 55 B0h 63h 37h High band gain

Control 98 = 11 B0h 62h 0Bh vv = 0 to 127, linear scale in dB: Control 6 = vv B0h 06h vvh 0h = -12dB, 20h = -6dB, 40h = 0dB, 60h = +6dB, 7Fh = +12dB

370Ch Control 99 = 55 B0h 63h 37h Low band frequency

Control 98 = 12 B0h 62h 0Ch vv = 0 to 127 (frequency at -3dB) Control 6 = vv B0h 06h vvh 16 = 152Hz, 32 = 305Hz, 64 = 610Hz, 127 = 1.25Khz

370Dh Control 99 = 55 B0h 63h 37h Medium 1 band frequency

Control 98 = 13 B0h 62h 0Dh vv = 0 to 127 (center frequency) Control 6 = vv B0h 06h vvh 16 = 175Hz, 32 = 350Hz, 64 = 700Hz, 127 = 1.4Khz

370Eh Control 99 = 55 B0h 63h 37h Medium 2 band frequency

Control 98 = 14 B0h 62h 0Eh vv = 0 to 127 (center frequency) Control 6 = vv B0h 06h vvh 16 = 175Hz, 32 = 350Hz, 64 = 700Hz, 127 = 1.4Khz

370Fh Control 99 = 55 B0h 63h 37h High band frequency

Control 98 = 15 B0h 62h 0Fh vv = 0 to 127 (frequency at -3dB): Control 6 = vv B0h 06h vvh 16 = 670Hz, 32 = 1.3Khz, 64 = 2.6Khz, 127 = 5.2Khz

3710h Control 99 = 55 B0h 63h 37h Medium 1 band width

Control 98 = 16 B0h 62h 10h vv = 0 to 127 (band width at -3dB): Control 6 = vv B0h 06h vvh 5 = 1/6 octave, 7 = 1/4 octave, 10 = 1/3 octave,

15 = 1/2 octave, 22 = 3/4 octave, 30 = 1 octave, 46 = 3/2 octaves, 64 = 2 octaves, 107 = 3 octaves

3711h Control 99 = 55 B0h 63h 37h Medium 2 band width

Control 98 = 17 B0h 62h 11h vv = 0 to 127 (band width at -3dB) Control 6 = vv B0h 06h vvh 5 = 1/6 octave, 7 = 1/4 octave, 10 = 1/3 octave,

15 = 1/2 octave, 22 = 3/4 octave, 30 = 1 octave, 46 = 3/2 octaves, 64 = 2 octaves, 107 = 3 octaves

1-4 MIDI SPATIALIZER

Before using these Nrpn’s, be sure spatializer has been set ON with Nrpn 3755h (see paragraph 1.11).

Table 7 MIDI Spatializer

Nrpn # Midi MIdi Code Description High|Low Message (Hexadecimal)

3714h Control 99 = 55 B0h 63h 37h Spatializer volume

Control 98 = 20 B0h 62h 14h vv = 0 to 127 Control 6 = vv B0h 06h vvh

3715h Control 99 = 55 B0h 63h 37h Spatializer delay

Control 98 = 21 B0h 62h 15h vv = 0 ( = 0ms) to 127 ( = 13.65ms), linear scale Control 6 = vv B0h 06h vvh

3716h Control 99 = 55 B0h 63h 37h Spatializer input

Control 98 = 22 B0h 62h 16h vv = 0: mono mode, input to delay line is Left + Right Control 6 = vv B0h 06h vvh vv = 127: stereo mode, input to delay line is Left - Right

3717h Control 99 = 55 B0h 63h 37h Spatializer output

Control 98 = 23 B0h 62h 17h vv = 0: output to master outputs Control 6 = vv B0h 06h vvh vv = 127: output to auxiliary outputs

2- DETAILED MIDI IMPLEMENTATION

NOTE for system exclusive: code F0 41 00 42 12 … can be also changed to F0 00 20 4F 00 02 12 …

MIDI Hex code Description Compatibility Message

NOTE ON 9nH kk vv Midi channel n(0-15) note ON #kk(1-127), velocity vv(1-127). MIDI

vv = 0 means NOTE OFF

NOTE OFF 8nH kk vv Midi channel n(0-15) note OFF #kk(1-127), vv is don’t care. MIDI

PITCH BEND EnH bl bh Pitch bend as specified by bh|bl (14 bits) GM

Maximum swing is +/- 1 tone (power-up). Can be changed using « pitch bend sensitivity ». Center position is 00H 40H.

PROGRAM CnH pp Program (patch) change. Specific action on channel 10 (n = 9): CHANGE select drumset. Refer to sounds / drumset list. Drumsets can be

assigned to other channels (see SYSEX MIDI channel to part assign and part to rhythm allocation) GM/GS

CHANNEL DnH vv vv pressure value. Effect set using Sys. Ex. 40H 2nH 20H-26H MIDI AFTERTOUCH

MIDI RESET FFH Reset to power-up condition

CTRL 00 BnH 00H cc Bank select: Refer to sounds list. No action on drumset. cc = 64 GS/

reserved for dream sound editor DREAM

CTRL 01 BnH 01H cc Modulation wheel. Rate and maximum depth can be set using SYSEX MIDI

CTRL 05 BnH 05H cc Portamento time. MIDI

CTRL 06 BnH 06H cc Data entry: provides data to RPN and NRPN MIDI

CTRL 07 BnH 07H cc Volume (default = 100) MIDI

CTRL 10 BnH 0AH cc Pan (default = 64 center) MIDI

CTRL 11 BnH 0BH cc Expression (default = 127) MIDI/GM

CTRL 64 BnH 40H cc Sustain (damper) pedal MIDI

CTRL 65 BnH 41H cc Portamento ON/OFF MIDI

CTRL 66 BnH 42H cc Sostenuto pedal MIDI

CTRL 67 BnH 43H cc Soft pedal MIDI

CTRL 71 BnH 47H cc TVF Resonnance modify (same as nrpn 0121h) GM/GS

CTRL 72 BnH 48H cc Env release time modify (same as nrpn 0166h) GM/GS

CTRL 73 BnH 49H cc Env attack time modify (same as nrpn 0163h) GM/GS

CTRL 74 BnH 4AH cc TVF cutoff freq modify (same as nrpn 0120h) GM/GS

CTRL 75 BnH 4BH cc Env decay time modify (same as nrpn 0164h) GM/GS

CTRL 76 BnH 4CH cc Vibrato rate modify (same as nrpn 0108h) GM/GS

CTRL 77 BnH 4DH cc Vibrato depth modify (same as nrpn 0109h) GM/GS

CTRL 78 BnH 4EH cc Vibrato delay modify (same as nrpn 010Ah) GM/GS

CTRL 84 BnH 54H vv Portamento control GS

CTRL 91 BnH 5BH vv Reverb send level vv = 00H to 7FH GS

CTRL 93 BnH 5DH vv Chorus send level vv = 00H to 7FH GS

CTRL 120 BnH 78H 00H All sound off (abrupt stop of sound on channel n) MIDI

CTRL 121 BnH 79H 00H Reset all controllers MIDI

CTRL 123 BnH 7BH 00H All notes off MIDI

CTRL 126 BnH 7EH 00H Mono on MIDI

CTRL 127 BnH 7FH 00H Poly on (default power-up) MIDI

CTRL CC1 BnH ccH vvH Assignable Controller 1. cc = Controller number (0-5Fh), vv = Control GS

value (0-7Fh). Control number (ccH) can be set on CC1 CONTROLLER NUMBER (Sys. Ex 40 1x 1F). The resulting effect is determined by CC1 controller function (Sys.Ex. 40 2x 40-4A)

CTRL CC2 BnH ccH vvH Assignable Controller 2. cc = Controller number (00h-5Fh), vv = control

value (0-7Fh). Control number can be set on CC2 CONTROLLER NUMBER (Sys.Ex. 40 1x 20). The resulting effect is determined by CC2 controller function (Sys.Ex.40 2x 50-5A).

RPN 0000H BnH 65H 00H 64H 00H 06H vv Pitch bend sensitivity in semitones (default = 2) MIDI/GM

RPN 0001H BnH 65H 00H 64H 01H 06H vv Fine tuning in cents (vv = 00 -100, vv = 40H 0, MIDI

vv = 7FH +100

RPN 0002H BnH 65H 00H 64H 02H 06H vv Coarse tuning in half-tones (vv = 00 -64, vv = 40H 0, MIDI

vv = 7FH +64

NRPN 0108H BnH 63H 01H 62H 08H 06H vv Vibrate rate modify (vv = 40H -> no modif) GS

NRPN 0109H BnH 63H 01H 62H 09H 06H vv Vibrate depth modify (vv = 40H -> no modif ) GS

NRPN 010AH BnN 63H 01H 62H 0AH 06H vv Vibrate delay modify (vv = 40H -> no modif) GS

NRPN 0120H Bnh 63H 01H 62H 20H 06H vv TVF cutoff freq modify(vv = 40H -> no modif) GS

NRPN 0121H BnH 63H 01H 62H 21H 06H vv TVF resonance modify (vv = 40H -> no modif) GS

NRPN 0163H Bnh 63H 01H 62H 63H 06H vv Env. attack time modify(vv = 40H ->no modif ) GS

NRPN 0164H BnH 63H 01H 62H 64H 06H vv Env. decay time modify(vv = 40H -> no modif) GS

NRPN 0166H BnH 63H 01H 62H 66H 06H vv Env. release time modif(vv = 40H ->no modif) GS

NRPN 18rrH BnH 63H 18H 62H rr 06H vv Pitch coarse of drum instr. note rr in semitones GS

(vv = 40H -> no modif )

NRPN 1ArrH BnH 63H 1AH 62H rr 06H vv Level of drum instrument note rr (vv = 00 to 7FH) GS

NRPN 1CrrH BnH 63H 1CH 62H rr 06H vv Pan of drum instrument note rr (40H = middle) GS

NRPN 1DrrH BnH 63H 1DH 62H rr 06H vv Reverb send level of drum instrument note rr GS

(vv = 00 to 7FH)

NRPN 1ErrH BnH 63H 1EH 62H rr 06H vv Chorus send level of drum instrument note rr GS

(vv = 00 to 7FH)

NRPN 37xxH BnH 63H 37H 62H xx 06H vv Special features controls (see paragraph 1 above) DREAM

Standard Sysex F0H 7EH 7FH 09H 01H F7H General MIDI reset GM

Standard Sysex F0H 7FH 7FH 04H 01H 00H ll F7H Master volume (ll = 0 to 127, default 127) GM

Not reset by GS reset

SYSEX F0H 41H 00H 42H 12H 40H 00H Master tune (default dd = 00H 04H 00H 00H) GS

00H dd dd dd dd xx F7H -100.0 to +100.0 cents. Nibblized data should be used

(always four bytes). For example, to tune to +100.0 cents, sent data should be 00H 07H 0EH 08H

SYSEX F0H 41H 00H 42H 12H 40H 00H Master volume (default vv = 7FH) GS

04H vv xx F7H Not reset by GS reset.

SYSEX F0H 41H 00H 42H 12H 40H 00H Master key-shift (default vv = 40H, no transpose) GS

05H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 00H Master pan (default vv = 40H, center)

06H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 00H GS reset GS

7FH 00H xx F7H

SYSEX F0H 41H 00H 42H 12H 00H 00H GS reset GS

7FH xx xx F7h

SYSEX F0H 41H 00H 42H 12H 40 01H Voice reserve: GS

10H vv1 vv2 vv3 vv4 vv5 vv6 vv1 = Part 10 (Default vv = 2) vv7 vv8 vv9 vv10 vv11 vv12 vv2 to vv10 = Part 1 to 9 (Default vv = 2) vv13 vv14 vv15 vv16 xx F7h vv11 to vv16 = Part 11 to 16 (Default vv = 0)

SYSEX F0H 41H 00H 42H 12H 40H 01H Reverb type (vv = 0 to 7), default = 04H GS

30H vv xx F7H 00H: Room 1; 01H: Room 2

02H: Room 3; 03H: Hall 1 04H: Hall 2; 05H: Plate 06H: Delay; 07H: Pan delay

SYSEX F0H 41H 00H 42H 12H 40H 01H Reverb character, default 04H GS

31H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 01H Reverb Pre-LPF, 0 to 7, default 0 GS

32H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 01H Reverb master level, default = 64 GS

33H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 01H Reverb time GS

34H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 01H Reverb delay feedback. Only if reverb number = 6 or 7 GS

35H vv xx F7H (delays)

SYSEX F0H 41H 00H 42H 12H 40H 01H Chorus type (vv = 0 to 7), default = 02H GS

38H vv xx F7H 00H: Chorus 1 01H: Chorus 2

02H: Chorus 3 03H: Chorus 4 04H: Feedback 05H: Flanger 06H: Short delay 07H: FB delay

SYSEX F0H 41H 00H 42H 12H 40H 01H Chorus Pre-LPF, 0 to 7, default = 0 GS

39H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 01H Chorus master level, default = 64 GS

3AH vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 01H Chorus feedback GS

3BH vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 01H Chorus delay GS

3CH vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 01H Chorus rate GS

3DH vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 01H Chorus depth GS

3EH vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 01H Chorus send level to reverb, default = 0 GS

3FH vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 1pH MIDI channel to part assign, p is part (0 to 15), nn is MIDI GS

02H nn xx F7Hchannel (0 to 15, 16 = OFF). This SYSEX allows to assign several parts to a single MIDI channel or to mute a part. Default assignment: part 0 9 (DRUMS) 1-9 0-8 10-15 10-15

SYSEX F0H 41H 00H 42H 12H 40H 1pH Part to rhythm allocation, p is part (0 to 15), vv is 00 GS

15H vv xx F7H (sound part) or 01 (rhythm part).

This SYSEX allows a part to play sound or drumset. There is no limitation of the number of parts playing drumset. Default assignment: part 0 plays drums (default MIDI channel 9) all other parts play sound.

MIDI channel

SYSEX F0H 41H 00H 42H 12H 40H 1nH Scale tuning, n is MIDI channel (0 to 15), v1 to v12 are 12 GS

40H v1 v2 ... v12 xx F7H semi-tones tuning values (C, C#, D, ... A#, B), in the

range -64 (00H); 0 (40H); +63(7FH) cents. This SYSEX allows non chromatic tuning of the musical scale on a given MIDI channel. Default v1, v2, ... , v12 = 40H, 40H,...,40H (chromatic tuning). Scale tuning has no effect if the part is assigned to a rhythm channel or if the sound played is not of chromatic type.

SYSEX F0H 41H 00H 42H 12H 40H 1nH Velocity slope from 00H to 7FH (default = 40H) GS

1AH vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 1nH Velocity offset from 00H to 7FH (default = 40H) GS

1BH vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 1nH CC1 Controller number (00-5FH) (default = 10H) GS

1FH vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 1nH CC2 Controller number (00-5FH) (default = 11H) GS

20H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH Mod pitch control (-24,+24 semitone) (default = 40H) GS

00H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH Mod tvf cutoff control (default = 40H) GS

01H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH Mod Amplitude control (-100%-+100%) (default = 40H) GS

02H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH Mod lfo1 rate control (default = 40H). n is don’t care. GS

03H vv xx F7H Rate is common on all channels

SYSEX F0H 41H 00H 42H 12H 40H 2nH Mod lfo1 pitch depth (0-600 cents) (default = 0AH) GS

04H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH Mod lfo1 tvf depth (default = 0H) GS

05H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH Mod lfo1 tva depth (0-100%) (default = 0H) GS

06H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH Bend pitch control (-24,+24 semitone) (default = GS

10H vv xx F7H 42H)

SYSEX F0H 41H 00H 42H 12H 40H 2nH Bend tvf cutoff control (default = 40H) GS

11H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH Bend Amplitude control (-100%-+100%) (default = 40H) GS

12H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH Bend lfo1 pitch depth (0-600 cents) (default = 00H) GS

14H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH Bend lfo1 tvf depth (default = 0H) GS

15H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH Bend lfo1 tva depth (0-100%) (default = 0H) GS

16H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH CAF pitch control (-24,+24 semitone) (default = 40H) GS

20H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH CAF tvf cutoff control (default = 40H) GS

21H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH CAF Amplitude control (-100%-+100%) (default = 40H) GS

22H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH CAF lfo1 pitch depth (0-600 cents) (default = 00H) GS

24H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH CAF lfo1 tvf depth (default = 0H) GS

25H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH CAF lfo1 tva depth (0-100%) (default = 0H) GS

26H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH CC1 pitch control (-24,+24 semitone) (default = 40H) GS

40H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH CC1 tvf cutoff control (default = 40H) GS

41H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH CC1 Amplitude control (-100%-+100%) (default = 40H) GS

42H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH CC1 lfo1 pitch depth (0-600 cents) (default = 00H) GS

44H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH CC1 lfo1 tvf depth (default = 0H) GS

45H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH CC1 lfo1 tva depth (0-100%) (default = 0H) GS

46H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH CC2 pitch control (-24,+24 semitone) (default = 40H) GS

50H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH CC2 tvf cutoff control (default = 40H) GS

51H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH CC2 Amplitude control (-100%-+100%) (default = 40H) GS

52H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH CC2 lfo1 pitch depth (0-600 cents) (default = 00H) GS

54H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH CC2 lfo1 tvf depth (default = 0H) GS

55H vv xx F7H

SYSEX F0H 41H 00H 42H 12H 40H 2nH CC2 lfo1 tva depth (0-100%) (default = 0H) GS

56H vv xx F7H

CONTROL MESSAGES OVERVIEW

A device control message consists of one CONTROL byte followed by one DATA8 byte (parameter). After receiving DATA8 byte, operation resumes to the MIDI device.

Ctrl # Action Compatible NRPN/SYSEX 07h Master volume Nrpn 3707h 08h Midi Equalizer low band Nrpn 3708h 09h Midi Equalizer med1 band Nrpn 3709h 0Ah Midi Equalizer med2 band Nrpn 370Ah 0Bh Midi Equalizer high band Nrpn 370Bh 0Ch Midi Equalizer low band frequency Nrpn 370Ch 0Dh Midi Equalizer med1 band frequency Nrpn 370Dh 0Eh Midi Equalizer med2 band frequency Nrpn 370Eh 0Fh Midi Equalizer high band frequency Nrpn 370Fh 10h Midi Equalizer Med1 band width Nrpn 3710h 11h Midi Equalizer Med2 band width Nrpn 3711h 13h Ambiance preset Nrpn 3713h

14h Spatializer effect volume Nrpn 3714h 15h Spatializer effect delay Nrpn 3715h 16h Input mono/stereo select for spatializer Nrpn 3716h 17h 2 or 4 outputs output select for spatializer Nrpn 3717h 18h General Midi volume Nrpn 3718h / SysEx 40h 00h 04h 19h General Midi pan Nrpn 3719h / SysEx 40h 00h 06h 1Ah General Midi Reverb Send Nrpn 371Ah 1Bh General Midi Chorus Send Nrpn 371Bh 1Ch Input1 Delay Send Nrpn 371Ch 1Dh Input2 Delay Send Nrpn 371Dh 1Eh Input1 Reverb Send Nrpn 371Eh 1Fh Input2 Reverb Send Nrpn 371Fh 20h Input1 volume Nrpn 3720h 21h Input2 volume Nrpn 3721h 22h Input1 pan Nrpn 3722h

23h Input2 pan Nrpn 3723h 25h Input1 Equalizer preset Nrpn 3725h 26h Input1 Equalizer low band Nrpn 3726h 27h Input1 Equalizer med1 band Nrpn 3727h 28h Input1 Equalizer med2 band Nrpn 3728h 29h Input1 Equalizer high band Nrpn 3729h 2Ah Input1 Equalizer low band frequency Nrpn 372Ah

2Bh Input1 Equalizer med1 band frequency Nrpn 372Bh 2Ch Input1 Equalizer med2 band frequency Nrpn 372Ch 2Dh Input1 Equalizer high band frequency Nrpn 372Dh

2Eh Input1 Equalizer Med1 band width Nrpn 372Eh 2Fh Input1 Equalizer Med2 band width Nrpn 372Fh 30h Input2 Equalizer preset Nrpn 3730h 31h Input2 Equalizer low band Nrpn 3731h 32h Input2 Equalizer med1 band Nrpn 3732h 33h Input2 Equalizer med2 band Nrpn 3733h 34h Input2 Equalizer high band Nrpn 3734h 35h Input2 Equalizer low band frequency Nrpn 3735h 36h Input2 Equalizer med1 band frequency Nrpn 3736h 37h Input2 Equalizer med2 band frequency Nrpn 3737h 38h Input2 Equalizer high band frequency Nrpn 3738h 39h Input2 Equalizer Med1 band width Nrpn 3739h 3Ah Input2 Equalizer Med2 band width Nrpn 373Ah 3Bh Input Reverb Preset Nrpn 373Bh 3Ch Input Reverb Volume Nrpn 373Ch 3Dh Enable midi out 3Eh Input Reverb Time Nrpn 373Eh 3Fh Switch to UART mode 40h Input 1 & 2, input volume, 0 to 7Fh Nrpn 3740h 41h 2nd stereo audio input volume, 0 to 7Fh Nrpn 3741h 43h Input Delay presets Nrpn 3743h

44h Input Delay level Nrpn 3744h 45h Input Delay time Nrpn 3745h 46h Input Delay feedback Nrpn 3746h 47h Input Delay filter Nrpn 3747h 49h Slave1 Delay right volume Nrpn 3749h

4Ah Slave1 Delay left volume Nrpn 374Ah 4Bh Slave2 Delay right volume Nrpn 374Bh 4Ch Slave2 Delay left volume Nrpn 374Ch 4Dh Master Delay right volume Nrpn 374Dh 4Eh Master Delay left volume Nrpn 374Eh 50h Input module mixing to Main Outputs Nrpn 3750h 51h Input module mixing to Auxiliary output Nrpn 3751h 55h Input Reverb On/Off Nrpn 3756h 56h Input1 Level/Key Detection On/Off Nrpn 3756h 57h Input2 Level/Key Detection On/Off Nrpn 3756h 58h Midi Equalizer On/Off Nrpn 3755h 59h Spatializer On/Off Nrpn 3755h 5Ah Reverb On/Off Nrpn 3755h 5Bh Chorus On/Off Nrpn 3755h 5Ch Input On/Off Nrpn 3756h 5Dh Delay On/Off Nrpn 3756h 5Eh Input Equalizer On/Off Nrpn 3756h 60h Reverb program select SysEx 40h 01h 30h 61h Reverb general volume SysEx 40h 01h 33h 62h Reverb time SysEx 40h 01h 34h 63h Reverb feedback SysEx 40h 01h 35h 64h Reverb pre low pass filter SysEx 40h 01h 32h 68h Chorus program select SysEx 40h 01h 38h 69h Chorus general volume SysEx 40h 01h 3Ah 6Ah Chorus delay SysEx 40h 01h 3Ch 6Bh Chorus feedback SysEx 40h 01h 3Bh 6Ch Chorus rate SysEx 40h 01h 3Dh 6Dh Chorus depth SysEx 40h 01h 3Eh 6Eh Chorus pre low pass filter SysEx 40h 01h 39h BEh Enable dream control in stand alone mode FFh Reset UART mode

Please report any mistake found in the above MIDI implementation info to:

support@waveidea.com

Cme NeoSynth User Manual [ru]

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

Terminology

What’s in the box?

NeoSynth inputs and outputs

Connections

General

Leds behaviour

Sound bank upgrade

USB MIDI driver

The patch editor software

Preference Screen

Routing screen

Inputs FX screen

Synth FX screen

Synth channels A screen

Synth channels B screen

Synth channels C screen

Sound bank screen

The menu items of the patch editor

The NeoSynth features

MIDI implementation of the NeoSynth
