Cleveland
™
P
roject ________________________________
Item __________________________________
Quantity _______________________________
F
CSI Section ____________________________
A
pproval _______________________________
D
ate __________________________________
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900
Fax: 1-216-481-3782
Web Site: www.ClevelandRange.com
Email: Steam@ClevelandRange.com

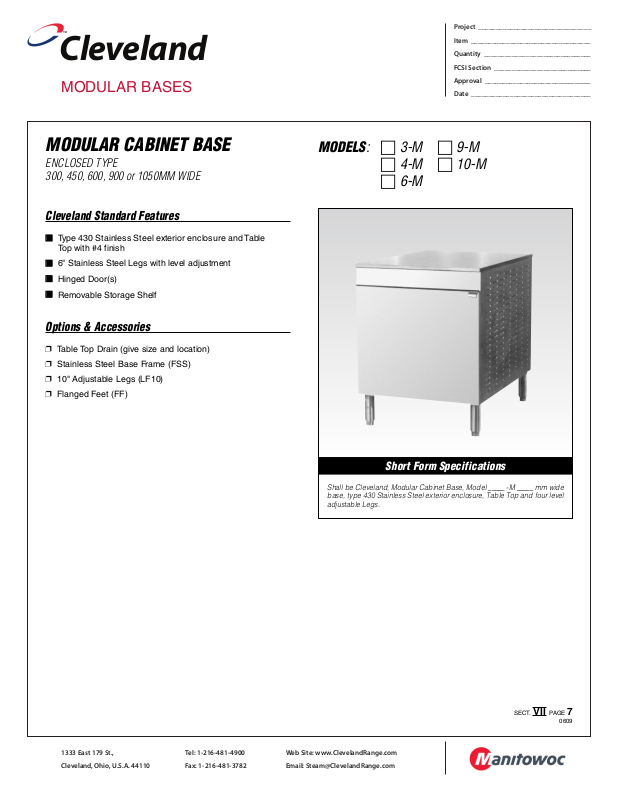

MODULAR BASES
MODULAR CABINET BASE
ENCLOSED TYPE
300, 450, 600, 900 or 1050MM WIDE
Cleveland Standard Features
II
Type 430 Stainless Steel exterior enclosure and Table
Top with #4 finish
II
6" Stainless Steel Legs with level adjustment
II
Hinged Door(s)
II
Removable Storage Shelf
Options & Accessories
Ë Table Top Drain (give size and location)
Ë Stainless Steel Base Frame (FSS)
Ë 10" Adjustable Legs (LF10)
Ë Flanged Feet (FF)
MODELS: 3-M 9-M
4-M 10-M
6-M
Short Form Specifications
Shall be Cleveland, Modular Cabinet Base, Model _____ -M _____ mm wide
base, type 430 Stainless Steel exterior enclosure, Table Top and four level
adjustable Legs.
SECT. VII PAGE 7
0609
NOTES:
Cleveland Range reserves right of design improvement or modification, as warranted.
Many regional, state and local codes exist and it is the responsibility of the owner and installer to comply with the codes.
Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are UL, NSF and CSA.
(NOT TO SCALE)
SECT. VII PAGE 8
0609
Litho in U.S.A.
