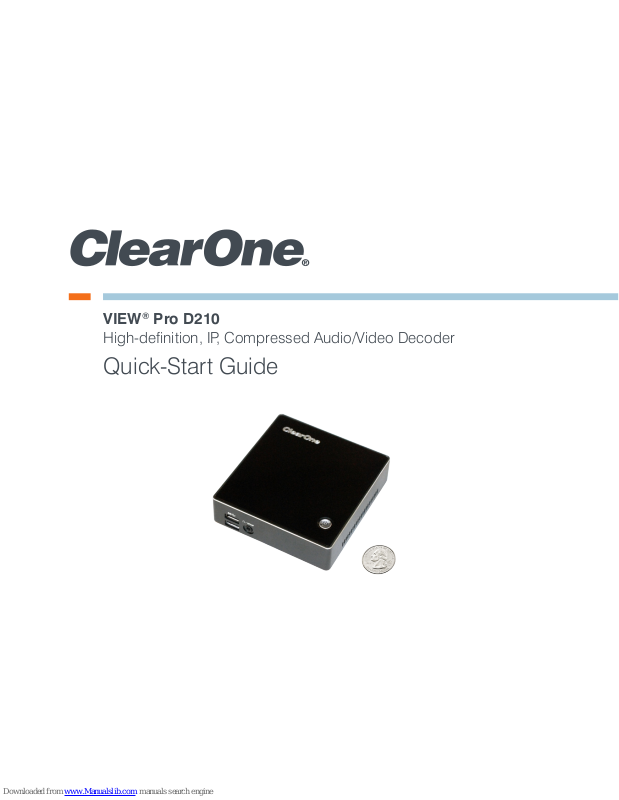

ClearOne VIEW Pro D210 Quick Start Manual

VIEW® Pro D210

High-definition, IP, Compressed Audio/Video Decoder

Quick-Start Guide

THE VIEW PRO ENCODER AND DECODER ................................ 1

ENCODER AND DECODERS IN A NETWORK ............................. 2

PARTS INCLUDED ......................................................................... 3

QUICK-START OVERVIEW ............................................................ 4

MOUNTING THE D210 DECODER ................................................ 4

CONNECTING THE DECODER ..................................................... 7

CONFIGURING THE DECODER.................................................... 9

PART NUMBERS .......................................................................... 15

Table of Contents

VIEW PRO D210 QUICK-START GUIDE

1

THE VIEW PRO ENCODER AND DECODER

ClearOne’s VIEW Pro multimedia streaming devices deliver the ultimate
in high-quality, low-latency, 4:4:4 R’G’B true color digital media over
existing IP networks.

VIEW Pro solutions employ H.264/MPEG4 Part 10 (AVC) compression
– the common video encoding standard used by Adobe® Flash® Player,
Blu-Ray™ disc players, iTunes®, Microsoft® Silverlight®, YouTube™,
VimeoSM, and HDTV signals over broadcast TV, satellite, and cable.

ClearOne StreamNet® technology embedded within VIEW Pro encoders
and decoders also facilitates automatic discovery, control, monitoring
and distribution within StreamNet networks.

The VIEW Pro D210 decoder takes the combined video and audio
stream, usually provided from a VIEW Pro E120 encoder, decodes it, and
then sends the video and audio to a display such as a HDTV or projector
and sound system.

IMPORTANT: The VIEW Pro D210 decoder is ordinarily used in
a StreamNet network configured using StreamNet Dealer Setup
software to receive streams from VIEW Pro E120 encoders, but can
also receive H.264 RTSP/UDP streams from 3rd-party encoders/
streamers using the optional per unit license for VIEW Pro Decoder.

The latest version of the StreamNet Dealer Setup software can be found
on the ClearOne website at:

http://www.clearone.com/resources#network_media_streaming

VIEW PRO ENCODER & DECODER

2

ENCODER AND DECODERS IN A NETWORK

The VIEW Pro encoder receives input from an AV source device such as
BluRay Player, DVD Player, etc. and distributes it over a StreamNet TCP/
IP network using a standard 100 Mbit or Gbit Ethernet connection. The
D210 or D110 decoders, as counterparts, are installed at the locations of
the target video displays. They operate together: the encoders providing
the IP data for the decoders to deliver to the displays.

VIEW PRO D210 QUICK-START GUIDE

3

PARTS INCLUDED

The following items are included with the VIEW Pro D210 Decoder:

The following items are included with the VIEW Pro D210 Decoder:

• D210 Decoder Unit

• Power Supply with cord

• Mounting Plate

(VESA, holes spaced 100 mm X 100 mm, 3.9 inches X 3.9 inches)

• Mounting Screws for Mounting Plate and D210 Unit

• USB to DB9 Serial Adapter

Verify that all items have been received. If there is any issue, please
contact your ClearOne representative.

VIEW PRO ENCODER & DECODER

4

QUICK-START OVERVIEW

Perform these steps in the following order to use the VIEW Pro D210
Decoder in your StreamNet network:

1. Mounting the D210 Decoder.(Optional)

2. Connecting the D210 Decoder

3. Configuring the D210 Decoder.

MOUNTING THE D210 DECODER

The D210 includes a Mounting Plate and screws. The Mounting Plate can
be used on a wall or for applications where a decoder must be located
on a VESA mount, such as on the back of a monitor.

Attaching the Mounting Plate to a display uses the 4 phillips-head
screws.

VIEW PRO D210 QUICK-START GUIDE

5

Insert the 2 screws with the extended heads into the back of the D210
and tighten.

Align the D210 with the Mounting Plate so that indicator arrows on the
plate and the decoder are pointed upward. Insert the heads of the
extended screws on the D210 into the keyhole slots of the Mounting
Plate and slide down to secure.

NOTE: Although the Mounting Plate does attach the decoder to
the back of a display, it also allows the decoder to be attached to a
separate VESA mount.

VIEW PRO ENCODER & DECODER

6

VIEW PRO D210 QUICK-START GUIDE

7

CONNECTING THE DECODER

Connect the D210 Decoder to:

• DC power provided by the power supply

• Ethernet LAN where the encoders and the computer running the

StreamNet Dealer Setup program are connected

• HDMI Audio/Video output to the HDMI input on the display or
projector

HDMI Audio/Video Out

Mini Display Port

(Not used)

Ethernet

Connection

to Network

DC In

USB 3.0 Ports

Power On/O

Cooling Vents
(Do not block)

NOTE: Carefully run the connected cables so they do not block the
cooling vents or put strain on the connectors.

VIEW PRO ENCODER & DECODER

8

USB 3.0 Ports

3.5mm Analog Audio
or SPDIF Port

(use one at a time )

USB 3.0 Ports

Any of the VIEW Pro D210 Decoder USB 3.0 ports can be used by
the USB to DB9 Serial Adapter allowing serial communication to/from
the unit. Additionally, the Local Playback license and the USB Human
Interface Device licenses for VIEW Pro Decoder use these ports to allow
Local Playback of media and keyboard and mouse control through the
VIEW Pro Decoder. These license options are usually selected at time of
purchase of the D210 and are factory-installed prior to delivery, however,
they can also be purchased and installed after delivery.

VIEW PRO D210 QUICK-START GUIDE

9

CONFIGURING THE DECODER

The VIEW Pro D210 Decoder is configured for use in the commercial
or residential network using the StreamNet Dealer Setup program.
StreamNet Dealer Setup is a PC-based program that allows you to
configure devices so that they can communicate across a StreamNet
network. Phases of the software setup include:

• Create a new or open an existing project

• Add the D210 device to the project

• Match the correct device from the right-hand column.

• Configuring the device with system-specific information regarding

Display Outputs, Controls, IP.

• Saving the project

• Sending the configurations

These steps in these processes are detailed in the DigiLinX Dealer Setup
manual available for viewing or download at www.ClearOne.com.

NOTE: Dealer Setup version 3.00.48 or later is required to support
the D210 decoder.

Information specific to the VIEW Pro Decoder is contained in the VIEW
Pro - D110 Digital AV Decoder Installation and Users Manual available
for viewing or download at www.clearone.com. (The steps for using the
Dealer Setup program and options for the D210 are similar to those for
the D110 decoder.)

VIEW PRO ENCODER & DECODER

10

Create a New or Open an Existing Project

Add the VIEW Pro D210 to the Project

VIEW PRO D210 QUICK-START GUIDE

11

Match the Correct Device from the Right-Hand Column

VIEW PRO ENCODER & DECODER

12

Configuring: Info Tab for D210

VIEW PRO D210 QUICK-START GUIDE

13

Configuring: Info Tab Advanced Options for D210

VIEW PRO ENCODER & DECODER

14

Configuring: Display Outputs Tab for D210

VIEW PRO D210 QUICK-START GUIDE

15

Configuring: Display Controls Tab for D210

VIEW PRO ENCODER & DECODER

16

Sending the Configurations

With the project still open to the changes you just made, select the
Send Configuration to Device icon or, in the case of multiple devices,
the Send Configuration to Multiple Devices icon. This will send the
configuration setting to the device(s).

Wait for the device(s) to restart.

These steps in these processes are detailed in the DigiLinX Dealer Setup
manual available for viewing or download at www.ClearOne.com.

Saving the Project

Select File>Save to save the project.

VIEW PRO D210 QUICK-START GUIDE

17

PART NUMBERS

910-0003-001 VIEW Pro Decoder D210

910-0001-001 VIEW Pro Decoder D110
910-0000-001 VIEW Pro Encoder E120

910-0001-002 StreamNet Legacy Audio per unit license for VIEW

Pro Decoder

910-0000-002 StreamNet Legacy Audio per unit license for VIEW Pro

Encoder

910-0001-003 Audio mixing per unit license for VIEW Pro Decoder
910-0000-003 Audio mixing per unit license for VIEW Pro Encoder

910-0001-004 Video Composition per unit license for VIEW Pro

Decoder

910-0000-004 Video Composition per unit license for VIEW Pro Encoder

910-0001-005 3rd-Party RTSP/UDP per unit license for VIEW Pro

Decoder

910-0000-005 3rd-Party RTSP/UDP per unit license for VIEW Pro

Encoder

910-0001-006 Local Playback per unit license for VIEW Pro

Decoder to play local video from USB drive

910-0001-007 USB Human Interface Device (Keyboard and Mouse)

per unit license for VIEW Pro Decoder

VIEW PRO ENCODER & DECODER

18

CONTACT INFORMATION

HEADQUARTERS:

Salt Lake City, UT USA

5225 Wiley Post Way
Suite 500
Salt Lake City, UT 84116

Sales: 800.705.2103
Toll Free: 800.945.7730
Fax: [phone]
e-mail: [e-mail]

TechSales

Tel: [phone]
e-mail: [e-mail]

Technical Support

Tel: [phone]
e-mail: [e-mail]

EMEA:

Tel: [phone]
e-mail: [e-mail]

APAC:

Tel: [phone]
e-mail: [e-mail]

LATAM:

Tel: [phone]
e-mail: [e-mail]

Middle East:

Tel: [phone]
e-mail: [e-mail]

© 2015 ClearOne, Inc. All rights reserved.

Information in this document is subject to change without notice. QSG-0019-001 Revision 1.0 March, 2015
