AV Distribution and Control Using StreamNet

StreamNet technology based products are designed to distribute audio, video and control data
using standard networking technology. By embracing open standards, we have developed a
system that leverages reliability, expandability and cost-effectiveness for customers.

Using standardized Ethernet TCP/IP protocols to distribute audio and video streams over LANs,
StreamNet offers scalability enabling virtually unlimited zones and sources along with the most
advanced integration capabilities available in distributed audio and video.

With StreamNet, seamless communication with other third-party systems, such as lighting control
systems, automation systems and security systems is easily achieved. Some customers, however,
choose to use the third-party system controllers to manage the entire system including StreamNet
audio video distribution.

The VIEW Multimedia Receiver software (VMR) is a program interface that can be run on a PC
or laptop running Microsoft Windows 7. VMR is a software program that allows you to receive
StreamNet compressed multimedia streams from StreamNet encoder devices such as the
MLAV9500, or any audio streaming input from a SpeakerLinX or ViewLinX device.

DISTRIBUTION MODEL WITH STREAMNET-ENABLED PRODUCTS

AV distribution using StreamNet-enabled products places the encoders and decoders at the
individual sources and destinations. The encoders and decoders interface with the network to
move signals and commands to and from their destinations and sources.

• Encoders are placed at the AV sources to convert the source outputs, place the signals on the

network and to receive their own commands from the IP network.

• Decoders are placed with the destination devices to receive and convert the signal data from

source encoders and to receive their own commands from the IP network.

• VIEW Multimedia Receiver Software provides the user with a Windows 7 PC decoder for

watching multimedia streams from StreamNet deployments.

VIEW MULTIMEDIA RECEIVER IN A SAMPLE STREAMNET NETWORK

2 3

VIEW Encoder

Any Source
analog or digital

1. Source device to Encoder

2. Encoder to IP Network

3. IP network to Decoder or VMR

4. Decoder to Display device

5. Control Device

VIEW Touch Panel

StreamNet

LAN Segment

5

3

EthernetEthernet

41

Laptop running VIEW
Multimedia Receiver (VMR)

VIEW Decoder

Any Display
analog or digital

1 TechSales StreamNet Design Help:1- 800-705-2103

SYSTEM REQUIREMENTS

This VMR software can only run on a Windows 7 PC or laptop located on the same segment of your
StreamNet network.

• Operating System: Microsoft Windows 7 (32 and 64 bit)

• CPU: Intel i3 or above

• Memory: 2 GB or more

• Network Connection: 100/1000 MB

DOWNLOAD AND INSTALL THE SOFTWARE

The ViewMultimediaReceiver.exe software is freely downloadable from the ClearOne Website at:

http://www.clearone.com/resources#enterprise_streaming

The software is installed by running the self-extracting executable that will install the software and
place a VMR icon on the desktop.

AV Distribution and Control Using StreamNet 2

Running the VMR Application

The VIEW Multimedia Receiver software is executed by double-clicking on the desktop icon.

INITIAL SCREEN AND LICENSING

The VMR software, when initially run, displays the basic screen and a Software Trial notice about
how many days remain in the trial period. This notice is displayed every time the program is run until
a License Key is entered to activate the VMR.

3 TechSales StreamNet Design Help:1- 800-705-2103

If you have not yet received the key, click on Cancel and the program will operate until the trial
period is expired.

When the Software Activation License Key is obtained from ClearOne, click on OK on the Software
Trial notice box, then enter the key in the Enter Product Key box of the ClearOne Software Activation
window, then click the Activate button to activate the VMR software license. After this, the Software
Trial notice will no longer appear.

License RestRictions

This software requires a license to operate.

• Contact ClearOne to buy licenses for computers using this software.

• One license per computer/laptop is required. (A single license cannot be used on multiple

computers/laptops.)

• Licenses are activated from the computer running the VMR software the license through an
internet connection to the ClearOne licensing system.

• The license can only be activated if the computer is connected to the internet without Proxy. (If
the computer is connected through proxy to the internet, then you will get a “404 not found”
error.)

• The license can not be activated on the virtual computers.

SOURCES SCREEN

When the VMR program is run, it searches on the network segment for StreamNet encoder sources.
When found, they will be included in a system source list.

The source list is found by clicking on the Sources menu at the top of the screen, and click Open
Source.

The next figure shows the Sources screen that pops up with the encoders listed by the source
name, type of encoder, StreamNet ID and the current encoder IP Address.

Running the VMR Application 4

SELECTING A SOURCE

From the listing you can select a source by simply double-clicking on it, highlighting the source and
clicking the OK button, or by clicking on the source, then selecting Source>Open Source from
the menu.

editing a souRce

The Edit Source control allows the Video and Audio IP Addresses and Ports of a source to be
manually entered and the source to be disconnected and connected. Click on Source>Edit
Source from the menu. The following window opens:

Enter the Video and Audio IP Addresses and Ports to those of the device to be the player within the
VMR, then click Connect to connect to the newly-addressed source. The connected source is now
controllable through the VMR player controls.

5 TechSales StreamNet Design Help:1- 800-705-2103

PLAYING THE STREAM

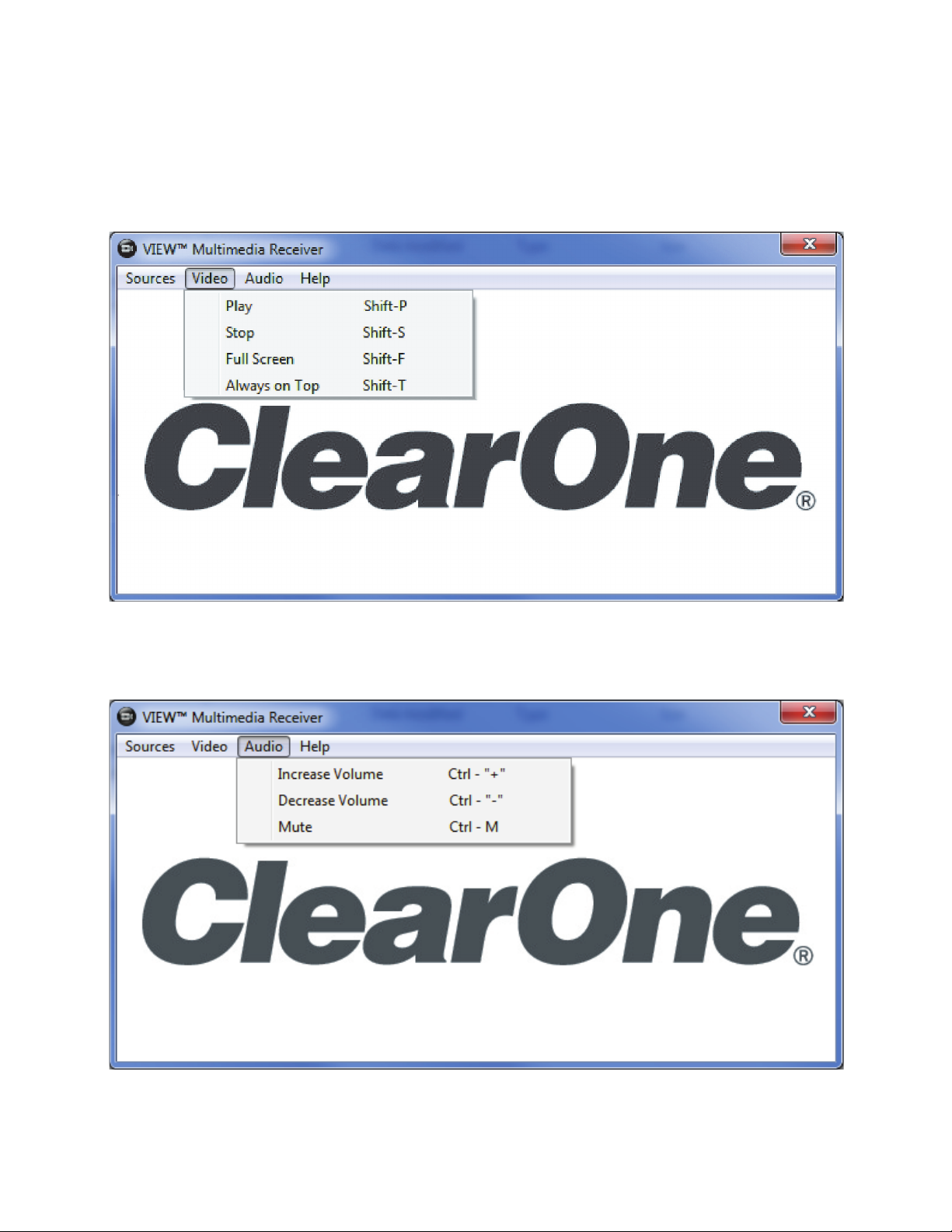

Video tab

You can Play or Stop the selected stream coming to your PC with the drop down list from the
Video Tab. You can also change the screen settings for VMR from Full Screen to Always on Top

in this menu as well.

audio tab

The Audio Tab allows you to control the Increase Volume, Decrease Volume and Mute
commands of your PC as well as the hot keys +,- and M.

Running the VMR Application 6

Known Issues and Limitations

1. This version of the VIEW Multimedia Receiver (VMR) is released for use with the Windows 7
operating system only.

2. Only Compressed Streams are supported in this version.

3. Licenses are activated from the computer running the VMR software the license through an
internet connection to the ClearOne licensing system.

4. The VMR license can only be activated if the computer is connected to the internet without
Proxy. (If the computer is connected through proxy to the internet, then you will get a “404 not
found” error.)

5. Virtual computers are not supported.

7 TechSales StreamNet Design Help:1- 800-705-2103
