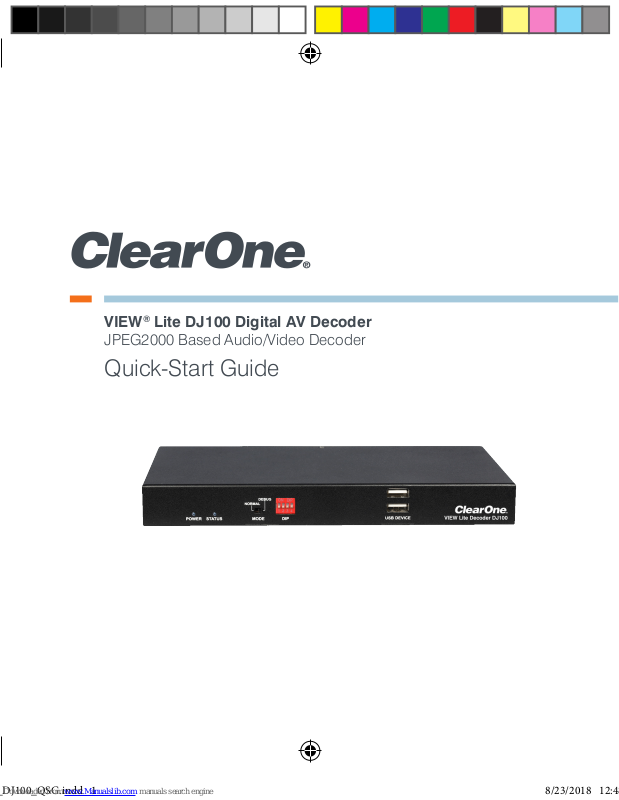

VIEW® Lite DJ100 Digital AV Decoder

JPEG2000 Based Audio/Video Decoder

Quick-Start Guide

PRODUCT OVERVIEW .................................................................. 1

VIEW

®

LItE AV oVEr IP StrEAmIng SyStEm

........................................ 1

DEVIcE APPLIcAtIon

............................................................................ 1

ENCODERS AND DECODERS IN A NETWORK ........................... 1

PARTS INCLUDED ......................................................................... 3

MOUNTING THE DJ100 DECODER .............................................. 3

CONNECTING THE DJ100 DECODER ......................................... 4

CONFIGURING THE DECODER.................................................... 6

COMPLIANCE ................................................................................ 6

PART NUMBERS ............................................................................ 6

Table of Contents

QUICK-START GUIDE

1

PRODUCT OVERVIEW

VIEW

®

LItE AV oVEr IP StrEAmIng SyStEm

The VIEW Lite platform is designed to stream high-quality audio and
video over a TCP/IP network (AVoIP™). An encoder, such as a VIEW Lite
EJ100, takes digital video and audio from a source device, such as a
receiver, cable box or DVR, and makes the source available anywhere on
the dedicated Ethernet LAN network. A decoder, such as the VIEW Lite
DJ100, takes the combined video and audio stream and decodes it. The
DJ100 then sends the video and audio to a display such as a HDTV or
projector and sound system.

DEVIcE APPLIcAtIon

The DJ100 is a high-definition, Internet Protocol, JPEG2000 based
Audio/Video decoder. The DJ100 connects to a TCP/IP network using a
Gigabit Ethernet connection. Used with the EJ100, the DJ100 decoder is
designed to be installed at the location of the target video display.

Installation should be done by a qualified Dealer Service representative.

ENCODERS AND DECODERS IN A NETWORK

The VIEW Lite encoder receives input from an AV source device such as
BluRay Player, DVD Player, etc. and distributes it over a dedicated TCP/
IP network using a standard Gigabit Ethernet connection. The DJ100
decoder, as a counterpart, is installed at the location of the target video
display(s). They operate together; the encoders providing the IP data for
the decoders to deliver to the displays.
