Title: MUSICA MUR2EM Document Number: NS-1005-7140 Original Publication Date: October 13, 2005

All brand names, product names, and trademarks are properties of their

respective owners.

3600 W. Parmer Lane, Suite 100

Austin, TX 78727

USA

Phone: +1 512.977.9393

Fax: +1 512.977.9398

Toll Free Technical Support 1-866-353-3496

Contents

Chapter 1: Introduction ................................................................................................................1-1

Specifications .............................................................................................................................1-2

Installer Requirements ............................................................................................................. 1-2

Chapter 2: Configuring a Single MUR2EM .................................................................................2-1

Hardware Requirements ..........................................................................................................2-1

Software Requirements ............................................................................................................2-2

Configuring the IP Address .....................................................................................................2-2

Connecting the MUR2EM ........................................................................................................ 2-6

Chapter 3: Connecting Multiple MUR2EMs ................................................................................3-1

Hardware Requirements ..........................................................................................................3-2

Software Requirements ............................................................................................................3-2

Configuring the IP Address .....................................................................................................3-2

Connecting the MUR2EM ........................................................................................................ 3-6

Chapter 4: Configuring the Interface ..........................................................................................4-1

iii

Musica MUR2EM Installation Guide

Chapter

Introduction

The NetStreams® Musica® MUR2EM is a web-based browser interface for control of most of the features offered by a Musica MU5066 Multi-Room Audio system. The MUR2EM provides realtime, two-way control of the entire Musica Room Audio system using web pages on a browser-equipped device (such as a

computer or wireless PDA with Macromedia The MUR2EM provides:

 MUR2EM,

Flash®).

MU5066 Multi-

 Power cord for MUR2EM,  DB9 Female to DB9 Female Null modem RS-232 cable,  seamless integration with the Musica MU5066 system (no programming required),  ease of use,  easy web-based configuration using a Flash-enabled web browser,  web browser control of any source,  10/100 Mbps ethernet through RJ45 connection, and  compact size.

NS-1005-7140 1-1

Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496

3600 W. Parmer Lane, Suite 100; Austin, TX 78727 / www.netstreams.com.

Musica MUR2EM

Specifications

Table 1-1

Specifications

Item Specification

Network Interface RJ-45 (10BASE-T) ethernet Management Internal HTTP server System Firmware Flash ROM standard (firmware can be

LEDs

Physical Dimensions

Weight Power 9-30VDC @ 370 mA Environmental

Agency Approvals

downloaded from the TCP/IP host (TFTP) or over the serial port)

 Network link  Ethernet activity  Custom (red)

 • Length: 3.876 in (9.846 cm)  • Width: 1.680 in (4.267 cm)  • Depth: 0.999 in (2.537 cm)

 Weight: 2.29 oz (6.50 g)

 Storage temperature: -40º C to +90º C (-40º F

to +194º F)

 Operating temperature: 0º C to 60º C (32º F to

140º F)

 Relative humidity: 5% to 90% (non-

condensing)

 Altitude: 12,000 Feet (3658 Meters)  FCC Part 15, Class A

 EN 55022  EN5J024  VCCI  AS 3548  UL60950  CSA 22.2 NO.60950  EN 60950

Installer Requirements

This manual assumes the installer:

 knows how to install a Musica system,  knows how to use basic installation tools such as an RJ-45 crimper to terminate

CAT5e wire.

 has pulled all necessary wire to the locations where the preamp, keypads, and

speakers are to be installed.

 understands basic Microsoft

folders, save files, etc.

For more information on meeting the prerequisites, contact NetStreams Technical Support at 866-353-3496.

1-2 NS-1005-7140

Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496

3600 W. Parmer Lane, Suite 100; Austin, TX 78727 / www.netstreams.com.

Windows® commands such as how to browse, create

Chapter

Configuring a Single MUR2EM

This chapter shows you how to connect and address the MUR2EM hardware. The MUR2EM connects to the Musica MU5066ADC. It allows the home owner to

control the Musica system through a Flash-enabled web browser (see Figure 2-1).

Figure 2-1 Connecting the MUR2EM to the ADC

Hardware Requirements

To complete an installation for a single MUR2EM, you will need:

 an MUR2EM. Part Number: NS-MUR2EM,  a NetStreams Musica MU5066 Audio Distribution Center

Part Number: NS-MU5066ADC,

 a hub/switch,

NS-1005-7140 2-1

Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496

3600 W. Parmer Lane, Suite 100; Austin, TX 78727 / www.netstreams.com.

(ADC).

Musica MUR2EM

 a computer with serial port (or USB to serial adapter),  an Ethernet cable,  an RS-232 cable,  a power cable for the MUR2EM,  a power cable for the Musica MU5066ADC, and  a power cable for the hub/switch.

Software Requirements

 Flash Macromedia  Windows XP, SP2.  a Flash-compatible web browser.

running on the web browser device.

Configuring the IP Address

To configure the IP address for the MUR2EM, you must first connect the hardware, then use HyperTerminal to complete the configuration.

Connecting the MUR2EM

To connect the MUR2EM for IP configuration, complete the following steps:

1. Connect the MUR2EM to the computer using the null modem cable provided.

NOTE: If your computer does not have a serial port, you need to use an adapter that

converts USB to serial. Note the COM port number.

2. Connect the Ethernet port of the MUR2EM to the home network switch.

3. Connect the Ethernet port of the computer to the home network switch.

4. Ensure all power cables are plugged in.

5. Start the computer.

Configuring the IP Address

This section shows you how to configure the IP address for your MUR2EM that matches the IP address scheme for the home network.

To configure the IP addresses of your MUR2EMs, complete the following steps:

1. Select Start>All Programs>Accessories>Communications>HyperTerminal.

The HyperTerminal screen displays (see Figure 2-2).

2-2 NS-1005-7140

Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496

3600 W. Parmer Lane, Suite 100; Austin, TX 78727 / www.netstreams.com.

Configuring a Single MUR2EM

Figure 2-2 HyperTerminal screen

In the Connection Description dialog box, enter MUR2EM in the Name field.

3. Select OK.

The Connect To dialog box displays (seeFigure 2-3).

Figure 2-3 Connect To dialog box

NS-1005-7140 2-3

Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496

3600 W. Parmer Lane, Suite 100; Austin, TX 78727 / www.netstreams.com.

Musica MUR2EM

4. In the Connect Using field, enter the COM port you want to use (this will normally

be COM1).

5. Select OK.

The COM Properties window displays (see Figure 2-4).

Figure 2-4 COM Properties window

Enter the following settings:

 Bits Per Second: 9600  Data Bits: 8  Parity: None  Stop Bits: 1  Flow Control: None

7. Select OK.

A blank HyperTerminal screen displays (see Figure 2-5).

2-4 NS-1005-7140

Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496

3600 W. Parmer Lane, Suite 100; Austin, TX 78727 / www.netstreams.com.

Configuring a Single MUR2EM

Figure 2-5 Blank HyperTerminal screen

Pull the power cable from your MUR2EM, wait 5 seconds, then plug it back in.

Wait 30-60 seconds while HyperTerminal connects to the MUR2EM. Shortly, the screen displays information for the NetStreams MUR2EM and says you can make changes if you press any key within five seconds of the information displaying.

9. Press any key.

You are prompted to Accept or Modify the settings.

10. Enter M to modify.

You are prompted for the root password.

11. Enter Netsilicon (the field is case-sensitive).

You are prompted to enter your IP settings.

12. Enter the Static IP Address and press Enter.

You are prompted to enter the Subnet mask.

13. Enter the Subnet Mask and press Enter.

You are prompted to enter the Gateway Address.

14. Enter the Gateway address and press Enter.

You are prompted that changes are being saved in NV memory and that the configuration is done (see Figure 2-6).

NS-1005-7140 2-5

Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496

3600 W. Parmer Lane, Suite 100; Austin, TX 78727 / www.netstreams.com.

Musica MUR2EM

Figure 2-6 Configuration complete

The unit reboots. You will see the new IP, Subnet Mask, and Gateway settings on the HyperLink terminal screen.

IMPORTANT! Do not make any changes to your computer, or any hardware connected to

the system until the unit completely reboots.

Connecting the MUR2EM

To connect the MUR2EM to your home network, complete the following steps:

1. Connect the MUR2EM to the Musica MU5066ADC using a null modem cable.

2. Connect the Ethernet port of the MUR2EM to the home network switch.

3. Connect the Ethernet port of the computer to the home network switch.

4. Ensure all power cables are plugged in.

5. Start the computer.

6. Continue to Configuring the Interface on page 4-1.

2-6 NS-1005-7140

Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496

3600 W. Parmer Lane, Suite 100; Austin, TX 78727 / www.netstreams.com.

Connecting Multiple MUR2EMs

This chapter shows you how to connect multiple MUR2EMs. You can connect additional MUR2EMs to support 18 zones (see Figure 3-1).

Chapter

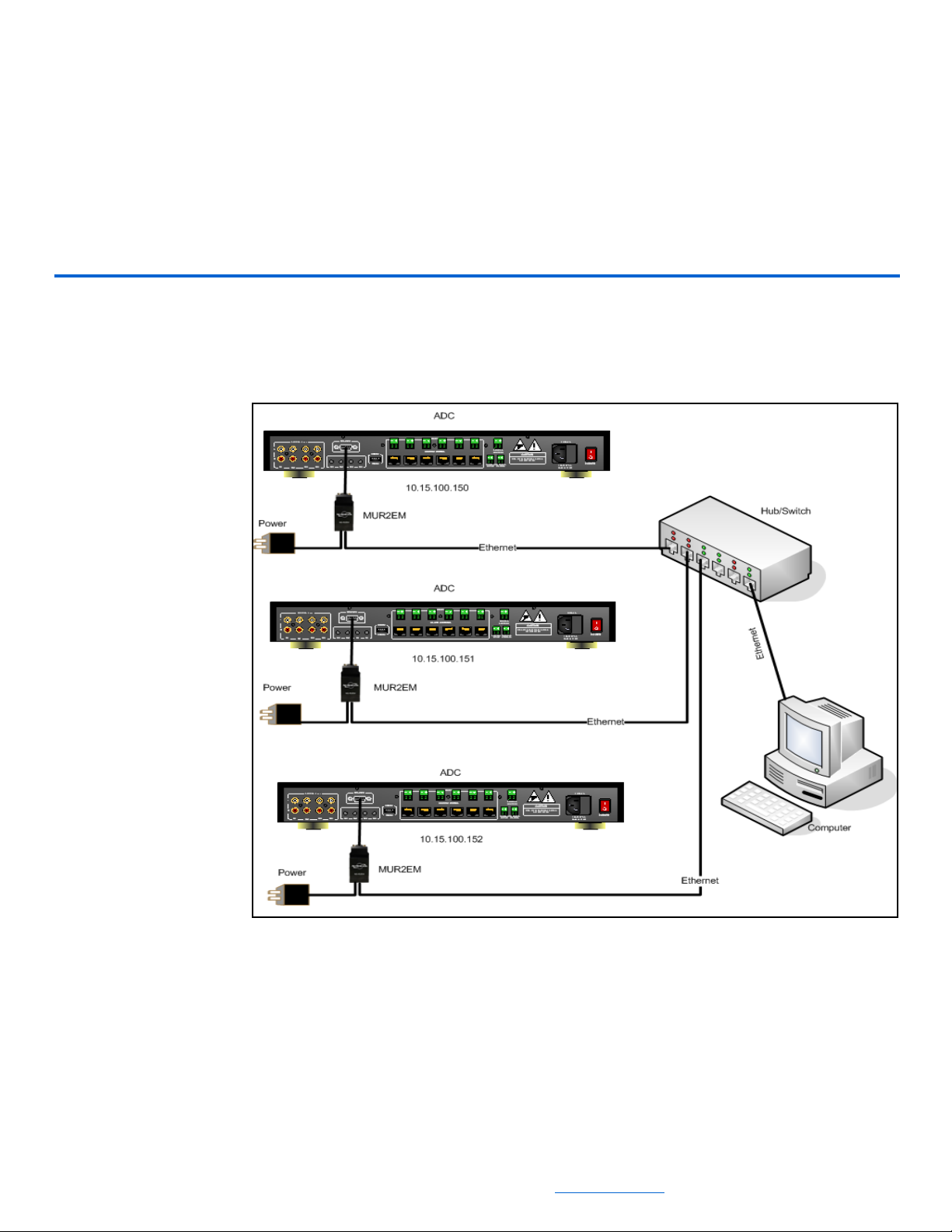

Figure 3-1 18-Zone Configuration

NS-1005-7140 3-1

Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496

3600 W. Parmer Lane, Suite 100; Austin, TX 78727 / www.netstreams.com.

Musica MUR2EM

Hardware Requirements

To complete an installation including more than one MUR2EM, you will need:

 a Musica MU5066ADC (part number NS-MU5066ADC).

NOTE: You’ll need two ADCs for an 18-zone implementation.

 an MUR2EM (part number NS-MUR2EM) for each ADC,  a hub/switch,  a computer with serial port (or USB to serial adapter),  an Ethernet cable for each MUR2EM,  an RS-232 cable for each MUR2EM,  a power cable for each MUR2EM,  a power cable for each Musica MU5066ADC,  power cable for the hub/switch.

Software Requirements

 Macromedia  Windows XP, SP2.  a Flash-compatible web browser.

Flash running on the web browser device.

Configuring the IP Address

To configure the IP address for all MUR2EMs on the system, you must first connect the hardware, then use HyperTerminal to complete the configuration.

Connecting the MUR2EM

To connect additional MUR2EMs and ADCs, complete the following steps:

1. Connect each MUR2EM to the computer using the null modem cable provided.

NOTE: If your computer does not have a serial port, you need to use an adapter that

converts from USB to serial. Note the COM port number.

2. Connect the Ethernet port of each MUR2EM to the network hub/switch.

3. Connect the Ethernet port of the computer to the network hub/switch.

4. Ensure all power cables are plugged in.

5. Start the computer.

Using HyperTerminal

This section shows you how to configure the IP address for each MUR2EM in a 12-18 zone system to work with your PC, wireless web tablet, or PDA and the NetStreams MU5066ADC.

3-2 NS-1005-7140

Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496

3600 W. Parmer Lane, Suite 100; Austin, TX 78727 / www.netstreams.com.

Connecting Multiple MUR2EMs

To configure the IP addresses of your MUR2EMs, complete the following steps:

1. Select Start>All Programs>Accessories>Communications>HyperTerminal.

The HyperTerminal screen displays (see Figure 3-2).

Figure 3-2 HyperTerminal screen

In the Connection Description dialog box, enter MUR2EM in the Name field.

3. Select OK.

The Connect To dialog box displays (see Figure 3-3).

Figure 3-3 Connect To dialog box

NS-1005-7140 3-3

Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496

3600 W. Parmer Lane, Suite 100; Austin, TX 78727 / www.netstreams.com.

Musica MUR2EM

4. In the Connect Using field, enter the COM port you want to use (this will normally

be COM1).

5. Select OK.

The COM Properties window displays (see Figure 3-4).

Figure 3-4 COM Properties window

Enter the following settings:

 Bits Per Second: 9600  Data Bits: 8  Parity: None  Stop Bits: 1  Flow Control: None

7. Select OK.

A blank HyperTerminal screen displays (see Figure 3-5).

3-4 NS-1005-7140

Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496

3600 W. Parmer Lane, Suite 100; Austin, TX 78727 / www.netstreams.com.

Connecting Multiple MUR2EMs

Figure 3-5 Blank HyperTerminal screen

Pull the power cable from the first of your MUR2EMs, wait 5 seconds, then plug it

back in. Wait 30-60 seconds while HyperTerminal connects to the MUR2EM. Shortly, the

screen displays information for the NetStreams MUR2EM and says you can make changes if you press any key within five seconds of the information displaying.

9. Press any key.

You are prompted to Accept or Modify the settings.

10. Enter M to modify.

You are prompted for the root password.

11. Enter Netsilicon (the field is case-sensitive).

You are prompted to enter your IP settings.

NOTE: These will typically be settings from the PC you are using with the MUR2E.

12. Enter the Static IP Address and press Enter.

NOTE: If you have more than one MUR2EM, the IP addresses must be sequential. For

instance, the first MUR2EM might be 10.15.100.150, and the next two would be 10.15.100.151 and 10.15.100.152.

You are prompted to enter the Subnet mask.

13. Enter the Subnet Mask and press Enter.

You are prompted to enter the Gateway Address.

14. Enter the Gateway address and press Enter.

You are prompted that changes are being saved in NV memory and that the configuration is done (see Figure 3-6).

NS-1005-7140 3-5

Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496

3600 W. Parmer Lane, Suite 100; Austin, TX 78727 / www.netstreams.com.

Musica MUR2EM

Figure 3-6 Configuration complete

The unit reboots. You will see the new IP, Subnet Mask, and Gateway settings on the HyperLink terminal screen.

15. Repeat steps 1. through 14. for each MUR2EM.

IMPORTANT! Do not make any changes to your computer, or any hardware connected to

the system until the unit completely reboots.

Connecting the MUR2EM

To connect additional MUR2EMs to your home network, complete the following steps:

1. Connect each MUR2EM to the Musica MU5066ADC using a null modem cable.

2. Connect the Ethernet port of each MUR2EM to the network hub/switch.

3. Connect the Ethernet port of the computer to the network hub/switch.

4. Ensure all power cables are plugged in.

5. Start the computer.

3-6 NS-1005-7140

Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496

3600 W. Parmer Lane, Suite 100; Austin, TX 78727 / www.netstreams.com.

Chapter

Configuring the Interface

When you enter the IP address of the MUR2EM in your browser, the MUR2EM interface displays (see Figure 4-1).

Portrait Landscape

Figure 4-1 MUR2E Interface

The interface can be configured for portrait or landscape mode as follows:

 Portrait Mode - to view the MUR2EM interface in portrait mode, type:

http://<IP Address>/Portrait.html

 Landscape Mode - to view the MUR2EM interface in landscape mode, type:

http://<IP Address>/Landscape.html

NOTE: The URLs are case sensitive.

NS-1005-7140 4-1

Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496

3600 W. Parmer Lane, Suite 100; Austin, TX 78727 / www.netstreams.com.

Musica MUR2EM

4-2 NS-1005-7140

Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496

3600 W. Parmer Lane, Suite 100; Austin, TX 78727 / www.netstreams.com.

ClearOne MUR2EM Installation Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
