Eclipse® Upgrade Guide

Part Number:399G240 Rev A

Date:07 August 2017

User

Guide

Eclipse | Upgrade Guide

Page 2

Document Reference

Clear-Com Eclipse HX Upgrade Guide

Product number: 399G240 Revision: A

Legal Disclaimers

Clear-Com and the Clear-Com logo are trademarks or registered trademarks of HM Electronics, Inc.

The software described in this document is furnished under a license agreement and may be used only in accordance with the terms of the agreement.

The product described in this document is distributed under licenses restricting its use, copying, distribution, and decompilation/reverse engineering. No part of this document may be reproduced in any form by any means without prior written authorization of Clear-Com, an HME Company.

Clear-Com Offices are located in California, USA; Cambridge, UK; Dubai, UAE; Montreal, Canada; and Beijing, China. Specific addresses and contact information can be found on Clear-Com’s corporate website:

www.clearcom.com

Clear-Com Contacts

Americas and Asia-Pacific Headquarters California, United States Tel: +1 510 337 6600 Email: CustomerServicesUS@clearcom.com

Europe, Middle East, and Africa Headquarters Cambridge, United Kingdom Tel: +44 1223 815000 Email: CustomerServicesEMEA@clearcom.com

China Office Beijing Representative Office Beijing, P.R.China Tel: +8610 65811360/65815577

Eclipse | Upgrade Guide

Page 3

Contents

1 Important Safety Instructions ............................................ 6

Safety symbols .......................................................................................... 7

Mains power cord ....................................................................................... 7

2 Introduction ....................................................................... 8

2.1 Planning the upgrade to Eclipse HX ....................................................... 8

3 Quick reference: Upgrading to Eclipse HX v9.1 ................. 17

3.1 Upgrading from 5.2.5 ......................................................................... 17

3.2 Upgrading from 7.0 ........................................................................... 20

3.3 Upgrading from 7.1 ........................................................................... 23

3.4 Upgrading from 7.5 ........................................................................... 26

3.5 Upgrading from 7.6 ........................................................................... 29

3.6 Upgrading from 8.0 ........................................................................... 32

3.7 Upgrading from 8.5 ........................................................................... 35

3.8 Upgrading from 8.5.1 ......................................................................... 37

3.9 Upgrading from 8.5.2 ......................................................................... 40

3.10 Upgrading from 8.7 ....................................................................... 42

3.11 Upgrading from 8.8 ....................................................................... 45

3.12 Upgrading from 9.0 ....................................................................... 47

4 Upgrading to Eclipse HX v9.1............................................ 50

4.1 Backing up your ECS v5.2.5 configurations ........................................... 50

4.2 Backing up your EHX 7.x/8.x/9.0 configurations .................................... 50

4.3 Installing EHX and Dynam-EC Clients ................................................... 50

4.4 Importing your configurations into EHX ................................................ 51

4.5 Updating Dynam-EC .......................................................................... 52

5 Upgrading the CPU cards .................................................. 53

5.1 Changing the CPU card PROM ............................................................. 53

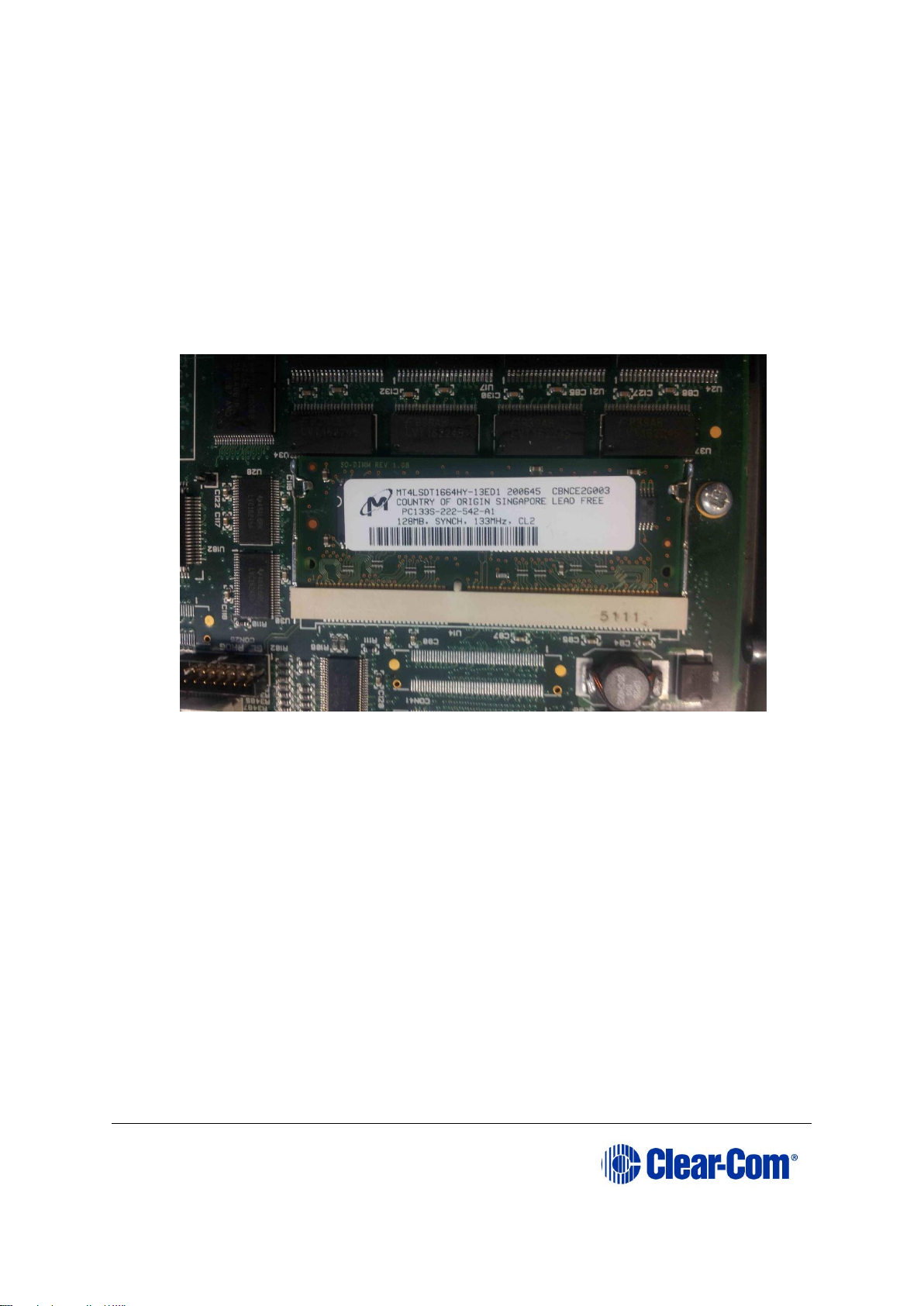

5.2 Changing the CPU card RAM ............................................................... 54

5.3 Changing the CPU card DIP switches .................................................... 55

5.4 Upgrading the CPU card application code .............................................. 55

5.5 Setting the matrix type ...................................................................... 66

5.6 Checking the CPU card application code version .................................... 67

Eclipse | Upgrade Guide

Page 4

5.7 Upgrading CPU Card U53 CPLD............................................................ 67

5.8 Upgrading CPU Card U1 CPLD ............................................................. 69

5.9 Upgrading the CPU card U53 CPLD code with Xilinx tools ........................ 71

5.10 Upgrading the CPU card U1 CPLD code with Xilinx tools ...................... 73

5.11 Downloading a test configuration to the CPU card using EHX .............. 75

5.12 Forcing the CPU card to the factory default IP address ....................... 76

6 Upgrading the Eclipse HX-PiCo ......................................... 77

6.1 Changing the Eclipse HX-PiCo PROM .................................................... 77

6.2 Changing the Eclipse HX-PiCo RAM ...................................................... 78

6.3 Changing the Eclipse HX-PiCo DIP switches ........................................... 80

6.4 Upgrading the Eclipse HX-PiCo MVX code.............................................. 90

6.5 Checking the Eclipse HX-PiCo app code and MVX code versions ............... 98

6.6 Upgrading the Eclipse HX-PiCo CPLD and FPGA code with Xilinx tools ....... 99

6.7 Download a test configuration into the Eclipse HX-PiCo using EHX ......... 102

6.8 Forcing the Eclipse HX-PiCo to the factory default IP address ................ 102

7 Upgrading the MVX-A16 card ......................................... 104

7.1 Identifying MK I and MK II MVX-A16 cards ......................................... 104

7.2 Upgrading the MVX-A16 MK I or MK II boot and/or app code ................ 104

7.3 Checking the MVX-A16 MK I or MK II boot and application code version . 110

7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx tools ......... 111

8 Upgrading E-FIB cards.................................................... 120

8.1 Upgrading E-FIB card FPGA with Xilinx tools ....................................... 120

9 Upgrading E-QUE cards .................................................. 123

9.1 Identifying MK1 and MK2 E-QUE cards ............................................... 123

9.2 Upgrading the E-QUE card (MK1) ...................................................... 124

9.3 Upgrading the E-QUE card (MK2) ...................................................... 129

9.4 Upgrading the E-QUE card (MK1 and MK2) FPGA with Xilinx tools .......... 136

9.5 Upgrading the E-QUE card (MK1) boot ROM ........................................ 138

9.6 Upgrading the E-QUE card (MK2) boot ROM ........................................ 139

10 Upgrading IVC-32 and LMC-64 cards .............................. 145

10.1 Identifying MK1 and MK2 IVC-32 / LMC-64 cards ............................ 145

11 Upgrading E-MADI64 cards ............................................ 147

11.1 Identifying MK1 and MK2 E-MADI64 cards ...................................... 147

Eclipse | Upgrade Guide

Page 5

11.2 Upgrading the E-MADI64 boot code ............................................... 149

11.3 Upgrading the E-MADI64 application, DSP and FPGA code using EHX . 152

11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set .................... 155

12 Upgrading E-DANTE64-HX cards ..................................... 158

13 Upgrading CellCom®/FreeSpeak® wireless systems ...... 161

14 Upgrading panels ........................................................... 162

14.1 Upgrading panels using EHX ......................................................... 162

14.2 Upgrading panel application code manually .................................... 165

14.3 Manually upgrading V-Series panels .............................................. 177

15 Upgrading the TEL-14 module ........................................ 184

15.1 Upgrading the TEL-14 hardware .................................................... 184

15.2 Upgrading the TEL-14 firmware ..................................................... 186

16 Upgrading the AES-6 module .......................................... 189

16.1 Upgrading AES-6 FPGA ................................................................ 190

17 Upgrading FreeSpeak II™ wireless systems ................... 196

17.1 Upgrading FreeSpeak II Beltpacks and Antennas centrally using EHX . 196

17.2 Upgrading FreeSpeak II Beltpacks and Antennas via USB ................. 198

Appendix A: CPU card layout .............................................. 201

Appendix B: CPU card DIP switches ................................... 202

Appendix C: PiCo card layout ............................................. 204

Appendix D: Eclipse HX-PiCo CPU DIP switches ................. 205

Appendix E: Hitachi Renesas Flash Development Tool ....... 207

Appendix F: TFTPUtil .......................................................... 213

Appendix G: Tera Term ...................................................... 216

Appendix H: Flash Magic .................................................... 218

Appendix I: i-Station converter cable wiring and rear panel layouts 222

Appendix J: Xilinx tools ...................................................... 224

Appendix K: Clear-Com®End User Software License ........... 225

Eclipse | Upgrade Guide

1 Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug.

A polarized plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long

periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when

the apparatus has been damaged in any way, such as power-cord supply or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Warning: To reduce the risk of fire or electric shock, do not expose this

product to rain or moisture.

Eclipse | Upgrade Guide

Page 7

Safety symbols

Familiarize yourself with the safety symbols in Figure 1 below. These symbols are displayed

on the apparatus and warn you of the potential danger of electric shock if the system is used improperly. They also refer you to important operating and maintenance instructions in the product user manual.

Figure 1-1: Safety symbols

Mains power cord

Eclipse HX matrices are powered by an internal power supply. The cord to connect the internal power supply to the mains supply must conform to the following:

• The mains power cord shall have an IEC C13 connector at one end and a

mains power plug at the other end.

• An IEC C13 plug has three pins, the center pin carrying the earth / ground.

The other two pins carry neutral and live circuits.

• The conductors of the mains cords shall have adequate cross-sectional area

for rated current consumption of the equipment.

• The mains plug that connects to the mains supply must be approved for use

in the country where the equipment is to be used.

• The mains power cord must be an IEC mains power cord complying with

standard IEC60320; IEC320/C13.

• Mains power cords used in the U.S. must also comply with standard UL817.

Eclipse | Upgrade Guide

2 Introduction

This guide describes how to upgrade from ECS v5.2.5 to Eclipse HX v9.1, a software release for the Clear-Com Eclipse HX™ digital matrix system (standalone or networked). This guide additionally identifies the simpler upgrade from v7.x/v8.x/v9.0 to v9.1.

The system components covered by the guide include (but are not limited to):

• Matrices (Eclipse HX-PiCo, Eclipse HX-Delta, Eclipse HX-Median and Eclipse

HX-Omega)

• Interface cards (E-FIB, E-QUE, MVX-A16, E-MADI64, LMC-64, and others)

• Interface modules (AES-6, TEL-14 and others)

• User panels (V-series and i-Station panels)

Important note:

Eclipse HX upgrades must be performed by a technically qualified engineer.

2.1 Planning the upgrade to Eclipse HX

Before you start upgrading your Eclipse (ECS v5.2.5 or EHX v7x/v8.x/v9.0) system components to Eclipse HX v9.1 ensure that you have:

• Sufficient spare (replacement) cards, interfaces or panels for the upgrade.

• Scheduled enough time to complete the upgrade, or if required, roll back

the upgrade to the version that was running before the upgrade.

• A suitable backup system is in place to maintain service, if your intercom

system is part of a mission critical or sensitive application.

You should also be aware that:

• The order in which you carry out the upgrade is important. The chapters of

this guide are laid out in the order that your system components should be upgraded.

Tip: For a quick reference to the upgrade procedures you require, and the

order in which they should be carried out, see chapter 3 Quick reference:

Upgrading to Eclipse HX.

• If you are upgrading V-Series panels, you may have to upgrade each V-

Series panel individually by connecting it directly to a PC.

• Upgrading the matrices in a networked (linked) system should take place

at the same time, because the data sent between networked matrices can change.

When upgrading networked (linked) matrices, Clear-Com recommends that you:

Eclipse | Upgrade Guide

Page 9

• Upgrade only one CPU card in each matrix first and then perform the rest

of the system upgrade (interface cards, user panels, and so on) afterwards.

• Upgrade the remaining CPU cards in the matrices only when the upgrade

has been completed and tested across the full system. Leaving the remaining CPU cards until last gives you the capability of quickly rolling back to the previously running version, if any mission critical issues are encountered. NOTE – When the second card is upgraded retrospectively as described it needs to be placed in the frame without the other CPU card in place. This is because CPU cards only exchange data as a master/slave pair when both cards are already running the same firmware. Once both cards are upgraded insert both cards and re-download the frame configuration.

• Great care must be taken when opening the lid of the Eclipse HX-PiCo

matrix to upgrade components. This may invalidate UL status.

Remove power from the device first, to avoid working with the system while it is live. Observe all electrical shock hazard warning and precautions for handling electrostatic sensitive devices

2.1.1 Client / Server installations

When upgrading Client / Server installations from ECS v5.2.5 or EHX v7.x/v8.x/v9.0 to Eclipse HX v9.1, you must:

• Use the EHX v9.1 Server Installer only on the PC that is to be the EHX

Server. The EHX v9.1 server installer will automatically update your IIS and configure it to work with Eclipse HX v9.1.

• Use the standard combined EHX/Dynam-EC 9.1 Client Installer on all the

Client PCs. The Server PC can also act as a client.

You should check that you have the appropriate IIS and .Net Windows components installed prior to installing the EHX Server. Please refer to the Initial Setup section of the Client/Server chapter in the EHX User Guide for a complete list of the components required for each version of Windows.

Note: Installing an EHX Server is an advanced workflow - please contact Clear-Com Support for advice before attempting to install an EHX Server.

Before upgrading your EHX Server installation, Clear-Com strongly recommends that you export any existing projects (using File->Export from an EHX Client) and backup your users list (using the Export command in the User Management screen). It is recommended that you uninstall your existing EHX Server before installing the newer version.

Eclipse | Upgrade Guide

Page 10

2.1.2 Roll back strategy

You should not encounter any mission critical issues when upgrading to Eclipse HX v9.1. However, if you decide to roll back the system to the previously running version, then you must:

• Allow adequate time for the roll back operation.

• Roll back all system components to the same baseline version.

Temporary roll back strategy

If you want to roll back to the previously running version for a temporary period only, before making another attempt to upgrade to Eclipse HX v9.1, then you may implement the following temporary roll back strategy:

1) Leave all cards and panels at Eclipse HX v9.1

2) Roll back the matrix CPU card to run at the previously running version.

3) Re-install the previous running version of ECS/EHX and import your old

configurations.

Caution:

The above strategy is a temporary solution only. Eclipse HX v9.1 configurations will not import or work with a CPU card at ECS v5.2.5 or EHX v7.x/v8.x/v9.0 If you want to run the previously running system software for an extended period, ClearCom recommends rolling back all system components to the same baseline version.

2.1.3 Supplied Upgrade Media

Different upgrade media are supplied to the customer, according to the type of Eclipse HX product that has been purchased:

Product

Software/Documentation

USB

System Drivers

USB

Documentation

USB

Matrix

ECS / EHX / Dynam-EC

Upgrade kit

Table 2-1: Supplied USBs

Eclipse | Upgrade Guide

Page 11

System Drivers Upgrade Media

The System Drivers upgrade media contains the latest firmware for your Eclipse HX devices, including Boot PROM and FPGA / CPLD code files for Eclipse HX matrices, interface cards, interface modules and supported panels (i-Station and V-Series panels). You must upgrade to the latest firmware when upgrading to Eclipse HX v9.1.

The System Drivers USB also includes the third party software that may be used during upgrades.

Software USB

The Software USB contains:

• The EHX configuration software, which is used to manage and configure

your Eclipse HX devices.

• Dynam-EC, which provides fast, intuitive audio routing control for your

Eclipse HX system.

• A full set of Eclipse HX documentation, including release notes and user

guides.

• The application code files for your Eclipse HX matrices.

The Software USB also includes the third party software that may be used during upgrades.

You must upgrade to the latest application code files when upgrading to Eclipse HX v9.1. You require both sets of upgrade media to complete a full upgrade to Eclipse HX v9.1.

Tip: You can find user documentation, brochures and summary information for all

Clear-Com’s products (including the Eclipse and Eclipse HX systems), on the ClearCom website at: http://www.clearcom.com/support/user-manuals.

A number of upgrade procedures, require the use of a TFTP Server. One is supplied on the USB, but you can use any compatible TFTP Server.

2.1.4 Fitting the Eclipse HX door panel

To enable you to change the branding of Eclipse Median and Eclipse Omega matrices that have been upgraded to Eclipse HX, Clear-Com provides an Eclipse HX door panel kit.

The figures that illustrate the procedure below feature an Eclipse Median matrix. However, the procedure is also applicable to Eclipse Omega matrices.

Tip: For more information about fitting the Eclipse HX door panel to your upgraded

Eclipse Median and Eclipse Omega matrices, see the Eclipse Matrix Door Replacement Instructions, included with your kit.

To replace the Eclipse branded door with the Eclipse HX door:

Eclipse | Upgrade Guide

Page 12

1) Remove the two screws securing the Eclipse door (and hinge) unit to the

Eclipse matrix. Retain the screws.

Figure 2-1: Screws securing the Eclipse door (and

hinge) unit

2) Remove the four screws securing the hinge to the existing door unit. Retain

the screws.

Figure 2-2: Removing the screws securing the hinge to

the Eclipse door

3) Use the four screws retained in Step 2 to secure the hinge to the new

Eclipse HX door unit.

Eclipse | Upgrade Guide

Page 13

Figure 2-3: Securing the hinge to the Eclipse HX door

4) Use alcohol to clean the latch-mount surface (located to the bottom right

on the inside of the Eclipse HX door).

Figure 2-4: Latch-mount surface, inside the Eclipse HX

door

Latch-mount

surface

Eclipse | Upgrade Guide

Page 14

5) To attach the Eclipse HX door to the matrix, secure the hinge to the matrix

using the two screws retained from Step 1.

Figure 2-5: Attaching the Eclipse HX door to the matrix

6) Open the door. Insert the latch (a separate item from the door unit) into

the latch receptacle on the chassis. The latch receptacle is located to the bottom left of the area enclosed by the door.

Note:

Leave the white plastic protector on the latch when you insert the latch into the receptacle.

Eclipse | Upgrade Guide

Page 15

Figure 2-6: Inserting the latch into the latch receptacle

7) To expose the adhesive surface of the latch, remove the green film from

the back of the latch.

8) Close the door. Press down firmly on the bottom left of the door, so that

the latch adheres firmly to the latch-mount surface inside the door.

9) Open the door again and remove the white plastic protector from the latch.

The Eclipse HX door has now been fitted to the matrix.

Latch

receptacle

Latch

Eclipse | Upgrade Guide

Page 16

Figure 2-7: Removing the white plastic protector from

the latch

2.1.5 Help with upgrading

If you require more help with either a particular upgrade procedure or the implementation of a whole system upgrade, contact either:

• Clear-Com Technical Support

(http://www.clearcom.com/contact/support-contacts).

• Your Clear-Com sales representative, to arrange for an engineer to visit

your site and assist you with the upgrade.

See page 2 of this guide for contact email addresses, or go to

http://www.clearcom.com/contact/sales-contacts.

Eclipse | Upgrade Guide

Page 17

3 Quick reference: Upgrading to Eclipse HX v9.1

The upgrade kit includes a Drivers USB, containing the latest firmware files (including Boot and FPGA / CPLD code files) for your Eclipse HX devices. It also includes a software USB, containing the application code files for your Eclipse HX feature applications. It includes the EHX configuration software, Dynam-EC audio routing software, and Eclipse HX v9.1 documentation. You require both upgrade media to complete a full system upgrade. For more information, see 2.1.3 Supplied .

3.1 Upgrading from 5.2.5

The following table lists the procedures that you will require to upgrade from ECS v5.2.5 to Eclipse HX v9.1.

Important note:

The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference / link.

Order

System component

Upgrade procedure(s)

Notes

E-QUE card IVC-32 card LMC-64 card

9.1 Identifying MK1 and MK2 E-QUE cards

9.2 Upgrading the E-QUE card (MK1)

9.3 Upgrading the E-QUE card (MK2)

The procedures used to upgrade E-QUE cards to Eclipse HX v9.1 can also be used to upgrade IVC32 and LMC-64 cards.

No PROM upgrade is required

E-MADI64 card

11.3 Upgrading the E-MADI64 application, DSP and FPGA code using EHX

11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set

No DSP upgrade required.

(Note – if the E-MADI64 card is upgraded before the CPU Card then there is no E-MADI card LED activity during the

Eclipse | Upgrade Guide

Page 18

Order

System component

Upgrade procedure(s)

Notes

upgrade. See E-MADI64 section for important upgrade information).

E-FIB card

No upgrade required.

VSeries panels

Uboot

14.3 Manually upgrading V-Series Panels

Kernel

Root file system

App code

14.3 Manually upgrading V-Series Panels

Display module

14.1 Upgrading panels using EHX

i-Station

No upgrade required

CellCom® / FreeSpeak® Beltpack / Antenna / Splitter

13 Upgrading CellCom®/FreeSpeak® wireless systems.

Beltpack application upgrade required

MVX-A16 card

7.2.2 Upgrading the MVX-A16 boot and app code using the Renesas FDT

7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx

tools

Clear-Com recommends upgrading the MVX boot and application code using the combined MVX boot and application code file. See the Drivers USB.

Eclipse | Upgrade Guide

Page 19

Order

System component

Upgrade procedure(s)

Notes

MK II (Blue) card only

Eclipse HX-PiCo

6.1 Changing the Eclipse HX-PiCo PROM

6.2 Changing the Eclipse HX-PiCo RAM

6.3 Changing the Eclipse HX-PiCo DIP switches

Upgrading the Eclipse HX-PiCo application code

6.4.2 Upgrading the Eclipse HX-PiCo MVX boot and/or app code using the Renesas FDT

6.6 Upgrading the Eclipse HX-PiCo CPLD and FPGA code with Xilinx tools

If you are upgrading the PiCo to an HX-PiCo please contact your Clear-Com representative to establish if your hardware is HX ready. If your PiCo hardware is not HX ready then this is a factory only upgrade.

AES-6

No upgrade required.

EHX configuration /

Dynam-EC software

4.1 Backing up your ECS v5.2.5 configurations

4.3 Installing EHX and Dynam-EC Clients

4.4 Importing your configurations into EHX

CPU card

5.1 Changing the CPU card PROM

5.2 Changing the CPU card RAM

5.3 Changing the CPU card DIP switches

5.4 Upgrading the CPU card application code

5.7 Upgrading CPU Card U53 CPLD

Eclipse | Upgrade Guide

Page 20

Order

System component

Upgrade procedure(s)

Notes

5.5 Setting the matrix type

5.8 Upgrading CPU Card U1 CPLD

5.11 Downloading a test configuration to the CPU card using

EHX

5.9 Upgrading the CPU card U53 CPLD code with Xilinx tools

5.10 Upgrading the CPU card U1 CPLD code with Xilinx tools

Dynam-EC (without EHX on the same PC)

4.5 Updating

Dynam-EC is also installed as part of the EHX/Dynam-EC combined installer. This section details how to install the DynamEC client only on a machine i.e. where only the dynamic online matrix audio monitoring and control is required.

Table 3-1: Procedures for upgrading from ECS v5.2.5 to Eclipse HX v9.1

3.2 Upgrading from 7.0

The following table lists the procedures that you will require to upgrade from Eclipse HX v7.0 to Eclipse HX v9.1.

Important note:

The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference / link.

Eclipse | Upgrade Guide

Page 21

Order

System component

Upgrade procedure(s)

Notes

E-QUE card IVC-32 card LMC-64 card

9.1 Identifying MK1 and MK2 E-QUE cards

9.2 Upgrading the E-QUE card (MK1)

9.3 Upgrading the E-QUE card (MK2)

The procedures used to upgrade E-QUE cards to Eclipse HX v9.1 can also be used to upgrade IVC32 and LMC-64 cards.

No PROM upgrade is required

E-MADI64 card

11.3 Upgrading the E-MADI64 application, DSP and FPGA code using EHX

11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set

No DSP upgrade required.

(Note – if the E-MADI64 card is upgraded before the CPU Card then there is no E-MADI card LED activity during the upgrade. See E-MADI64 section for important upgrade information).

E-FIB card

No upgrade required.

VSerie s panel s

Uboot

14.3 Manually upgrading V-Series Panels

Kernel

Root file system

App code

14.3 Manually upgrading V-Series Panels

Display module

14.1 Upgrading panels using EHX

Eclipse | Upgrade Guide

Page 22

Order

System component

Upgrade procedure(s)

Notes

i-Station

No upgrade required

CellCom / FreeSpeak Beltpack / Antenna / Splitter

13 Upgrading CellCom®/FreeSpeak® wireless systems.

Beltpack application upgrade required

MVX-A16 card

7.2.2 Upgrading the MVX-A16 boot and app code using the Renesas FDT

7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx

tools

Clear-Com recommends upgrading the MVX boot and application code using the combined MVX boot and application code file. See the Drivers USB.

MK II (Blue) card only

Eclipse HX-PiCo

5.4.1 Upgrading the CPU card app code using EHX with Ethernet connection

AES-6

No upgrade required.

EHX configuration / Dynam-EC software

4.2 Backing up your EHX 7.x/8.x/9.0 configurations

4.3 Installing EHX and Dynam-EC Clients

4.4 Importing your configurations into EHX

CPU card

5.4 Upgrading the CPU card application code

Eclipse | Upgrade Guide

Page 23

Order

System component

Upgrade procedure(s)

Notes

Dynam-EC

4.5 Updating

Table 3-2: Procedures for upgrading from Eclipse HX v7.0 to Eclipse HX v9.1

3.3 Upgrading from 7.1

The following table lists the procedures that you will require to upgrade from Eclipse HX v7.1 to Eclipse HX v9.1.

Important note:

The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference / link.

Order

System component

Upgrade procedure(s)

Notes

E-QUE card IVC-32 card LMC-64 card

9.1 Identifying MK1 and MK2 E-QUE cards

9.2 Upgrading the E-QUE card (MK1)

The procedures used to upgrade E-QUE cards to Eclipse HX v9.1 can also be used to upgrade IVC32 and LMC-64 cards.

Eclipse | Upgrade Guide

Page 24

Order

System component

Upgrade procedure(s)

Notes

9.3 Upgrading the E-QUE card (MK2)

No PROM upgrade is required

E-MADI64 card

11.3 Upgrading the E-MADI64 application, DSP and FPGA code using EHX

11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set

No DSP upgrade required.

(Note – if the E-MADI64 card is upgraded before the CPU Card then there is no E-MADI card LED activity during the upgrade. See E-MADI64 section for important upgrade information).

E-FIB card

No upgrade required.

VSerie s panel s

Uboot

14.3 Manually upgrading V-Series Panels

Kernel

Root file system

App code

14.3 Manually upgrading V-Series Panels

Display module

14.1 Upgrading panels using EHX 5

i-Station

No upgrade required

Eclipse | Upgrade Guide

Page 25

Order

System component

Upgrade procedure(s)

Notes

CellCom / FreeSpeak Beltpack / Antenna / Splitter

13 Upgrading CellCom®/FreeSpeak® wireless systems.

Beltpack application upgrade required

MVX-A16 card

7.2.2 Upgrading the MVX-A16 boot and app code using the Renesas FDT

7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx

tools

Clear-Com recommends upgrading the MVX boot and application code using the combined MVX boot and application code file. See the Drivers USB.

MK II (Blue) card only

Eclipse HX-PiCo

5.4.1 Upgrading the CPU card app code using EHX with Ethernet connection

AES-6

No upgrade required

EHX configuration software

4.2 Backing up your EHX 7.x/8.x/9.0 configurations

4.3 Installing EHX and Dynam-EC Clients

4.4 Importing your configurations into EHX

CPU card

5.4 Upgrading the CPU card application code

Eclipse | Upgrade Guide

Page 26

Order

System component

Upgrade procedure(s)

Notes

Dynam-EC

4.5 Updating

Table 3-3: Procedures for upgrading from Eclipse HX v7.1 to Eclipse HX v9.1

3.4 Upgrading from 7.5

The following table lists the procedures that you will require to upgrade from Eclipse HX v7.5 to Eclipse HX v9.1.

Important note:

The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference / link.

Order

System component

Upgrade procedure(s)

Notes

E-QUE card IVC-32 card LMC-64 card

9.1 Identifying MK1 and MK2 E-QUE cards

9.2 Upgrading the E-QUE card (MK1)

9.3 Upgrading the E-QUE card (MK2)

The procedures used to upgrade E-QUE cards to Eclipse HX v9.1 can also be used to upgrade IVC32 and LMC-64 cards.

No PROM upgrade is required

Eclipse | Upgrade Guide

Page 27

Order

System component

Upgrade procedure(s)

Notes

E-MADI64 card

11.3 Upgrading the E-MADI64 application, DSP and FPGA code using EHX

11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set

No DSP upgrade required.

(Note – if the E-MADI64 card is upgraded before the CPU Card then there is no E-MADI card LED activity during the upgrade. See E-MADI64 section for important upgrade information).

E-FIB card

No upgrade required.

VSerie s panel s

Uboot

14.3 Manually upgrading V-Series Panels

Kernel

Root file system

App code

14.3 Manually upgrading V-Series Panels

Display module

14.1 Upgrading panels using EHX 5

i-Station

No upgrade required

CellCom / FreeSpeak Beltpack / Antenna / Splitter

13 Upgrading CellCom®/FreeSpeak® wireless systems.

Antenna application only.

Eclipse | Upgrade Guide

Page 28

Order

System component

Upgrade procedure(s)

Notes

MVX-A16 card

7.2.2 Upgrading the MVX-A16 boot and app code using the Renesas FDT

7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx

tools

Clear-Com recommends upgrading the MVX boot and application code using the combined MVX boot and application code file. See the Drivers USB.

MK II (Blue) card only

Eclipse HX-PiCo

5.4.1 Upgrading the CPU card app code using EHX with Ethernet connection

AES-6

No upgrade required

EHX configuration software

4.2 Backing up your EHX 7.x/8.x/9.0 configurations

4.3 Installing EHX and Dynam-EC Clients

4.4 Importing your configurations into EHX

CPU card

5.4 Upgrading the CPU card application code

Dynam-EC

4.5 Updating

Dynam-EC is also installed as part of the EHX/Dynam-EC combined installer. This section details how to install the DynamEC client only on a machine i.e. where only the dynamic online

Eclipse | Upgrade Guide

Page 29

Order

System component

Upgrade procedure(s)

Notes

matrix audio monitoring and control is required.

Table 3-4: Procedures for upgrading from Eclipse HX v7.5 to Eclipse HX v9.1

3.5 Upgrading from 7.6

The following table lists the procedures that you will require to upgrade from Eclipse HX v7.6 to Eclipse HX v9.1.

Important note:

The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference / link.

Order

System component

Upgrade procedure(s)

Notes

E-QUE card IVC-32 card LMC-64 card

9.1 Identifying MK1 and MK2 E-QUE cards

9.2 Upgrading the E-QUE card (MK1)

9.3 Upgrading the E-QUE card (MK2)

The procedures used to upgrade E-QUE cards to Eclipse HX v9.1 can also be used to upgrade IVC32 and LMC-64 cards.

No PROM upgrade is required

E-MADI64 card

11.3 Upgrading the E-MADI64 application, DSP and FPGA code using EHX

11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set

No DSP upgrade required.

(Note – if the E-MADI64 card is upgraded before the CPU Card then there is no E-MADI card LED activity during the upgrade. See E-MADI64 section for important upgrade information).

Eclipse | Upgrade Guide

Page 30

Order

System component

Upgrade procedure(s)

Notes

E-FIB card

No upgrade required.

VSerie s panel s

Uboot

14.3 Manually upgrading V-Series Panels

Kernel

Root file system

App code

14.3 Manually upgrading V-Series Panels

Display module

14.1 Upgrading panels using EHX

i-Station

No upgrade required

CellCom / FreeSpeak Beltpack / Antenna / Splitter

13 Upgrading CellCom®/FreeSpeak® wireless systems.

Beltpack application only

MVX-A16 card

7.2.2 Upgrading the MVX-A16 boot and app code using the Renesas FDT

7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx

tools

Clear-Com recommends upgrading the MVX boot and application code using the combined MVX boot and application code file. See the Drivers USB.

MK II (Blue) card only

Eclipse | Upgrade Guide

Page 31

Order

System component

Upgrade procedure(s)

Notes

Eclipse HX-PiCo

5.4.1 Upgrading the CPU card app code using EHX with Ethernet connection

AES-6

No upgrade required.

EHX configuration / Dynam-EC software

4.2 Backing up your EHX 7.x/8.x/9.0 configurations

4.3 Installing EHX and Dynam-EC Clients

4.4 Importing your configurations into EHX

CPU card

5.4 Upgrading the CPU card application code

Dynam-EC

4.5 Updating

FreeSpeak II Beltpack, Antenna Transceiver

17 Upgrading FreeSpeak II™ wireless systems

Beltpack application only.

Table 3-5: Procedures for upgrading from Eclipse HX v7.6 to Eclipse HX v9.1

Eclipse | Upgrade Guide

Page 32

3.6 Upgrading from 8.0

The following table lists the procedures that you will require to upgrade from Eclipse HX v8.0 to Eclipse HX v9.1.

Important note:

The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference / link.

Order

System component

Upgrade procedure(s)

Notes

E-QUE card IVC-32 card LMC-64 card

9.1 Identifying MK1 and MK2 E-QUE cards

9.2 Upgrading the E-QUE card (MK1)

9.3 Upgrading the E-QUE card (MK2)

The procedures used to upgrade E-QUE cards to Eclipse HX v9.1 can also be used to upgrade IVC32 and LMC-64 cards.

No PROM or FPGA upgrade is required.

E-MADI64 card

11.3 Upgrading the E-MADI64 application, DSP and FPGA code using EHX

11.4 Upgrading the E-MADI64 FPGA using the Xilinx tool set

No DSP upgrade required.

(Note – if the E-MADI64 card is upgraded before the CPU Card then there is no E-MADI card LED activity during the upgrade. See E-MADI64 section for important upgrade information).

E-FIB card

No upgrade required.

Uboot

14.3 Manually upgrading V-Series Panels

Eclipse | Upgrade Guide

Page 33

Order

System component

Upgrade procedure(s)

Notes

VSerie s panel s

Kernel

Root file system

App code

14.3 Manually upgrading V-Series Panels

Display module

14.1 Upgrading panels using EHX

i-Station

Upgrade required.

CellCom / FreeSpeak Beltpack / Antenna / Splitter

13 Upgrading CellCom®/FreeSpeak® wireless systems.

Beltpack application only

MVX-A16 card

7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx

tools

MK II (Blue) card only

Eclipse HX-PiCo

5.4.1 Upgrading the CPU card app code using EHX with Ethernet connection

AES-6

No upgrade required.

Eclipse | Upgrade Guide

Page 34

Order

System component

Upgrade procedure(s)

Notes

EHX configuration / Dynam-EC software

4.2 Backing up your EHX 7.x/8.x/9.0 configurations

4.3 Installing EHX and Dynam-EC Clients

4.4 Importing your configurations into EHX

CPU card

5.4 Upgrading the CPU card application code

Dynam-EC

4.5 Updating

FreeSpeak II Beltpack, Antenna Transceiver

17 Upgrading FreeSpeak II™ wireless systems

Table 3-6: Procedures for upgrading from Eclipse HX v8.0 to Eclipse HX v9.1

Eclipse | Upgrade Guide

Page 35

3.7 Upgrading from 8.5

The following table lists the procedures that you will require to upgrade from Eclipse HX v8.5 to Eclipse HX v9.1.

Important note:

The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference / link.

Order

System component

Upgrade procedure(s)

Notes

E-QUE card IVC-32 card LMC-64 card

9.1 Identifying MK1 and MK2 E-QUE cards

9.2 Upgrading the E-QUE card (MK1)

9.3 Upgrading the E-QUE card (MK2)

The procedures used to upgrade E-QUE cards to Eclipse HX v9.1 can also be used to upgrade IVC32 and LMC-64 cards.

No PROM or FPGA upgrade is required.

E-MADI64 card

No upgrade required.

E-FIB card

No upgrade required.

V-Series panels

Uboot

14.3 Manually upgrading V-Series Panels

Kernel

Root file system

App code

14.3 Manually upgrading V-Series Panels

Eclipse | Upgrade Guide

Page 36

Order

System component

Upgrade procedure(s)

Notes

Display module

14.1 Upgrading panels using EHX

i-Station

No upgrade required.

CellCom / FreeSpeak Beltpack / Antenna / Splitter

13 Upgrading CellCom®/FreeSpeak® wireless systems.

Beltpack application only

MVX-A16 card

7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx

tools

MK II (Blue) card only

Eclipse HX-PiCo

5.4.1 Upgrading the CPU card app code using EHX with Ethernet connection

AES-6

No upgrade required.

EHX configuration / Dynam-EC software

4.2 Backing up your EHX 7.x/8.x/9.0 configurations

4.3 Installing EHX and Dynam-EC Clients

4.4 Importing your configurations into EHX

CPU card

5.4 Upgrading the CPU card application code

Eclipse | Upgrade Guide

Page 37

Order

System component

Upgrade procedure(s)

Notes

Dynam-EC

4.5 Updating

FreeSpeak II Beltpack, Antenna Transceiver

17 Upgrading FreeSpeak II™ wireless systems

Table 3-7: Procedures for upgrading from Eclipse HX v8.5 to Eclipse HX v9.1

3.8 Upgrading from 8.5.1

The following table lists the procedures that you will require to upgrade from Eclipse HX v8.5.1 to Eclipse HX v9.1.

Important note:

The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference / link.

Order

System component

Upgrade procedure(s)

Notes

E-QUE card IVC-32 card LMC-64 card

9.1 Identifying MK1 and MK2 E-QUE cards

9.2 Upgrading the E-QUE card (MK1)

The procedures used to upgrade E-QUE cards to Eclipse HX v9.1 can also be used to upgrade IVC32 and LMC-64 cards.

Eclipse | Upgrade Guide

Page 38

Order

System component

Upgrade procedure(s)

Notes

9.3 Upgrading the E-QUE card (MK2)

No PROM or FPGA upgrade is required.

E-MADI64 card

No upgrade required.

E-FIB card

No upgrade required.

V-Series panels

Uboot

14.3 Manually upgrading V-Series Panels

Kernel

Root file system

App code

14.3 Manually upgrading V-Series Panels

Display module

14.1 Upgrading panels using EHX

i-Station

No upgrade required.

CellCom / FreeSpeak Beltpack / Antenna / Splitter

13 Upgrading CellCom®/FreeSpeak® wireless systems.

Beltpack application only

Eclipse | Upgrade Guide

Page 39

Order

System component

Upgrade procedure(s)

Notes

MVX-A16 card

See 7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx

tools.

MK II (Blue) card only

Eclipse HX-PiCo

5.4.1 Upgrading the CPU card app code using EHX with Ethernet connection

AES-6

No upgrade required.

EHX configuration / Dynam-EC software

4.2 Backing up your EHX 7.x/8.x/9.0 configurations

4.3 Installing EHX and Dynam-EC Clients

4.4 Importing your configurations into EHX

CPU card

5.4 Upgrading the CPU card application code

Dynam-EC

4.5 Updating

Eclipse | Upgrade Guide

Page 40

Order

System component

Upgrade procedure(s)

Notes

FreeSpeak II Beltpack, Antenna Transceiver

17 Upgrading FreeSpeak II™ wireless systems

1.9 and 2.4 FS II Beltpack application only

Table 3-8: Procedures for upgrading from Eclipse HX v8.5.1 to Eclipse HX v9.1

3.9 Upgrading from 8.5.2

The following table lists the procedures that you will require to upgrade from Eclipse HX v8.5.2 to Eclipse HX v9.1.

Important note:

The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference / link.

Order

System component

Upgrade procedure(s)

Notes

E-QUE card IVC-32 card LMC-64 card

9.1 Identifying MK1 and MK2 E-QUE cards

9.2 Upgrading the E-QUE card (MK1)

9.3 Upgrading the E-QUE card (MK2)

The procedures used to upgrade E-QUE cards to Eclipse HX v9.1 can also be used to upgrade IVC32 and LMC-64 cards.

No PROM or FPGA upgrade is required.

E-MADI64 card

No upgrade required.

E-FIB card

No upgrade required.

V-Series panels

Uboot

14.3 Manually upgrading V-Series Panels

Kernel

Eclipse | Upgrade Guide

Page 41

Order

System component

Upgrade procedure(s)

Notes

Root file system

App code

14.3 Manually upgrading V-Series Panels

Display module

14.1 Upgrading panels using EHX

i-Station

No upgrade required.

CellCom / FreeSpeak Beltpack / Antenna / Splitter

No upgrade required.

MVX-A16 card

7.4 Upgrading the MVX-A16 MK I or MK II card FPGA with Xilinx

tools

MK II (Blue) card only

Eclipse HX-PiCo

5.4.1 Upgrading the CPU card app code using EHX with Ethernet connection

AES-6

No upgrade required.

Eclipse | Upgrade Guide

Page 42

Order

System component

Upgrade procedure(s)

Notes

EHX configuration / Dynam-EC software

4.2 Backing up your EHX 7.x/8.x/9.0 configurations

4.3 Installing EHX and Dynam-EC Clients

4.4 Importing your configurations into EHX

CPU card

5.4 Upgrading the CPU card application code

Dynam-EC

4.5 Updating

FreeSpeak II Beltpack, Antenna Transceiver

17 Upgrading FreeSpeak II™ wireless systems

1.9 and 2.4 FS II Beltpack application only

Table 3-9: Procedures for upgrading from Eclipse HX v8.5.2 to Eclipse HX v9.1

3.10 Upgrading from 8.7

The following table lists the procedures that you will require to upgrade from Eclipse HX v8.7 to Eclipse HX v9.1.

Important note:

The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference / link.

Eclipse | Upgrade Guide

Page 43

Order

System component

Upgrade procedure(s)

Notes

E-QUE card IVC-32 card LMC-64 card

No upgrade required.

E-MADI64 card

No upgrade required.

E-FIB card

No upgrade required.

V-Series panels

Uboot

14.3 Manually upgrading V-Series Panels

Kernel

Root file system

App code

14.3 Manually upgrading V-Series Panels

Display module

14.1 Upgrading panels using EHX

i-Station

No upgrade required.

CellCom / FreeSpeak Beltpack / Antenna / Splitter

No upgrade required.

MVX-A16 card

No upgrade required.

Eclipse | Upgrade Guide

Page 44

Order

System component

Upgrade procedure(s)

Notes

Eclipse HX-PiCo

5.4.1 Upgrading the CPU card app code using EHX with Ethernet connection

AES-6

No upgrade required.

EHX configuration / Dynam-EC software

4.2 Backing up your EHX 7.x/8.x/9.0 configurations

4.3 Installing EHX and Dynam-EC Clients

4.4 Importing your configurations into EHX

CPU card

5.4 Upgrading the CPU card application code

Dynam-EC

4.5 Updating

FreeSpeak II Beltpack, Antenna Transceiver

No upgrade required.

Table 3-10: Procedures for upgrading from Eclipse HX v8.7 to Eclipse HX v9.1

Eclipse | Upgrade Guide

Page 45

3.11 Upgrading from 8.8

The following table lists the procedures that you will require to upgrade from Eclipse HX v8.8 to Eclipse HX v9.1.

Important note:

The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference / link.

Order

System component

Upgrade procedure(s)

Notes

E-QUE card IVC-32 card LMC-64 card

No upgrade required.

E-MADI64 card

No upgrade required.

E-FIB card

No upgrade required.

V-Series panels

Uboot

14.3 Manually upgrading V-Series Panels

Kernel

Root file system

App code

14.3 Manually upgrading V-Series Panels

Eclipse | Upgrade Guide

Page 46

Order

System component

Upgrade procedure(s)

Notes

Display module

14.1 Upgrading panels using EHX

i-Station

No upgrade required.

CellCom / FreeSpeak Beltpack / Antenna / Splitter

No upgrade required.

MVX-A16 card

No upgrade required.

Eclipse HX-PiCo

5.4.1 Upgrading the CPU card app code using EHX with Ethernet connection

AES-6

No upgrade required.

EHX configuration / Dynam-EC software

4.2 Backing up your EHX 7.x/8.x/9.0 configurations

4.3 Installing EHX and Dynam-EC Clients

4.4 Importing your configurations into EHX

CPU card

5.4 Upgrading the CPU card application code

Dynam-EC

4.5 Updating

Dynam-EC is also installed as part of the EHX/Dynam-EC combined installer. This section details how to install the Dynam-

Eclipse | Upgrade Guide

Page 47

Order

System component

Upgrade procedure(s)

Notes

EC client only on a machine i.e. where only the dynamic online matrix audio monitoring and control is required.

FreeSpeak II Beltpack, Antenna Transceiver

No upgrade required.

E-DANTE64-HX Card

No upgrade required.

Table 3-11: Procedures for upgrading from Eclipse HX v8.8 to Eclipse HX v9.1

3.12 Upgrading from 9.0

The following table lists the procedures that you will require to upgrade from Eclipse HX v9.0 to Eclipse HX v9.1.

Important note:

The table lists the procedures in the order in which they must be carried out. To go to a procedure, click the cross-reference / link.

Eclipse | Upgrade Guide

Page 48

Order

System component

Upgrade procedure(s)

Notes

E-QUE card IVC-32 card LMC-64 card

No upgrade required.

E-MADI64 card

No upgrade required.

E-FIB card

No upgrade required.

V-Series panels

Uboot

No upgrade required.

Kernel

Root file system

App code

14.3 Manually upgrading V-Series Panels

Display module

No upgrade required.

i-Station

No upgrade required.

CellCom / FreeSpeak Beltpack / Antenna / Splitter

No upgrade required.

MVX-A16 card

No upgrade required.

Eclipse | Upgrade Guide

Page 49

Order

System component

Upgrade procedure(s)

Notes

Eclipse HX-PiCo

5.4.1 Upgrading the CPU card app code using EHX with Ethernet connection

AES-6

No upgrade required.

EHX configuration / Dynam-EC software

4.2 Backing up your EHX 7.x/8.x/9.0 configurations

4.3 Installing EHX and Dynam-EC Clients

4.4 Importing your configurations into EHX

CPU card

5.4 Upgrading the CPU card application code

Dynam-EC

4.5 Updating

FreeSpeak II Beltpack, Antenna Transceiver

No upgrade required.

E-DANTE64-HX Card

No upgrade required.

Table 3-11: Procedures for upgrading from Eclipse HX v8.8 to Eclipse HX v9.1

Eclipse | Upgrade Guide

Page 50

4 Upgrading to Eclipse HX v9.1

This chapter describes the files you require to install Eclipse HX v9.1. It also describes how to back up your ECS 5.2.5 configurations and import them into Eclipse HX v9.1

Important notes:

This guide is laid out in the order in which you must upgrade your Eclipse software and hardware devices to Eclipse 9.0. For a quick reference to upgrading your system, see 3Quick reference: Upgrading to Eclipse HX.

4.1 Backing up your ECS v5.2.5 configurations

Back up your ECS v5.2.5 configurations by exporting them from ECS v5.2.5 to a hard disk location. In ECS:

1) Open the configuration you wish to save.

2) Select File > Export Project.

3) Save the configuration to a location on your hard drive. The configuration will be

saved as a *.ccn file, which you can import later into EHX (the configuration software for Eclipse HX v9.1).

Note: EHX can open *.ccn format files as well as its own *.hxn format configuration files.

Repeat the above procedure for all the configurations you want to save.

4.2 Backing up your EHX 7.x/8.x/9.0 configurations

Back up your EHX 7.x/8.x configurations by saving them to a secure location on your hard drive.

1) Open the configuration you wish to save.

2) Select File > Save Project.

4.3 Installing EHX and Dynam-EC Clients

EHX is the configuration software for Eclipse HX v9.1. Dynam-EC is the application used for online monitoring and dynamic audio routing.

The Eclipse HX v9.1 software USB contains a number of executable (*.exe) files for installing EHX and Dynam-EC:

Eclipse | Upgrade Guide

Page 51

Installation (*.exe) file

Description and comments

EHXDynam-ECSetup.exe

The installer for the client version of EHX (both 32 and 64 bit machines) and Dynam-EC (both 32 and 64 bit machines).

You can use the EHX Client version to connect:

• Directly to a matrix in Client-only mode.

• To an EHX Server in Client-Server mode.

EHXServerSetup.exe

The installer for the server version of EHX (both 32 and 64 bit machines).

The EHX Server enables multiple EHX clients to work together when configuring an Eclipse HX system.

Table 4-1: Installing EHX

Note: If you are required to uninstall and re-install EHX for any reason, ensure to save your

configurations for re-importing into EHX (see section below). You can uninstall EHX from your Windows All Programs menu.

EHX uninstall will stop and restart IIS during the uninstall process to remove any files that are currently in use.

Additionally, if a PC only requires the installation of Dynam-EC then the standalone installer for Dynam-EC should be used. See the section below.

4.4 Importing your configurations into EHX

The procedure below is only applicable if you are running EHX in Client-Server mode.

Tip: Remember to import any control macros which may be associated with a

configuration.

To import a saved configuration from ECS v5.2.5 into EHX:

1) Open EHX. From the top menu bar, select File > Import Project.

2) Navigate to the ECS v5.2.5 configuration (*.ccn) file saved to your hard drive.

To import the file, click Open.

Note: EHX can open *.ccn format files as well as its own *.hxn format configuration files.

To import a saved project from an earlier version of EHX or ECS into EHX in Client-only mode:

3) Open EHX. Select File > Open.

Eclipse | Upgrade Guide

Page 52

4) Navigate to the project file (*.hxn or *.ccn format) saved to your hard drive.

Click Open.

Note: If you import a .ccn file, remember to save your imported project as an *.hxn format

file.

Repeat the above procedure for all the configurations you want to import.

4.5 Updating Dynam-EC

If you are installing Dynam-EC as an update to an existing Dynam-EC installation, you must first uninstall your existing version of Dynam-EC. Ensure that you save your Dynam-EC layouts project files (*.ccr files) and all relevant EHX system configurations (*.hxn files)

To update Dynam-EC to your PC:

1) Insert the USB into the PC. Navigate to the USB and click the relevant *.exe file

for your machine.

2) When the Setup wizard has loaded, the License Agreement dialog is

displayed. Use the internal scroll bar to review the agreement. To continue with the installation, click I Agree.

3) The Choose Install Location dialog is displayed. The default location is

Program Files > ClearCom on the C Drive. To select a different location, click Browse. To continue, click Next.

4) The Choose Start Menu Folder dialog is displayed. The default Start Menu

folder is Clear-Com\Dynam-EC. To select an alternative folder either:

• Select from the list of existing Start Menu folders. Use the dialog scroll bar

to navigate the list.

• Enter a name into the selection field to create a new folder.

To prevent the creation of shortcuts, select Do not create shortcuts. Click Install.

5) Dynam-EC starts to install. During installation, an installation progress bar is

displayed. For more detailed information about the progress of the installation, click Show Details.

When the installation is complete, click Close.

Note: On installing Dynam-EC, a firewall dialog may be displayed asking if Windows should

Block or Unblock Dynam-EC. Select Unblock Dynam-EC.

Eclipse | Upgrade Guide

Page 53

5 Upgrading the CPU cards

This chapter describes how to upgrade the Boot PROM, CPLD and application code for the CPU cards, two of which are fitted to the Eclipse HX-Median, Eclipse HX-Omega and Eclipse HX-Delta matrices.

Note: This guide is laid out in the order in which you must upgrade your Eclipse HX software

and hardware devices. For a quick reference to upgrading your system, see 3Quick reference: Upgrading to Eclipse HX.

Eclipse HX devices are powered by mains voltage. Unless specifically advised to the contrary, disconnect mains supply before carrying out any maintenance or repair tasks. Observe precautions for handling electrostatic sensitive devices.

Changing the CPU card PROM, RAM and DIP switch settings

The CPU card PROM and RAM should be changed at the same time. The CPU card DIP switch settings must also be upgraded.

5.1 Changing the CPU card PROM

Note: When you change the CPU card PROM, you must also change the CPU card RAM (from

128Mb RAM to 256Mb RAM). See 5.2 Changing the CPU card RAM below.

To change the CPU card PROM:

1) Ensure that you have the following equipment:

• 2MBit PROM device (ST M27W201 or equivalent).

• PROM Programming Unit (with the appropriate programming software for that

unit).

• The *.s record file for the CPU card boot PROM. To find the file, go to:

Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > xxxxxx – Config Boot PROM

Where xxxxxx represents the product number. . The folder contains the *.s record file and a Read Me file (*.txt), with version information.

2) Program the PROM device with the *.s record file. Follow the instructions for the

PROM Programming Unit you are using.

Note: Ensure that the PROM device is empty before you begin programming.

3) Ensure that the checksum of the programmed device matches the checksum in

the Eclipse HX Release Notes.

Eclipse | Upgrade Guide

Page 54

4) Remove the existing PROM device from the CPU card.

5) Insert the newly programmed PROM device, taking care to ensure the correct

polarity of the device.

5.2 Changing the CPU card RAM

Note: When you change the CPU card RAM (from 128Mb RAM to 256Mb RAM), you must also

change the CPU card PROM. See 5.1 Changing the CPU card PROM above.

To change the CPU card RAM (from 128Mb to 256Mb):

1) Ensure that you have the replacement 256Mb CPU card RAM to hand.

2) Remove the CPU card from the Eclipse HX-Median, Eclipse HX-Omega or Eclipse

HX-Delta matrix.

3) The cassette that holds the CPU card RAM daughter board is located towards the

center of the main board:

Figure 5-1: CPU card 128Mb RAM daughter board

To release the 128Mb RAM daughter board, push back the levers to either side of the cassette. Remove the board.

4) Fit the replacement 256Mb CPU card RAM daughter board to the cassette. The

daughter board is fitted chip-side up. Ensure that the daughter board is securely fitted (only the top edge of the connectors along the lower edge of the board should be visible).

Eclipse | Upgrade Guide

Page 55

Figure 5-2: CPU card 256Mb RAM daughter board

5) Secure the RAM daughter board by closing the levers to either side of the

cassette.

6) Return the CPU card to the Eclipse HX-Median, Eclipse HX-Omega or Eclipse HX-

Delta matrix.

5.3 Changing the CPU card DIP switches

To change the CPU card DIP switches to the appropriate Eclipse HX v9.1 settings, see either:

• Appendix B: CPU card DIP switches

• 5.4.3 Upgrading the CPU Card app code using Tera Term

5.4 Upgrading the CPU card application code

5.4.1 Upgrading the CPU card app code using EHX with

Ethernet connection

Before you upgrade the CPU card application code, check that:

• The PC can successfully connect to the matrix with an Ethernet connection by

viewing the Event Log (Diagnostics > Event Log) in EHX.

• There is a valid configuration in the matrix. A valid configuration enables the

matrix to identify its IP address and run its TCP / IP stack.

Note: Both CPU cards may remain in place (inserted) for this procedure.

To upgrade the CPU card application code, using EHX with an Ethernet connection:

Eclipse | Upgrade Guide

Page 56

1) Ensure that you have the following equipment:

Required equipment

Description / comments

PC with an Ethernet connector

LAN cable for the PC-tomatrix connection

For direct connections, use Ethernet crossover cable. If the connection passes through an Ethernet switch on its way to the PC / matrix, use straight CAT5 cable.

EHX installation

EHX must be configured and operational.

An EHX configuration file (*.hxn or *.ccn format)

The configuration file must have an appropriate IP address set.

The appropriate *.fwr data file for the CPU card application

You can find the *.fwr data file on the software USB:

Software USB > SOFTWARE - EHX.xxx > SOFTWARE - EHX.xxx > Eclipse HXOmega-Median-Delta > xxxxxx – Config Card Application (where xxxxxx represents

the product number).

Table 5-1: Required equipment

2) Start EHX. Select File > Matrix connection.

3) In the Matrix connection dialog, select the Ethernet communications option.

4) Connect the PC to the Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta

matrix, using the LAN#1 port on the rear of the matrix.

5) In EHX, select File > Import project. Navigate to the configuration file (*.ccn or

*.hxn format) and click Open to import the file.

6) Select System > Layout. In the work area, right click the Eclipse HX-Median /

Eclipse HX-Omega / Eclipse HX-Delta matrix.

7) From the menu, select Firmware > Update Firmware.

Eclipse | Upgrade Guide

Page 57

Figure 5-3: Upgrading app code: Matrix firmware update

1) In the Firmware update wizard, click Next. Ensure that Matrix is selected in the

following dialog, then click Next again.

2) In the next dialog, click Browse and navigate to the required *.fwr file for the

Eclipse HX-Omega / Eclipse HX-Median / Eclipse HX-Delta CPU card application:

a. Go to Software USB > SOFTWARE - EHX.xxx > SOFTWARE -

EHX.xxx > Eclipse HX-Omega-Median-Delta > xxxxxx – Config Card Application (where xxxxxx represents the product number).

The folder contains the *.fwr file and a Read Me file (*.txt) with version information.

b. Select the*.fwr file and click Open. Ensure that the correct file name is

displayed in the dialog.

3) Click Next. Confirm that the correct file has been selected, and click Next again

to start the firmware update. The update will take approximately 2 minutes.

Tip: While the update is in progress, check that the SI LED on the front of the

CPU card(s) is flashing rapidly. Rapid flashes indicate communication with the PC.

4) When the update is completed, click Finish in the Firmware Update wizard.

The Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta (matrix) matrix reboots. The CPU card(s) is reset.

Download a configuration file (apply changes), using EHX.

Note: The CPU card uses a default configuration that is embedded in the download application

(even though the CPU DOT matrix display shows zero (0)). The default configuration helps with the initial hardware configuration and testing of the Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta matrix by providing usable functionality to each of the MVX-A16 cards fitted to the matrix.

Eclipse | Upgrade Guide

Page 58

5.4.2 Upgrading the CPU card app code with EHX using a serial

link

You can upgrade the CPU card with EHX using a serial link, whether or not there is a valid configuration (map) on the Eclipse HX-Median / Eclipse HX-Omega matrix / Eclipse HX-Delta. Both CPU cards may remain inserted during the upgrade. You may choose to perform the initial upgrade with EHX using a serial connection, then move to an Ethernet connection for future configuration downloads and upgrades, once an IP address has been configured.

Note: Before you use this procedure, check that the matrix event log can connect serially to a

CPU card with a configuration. Both CPU cards may remain inserted during the upgrade.

To upgrade the application code with EHX, using a serial link:

1) Ensure that you have the following equipment:

Required equipment

Description / comments

PC with either a serial port connection or USB-to-serial port adaptor

If using a USB-to-serial port adaptor cable, you must connect the cable before starting EHX to enable EHX to detect the USB port as a COM port.

Standard RS232 serial cable (9-pin D-Type to 9-pin DType)

EHX installation

EHX must be configured and operational.

An EHX configuration file (*.hxn or *.ccn format)

The configuration file must have the appropriate IP addresses set.

The appropriate *.fwr data file for the CPU card application

You can find the *.fwr data file on the software USB:

Software USB > SOFTWARE - EHX.xxx > SOFTWARE - EHX.xxx > Eclipse HXOmega-Median-Delta > xxxxxx – Config Card Application

(where xxxxxx represents the product number).

Table 5-2: Required equipment

2) Start EHX. Select File > Matrix connection.

3) In the Matrix connection dialog, select the serial communications option.

4) Select the correct COM port then click OK.

5) Use the RS232 cable to connect the PC with the serial port on the rear of the

Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta matrix.

Eclipse | Upgrade Guide

Page 59

6) Do one of the following:

• If you are running EHX in Client-Server mode, select File > Import

project. Navigate to the configuration (*.ccn) file and click Open to

import the file.

• If you are running EHX in Client-Only mode, select File > Open.

Navigate to the configuration (*.ccn) and open the file.

Note: EHX can open *.ccn format files as well as its own *.hxn format configuration files.

7) Select System > Layout. In the work area, right click the Eclipse HX-Median /

Eclipse HX-Omega / Eclipse HX-Delta matrix.

8) From the menu, select Firmware > Update Firmware.

Figure 5-4: Upgrading app code: Matrix firmware update

9) In the Firmware update wizard, click Next. Ensure that Matrix is selected in the

following dialog, then click Next again.

10) In the next dialog, click Browse and navigate to the required *.fwr file for the

Eclipse HX-Omega / Eclipse HX-Median / Eclipse HX-Delta CPU card application:

a. Go to Software USB > SOFTWARE - EHX.xxx > SOFTWARE -

EHX.xxx > Eclipse HX-Omega-Median-Delta > xxxxxx – Config Card Application (where xxxxxx represents the product number).

The folder contains the *.fwr file and a Read Me file (*.txt) with version information.

b. Select the*.fwr file and click Open. Ensure that the correct file name is

displayed in the dialog.

Click Open. Ensure that the correct file name is displayed in the dialog.

Eclipse | Upgrade Guide

Page 60

11) Click Next. Confirm that the correct file has been selected and then click Next

again to start the firmware update. The update will take approximately 2 minutes.

Tip: While the update is in progress, check that the SI LED on the front of the

CPU card(s) is flashing rapidly. Rapid flashes indicate communication with the PC.

Note: If you are upgrading from v5.2.5 to Eclipse HX v9.1, the download dialog does not

automatically finish. This is due to a messaging change between the two system architectures. Instead, close the dialog (which will continue to indicate Verifying) when the matrix reboots (see Step 11).

12) When the update is completed, click Finish in the Firmware Update wizard.

The Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta (matrix) matrix reboots. The CPU card(s) is reset.

Download a configuration file (apply changes), using EHX.

Note: The CPU card uses a default configuration that is embedded in the download application

If the upgrade fails

If the upgrade of both CPU cards fails, repeat the procedure (with only one CPU card in the matrix) for each card. When the procedure is complete, insert both the CPU cards into the Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta matrix.

If there was no previous configuration loaded in the matrix, download a basic configuration file (apply changes) to the CPU cards using EHX. Make any further configuration changes over the Ethernet LAN.

Tip: For more information about setting up a configuration, see the EHX User Guide.

5.4.3 Upgrading the CPU Card app code using Tera Term

To upgrade the CPU card application code using Tera Term:

1) Ensure that you have the following equipment:

Required equipment

Description / comments

PC with either a serial port connection or USB-to-serial port adaptor

If using a USB-to-serial port adaptor cable, you must connect the cable before starting EHX to enable EHX to detect the USB port as a COM port.

Eclipse | Upgrade Guide

Page 61

Required equipment

Description / comments

Standard RS232 serial cable (9-pin D-Type to 9pin D-Type)

Tera Term installation

Tera Term must be configured and operational. You can find the Tera Term application on both of the Eclipse HX 9.0 upgrade media:

Software USB > SOFTWARE - EHX.xxx > SOFTWARE - EHX.xxx > 3rd_Party_Software > Teraterm

Drivers USB > ECLIPSE DRIVERS > 3rd_Party_Software > Teraterm

An EHX configuration file (*.hxn or *.ccn format)

The configuration file must have the appropriate IP addresses set.

The appropriate *.fwr data file for the CPU card application

You can find the *.fwr data file on the software USB:

Software USB > SOFTWARE - EHX.xxx > SOFTWARE - EHX.xxx > Eclipse HXOmega-Median-Delta > xxxxxx – Config Card Application (where xxxxxx represents the part number).

Table 5-3: Required equipment

2) Install the Tera Term application. Accept all default settings.

Tip: To find out how to install Tera Term, see Appendix G:Tera Term.

3) Start Tera Term. In the New Connection dialog, select Serial (connection) and

the COM port to use. Click OK.

Figure 5-5: Tera Term: selecting serial connection

Eclipse | Upgrade Guide

Page 62

Figure 5-6: Tera Term: selecting Serial port

4) From the Setup menu, select the Serial port… entry.

5) The Serial port configuration dialog is displayed. Configure the serial port as

follows:

Field

Data (to enter / select)

Port

Com1

Note:

Change as required to match a COM port on the PC.

Baud Rate

115200

Parity

Even

Stop

One (bits)

Data

8 (bits)

Table 5-4: Tera Term: Serial port configuration

Tip: You can use the Tera Term application for many of the Eclipse HX system

upgrade processes. To save and recall the relevant com port settings in Tera Term, select the Setup / Save or Restore settings options.

6) Connect the PC serial port to the RS232 port on the rear of the Eclipse HX-

Median / Eclipse HX-Omega / Eclipse HX-Delta matrix, using the RS232 cable.

7) Remove both CPU cards from the matrix. Power on the Eclipse HX-Median /

Eclipse HX-Omega / Eclipse HX-Delta matrix.

8) Erase the old application code from the CPU cards.

Eclipse | Upgrade Guide

Page 63

a. Place the CPU card in Test mode.

b. Set the DIP switches on the CPU card as follows:

Figure 5-7: DIP switch settings, Test mode

c. Insert the CPU card into the Eclipse HX-Median / Eclipse HX-Omega /

Eclipse HX-Delta matrix. You can place the card in either the P1 or P2 slot.

d. Confirm that the CPU card has entered test mode. If the card is in test

mode, data similar to the following is displayed on the PC:

Figure 5-8: Tera Term: CPU card test mode.

Note: If you do not see the data above, press Enter on the PC.

Tip: To see all the available options in test mode, press ? on your

keyboard. To see all the current applications loaded onto the CPU, press i.

e. On your PC keyboard, press number 1. To start the erasure of Flash

memory, press Enter (or Return). Select y and Enter to confirm.

Note:

It takes approximately 1 minute to erase Flash.

f. When the Flash has been erased, press number 2 on your keyboard. To

start the erasure of NVRAM, press Enter (or Return). When the NVRAM erase is complete, remove the CPU card.

9) Download the new application code (firmware) to the CPU card(s), using Tera

Term.

a. Place the erased CPU card in serial download mode. Set the DIP switches

on the CPU card as follows:

Eclipse | Upgrade Guide

Page 64

Figure 5-9: Tera Term: DIP switches, serial download mode

b. Insert the CPU card into the Eclipse HX-Median / Eclipse HX-Omega /

Eclipse HX-Delta matrix. The LED on the front of the matrix should flash LD AP.

c. In Tera Term, open File and select Send file… Ensure that the BINARY

option box is selected.

Figure 5-10: Tera Term: Send file…

d. In the Send file dialog > Select the file to download, navigate to the

CPU card application code (firmware) *.fwr file:

i. Go to Software USB > SOFTWARE - EHX.xxx > SOFTWARE -

EHX.xxx > Eclipse HX-Omega-Median-Delta > xxxxxx – Config Card Application (where xxxxxx represents the product

number).

The folder contains the *.fwr file and a Read Me file (*.txt) with version information.

ii.Select the*.fwr file and click OK / Open. Ensure that the correct file

name is displayed in the dialog.

Eclipse | Upgrade Guide

Page 65

e. The file starts to download. Confirm that the CPU card LED matrix display

shows numbers counting up.

Important note:

The count-up display indicates that packets are being received by the CPU card. The numbers do not represent a percentage complete figure.

If the download fails, the CPU card display shows LD Err. This type of failure is usually caused by the user continuing to use the PC for other tasks while the download is occurring. The Tera Term screen will not indicate a failure and will continue to show a download. If this occurs:

i. Abort the Tera Term download (press Cancel in the Tera Term

screen).

ii. Reset the CPU card (by removing the card from the matrix and

reinserting it again).

iii. Check the cable connections, then restart the Send file download

process again.

f. When the download is complete, the CPU card reboots. The CPU card(s) is

reset and the OK LED produces a double flash.

Note:

The zero ( 0 ) displayed indicates that although valid application code is present, the CPU cards do not contain a configuration.

g. Remove the upgraded CPU card and set the DIP switches to normal

running (watchdog) mode:

Figure 5-11: Tera Term: DIP switches in normal running

(watchdog) mode

h. Repeat the above procedure for the second CPU card, if present. Reinsert

both of the upgraded CPU cards into the matrix.

i. The OK LED shows a double flash, which indicates that valid application

code is present, but that there is no configuration in the cards. Download a configuration file (apply changes), using EHX.

Eclipse | Upgrade Guide

Page 66

5.5 Setting the matrix type

The Eclipse HX-Median, Eclipse HX-Omega and Eclipse HX-Delta matrices run common software, which means that when you upgrade the application code for the CPU card, the CPU card cannot automatically distinguish between the two matrix types. You must therefore set the matrix type in EHX.

Note: The Eclipse HX-PiCo runs its own matrix-specific software, and will always identify itself

as an Eclipse HX-PiCo on hardware discovery. There is therefore no requirement to set the matrix type for the Eclipse HX-PiCo.

To set the matrix type:

1) In EHX, select Diagnostics > Event Log.

2) In the Matrix Event Log tab, Click the Play icon [ ].

3) Click Request info. In the dialog (see Figure 5-12: Setting the matrix type),

enter the following custom command:

Custom 145.1.12096. <2 == Eclipse HX-Median, 3 == Eclipse HX-Omega, 4 == Eclipse HX-Delta>

Click Send.

Figure 5-12: Setting the matrix type

Note: If the Event Log does not display, stop and restart the EHX software.

Eclipse | Upgrade Guide

Page 67

5.6 Checking the CPU card application code version

To check the CPU card application code version:

1) In EHX, select Diagnostics > Event Log.

2) In the Matrix Event Log tab, Click the Play icon [ ].

3) Click Request info. In the dialog, select Matrix Overview and click Send.

4) Look for the line that displays the application code (firmware) version. In the

following example, the application code (version) number is 4.28.2.0:

Figure 5-13: Application code (firmware) version

5.7 Upgrading CPU Card U53 CPLD

The U53 image that was embedded in the CPU card firmware image (for upgrade purposes) had to be removed at v8.8. However, the U53 image specified in in the 9.0 firmware release note still needs to be installed on the CPU card to run the 9.0 application.

If the CPU card supports the embedded (DIP switch based) upgrade (see below) and U53 needs upgrading, then temporarily install the CPLD upgrader application CPU card image found on the software release USB and follow the steps below for the duration of the CPLD upgrade. Note – this also applies to the UI CPLD upgrade.

The CPLD upgrader CPU card image can be found next to the official fully featured CPU card application on the software disk in the following folder.

\Eclipse HX-Omega-Median-Delta\Tool – CPLD Updater

Once the CPLD upgrade is complete install the 9.0 CPU card application and complete the remainder of the matrix software and firmware upgrade to 9.0.

The CPU card U53 upgrade can be performed any time after the CPLD upgrader CPU card firmware has been loaded into the card.

The U53 firmware image is embedded in the CPLD upgrader CPU card firmware image and therefore no additional download from EHX is required.

Eclipse | Upgrade Guide

Page 68

Note: Upgrade one CPU card at a time and verify correct functionality of the card after the upgrade before upgrading the second card.

Note – Older revisions of CPU card do not support this following centralized upgrade. In order to establish if a CPU card supports the following upgrade method request a firmware report from EHX. If the U53 and U1 versions for a CPU card are reported as UNKNOWN then this method of CPLD upgrade is not supported and the Xilinx tools method of upgrade detailed in this section will need to be used.

To upgrade a CPU card U53 CPLD device firmware image:

1) Set the CPU card DIP switches as follows. This enables CPLD firmware upgrades.

2) Re-insert the CPU card into the matrix. If the CPLD image requires upgrading

this will be performed and the CPU card will reset on completion to action the image in the CPLD device.

3) When the CPU card initializes (or re-initializes as a result of step 2.) and

determines that the CPLD image is up to date it will output the following message via the LED front panel “CPLD Upgrades Enabled”.

4) When the CPU card is running the CPLD upgrader application it will appear red in

the layout screen indicating that this is not valid image to be configured using the EHX. However, the EHX firmware report can still be used. Use the EHX firmware report to verify that the correct version of the U53 CPLD is now loaded.

5) If the upgrade has been completed disable the CPLD upgrade functionality by

setting the DIP switches to the following settings and downloading the

regular 9.0 CPU card application into the CPU card.

Eclipse | Upgrade Guide

Page 69

5.8 Upgrading CPU Card U1 CPLD

The U51 image that was embedded in the CPU card firmware image prior to v8.8 (for upgrade purposes) had to be removed. However, the U51 image specified in in the 9.0 firmware release note still needs to be installed on the CPU card to run the 9.0 application.

Note: If the CPU card supports the embedded (DIP switch based) upgrade (see below) and U51

needs upgrading, then temporarily install the following CPU application found on the software release USB and follow the steps below for the duration of the CPLD upgrade.

Note: This also applies to the U53 CPLD upgrade.

The CPLD upgrader CPU card image can be found next to the official fully featured CPU card application on the software disk in the following folder.

\Eclipse HX-Omega-Median-Delta\Tool – CPLD Updater

Once the CPLD upgrade is complete install the 9.0 CPU card application and complete the remainder of the matrix software and firmware upgrade to 9.0.

The CPU card U51 upgrade can be performed any time after the CPLD upgrader CPU card firmware has been loaded into the card.

The U51 firmware image is embedded in the CPLD upgrader CPU card firmware image and therefore no additional download from EHX is required.

Note: Upgrade one CPU card at a time and verify correct functionality of the card after the upgrade before upgrading the second card.

Note: Power must not be lost to the CPU card during the upgrade of the U1 CPLD. The duration

of the device load is approximately 5 seconds, but this will only commence a number of seconds after the card has been booted. If power is lost during the U1 CPLD upgrade the Xilinx tools method of upgrade will be required to recover the card. Until this is done the

Eclipse | Upgrade Guide

Page 70

card will not be usable. It is therefore also especially important to upgrade the U1 CPLD on one CPU card at a time.

Note: Older revisions of CPU card do not support this following centralized upgrade. In order to

establish if a CPU card supports the following upgrade method request a firmware report from EHX. If the U53 and U1 versions for a CPU card are reported as UNKNOWN then this method of CPLD upgrade is not supported and the Xilinx tools method of upgrade detailed in this section will need to be used.

To upgrade a CPU card U1 CPLD device firmware image

1) Set the CPU card DIP switches as follows. This enables CPLD firmware upgrades.

2) Re-insert the CPU card into the matrix.

3) Press and hold the ‘Config’ button on the front of the CPU card.

4) Pin reset the CPU card and wait for 5 seconds.

5) Release the ‘Config’ button. . If the CPLD image requires upgrading this will be

performed and the CPU card will reset on completion to action the image in the CPLD device.

6) When the CPU card initializes (or re-initializes as a result of step 2.) and

determines that the CPLD image is up to date it will output the following message via the LED front panel “CPLD Upgrades Enabled”.

7) When the CPU card is running the CPLD upgrader application it will appear red in

Eclipse | Upgrade Guide

Page 71

8) If the upgrade has been completed disable the CPLD upgrade functionality by

setting the DIP switches to the following settings and downloading the regular

9.0 CPU card application into the CPU card.

5.9 Upgrading the CPU card U53 CPLD code with

Xilinx tools

Use the following procedure to upgrade the U53 CPLD code for the CPU card.

To upgrade the CPU U53 CPLD code with Xilinx tools:

1) Check that you have the latest version of Xilinx tools installed.

Tip: Upgrading the CPU card(s) CPLD code using Xilinx tools requires specialized

equipment. For more information about installing Xilinx programming tools, see

Appendix J:Xilinx tools.

2) Connect the USB connector of the download cable (Platform cable USB DLC9G)

to the USB port of the PC.

3) Connect the 14way IDC header to CON11.

4) Power up the CPU card and start the iMPACT programming tool.

5) In Load Project, select Cancel.

6) Hold the CPU card in reset by inserting a suitable tool into the Reset pin at the

top of the card. You must press and hold the reset pin during the whole upgrade process.

7) In Flows, double click Boundary Scan. Right click the main window and select

Initialise Chain / Ctrl+ I:

Eclipse | Upgrade Guide

Page 72

Figure 5-14: Example iMPACT Boundary Scan

8) If the cable is connected correctly, the application will connect and a Xilinx chip

chain will be shown. If the cable is not connected correctly, a cable connection warning is given.

The full chain shows two devices, as shown below.

Figure 5-15: Example Xilinx chip chain

9) The Assign New Configuration File dialog asks you to select the CPLD code

for the first device in the chain or to bypass that device.

Select the first device in the chain.

Eclipse | Upgrade Guide

Page 73

For this (first) device, select the U53 CPLD code. The U53 CPLD code for the CPU card is available from the Drivers USB:

• Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > xxxxxx

- Config Card U53 CPLD code.

Note: xxxxxx represents the part number.

The folder contains a CPLD code file (*.jed) and a Read Me file (*.txt), which contains version information.

10) Right click the first device (U53) and select Programming.

The upgrade starts, and takes approximately 2 minutes to complete. When the upgrade is complete, the Program Succeeded message is displayed in the main window.

11) Power down the CPU card.

5.10 Upgrading the CPU card U1 CPLD code with Xilinx

tools

Use the following procedure to upgrade the U1 CPLD code for the CPU card.

To upgrade the CPU U1 CPLD code with Xilinx tools:

1) Check that you have the latest version of Xilinx tools installed.

Tip: Upgrading the CPU card(s) CPLD code using Xilinx tools requires specialized

equipment. For more information about installing Xilinx programming tools, see Appendix J:Xilinx tools.

2) Connect the USB connector of the download cable (Platform cable USB DLC9G)

to the USB port of the PC.

3) Connect the 14way IDC header to CON11.

4) Power up the CPU card and start the iMPACT programming tool.

5) In Load Project, select Cancel.

6) Hold the CPU card in reset by inserting a suitable tool into the Reset pin at the

top of the card. You must press and hold the reset pin during the whole upgrade process.

7) In Flows, double click Boundary Scan. Right click the main window and select

Initialise Chain / Ctrl+ I:

Eclipse | Upgrade Guide

Page 74

Figure 5-16: Example iMPACT Boundary Scan

8) If the cable is connected correctly, the application will connect and a Xilinx chip

chain will be shown. If the cable is not connected correctly, a cable connection warning is given.

The full chain shows two devices, as shown below.

Figure 5-17: Example Xilinx chip chain

9) The Assign New Configuration File dialog asks you to select the CPLD code

for the first device in the chain or to bypass that device.

Bypass the first device.

Eclipse | Upgrade Guide

Page 75

For the second device, select the U1 CPLD code. The U1 CPLD code for the CPU card is available from the Drivers USB:

• Drivers USB > ECLIPSE DRIVERS > Omega-Median-Delta > xxxxxx

- Config Card U1 CPLD code.

Note: xxxxxx represents the part number.

The folder contains a CPLD code file (*.jed) and a Read Me file (*.txt), which contains version information.

10) A summary dialog is presented. For all devices, ensure that the Erase Before

Programming and Verify flags are set. Click OK.

Figure 5-18: Example Xilinx device programming properties

11) Right click the second device and select Programming.

The upgrade starts, and takes approximately 2 minutes to complete. When the upgrade is complete, the Program Succeeded message is displayed in the main window.

12) Power down the CPU card.

5.11 Downloading a test configuration to the CPU card

using EHX

After you have upgraded your Eclipse HX-Median / Eclipse HX-Omega / Eclipse HX-Delta matrix CPU cards, Clear-Com recommends downloading a test configuration from EHX to the CPU cards.

Downloading a configuration will enable you to make any further configuration changes to the cards using either a serial or Ethernet connection.

For more information, see your EHX User Manual.

Eclipse | Upgrade Guide

Page 76

5.12 Forcing the CPU card to the factory default IP

address

In rare situations, the CPU card may not be able to find a valid IP address for the Ethernet port. To address this issue, you can force the matrix to the factory default IP address (169.254.0.100):

13) Set your PC Ethernet IP address to DCHP mode.

14) Directly connect the PC to the matrix, using an Ethernet crossover cable.

15) Force the system to use the default IP address, by performing the 3-finger

reset. Press and hold both the ENG and FULL RESET front panel buttons simultaneously, then press the top RESET button.

1. When the CPU card OK LED starts to flash, release both the ENG and FULL

RESET buttons.

Tip: For help with selecting the other procedures you require for upgrading to EHX, see

the quick reference procedures tables in 3 Quick reference: Upgrading to Eclipse HX v.

Eclipse | Upgrade Guide

Page 77

6 Upgrading the Eclipse HX-PiCo

This chapter describes how to upgrade the Eclipse HX-PiCo matrix, including the PROM, FPGA and application code.

The Eclipse HX-PiCo PROM is different from the PROM used with the CPU cards, which are fitted to the Eclipse HX-Median, Eclipse HX-Omega and Eclipse HX-Delta matrices. Care should be taken to ensure that the correct PROM is fitted.

Note: If you are upgrading your PiCo to an HX-PiCo please contact your Clear-Com

representative to establish if your hardware is HX ready. If your PiCo hardware is not HX ready then this is a factory only upgrade.

Note: This guide is laid out in the order in which you must upgrade your Eclipse HX software

and hardware devices. For a quick reference to upgrading your system, see 3Quick reference: Upgrading to Eclipse HX.

Note: The HX-PiCo mainboard needs a factory hardware modification.

6.1 Changing the Eclipse HX-PiCo PROM

Note: When you change the Eclipse HX-PiCo PROM, you must also change the Eclipse HX-PiCo

RAM (from 128Mb RAM to 256Mb RAM). See 6.2 Changing the Eclipse HX-PiCo RAM below.

To upgrade the Eclipse HX-PiCo PROM:

1) Ensure that you have the following equipment:

Required equipment

Description / comments

2MBit PROM device (ST M27W201 or equivalent).

PROM Programming Unit

You will also require the appropriate programming software for the unit.

The appropriate S record file for the Eclipse HX-PiCo boot PROM.

You can find the S record file on the Drivers USB:

Drivers USB > ECLIPSE DRIVERS > PiCoHX_PiCo_E-32 > xxxxxx – Boot PROM (where xxxxxx represents the part number).

Table 6-1: Required equipment

2) Ensure that the Eclipse HX-PiCo is powered off. Remove the lid of the device.

Eclipse | Upgrade Guide

Page 78

Remove power from the device first, to avoid working with the system while it is live. Observe all electrical shock hazard warning and precautions for handling electrostatic sensitive devices

3) Ensure that the PROM device to be programmed / upgraded is empty.

4) Program the PROM device with the appropriate file, in accordance with the

instructions for the PROM device.

5) Confirm that the checksum of the programmed device matches that given in the

Eclipse HX Release Notes (for this documentation, see the Eclipse HX v9.1 software USB).

6) Remove the existing PROM device from the main board.

Figure 6-1: Eclipse HX-PiCo main board

7) Insert the newly programmed PROM device, taking care to ensure the correct

polarity of the device.

8) Replace the lid of the Eclipse HX-PiCo device.

6.2 Changing the Eclipse HX-PiCo RAM

Note: When you change the Eclipse HX-PiCo RAM (from 128Mb RAM to 256Mb RAM), you must

also change the Eclipse HX-PiCo PROM. See 6.1 Changing the Eclipse HX-PiCo PROM above.

Eclipse | Upgrade Guide

Page 79

To change the Eclipse HX-PiCo RAM (from 128Mb to 256Mb):

1) Ensure that:

2) The Eclipse HX-PiCo is powered off.

3) You have the replacement 256Mb CPU card RAM daughter board to hand.

4) Remove the lid of the Eclipse HX-PiCo.

5) The cassette that holds the Eclipse HX-PiCo RAM daughter board is left of center

on the main board:

Figure 6-2: Eclipse HX-PiCo 128Mb RAM daughter board

To release the 128Mb RAM daughter board, push back the levers to either side of the cassette. Remove the board.

6) Fit the replacement 256Mb CPU card RAM daughter board to the cassette. The

daughter board is fitted chip-side up. Ensure that the daughter board is securely fitted (only the top edge of the connectors along the lower edge of the board

Eclipse | Upgrade Guide

Page 80

should be visible).

Figure 6-3: Eclipse HX-PiCo 256Mb RAM daughter board

7) Secure the RAM daughter board by closing the levers to either side of the

cassette.

8) Return the CPU card to the Eclipse HX-Median, Eclipse HX-Omega or Eclipse HX-

Delta matrix.

6.3 Changing the Eclipse HX-PiCo DIP switches

To change the Eclipse HX-PiCo DIP switches to the appropriate Eclipse HX v9.1 settings, see either:

• Appendix D:Eclipse HX-PiCo CPU DIP switches

• 6.3.3 Upgrading the Eclipse HX-PiCo application code using

Tera Term Upgrading the Eclipse HX-PiCo application code

6.3.1 Upgrading the Eclipse HX-PiCo app code using EHX with

Ethernet

Before you upgrade the Eclipse HX-PiCo card application code, check that:

• The PC can successfully connect to the matrix with an Ethernet connection by

viewing the Event Log (Diagnostics > Event Log) in EHX.

• There is a valid configuration in the matrix. A valid configuration enables the

matrix to identify its IP address and run its TCP / IP stack.

To upgrade Eclipse HX-PiCo application code using EHX with an Ethernet connection:

1) Ensure that you have the following equipment:

Eclipse | Upgrade Guide

Page 81

Required equipment

Description / comments

PC with an Ethernet connector

LAN cable for the PC-toEclipse HX PiCo connection

For direct connections, use Ethernet crossover cable. If the connection passes through an Ethernet switch on its way to the PC / matrix, use straight CAT5 cable.

EHX installation

EHX must be configured and operational.

An EHX configuration file (*.ccn or *.hxn file format)

The configuration file must have an appropriate IP address set.

The appropriate *.fwr data file for the Eclipse HX-PiCo

You can find the *.fwr data file on the software USB at:

Software USB > SOFTWARE - EHX.xxx > SOFTWARE - EHX.xxx > Eclipse HX-PiCo > xxxxxx – Application Code (where xxxxxx represents the product number).

Table 6-2: Required equipment

2) Start EHX. Select File > Matrix Connection.

3) In the Matrix Connection dialog, select the Ethernet communications option.

4) Connect the PC with the Eclipse HX-PiCo, using the LAN port on the rear of the

matrix.

5) Do one of the following:

• If you are running EHX in Client-Server mode, select File > Import project.

Navigate to the configuration (*.ccn) file and click Open to import the file.

• If you are running EHX in Client-Only mode, select File > Open. Navigate to the

configuration (*.ccn) and open the file.

Note: EHX can open *.ccn format files as well as its own *.hxn format

configuration files.

6) In EHX, select System > Layout. In the work area, right click the Eclipse HX-

PiCo.

7) From the menu, select Firmware > Update Firmware.

Eclipse | Upgrade Guide

Page 82

Figure 6-4: Upgrading app code: Matrix firmware update

8) In the Firmware update wizard, click Next. Ensure that Matrix is selected in the

following dialog, then click Next again.

9) In the next dialog, click Browse and navigate to the required *.fwr file for the

Eclipse HX-PiCo application:

a. Go to Software USB > SOFTWARE - EHX.xxx > SOFTWARE -

EHX.xxx > Eclipse HX-PiCo > xxxxxx – Application Code (where xxxxxx represents the part number).

The folder contains the *.fwr file and a Read Me file (*.txt) with version information.

b. Select the*.fwr file and click OK / Open. Ensure that the correct file

name is displayed in the dialog.

10) Click Next. Confirm that the correct file has been selected, and click Next again

to start the firmware update. The update will take approximately 2 minutes.

Tip: While the update is in progress, check that the LED on the front of the

Eclipse HX-PiCo is flashing rapidly. Rapid flashes indicate communication with the PC.

Note: If you are upgrading from v5.2.5 to Eclipse HX v9.1, the

download dialog does not automatically finish. This is due to a messaging change between the two system architectures. Instead, close the dialog (which will continue to indicate Verifying) when the Eclipse HX-PiCo reboots (see Step 10).

11) When the update is completed, click Finish in the Firmware Update wizard. The

Eclipse HX-PiCo reboots. The CPU is reset.

Note: The OK LED double flashes to indicate that valid application code

is present, but that there is no configuration in the cards. Download a configuration file (*.hxn or *.ccn format), using EHX.

Eclipse | Upgrade Guide

Page 83

6.3.2 Upgrading the Eclipse HX-PiCo app code using EHX with

serial link

You can upgrade the Eclipse HX-PiCo application code using EHX with a serial link, whether or not there is a valid configuration (map) on the matrix. With EHX, it is possible to perform the initial upgrade using a serial connection, then move to an Ethernet connection for future configuration downloads and upgrades, once an IP address has been configured.

Note: Before you use this procedure, check that the matrix event log can connect serially to an

Eclipse HX-PiCo with a configuration.

To upgrade the application code with EHX, using a serial link:

1) Ensure that you have the following equipment:

Required equipment

Description / comments

PC with either a serial port connection or USB-to-serial port adaptor

If using a USB-to-serial port adaptor cable, you must connect the cable before starting EHX to enable EHX to detect the USB port as a COM port.

RS232 serial cable

Use an RS232 cable with DB9 to 3.5mm jack connectors (a CellCom / FreeSpeak / FreeSpeak II (FSBP) registration cable (PD4007Z)).

EHX installation

EHX must be configured and operational.

An EHX configuration file (*.hxn or *.ccn)

The configuration file must have the appropriate IP address set.

The appropriate *.fwr data file for the Eclipse HX-PiCo

You can find the *.fwr data file on the software USB at:

Software USB > SOFTWARE - EHX.xxx > SOFTWARE - EHX.xxx > Eclipse HX-PiCo > xxxxxx – Application Code (where xxxxxx represents the part number).

Table 6-3: Required equipment

2) Start EHX. Select File > Matrix connection.

3) In the Matrix connection dialog, select the serial communications option.

4) Select the correct COM port then click OK.

5) Connect the PC to the serial port on the front of the device, using an RS232

cable with DB9 to 3.5mm jack connectors (CellCom / FreeSpeak / FreeSpeak II (FSBP) registration cable (PD4007Z)).

5. Do one of the following:

Eclipse | Upgrade Guide

Page 84

• If you are running EHX in Client-Server mode, select File > Import

project. Navigate to the configuration (*.ccn) file and click Open to

import the file.

• If you are running EHX in Client-Only mode, select File > Open.

Navigate to the configuration (*.ccn) and open the file.

Note: EHX can open *.ccn format files as well as its own *.hxn format

configuration files.

6) In EHX, select System > Layout. In the work area, right click the matrix.

7) From the menu, select Firmware > Update Firmware.

Figure 6-5: Upgrading app code: Matrix firmware update

8) In the Firmware update wizard, click Next. Ensure that Matrix is selected in the

following dialog, then click Next again.

9) In the next dialog, click Browse and navigate to the required *.fwr file for the

Eclipse HX-PiCo application:

a. Go to Software USB > SOFTWARE - EHX.xxx > Eclipse HX-PiCo >

xxxxxx – Application Code (where xxxxxx represents the part number).

The folder contains the *.fwr file and a Read Me file (*.txt) with version information.

b. Select the*.fwr file and click OK / Open. Ensure that the correct file

name is displayed in the dialog.

10) Click Next. Confirm that the correct file has been selected, and click Next again

to start the firmware update. The upgrade will take approximately 2 minutes.

Tip: While the update is in progress, the LED on the front of the CPU card will

flash rapidly. Rapid flashes indicate communication with the PC.

Note: If you are upgrading from v5.2.5 to Eclipse HX v9.1, the

download dialog does not automatically finish. This is due to a

Eclipse | Upgrade Guide

Page 85

messaging change between the two system architectures. Instead, close the dialog (which will continue to indicate Verifying) when the Eclipse HX-PiCo reboots (see Step 11).

11) When the update is completed, click Finish in the Firmware Update wizard. The

Eclipse HX-PiCo reboots. The CPU card(s) is reset.

Note: The OK LED double flashes to indicate that valid application code

is present, but that there is no configuration in the cards. Download a configuration (*.cnn or *.hxn format) file, using EHX.

If the upgrade fails

If the upgrade fails, check the cabling and repeat the procedure. If the procedure still fails, use Tera Term to upgrade the Eclipse HX-PiCo firmware (see below).

If there was no previous configuration loaded in the matrix, download a basic configuration file to the Eclipse HX-PiCo matrix using EHX. Make any further configuration changes over the Ethernet LAN.

6.3.3 Upgrading the Eclipse HX-PiCo application code using

Tera Term

To upgrade the Eclipse HX-PiCo application code using Tera Term:

1) Ensure that you have the following equipment:

Required equipment

Description / comments

PC with either a serial port connection or USB-to-serial port adaptor

If using a USB-to-serial port adaptor cable, you must connect the cable before starting EHX to enable EHX to detect the USB port as a COM port.

RS232 serial cable

Use a RS232 cable with DB-9 to 3.5mm jack connectors (a CellCom / FreeSpeak / FreeSpeak II (FSBP) registration cable (PD4007Z)).

Tera Term installation

Tera Term must be configured and operational. You can find the Tera Term application on both of the Eclipse HX 9.0 upgrade media:

Software USB > SOFTWARE - EHX.xxx > 3rd_Party_Software > Teraterm

Drivers USB > ECLIPSE DRIVERS > ECLIPSE DRIVERS > 3rd_Party_Software

Eclipse | Upgrade Guide

Page 86

Required equipment

Description / comments

> Teraterm

The appropriate *.fwr data file for the Eclipse HX-PiCo application

You can find the *.fwr data file on the software USB at:

Software USB > SOFTWARE - EHX.xxx > Eclipse HX-PiCo > xxxxxx – Application Code (where xxxxxx represents the part

number).

Table 6-4: Required equipment

2) Install the Tera Term application. Accept all default settings.

3) Start Tera Term. In the New Connection dialog, select Serial (connection) and

the COM port to use. Click OK.

Figure 6-6: Tera Term: selecting serial connection

4) From the Setup menu, select the Serial port… entry.

Figure 6-7: Tera Term: selecting Serial port…

Eclipse | Upgrade Guide

Page 87

5) The Serial port configuration dialog is displayed. Configure the serial port as

follows:

Field

Data (to enter / select)

Port

Com1

Note:

Change as required to match a COM port on the PC.

Baud Rate

115200

Parity

Even

Stop

One (bits)

Data

8 (bits)

Table 6-5: Tera Term: Serial port configuration

Tip: The Tera Term application can be used for many of the Eclipse system

upgrade processes. You can save and recall the relevant com port settings in Tera Term by selecting the Setup / Save or Restore settings options.

6) Connect the PC serial port to the RS232 port to the front of the Eclipse HX-PiCo

matrix.

7) Power off the matrix. To access the CPU, remove the lid from the matrix.

Remove power from the device first, to avoid working with the system while it is live. Observe all electrical shock hazard warning and precautions for handling electrostatic sensitive devices.

8) Erase the old application code (firmware) from the CPU: a. Place the CPU in TEST mode. b. c. Set the DIP switches on the CPU as follows:

Eclipse | Upgrade Guide

Page 88

Figure 6-8: Eclipse HX-PiCo dip switches in Test mode

d. To bring the DIP switch changes into effect, power cycle or reset the

matrix.

e. To confirm that the matrix has entered Test mode, check the display

screen. Information similar to the following should be displayed:

Figure 6-9: Tera Term CPU test mode

Note: If you do not see the data above, press the enter button on the

PC.

Tip: To see all the available options in test mode, press ? on your

keyboard. To see all the current applications loaded onto the CPU, press i.

f. On your PC keyboard, press number 1. To start the erasure of Flash

memory, press Enter (or Return). Select y and Enter to confirm.

Note: It takes approximately 1 minute to erase Flash.

g. When the Flash has been erased, press number 2 on your keyboard. To

start the erasure of NVRAM, press Enter (or Return). When the NVRAM erase is complete, remove the CPU card.

9) Download the new application code to the CPU, using Tera Term: a. Place the erased CPU in serial download mode. Set the DIP switches on

the CPU as follows:

Eclipse | Upgrade Guide

Page 89

Figure 6-10: Tera Term: DIP switches, serial download mode

b. Power cycle or reset the Eclipse HX-PiCo to bring the DIP switch changes

into effect.

c. In Tera Term, open File and select Send file… Ensure that the BINARY

option box is selected.

Figure 6-11: Tera Term: Send file…

d. In the Select file dialog, select the file to download, navigate to the CPU

application code (firmware) *.fwr file:

i. Go to Software USB > SOFTWARE - EHX.xxx > Eclipse HX-

PiCo > xxxxxx – Application Code (where xxxxxx represents the part number).

The folder contains the *.fwr file and a Read Me file (*.txt) with version information.

ii. Select the*.fwr file and click OK / Open. Ensure that the correct

file name is displayed in the dialog.

Note: Confirm that the matrix resets and restarts correctly. Note: It may take up to 1 minute for the matrix to write the new

application code in Flash before it reboots and the OK LED starts to double flash

Eclipse | Upgrade Guide

Page 90

e. Set the DIP switches to normal running mode (watchdogs enabled):

Figure 6-12: DIP switches set to normal running mode (watchdogs enabled)

f. Power cycle the Eclipse HX-PiCo so the DIP switch changes come into

effect.

Note: If the download fails the matrix OK LED displays a long flash/ off rate. Tera Term does

not indicate a failure onscreen and continues to download.

In this case, re-erase the matrix by placing the SW1 and SW2 into Test mode and repeating the steps that follow. Check your cabling.

6.4 Upgrading the Eclipse HX-PiCo MVX code

The Eclipse HX-PiCo has two MVX cards (or sections) on the same PCB, both of which require upgrading.

If you are upgrading from ECS v5.2.5, Clear-Com recommends upgrading the Eclipse HX-PiCo with the combined MVX boot and application code file (*.mot), using the Renesas Flash Development Tool (FDT).

If you are upgrading an existing Eclipse HX installation, you can upgrade:

• The MVX application code separately (*.fwc), using EHX.

• The MVX boot code separately (*.mot), using the Renesas FDT method.

• The MVX boot and application code simultaneously, using the Renesas FDT

method and the combined MVX boot and application code file (*.mot).

MVX code

Renesas FDT method

EHX method

MVX boot code (*.mot)

- MVX application code

(.fwc)

Combined MVX boot and application code (*mot)

Eclipse | Upgrade Guide

Page 91

Table 6-6: Upgrading the Eclipse HX-PiCo MVX code

Note: Because of small differences in PCB layout, it may not be possible to complete the

upgrade of the MVX application code on a small number of Eclipse HX-PiCo units, using EHX. If the upgrade fails, you can still upgrade the MVX application code using Renesas FDT (which is suitable for all Eclipse HX-PiCo units).

6.4.1 Upgrading the Eclipse HX-PiCo MVX application code

with EHX

Note: To upgrade the Eclipse HX-PiCo MVX application code with EHX, your system must

already be running a version of Eclipse HX.

Recommendation

Clear-Com recommends that you monitor the MVX application code upgrade using the Event Log in EHX. The upgrade process is complete when the MVXs on the Eclipse HXPiCo briefly disappear and then reappear in the log. To check that the upgrade has been successful, run a firmware report.

If the upgrade is unsuccessful, use the Renesas FDT to upgrade the MVX code (see 6.4.2 Upgrading the Eclipse HX-PiCo MVX boot and/or app code using the

Renesas FDT).

To upgrade the Eclipse HX-PiCo MVX application code using EHX:

1) Ensure that you have the following equipment:

Required equipment

Description / comments

PC with an Ethernet connector

Serial cable or Ethernet cable for the PC to matrix connection

EHX installation

EHX must be configured and operational.

An EHX configuration file (*.hxn or *.ccn format)

The configuration file must have an appropriate IP address set.

The appropriate *.fwc format file for the Eclipse HX-PiCo MVX cards / sections

You can find the Eclipse HX-PiCo MVX application code (*.fwc) file on the software USB:

Drivers USB > ECLIPSE DRIVERS > ECLIPSE DRIVERS > PiCo-HX_PiCo_E-32 > xxxxxx-MVX Application

Eclipse | Upgrade Guide

Page 92

Table 6-7: Required equipment

2) Start EHX on the PC.

3) Connect the PC to the matrix using either Ethernet or a serial communications

port.

4) Open the EHX configuration map within EHX. Select System > Layout.

5) Right click the matrix and then select Firmware> Update Firmware.

6) The Update Firmware wizard dialog is displayed. Click Next.

In the Select Hardware Type screen, ensure that the Card radio button is selected.

Figure 6-13: Select Hardware Type

7) In the next dialog, click Browse and navigate to the required *.fwc file for the

Eclipse HX-PiCo application:

8) Go to Drivers USB > ECLIPSE DRIVERS > PiCo-HX_PiCo_E-32 > xxxxxx –

MVX Application (where xxxxxx represents the part number).

9) The folder contains the *.fwc file and a Read Me file (*.txt) with version

information.

10) Select the*.fwc file and click OK / Open. Ensure that the correct file name is

displayed in the dialog.

11) Click Next and confirm that the details displayed are correct.

12) Click Next and confirm that the download commences.

13) When the download has completed, click Finish to close the update firmware

wizard.

Note: Because of small differences in PCB layout, it may not be possible to complete the

Eclipse | Upgrade Guide

Page 93

6.4.2 Upgrading the Eclipse HX-PiCo MVX boot and/or app

code using the Renesas FDT

To upgrade certain components within the Eclipse HX-PiCo matrix, the lid must be removed.

Remove power from the devices first, to avoid working with the system while it is live. Observe all electrical shock hazard warning and precautions for handling electrostatic sensitive devices

You can use the Renesas FDT to upgrade:

• The MVX boot code file separately (*.mot).

• The MVX boot code and MVX application code simultaneously, using the combined MVX

boot and application code file (*.mot).

Tip: For more information about installing and configuring the Renesas FDT, see

Appendix E: Hitachi Renesas Flash Development Tool.

To upgrade the Eclipse HX-PiCo MVX code (MVX boot code or combined MVX boot and application code):

1) Ensure that you have the following equipment:

Required equipment

Description / comments

PC with a serial port connection or USB-toserial port adaptor

If you are using a USB-to-serial port adaptor, download the latest drivers.

Renesas Flash Development Toolkit 3.4 Basic (FDT)

The Renesas FDT must be installed and configured. You can find the Renesas FDT application on both of the Eclipse HX v9.1 upgrade media:

Software USB > SOFTWARE - EHX.xxx > 3rd_Party_Software > RenesasFDT

Drivers USB > ECLIPSE DRIVERS > 3rd_Party_Software > RenesasFDT

MVX-A16 serial upgrade cable (Clear-Com part CAB-MVX-48Z)

For an image of this cable, see Figure 28: MVX-A16 Serial upgrade cable.

The appropriate MVX code file

You can find the Eclipse HX-PiCo MVX code files on the Eclipse Drivers USB:

Eclipse | Upgrade Guide

Page 94

(*.fwc format for the separate MVX boot file, *.mot format for the combined MVX boot and application code file )

Drivers USB > ECLIPSE DRIVERS > PiCoHX_PiCo_E-32 > xxxxxx-MVX Boot

Drivers USB > ECLIPSE DRIVERS > PiCoHX_PiCo_E-32 > xxxxxx-MVX Combined Boot & App

Where xxxxxx represents the product number.

Table 6-8: Required equipment

2) Install the Renesas Flash Development Toolkit 3.4 Basic (FDT). Accept the

default install settings.

3) Start the Renesas Flash Development Toolkit 3.4 (FDT) from Programs,

selecting the basic Startup option.

4) Access the configuration (settings) dialogs, by selecting Options > New

Settings... Configure the FDT, as shown in the table below:

Settings dialog / option

Setting to enter

Select Device

H8S/2318F

Select Port

COM1 (Change to match a COM port present on the PC)

CPU Frequency

20.0000 Mhz

Connection

Boot mode

Recommended Speed

38400 (Deselect the Use-Default option)

Protection

Automatic

Messaging

Advanced

User Area

Selected (Checked)

Table 6-9: FDT settings

Note:

The first time the FDT is run, the settings dialogs are displayed by default. After the FDT has been configured, the settings dialogs are no longer shown by default.

Tip: For more information about installing and configuring the Renesas FDT, see

Appendix E: Hitachi Renesas Flash Development Tool.

5) In the Download window, click Options and ensure that:

Eclipse | Upgrade Guide

Page 95

• Auto-Disconnect is selected (checked).

• Download File Area has User Area selected (checked).

• The Download File radio button is selected.

6) Select ‘…’ for the User area and select the appropriate MVX code file from the

Eclipse HX v9.1 software USB. According to your requirements, select one of the following:

• Drivers USB > ECLIPSE DRIVERS > PiCo-HX_PiCo_E-32 > xxxxxx-

MVX Boot

Where xxxxxx represents the product number. The folder contains the *.mot file and a Read Me file (*.txt) with version information.

• Drivers USB > ECLIPSE DRIVERS > PiCo-HX_PiCo_E-32 > xxxxxx-

MVX Combined Boot & App

Where xxxxxx represents the product number. The folder contains the *.mot file and a Read Me file (*.txt) with version information.

7) Upgrade / program the first of the two H8 devices: a. Connect the MVX serial cable (CAB-MVX-48Z) between the COM port on the

PC and J9 (H8FP1) on the MVX card.

Note:

The MVX connection is polarized to ensure correct connection.

b. On the MVX card, ensure that jumper H8 Boot1 (JP8) is made. c. Select Program Flash from the Flash Development Toolkit (FDT) program. d. Confirm that FDT reports the image has been written successfully. e. Remove the serial cable. f. Remove jumper JP8.

For the location of connectors, jumpers and reset switch positions on the Eclipse HX-PiCo, see Figure 6-14: Eclipse HX-PiCo main board.

Note: If the MVX card fails to upgrade, press the Reset button, located near the J9 (H8FP1)

connector and select Program Flash from the FDT again.

If you are using a USB-to-serial adaptor, the adaptor may have to be unplugged and re-plugged to enable the upgrade to start on some computers. If you are running the EHX application, ensure that EHX is configured for Ethernet and not serial connection.

8) Upgrade / program the second of the two H8 devices: a. Connect the MVX serial cable (CAB-MVX-48Z) between the COM port on the

PC and J11 (H8FP2) on the MVX card.

Note: The MVX connection is polarized to ensure correct connection.

b. On the MVX card, ensure that jumper H8 Boot2 (JP10) is made.

Eclipse | Upgrade Guide

Page 96

c. Select Program Flash from the Flash Development Toolkit (FDT) program. d. Confirm that FDT reports the image has been written successfully. e. Remove the serial cable. f. Remove jumper JP10.

For the location of connectors, jumpers and reset switch positions on the Eclipse HX-PiCo, see Figure 6-14: Eclipse HX-PiCo main board.

Note: If the MVX card fails to upgrade, press the Reset button, located

near the H8FP1 (JP11) connector and select Program Flash from the FDT again.

If you are using a USB-to-serial adaptor, the adaptor may have to be unplugged and replugged to enable the upgrade to start on some computers. If you are running the EHX

Eclipse | Upgrade Guide

Page 97

application, ensure that EHX is configured for Ethernet and not serial connection.

Figure 6-14: Eclipse HX-PiCo main board

Eclipse | Upgrade Guide

Page 98

6.5 Checking the Eclipse HX-PiCo app code and MVX

code versions

You can check both the Eclipse HX-PiCo application code and MVX code versions by going to EHX> Matrix Event Log > Matrix Overview.

You can also use the Firmware report tool in EHX to confirm code versions. To use the Firmware report tool:

1) Go to EHX> System> Layout.

2) Right click the matrix icon.

3) Select Firmware > Firmware report.

To check the Eclipse PiCo MVX code version only using Tera Term:

4) Install Tera Term. Tera Term is available to install from both of the Eclipse HX

9.0 upgrade media:

• Software USB > SOFTWARE - EHX.xxx > 3rd_Party_Software > Teraterm

• Drivers USB > ECLIPSE DRIVERS > 3rd_Party_Software > Teraterm

5) Open Tera Term and select the following port settings:

Port setting

Setting to enter

Port

COM1 (Change to match a COM port present on the PC)

Baud rate

115200

Data

8 bit

Parity

None

Stop

1 bit

Flow control

none

Table 6-10: Tera Term port settings

6) Open the Eclipse HX-PiCo lid.

Remove power from the devices first, to avoid working with the system while it is live. Observe all electrical shock hazard warning and precautions for handling electrostatic sensitive devices

7) There are two three-pin connectors (H8DBG1 and H8DBG2), one for each of the

two MVX cards / sections. Connect the MVX serial cable (CAB-MVX-48Z) to one of the connectors.

Eclipse | Upgrade Guide

Page 99

Note: Take care not to confuse these two three-pin connectors with the identical (but

differently labeled) three-pin connectors which are used to upload new application code.

8) Run Tera Term. If necessary, press Enter on your keyboard or the MVX reset

switch a few times. The version information is displayed in the Tera Term window.

Note: Reports the MVX application code version only.

9) Repeat the procedure with the second MVX card / section.

6.6 Upgrading the Eclipse HX-PiCo CPLD and FPGA

code with Xilinx tools

To upgrade either the Eclipse HX-PiCo U1 CPLD code or FPGA code with Xilinx tools:

1) Ensure that the latest version of the Xilinx programming tools has been

installed.

Tip: For more information about installing Xilinx programming tools, see

Appendix J:Xilinx tools.

Connect the USB connector of the download cable (Platform cable USB DLC9G) to the USB port of the PC.

2) If you are upgrading the FPGA code, connect the 14way IDC header to

CON12.

3) If you are upgrading the U1 CPLD code, connect the 14way IDC header to

CON25.

Tip: For the location of CON12 and CON25, see Figure 6-14: Eclipse HX-PiCo

main board.

4) Power up the Eclipse HX-PiCo and start the iMPACT programming tool.

5) In Load Project, select Cancel.

6) In Flows, double click Boundary Scan. Right click the main window and select

Initialise Chain / Ctrl+ I:

Eclipse | Upgrade Guide

Page 100

Figure 6-15: Example iMPACT Boundary Scan

1. If the cable is connected correctly, the application will connect and a Xilinx chip

chain will be shown. If the cable is not connected correctly, a cable connection warning is given.

The full chain should show two devices, as shown in the example figure below.

Figure 6-16: Example Xilinx chip chain

Clear-Com Eclipse HX series User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Important Safety Instructions

2 Introduction

2.1 Planning the upgrade to Eclipse HX

2.1.1 Client / Server installations

2.1.2 Roll back strategy

Temporary roll back strategy

2.1.3 Supplied Upgrade Media

System Drivers Upgrade Media

Software USB

2.1.4 Fitting the Eclipse HX door panel

2.1.5 Help with upgrading

3 Quick reference: Upgrading to Eclipse HX v9.1

3.1 Upgrading from 5.2.5

3.2 Upgrading from 7.0

3.3 Upgrading from 7.1

3.4 Upgrading from 7.5

3.5 Upgrading from 7.6

3.6 Upgrading from 8.0

3.7 Upgrading from 8.5

3.8 Upgrading from 8.5.1

3.9 Upgrading from 8.5.2

3.10 Upgrading from 8.7

3.11 Upgrading from 8.8

3.12 Upgrading from 9.0

4 Upgrading to Eclipse HX v9.1

4.1 Backing up your ECS v5.2.5 configurations

4.2 Backing up your EHX 7.x/8.x/9.0 configurations

4.3 Installing EHX and Dynam-EC Clients

4.4 Importing your configurations into EHX

4.5 Updating Dynam-EC

5 Upgrading the CPU cards

5.1 Changing the CPU card PROM

5.2 Changing the CPU card RAM

5.3 Changing the CPU card DIP switches

5.4 Upgrading the CPU card application code

If the upgrade fails

5.4.3 Upgrading the CPU Card app code using Tera Term

5.5 Setting the matrix type

5.6 Checking the CPU card application code version

5.7 Upgrading CPU Card U53 CPLD

5.8 Upgrading CPU Card U1 CPLD

6 Upgrading the Eclipse HX-PiCo

6.1 Changing the Eclipse HX-PiCo PROM

6.2 Changing the Eclipse HX-PiCo RAM

6.3 Changing the Eclipse HX-PiCo DIP switches

If the upgrade fails

6.4 Upgrading the Eclipse HX-PiCo MVX code

6.4.2 Upgrading the Eclipse HX-PiCo MVX boot and/or app code using the Renesas FDT

6.4.2 Upgrading the Eclipse HX-PiCo MVX boot and/or app

code using the Renesas FDT
