1
SCENIUS SPOT
C61500
INSTRUCTION MANUAL
ENGLISH
Congratulations on choosing a Clay Paky product!
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.
INDEX
Page Contents
2 Safety Information
5 Unpacking and preparation
6 Installation and start-up
7 Control panel
9 Menu setting
18 Maintenance
24 Technical information
25 Cause and solution of problems
26 Channel functions
2
SCENIUS SPOT
Carefully read this instruction manual in its entirety and keep it safe for future reference. It is essential to know the
information and comply with the instructions given in this manual to ensure the fitting is installed, used and serviced
correctly and safely. CLAY PAKY S.p.A. disclaims all liability for damage to the fitting or to other property or persons
deriving from installation, use and maintenance that have not been carried out in conformity with this instruction
manual, which must always accompany the fitting. CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and without prior notice.
• Installation
Make sure all parts for fixing the projector are in a good state of repair.
Make sure the point of anchorage is stable before positioning the projector.
The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if the primary
support system fails, the fitting falls as little as possible.
If the safety chain gets used, it needs to be replaced with a genuine spare.
• MINIMUM DISTANCE OF ILLUMINATED OBJECTS
The projector needs to be positioned so that the objects hit by the beam of light are at least 5 metres
(16’5”) from the lens of the projector.
• Minimum distance from flammable materials
The projector must be positioned so that any flammable materials are at least 0.20 metres (8") from every point on
the surface of the fitting.
• Maximum ambient temperature
Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F).
• IP20 protection rating
The fitting is protected against penetration by solid bodies of over 12mm (0.47”) in diameter (first digit 2), but not
against dripping water, rain, splashes or jets of water (second digit 0).
• Protection against electrical shock
Connection must be made to a power supply system fitted with efficient earthing (Class I appliance according to
standard EN 60598-1).
It is, moreover, recommended to protect the supply lines of the projectors from indirect contact and/or shorting to
earth by using appropriately sized residual current devices.
• Connection to mains supply
Connection to the electricity mains must be carried out by a qualified electrical installer.
Check that the mains frequency and voltage correspond to those for which the projector is designed as given on
the electrical data label.
This label also gives the input power to which you need to refer to evaluate the maximum number of fittings to
connect to the electricity line, in order to avoid overloading.
• Temperature of the external surface
The maximum temperature that can be reached on the external surface of the fitting, in a thermally steady state, is
150°C (302°F).
• Maintenance
Before starting any maintenance work or cleaning the projector, cut off power from the mains supply.
After switching off, do not remove any parts of the fitting for at least 10 minutes. After this time the likelihood
of the lamp exploding is virtually nill. If it is necessary to replace the lamp, wait for another 20 minutes to avoid
getting burnt.
The fitting is designed to hold in any splinters produced by a lamp exploding. The lenses must be mounted and, if
visibly damaged, they have to be replaced with genuine spares.
• Lamp
The fitting mounts a high-pressure lamp that needs an external igniter. This igniter is fitted onto the apparatus.
- Carefully read the "operating instructions" provided by the lamp manufacturer.
- Immediately replace the lamp if damaged or deformed by heat.
SAFETY INFORMATION
IP20
5
LAMP
tc150°C
EN
3
SCENIUS SPOT
• Photobiological Safety
The fixture must be positioned so that the minimum distance between the front lens and human eye is at least 3
metres to prevent personal photobiological risks.
This product is intended for the following areas of application:
studios, stages, theaters, exhibitions, trade fairs, events, theme parks, entertainment venues, architectural lighting
and similar.
Not suitable for household illumination
Not for residential use
• Battery
This product contains a rechargeable lithium iron tetraphosphate battery. To preserve the environment, please
dispose the battery at the end of its life according to the regulation in force.
Disposing
This product is supplied in compliance with European Directive 2012/19/EU - Waste Electrical and Electronic
Equipment (WEEE). To preserve the environment please dispose/recycle this product at the end of its life according
to the local regulation.
LiFePO4
The products to which this manual refers comply with the European Directives pursuant to:
• 2006/95/EC - Safety of electrical equipment supplied at low voltage (LVD)
• 2004/108/EC - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
Risk Group 2
A
ccording to
EN 62471
EN
IT
DE
ES
FR
RU
4
SCENIUS SPOT
HOW TO GET YOUR SAFETY INSTRUCTIONS IN MULTILINGUAL VERSION
You may always download the multilingual Safety Instruction manual for this Clay Paky product from:
http://www.claypaky.it/en/download
Ref: [FIS00L – Safety Information Scenius]
COME OTTENERE LE INFORMAZIONI DI SICUREZZA NELLA VERSIONE MULTILINGUE
Puoi sempre scaricare la versione multilingue delle Informazioni di Sicurezza per questo prodotto Clay Paky al
seguente link:
http://www.claypaky.it/en/download
Rif: [FIS00L – Safety Information Scenius]
SO ERHALTEN SIE IHR INFORMATIONEN ZUR SICHERHEIT IN DER MEHRSPRACHIGEN VERSION
Sie können die mehrsprachige Version des Handbuchs mit Sicherheitshinweisen fur dieses Clay Paky- Produkt
unter folgendem Link herunterladen:
http://www.claypaky.it/en/download
Ref: [FIS00L – Safety Information Scenius]
COMO OBTENER TU INFORMACIONES DE SEGURIDAD EN LA VERSION MULTILINGU E
Siempre puedes descargar la versión multilingue del Manual de Instrucciones de Seguridad para este producto
Clay Paky en el siguiente enlace
http://www.claypaky.it/en/download
Ref: [FIS00L – Safety Information Scenius]
COMMENT OBTENIR VOTRE CONSIGNES DE SÉCURITÉ DANS LA VERSION MULTILINGUE
Vous pouvez toujours télécharger la version multilingue du Manuel d’Instructions de Sécurité pour ce produit Clay
Paky au lien suivant :
http://www.claypaky.it/en/download
Réf. : [FIS00L – Safety Information Scenius]
ГДЕ ДОСТАТЬ ИНСТРУКЦИЮ ПО ТЕХНИКЕ БЕЗОПАСНОСТИ НА НЕСКОЛЬКИХ ЯЗЫКАХ
Вы всегда можете скачать многоязычную инструкцию по технике безопасности для данного изделия Clay
Paky по ссылке:
http://www.claypaky.it/en/download
Наименование: [FIS00L – Safety Information Scenius]
5
SCENIUS SPOT
UNPACKING AND PREPARATION
2 x 183102/805
LAM00D
(fitted into fixture)
1
9
0
°
9
0
°
9
0
°
9
0
°
LOCKED
UNLOCKED
PAN Mechanism Lock and Release (every 90°) - Fig. 2
TILT Mechanism Lock and Release (every 45°) - Fig. 3
2 3
Packing contents - Fig. 1
4
5
°
4
5
°
4
5
°
4
5
°
4
5
°
UNLOCKED
LOCKED
6
SCENIUS SPOT
4
2
1
1
2
3
5
INSTALLATION AND START-UP
Connecting and disconnecting power cable - Fig. 5
Installing the projector - Fig. 4
The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request).
This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
7
SCENIUS SPOT
Switching on the projector - Fig. 8
Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display:
Model Firmware xxx (Fixture ID) System errors
SCENIUS Version X.X.X Dmx Address xxx E: .........................
SPOT Date - Hour W: .........................
On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the “Home” position (Pan 128 bit - Tilt 128 bit). The control
panel (Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two
conditions: rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address and the Fixture ID address
(if set).
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.
It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the
F
key will be cancelled.
CONTROL PANEL
1
2
Dmx Address
Warning Message
Fixture ID
8
Connecting to the control signal line (DMX) - Fig. 7
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 5-pin male/female
connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.
IMPORTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the
shield braid and to pin 1 of the connectors.
C
onnecting to the mains supply - Fig. 6
S
IGNAL
SCREEN
DMX 512
5 PIN
1
2
3
4
5
SIGNAL
Mains
6
7
Continue
➔
SCENIUS SPOT
8
28
28
Reversal of the display - Fig. 9
To activate this function, press UP
B
and DOWN Ckeys simultaneously while the display is in the rest mode. This status will be memorised and
maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
Setting the projector starting address
On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
The address can also be set with the projector switched off.
Setting the projector Fixture ID
On each projector, the Fixture ID address must be set for an easy identification of the fixtures in an installation (ID from 1 to 255).
The Fixture ID address can be set with the projector switched off.
9
Functions of the buttons - Using the menu
Setting addresses and options with the projector disconnected
The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.
All that is needed is to press
F
to momentarily activate the display and thus access the settings. Once the required operations have been carried out,
the display will switch off again after a wait time of 30 seconds.
USING THE MENU:
1) Press
F
once – “Main Menu” appears on the display.
2) Use the UP
B
and DOWN Ckeys to select the menu to be used:
• Setup (Setup Menu): To set the setting options.
• Option (Option Menu): To set the operating options
• Informations (Informations Menu): To read the counters, software version and other information.
• Manual Control (Manual control Menu): To trigger the test and manual control functions.
• Test (Test Menu): To check the proper functionning of effects
• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.
To enable the "Advanced" see pag.16.
3) Press
F
to display the first item in the selected menu.
4) Use the UP
B
and DOWN Ckeys to select the MENU items.
Confirms the displayed value, or activates the displayed function, or enters the successive
menu.
Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.
Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.
Return to the top level
Commute from units, tens, hundreds, in the "Address", "Fixture ID" and "Calibration" menù.
F
C
DOWN
B
UP
D
LEFT
E
RIGHT
9
SCENIUS SPOT
MENU SETTING
Main Menu Level 1 Level 2 Level 3 Choices / Values
SET UP
DMX Address
Æ Æ
001-512
Channel Mode
Æ Æ
Standard
Vector
Fixture ID
Æ Æ
000-255
Ethernet Interface
C
ontrol Protocol
Æ
Disabled
A
rt-net IP 2.x.x.x.
Art-net IP 10.x.x.x.
Art-net Custom IP
Repeat on DMX
Æ
Disabled
Enabled on primary
Universe
Æ
000-255
Custom IP Address
IP address byte 1
IP address byte 2
IP address byte 3
IP address byte 4
000-255
000-255
000-255
000-255
Custom IP Mask
IP mask byte 1
IP mask byte 2
IP mask byte 3
IP mask byte 4
000-255
000-255
000-255
000-255
OPTION
Lamp DMX
Æ Æ
On / Off
Pan / Tilt
Invert Pan
Æ
On / Off
Invert Tilt
Æ
On / Off
Swap Pan-Tilt
Æ
On / Off
Encoder Pan-Tilt
Æ
On / Off
P/T Homing mode
Æ
Standard
Sequenced
Pan Home Def Pos
Æ
0 degree
90 degrees
180 degrees
270 degrees
Tilt Home Def Pos
Æ
0 %
12.5 %
25 %
50 %
75 %
87.5 %
100 %
Color
Color Mixing
Æ
RGB / CMY
Fix Wheel Shortcut
Æ
On / Off
Shutter
Shutter On Error
Æ
On / Off
Dimmer On Shutter
Æ
On / Off
Lamp Dimming
Æ Æ
1400W –1200W
1200W
Display
Æ Æ
On / Off
Animation / Fix Gobo
Æ Æ
Animation Disc
Fix Gobo Disc
Settings
Default Preset
Reset To Default
Go Back
Are you sure
?
Yes / No
User Preset 1
Load preset 1
Save to preset 1
Are you sure
?
Yes / No
User Preset 2
Load preset 2
Save to preset 2
Are you sure
?
Yes / No
User Preset 3
Load preset 3
Save to preset 3
Are you sure
?
Yes / No
Continue
➔
10
SCENIUS SPOT
Main Menu Level 1 Level 2 Level 3 Choices / Values
INFORMATION
System Errors
Æ Æ
Read / Reset
Fixture Hours
Total Hours
Æ
Read
Partial Hours
Æ
Read / Reset
Lamp Hours
Total Hours
Æ
Read
Partial Hours
Æ
Read / Reset
Lamp Strikes
Total Strikes
Æ
Read
P
artial Strikes
Æ
R
ead / Reset
System Version
CPU brd
Æ
Fw.rev. / Hw.rev.
com.dev
Æ
Fw.rev.
0:PT-3f
Æ
Fw.rev. / Hw.rev.
1:8-Ch
Æ
Fw.rev. / Hw.rev.
2:8-Ch
Æ
Fw.rev. / Hw.rev.
3: 8-Ch
Æ
Fw.rev. / Hw.rev.
Board Diagnostic
0:PT-3f
Æ
Status / Err%
1:8-Ch
Æ
Status / Err%
2:8-Ch
Æ
Status / Err%
3: 8-Ch
Æ
Status / Err%
DMX Monitor Channels
Æ
Value / Percentage
Fans Monitor
Ball. IN
Æ
Speed (RPM)
Ball. OUT
Æ
Speed (RPM)
Pwr. Sp.
Æ
Speed (RPM)
Pwr. Sp.
Æ
Speed (RPM)
Lamp
Æ
Speed (RPM)
Eff. OUT
Æ
Speed (RPM)
Eff. IN
Æ
Speed (RPM)
Lamp
Æ
Speed (RPM)
Eff. IN
Æ
Speed (RPM)
Sensor status Channels
Æ
n.a / On / Off
Rot. Gobo 1 Indexing
Æ Æ
Indexing Active
Indexing Required
Rot. Gobo 2 Indexing
Æ Æ
Indexing Active
Indexing Required
Network parameters
Æ Æ
IP Address
Æ Æ
IP Mask
Æ Æ
MAC Address
11
SCENIUS SPOT
M
ain Menu
L
evel 1
L
evel 2
L
evel 3
C
hoices / Values
MANUAL
C
ONTROL
Lamp
Æ Æ
On / Off
Reset
Æ Æ
Yes / No
Channel
Æ Æ
Value / Percentage
TEST
Pan / Tilt
Æ Æ
n.a.
Colour
Æ Æ
n.a.
B
eam
Æ Æ
n
.a.
Gobo
Æ Æ
n.a.
A
ll
Æ Æ
n
.a.
ADVANCED Access Code 1234
Upload Firmware Transfer ……..
Are you sure
?
Yes / No
Setup Model Changing ……..
Are you sure
?
Yes / No
Calibration Channels 000 - 255
Rot. Gobo 1 Indexing
Starting procedure …..
Yes / No
Rot. Gobo 1 Indexing
Starting procedure …..
Yes / No
Menu Locking Unlock Code XXXX
Continue
➔
12
SCENIUS SPOT
S
ET UP MENU
DMX ADDRESS
PLEASE NOTE: Without the DMX input signal, the displayed address (DMX Address) blinks.
It lets you select the address (DMX Address) for the control signal. A DMX address between 001 and 512 can be
s
elected.
CHANNEL MODE
This lets you select the projector operating mode, selecting one of the two available modes:
x Standard (32 DMX channels occupied, see DMX-Channel Function)
x Vector (36 DMX channels occupied, see DMX-Channel Function)
FIXTURE ID
It lets you set the “Fixture ID” to be assigned to the projector. An “ID” between 000 and 255 can be assigned.
ETHERNET INTERFACE
It lets you set Ethernet settings to be assigned to the projector as indicated below:
Control Protocol
It lets you select the “Control Protocol” Art-net to be assigned according to the control unit used; the options available are
the following:
x Disabled:
x Art-net on IP 2
x Art-net on IP 10
x Art-net Custom IP
If the Control Protocol option is set on Disabled, when an IP address (IP2, IP10 or IP Custom) is selected, the projector
immediately initializes the IP address that was just selected.
If the Control Protocol option is enabled (IP2, IP10 or IP Custom) and a new one is selected that is different from the
previous one, the projector must be restarted so that it will be correctly initialized.
Repeat on DMX
It lets you enable/disable the transmission of the Ethernet protocol by DMX signal to all the connected projectors.
x Disabled: DMX transmission disabled.
x Enabled on primary: DMX transmission enabled.
Universe
It lets you set the “DMX Universe” to be assigned to a series of projectors with values between 000 and 255.
Custom IP Address
It lets you to set the select the “IP Address” Art-net to be assigned, according to the control unit used, with values
between 000 and 255.
Custom IP Mask
It lets you to set the select the “IP Mask” Art-net to be assigned, according to the control unit used, with values between
000 and 255.
13
SCENIUS SPOT
O
PTIONS MENU
LAMP DMX
It lets you enable (ON) the lamp remote control channel. Select OFF to turn off or disable this option.
PAN / TILT
Invert Pan
I
t lets you enable (ON) Pan reverse movement. Select OFF to turn off or disable this option.
Invert Tilt
It lets you enable (ON) Tilt reverse movement. Select OFF to turn off or disable this option.
S
wap Pan-Tilt
It lets you enable (ON) Pan and Tilt channel inversion (and simultaneously Pan fine and Tilt fine). Select OFF to turn off or
disable this option.
Encoder Pan-Tilt
It lets you enable (ON) or disable (OFF) Pan and Tilt Encoder operations.
You can quickly disable the Pan and Tilt Encoder by simultaneously pressing the UP (Ĺ) and DOWN(Ļ) keys in the
''Main Menu''.
P/T Homing Mode
It lets you set the initial Pan and Tilt Reset mode.
x Standard: Pan & Tilt are simultaneously reset.
x Sequenced: Tilt is reset first followed by Pan.
Pan Home Def Pos
It lets you assign the Pan channel “home” position at the end of Reset (without a DMX input signal), selecting one from
the 4 available positions:
x 0 degree
x 90 degrees
x 180 degrees
x 270 degrees (default)
Tilt Home Def Pos
It lets you assign the Tilt channel “home” position at the end of Reset (without a DMX input signal), selecting one from the
7 available positions:
x 0%
x 12.5%
x 25%
x 50% (default)
x 75%
x 87.5%
x 100%
COLOR
Color mixing
It lets you set the CMY color mixing system:
x RGB color mixing mode (Red Green Blue)
x CMY color mixing mode (Cyan Magenta Yellow)
Fixed wheel short-cut
Used for optimizing color change time (select ON) so that the disc turns in the direction that requires shorter movement.
Select OFF to turn off or disable this option.
Continue
➔
14
SCENIUS SPOT
SHUTTER
Shutter on error
It lets you activate (ON) automatic "Stopper/Strobe" closing in the event of Pan/Tilt positioning error. Select OFF to turn
off or disable this option.
Dimmer on Shutter
E
nables (select ON) the automatic closing of the Dimmer when the Strobe is completely closed. Select OFF to turn off or
d
isable this option.
LAMP DIMMING
It allows you to select one of the two types of dimming available:
• 1400W - 1200W lamp power operate as follows:
- Dimmer channel @ 0bit - lamp power @ 1000W
- Dimmer channel from 1 to 202bit - lamp power @ 1200W
- Dimmer channel from 203 to 255bit - lamp power increase from 1200W to 1400W
• 1200W lamp power operate as follows:
- Channel dimmer @ 0bit - lamp power @ 1000W
- Dimmer channel from 1 to 255bit - lamp power @ 1200W
DISPLAY
It lets you activate (ON) display brightness reduction after about 30 seconds in idle status. Select OFF to turn off or
disable this option.
ANIMATION / FIX GOBO
It allows you to select depending on the disc inserted into the fixture, whether to activate the electronic control of
Animation Disk or Fix Gobo Disk (if selected Fix Gobo Disk, the channel Animation Disk Rotation is disabled).
SETTINGS
Used to save 3 different settings of the items in the option menu and relevant submenus.
x Default preset (*)
x User preset 1
x User preset 2
x User Preset 3
- Load preset 'X’ is used to recall a previously stored configuration.
- Save to preset ‘X’ is used to save the current configuration.
(*) DEFAULT PRESET
It lets you restore default values on all option menu items and relevant submenus.
Press the left and right arrows/keys simultaneously in the "main menu” to quickly restore default values
(DEFAULT PRESET).
15
SCENIUS SPOT
INFORMATION MENU
S
YSTEM ERRORS
It displays a list of errors that occurred when the projector was turned on.
To reset the SYSTEM ERRORS list, press OK. A confirmation message appears (Are you sure you want to clear error
list?). Select YES to confirm reset.
FIXTURE HOURS
It lets you view projector working hours (total and partial).
T
otal counter
It counts the number of projector working life hours (from construction to date).
Partial counter
It counts the number of projector partial working life hours from the last reset to date.
Press OK to reset the partial counter. A confirmation message appears on the display (Are you sure ?)
Select YES to confirm reset.
LAMP HOURS
It lets you view lamp working hours (total and partial).
Total counter
It counts the number of projector working hours with the lamp on (from construction to date).
Partial counter
It counts the number of lamp partial working hours from the last reset to date.
Press OK to reset the partial counter. A confirmation message appears on the display (Are you sure ?)
Select YES to confirm reset.
LAMP STRIKES
It lets you view how many times the lamp was turned on (total and partial).
Total counter
It counts the number of times the lamp was turned on (from construction to date).
Partial counter
It counts the number of times the lamp was turned on from the last reset to date.
Press OK to reset the partial counter. A confirmation message appears on the display (Are you sure ?)
Select YES to confirm reset.
SYSTEM VERSION
It lets you view the hardware and software versions for each electronic board in the projector.
x CPU brd (CPU board)
x 0: PT-3f (Pan / Tilt board)
x 1: 8-Ch (8-channel board)
x 2: 8-Ch (8-channel board)
BOARD DIAGNOSTIC
It lets you view the percent errors for each electronic board installed in the projector
x 0: PT-3f (Pan / Tilt board)
x 1: 8-Ch (8-channel board)
x 2: 8-Ch (8-channel board)
DMX MONITOR
It lets you view the level of projector DMX channels in bit (Val) and in percent.
Continue
➔
16
SCENIUS SPOT
FANS MONITOR
It lets you view the speed of each fan installed in the projector:
x
Lamp (lamp cooling fan)
x Pwr.Sup (PSU cooling fan)
x Ball.IN (Ballast cooling fan, air-flow IN)
x Ball.OUT (Ballast cooling fan, air-flow OUT)
x Effect.IN (Effects cooling fan, air-flow IN)
x Effect.OUT (Effects cooling fan, air-flow OUT)
SENSOR STATUS
It lets you check the correct operations of each "sensor” installed in the projector, each channel is associated with one of
the following three parameters:
x n.a.= sensor not available
x ON= sensor working
x OFF= sensor defective
ROT GOBO 1 INDEXING
It lets you check whether the rotating gobo wheel 1 gobo indexing procedure should be run, if indexed, "Indexing Active"
appears on the display, otherwise "Indexing required!” appears
If necessary, indexing should be activated from the Advanced menu.
ROT GOBO 2 INDEXING
It lets you check whether the rotating gobo wheel 2 gobo indexing procedure should be run, if indexed, "Indexing Active"
appears on the display, otherwise "Indexing required!” appears
If necessary, indexing should be activated from the Advanced menu.
NETWORK PARAMS
Lets you view the projector "Network" parameters meaning:
IP address: Internet Protocol address (two projectors must not have the same IP address)
IP mask: 255.0.0.0
Mac address: Media Access Control; the projector’s Ethernet Address.
17
SCENIUS SPOT
M
ANUAL CONTROL
LAMP
It lets you turn the lamp on (ON) or off (OFF) from the projector control panel.
RESET
It lets you reset the projector from the projector control panel.
CHANNEL
It lets you set the channel DMX levels from the projector control panel (value between 0 and 255 bit or between 0% and
100%).
TEST MENU
It lets you test the correct operations of effects using saved Tests.
ADVANCED MENU
To open the “Advanced Menu”, enter the code (1234)
UP LOAD FIRMWARE
It lets you transfer "firmware" from one projector to all other connected projectors. A confirmation message appears on
the display (Are you sure ?) Select YES to confirm or NO to abort this operation.
SETUP MODEL
It lets you change the projector model (operation probably necessary after replacing the CPU during repairs). A
confirmation message (Are you sure ?) appears on the display Select YES to confirm (the list of available and selectable
projectors appears) or NO to abort this operation.
CALIBRATION
It lets you make small mechanical adjustments on some effects to perfectly align projectors from the control panel.
Factory default
It lets you restore default "Calibration” values (128 bit) on all channels.
ROT GOBO INDEXING
It lets you run the rotating gobo wheel gobo indexing procedure. This operation may be necessary after projector
maintenance/cleaning.
MENU LOCKING
It allows you to assign a password to lock the access to the user menu, so that only users know the password can change
settings. The password is 4-digit number.
18
SCENIUS SPOT
Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section.
Opening the head covers - Fig. 10.
Closing the head covers - Fig. 11.
4
1/4 Turn
1/4 Turn
1
2
1
3
2
10 11
MAINTENANCE
Upper Side
Upper Side
19
SCENIUS SPOT
1
2
Periodical cleaning - Fig. 12
To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The
frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of the
working environment (air humidity, presence of dust, salinity, etc.).
Use a soft cloth dampened with any detergent liquid for cleaning glass to remove the dirt from the reflectors, from the lenses and filters. It is recommended
that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following operations:
• General cleaning of internal parts.
• Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky.
• General visual check of the internal components, cabling, mechanical parts, etc.
• Electrical, photometric and functional checks; eventual repairs.
NOTE: keep a careful cleaning of the ''CMY/colour filters assembly'' to prevent rapid deterioration.
Continue
➔
20
SCENIUS SPOT
1
4
3
2
1
3
Cleaning of the filters - Fig. 13.
21
SCENIUS SPOT
Upper Side
Lower Side
2
A
1
A
3
A
Upper Side
Lower Side
1
5
16
2
1
1
4
Lamp change - Fig 15
Take the new lamp out of its package and insert in the fitting.
WARNING: do not touch the lamp’s envelope with bare hands.
Should this happen, clean the bulb with a cloth soaked in alcohol
and dry it with a clean, dry cloth.
IMPORTANT: Make sure the lamp is inserted with the external
contact (A) facing the elliptical reflector’s slot.
CAUTION: Fast lamp ON-OFF cycles (for example 10 minutes ON /
10 minutes OFF) will reduce the lamp life.
Lamp regulation - Fig. 16
To centre the lamp, turn the three adjusting screws as shown in the figure.
Opening and closing lamp compartment - Fig. 14
NORMAL
HOT SPOT
Continue
➔
22
SCENIUS SPOT
2
1

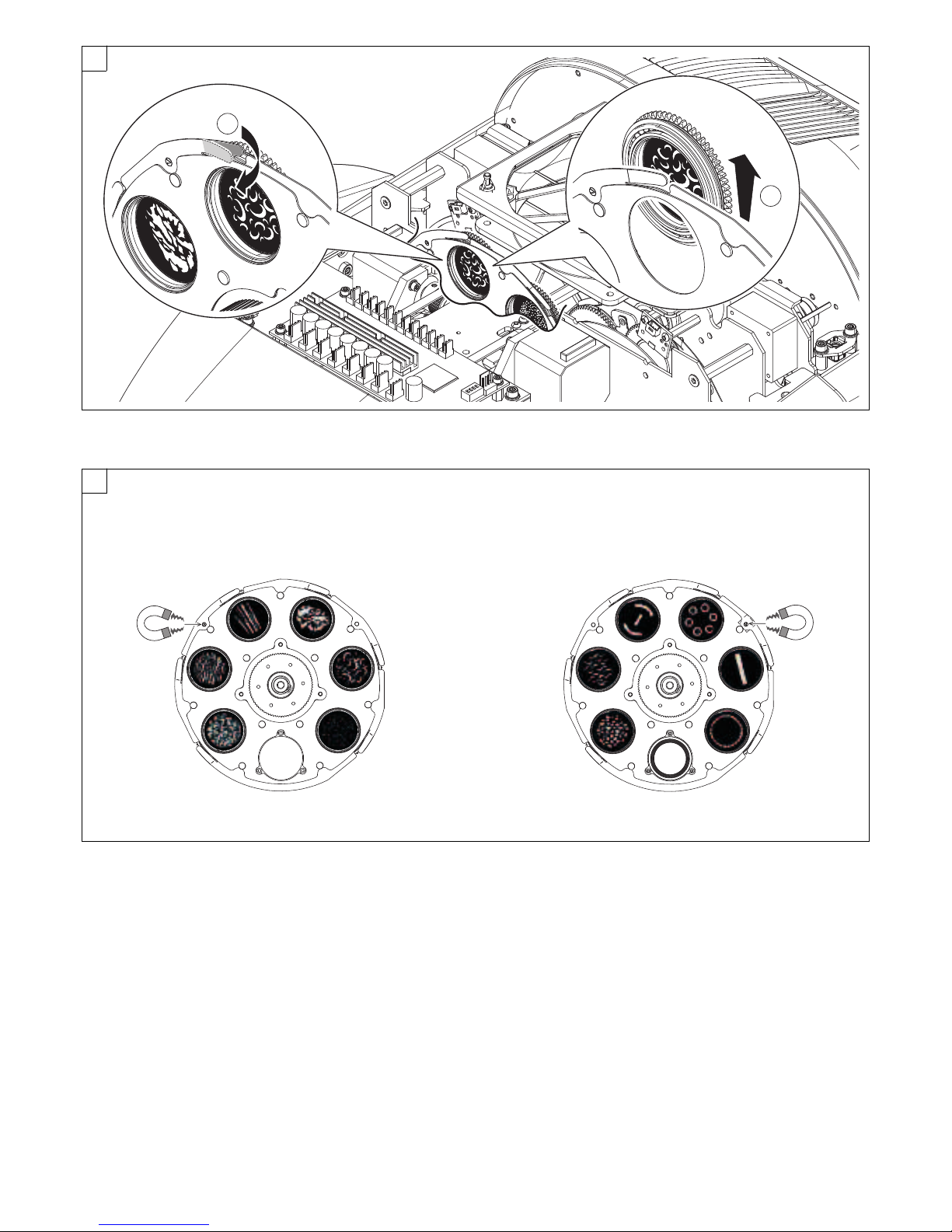

GOBO ROTATION 1 GOBO ROTATION 2
GOD003/001
GOD003/002
GOD003/003
GOD003/004
GOD003/005
GOD003/006
GOD003/007
GOD003/008
GOD003/009
GOD003/010
GOD003/011
GOD003/012
INDEX
INDEX
18
Replacing rotating gobos (ø 32.8 mm - max 26 mm image – thickness 1.1 mm) - Fig. 18
- Before use custom gobos contact Clay Paky;
- The original gobos have a special coating designed specifically to resist to the high temperatures;
- The rotating gobo wheel only use dichroic glass gobos (it is not possible to use metal gobos);
- For more information contact Clay Paky;
Bearing group replacement - Fig. 17
17
23
SCENIUS SPOT

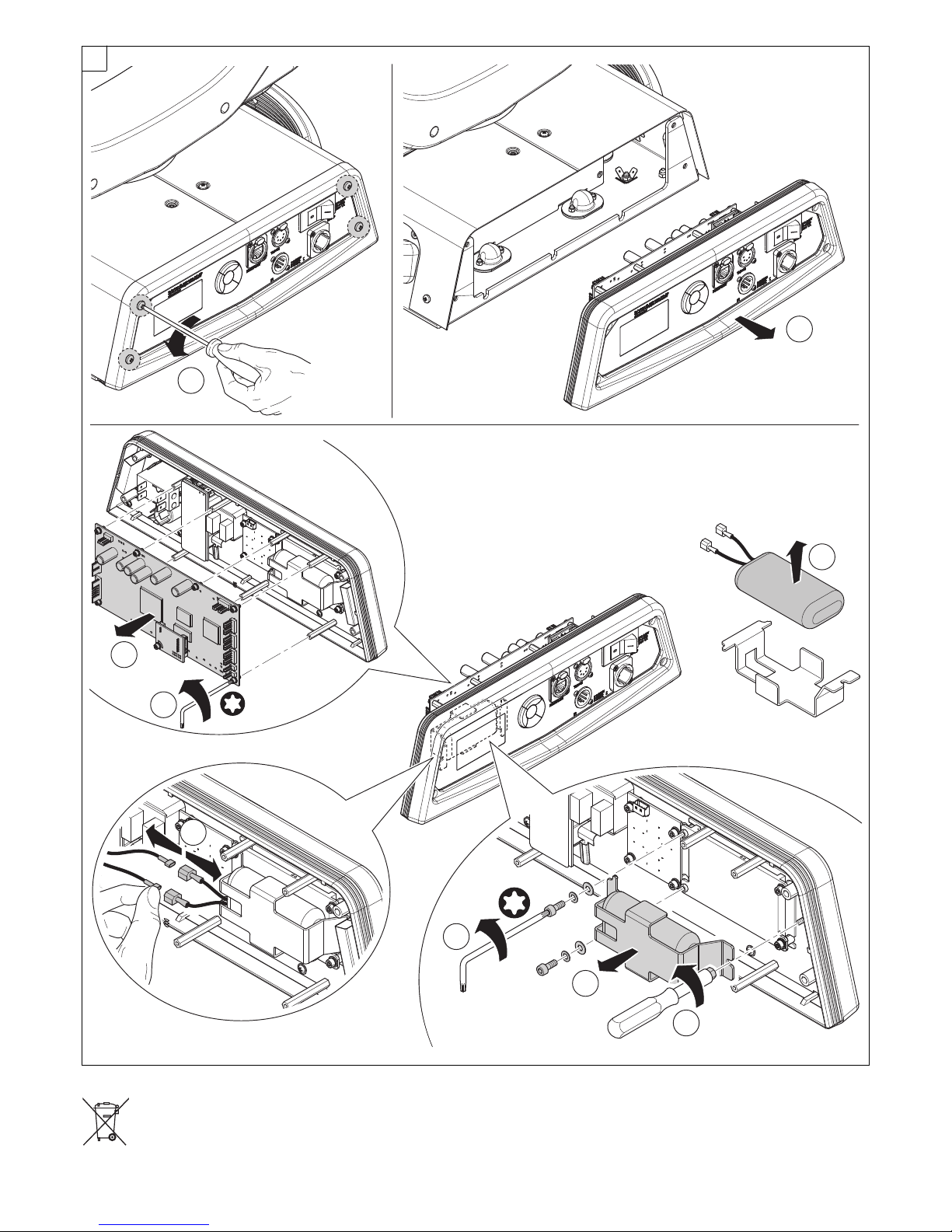

Battery removal - Fig. 19
This product contains a rechargeable lithium iron tetraphosphate battery. To preserve the environment, please dispose the battery at the end
of its life according to the regulation in force.
9
1
2
5
3
4
6
7
8
LiFePO4
19
24
SCENIUS SPOT

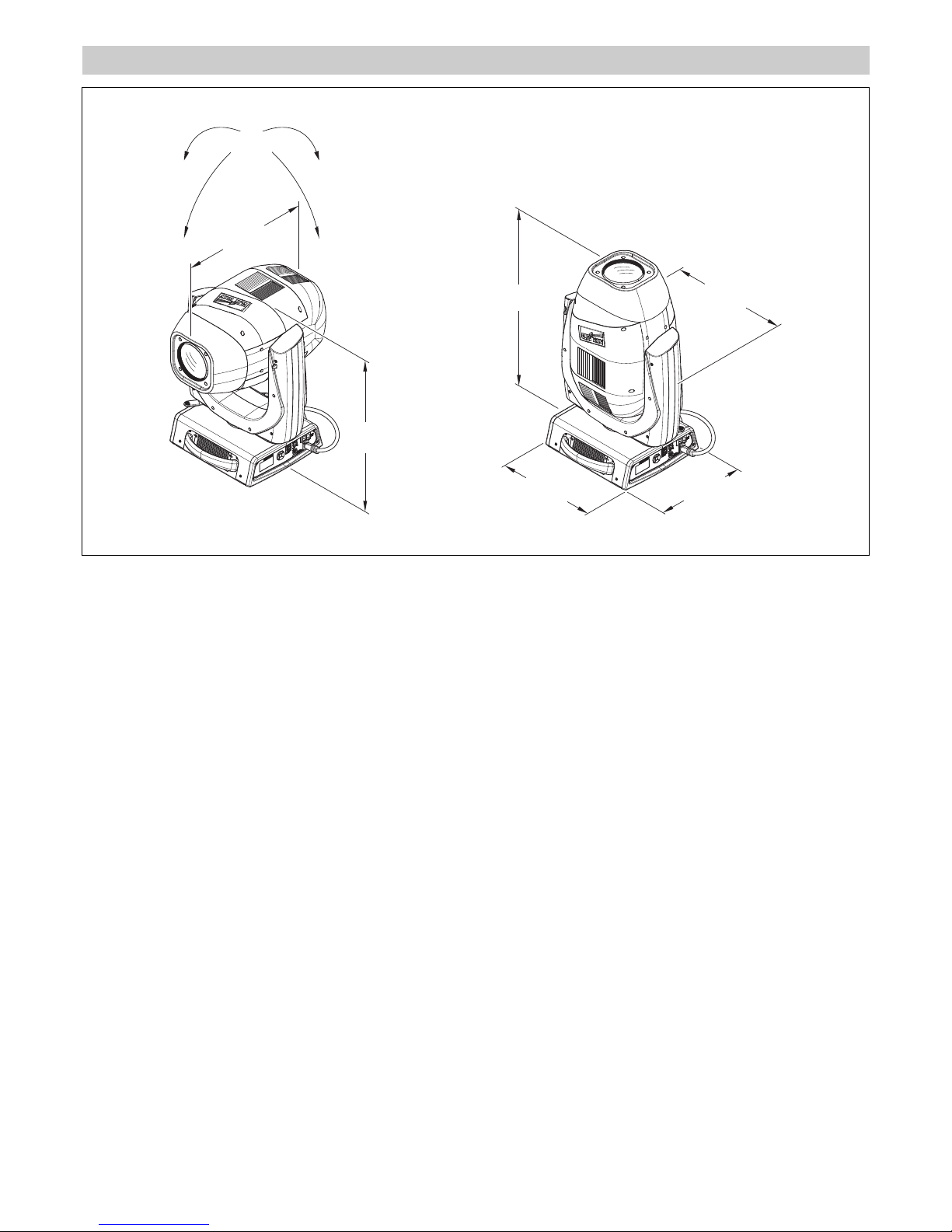

TECHNICAL INFORMATION
410
(16.14")
360
(14.17")
486
(19.13")
7
60
(
29.92")
5
65
(
22.24")
584
(22.99")
645
(25.39")
Power supplies
200/240V 50/60 Hz
Input power
1800 VA
Total lumen output
28.000lm @ 1200W mode –
31.000lm @ 1400W mode
Light source
• Lamp OSRAM Lok-it 1400-PS
• Color Temperature: 6.000 K
- Life: 750 hrs
- CRI 95
- Luminoux flux: 120000 lm
- Base PGJ28 Lok-it!
Motors
23 stepper motors, operating with microsteps,
totally microprocessor controlled
Channels
32 control channels – 36 Vector
Inputs
• DMX 512
• Ethernet
Moving body
Automatic repositioning of PAN and TILT after
accidental movement not controlled by control unit.
Weight
38 Kg (83.6 lbs)
Dimensions
• (L x W x H): 410 x 442 x 760 mm
• (L x W x H): 16.14 x 17.4 x 29.92 inches
IP rating
• IP20
• Protected against the entry of solid bodies
larger than 12mm (0.47”).
• No protection against the entry of liquids.
Safety devices
• Bipolar circuit breaker with thermal protection.
• Automatic break in power supply in case of
overheating or failed operation of cooling
system.
Cooling
Forced ventilation with fans and heat sink.
Body
Aluminum and steel structure with plastic covers.
Working position
• Any Working Position
• Hanging system: with fast-lock omega clamps
(1/4 turn) on the base.
Effects section:
• Very precise 0-100% dimmer
• CMY System + Linear CTO
• Fast stop/strobe effect
• N°1 Colour Wheel with 7 color filter
• N° 2 Wheels with 6+6 rotating gobo (image
ø26 mm)
• N° 1 Graphics Wheel (Interchangeable with
fixed gobo Wheel)
• N° 1 16 fast Iris (16 blades)
• N° 2 linear Frost (light and heavy)
• N° 1 Rotating Prism with 4 faces
• 8° - 50° Optical Zoom (Diameter front lens
ø142 mm)
Control and programming:
• 32 or 36 DMX 512 control channels
• DMX protocol signal: USITT DMX 512
• Display: LCD 128 x 64 bit, backlit LED, white
on black
• Pan and Tilt Resolution: 16 bit
• Focus Indexing Resolution: 16 bit
• Dimmer Resolution: 16 bit
• Rotation gobo Resolution: 16 bit
• Movement control: vectorial
• DMX signal connection: 5 pole XLR input and
output
• Software upload through DMX input / Ethernet
input
Electronics
• Long life self-charging buffer battery.
• Function reset from control unit
• ON/OFF lamp control from the lighting desk.
• Function reset from the lighting desk.
• "AUTOTEST" function from menu.
• ARTNET
• Electronic monitoring with status error.
• Cooling system monitoring.
• DMX level monitoring on all channels.
• Internal data transmission diagnostics.
• Firmware Upgrade with no power.
• Firmware upload from another fixture.
25
SCENIUS SPOT
CAUSE AND SOLUTION OF PROBLEMS
THE PROJECTOR WILL NOT SWITCH ON
P
ROBLEMS
ELECTRONICS NON-OPERATIONAL
DEFECTIVE PROJECTION
REDUCED LUMINOSITY
POSSIBLE CAUSES CHECKS AND REMEDIES
No mains supply.
Lamp exhausted or defective.
Signal transmission cable faulty or disconnected.
Incorrect addressing.
Fault in the electronic circuits.
Lenses or reflector broken
Dust or grease deposited.
Check the power supply voltage.
Replace the lamp. (See instructions).
Replace the cables.
Check addresses (see instructions).
Call an authorised technician.
Call an authorised technician.
Clean (see instructions).
SCENIUS SPOT
CHANNEL FUNCTION
26
SCENIUS SPOT
NB: To prevent accidental breakage of the effects,
which could collide with each other during transport,
before switching the projector OFF check that all the
projector Channels have been excluded (DMX level = 0 bit).
CHANNEL
CHANNEL MODE
STANDARD VECTOR
1 CYAN WHEEL CYAN WHEEL
2 MAGENTA WHEEL MAGENTA WHEEL
3 YELLOW WHEEL YELLOW WHEEL
4 CTO CTO
5 COLOUR COLOUR
6 STOPPER / STROBE STOPPER / STROBE
7 DIMMER DIMMER
8 DIMMER FINE DIMMER FINE
9 IRIS IRIS
10 ROTATING GOBO 1 CHANGE ROTATING GOBO 1 CHANGE
11 GOBO 1 ROTATION GOBO 1 ROTATION
12 FINE GOBO 1 ROTATION FINE GOBO 1 ROTATION
13 ROTATING GOBO 2 CHANGE ROTATING GOBO 2 CHANGE
14 GOBO 2 ROTATION GOBO 2 ROTATION
15 FINE GOBO 2 ROTATION FINE GOBO 2 ROTATION
16
ANIMATION DISK INSERTION or
STATIC GOBO WHEEL
ANIMATION DISK INSERTION or
STATIC GOBO WHEEL
17 ANIMATION DISK ROTATION ANIMATION DISK ROTATION
18 PRISM INSERTION PRISM INSERTION
19 PRISM ROTATION PRISM ROTATION
20 FROST FROST
21 FOCUS FOCUS
22 FOCUS FINE FOCUS FINE
23 ZOOM ZOOM
24 MACRO ZOOM MACRO ZOOM
25 AUTOFOCUS ADJUSTMENT AUTOFOCUS ADJUSTMENT
26 PAN PAN
27 FINE PAN FINE PAN
28 TILT TILT
29 FINE TILT FINE TILT
30 FUNCTION FUNCTION
31 RESET RESET
32 LAMP CONTROL LAMP CONTROL
33 - PAN-TILT TIME
34 - COLOUR TIME
35 - BEAM TIME
36 - ROTATING GOBO TIME
SCENIUS SPOT
27
Channel Mode
DMX
Value
Function
S
tandard Vector
1 1
CYAN COLOUR WHEEL
0 - 255 Linear Cyan movement
2 2
MAGENTA COLOUR WHEEL
0
- 255 Linear Magenta movement
3 3
YELLOW COLOUR WHEEL
0 - 255 Linear Yellow movement
4 4
CTO COLOUR WHEEL
0 - 255 Linear CTO movement
5 5
COLOUR
0 - 15 Color 1 tbd
16 - 31 Color 2 tbd
32 - 47 Color 3 tbd
48 - 63 Color 4 tbd
64 - 79 Color 5 tbd
80 - 95 Color 6 tbd
96 - 111 Color 7 tbd
112 - 127 Color 8 tbd
128 - 255
Continuous Colour Wheel rotation at linearly variable speed from slow
(4.4 rph) to fast (160 rpm)
6 6
STOPPER / STROBE
0 - 3 Light OFF
4 - 103
Strobe at linearly variable frequency from low (1 flash/sec) to high
(12 flashes/sec)
104 - 107 Light ON
108 - 207 Pulsation at linearly variable speed from slow to fast
208 - 212 Light ON
213 - 225 Random Strobe at low frequency
226 - 238 Random Strobe at medium frequency
239 - 251 Random Strobe at high frequency
252 - 255 Light ON
7 7
DIMMER
0 - 255
Light output linearly increase from no-light to maximum brightness.
Dimmer blades move from totally closed to totally open in xxx seconds
at maximum speed.
8 8
DIMMER FINE
0 - 255 Fine Dimmer positioning
9 9
IRIS
0 - 131 Iris linearly open from minimum to maximum aperture
132 - 171 Iris pulsation from slow to fast speed
172 - 211 Iris pulsation from slow to fast speed with fast opening
212 - 251 Iris pulsation from slow to fast speed with fast closing
252 - 255 Maximum aperture
Continue
➔
28
SCENIUS SPOT
C
hannel Mode
D
MX
V
alue
F
unction
Standard Vector
10 10
ROTATING GOBO 1 CHANGE
0 - 18 Empty position
19 - 37 Gobo 1
3
8 - 56 Gobo 2
5
7 - 74 Gobo 3
75 - 92 Gobo 4
93 - 111 Gobo 5
112 - 129 Gobo 6
130 - 150 Gobo 1 shakes at variable speed from slow (xx bpm) to fast (xx bpm)
151 - 171 Gobo 2 shakes at variable speed from slow (xx bpm) to fast (xx bpm)
172 - 192 Gobo 3 shakes at variable speed from slow (xx bpm) to fast (xx bpm)
193 - 213 Gobo 4 shakes at variable speed from slow (xx bpm) to fast (xx bpm)
214 - 234 Gobo 5 shakes at variable speed from slow (xx bpm) to fast (xx bpm)
235 - 255 Gobo 6 shakes at variable speed from slow (xx bpm) to fast (xx bpm)
11 11
GOBO 1 ROTATION
0 - 21 Gobo indexing: 0° to 90° range
21 - 42 Gobo indexing: 90° to 180° range
42 - 63 Gobo indexing: 180° to 270° range
63 - 84 Gobo indexing: 270° to 360° range
84 - 105 Gobo indexing: 360° to 450° range
105 - 127 Gobo indexing: 450° to 540° range
128 - 190
Continuous gobo rotation at linearly variable speed from fast (180 rpm)
to slow (2.2 rph)
191 - 192 Stop rotation
193 - 255
Continuous gobo rotation at linearly variable speed from slow (2.2 rph)
to fast (180 rpm)
12 12
FINE GOBO 1 ROTATION
0 - 255 Fine Gobo Indexing
13 13
ROTATING GOBO 2 CHANGE
0 - 18 Empty position
19 - 37 Gobo 1
38 - 56 Gobo 2
57 - 74 Gobo 3
75 - 92 Gobo 4
93 - 111 Gobo 5
112 - 129 Gobo 6
130 - 150 Gobo 1 shakes at variable speed from slow (xx bpm) to fast (xx bpm)
151 - 171 Gobo 2 shakes at variable speed from slow (xx bpm) to fast (xx bpm)
172 - 192 Gobo 3 shakes at variable speed from slow (xx bpm) to fast (xx bpm)
193 - 213 Gobo 4 shakes at variable speed from slow (xx bpm) to fast (xx bpm)
214 - 234 Gobo 5 shakes at variable speed from slow (xx bpm) to fast (xx bpm)
235 - 255 Gobo 6 shakes at variable speed from slow (xx bpm) to fast (xx bpm)
14 14
GOBO 2 ROTATION
0 - 21 Gobo indexing: 0° to 90° range
21 - 42 Gobo indexing: 90° to 180° range
42 - 63 Gobo indexing: 180° to 270° range
63 - 84 Gobo indexing: 270° to 360° range
84 - 105 Gobo indexing: 360° to 450° range
105 - 127 Gobo indexing: 450° to 540° range
128 - 190
Continuous gobo rotation at linearly variable speed from fast (180 rpm)
to slow (2.2 rph)
191 - 192 Stop rotation
193 - 255
Continuous gobo rotation at linearly variable speed from slow (2.2 rpH)
to fast (180 rpm)
29
SCENIUS SPOT
C
hannel Mode
D
MX
V
alue
F
unction
Standard Vector
15 15
F
INE GOBO 2 ROTATION
0 - 255 Fine Gobo Indexing
16 16
ANIMATION DISK INSERTION or STATIC GOBO WHEEL
0 - 255 Linear Animation Disk Insertion
17 17
ANIMATION DISK ROTATION
0 - 124
Continuous animation disk clockwise rotation at linearly variable speed
from fast (180 rpm) to slow (4.4 rph)
125 - 130 Stop rotation
131 - 255
Continuous animation disk counter-clockwise rotation at linearly
variable speed from slow (4.4 rph) to fast (180 rpm)
18 18
PRISM INSERTION
0 - 127 Prism out
128 - 255 Prism into the light beam
19 19
PRISMS ROTATION
0 - 21 Prism indexing: 0° to 90° range
21 - 42 Prism indexing: 90° to 180° range
42 - 63 Prism indexing: 180° to 270° range
63 - 84 Prism indexing: 270° to 360° range
84 - 105 Prism indexing: 360° to 450° range
105 - 127 Prism indexing: 450° to 540° range
128 - 190
Continuous prism rotation at linearly variable speed from fast (80 rpm)
to slow (3 rph)
191 - 192 Stop rotation
193 - 255
Continuous prism rotation at linearly variable speed from slow (3 rph)
to fast (80 rpm)
20 20
FROST
0 - 255
Frost moves linearly into the light beam
Frost blades move from no-diffusion to maximum diffusion
21 21
FOCUS
0 - 255 Focus moves linearly from far to near position
22 22
FOCUS FINE
0 - 255 Fine Focus positioning
23 23
ZOOM
0 - 255 Zoom linearly moves from narrow to wide beam
24 24
MACRO ZOOM
0 - 6 Autofocus disabled
7 - 255 Autofocus from 4mt. (bit 7) to 100mt. (bit 255)
25 25
AUTOFOCUS ADJUSTMENT
0 - 127 Focus Fine
128 Stop
129 - 255 Focus Fine
26 26
PAN
0 - 255
Pan movement/positioning from 0° to 540°
x Fast Speed: xxx sec
x Normal Speed: xxx sec
27 27
FINE PAN
0 - 255 Fine Pan positioning
28 28
TILT
0 - 255
Tilt movement/positioning from 0° to 268°
x Fast Speed: xxx sec
x Normal Speed: xxx sec
Continue
➔
30
SCENIUS SPOT
Channel Mode
DMX
V
alue
Function
Standard Vector
29 29
FINE TILT
0 - 255 Fine Tilt positioning
30 30
FUNCTION
0 - 11 Unused range
12 - 24 Fast Pan / Tilt speed (default)
25 - 37 Normal Pan / Tilt speed
38 - 50 Conventional Dimmer curve
51 - 62 Linear Dimmer curve (default)
63 - 75 CMY Full Range (default)
76 - 87 CMY Limited range
88 - 101 CMY shortcut ON (default)
102 - 113 CMY shortcut OFF
114 - 127 1500HPE like dimmer curve
128 - 140 Standard Dimmer curve
141 - 255 Unused range
The functions are activated/selected passing through the unused
levels range and staying in the necessary range for 5 seconds.
31 31
RESET
0 - 25 Unused range
26 - 76
Zoom Reset
Zoom Reset sequence is activated passing through the unused levels
range and staying in this range for 5 seconds
77 - 127
Pan / Tilt Reset
Pan/Tilt Reset sequence passing through the unused levels range and
staying in this range for 5 seconds.
128 - 255
Complete Reset
All-effects Reset sequence passing through the unused levels range
and staying in this range for 5 seconds.
32 32
LAMP CONTROL
0 - 25 Unused range
26 - 100
Lamp OFF
Lamp switch-off passing through the unused levels range and staying
in this range for 5 seconds.
101 - 255
Lamp ON
Lamp switch-on passing through the unused levels range and staying
in this range for 5 seconds.
-
33
PAN-TILT TIME
0 - 255 Pan - Fine Pan - Tilt - Fine Tilt tbd
-
34
COLOUR TIME
0 - 255 Cyan - Magenta –Yellow tbd
-
35
BEAM TIME
0 - 255 Dimmer - Frost - Prism –Focus –Zoom tbd
-
36
GOBO TIME
0 - 255 Rotating Gobo tbd
31
SCENIUS SPOT
BIT Seconds
0 Full
1 0.2
2 0.4
3 0.6
4 0.8
5 1
6 1.2
7 1.4
8 1.6
9 1.8
10 2
11 2.2
12 2.4
13 2.6
14 2.8
15 3
16 3.2
17 3.4
18 3.6
19 3.8
20 4
21 4.2
22 4.4
23 4.6
24 4.8
25 5
26 5.2
27 5.4
28 5.6
29 5.8
30 6
31 6.2
32 6.4
33 6.6
34 6.8
35 7
36 7.2
37 7.4
38 7.6
39 7.8
40 8
41 8.2
42 8.4
BIT Seconds
43 8.6
44 8.8
45 9
46 9.2
47 9.4
48 9.6
49 9.8
50 10
51 10.2
52 10.4
53 10.6
54
11
55
56
12
57
58
13
59
60
61 14
62
63
15
64
65
66 16
67
68
17
69
70
71 18
72
73
19
74
75
76 20
77
78
79 21
80
81
22
82
83
84 23
85
BIT Seconds
86
24
87
88
89 25
90
91
26
92
93
94 27
95
96
28
97
98
99 29
100
101
102 30
103
104
31
105
106
107 32
108
109
33
110
111
112 34
113
114
35
115
116
117 36
118
119
37
120
121
122 38
123
124
125 39
126
127
40
128
BIT Seconds
129
130 41
131
132
4
2
133
134
135 43
136
137
44
138
139
140 45
141
142
46
143
144
145 47
146
147
48
148
149
150 49
151
152
153 50
154
155
51
156
157
158 52
159
160
53
161
162
163 54
164
165
55
166
167
168 56
169
170
57
171
BIT Seconds
172
173 58
174
175
176 59
177
178
6
0
179
180
181 65
182
183
70
184
185
186 75
187
188
80
189
190
191 85
192
193
90
194
195
196 95
197
198
100
199
200
201 110
202
203
204 120
205
206
130
207
208
209 140
210
211
150
212
213
214 160
215
BIT Seconds
216
170
217
218
219 180
220
221
190
222
223
224 200
225
226
227 210
228
229
220
230
231
232 230
233
234
240
235
236
237 250
238
239
260
240
241
242 270
243
244
280
245
246
247 290
248
249
300
250
251
252
310
253
254
255
Follow cue
Data
TIME TABLE
CLAY PAKY S.p.A. - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035 -654311 - Fax +39-035-301876 - www.claypaky.it
IST00V/001 – EN - Rev.0 10/2015
Loading...
