INSTRUCTION MANUAL
INDEX
Congratulations on choosing a Clay Paky product!
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference. It is essential to know the information
and comply with the instructions given in this manual to ensure
the fitting is installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the fitting
or to other property or persons deriving from installation, use and
maintenance that have not been carried out in conformity with this
instruction manual, which must always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and
without prior notice.
Page
2
3
4
5
7
14
23
23
24
ENGLISH
Contents
Safety information
Unpacking and preparation
Installation and start-up
Control panel
Menu setting
Maintenance
Technical information
Cause and solution of problems
Channel functions
C61380
C61381
ALPHA SPOT QWO 800
ALPHA SPOT QWO 800
“
ST
”
2
ALPHA SPOT QWO 800 & “ST
”
• Installation
Make sure all parts for fixing the projector are in a good state of repair.
Make sure the point of anchorage is stable before positioning the projector.
The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if
the primary support system fails, the fitting falls as little as possible.
If the safety chain gets used, it needs to be replaced with a genuine spare.
• Minimum distance of illuminated objects
The projector needs to be positioned so that the objects hit by the beam of light are at least 3 metres
(10’ 9 ”) from the lens of the projector.
• Minimum distance from flammable materials
The projector must be positioned so that any flammable materials are at least 0.20 metres (8") from
every point on the surface of the fitting.
• Mounting surfaces
It is permissible to mount the fitting on normally flammable surfaces.
• Maximum ambient temperature
Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F).
• IP20 protection rating
The fitting is protected against penetration by solid bodies of over 12mm (0.47”) in diameter (first
digit 2), but not against dripping water, rain, splashes or jets of water (second digit 0).
• Protection against electrical shock
Connection must be made to a power supply system fitted with efficient earthing (Class I appliance
according to standard EN 60598-1).
It is, moreover, recommended to protect the supply lines of the projectors from indirect contact
and/or shorting to earth by using appropriately sized residual current devices.
• Connections to mains supply
Connection to the electricity mains must be carried out by a qualified electrical installer.
Check that the mains frequency and voltage correspond to those for which the projector is designed
as given on the electrical data label.
This label also gives the input power to which you need to refer to evaluate the maximum number
of fittings to connect to the electricity line, in order to avoid overloading.
• Temperature of the external surface
The maximum temperature that can be reached on the external surface of the fitting, in a thermally
steady state, is 150°C (302°F).
• Maintenance
Before starting any maintenance work or cleaning the projector, cut off power from the mains
supply.
After switching off, do not remove any parts of the fitting for at least 10 minutes. After this time the
likelihood of the lamp exploding is virtually nill. If it is necessary to replace the lamp, wait for another
20 minutes to avoid getting burnt.
The fitting is designed to hold in any splinters produced by a lamp exploding. The lenses must be
mounted and, if visibly damaged, they have to be replaced with genuine spares.
• Lamp
The fitting mounts a high-pressure lamp that needs an external igniter. This igniter is fitted onto the
apparatus.
- Carefully read the "operating instructions" provided by the lamp manufacturer.
- Immediately replace the lamp if damaged or deformed by heat.
• Battery
This product contains a rechargeable lead-acid or lithium iron tetraphosphate battery. To preserve
the environment, please dispose the battery at the end of its life according to the regulation in force.
SAFETY INFORMATION
The products referred to in this manual conform to the European Community Directives to which
they are subject:
• Low Voltage 2006/95/CE
• Electromagnetic Compatibility 2004/108/CE
3
800W
IP20
LiFePO4
Pb
3
ALPHA SPOT QWO 800 & “ST
”
UNPACKING AND PREPARATION
90˚
90
˚
90˚
90˚
LOCKED
UNLOCKED
PAN Mechanism Lock and Release (every 90°) - Fig. 2
TILT Mechanism Lock and Release (every 45°) - Fig. 3
UNLOCKED
LOCKED
4
5
˚4
5
˚
45˚
45˚
4
5
˚
45˚
45˚
2 3
Packing contents - Fig. 1
Lamp 800W
(fitted into projector)
099116
2 x 183102/802
1
4
ALPHA SPOT QWO 800 & “ST
”
4
1
2
3
2
1
5
INSTALLATION AND START-UP
Connecting and disconnecting power cable - Fig. 5
Installing the projector - Fig. 4
The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request).
This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
5
ALPHA SPOT QWO 800 & “ST
”
Switching on the projector - Fig. 8
Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display:
Model Firmware xxx (Fixture ID) System errors
Alpha SPOT Version X.X.X Dmx Address xxx E: .........................
QWO 800 Date - Hour W: .........................
On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the “Home” position (Pan 50% - Tilt 50%). The control panel
(Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two conditions:
rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address and the Fixture ID address (if set).
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.
It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the
F
key will be cancelled.
CONTROL PANEL
1
2
Dmx Address
Warning Message
Fixture ID
3m
8
Continue
➔
Connecting to the control signal line (DMX) - Fig. 7
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 3 or 5-pin male/female
connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.
IMPORTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the
shield braid and to pin 1 of the connectors.
DMX 512
Mains
6
7
SIGNAL
SCREEN
DMX 512
5 PIN
1
2
3
4
5
SIGNAL
SCREEN
1
3
2
DMX 512
3 PIN
SIGNAL
SIGNAL
Connecting to the mains supply - Fig. 6
6
ALPHA SPOT QWO 800 & “ST
”
6
28
28

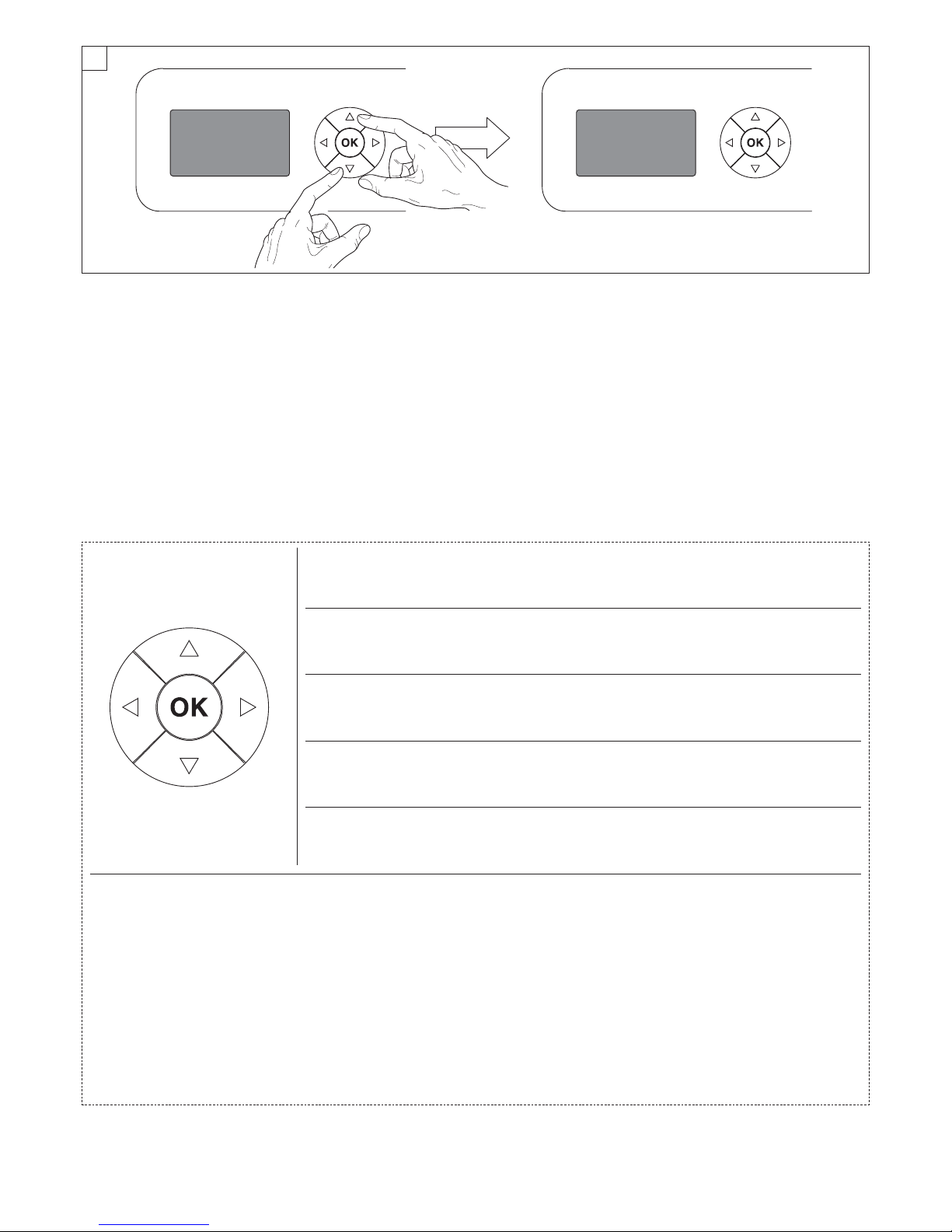

Reversal of the display - Fig. 9
To activate this function, press UP
B
and DOWN Ckeys simultaneously while the display is in the rest mode. This status will be memorised and
maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
Setting the projector starting address
On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
The address can also be set with the projector switched off.
Setting the address: see pag. 8.
Setting the projector Fixture ID
On each projector, the Fixture ID address must be set for an easy identification of the fixtures in an installation (ID from 1 to 255).
The Fixture ID address can be set with the projector switched off.
Setting the Fixture ID: see pag. 8.
9
Functions of the buttons - Using the menu
Setting addresses and options with the projector disconnected
The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.
All that is needed is to press
F
to momentarily activate the display and thus access the settings. Once the required operations have been carried out,
the display will switch off again after a wait time of 30 seconds.
USING THE MENU:
1) Press
F
once – “Main Menu” appears on the display.
2) Use the UP
B
and DOWN Ckeys to select the menu to be used:
• Setup (Setup Menu): To set the setting options.
• Option (Option Menu): To set the operating options
• Informations (Informations Menu): To read the counters, software version and other information.
• Manual Control (Manual control Menu): To trigger the test and manual control functions.
• Test (Test Menu): To check the proper functionning of effects
• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.
To enable the "Advanced" see pag. 13.
3) Press
F
to display the first item in the selected menu.
4) Use the UP
B
and DOWN Ckeys to select the MENU items.
Confirms the displayed value, or activates the displayed function, or enters the successive
menu.
Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.
Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.
Return to the top level
Commute from units, tens, hundreds, in the "Address", "Fixture ID" and "Calibration" menù.
F
C
DOWN
B
UP
D
LEFT
E
RIGHT
7
ALPHA SPOT QWO 800 & “ST
”
4
Lamp
Manual
Control
Reset
Channel
6
MENU SETTING
Access code
1234
Advanced
Calibration
Upload
Firmware
Setup
Model
Continue
➔
5
Pan / Tilt
Colour
Beam
Gobo
All
Tes
t
System
Errors
Information
Fixture
Hours
Lamp
Hours
Set Up
Option
Information
Manual
Control
Test
Advanced
13
L
amp
S
trikes
System
Version
Board
Diagnost.
Dmx
Monitor
F
ans
M
onitor
2
Lamp Dmx
Pan / Tilt
Color
Display
Option
Invert
Pan
Invert
Tilt
Swap
Pan-Tilt
Encoder
Pan-Tilt
Color
Mixing
Fixed Wheel
Shortcut
Macro Color
Adjsutment
Setting
Default
Preset
User
Preset 1
User
Preset 2
User
Preset 3
Shutter
Shutter
On Error
Dimmer On
Shutter
Dmx
Address
Channel
Mode
Ethernet
Interface
F
ixture ID
Network
params
Color
mixing curve
Autofocus
Mode
Limited Zoom
Range
Complete
Zoom Range
Macro
Effects
Macro group
size
Macro
fixture Id
8
ALPHA SPOT QWO 800 & “ST
”
DMX ADDRESS
NOTE: without the DMX signal the Address (XXX) flashing
Allows you to select the DMX ADDRESS.
1) Press
F
- the current DMX Adress appear on the display.
2) Use the UP
B
and DOWN C, RIGHT Ekeys to plan the DMX
Address.
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
CHANNEL MODE
Allows you to select a channel arrangement from the two available.
1) Press
F
- the current settings appear on the display (Standard or
Vector).
2) Use the UP
B
and DOWN Ckeys to select one of the following
settings:
- Standard
- Vector
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
FIXTURE ID
Allows you to select the FIXTURE ID.
1) Press
F
- the current Fixture ID appear on the display.
2) Use the UP
B
, DOWN C, RIGHT Ekeys to plan the Fixture ID.
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
ETHERNET INTERFACE
It lets you set the Ethernet settings to be attributed to the projector.
1) Premere
F
.
2) Use the UP
B
and DOWN Ckeys to select the “Ethernet Interface”
options to set:
Control Protocol
It lets you select the “Control Protocol” Art-net to assign according to the
control unit used:
1) Press
F
the current setting appears on the display.
2) Use the UP
B
and DOWN Ckeys to select one of the following settings:
- Disabled
- Art-net on IP 2
- Art-net on IP 10
3) Press
F
to confirm the selection or LEFT Dto keep the current setting.
Repeat on DMX
It lets you enable the transmission of the Ethernet protocol by DMX signal
to all the connected projectors.
1) Press
F
the current setting appears on the display.
2) Use the UP
B
and DOWN Ckeys to select one of the following settings:
- Disabled: DMX transmission disabled.
- Enabled on primary: DMX transmission enabled.
3) Press
F
to confirm the selection or LEFT Dto keep the current setting.
Universe
It lets you assign the “Universe” number to be assigned to a series of
projectors.
1) Press
F
– the current Universe address appears on the display.
2) Use the UP
B
, DOWN C, RIGHT Ekeys to set the Universe address.
3) Press
F
to confirm the selection or LEFT Dto keep the current setting.
SET UP MENU
Set Up
Dmx
Address
Channel
Mode
Fixture ID
Address xxx
Standard
Vector
Value xxx
Ethernet
Interface
Control
Protocol
Repeat on
DMX
Universe
NOTE: On grey the default options
9
ALPHA SPOT QWO 800 & “ST
”
Continue
➔
LAMP DMX
Used for enabling lamp remote control channel.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
the lamp remote control channel.
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
PAN / TILT
Invert pan
Used for reversing Pan movement.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
PAN inversion.
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
Invert tilt
Used for reversing tilt movement.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
Tilt inversion.
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
Swap Pan-Tilt
Used for swapping Pan and Tilt channels (as well as Pan fine and Tilt fine).
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
Pan and Tilt channel swap.
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
Encoder Pan-Tilt
Used for enabling the Pan / Tilt encoders.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
Pan / Tilt encoders.
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
COLOR
Color mixing
Used for reversing the CMY color mixing system.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys select one of the following settings:
RGB color mixing mode
CMY color mixing mode
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
Color mixing curve
It lets you select the “Color mixing curve” from the two available.
1) Press
F
the current setting appears on the display.
2)
Use the UP Band DOWN Ckeys to select one of the following settings:
Curve 1
Curve 2
3) Press
F
to confirm the selection or LEFT Dto keep the current setting.
Fixed wheel short-cut
Used for optimizing color change time so that the disc turns in the direction that requires shorter movement.
1) Press
F
– the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
color change optimization.
3) Press
F
to confirm the selection, or LEFT Dto keep current settings.
Macro color adjustment
It lets you enable the overwriting of a “Macro Colour” with the Cyan,
Magenta, Yellow, CTO and Colour wheel channels.
Press
F
the current setting appears on the display.
1) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
the overwriting.
2) Press
F
to confirm the selection or LEFT Dto keep the current setting.
Color
Swap
Pan-Tilt
On
Off
Encoder
Pan-Tilt
On
Off
Color
Mixing
Rgb
Cmy
Fixwheel
Shortcut
On
Off
Lamp Dmx
Pan / Tilt
Option
On
Off
Invert
Pan
On
Off
Invert
Tilt
On
Off
OPTIONS MENU
Color
Mixing curve
Curve 1
Curve 2
Macro Color
Adjustment
On
Off
10
ALPHA SPOT QWO 800 & “ST
”
SHUTTER
Shutter on error
Used for automatically closing the stop/strobe in the event of Pan/Tilt
position error.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
automatic stop/strobe closing in the event of Pan/Tilt position error.
3) Press
F
to confirm the selection, or LEFT Dto keep current settings.
Dimmer on Shutter
Enables automatic closing of the dimmer when the strobe is completely
closed.
1) PressF– the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
the automatic closing of the dimmer.
3) Press
F
to confirm the selection, or LEFT Dto keep current
settings.
AUTO-FOCUS MODE
It lets you select the “Auto-focus Mode” from the two available.
1) Press
F
the current setting appears on the display.
2) Use the UP
B
and DOWN Ckeys to select one of the following
settings:
Limited Zoom Range: The “Autofocus” works only in the optical run
that was specifically designed for the projector in question.
Complete Zoom Range: The “Autofocus” also works in overrun
3) Press
F
to confirm the selection or LEFT Dto keep the current setting.
MACRO EFFECTS
It lets you select the “Macro Effects” set up from the two available.
1) Press
F
the current setting appears on the display.
2) Use the UP
B
and DOWN Ckeys to select one of the following
settings:
Macro group size
It lets you set the number of projectors to be included in the macro mode
operation.
1) Press
F
2) Use the UP B, DOWN C, RIGHT keys to set the number of projectors
to be included in the “Macro Effect” operation.
3) Press
F
to confirm the selection or LEFT Dto keep the current setting.
Macro fixture Id
It lets you attribute an ID address to the projector for the phase
displacement for the scene’s starting time in Macro mode.
1) Press
F
2)
Use the UP Band DOWN Ckeys to select one of the following settings:
Fixed to X. (to assign to all the projectors to be included in the Macro
operation).
Auto by DMX Address: According to the DMX address, it automatically
detects the starting sequence of the scene in the Macro mode (to assign
to all the projectors to be included in the Macro operation).
3) Press
F
to confirm the selection or LEFT Dto keep the current setting.
DISPLAY
Used for automatically reduce brightness on the display after about 30
seconds in idle.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off) the
decreasing of display brightness.
3) Press
F
to confirm the selection or LEFT Dto keep current
settings.
On
Off
Display
Shutter
Shutter
On Error
On
Off
Dimmer On
Shutter
On
Off
Macro
Effects
Macro fixture Id
Macro group
size
Auto-focus
Mode
Limited
Zoom Range
Complete
Zoom Range
11
ALPHA SPOT QWO 800 & “ST
”
Continue
➔
SYSTEM ERRORS
Shows a list of warnings and messages relevant to errors occurred since
the fixtures switching-on.
1) Pressing
F
you are allowed to reset the SYSTEM ERRORS list.
A confirmation message (Are you sure you want to clear error list ?)
appears on the display.
2) Select YES to reset the list or NO to go back.
FIXTURE HOURS
Used for displaying projector operating hours (total and partial).
1) Press
F
- Hours total and partial appears on the display.
Total counter
Counts the number of projector working life hours (from manufacture to date).
Partial counter
Counts the number of partial projector working life hours since the
last reset to date.
2) Press
F
to reset partial projector working hours a confirmation
message (Are you sure?) appears on the display.
3) Select YES to reset partial projectors counter or NO to keep the
current setting and return to the top menu level.
LAMP HOURS
Used for displaying the lamp working hours (total and partial).
1) Press
F
- Hours total and partial appears on the display.
Total counter
Counts the number of projector working hours with the lamp on (from
manufacture to date).
Partial counter
Counts the number of lamp working hours since the last reset to date.
SETTING
Used to save 3 different settings of the items in the options menu and
relative submenus.
1) Press
F
- “Default preset” appears on the display.
2) Use the UP
B
and DOWN Ckeys to select one of the following
configurations:
- Default preset (*)
- User preset 1
- User preset 2
- User Preset 3
3) Press
F
- “Load preset X” appears on the display.
4) Use the UP
B
and DOWN Ckeys to select:
- Load preset X to recall a previously stored configuration.
- Save to preset X to store the current configuration.
a
confirmation message (Are you sure?) appears on the display.
5) Select YES to confirm the selection or NO to keep the current setting
and return to the next higher level.
(*) DEFAULT PRESET
Used for restoring default values on all options menu items and relevant submenus.
1) Press F, a confirmation message (Are you sure?) appears on the
display.
2) Select YES to confirm the selction or NO to keep current setting.
OPTION DEFAULT
Lamp DMX On
Invert Pan Off
Invert Tilt Off
Swap Pan-Tilt Off
Encoder Pan-Tilt On
Color mixing CMY
Color mixing curve Curve 2
Fixed Wheel Shortcut On
Macro Color Adjustment On
Shutter on error Off
Dimmer on Shutter Off
Auto-focus mode Limited zoom range
Display On
INFORMATION MENU
Save To
Preset 3
Reset To
Dafault
Go Back
Setting
Default
Preset
Load
Preset 1
Save To
Preset 1
User
Preset 1
Load
Preset 2
Save To
Preset 2
User
Preset 2
Load
Preset 3
User
Preset 3
Lamp
Hours
Total XXX
Partial XXX
Reset...
Information
System
Errors
Fixture
Hours
Total XXX
Partial XXX
Reset...
12
ALPHA SPOT QWO 800 & “ST
”
2) Press Fto reset partial lamp working hours, a confirmation message
(Are you sure ?) appears on the display.
3) Select YES to reset partial counter or NO to keep the current setting
and return to the top menu level
LAMP STRIKES
Used for displaying the number of times the lamp was turned on (total and
partial).
1) Press
F
- the number of times the lamp was turned on (total and
partial) appears on the display.
Total counter
Counts the number of times the lamp was turned on (from manufacture
to date).
Partial counter
Counts the number of times the lamp was turned on since the last reset
to date.
2) Press
F
to reset partial lamp strikes hours, a confirmation message
(Are you sure ?) appears on the display.
3) Select YES to reset partial counter or NO to keep the current setting
and return to the top menu level
SYSTEM VERSION
Used for displaying the software and hardware version of each board
installed in the projector.
CPU brd (CPU board)
0: PT-3f (Pan / Tilt board)
1: 6-Ch (6 channel board)
2: 8-Ch (8 channel board)
3: 6-Ch (6 channel board)
BOARD DIAGNOSTIC
Used for displaying the status error of each board installed in the projector:
0: PT-3f (Pan / Tilt board)
1: 6-Ch (6 channel board)
2: 8-Ch (8 channel board)
3: 6-Ch (6 channel board)
DMX MONITOR
Used for displaying the projector DMX channel level in bit (Val) and in
percentage (Perc).
FANS MONITOR
Used for displaying the speed of each fan installed in the projector:
Ball. IN (Ballast IN Fan)
Eff.IN (Effects IN Fan)
Lamp (Lamp Fan)
NETWORK PARAMS
Allows the "Network" parameters of the projector to be displayed or:
IP address: Internet Protocol address (two projectors must not have the
same IP address)
IP mask: 255.0.0.0
Mac address: Media Access Control: the projector’s Ethernet Address
LAMP
Used for turning lamp on and off from the projector control panel.
1) Press
F
-
the current settings appear on the display (On or Off).
2) Use the
UP Band DOWN Ckeys to turn the lamp on (On) or off (Off)
3) Press
F
to confirm the selection or
LEFT Dto keep current settings
and return to the top level.
RESET
Used for resetting the projector.
1) Press
F
to reset the projectors, a confirmation message (Are you sure
?) appears on the display.
2) Select YES to starting reset the fixture or NO to keep the current setting
and return to the top menu level.
MANUAL CONTROL
Lamp
Manual
Control
On
Off
No
Yes
Reset
Network
params
System
Version
Board Revis. Hw.rv.
CPU brd x.x.x x.x
com.dev x.x
0: PT-3f x.x x.x
1: 6-Ch x.x x.x
2: 8-Ch x.x x.x
3: 6-Ch x.x x.x
Board
Diagnost.
Dmx
Monitor
Board Status Err%
0:PT-3f Good 0.00
1:6-Ch Good 0.00
2:8-Ch Good 0.00
3:6-Ch Good 0.00
Fans
Monitor
Fan Speed (RPM)
Ball.In. (3) XXXX
Eff.In XXXX
Lamp (2) XXXX
Lamp
Strikes
Total XXX
Partial XXX
Reset...
13
ALPHA SPOT QWO 800 & “ST
”
To enable the "Advanced Menu" set up the "Access code" (1234) using the
UP
B
, DOWN C, RIGHT Ekeys.
Press
F
- "Menu advanced" appears on the display
UP LOAD FIRMWARE
Allows you to transfer the firmware from 1 fixture to all the connected fixtures.
1) Press
F
, a confirmation message appears on the display.
2) Select YES to start the firmware loading or NO to keep the current setting and return to the top menu level
SETUP MODEL
Allows you to change the default model of projector.
1) Press
F
a confirmation message appears on the display.
2) Select YES to define the model of projector or NO to keep the current
setting and return to the top menu level.
CALIBRATION
Allows you to adjust effects from the control panel to obtain perfect uniformity between the projectors.
1) Press
F
- “channels” appears on the display.
2) Using the UP
B
and DOWN Ckeys, select the effect you wish to
regulate.
3) Press
F
and use the RIGHT E, UP Band DOWN Cbuttons to
make the adjustment by setting a value between 0 and 255.
4) Press
F
to confirm the selection
or
LEFT Dto keep current set-
tings and return to the top level.
FACTORY DEFAULT
Allows you to restore default values of all channels (128).
1) Press
F
– a confirmation message appears on the display (Reset
calibration to factory default ?).
2) Select YES to reset calibration to factory default or NO to keep the
current setting and return to the top menu level.
TEST
Allows you to check the proper functioning of effects.
1) Press
F
to return to the top menu level.
2) Use the UP
B
and DOWN Ckeys to select the required test.
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
Test sequence:
• Pan - Tilt effects (Pan & Tilt)
• Colour effects (CMY, colour wheel / CTO)
• Beam effects (Stopper-Strobe / Dimmer / Iris / Prism / Frost / Focus /
Zoom / Animation Disk)
• Gobo effects (Fixed gobo / Rotating gobo)
• All effects
CHANNEL
Used for setting channel levels from the projector control panel.
1) Press
F
- the first channel appears on the display.
2) Use the UP
B
and DOWN Ckeys to select the required channel:
3) Press
F
and use the UP Band DOWN Ckeys to select the
required DMX level (value between 0 and 255).
4) Press LEFT
D
to return to the top menu level.
ADVANCED MENU
TEST MENU
Advanced
C
ode
1234
Upload
Firmware
Transfer the firmware on all
the connected fixtures ?
Are you sure ?
Yes/No
Setup
Model
Changing to a wrong model
may damage the fixture.
Are you sure ?
Yes/No
Test
Pan-Tilt
Colour
Beam
Gobo
All
Channel
Calibration
Factory
Default
14
ALPHA SPOT QWO 800 & “ST
”
Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section.
Opening the head covers - Fig. 10.
Closing the head covers - Fig. 11.
2
1/4 Turn
1
1/4 Turn
2
3
4
1
10 11
MAINTENANCE
15
ALPHA SPOT QWO 800 & “ST
”
Continue
➔
Lower Side
Upper Side
Lower Side
1
2
3
Upper Side
13
14
1
2
12
Lamp change - Fig 13
Take the new lamp out of its package and insert in the fitting.
WARNING: do not touch the lamp’s envelope with bare hands.
Should this happen, clean the bulb with a cloth soaked in alcohol
and dry it with a clean, dry cloth.
Lamp regulation - Fig. 14
To centre the lamp, turn the three adjusting screws as shown in the figure.
Opening and closing lamp compartment - Fig. 12
NORMAL
HOT SPOT
16
ALPHA SPOT QWO 800 & “ST
”
Upper Side
2
1
GOM000-001
085202-001
085203-001
085204-001 085205-001
085206-001
085207-001
085208-001
15
Replacing fixed gobos (ø 31.5 mm – max 19 mm image – thickness max 1.1 mm) - Fig. 15
WARNING: Before using personalised gobos contact Clay Paky.
17
ALPHA SPOT QWO 800 & “ST
”
Upper Side
2
1
086407-001 086410-001
086402-001
085548-001
086409-001
086408-001
240106-801
2
1
17
Replacing rotating gobos (ø 25.7 mm - max 19 mm image – thickness max 1.1 mm) - Fig. 17
IMPORTANT: Use only glass gobos on the rotating gobos wheel.
WARNING: Before using personalised gobos contact Clay Paky.
Bearing group replacement - Fig. 16
Gobo orientation - Fig. 18
The pictures shown the correct gobos orientation.
Continue
➔
18
To determine which side of a godo is coated, hold an odject up to it. On the
uncoated side, there is a space between the object and its reflection.
COATED GLASS GOBOS TYPE 1 COATED GLASS GOBOS TYPE 2
Grey/Black side away from lamp
Coated side towards lamp
Coated side
Uncoated side
Uncoated side
16
18
ALPHA SPOT QWO 800 & “ST
”
Periodical cleaning
- Fig. 19
To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The
frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of the
working environment (air humidity, presence of dust, salinity, etc.).
Use a soft cloth dampened with any detergent liquid for cleaning glass to remove the dirt from the reflectors, from the lenses and filters. It is
recommended that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following
operations:
• General cleaning of internal parts.
• Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky.
• General visual check of the internal components, cabling, mechanical parts, etc.
• Electrical, photometric and functional checks; eventual repairs
.
Upper Side
19
Parts requiring frequent cleaning.
19
ALPHA SPOT QWO 800 & “ST
”
7
8
6
4
5
Lower Side
Lower Side
Lower Side
2
Upper Side
1
3
20
Extraction of the effect modules - Fig. 20
IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 20, 21 and 22 in reverse order.
Continue
➔
20
ALPHA SPOT QWO 800 & “ST
”
Extraction of the effect modules - Fig. 21
IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 20, 21 and 22 in reverse order.
Upper Side
10
Upper Side
9
Lower Side
11
21
21
ALPHA SPOT QWO 800 & “ST
”
Extraction of the effect modules - Fig. 22
IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 20, 21 and 22 in reverse order.
12
Upper Side
13
Upper Side
22
Continue
➔
22
ALPHA SPOT QWO 800 & “ST
”
Battery removal - Fig. 23
This product contains a rechargeable lead-acid or lithium iron tetraphosphate battery. To preserve the environment, please dispose the battery
at the end of its life according to the regulation in force.
2
1
3
4
6
5
LiFePO4
Pb
23
23
ALPHA SPOT QWO 800 & “ST
”
525
(20,67")
405
(15.94")
385
(15,16")
390
(15,35")
210
(8,27")
650
(25.59")
455
(17,91")
530
(20,87")
Power supplies available
100-120V 50/60Hz
200-240V 50/60Hz
Input power
1200VA a 230V 50Hz.
Lamp:
Discharge lamp.
Type MSR Platinum 35 (L10105)
- Cap PGJX36
- Colour temperature 7750 °K
- Luminous flux 54500 lm
- Average life 750 h
- Any working position
Motors
23 stepper motors, operating with m icrosteps,
totally microprocessor controlled.
Optical unit
Elliptic reflector with high luminous efficiency
Channels
Max 36 control channels.
Inputs
DMX 512
Movable body:
• Movement by means of two stepper motors,
controlled by microprocessor.
• Automatic repositioning of PAN and TILT after
accidental movement not controlled by control
unit.
• Travel:
- PAN = 540°
- TILT = 240°
• Maximum speeds:
- PAN = 4.78 sec
- TILT = 2.33 sec
• Resolution:
- PAN = 2.11°
- PAN FINE = 0.008°
- TILT = 0.98°
- TILT FINE = 0.004°
IP20 protection rating
• Protected against the entry of solid bodies larger
than 12mm (0.47”).
• No protection against the entry of liquids.
CE Marking
In conformity with the European Union Low Voltage
Directive 2006/95/CE and Electromagnetic compatibility Directive 2004/108/CE.
Safety Devices
• Bipolar circuit breaker with thermal protection.
• Automatic break in power supply in case of
overheating or failed operation of cooling system.
Cooling
Forced ventilation with axial fans.
Body
• Aluminium structure with die-cast plastic cover.
• Two side handles for transportation.
• Device locking PAN and TILT mechanisms for
transportation and maintenance.
Working position
Functioning in any position.
Weight
about 30 Kg (66lbs).
TECHNICAL INFORMATION
CAUSE AND SOLUTION OF PROBLEMS
THE PROJECTOR WILL NOT SWITCH ON
PROBLEMS
ELECTRONICS NON-OPERATIONAL
DEFECTIVE PROJECTION
REDUCED LUMINOSITY
POSSIBLE CAUSES CHECKS AND REMEDIES
No mains supply.
Lamp exhausted or defective.
Signal transmission cable faulty or disconnected.
Incorrect addressing.
Fault in the electronic circuits.
Lenses or reflector broken
Dust or grease deposited.
Check the power supply voltage.
Replace the lamp. (See instructions).
Replace the cables.
Check addresses (see instructions).
Call an authorised technician.
Call an authorised technician.
Clean (see instructions).
24
ALPHA SPOT QWO 800 & “ST
”
CHANNEL FUNCTION
CHANNEL
STANDARD VECTOR
CHANNEL MODE
CYAN
MAGENTA
YELLOW
CTO
COLOUR WHEEL
MACRO COLORS
STOP / STROBE
DIMMER
DIMMER FINE
IRIS
STATIC GOBO CHANGE
ROTATING GOBO CHANGE
GOBO ROTATION
GOBO FINE
PRISM INSERTION
PRISM ROTATION
FROST
ANIMATION DISK INSERTION
ANIMATION DISK ROTATION
FOCUS
FOCUS FINE
ZOOM
AUTOFOCUS DISTANCE
AUTOFOCUS ADJUSTMENT
MACRO EFFECTS
PAN
PAN FINE
TILT
TILT FINE
FUNCTION
RESET
LAMP CONTROL (with Option "Lamp DMX" ON)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
CYAN
MAGENTA
YELLOW
CTO
COLOUR WHEEL
MACRO COLORS
STOP / STROBE
DIMMER
DIMMER FINE
IRIS
STATIC GOBO CHANGE
ROTATING GOBO CHANGE
GOBO ROTATION
GOBO FINE
PRISM INSERTION
PRISM ROTATION
FROST
ANIMATION DISK INSERTION
ANIMATION DISK ROTATION
FOCUS
FOCUS FINE
ZOOM
AUTOFOCUS DISTANCE
AUTOFOCUS ADJUSTMENT
MACRO EFFECTS
PAN
PAN FINE
TILT
TILT FINE
FUNCTION
RESET
LAMP CONTROL (with Option "Lamp DMX" ON)
PAN TILT TIME
COLOUR TIME
BEAM TIME
GOBO TIME
ALPHA SPOT QWO 800 & “ST”
25
ALPHA SPOT QWO 800 & “ST
”
BIT
% EFFECT
255 100
COLOUR EXCLUDED
00.0
COLOUR INSERTED
CHANNEL 1
CYAN
CHANNEL 2
MAGENTA
CHANNEL 3
YELLOW
BIT % EFFECT
255 100
COLOUR INSERTED
00.0
COLOUR EXCLUDED
CHANNEL 1
CYAN
CHANNEL 2
MAGENTA
CHANNEL 3
YELLOW
• COLOUR MIXING - channel 1 - 2 - 3
Operation with option color mixing: RGB
Operation with option color mixing: CMY
IMPORTANT: The lamp dim to half power 1 second after all the 3 channels stay at 100%
level. The lamp goes back to full power when the channels level is put lower than 100%.
IMPORTANT: The lamp dim to half power 1 second after all the 3 channels stay at 0%
level. The lamp goes back to full power when the channels level is put higher than 0%.
• COLOUR WHEEL - channel 5
BIT % EFFECT
255 100
FAST ROTATION (160 rpm)
128
127
120
112
105
97
90
82
75
67
60
52
45
37
30
22
15
8
0
50.0
49.7
47.0
44.0
41.2
38.0
35.0
32.0
29.5
26.2
23.7
20.5
17.5
14.2
11.7
8.7
6.0
3.2
0.0
SLOW ROTATION (0.2 rpm)
BLUE + WHITE
BLUE
ORANGE + BLUE
ORANGE
AQUAMARINE + ORANGE
AQUAMARINE
LAVENDER + AQUAMARINE
LAVENDER
LIGHT GREEN + LAVENDER
LIGHT GREEN
GREEN + LIGHT GREEN
GREEN
CTO 2600 + GREEN
CTO 2600
RED + CTO 2600
RED
WHITE + RED
WHITE
NOTE: On conclusion of resetting in case of absence of DMX signal, Pan & Tilt move to the "Home" position (Pan 50% - Tilt 50%) all the others channels stay at 0%.
• C.T.O. - channel 4
BIT % EFFECT
00.0
CTO EXCLUDED
255 100
CTO INSERTED
CHANNEL 4
CTO
• MACRO COLOURS - channel 6
COLOR NAME BIT % ROSCO LEE CYAN MAGENTA YELLOW CTO WHEEL
CODE CODE BIT BIT BIT BIT BIT
UNUSED RANGE 148-255 58.0-100 - - - - - - -
HALF CT STRAW 146-147 57.0-57.5 442 442 0 0 34 190 0
LIGHTER BLUE 144-145 56.2-56.7 353 353 226 0 149 138 0
GLACIER BLUE 142-143 55.5-56.0 352 352 220 0 129 138 0
FUSCHIA PINK 140-141 54.7-55.0 345 345 109 186 77 120 0
MALLARD GREEN 138-139 54.0-54.2 325 325 255 0 0 236 58
JADE 136-137 53.2-53.7 323 323 127 0 162 0 77
3/4 CT ORANGE 134-135 52.5-53.0 285 285 0 36 61 217 0
3/4 CTB 132-133 51.7-52.0 281 281 85 79 87 54 0
HALF MINUS GREEN 130-131 51.0-51.2 248 248 60 19 86 75 39
MINUS GREEN 128-129 50.0-50.5 247 247 60 71 86 75 39
1/4 CTO 126-127 49.5-49.7 206 206 62 71 123 122 0
1/2 CTO 124-125 48.7-49.0 205 205 25 26 45 131 0
FULL CT ORANGE 122-123 48.0-48.2 204 204 0 44 58 234 0
1/4 CTB 120-121 47.0-47.5 203 203 75 54 91 109 0
1/2 CTB 118-119 46.2-46.7 202 202 85 71 84 89 0
FULL CTB 116-117 45.5-46.0 201 201 94 79 80 0 0
ALICE BLUE 114-115 44.7-45.0 197 197 236 51 0 205 0
CONGO BLUE 112-113 44.0-44.2 181 181 251 241 0 255 0
DARK LAVENDER 110-111 43.2-43.7 180 180 195 170 0 160 0
CHROME ORANGE 108-109 42.5-43.0 179 179 0 98 255 255 0
LAGOON BLUE 106-107 41.7-42.0 172 172 224 0 121 40 79
DEEP LAVENDER 104-105 41.0-41.2 170 170 100 129 77 120 0
LILIAC TINT 102-103 40.0-40.5 169 169 41 59 39 120 0
DAYLIGHT BLUE 100-101 39.0-39.5 165 165 210 73 105 88 0
FLAME RED 98-99 38.2-38.7 164 164 0 255 227 255 97
BASTARD AMBER 96-97 37.5-38.0 162 162 0 26 0 199 0
DEEP ORANGE 94-95 36.7-37.0 158 158 0 148 255 255 0
PINK 92-93 36.0-36.2 157 157 0 159 0 255 0
PALE ROSE 90-91 35.0-35.5 154 154 0 48 0 189 0
PALE GOLD 88-89 34.2-34.7 152 152 0 60 98 138 0
BRIGHT ROSE 86-87 33.7-34.0 148 148 0 255 0 255 0
APRICOT 84-85 33.0-33.2 147 147 0 81 55 255 0
BRIGHT BLUE 82-83 32.0-32.5 141 141 182 0 99 92 77
PRIMARY GREEN 80-81 31.2-31.7 139 139 0 0 0 231 58
LIGHT GREEN 78-79 30.5-31.0 121 121 0 0 255 0 77
PALE GREEN 76-77 29.7-30.0 138 138 105 0 179 100 0
SPECIAL LAVENDER 74-75 29.0-29.5 137 137 97 105 72 90 0
PALE LAVENDER 72-73 28.2-28.7 136 136 73 102 44 120 0
DEEP GOLDEN AMBER 70-71 27.5-28.0 135 135 0 255 255 255 0
GOLDEN AMBER 68-69 26.7-27.0 134 134 0 142 234 110 0
MEDIUM BLUE 66-67 26.0-26.2 132 132 255 152 127 0 77
MARINE BLUE 64-65 25.0-25.5 131 131 60 0 106 73 77
BRIGHT PINK 62-63 24.2-24.7 128 128 0 255 0 197 0
MAUVE 60-61 23.7-24.0 126 126 0 255 0 255 74
FERN GREEN 58-59 23.0-23.2 122 122 173 0 235 89 0
LEAF GREEN 56-57 22.0-22.5 121 121 136 0 241 64 0
DEEP BLUE 54-55 21.2-21.7 120 120 255 229 58 128 77
DARK BLUE 52-53 20.5-21.0 119 119 255 161 0 0 77
LIGHT BLUE 50-51 19.5-20.0 118 118 245 0 145 138 0
STEEL BLUE 48-49 18.7-19.0 117 117 167 0 141 165 0
MEDIUM BLUE GREEN 46-47 18.0-18.2 116 116 189 0 157 91 77
PEACOCK BLUE 44-45 17.0-17.5 115 115 136 0 128 91 77
DARK PINK 42-43 16.2-16.7 111 111 0 139 0 220 0
LIGHT SALMON 40-41 15.5-16.0 109 109 50 121 58 230 0
ENGLISH ROSE 38-39 14.7-15.0 108 108 0 62 0 247 0
LIGHT ROSE 36-37 14.0-14.2 107 107 0 95 0 220 0
PRIMARY RED 34-35 13.2-13.7 106 182 0 0 0 0 20
ORANGE 32-33 12.5-13.0 105 105 0 182 255 76 0
DEEP AMBER 30-31 11.7-12.0 104 104 0 26 199 223 0
STRAW 28-29 11.0-11.2 103 103 58 17 104 176 0
LIGHT AMBER 26-27 10.0-10.5 102 102 0 0 171 193 0
YELLOW 24-25 9.5-9.7 101 101 0 0 255 149 0
SPRING YELLOW 22-23 8.7-9.0 100 100 80 0 227 157 0
DARK YELLOW GREEN 20-21 8.0-8.2 90 90 255 0 255 204 0
LIME GREEN 18-19 7.0-7.5 88 88 118 0 241 124 0
JUST BLUE 16-17 6.2-6.7 79 79 255 77 0 204 0
TOKYO BLUE 14-15 5.5-6.0 71 71 255 255 0 180 77
SKY BLUE 12-13 4.7-5.0 068 068 245 77 64 173 0
PALE BLUE 10-11 4.0-4.2 063 063 122 0 112 127 0
LAVENDER 8-9 3.2-3.7 058 058 165 186 77 0 0
BRIGHT RED 6-7 2.5-3.0 026 026 0 255 0 255 21
MED YELLOW 4-5 1.7-2.0 010 010 48 0 239 115 0
MED BASTARD AMBER 2-3 1.0-1.2 004 004 0 62 78 159 0
RANDOM MACRO COLOR
(ONLY FOR 1 0.5 - - - - - - MACRO EFFECTS)
UNUSED RANGE 0 0.0 - - - - - - -
Continue
➔
26
ALPHA SPOT QWO 800 & “ST
”
• STATIC GOBO CHANGE - channel 11
GOBO 8 SHAKE, FAST SPEED
GOBO 8 SHAKE, SLOW SPEED
GOBO 7 SHAKE, FAST SPEED
GOBO 7 SHAKE, SLOW SPEED
GOBO 6 SHAKE, FAST SPEED
GOBO 6 SHAKE, SLOW SPEED
GOBO 5 SHAKE, FAST SPEED
GOBO 5 SHAKE, SLOW SPEED
GOBO 4 SHAKE, FAST SPEED
GOBO 4 SHAKE, SLOW SPEED
GOBO 3 SHAKE, FAST SPEED
GOBO 3 SHAKE, SLOW SPEED
GOBO 2 SHAKE, FAST SPEED
GOBO 2 SHAKE, SLOW SPEED
GOBO 1 SHAKE, FAST SPEED
GOBO 1 SHAKE, SLOW SPEED
FAST ROTATION (100 rpm)
SLOW ROTATION (5 rpm)
STOP
SLOW ROTATION (5 rpm)
FAST ROTATION (100 rpm)
GOBO 8
GOBO 7
GOBO 6
GOBO 5
GOBO 4
GOBO 3
GOBO 2
GOBO 1
WHITE
BIT % EFFECT
MACRO
255
244
243
232
231
220
219
208
207
196
195
184
183
172
171
160
159
118
114 - 117
113
72
64 - 71
56 - 63
48 - 55
40 - 47
32 - 39
24 - 31
16 - 23
8 - 15
0 - 7
100
95.5
95.0
91.0
90.5
86.2
86.0
81.7
81.2
76.7
76.2
72.0
71.7
67.5
67.0
63.0
62.5
46.2
44.7 - 46.0
44.2
28.2
25.0 - 28.0
22.0 - 24.7
18.7 - 21.7
15.5 - 18.2
12.5 - 15.0
9.5 - 12.0
6.2 - 9.0
3.2 - 6.0
0 - 3.0
• ROTATING GOBO CHANGE - channel 12
MACRO
GOBO 7 SHAKE, FAST SPEED
GOBO 7 SHAKE, SLOW SPEED
GOBO 6 SHAKE, FAST SPEED
GOBO 6 SHAKE, SLOW SPEED
GOBO 5 SHAKE, FAST SPEED
GOBO 5 SHAKE, SLOW SPEED
GOBO 4 SHAKE, FAST SPEED
GOBO 4 SHAKE, SLOW SPEED
GOBO 3 SHAKE, FAST SPEED
GOBO 3 SHAKE, SLOW SPEED
GOBO 2 SHAKE, FAST SPEED
GOBO 2 SHAKE, SLOW SPEED
GOBO 1 SHAKE, FAST SPEED
GOBO 1 SHAKE, SLOW SPEED
BIT % EFFECT
255
238
237
220
219
202
201
184
183
166
165
148
147
100
93.2
93.0
86.2
86.0
79.0
78.7
72.0
71.7
65.0
64.7
58.0
57.5
130 51.0
GOBO 7
114-129 44.7-50.5
GOBO 6
98-113 38.2-44.2
GOBO 5
82-97 32.0-38.0
GOBO 4
65-81 25.5-31.7
GOBO 3
49-64 19.0-25.0
GOBO 2
33-48 13.0-18.7
GOBO 1
17-32 6-7-12.5
WHITE
0-16 0.0-6.2
The lamp is linearly dimmed from full power to half power electronicaly and
mechanically from half power to off.
• DIMMER - channel 8
BIT % EFFECT
255 100
00.0
• DIMMER FINE - channel 9
BIT % EFFECT
255 100
00.0
0 0.0
MINIMUM APERTURE
252 - 255 98.7 - 100
MAXIMUM APERTURE
BIT % EFFECT
251 98.2
FAST PULSATION, FAST CLOSING
212 83.2
SLOW PULSATION, FAST CLOSING
211 83
FAST PULSATION, FAST OPENING
172 67.5
SLOW PULSATION, FAST OPENING
171 67
FAST PULSATION
132 51.7
SLOW PULSATION
128 - 131 50.0 - 51.2
MAXIMUM APERTURE
MACRO
• IRIS - channel 10
• STOPPER / STROBE - channel 7
MACRO
BIT % EFFECT
252 - 255 98.7 - 100
OPEN
0 - 3 0.0 - 1.2
CLOSED
213 - 225 83.7 - 88.2
RANDOM SLOW STROBE
41.7
SLOW STROBE (1 flash/sec)
103 40.5
FAST STROBE (12 flash/sec)
104 - 107 41.0 - 42.0
OPEN
108 42.5
SLOW PULSATION
208 - 212 81.7 - 83.2
OPEN
226 - 238 88.7 - 93.2
RANDOM MEDIUM STROBE
239 - 251 93.7 - 98.2
RANDOM FAST STROBE
207 81.2
FAST PULSATION
27
ALPHA SPOT QWO 800 & “ST
”
• FROST - channel 17
BIT % EFFECT
255 100
FROST INSERTED
0 0.0
FROST EXCLUDED
BIT % EFFECT
255 100
NEAR
00.0
DISTANT
• FOCUS - channel 20
• PRISM ROTATION - channel 16
STOP
FAST ROTATION (120 rpm)
SLOW ROTATION (3 rph)
SLOW ROTATION (3 rph)
FAST ROTATION (120 rpm)
BIT % EFFECT
191 - 192 74.7 - 75.0
255 100
193 75.5
190 74.2
128 50.0
STOP
540°
360°
0°
POSITION 540
°
127 49.7
POSITION 450
°
105 41.7
POSITION 360
°
84 33.0
POSITION 270
°
63 24.7
POSITION 180
°
42 16.2
00.0
POSITION 0
°
POSITION 90
°
21 8.2
BIT % EFFECT
128 50.0
PRISM EXCLUDED
00.0
255 100
PRISM INSERTED
127 49.7
• PRISM INSERTION - channel 15
00.0
0°POSITION
21 8.2
90° POSITION
42 16.2
180° POSITION
63 24.7
270° POSITION
84 33.0
360° POSITION
105 41.7
450° POSITION
127 49.7
540° POSITION
STOP
540°
360°
0°
255 100
FAST ROTATION (180 rpm)
193 75.5
SLOW ROTATION
(2,2 rph)
191 - 192 74.7 - 75.0
STOP
190 74.2
SLOW ROTATION
(2,2 rph)
BIT % EFFECT
128 50.0
FAST ROTATION (180 rpm)
• GOBO ROTATION - channel 13
• GOBO FINE - channel 14
BIT %
255 100
127 50.0
00.0
• ANIMATION DISK INSERTION - channel 18
• ANIMATION DISK ROTATION - channel 19
BIT % EFFECT
255 100
DISK INSERTED
00.0
DISK EXCLUDED
BIT % EFFECT
255 100
FAST ROTATION (120 rpm)
00.0
FAST ROTATION (120 rpm)
131 51.2
SLOW ROTATION (4,4 rph)
125 - 130 49.0 - 51.0
STOP
124 48.7
SLOW ROTATION (4,4 rph)
Continue
➔
28
ALPHA SPOT QWO 800 & “ST
”
Operation with option InvertPanGOn
(Tilt conventionally represented at 14% and option Invert Tilt
G
Off)
BIT %
255 100
00.0
BIT %
255 100
00.0
• PAN - channel 26
Operation with option InvertPan
G
Off
(Tilt conventionally represented at 14% and option Invert Tilt
G
Off)
• ZOOM - channel 22
BIT % EFFECT
255 100
NARROW BEAM
00.0
WIDE BEAM
• FOCUS FINE -channel 21
BIT % EFFECT
255 100
NEAR
0 0.0
DISTANT
• AUTOFOCUS DISTANCE - channel 23
BIT % EFFECT
255 100
100 METRES
10 METRES
9 METRES
8 METRES
7 METRES
6 METRES
5 METRES
4 METRES
3 METRES
AUTOFOCUS OFF
26
23
20
18
15
13
10
7
0-6
10.0
9.0
8.0
7.0
6.0
5.0
4.0
3.0
0.0-2.5
AUTOFOCUS priority:
1 - Rotating gobo
2 - Static gobo
3 - Iris
• AUTOFOCUS ADJUSTMENT - channel 24
BIT % EFFECT
128 50.0
0 0.0
255 100
FOCUS FINE
FOCUS FINE
• MACRO EFFECTS - channel 25
BIT % EFFECT
232-255 91,0-100 STAND BY BLACK
220-231 86,2-90,5 RANDOM MACRO 8
208-219 81,7-86,0 RANDOM MACRO 7
196-207 76,7-81,2 RANDOM MACRO 6
184-195 72,0-76,2 RANDOM MACRO 5
172-183 67,5-71,7 RANDOM MACRO 4
160-171 63,0-67,0 RANDOM MACRO 3
148-159 58,0-62,5 RANDOM MACRO 2
136-147 53,2-57,5 RANDOM MACRO 1
112-135 44,0-53,0 STAND BY BLACK
100-111 39,0-43,7 MACRO 8
88-99 34,2-38,7 MACRO 7
76-87 29,7-34,0 MACRO 6
64-75 25,0-29,5 MACRO 5
52-63 20,5-24,7 MACRO 4
40-51 15,5-20,0 MACRO 3
28-39 11,0-15,0 MACRO 2
16-27 6,2-10,5 MACRO 1
12-15 4,7-6,0 STAND BY BLACK
8-11 3,2-4,2 STAND BY
0-7 0,0-3,0 MACRO OFF
29
ALPHA SPOT QWO 800 & “ST
”
• TILT FINE - channel 29
Operation with option Invert Tilt
G
Off
(Pan conventionally represented at 0% and option Invert Pan
G
Off)
BIT %
255 100
00.0
SE
T
X
S
E
L
D
M
X
SE
T
X
S
E
L
D
M
X
Operation with option Invert TiltGOn
(Pan conventionally represented at 0% and option Invert Pan
G
Off)
• TILT - channel 28
Operation with option Invert Tilt
G
Off
(Pan conventionally represented at 0% and option Invert PanGOff)
BIT %
255 100
128 50.0
00.0
SE
T
X
S
E
L
D
M
X
SE
T
X
S
E
L
D
MX
SE
T
X
S
E
L
D
M
X
Operation with option Invert TiltGOn
(Pan conventionally represented at 0% and option Invert Pan
G
Off)
BIT %
255 100
128 50.0
00.0
SE
T
X
S
E
L
D
M
X
SE
T
X
S
E
L
D
M
X
SE
T
X
S
E
L
D
M
X
BIT %
255 100
00.0
SE
T
X
S
E
L
D
M
X
SE
T
X
S
E
L
D
M
X
• PAN FINE - channel 27
Operation with option InvertPan
G
Off
(Tilt conventionally represented at 14% and option Invert Tilt
G
Off)
BIT %
255 100
00.0
Operation with option InvertPanGOn
(Tilt conventionally represented at 14% and option Invert Tilt
G
Off)
BIT %
255 100
00.0
• FUNCTION - channel: 30
BIT % EFFECT
2
55 100
51-62 20.0-24.2
38-50 14.7-19.5
25-37
9.7-14.2
12-24 4.7-9.5
0-11 0.0-4.2
LINEAR (Default)
UNUSED RANGE
UNUSED RANGE
63 24.7
CONVENTIONAL
DIMMER CURVE
FUNCTION
FAST (Default)
NORMAL
PAN-TILT
FUNCTION
The functions are actived passing through the unused range and staying 5 seconds in
necessary level
• RESET - channel: 31
BIT % EFFECT
255 100
128 50.0
127 49.7
77
30.0
76 29.7
26 10.0
25 9.7
0 0.0
Complete reset is activated passing
throug the unused range and staying
5 seconds in complete reset levels.
COMPLETE RESET
PAN / TILT RESET
PAN / TILT RESET
EFFECTS RESET
EFFECTS RESET
UNUSED RANGE
Pan / Tilt reset is activated passing
throug the unused range and staying
5 seconds in Pan / Tilt reset levels.
Effects reset is activated passing
throug the unused range and staying
5 seconds in Effects reset levels.
COMPLETE RESET
The functions are actived passing through the unused range and staying 5 seconds in
necessary level
Continue
➔
30
ALPHA SPOT QWO 800 & “ST
”
•
LAMP CONTROL (only with option LAMP DMX On) - channel: 32
IMPORTANT: Alpha Spot QWO 800 is not provided with hot restrike igniter
LAMP ON (FULL POWER)
LAMP ON (FULL POWER)
BIT %EFFECT
255 100
180 70.5
0 0.0
101 39.5
100 39.0
LAMP OFF
179 70.0
26 10.0
LAMP OFF
25 9.7
UNUSED RANGE
Lamp ignition after 5 s
in full power levels.
Lamp switch off passing
throug the unused
range and staying 5 s in
Lamp OFF levels.
UNUSED RANGE
UNUSED RANGE
Immediate transition
from half to full power.
ON
ON
OFF
OFF
The functions are actived passing through the unused range and staying 5 seconds in
necessary level
31
ALPHA SPOT QWO 800 & “ST
”
Timing Channel Channel function
33 Pan - Tilt time Pan - Tilt - (Pan fine - Tilt fine)
34 Colour time CMY - Colour wheel - CTO
35 Beam time Dimmer - Frost - Iris - Focus - Zoom - Prism - Animation Disk
36 Gobo time Static Gobo - Rotating Gobo Change
BIT Seconds
0 Full
1 0.2
2 0.4
3 0.6
4 0.8
5 1
6 1.2
7 1.4
8 1.6
9 1.8
10 2
11 2.2
12 2.4
13 2.6
14 2.8
15 3
16 3.2
17 3.4
18 3.6
19 3.8
20 4
21 4.2
22 4.4
23 4.6
24 4.8
25 5
26 5.2
27 5.4
28 5.6
29 5.8
30 6
31 6.2
32 6.4
33 6.6
34 6.8
35 7
36 7.2
37 7.4
38 7.6
39 7.8
40 8
41 8.2
42 8.4
BIT Seconds
43 8.6
44 8.8
45 9
46 9.2
47 9.4
48 9.6
49 9.8
50 10
51 10.2
52 10.4
53 10.6
54
11
55
56
12
57
58
13
59
60
61 14
62
63
15
64
65
66 16
67
68
17
69
70
71 18
72
73
19
74
75
76 20
77
78
79 21
80
81
22
82
83
84 23
85
BIT Seconds
86
24
87
88
89 25
90
91
26
92
93
94 27
95
96
28
97
98
99 29
100
101
102 30
103
104
31
105
106
107 32
108
109
33
110
111
112 34
113
114
35
115
116
117 36
118
119
37
120
121
122 38
123
124
125 39
126
127
40
128
BIT Seconds
129
130 41
131
132
42
133
134
135 43
136
137
44
138
139
140 45
141
142
46
143
144
145 47
146
147
48
148
149
150 49
151
152
153 50
154
155
51
156
157
158 52
159
160
53
161
162
163 54
164
165
55
166
167
168 56
169
170
57
171
BIT Seconds
172
173 58
174
175
176 59
177
178
60
179
180
181 65
182
183
70
184
185
186 75
187
188
80
189
190
191 85
192
193
90
194
195
196 95
197
198
100
199
200
201 110
202
203
204 120
205
206
130
207
208
209 140
210
211
150
212
213
214 160
215
BIT Seconds
216
170
217
218
219 180
220
221
190
222
223
224 200
225
226
227 210
228
229
220
230
231
232 230
233
234
240
235
236
237 250
238
239
260
240
241
242 270
243
244
280
245
246
247 290
248
249
300
250
251
252
310
253
254
255
Follow cue
Data
TIMING CHANNELS
TIME TABLE
CLAY PAKY S.p.A. - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311- Fax +39-035-301876 - www.claypaky.it
Rev. 0 10/12 Cod. 099116 - EN
gfstudio.com
Loading...
