1
C61378
C61379
INSTRUCTION MANUAL
Congratulations on choosing a Clay Paky product!
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference. It is essential to know the information
and comply with the instructions given in this manual to ensure
the fitting is installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the fitting
or to other property or persons deriving from installation, use and
maintenance that have not been carried out in conformity with this
instruction manual, which must always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and
without prior notice.
ENGLISH
INDEX
Page Contents
2 Safety information EN-IT-FR-DE-ES
12 Unpacking and preparation
13 Installation and start-up
14 Control panel
16 Menu setting
23 Maintenance
29 Technical information
29 Cause and solution of problems
30 Channel functions
SHARPY WASH 330
SHARPY WASH 330 PC
2
SHARPY WASH 330 & PC
5
330W
tc100°C
SAFETY INFORMATION
IP20
Risk Group 2
According to
EN 62471
• Installation
Make sure all parts for fixing the projector are in a good state of repair.
Make sure the point of anchorage is stable before positioning the projector.
The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if the primary
support system fails, the fitting falls as little as possible.
If the safety chain gets used, it needs to be replaced with a genuine spare.
•
MINIMUM DISTANCE OF ILLUMINATED OBJECTS
The projector needs to be positioned so that the objects hit by the beam of light are at least 5 metres (16’5”) from
the lens of the projector.
• Minimum distance from flammable materials
The projector must be positioned so that any flammable materials are at least 0.20 metres (8") from every point on
the surface of the fitting.
• Mounting surfaces
I
t is permissible to mount the fitting on normally flammable surfaces.
• Maximum ambient temperature
Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F).
• IP20 protection rating
The fitting is protected against penetration by solid bodies of over 12mm (0.47”) in diameter (first digit 2), but not
against dripping water, rain, splashes or jets of water (second digit 0).
• Protection against electrical shock
Connection must be made to a power supply system fitted with efficient earthing (Class I appliance according to
standard EN 60598-1).
It is, moreover, recommended to protect the supply lines of the projectors from indirect contact and/or shorting to
earth by using appropriately sized residual current devices.
• Connection to mains supply
Connection to the electricity mains must be carried out by a qualified electrical installer.
Check that the mains frequency and voltage correspond to those for which the projector is designed as given on the
electrical data label.
This label also gives the input power to which you need to refer to evaluate the maximum number of fittings to
connect to the electricity line, in order to avoid overloading.
• Temperature of the external surface
The maximum temperature that can be reached on the external surface of the fitting, in a thermally steady state, is
100°C (212°F).
• Maintenance
Before starting any maintenance work or cleaning the projector, cut off power from the mains supply.
After switching off, do not remove any parts of the fitting for at least 10 minutes. After this time the likelihood of the
lamp exploding is virtually nill. If it is necessary to replace the lamp, wait for another 20 minutes to avoid getting burnt.
The fitting is designed to hold in any splinters produced by a lamp exploding. The lenses must be mounted and, if
visibly damaged, they have to be replaced with genuine spares.
• Lamp
The fitting mounts a high-pressure lamp that needs an external driver. This driver is fitted onto the apparatus.
- Carefully read the "operating instructions" provided by the lamp manufacturer.
- Immediately replace the lamp if damaged or deformed by heat.
• Photobiological Safety
CAUTION. Possibly hazardous optical radiation emitted from this product. Do not stare at operating lamp. May be
harmful to the eyes.
The fixture must be positioned so that the minimum distance between the front lens and human eye is at least 2
metres to prevent personal photobiological risks.
This product is intended for the following areas of application:
studios, stages, theaters, exhibitions, trade fairs, events, theme parks, entertainment venues, architectural lighting
and similar
Not suitable for household illumination
EN
3
SHARPY WASH 330 & PC
LiFePO4
Pb
N
ot for residential use
• Battery
This product contains a rechargeable lead-acid or lithium iron tetraphosphate battery. To preserve the environment,
please dispose the battery at the end of its life according to the regulation in force.
Disposing
This product is supplied in compliance with European Directive 2012/19/EU - Waste Electrical and Electronic
Equipment (WEEE). To preserve the environment please dispose/recycle this product at the end of its life according
to the local regulation.
The products to which this manual refers comply with the European Directives pursuant to:
• 2006/95/EC - Safety of electrical equipment supplied at low voltage (LVD)
•
2004/108/EC - Electromagnetic Compatibility (EMC)
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
4
SHARPY WASH 330 & PC
Gruppo di rischio 2
Secondo la norma
EN 62471
5
330W
tc100°C
INFORMAZIONI DI SICUREZZA
IP20
• Installazione
Assicurarsi che tutte le parti per il fissaggio del proiettore siano in buona condizione. Assicurarsi della stabilità del
punto di ancoraggio prima di posizionare il proiettore. La fune di sicurezza, debitamente agganciata all’apparecchio e fissata alla struttura di sostegno, deve essere installata in modo che, in caso di cedimento del sistema di
supporto primario, si abbia la minor caduta possibile dell’apparecchio. Dopo un eventuale intervento la fune di
sicurezza deve essere sostituita con il ricambio originale.
•
Distanza minima degli oggetti illuminati
Il proiettore deve essere posizionato in modo tale che gli oggetti colpiti dal fascio luminoso siano distanti almeno
5 metri dall’obiettivo del proiettore stesso.
• Distanza minima dei materiali infiammabili
Il proiettore deve essere posizionato in modo tale che i materiali infiammabili siano distanti almeno 0,20 metri da
ogni punto della superficie dell’apparecchio.
• Superficie di montaggio
È
consentito il montaggio dell’apparecchio su superfici normalmente infiammabili.
• Massima temperatura ambiente
Non utilizzare il proiettiore se la temperatura ambiente (Ta) supera i 40°C.
• Grado di protezione IP20
L’apparecchio è protetto contro la penetrazione di corpi solidi di dimensione superiore a 12mm (prima cifra 2),
mentre teme lo stillicidio, la pioggia, gli spruzzi e i getti d’acqua (seconda cifra 0).
• Protezione contro la scossa elettrica
È obbligatorio effettuare il collegamento ad un impianto di alimentazione dotato di un’efficiente messa a terra
(apparecchio di Classe I secondo la norma EN 60598-1).
Si raccomanda, inoltre, di proteggere le linee di alimentazione dei proiettori dai contatti indiretti e/o cortocircuiti
verso massa tramite l’uso di interruttori differenziali opportunamente dimensionati.
• Collegamento alla rete di alimentazione
Le operazioni di collegamento alla rete di distribuzione dell’energia elettrica devono essere effettuate da un installatore elettrico qualificato. Verificare che frequenza e tensione della rete corrispondano alla frequenza ed alla tensione per cui il proiettore è predisposto ed indicate sulla targhetta dei dati elettrici. Sulla medesima targhetta è pure
indicata la potenza assorbita. Fare riferimento a quest’ultima per valutare il numero massimo di apparecchi da collegare alla linea elettrica, al fine di evitare sovraccarichi.
• Temperatura della superficie esterna
La temperatura massima raggiungibile sulla superficie esterna dell’apparecchio, in condizioni di regime termico, è
di 100°C.
• Manutenzione
Prima di iniziare qualsiasi operazione di manutenzione o pulizia sul proiettore togliere la tensione dalla rete di alimentazione. Dopo lo spegnimento non rimuovere alcuna parte dell’apparecchio per 10 minuti. Trascorso tale
tempo la probabilità di esplosione della lampada è praticamente nulla. Se è necessario sostituire la lampada,
aspettare ulteriori 20 minuti per evitare scottature. L’apparecchio è progettato in modo da trattenere le schegge
prodotte dall’eventuale scoppio della lampada. Le lenti devono essere obbligatoriamente montate; devono inoltre,
se visibilmente danneggiate, essere sostituite con ricambi originali.
• Lampada
L’apparecchio monta una lampada ad alta pressione che richiede un accenditore esterno.
Tale accenditore è incorporato nell’apparecchio.
- Leggere attentamente le “istruzioni d’uso” fornite dal costruttore della lampada.
- Sostituire immediatamente la lampada se danneggiata o deformata dal calore.
• Sicurezza fotobiologica
ATTENZIONE: Possibile radiazione ottica rischiosa emessa da questo prodotto.
Non fissare la lampada in funzione. Può essere pericoloso per gli occhi.
Il proiettore deve essere posizionato in modo tale che la minima distanza della lente del proiettore dall’occhio
umano sia di almeno 2 metri per prevenire rischi fotobiologici alla persona.
Il prodotto è concepito per essere utilizzato nei seguenti ambiti:
studi, palchi, teatri, esposizioni, fiere, eventi, parchi a tema, locali di intrattenimento, illuminazione architetturale e
simili
IT
5
SHARPY WASH 330 & PC
LiFePO4
Pb
N
on adatto all'illuminazione domestica
Non per uso residenziale
• Batteria
Questo prodotto contiene una batteria ricaricabile piombo-acido o Litio Ferro Tetrafosfato. A tutela dell'ambiente si
p
rega di smaltire la batteria a fine vita in conformità alla normativa vigente.
Smaltimento
Questo dispositivo è conforme alla Direttiva Europea 2012/19/UE - Rifiuti di apparecchiature elettriche ed elettroniche (RAEE). Nel rispetto dell'ambiente, smaltire/riciclare il prodotto al termine del suo ciclo di vita secondo le
disposizioni di legge locali.
I prodotti a cui questo manuale si riferisce sono conformi alle Direttive Europee di cui sono oggetto:
• 2006/95/CE - Sicurezza delle apparecchiature alimentate in Bassa Tensione (LVD)
• 2004/108/CE - Compatibilità Elettromagnetica (EMC)
• 2011/65/UE - Restrizione d’uso di determinate sostanze pericolose (RoHS)
6
SHARPY WASH 330 & PC
Classe de
dangerosité 2
Selon la norme
EN 62471
5
330W
tc100°C
CONSIGNES DE SÉCURITÉ
IP20
• Installation
S’assurer que toutes les pièces pour la fixation du projecteur sont en bon état.
S’assurer de la stabilité du point d’ancrage avant de positionner le projecteur.
Le câble de sécurité, à fixer correctement à l’appareil et à la structure de support, doit être installé de façon à ce
que, en cas de rupture du système de support principal, la chute de l’appareil soit la plus limitée possible. Après
une éventuelle intervention du câble de sécurité suite à une chute, il faut le remplacer par une pièce de rechange
d’origine.
• Distance minimum des objets éclairés
Le projecteur doit être positionné de façon à ce que les objets éclairés par le faisceau lumineux soient à une
distance d’au moins 5 mètres de l’objectif du projecteur.
• Distance minimum des substances inflammables
Le projecteur doit être positionné de façon à ce qu’il y ait une distance d’au moins 0,20 mètre entre toute substance
inflammable et tout point de sa surface.
•
Surface de montage
L’appareil peut être monté sur des surfaces normalement inflammables.
• Température ambiante maximum
Ne pas utiliser le projecteur quand la température ambiante (Ta) dépasse 40°C.
• Degré de protection IP20
L’appareil est protégé contre la pénétration de corps solides de dimension supérieure à 12 mm (premier chiffre 2),
tandis qu’il craint les gouttes d’eau, la pluie et les projections d’eau (deuxième chiffre 0).
• Protection contre l’électrisation
L’appareil doit obligatoirement être branché à une installation d’alimentation équipée d’une mise à la terre efficace
(appareil de Classe I selon la norme EN 60598-1). Nous recommandons également de protéger les lignes
d’alimentation des projecteurs contre les contacts indirects et/ou les courts-circuits vers la masse en utilisant des
interrupteurs différentiels de sensibilité adéquate.
• Branchement au réseau d’alimentation
Les opérations de branchement au réseau de distribution de l’énergie électrique doivent être exécutées par un
installateur électrique qualifié. Contrôler que la fréquence et la tension de réseau correspondent à la fréquence et
à la tension pour lesquelles le projecteur est prévu ; ces données sont indiquées sur la plaquette des données
électriques. Cette même plaquette reporte également la puissance absorbée. Afin d’éviter des surcharges, se
référer à celle-ci pour évaluer le nombre maximum d’appareils à brancher à la ligne électrique.
• Température de la surface extérieure
La température maximum qui peut être atteinte sur la surface extérieure de l’appareil, en conditions de régime
thermique, est de 100°C.
• Entretien
Avant de procéder à toute opération d’entretien ou de nettoyage sur le projecteur, couper la tension d’alimentation.
Après avoir éteint le projecteur, ne démonter aucun élément de l’appareil pendant les 10 minutes qui suivent. Une
fois ce temps écoulé, la probabilité d’explosion de la lampe est quasiment nulle. S’il faut remplacer la lampe,
attendre encore 20 minutes afin d’éviter tout risque de brûlures. L’appareil a été conçu de façon à retenir les éclats
produits en cas d’explosion de la lampe. Les lentilles doivent obligatoirement être montées sur l’appareil et doivent
être remplacées par des pièces d’origine dès qu’elles sont visiblement endommagées.
• Lampe
L’appareil fonctionne avec une lampe haute pression avec ballast externe.
Ce dernier est incorporé dans l’appareil.
- Lire avec attention les « instructions d’utilisation » fournies par le fabricant de la lampe.
- Remplacer la lampe dès qu’elle est endommagée ou déformée par la chaleur
• Sécurité photobiologique
ATTENTION : Possible radiation optique émise par ce produit.
Ne pas fixer la lampe lorsqu’elle est allumée. Peut être dangereux pour les yeux. Le projecteur doit être positionné
de sorte que la distance minimum par rapport à l’œil humain de la lentille du projecteur soit de 2 mètres minimum
pour prévenir des dangers photo-biologiques à la personne.
Le produit est conçu pour être utilisé dans les milieux suivants :
studios, scènes, théâtres, expositions, salons, événements, parcs à thème, lieux de divertissement, éclairage
architectural et similaires
FR
7
SHARPY WASH 330 & PC
LiFePO4
Pb
N
on indiqué pour un utilisation domestique
Non indiqué pour un utilization résidentiel
• Batterie
C
e produit contient une batterie rechargeable au plomb-acide ou tétraphosphate de fer au lithium. Une fois la batterie arrivée à la fin de sa durée de vie, procéder à son élimination conformément à la no rme en vigueur de manière à éviter toute pollution.
Élimination
Ce dispositif est conforme à la Directive Européenne 2012/19/UE – Déchets d’équipements électriques et électroniques (DEEE). Dans le respect de l’environnement, écouler/recycler le produit à la fin de son cycle de vie selon
les dispositions légales locales.
Les produits auxquels ce manuel se rapporte sont conformes aux Directives Européennes dont ils font l’objet :
• 2006/95/CE - Sécurité des matériels électriques de Basse Tension (BT)
• 2004/108/CE - Compatibilité Électromagnétique (CEM)
• 2011/65/UE - Limitation de l’utilisation de certaines substances dangereuses (RoHS)
8
SHARPY WASH 330 & PC
Gefahrenklasse 2
Gemäß Norm
EN 62471
5
330W
tc100°C
INFORMATIONEN ZUR SICHERHEIT
IP20
• Installation
Sicherstellen, dass alle Teile für die Befestigung des Projektors in einwandfreiem Zustand sind.
Vor der Installation des Projektors die Stabilität der Verankerungsstelle überprüfen. Das korrekt am Gerät eingehakte
und an der Haltestruktur befestigte Sicherheitsseil muss so installiert werden, dass bei einem Nachgeben der
Haupthalterung die Fallhöhe des Gerätes so gering wie möglich ist. Nach einem eventuellen Einsatz muss das
Sicherheitsseil durch ein Originalersatzteil ersetzt werden.
•
Mindestabstand zu beleuchteten objekten
Der Projektor muss so installiert werden, dass der Abstand zwischen den vom Lichtstrahl beleuchteten Objekten
und dem Objektiv des Projektors mindestens 5 Meter beträgt.
• Mindestabstand zu entzündbaren Materialien
Der Projektor muss so installiert werden, dass entzündbare Materialien mindestens 0,20 Meter von jedem Punkt der
Geräteoberfläche entfernt sind.
• Montageoberfläche
Die Montage des Geräts auf normal entzündbaren Oberflächen ist zulässig.
• Max. Raumtemperatur
Den Projektor nicht verwenden, wenn die Raumtemperatur (RT) 40°C überschreitet.
• Schutzart IP20
Das Gerät ist gegen das Eindringen von festen Fremdkörpern mit Durchmesser über 12 mm (erste Kennziffer 2)
geschützt, während es gegen Tropf,- Regen- und Spritzwasser sowie Wasserstrahlen (zweite Kennziffer 0)
empfindlich ist.
• Schutz gegen Stromschlag
Es ist Pflicht, das Gerät an eine Stromversorgungsanlage anzuschließen, die mit einer leistungsfähigen Erdung
ausgestattet ist (Gerät der Klasse I gemäß Richtlinie EN 60598-1).
Darüber hinaus wird empfohlen, die Zuleitungen der Projektoren mit korrekt bemessenen Fehlerstromschutzschaltern
vor indirekten Kontakten und/oder Kurzschlüssen zu schützen.
• Netzanschluss
Der Anschluss an das Stromnetz muss von einem kompetenten Elektroinstallateur ausgeführt werden.
Vergewissern Sie sich, dass Spannung und Frequenz der Netzversorgung mit den Werten übereinstimmen, für die
der Projektor ausgelegt ist und die auf dem Typenschild angegeben sind. Ebenfalls auf dem Typenschild ist die
Leistungsaufnahme angegeben. Um zu beurteilen, wie viele Geräte maximal an die Stromleitung angeschlossen
werden können, ist auf diese Angaben Bezug zu nehmen, damit Überlastungen vermieden werden.
• Temperatur der Außenfläche
Die Außenfläche des Geräts kann im Wärmebetrieb eine Höchsttemperatur von 100°C erreichen.
• Wartung
Vor Beginn von Wartungs- oder Reinigungsarbeiten am Projektor stets die Stromversorgung abschalten. Nach dem
Abschalten 10 Minuten lang keine Geräteteile abnehmen. Nach Ablauf dieser Zeit besteht praktisch keine Gefahr
mehr, dass die Lampe birst. Falls die Lampe ersetzt werden muss, weitere 20 Minuten warten, um
Verbrennungsgefahr zu vermeiden.
Das Gerät wurde so konzipiert, dass es die Splitter bei einem eventuellen Bersten der Lampe zurückhält. Die
Montage der Linsen ist obligatorisch vorgeschrieben; des Weiteren müssen sie bei sichtbarer Beschädigung durch
Originalersatzteile ersetzt werden.
• Lampe
Das Gerät ist mit einer Hochdrucklampe bestückt, die eine externe Zündeinheit verlangt.
Diese Zündeinheit ist in das Gerät eingebaut.
- Lesen Sie die vom Lampenhersteller gelieferte "Bedienungsanleitung" aufmerksam durch.
- Eine beschädigte oder von der Hitze verformte Lampe muss sofort ersetzt werden.
• Photobiologische Sicherheit
ACHTUNG: Mögliche riskante optische Strahlung wird von diesem Produkt abgegeben.
Nicht die Lampe fixieren, wenn sie in Betrieb ist. Kann für die Augen gefährlich sein. Der Projektor muss so positioniert werden, dass der Mindestabstand der Projektorlinse vom menschlichen Auge mindestens 2 Meter beträgt, um
einer fotobiologischen Gefährdung der Person vorzubeugen
Das Produkt wurde für die Verwendung in den folgenden Bereichen entwickelt:
Studios, Bühnen, Theater, Ausstellungen, Messen, Veranstaltungen, Themenparks, Unterhaltungslokale,
Architekturbeleuchtung oder ähnliches
DE
9
SHARPY WASH 330 & PC
LiFePO4
Pb
N
icht für wohnzwecke
Nicht für den häuslichen Gebrauch
• Batterie
Dieses Produkt enthält eine wiederaufladbare Blei-Säure-Batterie oder Lithium-Eisen-tetraphosphat. Zum
S
chutz der Umwelt bitten wir Sie, diese Batterie, nachdem sie verbraucht ist, gemäß den geltenden Vorschriften
zu entsorgen.
Entsorgung
Diese Vorrichtung entspricht der Europäischen Richtlinie 2012/19/UE - Abfall von elektrischen und elektronischen Gerätschaften (RAEE). Das Produkt am Ende seines Lebenszyklus unter Berücksichtigung der Umwelt
nach den lokalen Gesetzesvorschriften entsorgen/recyceln.
Die Produkte, auf die dieses Handbuch sich bezieht, entsprechen den Europäischen Richtlinien, denen sie
unterliegen:
• 2006/95/EG - Niederspannungsrichtlinie (LVD)
• 2004/108/EG - Elektromagnetische Kompatibilität (EMC)
• 2011/65/EU - Beschränkung der Verwendung bestimmter gefährlicher Stoffe (RoHS)
10
SHARPY WASH 330 & PC
Clase de
peligrosidad 2
Según la norma
EN 62471
5
330W
tc100°C
INFORMACIONES DE SEGURIDAD
IP20
• Instalación
Asegúrese de que todos los elementos de fijación del proyector estén en buenas condiciones.
Controle la estabilidad del punto de anclaje antes de instalar el proyector.
La cuerda de seguridad, correctamente enganchada al aparato y fijada a la estructura de soporte, debe colocarse
de modo que, si el soporte principal cede, el aparato sufra la menor caída posible. En caso de desgaste de la
cuerda de seguridad, sustitúyala por el recambio original.
•
Distancia mínima de los objetos iluminados
El proyector debe ser posicionado de modo tal que los objetos tocados por el haz luminoso tengan una distancia
de al menos 5 metros del objetivo del mismo proyector.
• Distancia mínima de los materiales inflamables
El proyector debe ser posicionado de modo tal que los materiales inflamables tengan una distancia de al menos
0,20 metros de cada punto de la superficie del aparato.
• Superficie de montaje
Está permitido el montaje del aparato en superficies normalmente inflamables.
• Máxima temperatura ambiente
No utilice el proyector si la temperatura ambiente (ta) supera los 40°C.
• Grado de protección IP20
El aparato está protegido contra la penetración de cuerpos sólidos de dimensiones superiores a 12 mm (primer
dígito 2), pero no contra el goteo, la lluvia, las salpicaduras y los chorros de agua (segundo dígito 0).
• Protección contra descargas eléctricas
Es obligatorio efectuar la conexión a una instalación de alimentación dotada de una eficiente puesta a tierra
(aparato de Clase I según la norma EN 60598-1). Además, se recomienda proteger las líneas de alimentación de
los proyectores de los contactos indirectos y/o cortocircuitos hacia masa, mediante el uso de interruptores
diferenciales dimensionados oportunamente.
• Conexión a la red de alimentación
Las operaciones de conexión a la red de distribución de la energía eléctrica deben ser efectuadas por un instalador
eléctrico cualificado. Constate que los valores de frecuencia y tensión de la red sean iguales a los que figuran en
la placa de los datos eléctricos del proyector. En la misma placa está indicada la potencia absorbida. Hacer
referencia a esta última para valorar el número máximo de aparatos que conectar a la línea eléctrica, con el fin de
evitar sobrecargas.
• Temperatura de la superficie externa
La temperatura máxima que puede alcanzar la superficie externa del aparato, en condiciones de régimen térmico,
es de 100°C.
• Mantenimiento
Antes de iniciar cualquier operación de mantenimiento o limpieza del proyector desconecte el aparato de la
alimentación eléctrica. Después del apagado no extraiga ninguna parte del aparato durante 10 minutos.
Transcurrido dicho tiempo la probabilidad de que la lámpara explote es prácticamente nula. Si fuera necesario
cambiar la lámpara, espere 20 minutos más para evitar quemarse. El aparato está proyectado para retener las
astillas producidas por el posible estallido de la lámpara. Las lentes deben montarse obligatoriamente; además, si
estuvieran dañadas, deberán ser sustituidas por recambios originales.
• Lámpara
El aparato utiliza una lámpara de alta presión que requiere un arrancador externo.
Dicho arrancador está incorporado en el aparato.
- Leer atentamente las "instrucciones de uso" suministradas por el fabricante de la lámpara.
- Sustituir la lámpara inmediatamente si estuviera dañada o deformada por el calor.
• Seguridad fotobiológica
ATENCIÓN: Posible radiación óptica arriesgada emitida por este producto.
No fije la lámpara en funcionamiento. Puede ser peligroso para los ojos. El proyector debe ser posicionado de
manera que la mínima distancia de la lente del proyector desde ojo humano sea al menos 2 metros para prevenir
riesgos fotobiológicos a la persona.
El producto es concebido para ser utilizado en los siguientes ambientes:
estudios, palcos, teatros, exposiciones, ferias, eventos, parques temáticos locales de entretenimiento, iluminación
de arquitecturas y similares
ES
11
SHARPY WASH 330 & PC
N
o para uso residencial
No es apropiado para la iluminación doméstica
• Batería
E
ste producto contiene una batería recargable plomo-ácido o de litio tetrafosfato Hierro. Para proteger el ambiente
se ruega eliminar la batería conforme a la normativa vigente.
Eliminación
Este dispositivo es conforme a la Directiva Europea 2012/19/UE - Residuos de equipos eléctricos y electrónicos
(RAEE). Con el fin de respetar el ambiente, eliminar/reciclar el producto al final de su ciclo de vida según las disposiciones de ley locales
Los productos a los que se refiere este manual son conformes a las Directivas Europeas de las cuales son
objeto:
• 2006/95/CE - Seguridad de los equipos alimenticios de Baja Tensión (LVD)
• 2004/108/CE - Compatibilidad Electromagnética (EMC)
• 2011/65/UE - Restricción del uso de determinadas sustancias peligrosas (RoHS)
LiFePO4
Pb
12
SHARPY WASH 330 & PC
UNPACKING AND PREPARATION
1
S
H
A
R
P
Y
W
A
S
H
3
3
0
C
6
1
3
7
5
®
I
N
S
T
R
U
C
T
I
O
N
M
A
N
U
A
L
C
o
n
g
r
a
t
u
l
a
t
i
o
n
s
o
n
c
h
o
o
s
i
n
g
a
C
l
a
y
P
a
k
y
p
r
o
d
u
c
t
!
W
e
t
h
a
n
k
y
o
u
f
o
r
y
o
u
r
c
u
s
t
o
m
.
P
l
e
a
s
e
n
o
t
e
t
h
a
t
t
h
i
s
p
r
o
d
u
c
t
,
a
s
a
l
l
t
h
e
o
t
h
e
r
s
i
n
t
h
e
r
i
c
h
C
l
a
y
P
a
k
y
r
a
n
g
e
,
h
a
s
b
e
e
n
d
e
s
i
g
n
e
d
a
n
d
m
a
d
e
w
i
t
h
t
o
t
a
l
q
u
a
l
i
t
y
t
o
e
n
s
u
r
e
e
x
c
e
l
l
e
n
t
p
e
r
f
o
r
m
a
n
c
e
a
n
d
b
e
s
t
m
e
e
t
y
o
u
r
e
x
p
e
c
t
a
t
i
o
n
s
a
n
d
r
e
q
u
i
r
e
m
e
n
t
s
.
C
a
r
e
f
u
l
l
y
r
e
a
d
t
h
i
s
i
n
s
t
r
u
c
t
i
o
n
m
a
n
u
a
l
i
n
i
t
s
e
n
t
ir
e
t
y
a
n
d
k
e
e
p
i
t
s
a
f
e
f
o
r
f
u
t
u
r
e
r
e
f
e
r
e
n
c
e
.
I
t
i
s
e
s
s
e
n
t
i
a
l
t
o
k
n
o
w
t
h
e
i
n
f
o
r
m
a
t
i
o
n
a
n
d
c
o
m
p
l
y
w
i
t
h
t
h
e
i
n
s
t
r
u
c
t
i
o
n
s
g
i
v
e
n
i
n
t
h
i
s
m
a
n
u
a
l
t
o
e
n
s
u
r
e
t
h
e
f
i
t
t
i
n
g
i
s
i
n
s
t
a
l
l
e
d
,
u
s
e
d
a
n
d
s
e
r
v
i
c
e
d
c
o
r
r
e
c
t
l
y
a
n
d
s
a
f
e
l
y
.
C
L
A
Y
P
A
K
Y
S
.
p
.
A
.
d
i
s
c
l
a
i
m
s
a
l
l
l
i
a
b
i
l
i
t
y
f
o
r
d
a
m
a
g
e
t
o
t
h
e
f
i
t
t
i
n
g
o
r
t
o
o
t
h
e
r
p
r
o
p
e
r
t
y
o
r
p
e
r
s
o
n
s
d
e
r
i
v
i
n
g
f
r
o
m
i
n
s
t
a
l
l
a
t
i
o
n
,
u
s
e
a
n
d
m
a
i
n
t
e
n
a
n
c
e
t
h
a
t
h
a
v
e
n
o
t
b
e
e
n
c
a
r
r
i
e
d
o
u
t
i
n
c
o
n
f
o
r
m
i
t
y
w
i
t
h
t
h
i
s
i
n
s
t
r
u
c
t
i
o
n
m
a
n
u
a
l
,
w
h
i
c
h
m
u
s
t
a
l
w
a
y
s
a
c
c
o
m
p
a
n
y
t
h
e
f
i
t
t
i
n
g
.
C
L
A
Y
P
A
K
Y
S
.
p
.
A
.
r
e
s
e
r
v
e
s
t
h
e
r
i
g
h
t
t
o
m
o
d
i
f
y
t
h
e
c
h
a
r
a
c
t
e
r
i
s
t
i
c
s
s
t
a
t
e
d
i
n
t
h
i
s
i
n
s
t
r
u
c
t
i
o
n
m
a
n
u
a
l
a
t
a
n
y
t
i
m
e
a
n
d
w
i
t
h
o
u
t
p
r
i
o
r
n
o
t
i
c
e
.
E
N
G
L
I
S
H
I
N
D
E
X
P
a
g
e
C
o
n
t
e
n
t
s
2
S
a
f
e
t
y
i
n
f
o
r
m
a
t
i
o
n
3
U
n
p
a
c
k
i
n
g
a
n
d
p
r
e
p
a
r
a
t
i
o
n
4
I
n
s
t
a
l
l
a
t
i
o
n
a
n
d
s
t
a
r
t
-
u
p
5
C
o
n
t
r
o
l
p
a
n
e
l
7
M
e
n
u
s
e
t
t
i
n
g
1
4
M
a
i
n
t
e
n
a
n
c
e
2
0
O
p
t
i
o
n
a
l
a
c
c
e
s
s
o
r
i
e
s
2
1
T
e
c
h
n
i
c
a
l
i
n
f
o
r
m
a
t
i
o
n
2
1
C
a
u
s
e
a
n
d
s
o
l
u
t
i
o
n
o
f
p
r
o
b
l
e
m
s
2
2
C
h
a
n
n
e
l
f
u
n
c
t
i
o
n
s
Lamp 330W
(fitted into projector)
IST001/001
2 x 183102/805
1
9
0
°
9
0
°
9
0
°
9
0
°
PAN Mechanism Lock and Release (every 90°) - Fig. 2
TILT Mechanism Lock and Release (every 45°) - Fig. 3
2
Packing contents - Fig. 1
UNLOCKED
LOCKED
4
5
°
4
5
°
4
5
°
4
5
°
4
5
°
4
5
°
4
5
°
3
13
SHARPY WASH 330 & PC
4
1
2
3
2
1
5
INSTALLATION AND START-UP
Connecting and disconnecting power cable - Fig. 5
Installing the projector - Fig. 4
The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall.
WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request).
This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
14
SHARPY WASH 330 & PC
Switching on the projector - Fig. 8
Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display:
Model Firmware xxx (Fixture ID) System errors
SHARPY Version X.X.X Dmx Address xxx E: .........................
WASH 300 Date - Hour W: .........................
On conclusion of resetting in case of absence of the dmx signal, Pan and Tilt move to the “Home” position (Pan 50% - Tilt 50%). The control panel
(Fig. 8) has a display and buttons for the complete programming and management of the projector menu. The display can be in one of two
conditions: rest status and setting status. When it is in the rest status, the display shows the projector’s DMX address and the Fixture ID address
(if set).
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status.
It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the
F
key will be cancelled.
CONTROL PANEL
1
2
Dmx Address
Warning Message
Fixture ID
5m
8
Connecting to the control signal line (DMX) - Fig. 7
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 3 or 5-pin male/female
connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.
IMPORTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to the
shield braid and to pin 1 of the connectors.
Connecting to the mains supply - Fig. 6
L
N
S
IGN
A
L
S
C
R
E
E
N
D
MX
5
1
2
5
PI
N
1
2
3
4
5
S
IGN
A
L
SC
R
EEN
1
3
2
D
MX
512
3
PI
N
SIGN
AL
SIGN
AL
Mains
6
7
SHARPY WASH 330 & PC
15
28
28
Reversal of the display - Fig. 9
To activate this function, press UP
B
and DOWN Ckeys simultaneously while the display is in the rest mode. This status will be memorised and
maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again.
Setting the projector starting address
On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
The address can also be set with the projector switched off.
Setting the address: see pag. 8.
Setting the projector Fixture ID
On each projector, the Fixture ID address must be set for an easy identification of the fixtures in an installation (ID from 1 to 255).
The Fixture ID address can be set with the projector switched off.
Setting the Fixture ID: see pag. 8.
9
Functions of the buttons - Using the menu
Setting addresses and options with the projector disconnected
The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply.
All that is needed is to press
F
to momentarily activate the display and thus access the settings. Once the required operations have been carried out,
the display will switch off again after a wait time of 30 seconds.
USING THE MENU:
1) Press
F
once – “Main Menu” appears on the display.
2) Use the UP
B
and DOWN Ckeys to select the menu to be used:
• Setup (Setup Menu): To set the setting options.
• Option (Option Menu): To set the operating options
• Informations (Informations Menu): To read the counters, software version and other information.
• Manual Control (Manual control Menu): To trigger the test and manual control functions.
• Test (Test Menu): To check the proper functionning of effects
• Advanced (Advanced Menu): Access to the "Advanced menu" is recommended for a trained technical personnel.
To enable the "Advanced" see pag.13
3) Press
F
to display the first item in the selected menu.
4) Use the UP
B
and DOWN Ckeys to select the MENU items.
Confirms the displayed value, or activates the displayed function, or enters the successive
menu.
Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu.
Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu.
Return to the top level
Commute from units, tens, hundreds, in the "Address", "Fixture ID" and "Calibration" menù.
F
C
DOWN
B
UP
D
LEFT
E
RIGHT
Continue
➔
16
SHARPY WASH 330 & PC
MENU SETTING
System
E
rrors
I
nformation
Fixture
Hours
L
amp
Hours
4
Lamp
Manual
Control
Reset
Channel
6
S
et Up
Option
Information
Manual
Control
Test
Advanced
13
L
amp
S
trikes
System
Version
B
oard
Diagnostic
Dmx
Monitor
Fans
Monitor
Access code
1234
Advanced
Calibration
Upload
Firmware
Setup
Model
5
Pan / Tilt
Colour
Beam
All
Test
Dmx
A
ddress
Channel
Mode
E
thernet
Interface
Fixture ID
Sensor
Status
Network
parameters
2
L
amp Dmx
Display
O
ption
Color
Color
Mixing
Fixed Wheel
Shortcut
CMY
Shortcut
Setting
Default
Preset
User
Preset 1
User
Preset 2
User
Preset 3
Shutter
Shutter
On Error
Dimmer On
Shutter
Dimmer
Shortcut
Linear
Movement
Pan / Tilt
Invert
P
an
I
nvert
T
ilt
S
wap
P
an-Tilt
E
ncoder
Pan-Tilt
P/T Homing
mode
Pan Home
Def Pos
Tilt Home
Def Pos
17
SHARPY WASH 330 & PC
DMX ADDRESS
NOTE: without the DMX signal the Address (XXX) flashing
Allows you to select the DMX ADDRESS.
1) Press
F
- the current DMX Adress appear on the display.
2) Use the UP
B
and DOWN C, RIGHT Ekeys to plan the DMX
Address.
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
CHANNEL MODE
Allows you to select a channel arrangement from the two available.
1) Press
F
- the current settings appear on the display (Standard or
Vector).
2) Use the UP
B
and DOWN Ckeys to select one of the following
settings:
- Standard
- Vector
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
FIXTURE ID
Allows you to select the FIXTURE ID.
1) Press
F
- the current Fixture ID appear on the display.
2) Use the UP
B
, DOWN C, RIGHT Ekeys to plan the Fixture ID.
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
ETHERNET INTERFACE
It lets you set the Ethernet settings to be attributed to the projector.
1) Premere
F
.
2) Use the UP
B
and DOWN Ckeys to select the “Ethernet Interface”
options to set:
Control Protocol
It lets you select the “Control Protocol” Art-net to assign according to the
control unit used:
1) Press
F
the current setting appears on the display.
2) Use the UP
B
and DOWN Ckeys to select one of the following settings:
- Disabled
- Art-net on IP 2
- Art-net on IP 10
3) Press
F
to confirm the selection or LEFT Dto keep the current setting.
Repeat on DMX
It lets you enable the transmission of the Ethernet protocol by DMX signal
to all the connected projectors.
1) Press
F
the current setting appears on the display.
2) Use the UP
B
and DOWN Ckeys to select one of the following settings:
- Disabled: DMX transmission disabled.
- Enabled on primary: DMX transmission enabled.
3) Press
F
to confirm the selection or LEFT Dto keep the current setting.
Universe
It lets you assign the “Universe” number to be assigned to a series of
projectors.
1) Press
F
– the current Universe address appears on the display.
2) Use the UP
B
, DOWN C, RIGHT Ekeys to set the Universe address.
3) Press
F
to confirm the selection or LEFT Dto keep the current setting.
SET UP MENU
S
et Up
Dmx
Address
C
hannel
Mode
Fixture ID
A
ddress xxx
S
tandard
V
ector
Value xxx
Ethernet
Interface
Control
Protocol
Repeat on
DMX
Universe
NOTE: On grey the default options
Continue
➔
18
SHARPY WASH 330 & PC
LAMP DMX
Used for enabling lamp remote control channel.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
the lamp remote control channel.
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
PAN / TILT
Invert pan
Used for reversing Pan movement.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
PAN inversion.
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
Invert tilt
Used for reversing tilt movement.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
Tilt inversion.
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
Swap Pan-Tilt
Used for swapping Pan and Tilt channels (as well as Pan fine and Tilt fine).
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
Pan and Tilt channel swap.
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
Encoder Pan-Tilt
Used for enabling the Pan / Tilt encoders.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
Pan / Tilt encoders.
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
You can quickly disable the Pan and Tilt Encoder by simultaneously pressing the UP
B
and DOWN Ckeys in the ''Main Menu''.
P/T Homing Mode
Lets you set the initial projector Reset mode.
1) Press
F
, the current setting appears on the display.
2) Use the UP
B
and DOWN Ckeys to select one of the following
settings:
Standard: Pan & Tilt are simultaneously reset.
Sequenced: Tilt is reset first followed by Pan.
3) Press
F
to confirm the selection or LEFT Dto keep the current setting.
Pan Home Def Pos
Lets you assign the Pan channel “home” position at the end of Reset,
without a DMX input signal.
1) Press
F
, the current setting appears on the display.
2) Use the UP
B
and DOWN Ckeys to select one of the following settings:
0 degree
90 degrees
180 degrees
270 degrees (default)
3) Press
F
to confirm the selection or LEFT Dto keep the current setting.
Tilt Home Def Pos
Lets you assign the Tilt channel “home” position at the end of Reset,
without a DMX input signal.
1) Press
F
, the current setting appears on the display.
2) Use the UP
B
and DOWN Ckeys to select one of the following settings:
0%
12.5%
25%
50% (default)
75%
87.5%
100%
3) Press
F
to confirm the selection or LEFT Dto keep the current
setting.
OPTIONS MENU
P
an / Tilt
I
nvert
Pan
On
O
ff
S
wap
Pan-Tilt
On
Off
E
ncoder
Pan-Tilt
On
Off
I
nvert
Tilt
On
O
ff
P/T Homing
Mode
Standard
Sequenced
Pan Home
Def Pos
Tilt Home
Def Pos
L
amp Dmx
O
ption
O
n
O
ff
On
Off
Display
19
SHARPY WASH 330 & PC
COLOR
C
olor mixing
Used for reversing the CMY color mixing system.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys select one of the following settings:
RGB color mixing mode
CMY color mixing mode
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
Fixed wheel short-cut
U
sed for optimizing color change time so that the disc turns in the direc-
tion that requires shorter movement.
1) Press
F
– the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
color change optimization.
3) Press
F
to confirm the selection, or LEFT Dto keep current settings.
CMY short-cut
Used for optimizing CMY change time so that the disc turns in the direct
ion that requires shorter movement.
1) Press
F
– the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
CMY change optimization.
3) Press
F
to confirm the selection, or LEFT Dto keep current settings.
Linear Movement
It enables the linear movement of the colour wheel.
1) PressF– the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
the linear movement of the colour wheel.
3) Press
F
to confirm the selection, or LEFT Dto keep current settings.
SHUTTER
Shutter on error
Used for automatically closing the stop/strobe in the event of Pan/Tilt
position error.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
automatic stop/strobe closing in the event of Pan/Tilt position error.
3) Press
F
to confirm the selection, or LEFT Dto keep current settings.
Dimmer on Shutter
Enables automatic closing of the dimmer when the strobe is completely closed.
1) PressF– the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
the automatic closing of the dimmer.
3) Press
F
to confirm the selection, or LEFT Dto keep current settings.
Dimmer short-cut
Used for optimizing Dimmer change time so that the disc turns in the
direction that requires shorter movement.
1) Press
F
– the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off)
Dimmer change optimization.
3) Press
F
to confirm the selection, or LEFT Dto keep current settings.
DISPLAY
Used for automatically reduce brightness on the display after about 30
seconds in idle.
1) Press
F
- the current settings appear on the display (On or Off).
2) Use the UP
B
and DOWN Ckeys to enable (On) or disable (Off) the
decreasing of display brightness.
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
C
olor
C
olor
Mixing
Rgb
C
my
C
MY
Shortcut
On
Off
Fixwheel
Shortcut
O
n
Off
L
inear
Movement
On
O
ff
Option
Shutter
Shutter
On Error
On
Off
Dimmer
Shortcut
On
Off
Dimmer On
Shutter
On
Off
Continue
➔
S
ave To
Preset 3
20
SHARPY WASH 330 & PC
SETTING
Used to save 3 different settings of the items in the options menu and
relative submenus.
1
) Press
F
-
“Default preset” appears on the display.
2) Use the UP
B
and DOWN Ckeys to select one of the following
configurations:
- Default preset (*)
- User preset 1
-
User preset 2
- User Preset 3
3) Press
F
- “Load preset X” appears on the display.
4) Use the UP
B
and DOWN Ckeys to select:
-
Load preset X to recall a previously stored configuration.
- Save to preset X to store the current configuration.
a confirmation message (Are you sure?) appears on the display.
5) Select YES to confirm the selection or NO to keep the current setting
and return to the next higher level.
(*) DEFAULT PRESET
By pressing the RIGHT
E
key and the LEFTDkey simultaneously
once entered in the "main menu" it is possible to quickly (short cut)
reset the default settings (DEFAULT PRESET).
Used for restoring default values on all options menu items and relevant
submenus.
1) Press
F
, a confirmation message (Are you sure?) appears on the display.
2) Select YES to confirm the selction or NO to keep current setting.
OPTION DEFAULT
Lamp DMX On
Invert Pan Off
Invert Tilt Off
Swap Pan-Tilt Off
Encoder Pan-Tilt On
P/T Homing Mode Standard
Pan Home Def Pos 270 degrees
Tilt Home Def Pos 50%
Fixed Wheel Shortcut On
Colour Mixing CMY
CMY Shortcut On
Linear Movement Off
Dimmer on Shutter Off
Dimmer Shortcut On
Shutter on error Off
Display On
SYSTEM ERRORS
Shows a list of warnings and messages relevant to errors occurred since
the fixtures switching-on.
1) Pressing
F
you are allowed to reset the SYSTEM ERRORS list.
A confirmation message (Are you sure you want to clear error list ?)
appears on the display.
2) Select YES to reset the list or NO to go back.
FIXTURE HOURS
Used for displaying projector operating hours (total and partial).
1) Press
F
- Hours total and partial appears on the display.
Total counter
Counts the number of projector working life hours (from manufacture to date).
Partial counter
Counts the number of partial projector working life hours since the last
reset to date.
2) Press
F
to reset partial projector working hours a confirmation
message (Are you sure?) appears on the display.
3) Select YES to reset partial projectors counter or NO to keep the current
setting and return to the top menu level.
R
eset To
D
afault
G
o Back
Setting
D
efault
P
reset
L
oad
P
reset 1
Save To
Preset 1
U
ser
P
reset 1
L
oad
P
reset 2
Save To
Preset 2
U
ser
P
reset 2
L
oad
P
reset 3
U
ser
P
reset 3
Option
INFORMATION MENU
Information
System
Errors
Fixture
Hours
Total XXX
Partial XXX
Reset...
Sensor
Status
Network
params
Dmx
Monitor
Fans
Monitor
Fan Speed (RPM)
Lamp XXXX
Lamp XXXX
BallIn XXXX
PwrSp XXXX
21
SHARPY WASH 330 & PC
LAMP HOURS
Used for displaying the lamp working hours (total and partial).
1) Press
F
- Hours total and partial appears on the display.
Total counter
Counts the number of projector working hours with the lamp on (from
m
anufacture to date).
Partial counter
Counts the number of lamp working hours since the last reset to date.
2) Press
F
to reset partial lamp working hours, a confirmation message
(Are you sure ?) appears on the display.
3) Select YES to reset partial counter or NO to keep the current setting
and return to the top menu level
LAMP STRIKES
U
sed for displaying the number of times the lamp was turned on (total and
partial).
1) Press
F
- the number of times the lamp was turned on (total and
partial) appears on the display.
Total counter
Counts the number of times the lamp was turned on (from manufacture
to date).
Partial counter
Counts the number of times the lamp was turned on since the last
reset to date.
2) Press
F
to reset partial lamp strikes hours, a confirmation message
(Are you sure ?) appears on the display.
3) Select YES to reset partial counter or NO to keep the current setting
and return to the top menu level
SYSTEM VERSION
Used for displaying the software and hardware version of each board
installed in the projector.
CPU brd (CPU board)
0: PT-3f (Pan / Tilt board)
1: 6-Ch (6 channel board)
2: 6-Ch (6 channel board)
BOARD DIAGNOSTIC
Used for displaying the status error of each board installed in the projector:
0: PT-3f (Pan / Tilt board)
1: 6-Ch (6 channel board)
2: 6-Ch (6 channel board)
DMX MONITOR
Used for displaying the projector DMX channel level in bit (Val) and in
percentage (Perc).
FANS MONITOR
Used for displaying the speed of each fan installed in the projector:
Lamp (Lamp Fan)
Ball. IN (Ballast IN Fan)
PwrSp (PSU Fan)
SENSOR STATUS
It lets you check the correct operations of each "sensor” installed in the
projector, each channel is associated with one of the following three
parameters:
• n.a.= sensor not available
• ON= sensor working
• OFF= sensor defective
NETWORK PARAMS
Allows the "Network" parameters of the projector to be displayed or:
IP address: Internet Protocol address (two projectors must not have
the same IP address)
IP mask: 255.0.0.0
Mac address: Media Access Control: the projector’s Ethernet Address
Lamp
S
trikes
Total XXX
Partial XXX
R
eset...
L
amp
Hours
T
otal XXX
Partial XXX
R
eset...
System
Version
Board Revis. Hw.rv.
C
PU brd x.x.x x.x
com.dev x.x
0: PT-3f x.x x.x
1: 6-Ch x.x x.x
2: 6-Ch x.x x.x
Board
Diagnost.
Board Status Err%
0: PT-3f Good 0.00
1: 6-Ch Good 0.00
2: 6-Ch Good 0.00
I
nformation
Continue
➔
22
SHARPY WASH 330 & PC
LAMP
Used for turning lamp on and off from the projector control panel.
1) Press
F
-
the current settings appear on the display (On or Off).
2) Use the
UP Band DOWN Ckeys to turn the lamp on (On) or off (Off)
3) Press
F
to confirm the selection or
LEFT Dto keep current settings
and return to the top level.
RESET
Used for resetting the projector.
1) Press
F
to reset the projectors, a confirmation message (Are you sure
?) appears on the display.
2) Select YES to starting reset the fixture or NO to keep the current setting
and return to the top menu level.
CHANNEL
Used for setting channel levels from the projector control panel.
1) Press
F
- the first channel appears on the display.
2) Use the UP
B
and DOWN Ckeys to select the required channel:
3) Press
F
and use the UP Band DOWN Ckeys to select the
required DMX level (value between 0 and 255).
4) Press LEFT
D
to return to the top menu level.
MANUAL CONTROL
No
Y
es
R
eset
C
hannel
T
est
Pan-Tilt
C
olour
Beam
A
ll
TEST
Allows you to check the proper functioning of effects.
1) Press
F
to return to the top menu level.
2) Use the UP
B
and DOWN Ckeys to select the required test.
3) Press
F
to confirm the selection or LEFT Dto keep current settings.
Test sequence:
Pan - Tilt effects (Pan & Tilt)
Colour effects (Colour wheel - CMY )
Beam effects (Stopper-Strobe / Dimmer / Beam shaper / Zoom / Frost)
All effects
TEST MENU
To enable the "Advanced Menu" set up the "Access code" (1234) using the
UP
B
, DOWN C, RIGHT Ekeys.
Press
F
- "Menu advanced" appears on the display
UP LOAD FIRMWARE
Allows you to transfer the firmware from 1 fixture to all the connected fixtures.
1) Press
F
, a confirmation message appears on the display.
2) Select YES to start the firmware loading or NO to keep the current setting and return to the top menu level
SETUP MODEL
Allows you to change the default model of projector.
1) Press
F
a confirmation message appears on the display.
2) Select YES to define the model of projector or NO to keep the current
setting and return to the top menu level.
CALIBRATION
Allows you to adjust effects from the control panel to obtain perfect uniformity between the projectors.
1) Press
F
- “channels” appears on the display.
2) Using the UP
B
and DOWN Ckeys, select the effect you wish to
regulate.
3) Press
F
and use the RIGHT E, UP Band DOWN Cbuttons to
make the adjustment by setting a value between 0 and 255.
4) Press
F
to confirm the selection
or
LEFT Dto keep current set-
tings and return to the top level.
FACTORY DEFAULT
Allows you to restore default values of all channels (128).
1) Press
F
– a confirmation message appears on the display (Reset
calibration to factory default ?).
2) Select YES to reset calibration to factory default or NO to keep the
current setting and return to the top menu level.
ADVANCED MENU
Advanced
Code
1234
Calibration
Upload
Firmware
Transfer the firmware on all
the connected fixtures ?
Are you sure ?
Yes/No
Setup
Model
Changing to a wrong model
may damage the fixture.
Are you sure ?
Yes/No
L
amp
Manual
C
ontrol
O
n
Off
23
SHARPY WASH 330 & PC
Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section.
Opening the head covers - Fig. 10.
Closing the head covers - Fig. 11.
1/4 Turn
1
2
1
1/4 Turn
2
3
4
10 11
MAINTENANCE
Continue
➔
24
SHARPY WASH 330 & PC
1/4 Turn
2
1
Upper Side
1
2
1
2
tooltip
1
2
12 13
1514
Lamp change - Fig 12, 13, 14, 15.
Take the new lamp out of its package and insert in the fitting.
WARNING: do not touch the lamp’s envelope with bare hands. Should this happen, clean the bulb with a cloth soaked in alcohol and dry it
with a clean, dry cloth.
CAUTION:
Fast lamp ON-OFF cycles (for example 10 minutes ON / 10 minutes OFF) will reduce the lamp life.
25
SHARPY WASH 330 & PC
Periodical cleaning
- Fig. 16
To ensure optimal operation and performance for a long time it is essential to periodically clean the parts subject to dust and grease deposits. The
frequency with which the following operations are to be carried out depends on various factors, such as the amount of the effects and the quality of the
working environment (air humidity, presence of dust, salinity, etc.).
Use a soft cloth dampened with any detergent liquid for cleaning glass to remove the dirt from the reflectors and filters. It is recommended that the
projector undergoes an annual service by a qualified technician for special maintenance involving at least the following operations:
• General cleaning of internal parts.
• Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky.
• General visual check of the internal components, cabling, mechanical parts, etc.
• Electrical, photometric and functional checks; eventual repairs.
Lower Side Lower Side
Upper Side Upper Side
16
Continue
➔
26
SHARPY WASH 330 & PC
Lower Side
2
1
17
Extraction of the effect modules: Preliminary operations - Fig. 17
27
SHARPY WASH 330 & PC
Extraction of the effect modules - Fig. 18
IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged.
Insertion of the effect modules: Repeat the operations indicated in Fig. 17 and 18 in reverse order.
1
Upper Side
Upper Side
3
4
Upper Side
2
Upper Side
18
Continue
➔
28
SHARPY WASH 330 & PC
Battery removal - Fig. 19
This product contains a rechargeable lead-acid or lithium iron tetraphosphate battery. To preserve the environment, please dispose the battery
at the end of its life according to the regulation in force.
1
2
7
3
4
6
5
LiFePO4
Pb
19
29
SHARPY WASH 330 & PC

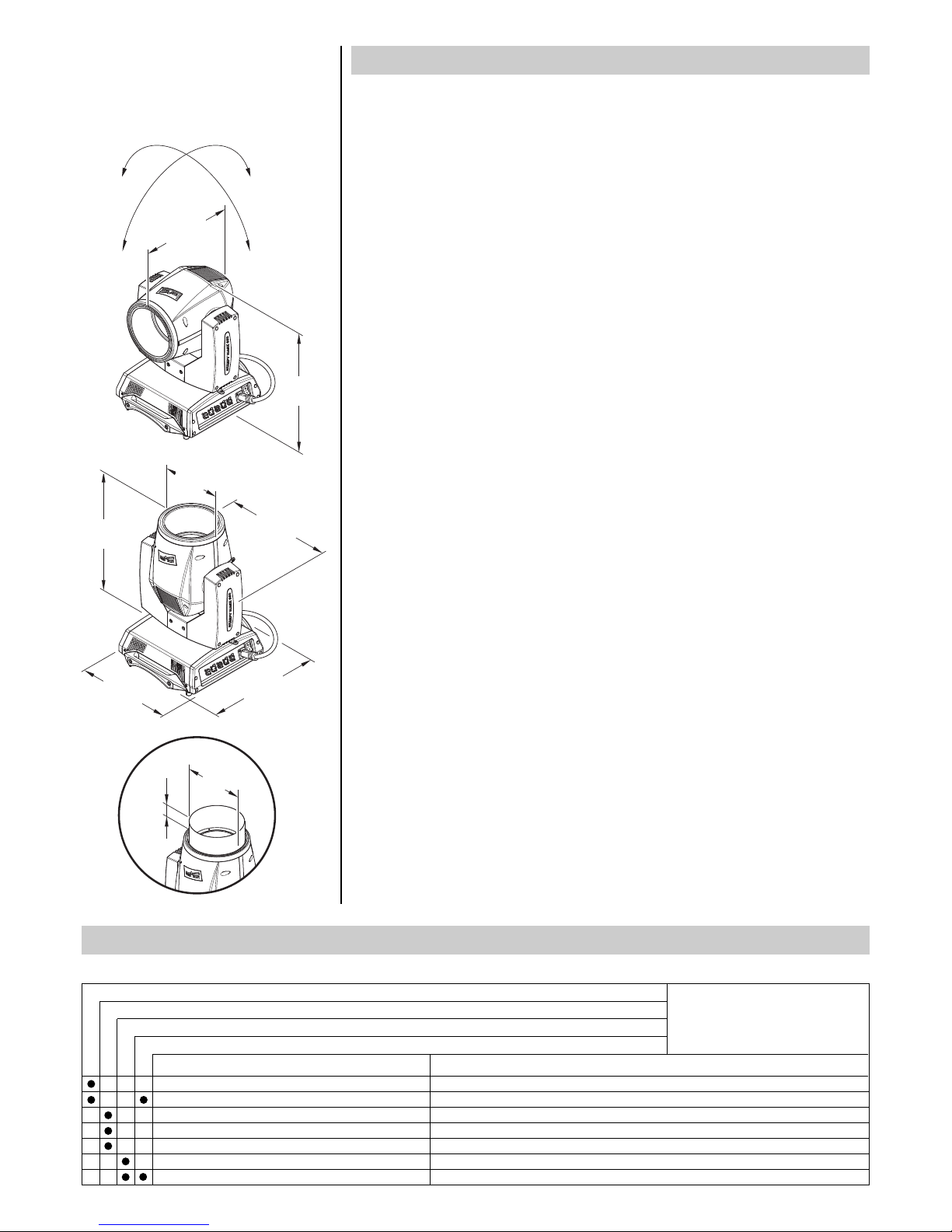

172
(6.77")
63
(2.48")
405
(15.94")
330
(12.99")
520
(20.47")
205
(8.07")
465
(18.30")
3
20
(12.60")
3
90
(15.35")
Top Hat IN
345
(13.58")
490
(
19.29")
T
op Hat OUT
Power supplies available
115/230V 50/60Hz
Input power:
520VA a 230V 50Hz.
Total output
Sharpy Wash 330 - Max 17300 lumens
Sharpy Wash 330 PC - Max 18200 lumens
L
amp:
Lamp system with a short arc burner in a reflector
• Type Philips MSD Platinum 16R (LAM00E)
- Output Lamp power: 330W
- Colour temperature 8000 K
- Average life 1500 h
- Any working position
- Luminous flux rated: 16000 lumens
Motors:
14 stepper motors, operating with microsteps,
totally microprocessor controlled.
Channels:
Max 22 control channels.
Inputs:
DMX 512
Ethernet
Moving head:
• Movement by means of two stepper motors,
controlled by microprocessor.
• Automatic repositioning of PAN and TILT after
accidental movement not controlled by control
unit.
• Angle:
- PAN = 540°
- TILT = 240°
• Resolution:
- PAN = 2.11°
- PAN FINE = 0.008°
- TILT = 0.98°
- TILT FINE = 0.004°
IP20 protection rating:
• Protected against the entry of solid bodies larger
than 12mm (0.47”).
• No protection against the entry of liquids.
CE Marking:
Complies with the following European Directives
- 2006/95/EC (LVD)
- 2004/108/EC (EMC)
- 2011/65/EU (RoHS).
Safety Devices:
• Bipolar circuit breaker with thermal protection.
• Automatic break in power supply in case of
overheating or failed operation of cooling system.
Cooling:
Forced ventilation with axial fans.
Body:
• Aluminium structure with die-cast plastic cover.
• Two side handles for transportation.
• Device locking PAN and TILT mechanisms for
transportation and maintenance.
Working position
Working in any position.
Weight:
Sharpy Wash 330: 18.5Kg (40lbs 11ozs)
Sharpy Wash 330 PC: 20.5Kg (45lbs 2ozs)
TECHNICAL INFORMATION
CAUSE AND SOLUTION OF PROBLEMS
THE PROJECTOR WILL NOT SWITCH ON
PROBLEMS
ELECTRONICS NON-OPERATIONAL
DEFECTIVE PROJECTION
REDUCED LUMINOSITY
POSSIBLE CAUSES CHECKS AND REMEDIES
No mains supply.
Lamp exhausted or defective.
Signal transmission cable faulty or disconnected.
Incorrect addressing.
Fault in the electronic circuits.
Lenses or reflector broken
Dust or grease deposited.
Check the power supply voltage.
Replace the lamp. (See instructions).
Replace the cables.
Check addresses (see instructions).
Call an authorised technician.
Call an authorised technician.
Clean (see instructions).
SHARPY WASH 330
CHANNEL FUNCTION
CHANNEL
STANDARD VECTOR
D
MX Modality
CYAN
MAGENTA
YELLOW
COLOUR WHEEL
STOP / STROBE
DIMMER
DIMMER FINE
BEAM SHAPER INSERTION
BEAM SHAPER ROTATION
HEAVY FROST
LIGHT FROST
ZOOM
PAN
PAN FINE
TILT
TILT FINE
FUNCTION
RESET
LAMP ON/OFF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
CYAN
MAGENTA
YELLOW
COLOUR WHEEL
STOP / STROBE
DIMMER
DIMMER FINE
BEAM SHAPER INSERTION
BEAM SHAPER ROTATION
HEAVY FROST
LIGHT FROST
ZOOM
PAN
PAN FINE
TILT
TILT FINE
FUNCTION
RESET
LAMP ON/OFF
PAN - TILT TIME
COLOUR TIME
BEAM TIM
30
SHARPY WASH 330 & PC
NB: To prevent accidental breakage of the effects,
which could collide with each other during transport,
before switching the projector OFF check that all the
projector Channels have been excluded (DMX level = 0 bit).
• DIMMER FINE - channel 7
BIT EFFECT
128
BEAM SHAPER EXCLUDED
0
255
BEAM SHAPER INSERTED
127
• BEAM SHAPER INSERTION - channel 8
SHARPY WASH 330 & PC
MACRO
B
IT
E
FFECT
252 - 255
OPEN
0 - 3
CLOSED
213 - 225
R
ANDOM SLOW STROBE
4
SLOW STROBE
103
FAST STROBE
104 - 107
OPEN
108
SLOW PULSATION
208 - 212
O
PEN
226 - 238
R
ANDOM MEDIUM STROB E
239 - 251
RANDOM FAST STROBE
207
FAST PULSATION
•
DIMMER - channel 6
B
IT
E
FFECT
255
0
DIMMER OPEN
DIMMER CLOSED
BIT EFFECT
255
0
N
OTE: On conclusion of resetting in case of absence of DMX signal, Pan & Tilt move to the "Home" position (Pan 128 bit - Tilt 128 bit) all the others channels stay at 0 bit.
31
•
STOP / STROBE - channel 5
B
IT
E
FFECT
255
COLOUR EXCLUDED
0
COLOUR INSERTED
C
HANNEL 1
CYAN
C
HANNEL 2
MAGENTA
C
HANNEL 3
YELLOW
BIT EFFECT
255
COLOUR INSERTED
0
COLOUR EXCLUDED
CHANNEL 1
CYAN
CHANNEL 2
MAGENTA
CHANNEL 3
YELLOW
•
COLOUR MIXING - channel 1 - 2 - 3
O
peration with option color mixing: RGB
O
peration with option color mixing: CMY
IMPORTANT: The lamp dim to half power 1 second after all the 3 channels stay at 255 bit
level. The lamp goes back to full power when the channels level is put lower than 255 bit.
IMPORTANT: The lamp dim to half power 1 second after all the 3 channels stay at 0 bit
l
evel. The lamp goes back to full power when the channels level is put higher than 0 bit.
BIT EFFECT
255
FAST ROTATION
(RIGHT DIRECTION)
1
93
191-192
190
SLOW ROTATION (RIGHT DIRECTION)
STOP ROTATION
SLOW ROTATION (LEFT DIRECTION)
128
123
118
112
107
102
96
91
86
80
75
70
64
59
54
48
43
38
32
27
22
16
11
6
0
FAST ROTATION (LEFT DIRECTION)
BLUE + WHITE
BLUE
HALF MINUS GREEN + BLUE
HALF MINUS GREEN
TC 190 + HALF MINUS GREEN
TC 190
TC 260 + TC 190
TC 260
UV FILTER + TC260
UV FILTER
PINK + UV FILTER
PINK
LIGHT GREEN + PINK
LIGHT GREEN
GREEN + LIGHT GREEN
GREEN
AQUAMARINE + GREEN
AQUAMARINE
ORANGE + AQUAMARINE
ORANGE
RED + ORANGE
RED
WHITE + RED
WHITE
• COLOUR WHEEL - channel 4
Continue
➔
32
SHARPY WASH 330 & PC
• HEAVY FROST - channel 10
• LIGHT FROST - channel 11
BIT EFFECT
255
0
FROST INSERTED
FROST EXCLUDED
B
IT
E
FFECT
255
0
FROST INSERTED
FROST EXCLUDED
• P
AN F
I
NE
-
ch
an
n
el
1
4
Operat
ion
wit
h
opt
ion
I
nv
ert
P
an
G
Of
f
(Tilt
c
onv
ent
ionally
repres
ent
ed
at
35
bit
and
opt
ion
I
nv
ert
Tilt
G
Of
f
)
BIT
255
0
Operation with option InvertPanGOn
(Tilt conventionally represented at 35 bit and option Invert Tilt
G
Off)
BIT
255
0
Operation with option InvertPanGOn
(Tilt conventionally represented at 35 bit and option Invert Tilt
G
Off)
BIT
255
0
BIT
2
55
0
•
PAN - channel 13
O
peration with option InvertPan
G
O
ff
(
Tilt conventionally represented at 35 bit and option Invert Tilt
G
O
ff)
•
BEAM SHAPER ROTATION - channel 9
STOP
F
AST ROTATION
SLOW ROTATION
SLOW ROTATION
FAST ROTATION
B
IT E
FFECT
191 - 192
2
55
193
190
128
S
TOP
540°
3
60°
0°
POSITION 540°127
POSITION 450°
105
P
OSITION 360°
84
P
OSITION 270°
63
POSITION 180°
42
0
POSITION 0°
POSITION 90°
21
• ZOOM - channel 12
BIT EFFECT
255
WIDE BEAM
0
NARROW BEAM
33
SHARPY WASH 330 & PC
•
FUNCTION - channel: 17
BIT EFFECT
255
51-62
76-87
88-101
102-114
115
63-75
3
8-50
25-37
12-24
0-11
LINEAR (Default)
UNUSED RANGE
UNUSED RANGE
CMY shortcut OFF
CMY shortcut ON (default)
CMY Limited range
CMY Full range (Default)
CONVENTIONAL
DIMMER CURVE
FUNCTION
CMY CURVE
FUCTION
FAST (Default)
NORMAL
PAN-TILT
FUNCTION
• TILT FINE - channel 16
Operation with option Invert Tilt
G
Off
(Pan conventionally represented at 0 bit and option Invert Pan
G
Off)
BIT
255
0
SE
T
X
S
E
L
D
M
X
SE
T
X
S
E
L
D
M
X
Operation with option Invert TiltGOn
(Pan conventionally represented at 0 bit and option Invert Pan
G
Off)
BIT
255
0
SE
T
X
S
E
L
D
M
X
SE
T
X
S
E
L
D
M
X
The functions are actived passi ng through the unused range and staying 5
s
econds in necessary level.
•
TILT - channel 15
Operation with option Invert Tilt
G
Off
(Pan conventionally represented at 0 bit and option Invert PanGOff)
BIT
255
1
28
0
SE
T
X
S
E
L
D
M
X
SE
T
X
S
E
L
D
M
X
SE
T
X
S
E
L
D
M
X
O
peration with option Invert Tilt
G
O
n
(
Pan conventionally represented at 0 bit and option Invert Pan
G
O
ff)
B
IT
2
55
128
0
E
E
E
•
LAMP CONTROL (only with option LAMP DMX On) - channel: 19
IMPORTANT: SHARPY is not provided with hot restrike ignition
LAMP ON
B
IT
E
FFECT
255
0
101
100
LAMP OFF
26
LAMP OFF
25
UNUSED RANGE
L
amp switch-on passing
through the unused range
and staying 5 sec
in Lamp ON levels.
Lamp switch off passing
throug the unused
range and staying 5 s in
Lamp OFF levels.
ON
ON
OFF
OFF
LAMP ON
•
RESET - channel: 18
BIT EFFECT
255
128
127
77
76
26
25
0
C
omplete reset is activated passing
throug the unused range and staying
5 seconds in complete reset levels.
COMPLETE RESET
PAN / TILT RESET
PAN / TILT RESET
EFFECTS RESET
EFFECTS RESET
UNUSED RANGE
P
an / Tilt reset is activated passing
throug the unused range and staying
5 seconds in Pan / Tilt reset levels.
E
ffects reset is activated passing
t
hroug the unused range and staying
5
seconds in Effects reset levels.
COMPLETE RESET
The functions are actived passi ng through the unused range and staying 5
seconds in necessary level.
The functions are actived passi ng through the unused range and staying 5
seconds in necessary level.
Continue
➔
34
SHARPY WASH 330 & PC
Timing Channel Channel function
20 Pan - Tilt time Pan - Tilt - (Pan fine - Tilt fine)
21 Colour time Colour wheel - CTO
22 Beam time Dimmer - Frost
BIT Seconds
0 Full
1 0.2
2 0.4
3 0.6
4 0.8
5 1
6 1.2
7 1.4
8 1.6
9 1.8
10 2
11 2.2
12 2.4
13 2.6
14 2.8
15 3
16 3.2
17 3.4
18 3.6
19 3.8
20 4
21 4.2
22 4.4
23 4.6
24 4.8
25 5
26 5.2
27 5.4
28 5.6
29 5.8
30 6
31 6.2
32 6.4
33 6.6
34 6.8
35 7
36 7.2
37 7.4
38 7.6
39 7.8
40 8
41 8.2
42 8.4
BIT Seconds
43 8.6
44 8.8
45 9
46 9.2
47 9.4
48 9.6
49 9.8
50 10
51 10.2
52 10.4
53 10.6
54
11
55
56
12
57
58
13
59
60
61 14
62
63
15
64
65
66 16
67
68
17
69
70
71 18
72
73
19
74
75
76 20
77
78
79 21
80
81
22
82
83
84 23
85
BIT Seconds
86
24
87
88
89 25
90
91
26
92
93
94 27
95
96
28
97
98
99 29
100
101
102 30
103
104
31
105
106
107 32
108
109
33
110
111
112 34
113
114
35
115
116
117 36
118
119
37
120
121
122 38
123
124
125 39
126
127
40
128
BIT Seconds
129
130 41
131
132
42
133
134
135 43
136
137
44
138
139
140 45
141
142
46
143
144
145 47
146
147
48
148
149
150 49
151
152
153 50
154
155
51
156
157
158 52
159
160
53
161
162
163 54
164
165
55
166
167
168 56
169
170
57
171
BIT Seconds
172
173 58
174
175
176 59
177
178
60
179
180
181 65
182
183
70
184
185
186 75
187
188
80
189
190
191 85
192
193
90
194
195
196 95
197
198
100
199
200
201 110
202
203
204 120
205
206
130
207
208
209 140
210
211
150
212
213
214 160
215
BIT Seconds
216
170
217
218
219 180
220
221
190
222
223
224 200
225
226
227 210
228
229
220
230
231
232 230
233
234
240
235
236
237 250
238
239
260
240
241
242 270
243
244
280
245
246
247 290
248
249
300
250
251
252
310
253
254
255
Follow cue
01/13
TIMING CHANNELS
TIME TABLE
CLAY PAKY S.p.A. - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it
IST001/001 – EN - Rev.B 11/14
Gradav Hire and Sales Ltd
The Power House
Elstree Film Studios
Shenley Road
Borehamwood
WD6 1JG
Phone 020 8324 2100 FAX 020 8324 2933
email office@gradav.co.uk Web www.gradav.co.uk
See our catalogue for details of
these and more Dirty Rigger products
Loading...
