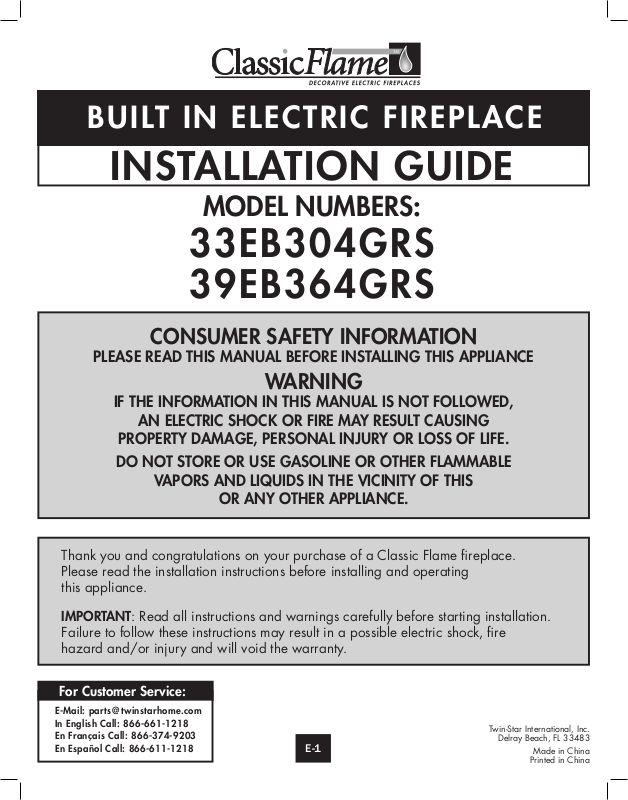

Classicflame 33EB304GRS User Manual
E-1
MODEL NUMBERS:
33EB304GRS
39EB364GRS
BUILT IN ELECTRIC FIREPLACE
INSTALLATION GUIDE
CONSUMER SAFETY INFORMATION
PLEASE READ THIS MANUAL BEFORE INSTALLING THIS APPLIANCE
WARNING
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED,
AN ELECTRIC SHOCK OR FIRE MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE
VAPORS AND LIQUIDS IN THE VICINITY OF THIS
OR ANY OTHER APPLIANCE.
Thank you and congratulations on your purchase of a Classic Flame fireplace.
Please read the installation instructions before installing and operating
this appliance.
IMPORTANT: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible electric shock, fire
hazard and/or injury and will void the warranty.
For Customer Service:
E-Mail: parts@twinstarhome.com
In English Call: 866-661-1218
En Français Call: 866-374-9203
En Español Call: 866-611-1218
Twin-Star International, Inc.
Delray Beach, FL 33483
Made in China
Printed in China
LISTINGS AND CODE APPROVALS
THE BUILDERS BOX SERIES HAS BEEN TESTED AND APPROVED IN ACCORDANCE WITH THE
CSA xxxxxxx No.xxxxxxx STANDARDS FOR FIXED AND LOCATION
DEDICATED ELECTRIC ROOM HEATERS.
MODEL SPECIFICATIONS
MODEL
NUMBER DESCRIPTION VOLTAGE
RATED POWER
WATTS
REMOTE
CONTROL AMPS
33EB304AAS 33” STANDARD 120/208/240 1440/2100/2700 YES 12.00/10.10/11.25
39EB364AAS 39” STANDARD 120/208/240 1440/2100/2700 YES 12.00/10.10/11.25
!!! WARNING !!!
THE INSTALLATION OF THE FIREPLACE UNIT MUST COMPLY WITH THE APPLICABLE
LOCAL AND/ OR NATIONAL ELECTRICAL CODES AND UTILITY REQUIREMENTS.
THIS INSTALLATION SHOULD BE ENTRUSTED TO DULY QUALIFIED
PERSONNEL WHERE REQUIRED BY LAW.
!POWER SELECTION WARNING!
This unit is factory wired for 110 volt power supply.
If 208/240 volt operation is required, slide the voltage switch
and recongure the wiring accordingly (see gure 2).

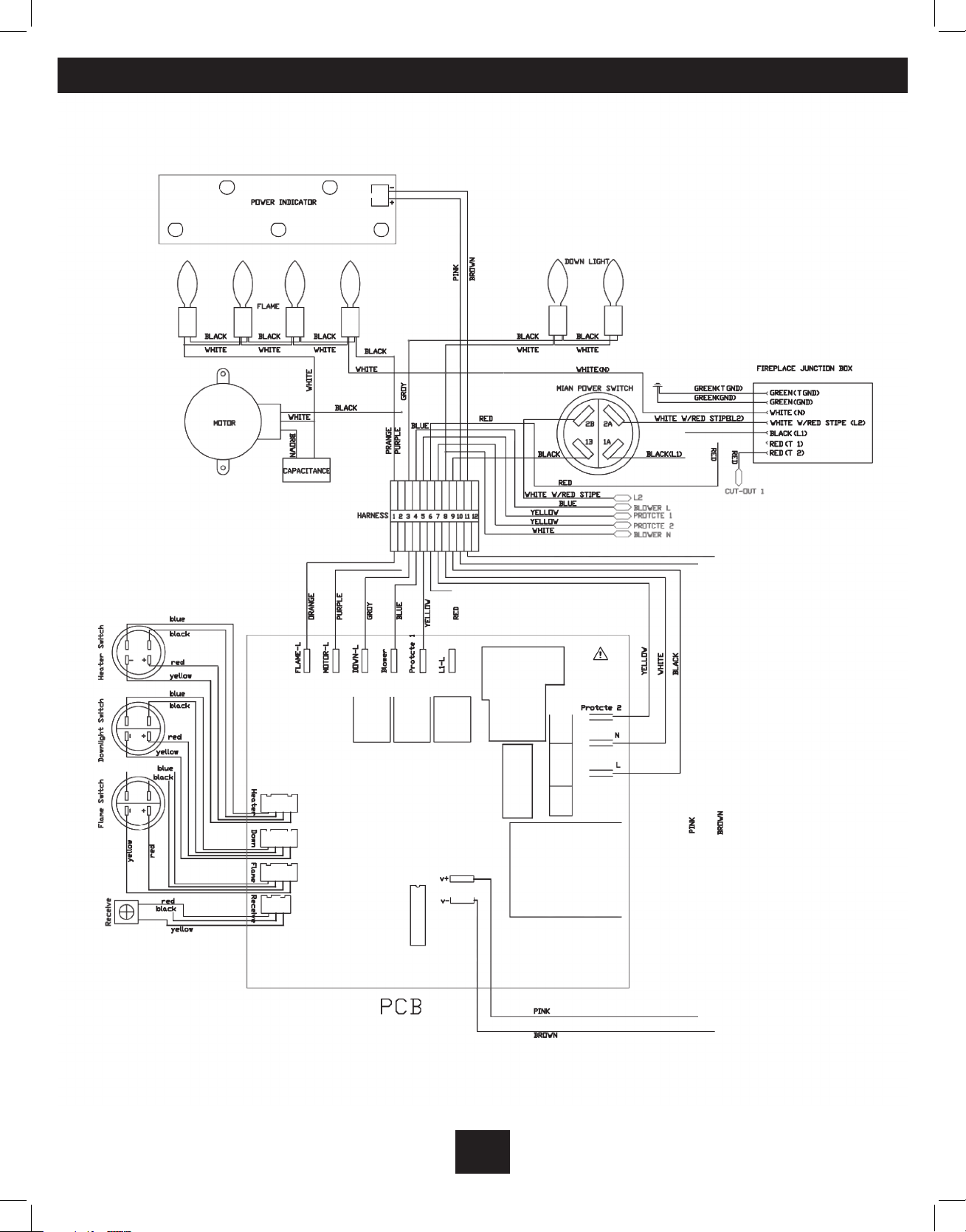

Wires L1, L2, N & G are attached to the rear of
the junction box for easy access.
! !
1) Rough in framing following the
recommended dimensions. (see gure 1)
2) Allow at least 8” of service cable for
connecting power supply wire to junction
box on replace insert when installing
before nishing wall. Allow up to 4 feet of
service cable for connecting power supply
wire to junction box on replace insert
after nishing wall.
3) Remove the outer jacket and strip the
individual conductors ½” from end.
4) Loosen the screw securing the junction
box cover and remove the cover.
5) Place unit in position in the framed
opening, level with shims if necessary
and attach unit to frame using mounting
anges provided ( see Section 3).
6) Wire a dedicated, properly fused circuit with
a 15 amp rating for the appropriate voltage
(120, 208/240). (See table above)
7) Install wall thermostat as outlined on
page 10 section E
8) Place all connections inside the junction
box. Secure the junction box cover on the
unit.
When installing a cable clamp make sure it
grips only the jacket of the service cable
and thermostat wire.
STEP - BY - STEP INSTALLATION OVERVIEW
(please read all instructions before installation)
E-2
Framing Specications: Figure 1
This replace is a zero clearance design. No
combustibles can be placed on the top
surface of the replace. Combustibles may
be installed to the edge of the unit.

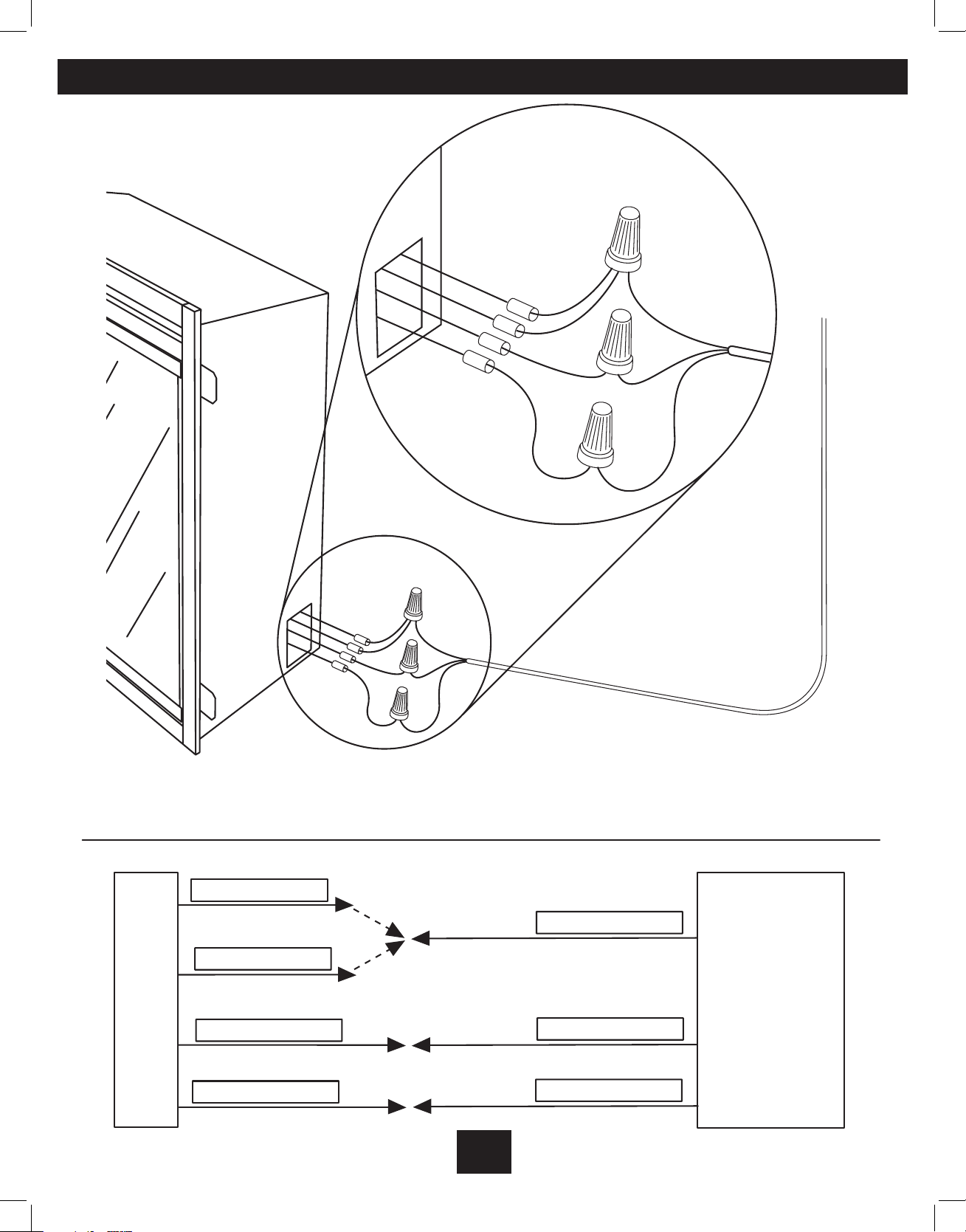

For 120 volt installations use two conductor,
non-metallic sheath cable with ground wire
(3 wires total) for the incoming power supply
on replace inserts. Use the appropriate wire
to meet local and national electrical codes for
rated power consumption.

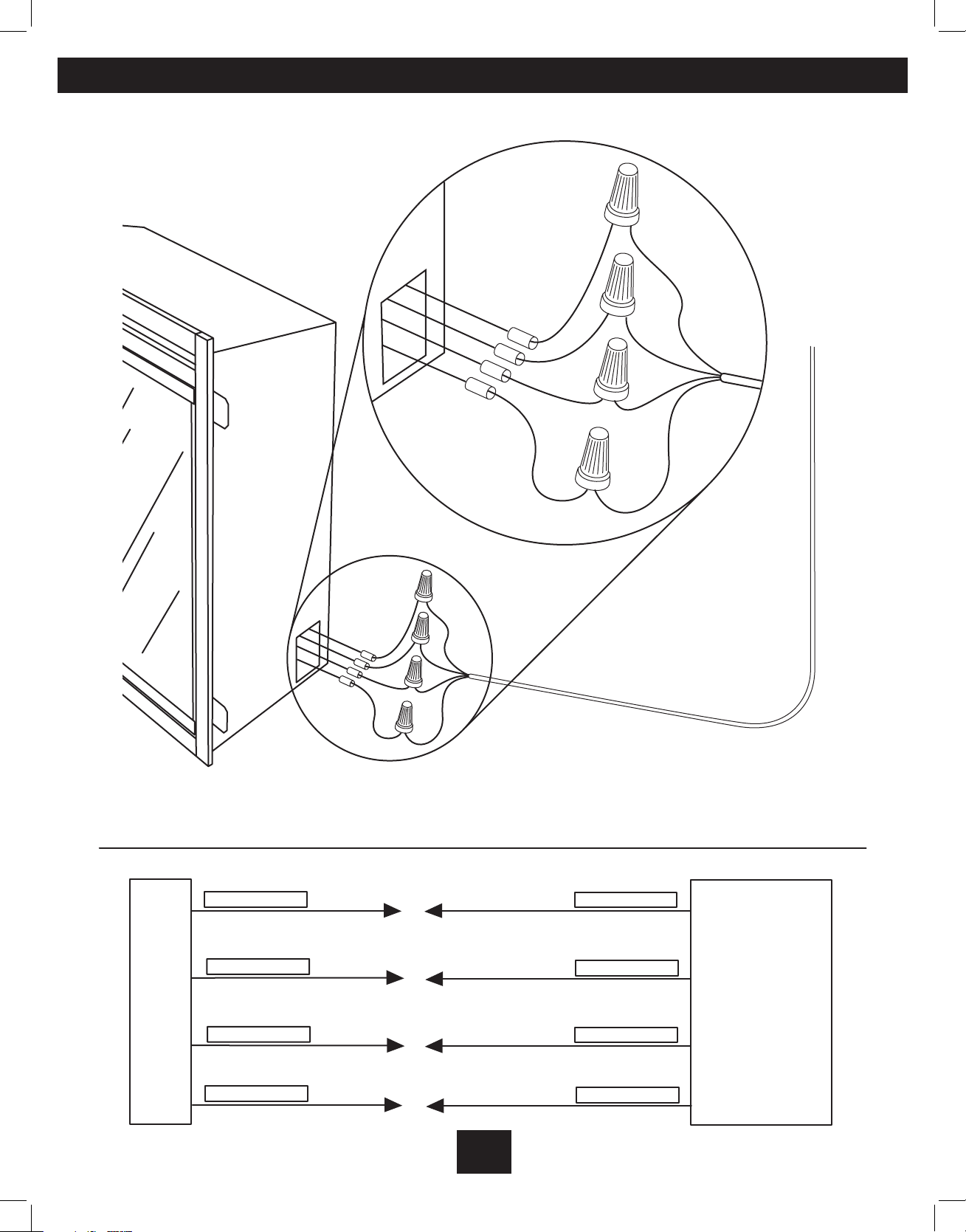

For 208/240 volt installations use three
conductor, non-metallic sheath cable with
ground wire (4 wires total) for the incoming
power supply on replace inserts. Use the
appropriate wire to meet local and national
electrical codes for rated power consumption.
MODEL A B C D E F G H I J K L M
33EB304AAS 15.0” 33.0” 29” 28.5” 23.0” 32.8” 29.6” 18.25” 23.6” 14.3” 48.0” 28.0” 28.0”
33EB364GRS 16.0” 39.0” 33” 32.7” 27.2” 38.7” 36.0” 22.0” 27.6” 15.3” 55.0” 34.0” 34.0”
D
E
F
G
H
I
J
L
K
M
Four mounting anges on the sides of the unit
are provided to facilitate installation.
Insulation and vapor barrier should be placed
a minimum of 2 inches from the unit.
Two conductor, non-metallic sheath cable with
ground wire (3 wires total) is recommended
for installation of a wall mounted thermostat
for use on replace inserts.
Recommended Wire and
Fusing Requirements
Use appropriate wire to meet local and
national electrical codes for rated power consumption. All wire gauges should be
12 gauge with a dedicated 15 amp breaker.
Section 2: Recommended Power Supply Wire Specications
Section 1: Framing
E-3
Voltage Selector Switch: Figure 2
The voltage selector switch is located inside
the exhaust panel on the top left hand
corner. Carefully insert a at headed screwdriver inside the exhaust panel through the
hole in the mesh to change the switch from
240 volts (230 position) to 120 volts (115
position). The unit ships with the switch in the
115v position.
115
230
Section 3: Voltage Selector Switch Location
When wiring the unit for 208/240 volts the
voltage selector switch should be in the 230
volt position. (see gure 2)
When wiring the unit for 120 volts the voltage
selector switch should be in the 115 volt
position. (see gure 2)
Caution:
When changing the voltage selector switch
from 240 volts to 120 volts ensure that the
power supply is turned off.
Important:
Ensure that the incoming power supply
voltage matches the setting of the
voltage selector switch!!!!!!
E-4

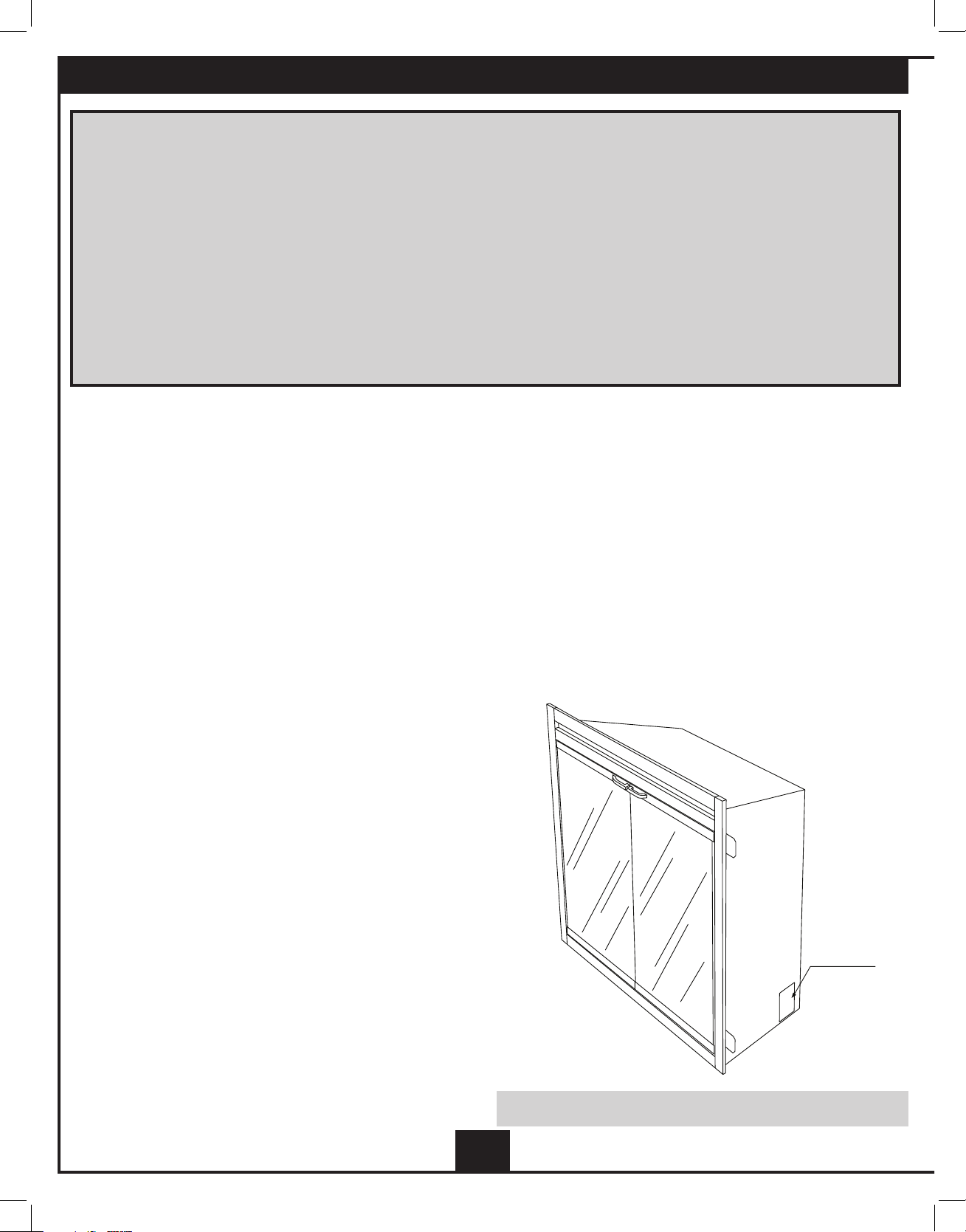

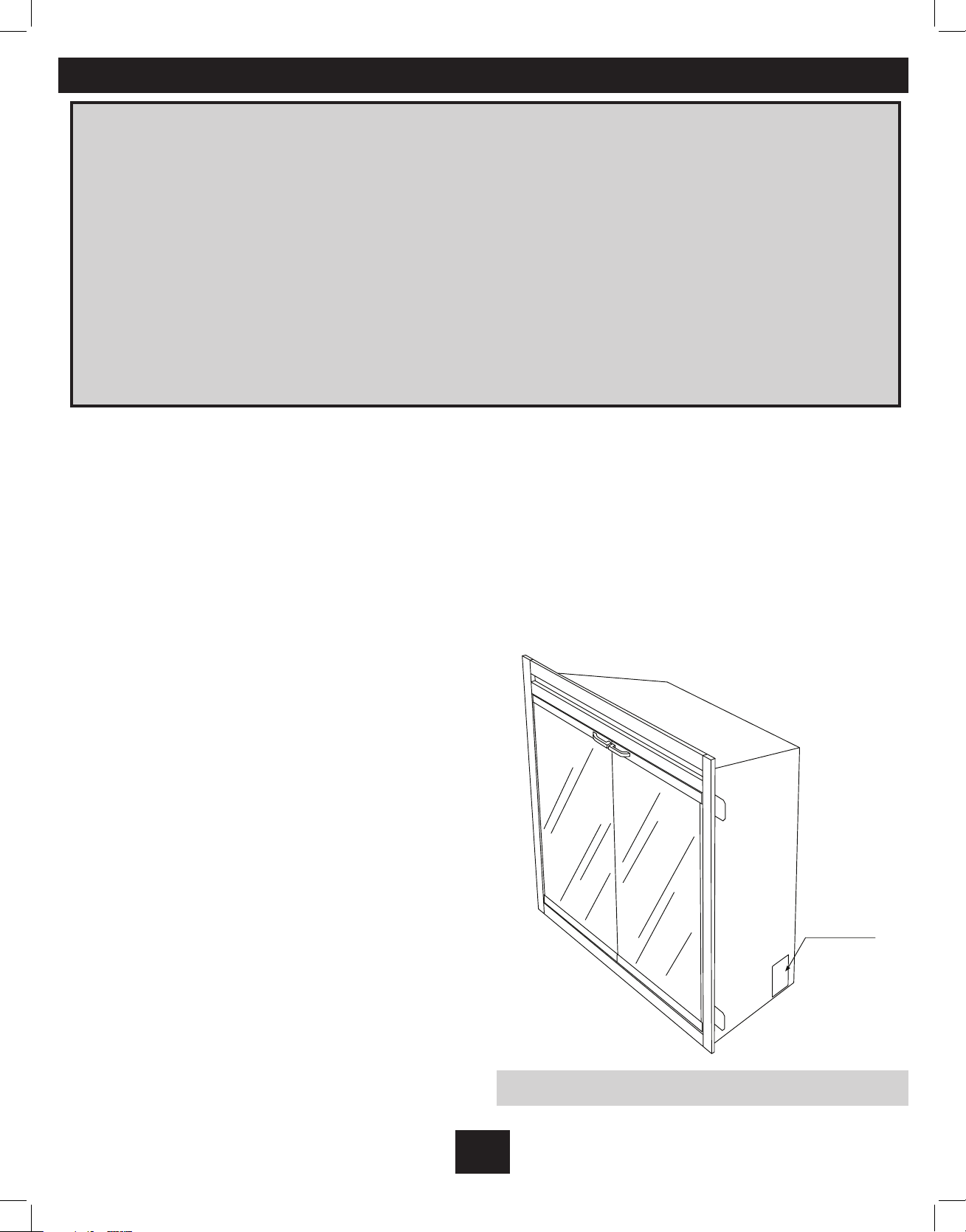

There are two mounting anges located on
each side of the replace insert. Bend tabs
accordingly and mount to framing using
suitable hardware.
Mounting Flange Location: Figure 3
MOUNTIN
G
FLANGE
S
Wall and Mounting Flange: Figure 4
Mounting Tolerances - Top View: Figure 5
STUD
WOOD OR METAL
MOUNTING FLANGE
DR
YW
ALL
/ SHEE
TROC
K
CERAM
I
C
TILE
DRYWALL / SHEETROCK
CERAMIC TILE
STUD
9/16”
3/8”
MOUNTING FLANGE
INSERT
TOP
VIEW
FRONT
Section 4: Mounting Flanges
E-5
