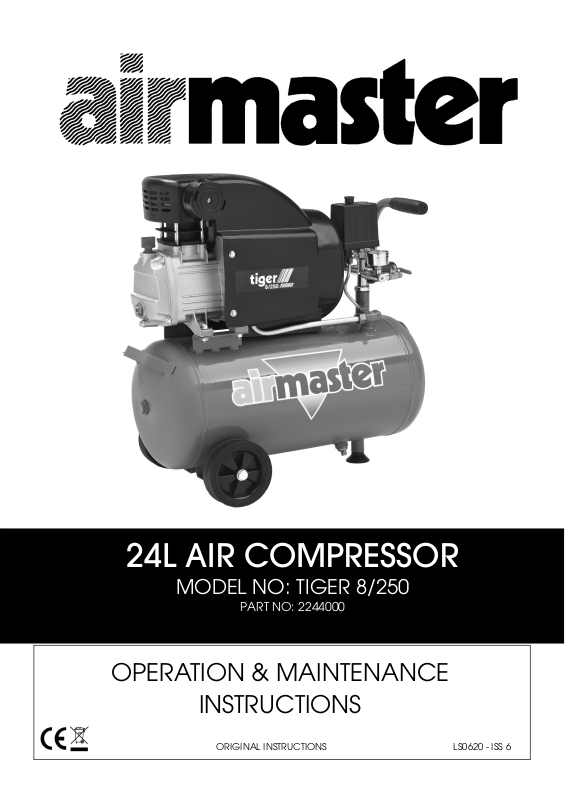

Page 1

24L AIR COMPRESSOR

MODEL NO: TIGER 8/250

PART NO: 2244000

OPERATION & MAINTENANCE

INSTRUCTIONS

LS0620 - ISS 6ORIGINAL INSTRUCTIONS

Page 2

INTRODUCTION

Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general household waste. It must be disposed of according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.

PARTS AND SERVICING

Parts 0115 956 1805

Service 0115 956 1809

Customer Care 0115 956 1810

TELEPHONE NUMBERS

0115 955 9999

Page 3

SAFETY PRECAUTIONS

Before using your compressor it is in your own interest to read and pay attention to the following safety rules.

1. Compressed air is dangerous. Do not point a jet of air at persons or animals, and do not discharge compressed air against the skin.

2. DO NOT operate your compressor with the guard removed.

3. Repairs must only be carried out by a qualified engineer. If problems occur, contact your dealer.

4. Before carrying out any maintenance, make sure that the pressure is released from the air reservoir, and that the compressor is disconnected from the electrical supply.

5. DO NOT leave pressure in the receiver overnight, or when transporting.

6. DO NOT adjust, or tamper with the safety valves. The maximum pressure is factory set, and clearly marked on the compressor.

7. DO NOT operate in wet or damp conditions. Keep the compressor dry at all times. Similarly, clean air will allow the compressor to work efficiently. Do not use in dusty or otherwise dirty locations.

8. Some of the metal parts can become quite hot during operation. Do not to touch these until the compressor has cooled down.

9. Always set the pressure regulator to the recommended setting for the tool.

10. When spraying flammable materials e.g. cellulose paint, ensure that there is sufficient airflow and keep clear of any source of ignition.

11. Before spraying any material always consult paint manufacturers instructions for safety and usage.

12. Protect yourself. Goggles will protect your eyes from flying particles. Face masks will protect you against paint spray and fumes.

13. Do not apply strain to electrical cables and make sure that air hoses are not kinked or wrapped around the compressor.

14. When disconnecting air hoses or other equipment from your compressor, make sure that the air supply is turned off at the outlet and vent all pressurised air from within the reservoir and other equipment attached to it.

15. Make sure that children and animals are kept well away from the compressor and any equipment attached to it.

16. Make sure that all individuals using the compressor have had the necessary training and have read and fully understand these operating instructions.

17. Make sure that any equipment or tool used in conjunction with your compressor, has a safe working pressure exceeding that of the compressor.

18. Be careful when transporting the compressor to prevent tipping over

19. Permanently installed systems must be installed by a competent engineer.

20. These compressors produce noise levels in excess of 70dB(A). Persons working near the compressor must be supplied with ear protection.

Page 4

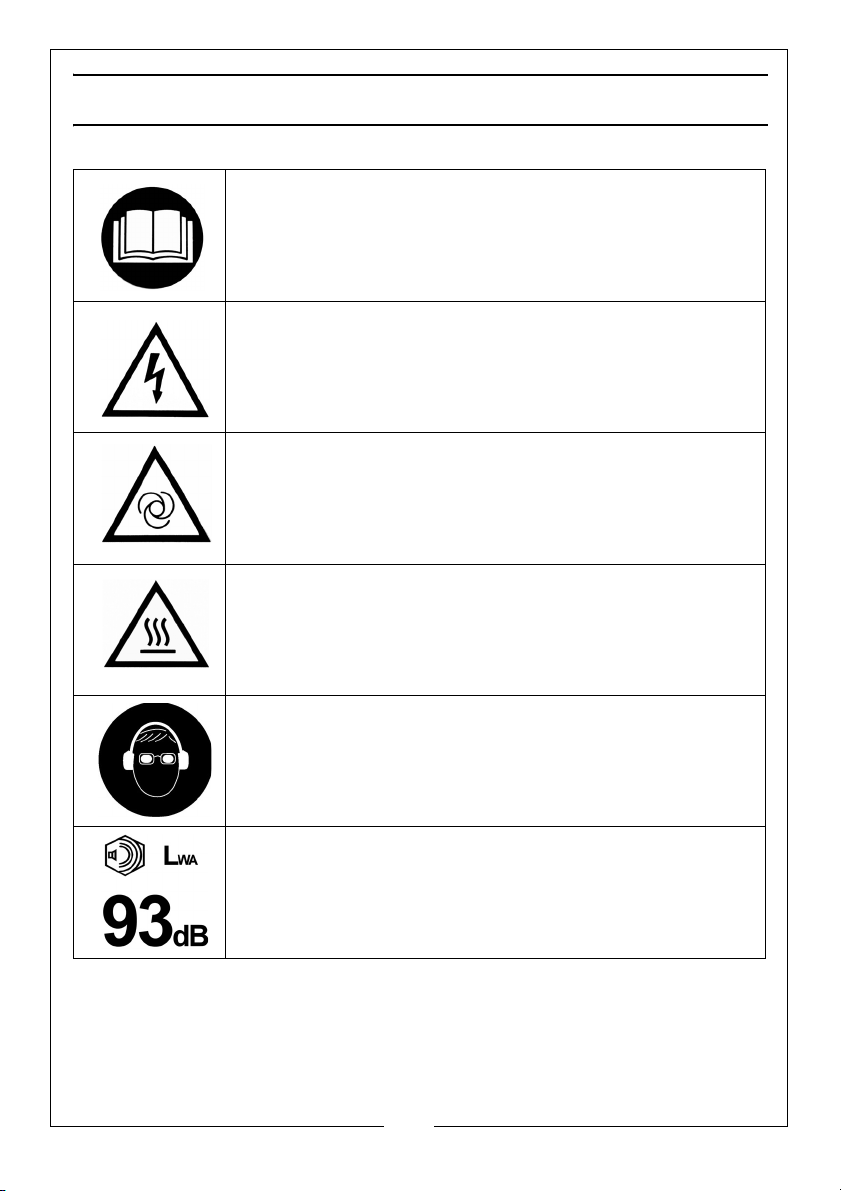

SAFETY SYMBOLS

Read this instruction booklet carefully before positioning, operating or adjusting the compressor.

Risk of electric shock. The compressor must be disconnected from the mains supply before removing any covers. Do not use in a damp environment.

Risk of accidental start-up. The compressor could start automatically in the event of a power cut and subsequent reset. Do not carry the compressor while it is connected to the power source, or when the tank is filled with compressed air.

This compressor contains surfaces which may reach a high temperature during operation. Never operate with the motor housing removed.

Wear a safety goggles and ear protectors when using this compressor

This compressor produces a high sound level during operation. Ear protection should be worn.

Page 5

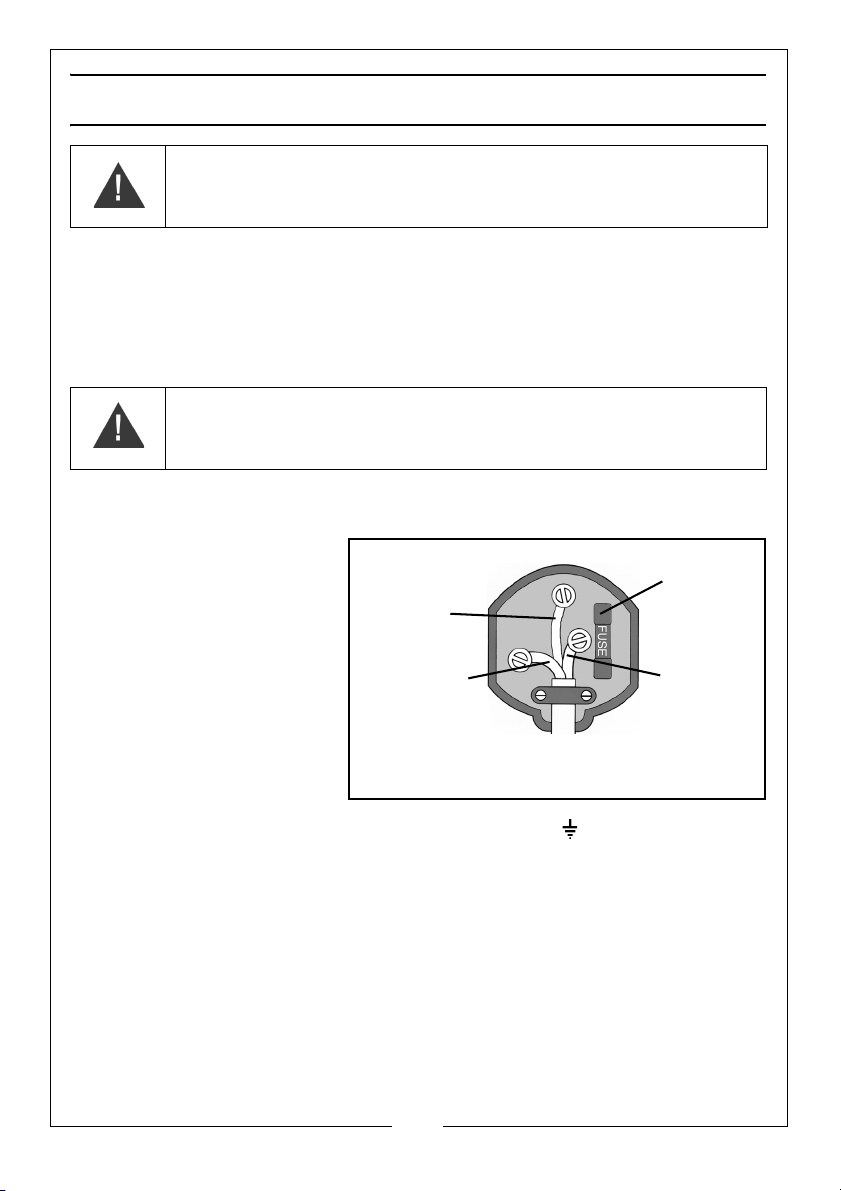

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 13 Amp

the cable is firmly held by the clamp

fuse.

Yel low)

WARNING! Read these electrical safety before connecting the product to the mains supply.

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.

If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. The old plug must be discarded safely, as insertion into a power socket could cause an electrical hazard.

WARNING! The wires in the power cable of this product are coloured in accordance with the following code: Blue = Neutral Brown = Live Yellow and Green = Earth

If the colours of the wires in the power cable do not agree with the markings on the plug:

• The BLUE wire must be

connected to the terminal which is marked N or coloured black.

• The BROWN wire must

be connected to the terminal which is marked L or coloured red.

• The YELLOW AND

GREEN wire must be connected to the terminal which is marked E or or coloured green.

We strongly recommend that this machine is connected to the mains supply through a Residual Current Device (RCD)

If you are not sure, consult a qualified electrician. DO NOT try to do any repairs.

instructions thoroughly

Page 6

ASSEMBLY

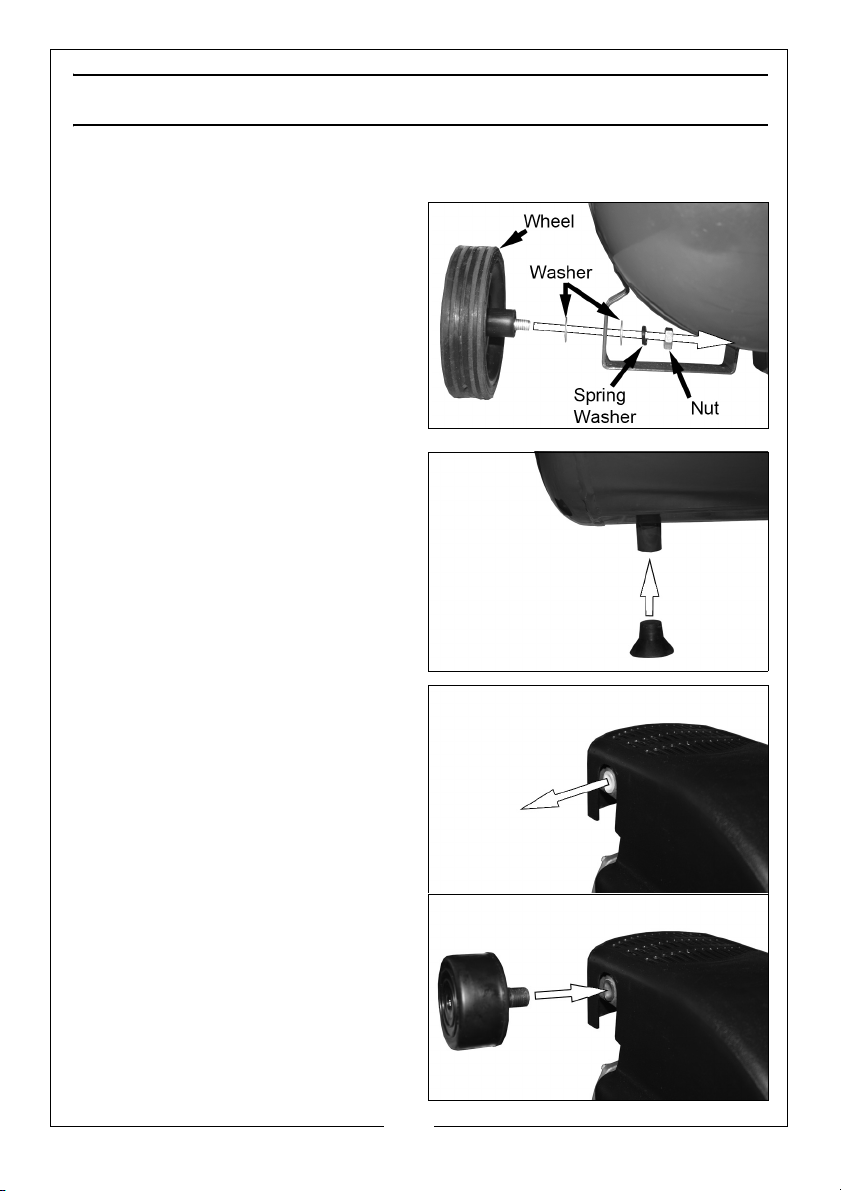

ATTACH THE WHEELS

Use a spanner to attach the wheels to the compressor.

Use the washers and spring washer in the positions shown.

ATTACH THE SUPPORT FEET

Insert the support feet into the position shown.

FIT THE AIR FILTER

1. Remove the travel plug.

2. Screw the air filter into position.

• The air filter must be hand tight only.

Page 7

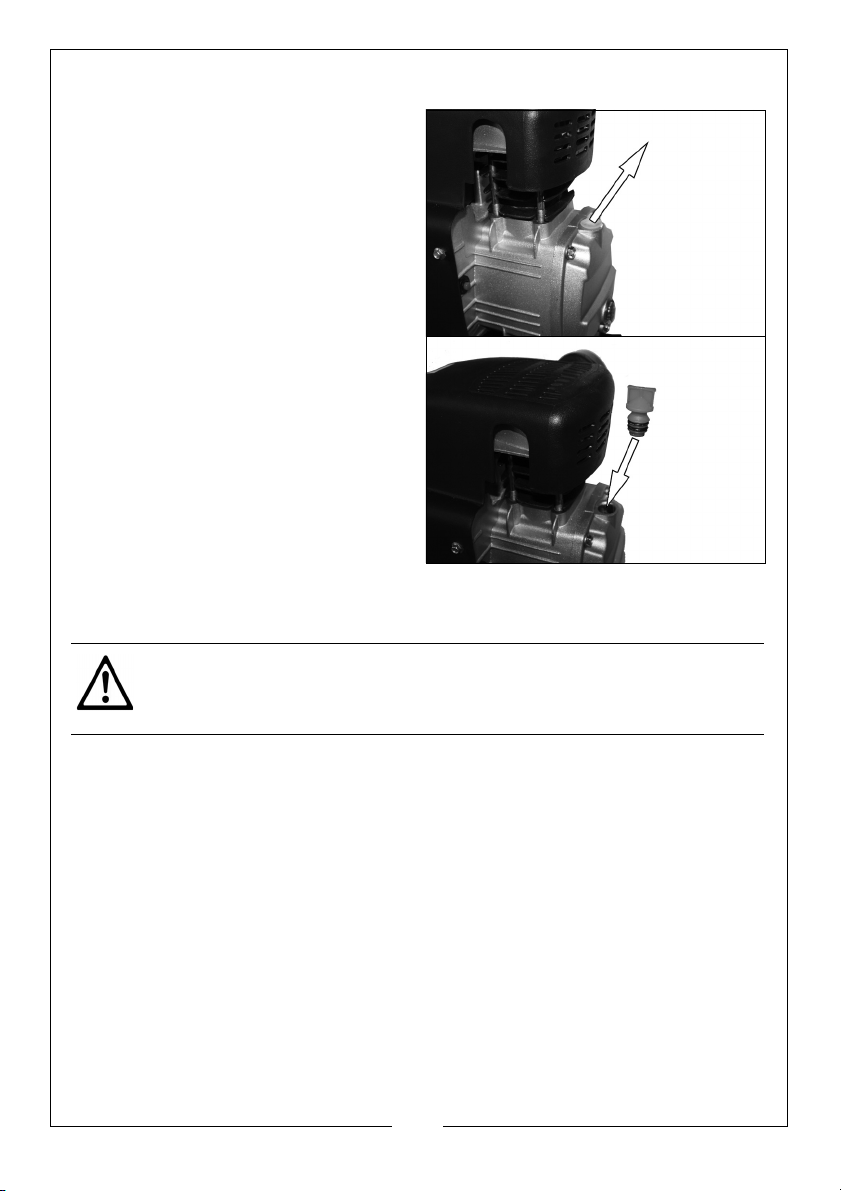

FIT THE OIL FILLER CAP

1. Remove the travel plug.

2. Insert the oil filler cap.

MOVING THE AIR COMPRESSOR

CAUTION: TO PREVENT INJURY, GET ASSISTANCE WHEN LIFTING THIS COMPRESSOR.

• Stop the compressor and disconnect it from the power supply before you move it.

• Always use the handle.

• To prevent damage, do not lift by (or put strain on) valves or hoses.

Page 8

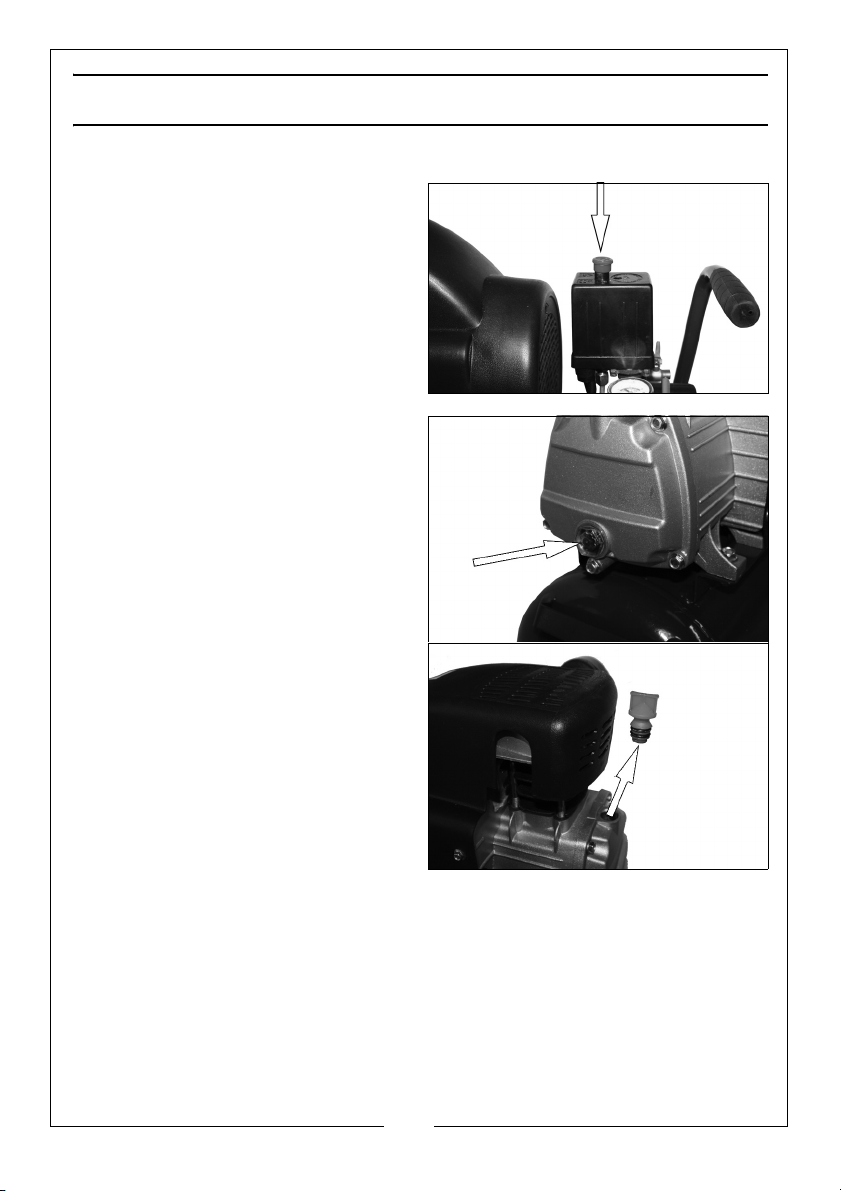

BEFORE USE

Before connecting your compressor to the power supply, check the following:-

• Set the ON/OFF switch to the OFF position (pushed down).

• Make sure that the compressor is on level ground.

• Make sure that the supply voltage matches the voltage shown on the data label.

CHECK THE OIL LEVEL

1. Make sure that the oil level is half way up the oil sight glass.

If not, remove the oil cap and add oil to the reservoir.

• Only use SAE30 compressor oil,

available from your dealer.

Page 9

OPERATION

If the compressor has not been used for more then 24 hours, open the drain valve (on the bottom of the reservoir) and drain any condensate which has collected. See page 11

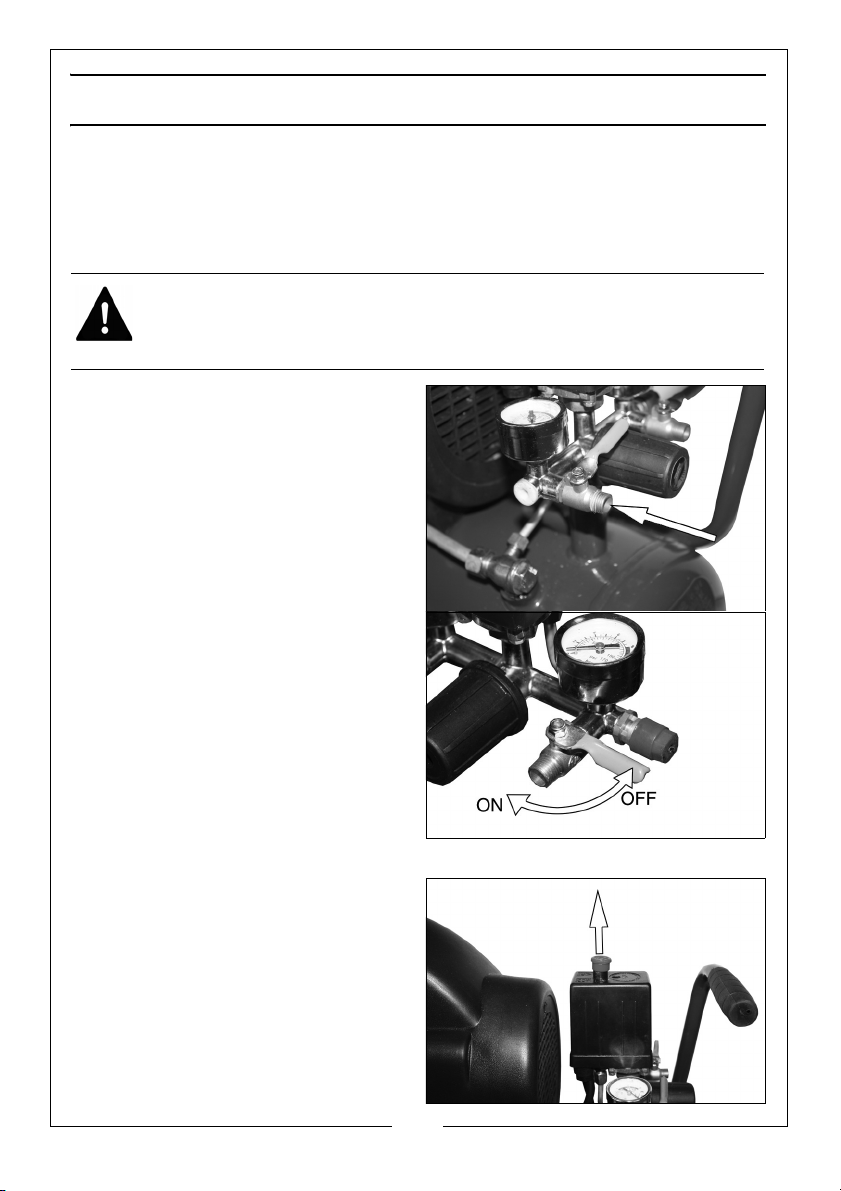

ATTACHING AIR TOOLS

WARNING: BEFORE CONNECTING AIR TOOLS, MAKE SURE THAT YOU READ THE INSTRUCTIONS SUPPLIED WITH THE TOOL, ALSO ENSURE THAT THE TOOL IS SUITABLE FOR USE WITH THE COMPRESSOR AND HOSE SPECIFICATIONS.

1. Attach the air hose to the ¼" BSP outlet valve..

2. Attach the tool to the end of the air hose.

3. Turn the outlet valve handle to the on position.

NOTE: Th

e outlet valve is shown without the air hose fitted for clarity.

TURNING THE COMPRESSOR ON

1. Plug the compressor into the power supply.

2. Lift the On/Off button.

• The compressor will operate

until the reservoir is fully pressurised. It will then shut down.

• The compressor will start up

again when the pressure in the reservoir decreases.

Page 10

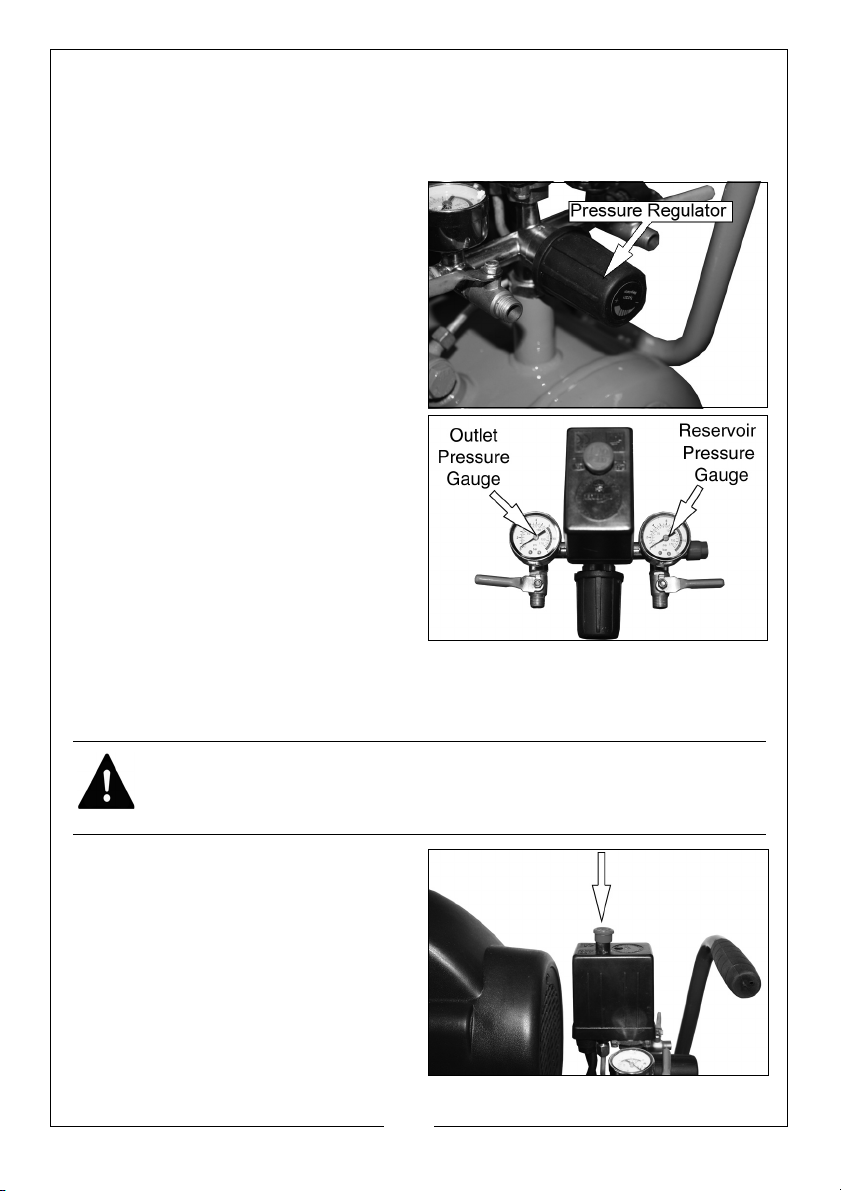

SET THE OUTPUT PRESSURE

When viewed from the front, the left hand outlet valve is adjustable. The right hand outlet valve will only supply the full reservoir pressure and is not adjustable.

1. Use the pressure regulator to set the output pressure of the left hand outlet valve.

• Turn clockwise to increase the

pressu

re.

• Turn counterclockwise to

decrease the pressure.

GAUGES

1. The reservoir pressure gauge shows the current pressure in the reservoir

2. The outlet pressure gauge shows the ‘user can be adjusted as shown above.

set’ outlet pressure. This

REMOVING TOOLS FROM THE AIR HOSE

WARNING: ALWAYS SET THE PRESSURE REGULATOR TO ZERO BEFORE YOU REMOVE OR REPLACE A TOOL.

1. Push down on the On/Off button to stop the compressor.

Page 11

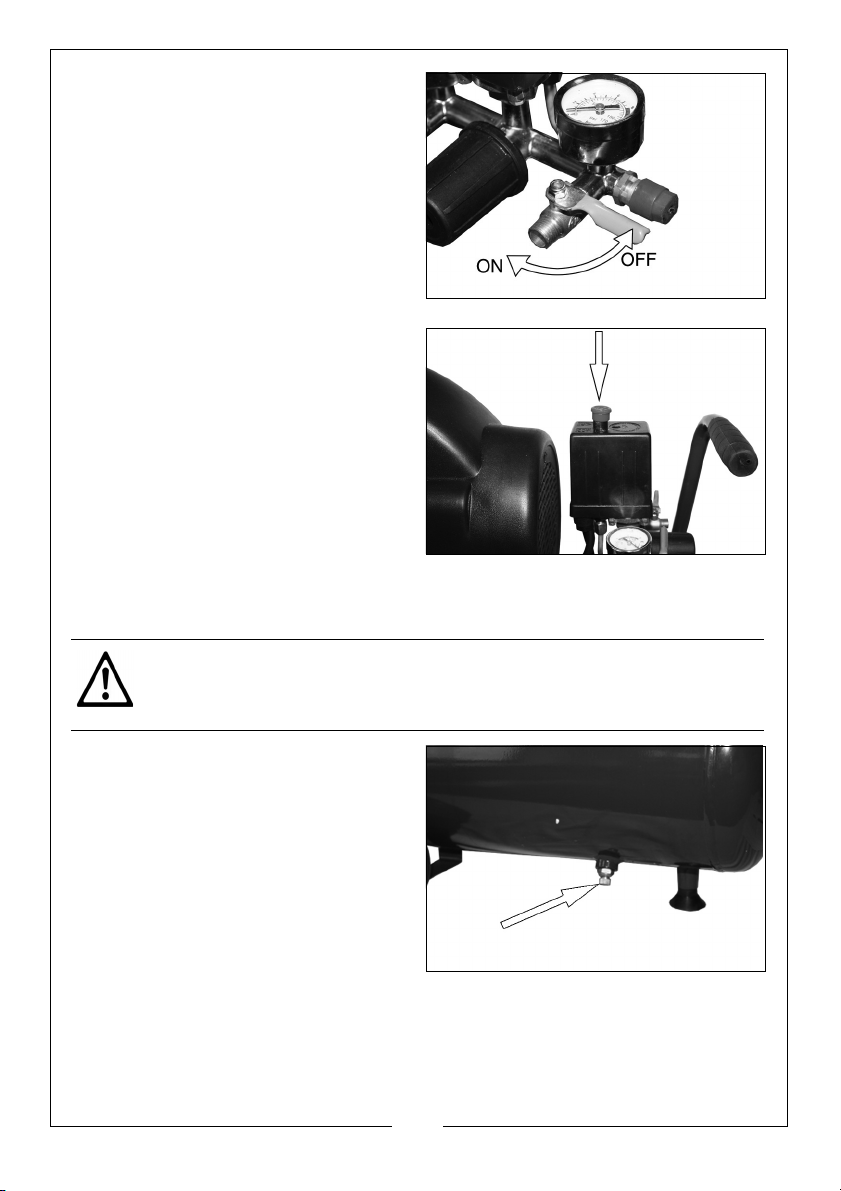

2. Turn the outlet valve handle to the off position.

3. Operate the tool to depressurise th

e air hose.

4. Disconnect the tool from the hose.

TURNING THE COMPRESSOR OFF

1. Follow steps 1-3 in “Removing Tools From The Air Hose” above.

2. Disconnect the compressor from the power supply.

3. Slowly open one of the outlet valve to

• You will hear a hissing sound as

• Do not leave the compressor

depressurise the reservoir.

the reservoir dep

unattended if the reservoir is pressurised.

ressurises.

DRAINING THE RESERVOIR

CAUTION: YOU MUST DRAIN THE RESERVOIR AFTER EACH DAYS USE AND BEFORE YOU PUT YOUR COMPRESSOR INTO STORAGE.

1. Turn the compressor off and disconnect from the power

ply.

sup

2. Put a container below the drain valve to collect the condensate.

3. Open the drain valve slowly.

• Condensation will drain from

the reservoir

4. Close the drain valve when the reservoir has

fully drained.

Page 12

RESET BUTTON

This compressor has a thermal overload device.

If the motor gets too hot, the thermal overload device cuts the power which prevents damage to the motor.

If the thermal overload device operates, let the motor cool down for 5 minutes and push the reset button.

If you start the compressor and the overload cutout operates again, stop the compressor and disconnect from the power supply and have your compressor examined by a qualified service agent.

Page 13

MAINTENANCE

DRAIN THE RESERVOIR (DAILY)

After use, always open the drain valve to make sure that any condensate is drained off.

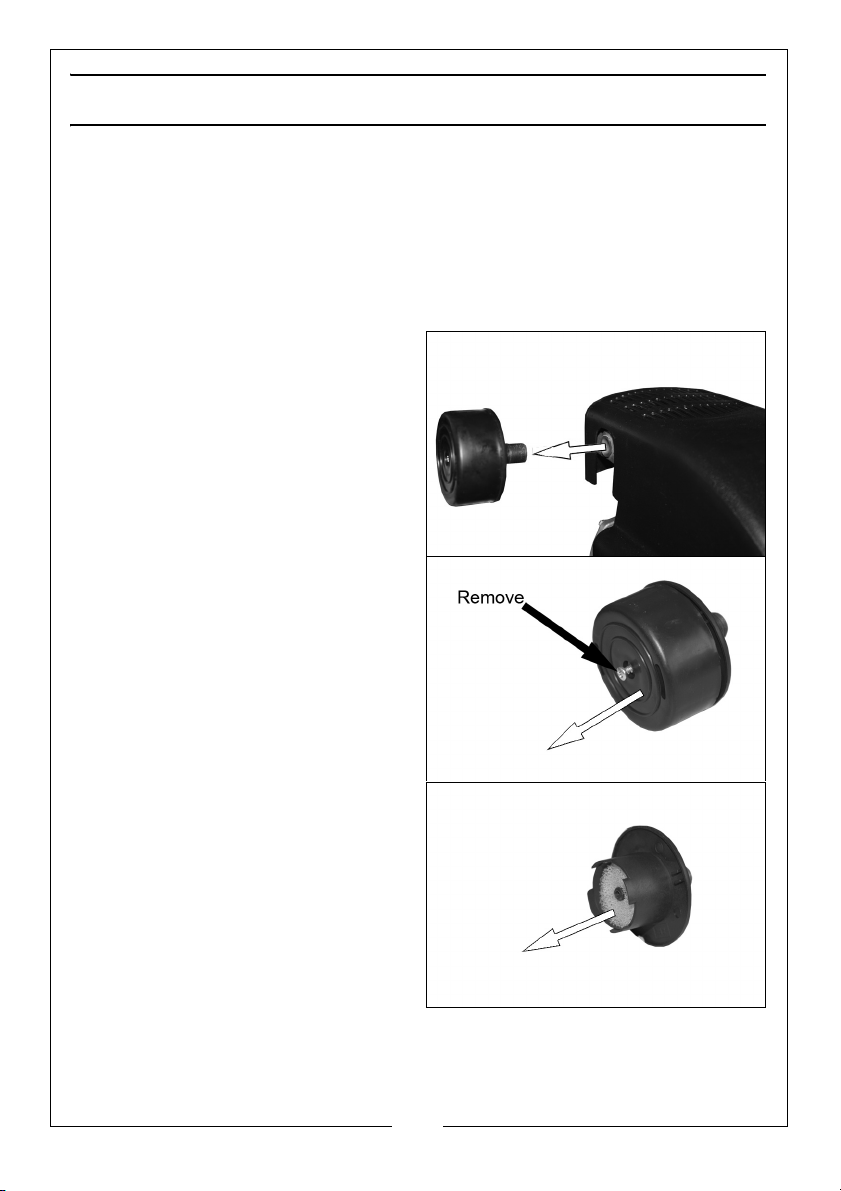

CLEAN THE AIR FILTER (MONTHLY)

The air filter must be examined monthly, more often in dusty conditions,

Remove the filter cover from the compressor.

2. Remove the filter cover from the filter.

3. Remove the filter from the filter cover.

4. Clean the sponge and the filter cover using a

• If necessary, the filter can be

carefully cleaned in warm soapy water.

• Rinse and let the filter dry

completely before refitting.

5. Make sure that the filter and filter cover are

• If the filter is damaged, you must replace it.

soft brush.

replaced into position.

Page 14

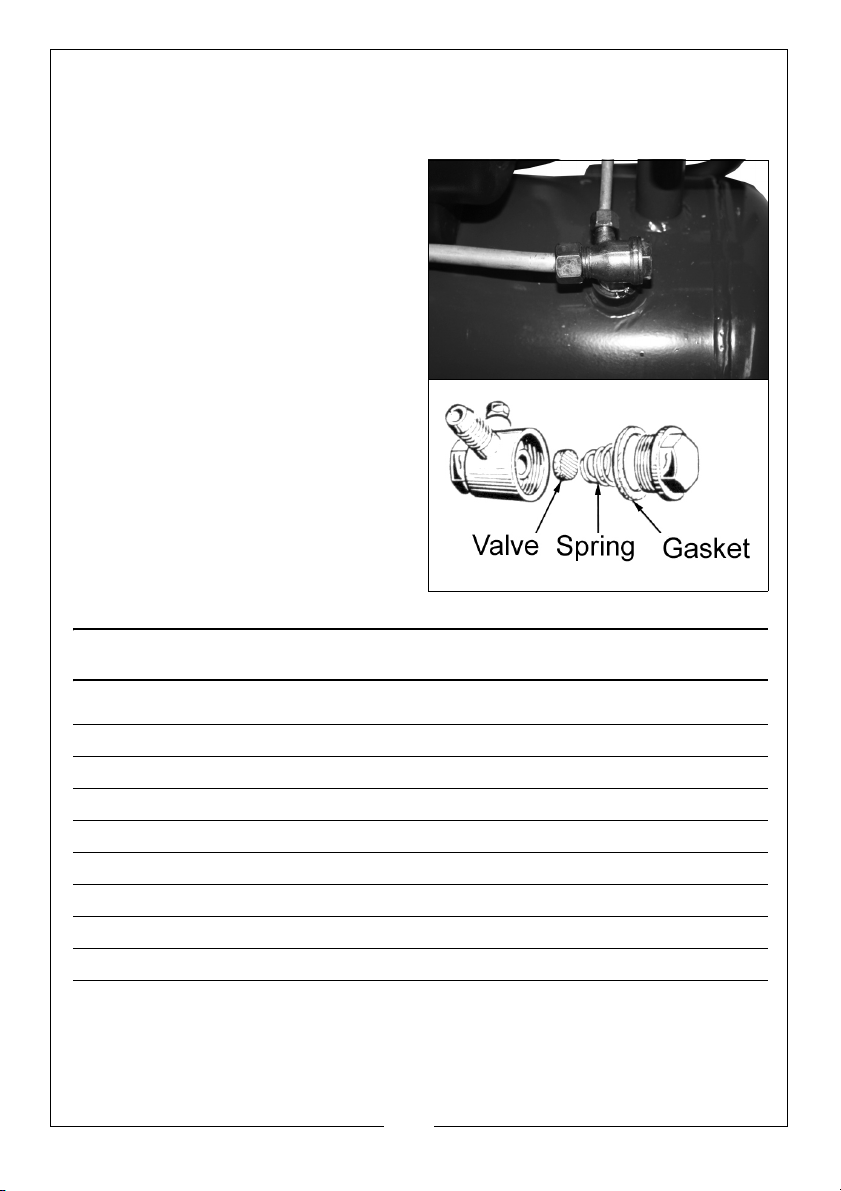

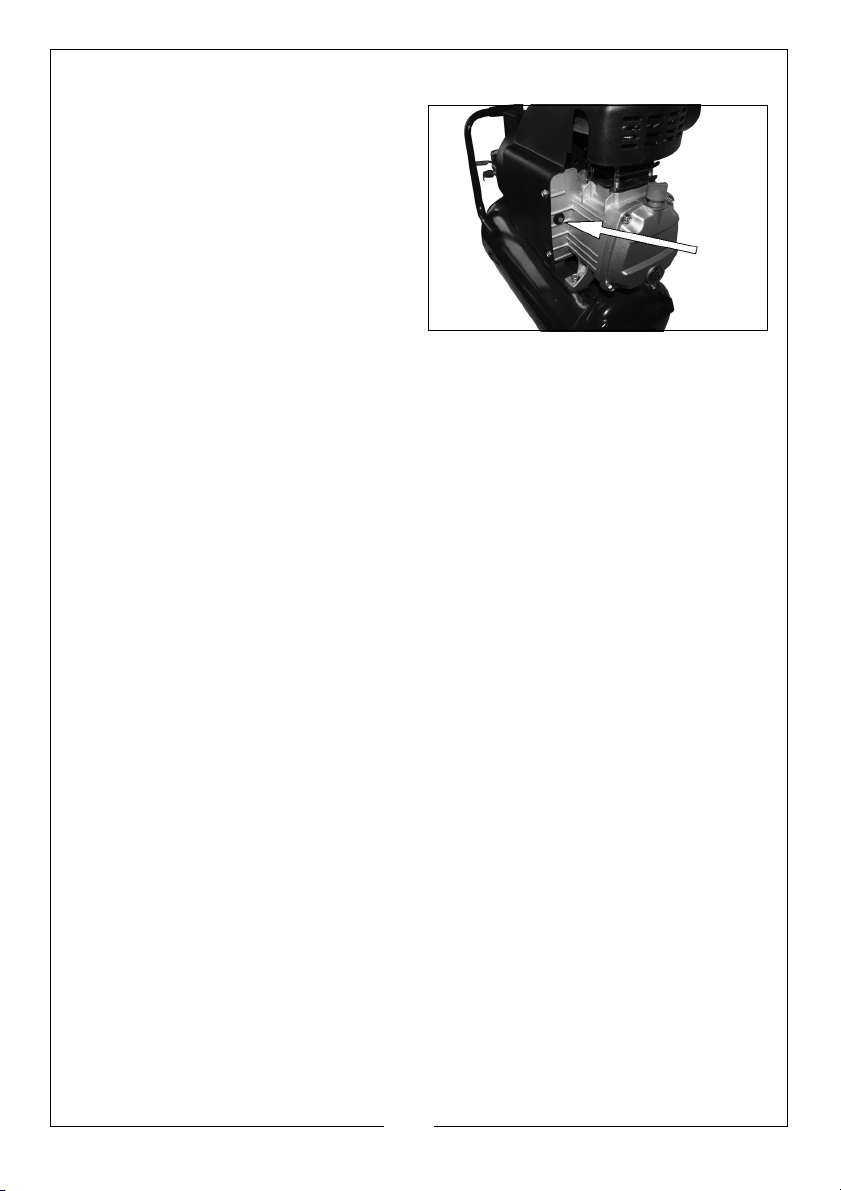

CHECK THE NON-RETURN VALVE (EVERY 6 MONTHS)

If the reservoir pressure decreases for no apparent reason, it is possible that the non-return valve is leaking. To check,

1. Make sure that the reservoir is not under pressure and the

essor is switched OFF.

compr

2. Examine the non-return valve, an

d replace the gasket and valve

if necessary.

SPECIFICATIONS

Max Pressure 8 Bar

Vo lt ag e 230 VAC (50Hz)

Air Displacement 7.5 CFM

Receiver Capacity 24 L

Fuse Rating 13 A

Dimensions (L x W x H) 545 x 310 x 590 mm

Guaranteed Sound Power Level 93 dB(A)

Weight 24 kg

Please note that the details and specifications contained herein, are correct at the time of going to print. We reserve the right to change specifications at any time without prior notice.

Page 15

TROUBLESHOOTING

CAUTION: DO NOT TRY TO REPAIR OR ADJUST THIS COMPRESSOR IF YOU ARE UNCERTAIN. IF YOU HAVE ANY QUERIES, CONTACT YOUR DEALER.

PROBLEM PROBABLE CAUSE REMEDY

The compressor has stoppe does not start.

The compressor

es not reach

do the set pressure and overheats easily.

Compressor does

t start.

Air leaking from

non-return

the valve when the compressor is not running.

Air pressure from the re not adjust.

The compressor is

y noisy and

ver makes a metallic knocking sound.

d and

gulator will

Bad electrical connections. 1. Check electrical connections.

2. Clean and tighten if necessary.

Overload cutout switch has trippe

Motor windings burnt out. 1. Contact your dealer for a

Compressor head gasket blown or valve br

The reservoir has already fully pressurised.

Faulty non-return valve. 1. Drain receiver completely of

The diaphragm within the regulator body is broken.

Compressor damaged and

eeds overhaul.

oken.

1. Switch off and wait approx 5 minutes.

2. Press the reset button and swi

replacemen

1. Return the machine to your nearest service agent.

1. Open drain valve to expel air. Compressor should start again when pressure reduces.

air

2. Remove the valve end plug,

3. Carefully clean the valve seat an

4. Reassemble.

1. Replace regulator

1. Return the machine to your nearest service agent.

tch on again.

t motor.

d the gasket

Page 16

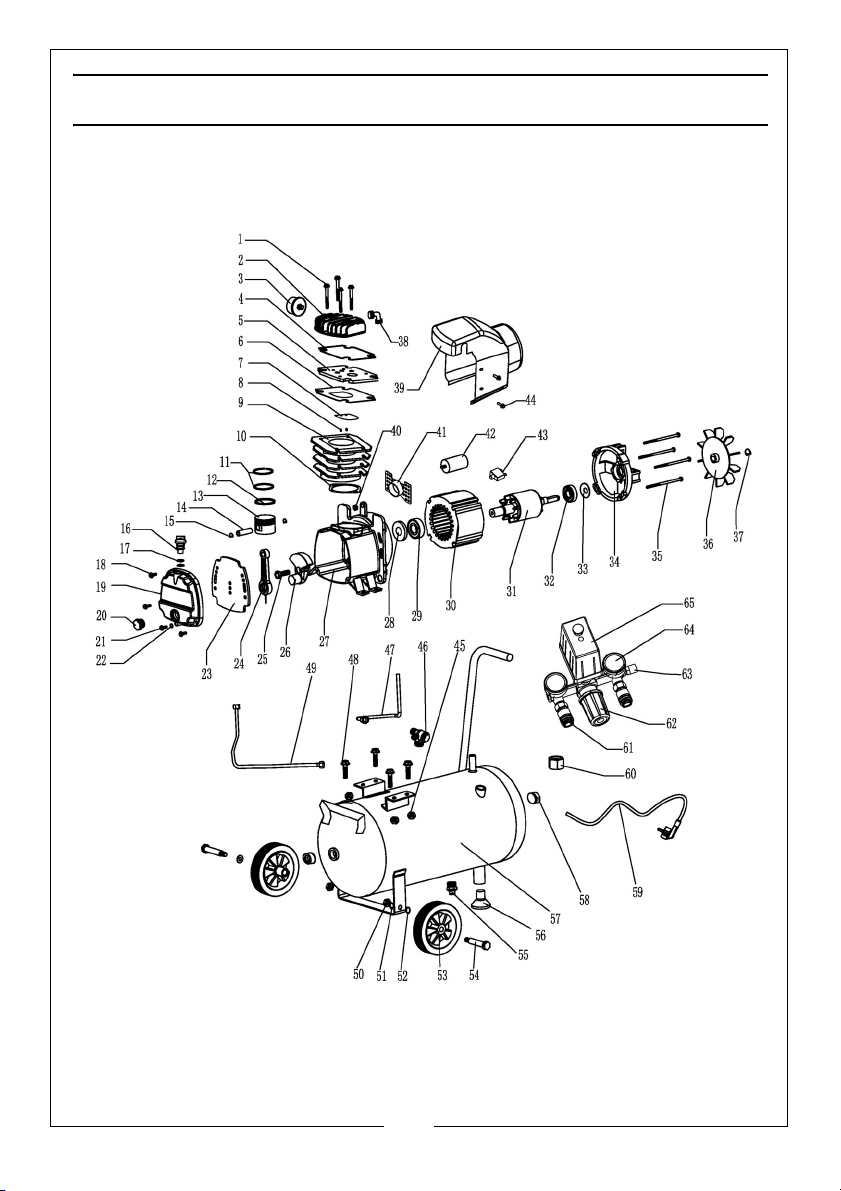

EXPLODED DIAGRAM

Page 17

PARTS LIST

NO DESCRIPTION

Bolt M8x105

Cylinder Head

Air Filter

Cylinder Seals

Valv e P l a t e

Valve Plate Gasket

Valv e C l a c k

Cylinder

Cylinder Gasket

Gas Ring

Oil Ring

Piston

Piston Pin

Circlip

Breath Pipe

O Circlip

Bolt M5x16

Crank Case Cover

Oil Leveler

Bolt M6x10

O Circlip

Rubber Gasket

Conncting Rod

Hex Bolt M8x22 (Left)

Crank 20

Crank Case

Sealing Ring

Brearing 6204

Stator

Rotor

Brearing 6202

Wave Was he r

NO DESCRIPTION

Motor Cover

Bolt M5x105

Wind Leaf

Circlip

Connector

Fan Cover

Nut M8

Flap

Capacitance

Thermal Protector

Bolt M5x12

Nut M8

Umilateralism

Release Pipe ?6.5

Bolt M8x25

Discharge Pipe

Nut M10

Spring

Washer

Wheel

Wheel Shaft

Drain Plug

Washer Fo ot

Tank

Stem Rp1/2

Power Cord

Nut Rp1/2

Quick Couplers

Regulator Valve

Safety Valve

Pressure Gauge

Pressure Switch

Page 18

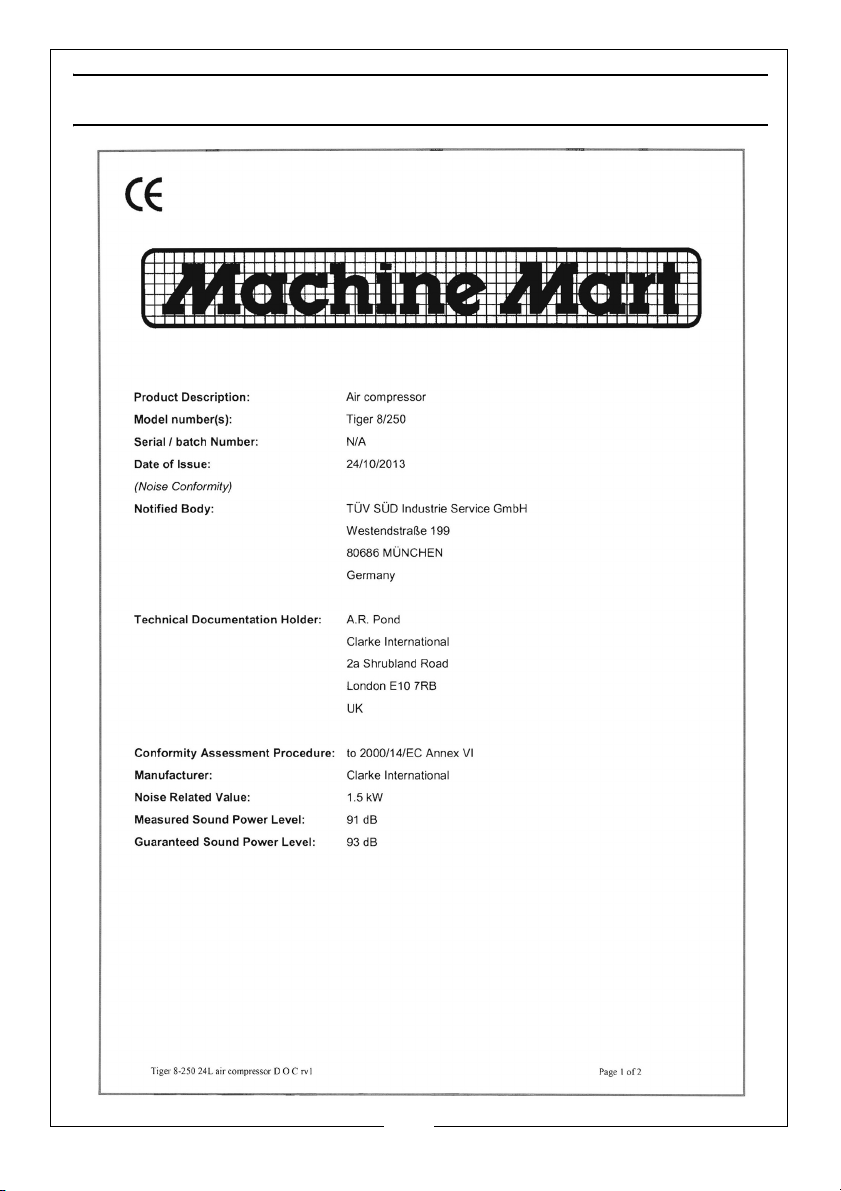

DECLARATION OF CONFORMITY

Page 19

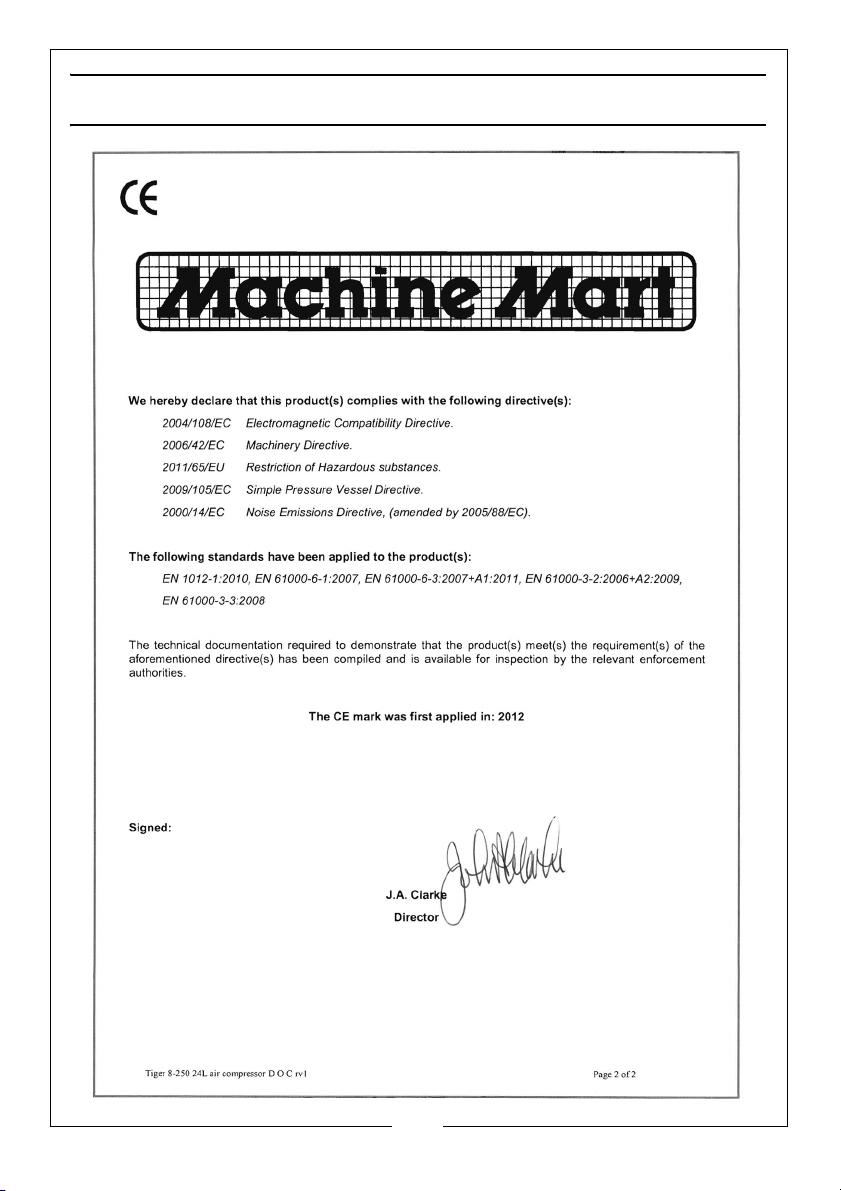

DECLARATION OF CONFORMITY

Page 20
