Page 1
WARNING: Read these instructions before using the machine
PETROL DRIVEN POWER WASHER
MODEL NO: TIGER 2600/3000
PART NO: 7320205/7320210
OPERATION & MAINTENANCE
INSTRUCTIONS
LS0615
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Petrol driven power washer.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase. This guarantee is invalid if the product is found
to have been abused or tampered with in any way, or not used for the
purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ACCESSORIES
The range of accessories listed below are available from your CLARKE dealer.
ITEM PAR T N UMB E R
5 Litres Detergent (Traffic Film Remover) 3050821
25 Litres Detergent (Traffic Film Remover) 3050820
5 Litres Wash ‘n’ Wax 3050815
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
GENERAL SAFETY RULES
WARNING: Water at high pressure can be dangerous and can cause
damage if the operator is careless. Never allow anyone to operate this
pressure washer unless they are familiar with the safety precautions.
1. DO NOT point the spray at other people, animals, electrical equipment or the
machine itself.
2. DO NOT hold your finger over the high pressure nozzle.
3. DO NOT let children or untrained personnel use this machine.
4. DO NOT operate the machine with any of the covers removed.
5. DO NOT try to repair this machine. Always refer to your Clarke service
department for all repairs.
6. DO NOT supply any liquid other than water to the water inlet.
7. DO NOT use the detergent pickup facility to introduce flammable liquids/
solvents, e.g. paint thinners, petrol, oil as there is a risk of explosion.
8. ALWAYS release the remaining pressure in the system; turn off the water supply
and operate the trigger before you remove hoses or accessories.
9. ALWAYS keep the machine dry and away from the water spray.
10. ALWAYS use protective clothing and safety glasses. Loose particles and other
items can be propelled at high speed by the water spray.
11. ALWAYS hold the gun securely and expect it to ‘kick’ when you pull the
trigger.
12. ALWAYS respect the requirements of the local water company. Pressure
washers may only be connected to the mains water supply if a system
separator (also known as a backflow preventer) is installed in the supply hose.
13. ALWAYS disconnect from the water supply, and make sure that you drain the
system when not in use. Keep in a cool dry location.
14. ONLY use detergents that are suitable for pressure washers, we recommend
that you use CLARKE Traffic Film Remover or CLARKE Wash and WAX
(available from your dealer).
15. WAR NI NG High pressure water jets can be dangerous, the jet must not be
directed at a person or anything that they are wearing.
16. WAR NI NG High pressure hoses, fittings and couplings are important for the
safety of the machine. Use only hoses, fittings and couplings recommended
by the manufacturer.
17. WAR NI NG Water that passes through a system separator (also known as a
backflow preventer) is not safe to drink.
18. DO NOT use the pressure washer if there is damage to the inlet/outlet hose or
the machine
.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4

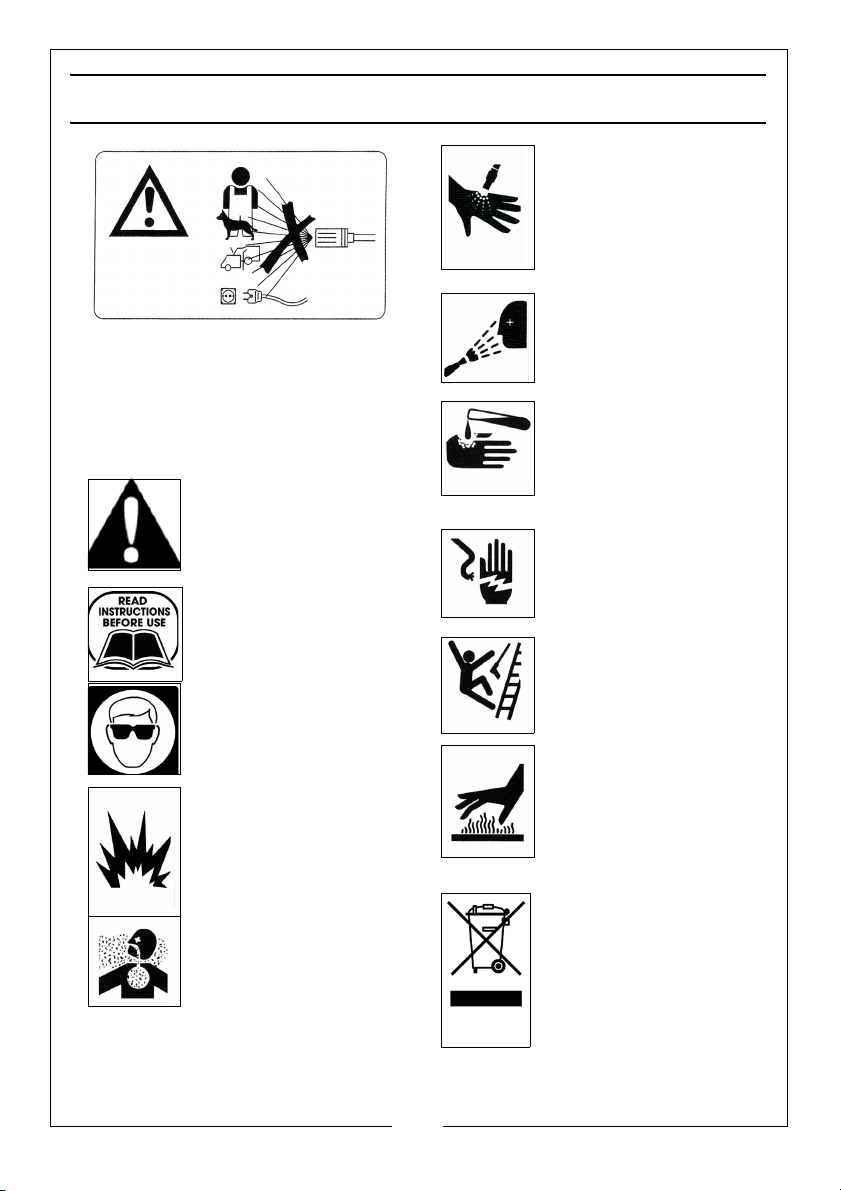

SAFETY SYMBOLS
WAR NI NG : Do not direct discharge stream
at persons or animals. Keep clear of
nozzle.
WAR NI NG : Never direct spray toward
any electrical device or electrical
outlet.
General Warning, indicates
that failing to follow these
instruction could result in
injury or damage to the
machine.
To reduce the risk of injury,
read the manual before
use.
ALWAYS wear safety glasses
when using this machine.
DANGER: Risk of fire or
explosion. Shut off engine
before adding fuel. Keep
work area free of
combustible materials. Do
not spray flammable liquids.
DANGER: Risk to
breathing. Engine
exhaust fumes can kill.
For outdoor use only. Work
in a well ventilated area.
WAR NI NG : Risk of injection
or severe injury. Do not
direct discharge stream at
persons or animals. Keep
clear of nozzle. This
machine is to be used
only by qualified operators.
WAR NI NG : Risk of spray
injury. Spray can propel
objects. Always wear ANSI
approved Z87.1 Safety
Glasses.
WAR NI NG : Risk of
chemical burn. Never
spray acids, corrosive or
toxic chemicals. Use only
cleaners formulated for
pressure washers.
WAR NI NG : Risk of
electrocution. Never
direct spray toward any
electrical device or
electrical outlet.
WAR NI NG : Risk of unsafe
operation. Keep
children away from this
equipment. Gun kicks
back. Hold with both hands.
WAR NI NG : Risk of hot
surfaces. Avoid contact
with hot engine exhaust
components. Don't allow
hoses to contact the
engine muffler during or
after use.
Recycle unwanted materials
instead of disposing of them
as waste. All tools,
accessories and packaging
should be sorted, taken to a
recycling centre and
disposed of in a manner
which is compatible with the
environment.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5

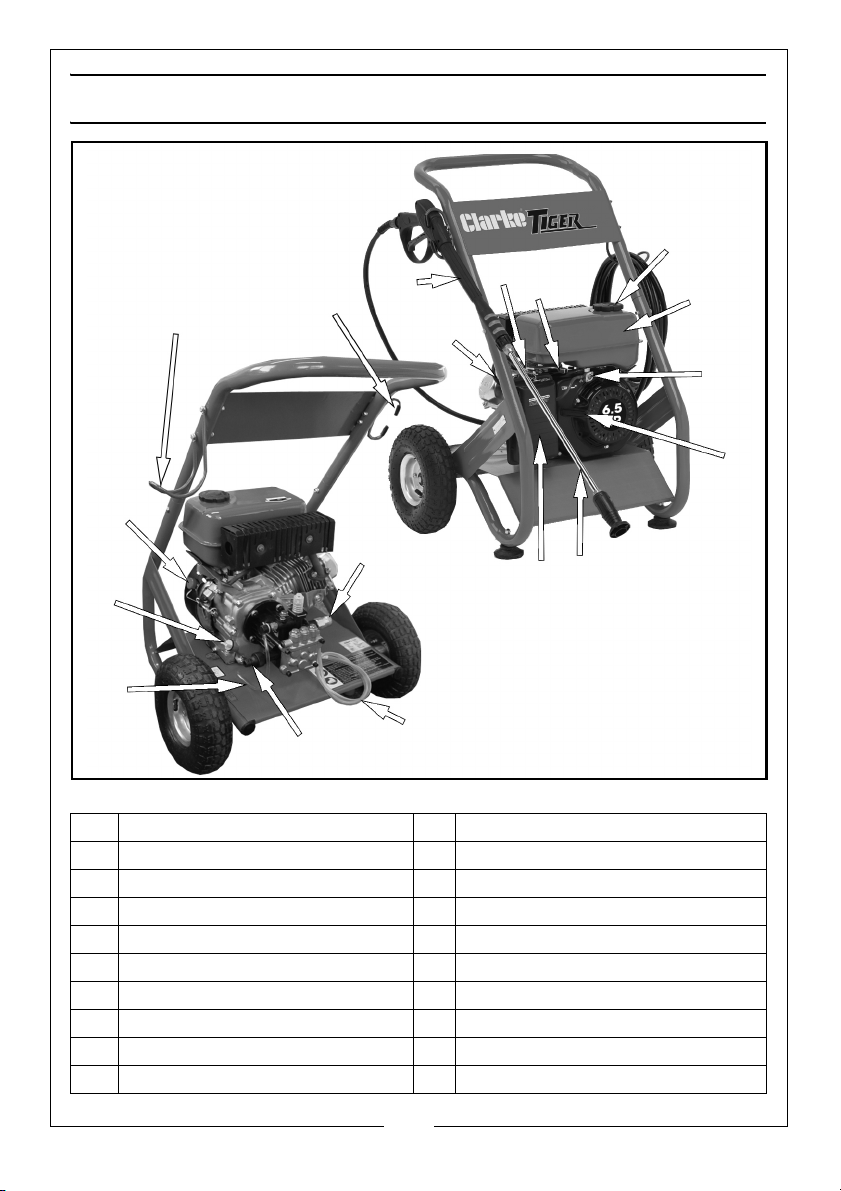

OVERVIEW
7
8
9
10
11
1
2
3
4
5
12
6
13
14
15
16
17
18
NO DESCRIPTION NO DESCRIPTION
1 Fuel Tank Cap 10 Throttle
2 Fuel Tank 11 Engine On/Off Switch
3 Spark Plug 12 Oil Filler Cap
4 Choke 13 Water Outlet
5 Gun Assembly 14 Detergent Hose
6 Lance 15 Water Inlet
7 Air Filter Cover 16 Bypass Drain Hose
8 Recoil Pull Start 17 Hose Holder
9 Fuel Valve 18 Lance Holder
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
5
Page 6
ASSEMBLY
Unpack your pressure washer and check to ensure the following items are
present.
Contact your Clarke dealer immediately if any parts are missing or damaged.
•1 x Petrol Power Washer •2 x Wheel & Axle Assembly
•1 x Hose Bracket •1 x Nozzle Cleaning Pin
•1 x Gun / Lance Bracket •1 x Tap Adaptor
•1 x Hose •1 x Detergent Hose + Filter
•1 x Lance Assembly •1 x Upper Handle
•1 x Gun Assembly •1 x Engine Manual
•1 x Spark Plug Box Spanner •1 x 3m Inlet water hose
•1 x Tommy Bar

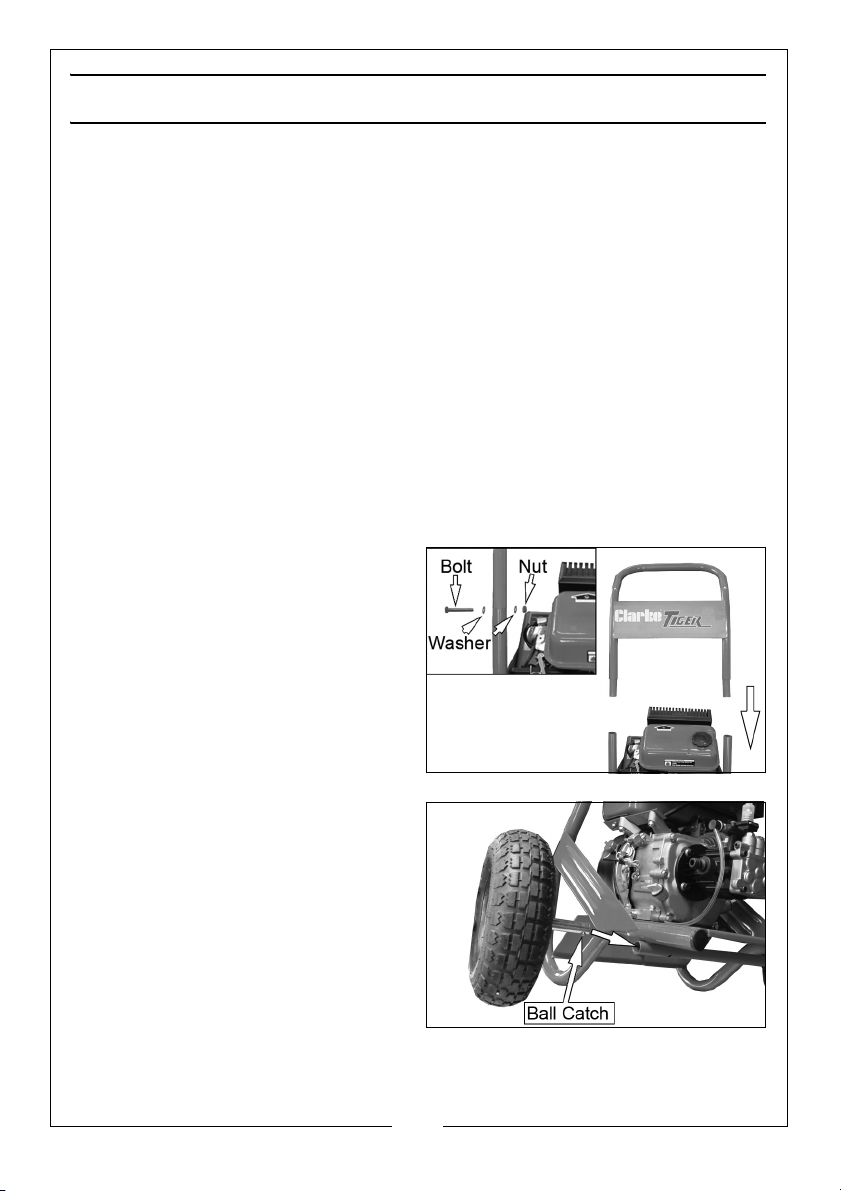

CONNECTING THE HANDLE
1. Slide the upper handle into
position as shown.
2. Secure using a bolt, 2 washers and
a nut on each side.
CONNECTING THE WHEELS
1. Slide the axles in to the locating
tube as shown
• Make sure the ball catch locks
into the small hole on the
bottom of the locating tube.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

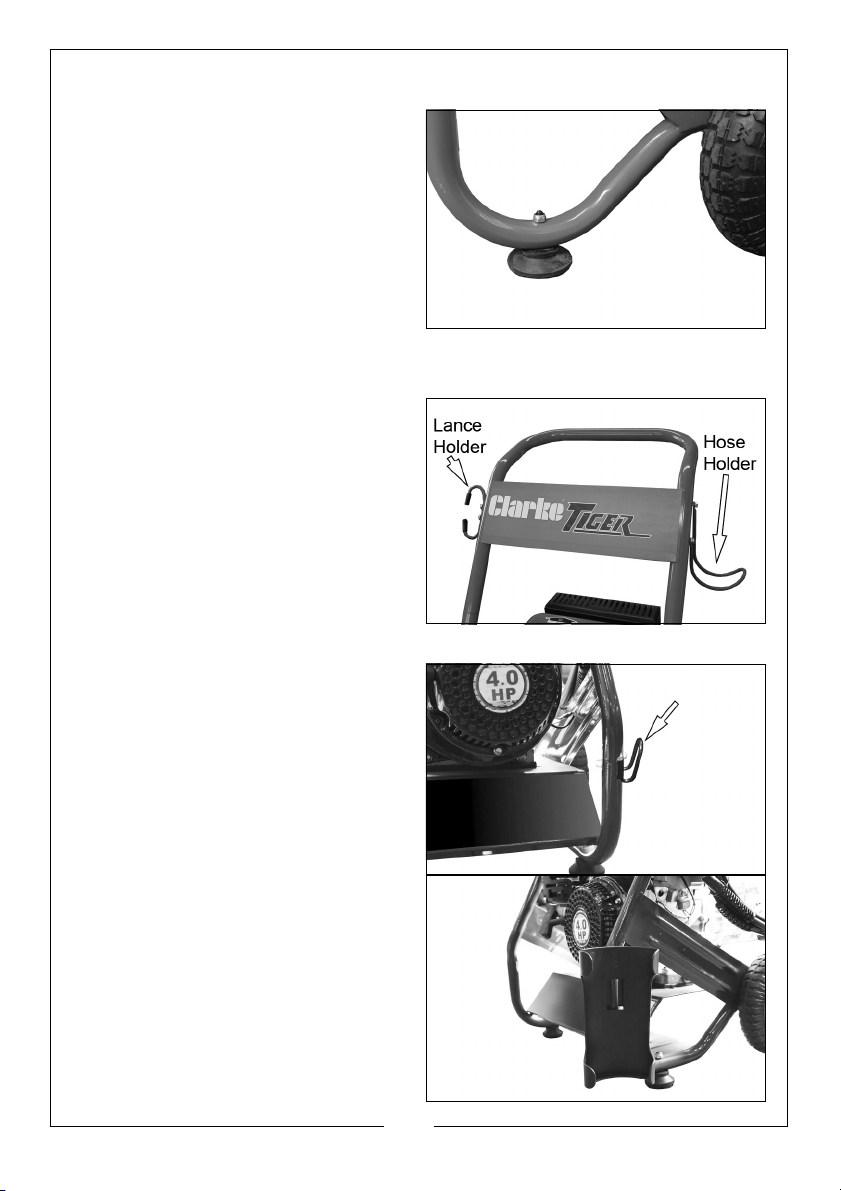

FITTING THE RUBBER FEET
1. Fit the rubber feet to the legs as
shown.
FITTING THE LANCE/HOSE HOLDER
1. Fit the holders into the positions
shown and secure using the
washers and nuts provided.
FITTING THE WATER BOTTLE
1. Fit the bracket to the frame as
shown using the bolts, nuts and
washers supplied.
2. Slide the bottle holder over the
bracket and place the bottle in
the holder.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8

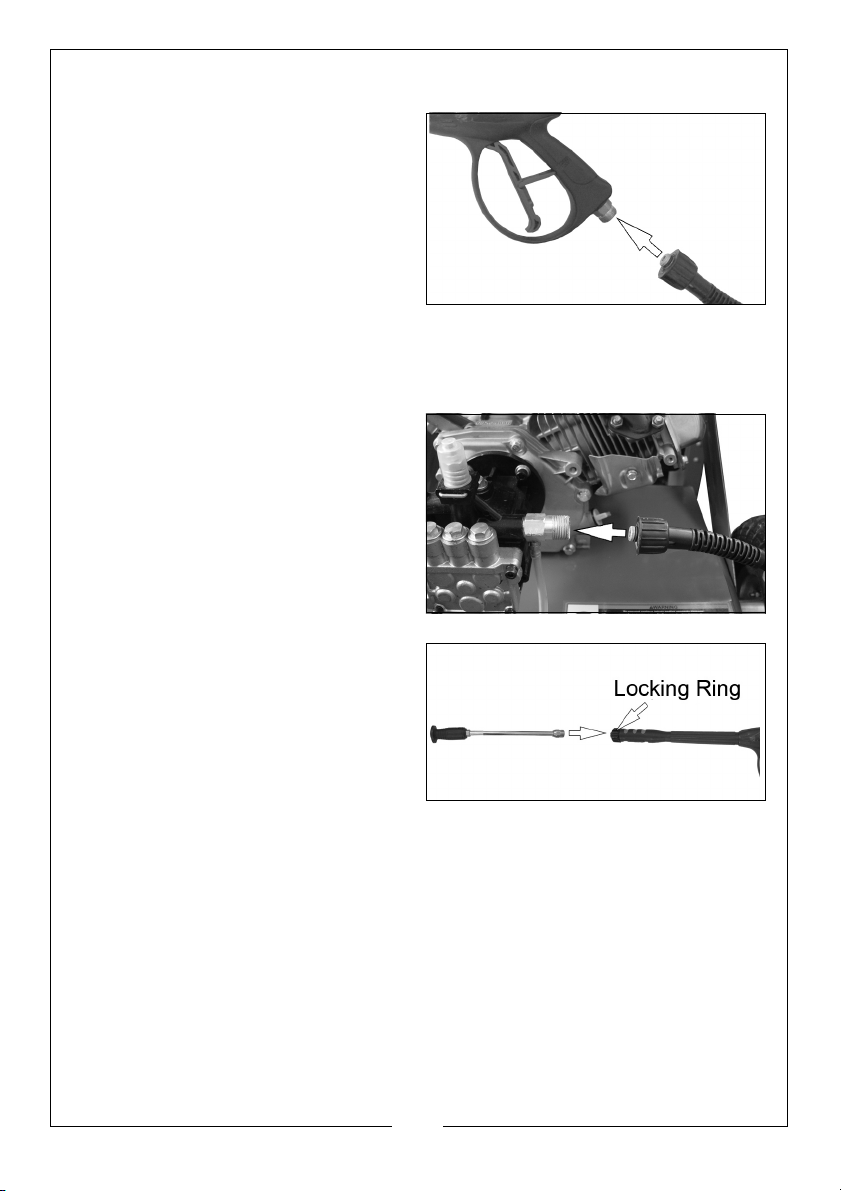

CONNECTING THE HIGH PRESSURE HOSE
CONNECT THE HOSE TO THE GUN
1. Screw the high pressure hose onto
the gun assembly.
• Tighten the connector, hand
tight only. Do not use a
spanner.
NOTE: Make sure the connection is
secure.
CONNECT THE HOSE TO THE PRESSURE WASHER
1. Screw the hose on to the pressure
washer.
• Tighten the connector, hand
tight only, Do not use a
spanner.
NOTE: Make sure the connection is
secure.
ASSEMBLING THE LANCE
Connect the spray lance to the gun
assembly and tighten securely by
turning the locking ring.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9

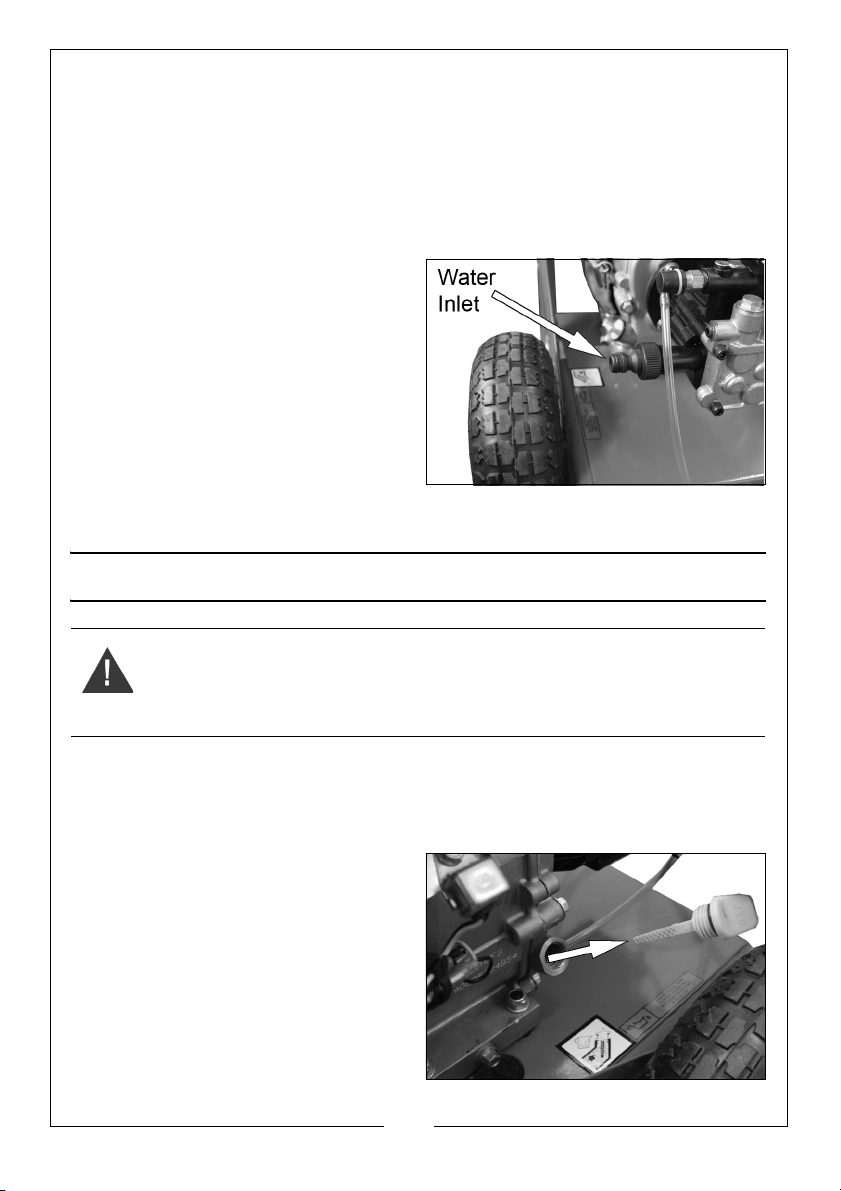

CONNECTING THE WATER SUPPLY
Always follow the regulations of your local water supplier. The pressure washer
must never be connected to the drinking water supply without using a system
separator (also known as a backflow preventer) available from most
hardware stores.
NOTE: Water that has flowed through a system separator is considered non-
drinkable.
1. Connect a water supply hose (not
supplied) to the water inlet.
NOTE: Use a good quality fibre-
reinforced water hose with a
standard coupling.
NOTE: This machine has the ability to
draw its own water, meaning
you can use water not under
pressure such as rainwater
collected in a water butt. See
page 16.
BEFORE USE
WARNING: TO CARRY OUT THIS CHECK, PLACE THE PRESSURE WASHER ON
LEVEL GROUND WITH THE ENGINE SWITCHED OFF.
WARNING: TAKE CARE NOT TO TOUCH ANY HOT PARTS OF THE PRESSURE
WASHER WHEN CHECKING THE OIL LEVEL.
IMPORTANT: The engine is supplied without any oil in it and must be filled to
the correct level before use, see below.
ENGINE OIL
1. Turn the oil filler cap anticlockwise
and remove it from the engine,
wipe the integral dipstick with a
clean cloth.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10

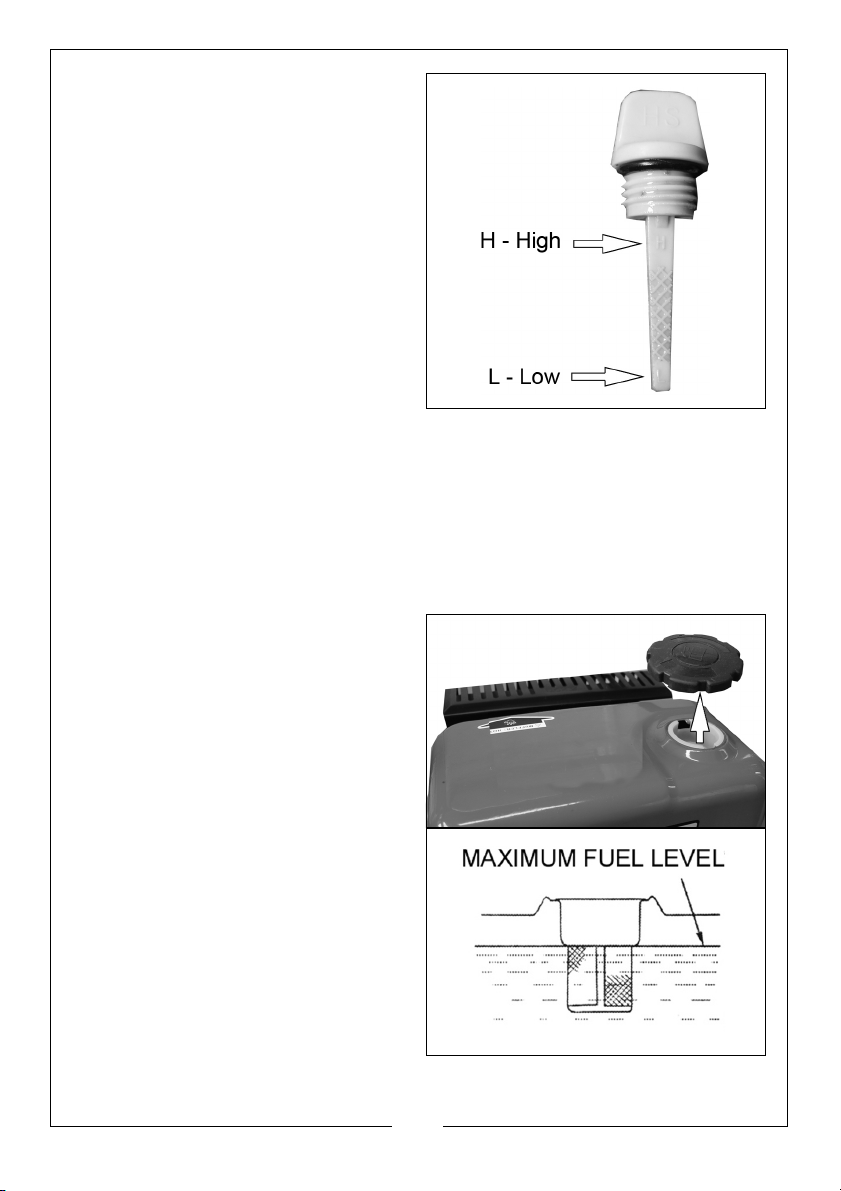

2. Insert the oil filler cap back into
place and then remove it again.
3. If the oil reads low on the dipstick,
add oil to the oil reservoir (Max
0.4L).
• We recommend the use of
SAE10W-30 oil.
• Do not overfill the oil reservoir.
4. Replace the oil filler cap.
NOTE: Running the engine with
insufficient oil will cause
engine damage.
FUEL
• Refuel in a well-ventilated area, away from any sources of ignition.
• If the engine has been running, allow it to cool before refueling.
• Do not leave fuel within the reach of children.
• Refuel carefully to avoid spilling fuel.
1. Remove the fuel tank cap.
• Just inside the fuel tank is a fuel
strainer, which should be
checked periodically and any
contaminants which have
accumulated must be
removed.
2. Pour unleaded petrol through the
fuel strainer and into the fuel tank
• Do not fill above the fuel
strainer shoulder.
• Use unleaded petrol with a
pump octane rating of 86 or
higher.
3. Replace the fuel filler cap
securely.
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11

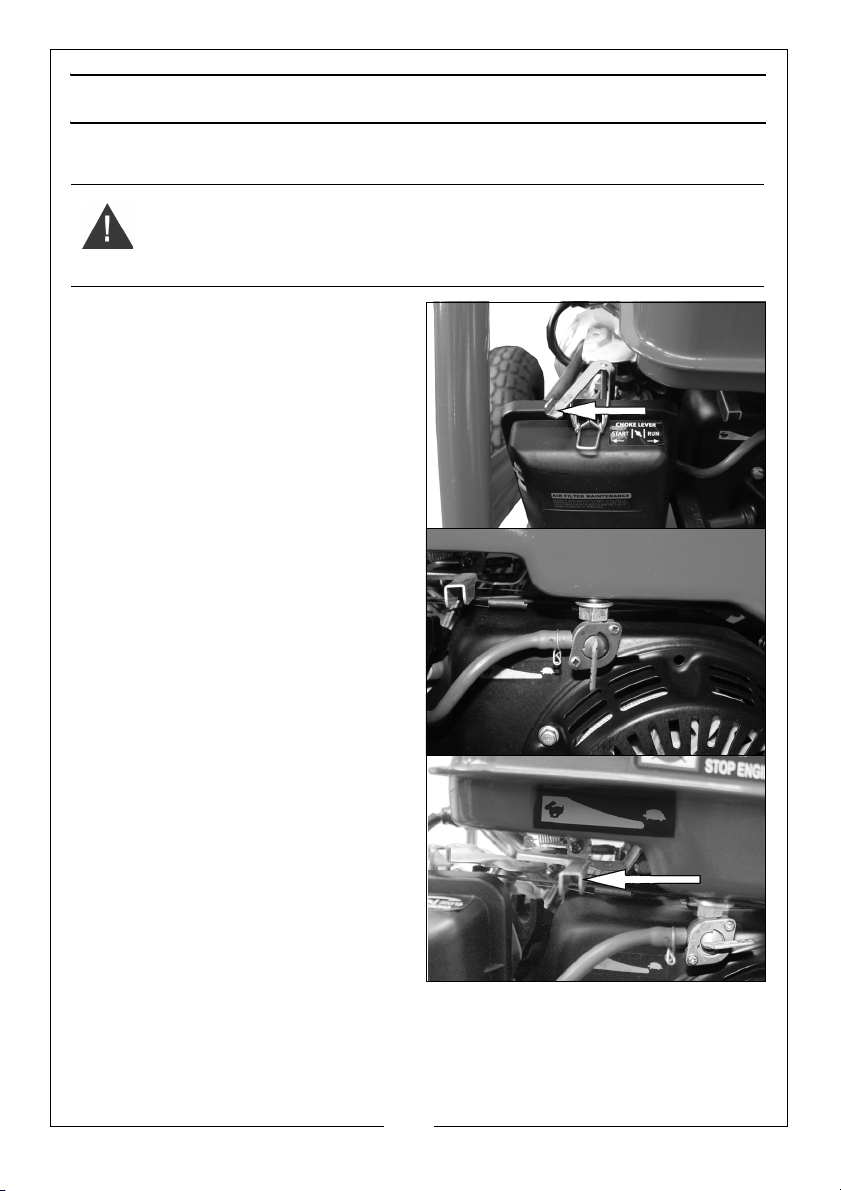

STARTING YOUR PRESSURE WASHER
1. Turn the water supply on, making sure that the tap is fully open.
WARNING: FAILURE TO TURN ON THE WATER COULD CAUSE DAMAGE TO
THE PRESSURE WASHER.

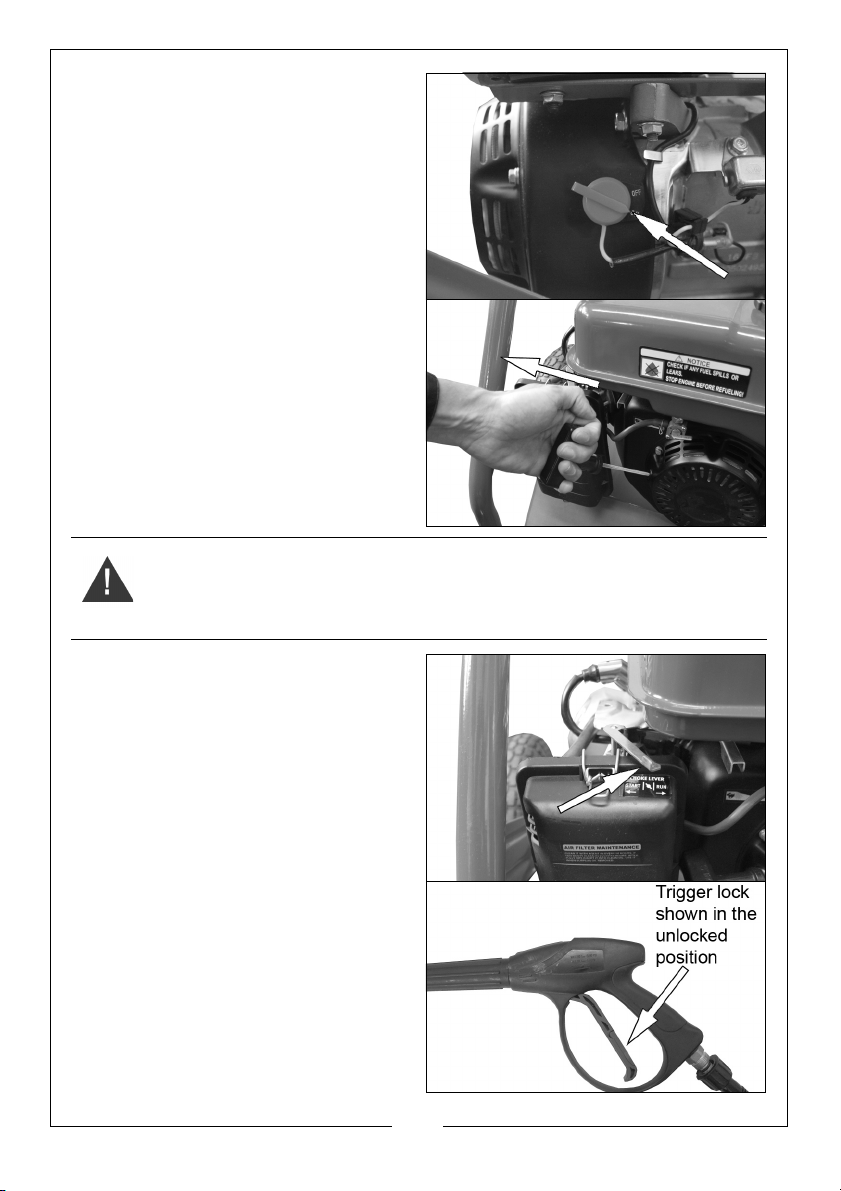

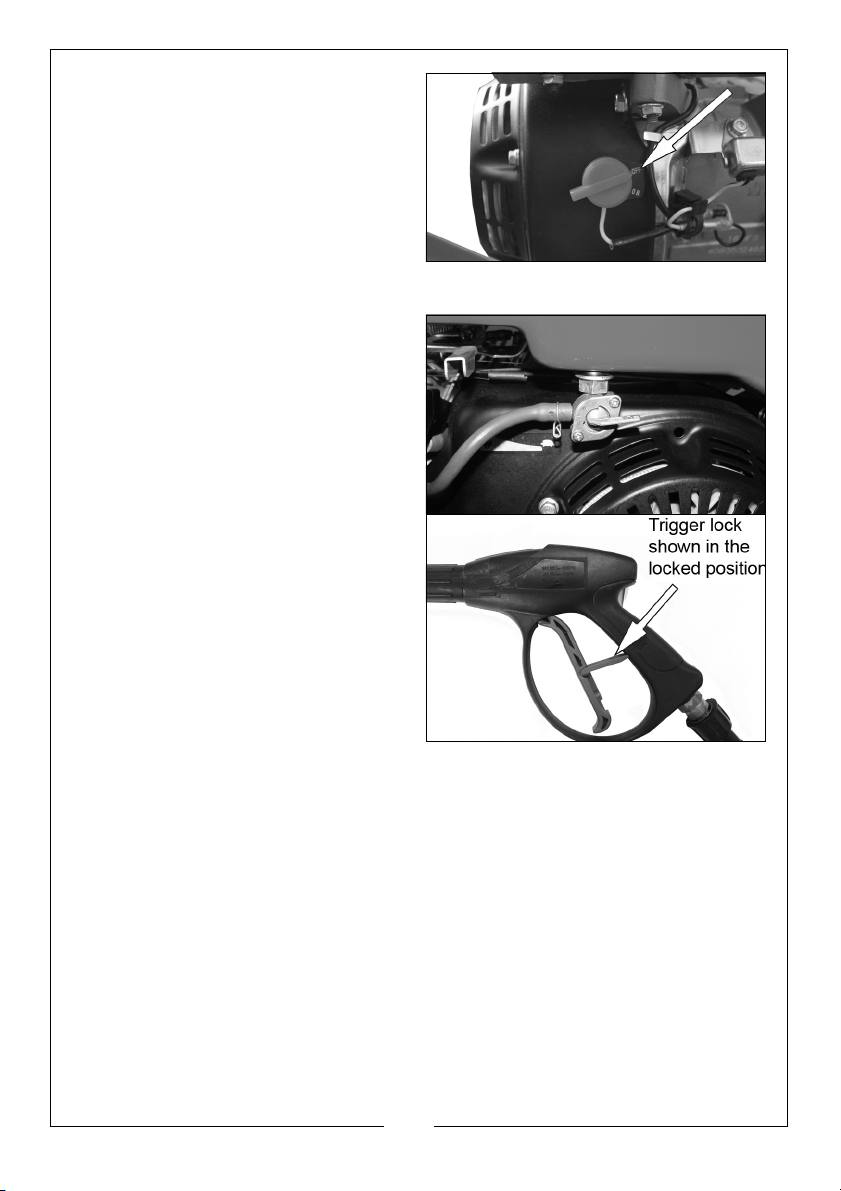

2. Set the choke lever to the START
position.
3. Set the fuel supply valve to the
open position.
4. Slide the throttle lever to the left
approximately 3/4 of the way.
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
5. Set the engine switch to the on (I)
position
6. Pull the recoil starting handle
lightly until you start to feel
resistance and then pull up
sharply to start the engine.
• You may have to do this more
than once.
WARNING: ONCE THE PRESSURE WASHER ENGINE HAS STARTED, RELEASE
THE STARTING HANDLE SLOWLY TO AVOID INJURY/DAMAGE AS IT
RECOILS.
7. Slide the choke lever to the RUN
position.
• The pressure washer is now
ready for use.
8. Release the trigger lock.
9. Ensuring that you have a firm
footing and that you are also
holding the gun assembly and
spray lance firmly, pull the trigger
on the gun to start water flow.
• The lance and gun will kick
back when the trigger is first
pulled.
12
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 13

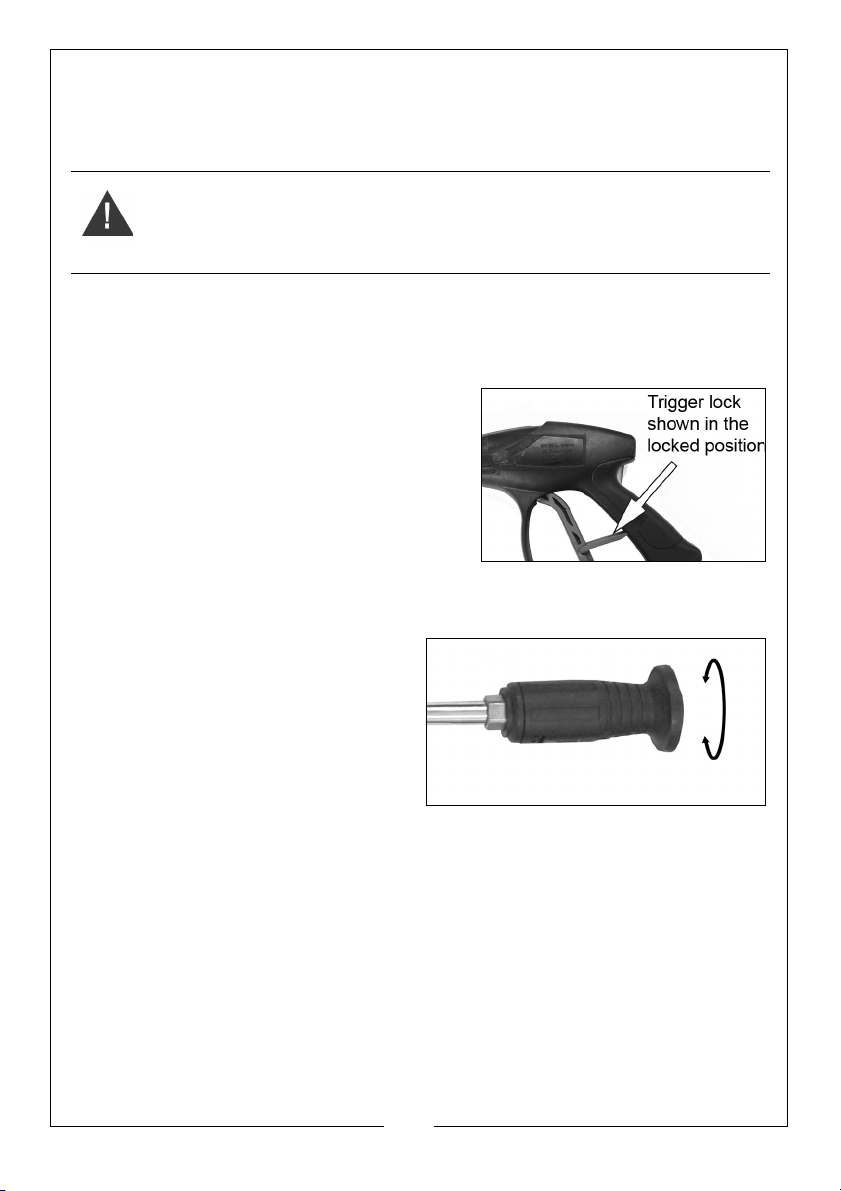

INTERRUPTING OPERATION
1. Release the trigger.
NOTE: The pressure washer will automatically go into bypass mode.
WARNING: DO NOT ALLOW THE UNIT TO OPERATE IN BYPASS MODE FOR
MORE THEN TWO MINUTES AT ANY TIME. TURN THE UNIT OFF IF IT IS NOT
GOING TO BE USED FOR A PERIOD LONGER THAN THIS. SEE PAGE 14.
NOTE: If you notice water coming from the drain tube attached to the
pump, please note that this is a safety feature and should be
expected, it cools the pump by releasing some of the hot water within
the pump and replacing it with fresh ‘cool’ water.
2. Rotate the trigger lock to the locked
position.
ADJUSTING THE SPRAY NOZZLE
The nozzle is adjustable to allow you to adjust the water delivery from a narrow
jet of water to a wide spray. To adjust the nozzle, proceed as follows:
1. Hold the shaft of the lance in one
hand.
2. Twist the nozzle with the other
hand.
• The spray varies between
narrow and wide as you turn
the nozzle.
ADJUSTING THE PRESSURE
The machine output is preset at the factory. To lower the contact pressure:
1. Back away from the surface to be cleaned. The further away you are the
less the pressure will be on the surface being cleaned.
2. Reduce the speed of the engine using the throttle. Slow the engine down
and the water pressure will also go down.
3. Adjust the spray to a wider angle.
4. Hold the rear of the nozzle and slide the front of the nozzle forwards to low
pressure and backwards for high pressure.
13
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 14

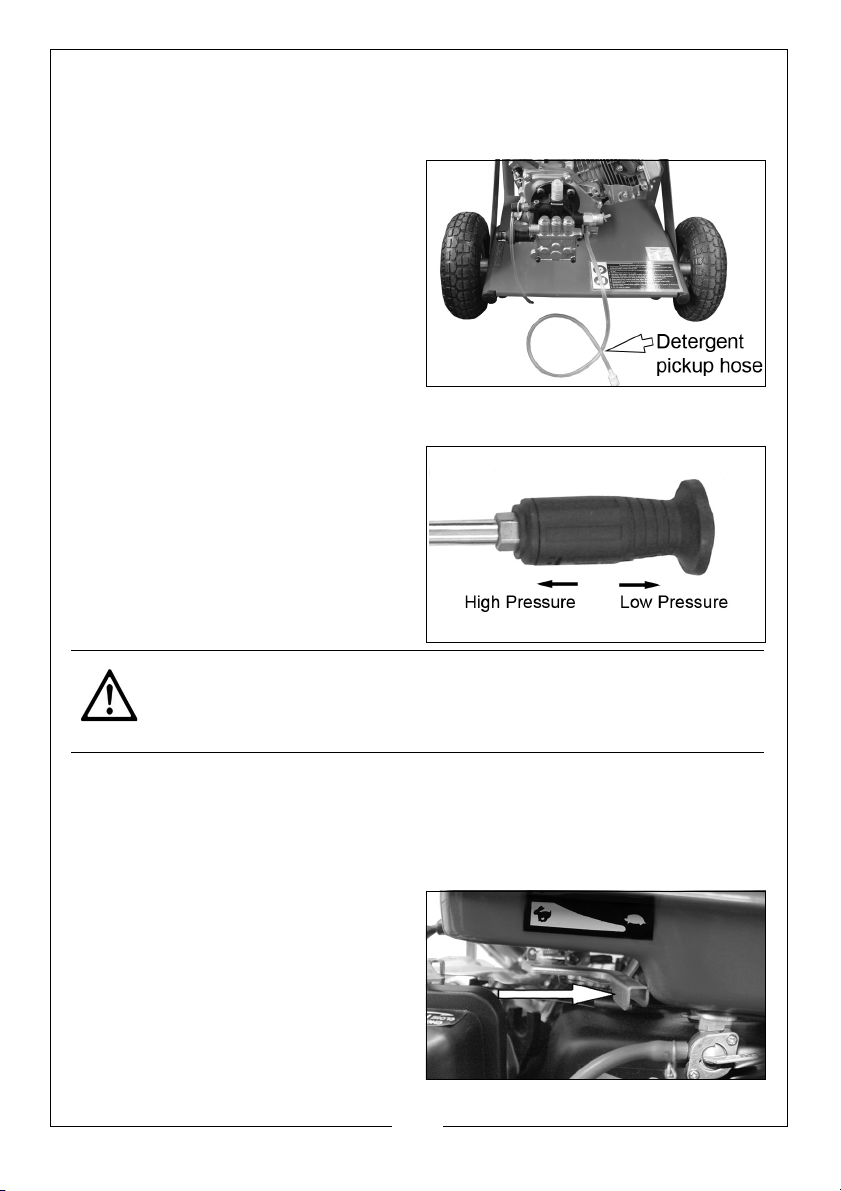

APPLYING DETERGENTS AND CLEANING AGENTS
To improve the cleaning performance, you can introduce chemical cleaning
agents (detergents) to the water jet using the detergent pickup hose.
1. Place the detergent pickup hose
into a container holding the
chemical/cleaning solution.
• Only use detergents
recommended for use with
pressure washers, such as
CLARKE Traffic Film Remover
which is a powerful low
foaming agent for car
cleaning, patio cleaning etc.,
or CLARKE Wash & Wax, both
available from your CLARKE dealer.
2. Hold the rear of the nozzle on the
high pressure lance and slide the
front of the nozzle forwards to low
pressure.
3. Spray the detergent onto the
vehicle, patio etc.
• Allow the detergent a little time
to work itself into the grime.
CAUTION: IF YOUR EYES COME INTO CONTACT WITH ANY CLEANING
FLUIDS, RINSE THEM IMMEDIATELY WITH PLENTY OF FRESH CLEAN WATER.
AND SEEK MEDICAL ADVICE IF REQUIRED.
4. To rinse, remove the detergent pickup hose from the container holding
chemical/cleaning solution, slide the front of the nozzle on the lance back
towards the handle and use the pressure washer as normal.
SHUTTING DOWN
1. After each use, if you have
applied chemicals, place
detergent pickup hose into a
container of clean water and run
clean water through detergent
pickup hose to flush the system
thoroughly.
2. Move the throttle control lever to
the right.
14
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 15
3. Turn off the engine switch, to the
off (0) position.
4. Turn water supply off at the tap.
5. NEVER turn the water off with the
engine running.
6. Release the pressure in the pump
and hose by squeezing the trigger
for a few seconds until no more
water comes out of the nozzle.
7. Turn the fuel supply valve to the
closed position.
8. Rotate the trigger lock to the
locked position.
15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 16

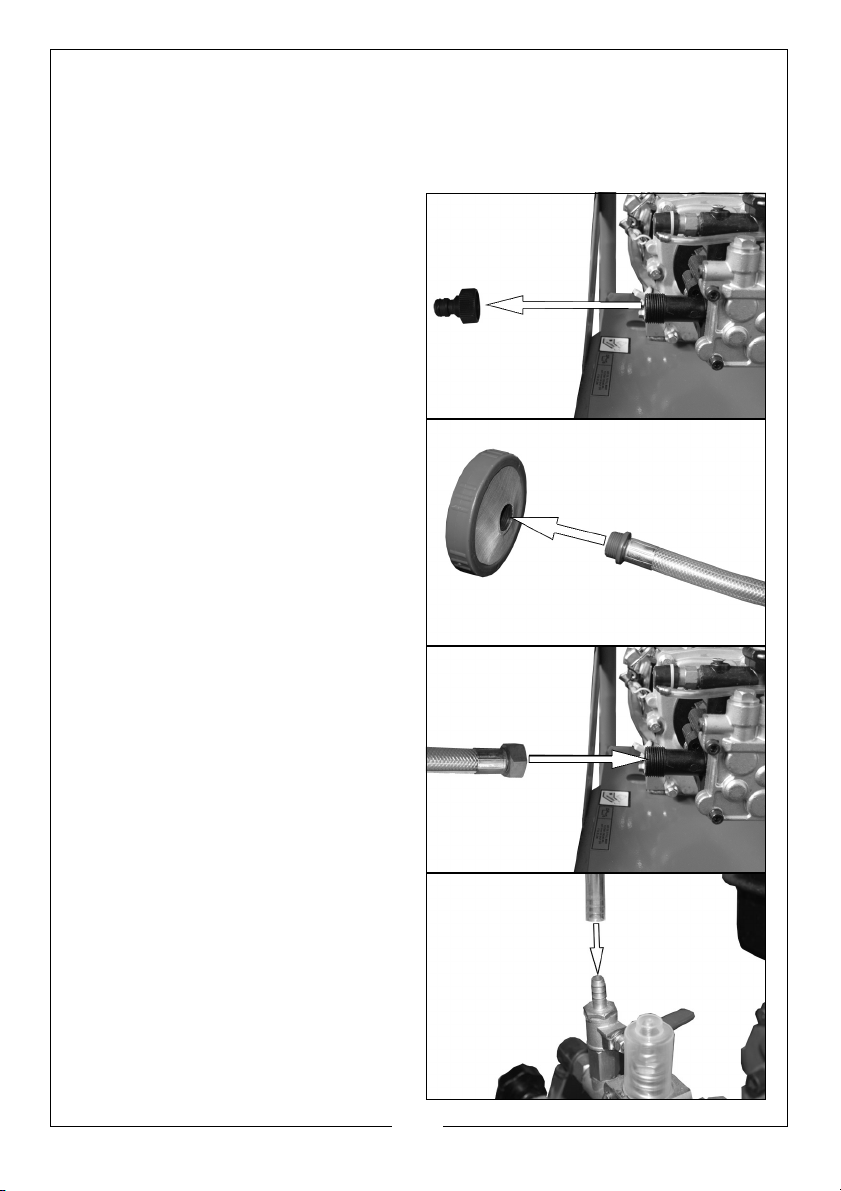

WATER BUTT CONNECTION
This machine has the ability to draw its own water, meaning you can use water
not under pressure such as rainwater collected in a water butt.
To do this you must carry out the following procedure.
1. Remove the quick connector
from the water inlet.
2. Attach the filter to the end of the
pipe supplied.
3. Connect other end of the filter
pipe to the water inlet.
4. Fill the supplied bottle with water.
5. Connect the hose from the bottle
to the self-suction valve shown.
6. Start the pressure washer See
“Starting your pressure washer” on
page 11.
16
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 17

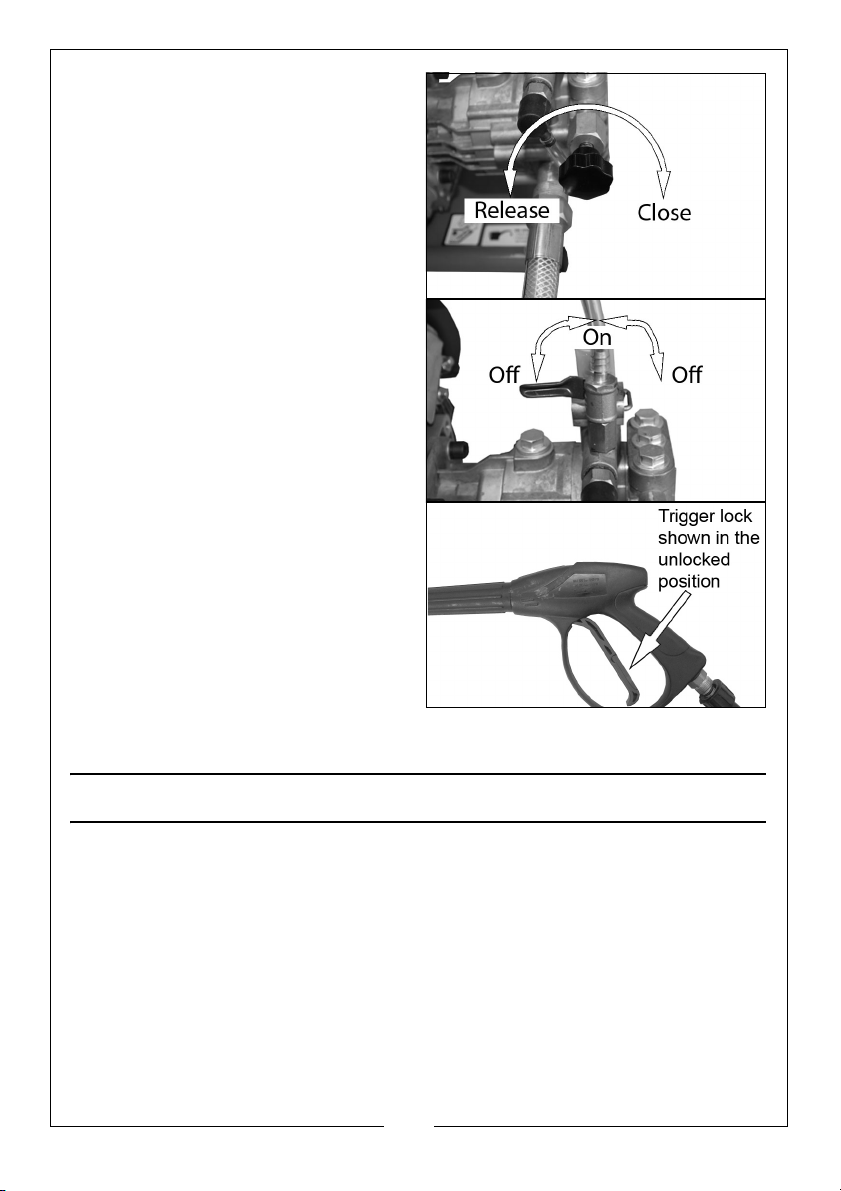

7. Release the exhaust valve.
8. Turn the self-suction valve to the
on position.
9. Release the trigger lock and pull
the trigger.
10. When the water spray is at high
pressure, close the exhaust valve
and set the suction valve to the
OFF position.
NOTE: IIf the water butt runs out of
water, the pressure washer will
need to be primed before use
by repeating steps 4-10.
STORAGE
BEFORE STORING THE PRESSURE WASHER
1. Disconnect the high pressure hose and drain all water from the hose.
2. Coil the hose and store the lance/hose in their respective holders located
on either side of the pressure washer.
STORAGE PROCEDURE
Make sure that the pressure washer has been thoroughly cleaned before
storing it in a clean dry place. See “Maintenance” on page 18.
For long term storage See page 20.
17
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 18
MAINTENANCE

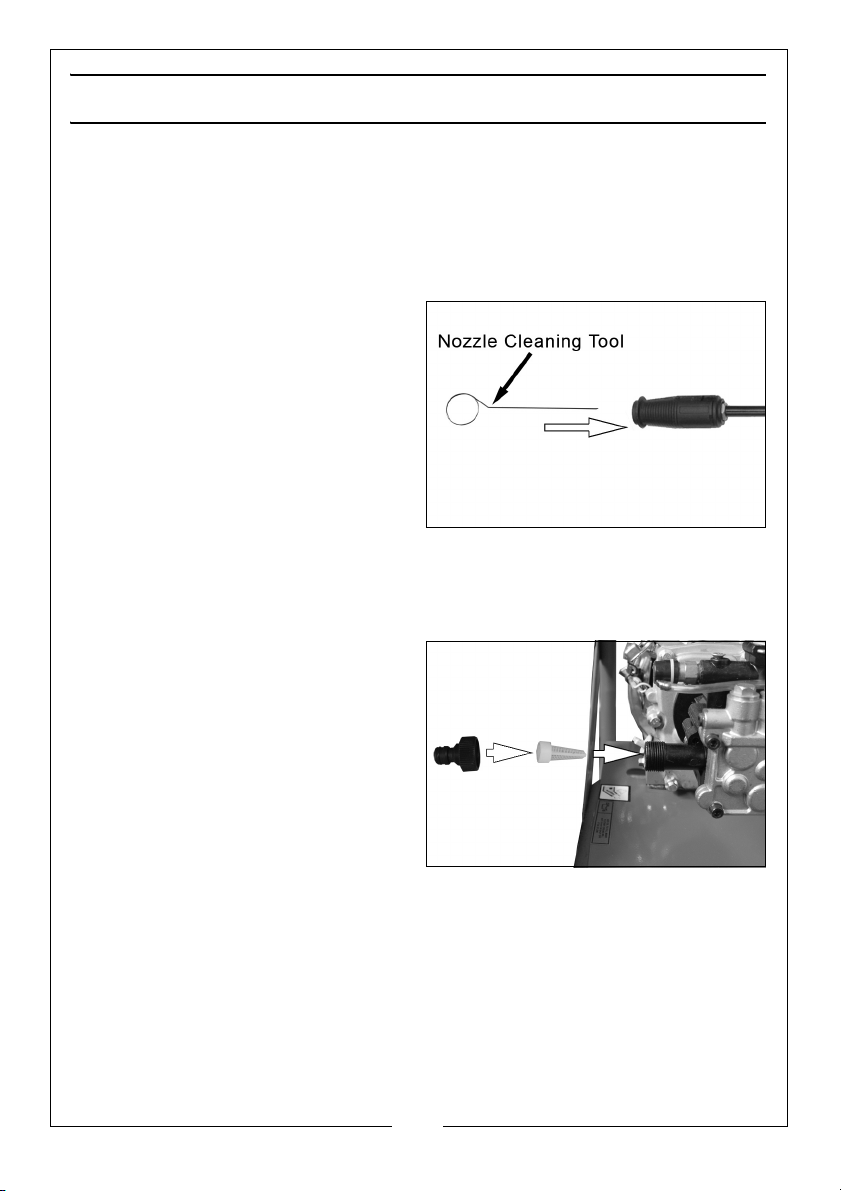

CLEANING THE NOZZLE
1. Shut off the pressure washer and turn off the water supply.
2. Pull trigger on the gun handle to release any water pressure.
3. Disconnect the lance from the gun assembly.
4. Remove any obstructions with the
nozzle cleaning tool provided and
back flush with clean water.
5. Direct water supply into the end
of the lance for 30 seconds to
back flush loosened particles.
6. Reconnect the lance to the gun
assembly and turn on the water
supply.
CLEANING THE WATER INLET FILTER
This screen filter should be checked periodically and cleaned if necessary.
1. Remove filter from the water inlet
of the pump as shown.
2. Clean filter by flushing both sides
with water.
3. Replace the filter into the water
inlet.
• Do not operate pressure
washer without filter properly
installed.
18
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 19

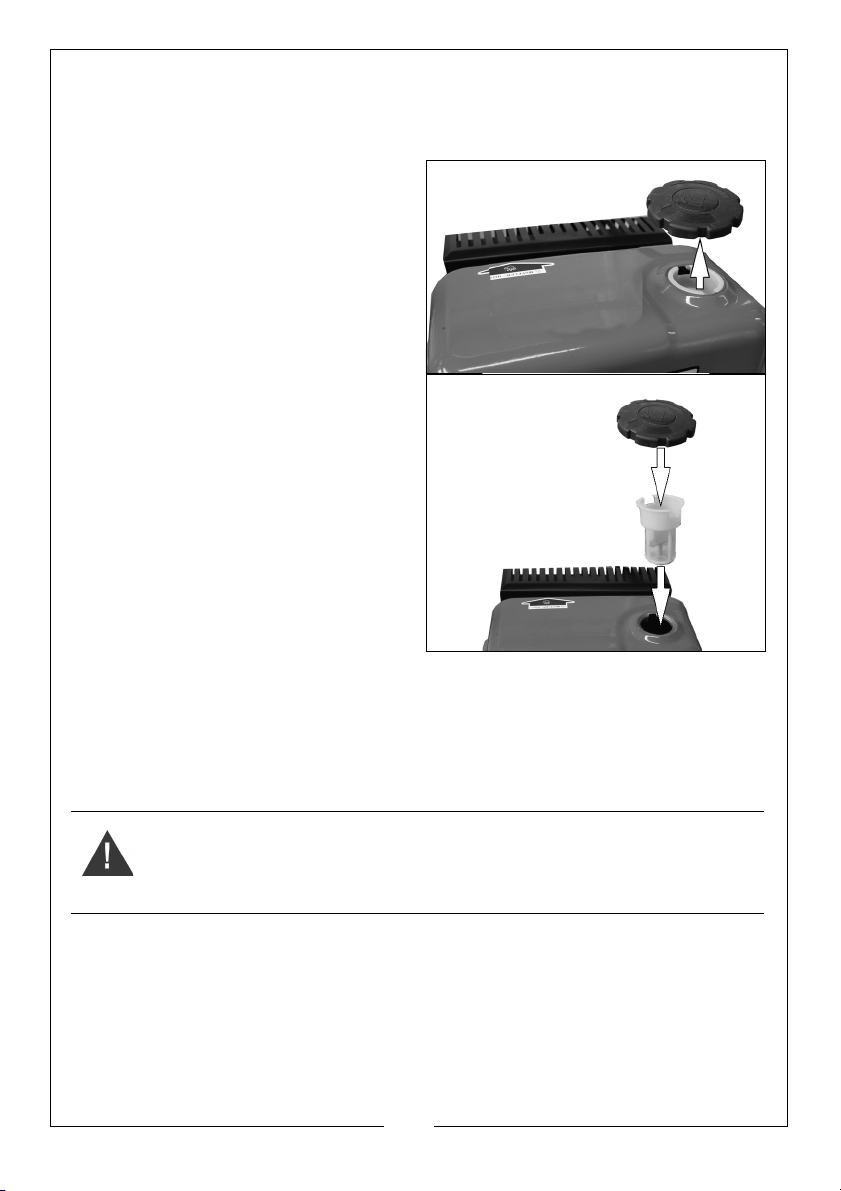

CLEANING THE FUEL STRAINER
Just inside the fuel tank is a fuel strainer, check this periodically and remove
any contaminants which may have accumulated.
1. Open the fuel tank cap.
2. Remove the fuel strainer.
3. Remove any contaminants.
4. Replace the fuel strainer.
• Do not operate pressure
washer without fuel strainer
properly installed.
CLEANING THE AIR FILTER
1. Release the two clips on the air
filter cover.
2. Remove the air filter cover.
3. Remove the air filter elements.
4. Wash the elements in a solution of warm water and mild detergent.
WARNING: DO NOT USE FLAMMABLE SOLVENTS OR PETROL TO CLEAN THE
AIR FILTER
5. Rinse thoroughly and leave the elements to dry. Once it is completely dry,
immerse the filter in clean engine oil and sqeeze to remove excess oil.
• If the air filter is damaged contact Clarke spare parts department for
a replacement.
• Replace the filter into its original position and refit the air filter cover.
19
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 20

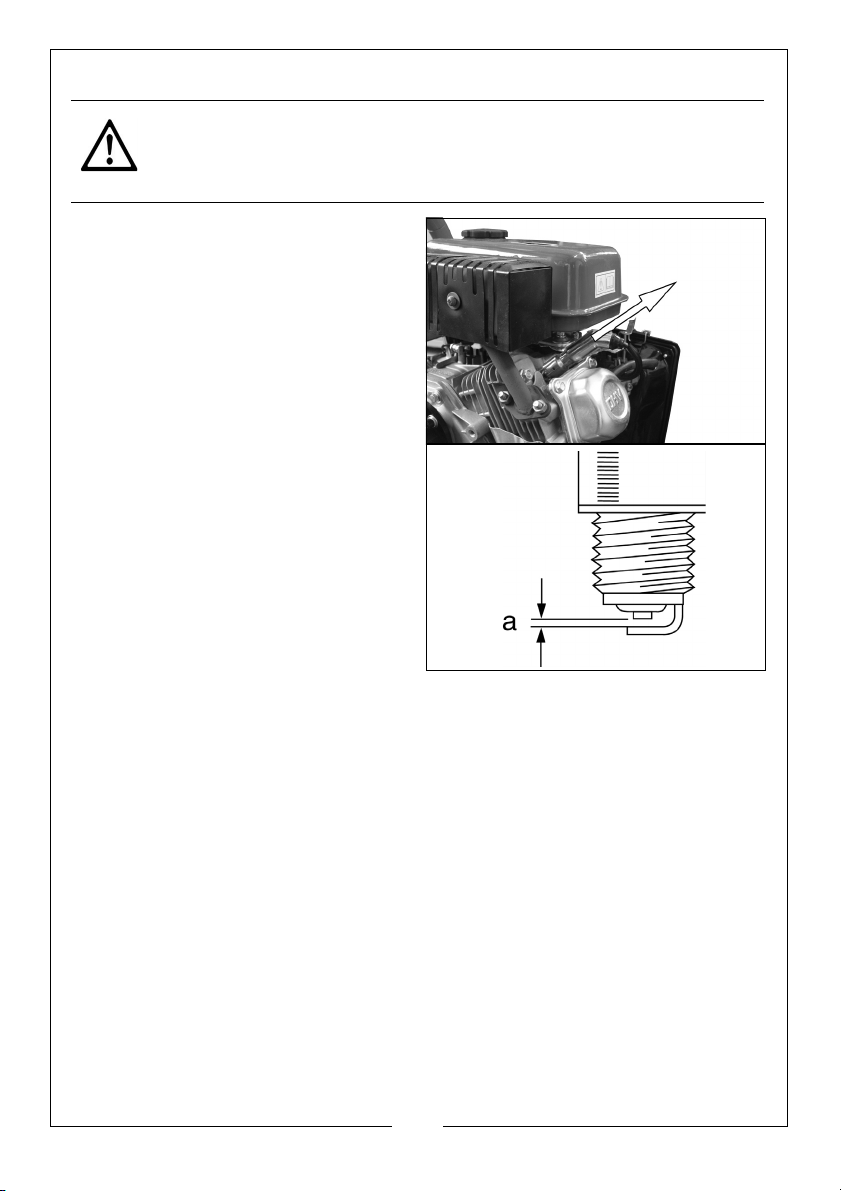

CHANGING THE SPARK PLUGS
CAUTION: ALLOW THE ENGINE TO COOL BEFORE REMOVING THE SPARK
PLUG.
1. Remove the spark plug cap from
the spark plug.
2. Use the spark plug spanner
supplied to remove the spark
plug.
3. Remove any carbon that has
accumulated around the
sparkplug.
4. Check the spark plug gap (a), it
should be between 0.7 and 0.8
mm, adjust if necessary.
5. Check the overall condition of the
spark plug and replace if
necessary.
6. Reinstall the spark plug and
replace the spark plug cap.
LONG TERM STORAGE
For long term storage,
1. The petrol tank should be drained.
• Ensure that the engine is cold before draining the tank.
2. Remove the fuel tank cap and use a pump type syphon to drain the petrol
into an appropriate, clean container.
• Do not store petrol for long periods of time.
• Dispose of excess petrol in an environmentally safe way. Your local
recycling centre can advise you on the best method of disposal.
3. After the petrol tank has been drained, start the engine and allow it to use
any petrol that may remain in the engine, or fuel pipe.
4. Make sure that the power washer has been thoroughly cleaned before
storing it in a clean dry place.
20
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 21
TROUBLESHOOTING
If the following does not solve your problem, please contact the CLARKE service
department.
PROBLEM CAUSE SOLUTION
Engine will not
start (see engine
manual for
further engine
troubleshooting)
Lack of pressure
(initial use)
No fuel. Add fuel.
Low oil. Add oil.
Pressure builds up after
two pulls on the recoil
starter or after initial use.
Spark plug lead not
attached securely.
Engine switch is in the
OFF position.
Choke lever is set to the
ON position when the
engine is already warm.
Fuel valve closed. Open the fuel valve.
Leak in the high pressure
hose fitting.
Nozzle is obstructed. Clear the nozzle.
Water filter screen is
clogged.
Air in the hose. Turn off the engine.
Squeeze the gun trigger to relieve the
pressure.
Attach the spark plug lead.
Set the engine switch to the ON position.
Set the choke lever to the OFF (right)
position.
Tighten the fitting, use sealant tape if
required.
Remove and clean the filter.
Turn off the water supply.
Disconnect the water source from the
pump inlet and turn on the water source
to expel the air from the hose.
When all the air has been removed, turn
off the water supply and reconnect the
hose.
Turn on the water supply and pull the
trigger to expel any air in the gun/lance.
21
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 22
PROBLEM CAUSE SOLUTION
Lack of pressure
(initial use)
(continued)
Will not draw
chemicals
Lack of pressure
(after a period of
normal use)
Water leaking at
the pump
Choke lever is in the
OPEN position.
Throttle control lever is
not set high enough.
High pressure hose is too
long.
Chemical filter is
blocked.
Chemicals being used
are too thick.
High pressure hose is too
long.
Chemical build up inside
the chemical injector.
Worn seal or packing. Have them replaced by your dealer.
Worn or obstructed
valves.
Loose connections. Tighten.
Worn or broken O-rings. Have them replaced by your dealer.
Pump head or tubes
damaged from freezing.
Set the choke lever to the OFF (right)
position.
Move the throttle control lever to left.
Make sure the high pressure hose is under
100 feet.
Clean the filter.
Dilute the chemicals. The chemicals
should have the consistency of water.
Use a longer supply hose instead of a very
long high pressure hose.
Have the parts cleaned or replaced by
your dealer.
Have them replaced by your dealer.
Have it replaced by your dealer. See
“Storage” on page 17.
Oil leaking at the
pump
Water leaking
from the drain
hose
Pump pulsates Nozzle obstructed. Clear the nozzle.
Oil seals worn. Have them replaced by your dealer.
Worn O-rings. Check and replace.
Pump is overheating This is a safety feature and should be
expected, it cools the pump by releasing
some of the hot water within the pump
and replacing it with fresh ‘cool’ water.
22
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 23
SPECIFICATIONS
MODEL NO TIGER 2600 TIGER 3000
ENGINE
Engine type Petrol (unleaded). OHV
Single Cylinder 4 stroke
forced air cooling
Capacity/displacement: 118 cc 196 cc
Oil Capacity 0.6 L 0.6 L
Lubrication Grade SAE10W-30 SAE10W-30
Fuel Tank Capacity:(Litres) 2.1 Litres 4 Litres
WATER CONNECTION
Max. Feed Temperature 60 °C 60 °C
Max. Feed Pressure 3-6 Bar 3-6 Bar
PERFORMANCE DATA
Maximum Pump Pressure 180 Bar 200 Bar
Working Pressure 130 Bar 150 Bar
Maximum Water Flow 7 l/min 8 I/min
NOISE & VIBRATION
Sound Power Level LWA 107 dB(A) 103 dB(A)
Guaranteed Sound Power Level LWA 109 dB(A) 106 dB(A)
Uncertainty Factor K 2.89 2.98
Vibration 4.494 m/s 4.494 m/s
Uncertainty Factor K 1.5 1.5
DIMENSIONS
Le
ngth 465
Wi
dth 560
Heig
ht 750
Weight 32.7 kg 35.7 kg
mm 565mm
mm 668mm
mm 877mm
Petrol (unleaded). OHV
Single Cylinder 4 stroke
forced air cooling
23
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 24

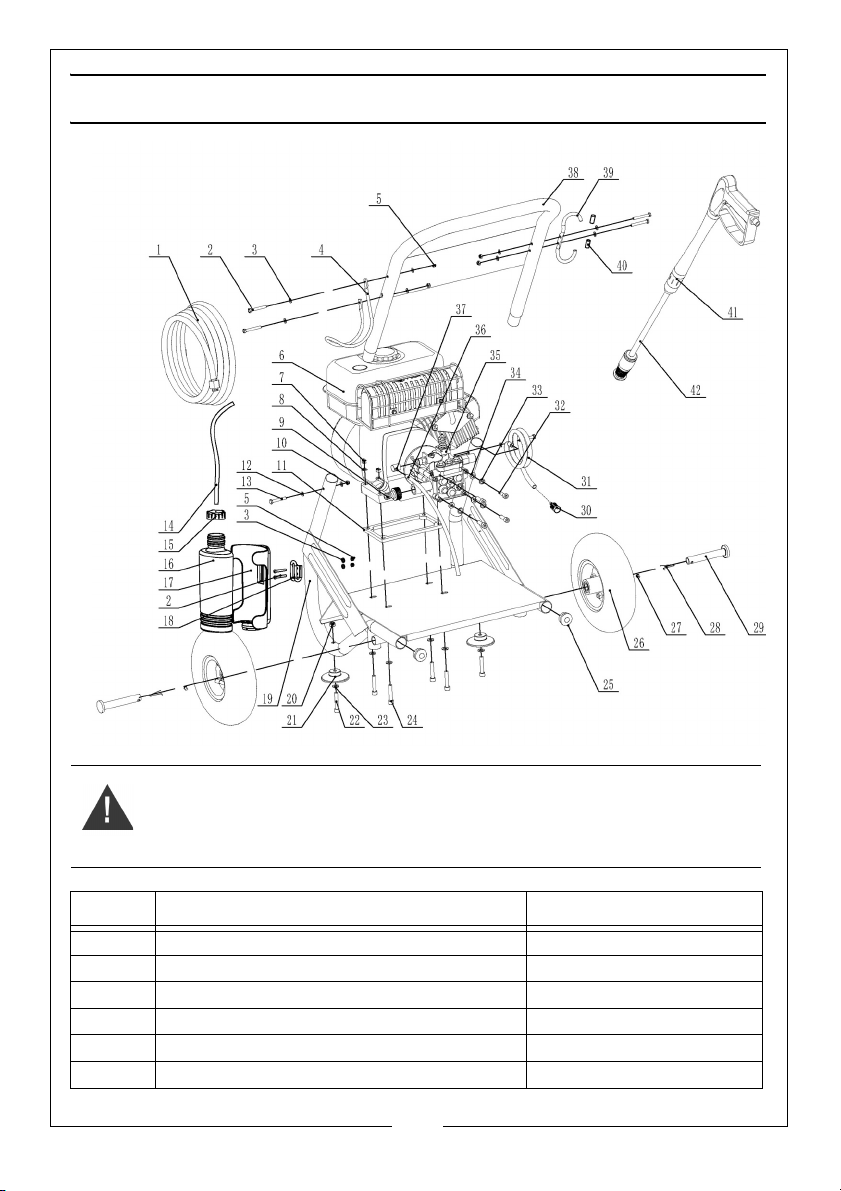

EXPLODED DIAGRAM + PARTS LIST (TIGER 2600)
WARNING: TO ENSURE MACHINE SAFETY, USE ONLY ORIGINAL SPARE
PARTS FROM CLARKE INTERNATIONAL.
NO DESCRIPTION PART NO
1 High Pressure Hose RKTIG260001
2 Cors
3 Gaske
4 Hose
5 L
6 4.0
shead Bolt RKTIG260002
t RKTIG260003
holder
ocknut
M5
HP Engine RKTIG260006
RKTIG260004
RKTIG260005
24
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 25
NO DESCRIPTION PART NO
7 Locknut M8 RKTIG260007
8 Gaske
9 L
10 Gaske
11 Eng
12 Gaske
13 Cross
14 W
15 Water Bottle Cap RKTIG260015
16 W
17 Water Bottle Holder RKTIG260017
18 Water Bottle Hook RKTIG260018
19 Lower Frame Assy. RKTIG260019
20 L
21 Rubbe
22 Inner Hex Bolt M8*45 RKTIG260022
23 Gaske
24 Inner Hex Bolt M8*40 RKTIG260024
25 Rubbe
26 8" Solid Wheel+B2 RKTIG260026
27 Whee
28 Spring Wire RKTIG260028
29 Wheel Axle RKTIG260029
30 Dete
31 Dete
32 Inner Hex Bolt M8*25 RKTIG260032
33 Spring Washer RKTIG260033
34 Gaske
35 High Pressure Pump RKTIG260035
36 Drain
37 Thermal Relief Cap RKTIG260037
38 Upper Frame Assy. RKTIG260038
39 Gun
40 Gun Holder Sleeve RKTIG260040
41 La
42 High Pressure Gun RKTIG260042
t RKTIG260008
M5
ocknut
t RKTIG260010
ine Rubb
ater Pipe RKTIG260014
ater Bottle RKTIG260016
ocknut
rgent Filter RKTIG260030
rgent Hose RKTIG260031
Holder RKTIG260039
nce RKTIG260
er
t RKTIG260012
head
Bolt
M8
r
Foot
t RKTIG260023
r Plug RKTIG260025
l Shaft Cl
t RKTIG260034
Tube RKTIG260036
ip
RKTIG260009
RKTIG260011
RKTIG260013
RKTIG260020
RKTIG260021
RKTIG260027
041
25
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 26

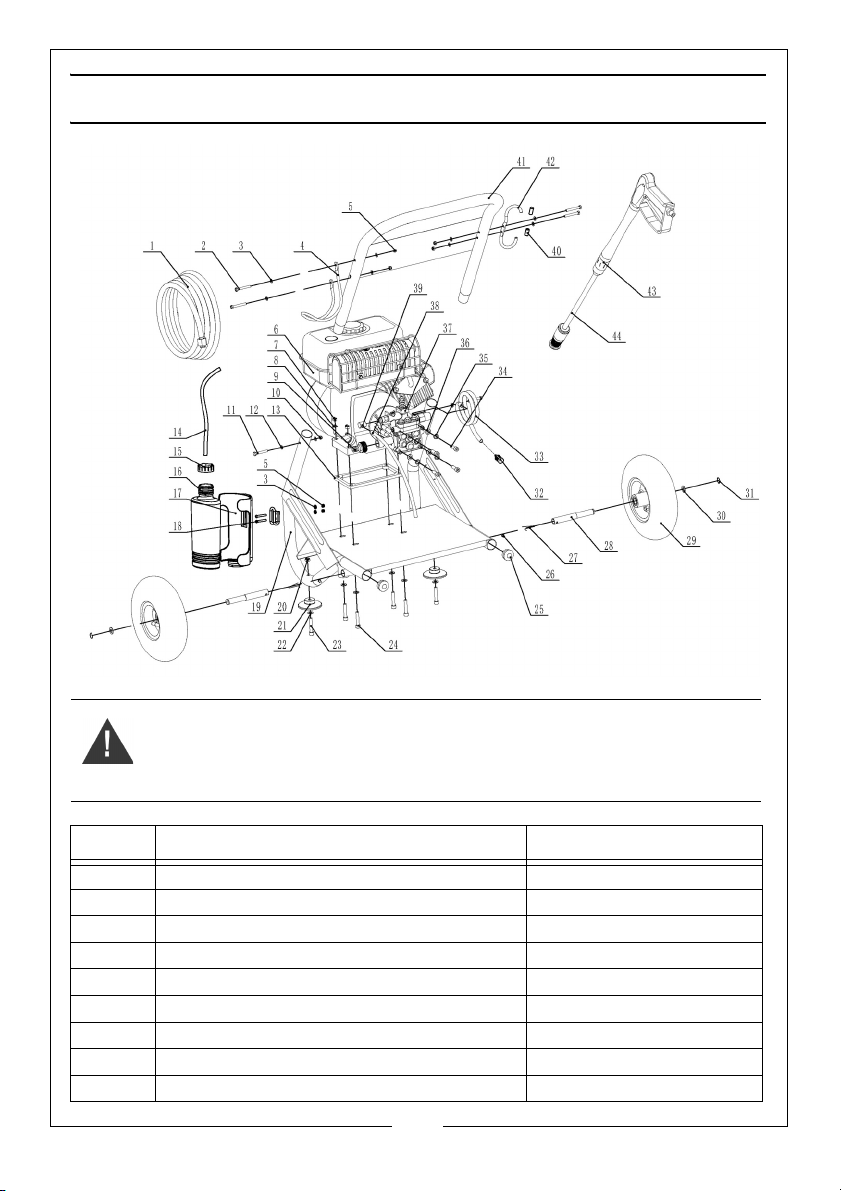

EXPLODED DIAGRAM+ PARTS LIST (TIGER 3000)
WARNING: TO ENSURE MACHINE SAFETY, USE ONLY ORIGINAL SPARE
PARTS FROM CLARKE INTERNATIONAL.
NO DESCRIPTION PART NO
1 High Pressure Hose RKTIG300001
2 Hex Bolt RKTIG300002
3 Gasket RKTIG300003
4 Hose holder RKTIG300004
5 Locknut M5 RKTIG300005
6
7 Locknut M8 RKTIG300007
8 Gasket RKTIG300008
9 Inlet Connector RKTIG300009
6.5hp Engine
RKTIG300006
26
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 27
NO DESCRIPTION PART NO
10 Locknut M6 RKTIG300010
11 Hex Bolt M6 RKTIG300011
12 Gaske
13 Isolator
14 W
15 Water Bottle Cap RKTIG300015
16 W
17 Water Bottle Frame RKTIG300017
18 Water Bottle Hook RKTIG300018
19 Lower Frame Assy. RKTIG300019
20 L
21 Rubbe
22 Gaske
23 Inner Hex Bolt M8*45 RKTIG300023
24 Inner Hex Bolt M8*40 RKTIG300024
25 Rubbe
26 Whee
27 Spring
28 Whee
29 10" Air wheel RKTIG300029
30 Gaske
31 Spring Cover
32 Dete
33 Dete
34 Inner Hex Bolt M8*25 RKTIG300034
35 Spring Gasket RKTIG300035
36 Gaske
37 High Pressure Pump RKTIG300037
38 Drain
39 Thermal Relief Cap RKTIG300039
40 Gun Holder Sleeve RKTIG300040
41 Upper Frame Assy. RKTIG300041
42 Gun
43 High Pressure Gun RKTIG300043
44 Lance
t RKTIG300012
RKTIG300013
ater Pipe RKTIG300014
ater Bottle RKTIG300016
ocknut
M8
r
Foot
t RKTIG300022
r Plug RKTIG300025
l Shaft Cl
Wire RKTIG300027
l Ax
t RKTIG300030
rgent Filt
rgent Hose RKTIG300033
t RKTIG300036
Tube RKTIG300038
Holder RKTIG300042
ip
le
er
RKTIG300020
RKTIG300021
RKTIG300026
RKTIG300028
RKTIG300031
RKTIG300032
RKTIG300044
27
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 28
DECLARATION OF CONFORMITY TIGER 2600
28
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 29
DECLARATION OF CONFORMITY TIGER 2600
29
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 30

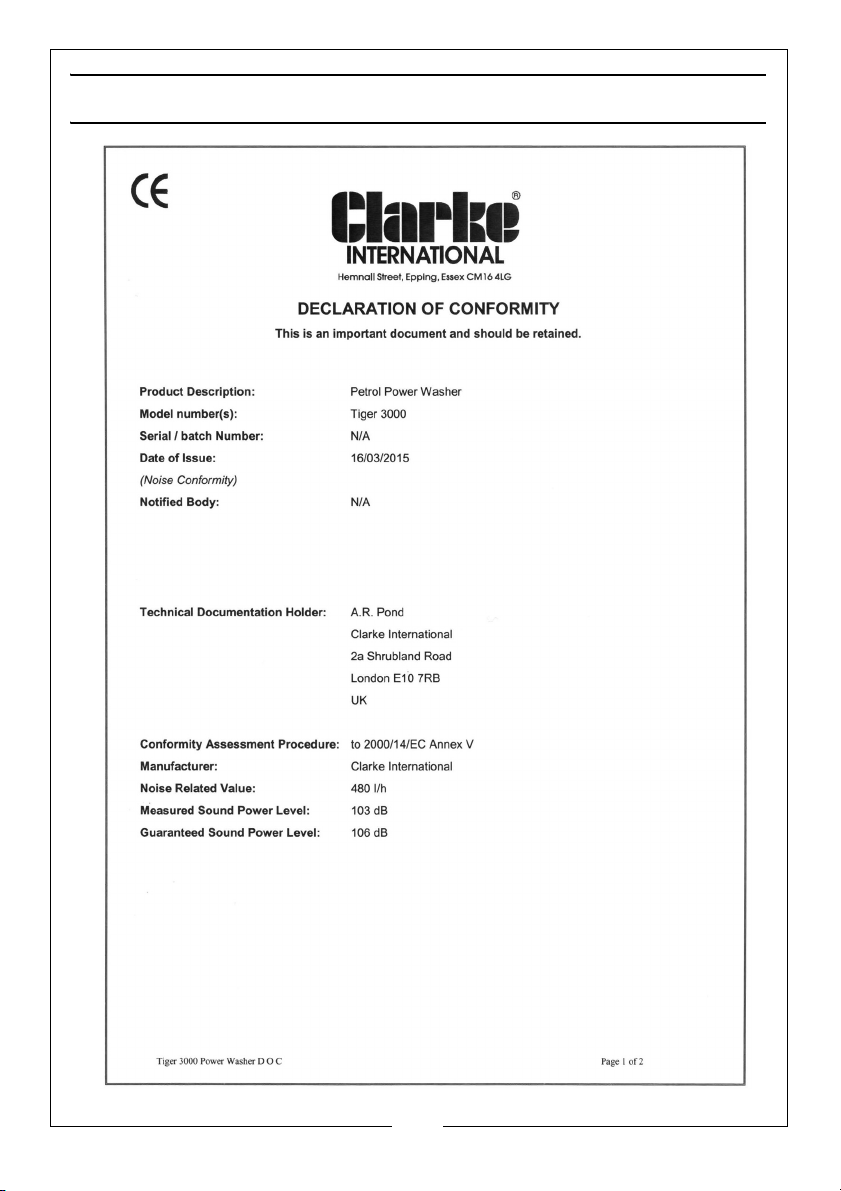

DECLARATION OF CONFORMITY TIGER 3000
30
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 31

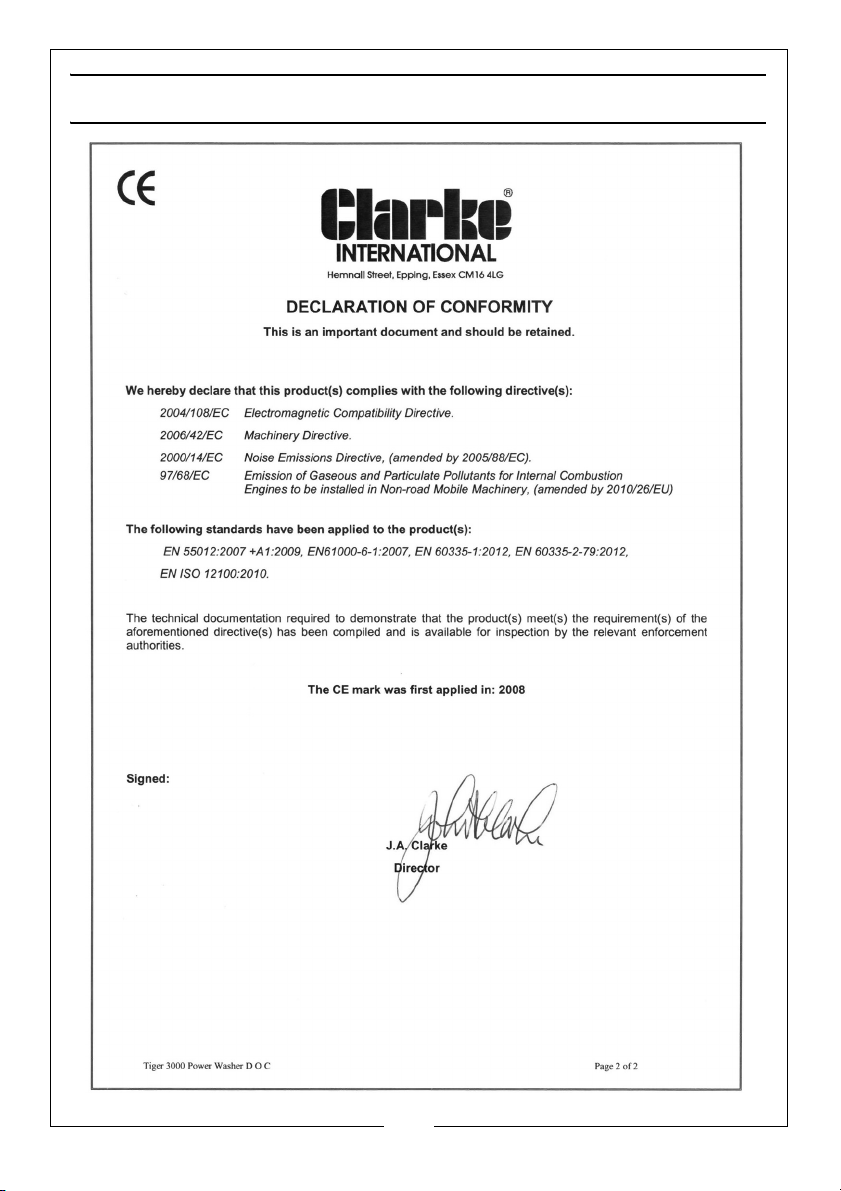

DECLARATION OF CONFORMITY TIGER 3000
31
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 32
Loading...
