HYDRAULIC MOBILE LIFTING

TABLE

MODEL NO: HTL300 & HTL500

PART NO: 7610148 & 76210152

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC1116

Page 2

INTRODUCTION

Thank you for purchasing this CLARKE Mobile Hydraulic Lifting Table, designed for the quick and convenient raising of components or equipment in and around a workshop.

Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.

This guarantee does not effect your statutory rights.

TECHNICAL SPECIFICATIONS

HTL300 HTL500

Part No 7610148 7610152

Maximum Safe working Load 300kg 500kg

Maximum Lifting Height 900 mm

Minimum Lifting Height 340mm

Dimensions 935x500x350mm (lowered)

Weight 81 kg 90kg

Recommended Oil (conforming to ISO VG32)

YBN32 or equivalent

Page 3

SAFETY PRECAUTIONS

WARNING: THE USER MUST FOLLOW ALL INSTRUCTIONS WITHIN THIS INSTRUCTION MANUAL AND NOT OPERATE THE LIFTING TABLE UNTIL HAVING DONE SO.

THE LIFTING TABLE

1. The table must be maintained and repaired in accordance with the these instructions. Such maintenance and repair must be carried out by qualified persons and tested prior to returning to service.

2. Ensure that the lift table is in good working order. Have any damaged parts repaired or replaced immediately. Use genuine Clarke parts only. The use of unauthorised parts may be dangerous and will invalidate the guarantee.

3. Do not exceed the maximum safe working load of the table stated in the Technical Specification on page 2. Always ensure the load is evenly distributed across the table.

4. Never tamper with the lifting table or modify it in any way, as this could prove to be dangerous and will invalidate the guarantee. Only use the product for the purpose for which it is intended.

5. Do not use if an oil leak is apparent. Consult your Clarke dealer.

6. Check the condition of the labels regularly and replace as required. Labels are provided in accordance with BSEN1570.

THE WORKPLACE

1. Only use in a suitable, well lit work area.

2. Keep the work area clean and tidy and free from unrelated items.

3. Use the lifting table on level and solid ground, preferably concrete. Avoid soft/unmade ground as the wheels may sink in. Excessive force may be invited to move the table if floor conditions are poor.

4. Use appropriate safety equipment, such as protective footwear, when using this product.

DURING OPERATION

1. Never climb on, or attempt to ride on the lifting table.

2. Never use the lifting table for lifting, lowering or transporting persons.

3. Never transport a load in the raised position.

Page 4

4. Never alow hands or feet to be placed under the platform within the range of movement of the scissor lift components. Take care not to trap fingers in the moving parts.

5. Always ensure when lifting, that all parts of the load can be clearly seen.

6. Always ensure the load is centralised on t before lifting or moving. DO NOT secure by hand alone, use securing straps where necessary.

7. Always apply the brakes before lifting or lowering, when the lift is left unattended, or when stationary on an incline.

8. Always ensure the lift table is left in its use.

9. Take all necessary precautions when handling heavy equipment. Be aware that load MUST be adequately secured when the table is moved.

10. Be aware that force may be required to move a load of 300 or 500 kg. Take all safety precautions when moving and stopping to ensure it is carried out under complete control.

11. Be aware of what is happening in the immediate vicinity, and anticipate possible hazards...blind corners, overhead obstructions etc. Take great care when lowering a load, that the hands are not trapped by the load.

moving equipment of 300 or 500 kgs can be hazardous. The

he table and is completely stable

FULLY LOWERED position when not in

LIFTING OPERATIONS AND LIFTING EQUIPMENT REGULATIONS 1998

This lifting table, depending on use, may fall within the scope of LOLER. It is the owner’s responsibility to determine whether or not it does, and if so, to comply with any applicable requirements. It may be necessary to have the product regularly inspected.

SAFETY SYMBOLS

Read instruction manual before use

Do not put hands or feet under platfo

The above safety symbols appear on the product.

Do not stand on platform

Page 5

BEFORE USE

UNPACKING

Obtain the assistance of a second person when unpacking the lifting table from its packaging. Alternatively, cut and fold down one end of the box and wheel the lifting table out.

ASSEMBLY

Lower the handle into the holes in the frame and secure each side from below with the bolt (64), spring, and flat washers (63 & 62), provided.

Insert the foot operating lever (59) into its socket at the end of the connecting bar (60). Insert the bolt (42) and secure with washers (6 & 11) and nut (12).

PURGING AIR BUBBLES

During shipment, air bubbles can occur in the hydraulic system which may cause the ram to feel “spongy” and it may not achieve its maximum lift.

1. Hold the release lever and pump the operating lever several times to purge any air from the hydraulic system.

2. Pump the operating lever to raise the table fully, then pull the release lever to lower the table and check that it descends to its lowest position.

The lifting table is now ready to use.

Page 6

OPERATION

Before raising or lowering the table:

1. Check for any damage or worn parts. Do not use the lifting table unless it is

perfectly serviceable.

2. Lock the castor brakes before loading the table. (A brake is provided on each castor for safety).

3. Ensure the load is completely stable and evenly spread on the table and secured if necessary.

4. Ensure that no obstacles can snag or prevent the table from being raised.

RAISING A LOAD

WARNING: BEFORE LIFTING, ENSURE THE SAFETY PRECAUTIONS ARE STRICTLY FOLLOWED. NO RESPONSIBILITY CAN BE ACCEPTED FOR INCORRECT USE OF THE TABLE.

1. Pump the foot lever (59) until the table reaches the desired height. (The release lever (65) is spring loaded to return it to its closed position).

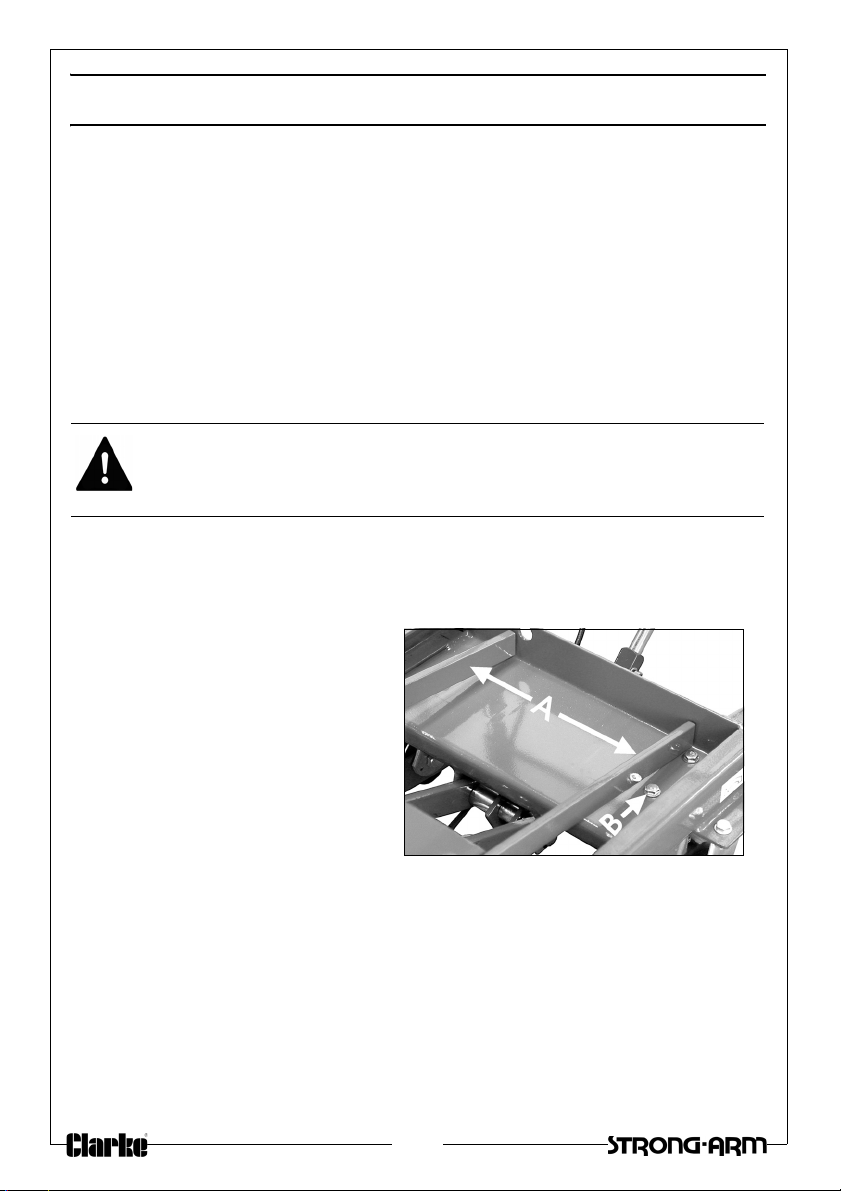

SAFETY BARS (‘A’ FIG.1)

IMPORTANT: When working with the table raised, the safety support bars must be put in place and the table lowered so that the load is supported by the safety bars and not by the hydraulic ram, as shown in the illustration. The safety bars are secured with a clip, one to each leg of the lift.

2. Make one final check to ensure that there are no obstructions to lifting and that all personnel are well clear before continuing to pump the handle and lift the load.

LOWERING THE LOAD

1. Slowly pull the release lever (65) upwards. Ensure the load is lowered in a fully controlled manner - do not jerk the lever upwards.

• Releasing the lever will cause the table to stop at any desirable

height.

Page 7

NOTE: This operation must be done very slowly and in full control. DO

NOT let the load lower suddenly, this could damage internal components.

NOTE: Take care to ensure when lowering, that the safety bars do not

foul the bolt heads shown at B.

MAINTENANCE

DAILY/BEFORE USE

Inspect the lift table for signs of obvious damage, distortion of components,

damage to castors etc.

Check the ram for signs of hydraulic oil leakage.

If any of the above are apparent - DO NOT use the table lift. Have it inspected by a qualified person and repaired if necessary.

NOTE: Be aware that oil leaks can produce extremely hazardous

environmental conditions. All leaks must be cleaned immediately and sand/sawdust or similar absorbent material should cover the contaminated area (which should be isolated), until it is completely cleaned and dried.

MONTHLY

1. Check that all joints and pivots are clean and moving freely. Lubricate all pivots with light oil.

2. Check the action of the hydraulic ram and inspect for leaks. If leaks are apparent, DO NOT USE THE LIFTING TABLE, but submit for repair. (Contact your Clarke dealer). Always make every effort to contain any escape of oil and prevent ingress into the local water course.

3. The hydraulic system may be topped up with any commonly available hydraulic oil such as Clarke hydraulic oil (part number 3050830).

4. Check castor brake action and ensure that the table lift is held securely when they are applied.

5. Remove any corrosion and repaint for protection.

6. Check the piston rod periodically for signs of corrosion. Clean exposed areas with a clean oiled cloth.

7. Ensure that labels and warning notices are in place and legible.

8. Inspect for distortion of hinge pins and security of all nuts and bolts.

9. Keep all moving parts lightly lubricated to prevent corrosion.

Page 8

10. In the case of a persistent oil leak which requires the dismantling of the hydraulic parts to correct, the lift table should be taken to your Clarke dealer for overhaul.

NOTE: ALL major repairs MUST be re-tested according to BSEN1570:-

ANNEX C regulations and should therefore be carried out by your CLARKE dealer.

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

Table will not operate or lifting height is insufficient.

Platform rises then sinks 1. Non-return valves (23,

Platform will not lower. 1. Control valve may be

Oil leak at pin (28) O-rings (29) damaged Return to your Clarke

Oil leak at pump element (5) and piston rod (44)

1. Non-return valve steel ball (23) is not seated

2. Pin (28) bears heavily on steel ball

3. Insufficient hydraulic oil.

24, 16), not seated correctly

2. As (2) above

faulty.

2. Non-return valves (23, 24,16), not seated correctly

3. As (2) above

Seal rings (1, 3, 47, & 48) are damaged

1. Clean valve hole and replace ball

2. Adjust cable (2) at the adjuster (3&4) so that free play exists between ball and pin.

3. Top up oil to correct level

1. Clean valve holes and replace balls

2. As (2) above

1. Clean valve holes and replace balls

2. As (2) above

3. Return to your Clarke dealer for repair

dealer for repair

Return to your Clarke dealer for repair

If any of these remedies fail to restore your lift table, consult your Clarke dealer

STORAGE

Store in a dry place with the ram fully lowered to minimise ram and piston corrosion. If stored for long periods, inspect at least once a year, clean and reoil. For servicing, contact your CLARKE dealer, or CLARKE International Service Department.

Page 9

DECOMMISSIONING THE PRODUCT

Should the product become completely un serviceable and require disposal, draw off the oil into a suitable container and dispose of the product and the oil at an approved recycling centre, according to local regulations.

Take care to ensure that any spilled hydraulic oil is cleaned away using sand, or treated with absorbent granules designed for the purpose.

Always make every effort to contain any spillage and prevent ingress into the local water course.

This product contains valuable raw materials. At the end of the products life all materials should be taken to a recycling centre for disposal and re-use.

Page 10

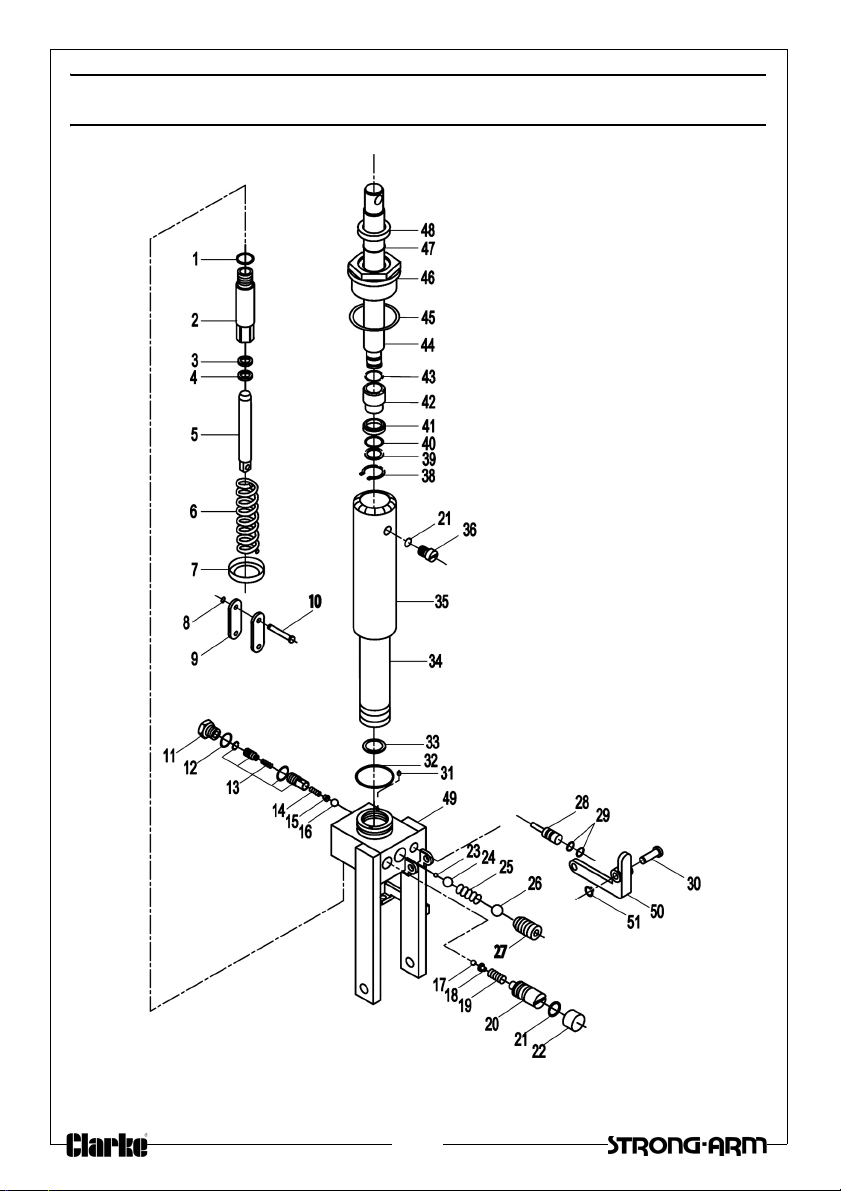

HYDRAULIC RAM COMPONENT PARTS

Page 11

HYDRAULIC RAM COMPONENT PARTS

PART NO DESCRIPTION PART NO DESCRIPTION

1 O-ring 22x2.65 27 Screw

2 Pump Cylinder

(HTL300 or 500)

3 Sealing Ring

(HTL300 or 500)

4 Dust Ring

(HTL300 or 500)

5 Pump Plunger

(HTL300 or 500)

6 Spring 32 O-ring 65x3.55

7 Spring Seat 33 Sealing Ring

8 Circlip 34 Cylinder

9 Joint Plate 35 Housing

10 Pin 36 Screw

11 Plug 37 n/a

12 Copper Washer 38 Circlip

13 Damping Valve 39 Washer

14 Spring 40 O-ring 33.5x3.55

15 Spring Seat 41 Cup Packing

16 Steel Ball 42 Bush

17 Steel Ball 43 O-ring 20x2.65

18 Spring Seat 44 Piston Rod

19 Spring 45 Sealing Ring

20 Adjusting Screw 46 Cylinder Cap

21 O-ring 7.5x2.65 47 O-ring 31.5x3.55

22 Cover Ring 48 Rubber Seal

23 Steel Ball 49 Base

24 Steel Ball 50 Lever Plate

25 Spring 51 Circlip

26 Steel Ball

28 Strike Pin

29 O-ring 6.9x1.8

30 Shaft

31 Filter

Page 12

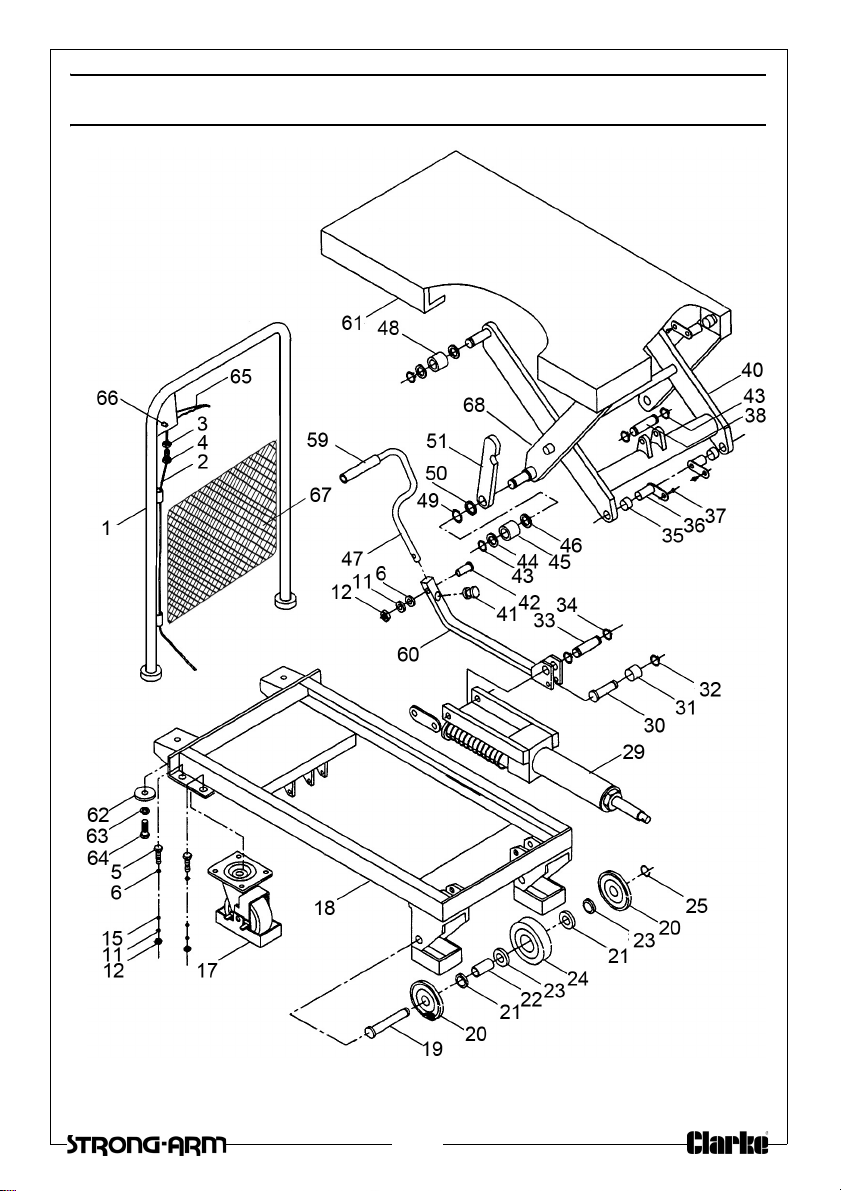

TABLE & FRAME COMPONENT PARTS

PART NO DESCRIPTION PART N O DESCRIPTION

1 Handlebar 36 L-Pin

2 Pull Rod 37 Screw

3 Nut 38 Pin

4 Screw 40 Inner Lifting Arm

(HTL300 or 500)

5 Bolt 41 Cushion

11 Washer 42 Bolt

12 Washer 43 Circlip

15 Nut 44 Washer

16 Washer 45 Roller

17 Swivelling Caster Wheel 46 Washer

18 Frame 47 Pedal Bar

19 Axle 48 Roller

20 Cover 49 Circlip

21 Washer 50 Washer

22 Screw 51 Safety Support Bar

23 Bearing 59 Protective Cover

24 Wheel 60 Connecting Bar

25 Circlip 61 Table

29 Hydraulic Pump Assembly 62 Washer

30 Short Shaft 63 Washer

31 Bush 64 Nut

32 Circlip 65 Release Handle

33 Short Shaft 66 Pin

34 Circlip 67 Mesh Guard

35 Bush 68 Outer Lifting Arm

(HTL300 or 500)

Page 13

TABLE & FRAME COMPONENT PARTS

Page 14

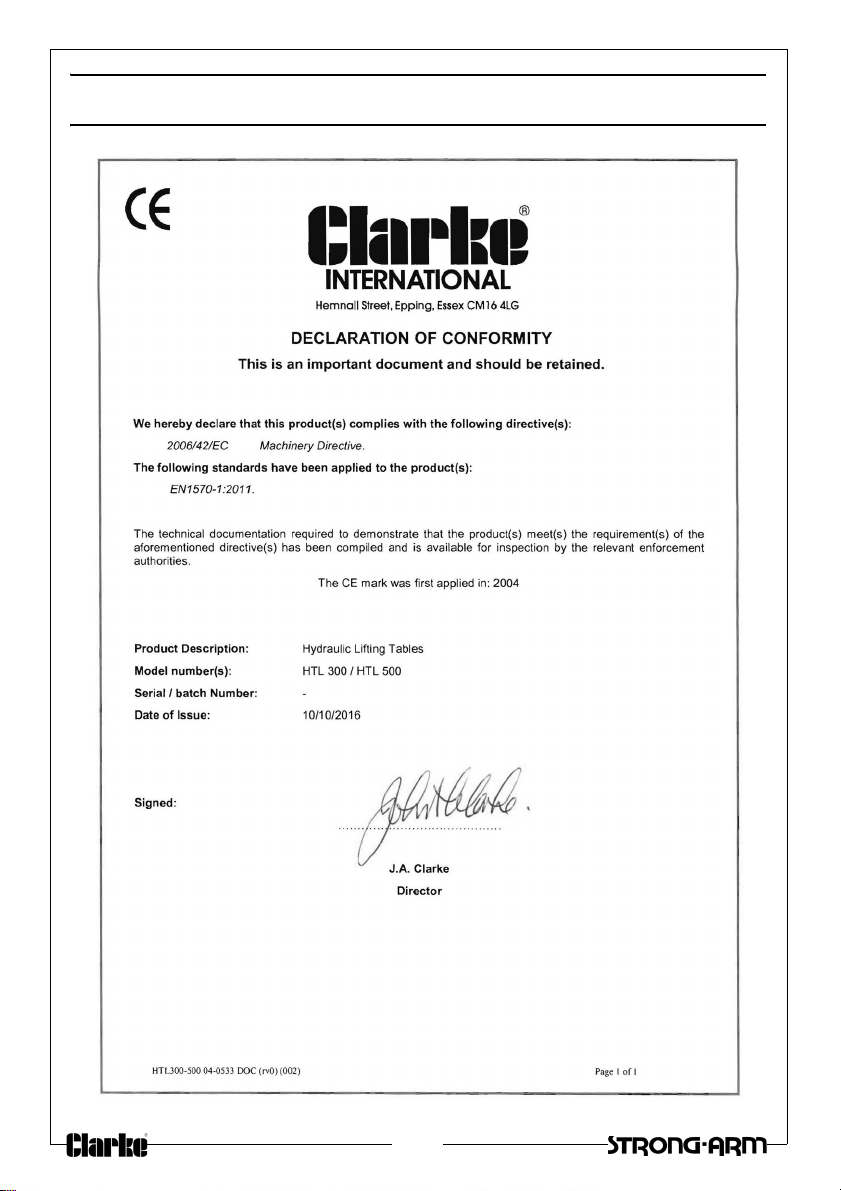

DECLARATION OF CONFORMITY

Page 15

NOTES

__________________________________________________________________________

Page 16
