Clarke HL400R User guide

HEAD-TORCH

MODEL NO: HL400R

PART NO: 4003543

INSTRUCTIONS FOR USE

GC07/23

INTRODUCTION

Thank you for purchasing this CLARKE Head-torch. Before attempting to use
this product, please read this manual thoroughly and follow the instructions
carefully. In doing so you will ensure the safety of yourself and that of others
around you and you can look forward to your purchase giving you long and
satisfactory service.

PRODUCT OVERVIEW

This hands-free 5W COB LED head-torch with 40° angle adjustment and
dimmer switch allows brightness to be adjusted from 20% to 100%.

The main light has one switch with four functions;- On, Flash, Auto-sensor and
Off. Hold down the switch to enable the auto sensor function which will allow
turning on/off just by waving a hand in front of the sensor.

The rear of the strap includes a red LED warning light which has two functions;­Flash or On, making it an ideal cycling light.

The adjustable headband has a foam brow for added comfort. It includes a
battery charging level indicator powered by a rechargeable 3.7V 2.2Ah Li-ion
battery and supplied with a micro USB charging lead.

SPECIFICATIONS

Model HL400R

Operating voltages 3.7V Light - 5V USB

LED Wattage consumption 5W max

Rechargable Lithium battery 2200mAh

Lighting source 1 x 5W LED

Light output (luminous flux) 400 LM

Colour temperature 6000-6800K

Ingress Protection (IP rating) IP20

Battery charging time 2 hours

Approximate Run Time High 2.5 Hours / Low 8.5 hours

Rated lamp lifetime 30,000 hours

Efficiency 80 Lm/W

Operating temperatures

Dimensions 50 x 200 x 200mm

Weight 200 g

0 to +45

o

C

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

GENERAL SAFETY PRECAUTIONS

Please read and understand the following instructions before use.

1. DO NOT shine directly into your own, another person’s or an animal’s eyes.

2. DO NOT allow children to use the head torch.

3. DO NOT use the torch if you suspect that the battery or the torch casing is
damaged.

4. DO NOT leave batteries in a discharged state. Before long term storage
remove batteries.

5. DO NOT attempt to open the batteries.

6. DO NOT crush, puncture, short contacts or dispose of in fire or water.

7. Replace only with the batteries designed for this product.

8. If the electrolyte in the batteries gets on your skin, thoroughly rinse with
water. If it gets in your eyes, rinse thoroughly with cool water and seek
immediate medical attention.

9. DO NOT use the headtorch during recharging.

10. Inspect the charger cable and connector for damage to ensure items are
safe before connecting to the mains power supply. DO NOT use if
damaged.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste but according to the laws governing Waste Electrical and
Electronic Equipment (WEEE) at a recognised disposal facility.

The light source contained in this worklight has a life expectancy of
approximately 30000 hours after which the worklight should be disposed of in
an environmentally responsible way.

The Lithium Ion battery falls under the Waste Batteries and Accumulators
Regulations 2009 and should be disposed of in a controlled manner. Recycle
or dispose of used batteries as stipulated by local regulations.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

OPERATION

TORCH OPERATION

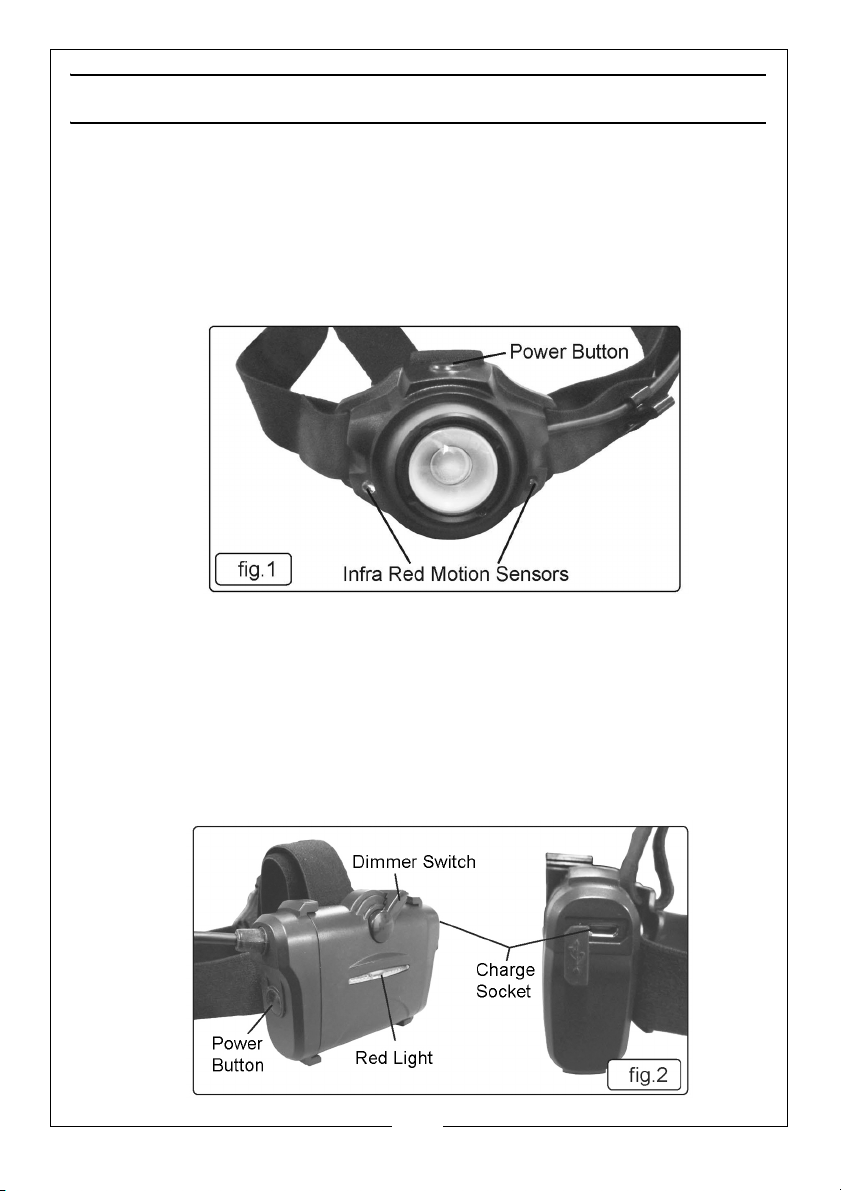

1. Press the power button (fig.1) once to turn the light on.

2. Press the power button twice (fig.1) to put the light into flashing mode.

3. Press again to turn the unit off.

4. Swivel the lamp by up to 40

LIGHT SENSOR

1. Press the power button for three seconds until the red LED illuminates.

2. Pass a hand in front of the light until the light comes on.

o

to suit the task.

RED LIGHT ON THE POWER PACK

1. Press the power button on the power pack (fig.2) for 3 seconds for a solid
red light. If motion is seen by the sensor the light will turn on.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

2. Press the power button twice for a flashing red light.

3. Use the dimmer switch to select high or low illumination.

• To keep your worklight clean, wipe with a damp cloth only, DO NOT

use detergents, chemicals or harmful abrasives. Never immerse in
water.

BATTERY CHARGING

1. Connect the USB lead to the port on the rear of the power pack (fig.2) and
a USB power socket. Turn on the power supply.

• During charging the Red LED will be lit. When fully charged the LED

will turn green.

• The worklight should not be operated while charging.

2. If you plan to store the headlight (e.g. for emergencies), we recommend
that the battery is fully charged before doing so. Fully charge after each
use and after every 3 months. This will ensure the longest possible battery
life.

3. NEVER abuse the charger cable or yank the cable to disconnect it. Keep
the cable away from sharp edges/hot surfaces.

• Do not leave the battery in a discharged state. Recharge after use.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for its intended purpose.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

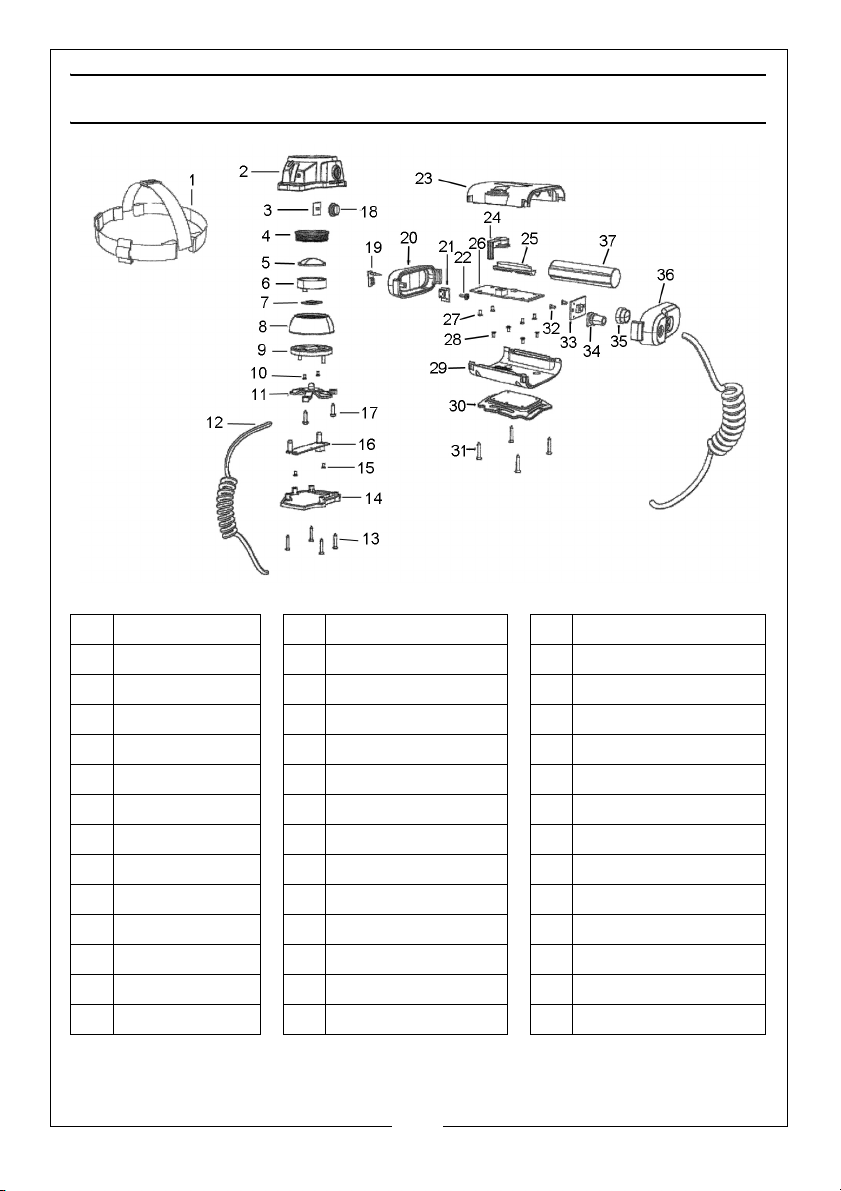

COMPONENT PARTS

No Description No Description No Description

1 Headband 14 Housing base 27 Screw

2 Housing 15 Screw 28 Screw

3 Switch 16PCBA 29Battery box base

4 LED module 17 Screw 30 Headband support

5 Lens 18 Switch cap 31 Screw

6 Reflector 19 USB rubber 32 Screw

7 COB LED 20 Right battery box 33 Switch-warning light

8 Module base 21 USB socket 34 Spring cable clip

9 Rotatable base 22 Screw 35 Switch cap

10 Screw 23 Upper battery box 36 Left battery box

11 Fastener 24 Dimmer controller 37 Li-ion battery

12 Spring cable 25 Red LED light guide

13 Screw 26 PCBA

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

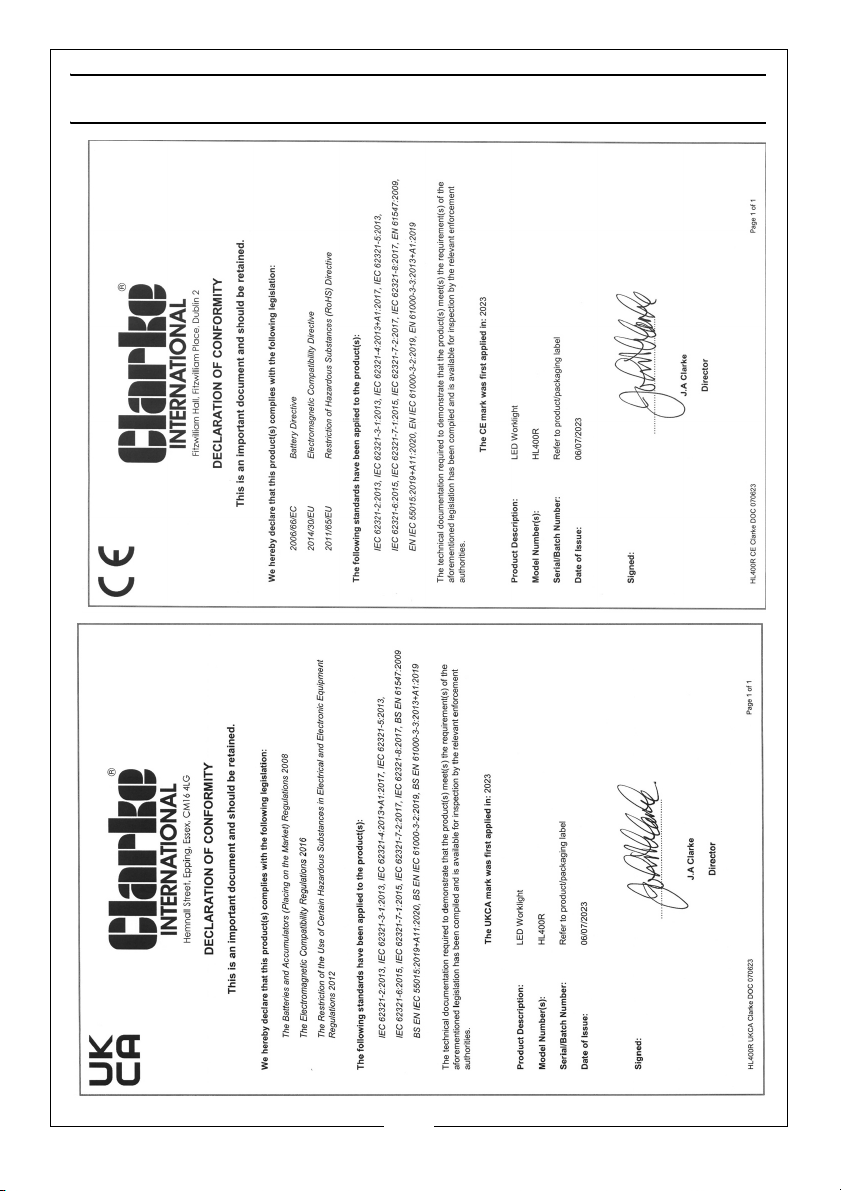

DECLARATIONS OF CONFORMITY

7
