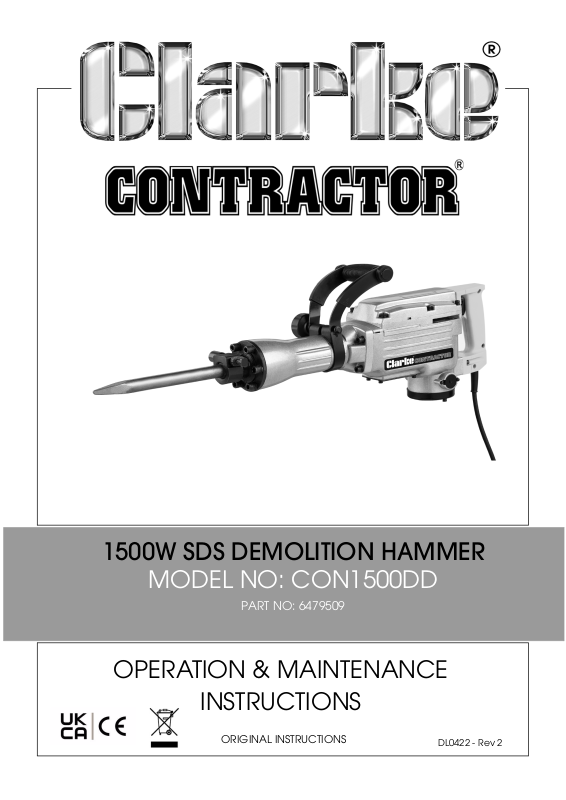

Thank you for purchasing this CLARKE Demolition Hammer. The CON1500DD is
designed for breaking breeze blocks, brick, hard earth and concrete etc.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
2
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
SAFETY PRECAUTIONS
WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL
INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/
OR SERIOUS INJURY. THE TERM “POWER TOOL” IN ALL WARNINGS LISTED
BELOW REFERS TO YOUR DEMOLITION HAMMER.
WORK AREA
1. Keep work area clean and well lit. Cluttered and dark areas invite
accidents.
2. DO NOT operate power tools in explosive atmospheres, such as in the
presence of flammable liquids or gases. Power tools can create sparks
which may ignite the fumes.
3. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. AVOID body contact with earthed or grounded surfaces such as pipes,
radiators, ranges or refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
2. DO NOT expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
3. When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
PERSONAL SAFETY
1. ONLY hold the tool using the handles when in use. DO NOT attempt to use
the tool with one hand.
2. Stay alert, watch what you are doing and use common sense when
operating a power tool. DO NOT use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in personal injury.
3. ALWAYS use safety equipment. Safety equipment such as dust mask, nonskid safety shoes and hearing protection used for appropriate conditions
will reduce personal injuries.
4. AVOID accidental starting. Ensure the switch is in the off position before
connecting to the power supply.
3
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
5. DO NOT overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
6. Dress properly. DO NOT wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts. ALWAYS use protective clothing
for prevention of injury.
7. All hand held power tools vibrate to some extent, and this vibration is
transmitted to the operator via the handles. Operators who are regularly
exposed to vibration may suffer from Hand Arm Vibration Syndrome
(HAVS), which includes ‘dead hand’, ‘dead finger’, and ‘white finger’.
These are painful conditions and are widespread in industries where
vibrating tools are used. If you feel numbness or pain in hands or arms, STOP
using the tool and take a rest. If symptoms persist seek medical advice.
POWER TOOL USE AND CARE
1. DO NOT force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the
rate which it was designed.
2. DO NOT use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the power before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
4. Store idle tools out of the reach of children and DO NOT allow persons
unfamiliar with the power tool or these instructions to operate the power
tool. Power tools are dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power
tools operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Poorly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
7. Use the power tool and accessories in accordance with these instructions
and in the manner intended for the particular type of power tool, taking
into account the working conditions and the work to be performed. Use of
the power tool for operations different from intended could result in a
hazardous situation.
4
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
SERVICE
1. Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
SPECIFICATIONS
Model No.CON1500DD
Operating Voltage and Frequency230V AC~ 50Hz -1phase
Rated Input Power1500W
Chuck capacity/typeSDS HEX 30mm
Impact Energy45 Joules
Impact Rating1900 (blows/min)
IP RatingIP X0
Insulation ClassII
Sound Pressure Level91.8 dB LpA
Guaranteed Sound Power Level105 dB L
Vibration*20.706 m/s
Vibration Uncertainty Factor1.5 m/s
WA
2
2
Weight17.35 kg
Dimensions (LxHxW)640 x 116 x 300 mm
Duty Cycle classificationS1 Continuous
* = Please note that the application of the tool to a sole specialist task may
produce a different average vibration emission. We recommend that a
specific evaluation of the vibration emission is conducted prior to
commencing with a specialist task.
5
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
ELECTRICAL CONNECTIONS
Plug must be BS1363/A approved.
Always fit
Ensure that the outer sheath of
Neutral
(Blue)
Live
(Brown)
a 13 Amp
the cable is firmly held by the clamp
fuse
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.
Before switching the product on, make sure that the voltage of your electricity
supply is the same as that indicated on the rating plate. Connecting it to any
other power source may cause damage.
If it is necessary to change the fuse in the plug, the fuse cover must be refitted.
If the fuse cover becomes lost or damaged, the plug must not be used until a
suitable replacement is obtained.
If the plug has to be changed due to damage, a replacement should be
fitted, following the wiring instructions shown below. The old plug must be
disposed of as insertion into a mains socket could cause an electrical hazard.
WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE
If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.
•The Blue wire must be
connected to the
terminal which is
marked N or coloured
Black.
•The Brown wire must
be connected to the
terminal which is
marked L or coloured
Red.
We strongly recommend
that this machine is
connected to the mains supply via a Residual Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.
This symbol indicates that this is a Class II product, and does not require
an earth connection.
6
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
OVERVIEW/CONTENTS
NODESCRIPTIONNO DESCRIPTION
1SDS Hex Demolition hammer534mm Flat Head Chisel
2Moulded Carrying Case6Spanner
3Oil Bottle75mm Hexagon Key
4Bull Point Chisel86mm Hexagon Key
7
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
BEFORE USE
OIL GAUGE/OIL TOP UP
This machine has an oil chamber which should be filled at the factory. The
machine can be used for approximately 20 days without resupplying the
lubrication oil, assuming that the hammer is used continuously for 3-4 hours
daily. Check the oil level before use. The oil level should be approximately
3mm above the oil gauge window.
Check the oil level by standing the
machine upright and view the oil
level through the window. If low;
1. Place the machine on a flat
surface with the oil gauge
window facing upwards.
2. Using the wrench, remove the oil
gauge window cover.
3. Top up the oil well using the oil
bottle supplied. (no more than
25ml at a time.)
• DO NOT overfill the chamber.
4. Replace the oil gauge window cover and tighten with wrench before
using the hammer again.
POSITIONING THE AUXILIARY HANDLE
The front handle can be positioned
left, right or centre as required.
1. Loosen the handle adjustment
knob by twisting it clockwise.
2. Rotate the handle to the required
position.
3. Secure the handle by twisting the
handle adjustment knob
anticlockwise.
INSERTING A HAMMER BIT / CHISEL
The chuck clamps SDS 30mm Hex hammer bits and chisels without the need
for a chuck key.
8
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
1. Clean and grease the chisel
shank. DO NOT lubricate the
machine.
2. Pull out and rotate the stop lever
180 degrees clockwise
3. Insert the chisel into the chuck
clamp with the flat face of the
chisel facing the stop lever.
4. Pull out and rotate the stop lever
180 degrees anticlockwise to lock
the chisel in place.
5. Check by pulling the chisel to see if it is locked in place.
NOTE: Be aware that the hammer action requires the chisel to be able to
move axially by 2-3 cm.
6. To remove the chisel, reverse the above steps.
7. DO NOT allow dust or debris inside the chuck as this will cause problems in
the future.
CAUTION: WHEN REMOVING A BIT FROM THE HAMMER, REMEMBER THAT
IT MAY BE EXTREMELY HOT. EITHER ALLOW IT TO COOL DOWN FIRST OR
USE INDUSTRIAL GLOVES TO REMOVE THE BIT.
USING THE HAMMER
WARNING: ALWAYS CHECK OIL LEVEL BEFORE USE - SEE PAGE 8
BEFORE STARTING WORK
1. Before hammering into walls and floors etc., check first that there are no
hidden electrical cables, gas or water pipes etc.
2. Check the mains voltage (230v~50Hz) before plugging in and switching on.
3. Ensure the work area is as hazard free as possible.
STARTING WORK
1. Select and install the chisel to be used. See page 8.
2. If required, adjust the auxiliary handle for the most comfortable position,
see page 8.
• For safety, always use the hammer with the auxiliary handle attached.
9
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
3. Position the tool against the
surface to be hammered and pull
the trigger switch.
4. For continuous use, press the
trigger lock button after pressing
the trigger.
STOPPING WORK
1. Release the trigger or press the trigger if in continuous use mode and wait
until the chisel has stopped before placing the hammer on any surface.
HAMMERING TIPS
• Always use sharp, good quality hammer bits/chisels. The performance of
your hammer is dependant on the quality of the bits used.
• Reduce the pressure on the hammer bit when it is about to break
through. This will prevent the hammer from jamming.
• If hammering a large hole, first hammer a pilot hole using a smaller
hammer bit.
• Always apply pressure to your hammer bit in a straight line.
MAINTENANCE AND SERVICING
1. After use, remove the hammer bit and tap the side of the chuck to remove
any dust or chippings etc.
2. Keep the handle clean and free from oil and grease.
3. Worn or damaged parts must be replaced by qualified personnel.
4. Clean the tool regularly, use a soft brush and/or soft cleaning cloth. DO
NOT use any chemicals or harsh abrasives to clean the tool.
5. At the end of work, to prevent dust deposits you should use compressed air
(max.3 bar) to clean out the ventilation holes. When using compressed air
ALWAYS wear the correct PPE and eye protection.
10
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
SAFETY SYMBOLS
Read Instruction
Manual Before Use
Wear Safety FootwearWear Ear Defenders
Wear Safety GlovesWear Safety Glasses
WEEE DirectiveCE Mark
Class 2 Double
Insulated
Wear Dust Mask
UK Mark
ACCESSORIES & RELATED PRODUCTS
For accessories, please contact your nearest Clarke dealer.
Fully Synthetic Motor Oil
- 5W40
•1 litre
•Part No. 13050858
Bull Point Chisel 34mm Flat Head Chisel
•30mm x 410mm
•Part No. 6479551
• 30mm x 410mm
•Part No. 6479552
11
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
PARTS D I A G R A M
12
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
PARTS L I S T
IDDESCRIPTIONIDDESCRIPTION
1Washer 12.5 x 18 x 0.831Key 4 x 6.5 x 16
2Washer 12.4 x 17.6 x 2.632Nylock Hex. Socket Bolt M5 x 25
3Spring 17.5 x 1.3 x 26.533Washer
4Spring Case 23 x 2834Bearing Cover
5Pin 4 x 1835Bearing 6205
6Nylock Hex. Socket Bolt M10 x 3536Inner Cover
7Washer 37Ring 22.5 x 34 x 7.5
8Stop Lever38Gear 63
9Front Cover39Ring 22
10 Damper 47.5 x 66.5 x 14.340Bearing 6302
11 O Ring 23.6 x 541Gear Cover
12 Shank Sleeve42Nylock Hex. Socket Bolt M6 x 45
13 Ring43Washer
14 Ring 64.5 x 67.5 x 27.544Washer
15 Ring 57.5 x 68.4 x 245Bearing 6201
16Damper 58 x 68 x 9.346Gear 20CrMnTi/HRC48-52
17Cylinder House47Bearing 6001
18Nylock Hex. Socket Bolt M8 x 3548Bearing Cover 6203
19Washer 49Bearing Washer 29.5 x 39.5 x 2
20Washer 50Roll Bearing 6203
21O-Ring 60 x 251Nylock Hex. Socket Bolt M6 x 14
22Cylinder52Rotor
23O Ring53Bearing 6201
24Piston54Washer 31 x 25 x 0.5
25Pin 12 x 3455Stator
26Connecting Rod56Nylock Hex. Socket Bolt M5 x 55
27Pin 5 x 1457Stator Housing
28Gear House58Switch
29Ring59Handle
30Crankshaft 60Handle Cover
13
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
IDDESCRIPTIONIDDESCRIPTION
61Nylock Hex. Socket Bolt M5 x 5584Washer
62Self Tapping Screw ST3.9 x 2085Felt Holder
63Capacitor 0.33uF86Oil Felt 7 x 70
64Cable Plate87Felt Holder Seal
65Self Tapping Screw ST3.9 x 1688Nylock Hex. Socket bolt M8 x 30
66Cable Cover89Bearing Cover 24.5 x 2.3
67Cable90Bearing NK18/20
68Chassis91Nut M8 x 10
69Nylock Hex. Socket Bolt M5 x 1292Plastic Block
70Spring93Hand Grip
71Brush Washer94Knob
72Brush Holder95Rubber Cover
73Nylock Hex. Socket Bolt M5 x 896Handshaft
74Brush 7 x 17 x 1897Handshaft Cover
75Brush Holder Cap98Pin
76Washer 10 x 26 x 399Auxiliary Handle
77Brush Cover
78Washer
79Cross Bolt M4 x 14
80Oil Gauge
81O Ring 23 x 2
82Oil Box Cover
83Washer
When ordering spare parts, please quote the reference CON1500DD onwards.
e.g. Cylinder House will be CON1500DD17.
14
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
DECLARATION OF CONFORMITY
15
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
