Clarke COB 10T, 4003620 User guide

LED WORKLIGHT (230V)

MODEL NO: COB10T

PART NO: 4003620

ASSEMBLY & USER

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC1119 - ISS 2

INTRODUCTION

Thank you for purchasing this CLARKE portable worklight /floodlight suitable for
indoor or outdoor work. Before attempting to use this product, please read this
manual thoroughly and follow the instructions carefully. In doing so you will
ensure the safety of yourself and that of others around you, and you can look
forward to your purchase giving you long and satisfactory service.

TECHNICAL INFORMATION

Model COB10T

Model type L9601J

Dimensions (L x W x H) 58 x 870 x 1650 mm

Weight 3.5 kg

Operating Temperature

Input power (consumption) 10W

Light Source COB LED

Light Output (luminous flux) 800 lumen @ 1m

Fuse Rating 3A

Power Supply 230V @50Hz

Insulation Class I

IP Rating IP65

Efficiency 80 Lm/W

Energy Efficiency Class A+

Colour Temperature 6500 K

Weighted Energy Consumption 10 kWh/1000h

LED type Epistar LED chip (non-replacable)

Life Expectancy of LED 20,000 hours

-20

o

C - 50oC

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY PRECAUTIONS

1. This worklight must not be immersed in water.

2. Do not look directly into the lamp when switched on as this can damage
the eyes.

3. If used with an extension cable always ensure that the extension cable is
fully unwound.

4. Do not use this worklight if it has a broken lens, casing or damaged supply
cable.

5. Always unplug the worklight before moving it or performing maintenance.
Do not touch the lamp when your hands are wet.

6. Do not attempt to disassemble or repair the worklight.

7. Do not leave the worklight unattended when switched on. Always unplug
the worklight when it is not in use.

8. Never unplug the worklight by holding the cable. Unplug by holding the
plug.

9. Never use the worklight if the cable or plug are damaged.

10. When assembling the tripod, ensure that the ground is level and firm.

11. Take extra care not to push or knock the tripod over when fully extended.

12. Ensure the lamp is a safe distance from other objects in the working
environment.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

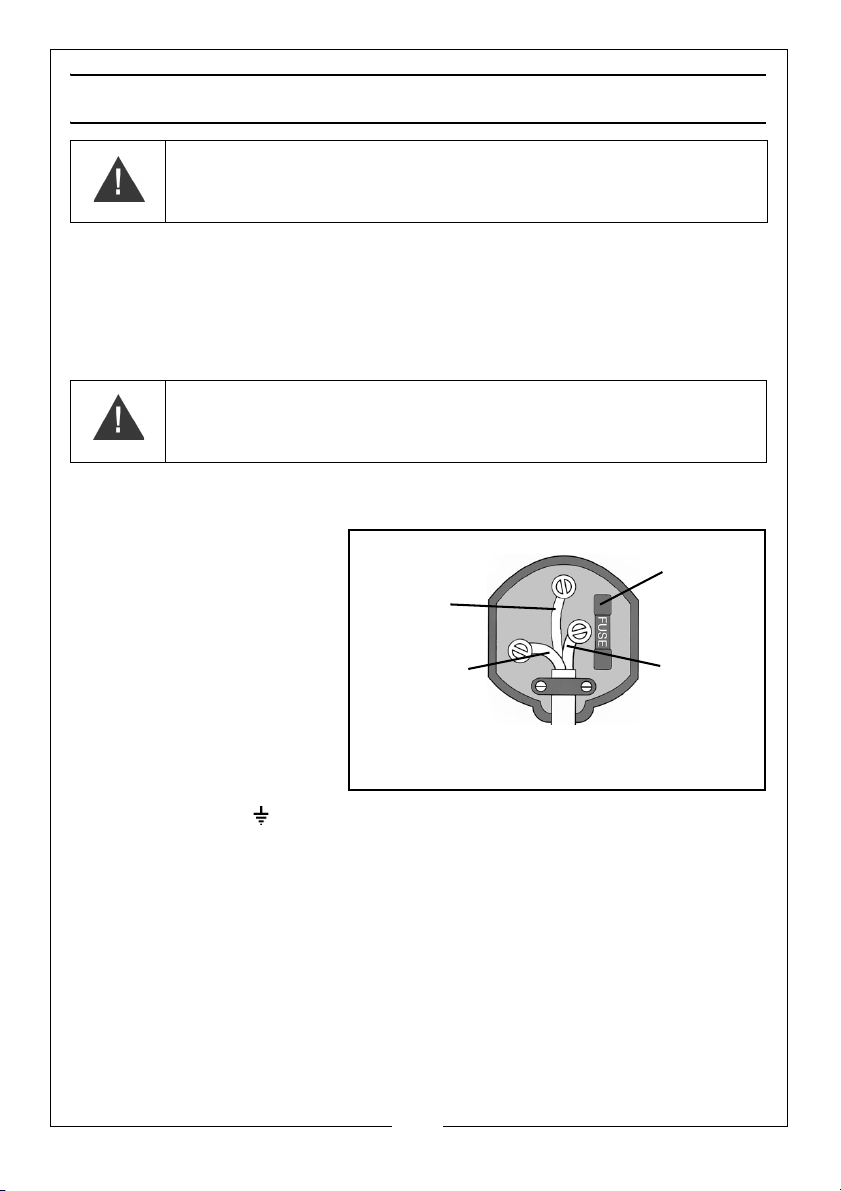

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 3 Amp

the cable is firmly held by the clamp

fuse.

Yel low )

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply
through an approved BS 1363 plug, or a suitably fused isolator switch.

If the plug has to be changed because it is not suitable for your socket, or
because of damage, it must be removed and a replacement fitted, following
the wiring instructions shown below. The old plug must be discarded safely, as
insertion into a power socket could cause an electrical hazard.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

If the colours of the wires in the power cable do not agree with the markings
on the plug.

• The BLUE wire must be

connected to the
terminal marked N or
coloured black.

• The BROWN wire must

be connected to the
terminal marked L or
coloured red.

• The YELLOW AND

GREEN wire must be
connected to the
terminal which is

marked E or or coloured green.

We strongly recommend that this product is connected to the mains supply
through a Residual Current Device (RCD)

If you are not sure, consult a qualified electrician.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the obligation to
deal with WEEE in accordance with the WEEE regulations in relation to the
treatment, recycling, recovery & environmentally sound disposal of the WEEE.

This means that this product must not be disposed of with general household
waste. It must be disposed of according to the laws governing Waste
Electrical and Electronic Equipment (WEEE) at a recognised disposal facility

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

4

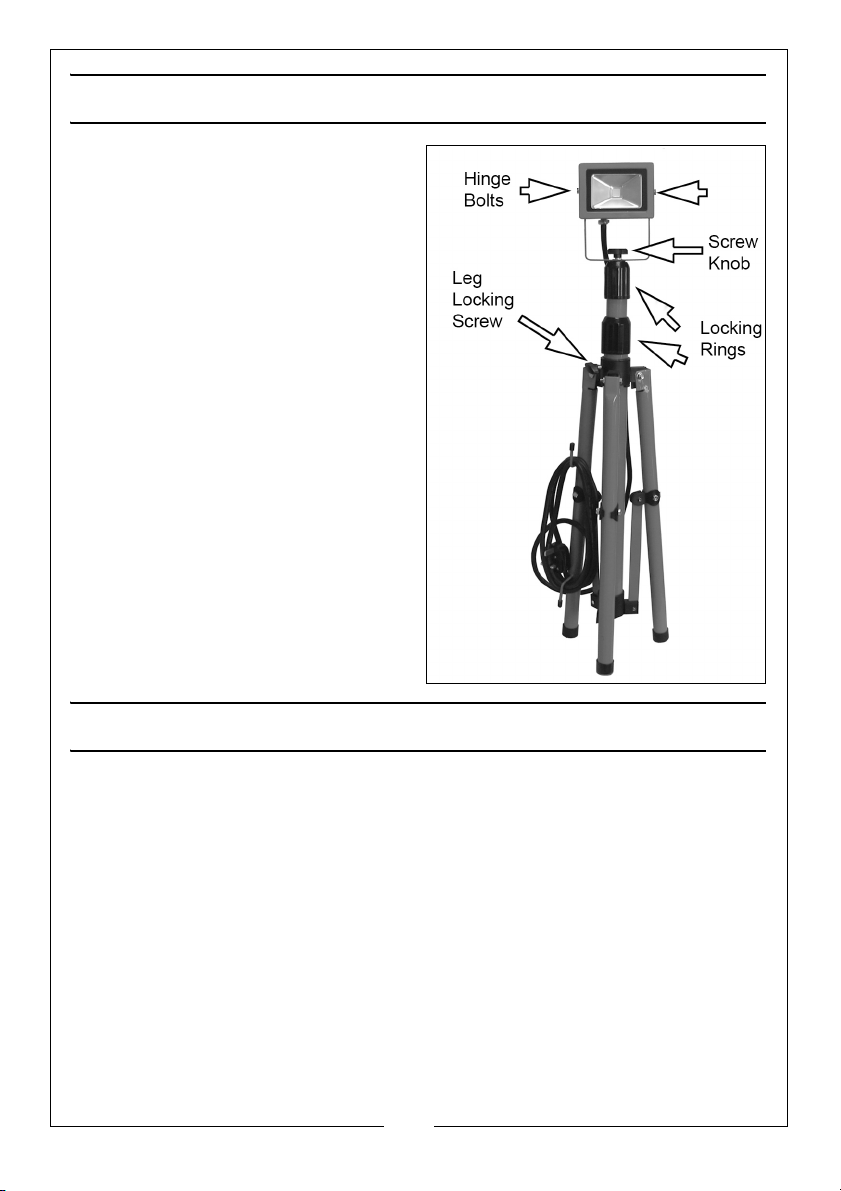

ASSEMBLY & MOUNTING

The tripod stand is supplied fully
assembled.

1. Pull the legs apart to erect the
tripod and set in position with the
leg locking screw.

2. Adjust the height of the tripod
column by twisting the locking
rings anti-clockwise to release,
and sliding the tubes to the
required height before twisting
clockwise to lock.

3. Attach the worklamp to the
column by securing with the
screw knob.

• The worklamp can be swivelled

if required by loosening the
knob.

4. Tighten the hinge bolts on either
side of the lamp to set the angle
of elevation as required.

CARE & STORAGE

1. When not in use, switch off & unplug from the power supply. Coil the cable
around the storage hooks provided on the tripod for tidy storage.

2. Store this product in a secure, dry place, out of the reach of children. Do
not leave it exposed to the elements and avoid direct sunlight, direct heat,
rain/moisture etc.

3. Keep the external surfaces clean. Avoid impact damage & do not allow
this worklight to come into contact with abrasive or corrosive materials.

4. With the worklight unplugged from the power supply, use a dry cloth to
wipe over the components. Do not use solvents, thinners or alcohol for
cleaning, as these chemicals will damage the finish.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

5. Inspect the extension lead regularly and replace if damaged. Only use
extension leads that are of an appropriate power rating and suitable for
the work environment.

6. The LED light source cannot be replaced but has a life expectancy of
approximately 20000 hours.

7. Never use unauthorised accessories or attachments which can cause
personal injury or damage to the worklight.

8. Do not attempt to repair or modify this product or attempt any electrical
repair yourself. Consult the Clarke Service Department on 020 8988 7400.

REPLACEMENT TRIPOD PARTS

1 Lamp Head 22 Bolt

2Top End 23Bracket

3 Upper Tube 24 Packer

4 Locking Ring 25 Connecting Arm

5 Screwed Tube 26 Open Washer

6 Middle Tube 27 Bolt

7 Locking Ring 28 End cap

8 Screwed Tube 29 Connection

9 Washer 30 Pan Head Screw

10 Washer 31 Nut

11 Outer Hex Bolt 32 Flat Washer

12 Locknut 33 Washer

13 Fixing Bracket 34 Plastic Cover

14 Flat Washer 35 Adapting Piece

15 Plastic Cover 36 Inner Bolt

16 Oval Screw 37 Cross Screws

17 Spring Washer 38 End Connection

18 Connector 39 Leg

19 Stand Tube 40 Screw Knob

20 Leg with Hook 41 Spring Washer

21 Hook End Cap 42 Flat Washer

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

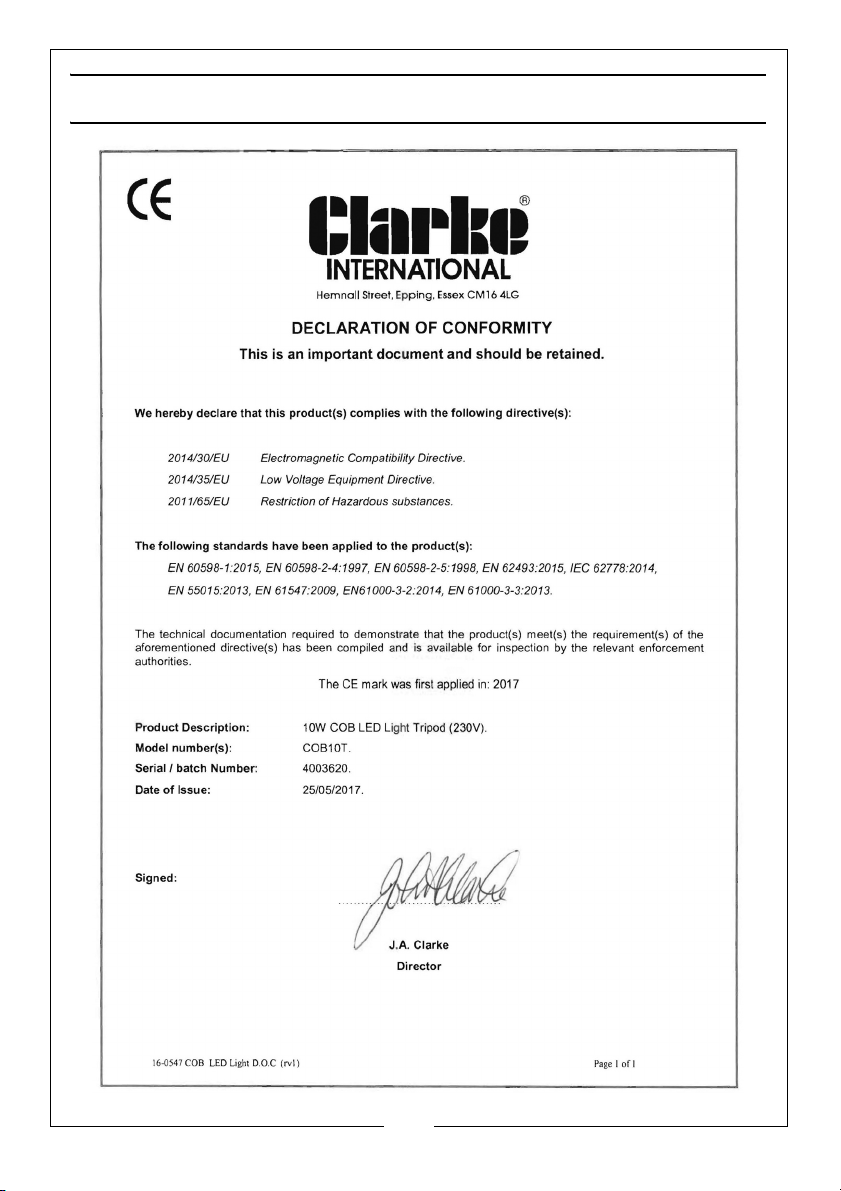

DECLARATION OF CONFORMITY
