Clarke CMS 216S, 6461525 User guide

216MM SLIDING MITRE SAW

MODEL NO: CMS216S

PART NO: 6461525

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0422 -Rev 1

INTRODUCTION

Thank you for purchasing this CLARKE Sliding Mitre Saw.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

Mitre saws are intended to cut wood or wood-like products, they cannot be
used with abrasive cut-off wheels for cutting ferrous material such as bars,
rods, studs, etc

IMPORTANT

Please pay particular attention to all sections of this user guide that display
warning symbols and notices.

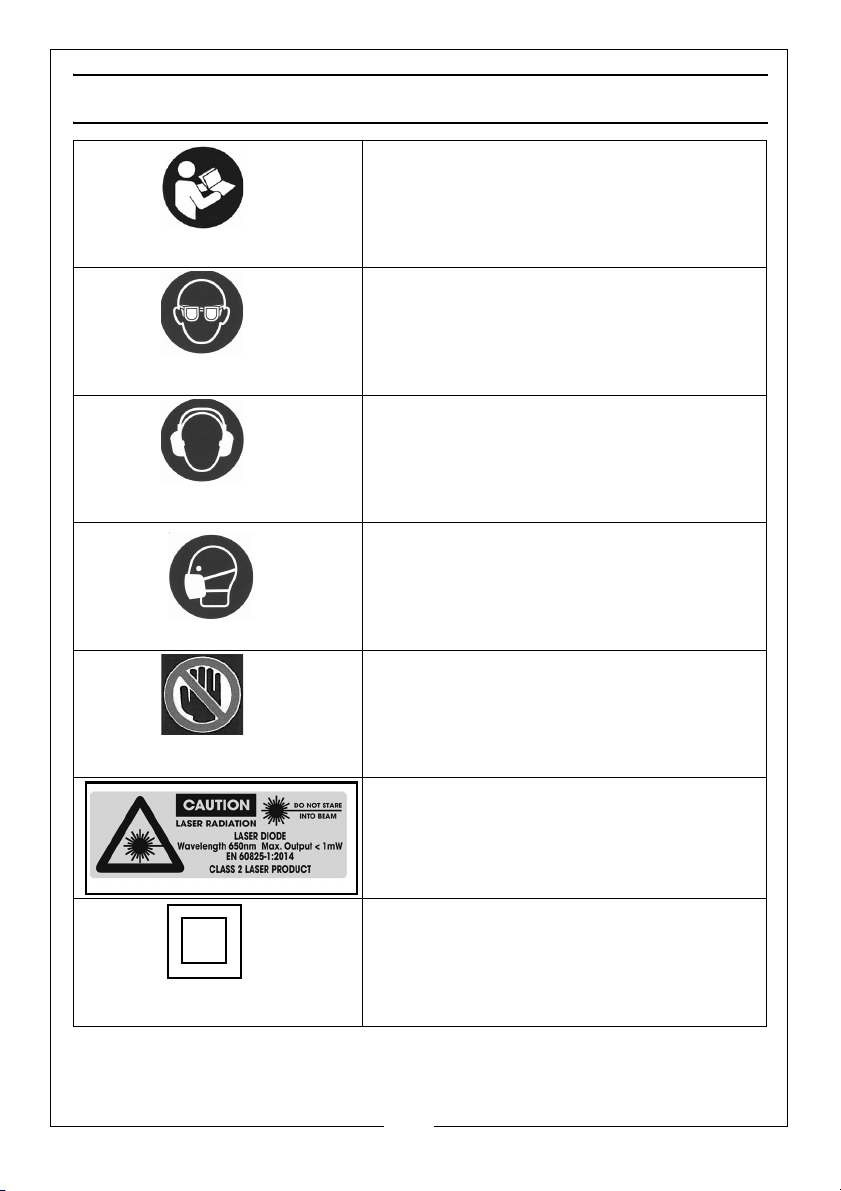

WARNING: THIS IS A WARNING SYMBOL. THIS SYMBOL IS USED
THROUGHOUT THE USER GUIDE WHENEVER THERE IS A RISK OF
PERSONAL INJURY. ENSURE THAT THESE WARNINGS ARE READ AND
UNDERSTOOD AT ALL TIMES.

The work piece must have a minimum height of 3mm and a minimum width of
10mm. Make sure that the workpiece is always secured with the clamping
device.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not affect your statutory rights.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY WARNINGS

WORK AREA

1. Keep the work area clean and well lit. Cluttered and dark areas invite
accidents.

2. DO NOT operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.

3. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

ELECTRICAL SAFETY

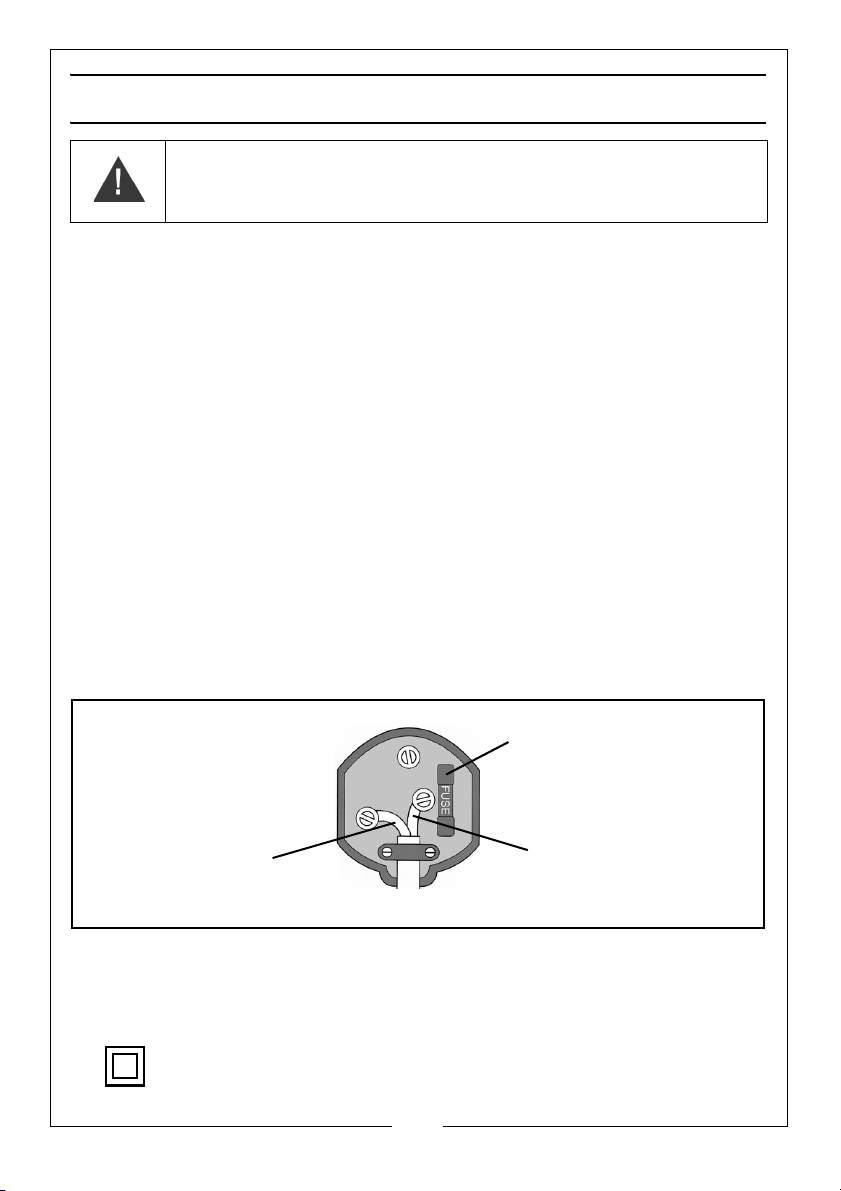

1. Power tool plugs must match the outlet. NEVER modify the plug in any way.
DO NOT use adapter plugs with earthed (grounded) power tools.

Unmodified plugs & matching outlets will reduce the risk of electric shock.

2. DO NOT expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.

3. DO NOT abuse the power cable. NEVER use it for carrying, pulling or

unplugging the power tool. Keep the power cable away from heat, oil,
sharp edges or moving parts. Damaged or entangled cables increase the

risk of electric shock.

4. When operating a power tool outdoors, use an extension cable suitable for
outdoor use. Use of a cable suitable for outdoor use reduces the risk of
electric shock.

5. If operating the power tool in a damp location is unavoidable, use a

residual current device (RCD) protected supply.

PERSONAL SAFETY

1. Stay alert, watch what you are doing and use common sense when
operating a power tool. DO NOT use a power tool while you are tired or

under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in personal injury.

2. Use safety equipment. Always wear eye protection. Safety equipment such
as dust mask, non-skid safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal injuries.

3. Avoid accidental starting. Ensure the switch is in the off position before
plugging in. Carrying power tools with your finger on the switch or plugging
in power tools that have the switch on invites accidents.

4. Remove any wrench before turning the power tool on. A wrench left
attached to a rotating part may result in personal injury.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

5. DO NOT overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.

6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.

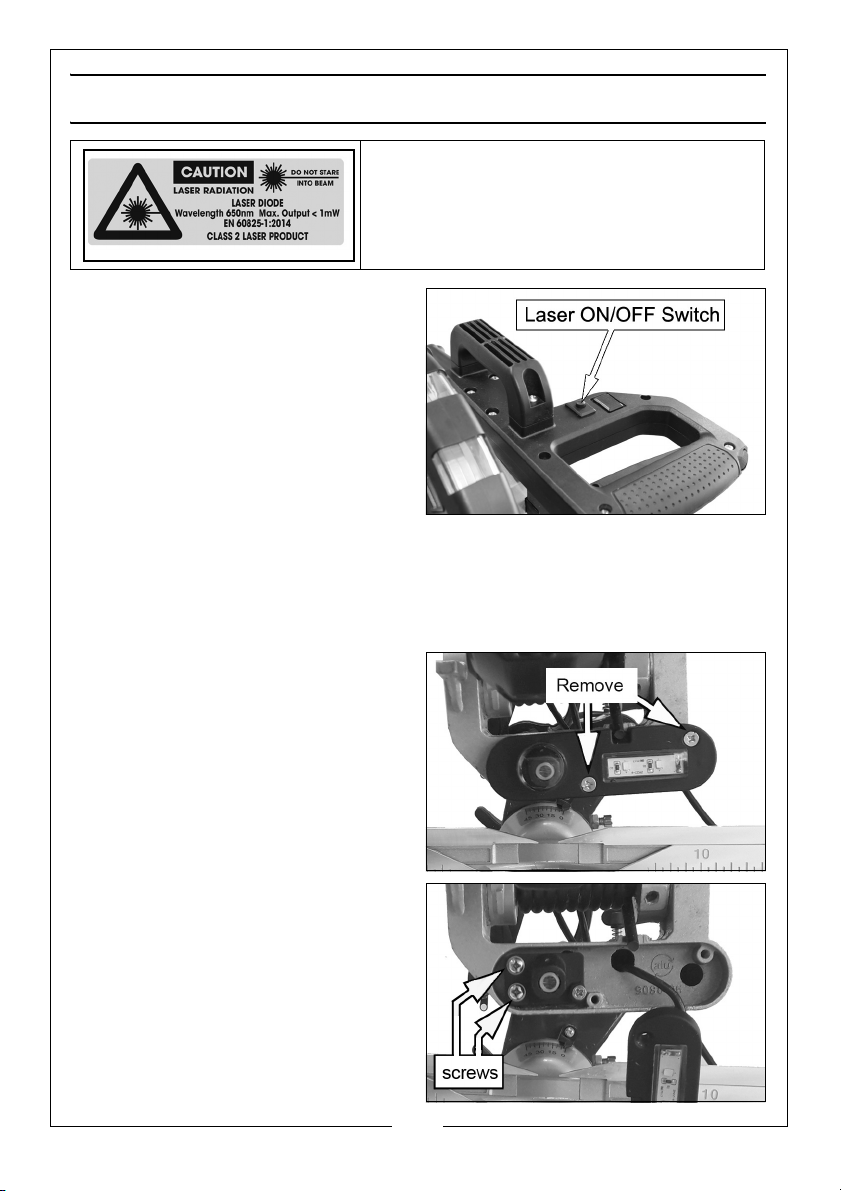

7. A laser beam can cause serious eye injury. DO NOT look into the laser
outlet.

POWER TOOL USE AND CARE

1. DO NOT force the power tool. Use the correct accessories for your
application. The correct power tool will do the job better and safer at the
rate which it was designed.

2. DO NOT use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.

3. Disconnect the plug from the power source before changing accessories,
or storing power tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.

4. Store idle tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate it. Power tools
are dangerous in the hands of untrained users.

5. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power
tool’s operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.

6. Use the power tool and accessories in accordance with these instructions

and in the manner intended, taking into account the working conditions
and the work to be performed. Use of the power tool for operations

different from intended could result in a hazardous situation.

ADDITIONAL SAFETY RULES FOR MITRE SAWS

1. Use clamps to support the workpiece whenever possible. If supporting the
workpiece by hand, you must always keep your hand at least 100 mm from
either side of the saw blade. DO NOT use this saw to cut pieces that are too
small to be securely clamped or held by hand. If your hand is placed too
close to the saw blade, there is an increased risk of injury from blade
contact.

2. The workpiece must be stationary and clamped or held against both the
fence and the table.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

3. DO NOT feed the workpiece into the blade or cut "freehand" in any way.
Unrestrained or moving workpieces could be thrown at high speeds,
causing injury.

4. Push the saw through the workpiece. DO NOT pull the saw through the
workpiece. To make a cut, raise the saw head and pull it out over the
workpiece without cutting, start the motor, press the saw head down and
push the saw through the workpiece. Cutting on the pull stroke is likely to
cause the saw blade to climb on top of the workpiece and violently throw
the blade assembly towards the operator.

5. NEVER cross your hand over the intended line of cutting either in front or
behind the saw blade. Supporting the workpiece "cross handed" i.e.
holding the workpiece to the right of the saw blade with your left hand or
vice versa is very dangerous.

6. DO NOT reach behind the fence with either hand closer than 100 mm from
either side of the saw blade, to remove wood scraps, or for any other
reason while the blade is spinning. The proximity of the spinning saw blade
to your hand may not be obvious and you may be seriously injured.

7. Inspect your workpiece before cutting. If the workpiece is bowed or
warped, clamp it with the outside bowed face toward the fence. ALWAYS
make certain that there is no gap between the workpiece, fence and
table along the line of the cut. Bent or warped workpieces can twist or shift
and may cause binding on the spinning saw blade while cutting. There
should be no nails or foreign objects in the workpiece.

8. DO NOT use the saw until the table is clear of all tools, wood scraps, etc.,
except for the workpiece. Small debris or loose pieces of wood or other
objects that contact the revolving blade can be thrown with high speed.

9. Cut only one workpiece at a time. Stacked multiple workpieces cannot be
adequately clamped or braced and may bind on the blade or shift during
cutting.

10. Ensure the mitre saw is mounted or placed on a level, firm work surface
before use. A level and firm work surface reduces the risk of the mitre saw
becoming unstable.

11. Plan your work. Every time you change the bevel or mitre angle setting,
make sure the adjustable fence is set correctly to support the workpiece
and will not interfere with the blade or the guarding system. Without turning
the tool "ON" and with no workpiece on the table, move the saw blade
through a complete simulated cut to assure there will be no interference or
danger of cutting the fence.

12. Provide adequate support such as table extensions, saw horses, etc. for a
workpiece that is wider or longer than the table top. Workpieces longer or
wider than the mitre saw table can tip if not securely supported. If the cut-

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

off piece or workpiece tips, it can lift the lower guard or be thrown by the
spinning blade.

13. DO NOT use another person as a substitute for a table extension or as
additional support. Unstable support for the workpiece can cause the
blade to bind or the workpiece to shift during the cutting operation pulling
you and the helper into the spinning blade.

14. The cut-off piece must not be jammed or pressed by any means against
the spinning saw blade. If confined, i.e. using length stops, the cut-off
piece could get wedged against the blade and thrown violently.

15. ALWAYS use a clamp or a fixture designed to properly support round
material such as rods or tubing. Rods have a tendency to roll while being
cut, causing the blade to "bite" and pull the work with your hand into the
blade.

16. Let the blade reach full speed before contacting the workpiece. This will
reduce the risk of the workpiece being thrown.

17. If the workpiece or blade becomes jammed, turn the mitre saw off. Wait for
all moving parts to stop and disconnect the plug from the power source.
Then work to free the jammed material.

18. After finishing the cut, release the switch, hold the saw head down and
wait for the blade to stop before removing the cut-off piece. Reaching
with your hand near the coasting blade is dangerous.

19. Hold the handle firmly when making an incomplete cut or when releasing
the switch before the saw head is completely in the down position. The
braking action of the saw may cause the saw head to be suddenly pulled
downward.

SAFETY FOR THE HANDLING OF SAW BLADES

1. Check the condition of the blade before using the saw.

2. DO NOT use damaged or deformed saw blades.

3. ONLY use saw blades recommended by the manufacturer.

4. Saw blades designed to cut wood and similar materials must comply with
EN 847-1.

5. DO NOT use saw blades made of high-speed alloy steel (HSS steel). Only
use replacement blades from your CLARKE dealer.

6. Observe the saw blade direction of rotation.

7. Clean any grease, oil and water off of the clamping surfaces.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

8. ONLY use the saw blade supplied for cutting wood, never for the cutting of
metals.

9. ONLY use saw blades with diameters in accordance with the markings on
the saw.

10. Use additional workpiece supports, if required for workpiece stability.

11. Workpiece support extensions must always be secured and used during
work.

12. Replace table inserts when worn.

13. Avoid overheating of the saw teeth.

14. When sawing plastic take care not to melt the plastic.

15. Use the appropriate saw blades for this purpose. Replace damaged or
worn saw blades immediately.

16. When the saw blade overheats, stop the machine. Allow the saw blade to
cool down before using the machine again.

LASER SAFETY

CAUTION: METHODS OTHER THAN THOSE SPECIFIED HERE CAN RESULT IN
DANGEROUS RADIATION EXPOSURE.

1. DO NOT look directly into the laser beam with unprotected eyes.

2. NEVER look into the path of the beam.

3. NEVER point the laser beam towards reflecting surfaces and persons or
animals. Even a laser beam with a low output can cause damage to the
eyes.

4. NEVER open the laser module. Unexpected exposure to the beam can
occur.

5. The laser may not be replaced with a different type of laser.

6. Repairs of the laser may only be carried out by the laser manufacturer or
an authorised representative.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

RESIDUAL RISKS

1. Despite all precautions having been met, some non-obvious residual risks
may still remain.

2. Residual risks can be minimised if the safety warnings are observed along
with the whole of the operating instructions.

3. DO NOT load the machine unnecessarily. Excessive pressure when sawing
will quickly damage the saw blade which results in reduced output of the
machine in the processing and in cut precision.

4. When cutting plastic material, please always use clamps: the parts being
cut must always be fixed between the clamps.

5. Avoid accidental starting of the machine: the operating button may not
be pressed when inserting the plug in an outlet.

6. Hands must never enter the cutting zone when the machine is in operation.

WARNING: THIS ELECTRIC TOOL GENERATES AN ELECTROMAGNETIC FIELD
DURING USE. THIS FIELD CAN IMPAIR ACTIVE OR PASSIVE MEDICAL
IMPLANTS UNDER CERTAIN CONDITIONS. IN ORDER TO PREVENT THE RISK
OF SERIOUS OR DEADLY INJURIES, WE RECOMMEND THAT PERSONS WITH
MEDICAL IMPLANTS CONSULT WITH THEIR PHYSICIAN AND THE
MANUFACTURER OF THE MEDICAL IMPLANT PRIOR TO OPERATING THE
SAW.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY SYMBOLS

Read instruction manual and safety
instructions

Wear safety goggles

Wear ear defenders

Wear a dust mask

Important! Risk of injury. Never touch the
moving saw blade!

Laser Radiation, Class 2 Laser: Do not
stare into the beam.

Protection Class II (double shielded)

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 13 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS
SUPPLY.

Before switching the product on, make sure that the voltage of your electricity
supply is the same as that indicated on the rating plate. This product is
designed to operate on 230VAC 50Hz. Connecting it to any other power
source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due
to damage, it should be cut off and a replacement fitted, following the wiring
instructions shown below. The old plug must be disposed of safely, as insertion
into a mains socket could cause an electrical hazard.

If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.

•The Blue wire must be connected to the terminal marked N or

coloured Black.

•The Brown wire must be connected to the terminal marked L or

coloured Red

We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

This symbol indicates that this is a Class II product, and does not
require an earth connection.

10

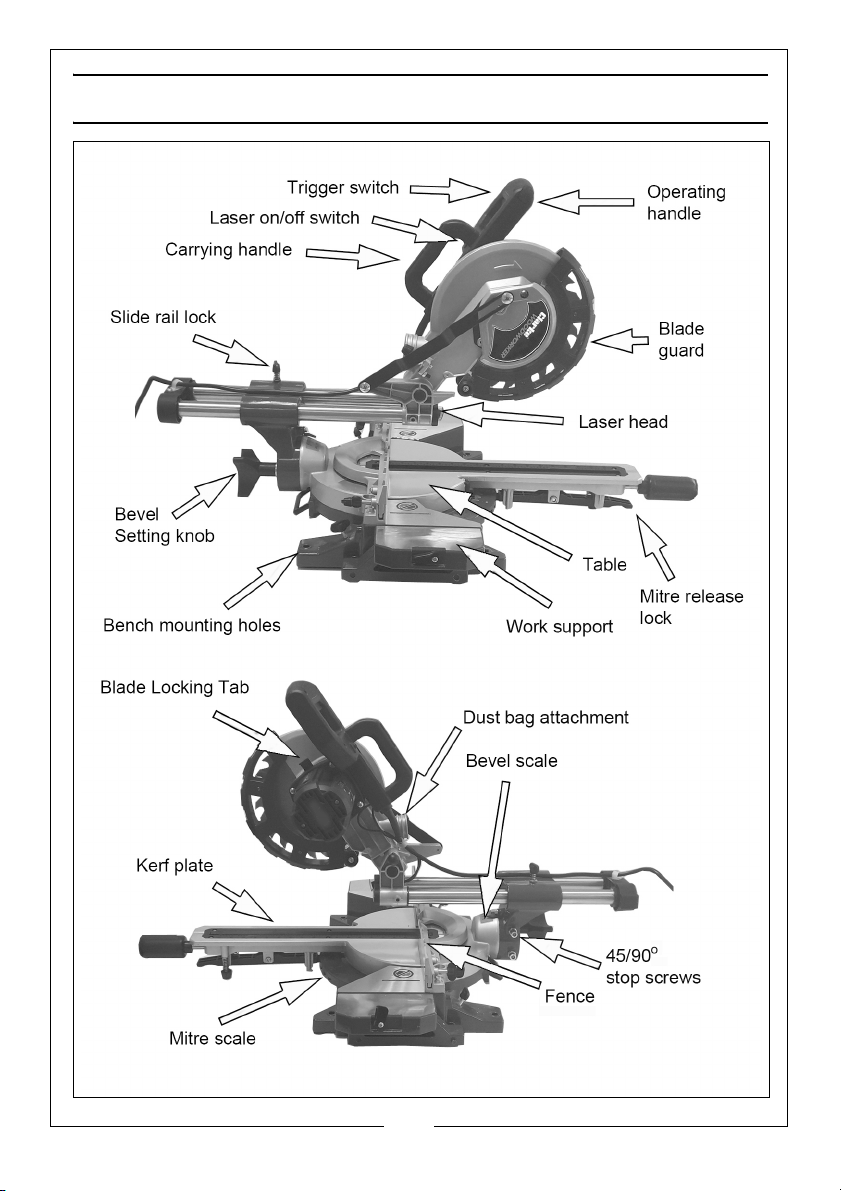

OVERVIEW

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

BEFORE USE

1. Remove the saw from the packing material carefully.

• The following should be supplied. If anything is missing speak to your

CLARKE dealer.

1 x Cross-Cut Mitre Saw with Laser Guide 1 x Sawdust Bag

1 x Clamping Device (fitted). 1 x 6 mm Hex Key

2 x Workpiece Supports (fitted). 1 x 3 mm Hex Key

1 x Blade - 216 mm x 30 mm x 2.8 mm x
24 TCT (fitted)

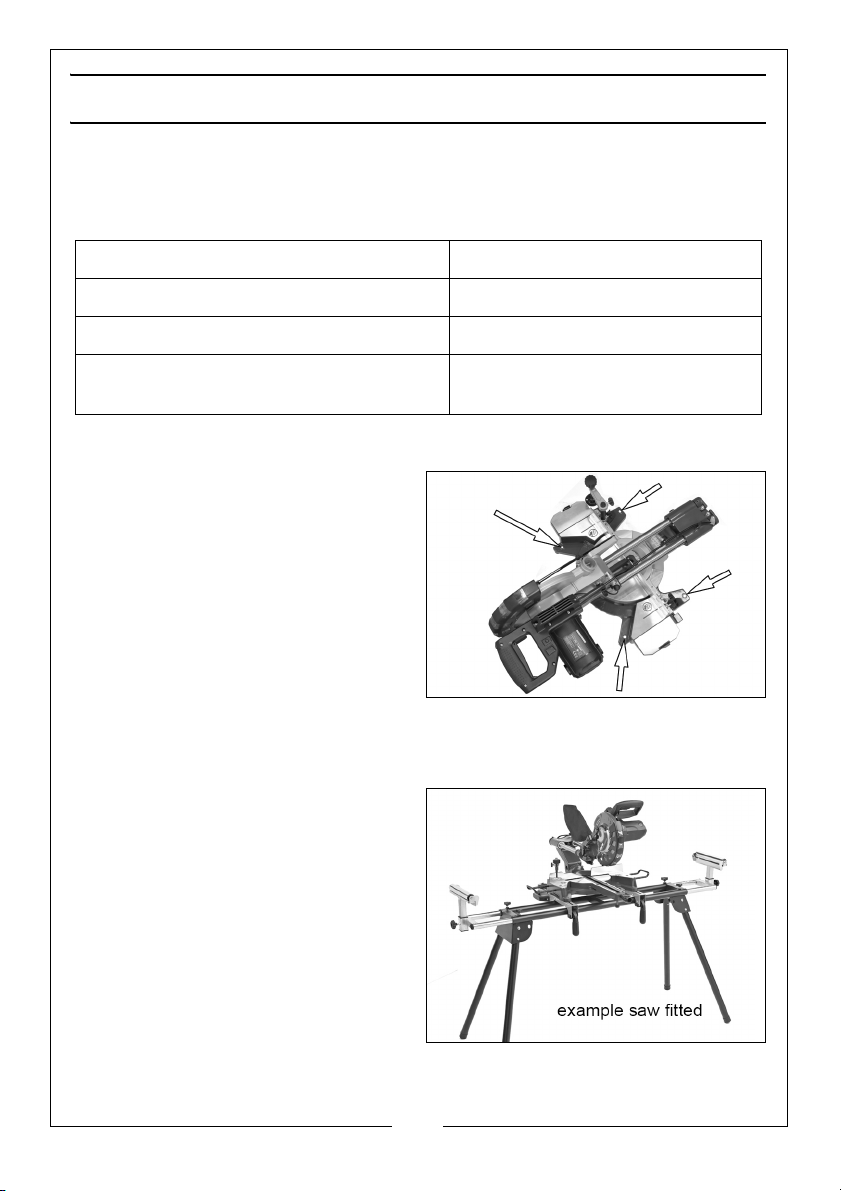

BENCH MOUNTING

Holes are provided in all four feet to
facilitate bench mounting.

• Always mount your saw firmly

on a level surface to prevent
movement.

The saw can also be mounted to a
piece of 12.5 mm or thicker plywood
which can then be clamped to your
work surface.

• When mounting your saw to a

piece of plywood, make sure that the mounting screws do not protrude
from the bottom of the wood.

MITRE SAW STAND (NOT SUPPLIED)

You can also mount the machine to
a mitre saw stand available from your
local CLARKE dealer.

CUTS Mitre Saw Stand Part No

6500944.

1 x Blade - 216 mm x 30 mm x 2.8
mm x 48 TCT (in box).

12

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

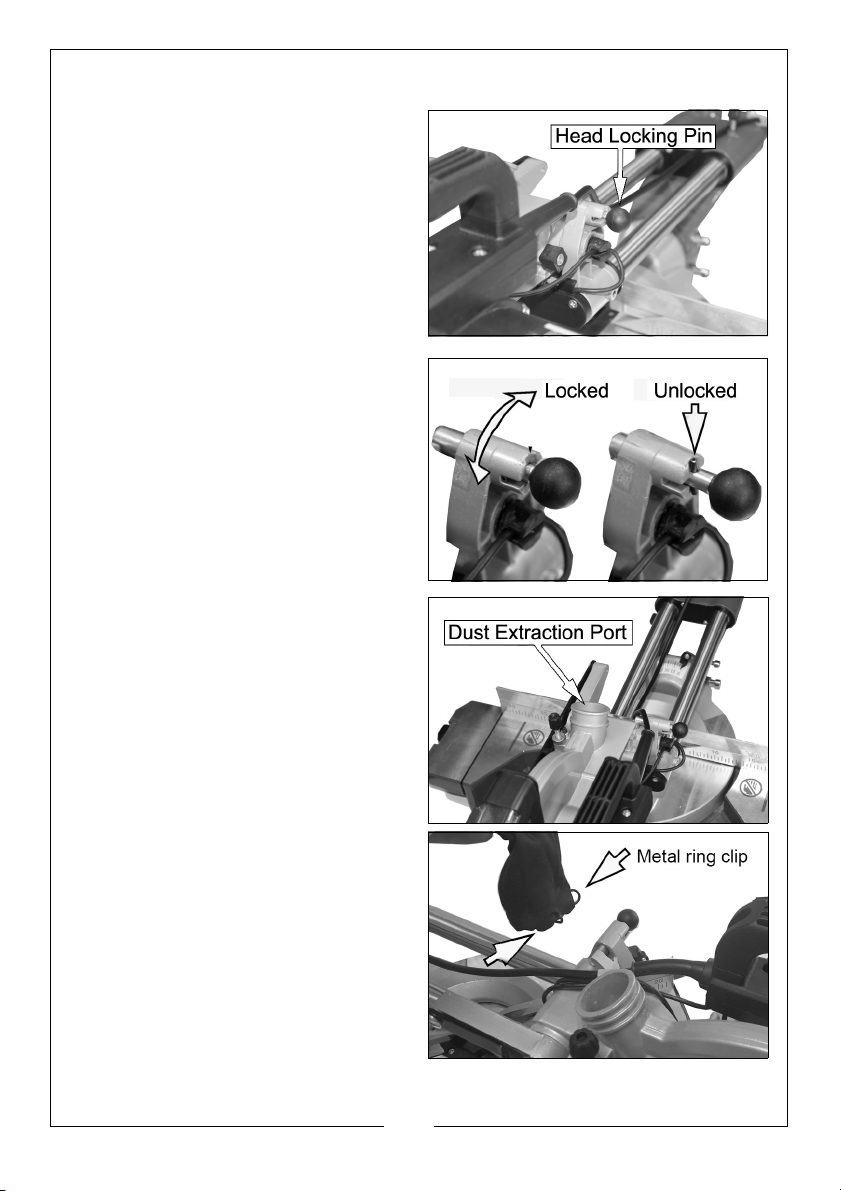

LOCKING / RELEASING THE SAW HEAD

1. Push down slightly on the
operating handle and pull out the
head locking pin and rotate it 90°
degrees as shown so that the
small pin rests on the grooves that
hold the head locking pin in the
unlocked position.

2. Carefully release the downward
pressure on the operating handle
and allow the head to rise to its full
height.

DUST EXTRACTION

This machine is provided with a dust
extraction port for connection to a
dust bag (supplied).

1. Squeeze together the metal ring
clip on the dust bag and place it
over the dust extraction port.

2. To empty the dust bag, use the
zipper on the bottom of the dust
bag.

3. The dust extraction port can also
be connected to an extraction
system using a suitable hose (not
supplied)

• The extraction system must be

suitable for the material being
worked.

• Use appropriate filters when

vacuuming dust as this is
dangerous to your health or
carcinogenic.

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

OPERATION

ALWAYS follow the safety instructions and applicable regulations.

BODY AND HAND POSITION

Correct positioning of your body and hands when you operate the mitre saw
will make cutting easier and safer.

• DO NOT put your hands near the blade.

• Clamp the workpiece tightly to the table and the fence when making
cuts.

• Release the trigger switch and keep your hands in position until the
blade stops.

• ALWAYS make dry runs (without power) before cuts so that you can
check the path of the blade.

• Do not cross your hands.

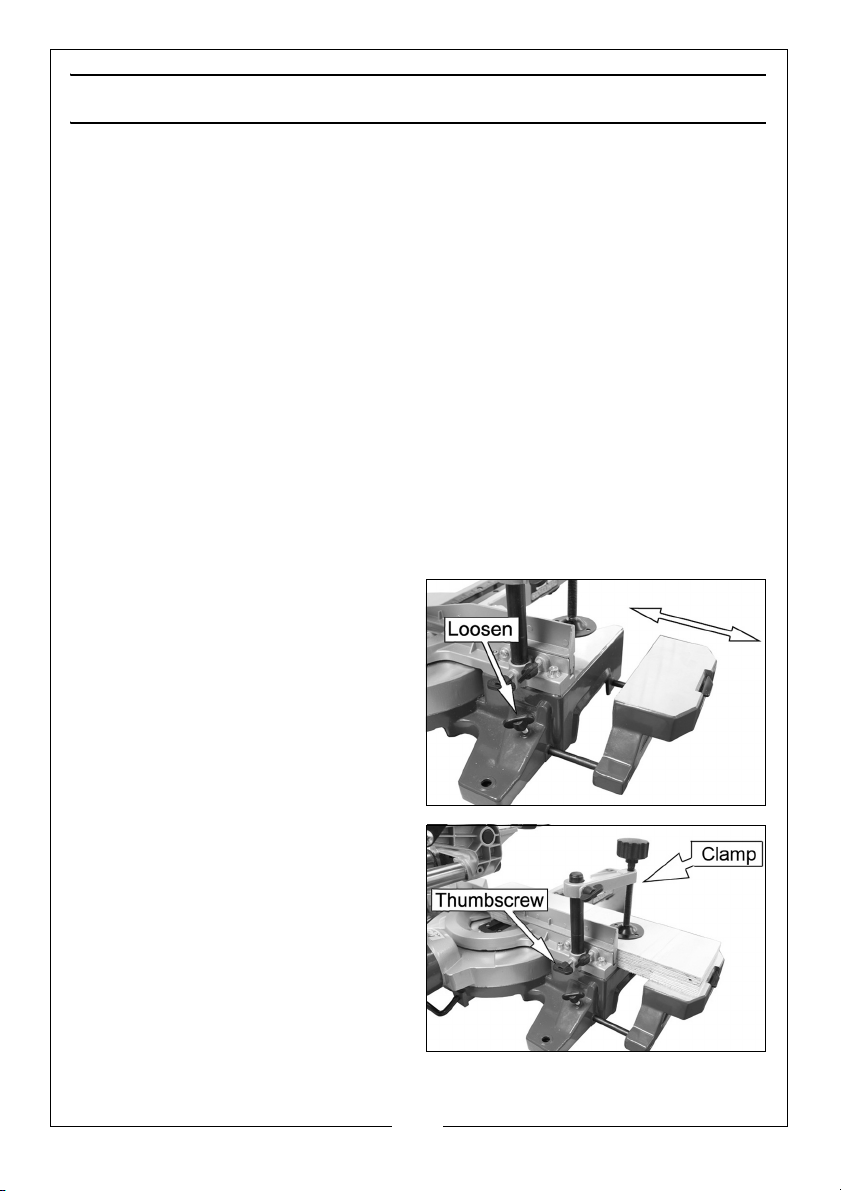

WORKPIECE SUPPORTS

To extend the supports.

1. Loosen the thumbscrew.

2. Pull out the support as far as
necessary.

3. Tighten the thumbscrew again.

CLAMP POSITION

The clamp can be attached to either
side of the saw table.

Insert the clamp in the holes behind
the fence and secure it with the
thumbscrew.

14

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

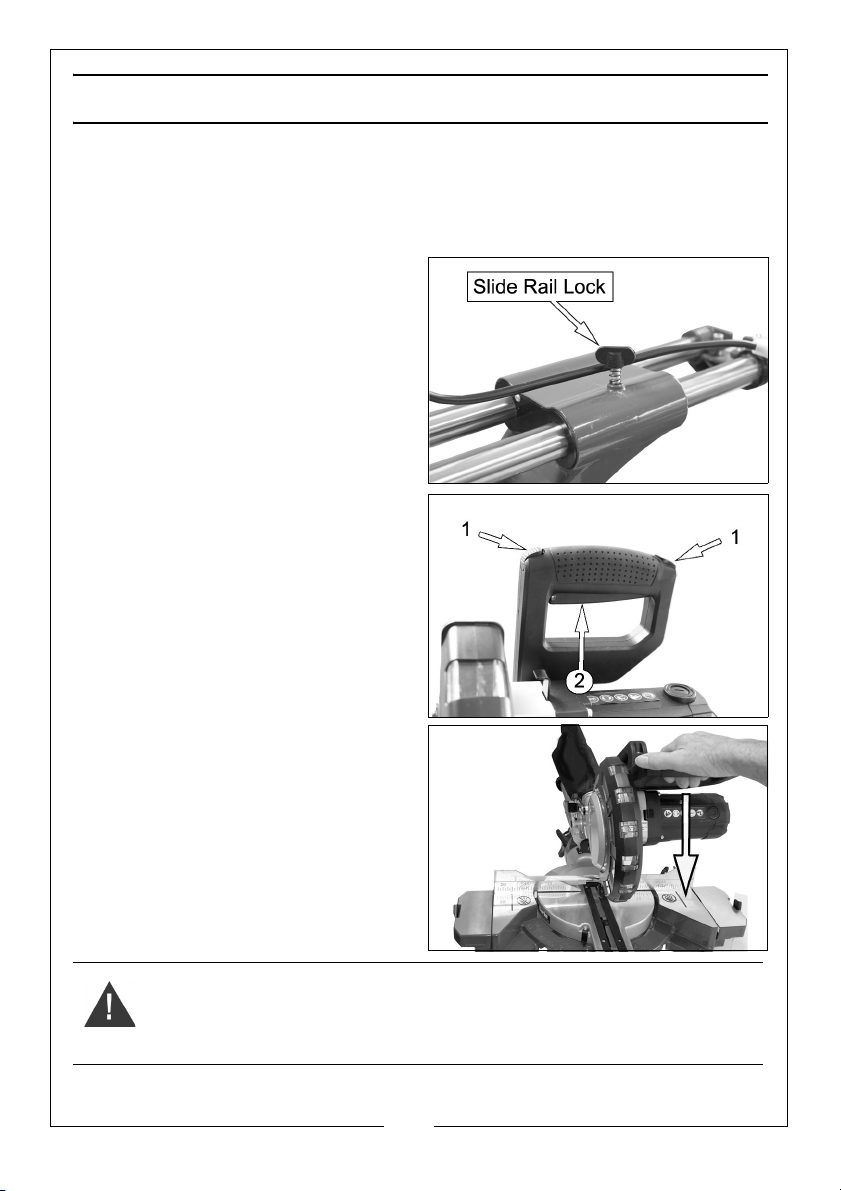

BASIC SAW CUTS

VERTICAL STRAIGHT CROSS CUT

1. Check and adjust the mitre table angles are correct as shown on page 21/

22.

2. Release the slide rail lock, and
push the saw head back to the
rear position.

3. Retighten the slide rail lock.

4. Place the wood to be cut against
the fence and secure with the
clamp.

5. Press the trigger release (1) with
your thumb and squeeze the
trigger (2).

• Let the motor reach full speed

before cutting.

6. Lower the head slowly, allowing
the blade to cut through the
timber and enter the kerf plate.

• DO NOT force the saw.

7. After the cut is complete, release
the trigger and allow the head to
return the head to its upper rest
position.

WARNING: THE BLADE WILL CONTINUE TO TURN FOR A SHORT WHILE
AFTER YOU RELEASE THE TRIGGER.

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

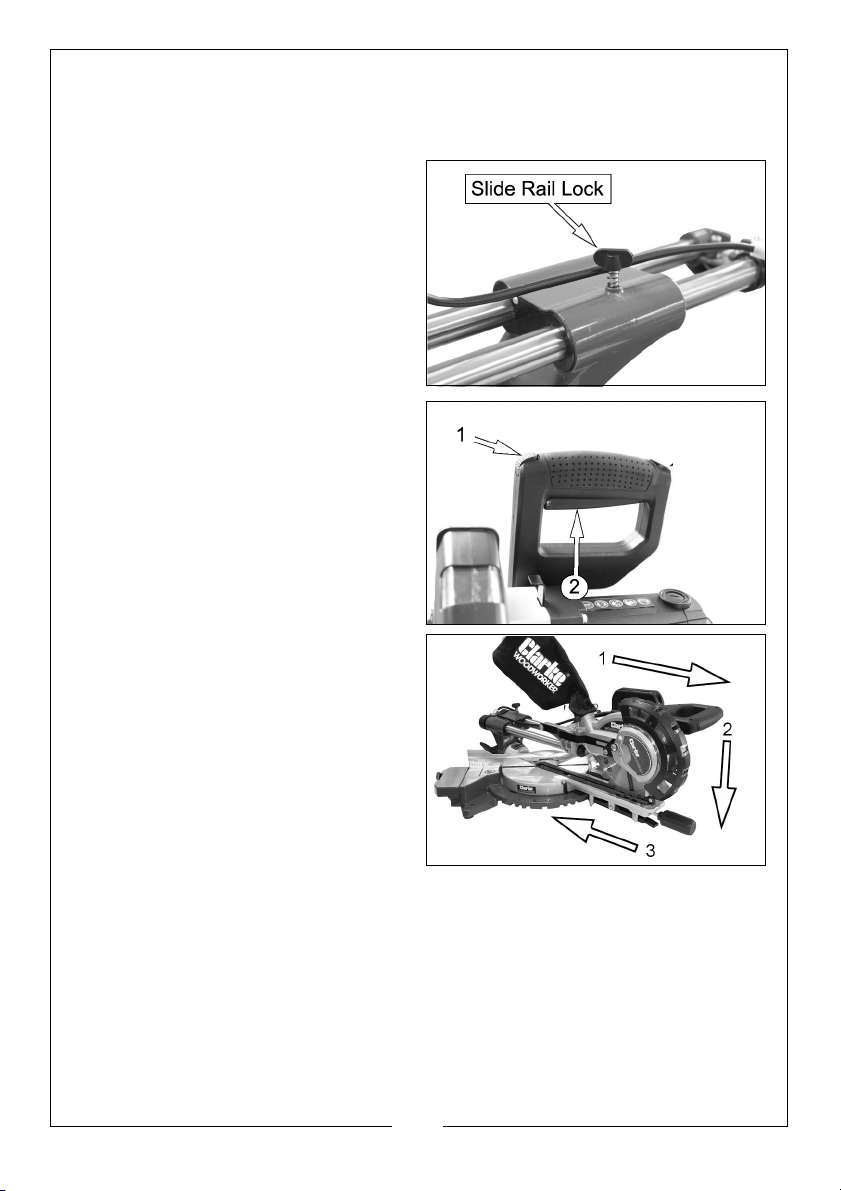

PERFORMING A SLIDING CUT

The slide rail lets you cut larger workpieces up to 340mm x 65mm using an out­down-back sliding motion.

1. Release the slide rail lock.

2. Push the trigger release (1) with
your thumb and squeeze the
trigger (2).

• Let the motor reach full speed.

3. Pull the saw head towards you (1).

4. Lower the saw blade (2) into the
workpiece.

5. Push the saw head back (3) to
complete the cut.

• Do not perform sliding cuts on

workpieces smaller than 50 x
100mm.

• Lock the saw head in the rear

position when the sliding cuts
are complete.

16

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

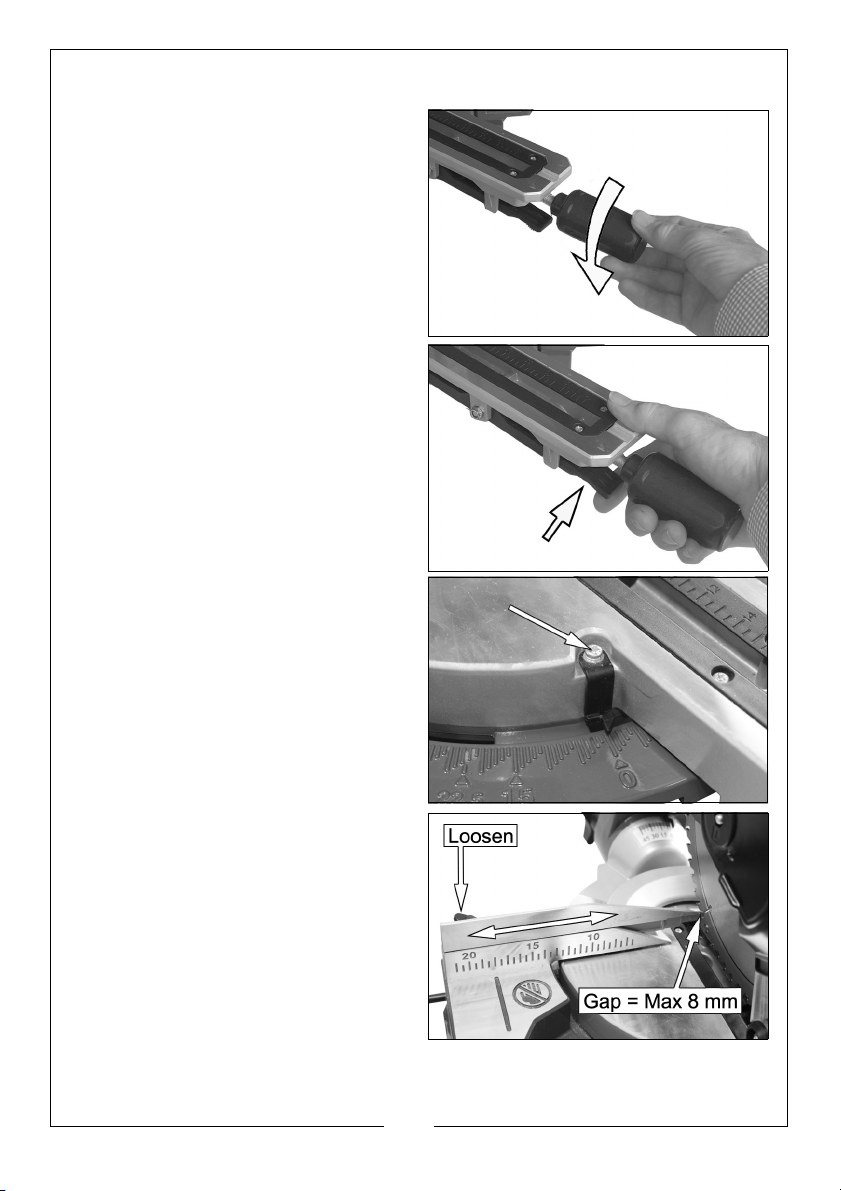

PERFORMING A MITRE CUT

1. To adjust the mitre saw table,
loosen the handle approximately
2 turns counter clockwise.

2. Pull up the locking lever.

3. Turn the table and pointer to the
necessary angle (0° to 45° left or
right).

• The angle is shown on the

scale.

4. Release the locking lever and
tighten the handle clockwise to
secure it.

5. Every time you change the mitre
angle, make sure the adjustable
fences are set correctly to support
the workpiece and will not
interfere with the blade or the
guard.

• The gap between the fence

and the blade should be a
maximum of 8mm.

17

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

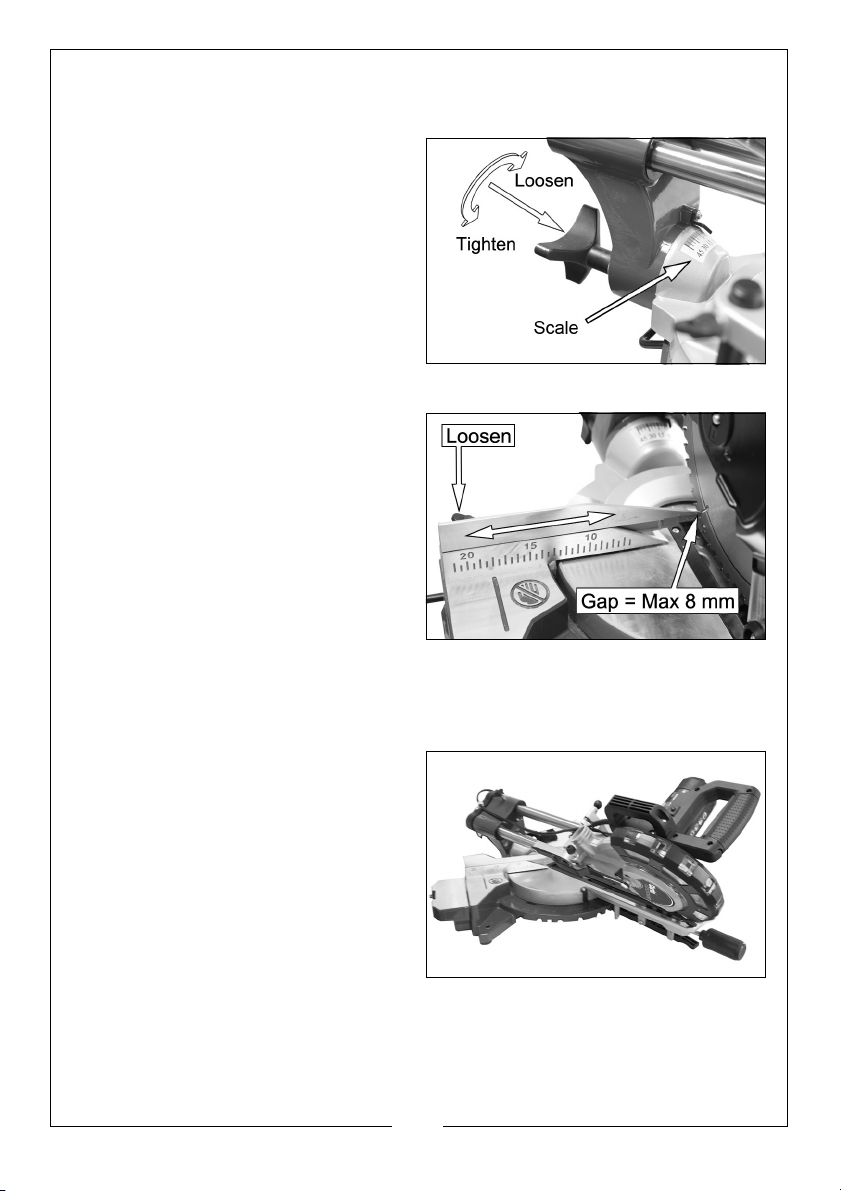

BEVEL CUTS

Bevel angles can be set from 45° left to vertical.

1. Loosen the bevel adjustment
handle.

2. Set the bevel to the correct angle
as shown on the scale.

3. Tighten the bevel adjustment
handle.

4. Continue as for a vertical straight
cross-cut.

• For bevel cuts, the clamp must

only be attached to the right side of the table.

5. Every time you change the bevel
angle, make sure the adjustable
fences are set correctly to support
the workpiece and will not
interfere with the blade or the
guarding system.

• The gap between the fence

and the blade should be a
maximum of 8mm.

COMPOUND MITRE CUTS

A compound mitre is a cut made using a mitre angle and a bevel angle at the
same time. This is the type of cut used to make frames or boxes with slanting
sides.

1. Set your saw to the necessary
angles.

• Always try cuts on scrap pieces

of wood to verify the settings on
the saw.

2. Practice fitting the cut pieces
together.

18

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

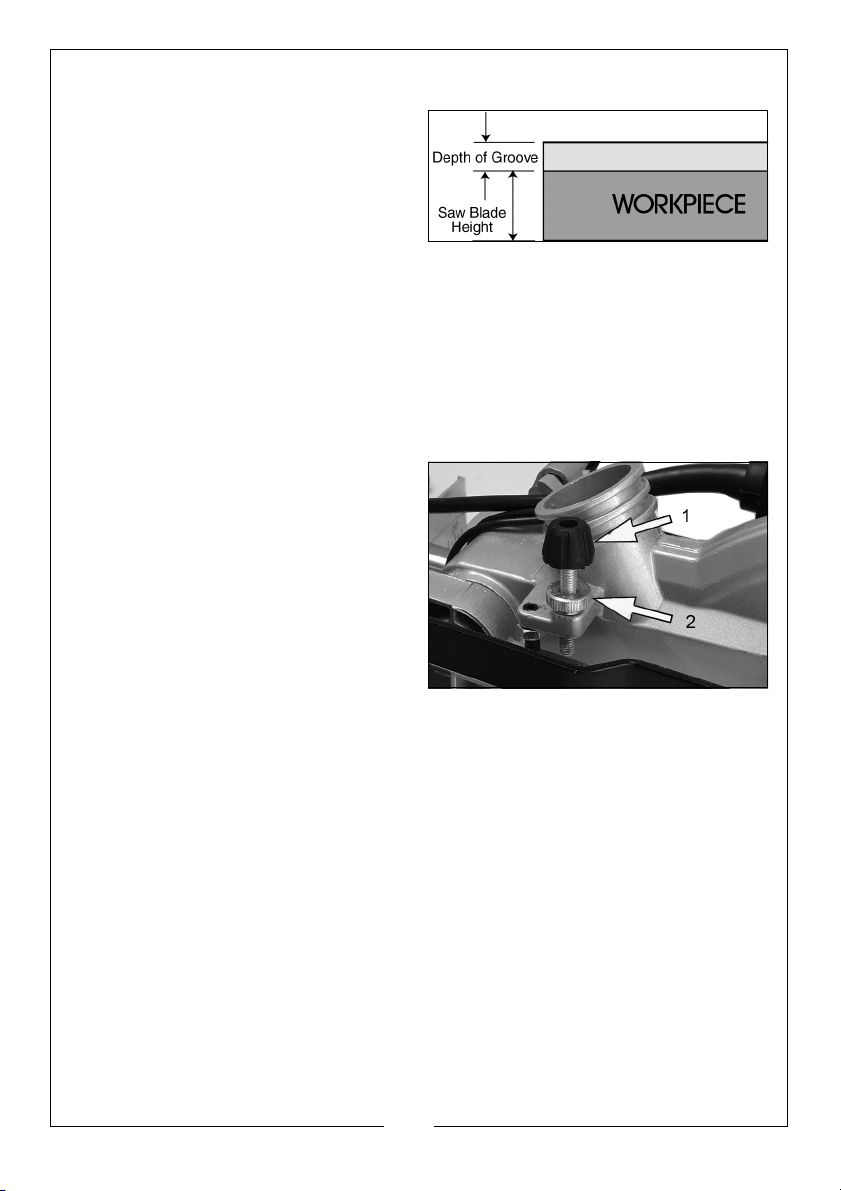

LIMITING THE DEPTH OF CUT (GROOVE CUTTING)

1. Subtract the depth of your groove
from the thickness of your
workpiece.

• This will give you the height

above the table surface at
which the saw blade must be
set.

• For example if you want a 6 mm deep groove in a 18 mm thick piece of

wood, you need a saw blade height of 12mm (18mm - 6mm).

2. Put a template or a piece of wood, the same thickness as the saw blade
height setting, on the table, below the saw blade.

• As an example a piece of wood 12mm thick.

3. Lower the head until it lightly touches the template.

4. Loosen the locking ring (2) if
required, screw down the adjuster
(1) until it touches the ledge, then
finally tighten the locking ring (2).

• The saw blade is now set to cut

your groove, using the sliding
feature.

• The width of the groove will, of

course, be the width of the saw
blade. However, if you move
the workpiece along the table in small increments, it is possible to cut
grooves to any width.

5. Before reverting to normal cutting, remember to reset the position of the
adjuster to its normal position.

19

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

THE LASER GUIDE

Laser Radiation, Class 2 Laser: Do not
stare into the beam.

TO SWITCH ON:

1. Push the laser ON/OFF switch
once.

• A laser line is projected onto

the material, providing an
accurate guide for the cut.

TO SWITCH OFF:

1. Push the laser ON/OFF switch
again.

ADJUST THE LASER

If the laser does not show the correct cut line, you can use the following
procedure to adjust the laser.

1. Turn the laser on.

2. Remove the screws shown.

3. Remove the front cover.

4. Loosen the cross head screws and
adjust the laser by moving
sideways until the laser beam hits
the teeth of the saw blade.

5. Retighten the cross head screws.

6. Replace the front cover and
tighten the two screws.

20

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ADJUSTMENTS

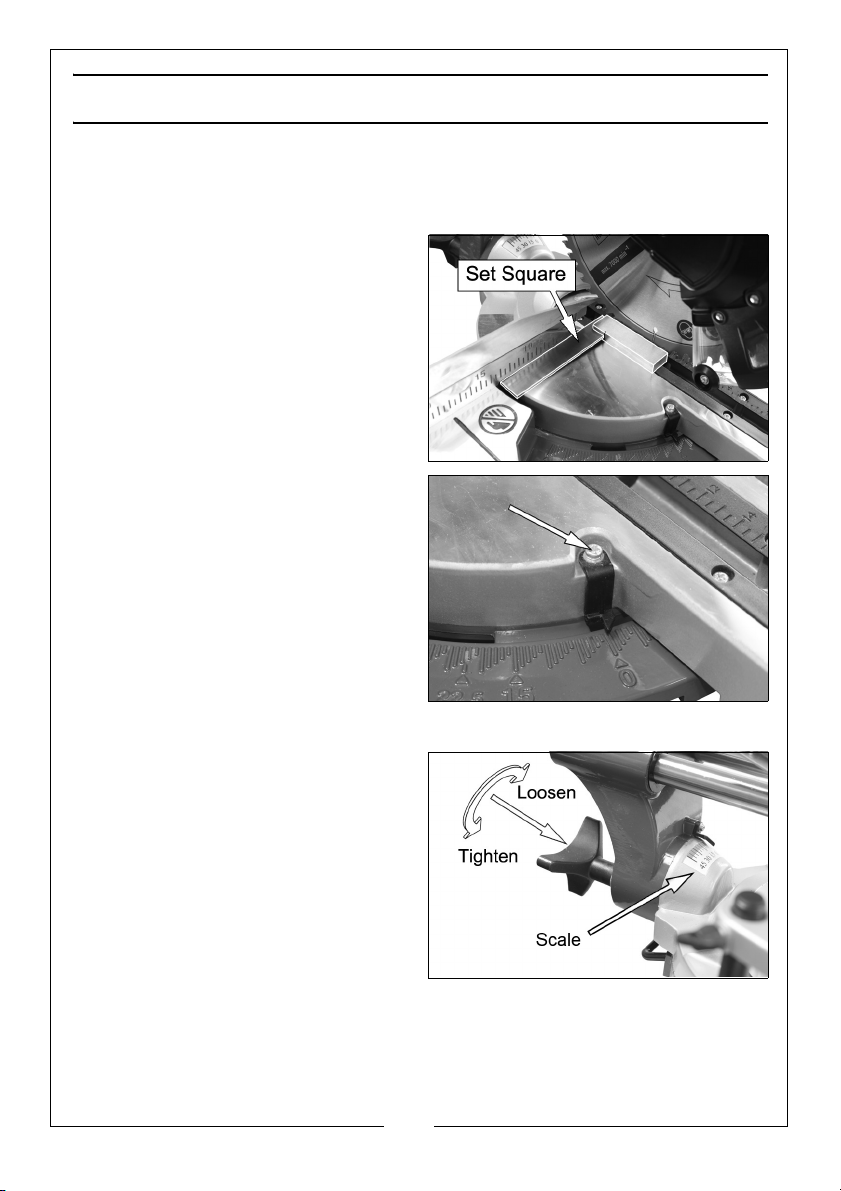

CHECK AND ADJUST THE MITRE ANGLE

1. Lock the saw head in the down position see page 13.

2. Put a set square up against the
left side of the fence and blade.

3. Adjust the mitre arm if necessary
until the blade is perfectly square
to the fence.

4. If pointer does not point to zero on
the mitre scale, loosen the screw
that attaches the pointer and
move the pointer as necessary.

CHECK AND ADJUST THE BEVEL ANGLE

1. Loosen the bevel adjustment
handle.

2. Push the saw head to the right to
vertical and tighten the bevel
clamp handle.

3. Lock the saw head in the down
position see page 13.

21

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

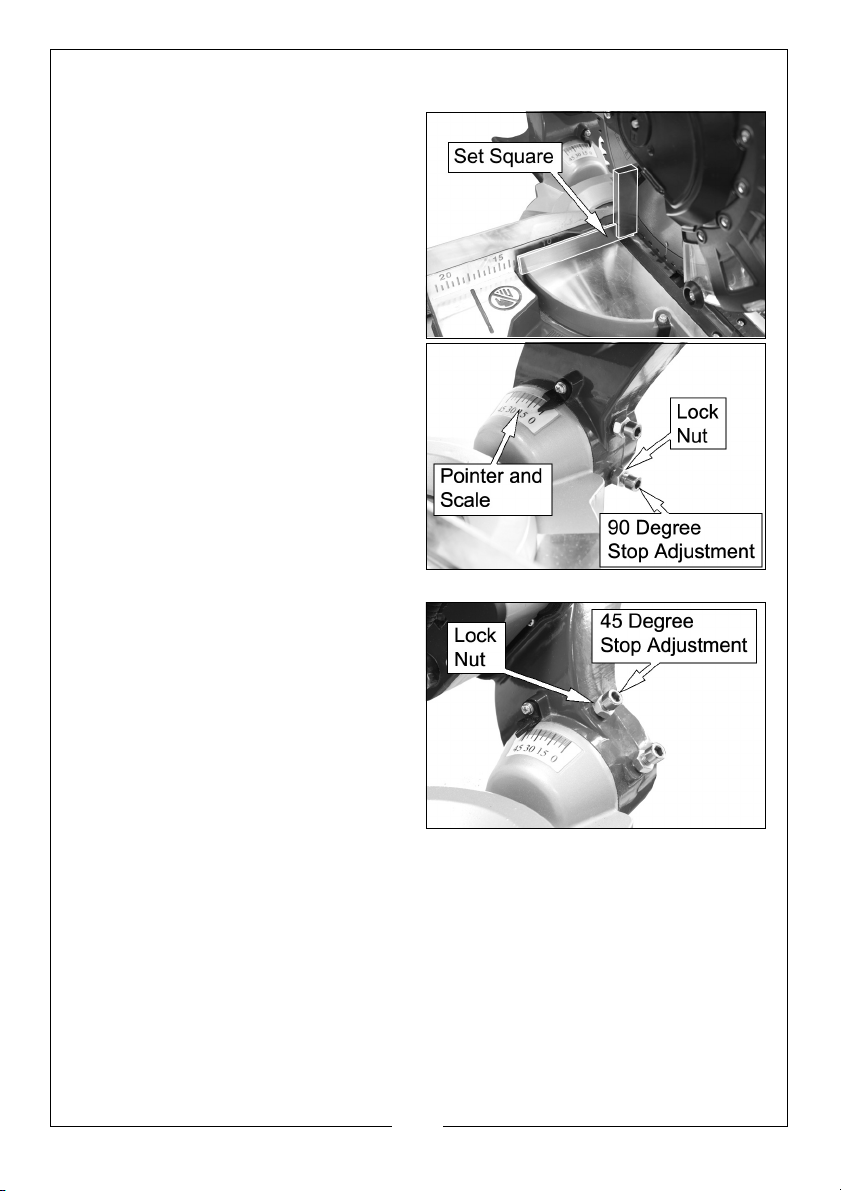

90 DEGREE STOP ADJUSTMENT

4. Put a set square on the table and
up against the blade.

NOTE: DO NOT touch the tips of the

blade teeth with the square.

If adjustment is necessary, continue
as follows:

5. Loosen the lock nut and turn the
90° adjustment stop screw in or
out until the blade is at 90° to the
table as shown by the set square.

6. If the bevel pointer does not point
to zero on the bevel scale, loosen
the screw that secures the bevel
pointer and move the pointer as
necessary.

45 DEGREE STOP ADJUSTMENT

1. Loosen the bevel adjustment
handle and set the saw head as
far to the left as possible (this
should be the 45° angle)

2. Put a 45° set square on the table
and up against the blade.

NOTE: DO NOT touch the tips of the

blade teeth with the square.

3. Loosen the lock nut and turn the
45° adjustment stop screw in or
out until the blade is at 45° to the table as measured with the square.

4. Adjust the bevel pointer if necessary as shown in point 6 above.

TRANSPORTING

1. Lower the head and lock it down using the head lock pin. (see page 13)

2. Slide the head towards you and secure in position using the slide rail lock.

3. Lock the mitre arm with the table mitre lock.

4. Lock the bevel adjustment handle with the saw head in the vertical
position to make the tool as compact as possible.

22

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

MAINTENANCE

WARNING: MAKE SURE THAT THE SAW IS SWITCHED OFF AND UNPLUGGED
FROM THE MAINS SUPPLY BEFORE FITTING OR REMOVING THE BLADE.

WARNING: WEAR SAFETY GLOVES WHEN CHANGING THE SAW BLADE.

WARNING: THE REPLACEMENT BLADE MUST BE RATED TO AT LEAST 4700
RPM.

CLEANING

Your saw has been designed to operate over a long period of time with a
minimum of maintenance. Continuous satisfactory operation depends upon
proper care and regular cleaning.

• Regularly clean the table top.

• Regularly empty the dust collection bag.

• Keep the ventilation slots clear and regularly clean the motor
housing with a soft cloth.

Avoid the use of cleaners or lubricants. In particular spray and aerosol cleaners
may chemically attack the plastic lower guard.

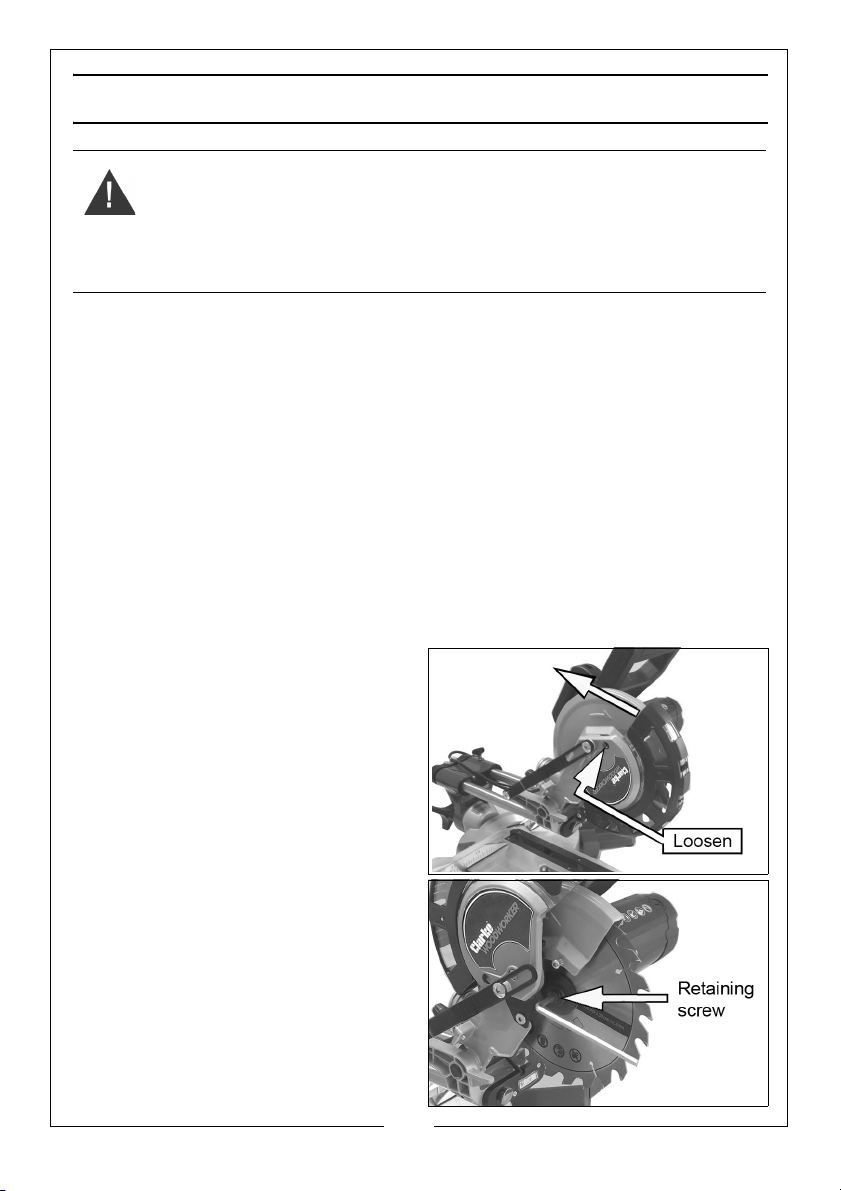

CHANGING THE SAW BLADE

1. Loosen the retaining screw of the
cover using a screwdriver.

NOTE: Do not fully remove this screw.

2. Fold the saw blade guard
upwards until the saw blade
guard is above the retaining
screw.

3. Insert the hex key supplied in the
retaining screw.

23

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

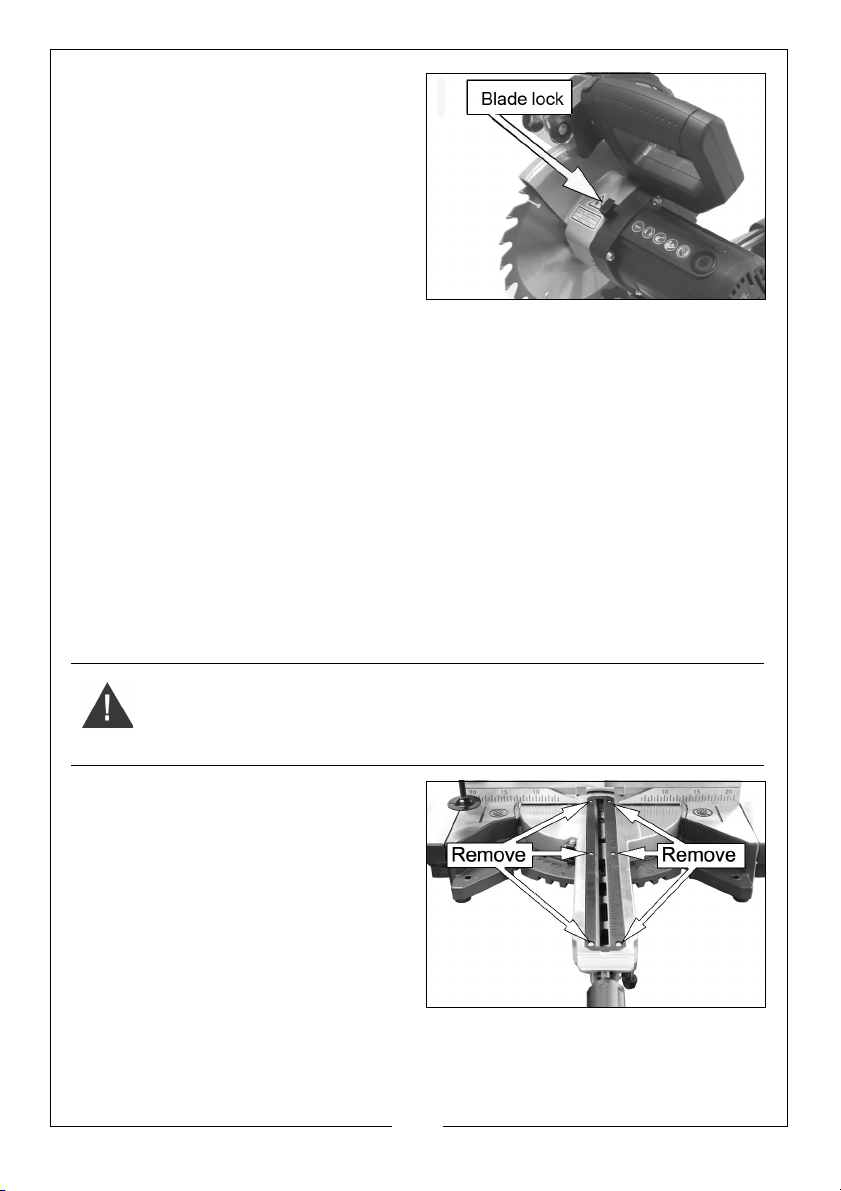

4. Depress the blade lock and slowly
rotate the retaining screw using
the hex key in clockwise direction.

• The blade lock engages after

no more than one rotation

• WARNING: NEVER PUSH THE

BLADE LOCK IN WHEN THE
MOTOR IS RUNNING.

5. Remove the screw and outer
blade retaining disc.

6. Remove the blade from the shaft.

7. Carefully clean the retaining screw/outer and inner disc.

8. Fit the new saw blade in reverse order.

• Make sure that all parts are perfectly clean and the blade teeth

point down at the front.

• Every time that you change the saw blade, check to see that it spins

freely in the table insert in both perpendicular and 45° angle
settings.

9. Before continuing to work make sure that all guards are in good working
condition.

REPLACING THE TABLE INSERT

WARNING: IF THE TABLE INSERT IS DAMAGED THERE IS A RISK OF SMALL
PARTS GETTING STUCK BETWEEN TABLE INSERT AND BLADE, BLOCKING THE
BLADE. REPLACE A DAMAGED TABLE INSERT IMMEDIATELY.

1. Remove screws at table insert. If
required, turn rotary table and
incline saw head to be able to
reach the screws.

2. Remove table insert.

3. Install new table insert.

4. Tighten the screws at table insert.

24

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

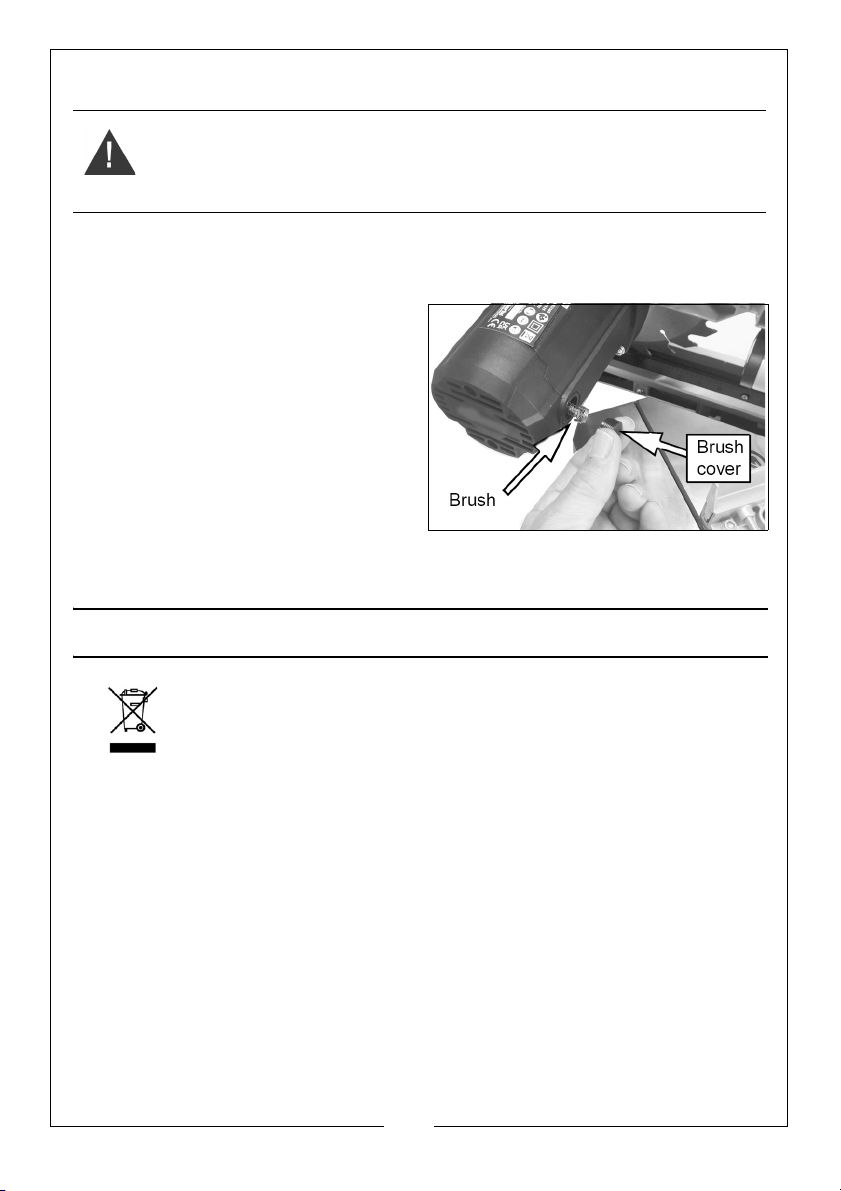

CHANGING THE CARBON BRUSHES

WARNING: MAKE SURE THAT THE SAW IS SWITCHED OFF AND UNPLUGGED
FROM THE MAINS SUPPLY BEFORE INSPECTING OR CHANGING THE
CARBON BRUSHES.

After extensive use, the carbon brushes will become worn and should be
checked if the motor seems to be lacking power. Replacements are available
from your dealer.

1. Unscrew the carbon brush cover
using a screwdriver.

2. The carbon brush should spring
out.

• If the carbon is worn to a length

of 6mm or less, or if the spring or
contact wire is burned or
damaged, replace both
brushes.

3. Replace each carbon brush
cover, taking care not to cross thread it.

ENVIRONMENTAL PROTECTION

Recycle unwanted materials instead of disposing of them as waste.
All tools, accessories and packaging should be sorted and taken to
a recycling centre for disposed in a manner compatible with the
environment.

By purchasing this product, the customer is taking on the obligation to deal
with its safe disposal in accordance with the Waste Electrical and Electronic
Equipment (WEEE).

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility. If disposing of this product or any damaged components, do not
dispose of with general waste. This product contains valuable raw materials.
Metal products should be taken to your local civic amenity site for recycling of
metal products.

25

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SPECIFICATIONS

Model Number CMS216S

Part Number 6461525

Rated Voltage 230 V AC @ 50Hz

Input Wattage 2000 W

Ingress protection IP 0X

Blade Diameter 216 mm

Blade bore 30 mm

Max. blade thickness 2.8 mm

Max. no load machine speed 4700 rpm

Max. cross-cut capacity at 90° 340 mm x 65 mm

Max. Mitre cut 45° 240 mm x 65 mm

Max Bevel cut 2 x 45° 240 mm x 38 mm

Max compound cut 340 mm x 65 mm

Max Bevel Angle 0-45° to the left

Sound pressure (L

Sound power (LWA) 109.5 dB (A)

Uncertainty Factor (K) 3

Dimensions (Length x Width x Height) 735 x 593 x 505 mm

Weight 11.7 kg

WARNING: THE NOISE EMISSIONS DURING THE ACTUAL USE OF THE MITRE
SAW MAY DIFFER FROM THE ABOVE-MENTIONED VALUES DEPENDING ON
THE TYPE OF WORKPIECE BEING CUT.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

) 96.5 dB (A)

pA

26

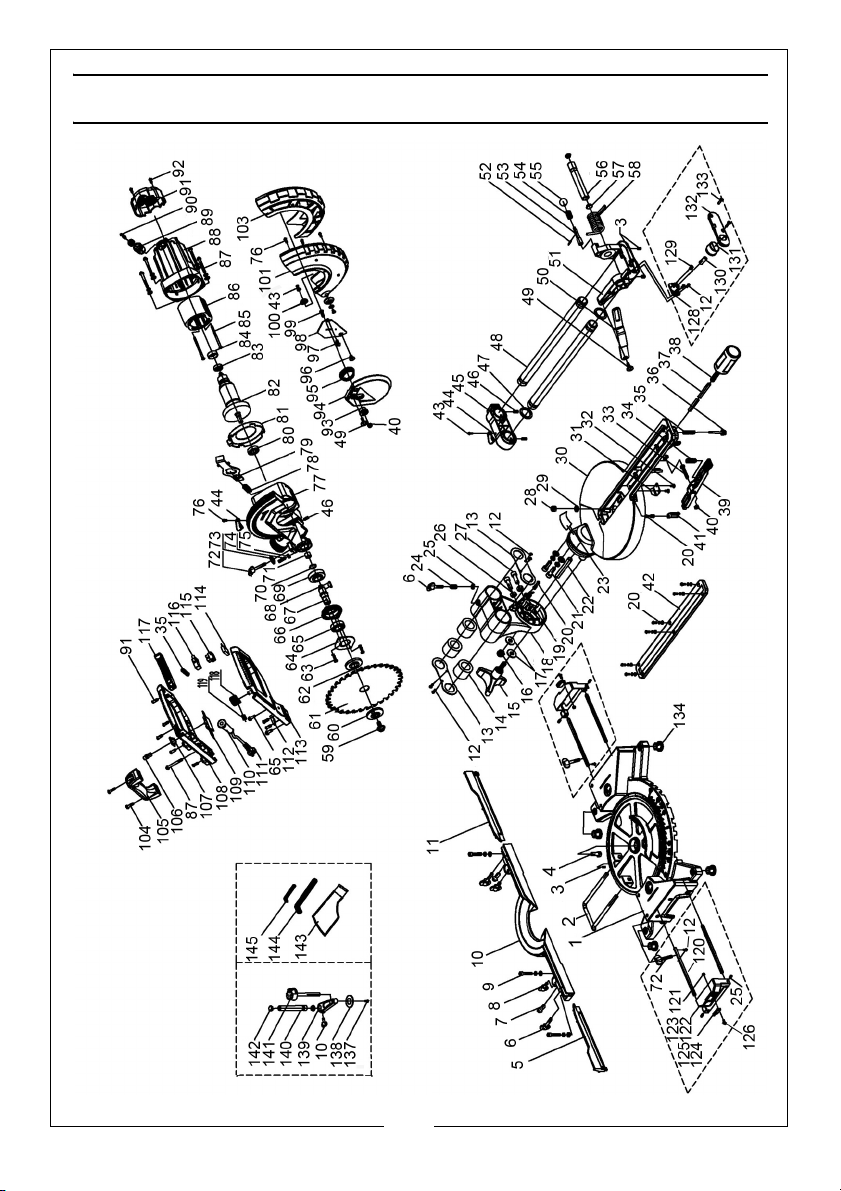

EXPLODED DIAGRAM

27

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PARTS LIST

No Description No Description

1 Base 32 Countersunk screw

2 Rear support bar 33 Pan head screw

3 Socket set screw M6 x 8 34 Bar lock spring

4 Hexagon bolt M8 x 20 35 Switch trigger spring

5 Left fence 36 Lock knob

6 Butterfly screw 37 Disc locking lever

7 Cross recessed pan head screw 38 Side handle

8 M6 x 15 wing screw 39 Fixed link

9 Hexagon socket screw M6 x 30 40 Type 2 non-metallic hex locknut

10 Fence support 41 Pointer

11 Right fence 42 Kerf plate

12 Pan head screw 43 Cross pan head screws

13 Linear bearing end cover 44 Linear bearing tie

14 Linear bearing 45 Rod cover

15 Angle lock knob 46 Allen screw M6 x 10

16 Type 2 non-metallic lock nut 47 Rod gasket

17 Washer 48 Bearing rod

18 Connecting body 49 Pan head screw

19 Mitre angle pointer 50 Connecting rod

20 Pan head screw 51 Bracket

21 Hexagon socket set screw 52 Roll pin

22 Socket head cap screw 53 Lock pin

23 Connecting base scale 54 Spring

24 Rod locking spring 55 Ball nut

25 Washer 56 Connecting shaft

26 Nut M8 57 Connecting shaft cover

27 Socket head screw M8 x 25 58 Large torsion spring

28 Type 2 non-metallic locknut 59 Blade securing screw

29 Washer 60 Outer retaining disc

30 Disc 61 Saw blade

31 Disc locking plate 62 Inner retaining disc

28

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

No Description No Description

63 Screw M5 x 16 97 Screw

64 Gland 98 Side plate (Large hood)

65 Bearing 6003Z2 99 Large Hood

66 Cover plate 100 Pulley wheel

67 Output shaft 101 Transparent cover

68 Woodruff key 102 N/a

69 Large gear 103 Transparent cover coat hood

70 Bearing retainer 104 Cross head pan head s/t screw

71 Needle roller bearing 105 Lifting handle

72 Butterfly screw 106 Top fixing

73 Knurled nut 107 Ejector pawl

74 Allen set-screw M6 x 20 108 Upper handle

75 Nut M6 109 Circuit board

76 Pan head screw 110 Cable sleeve

77 Head and shell 111 Cable

78 Shaft locking spring 112 Tension disc

79 Shaft lock 113 Lower handle

80 Roller bearing 6001z3 114 Capacitor

81 Fan shroud 115 Wiring block

82 Rotor 116 Micro switch

83 Roller bearing 608z3 117 Trigger

84 Bearing sleeve 118 Switch lock button

85 Cross head pan head s/t screw 119 Spring

86 Stator 120 Extension rod

87 Screw M5 x 40 121 Locknut

88 Chassis 122 Left wing body

89 Brush holder 123 Right wing body

90 Carbon brush 124 Left end tab

91 Rear cover 125 Right end tab

92 Cross head pan head s/t screw 126 Screw

93 Transparent cover plate 127 n/a

94 Transparent cover 128 Laser frame

95 Transparent cover spring 129 Countersunk screw

96 Socket head cap screw 130 Laser unit

29

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

No Description No Description

131 Laser transparent cover 139 Clamping block

132 LED lamp holder 140 Fixed link

133 Countersunk screw 141 Handwheel

134 Foot 142 Fixed rod cover

135 n/a 143 Dust bag

136 n/a 144 3mm Hex key

137 Screw M5 x 7 145 6mm Hex key

138 Locking disc

30

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

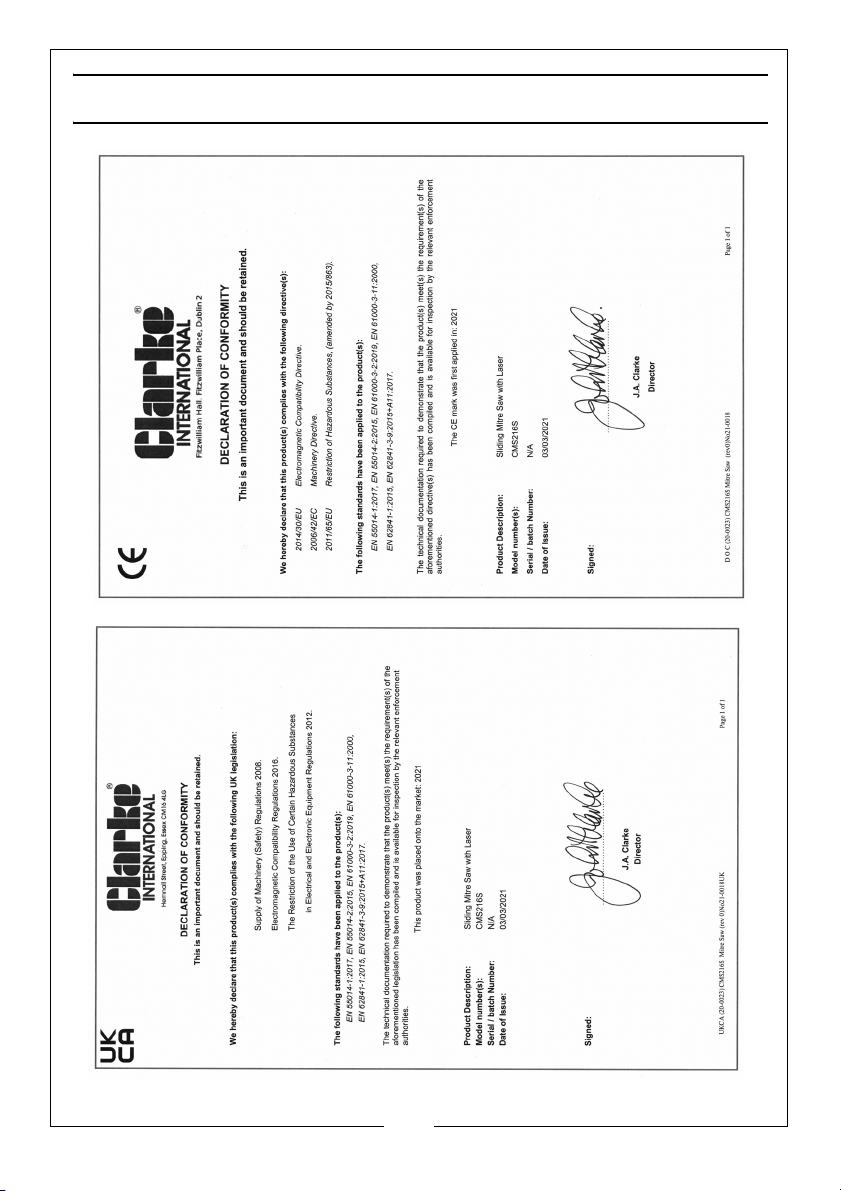

DECLARATION OF CONFORMITY

31

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

32

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
