WALL CHASER
MODEL NO: CON1450WC
PART NO: 6462165
OPERATION & MAINTENANCE
INSTRUCTIONS
LS1009
INTRODUCTION
Thank you for purchasing this CLARKE Wall Chaser.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
2
GENERAL SAFETY RULES
WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL
INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/
OR SERIOUS INJURY. SAVE THESE INSTRUCTIONS.
WORK AREA
1. Keep work area clean and well lit. Cluttered and dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
2. Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-
skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
3. Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying
power tools with your finger on the switch or plugging in power tools that have the switch on
invites accidents.
4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of these devices can reduce dust related hazards.
3
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source before making any adjustments, changing
accessories, or storing power tools. Such preventative safety measures reduce the risk of starting
the power tool accidentally.
4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tools operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits etc., in accordance with these instructions and in
the manner intended for the particular type of power tool, taking into account the working
conditions and the work to be performed. Use of the power tool for operations different from
those intended could result in a hazardous situation.
SERVICE
1. Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
ADDITIONAL SAFETY RULES FOR WALL CHASERS
1. Always use guard provided with the tool. The guard must be securely attached to the power tool
and positioned for maximum safety, so the least amount of wheel is exposed towards the
operator. Position yourself and bystanders away from the plane of the rotating wheel. The guard
helps to protect operator from broken wheel fragments and accidental contact with wheel.
2. The rated speed of the cutting discs must be at least equal to the maximum speed marked on
the power tool. Cutting discs running faster than their rated speed can break and fly apart.
3. Cutting discs must be used only for recommended applications. Side forces applied to these
discs may cause them to shatter.
4. The arbor size of the cutting discs and flanges must properly fit the spindle of the power tool. Discs
and flanges with arbor holes that do not match the mounting hardware of the power tool will run
out of balance, vibrate excessively and may cause loss of control.
5. Do not use damaged cutting discs. Before each use, inspect the discs for chips and cracks. If
power tool or wheel is dropped, inspect for damage or install an undamaged disc. After
inspecting and installing the disc, position yourself and bystanders away from the plane of the
cutting disc and run the power tool at maximum no load speed for one minute.
6. Hold the power tool only by the insulated gripping surfaces when performing an operation where
the cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will also
make exposed metal parts of the power tool “live” and shock the operator.
7. Position the cord clear of the cutting discs. If you lose control of the power tool, the cord may be
cut or snagged and your hand or arm may be pulled into the cutting disc.
8. Never lay the power tool down until the cutting discs have come to a complete stop. The cutting
discs may grab the surface and pull the power tool out of your control.
9. Do not run the power tool while carrying it at your side. Accidental contact with the cutting disc
could snag your clothing, pulling the accessory into your body.
4
KICKBACK AND RELATED WARNINGS
Kickback is a sudden reaction to a pinched or snagged cutting disc. Pinching or
snagging causes rapid stalling of the rotating wheel which in turn causes the
uncontrolled power tool to be forced in the opposite direction of the wheels rotation.
1. Maintain a firm grip on the power tool and position your body and arm to allow you to
resist kickback forces. Always use auxiliary handle, if provided, for maximum control over
kickback or torque reaction during start-up. The operator can control torque reactions or
kickback forces, if proper precautions are taken. Never place your hand near the cutting
disc. The wall chaser may kickback over your hand.
2. Do not position your body in the area where the power tool will move if kickback occurs.
Kickback will propel the tool in the direction opposite to the wheel’s movement at the
point of snagging.
3. Use special care when working corners, sharp edges, etc. Avoid bouncing and snagging
the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating
accessory and cause loss of control or kickback.
4. Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create
frequent kickback and loss of control over the power tool.
5. Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an
excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to
twisting or binding of the wheel in the cut and the possibility of kickback or wheel
breakage.
6. When wheel is binding or when interrupting a cut for any reason, switch off the power tool
and hold the power tool motionless until the wheel comes to a complete stop. Never
attempt to remove the cut-off wheel from the cut while the wheel is in motion, otherwise
kickback may occur. Investigate and take corrective action to eliminate the cause of
wheel binding.
7. Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and
carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is
restarted in the workpiece.
8. Use extra caution when making a “pocket cut” into existing walls or other blind areas. The
protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause
kickback.
5
ELECTRICAL CONNECTIONS
Plug must be BS1363/A approved.
Always fit a 13 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
WARNING! Read these electrical safety instructions thoroughly
before connecting the product to the mains supply.
Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard.
WARNING! The wires in the power cable of this product are
coloured in accordance with the following code:
Blue = Neutral Brown = Live
If the colours of the wires in the power cable of this product do not correspond with the
markings on the terminals of your plug, proceed as follows.
• The wire which is coloured Blue must be connected to the terminal which is
marked N or coloured Black.
• The wire which is coloured Brown must be connected to the terminal which is
marked L or coloured Red.
We strongly recommend that this machine is connected to the mains supply via a
Residual Current Device (RCD)
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.
This symbol indicates that this is a Class II product, and does not require an earth
connection.
6
BEFORE USE
Spindle lock button
WHAT’S SUPPLIED
Unpack your wall chaser and make sure that the following items are present.
Should there be any damage caused during transit contact your Clarke
dealer immediately.
• 1 x Wall Chaser
• 1 x Pin Spanner
• 1 x Attachable Handle
• 1 x Breakout Chisel
• 1 x 5mm Hex Key
• 1 x Dust Extraction Attachment
• 2 x Cutting Discs (150mm Diameter x 22.2mm Bore)
SPINDLE LOCK BUTTON.
When mounting or changing the
cutting discs, the spindle lock button
prevents the spindle from turning
when you unscrew and remove the
outer flange (using the Pin Spanner
provided).
WARNING: NEVER PRESS THE SPINDLE LOCK BUTTON WHEN THE UNIT IS
RUNNING.
7

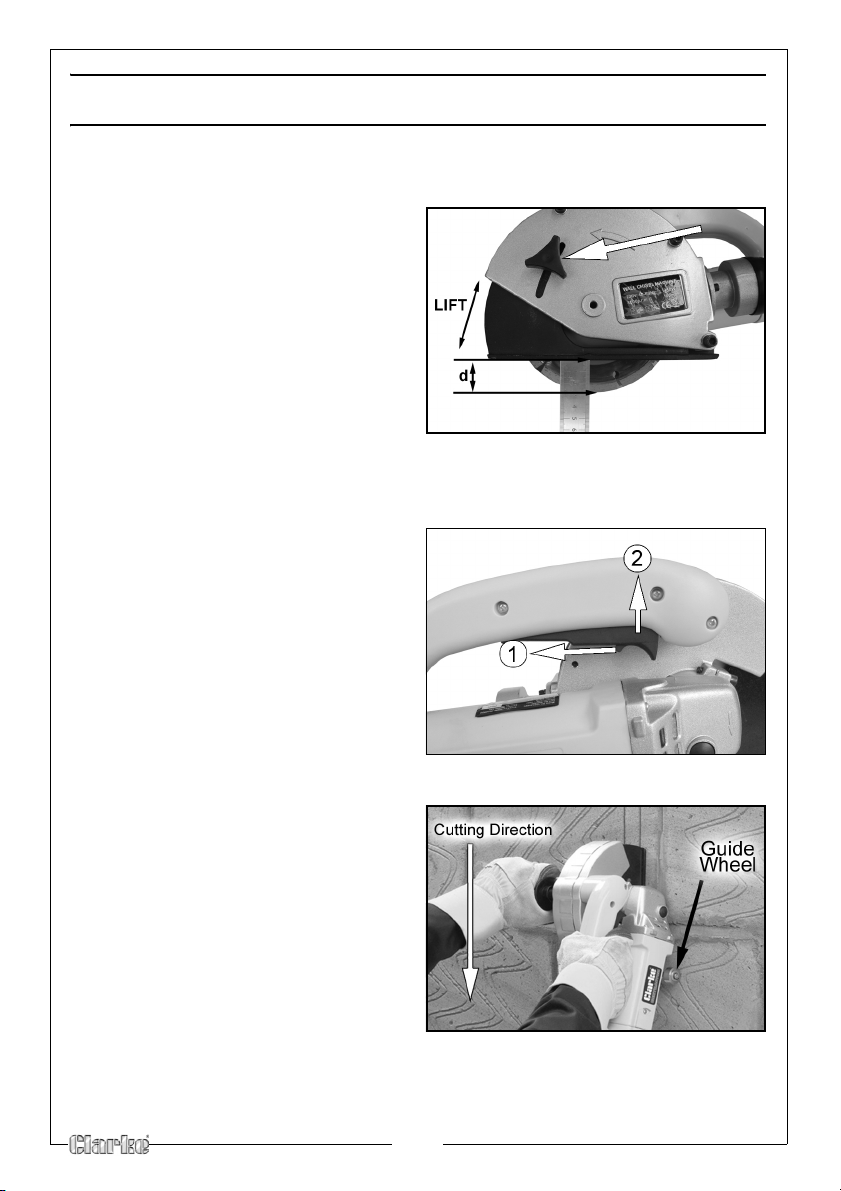

REPLACING THE CUTTING DISCS
Side plate
WARNING: Disconnect the plug from the power source before making
any adjustments or changing accessories.
NOTE: Always replace both discs at the same time.
1.
Remove the depth adjustment
knob by hand and 3 bolts
indicated using the 5mm hex key
supplied.
2. Lift off the side plate.
3. Press and hold the spindle lock
button.
4. Use the Pin Spanner supplied to
relea
se the outer flange
SETTING THE CUTTING WIDTH
The cutting width is determined by
the
number of spacer discs you put in
between the discs.
• The cutting width is equal to:
The thickness of the 2 blades (2
x 2.5 mm) + the thickness of the
spacers.
• Make sure that the inner flange
is seated properly and the flat
section has engaged with the
flat part at the base of the spindle.
NOTE: All spacers must be used to prevent the blades from wobbling.
simply place the spacers on the outside of the cutting discs to
make the cutting width narrower.
5. Replace the side plate and secure with the depth adjustment knob and 3
bolts you removed in step 1.
8
FITTING THE DUST EXTRACTION ASSEMBLY
Attach the dust extraction assembly
to the wall chaser.
• Insert the assembly (1) into the
extraction port (2) and rotate
slightly clockwise to lock into
place.
• Remove the collar (4) and slide
it over the vacuum cleaner
hose.
• Push the hose onto the dust
extraction tube (3).
• Secure in place by tightening up the collar (4).
FITTING THE ATTACHABLE HANDLE
Screw the handle (5) into the hole (6)
shown on the wall chaser.
9
OPERATION
ADJUSTING THE CUTTING DEPTH
1. Loosen the depth adjustment
knob.
2. Raise/lower the baseplate.
3. Use a ruler as shown to measure
the
depth of the blade (d).
• The depth of cut should be
3mm deeper than the required
slot depth.
4. Tighten the depth adjustment
kn
ob
SWITCHING ON / OFF
• To switch on the wall chaser,
Slide the safety switch back (1)
and pull the on/off switch (2).
• To switch off the wall chaser,
release the on/off switch
USING THE WALL CHASER
• Slots in structural walls are
subject to regulation. These
regulations are to be observed
under all circumstances.
1. Mark the surface to be worked.
2. Keep the wall chaser in an upright
po
sition.
3. Move the wall chaser across the
surface using the guide wheel.
4. Always move the wall chaser in a
ba
ckwards (towards you)
direction.
5. Move at a const ant speed, do no t
force the wall chaser.
6. Remove the remaining material using th
10
e breakout chisel supplied.
MAINTENANCE
WARNING: MAKE SURE THAT THE WALL CHASER IS SWITCHED OFF AND
DISCONNECTED FROM THE MAINS SUPPLY BEFORE STARTING ANY
CLEANING OR MAINTENANCE PROCEDURES.
AFTER USE
• Clean away any accumulated dust.
• Check the condition of the cutting disc for signs of cracking, and
discard immediately if apparent.
• Keep the cooling vents clear.
• Clean the housing with a soft cloth. Any worn or damaged parts
should be replaced by qualified personnel.
• Refer to qualified service personnel if internal maintenance is
required. Always store in the carrying case supplied.
CHANGING THE CARBON BRUSHES
1. Use a screwdriver to remove the
carbon brush covers from
emachine body (one on each
th
side).
2.
Remove the worn brushes and
insert new ones.
3. Replace the brush holder covers.
11
SPECIFICATIONS
For Parts & Servicing, please contact your nearest dealer, or
CLARKE International, on one of the following numbers
PARTS & SERVICE TEL: 020 8988 7400
PARTS & SERVICE FAX: 020 8558 3622
or e-mail as follows:
PARTS: Parts@clarkeinternational.com
SERVICE: Service@clarkeinternational.com
CON1450WC
Electrical Supply 230V @ 50Hz
Power Rating 1450W
Part Number
Disc Bore 22.2 mm
Disc Diameter 150 mm
Disc Thickness 2.5 mm
Cutting Depth 11-40 mm
Cutting Width 8-30 mm
Guaranteed Sound Power dB L
Vibration
Protection Class II
Dimensions (L x W x H) 430 x 190 x 250 mm
Weight 5 Kg
Wa
6462165
106.9 dB
<2.5m/s
2
PARTS AND SERVICING
12
EXPLODED DIAGRAM - PARTS LIST
13
EXPLODED DIAGRAM - PARTS LIST
NO DESCRIPTION PAR T NO
1 Dust extraction CON1450WC01
2 Rubber ring CON1450WC02
3 Pree ring CON1450WC03
4 Bend tube CON1450WC04
5 Sealed ring CON1450WC05
6 Connect tube CON1450WC06
7 Aluminium
8 Screw CON1450WC08
9 Washer CON1450WC09
10 Rubber ring CON1450WC10
11 Screw CON1450WC11
12 Washer CON1450WC12
13 Knob CON1450WC13
14 Screw CON1450WC14
15 Spring Washer CON1450WC15
16 Washer CON1450WC16
17 Out guard CON1450WC17
18 Out flange CON1450WC18
19 Cutting disc CON1450WC19
20 Distance washer CON1450WC20
21 Flange CON1450WC21
22 Depth adjustment CON1450WC22
23 Screw CON1450WC23
24 Inner guard CON1450WC24
25 Nip cover CON1450WC25
26 Output shaft CON1450WC26
27 Woodruff ke y CON1450WC27
28 Screw CON1450WC28
29 Front cap CON1450WC29
30 Felt CON1450WC30
31 Bearing CON1450WC31
32 Circlip CON1450WC32
33 Large gear CON1450WC33
34 Circlip CON1450WC34
35 bearing CON1450WC35
36 Gear box CON1450WC36
37 Screw CON1450WC37
38 Spring CON1450WC38
39 Spindle lock CON1450WC39
40 Circlip CON1450WC40
41 Screw CON1450WC41
42 Roll wheel CON1450WC42
co
nnect
CON1450WC07
NO DESCRIPTION PART NO
43 Roll sheath CON1450WC43
44 Washer
45 Shaft CON1450WC45
46 Circlip CON1450WC46
47 Washer CON1450WC47
48 Pinion gear CON1450WC48
49 Bearing CON1450WC49
50 Screw CON1450WC50
51 Bearing cord CON1450WC51
52 Woodruff key CON1450WC52
53 Rotor CON1450WC53
54 Screw CON1450WC54
55 Stator CON1450WC55
56 Bearing CON1450WC56
57 Inductive magnet
58 Bearing cover CON1450WC58
59 Stator housing CON1450WC59
60 Brush holder CON1450WC60
61 Screw CON1450WC61
62 Brush CON1450WC62
63 Brush cap CON1450WC63
64 Screw CON1450WC64
65 Switch CON1450WC65
66 Washer CON1450WC66
67 Screw CON1450WC67
68 Right rear cover CON1450WC68
69 Capacitor CON1450WC69
70 Electronics
71 Screw CON1450WC71
72 Screw CON1450WC72
73 Spring Washer CON1450WC73
74 Washer CON1450WC74
75 Screw CON1450WC75
76 Cord anchorage CON1450WC76
77 Left rear cover CON1450WC77
78 Cord guard CON1450WC78
79 Cable CON1450WC79
80 Wrench CON1450WC80
81 Side handle CON1450WC81
82 Chisel CON1450WC82
83 Hex key CON1450WC83
84 Wind guard CON1450WC84
rin
reg
g
ulator
CON1450WC44
CON1450WC57
CON1450WC70
14
DECLARATION OF CONFORMITY
15
Loading...
