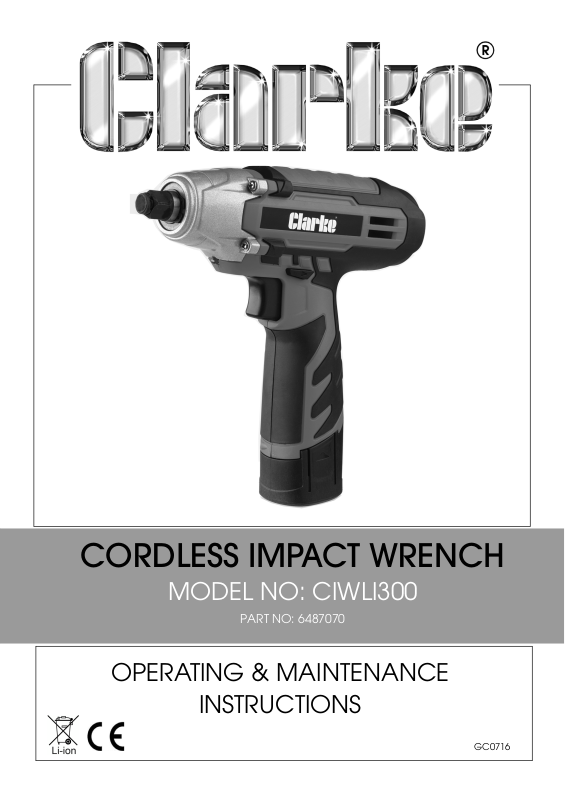

CORDLESS IMPACT WRENCH

MODEL NO: CIWLI300

PART NO: 6487070

OPERATING & MAINTENANCE

INSTRUCTIONS

GC0716

INTRODUCTION

Thank you for purchasing this CLARKE Impact Wrench.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.

ENVIRONMENTAL PROTECTION

Do not dispose of this product with general household waste. All
tools, accessories and packaging should be sorted, taken to a
recycling centre and disposed of according to the laws governing
Waste Electrical and Electronic Equipment.

Through the purchase of this product, the customer is taking on the obligation
to deal with the WEEE in accordance with the WEEE regulations in relation to
the treatment, recycling & recovery and environmentally sound disposal of
the WEEE. In effect, this means that this product must not be disposed of with
general household waste. It must be disposed of according to the laws
governing Waste Electrical and Electronic Equipment (WEEE) at a recognised
disposal facility.

BATTERY DISPOSAL

Dispose of old batteries in accordance with local authority regulations. Do not
incinerate or crush, as this will increase the risk of explosion and
contamination. If the battery contents come into contact with skin or the eyes,
rinse with clean water for several minutes and seek medical advice
immediately afterwards.

2

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

SAFETY PRECAUTIONS

WORK ENVIRONMENT

1. Keep the work area clean and tidy.

2. Do not wear loose clothing or jewellery. Tie long hair out of the way.

3. Keep children and visitors away - do not let children handle the wrench.

4. Do not use in damp or wet conditions. Keep the work area well lit. Do not
use where a risk of fire or explosion is present.

5. Although the wrench may be used outdoors, DO NOT leave it exposed to
the elements. Avoid direct sunlight, direct heat, rain/moisture etc.

6. ALWAYS keep body and clothing dry. Never work in damp area without
adequate insulation against electric shock.

7. ALWAYS store this product in a dry, secure place out of reach of children or
untrained users.

8. ALWAYS keep equipment dry especially the battery & battery charger.

9. NEVER over-reach. Keep proper footing and balance at all times.

GENERAL USE

1. This product vibrates during use. Vibration may be harmful to your hands or
arms. Stop using the wrench if discomfort, a tingling feeling or pain occurs
and seek medical advice before resuming use.

2. ALWAYS use ear defenders for prolonged work.

3. ALWAYS stay alert and use common sense - do not use this product when
you are tired or under the influence of alcohol or medication.

4. ALWAYS ensure the workpiece is firmly secured leaving both hands free to
control the wrench.

5. ALWAYS check for any damage or condition that could affect the
wrench’s operation. Any damaged part should be properly repaired.

6. NEVER force or misuse the wrench. It will do a better and safer job at the
rate for which it was designed.

7. NEVER use the wrench if it is defective / operating abnormally.

8. NEVER carry the wrench with your finger on the trigger.

9. NEVER abuse the mains cable of the battery charger. Never yank the
cable to disconnect it from the socket. Keep the cable away from sharp
edges/hot surfaces.

3

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

10. NEVER use this wrench for any purpose other than described in this booklet.

11. NEVER carry out any alterations or modifications to this product.

12. NEVER wipe the wrench clean with solvents. Wipe plastic parts with a soft
cloth, slightly dampened with soapy water.

13. NEVER attempt any repairs yourself. If you have a problem with this product
contact your local CLARKE dealer.

14. ALWAYS use an approved cable extension suitable for the power rating of
the battery charger (see specifications), the conductor size should also be
at least the same size or larger than that on the charger. When using a
cable reel, always unwind the cable completely.

IMPACT WRENCH SAFETY INSTRUCTIONS

1. ALWAYS ensure the wrench is not moving with the selector bar in the
centre position when changing sockets etc. Use only impact wrench

sockets....DO NOT use standard sockets.

2. ALWAYS finish tightening nuts with a torque wrench to the correct torque as
recommended by the vehicle manufacturer.

3. ALWAYS avoid excessive use of the wrench. When tightening a nut or bolt,
always avoid over tightening.

4. ALWAYS ensure the wrench has stopped before putting it down after use.

5. ALWAYS only use sockets which are specified for impact wrench use.

6. ALWAYS set the forward/reverse selection bar to neutral when changing
bits or when the wrench is not required for immediate use. This will avoid
accidental starting.

LITHIUM-ION BATTERY USE AND CARE

1. Only use the wrench with the battery pack supplied. Use of any another
battery pack may create a risk of injury and fire.

2. Do not charge the battery when the room temperature is below 10oC. Do
not store the battery where the temperature may exceed 40

3. When the battery pack is not in use, keep it away from metal objects that
could make a connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.

4. Dispose of spent batteries correctly as they contain Lithium-ion. They are re­cyclable and should be taken to a recycling centre to be disposed of as
stipulated by local regulations. Do not incinerated battery as it may
explode when exposed to fire. Do not attempt to open, disassemble,
modify or service a battery pack.

5. Handle batteries so as to avoid damage, fire, corrosion or personal injury.

4

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

o

C (104oF)

6. Never crush, puncture, short external contacts or dispose of in fire or water.

7. Never attempt recharging the battery by means of an engine generator or
a DC power source.

8. Never attempt to disassemble the battery.

9. Never allow a leaking battery to contact your person. If you come into
contact with battery liquid take the following immediate action:

• Skin contact: Wash immediately with soap and water, then wash

flesh in either lemon juice or vinegar.

• Eye contact: Wash with a strong solution of boric acid and seek

immediate medical attention

SAFETY SYMBOLS

The full technical specification of the battery charger is printed on a label on
the charger. The meanings of the markings and symbols are shown below

Read instruction
manual before use

Wear eye protection
when using this
product.

Class 2 Double
Insulated

Weee directive
compliance required
for Lithium-Ion
batteries.

Please keep these instructions in a safe place for future reference.

Suitable for indoor use
only

Maximum Temperature
(battery pack only)

Do not Incinerate
(battery pack only)

Do not immerse in
water (battery pack
only)

5

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 5 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

WARNING! Read these electrical safety instructions thoroughly
before connecting the product to the mains supply.

The battery charger for this product is provided with a standard 13 amp, 230
volt (50Hz), BS 1363 plug, for connection to a standard, domestic electrical
supply. Should the plug need changing at any time, ensure that a plug of
identical specification is used.

WARNING! The wires in the power cable of this product are
coloured in accordance with the following code:
Blue = Neutral Brown = Live

If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal

which is marked N or coloured Black.

• The wire which is coloured Brown must be connected to the terminal

which is marked L or coloured Red.

We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.

This symbol indicates that this is a Class II product, and does not require
an earth connection.

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

6

COMPONENT INVENTORY

Upon receipt, unpack and lay out the components, checking against the
following list. Any damage or deficiency should be reported to your Clarke
dealer immediately.

1. 12V Impact Wrench with battery pack

2. Battery-charging unit

3. Spare battery pack

4. Impact sockets (17,19, 21 & 22 mm sizes)

5. Moulded tool case

7

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

BATTERY CHARGING

The battery will have been shipped in a low charge state and will require charg­ing before use.

1. Squeeze the battery release clips
on either side of the battery pack
and pull gently down to
disengage the battery pack from
the wrench as in Fig 1.

2. Plug the charger into a 230V
power supply and switch ON.

• The green POWER ON light will

illuminate to show the unit is
connected to the mains supply.

3. Insert the battery pack into the
battery charger, as shown in Fig 2,
noting that it will only fit one way.

• The red light will come on to

indicate the battery is charging.

• When charging is complete

(typically after about 1 hour),
the GREEN charging light comes
on. The battery pack can be
considered charged and be
removed. The charging time will
be dependant upon the initial
state of the battery.

• When charging a new battery

pack it may initially not accept
full charge. This is common & does not indicate a fault. It can be
recharged fully after it has been discharged a couple of times.

• If charging does not take place, ensure all connections are clean.

4. After charging, switch off and unplug the charger from the power supply.

5. Remove the battery pack from the charger and slide it back into the
impact wrench until it clips into place.

The battery pack should slide in easily. If the battery pack is not to be fitted
immediately, ensure that the metal contacts are protected so as to avoid the
possibility of a short circuit which would cause damage. For maximum battery
life, we recommend that you maintain the battery in a fully charged state at
all times.

8

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

OPERATION

CAUTION: MAKE SURE THAT THE WRENCH IS FULLY OFF BEFORE
ATTACHING OR REMOVING A SOCKET. ALWAYS TAKE CARE TO USE THE
CORRECT SIZE SOCKET FOR BOLTS AND NUTS. AN INCORRECT SOCKET
WILL CAUSE DAMAGE TO THE BOLT OR NUT.

FITTING A SOCKET

1. Align the chosen socket and
simply push it onto the anvil. Use
only ½” square drive impact
sockets supplied, or as listed on
page 11.

2. Squeeze the trigger to start the
impact wrench. Release the
trigger to stop.

FORWARD/REVERSE SELECTION

1. Select the direction of operation by
pushing the selector bar in the
appropriate direction.

• The direction of rotation is shown on

the end face of the switch-bar.

• When the selector bar is in the central

position the trigger is locked.

2. Always check the direction of rotation
before operation.

LOOSENING A NUT

1. Fit the appropriate socket to the square
drive of the wrench.

2. With the FORWARD/NEUTRAL/REVERSE
switchbar in the REVERSE running position, and holding the wrench firmly in
BOTH HANDS, pull the trigger. The nut will be impacted repeatedly until it is
loosened. IMPORTANT! Release the trigger immediately the nut begins to
loosen.

9

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

.

WARNING: ENSURE THAT THE CORRECT SOCKET IS BEING USED FOR THE
NUTS ON YOUR PARTICULAR VEHICLE. AN INCORRECT SOCKET SIZE IS
LIKELY TO DAMAGE THE HEADS OF THE BOLTS/NUTS.

NOTE: As the battery becomes discharged, the power available will

drop.

3. After use, recharge the battery pack as shown on page 8. Avoid leaving
the batteries in a discharged state.

TIGHTENING A NUT

1. Start the nut by hand, ensuring it is not cross threaded, then with the
appropriate socket fitted to the wrench, place it on the nut.

2. With the FORWARD/NEUTRAL/REVERSE switch-bar in the clockwise
(FORWARD ARROW) running position, and holding the wrench firmly in
BOTH HANDS, pull the trigger.

3. Run each nut up in turn until it is ‘nipped’ up only - do not tighten. When all
nuts are nipped up, tighten progressively by pulling the trigger fully and
allowing the action to operate as little as possible to prevent over­tightening.

4. ALWAYS finish tightening with a torque wrench.

10

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

MAINTENANCE

All bearings etc, in this wrench are lubricated with a sufficient amount of high
grade lubricant for the machines lifetime under normal operating conditions,
therefore no further lubrication is required.

Refer to your CLARKE dealer if internal maintenance is required.

Check the battery charger power cable to ensure it is free from cracks, bare
wires etc.

Avoid using solvents when cleaning plastic parts, most plastics are susceptible
to damage from the various types of commercial solvents. Keep the unit clean
by wiping with a dry cloth. DO NOT use solvents as a cleaning agent.

Your Clarke impact wrench has been designed to give long and trouble free
service. If, however, having followed the instructions in this booklet carefully,
you encounter problems, take the unit to your local Clarke dealer.

Always store the wrench and its charger in the case supplied. Store in a clean,
dry place, out of reach of children when not in use.

ACCESSORIES

A wide range of impact wrench accessories is available from your nearest
Clarke dealer, for further information, contact your nearest dealer, or
telephone Clarke International Sales department on 01992 565300.

Suitable impact wrench compatible socket sets include the following:

Part No Model No Description

3110437 CAT37B 11 piece 1/2”square drive (metric)

1800310 CIS12/17 17 piece 1/2”square drive (metric/AF)

1800305 CIS9/32 32 piece 3/8” & 1/2”square drive (metric/AF)

1800345 CIS12/7M 7 piece 1/2”square drive universal joint (metric)

1800350 CIS12/7MD 7 piece 1/2”square drive universal joint (deep) metric

1800355 CIS12/6H 6 piece 1/2”square drive hex key set (metric)

1800360 CIS12/6S 7 piece 1/2”square drive TRX-Star

11

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

COMPONENT PARTS LIST

No Description No Description

1 Rubber Cap 25 Spring

2Locking Ring 26Screw

3 Circlip18 mm 27 Gear Ring

4 Washer 28 Planetary Gear

5 Screw 29 Washer

6 Aluminium Front Housing 30 Screw

7 Steel Bush 31 Shaft Gear

8 Washer 32 Gearbox Cover

9T-Spindle 33Motor Washer

10 Moving Pawl 34 Motor

11 Screw 35 LED lamp

12 Magnet/cover/tube & bush 36 Switch Button

13 Steel Ball 4 mm 37 Switch

14 Spring 38 Circuit Board

15 Impact Block 39 Battery Box

16 Pin 40 Battery Holder

17 Lock Spring 22 dia 41 Battery

18 Bearing 6900ZZ 42 Battery Box Cover

19 Screw & Spring Washer 43 Screw

20 Gearbox 44 Left Housing

21 Spring Cover 45 Right Housing

22 Spring 46 Screw

23 Steel Ball 4 mm 47 Screw

24 Gear Holder 48 Battery Charger (not shown)

12

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

COMPONENT PARTS

13

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

SPECIFICATIONS

FEATURE SPECIFICATION

Weight 2.25 kg

Dimensions (L x W x H) 205 x 58 x 210 mm

Size of spindle 1/2”

Motor Speed 5500 rpm

Max tightening torque 300 Nm

Impacts/minute 5500

Duty Cycle S1

IP Rating IP20

Charger insulation class II

Input voltage 230V/50Hz

Output voltage 12V DC

Battery Type Lithium-Ion

Charging Time 60 min

Battery pack capacity 2000 mAh

Charger Fuse Rating 3 Amp

Sound pressure level 83 dB LpA

Sound power level 94 dB LWA

Uncertainty Factor (K)

Vibration Level 4.2 m/s

Uncertainty Factor (K)

3 m/s

1.5 m/s

2

2

2

Please note that the details and specifications contained herein, are correct
at the time of going to print. However, CLARKE International reserve the right
to change specifications at any time without prior notice.

14

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

DECLARATION OF CONFORMITY

15

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
