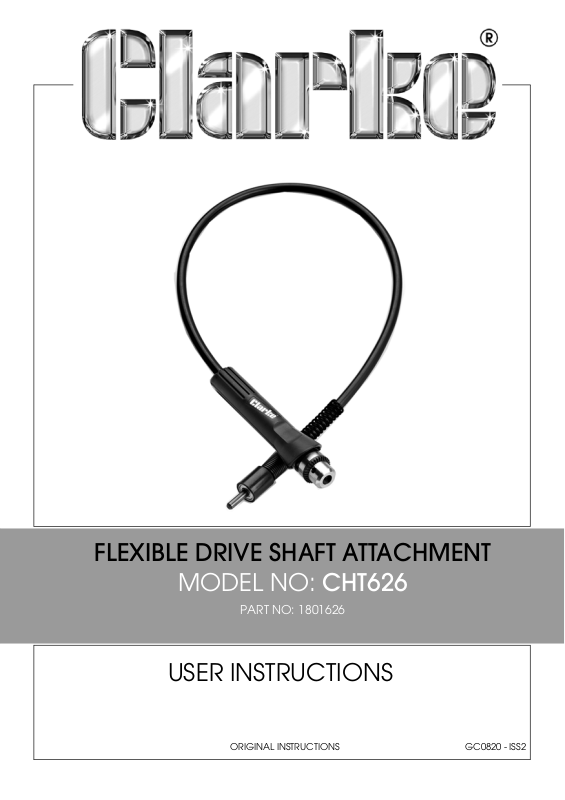

FLEXIBLE DRIVE SHAFT ATTACHMENT

MODEL NO: CHT626

PART NO: 1801626

USER INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0820 - ISS2

INTRODUCTION

Thank you for purchasing this CLARKE product. Before attempting to use this
product, please read these instructions carefully. In doing so you will ensure
your safety and you can look forward to your purchase giving you long and
satisfactory service.

The CHT626 Drill Attachment is ideal for drilling, polishing, grinding or sanding in
a confined area in conjunction with most power drills.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for its intended purpose. Faulty goods
should be returned to their place of purchase, no product can be returned to
us without prior permission. This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Do not dispose of this product with general household waste. Any tools,
accessories and packaging should be sorted, taken to a recycling centre and
disposed of appropriately.

SPECIFICATIONS

Length 1250 mm

Hand grip length 180 mm

Chuck capacity 1.0 - 10.0 mm

Chuck type 3/8” - 24 UNF

Torque (maximum) 8 N/m

Maximum rated speed 6500 rpm

Weight 0.75 kg

Drive end type Round 8 mm

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY PRECAUTIONS

ALWAYS take care that your hands or clothing do not come into contact with
the chuck of the drill which drives this attachment. Beware of wearing loose
clothing & ensure cuffs are secured.

ALWAYS learn the applications, limitations and potential hazards relating to the
tool you are using. Read and become familiar with all operating instructions.

ALWAYS wear safety goggles manufactured to the latest European Safety

Standards when drilling. Everyday eyeglasses do not have impact resistant
lenses and are not safety glasses.

ALWAYS check for damage before use to ensure that the tool will operate
properly. If in doubt, do not use. Consult your local dealer. Any damage
should be properly repaired or the part replaced.

ALWAYS check for alignment of moving parts and any condition that may
affect operation.

ALWAYS keep work area clean. Cluttered areas invite accidents.

ALWAYS ensure that adequate lighting is available and that you will not be
working in your own shadow.

ALWAYS concentrate on the job in hand, no matter how trivial it may seem. Be
aware that accidents are caused by carelessness.

USER INSTRUCTIONS

CAUTION: NEVER USE WITH A DRILL IN ‘HAMMER’ MODE.

CAUTION: THIS PRODUCT MUST ONLY BE USED WITHIN ITS MAXIMUM
SPEED RATING OF 6500RPM.

1. Install the attachment into the chuck of your power drill. Install a drill bit into
the chuck using the chuck key provided and tighten securely.

2. Plug in and switch on, with the drill set to a reasonably slow speed until
confident of the drilling capability.

3. When drilling, use a steady pressure. Do not force the drill, but allow the drill
bit to do the work. It may be necessary to adjust the speed to suit the size
of drill bit and the material.

4. As a general guide, the larger the hole, the slower the speed required, also
the harder the material being cut, the slower the speed.
