INTRODUCTION
Thank you for purchasing this CLARKE Drill Press.
Before attempting to operate the machine, it is essential that you read this
manual thoroughly and carefully follow all instructions given. In doing so you will
ensure the safety of yourself and that of others around you, and you can also
look forward to the product giving you long and satisfactory service.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
2
Page 3
PARTS & SERVICING
For parts & servicing, please contact your nearest dealer, or
CLARKE International, on one of the following numbers.
PARTS & SERVICE TEL: 020 8988 7400
PARTS & SERVICE FAX: 020 8558 3622
or e-mail as follows:
PARTS: [email protected]
SERVICE: [email protected]
CONTENTS
Introduction ............................................................................................ 2
Guarantee .............................................................................................. 2
Environmental Protection ..................................................................... 2
Parts & Service Contacts ...................................................................... 3
General Safety Rules ............................................................................. 4
Additional Safety Rules for Drill Presses ............................................... 6
Electrical Connections .........................................................................7
Machine layout ..................................................................................... 8
Unpacking .............................................................................................. 9
Assembly .............................................................................................. 10
Useful Accessories ...............................................................................14
Settings & Adjustments ........................................................................ 15
Operation .............................................................................................17
Machine Speed Table .........................................................................20
Drilling Speeds......................................................................................21
Maintenance ....................................................................................... 22
Troubleshooting ................................................................................... 23
Technical Specification ...................................................................... 25
Parts List and Diagrams ....................................................................... 26
Declaration of Conformity ..................................................................31
3
Page 4
GENERAL SAFETY RULES
GENERAL SAFETY IN THE WORKPLACE
1. ALWAYS ensure that air can circulate around the machine and that the air
vents are unobstructed.
2. ALWAYS keep work area clean & tidy. Cluttered work areas and benches
invite accidents.
3. NEVER over-reach. Keep proper footing and balance at all times.
4. NEVER use or store equipment in a wet/damp environment or expose to
rain.
5. KEEP children and bystanders at a safe distance from work area.
6. NEVER operate a machine when under the influence of alcohol, drugs or
medication.
7. ALWAYS ensure the workplace is well lit. Ensure that lighting is placed so
that you will not be working in your own shadow.
CARE & USE OF THE EQUIPMENT
1. ALWAYS check for any damage or any condition that could affect the
operation of the machine. Any damaged part should be properly
repaired.
2. NEVER remove the cover panel unless the machine is disconnected from
the supply, and never use the machine with cover panels removed.
3. NEVER attempt any electrical or mechanical repair unless you are a
qualified technician. If you have a problem with the machine contact
your local CLARKE dealer.
4. NEVER use this product for any other purpose than that described in this
booklet.
5. NEVER abuse the mains cable by yanking the cable to disconnect it from
the socket. Keep the cable away from sharp edges/hot surfaces.
6. NEVER stand on the machine. Serious injury could occur if the machine
topples over.
7. Avoid accidental starting by making sure the power switch is off before
plugging in the power cable.
8. Never leave the machine running unattended until it has come to a
complete stop.
PROTECTIVE CLOTHING
1. Dress properly. Loose clothing, gloves, neckties, rings, bracelets, or other
jewellery may get caught in moving parts. Non-slip footwear is
recommended. Long hair should be tied back.
4
Page 5
2. ALWAYS wear safety glasses. Everyday glasses are not safety glasses.
3. Wear a face mask if drilling into any material which produces dust.
CARE OF POWER TOOLS
1. Know your machine. Read the manual carefully. Learn the machines
applications and limitations, as well as the specific potential hazards
peculiar to it.
2. ALWAYS keep the guards in place and in working order.
3. Remove any adjusting keys or wrenches before starting. Form the habit of
checking to ensure that keys, wrenches and tools are removed from the
machine.
4. Don’t force the machine. It will do the job better and safer, at the rate for
which it was designed.
5. Use the correct tool. Don’t force a tool or attachment to do a job for
which it was not designed.
6. ALWAYS maintain tools in top condition. Keep drills sharp and clean for
best and safest performance. Follow instructions for lubricating and
changing accessories.
7. ALWAYS disconnect the machine from the power supply before carrying
out any servicing or changing of accessories.
8. CHECK for any damage before use. Damage to moving parts or major
components should be inspected by a qualified technician before
operating the machine. Contact your local dealer for advice.
WARNING: AS WITH ALL MACHINERY, THERE ARE CERTAIN HAZARDS
INVOLVED WITH THEIR OPERATION AND USE. EXERCISING RESPECT AND
CAUTION WILL CONSIDERABLY LESSEN THE RISK OF PERSONAL INJURY.
HOWEVER, IF NORMAL SAFETY PRECAUTIONS ARE OVERLOOKED, OR
IGNORED, PERSONAL INJURY TO THE OPERATOR, OR DAMAGE TO
PROPERTY MAY RESULT.
5
Page 6
ADDITIONAL SAFETY RULES FOR DRILL PRESSES
1. IMPORTANT: You should not operate this machine unless you are
thoroughly familiar with drilling machines and drilling techniques. If there is
any doubt whatsoever you should consult a qualified person.
2. NEVER operate the machine until it is completely assembled and you
have read and understood this entire manual.
3. ALWAYS use clamps, or a drill vice bolted to the table, to hold the work. It
should never be held in bare hands.
4. ALWAYS shut off the power and remove the drill bit before leaving the
machine,
5. ALWAYS make all adjustments with the power OFF.
6. ALWAYS use the correct drilling speeds for the drill size and the type of
material being drilled (see page 21).
7. NEVER leave the drill unattended whilst it is running. Turn the machine OFF
and do not leave until it has come to a complete stop.
8. ALWAYS remove and store the drill bits when you have finished with the
machine.
9. CAUTION: This machine is designed for use with drill bits and morticing
attachments only. The use of other cutting tools or accessories could be
hazardous.
10. NEVER attempt to drill into a workpiece that does not have a flat surface
unless a suitable support is used.
11. ALWAYS stop the drill before removing workpieces, work supports or swarf
from the table.
12. ALWAYS Make sure you remove the chuck key before turning the machine
on.
13. Adjust the table or depth stop to avoid drilling into the table surface.
14. ALWAYS be sure that the drill bit is securely locked in the chuck.
15. NEVER assemble or set up any work on the table while the drill is running.
16. ALWAYS ensure the table lock is tight before starting the drill.
17. ALWAYS keep hands and fingers away from the drill bit.
WARNING: DUST GENERATED FROM CERTAIN MATERIALS CAN BE
HAZARDOUS TO YOUR HEALTH. ALWAYS OPERATE THE MACHINE IN A
WELL VENTILATED AREA. USE A DUST COLLECTION SYSTEM WHENEVER
POSSIBLE.
6
Page 7
ELECTRICAL CONNECTIONS
Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply
through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.
WARNING! THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in the mains lead are coloured in accordance with the
following code:
Green & Yellow .......... Earth
Blue .......... Neutral
Brown .......... Live
As the colours of the flexible lead of this appliance may not correspond with
the coloured markings identifying terminals in your plug proceed as follows:
• Connect GREEN & YELLOW cord to plug terminal marked with letter
“E” or Earth symbol “
• Connect BROWN cord to plug terminal marked letter “L” or
coloured RED.
• Connect BLUE cord to plug terminal marked letter “N” or coloured
BLACK.
If this appliance is fitted with a plug which is moulded onto the electric cable
(i.e. non-rewirable) please note:
1. The plug must be thrown away if it is cut from the electric cable. There is a
danger of electric shock if it is subsequently inserted into a socket outlet.
2. Never use the plug without the fuse cover fitted.
3. Should you wish to replace a detachable fuse carrier, ensure that the
correct replacement is used (as indicated by marking or colour code).
4. Replacement fuse covers can be obtained from your local dealer or most
electrical stockists.
5. The fuse in the plug must be replaced with one of the same rating (13
amps) and this replacement must be ASTA approved to BS1363.
”, or coloured GREEN or GREEN & YELLOW.
7
Page 8

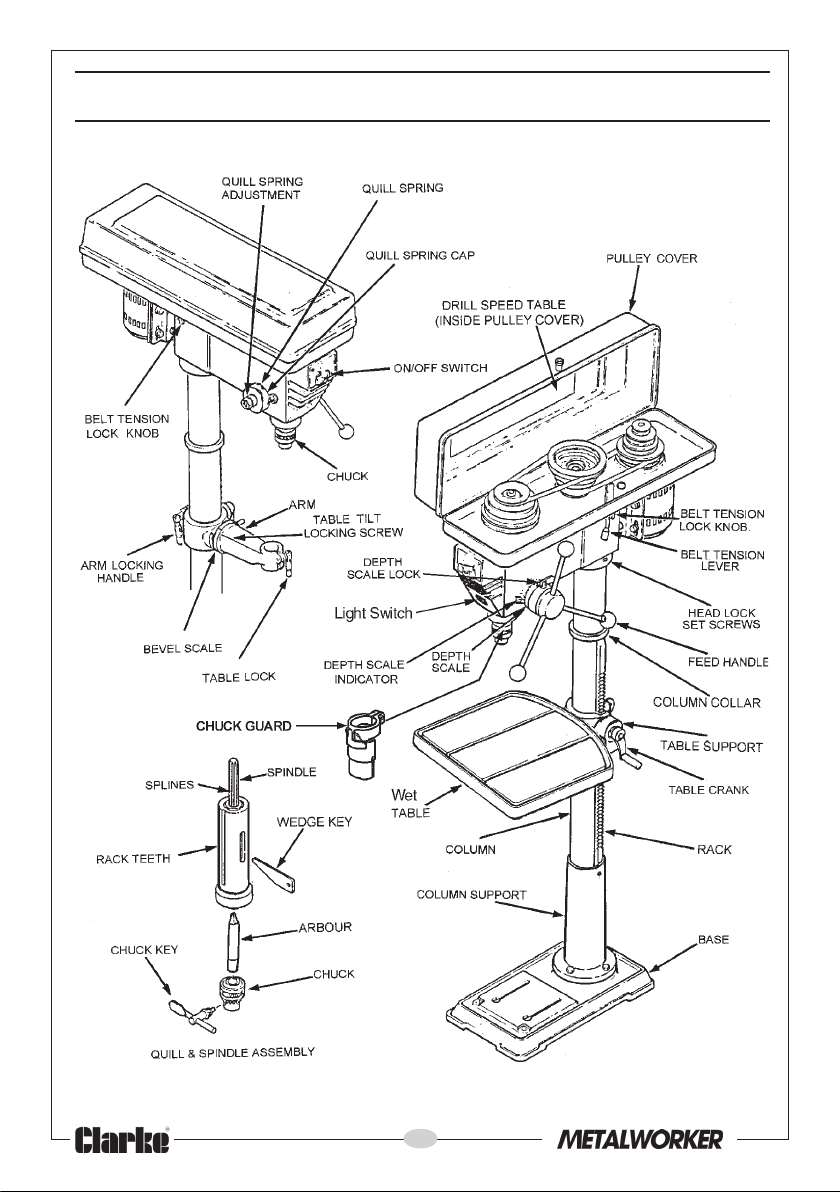

MACHINE LAYOUT
8
Page 9
UNPACKING
When unpacking, check for damage or omissions etc. Any found should be
reported to your CLARKE dealer where the machine was originally
purchased. Do not discard the packaging until the machine is assembled.
To protect the machine parts from moisture, a protective coating has been
applied to the outside surfaces. Remove this coating with a soft cloth,
moistened with kerosene. Do not use acetone, gasolene or thinners for
cleaning. Apply a coat of paste wax to the table to prevent surface
corrosion and column and then wipe all parts with a clean, dry cloth.

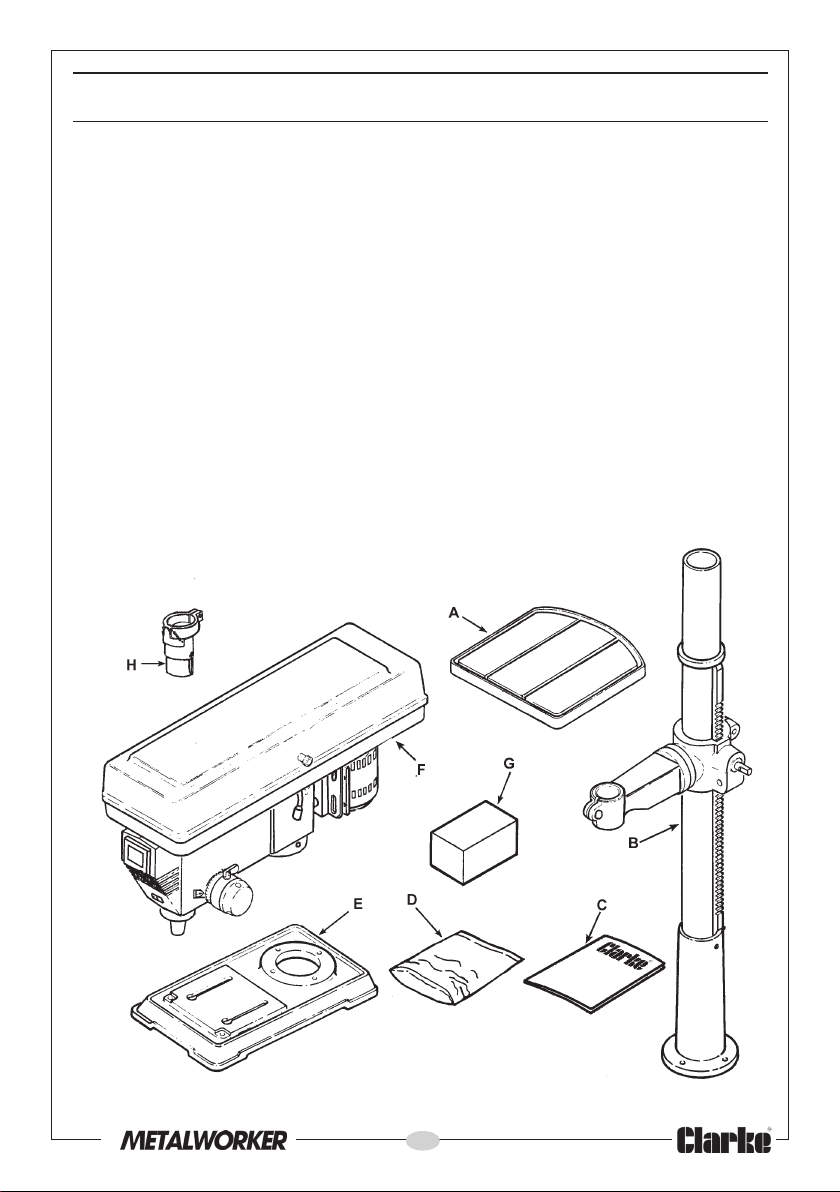

The machine is delivered with the following components:
A Table Assembly E Base
B Column assembly with table support F Head Assembly
C Instruction manual (this document) G Box of loose parts
D Bag of loose parts H Chuck Guard Assembly
9
Page 10
ASSEMBLY

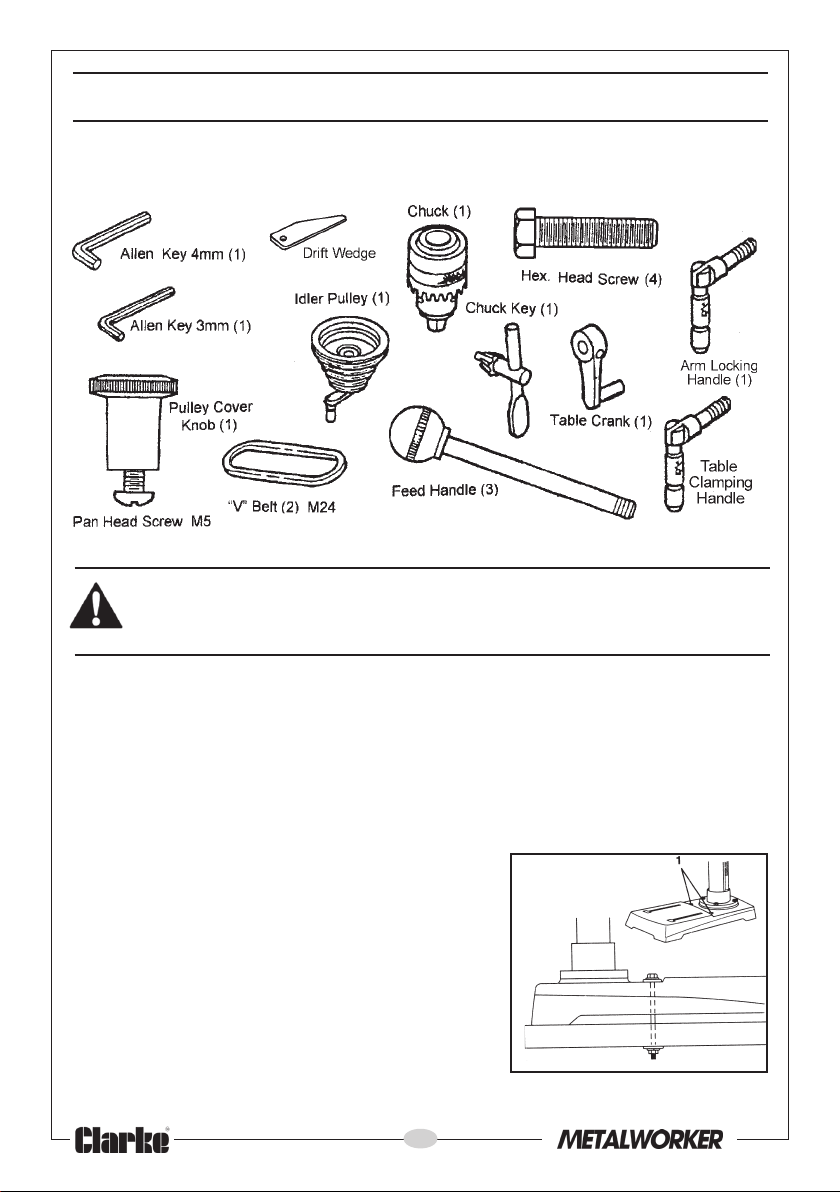

ITEMS SUPPLIED LOOSE IN THE BAG OR BOX
WARNING: IF ANY PART IS MISSING OR DAMAGED, DO NOT PLUG THE
MACHINE IN UNTIL THE MISSING OR DAMAGED PART IS REPAIRED OR
REPLACED AND ASSEMBLY IS COMPLETE.
TOOLS NEEDED FOR ASSEMBLY
• Adjustable wrench or socket set
• Cross-head screwdriver
• Hammer and block of wood
INSTALLING THE BASE AND COLUMN
NOTE: Ideally, the base should be firmly bolted
to the floor or workbench, prior to assembly of
other components. The mounting surface must
flat, level and capable of supporting the machines weight. The machine should be securely
fastened through the mounting holes to a stand
or floor with heavy-duty fasteners (not supplied).
This will prevent the machine from tipping over,
sliding, or walking during operation.
1. With the base on a flat level surface, bolt on
the column using the 4 x M10 Hex head bolts
(1) provided and tighten them fully.
10
Fig 1
Page 11
2. Carefully locate the table in its support
and nip up with the table clamping
handle (Fig.2).
3. Fit the table crank to the drive spigot.
4. Screw the arm locking handle into place
on the rear of the column support.

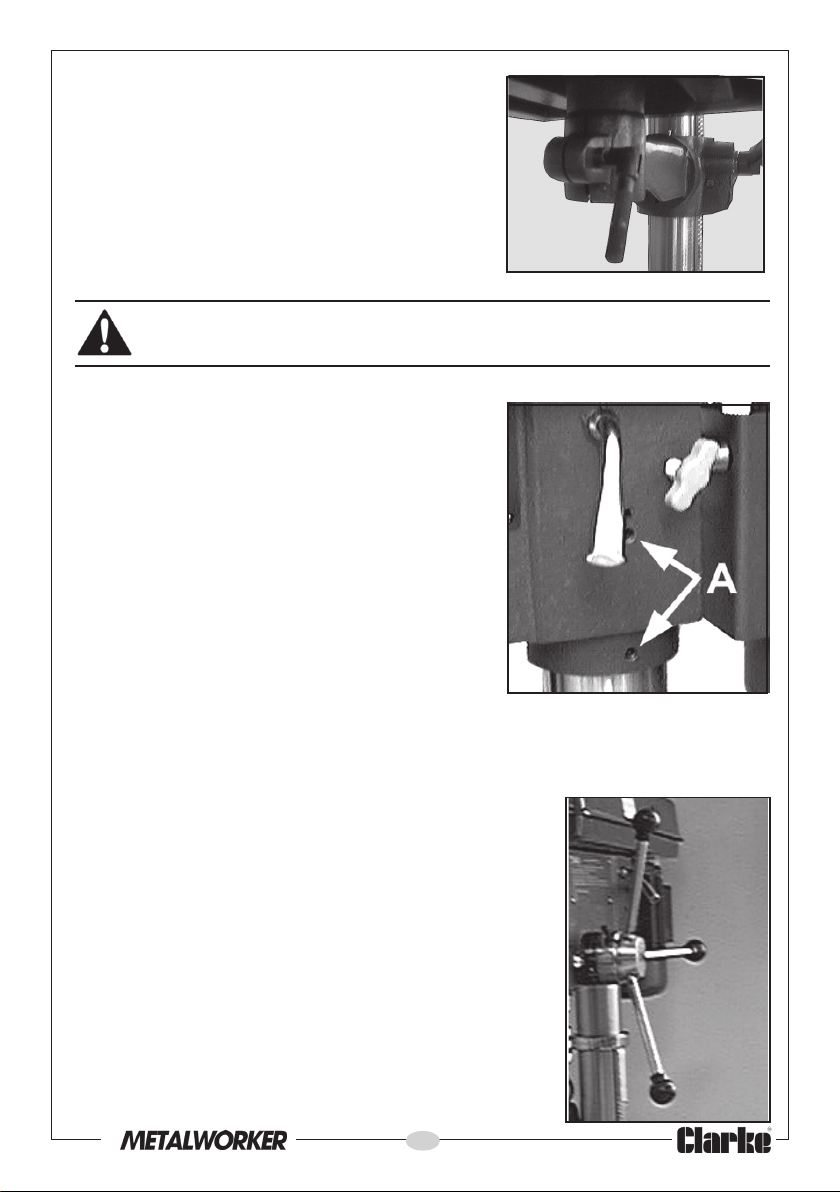

DRILL PRESS HEAD TO COLUMN
CAUTION: THE HEAD ASSEMBLY IS HEAVY. TO AVOID ACCIDENT, TWO
PEOPLE SHOULD LIFT IT INTO POSITION.
1. Carefully lift the head assembly and
position it with its mounting opening over
the column. Swivel the assembly to
ensure it is seated correctly on the
column.
NOTE: It may be necessary to unscrew the
head locking set screws (A in Fig 2)
slightly to ensure they do not protrude
internally so as to prevent the head from
sliding fully into position.
2. Align the drill press head with the
direction of the base.
3. Tighten the set screws using an allen key.
Fig 2
Fig 3
FEED HANDLES
1. Screw the three feed handles into the threaded holes in the feed hub and
tighten by hand.
NOTE: When using the drill, one or two of the feed
handles may be removed if an unusuallyshaped workpiece interferes with handle
rotation.
CHUCK GUARD ASSEMBLY
NOTE: This operation should be carried out before
the chuck is installed if the guard cannot be
passed over the chuck.
Slide the Chuck Guard over the Quill Shaft, turn it so
that the pinch bolt faces the front, then nip up the
pinch bolt to temporarily secure it in this position.
IMPORTANT: Ensure the Quill Shaft/Spindle is at the
top of it’s travel.
11
Fig 4
Page 12
PULLEY COVER KNOB
Locate the knob, with pan head screw and attach to the cover, screwing on
tightly.

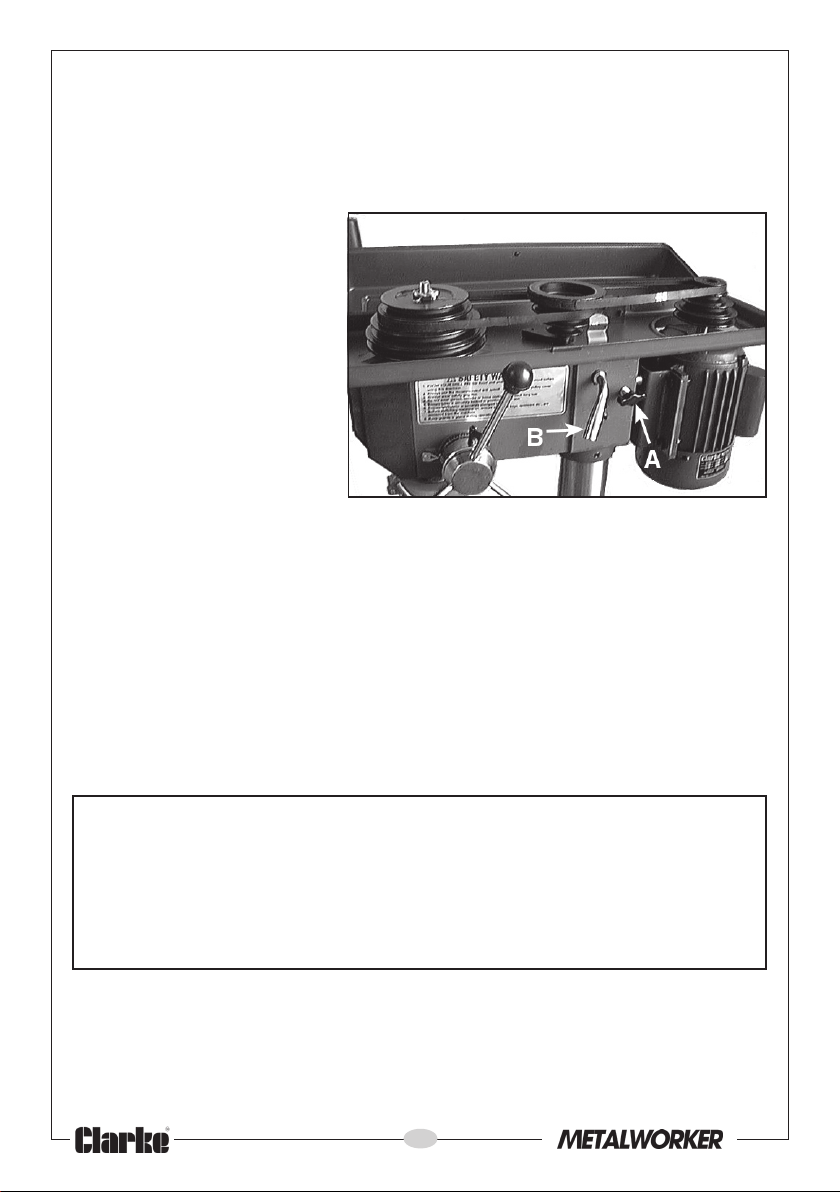

FITTING THE DRIVE BELTS
1. Undo the Belt Tension
locking screws (one
Fig 5
either side of the head
- A Fig. 5), and turn the
Belt Tension Lever (B Fig. 5), clockwise to
bring the Motor Pulley
closer to the Spindle
Pulley which will allow
the belts to be slipped
on with ease.
2. Lightly grease the Idler
Pulley Pivot shaft and
locate the Idler pulley
assembly in it’s mounting between the motor and spindle pulleys.

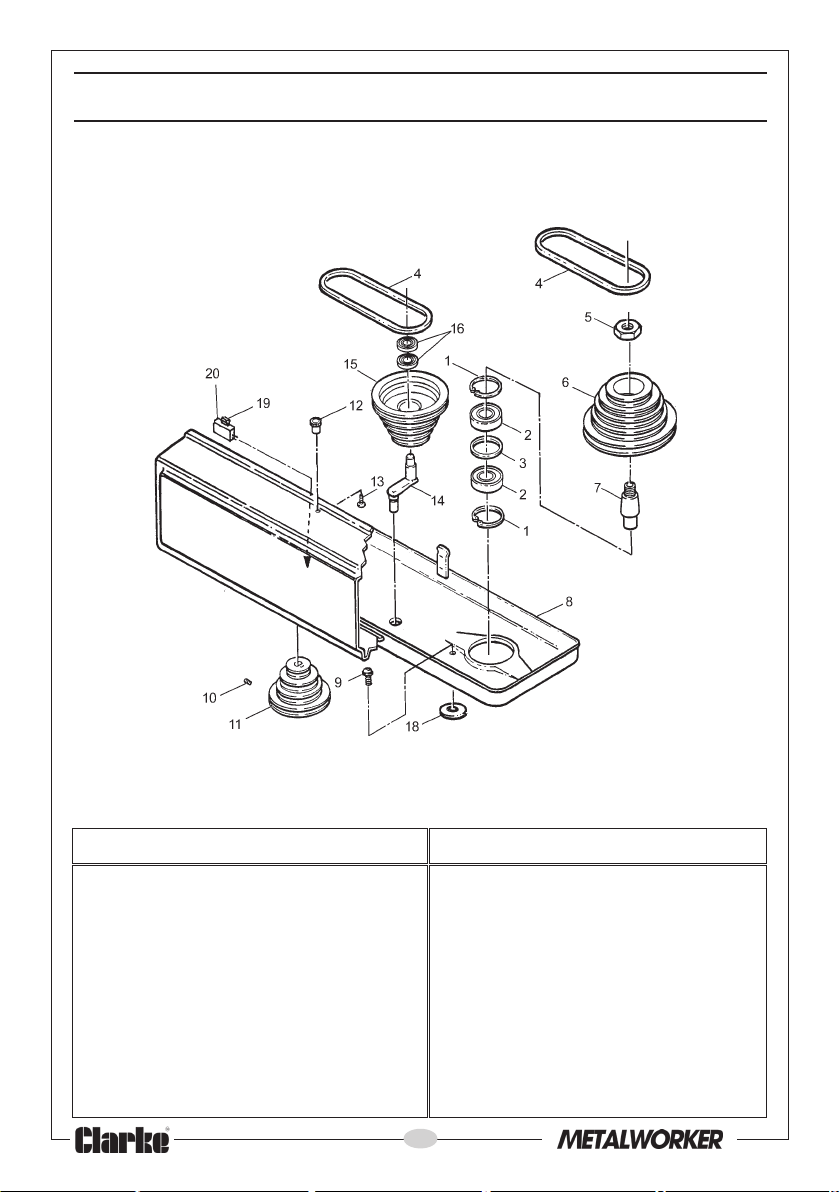

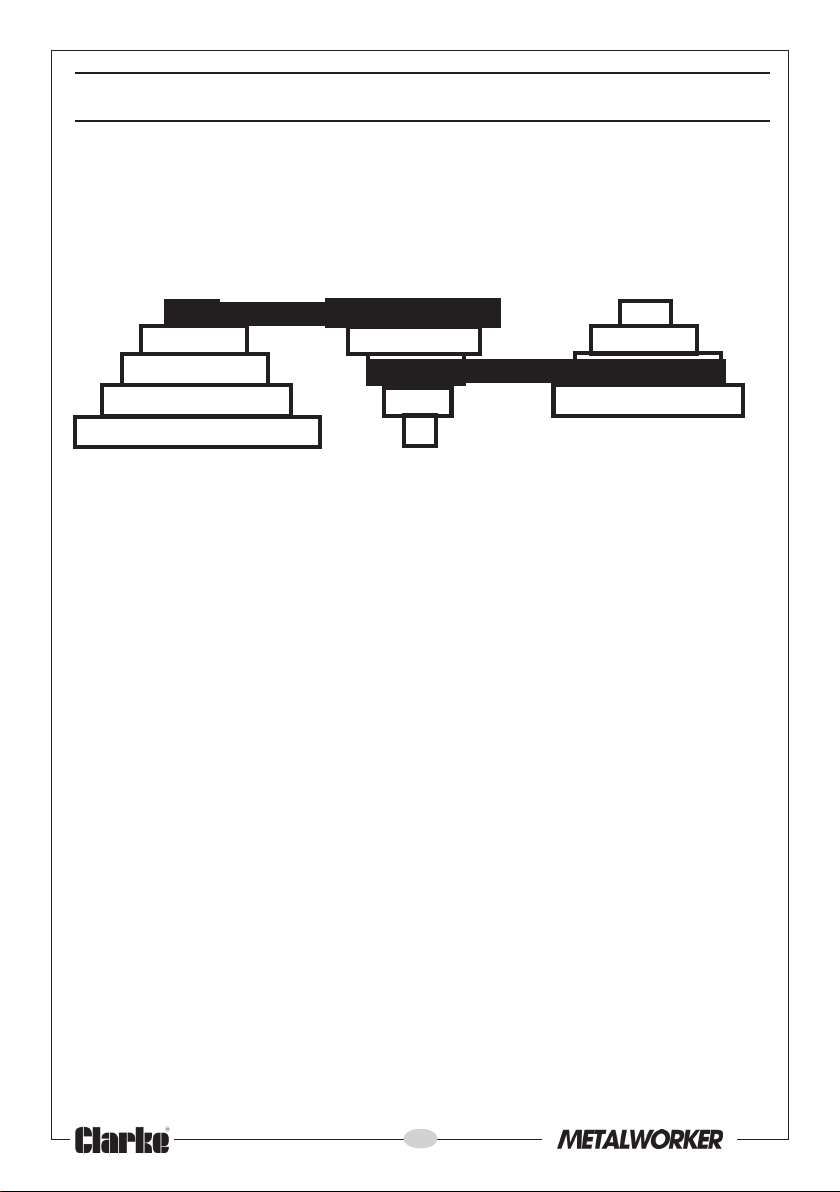

3. Consult the chart inside the belt cover (duplicated on page 19), and fit
the belts in the position corresponding to spindle/drill speed required.
4. Turn the Belt Tension Lever ant-clockwise so that tension is applied to the
belts. Tension is correct when the belts deflect by approx. ½” at the centre
of their span when using reasonable thumb pressure. Lock the motor in this
position with the Locking Screw - A.
NOTE:
1. The idler pulley will ‘float’ so that tension is applied equally to both belts
If the belt should slip whilst drilling, adjust the belt tension.
2.
.
CHECKING THE OPERATION OF THE MICROSWITCH
When closing the cover, check the operation of the Microswitch. It is important that it
operates immediately the cover is pulled open, in order to prevent the machine from
operating........NOT when the cover is opened sufficiently for fingers to be inserted.
If necessary, bend the actuating tab, which is attached to the cover, to ensure this.
IMPORTANT:
12
Page 13
INSTALLING THE CHUCK
WARNING: DISCONNECT THE DRILL PRESS FROM THE POWER SOURCE
BEFORE INSTALLING, ADJUSTING, OR REMOVING THE CHUCK.
1. Slide the table up the column and
secure it to within 6" of the spindle.
2. Put a piece of scrap wood on to the
table to protect the chuck nose.
3. Ensuring all parts are thoroughly clean,
dry, and burr free, place the chuck over
the end of the arbour and pull the
spindle down using the feed handles,
pressing the chuck jaws hard against the
piece of scrap wood until the chuck is
forced home. (Fig 6).
4. Turn Chuck Guard through 180° and
tighten the pinch bolt.

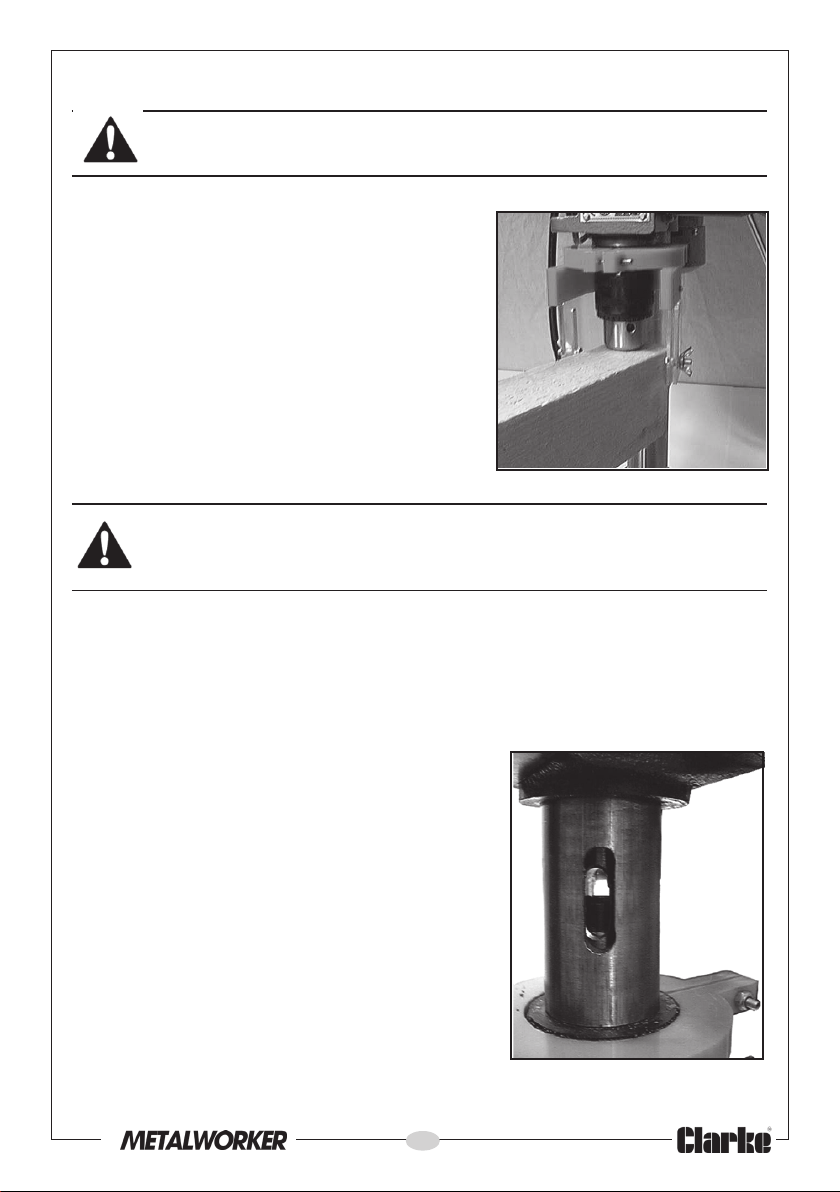

CAUTION: TO AVOID DAMAGING THE CHUCK, MAKE SURE THE JAWS
ARE COMPLETELY RECESSED INTO THE CHUCK. DO NOT USE A METAL
HAMMER TO DRIVE THE CHUCK INTO THE SPINDLE.
REMOVING THE CHUCK
To remove the chuck, pull the spindle down fully, using the feed handles. The
slot in the side of the Quill will become visible, as shown in fig 7. Note the
position of the chuck, perhaps by placing a chalk mark, in line with the
chuck, on the column, then raise the table so that it is only an inch or so
below the position marked.
Place a thick cloth, or similar, on the table to
catch the chuck, to prevent damage when it
drops, then pull down the spindle once more,
until the slot in the Quill tube is visible. Insert
the drive wedge into the slot and give it a
sharp tap, preferably with a copper hammer.
This will break the seal between the quill tube
and the arbour, allowing the chuck to fall
free, on to the cloth on the table.
Fig 6
Fig 7
13
Page 14
To disconnect the chuck from the arbour, give it a sharp tap with a soft head
mallet to break the taper seal.
NOTE: Morse taper drills (MT2), may also be used with this machine, and are
inserted into the quill to replace the arbour. Removal is the same as that for
removing the chuck.

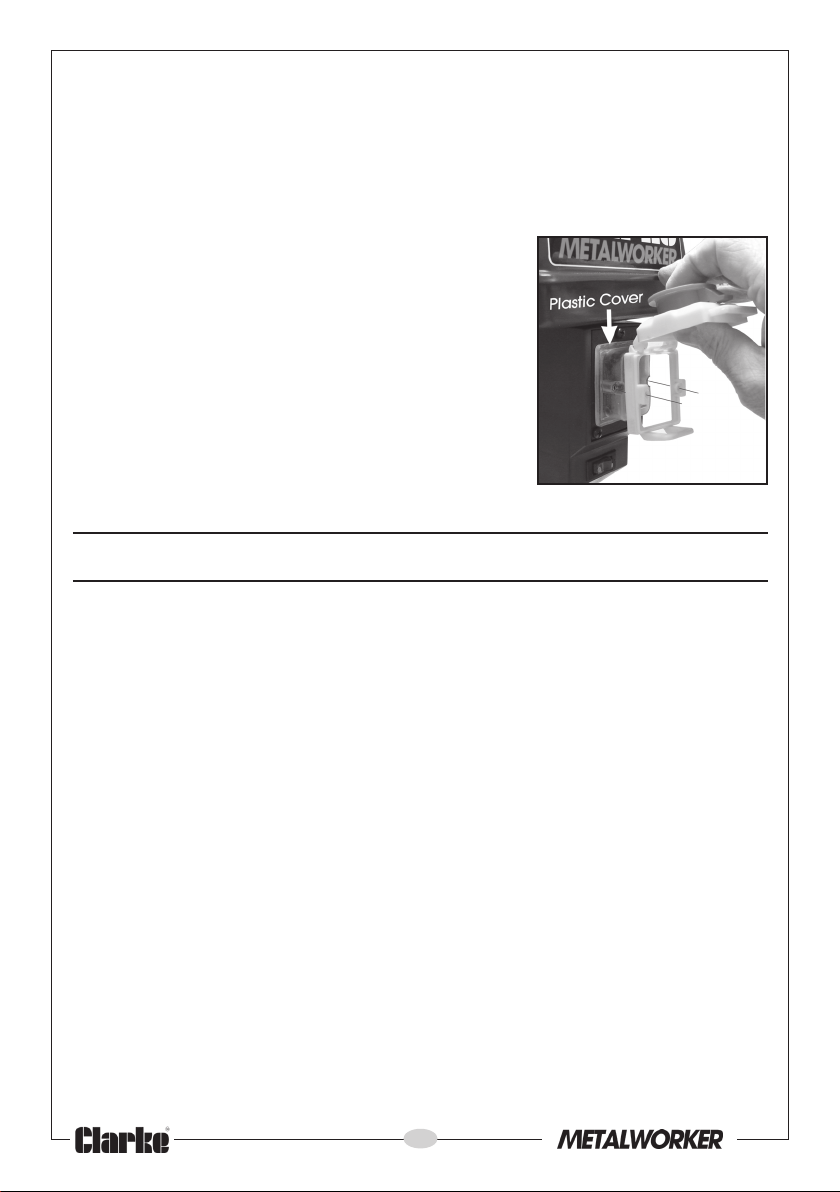

ASSEMBLING THE ON/OFF SWITCH
Ensure the ON/OFF switch ‘Emergency OFF’
component is attached, as shown, using the two
screws supplied. Make sure the plastic cover is
properly in place before running the machine.
To turn the machine ON, lift the cover guard to
access the ON/OFF buttons. Press the green
push-button to start the machine.
• As a safety feature, the ON button cannot
be pressed without raising the guard.
To turn OFF, press either the OFF button if holding
the guard raised, or press the guard cover at any time.
USEFUL ACCESSORIES
The following range of accessories is available from your Clarke dealer:
Mortising Attachment CMA1B 6500023
Mortise Chisels 6mm 6500025
9mm 6500026
13mm 6500027
16mm 6500028
Drill Press Vices CDV30B 6501901
CDV40B 6501902
CDV50B 6501903
CDV60B 6501904
Table Clamps CVC6 6501920
CVC9 6501925
Drill Bit Tools table DBT1 6500230
Fig 8
14
Page 15
SETTINGS AND ADJUSTMENTS

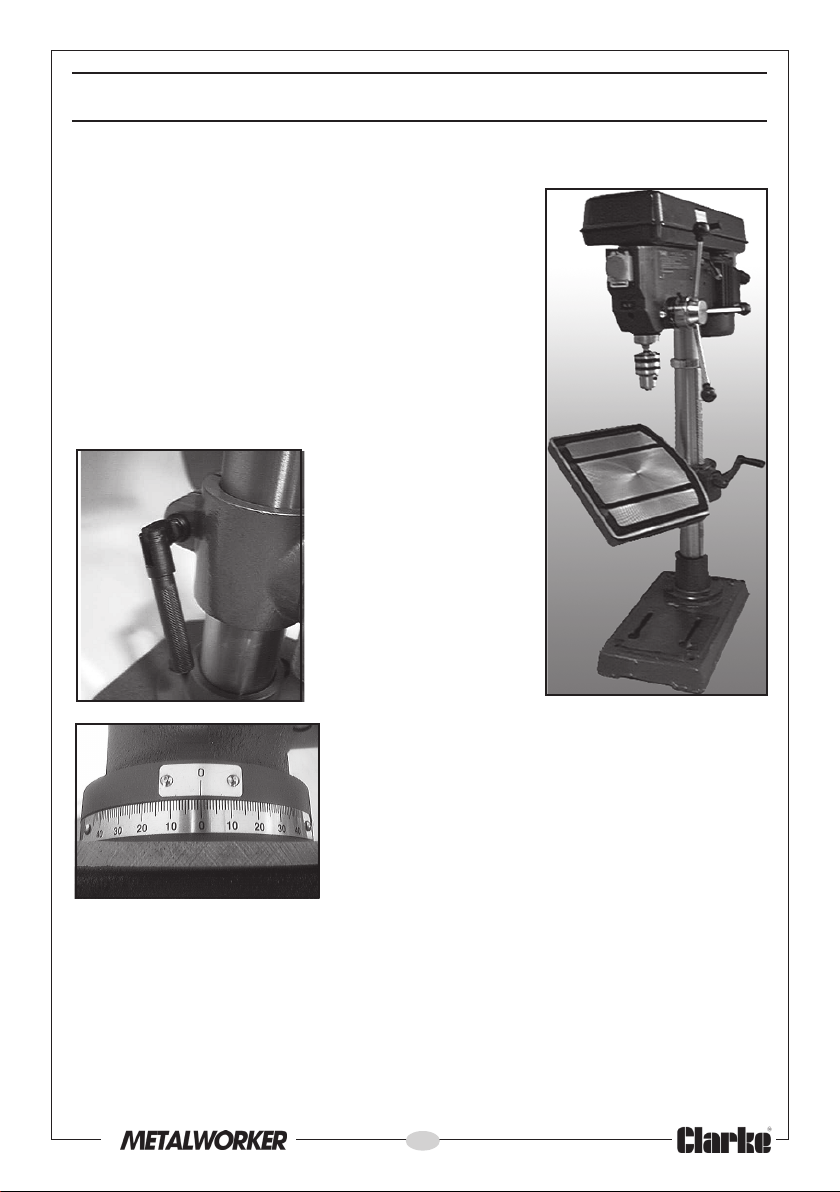

TABLE
The table may be raised, lowered or swivelled
about the column, by slackening off the table
support locking handle, (Fig 10), adjusting
accordingly using the table crank, and retightening the locking handle.
If the table assembly moves stiffly when being
swivelled about the column, slacken the upper
collar grub screw (at the rack) to allow the collar
to move very slightly, thereby providing a little
more clearance between rack and collar. Tighten
the grub screw when satisfied.
The table may also be
Fig 10
Fig 11
To check to ensure the table is entirely square to the drill, insert a piece of
straight round bar in thechuck, place a square on the table and bring it up to
the round bar. Adjust the table tilt, if necessary, so the table is correctly
aligned.
turned on its axis by
slackening the pinch bolt
at its mounting
spigot,(Fig 2). Note that
the table will only turn
through an arc and will
eventually come into
contact with the
column. Take care not to
cause damage to the
column.
Tilt the table by loosening the Table Tilt Locking
Screw beneath the table, (Item 7, page 26), tilting
to the required position, & re-tightening the
screw.
A bevel scale is provided on the table mounting,
measured in degrees, to assist in setting the
required angle, (Fig 11). For all normal operations, the table should be set to 0°.
Fig 9

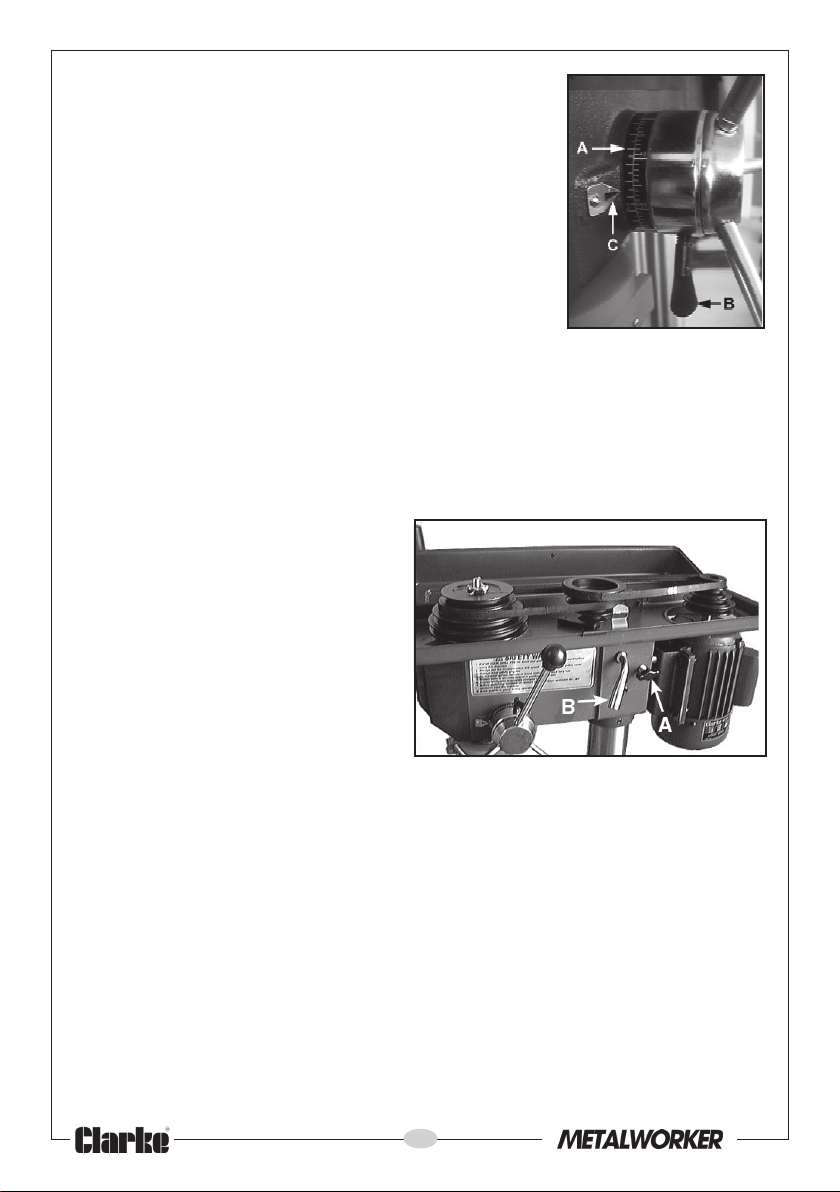

SPINDLE DEPTH
Located around the spindle feed shaft is a Depth Stop Collar, carrying a
graduated scale (A). The collar is capable of turning about the shaft, and
may be locked in place by a Locking Screw (B). The graduations are imperial
15
Page 16
(inches) and metric (mm). To set a drilling depth:
1. With the power OFF, lower the drill bit so that it
contacts the work and hold in that position.
2. Slacken off the locking screw and turn the collar
so that the measurement for the depth of hole
required is in line with the pointer (C). Lock the
collar in this position using the locking screw.
The drill is now set to drill holes to your pre-determined depth, from that particular start point.
Fig 12
CHANGING DRILL (SPINDLE) SPEED
Before changing the speeds, ensure the machine is switched OFF, and
disconnected from the mains supply.
1 Undo the Belt Tension Locking Screws (A -Fig. 13), one either side of the
head, and turn lever B - Fig.13 clockwise to relieve any tension on the
belts. Referring to the chart inside the belt cover (which is duplicated on
page19), install the belts in the positions corresponding to the spindle
speed required.
2. Lever the motor, on its bracket,
away from the head, using the
lever B - Fig.13, so that tension
is applied to the belts.
NOTE: The idler pulley will ‘float’ so
that tension is equally applied to
both belts
Tension is correct, when the belts
deflect by approx. ½” at their
centre when using reasonable
pressure with the thumb and
forefinger.
Lock the motor in this position using the two Locking Screws (A - Fig. 13).
NOTE: If the belt should slip whilst drilling, adjust the belt tension.
Fig 13
16
Page 17
OPERATION
1 . Insert the drill bit into the jaws of the chuck by approx 1", ensuring that the
jaws do not touch the flutes of the drill. Before tightening the chuck,
ensure that the drill is centred within the jaws.
WARNING: TO AVOID INJURY, MAKE SURE THAT THE CHUCK KEY IS
REMOVED FROM THE CHUCK BEFORE STARTING ANY DRILLING
OPERATION.
2. Ensure the table height and position is set so that drill travel is sufficient for
the job in hand.
3. Ensure the work is securely clamped, or held in a drill vice bolted to the
table. Never hold it with bare hands. Severe personal injury may be
caused if the workpiece is whipped out of the operator’s hand, and
damage to the machine incurred if the work strikes the column.
If the piece is of irregular shape and cannot be laid flat on the table, it
should be securely blocked and clamped.
Any tilting, twisting or shifting, results not only in a rough hole but also
increases drill breakage.
4. For small workpieces that cannot be clamped to the table, use a Drill Press
Vice. The vice must be clamped or bolted to the table.

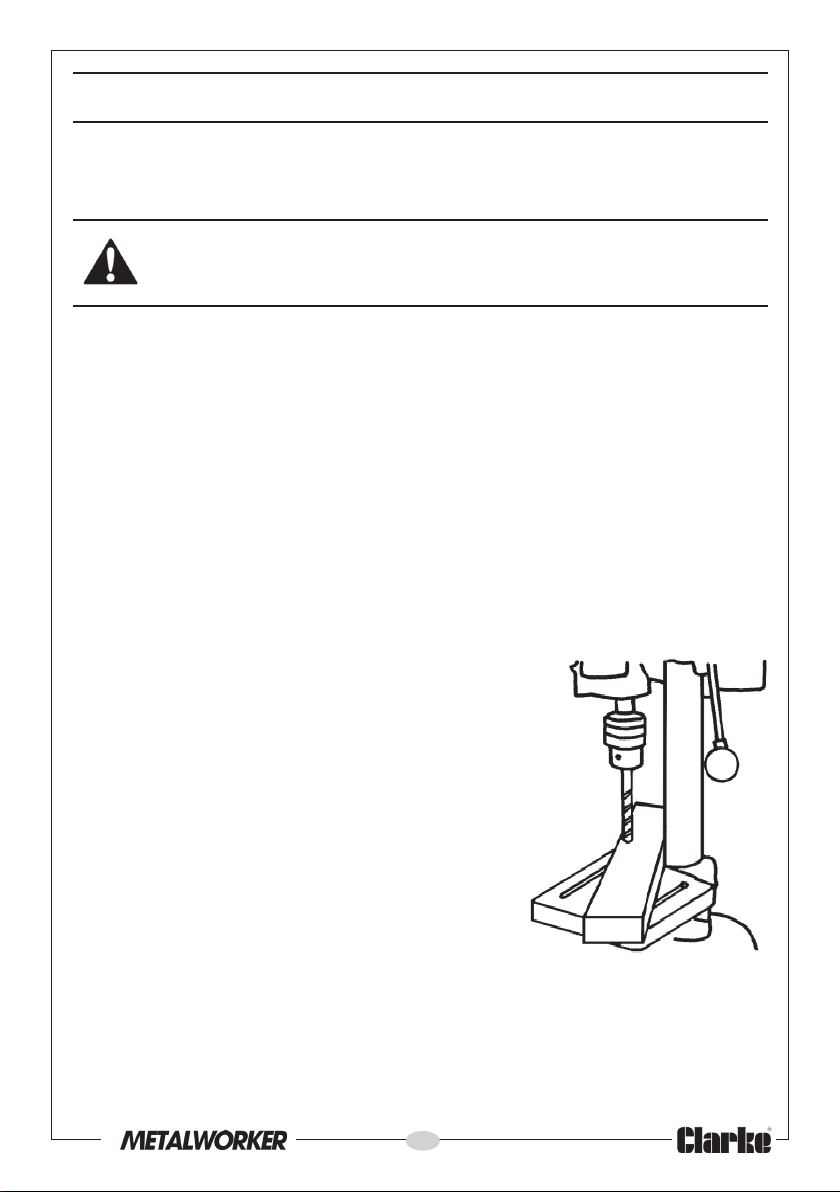

5. When drilling completely through wood, always
position a piece of scrap wood between the
workpiece and the table to prevent
splintering on the underside of the workpiece
as the drill breaks through. The scrap piece of
wood must make contact with the left side of
the column as shown in Fig 14. In addition,
set the depth of drill travel so that the drill
cannot possibly come into contact with the
table, or align the table so that the hole in it’s
centre is directly in line with the drill bit.
6. Mark where you want to drill on the
workpiece by using a centre punch.
7. When completely satisfied that the setup is
sound, lower the Chuck Guard into place
and switch the machine ON by raising the
switch cover, as shown in FIG 8, and pushing the GREEN ‘I’ button.
8. Before turning on the drill, turn the feed handles to bring the drill bit down.
Line the drill bit tip up with the mark.
9. Turn on the drill and pull down on the feed handles with appropriate force
needed to allow the drill bit to drill into the material
Fig 14
17
Page 18
10. To switch OFF, hit the switch cover, which will push the RED ‘O’ button,
turning the machine OFF.
Caution: FEEDING TOO RAPIDLY might stop the motor, cause the belt to
slip, force the workpiece loose, or break the drill bit. Practice with
scrap material to get the feel of the machine before attempting
any drilling operation.
NOTES:
a. As a safety feature, the ON/OFF switch is a No-Volt Release type.
Therefore, if the power is interrupted whilst the machine is switched ON, it
will not automatically start when the power is restored.
b. A microswitch is provided within the pulley cover, which prevents the
machine from operating unless the pulley cover is firmly closed.
c. A light is also provided which is built into the head. The lightswitch is
located on the front panel, directly below the ON/OFF switch.
TO ADJUST DRILLING DEPTH
SPINDLE DEPTH SCALE METHOD
1. With the power OFF, lower the drill bit so that it contacts the work and hold
in that position.
2. Slacken off the locking screw and turn the collar so that the measurement
for the depth of hole required is in line with the pointer. Lock the collar in
this position using the locking screw.
The drill is now set to drill holes to your pre-determined depth, from that
particular start point.
TO ADJUST DRILLING DEPTH
SPINDLE DEPTH SCALE METHOD
1. With the power OFF, lower the drill bit so that it contacts the work and hold
in that position.
2. Slacken off the locking screw and turn the collar so that the measurement
for the depth of hole required is in line with the pointer. Lock the collar in
this position using the locking screw.
The drill is now set to drill holes to your pre-determined depth, from that
particular start point.
WORKPIECE METHOD
1. Mark the desired depth of the drill hole on the side of the workpiece.
2. With the machine not running, bring the drill bit down until the tip is level
with the mark.
3. Holding the feed handles at this position and lock the collar in position
using the locking screw. The chuck and the drill bit will now be stopped at
18
Page 19
the distance selected on the depth stop collar.
TO DRILL DIFFERENT MATERIALS
FEEDING THE DRILL BIT
• Pull down on the feed handles with only enough force to allow the
drill bit to cut.
• FEEDING TOO RAPIDLY could stall the motor, cause the belt to slip,
damage the workpiece, or break the drill bit.
• FEEDING TOO SLOWLY could cause the drill bit to heat up and burn
the workpiece.
DRILLING METAL
• Use metal-piercing twist drill bits.
• It is always necessary to lubricate the tip of the drill with oil to
prevent overheating the drill bit.
• All metal workpieces should be clamped down securely. Any tilting,
twisting, or shifting causes a rough drill hole, and increases the
potential of drill bit breakage.
• Never hold a metal workpiece with your bare hands. The cutting
edge of the drill bit may seize the workpiece and throw it, causing
injury. The drill bit will break if the metal piece hits the column.
• If the metal is flat, clamp a piece of wood under it to prevent
turning. If it cannot be laid flat on the table, then it should be
blocked and clamped.
DRILLING WOOD
• Brad point bits are preferred. Metal piercing twist bits may be used
on wood.
• Do not use auger bits which turn so rapidly that they can lift the
workpiece off the table and whirl it around.
• Always protect the drill bit by positioning the table so that the drill bit
will enter the centre hole when drilling through the workpiece.
• To prevent splintering, feed drill bit slowly when the bit is about to
cut through to the reverse side of the workpiece.
• To reduce splintering and protect the point of the bit, use scrap
wood as a backing or a base block under the workpiece.
19
Page 20
MACHINE SPEED TABLE
The table below gives the belt arrangements for given drill speeds. The
diagram shows the belts fitted to A1 and B3, giving a drill speed of 2350RPM.
A full chart is also located on the inside of the pulley cover.
A
1
2
B
1
2
3
4
4
5
SPINDLE PULLEY
Spindle Motor Drill Spindle Motor Drill
Pulley Pulley Speed Pulley Pulley Speed
A B RPM A B RPM
1 5 1 195 9 4 3 740
2 4 1 290 10 5 4 765
3 5 2 310 11 1 2 1320
4 3 1 420 12 2 3 1550
5 5 3 470 13 3 4 1660
6 4 2 490 14 1 3 2350
7 2 1 610 15 2 4 2410
8 3 2 680 16 1 4 3645
MOTOR PULLEY
3
20
Page 21
DRILLING SPEEDS
Important factors when determining the best drilling speed are:
• Material type
• Hole size
• Drill bit or cutter type
• Quality desired
Generally, smaller drill bits require greater speed than large drill bits. Softer
materials require greater speed than harder materials. See the following table
for approximate recommended speeds for the workpiece material.
Speed Range (RPM)
Material Units
3645
in 1/4 3/8 5/8 --- --- --- ---
Wood
mm 6.4 9.5 16 --- --- --- ---
2350 -
2410
1320 -
1660
740-765 490-680 290-470 195
Zinc &
Diecast
Aluminium
& Brass
Plastics
Cast Iron
& Bronze
Mild Steel
& Malleable
Cast Steel
Med carbon
Stainless &
Tool Steel
in 3/16 1/4 3/8 1/2 5/8 --- ---
mm 4.8 6.4 9.5 12.5 16 --- ---
in 1/8 3/16 3/8 1/2 11/16 --- ---
mm 3.2 4.8 9.5 12.5 17.5 --- ---
in 1/8 3/16 5/16 7/16 1/2 5/8 ---
mm 3.2 4.8 7.9 11 12.5 16 ---
in 3/32 1/8 1/4 11/32 1/2 5/8 ---
mm 2.4 3.2 6.4 8.75 12.5 16 ---
in 1/16 3/32 5/32 1/4 3/8 1/2 ---
mm 1.6 2.4 4 6.4 9.5 12.5 ---
in 3/64 1/16 1/8 3/16 5/16 7/16 9/16
mm 1.2 1.6 3.2 4.8 7.9 11 14.5
in 1/32 3/64 1/16 1/8 1/4 3/8 1/2
mm 0.8 1.2 1.6 3.2 6.4 9.5 12.5
21
Page 22
MAINTENANCE
For maximum performance, it is essential that the machine is properly
maintained. Always inspect before use. Any damage should be repaired and
faults rectified.
If the mains lead is damaged it should be replaced immediately.
Please refer to TROUBLESHOOTING on page 23. If you are unable to rectify
any faults, please contact your local dealer or Clarke International Service
Department on 0208 988 7400 for assistance.
AFTER USE
Always remove drill bits, and store in a safe place. The machine requires very
little maintenance other than the following guidelines.
1. Vacuum clean any dust or swarf that accumulates in or on the motor,
drive housing, table and work surface.
2. Lubricate the table bracket and locking handles if they become difficult
to use. Components should be dry, with machined surfaces lightly oiled.
3. Check all cables periodically for security, and that they are in good
condition and not cracked.
IMPORTANT - Disconnect from mains power before cleaning.
MONTHLY (when in constant use)
1. Check tightness of mounting bolts and head and column securing set
screws.
2. Check belt for wear and replace if frayed or otherwise damaged.
3. Blow out any dust/swarf that may have accumulated in the motor fan.
4. Apply a thin coat of wax paste or light oil to the table and column for
lubrication and to help prevent corrosion.
5. Pull the spindle down and lightly oil the spindle sleeve every three months.
• The ball bearings in the spindle are greased and permanently sealed at
the factory and require no further lubrication.
DO NOT attempt to carry out repairs yourself, unless you are fully competent,
all work must be carried out by a qualified technician or the Clarke service
department.
22
Page 23
TROUBLESHOOTING
DEFECT CAUSES SUGGESTIONS
Noisy operation 1. Incorrect belt tension.
Adjust belt tension. See "Fitting
the DriveBelts" section under
ASSEMBLY.
The drill bit burns or
smokes.
Excessive drill runout or wobble,
drilled hole is not
round.
2. Dry spindle.
3. Loose spindle pulley.
1. Drilling at an incorrect
speed.
2. Swarf if not discharging
from the hole.
3. Dull drill bit.
4. Feeding the workpiece
too slowly.
5. No lubrication.
1. Bent drill bit.
2. Bit not correctly installed
in the chuck.
3. Worn spindle bearings.
Lubricate the spindle. See
MAINTENANCE section.
Tighten the retaining nut on
the pulley insert
Change the speed. See
"Drilling Speeds" on page 21.
Withdraw the bit more
frequently to clear the swarf.
Re-sharpen or replace the bit.
Feed fast enough to cut the
workpiece cleanly. See "Drilling
Speeds" on page21.
Lubricate the drill bit with
cutting oil or motor oil.
Replace the bit.
Re-install the bit. See
OPERATION.
23
Replace bearings. Take to your
Page 24
24
Page 25
TECHNICAL SPECIFICATION
Feature Specification
Weight (401B) 67 kg
Weight (451F) 74 kg
Dimensions (401B) (l x w x h) 645 x 375 x 1062mm
Dimensions (451B) (l x w x h) 645 x 375 x 1610mm
Base length & width 280 x 500 mm
Table Dimensions 310 x 310 mm
Chuck Capacity 3-16 mm
Spindle Taper MT2
Table Height adjustment Rack & pinion
Max Distance (chuck to table)
Max Distance (chuck to base)
Motor 230-240V / 50 Hz /1Ph
Input power/current @rated load 510 W / 2.3 A
Number of Speeds 16
Drill Speed 195-3645 rpm
Belt type A27 686
Please note that the details and specifications contained herein, are correct at the
time of going to print. However, CLARKE International reserve the right to change
specifications at any time without prior notice.
355mm(401B) / 655mm(451F)
600mm(401B) / 1145mm(451F)
25
Page 26

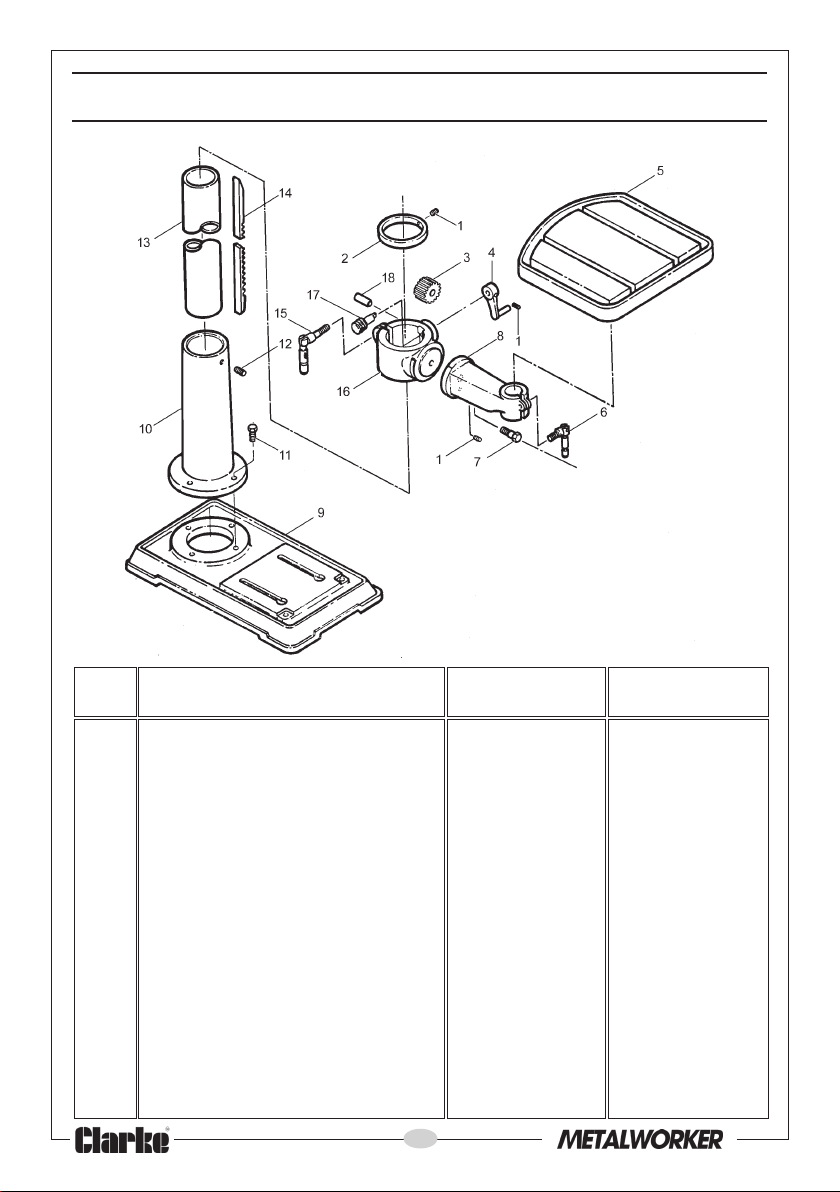

COMPONENT PARTS - BASE AND TABLE
No. Description
1 Hex. Socket Screw Set 3040487 3040487
2 Rack Collar DD16101011 DD16101011
3 Helical Gear DD16101006 DD16101006
4 Crank DD13201009 DD13201009
5 Table DD16101014B DD16101014B
6 Table Clamp DD16101013 DD16101013
7 Table Tilt Locking Screw M16x35 3040440 3040440
8 Arm w/Scale DD16101005 DD16101005
9 Base DD16101001 DD16101001
10 Column Support DD16101002B DD16101002
11 Hex. Socket Screw Set M10x40 3040508 3040508
12 Hex. Socket Screw Set M10x12 3040430 3040430
13 Column DDC16101003B DD16101003
14 Rack DD16101010 DD16101010
15 Arm Locking Handle DD16101012 DD16101012
16 Table Support w/indicator DD16101004 DD16101004
17 Worm DD16101008 DD16101008
18 Gear Pin DD16101007 DD16101007
26
Model No. Model No.
CDP401B CDP451F
Page 27

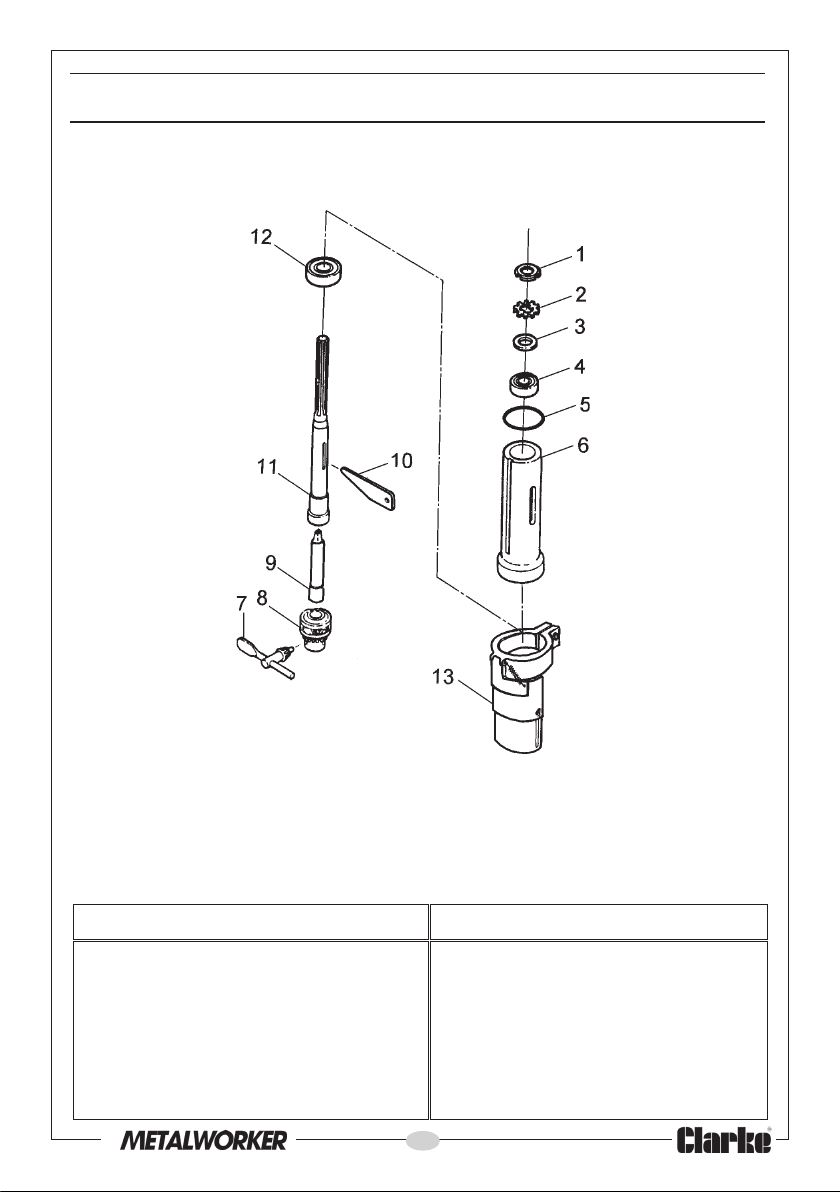

COMPONENT PARTS - QUILL SHAFT & CHUCK
No.Description Part No
1 LockNut DD16103005
2 Lockwasher DD16103004
3 Flat Washer DD16103003
4 Bearing 60203 BRG60203
5 O-Ring DD16103006
6 Quill DD16103002
7 Chuck Key DD16103010
No.Description Part No.
8 Chuck JT3 DDJ2216
9 Arbour MT2-JT3 DD20120
10 Wedge Drift DD16103008
11 Spindle DD16103001
12 Bearing 80204 BRG80204
13 Chuck Guard DD16108001
27
Page 28

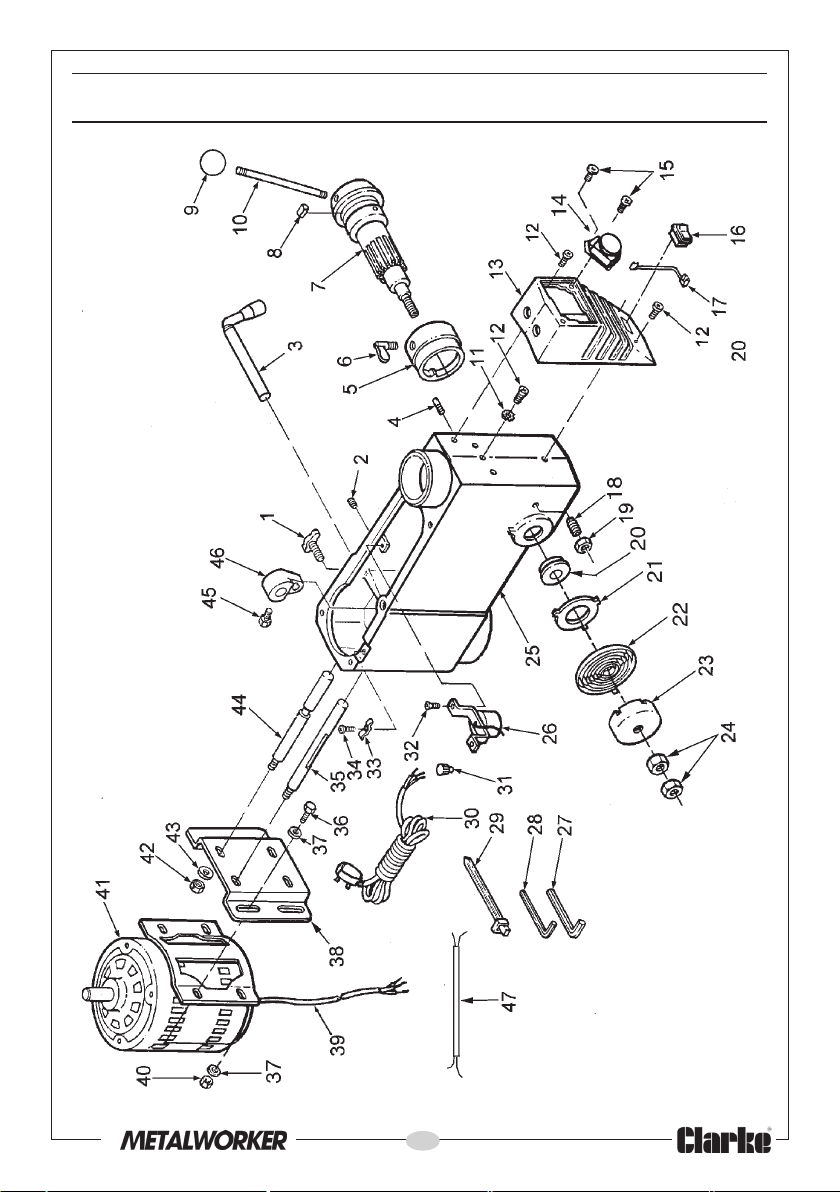

COMPONENT PARTS - HEAD ASSEMBLY
No. Description Part No.
1 Belt Tension Locking Screw DD1610205
2 Screw Set M10 4030430
3 Belt Tension Lever DD16102004
4 Stop Pin DD16104010
5 Depth Stop Collar w/Scale DD16104003
6 Depth Locking Screw DD16104012
7 Spindle Feed Shaft DD16104000
8 Scale Guide DD16104004
9 Knob DD16104011
10 Feed handle DD16104005
11 Lockwasher DDGB8621-87
12 Pan Head Screw M5 3040485
13 Switch Box DD16102008A
14 ON/OFF switch Assembly DDKJD12A
15 Pan Head Screw DDGB845-85
16 Light Switch DDRF1001
17 Lead DD16102018A
18 Special SL Screw DD16102021
19 Hrex. Nut M10 3040602
20 Quill Spring Seat DD16104006
21 Quill Spring Retainer DD16104007
22 Quill Spring DD16104009
23 Spring Cap DD16104008
24 Hex. Nut DDGB6172-86
25 Head w/Pointer and Trim DD16102001
26 Bulb Socket DD16202013B
27 Hex. Wrench 5mm DDGB5356-86
28 Hex. Wrench 3mm DDGB5356-86
29 Cable Tie DD16102017
30 Power Cable w/Plug DD16102015I
31 Connector Wire DD16102019
32 Pan Head Screw M6 3040420
33 Cable Clamp DD16102014
34 Pan Head Screw M5 3040656
35 Motor Suppprt Bracket DD16102002
36 Hex. Head Screw M8 3040502
37 Washer DDGB792-85
38 Motor Mount DD16102007A
39 Motor Cable DD16102016B
40 Hex. Nut M8 3040601
41 Motor Assembly DDYL7124-03
42 Hex. Nut M12 3040603
43 Lock Washer DDGB93-87
44 Motor Support Bracket DD16102002
45 Hex. Head Screw M8 3044500
46 Adjusting Lever DD16102006
47 Lead DD16102029
28
Page 29
COMPONENT PARTS -HEAD ASSEMBLY
29
Page 30
COMPONENT PARTS - BELT DRIVE
No.Description Part No
1 Circlip DD16102024
2 Bearing 60204 BRG60204
3 Bearing Spacer DD16102023
4 ‘V’ Belt A27 DD16201511
5 Pulley Nut DD16102025
6 Pulley Spindle DD16105009B
7 Pulley Insert DD16102022
8 Pulley Cover w/Labels DD16105000
9 Rd Head Screw M6 3040650
10 Set Screw M8 3040528
No.Description Part No.
11 Motor Pulley DD16205005
12 Knob DD16105008
13 Pan Head Screw M5 3040656
14 Idler Pivot DD16205007
15 Idler Pulley DD16205006
16 Bearing 60202 BRG60202
18 Foam Washer DD13105009
19 Microswitch DDXN5
20 Microswitch Cover See dealer
30
Page 31

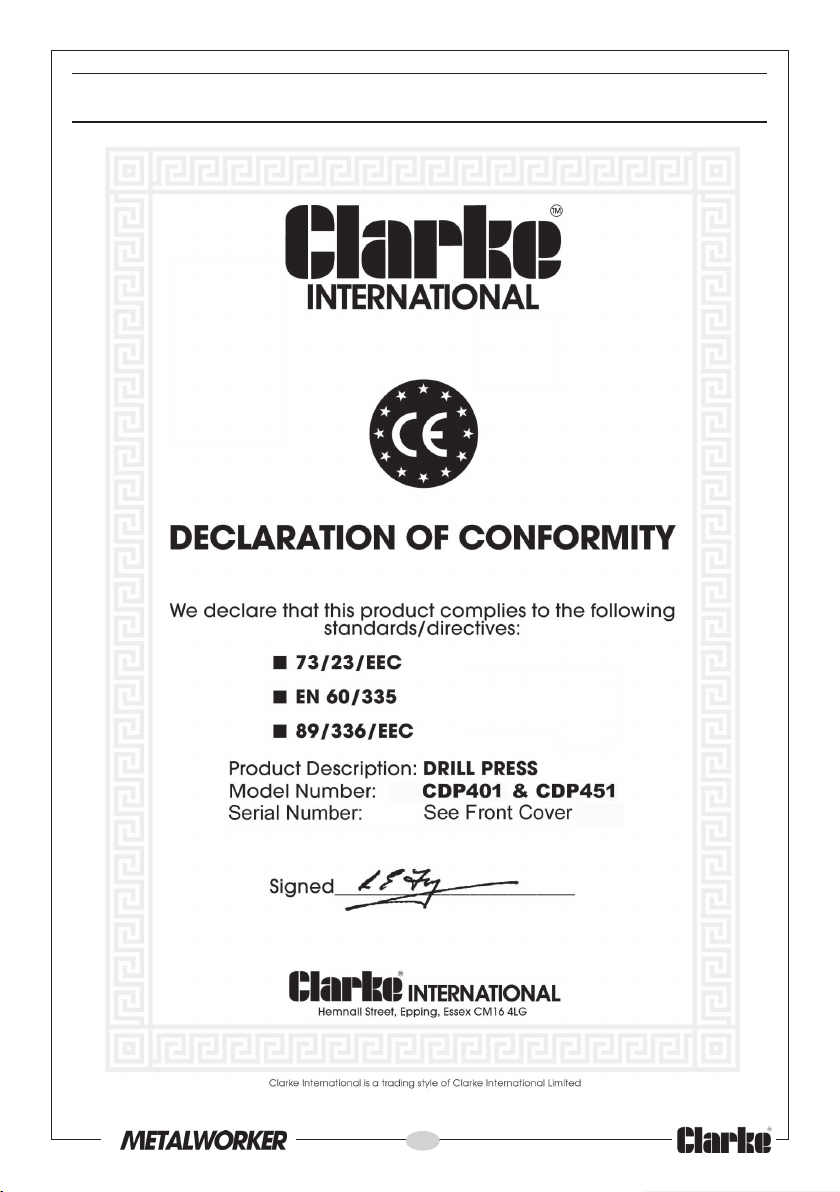

DECLARATION OF CONFORMITY
31
Page 32
Loading...
