Page 1
185MM, 1200W CIRCULAR SAW (230V)
MODEL NO: CCS185C
PART NO: 6462312
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
DL0924
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE 185mm 1200w (230V) Circular Saw.
Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All unwanted accessories and packaging should be sorted and taken to a recycling centre for disposal in a manner which is compatible with the environment.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general household waste but according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.
2
Page 3
SPECIFICATIONS
Model Number CCS185C
Rated Voltage 230V~50Hz
Power Input 1200W
IP Rating IPX0
No Load Speed 4500 RPM
Maximum Depth of Cut
Blade Dimensions 185mm Ø x 2.5mm (thickness) x 20mm Bore
Laser Guide Class 2 Laser
Sound Pressure Level LpA 97dB(A)
Sound Power Level LWA 108dB(A) - Uncertainty Factor (K): 3dB(A)
Vibration
Weight 3.63kg
Dimensions (L x W x H) 280mm x 230mm x 170mm
65mm @ 90o - 43mm @ 45
3m/s2 - Uncertainty Factor: 1.5m/s2
o
SAFETY SYMBOLS
Fully read this manual and safety instructions before use
Ear protection should be worn
Warning: Laser Radiation, Class 2 Laser: DO NOT stare into the beam
3
Eye protection should be worn
Dust mask should be worn
Page 4

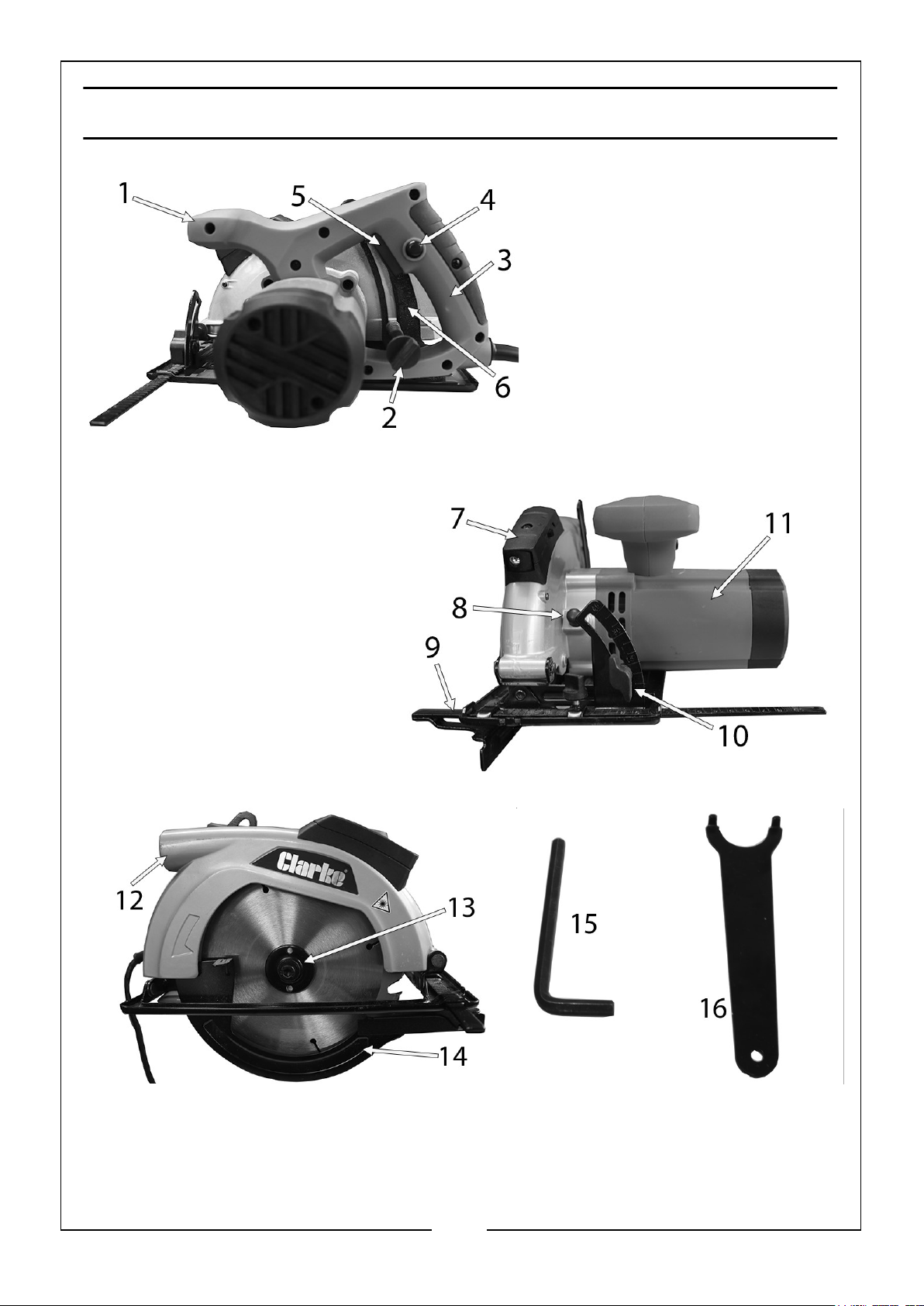

PART IDENTIFICATION.
4
Page 5
1 Auxiliary Handle 9 Parallel Guide
2 Depth Adjustment Screw 10 Bevel Locking Screw & Scale
3 Handle 11 Motor
4 Safety Button 12 Blade Clamping Screw
5 On/Off Trigger 13 Dust Extraction Port
6 Depth Adjustment Scale 14 Lower Blade Guard
7 Laser Guide 15 6mm Hexagonal Key
8 Blade Lock Button 16 2 Pin Blade Wrench
CARTON CONTENTS
The following items should be supplied in the carton. If any parts are missing or damaged, please contact the CLARKE dealer where you purchased the tool.
• 1 x 1200 Watt Circular Saw.
• 1 x 185 mm Ø x 20 mm Bore x 24 Tooth TCT blade.
• 1 x Parallel Guide.
• 1 x 6 mm Hexagonal Key.
• 1 x 2 Pin Blade Wrench.
5
Page 6
POWER TOOL SAFETY WARNINGS
WORK AREA
1. Keep the work area clean and well lit. Cluttered and dark areas invite accidents.
2. DO NOT operate this saw in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. The saw may create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while operating this saw. Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. The saw plug must match the outlet. NEVER modify the plug in any way. DO NOT use adaptor plugs with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce the risk of electric shock.
2. DO NOT expose the saw to rain or wet conditions. Water entering the saw will increase the risk of electric shock.
3. DO NOT abuse the cable. NEVER use it for carrying, pulling or unplugging the saw. Keep the cable away from heat, oil, sharp edges or moving parts. Damaged or entangled cables increase the risk of electric shock.
4. When operating the saw outdoors, use an extension cable suitable for outdoor use. Use of a cable suitable for outdoor use reduces the risk of electric shock.
5. If operating the saw in a damp location is unavoidable, use a residual current device (RCD) protected supply.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use common sense when operating this saw. DO NOT use this saw while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating this saw may result in personal injury.
2. Use safety equipment. ALWAYS wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
3. Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying this saw with your finger on the switch or plugging in invites accidents.
4. Remove any wrench before turning the saw on. A wrench left attached to a rotating part may result in personal injury.
5. DO NOT overreach. Keep proper footing and balance at all times. This enables better control of the saw in unexpected situations.
6
Page 7
6. Dress properly. DO NOT wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
7. DO NOT, under any circumstances look directly into the laser guide.
POWER TOOL USE AND CARE
1. DO NOT force the saw. Use the correct accessories for your application. The correct power tool will do the job better and safer at the rate which it was designed for.
2. DO NOT use the saw if the switch does not turn it on and/or off. Any power tool that cannot be controlled with the switch is dangerous and SHOULD NOT be used until it has been repaired.
3. Disconnect the plug from the power source before changing accessories, or storing the saw. Such preventive safety measures reduce the risk of starting the saw accidentally.
4. Store idle tools out of the reach of children and DO NOT allow persons unfamiliar with the saw or these instructions to operate it. Power tools can be dangerous in the hands of untrained users.
5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the saw’s operation. If damaged, have the saw repaired before use. Many accidents are caused by poorly maintained power tools.
6. Use the power tool and accessories in accordance with these instructions and in the manner intended, taking into account the working conditions and the work to be performed. Use of the saw for operations different from intended could result in a hazardous situation.
7. The performance of this saw may vary, depending upon variations in line voltage. Extension cable usage may also affect performance.
SERVICE
1. Have your saw serviced by qualified service personnel using only identical replacement parts. This will ensure that the safety of the saw is maintained.
7
Page 8
SAFETY INSTRUCTIONS FOR ALL SAWS
1. Keep hands away from cutting area and the blade. Keep your second hand on the auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade.
2. DO NOT reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece.
3. Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.
4. NEVER hold the work piece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimise body exposure, blade binding, or loss of control.
5. ALWAYS hold the saw by the insulated handles when performing an operation (see page 13). Contact with a live wire may make exposed metal parts of the saw live and shock the operator.
6. ALWAYS use blades with the correct size and shape of arbor holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
7. NEVER use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.
8. DO NOT operate the saw if the guards are damaged or do not operate correctly.
9. NEVER use the saw with the guards removed.
CIRCULAR SAW BLADE SAFETY WARNINGS
1. The maximum speed listed for the saw (see page 3) should not exceed the maximum speed marked on the blade.
2. Cracked circular saw blades should be scrapped (repairing is not permitted). Composite (tipped) circular saw blades, where the tip dimension is reduced to less than 1mm, should be taken out of service.
3. Fastening screws and nuts should be tightened using the tools supplied.
4. Clamping surfaces should be cleaned to remove dirt, grease, oil and water.
5. DO NOT use loose rings or bushes to “make up” bore sizes on circular saw blades.
PREVENTION OF KICKBACK
Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator.
8
Page 9
When the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator.
If the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator. Kickback is the result of saw misuse and/ or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.
1. Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade.
2. When the blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. NEVER attempt to remove the saw from the work or pull the saw backward while the blade is in motion as kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding.
3. When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged with the material. If the blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.
4. Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.
5. Blade depth and bevel adjusting locking screws must be tight and secure before making a cut. If blade adjustment shifts while cutting, it may cause binding and kickback.
6. Use extra caution when making a “plunge cut” into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback.
9
Page 10

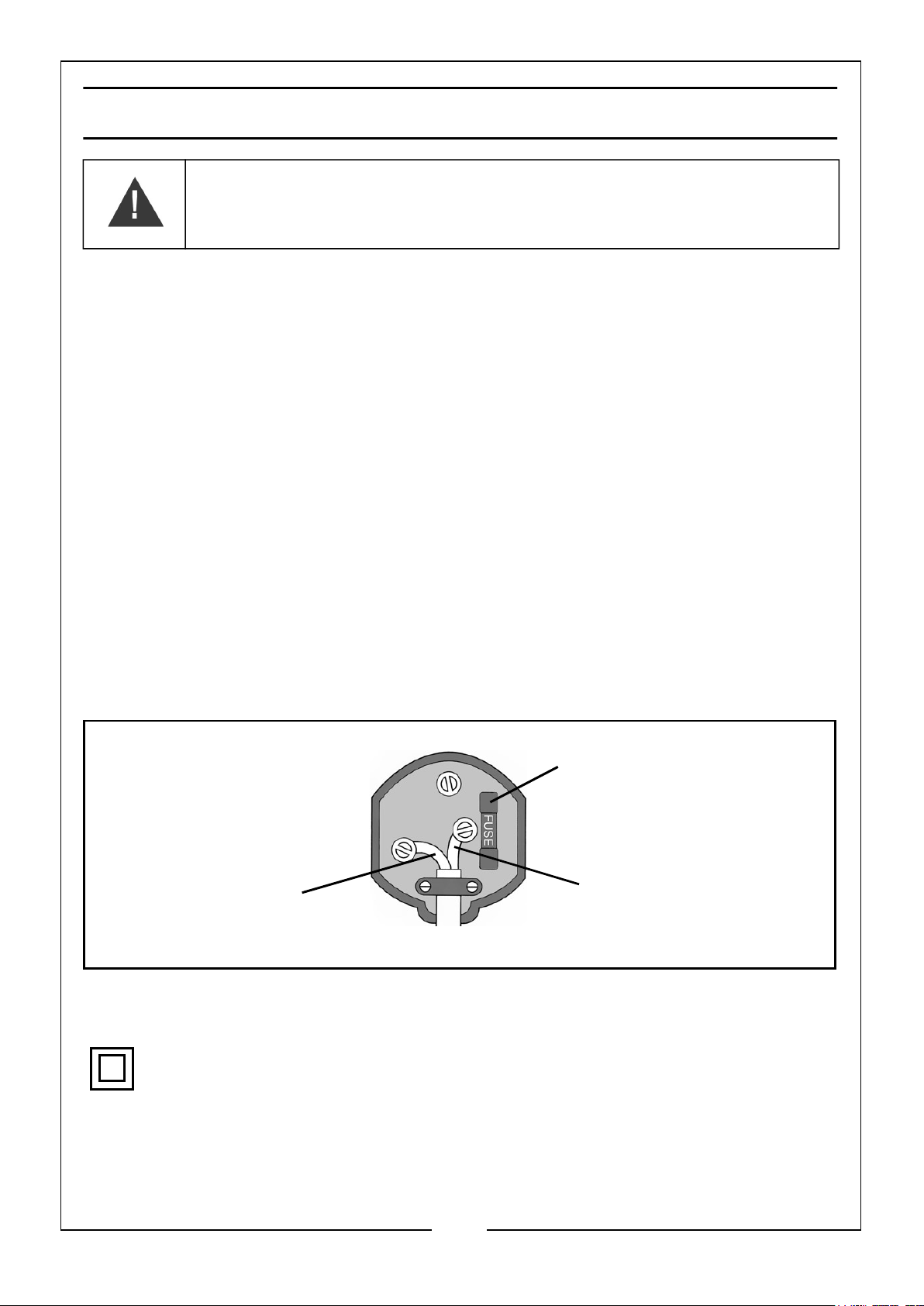

ELECTRICAL CONNECTIONS
Plug must be BS1363/A approved.
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY.
Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. Connecting it to any other power source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary to change the fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or damaged, the plug must not be used until a suitable replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due to damage, it should be cut off and a replacement fitted, following the wiring instructions shown below. The old plug must be disposed of safely, as insertion into a mains socket could cause an electrical hazard.
If the colours of the wires in the power cable of this product do not correspond with the markings on the terminals of your plug, proceed as follows.
• The wire which is coloured Blue must be connected to the terminal which is marked N or coloured Black.
• The wire which is coloured Brown must be connected to the terminal which is marked L or coloured Red.
Always fit a 13 Amp fuse.
Neutral
(Blue)
Ensure that the outer sheath of the cable is firmly held by the clamp
We strongly recommend that this machine is connected to the mains supply via a Residual Current Device (RCD)
Live
(Brown)
This symbol indicates that this is a Class II product, and does not require an earth connection.
10
Page 11

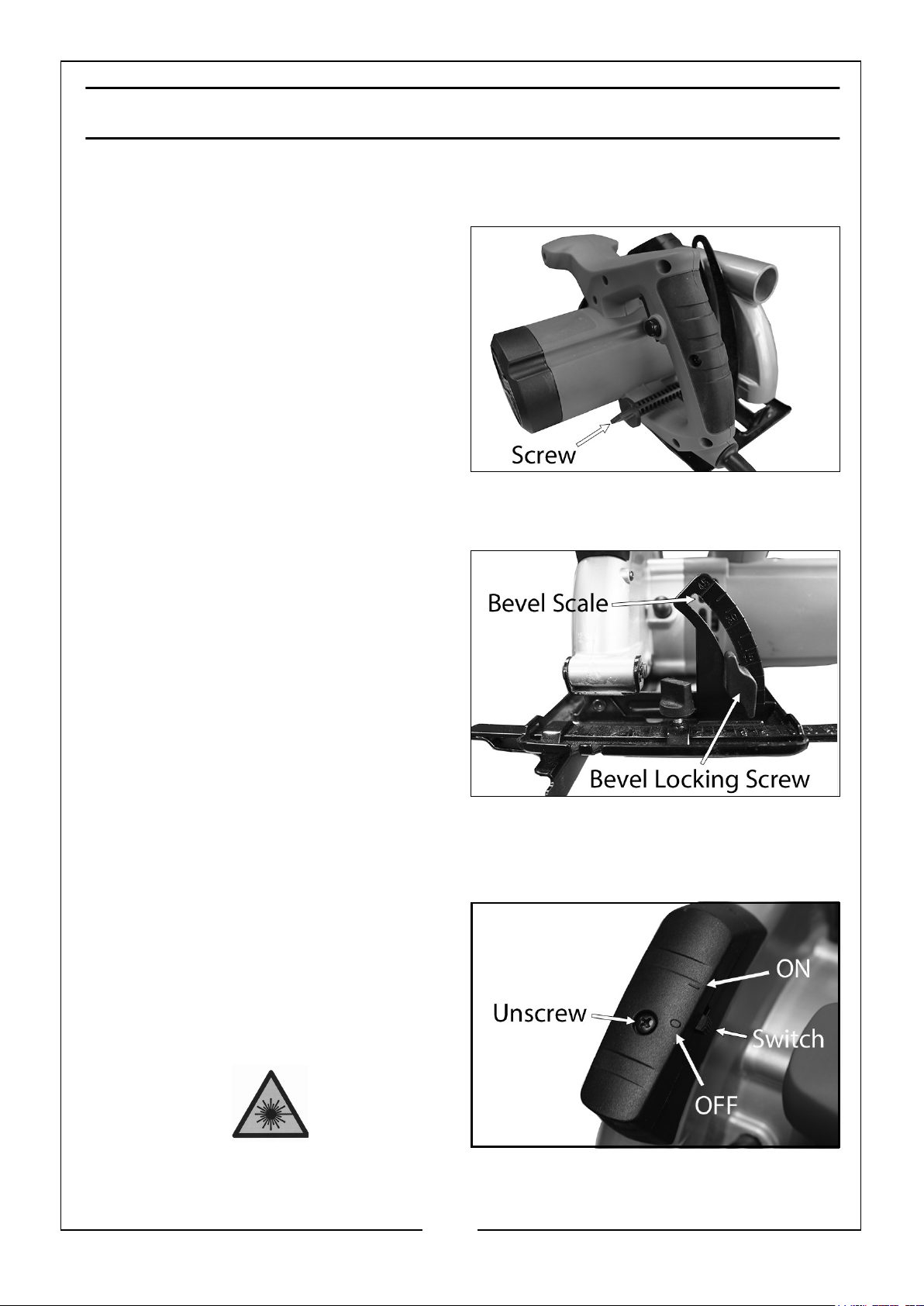

ADJUSTMENTS & MAINTENANCE
DEPTH OF CUT ADJUSTMENT
1. Loosen the depth adjustment screw.
2. Adjust the base plate until the required depth of blade is protruding through the base plate.
3. Tighten the depth adjustment screw.
NOTE: For optimum results, a full tooth
should just be visible below the workpiece.
BEVEL ADJUSTMENT
1. Loosen the bevel adjustment locking screw.
2. Adjust the base plate to the required angle (max 45o)
• Use the bevel scale as a guide
only, for accurate angles use a protractor.
3. Tighten the bevel adjustment locking screw to secure.
THE LASER GUIDE
Your saw is fitted with a laser guide to assist with accurate cutting.
SWITCHING ON/OFF
Switch the laser on & off using the ON/ OFF switch on the side of the laser guide, as shown.
Warning: CLASS 2 LASER, DO NOT stare into the beam.
11
Page 12
LASER POWER
The laser is powered by 2 button cell batteries. To change the batteries, unscrew the laser cover and remove. Replace both batteries at the same time.
• 2 x LR44 (A76, AG13, KA76, V13GA) button cell battery

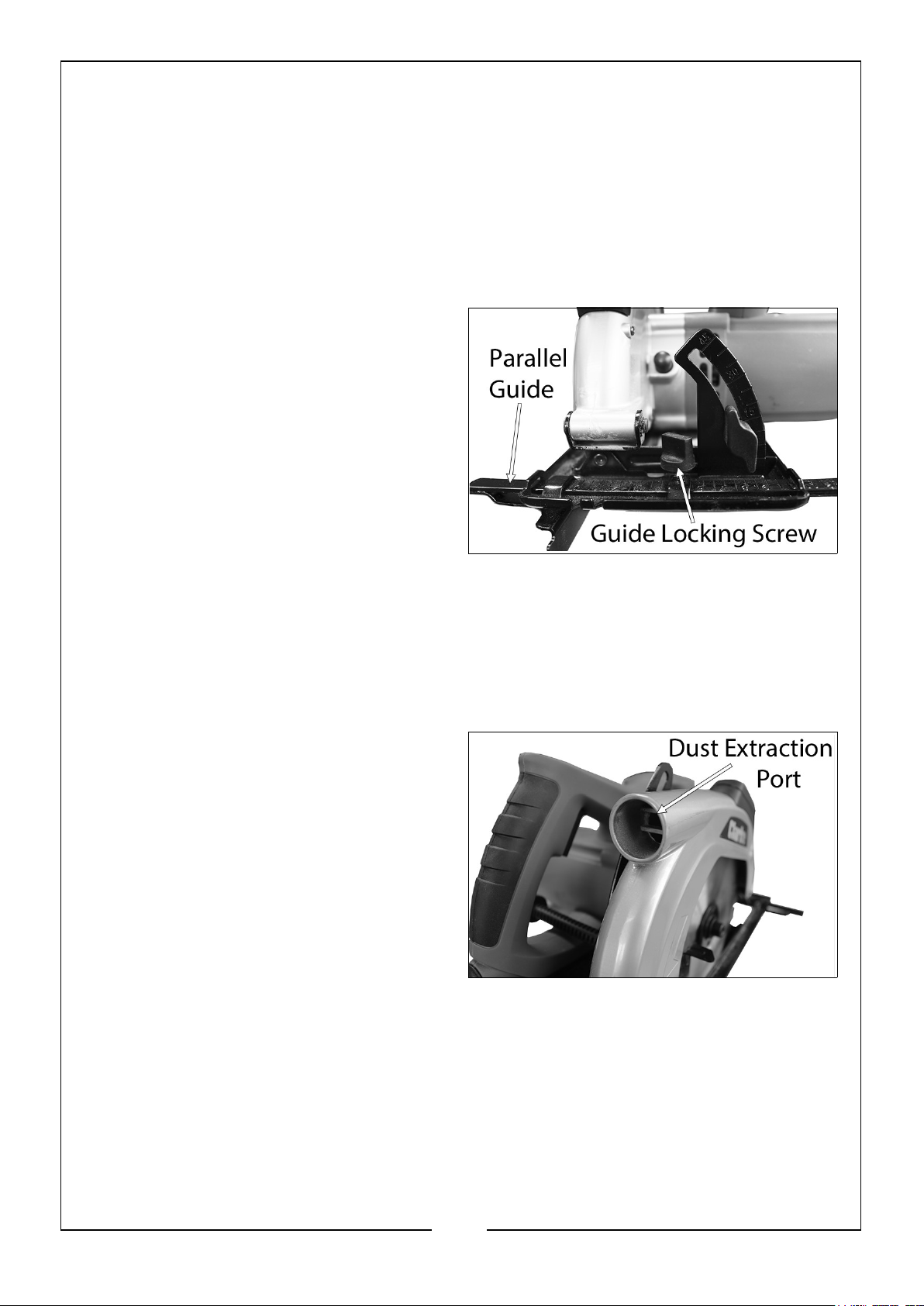

MOUNTING AND USING THE PARALLEL GUIDE
MOUNTING
1. Slide the parallel guide into the base plate as shown.
2. Secure in place using the parallel guide locking screw.
ADJUSTING
1. Loosen the Parallel Guide Locking Screw.
2. Adjust the Parallel Guide to the required length.
• There is a scale on the parallel guide that can be used to give an approximate
guide. Always double check using an accurate ruler.
3. Tighten the Parallel Guide Locking Screw to secure the parallel guide in position.
DUST EXTRACTION
The circular saw can be connected to a dust extraction system, using a suitable hose adaptor (not supplied).
• The internal diameter of the dust
extraction outlet is 28 mm.
12
Page 13

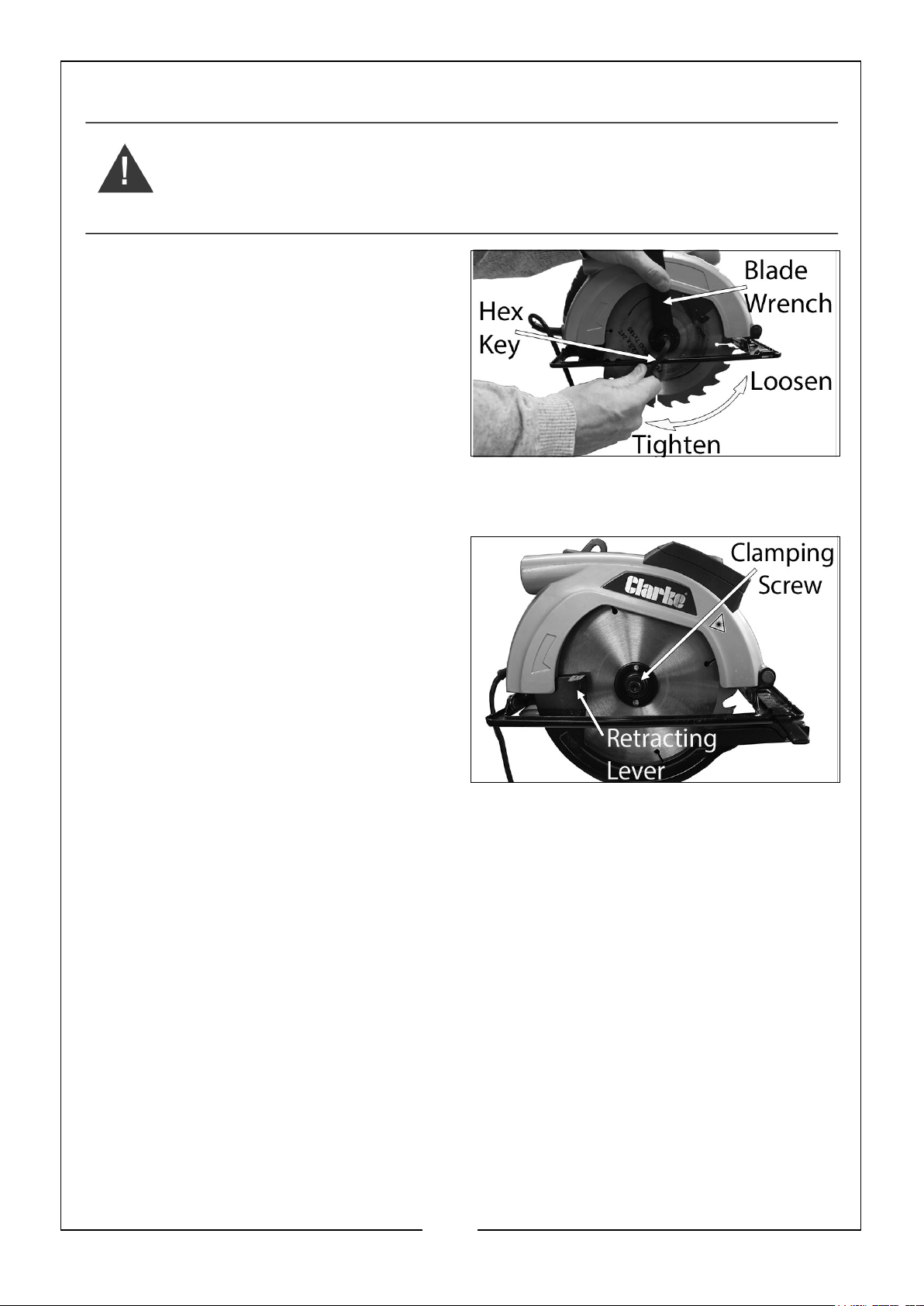

BLADE REPLACEMENT
WARNING: DISCONNECT THE CIRCULAR SAW FROM THE MAINS SUPPLY BEFORE FITTING REPLACEMENT BLADES, CLEANING OR ADJUSTMENT.
1. Place the 2 pin blade wrench in the 2 holes on the blade clamping screw. Remove the blade clamping screw using the 6mm hex key by turning it anti-clockwise while holding the 2 pin wrench in place.
• Alternatively, instead of using the
2 pin blade wrench, press and hold down the blade lock button (see page 4-5) to hold the blade in place, then use the hex key to remove the clamping screw.
2. Retract the lower blade guard using the retracting lever and replace the blade.
• Make sure you pay attention to the
blade direction markings on the blade.
3. Replace the blade clamping screw by hand until it is holding the blade in position.
4. Place the 2 pin blade wrench in the 2 holes on the blade clamping screw.
5. Tighten the blade clamping screw using the hex key by turning it clockwise while holding the 2 pin blade wrench in place.
• Alternatively, instead of using the 2 pin blade wrench, press and hold down the
blade lock button (see page 4-5) to hold the blade in place, then use the hex key to tighten the clamping screw.
Replacement blades can be purchased from your local CLARKE dealer.
• CLARKE 185mm TCT Circular Saw Blade 24 tooth, Part No. 6490045
MAINTENANCE
• Keep the machine clean by wiping off dust with a clean cloth.
• Always check the blade for damage before use. Replace if any damage is
found.
13
Page 14

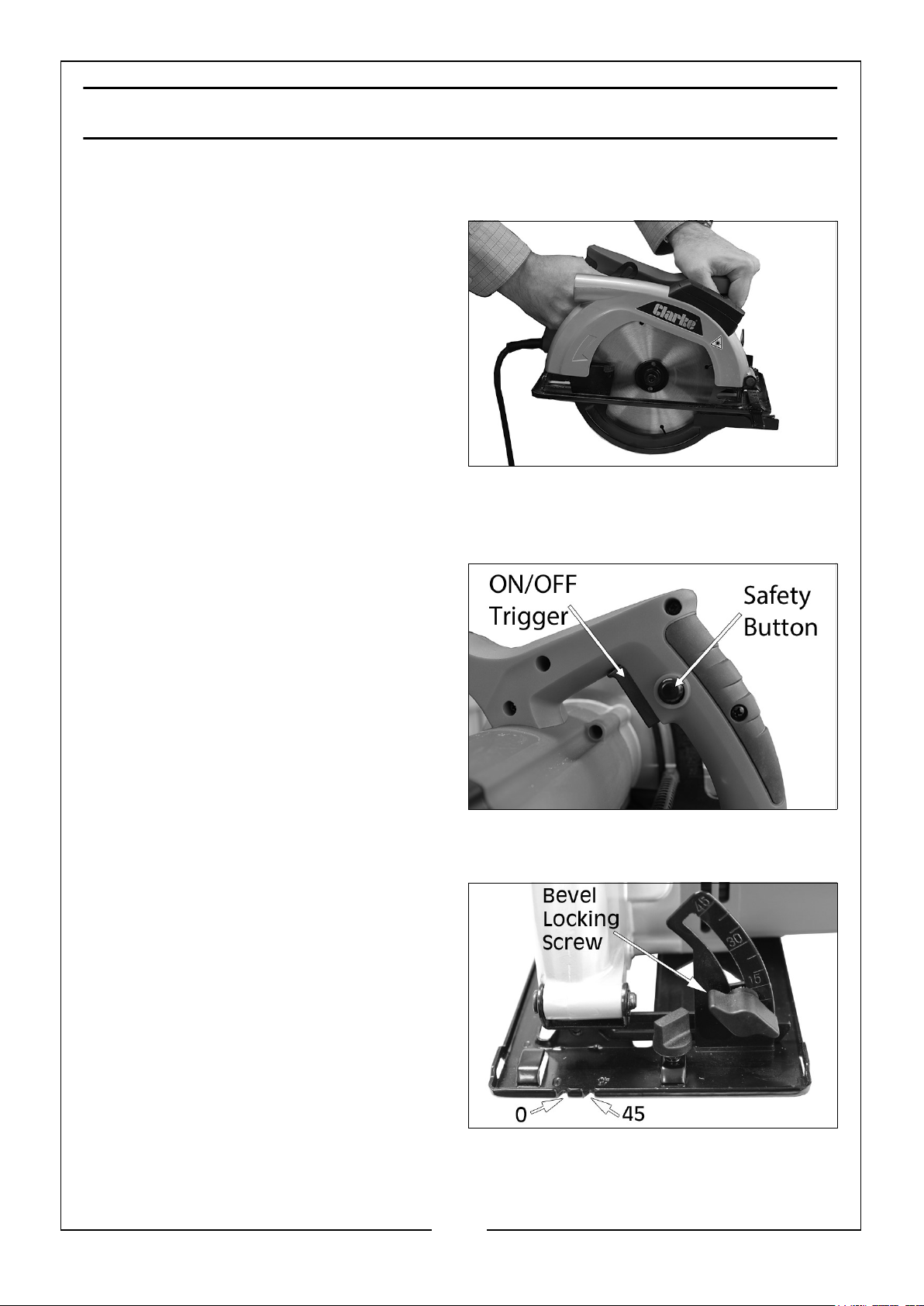

OPERATION & USE
CORRECT HAND POSITION
For your own safety, always hold the circular saw as shown in this picture, with your right hand on the main handle and your left hand on the auxiliary handle.
SWITCHING ON/OFF
The ON/OFF trigger is fitted with a safety button which prevents the circular saw from being started accidentally. To start the saw:
1. Press and hold the safety button.
2. Squeeze the ON/OFF trigger at the same time.
3. Release the ON/OFF trigger to stop the saw.
4. The blade will continue to rotate for several seconds after the trigger has been released.
GUIDING THE CIRCULAR SAW
To achieve optimal results:
• Clamp the workpiece upside down
to the workbench to minimise breakout.
• Follow the line drawn on the
workpiece using the 0 mark (90 to the horizontal).
o
• If cutting a bevel angle of 45o,
follow the line drawn on the workpiece using the 45 mark.
14
Page 15
DECLARATION OF CONFORMITY
15
