CORDLESS ROTARY TOOL KIT

MODEL NO: CCRT266

PART NO: 6461901

OPERATION & MAINTENANCE

INSTRUCTIONS

LS0417

INTRODUCTION

Thank you for purchasing this cordless rotary tool kit.

Please read this manual thoroughly, before attempting to operate, and carefully follow
all instructions given.

It is vitally important that ALL precautions are taken, as specified, which will not only
provide protection for yourself and that of others around you, but will also ensure that
the product will give you long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt as proof of purchase.

This guarantee is invalid if the product is found to have been abused or tampered with
in any way, or not used for the purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission.

This guarantee does not effect your statutory rights.

SPECIFICATIONS

Operating Voltage: 9.6 V-DC

Battery charge time 3 Hours

No-Load Speed 5000-25000 rpm

Collet Capacity 1 x 1/16”

1 x 3/32”
2 x 1/8” (3.175 mm)

Sound Pressure Level LpA 80 dB

Sound Power Level LWA 91 dB

Vibration

Dimensions (L x W x H) 225 x 53 x 46 mm

Weight (kg) 1.7 kg

Part Number 6461901

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Less than 2.6 m/s

2

2

SAFETY PRECAUTIONS

WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL
INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/
OR SERIOUS INJURY. THE TERM “POWER TOOL” IN ALL WARNINGS LISTED
BELOW REFERS TO YOUR BATTERY OPERATED (CORDLESS) POWER TOOL.

WORK AREA

1. Keep work area clean and well lit. Cluttered and dark areas invite accidents.

2. Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.

3. Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

ELECTRICAL SAFETY

1. Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges or refrigerators. There is an increased risk of electric shock if

your body is earthed or grounded.

2. Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.

3. When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric

shock.

PERSONAL SAFETY

1. Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A moment of inattention while

operating power tools may result in personal injury.

2. Use safety equipment. Always wear eye protection. Safety equipment such as
dust mask, non-skid safety shoes, or hearing protection used for appropriate
conditions will reduce personal injuries.

3. Avoid accidental starting. Ensure the switch is in the off position before
inserting the battery.

4. Remove any adjusting key or wrench before turning the power tool on. A
wrench or a key left attached to a rotating part of the power tool may result in
personal injury.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

5. Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.

6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or long

hair can be caught in moving parts.

POWER TOOL USE AND CARE

1. Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate which it was
designed.

2. Do not use the power tool if the switch does not turn it on and off. Any power

tool that cannot be controlled with the switch is dangerous and must be repaired.

3. Disconnect the battery before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures reduce

the risk of starting the power tool accidentally.

4. Store idle tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power
tool. Power tools are dangerous in the hands of untrained users.

5. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tools
operation. If damaged, have the power tool repaired before use. Many

accidents are caused by poorly maintained power tools.

6. Keep cutting tools sharp and clean. Well maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.

7. Use the power tool, accessories and tool bits etc., in accordance with these
instructions and in the manner intended for the particular type of power tool,
taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from intended could result in a
hazardous situation.

SERVICE

1. Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool is

maintained.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ADDITIONAL SAFETY INSTRUCTIONS FOR ROTARY TOOLS

1. Only use accessories supplied for use with this tool.

2. Never use worn or cracked accessories.

3. Hold the tool away from your face when switching on.

4. Keep your fingers away from rotating accessories.

5. Be careful not to accidently hit any foreign objects in the workpiece.

6. If an accessory jams, switch the tool off and disconnect the battery before
attempting to free the accessory.

7. Clamp the workpiece whenever possible especially when using cutting discs.

8. Always wear a dust mask and eye protection.

9. Thoroughly remove all dust after sanding.

10. Take special care when sanding paint which is possibly lead based or when

sanding some woods (e.g. MDF) and metal which may produce toxic dust:

• Wear a dust mask specifically designed for protection against lead paint dust

and fumes and ensure that persons within or entering the work area are also
protected.

• Do not let children or pregnant women enter the work area.

• Do not eat, drink or smoke in the work area.

• Dispose of dust particles and other debris safely.

11. Abrasive wheels should be stored and handled with care. (when not in use,
accessories should be stored in the box provided for protection).

12. Inspect grinding wheels/accessories before use. Do not use chipped, cracked or
otherwise defective products.

13. Ensure that all accessories are fitted in accordance with the manufacturers
instructions.

14. Ensure that the abrasive accessory is correctly mounted and tightened before
use. Run the tool with no-load for 30 seconds in a safe position and stop
immediately if there is vibration or if other defects are detected. If this condition
occurs, check the machine to determine the cause.

15. Check that the work piece is properly supported.

16. Do not use a cut-off wheel for side grinding.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

17. Ensure that sparks resulting from use do not create a hazard e.g. do not hit
persons, or ignite flammable substances.

18. Ensure ventilation openings are kept clear when working in dusty conditions. If it
should become necessary to clear dust, first disconnect the battery from the
rotary tool.

19. Personal protective equipment such as dust masks and gloves should be worn as
appropriate.

20. Remember the wheel continues to rotate after the tool is switched off.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

THE BATTERY

NOTES ON CHARGING

• During use, the battery pack may become warm. Allow it to cool before

recharging.

• Never store the battery pack when it is discharged, recharge it fully before

storage.

TO REMOVE THE BATTERY

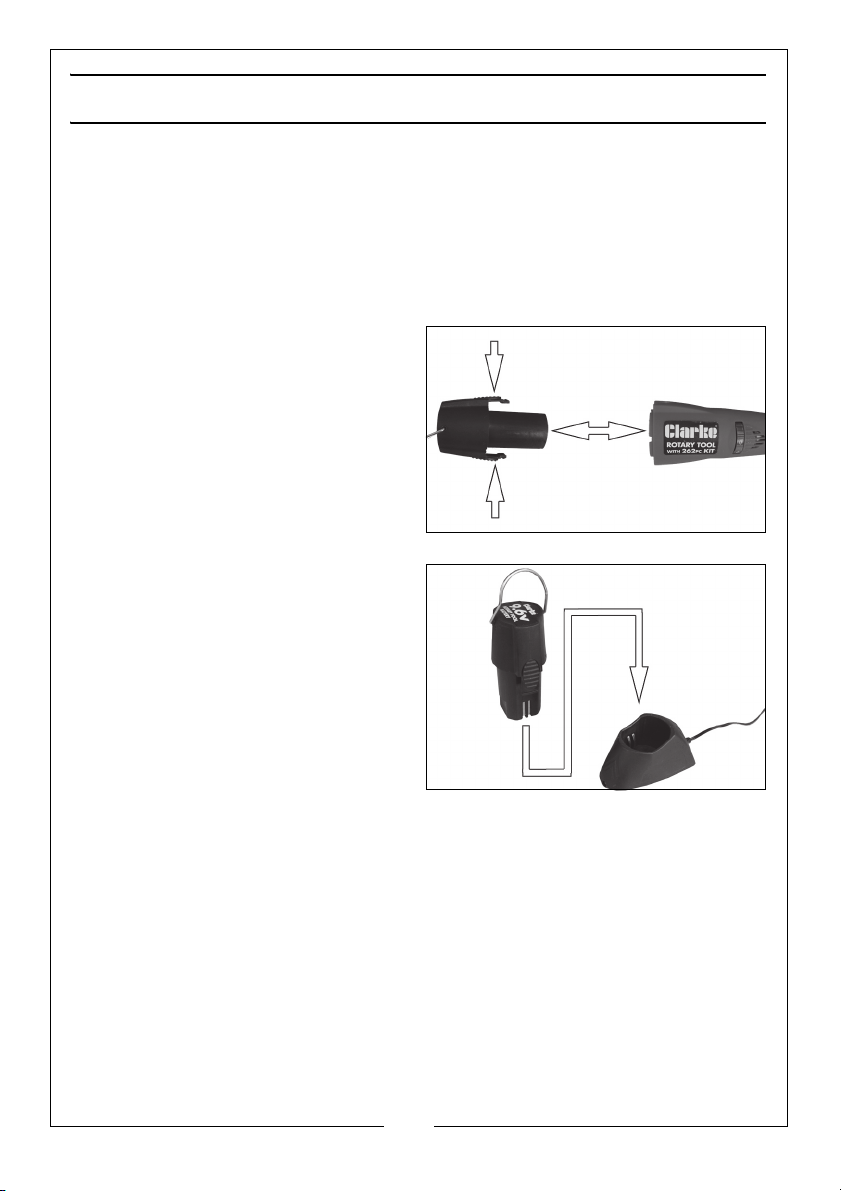

• Press either side of the battery

and pull it out of the rotary tool.

TO CHARGE THE BATTERY

1. Slide it into the charger unit.

• Make sure that the battery is fully

inserted.

• The red LED will light to show that

the battery is charging.

2. When the battery has been fully
charged, the red LED will extinguish
and the green LED will light.

• The charger will continue to deliver

a slow charge to maintain the battery until the charger is disconnected from the
mains supply.

• Whilst charging, the battery pack and charger may become warm. This is

normal and should be expected.

3. When charging is complete, remove the battery from the charger and disconnect
the charger from the mains supply.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

INSERTING THE BATTERY

1. Align the battery with the base of the
handle and slide it into the locating
clip.

• Make sure that the battery pack is

fully located and clicks into place.

BEFORE USE

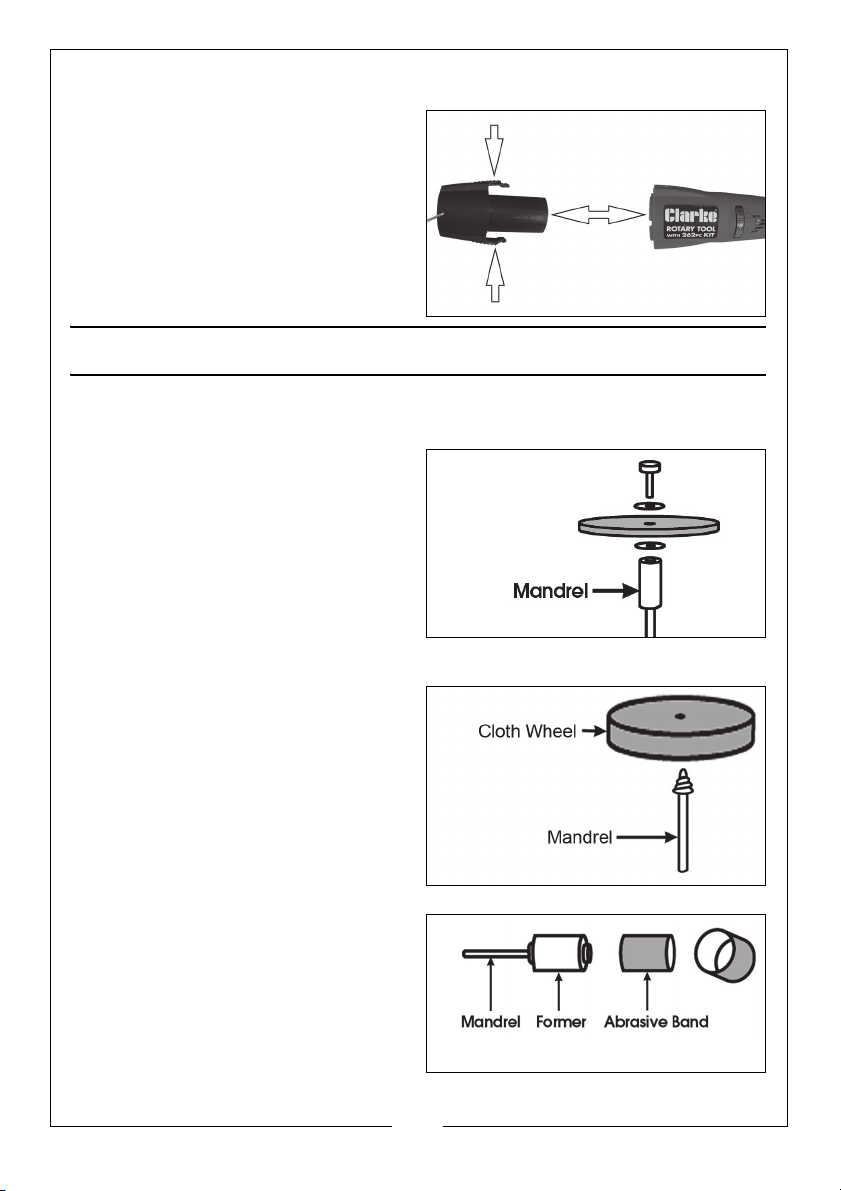

FITTING DISCS & GRINDING STONES TO THE MANDREL

Mount the selected disc on to the
mandrel as shown, ensuring the two
washers are in place.

• DO NOT overtighten the screw.

ASSEMBLING POLISHING CLOTH WHEELS

Screw the cloth wheel on to the mandrel
firmly, but do not overtighten it.

ASSEMBLING SANDING BANDS

Slacken the screw on the end of the
mandrel and slide the appropriate
abrasive band on to the rubber former,
fully.

• Tighten the screw to secure the

band to the former.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

FITTING A COLLET

WARNING: MAKE SURE THAT THE BATTERY HAS BEEN REMOVED FROM THE
ROTARY TOOL BEFORE REMOVING, OR FITTING A COLLET OR ACCESSORY

The rotary tool is supplied with 4 interchangeable collets; 0.8mm - 1.6mm - 2.4mm
and 3.2mm (fitted to the rotary tool).

Select the collet to be fitted according to the shaft size of the mandrel or accessory to
be used.

To fit a collet, proceed as follows.

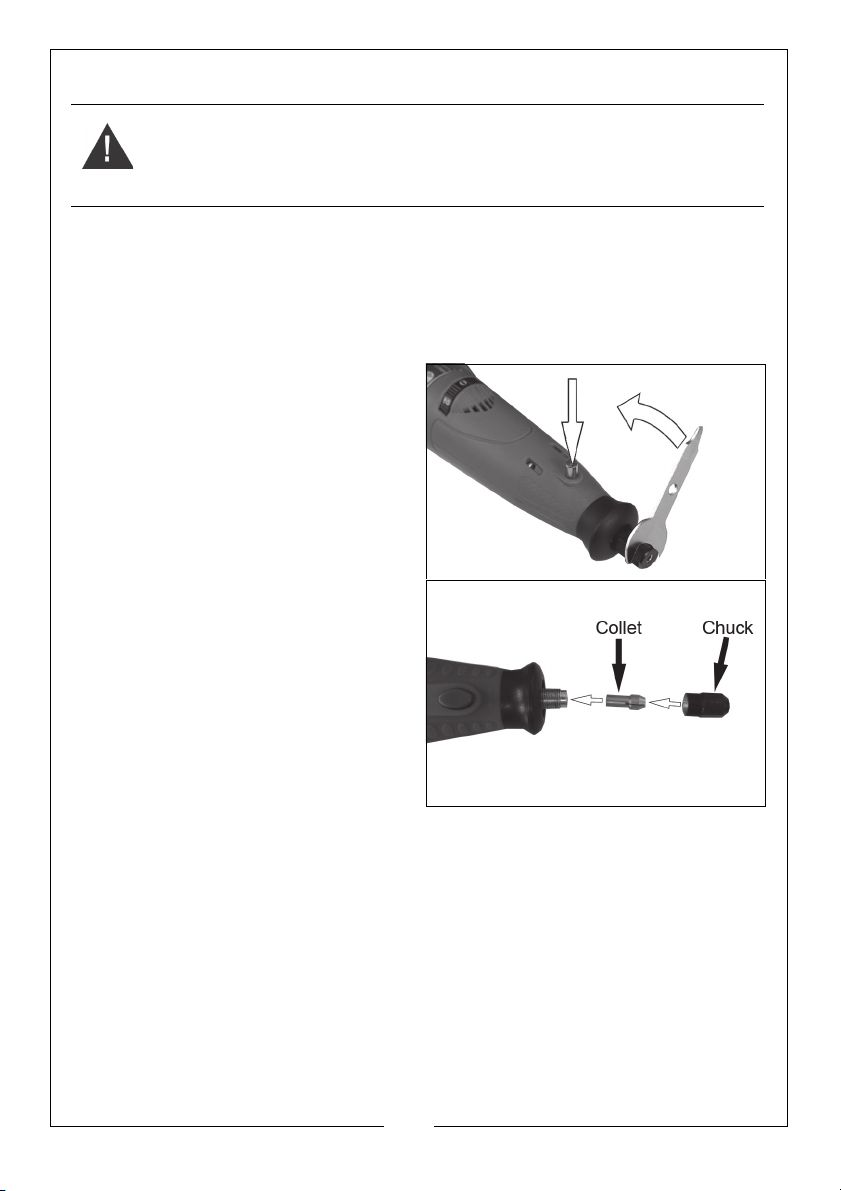

1. Press and hold down the spindle lock.
It may be necessary to rotate the
chuck to fully engage the spindle lock.

2. Remove the chuck by rotating the
chuck sleeve in an anti-clockwise
direction. A spanner is supplied for
this purpose.

3. Pull the collet out of the spindle.

4. Insert the collet required, pushing it
into the spindle as far as it will go.

5. Refit the chuck, pressing the spindle
lock to tighten it.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

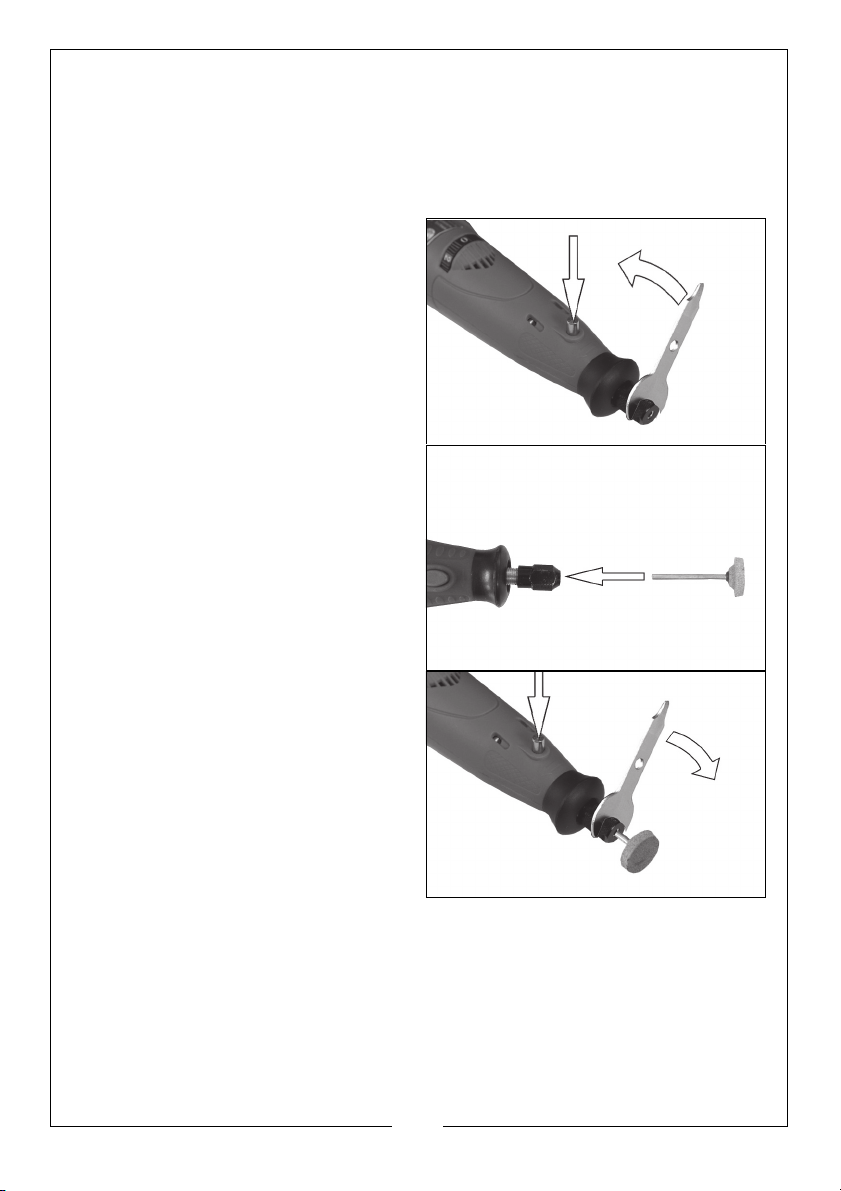

FITTING AN ACCESSORY

IMPORTANT: Ensure the tool is switched OFF

TO FIT AN ACCESSORY, PROCEED AS FOLLOWS.

1. Make sure that the correct size collet has been fitted.

2. Press and hold down the spindle lock.

• It may be necessary to rotate the

chuck to fully engage the spindle
lock.

3. Rotate the chuck sleeve in an
anticlockwise direction until the collet
jaws are open sufficiently to accept
the accessory.

4. Insert the accessory into the collet as
far as it will go.

5. Press and hold down the spindle lock
and tighten the chuck sleeve using
the spanner supplied.

TO REMOVE THE ACCESSORY FROM THE COLLET, PROCEED AS FOLLOWS.

1. Press and hold down the spindle lock.

2. Using the spanner supplied, rotate the chuck sleeve in an anti-clockwise direction.

3. When the accessory is released, remove it.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

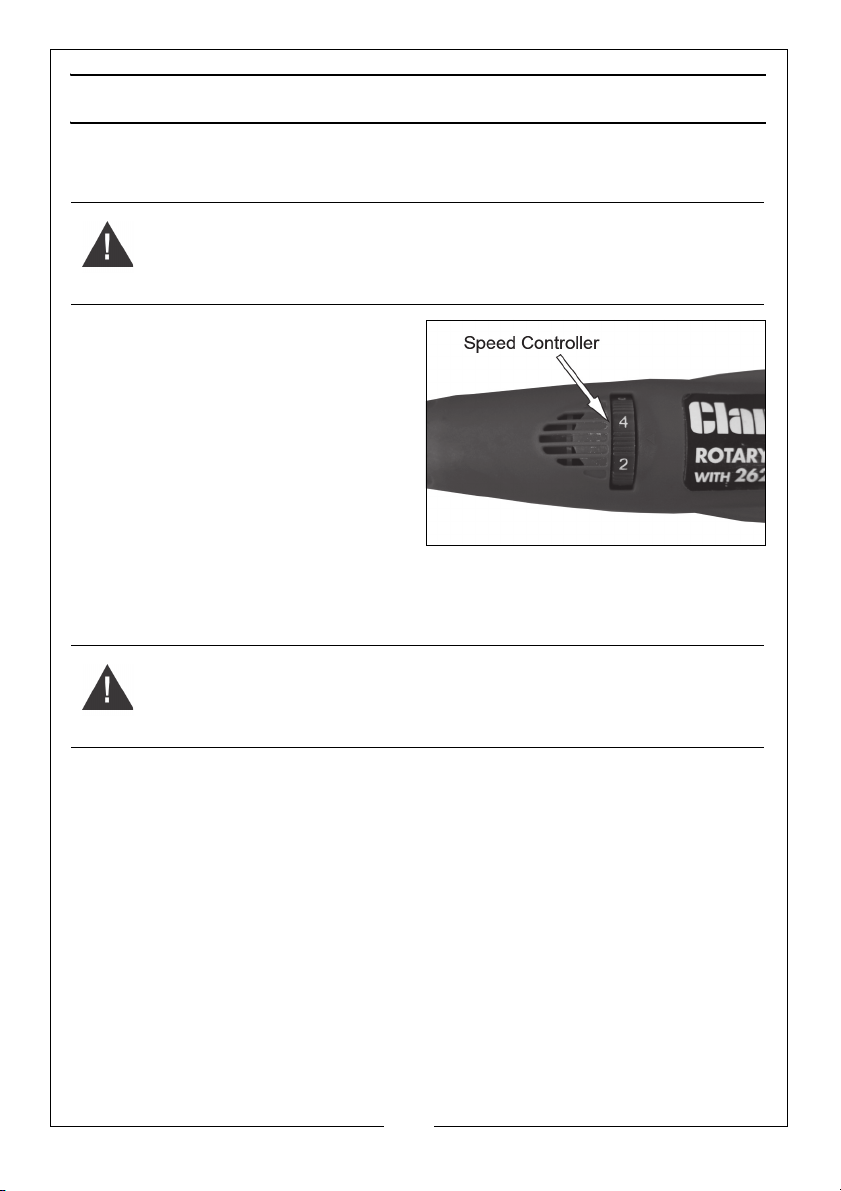

OPERATING INSTRUCTIONS

OPERATING THE ROTARY TOOL

WARNING: BEFORE OPERATING THE ON/OFF SWITCH, MAKE SURE THAT
THE COLLET AND ACCESSORIES HAVE BEEN CORRECTLY AND SECURELY
FITTED.

1. To switch the rotary tool on, rotate the
speed control away from 0.

2. Select a suitable speed using the
speed controller.

• The low speed settings should be

used for removing rust, and
polishing.

• The medium speed settings should

be used for drilling, engraving,
sharpening and removing paint.

• The high speed settings should be used for cutting metal and sanding wood.

3. To switch the rotary tool off, set the speed control to 0.

WARNING: ALWAYS WAIT FOR COMPLETE RUN DOWN, AND THE
ACCESSORY TO STOP ROTATING, BEFORE PUTTING THE ROTARY TOOL
ASIDE.

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CLEANING AND MAINTENANCE

WARNING: MAKE SURE THAT THE BATTERY HAS BEEN REMOVED FROM THE
ROTARY TOOL BEFORE STARTING ANY CLEANING, OR MAINTENANCE
PROCEDURES.

• After use, thoroughly clean all excess chippings and dust from the rotary tool,

taking special care to clean the cooling vents.

• Clean the spindle lock, the chuck and the spindle collar.

• Keep all accessories sharp and clean.

• There are no user serviceable parts inside this rotary tool.

• Worn, or damaged parts should be replaced by qualified personnel.

• Refer to qualified service personnel if internal maintenance is required.

ENVIRONMENTAL PROTECTION

Recycle unwanted materials instead of disposing of them as waste. All
tools, accessories and packaging should be sorted, taken to a recycling
centre and disposed of in a manner which is compatible with the
environment.

12

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

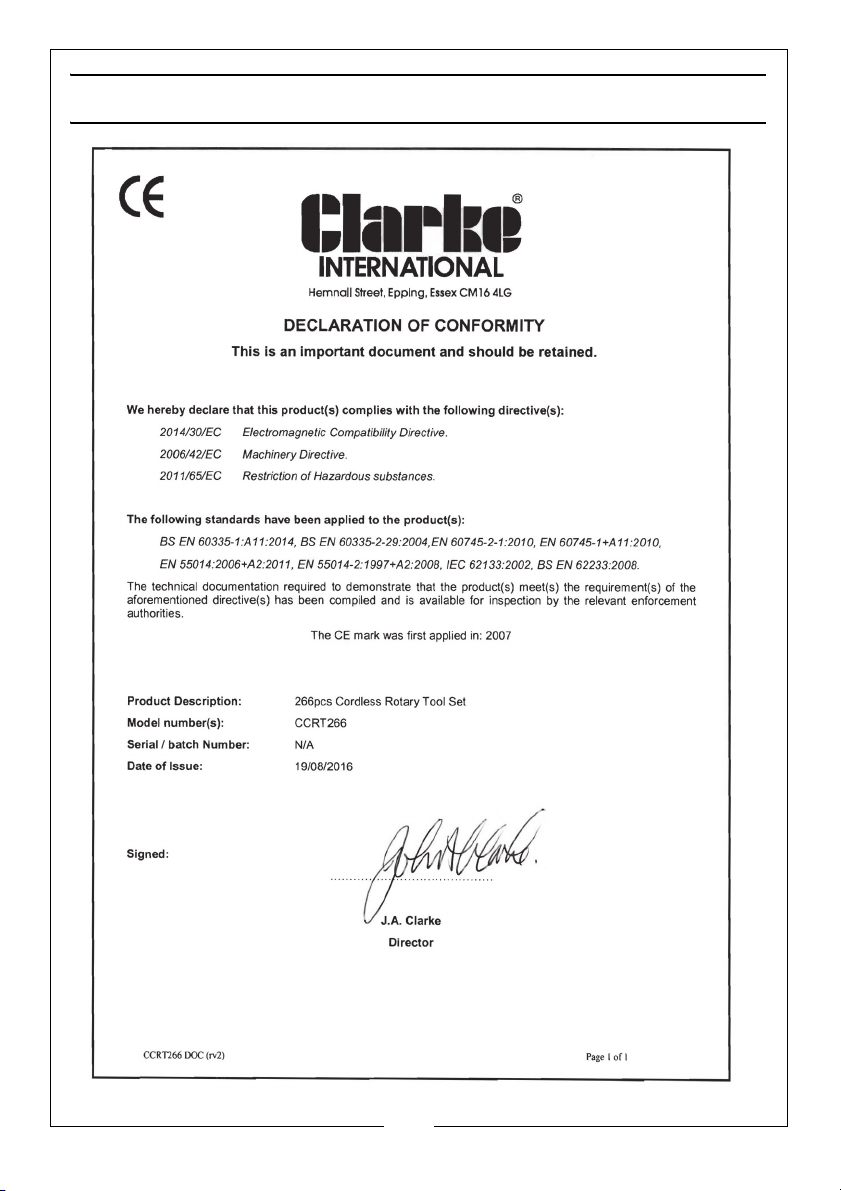

DECLARATION OF CONFORMITY

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PARTS LIST

Part Part number Part Part number

1 x Cordless Grinder ETCCRT26601 3x Aluminium oxide grinding

1 x Charger Base ETCCRT26602 2 x Silicon carbide grinding

1 x Adaptor 12V AC
500mAh

1 x Battery 700mAh ETCCRT26604 1 x HSS cutter ETCCRT26617

1 x Polishing Compound ETCCRT26605 2 x Polished HSS twist drills

30 x Cut off wheel Heavy
Duty 1 5/16" x 1/32”

44 x Cut off wheel regular
15/16" x 1/64”

132 x Sanding disc
comprising off

(45 x 180 Grit) 2 x Mandrel for cut off wheel

(45 x 220 Grit) 1 x Mandrel for cloth wheel

(42 x 240 Grit) 2 x Collet chrome plated

6 x Sanding band 1/4" x 1/2”ETCCRT26609 1 x Collet chrome plated

6pcs sanding band 1/2" x
1/2”

1 x cloth wheel 1" x 1/8" ETCCRT26610 1 x Wrench 3/8” ETCCRT26621

1x sanding shank 1/2" x 1/2” ETCCRT26611 1 x Rubber emery wheel

1x sanding shank 1/4" x 1/2” 1 x Stainless brush axial 3/16" x

2 x felt polishing wheel 1/2" x
3/8”

1x felt wheel point 3/8" x
3/4”

1x felt polishing wheel 1” 3 x Aluminium oxide grinding

1x Dressing stone silicon
carbide 1" x 3/8”

ETCCRT26603 6 x Diamond wheel points

ETCCRT26606 1 x Polished HSS twist drills

ETCCRT26607 1 x Polished HSS twist drills

ETCCRT26608 1 x Mandrel for felt wheel ETCCRT26619

ETCCRT26612 1 x Stainless brush axial 1/2" x 1-

ETCCRT26613 3 x Silicon carbide grinding

wheel with shank

wheel with shank

1/8” shank

1/16”

3/32”

1/8”

1/16" screw

3/32" screw

1/8”

3/32”

1 x Collet chrome plated
1/16”

7/8" x 5/32”

1-3/4”

3/4”

1 x Stainless brush radial 13/16"
x 1-3/4”

wheel 3/4" x 1/8”

wheel 3/4" x 1/8”

ETCCRT26614

ETCCRT26615

ETCCRT26616

ETCCRT26618

ETCCRT26620

ETCCRT26622

ETCCRT26623

ETCCRT26624

ETCCRT26625

14

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ADVERTISEMENT

For heavier duty work you may be interested in our mains powered rotary tool set
Model number CRT40. Also available is our CRT100A- 100pc Accessory Kit for
CRT40

This is available from you Clarke dealer

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
