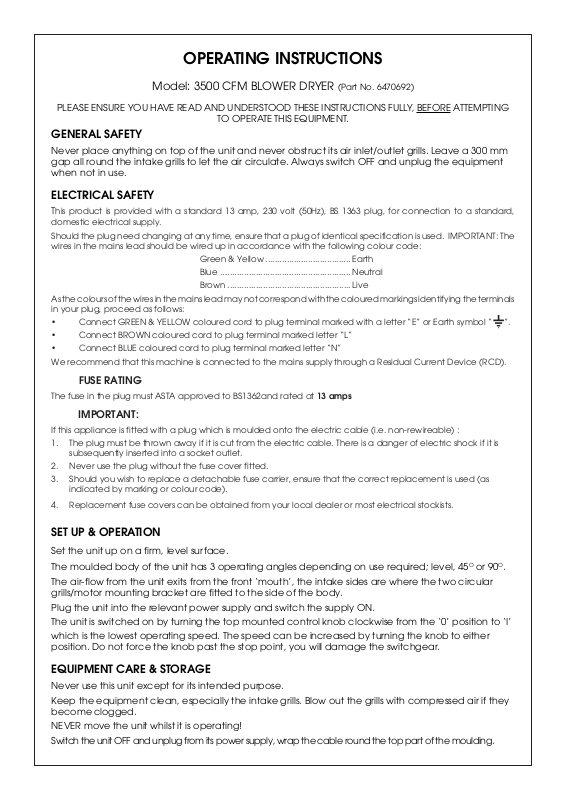

OPERATING INSTRUCTIONS

Model: 3500 CFM BLOWER DRYER (Part No. 6470692)

PLEASE ENSURE YOU HAVE READ AND UNDERSTOOD THESE INSTRUCTIONS FULLY, BEFORE ATTEMPTING

TO OPERATE THIS EQUIPMENT.

GENERAL SAFETY

Never place anything on top of the unit and never obstruct its air inlet/outlet grills. Leave a 300 mm
gap all round the intake grills to let the air circulate. Always switch OFF and unplug the equipment
when not in use.

ELECTRICAL SAFETY

This product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for connection to a standard,

domestic electrical supply.

Should the plug need changing at any time, ensure that a plug of identical specification is used. IMPORTANT: The
wires in the mains lead should be wired up in accordance with the following colour code:

Green & Yellow .................................... Earth

Blue ....................................................... Neutral

Brown .................................................... Live

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals
in your plug, proceed as follows:

• Connect GREEN & YELLOW coloured cord to plug terminal marked with a letter “E” or Earth symbol “ ”.

• Connect BROWN coloured cord to plug terminal marked letter “L”

• Connect BLUE coloured cord to plug terminal marked letter “N”

We recommend that this machine is connected to the mains supply through a Residual Current Device (RCD).

FUSE RATING

The fuse in the plug must ASTA approved to BS1362and rated at 13 amps

IMPORTANT:

If this appliance is fitted with a plug which is moulded onto the electric cable (i.e. non-rewireable) :

1. The plug must be thrown away if it is cut from the electric cable. There is a danger of electric shock if it is
subsequently inserted into a socket outlet.

2. Never use the plug without the fuse cover fitted.

3. Should you wish to replace a detachable fuse carrier, ensure that the correct replacement is used (as
indicated by marking or colour code).

4. Replacement fuse covers can be obtained from your local dealer or most electrical stockists.

SET UP & OPERATION

Set the unit up on a firm, level surface.

The moulded body of the unit has 3 operating angles depending on use required; level, 45O or 90O.

The air-flow from the unit exits from the front ‘mouth’, the intake sides are where the two circular
grills/motor mounting bracket are fitted to the side of the body.

Plug the unit into the relevant power supply and switch the supply ON.
The unit is switched on by turning the top mounted control knob clockwise from the ‘0’ position to ‘I’

which is the lowest operating speed. The speed can be increased by turning the knob to either
position. Do not force the knob past the stop point, you will damage the switchgear.

EQUIPMENT CARE & STORAGE

Never use this unit except for its intended purpose.

Keep the equipment clean, especially the intake grills. Blow out the grills with compressed air if they
become clogged.

NEVER move the unit whilst it is operating!

Switch the unit OFF and unplug from its power supply, wrap the cable round the top part of the moulding.

TROUBLESHOOTING GUIDE

PROBLEM

UNIT FAILS TO OPERATE

POOR AIRFLOW

LIKELY CAUSE

POWER FAILURE

SPEED CONTROL ON LOW
SETTING

GRILLS DIRTY

INLET/OUTLET GRILLS
OBSTRUCTED

SOLUTION

CHECK UNIT IS PLUGGED IN TO
POWER SUPPLY

CHECK PLUG FUSE FOR
FAILURE & CORRECT 13AMP
RATING

CHECK BUILDING RING
CIRCUIT IS NOT OVERLOADED

TURN SPEED CONTROL KNOB
CLOCKWISE TO POSITIONS 11
OR III TO INCREASE AIRFLOW

BLOW COMPRESSED AIR
THROUGH GRILLS TO CLEAN

REMOVE OBSTRUCTION

PARTS AND SERVICE CONTACTS

For Spare Parts and Service, please contact your nearest dealer,

or CLARKE International, on one of the following numbers.

PARTS & SERVICE TEL: [phone]

PARTS & SERVICE FAX: [phone]

or e-mail as follows:

PARTS: [e-mail]

SERVICE: [e-mail]

3500 CFM BLOWER DRYER

UNPACKING INSTRUCTIONS

CAUTION

DO NOT ATTEMPT TO OPERATE THIS EOUIPMENT UNT1L THE

FOLLOWING HAS BEEN COMPLETED!

1) Remove the unit & separately packed guard from the

carton.

2) Remove the unit from the bag & unpack the guard.

3) Remove the polystyrene transit packer.

4) Remove the small screw from the top of the impellor

side of the moulding do not discard.

5)

Fit the guard. The guard has a formed ‘eye’ at one
end & an extended ‘wire’ at the other. Insert the
extended wire into the small hole opposite to where
the screw was removed, align the screw with the ‘eye’
in the grill & fix into place using a cross- headed
screwdriver.

When completed, the ‘eye’ will be pointing away from
the impellor.
