WARNING: Read these instructions before using the machine
PETROL DRIVEN POWER WASHER
MODEL NO: TIGER 2500/2900
PART NO: 7320055/7320056
OPERATION & MAINTENANCE
INSTRUCTIONS
LS0114
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Petrol driven power washer.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase. This guarantee is invalid if the product is found
to have been abused or tampered with in any way, or not used for the
purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ACCESSORIES
The range of accessories listed below are available from your CLARKE dealer.
ITEM PAR T N UMB E R
5 Litres Detergent (Traffic Film Remover) 3050821
25 Litres Detergent (Traffic Film Remover) 3050820
5 Litres Wash ‘n’ Wax 3050815
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
GENERAL SAFETY RULES
WARNING: Water at high pressure can be dangerous and can cause
damage if the operator is careless. Never allow anyone to operate this
pressure washer unless they are familiar with the safety precautions.
1. NEVER direct the spray towards any person or animal.
2. NEVER hold your finger over the high pressure nozzle.
3. NEVER allow children or untrained personnel to use this machine.
4. NEVER operate the machine with any of the covers removed.
5. NEVER attempt any repairs to this machine. Always refer to your Clarke dealer.
6. NEVER supply any liquid other than water to the water inlet.
7. NEVER use the detergent pickup facility to introduce flammable liquids/solvents, e.g.
paint thinners, petrol, oil as there is a risk of explosion.
8. ALWAYS release any residual pressure in the system by turning off the water supply
and operating the trigger before disconnecting any hose or accessory.
9. ALWAYS keep the machine itself dry and well clear of water spray.
10. ALWAYS wear protective clothing and safety glasses. Loose particles and other
debris may be propelled at high speed by the water jet.
11. ALWAYS grip the gun firmly and expect the spray gun to ‘kick’ when starting.
12. ALWAYS respect the requirements of the local water company. Pressure washers may
only be connected to the mains drinking water supply if a system separator (also
known as a backflow preventer) is installed in the supply hose.
13. ALWAYS disconnect from the water supply, and ensure the system is completely
drained when not in use. Store in a cool dry location.
14. ONLY use chemical cleaning agents (detergents), that are approved for pressure
washers. CLARKE Traffic Film Remover or CLARKE Wash and WAX (available from your
dealer), is recommended.
15. WARNING High pressure water jets can be dangerous if subject to misuse. The jet
must not be directed at a person or anything that they are wearing.
16. NEVER direct the jet at electrical equipment or the machine itself.
17. WARNING High pressure hoses, fittings and couplings are important for the safety of
the machine. Use only hoses, fittings and couplings recommended by the
manufacturer.
18. WARNING Water that has flowed through a system separator (also known as a
backflow preventer) is considered non-drinkable.
19. NEVER use the pressure washer if the inlet/outlet hoses or important parts of the
machine are damaged.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4

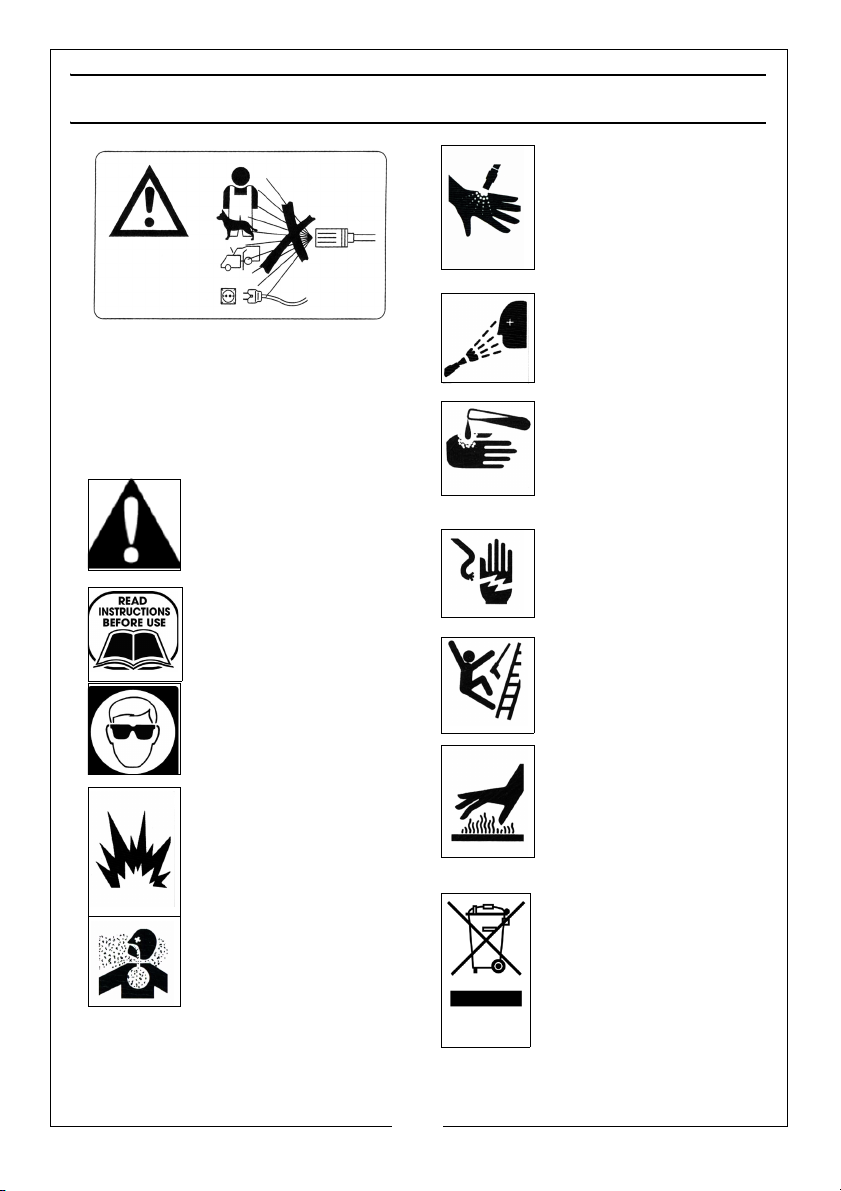

SAFETY SYMBOLS
WAR NI NG : Do not direct discharge stream
at persons or animals. Keep clear of
nozzle.
WAR NI NG : Never direct spray toward
any electrical device or electrical
outlet.
General Warning, indicates
that failing to follow these
instruction could result in
injury or damage to the
machine.
To reduce the risk of injury,
read the manual before
use.
ALWAYS wear safety glasses
when using this machine.
DANGER: Risk of fire or
explosion. Shut off engine
before adding fuel. Keep
work area free of
combustible materials. Do
not spray flammable liquids.
DANGER: Risk to
breathing. Engine
exhaust fumes can kill.
For outdoor use only. Work
in a well ventilated area.
WAR NI NG : Risk of injection
or severe injury. Do not
direct discharge stream at
persons or animals. Keep
clear of nozzle. This
machine is to be used
only by qualified operators.
WAR NI NG : Risk of spray
injury. Spray can propel
objects. Always wear ANSI
approved Z87.1 Safety
Glasses.
WAR NI NG : Risk of
chemical burn. Never
spray acids, corrosive or
toxic chemicals. Use only
cleaners formulated for
pressure washers.
WAR NI NG : Risk of
electrocution. Never
direct spray toward any
electrical device or
electrical outlet.
WAR NI NG : Risk of unsafe
operation. Keep
children away from this
equipment. Gun kicks
back. Hold with both hands.
WAR NI NG : Risk of hot
surfaces. Avoid contact
with hot engine exhaust
components. Don't allow
hoses to contact the
engine muffler during or
after use.
Recycle unwanted materials
instead of disposing of them
as waste. All tools,
accessories and packaging
should be sorted, taken to a
recycling centre and
disposed of in a manner
which is compatible with the
environment.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5

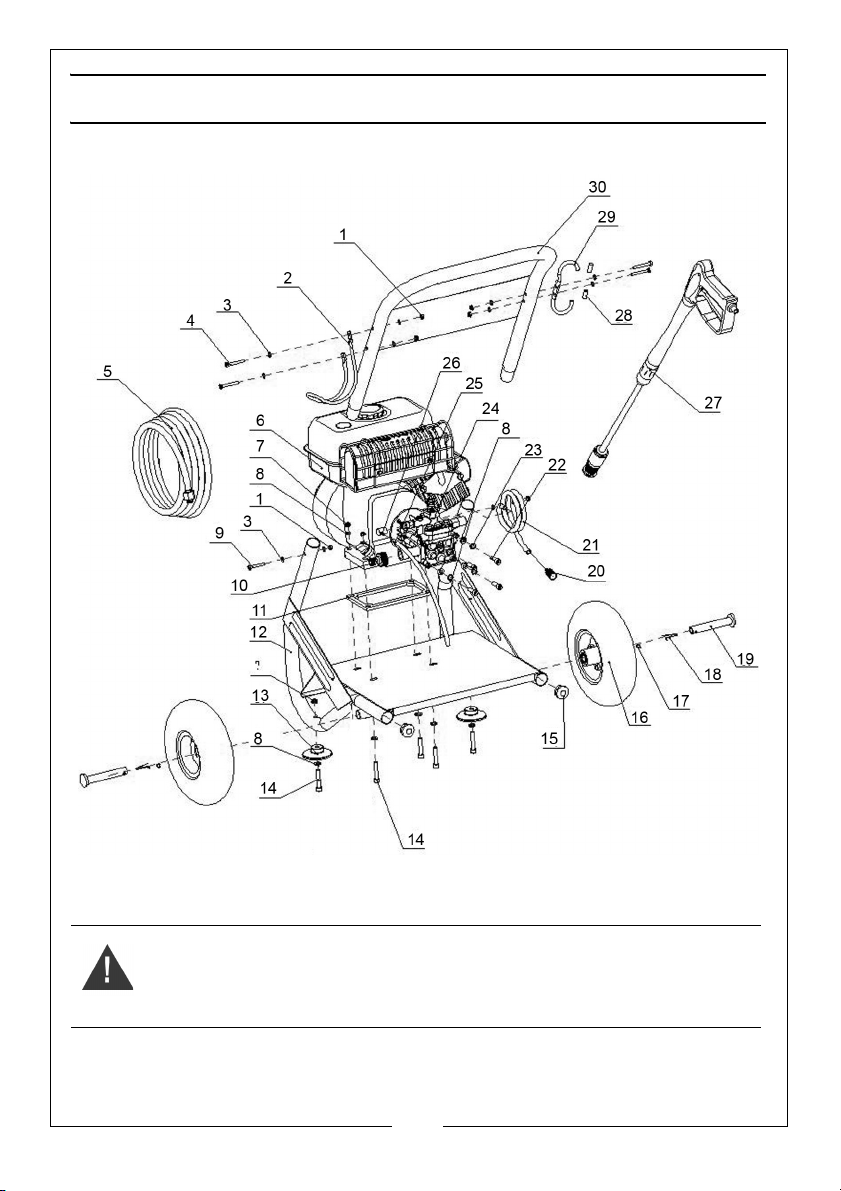

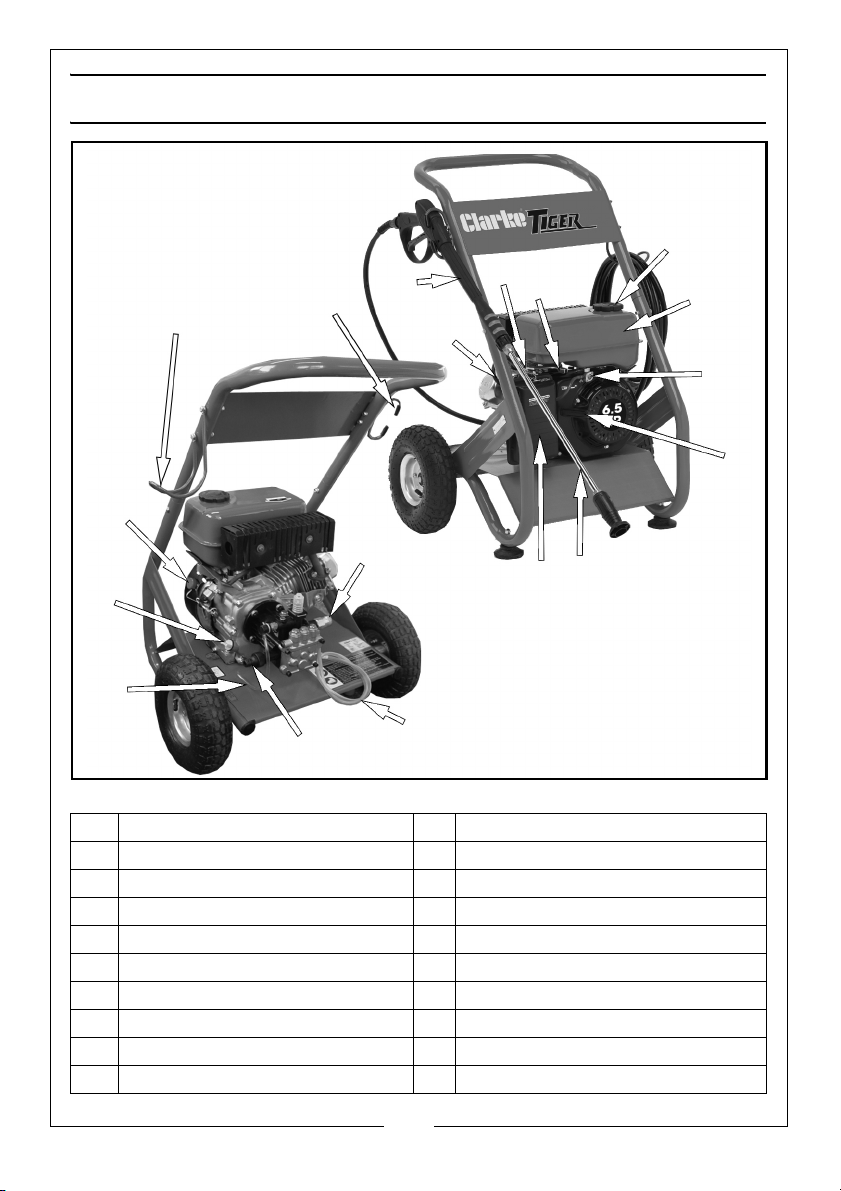

OVERVIEW
7
8
9
10
11
1
2
3
4
5
12
6
13
14
15
16
17
18
NO DESCRIPTION NO DESCRIPTION
1 Fuel Tank Cap 10 Throttle
2 Fuel Tank 11 Engine On/Off Switch
3 Spark Plug 12 Oil Filler Cap
4 Choke 13 Water Outlet
5 Gun Assembly 14 Detergent Hose
6 Lance 15 Water Inlet
7 Air Filter Cover 16 Bypass Drain Hose
8 Recoil Pull Start 17 Hose Holder
9 Fuel Valve 18 Lance Holder
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
5
Page 6
ASSEMBLY
Unpack your pressure washer and check to ensure the following items are
present.
Contact your Clarke dealer immediately if any parts are missing or damaged.
• 1 x Petrol Pressure Washer • 1 x Spark Plug Box Spanner
• 1 x Hose Holder c/w Fixings • 1 x Tommy Bar
• 1 x Lance Holder c/w Fixings • 2 x Wheel & Axle Assemblies
• 1 x High Pressure Hose • 1 x Nozzle Cleaning Pin
• 1 x Lance Assembly • 1 x Tap Adaptor
• 1 x Gun Assembly • 1 x Upper Handle c/w Fixings
CONNECTING THE HANDLE

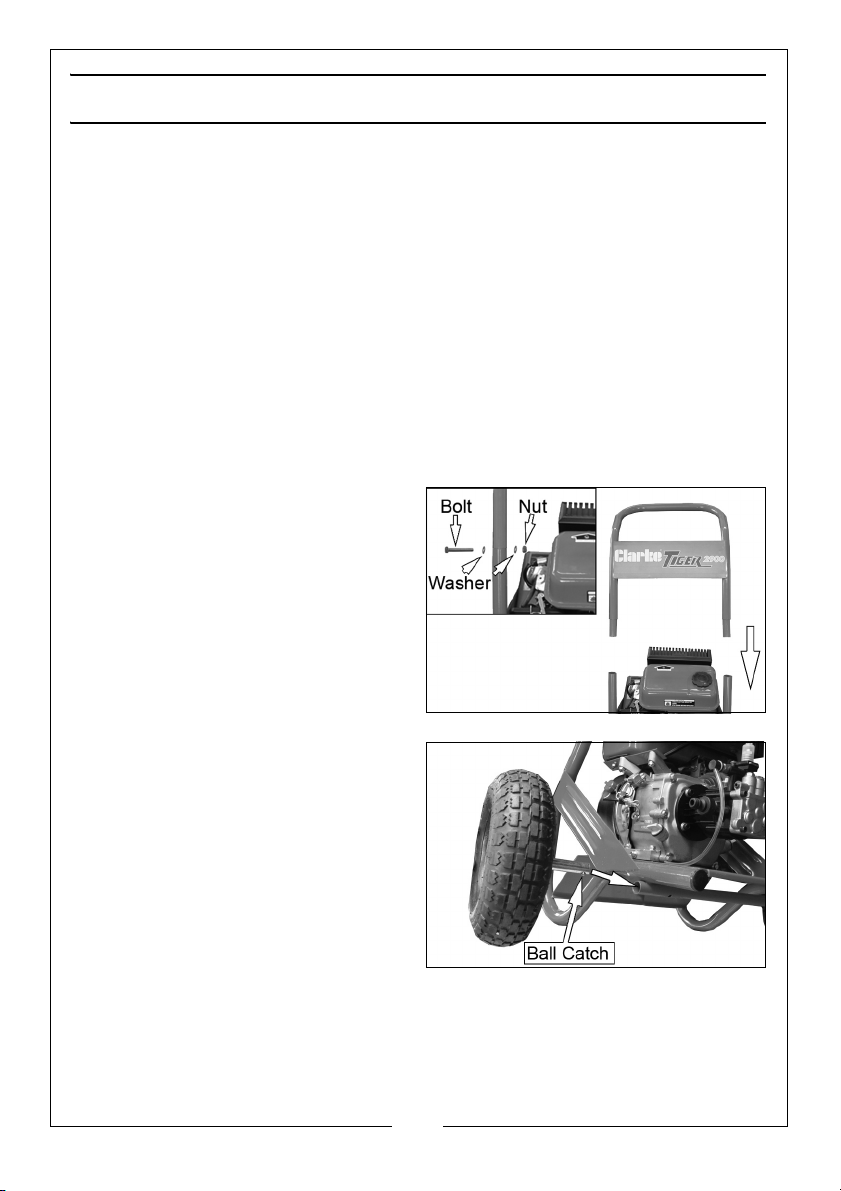

1. Slide the upper handle into
position as shown.
2. Secure using a bolt, 2 washers and
a nut on each side.
CONNECTING THE WHEELS
1. Slide the axles in to the locating
tube as shown
• Make sure the ball catch locks
into the small hole on the
bottom of the locating tube.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
FITTING THE RUBBER FEET
1. Fit the rubber feet to the legs as
shown.

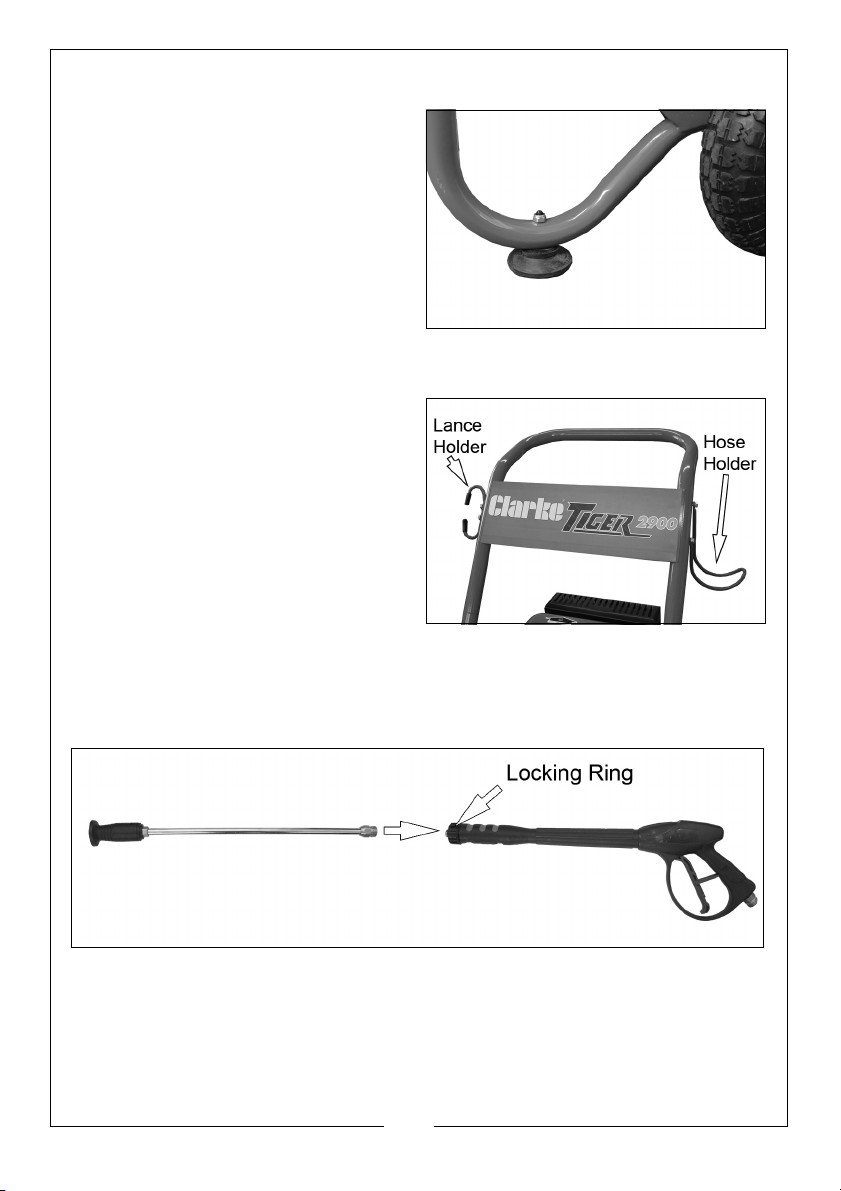

FITTING THE LANCE/HOSE HOLDER
1. Fit the holders into the positions
shown and secure using the
washers and nuts provided.
ASSEMBLING THE LANCE
1. Connect the spray lance to the gun assembly and tighten securely by
turning the locking ring.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8

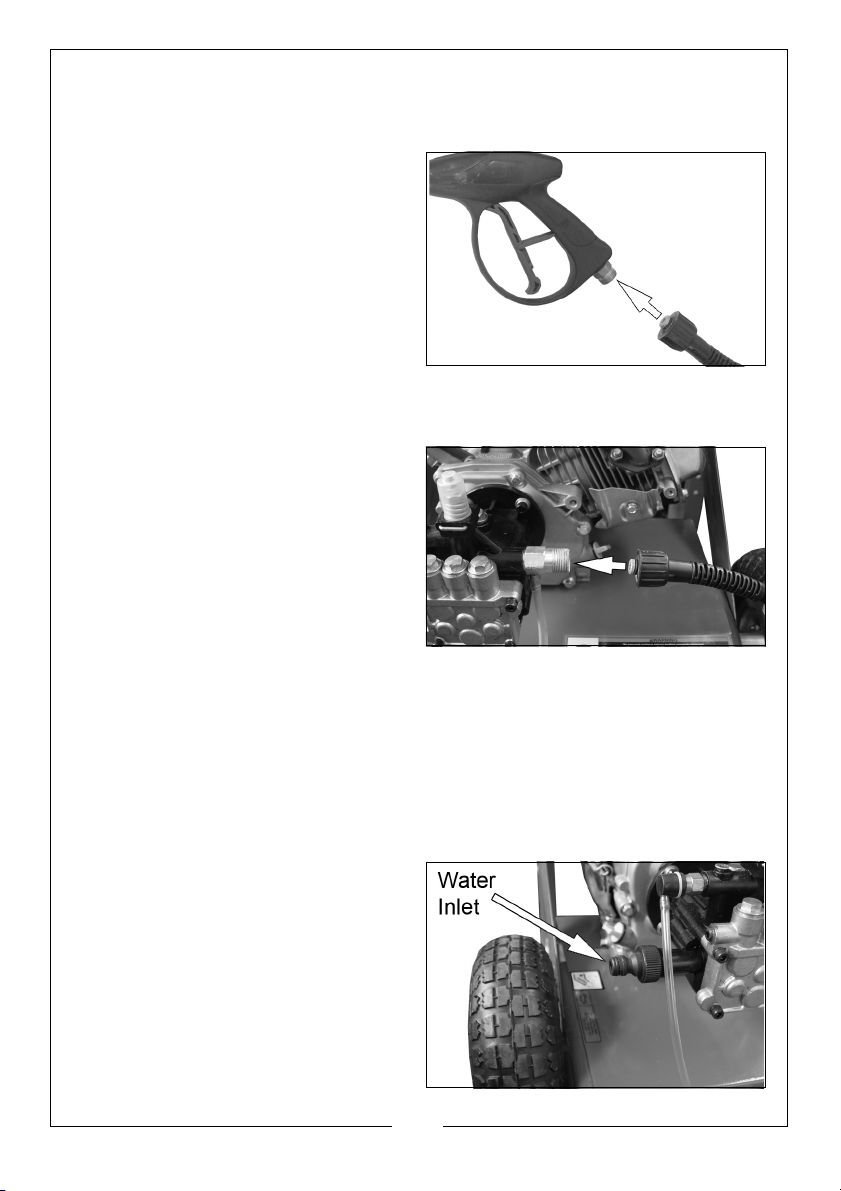

CONNECTING THE HIGH PRESSURE HOSE
CONNECT THE HOSE TO THE GUN
1. Screw the high pressure hose onto
the gun assembly.
• Tighten the connector, hand
tight only. Do not use a
spanner.
NOTE: Make sure the connection is
secure.
CONNECT THE HOSE TO THE PRESSURE WASHER
1. Screw the hose on to the pressure
washer.
• Tighten the connector, hand
tight only, Do not use a
spanner.
NOTE: Make sure the connection is
secure.
CONNECTING THE WATER SUPPLY
Always follow the regulations of your local water supplier. The pressure washer
must never be connected to the drinking water supply without using a system
separator (also known as a backflow preventer) available from most
hardware stores.
NOTE: Water that has flowed through a system separator is considered non-
drinkable.
1. Connect a water supply hose (not
supplied) to the water inlet.
NOTE: Use a good quality fibre-
reinforced water hose with a
standard coupling.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
BEFORE USE
WARNING: TO CARRY OUT THIS CHECK, PLACE THE PRESSURE WASHER ON
LEVEL GROUND WITH THE ENGINE SWITCHED OFF.
WARNING: TAKE CARE NOT TO TOUCH ANY HOT PARTS OF THE PRESSURE
WASHER WHEN CHECKING THE OIL LEVEL.
IMPORTANT: The engine is supplied without any oil in it and must be filled to
the correct level before use, see below.
ENGINE OIL

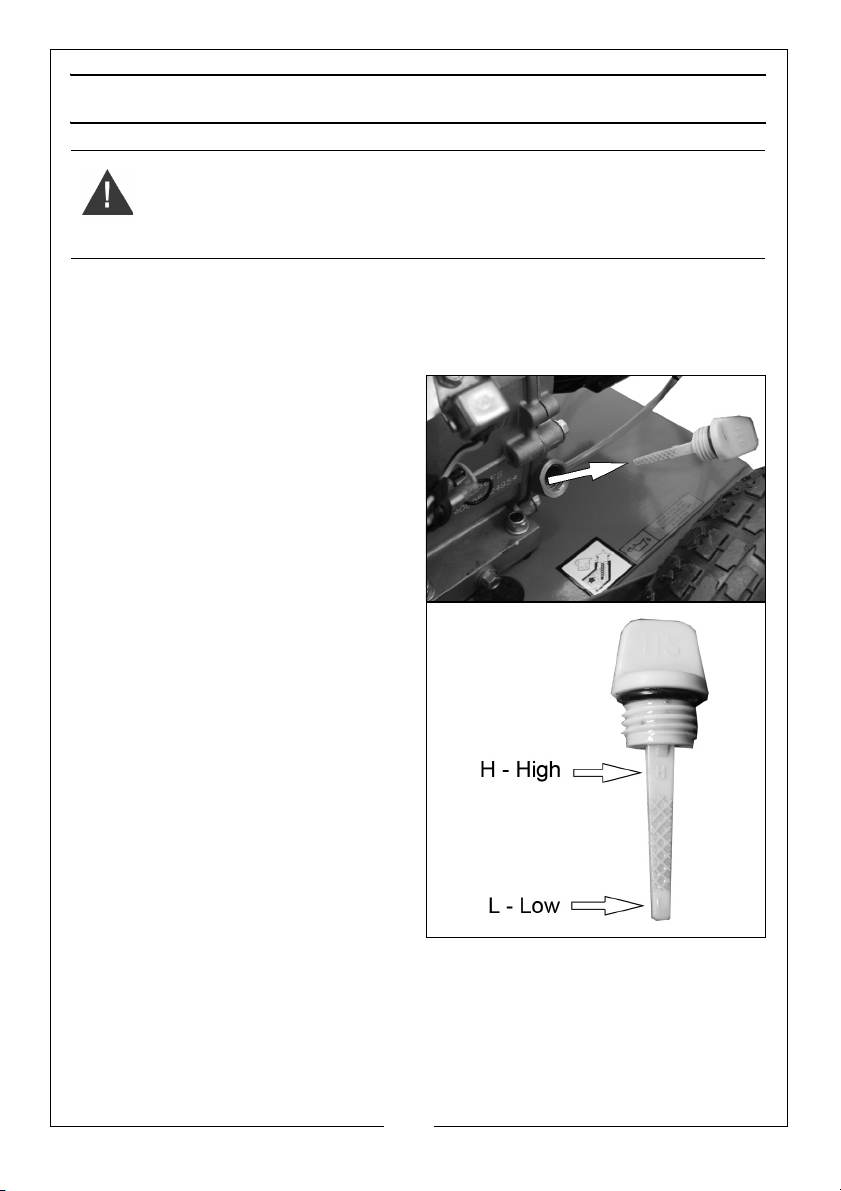

1. Turn the oil filler cap anticlockwise
and remove it from the engine,
wipe the integral dipstick with a
clean cloth.
2. Insert the oil filler cap back into
place and then remove it again.
3. If the oil reads low on the dipstick,
add oil to the oil reservoir (Max
0.4L).
• We recommend the use of
SAE10W-30 oil.
• Do not overfill the oil reservoir.
4. Replace the oil filler cap.
NOTE: Running the engine with
insufficient oil will cause
engine damage.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
FUEL
• Refuel in a well-ventilated area, away from any sources of ignition.
• If the engine has been running, allow it to cool before refueling.
• Do not leave fuel within the reach of children.
• Refuel carefully to avoid spilling fuel.

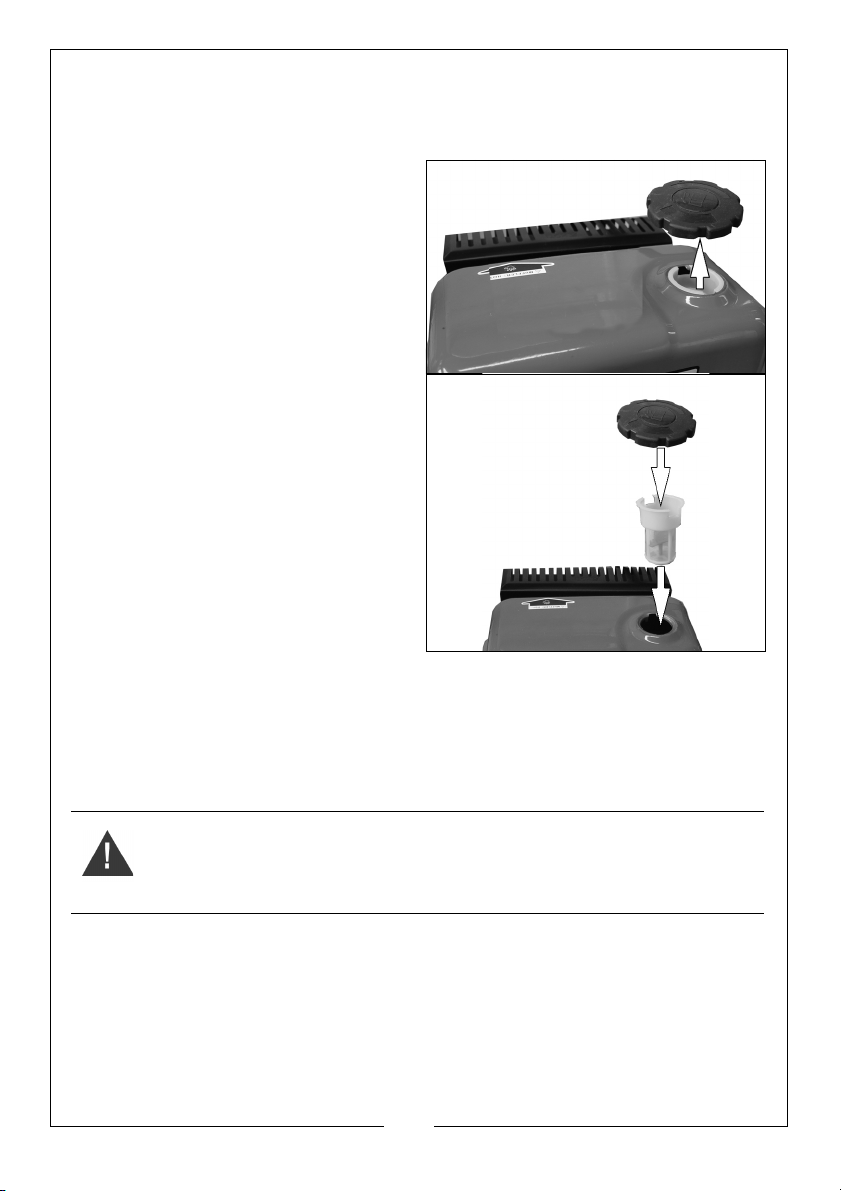

1. Remove the fuel tank cap.
• Just inside the fuel tank is a fuel
strainer, which should be
checked periodically and any
contaminants which have
accumulated must be
removed.

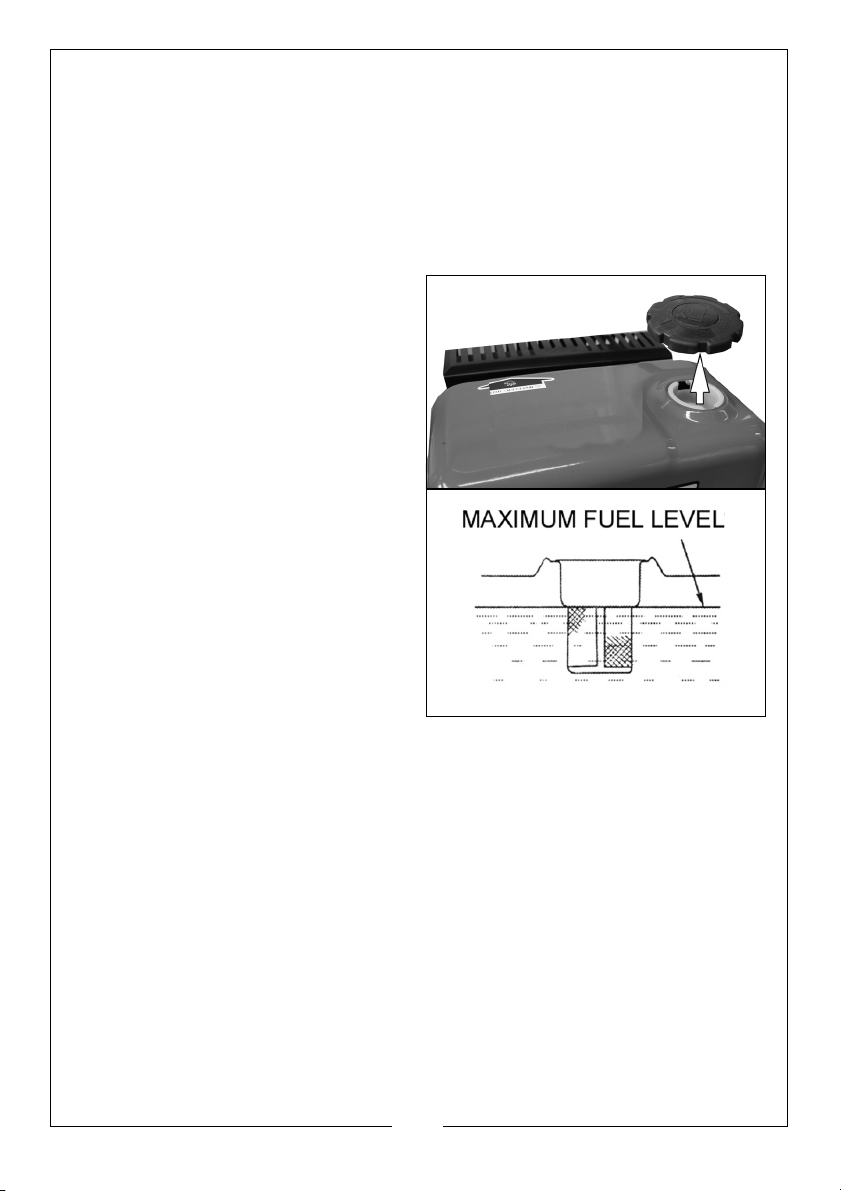

2. Pour unleaded petrol through the
fuel strainer and into the fuel tank
• Do not fill above the fuel
strainer shoulder.
• Use unleaded petrol with a
pump octane rating of 86 or
higher.
3. Replace the fuel filler cap
securely.
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11
STARTING YOUR PRESSURE WASHER
1. Turn the water supply on, making sure that the tap is fully open.
WARNING: FAILURE TO TURN ON THE WATER COULD CAUSE DAMAGE TO
THE PRESSURE WASHER.

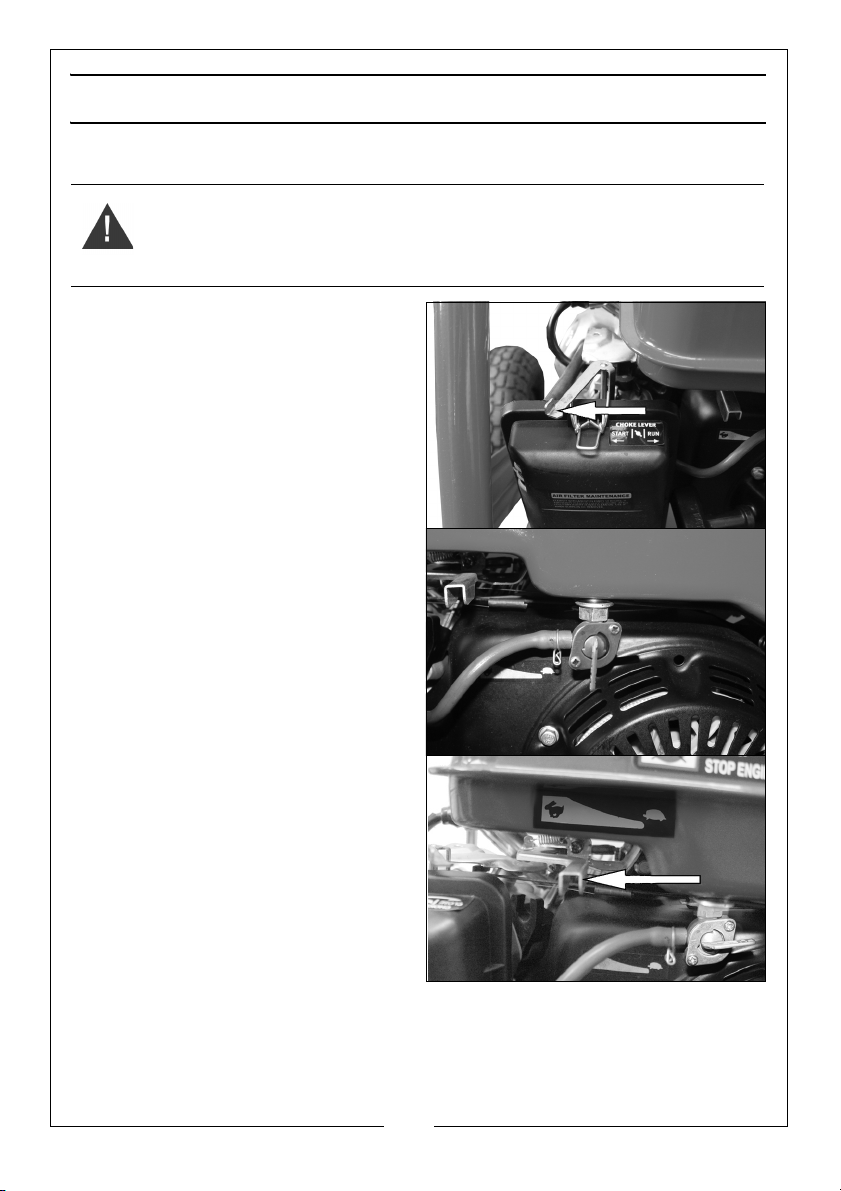

2. Set the choke lever to the START
position.
3. Set the fuel supply valve to the
open position.
4. Slide the throttle lever to the left
approximately 3/4 of the way.
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12

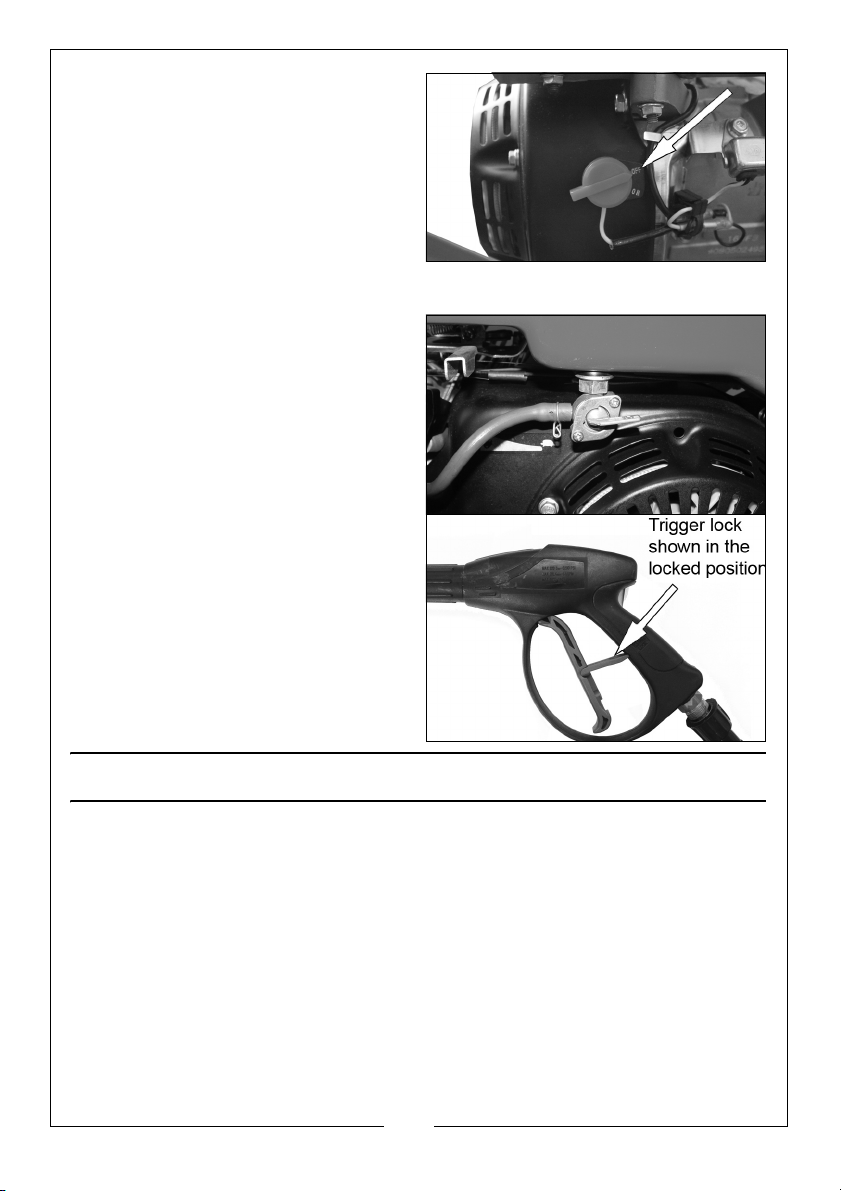

5. Set the engine switch to the on (I)
position
6. Pull the recoil starting handle
lightly until you start to feel
resistance and then pull up
sharply to start the engine.
• You may have to do this more
than once.
WARNING: ONCE THE PRESSURE WASHER ENGINE HAS STARTED, RELEASE
THE STARTING HANDLE SLOWLY TO AVOID INJURY/DAMAGE AS IT
RECOILS.

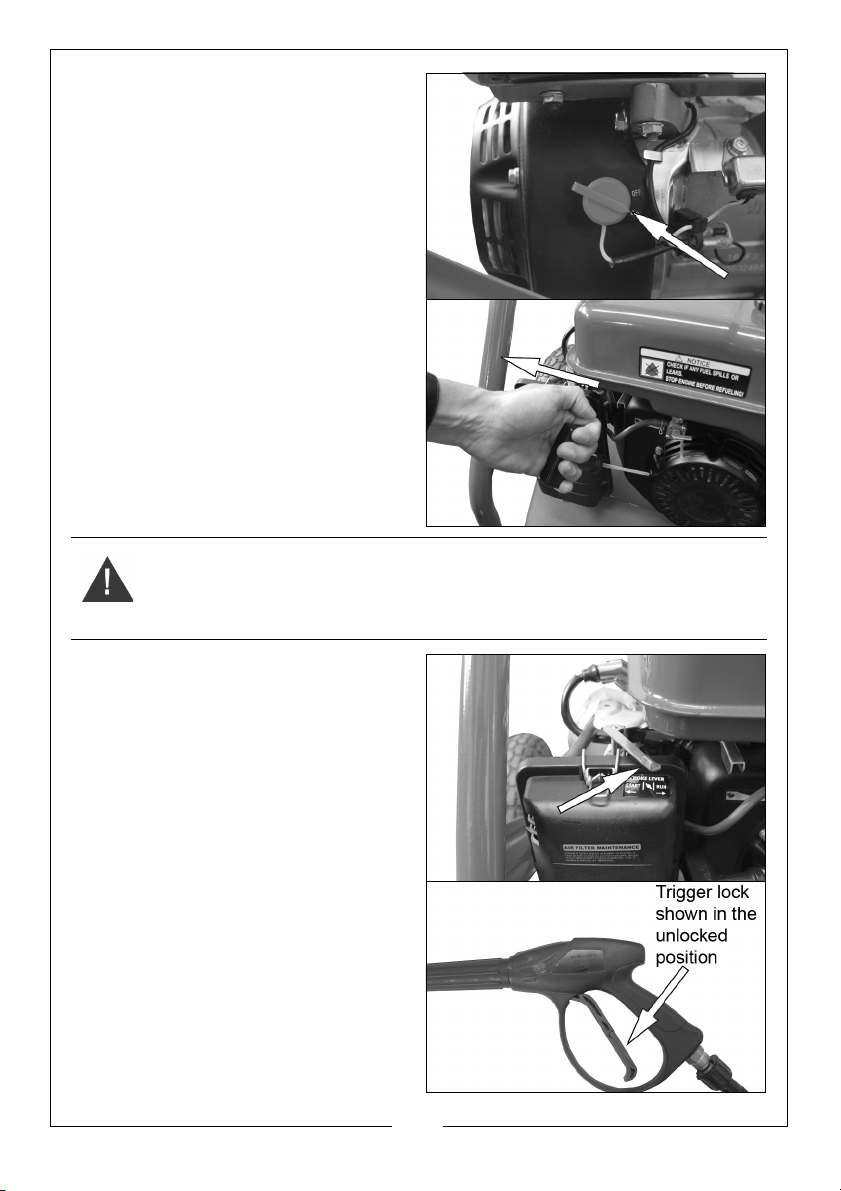

7. Slide the choke lever to the RUN
position.
• The pressure washer is now
ready for use.
8. Release the trigger lock.
9. Ensuring that you have a firm
footing and that you are also
holding the gun assembly and
spray lance firmly, pull the trigger
on the gun to start water flow.
• The lance and gun will kick
back when the trigger is first
pulled.
12
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 13

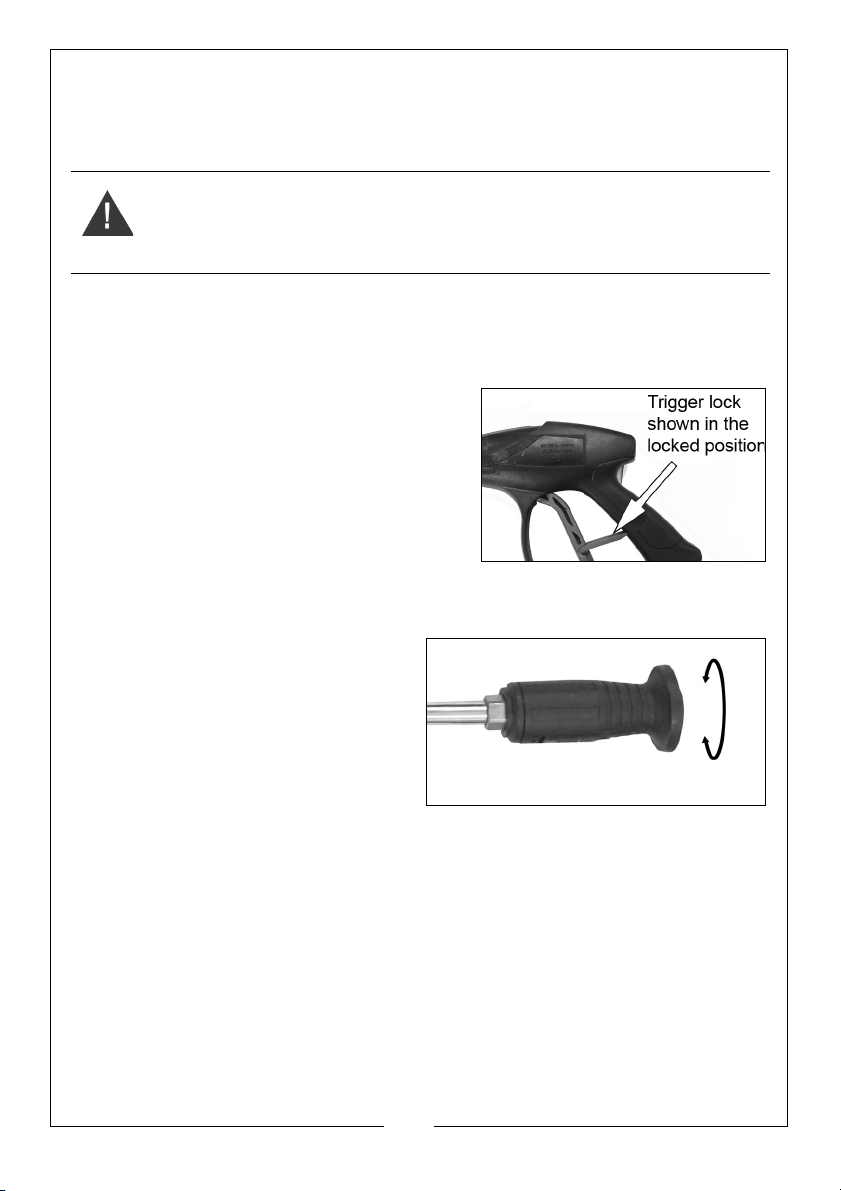

INTERRUPTING OPERATION
1. Release the trigger.
NOTE: The pressure washer will automatically go into bypass mode.
WARNING: DO NOT ALLOW THE UNIT TO OPERATE IN BYPASS MODE FOR
MORE THEN TWO MINUTES AT ANY TIME. TURN THE UNIT OFF IF IT IS NOT
GOING TO BE USED FOR A PERIOD LONGER THAN THIS. SEE PAGE 14.
NOTE: If you notice water coming from the drain tube attached to the
pump, please note that this is a safety feature and should be
expected, it cools the pump by releasing some of the hot water within
the pump and replacing it with fresh ‘cool’ water.
2. Rotate the trigger lock to the locked
position.
ADJUSTING THE SPRAY NOZZLE
The nozzle is adjustable to allow you to adjust the water delivery from a narrow
jet of water to a wide spray. To adjust the nozzle, proceed as follows:
1. Hold the shaft of the lance in one
hand.
2. Twist the nozzle with the other
hand.
• The spray varies between
narrow and wide as you turn
the nozzle.
ADJUSTING THE PRESSURE
The machine output is preset at the factory. To lower the contact pressure:
1. Back away from the surface to be cleaned. The further away you are the
less the pressure will be on the surface being cleaned.
2. Reduce the speed of the engine using the throttle. Slow the engine down
and the water pressure will also go down.
3. Adjust the spray to a wider angle.
4. Hold the rear of the nozzle and slide the front of the nozzle forwards to low
pressure and backwards for high pressure.
13
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 14
APPLYING DETERGENTS AND CLEANING AGENTS
To improve the cleaning performance, you can introduce chemical cleaning
agents (detergents) to the water jet using the detergent pickup hose.

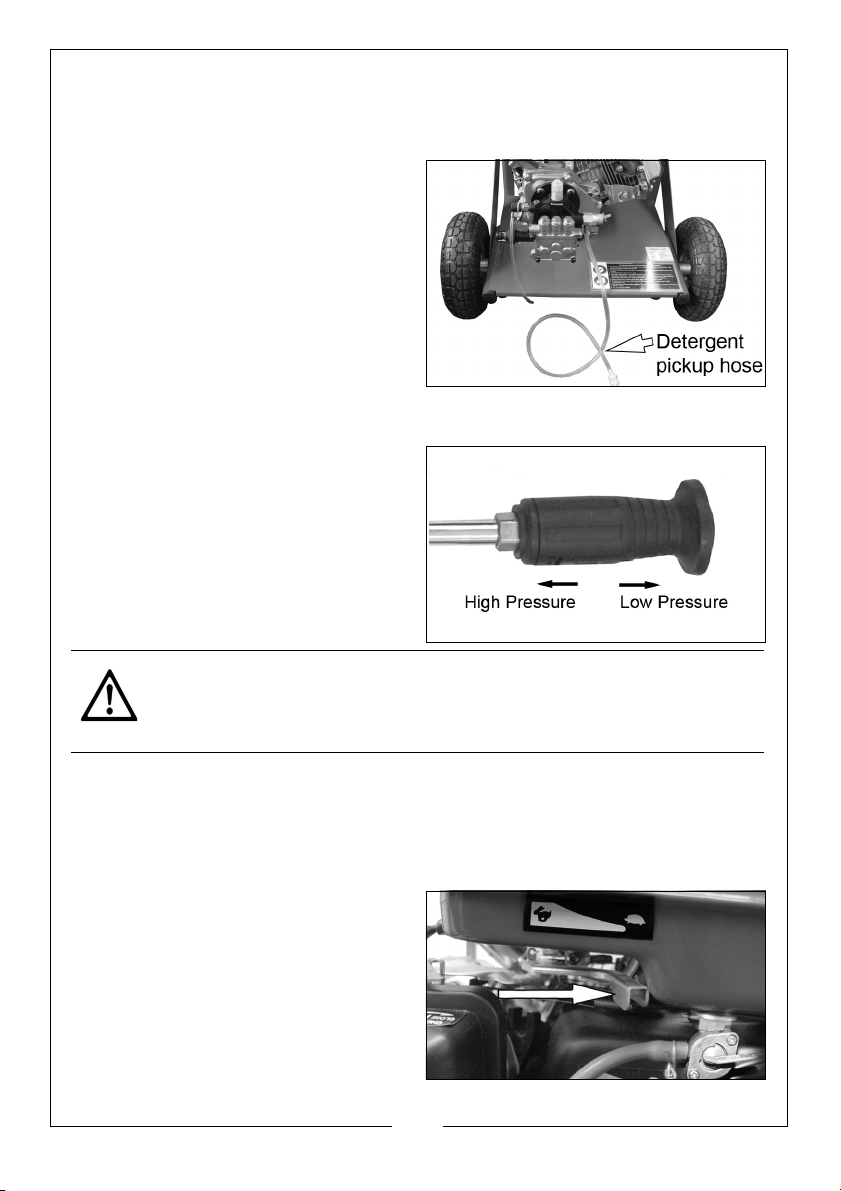

1. Place the detergent pickup hose
into a container holding the
chemical/cleaning solution.
• Only use detergents
recommended for use with
pressure washers, such as
CLARKE Traffic Film Remover
which is a powerful low
foaming agent for car
cleaning, patio cleaning etc.,
or CLARKE Wash & Wax, both
available from your CLARKE dealer.
2. Hold the rear of the nozzle on the
high pressure lance and slide the
front of the nozzle forwards to low
pressure.
3. Spray the detergent onto the
vehicle, patio etc.
• Allow the detergent a little time
to work itself into the grime.
CAUTION: IF YOUR EYES COME INTO CONTACT WITH ANY CLEANING
FLUIDS, RINSE THEM IMMEDIATELY WITH PLENTY OF FRESH CLEAN WATER.
AND SEEK MEDICAL ADVICE IF REQUIRED.
4. To rinse, remove the detergent pickup hose from the container holding
chemical/cleaning solution, slide the front of the nozzle on the lance back
towards the handle and use the pressure washer as normal.
SHUTTING DOWN
1. After each use, if you have
applied chemicals, place
detergent pickup hose into a
container of clean water and run
clean water through detergent
pickup hose to flush the system
thoroughly.
2. Move the throttle control lever to
the right.
14
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 15
3. Turn off the engine switch, to the
off (0) position.
4. Turn water supply off at the tap.
5. NEVER turn the water off with the
engine running.
6. Release the pressure in the pump
and hose by squeezing the trigger
for a few seconds until no more
water comes out of the nozzle.
7. Turn the fuel supply valve to the
closed position.
8. Rotate the trigger lock to the
locked position.
STORAGE
BEFORE STORING THE PRESSURE WASHER
1. Disconnect the high pressure hose and drain all water from the hose.
2. Coil the hose and store the lance/hose in their respective holders located
on either side of the pressure washer.
STORAGE PROCEDURE
Make sure that the pressure washer has been thoroughly cleaned before
storing it in a clean dry place. See “Maintenance” on page 16.
For long term storage See page 18.
15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 16
MAINTENANCE
CLEANING THE NOZZLE
1. Shut off the pressure washer and turn off the water supply.
2. Pull trigger on the gun handle to release any water pressure.
3. Disconnect the lance from the gun assembly.

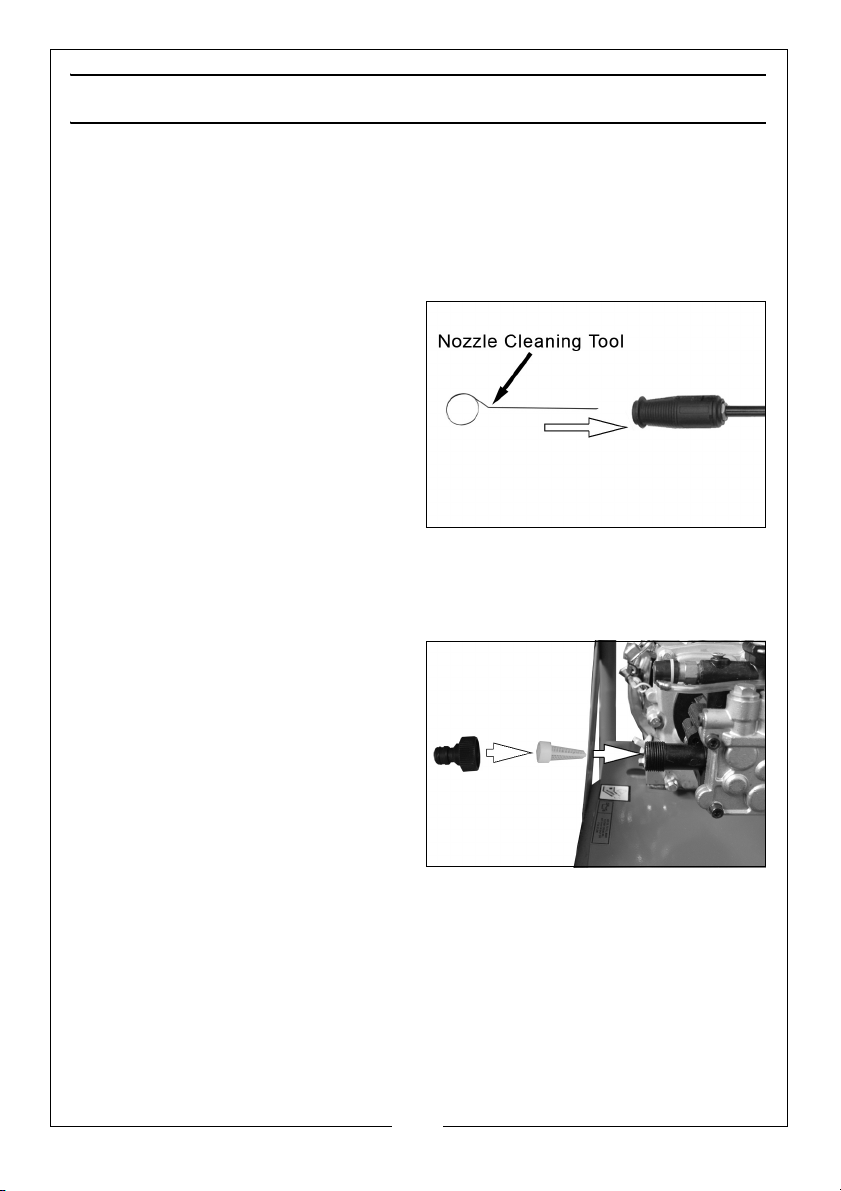

4. Remove any obstructions with the
nozzle cleaning tool provided and
back flush with clean water.
5. Direct water supply into the end
of the lance for 30 seconds to
back flush loosened particles.
6. Reconnect the lance to the gun
assembly and turn on the water
supply.
CLEANING THE WATER INLET FILTER
This screen filter should be checked periodically and cleaned if necessary.
1. Remove filter from the water inlet
of the pump as shown.
2. Clean filter by flushing both sides
with water.
3. Replace the filter into the water
inlet.
• Do not operate pressure
washer without filter properly
installed.
16
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 17
CLEANING THE FUEL STRAINER
Just inside the fuel tank is a fuel strainer, check this periodically and remove
any contaminants which may have accumulated.
1. Open the fuel tank cap.
2. Remove the fuel strainer.
3. Remove any contaminants.
4. Replace the fuel strainer.
• Do not operate pressure
washer without fuel strainer
properly installed.
CLEANING THE AIR FILTER
1. Release the two clips on the air
filter cover.
2. Remove the air filter cover.
3. Remove the air filter elements.
4. Wash the elements in a solution of warm water and mild detergent.
WARNING: DO NOT USE FLAMMABLE SOLVENTS OR PETROL TO CLEAN THE
AIR FILTER
5. Rinse thoroughly and leave the elements to dry. Once it is completely dry,
immerse the filter in clean engine oil and sqeeze to remove excess oil.
• If the air filter is damaged contact Clarke spare parts department for
a replacement.
• Replace the filter into its original position and refit the air filter cover.
17
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 18
CHANGING THE SPARK PLUGS
CAUTION: ALLOW THE ENGINE TO COOL BEFORE REMOVING THE SPARK
PLUG.
1. Remove the spark plug cap from
the spark plug.
2. Use the spark plug spanner
supplied to remove the spark
plug.
3. Remove any carbon that has
accumulated around the
sparkplug.

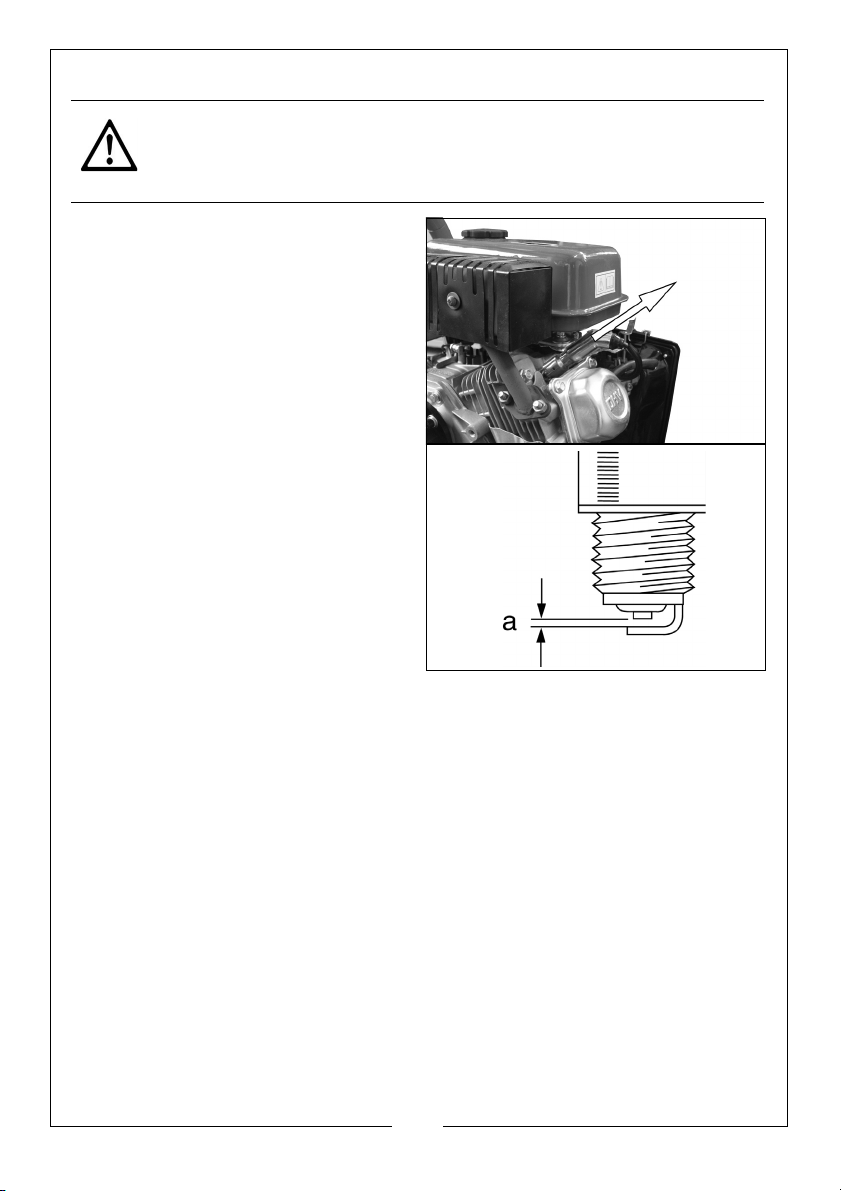

4. Check the spark plug gap (a), it
should be between 0.7 and 0.8
mm, adjust if necessary.
5. Check the overall condition of the
spark plug and replace if
necessary.
6. Reinstall the spark plug and
replace the spark plug cap.
LONG TERM STORAGE
For long term storage,
1. The petrol tank should be drained.
• Ensure that the engine is cold before draining the tank.
2. Remove the fuel tank cap and use a pump type syphon to drain the petrol
into an appropriate, clean container.
• Do not store petrol for long periods of time.
• Dispose of excess petrol in an environmentally safe way. Your local
recycling centre can advise you on the best method of disposal.
3. After the petrol tank has been drained, start the engine and allow it to use
any petrol that may remain in the engine, or fuel pipe.
4. Make sure that the power washer has been thoroughly cleaned before
storing it in a clean dry place.
18
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 19
TROUBLESHOOTING
If the following does not solve your problem, please contact the CLARKE service
department.
PROBLEM CAUSE SOLUTION
Engine will not
start (see engine
manual for
further engine
troubleshooting)
Lack of pressure
(initial use)
No fuel. Add fuel.
Low oil. Add oil.
Pressure builds up after
two pulls on the recoil
starter or after initial use.
Spark plug lead not
attached securely.
Engine switch is in the
OFF position.
Choke lever is set to the
ON position when the
engine is already warm.
Fuel valve closed. Open the fuel valve.
Leak in the high pressure
hose fitting.
Nozzle is obstructed. Clear the nozzle.
Water filter screen is
clogged.
Air in the hose. Turn off the engine.
Squeeze the gun trigger to relieve the
pressure.
Attach the spark plug lead.
Set the engine switch to the ON position.
Set the choke lever to the OFF (right)
position.
Tighten the fitting, use sealant tape if
required.
Remove and clean the filter.
Turn off the water supply.
Disconnect the water source from the
pump inlet and turn on the water source
to expel the air from the hose.
When all the air has been removed, turn
off the water supply and reconnect the
hose.
Turn on the water supply and pull the
trigger to expel any air in the gun/lance.
19
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 20
PROBLEM CAUSE SOLUTION
Lack of pressure
(initial use)
continued
Will not draw
chemicals
Lack of pressure
(after a period of
normal use)
Water leaking at
the pump
Choke lever is in the
OPEN position.
Throttle control lever is
not set high enough.
High pressure hose is too
long.
Chemical filter is
blocked.
Chemicals being used
are too thick.
High pressure hose is too
long.
Chemical build up inside
the chemical injector.
Worn seal or packing. Have them replaced by your dealer.
Worn or obstructed
valves.
Loose connections. Tighten.
Worn or broken O-rings. Have them replaced by your dealer.
Pump head or tubes
damaged from freezing.
Set the choke lever to the OFF (right)
position.
Move the throttle control lever to left.
Make sure the high pressure hose is under
100 feet.
Clean the filter.
Dilute the chemicals. The chemicals
should have the consistency of water.
Use a longer supply hose instead of a very
long high pressure hose.
Have the parts cleaned or replaced by
your dealer.
Have them replaced by your dealer.
Have it replaced by your dealer. See
“Storage” on page 15.
Oil leaking at the
pump
Water leaking
from the drain
hose
Pump pulsates Nozzle obstructed. Clear the nozzle.
Oil seals worn. Have them replaced by your dealer.
Worn O-rings. Check and replace.
Pump is overheating This is a safety feature and should be
expected, it cools the pump by releasing
some of the hot water withing the pump
and replacing it with fresh ‘cool’ water.
20
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 21
SPECIFICATIONS
MODEL NO TIGER 2500 TIGER 2900
ENGINE
Engine type Petrol (unleaded). OHV
Single Cylinder 4 stroke
forced air cooling
Capacity/displacement: 118 cc 196 cc
Oil Capacity 0.6 L 0.6 L
Lubrication Grade SAE10W-30 SAE10W-30
Fuel Tank Capacity:(Litres) 2.1 Litres 4 Litres
WATER CONNECTION
Max. Feed Temperature 50 °C 50 °C
Max. Feed Pressure 3-6 Bar 3-6 Bar
PERFORMANCE DATA
Maximum Pump Pressure 170 Bar 200 Bar
Working Pressure 130 Bar 150 Bar
Maximum Water Flow 7 l/min 8 I/min
NOISE & VIBRATION
Sound Power Level LWA 103 dB(A) 105 dB(A)
Guaranteed Sound Power Level LWA 105 dB(A) 108 dB(A)
Uncertainty Factor K 2.16 2.79
Vibration 4.494 m/s 3.398 m/s
Uncertainty Factor K 1.5 1.5
DIMENSIONS
Length 465 mm 565 mm
Width 560 mm 668 mm
Height 750 mm 877 mm
Weight 31.7 kg 34.7 kg
Petrol (unleaded). OHV
Single Cylinder 4 stroke
forced air cooling
21
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 22
EXPLODED DIAGRAM (TIGER 2500)
WARNING: TO ENSURE MACHINE SAFETY, USE ONLY ORIGINAL SPARE
PARTS FROM CLARKE INTERNATIONAL.
22
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 23
PARTS LIST (TIGER 2500)
NO DESCRIPTION PART NO
1 Locknut M5 RKTIG250001
2 Hose Holder RKTIG250002
3 Gasket RKTIG250003
4 Hex Bolt M5x40 RKTIG250004
5 High Pressure Hose RKTIG250005
6 4.0hp Engine RKTIG250006
7 Locknut M8 RKTIG250007
8 Gasket RKTIG250008
9 Hex Bolt M5x35 RKTIG250009
10 Inlet Connector RKTIG250010
11 Isolator RKTIG250011
12 Frame RKTIG250012
13 Rubber Foot RKTIG250013
14 Inner Hex Bolt M8*40 RKTIG250014
15 Rubber Plug RKTIG250015
16 8" Solid Wheel RKTIG250016
17 Wheel Shaft Circlip RKTIG250017
18 Spring Wire RKTIG250018
19 Wheel Axle RKTIG250019
20 Detergent Filter RKTIG250020
21 Detergent Hose RKTIG250021
22 Inner Hex Bolt M8*25 RKTIG250022
23 Spring Gasket RKTIG250023
24 High Pressure Pump RKTIG250024
25 Drain Pipe RKTIG250025
26 Thermal Relief Cap RKTIG250026
27 High Pressure Gun RKTIG250027
28 Gun Holder Sleeve RKTIG250028
29 Gun Holder RKTIG250029
30 Handle RKTIG250030
23
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 24

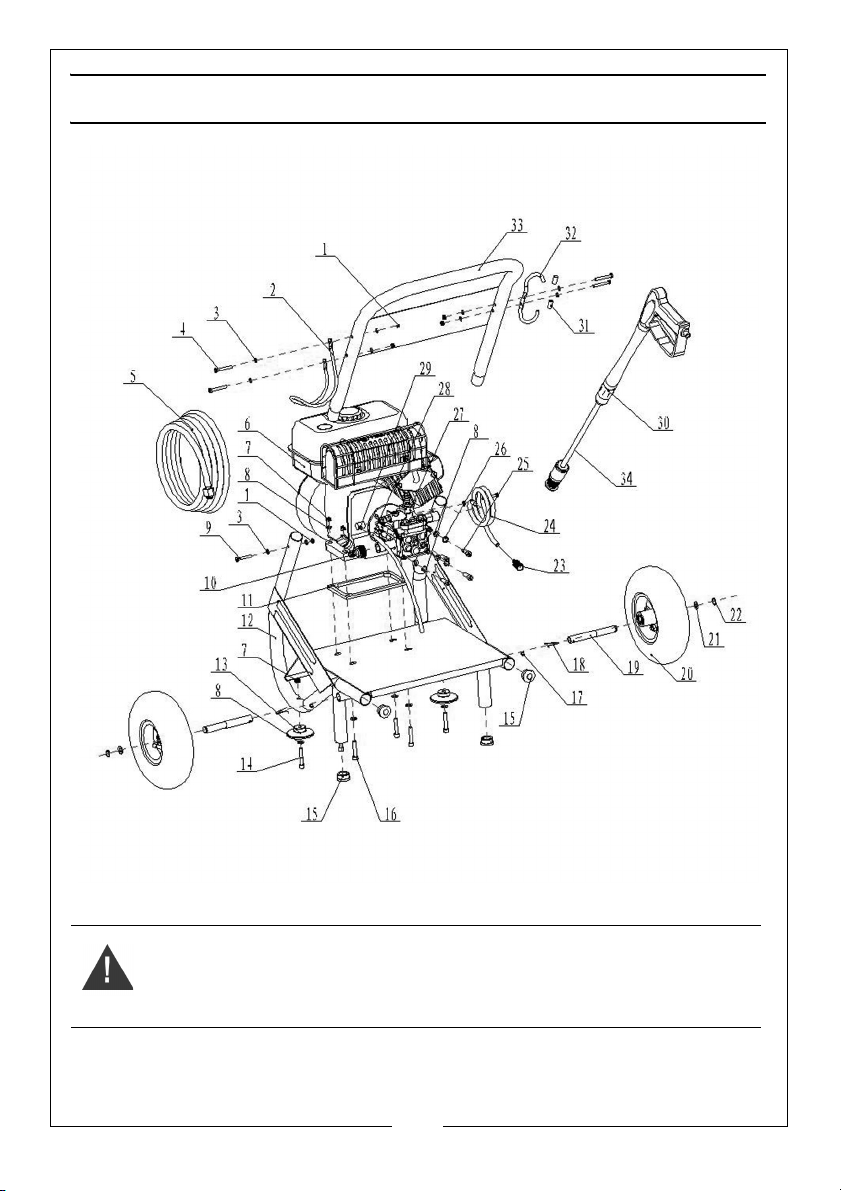

EXPLODED DIAGRAM (TIGER 2900)
WARNING: TO ENSURE MACHINE SAFETY, USE ONLY ORIGINAL SPARE
PARTS FROM CLARKE INTERNATIONAL.
24
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 25
PARTS LIST (TIGER 2900)
NO DESCRIPTION PART NO
1 Locknut M6 RKTIG290001
2 Hose Holder RKTIG290002
3 Washer RKTIG290003
4 Hex Bolt M6x45 RKTIG290004
5 High Pressure Hose RKTIG290005
6 6.5hp Engine RKTIG290006
7 Locknut M8 RKTIG290007
8 Washer RKTIG290008
9 Hex Bolt M6x40 RKTIG290009
10 Inlet Connector RKTIG290010
11 Mounting pad RKTIG290011
12 Frame RKTIG290012
13 Rubber Foot RKTIG290013
14 Hex Bolt M8x45 RKTIG290014
15 Rubber Plug RKTIG290015
16 Hex Bolt M8x40 RKTIG290016
17 Wheel Shaft Clip RKTIG290017
18 Spring Wire RKTIG290018
19 Wheel Axle RKTIG290019
20 10" Wheel RKTIG290020
21 Washer RKTIG290021
22 Circlip RKTIG290022
23 Detergent Filter RKTIG290023
24 Detergent Hose RKTIG290024
25 Hex Bolt M8x25 RKTIG290025
26 Spring Washer RKTIG290026
27 High Pressure Pump RKTIG290027
28 Drain Tube RKTIG290028
29 Thermal Relief Cap RKTIG290029
30 High Pressure Gun RKTIG290030
31 Gun Holder Sleeve RKTIG290031
32 Gun Holder RKTIG290032
33 Handle RKTIG290033
34 Lance RKTIG290034
25
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 26

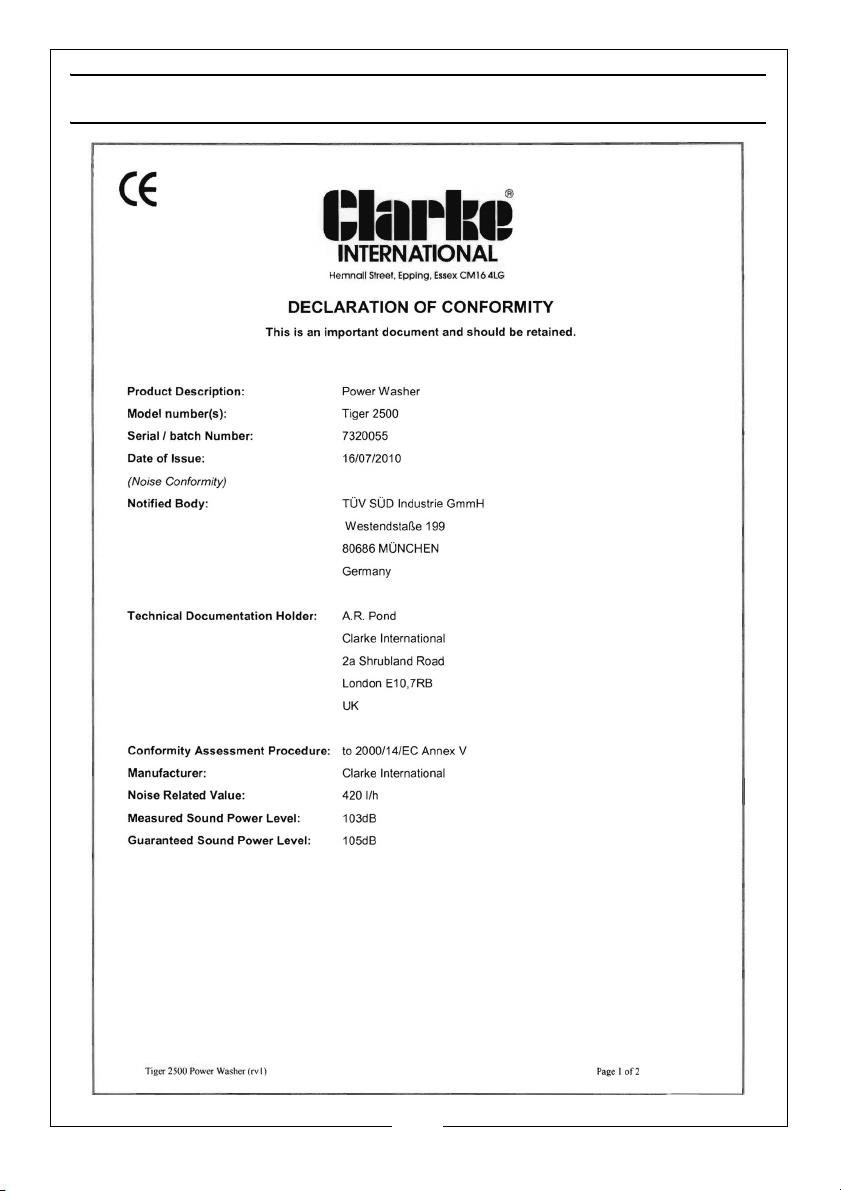

DECLARATION OF CONFORMITY TIGER 2500
26
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 27

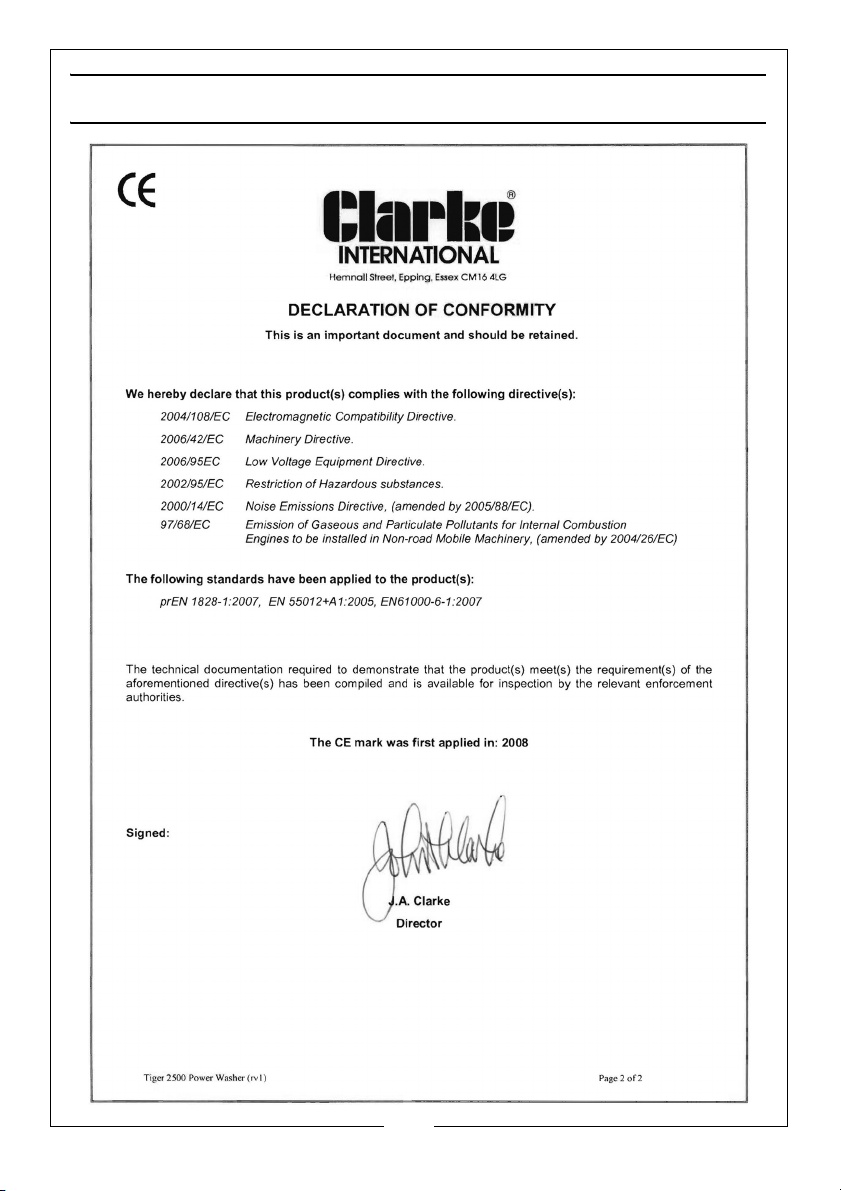

DECLARATION OF CONFORMITY TIGER 2500
27
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 28

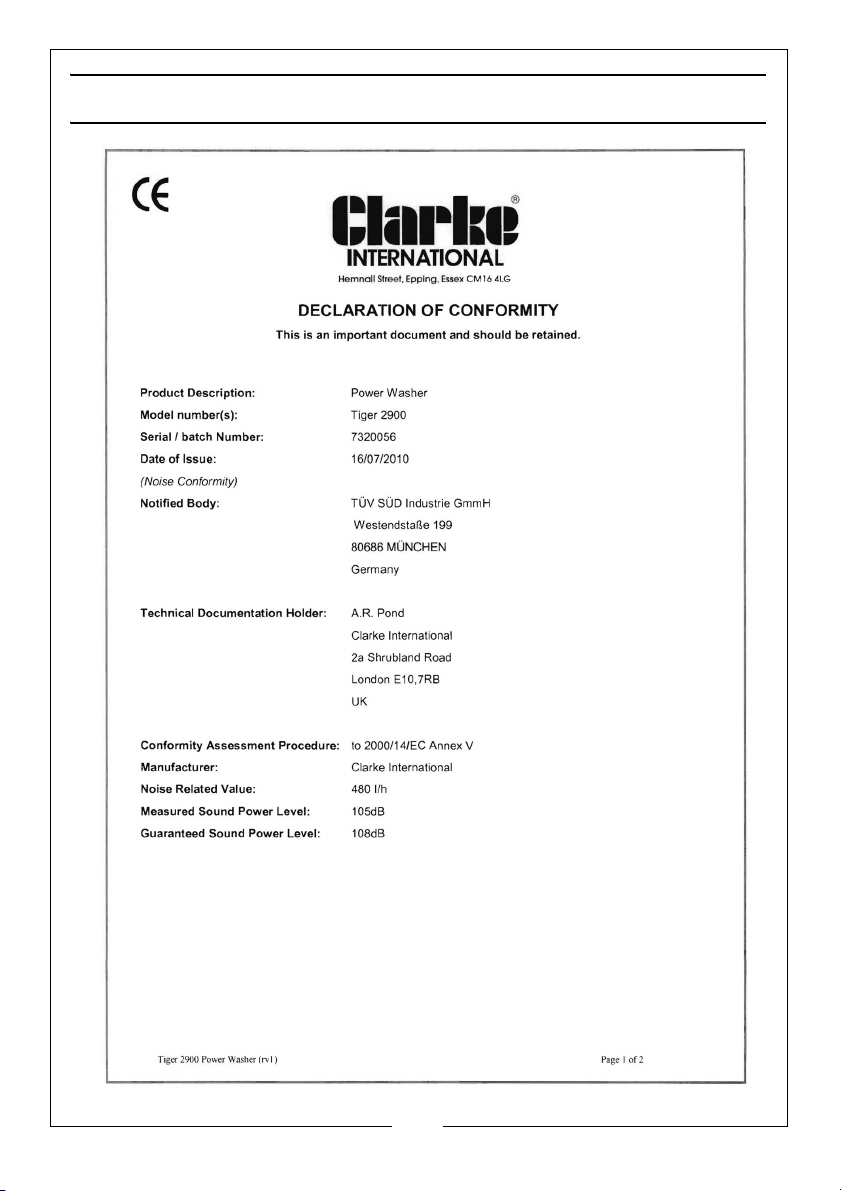

DECLARATION OF CONFORMITY TIGER 2900
28
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 29

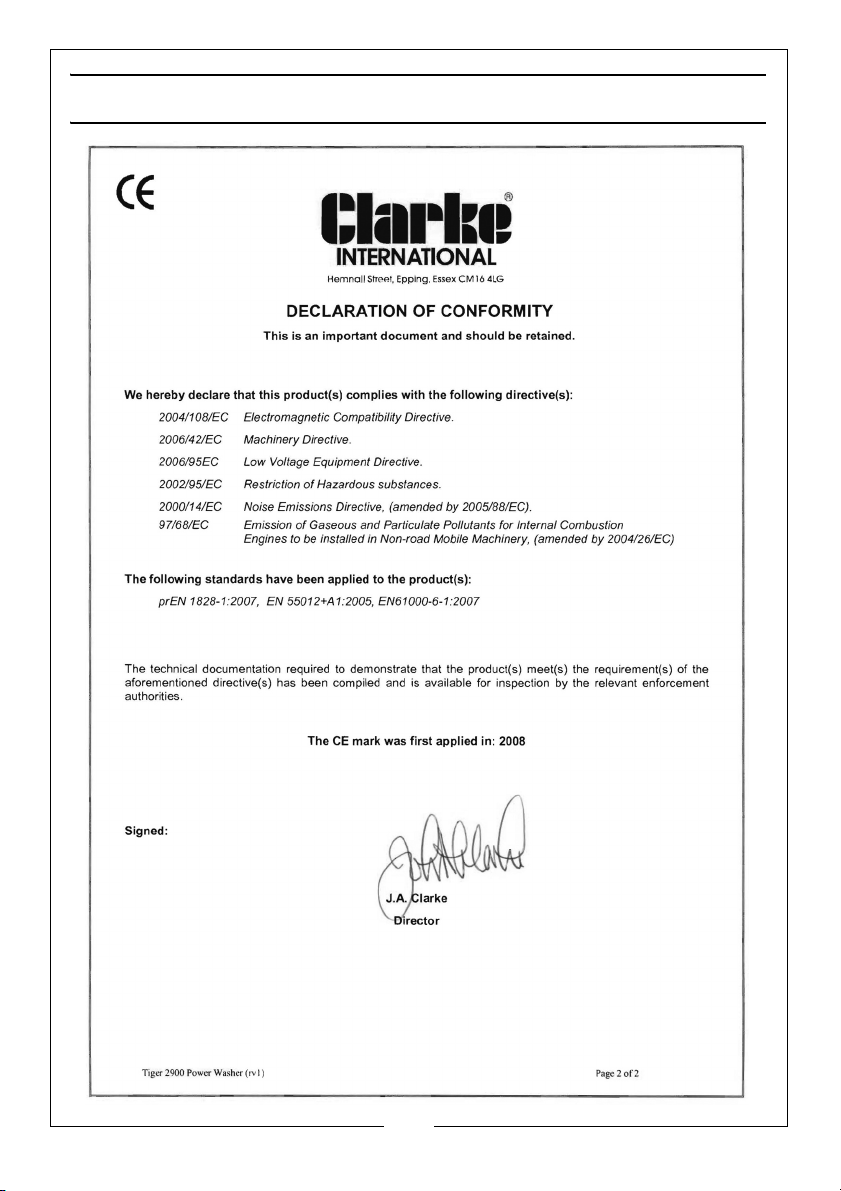

DECLARATION OF CONFORMITY TIGER 2900
29
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 30
Page 31
Page 32
Loading...
