250W PUDDLE PUMP WITH AUTO SENSOR
MODEL NO: PSP105
PART NO: 7230693
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC1221 - ISS 5
Page 2

INTRODUCTION

Thank you for purchasing this CLARKE 250W Puddle pump with Auto Sensor.
This pump is designed for pumping clean water only. It is NOT designed for
pumping slurry, sludge, mud or heavily polluted water, or any water containing chemicals or other acidic contaminants including salt water.
These pumps are fitted with a thermal overload switch. If the pump overheats for any reason, it will automatically switch the pump OFF. Once the pump has cooled (at least 5-10 minutes), the pump will automatically restart.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general household waste. It must be disposed of according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.
2
Page 3

SAFETY INSTRUCTIONS

GENERAL

1. Read all instructions before use and save these instructions for future use.
2. An approved residual current device (RCD) which has a tripping current of less then 30mA MUST be used for all operations.
3. The electrical supply must be the same as that on the rating plate.
4. ALWAYS make sure that your hands are dry when connecting or disconnecting from the mains supply.
5. NEVER pull the mains lead to disconnect the pump from the mains socket.
6. The mains plug must be kept away from the water at all times.
7. DO NOT allow children or unauthorised people to touch the pump, cables or connections.
8. Disconnect the pump from the mains supply when not in use.
9. If necessary have the pump repaired by a qualified person.
10. Keep the mains lead away from heat, oil and sharp edges.
11. If you have to use an extension lead with this product, it must be designed for outdoor use and incorporate a cable suitable for use with Class I appliances.
12. Disconnect the pump from the electrical supply and wear gloves during servicing or maintenance.

PUMP SPECIFIC

1. DO NOT pump explosive / flammable liquids or chemicals.
2. NEVER allow the pump to run dry or operate out of the water (manual mode only).
3. Submersible pumps should always be submerged and stored vertically.
4. Disconnect the pump from the mains supply before placing it into or removing it from the water.
5. ALWAYS check the plug, and all cables for damage before use.
6. DO NOT use the pump if damaged. Refer to qualified service personnel for repair.
7. Never carry or lower the pump by the power cable or sensor cable always use the handle or a rope tied securely to the handle.
8. NEVER insert your fingers into the pump whilst it is connected to the mains.
9. NEVER use the submersible pump in a swimming pool when there are people or animals in the pool.
10. Keep the pump clear of any sediment by standing it on a platform or brick or suspending it at a suitable depth.
11. DO NOT use the pump if the water is liable to freeze, as this can cause damage to the pump. Remove the pump from the water and store it in a frost free location.
3
Page 4

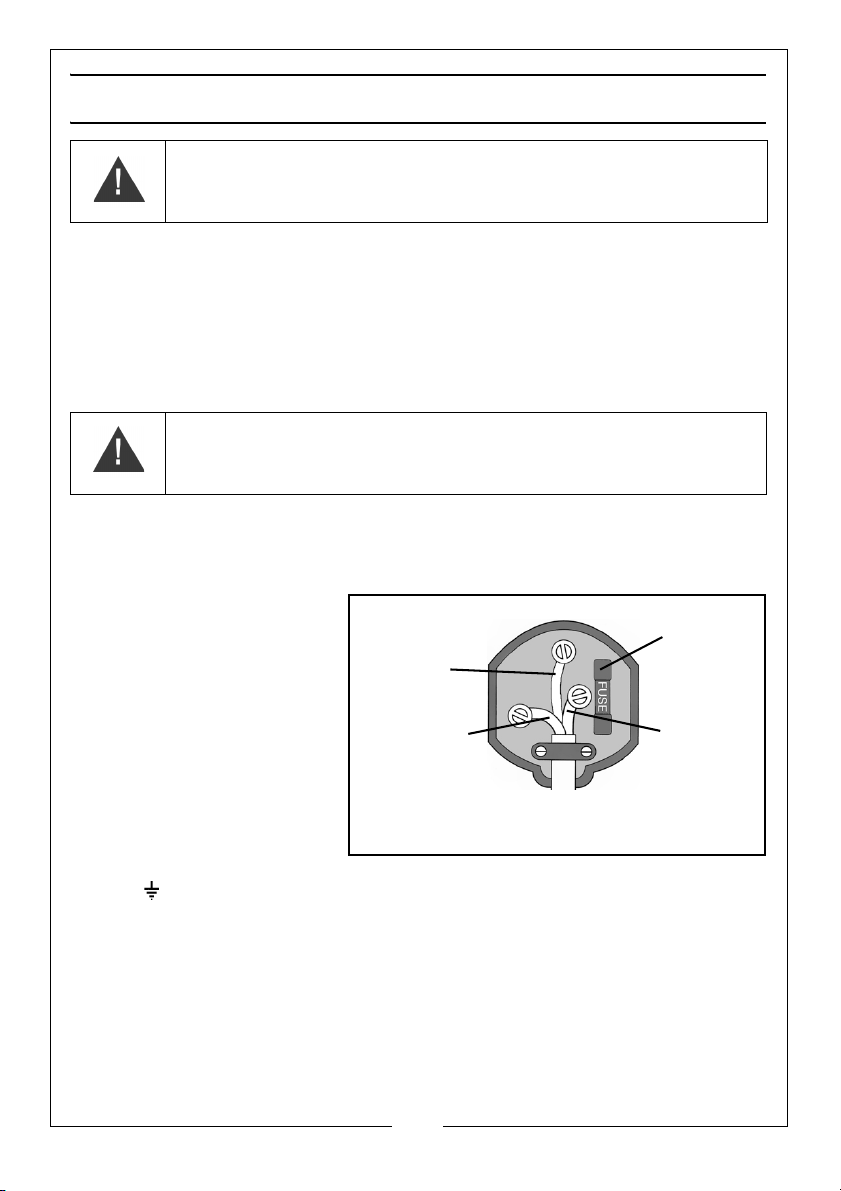

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.
Always fit
Ensure that the outer sheath of
Neutral
(Blue)
Live
(Brown)
Earth
(Green and
a 5 Amp
the cable is firmly held by the clamp
fuse.
Yel low)
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY.
Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.
If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. The old plug must be discarded safely, as insertion into a power socket could cause an electrical hazard
WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH
If the colours of the wires in the power cable do not agree with the markings on the plug.
• The BLUE wire must be connected to the terminal marked N or coloured black.
• The BROWN wire must be connected to the terminal marked L or coloured red.
• The YELLOW AND GREEN wire must be connected to the terminal marked E or
or coloured green.
AN APPROVED RESIDUAL CURRENT DEVICE (RCD) WHICH HAS A TRIPPING CURRENT OF LESS THAN 30 mA MUST BE USED.
If you are not sure, consult a qualified electrician. DO NOT try to do any repairs.
.
4
Page 5

ASSEMBLY

Remove all packaging and make sure that the unit has no visible damage. Dispose of all packaging appropriately.

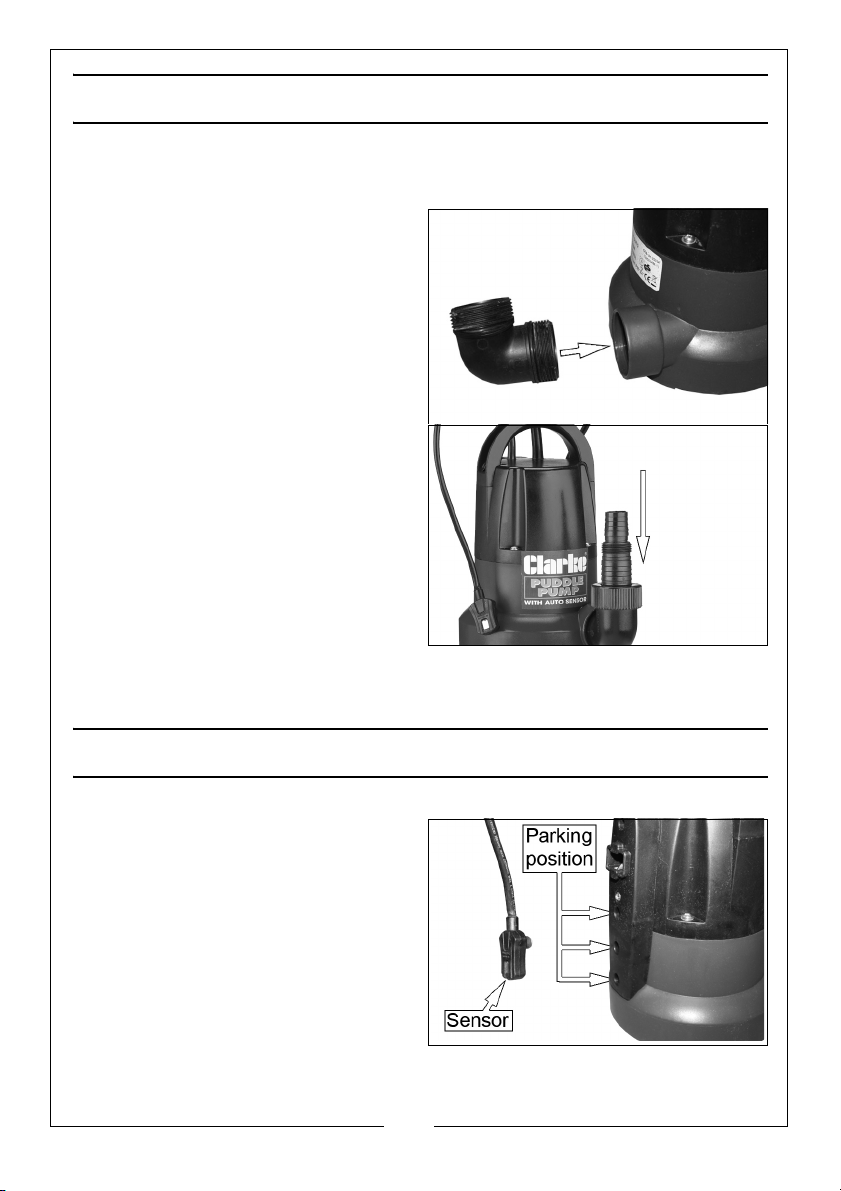

FITTING THE ELBOW

1. Screw the elbow into the outlet port as shown.
2. Connect a suitable hose (not supplied) to the pump outlet.
• Suitable hoses are available
from your local Clarke dealer.

FITTING THE HOSE ADAPTER

The 3 step hose adaptor can be screwed onto the elbow if required.
1. Fit the supplied non return valve between the adaptor and the elbow.
2. Trim the adaptor to the required size.
3. Connect your hose (not supplied).
NOTE: Reducing the hose diameter will effect the maximum flow rate.

SETTING UP THE PUMP

AUTOMATIC OPERATION

This pump has an Automatic Sensor function. This activates the pump when the water level sensor is immersed.
1. The sensor can be 'parked' in one of three positions (High Medium, Low) on the pump as shown.
2. The pump will run until the water level drops below the sensor.
• The pump continues to run for a further 3 minutes and then stops.
5
Page 6

MANUAL OPERATION

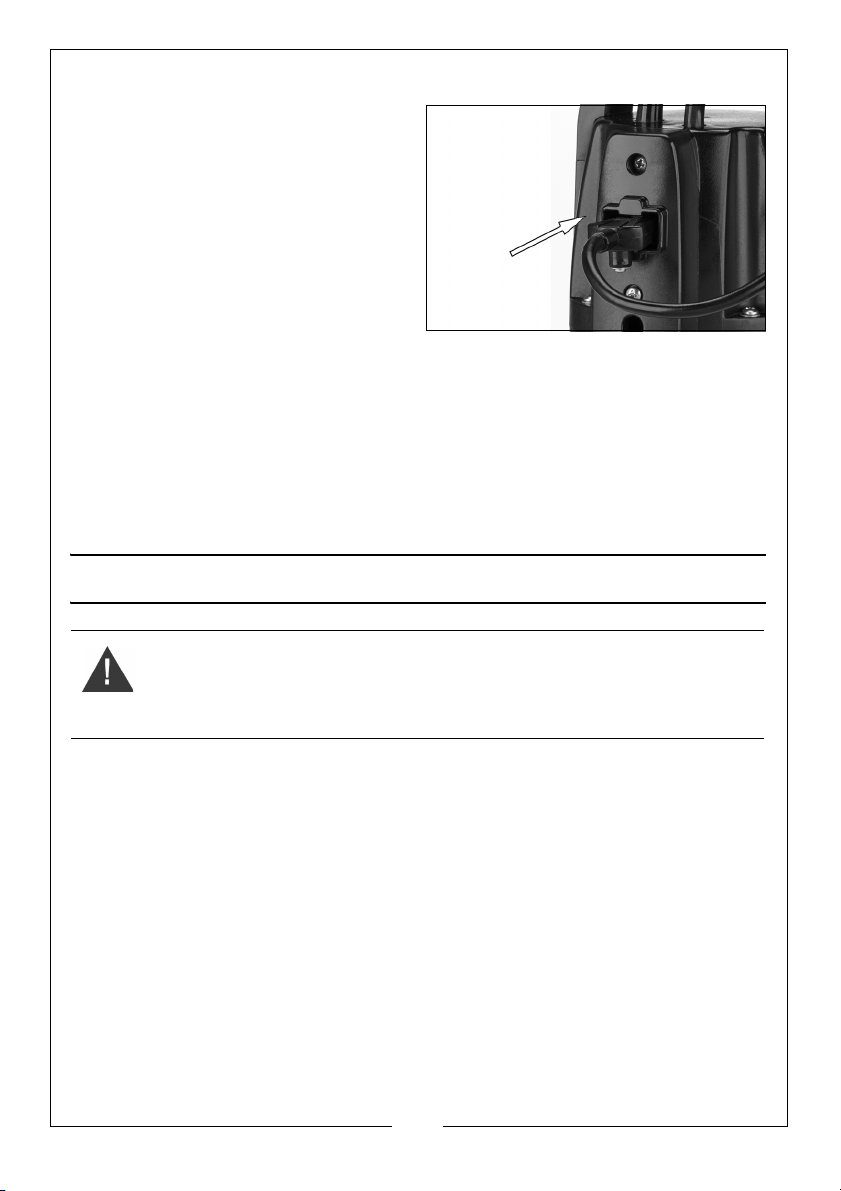

The pump can also be switched on manually by inserting the sensor into the socket on the side of the pump.
NOTE: If the sensor is inserted into the
socket, the pump will run continuously.
NOTE: Do not allow the pump to run
dry.

POSITIONING THE PUMP

1. Place the pump on a flat surface in the area that you want to drain.
• If there is sediment in the operating area, the pump should be placed vertically on house bricks, or similar.
• ALWAYS raise and lower the pump using a rope attached to the lifting handle.
• Take all necessary precautions as described on page 3.

USING THE PUMP

WARNING: CHECK THE PUMP FOR DAMAGE BEFORE USE, DO NOT USE THE PUMP IF IT IS DAMAGED IN ANY WAY.
WARNING: THE WATER BEING PUMPED WILL BE POLLUTED IF THIS PUMP BECOMES DAMAGED AND LUBRICANT WITHIN THE PUMP ESCAPES.
1. Connect the mains plug to the mains supply.
• Always use a high sensitivity residual current device (RCD) which has a tripping current of less then 30mA.
2. Switch the mains power supply on.
• The pump will begin to drain water.
3. When pumping is finished, disconnect the pump from the mains power supply.
IMPORTANT: During manual operation, do not allow the pump to run dry.
6
Page 7

MAINTENANCE

WARNING: BEFORE CHECKING THE CONDITION OF THE PUMP, ENSURE IT IS UNPLUGGED FROM THE MAINS SUPPLY. IF THE UNIT IS HARD WIRED, ENSURE THE CIRCUIT BREAKER IS OPEN.
This pump should require no maintenance other than regular cleaning.
If the pump starts to show signs of wear or damage, contact your CLARKE dealer for advice.

CLEANING

1. Check the pump installation regularly to ensure the water inlet is clear of leaves or other debris.
2. Take extra care to remove any debris from around the impeller.
NOTE: Do not attempt to repair the pump yourself, as you may damage the
waterproof seal and invalidate your guarantee. Repairs must be carried out by your CLARKE dealer, or contact the CLARKE Service Department, on 020 8988 7400.

STORAGE

When the pump is not being used for extended periods, clean and dry it thoroughly and store in indoors. if the pump is left in water, it must be run at least once a week to prevent it from seizing up.

SPECIFICATIONS

Voltage 230V~50Hz
Outlet Thread Diameter 1½“BSP
Power 250W
Maximum Head Height 6 m
Maximum Depth 5 m
Maximum Flow 100 l/min
Maximum Water Temperature
Maximum Particle Size Clean Water Only
Weight 4 kg
Cable Length 10 m
Dimensions (D x W x H) 168 x 173 x 260 mm
7
35
o
C
Page 8

TROUBLESHOOTING

PROBLEM SOLUTION
PUMP WILL NOT START
PUMP WILL START BUT NOT PUMP
PUMP WILL NOT STOP
PUMP STOPS RUNNING
1. Make sure that the power is switched on.
2. Check fuse (consult an electrician if in doubt).
3. If an extension lead is fitted, check connections (consult an electrician if in doubt).
4. Internal thermal cut-out has not re-set. Leave for 5-10 minutes and try again.
5. The impeller may be jammed. Disconnect from the mains supply and remove any objects that may be obstructing the impeller.
6. Water level too low. - Try using the pump in manual operation mode.
7. If the pump still fails to start, consult your CLARKE dealer for advice.
1. Check that the inlet is not blocked.
2. Check that the outlet is not clogged or obstructed.
3. The head may be too great, i.e. you are trying to lift the water too great a distance for the pump to cope with. (“Specifications” on page 7).
4. Air bubble in the pump, produced during immersion. immerse the pump again, at an angle, and shake it whilst lowering to remove any air trapped in the system.
5. impeller may be damaged - Consult your CLARKE dealer.
1. Sensor may be faulty. Consult your CLARKE dealer for advice.
1. Thermal overload has operated. Leave for 5-10 minutes and try again.
2. Pump has run dry, or auto sensor has cut in.
3. A foreign object has jammed the impeller.
If this does not solve your problem, please contact the Clarke service department.
8
Page 9

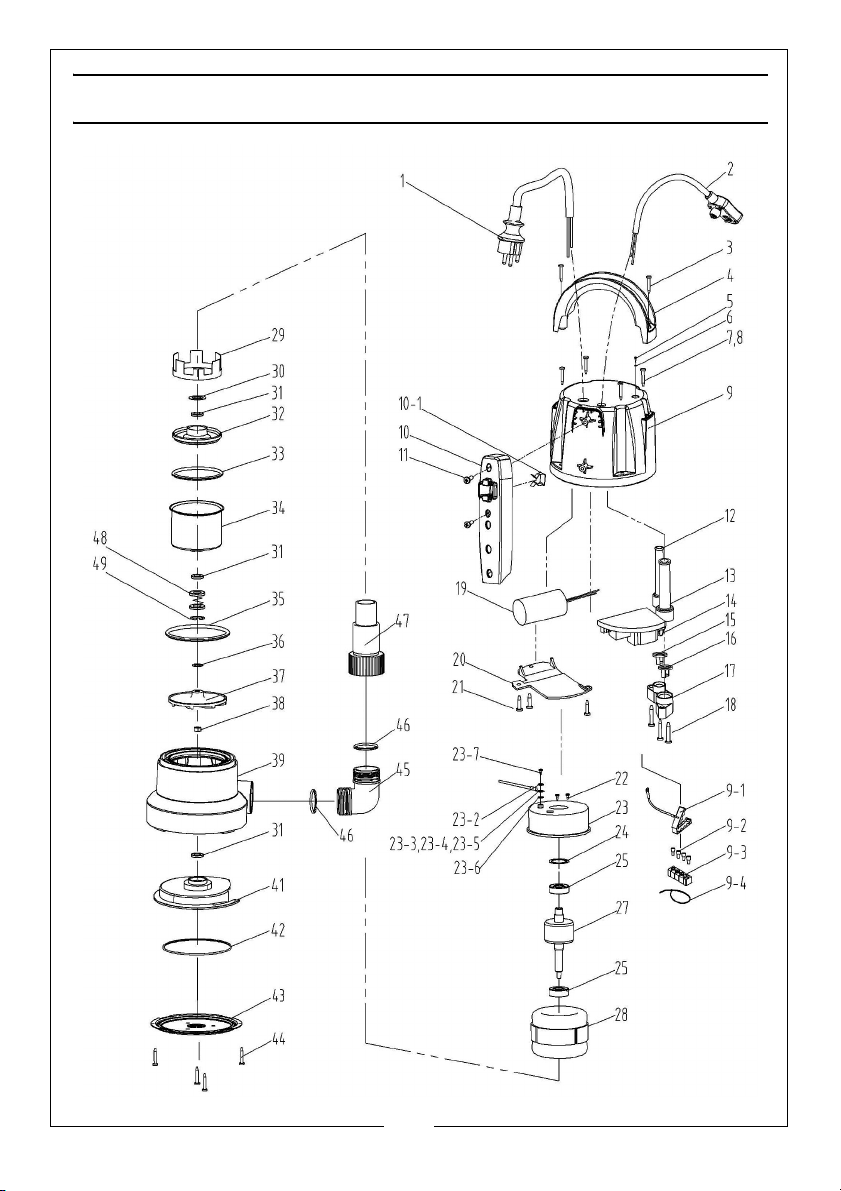

PARTS LIST & DIAGRAM

9
Page 10

PARTS LIST

1 Power Cable and Plug 23-3 Yellow-green Wire
2 Water Sensor 23-4 Lug Plate
3 Self Tapping Screw 23-5 Heat Shrinkable Tube
4 Handle 23-6 Gasket
5 Self Tapping Screw 23-7 Bolt
6 O-ring 24 Wave Washer
7 Customized Self Tapping Screw 25 Bearing
8 Gasket 27 Rotor
9 Pump Housing 28 Stator
9-1 Nylon Secure Pressing Cap 29 Bush
9-2 Screw 30 Gasket
9-3 Rubber Clip 31 O-ring
9-4 Ribbon 32 Aluminium Bushing
10 Clip 33 O-ring
10-1 Clip 34 Front Cover
11 Self Tapping Screw 35 O-ring
12 Cable Sheath 36 Adjustable Washer
13 Cable Sheath 37 Impeller
14 Circuit Board 38 Nut
15 Cable Gland 39 Main Pump Housing
16 Cable Gland 41 Fairing
17 Cable Block 42 O-ring
18 Customized Self Tapping Screw 43 Stainless Steel Baseboard
19 4uf Capacitor 44 Self Tapping Screw
20 Lock Block 45 Elbow
21 Self Tapping Screw 46 O-ring
22 Bolt 47 Outlet Connector
23 Rear Cover 48 Mechanical Seal
23-2 Gasket 49 Protective Ring
10
Page 11

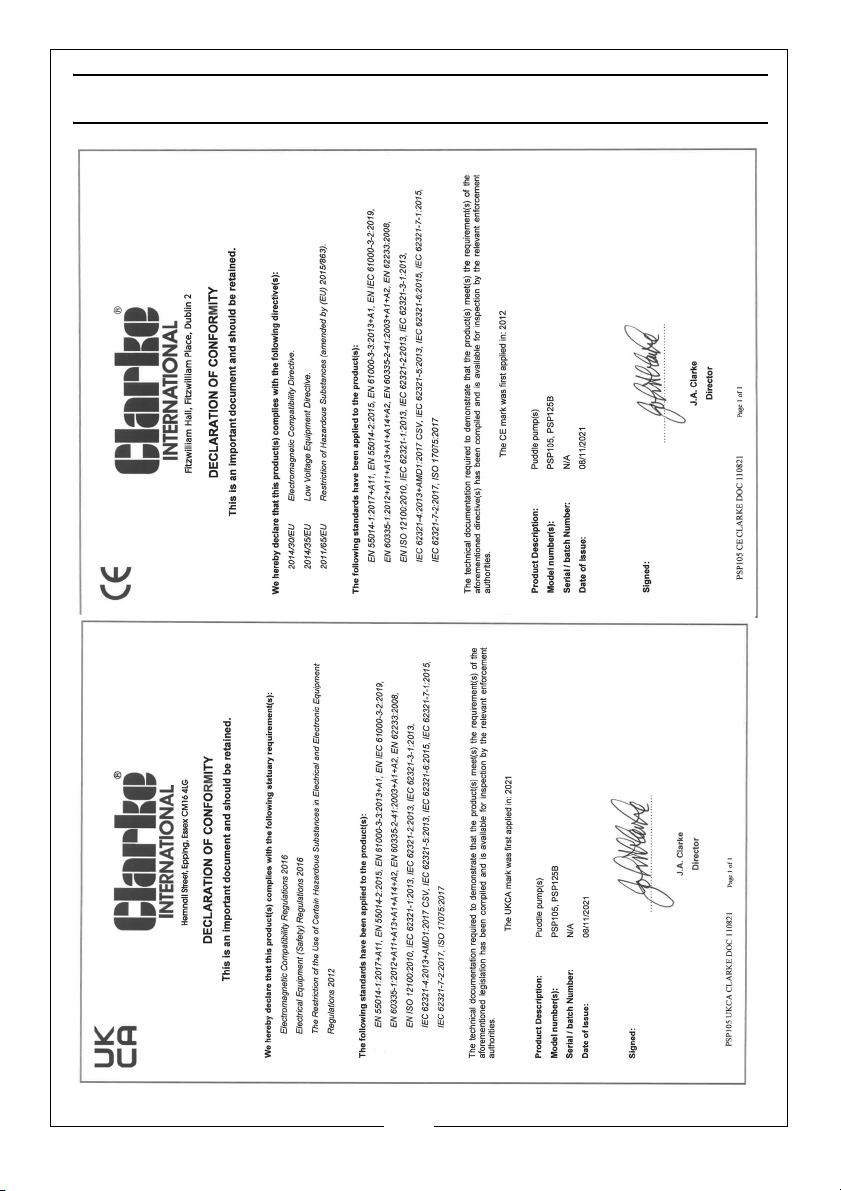

DECLARATIONS OF CONFORMITY
