Owner’s manual & Installation manual

NX700

2-DIN MEMORY NAVIGATION & DVD MULTIMEDIA STATION WITH 7-inch TOUCH PANEL CONTROL

CLARION PRODUCT REGISTRATION INFORMATION

For USA and Canada only

www.clarion.com

Dear Customer: Congratulations on your purchase of a Clarion mobile electronic product. We are

confident that you’ll enjoy your Clarion experience. There are many benefits to registering your product. We invite you to visit our website at

www.clarion.com to register your Clarion product. We have made product registration simple with our easy to use website. The registration

form is short and easy to complete. Once you’re registered, we can keep you informed of important product information.

INFORMATIONS DE L’ENREGISTREMENT DE PRODUITS CLARION

Pour les Étas Unis et le Canada seulement

Cher client: Nous vous remercions d’avoir acheté ce produit électronique mobile Clarion. Nous sommes

confiants que vous apprécierez votre expérience Clarion. Il y a beaucoup d’avantage à enregistrer votre produits. Nous vous invitons à visiter notre site

Web

www.clarion.com pour enregistrer votre produit Clarion.

Nous avons facilité la tache d’enregistrement de produit simple et facile grâce à notre site Web. Le formulaire d’enregistrement est court et facile à compléter. Lorsque vous êtes enregistrer, nous pouvons vous tenir informé des informations important de produits.

Enregistrer à www.clarion.com - c’est facile de mettre à jour votre produit Clarion.

www.clarion.com

INFORMACIÓN DEL REGISTRO DE PRODUCTO DE CLARION

Para USA y Canada nomas

www.clarion.com

Querido Cliente: Felicitaciones por su compra de producto electrónico móvil de Clarion. Estamos seguros que

usted gozará de su experiencia con el producto de Clarion. Hay muchas ventajas al registrar su producto. Le invitamos a que visite nuestro sitio en internet

www.clarion.com para registrar su producto de Clarion. Hemos hecho el registro de producto fácil en nuestro sitio. La forma de registro es corta y fácil

de completar. Una vez que lo registre, podremos proporcionarle la información de su producto. Registrese en www.clarion.com - es fácil mantener su producto de Clarion actualizado.

Thank you for purchasing the Clarion NX700.

• Please read this owner’s manual thoroughly before operating this equipment.

• After reading this manual, be sure to keep it handy for future reference.

• Check the contents of the enclosed warranty card and keep it carefully with this manual.

• The provided disc (CD-ROM manual) cannot be played back on this unit.

English

Contents

1. FEATURES.................................................................................................................... 2

Expanding Systems........................................................................................................ 2

Playable Discs................................................................................................................3

DVD Video Features ........................................................................................ .. ... ... ...... 3

2. PRECAUTIONS ............................................................................................................. 4

Operation Panel/Generalities.........................................................................................5

Cleaning ......................................................................................................................... 5

About the Registered Marks, etc................................. ................................................... 6

3. CONTROLS ................................................................................................................... 6

Functions of Buttons............................................... ..................................................... ...6

Outline of Button and Touchkey Operation .................................................................... 8

Remote Control Unit..................................................................................................... 13

4. BASIC OPERATIONS.................................................................................................. 14

Turning On and Off the Power ......................... ............................................................ 14

Adjusting the Volume ......................... ... ... ............................................................. ... ... .15

Opening the Operation Panel and Adjusting the Angle................................................15

Turning the Audio OFF................................................................................................. 16

Turning the Monitor OFF.............................................................................................. 17

Displaying the Clock Screen......................................................................................... 17

Setting/Ejecting a Disc ................................................................................................. 17

Connecting/Disconnecting an USB Media Device........................................................ 18

Selecting a Media Source ............................................................................................ 20

2-Zone Function........................................................................................................... 20

5. SOURCE OPERATIONS ............................................................................................. 21

Radio Operations ................. ... ..................................................... ... ............................. 21

DVD Video Operations........................................ ... .. .................................................... 23

Audio CD Operations ................................................................................................... 29

MP3/WMA/AAC Operations......................................................................................... 30

DivX Operations.................................................................................................... ... .... 33

6. SOURCE OPERATIONS (ACCESSORIES)................................................................ 36

Satellite Radio Operations............................................................................................ 36

iPod Operations............................................................................................................ 39

USB Memory Operations.............................................................................................. 42

Navigation System Operations..................................................................................... 43

Bluetooth Telephone Operations (Tel mode) ...............................................................44

AUX Operations ........................................................................................................... 44

7. SYSTEM SETTINGS.................................................................................................... 45

Audio Settings .............................................................................................................. 45

General Settings........................................................................................................... 48

Adjusting the Monitor............................................................ .. ...................................... 51

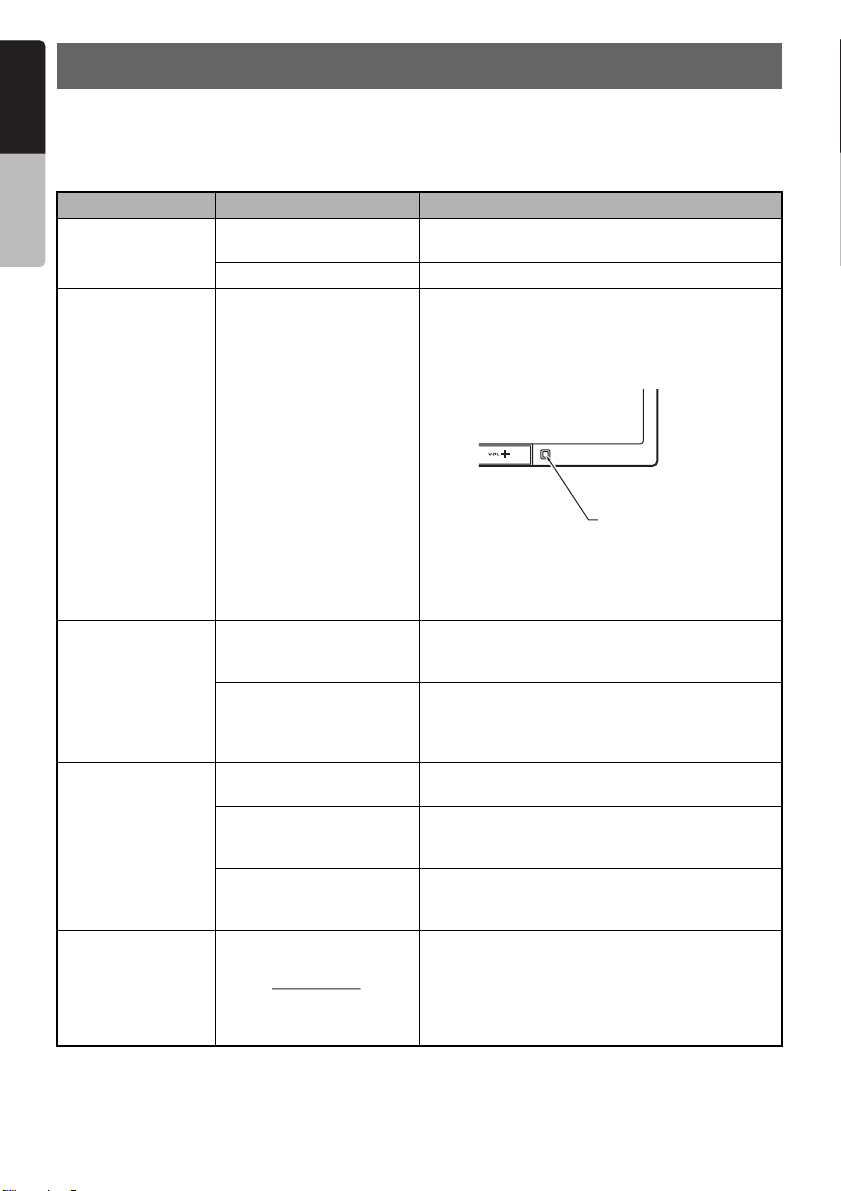

8. TROUBLESHOOTING................................................................................................. 52

9. ERROR DISPLAYS...................................................................................................... 54

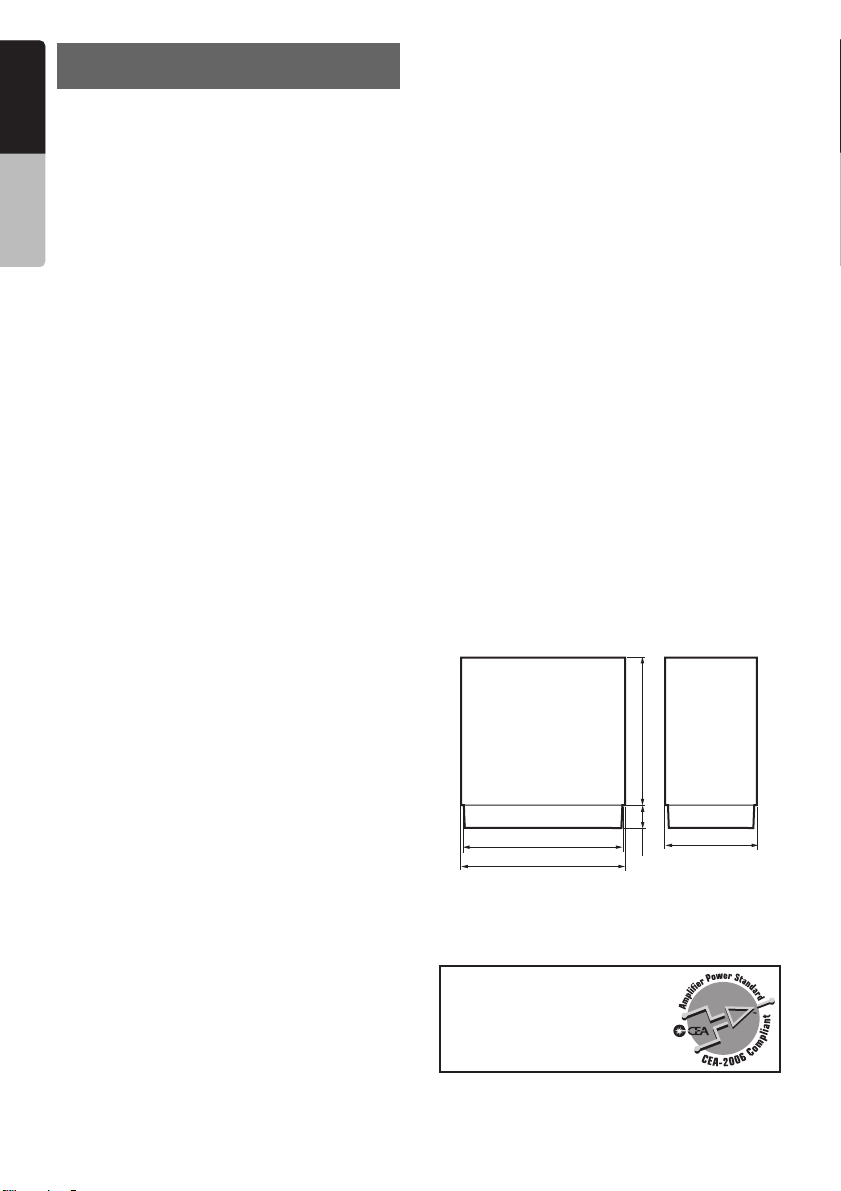

10.SPECIFICATIONS ....................................................................................................... 56

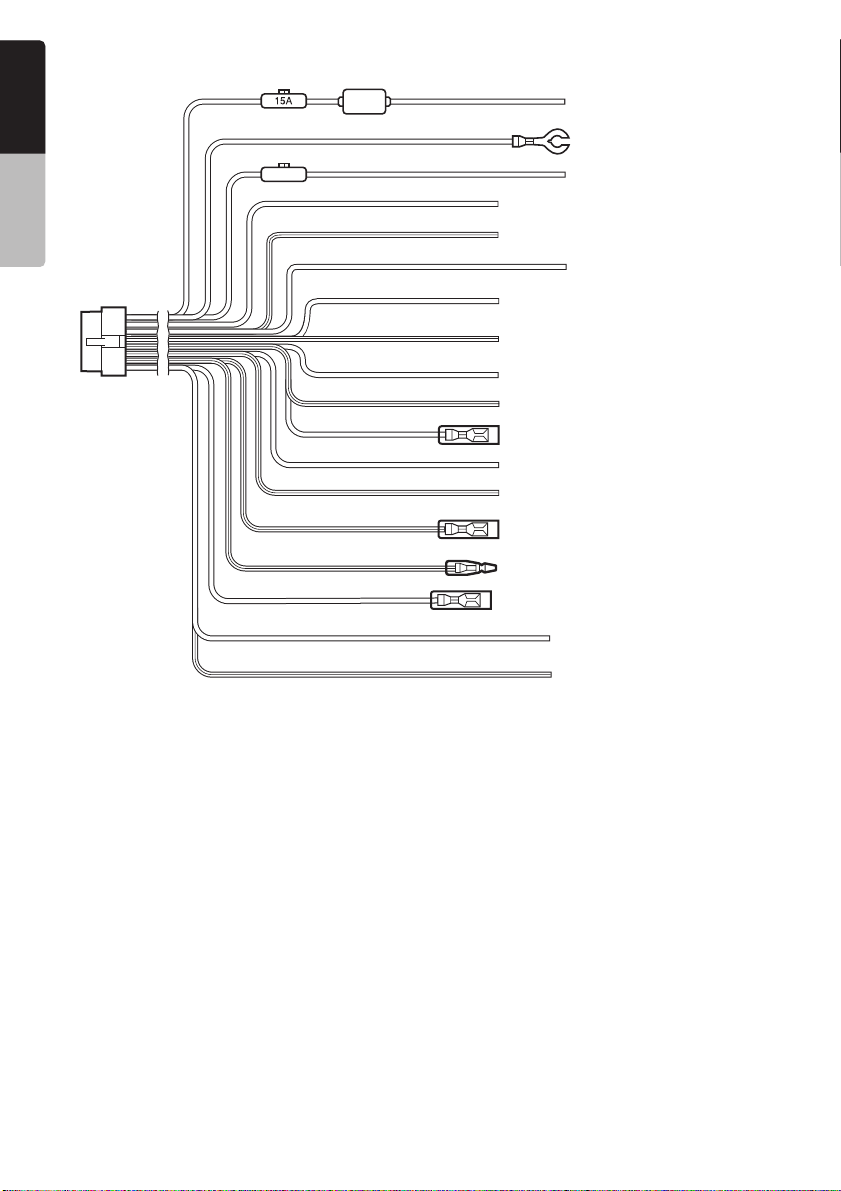

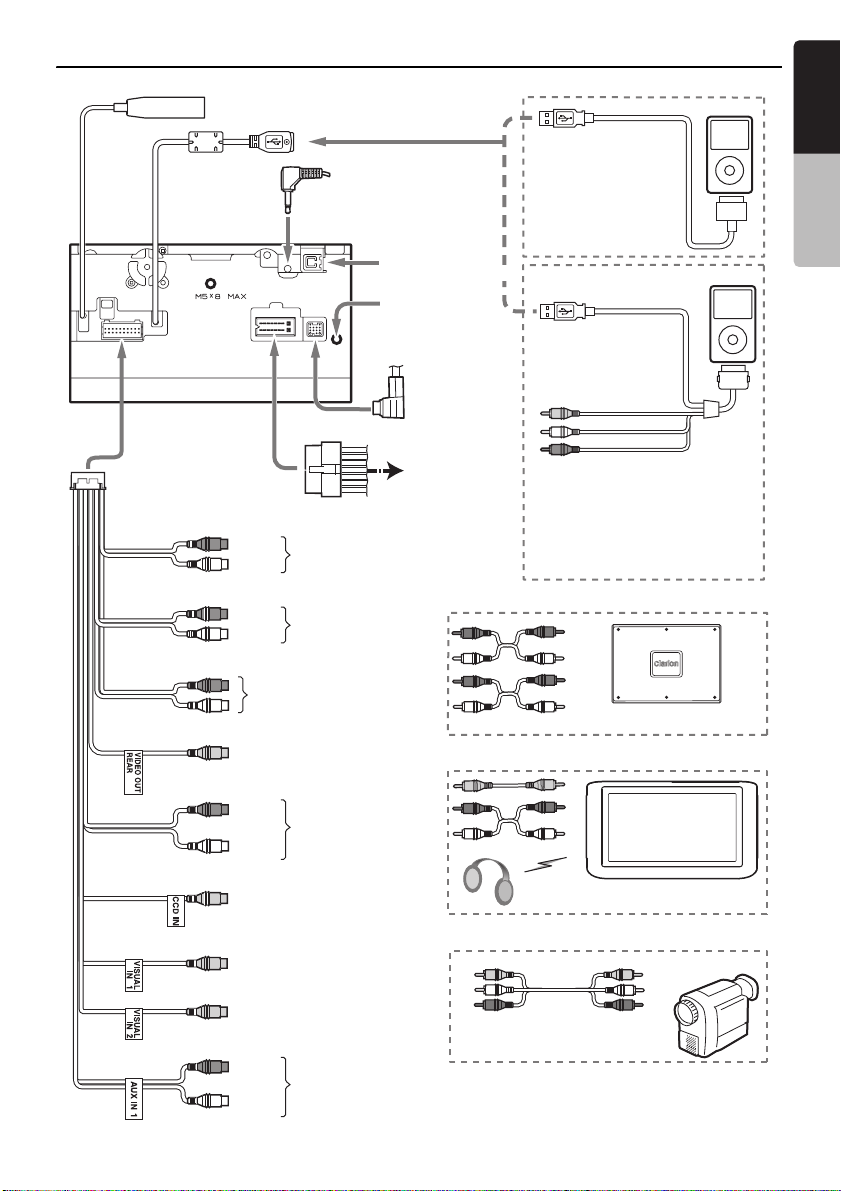

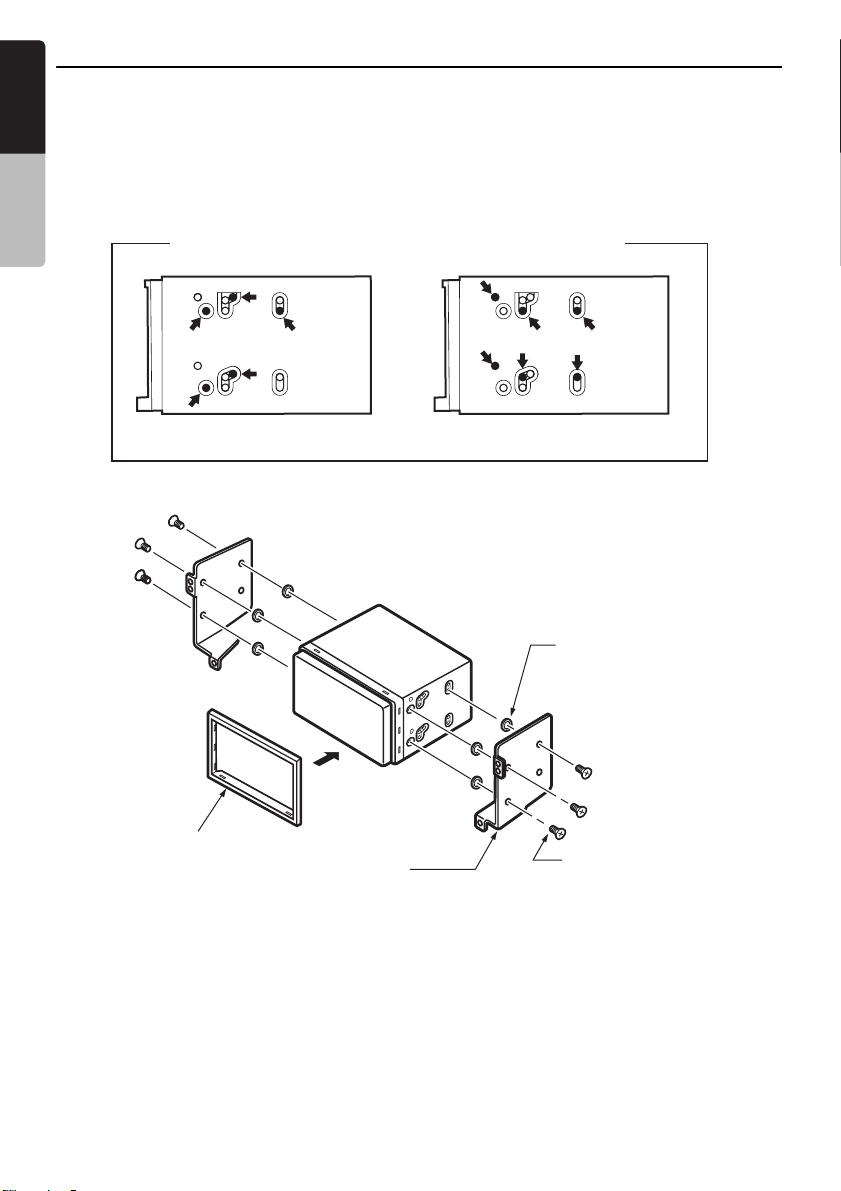

INSTALLATION AND WIRE CONNECTION MANUAL.................................................... 57

Owner’s manual

NX700

English

1. FEATURES

Owner’s manual

■ Built in Bluetooth® hands-free calling

■ Compatible with iPod

■ Sirf III GPS module with 20-channel receiver

and iPhone™ via USB

Expanding Systems

Expanding audio features

Sirius Tuner XM Mini-Tuner (via Translator Adapter sold separately)

4-Channel Amplifier

iPod/iPhone

Expanding visual features

Rear Vision Camera (CC2011/ CAA185)

NX700

Rear Monitor

VTR etc.

Bluetooth Telephone

Note:

The items listed outside of the frames are the commercial products generally sold.

NX700

USB Memory

Playable Discs

This DVD player can play the following discs:

Playable discs

DVD video discs

In addition, the DVD player can play CD-R/RW, DVD-R/RW, and DVD+R/RW discs on which the following media files have been recorded:

DivX

For detailed information, see the sections entitled “MP3/WMA/AAC Operations” (page 30) and “DivX Operations” (page 33).

About CD Extra discs

A CD Extra disc is a disc in which a total of two sessions have been recorded. The first session is Audio session and the second session is Data session. Your personally-created CDs with more than second data sessions recorded cannot be played on this DVD player.

Note:

• When you play a CD Extra disc, only the first session will be recognized.

About playing a CD-R/RW disc

This player can play CD-R/RW discs previously recorded in Audio CD format or format with MP3/ WMA/AAC/DivX files.

Audio CDs CD TEXT

Playable media files

MP3/WMA/AAC

About playing a DVD-R/RW or DVD+R/RW disc

This player can play DVD-R/RW and DVD+R/RW discs previously recorded in DVD video format or format with MP3/WMA/AAC/DivX files.

Discs that cannot be played back

This player cannot play DVD Audio, DVD-RAM, Video CDs, Photo CDs, etc.

Note:

• It may not be possible to play back discs recorded on some CD/DVD drive units. (Cause: disc characteristics, cracks, dust/dirt, dust/dirt on player’s lens, etc.)

• If a CD-R/RW, DVD-R/RW, or DVD+R/RW disc that has not been finalized is played, it will take a long time to start playing. Also, it may not be possible to play dependin g on its recording conditions.

• You cannot play Super Audio CDs. Playback of the CD player is not supported even if it is a hybrid disc.

Note on region numbers of DVD video discs

The DVD video system assigns a region number to DVD players and DVD discs by sales area. The DVD video region number playable in this system is marked on the disc jacket as shown below.

ALL

DVD Video Features

This unit provides the following functions in addition to the high image quality and sound quality of DVD video.

Note:

• The functio ns described in this section differ depending on the DVD video disc. Refer to the instructions provided with the DVD video.

• Some disc functions may operate differently from described in this manual.

English

Owner’s manual

NX700

Multi-sound function

English

DVD video can store up to 8 languages for one film; select the language of your preference.

• The languages stored on the disc are indicated by the icon shown below.

Owner’s manual

Multi-angle function

A DVD video that is filmed from multiple angles allows you to select the angle of choice.

• The number of recorded angles is indicated by the icon shown below.

Subpicture (subtitles) function

A DVD video can record subtitles for up to 32 languages and you can select the language of the subtitles you wish to see.

• The number of recorded subtitle languages is indicated by the icon shown below.

Multi-story function

When a DVD video contains more than one story for a film, you can select the story you wish to enjoy. The operation procedures vary with the disc; observe the instructions for selecting a story provided during playback.

DVD menu

DVD Menus can be called up during DVD video playback to perform menu setting.

• Example showing DVD menu

2. PRECAUTIONS

WARNING

For your safety, the driver should not watch the DVD video/movie data or operate the controls while driving. Please note that watching and operating the DVD video/ movie data while driving are prohibited by law in some countries. Also, while driving, keep the volume to a level at which external sounds can be heard.

1. When the inside of the car is very cold and the player is used soon after switching on the heater, moisture may form on the disc (DVD/ CD) or the optical parts of the player and proper playback may not be possible. If moisture forms on the disc (DVD/CD), wipe it off with a soft cloth. If moisture forms on the optical parts of the player, do not use the player for about one hour. The condensation will disappear naturally allowing normal operation.

2. Driving on extremely bumpy roads which cause severe vibration may cause the sound to skip.

3. This unit uses a precision mechanism. Even in the event that trouble arises, never open the case, disassemble the unit, or lubricate the rotating parts.

4. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help.

NX700

INFORMATION FOR USERS:

CHANGES OR MODIFICATIONS TO THIS PRODUCT NOT APPROVED BY THE MANUFACTURER WILL VOID THE WARRANTY AND WILL VIOLATE FCC APPROVAL.

Operation Panel/ Generalities

For a longer service life, be sure to read the following cautions.

• The operation panel will operate properly in a temperature range of 0 to 60°C.

• Do not allow any liquids on the set from drinks, umbrellas, etc. Doing so may damage the internal circuitry.

• Do not disassemble or modify the set in any way. Doing so may result in damage.

• Do not draw the operation panel out and use it as a tray. Also, subjecting the operation panel to shocks may result in breakage, deformation, or other damage.

• Do not let cigarettes burn the display. Doing so may damage or deform the cabinet.

• If a problem should occur, have the set inspected at your store of purchase.

• Do not insert objects or poke in the space between the operation panel and the main unit when the panel is tilted.

• Do not place anything on the display when the panel is tilted.

• The remote control unit may not work if the remote control sensor is exposed to direct sunlight.

• In extremely cold weather, the display movement may slow down and the display may darken, but this is not a malfunction. The display will work normally when the temperature increases.

• Small black and shiny spots inside the operation panel are normal for LCD products.

• The operation panel may stop temporarily when it opens or closes, when the engine stops or when it is cold.

• The touchkeys on the display operate when slightly touched. Do not press the touchkey screen with much force.

• Do not push the case surrounding the touchkey panel with much force. This may cause malfunctioning of the touchkeys.

Cleaning

• Cleaning the cabinet Use a soft and dry cloth and gently wipe off the dirt. For tough dirt, apply some neutral detergent diluted in water to a soft cloth, wipe off the dirt gently, then wipe again with a dry cloth.

Do not use benzene, thinner, car cleaner, etc., as these substances may damage the cabinet or cause the paint to peel. Also, leaving rubber or plastic products in contact with the cabinet for long periods of time may cause stains.

• Cleaning the operation panel The operation panel tends to collect dust, so wipe it off occasionally with a soft cloth. The surface is easily scratched, so do not rub it with hard objects.

English

Owner’s manual

NX700

About the Registered

English

Marks, etc.

3. CONTROLS

• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of

Owner’s manual

this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

• “DivX”, “DivX Certified”, and associated logos are trademarks of DivX, Inc., and are used under license.

• ©2009 SIRIUS XM Radio Inc., SIRIUS, XM and all related marks and logos are trademarks of SIRIUS XM Radio Inc. and its subsidiaries. All other marks, channel names and logos are the property of their respective owners.

• The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Clarion Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

• “Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards. “Works with iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. iPod is a trademark of Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc.

• BBE MP (Minimized Polynomial Non-Linear Saturation) Process improves digitally compressed sound, such as MP3, by restoring and enhancing the harmonics lost through compression. BBE MP works by regenerating harmonics from the source material, effectively recovering warmth, details and nuance.

• Manufactured under license from BBE Sound, Inc.

• Licensed by BBE Sound, Inc. under one or more of the following US patents: 5510752,

5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc.

● Operation Panel

NX700

Sensor

[VOL –]

[SRC]

● With the operation panel open

SD memory card slot

Blink LED/ Reset button

[VOL +]

Functions of Buttons

Note:

• Be sure to read this section while referring to the front diagram.

Sensor

• Receiver for the remote control unit (operating

range: 30° in all directions).

[VOL –], [VOL +] buttons

• Use these buttons to increase/decrease the

volume.

NX700

[SRC] button

• Press this button to display/hide the Source screen to switch the source mode.

Blink LED

• When the Blink LED function is set to “On” from the System tab menu on the General screen, blinks when the ACC power is turned off.

SD memory card slot

• SD memory card function is available in the Navi mode. For more information about the SD memory card function, see your User Manual (for the Navi mode).

Note:

• When you insert the SD memory card stored music

files, they cannot be read in this unit.

English

Owner’s manual

NX700

Outline of Button and Touchkey Operation

English

Turning the power on

Owner’s manual

NX700

System check

The CeNET format utilized on this unit is provided with a system check function. When the system check function is performed under the following conditions, the power is automatically turned off. Once turn off the engine switch, then restart the engine again.

• When power is first turned on after initial installation.

• When an external device is connected or disconnected.

• When Reset button is pressed.

* In addition to the above conditions, the system

check function can be performed from the Sy st em tab menu on the General screen.

Note:

*1 These images indicate the butt ons to press or

keys to touch.

Engine ON position

You can change the media sources.

NX700

Tuner mode operation

(Source screen)

• Select desired station after selecting radio band.

English

Owner’s manual

Switches the radio band.

Selects Home/Travel modes.

Seek tuning

Manual tuning

Preset ch.

NX700

DVD Video mode operation

English

(Source screen)

Owner’s manual

(DVD Video mode screen) *2

* Screen during DVD Video mode

when automobile moving.

(DVD top menu) *2

(Options screen)

(Setup screen)

Note:

*2 If you do not touch the screen for about 7 seconds, all the keys on the screen

will disappear. Touch the screen surface to redisplay them.

NX700

Adjusting the General settings

(Source or Mode screen)

English

(Settings screen)

(General screen)

Owner’s manual

(System tab screen)(Display tab screen)

NX700

Adjusting the Audio settings

English

(Source or Mode screen)

Owner’s manual

(Settings screen)

(Audio screen)

(Others tab screen)

(Beat EQ tab screen)

NX700

(BAL/FAD tab screen)

Remote Control Unit

❏ Names of buttons

CR2025 battery

English

Signal transmitter Operating range: 30° in all directions

[SUBTITLE]

[AUDIO]

[TOP MENU]

[ENT]

[SOURCE]

[BAND]

[6]

[ANGLE] [MENU]

[E], [e], [T], [t]

[RETURN]

[–], [+] [R], [F]

❏ Inserting the Battery

1. Slide the rear cover in the direction of the arrow, and remove it.

2. Insert the CR2025 battery bundled with the remote control unit in the directions shown in the figure, then close the rear cover.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Note:

Using battery improperly can cause it to explode. Take note of the following points:

• Do not short-circuit, disassemble or heat battery.

• Do not dispose of battery into fire or flames.

• Dispose of spent battery properly.

Rear side

Rear cover

❏ Functions of Remote Control

Unit Buttons

You can use the remote control unit to control the NX700. When the 2-Zone function is ON, the controls work upon the Sub zone only.

Note:

• The steering wheel remote control operations work upon the Main zone even when the 2-Zone function is ON.

[AUDIO] button

• Press to set the Audio language. (in DVD Video

and DivX modes)

[SUBTITLE] button

• Press to display subtitles. (in DVD Video and

DivX modes)

[ANGLE] button

• Press to switch among the angles when DVD

video discs recorded in multiple angles are played back.

[TOP MENU] button

• Press to display the DVD top menu stored on

the DVD video disc. Some discs are not displayed the DVD top menu. (in DVD Video mode)

[MENU] button

• Press to display the DVD menu stored on the

DVD video disc. (in DVD Video mode)

[ENT] button

• Press to fix the selected menu item on the DVD

menu. (in DVD Video mode)

[E], [e], [T], [t] buttons

• Press to select desired menu item displayed on

the DVD menu. (in DVD Video mode)

Owner’s manual

NX700

[SOURCE] button

English

• Press to switch the source modes such as Tuner mode, DVD mode, etc. (in any mode)

* Only DVD, USB, and AUX modes are selectable

when 2-Zone ON.

• Keep pressing more than 1 second to turn the

Owner’s manual

2-Zone function ON/OFF. (in any mode)

[RETURN] button

• Press to return to the previous screen while the DVD menu is being displayed. However, it may occur that this button operation dose not work on some discs. (in DVD Video mode)

[BAND] button

• Switches reception bands. (in Tuner, Sirius, and XM modes; disabled when 2-Zone ON)

• Keep pressing more than 1 second to switch the Home/Travel modes. (in Tuner mode; disabled when 2-Zone ON)

• Press to select the next higher folder. (in MP3/ WMA/AAC/DivX and USB memory modes)

[VOL –], [VOL +] buttons

• Decreases or increases the volume. (in any mode; disabled when 2-Zone ON)

[6] button

• Press to play or pause video and audio media. (in DVD and USB modes; disabled in USB mode when 2-Zone ON)

• Keep pressing more than 1 second to stop video playback. (in DVD Video mode)

[R], [F] buttons

• Press to select the next lower or higher preset station. (in Tuner, Sirius, and XM modes; disabled when 2-Zone ON)

• Press to select the next lower or higher chapter number. (in DVD Video mode)

• Press to select the next lower or higher track. (in CDDA, MP3/WMA/AAC/DivX, and USB modes)

• Keep pressing to perform fast backward or fast forward playback. (in DVD and USB modes)

4. BASIC OPERATIONS

Note:

• Be sure to read this chapter referring to the chapter “3. CONTROLS” (page 6).

Turning On and Off the Power

CAUTION

When the unit is turned on, starting and stopping the engine with its volume raised to the maximum level may harm your hearings. Be careful about adjusting the volume.

Note:

• Start the engine before using this unit.

• Be careful about using this unit for a long time

without running the engine. If yo u drain the car’s battery too far, you may not be able to start the engine and this can reduce the service lif e of the battery.

1. Start the engine. The power is supplied to this

unit.

Engine ON position

The unit automatically memorizes its last operation mode and will automatically switch to display that mode.

2. To turn off the power, turn off the engine

switch.

● About the CT (Clock Time) display

• The displayed clock data is based on the CT

(clock time) data in the Navigation system.

• When the CT data cannot be received, “--:--”

appears in the display.

NX700

Adjusting the Volume

1. Press the [VOL –]/[VOL +] buttons to adjust the volume.

[VOL –]: Decreases the volume. [VOL +]: Increases the volume.

• The volume level indicated in the display is

in a range from 0 (min.) to 33 (max.).

CAUTION

While driving, keep the volume level at which external sounds can be heard.

Opening the Operation Panel and Adjusting the Angle

The operation panel can be opened/closed to insert/eject a disc. The angle of the operation panel can be adjusted depending on the mounting angle of the unit or light coming into the car.

WARNING

• To prevent the battery from going dead,

operate this unit with the engine running if possible.

• When the operation panel is operating, be

careful not to get your hand or finger caught between the panel and main unit or the instrument panel of the car.

• Do not move the operation panel by hand.

2. Touch the [Open/Close] key. The operation panel will be opened.

3. Touch the [Open/Close] key when the operation panel is open. The operation panel will be closed.

• The operation panel will close automatically

when leaving it open for a while.

4. Touch the [Back] key to return to the previous screen.

English

Owner’s manual

Opening/closing the operation panel

1. Touch the [o (Eject)] key to display the following Eject screen:

NX700

Adjusting the angle of the operati on

English

panel

The angle of the operation panel can be adjusted in the range of 0° to 30°

1. Touch the [o (Eject)] key to display the Eject screen.

Owner’s manual

2. Repeat touching the [Tilt] key to adjust the angle of the operation panel. Every touching the [Tilt] key tilts the operation panel forward or backward. The adjusted angle is stored in memory. Once you adjust the angle of the operation panel, the operation panel will return to the adjusted angle even after it is opened/closed.

3. When the adjustment is finished, touch the [Back] key to return to the previous screen.

Returning the operation panel to the original angle

1. Touch and hold the [Tilt] key. The operation panel will move and stop at 30°.

2. Touch and hold the [Tilt] key again. The operation panel will move and stop at 0°.

Turning the Audio OFF

You can turn off all of the AV features.

1. Press the [SRC] button to display the Source screen.

2. Touch the [Audio Off] key. The AV features are turned off.

Note:

• The Audio OFF function does not work in the Tel

mode.

Turning the AV features on

1. Press the [SRC] button to display the Source screen.

2. Touch the desired Source key. The AV features are turned on, and the system enters into the specified mode.

NX700

Turning the Monitor OFF

You can turn off the monitor screen, and change it to a black screen.

1. Touch the [SET] key to display the Settings screen.

2. Touch the [Monitor Off] key. The monitor screen is turned off.

Turning the monitor on

1. Touch the monitor screen. The monitor screen is turned on, and resumes the last screen.

• You can also turn on the monitor by

pressing the [SRC] button.

Displaying the Clock Screen

You can change the screen to display only the digital clock on a black screen.

1. Touch the clock display on most screens. The Clock screen is displayed.

2. To return to the current mode screen, touch the monitor screen.

• Pressing the [SRC] button displays the

Source screen.

Note:

• The Clock screen cannot be displayed while in the

Tel mode.

Setting/Ejecting a Disc

• Never stick labels on the surface of the disc or mark the surface with a pencil or pen.

• Never play a disc with any cellophane tape or other glue on it or with peeling off marks. If you try to play such a disc, you may not be able to get it back out of the DVD player or it may damage the DVD player.

• Do not use discs that have large scratches, are misshapen, cracked, etc. Use of such discs may cause misoperation or damage.

• To remove a disc from its storage case, press down on the center of the case and lift the disc out, holding it carefully by the edges.

• Do not use commercially available disc protection sheets or discs equipped with stabilizers, etc. These may damage the disc or cause breakdown of the internal mechanism.

Storage

• Do not expose discs to direct sunlight or any heat source.

• Do not expose discs to excess humidity or dust.

• Do not expose discs to direct heat from heaters.

Cleaning

• To remove fingermarks and dust, use a soft cloth and wipe in a straight line from the center of the disc to the circumference.

• Do not use any solvents, such as commercially available cleaners, anti-static spray, or thinner to clean discs.

• After using special disc cleaner, let the disc dry off well before playing it.

English

Owner’s manual

❏ Notes on handling discs

Handling

• New discs may have some roughness around the edges. If such discs are used, the player may not work or the sound may skip. Use a ball-point pen or the like to remove any roughness from the edge of the disc.

Ball-point pen

Roughness

On Discs

• Exercise a good precaution when loading a disc with the panel open.

• Never turn off the power and remove the unit from the car with a disc loaded.

• Do not use lens cleaning discs. These may damage the lens of this unit.

• When there seems to be something wrong with reading discs, please consult your dealer or an authorized Clarion service center.

NX700

❏ Setting a disc

English

1. Touch the [o (Eject)] key to display the Eject screen.

2. Touch the [Open/Close] key. The operation panel will be opened.

3. Insert a disc into the center of the insertion

Owner’s manual

slot with the label side facing up. The disc will automatically be drawn into the DVD player.

After setting a disc

The system will automatically be switched to the relevant source media mode according to the disc, and start playing back the disc.

When a DVD video disc is set:

The system is switched to the DVD Video mode. See “DVD Video Operations” (page 23).

When an Audio CD is set:

The system is switched to the CDDA mode. See “Audio CD Operations” (page 29).

When a CD/DVD with MP3/WMA/AAC/DivX files is set:

The system is switched to the MP3/WMA/AAC mode or DivX mode according to the Playform setting. See “MP3/WMA/AAC Operations” (page 30) or “DivX Operations” (page 33).

Note:

• Never insert foreign objects into the disc insertion

slot.

• If the disc is not inserted easily, there may be

another disc in the mechanism or the unit may require service.

• 8 cm (single play) discs cannot be used.

CAUTION

For your safety, the driver should not insert or eject a disc while driving.

❏ Ejecting a disc

1. Touch the [o (Eject)] key to display the Eject screen.

2. Touch the [Eject] key to eject the disc. The operation panel will be opened and the disc will be ejected.

• If a disc is left in the ejected position for 15

seconds, the disc is automatically reloaded (Auto reload).

3. Remove the disc carefully.

4. Touch the [Open/Close] key to close the operation panel.

• The operation panel will close automatically

when leaving it open for a while.

5. Touch the [Back] key.

Note:

• If you force a disc into the insertion slot before auto

reloading, this can damage the di sc.

NX700

Connecting/Disconnecting an USB Media Device

This unit has one USB (Universal Serial Bus) connector which is compatible with USB 1.1 and USB 2.0.

❏ Playable USB media devices

This system can control the following USB media devices connected to the USB connector.

• Apple iPod

• USB memory

About the Apple iPod

iPods can be connected by using the connection cable supplied with the iPod you use, but in this case, you can enjoy its audio sound only. To enjoy video movies stored in the iPod with video displaying them on this unit, it is required to use the special connection cable separately sold.

Note:

• iPhones can also be connected to this system and “iPod” appearing in this manual should be referred to as “iPod/iPhone”.

• This system will not operate or may operate improperly with unsupported ve rsions.

• For detailed information on the playable iPod models, see our home page: www.clarion.com

• For the other limitations, see “iPod Operations” (page 39).

About the USB memory

This system can play audio files (MP3/WMA/ AAC) stored in an USB memory which is recognized as “USB Mass Storage Class device”. You can use your USB memory as an audio device by simply copying desired audio files into it.

Note:

• This system will not operate or may operate improperly with some USB memory.

• Files protected with any DRM can not be played.

• For the other limitations, see “USB Memory

Operations” (page42).

❏ Connecting an USB media

device

CAUTION

• For your safety, the driver should not

connect or disconnect an USB media device.

• Do not start the vehicle’s engine while the

USB media device is connected, since it may result in loss or damage to data on the USB media device. Connect the USB media device to this unit after starting the engine.

1. Turn on the power of your USB media device, if required.

2. Confirming the orientation of the connectors, connect the USB media device to the USB connector of this unit.

• It may take a long time to recognize the

connected device.

After connecting an USB device

The system will automatically be switched to the relevant source media mode according to the USB device connected, and start playback.

When an iPod is connected:

The system is switched to the iPod mode. See “iPod Operations” (page 39).

When an USB memory is connected:

The system is switched to the USB Memory mode. See “USB Memory Operations” (page 42).

Note:

• Never insert foreign objects into the USB

connector.

• Always insert the USB media device fully into the

connector. Incomplete connections may cause the device not to be recognized.

❏ Disconnecting an USB media

device

1. Confirm that data transfer is not performed on the USB media device. For the method to confirm it, see the operation manual of your USB media device.

2. Remove the USB media device from the USB connector.

CAUTION

Be sure to disconnect the USB media device while the vehicle’s engine is running. Otherwise, it may result in loss or damage to data on the USB media device. Do not stop the engine when the USB media device is connected.

Note:

• When turning on the ACC power with no USB

media device connected, “No Media” may be displayed on the screen if the USB mode is selected.

English

Owner’s manual

NX700

Selecting a Media Source

English

Changing the source mode

1. Press the [SRC] button to display the Source screen.

Owner’s manual

2. Touch the desired Source key you wish to change to. The system is switched to the corresponding source media mode.

Note:

• The Source keys have no effect in the Tel mode.

Touch the [[] key at top left of the Phone Menu screen to cancel the Tel mode; this will resume the last operation mode.

Available media sources

Source

mode

Tuner mode Tuner mode page 21 Sirius mode* XM mode* DVD mode*

USB mode*

AUX mode AUX mode page 44 Tel mode Tel mode page 44 Navi mode Navi mode page 43

Corresponding

source media

mode

Sirius mode page 36

XM mode page 36

DVD Video mode page 23 CDDA mode page 29 MP3/WMA/AAC

mode DivX mode page 33

iPod mode page 39 USB Memory mode page 42

Refer to

page 30

*1:These keys are displayed only when the

Sirius tuner and/or XM tuner are connected to this unit.

*2:The source media mode to be selected differs

depending on the data format of the disc set in the DVD player. When no disc is set, “No Disc” will be displayed.

*3:The source media mode to be selected differs

depending on the type of the USB media device connected. When no USB media device is connected, “No Media” will be displayed.

Note:

• When the USB mode is selected, video images input from the iPod video input terminal will be output to the rear monitor. This is normal.

2-Zone Function

About the 2-Zone function

The 2-Zone function is a function that assigns separate source output to the Main zone (this unit) and Sub zone (the optional rear monitor) by simultaneously playing two sources in this system. Therefore, the rear passengers are allowed to enjoy a different video source from the source played on the operation panel of this unit.

• The source sounds of the Main zone are output

from the speakers of the vehicle side, and those of the Sub zone are from the optional headphone systems.

• Controlling a source assigned to the Sub zone

can be made by using the optional remote control unit. To control it from this unit, once assign the same source to the Main zone, then control it.

• When a media without video images is played

on the Sub zone, a black screen is output to the rear monitor.

Note:

• When an interrupt of the navigation system arises during the 2-Zone function is turned on, the sound of the Main zone is muted, but the sound of the Sub zone is output normally.

• When it arises during the 2-Zone function is turned off, the audio signals to the 4ch speakers are attenuated, and the voice from the navigation system is output from the front two speakers.

• You cannot operate the 2-Zone function during the interrupt of the navigation system.

• When the same source is assigned for Main and Sub zones, operations in a zone are also applied for another zone.

NX700

Assignable source mode for Main/ Sub zones

● For Main zone

All the source modes can be assigned for the Front zone.

● For Sub zone

The following source modes can be assigned:

• DVD mode

•USB mode

•AUX mode

Setting the 2-Zone function

• The factory default setting is OFF.

1. Press the [SRC] button to display the Source screen.

2. Touch the [2-Zone] tab to display the 2-Zone tab screen. The source keys for the Sub zone are displayed.

3. Touch the desired source key you wish to assign to the Sub zone. The 2-Zone function is turned on with the selected source mode assigned to the Sub zone.

4. Touch the [Back] key to return to the previous screen.

Note:

• Use the remote control unit to control the source

assigned to the Sub zone. To control it from this unit, once select the same source mode as assigned to the Sub zone for the Main zone, and then control it.

5. SOURCE OPERATIONS

Radio Operations

Listening to the radio

1. Press the [SRC] button, and touch the [Tuner] key. The Tuner mode screen is displayed, and the system resumes the last status of the Tuner mode.

2. Touch the [Home Travel] key to select the Home or Travel mode. The Home/Travel modes are provided to manage the preset stations separately in your home location and in a location during a trip.

3. Touch the [Band] key to select the radio band. Each time the key is touched, the radio reception band changes in the following order:

• In Home mode: FM Home 1 ➜ FM Home 2

➜ AM Home ➜ FM Home 1...

• In Travel mode: FM Travel ➜ AM Travel ➜

FM Travel...

4. Touch the desired Preset key to tune in the corresponding preset station.

English

Owner’s manual

Turning off the 2-Zone function

1. Press the [SRC] button to display the Source screen.

2. Touch the [2-Zone] tab to display the 2-Zone tab screen.

3. Touch and hold the [2-Zone Off] key for more than 1 second.

NX700

Seek tuning

English

1. Touch the [Band] key to select the desired band (FM or AM).

2. Touch the [{ (Seek)] or [} (Seek)] key to automatically seek a station.

• When touching the [{ (Seek)] key, the

Owner’s manual

station is sought in the direction of higher frequencies.

• When touching the [} (Seek)] key, the

station is sought in the direction of lower frequencies.

Manual tuning

There are 2 ways available: Quick tuning and step tuning. When it is in the step tuning mode, the frequency changes one step at a time. In quick tuning mode, you can quickly tune the desired frequency.

1. Touch the [Band] key to select the desired band (FM or AM).

2. Tune into a station.

Quick tuning:

Touch and hold the [{ (M-Seek)] or [} (MSeek)] key to tune in a station.

Step tuning:

Touch the [{ (M-Seek)] or [} (M-Seek)] key to manually tune in a station.

Recalling a preset station

There are total of 30 preset positions (6-FM Home 1, 6-FM Home 2, 6-AM Home, 6-FM Travel, and 6-AM Travel) to store individual radio stations in memory.

1. Touch the [Home Travel] key to select the Home or Travel mode.

2. Touch the [Band] key to select the band.

3. Touch the corresponding Preset key to recall the stored station.

• Touching and holding the desired Preset

key for more than 2 seconds will store the current station to the preset memory.

Manual memory

1. Touch the [Home Travel] key to select the Home or Travel mode.

2. Touch the [Band] key to select the band you wish to store.

3. Tune in the station you wish to store using the seek tuning, manual tuning, or preset tuning.

4. Touch and hold the desired Preset key you wish to store the current station for more than 2 seconds.

Auto Store

The Auto Store is a function for storing up to 6 stations that are automatically tuned in sequentially. If 6 receivable stations cannot be received, a previously stored station remains unoverwritten at the memory position.

• The Auto Store function works only in the

Travel mode.

1. Touch the [Home Travel] key to select the Travel mode.

2. Touch the [Band] key to select the band.

3. Touch the [Auto Store] key to start scanning stations. A beep sounds and the stations with good reception are stored automatically to the preset channels.

•“AS” appears during scanning stations. To

stop the scanning, touch the [Auto Store] key again.

NX700

DVD Video Operations

❏ Selecting the DVD Video mode

1. Set a DVD video disc to the DVD player. The system will automatically read the disc data, change to the DVD mode (DVD Video mode), and start playback after a while. See also “Setting/Ejecting a Disc” (page 17).

WARNING

• Some videos may be recorded at a higher

volume level than desired. Increase the volume gradually from the minimal setting after the video has started.

• For your safety, the driver should not

watch the video or operate the controls while driving. Please note that watching and operating the video while driving are prohibited by law in some countries.

Note:

• For your safety, this system has a safety function

which turns off the picture when the car is moving, so only the audio can be heard. The picture can only be watched when the car is stop pe d an d the parking brake is applied.

• If “Audio Only” appears on the screen just after

turning on the ACC power of the car, release the parking brake while confirming safety, and then engage the parking brake agai n.

● When a DVD video disc is already set

1. Press the [SRC] button to display the Source screen.

2. Touch the [DVD] key to select the DVD Video mode. The system changes to the DVD mode (DVD Video mode), and starts playback from the previous position.

❏ Changing the DVD System

Settings

Note:

• If the Setup operation is performed in the middle of DVD video play, the disc will restart from beginning.

Displaying the DVD Setup screen

1. Touch the screen to display the DVD Video

mode screen.

2. Touch the [Options] key to display the

Options menu.

3. Touch the [Setup] key to display the Setup

screen.

• Touch the [}] key to display the next page.

• Touch the [{] key to return to the previous page.

4. Perform setting for the desired setting items. See the following sections for detail.

• In the following sections, only the details of

settings are described, the procedures to select items are skipped.

5. Touch the [Back] key.

Setting up the screen size

Set up the screen size according to the optional rear monitor which is connected to this unit.

• The factory default setting is “Wide”.

4-1. Touch the [Wide], [PS], or [LB] key of the TV

Display item to change the screen size to “Wide”, “Pan Scan” or “Letter Box”.

English

Owner’s manual

NX700

● When watching through a wide type of the

English

rear monitor (16:9) Wide:

Owner’s manual

● When watching through a conventional type of the rear monitor (4:3)

Pan Scan:

The leftmost and rightmost areas of the screen are cut off.

Setting up the disc menu language

• The factory default setting is “English”. 4-1. Touch the []] key of the Menu Language

item.

4-2. Touch the desired Language key you wish

to set.

4-3. Touch the [Back] key.

Setting up the audio language

• The factory default setting is “English”. 4-1. Touch the []] key of the Audio Language

item.

4-2. Touch the desired Language key you wish

to set.

4-3. Touch the [Back] key.

This function allows displaying the important part of image fully on the screen. In some cases, image is displayed while being panned (scrolled).

Letter Box:

A black zone is created in the top and bottom areas of the screen.

This method displays Cinema Scope and Vista Vision images without cutting them off by creating a black zone on the top and bottom gaps.

Setting up the angle mark display

You can set up so that the angle mark appears on scenes where the angles can be switched.

• The factory default setting is “Off”.

4-1. Touch the [On] or [Off] key of the Angle item

to turn the Angle function ON or OFF.

Setting up the subtitle language

• The factory default setting is “English”. 4-1. Touch the []] key of the Subtitle Language

item.

4-2. Touch the desired Language key you wish

to set.

• To turn off the subtitle, select the [Off] key.

4-3. Touch the [Back] key.

Setting up the password for setting up of the parental level

• The factory default setting is “0000”. 4-1. Touch the []] key of the Password item. 4-2. Touch the ten-key (0 to 9) to input a 4-digit

password.

• Input the old password, and touch the [ENT] key. Input “4356” to reset password.

• Input a new password, and touch the [ENT] key.

• Input the same new password again, and touch the [ENT] key.

Note:

• When a disc with view restrictions is inserted, you will be prompted to input a password. The disc will not be viewable until the correct password is entered.

NX700

Setting up the country code

Set up the country number for setting up of the parental level.

• The factory default setting is “8583” (U.S.A.). 4-1. Touch the []] key of the Country Code item. 4-2. Touch the ten-key (0 to 9) to input a 4-digit

country code (see the following table).

4-3. Touch the [ENT] key.

Country code list:

Country Input code

Canada 6765 United States 8583 American Samoa 6583 Bermuda 6677 Puerto Rico 8082 St. Pierre and Miquelon 8077 Virgin Islands (U.S.) 8673

Setting up the parental level

You can change the level of parental lock (audiovisual restriction). This function allows cutting scenes that are unfavorable for children or replacing them automatically with other scenes prepared in advance. For example, by replacing scenes of radical violence or portrayals of sex with safe scenes, you can make a trouble-free story as if it were so from the beginning.

• The factory default setting is “8”. 4-1. Touch the [–] or [+] key of the Parental Level

item. The Password input screen is displayed.

4-2. Touch the ten-key (0 to 9) to input a 4-digit

password, and touch the [ENT] key.

• The factory default setting of the password is “0000”.

4-3. Touch the [–] or [+] key to select level “1” to

“8”, or “Off”. The relationship between DVD video category codes and parental level are shown in the following table. Use this table when setting the parental level.

LEVEL7 NC-17

(NO ONE 17 AND UNDER ADMITTED)

LEVEL6 R

(RESTRICTED)

LEVEL4 PG-13

(PARENTS STRONGLY CAUTIONED)

LEVEL3 PG

(PARENTAL GUIDANCE SUGGESTED)

LEVEL1 G

(GENERAL AUDIENCES)

• The contents that the parental level restricts vary with the country code.

❏ Operating a DVD video

Watching a DVD Video

After disc loading, the play mode is automatically engaged.

• When playback is not started, touch the [p] key.

• Operations may differ depending on the story of the disc.

● About the volume adjustment when playing DVD Video discs

This system has the independent volume data for playing DVD Video discs. The volume setting during DVD playback does not affect the volume of the other modes, and the volume setting in the other modes does not affect the DVD playback.

● When the DVD menu is displayed

For general DVD Video discs, the DVD menu may appear. After the DVD menu is displayed, select an item in the operations described as follows.

English

Owner’s manual

NX700

Showing the DVD Video mode

English

screen

The DVD Video mode screen is used to control the playback mode from the screen.

1. Touch the screen. The DVD Video mode screen is displayed.

Owner’s manual

If you do not touch the screen for 7 seconds, the display will return to the playback screen.

Selecting the screen size

You can change the screen size to suit to the playback film.

• The factory default setting is “Full Wide”.

1. Touch the screen to display the DVD Video mode screen.

2. Repeat touching the [S-Size] key until your desired screen size is selected.

This key shows the current screen size setting.

•

[Full Wide]:

The image is expanded so that the rectangle of the image fits to the screen (16:9). The aspect ratio of the image may be changed.

[Cinema]:

The image is expanded so that the top and bottom edges of the image fit to the screen. Suitable for letterbox-format images. Subtitles of non-letterboxed images may be cut off in this mode.

[Normal]:

The image is expanded so that the top and bottom edges of the image fit to the screen, and that the aspect ratio of the image becomes 4:3. The aspect ratio of the image may be changed.

[Wide]:

The image is expanded so that the left and right edges of the image fit to the screen. The top and bottom areas of the image may be cut off.

3. Touch the [Hide] key to return to the playback screen.

DVD menu operations

● Showing the DVD menu

1. Showing the DVD Video mode screen, touch the [Top Menu] or [Title Menu] key during playback. The DVD menu appears.

• The displayed contents for each key differ

depending on the DVD software.

• An example shown below is the DVD menu

display:

● Operating the DVD menu

You can operate the menu items by displaying the Key Pad panel.

1. Showing the DVD Video mode screen, touch the [Cursor] or [10key] key. The Cursor-Key Pad panel or the NumericKey Pad panel is displayed on the screen.

• Touching the [Num] key or [Cur] key

changes to the each other panel.

2. Select the desired menu item using either the Cursor-Key or the Nummeric-Key according to the menu contents.

3. Touch the [ENT] key to specify the selected menu item.

4. Touch the [Back] key to hide the Key Pad panel.

NX700

● Switching Key Pad position

When the menu items become difficult to view by the Key Pad buttons, you can move the Key Pad panel to the other side of the screen.

Key Pad

Stopping playback

1. Showing the DVD Video mode screen, touch and hold the [p] key for more than 1 second during playback. Playback is stopped.

2. To resume playback, touch the [p] key. Playback resumes from the scene where playback is stopped.

Pausing playback

1. Showing the DVD Video mode screen, touch the [p] key during playback. Playback pauses.

2. To resume playback, touch the [p] key again. Playback resumes.

Slow playback

1. Showing the DVD Video mode screen, touch the [p] key during playback to pause playback.

2. Touch and hold the [{ (Chapter)] key. While touching the key, slow playback continues at 1/3 speed. Releasing the key resumes the normal playback.

• Slow playback cannot be performed in the

backward direction. In addition, audio cannot be reproduced during slow playback.

Fast forward and fast backward

1. Showing the DVD Video mode screen, touch and hold the [{ (Chapter)] or [} (Chapter)] key during playback. [{ (Chapter)] key: Fast forward [} (Chapter)] key: Fast backward The playback speed becomes 4-time faster at first and then 16-time faster 3 seconds later. Releasing the key resumes the normal speed playback.

• No audio is reproduced during fast forward

and fast backward operation.

• The fast forward and fast backward speed

may differ depending on the disc.

Skipping chapters (searching)

“Chapter” means a small segment to divide the “Title” (film) which is recorded on the disc.

1. Showing the DVD Video mode screen, touch the [{ (Chapter)] or [} (Chapter)] key during playback. Chapters are skipped as many as the times touching the key, and playback starts.

Current location

Chapter ChapterChapter

down

• Touching the [{ (Chapter)] key starts

playback from the beginning of the next chapter.

• Touching the [} (Chapter)] key starts

playback from the beginning of the current chapter. When touching this key again within about 4 seconds, playback starts from the beginning of the previous chapter.

English

Owner’s manual

NX700

Searching with a chapter/title

English

number

You can locate the beginning of a scene using the chapter numbers or title numbers recorded on the DVD video disc.

• “Chapter” means a small segment to divide the

Owner’s manual

“Title” (film) which is recorded on the disc.

1. Showing the DVD Video mode screen, touch the [Options] key.

2. Touch the [Direct] key. The Key Pad screen appears.

• You can specify the title number by touching

the [Title] key.

3. Input the chapter number that you want to play back using the [0] to [9] key.

4. Touch the [ENT] key. Playback starts from the scene of the input chapter number of the selected title.

• If the input chapter number does not exist or

searching with a chapter number is not allowed, the screen image will not change.

Repeat playback

This operation plays back the current title or chapter repeatedly.

1. Showing the DVD Video mode screen, touch the [Options] key.

2. Touch the [Title] or [Chapter] key of the Repeat item, then touch the [Back] key. The “T.RPT” or “C.RPT” will be displayed.

3. Touch the [Back] key to return to the previous screen.

4. Perform the same operation to turn off the repeat playback.

Switching among languages

On discs in which two or more audios or audio languages have been recorded, you can switch among the audio languages during playback.

1. Showing the DVD Video mode screen, touch the [Options] key.

2. Touch the [Audio] key during playback. Each time you touch the key, you can switch among audio languages.

• Depending on the disc, up to 8 audios may

be recorded. For details, see the mark of the

disc ( : Indicates that 8 audios have been recorded).

• Depending on the disc, switching may be

completely impossible or impossible on some scenes.

• It may take time to switch among audios.

• When the power is turned on and the disc is

changed to a new one, the language set as the factory default is selected. If that language has not been recorded, the language is specified on the disc.

3. Touch the [Back] key to return to the previous screen.

Switching subtitles

On DVD discs in which two or more subtitle languages have been recorded, you can switch among the subtitle languages during playback.

1. Showing the DVD Video mode screen, touch the [Options] key.

2. Touch the [Subtitle] key during playback. The Subtitle Language screen appears.

3. Touch the Language key you wish to display.

• Depending on the disc, up to 32 kinds of

subtitles may be recorded. For details, see the mark of the disc ( : Indicates that 8 kinds of subtitles have been recorded).

• To turn off subtitles, select “OFF”.

• Depending on the disc, switching may be

completely impossible or impossible on some scenes.

• It may take time to switch among subtitles.

4. Touch the [Back] key to return to the previous screen.

NX700

Switching angles

On DVD discs in which video images have been recorded in two or more angles, you can switch among the angles during playback.

• When the Angle function is set to “On”, the angle mark will appear on scenes where the angles can be switched (see page 24).

1. Showing the DVD Video mode screen, touch

the [Angle] key during playback. Each time you touch the key, you can switch among angles.

• Depending on the disc, up to 9 angles may be recorded. For details, see the mark of the disc ( : Indicates multi-angle).

• Depending on the disc, angles may switch smoothly or switch with a momentary still image.

• Depending on the disc, switching may be completely impossible or impossible on some scenes.

• It may take time to switch among angles.

• Depending on the disc, scenes recorded in two or more angles may be played back.

• When the power is turned on and the disc is changed to a new one, the language set at the time of factory shipment is selected. If that language has not been recorded, the language is specified on the disc.

Displaying/hiding the playback status

1. Showing the DVD Video mode screen, touch the [Options] key.

2. Touch the [On] or [Off] key of the P.Time item during playback.

3. Touch the [Back] key to return to the previous screen. Playback status is displayed on the screen.

Title number

Chapter number

Playback time

91:00:00 100C 10T

Audio CD Operations

This system is a CD TEXT compatible model, and supports the display of the DISC TITLE, TRACK TITLE, and TRACK ARTIST (or DISK ARTIST) of the CD TEXT.

Note:

• This unit supports only CD TEXT in English. Also, some character data may not be repro duced properly on the display.

❏ Selecting the CDDA mode

1. Set an audio CD to the DVD player.

The system will automatically read the disc data, change to the DVD mode (CDDA mode), and start playback after a while. See also “Setting/Ejecting a Disc” (page 17).

WARNING

• Some CDs may be recorded at a higher

volume level than desired. Increase the volume gradually from the minimal setting after playback has started.

• For your safety, the driver should not

operate the controls while driving.

● When an audio CD is already set

1. Press the [SRC] button to display the Source

screen.

2. Touch the [DVD] key to select the CDDA

mode. The system changes to the DVD mode (CDDA mode), and starts playback from the previous position.

English

Owner’s manual

❏ Operating an audio CD

Listening to an audio CD

After disc loading, the play mode is automatically engaged.

• When playback is not started, touch the [p]

key.

NX700

Pausing playback

English

1. Touch the [p] key during playback. Playback pauses.

2. To resume playback, touch the [p] key. Playback resumes.

Owner’s manual

Skipping a track (searching)

1. Touch the [{ (Track)] or [} (Track)] key during playback. Tracks are skipped, as many as the times the key is touched, and playback starts.

• Touching the [{ (Track)] key starts

playback from the beginning of the next track.

• Touching the [} (Track)] key starts

playback from the beginning of the current track. When this key is touched again within about 2 seconds, playback starts from the beginning of the previous track.

Fast forward and fast backward

1. Touch and hold the [{ (Track)] or [} (Track)] key during playback. The playback speed becomes 4-time faster first and then 16-time faster 3 seconds later. Releasing the key resumes the normal speed playback.

Other various play func ti ons

1. Touch the [Options] key.

2. Touch the [Track] key of the function you want to play.

Track repeat playback:

Touch the [Track] key of the Repeat item.

• This operation plays back the current track

repeatedly.

•“T.RPT” is displayed on the screen.

• You can also specify this function by

touching the [Repeat] key on the CDDA mode screen.

Track random playback:

Touch the [Track] key of the Random item.

• This operation plays back all tracks on the

disc in no particular order.

•“T.RDM” is displayed on the screen.

• You can also specify this function by

touching the [Random] key on the CDDA mode screen.

3. To cancel the play, touch the [Track] key of the function to cancel.

4. Touch the [Back] key to return to the previous screen.

Scrolling track titles

When a title or name displayed on the screen is longer than the text area, you can confirm the entire text by scrolling it.

1. Displaying the text you wish to scroll, touch the text area. The text will scroll once.

MP3/WMA/AAC Operations

This system can playback MP3/WMA/AAC files recorded on a disc.

❏ About the MP3/WMA/AAC files

What is MP3/WMA/AAC?

MP3, WMA, and AAC are the audio file formats which have penetrated into PC users and become a standard format. MP3 is an audio compression method and classified into audio layer 3 of MPEG standards. WMA (Windows Media Audio) is an audio compression method developed by Microsoft Corporation. AAC (Advanced Audio Coding) is a newer audio compression method developed for used with video compression standards MPEG-2 and MPEG-4, and has been adopted as the standard audio format of the iPod and iTunes by Apple Inc. These features compress the original audio data to about 10 percent of its initial size with a high sound quality. This means that about 10 audio CDs can be recorded on a CD-R/RW disc to allow a long listening time without having to change CDs.

NX700

Displaying MP3/WMA/AAC Tag titles

Tag information (track title, artist name, and album title) can be displayed for an MP3/WMA/ AAC file containing the Tag information. This system supports the ID3 TAG version 1.x/

2.x and WMA-TAG.

Note:

• Tag informat ion entered with 2-byte characters may not be displayed properly on the display.

• The ID3 version 2.x tag format is not completely supported. This system can display information up to 60 bytes, and ignores the rest.

• Album titles of WMA-TAG may not be displayed properly.

Precautions on the MP3/WMA/AAC files

● General precautions

• Files other than MP3/WMA/AAC format cannot

be played. In addition, some files may not be played because of the encoding settings. When a file cannot be played, the next file is played instead.

• Some noise may occur depending on the type

of encoder software used to encode the data.

• You can apply the VBR (Variable Bit Rate)

format when encoding. In this case, the displayed play time may be slightly different from the actual play time.

• Files that the DRM (Digital Rights

Management) function is set cannot be played.

● For MP3 files

• Set the Sampling Frequency to:

• MPEG1 Layer3: 32, 44.1, or 48 kHz

• MPEG2 Layer3: 16, 22.05, or 24 kHz

• MPEG2.5 Layer3: 8, 11.025, or 12 kHz

• Set the Bit Rate to:

• MPEG1 Layer3: 32 to 320 kbps (VBR)

• MPEG2 Layer3: 8 to 160 kbps (VBR)

• MPEG2.5 Layer3: 8 to 160 kbps (VBR)

• Add a file extension “.MP3” or “.mp3” using

single byte characters.

● For WMA files

• Set the Sampling Frequency to within ranges

from 22.05 to 44.1 kHz.

• Set the Bit Rate to 48, 64, 80, 96, 128, 160, or

192 kbps.

• Add a file extension “.WMA” or “.wma” using

single byte characters.

● For AAC files

• This system supports only the MPEG4 Audio

files encoded by the iTunes.

• Set the Sampling Frequency to 44.1 or 48 kHz.

• Set the Bit Rate to within ranges from 16 to 320

kbps (VBR).

• Add a file extension “.M4A” or “.m4a” using

single byte characters.

Precautions when preparing a disc

Note:

• For details of the DivX file mentioned below, see “DivX Operations” (page33).

● Logical format (File system)

The following writing formats are available when writing MP3/WMA/AAC/DivX files on a disc:

• For CD-R/RW: ISO9660 level 1/level 2,

Romeo, Joliet, or Apple ISO (without including expansion format)

• For DVD±R/RW: UDF (Universal Disk Format)

● Folder structure

• The folder hierarchy must be within 8

hierarchical levels. Otherwise, playback will be impossible.

• You can store the MP3 files, WMA files, and

AAC files together in a disc or folder.

• You can also store the MP3/WMA/AAC files

and DivX files together in a disc or folder. In such a case, you can select whether the disc is regarded as an MP3/WMA/AAC disc or as a DivX disc. See “Setting the Playform of discs recorded with DivX files” (page 33).

● Number of files or folders

• The maximum allowable number of folders is

255 (including root directory).

• The maximum allowable number of files in a

folder is 255.

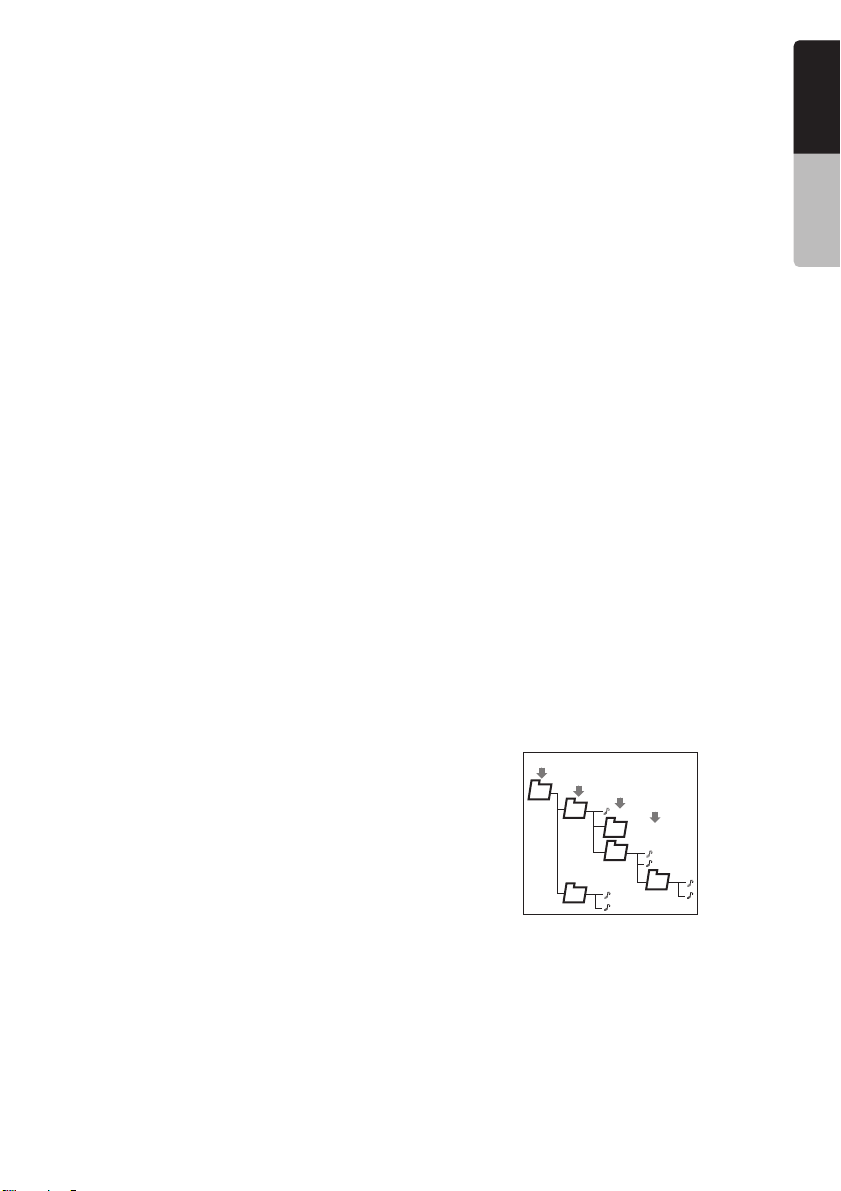

● Folder representation in the folder list

• Only folders containing MP3/WMA/AAC files or

DivX files (1 to 4 in illustration) are displayed on the list. Folders containing no MP3/WMA/ AAC/DivX file are not displayed.

• Folder hierarchy (1 to 4 in illustration) is

ignored, and unified into one level.

• Folders are arranged in the order of the folder

creation.

English

Owner’s manual

NX700

❏ Selecting the MP3/WMA/AAC

English

mode

1. Set a disc which the MP3/WMA/AAC files are recorded to the DVD player. The system will automatically read the disc data, change to the DVD mode (MP3/WMA/

Owner’s manual

AAC mode), and start playback after a while. See also “Setting/Ejecting a Disc” (page 17).

WARNING

• Audio files may be recorded at a higher

volume level than desired. Increase the volume gradually from the minimal setting after playback has started.

• For your safety, the driver should not

operate the controls while driving.

Note:

• Note that the system enters to the DivX mode

when setting a disc with DivX files if the Playform function has been set to “Video” (see page 33).

● When a disc is already set

1. Press the [SRC] button to display the Source screen.

2. Touch the [DVD] key to select the MP3/WMA/ AAC mode. The system changes to the DVD mode (MP3/ WMA/AAC mode), and starts playback from the previous position.

❏ Operating MP3/WMA/AAC

playback

Note:

• The same operations listed below are also used in

the USB Memory mode.

Listening to MP3/WMA/AAC files

After disc loading, the play mode is automatically engaged.

• When playback is not started, touch the [p]

key.

Pausing playback

1. Touch the [p] key during playback. Playback pauses.

2. To resume playback, touch the [p] key. Playback resumes.

Skipping a track (searching)

1. Touch the [{ (Track)] or [} (Track)] key during playback. Tracks are skipped, as many as the times the key is touched, and playback starts.

• Touching the [{ (Track)] key starts

playback from the beginning of the next track.

• Touching the [} (Track)] key starts

playback from the beginning of the current track. When this key is touched again within about 2 seconds, playback starts from the beginning of the previous track.

• These functions perform in the current

folder only.

Fast forward and fast backward

Skipping the current folder

1. Touch the [{ (Folder)] or [} (Folder)] key during playback. The tracks of the current folder are skipped and playback starts from the first track of the next or previous folder.

Selecting a folder/track from the list screen

1. Touch the [List] key. The Folder List screen is displayed.

2. When the desired folder is not displayed, touch the [{] or [}] key to scroll the list.

3. Touch the desired Folder key. The Track List screen appears.

4. Touch the [{] or [}] key to scroll the list, and touch the desired Track key. The corresponding track is started playback.

5. Touch the [Back] key.

NX700

Other various play func ti ons

1. Touch the [Options] key.

2. Touch a touch key of the function you want to play.

Folder repeat playback:

Touch the [Folder] key of the Repeat item.

• This operation plays back tracks in the

current folder repeatedly.

•“F.RPT” is displayed on the screen.

Track repeat playback:

Touch the [Track] key of the Repeat item.

• This operation plays back the current track

repeatedly.

•“T.RPT” is displayed on the screen.

Folder random playback:

Touch the [Folder] key of the Random item.

• This operation plays the tracks in the

current folder in a random order.

•“F.RDM” is displayed on the screen.

Track random playback:

Touch the [Track] key of the Random item.

• This operation plays back tracks recorded

in the disc in no particular order.

•“T.RDM” is displayed on the screen.

3. To cancel the play, touch the same touch key of the function to cancel.

4. Touch the [Back] key to return to the previous screen.

Scrolling track titles

When a title or name displayed on the screen is longer than the text area, you can confirm the entire text by scrolling it.

Displaying the text you wish to scroll, touch the

1. text area. The text will scroll once.

Setting the Playform of discs recorded with DivX files

MP3/WMA/AAC files can be stored together with DivX files in a disc or folder. You can select whether such discs are regarded as MP3/WMA/ AAC discs or as DivX discs.

1. Touch the [Options] key.

2. Touch the [Audio] or [Video] key of the Playform item to specify the setting.

[Audio]:

Discs are regarded as MP3/WMA/AAC discs.

[Video]:

Discs are regarded as DivX discs.

3. Touch the [Back] key if required.

Note:

• This setting is disabled when a Mixed Mode

CD, which contains both data track and audio tracks, is set in the DVD player.

DivX Operations

This system can playback DivX movie files recorded on a disc.

• Official DivX

• Plays all versions of DivX

DivX media files.

❏ About the DivX file

What is DivX?

DivX is a popular media technology created by DivX, Inc. DivX media files contain highly compressed video with high visual quality that maintains a relatively small file size. DivX files can also include advanced media features like menus, subtitles, and alternate audio tracks. Many DivX media files are available for download online, and you can create your own using your personal content and easy-to-use tools from DivX.com.

Certified product

6) with standard playback of DivX®

video (including

English

Owner’s manual

Precautions on the DivX file

• This system can play DivX version 4.x, 5.x, and

6.x files. DivX Ultra is not supported.

• Files other than DivX format (such as the Xvid

files) cannot be played. In addition, some files may not be played because of the encoding format. When a file cannot be played, the next file is played instead.

NX700

• DivX VOD (Video-on Demand files) that have

English

authorization data can also be played. These files must be authorized on your PC beforehand using the DivX Registration Code displayed on the System tab screen under the General screen (see page 49).

• Set the Frame Size to 640 × 480 or 320 × 240

Owner’s manual

pixels.

• Set the Frame Rate to 30 or 15 fps.

• Add a file extension “.AVI”, “.avi”, “.DIVX”, or “.divx” using single byte characters.

Precautions when preparing a disc

Note:

• The limitations on preparing a disc are same as

those in the MP3/WMA/AAC modes. See “Precautions when preparing a disc” (page 31).

❏ Selecting the DivX mode

1. Set a disc which the DivX files are recorded to

the DVD player. The system will automatically read the disc data, change to the DVD mode (DivX mode), and start playback after a while. See also “Setting/Ejecting a Disc” (page 17).

WARNING

• Some movie files may be recorded at a

higher volume level than desired. Increase the volume gradually from the minimal setting after the movie has started.

• For your safety, the driver should not

watch the movie or operate the controls while driving. Please note that watching and operating the movie while driving are prohibited by law in some countries.

Note:

• For your safety, this system has a safety function which turns off the picture when the car is moving, so only the audio can be heard. The picture can only be watched when the car is stop pe d an d the parking brake is applied.

• If “Audio Only” appears on the screen just after turning on the ACC power of the car, release the parking brake while confirmin g safety, and then engage the parking brake again. You can store DivX files and the MP3/WMA/AAC files

•

together in a disc or folder. In such a case, you can select whether the disc is regarded as a DivX disc or as an MP3/WMA/AAC disc. See “Setting the Playform of discs recorded with audio files” (page 36).

● When a disc is already set

1. Press the [SRC] button to display the Source

screen.

2. Touch the [DVD] key to select the DivX mode.

The system changes to the DVD mode (DivX mode), and starts playback from the previous position.

❏ Operating DivX playback

Note:

• The most operations in the DivX mode are same as those in the MP3/WMA/AAC modes. See also “Operating MP3/WMA/AAC playback” (p age 32).

• The random plays cannot be specified in the DivX mode.

Watching DivX movies

After disc loading, the play mode is automatically engaged.

• When playback is not started, touch the [p]

key.

● To play a file with Authorization data

When a file with Authorization data is played, a message is displayed on the screen. Confirm the message displayed, and touch the [Done] or [Yes] key to play the movie.

NX700

Showing the DivX mode screen

The DivX mode screen is used to control the playback mode from the screen.

1. Touch the screen. The DivX mode screen is displayed. If you do not touch the screen for 7 seconds, the display will return to the playback screen.

• You can hide the DivX mode screen by

touching the [Hide] key.

Selecting the screen size

You can change the screen size to suit to the playback film.

• The factory default setting is “Full Wide”.

1. Touch the screen to display the DivX mode screen.

2. Repeat touching the [Full Wide/Cinema/ Normal/Wide] key until your desired screen size is selected.

This key shows the current screen size setting.

•

[Full Wide]:

The image is expanded so that the rectangle of the image fits to the screen (16:9). The aspect ratio of the image may be changed.

[Cinema]:

The image is expanded so that the top and bottom edges of the image fit to the screen. Suitable for letterbox-format images. Subtitles of non-letterboxed images may be cut off in this mode.

[Normal]:

The image is expanded so that the top and bottom edges of the image fit to the screen, and that the aspect ratio of the image becomes 4:3. The aspect ratio of the image may be changed.

[Wide]:

The image is expanded so that the left and right edges of the image fit to the screen. The top and bottom areas of the image may be cut off.

3. Touch the [Hide] key to return to the playback screen.

Searching with a folder/track number

You can specify a file to play using the folder number or track number.

1. Showing the DivX mode screen, touch the [Options] key.

2. Touch the [Direct] key. The Key Pad screen appears with the folder number input mode.

3. Input the folder/track number that you want to play back using the [0] to [9] key.

• Touching the [Track] key turns the Key Pad

to the track number input mode.

4. Touch the [ENT] key. The system starts playback of the file specified with the input folder/track numbers.

• If the input folder/track number does not

exist or searching with a folder/track number is not allowed, the screen image will not change.

Switching Audios

You can switch the audio data if the current DivX file has two or more audio data.

1. Showing the DivX mode screen, touch the [Options] key.

2. Touch the [Audio] key during playback or pause. Each time you touch the key, you can switch among the audio data.

• The number of audios recorded and their

audio formats may differ depending on the DivX file.

• Depending on the DivX file, switching may

be impossible.

• It may take time to switch the audio data.

3. Touch the [Back] key.

English

Owner’s manual

NX700

Switching Subtitles

English

You can switch the subtitle language if the current DivX file has one or more subtitles.

1. Showing the DivX mode screen, touch the [Options] key.

2. Touch the [Subtitle] key during playback or

Owner’s manual

pause. Each time you touch the key, you can switch among the subtitle language.

• The number of subtitles recorded may differ

depending on the DivX file.

• Depending on the DivX file, switching may

be impossible.

• It may take time to switch the subtitle

language.

3. Touch the [Back] key.

Setting the Playform of discs recorded with audio files

DivX files can be stored together with MP3/WMA/ AAC files in a disc or folder. You can select whether such discs are regarded as DivX discs or as MP3/WMA/AAC discs.

1. Showing the DivX mode screen, touch the [Options] key.

2. Touch the [Audio] or [Video] key of the Playform item to specify the setting.

[Audio]:

Discs are regarded as MP3/WMA/AAC discs.

[Video]:

Discs are regarded as DivX discs.

3. Touch the [Back] key if required.

Note:

• This setting is disabled when a Mixed Mode CD,

which contains both data track and audio tracks, is set in the DVD player.

SOURCE OPERA TIONS (ACCESSORIES)

Satellite Radio Operations

This function is available when a Satellite Radio tuner and Translator adapter are connected. This unit can control the following satellite radio tuners via Translator adapter:

• Sirius Tuner

• XM Mini-Tuner

Note:

• When a function differs depending on the connected tuner, the following notations are used to distinguish between Sirius and XM: “Sirius”: for the Sirius tuner “XM”: for the XM tuner

• Be sure to turn off the ACC power before connecting/disconnecting the tuner.

❏ Selecting the SIRIUS/XM mode

1. Press the [SRC] button, and touch the [Sirius]

or [XM] key. The system changes to the Sirius or XM mode.

Note:

• If the [Sirius] or [XM] key is not displayed, check the connection with the tuner.

• The audio outp ut is muted and other button operations are not accepted during channel selection.

NX700

Messages displayed during reception

The following messages are displayed when the satellite radio cannot be received normally.

● Sirius:

• When a channel is being tuned in or no signal is received: “ACQUIRING SIGNAL”

• A channel without a broadcast has been selected: “INVALID CHANNEL”

• A channel not covered by your contract: “CALL 888-539-SIRIUS TO SUBSCRIBE”

• When the tuner is turned on the first time or after a reset: “UPDATING CHANNELS”

• When your contract is expired: “SUBSCRIPTION UPDATED”

• When the Sirius antenna is not connected correctly : “ANTENNA ERROR”

● XM:

• When a channel is being tuned in (no signal is yet received): “LOADING”

• A channel without a broadcast has been selected: “CHANNEL NOT AVAILABLE”

• A channel not covered by your contract: “CHANNEL NOT AUTHORIZED”

• When a channel is out of air time: “CHANNEL OFF AIR”

• When no signal is received: “NO SIGNAL”

• When the XM antenna is not connected correctly : “CHECK ANTENNA”

Note:

• The messages may vary depending on the XM

tuners connected to this unit.

❏ Selecting a band

1. Touch the [Band] key to select a band.

This changes the reception band as follows:

• Sirius: SR1 ➜ SR2 ➜ SR3 ➜ SR1 ...

•XM: XM1 ➜ XM2 ➜ XM3 ➜ XM1 ...

❏ Tuning in a station

Only channels that can be received are selected. Channels without broadcasts and channels not covered by the contract will be skipped.

1. Touch the [{ (Channel)] or [} (Channel)] key. The system will tune to the previous or next available channel.

• Holding the key continues to seek channels.

❏ Selecting a station with the

channel number

1. Touch the [Direct] key to display the Key Pad screen.

2. Enter the channel number of your desired station by touching the [0] to [9] keys.

• If you enter a wrong number, you can

cancel it by touching the [BS] key.

• To return to the previous screen, touch the

[Back] key.

3. Touch the [ENT] key. The radio channel you entered will be tuned.

❏ Displaying the channel name

and other information

1. Touch the [Preset Info] key when the Preset keys are displayed. The channel name, category name, and other information are displayed.

• When the information displayed is longer

than 16 characters, touching the text scrolls the entire text.

2. To return to the Preset Key screen, touch the [Preset Info] key again.

English

Owner’s manual

❏ Confirming your Radio ID

● Sirius

1. Touch the [Options] key to display the Options screen. Your Sirius ID (12-digit number) will be displayed.

2. To return to the previous screen, touch the [Back] key.

● XM

1. Touch the [Direct] key to display the Key Pad screen.

2. Touch the [0] key, then touch the [ENT] key. Receiving the Channel “0” will display your Radio ID (8-digit number).

NX700

❏ Recalling a preset station

English

A total of 18 Sirius stations and 18 XM stations can be stored (Sirius: 6-SR1, 6-SR2, and 6-SR3; XM: 6-XM1, 6-XM2, and 6-XM3). This allows you to store your favorite stations in memory for later recall.

Owner’s manual

1. Display the Preset Key screen by touching the [Preset Info] key.

2. Select the desired band by touching the [Band] key.

3. Touch the corresponding Preset key to recall the stored station. The system will tune to the specified station.

• Touching and holding the desired Preset

key for more than 2 seconds stores the current station into the preset memory.

❏ Manual memory

1. Display the Preset Key screen by touching the [Preset Info] key.

2. Select the desired band by touching the [Band] key.

3. Tune to the station you wish to store.

4. Touch and hold the desired Preset key you wish to store to for more than 2 seconds. A beep sounds and the current station is stored into the preset memory.

❏ Receiving stations selected by

category

Satellite Radio allows you to select broadcast channel category (contents).

1. Touch the [Category] key to display the Category List screen.

2. Touch the desired Category item key to select the category. The system will tune in to the lowest available channel of the specified category.

• Touch the [{] or [}] key to scroll the

category list.

3. Touch the [{ (C-Seek)] or [} (C-Seek)] key to select a station. The system will tune to the previous or next available channel that meets the specified category.

4. To return to the previous screen, touch the [Back] key.

Note:

• Touching the [Back] key within 1 second after

selecting the category cancels the category selection and returns to the channel previously received.

• If you do not touch the screen for 7 seconds, the

display will return to the previous screen.

❏ Category Scan function

In a category scan, broadcast channels in the same category as the current channel are selected about every 10 seconds. During scanning channels are performed, the display mode cannot be switched.

1. Touch the [Category] key to display the Category List screen.

2. Touch the desired Category item key to select the category.

• Touch the [{] or [}] key to scroll the

category list.

3. Touch the [CAT Scan] key. The system will start the category scan from the lowest available channel.

4. Touch the [CAT Scan] key again to tune to the channel currently received. The category scan will be terminated.

Note:

• When you touch t he [Back] key during the

category scan to return to the previous screen, the category scan will continue.

• The category scan can be also performed by

touching the [CAT Scan] key on the Sirius/XM mode screen.

NX700

iPod Operations

iPods can be connected by using the connection cable supplied with the iPod, but in this case, you can enjoy its audio sound only. To enjoy video movies stored in the iPod with video displaying them on this unit, it is required to use the special connection cable (CCA-723/CCA-748) separately sold.

Note:

• iPhones can also be connected to this system and “iPod” appearing in this manual should be referred to as “iPod/iPhone”.

• This system will not operate or may operate improperly with unsupported versions.

• For detailed information on the playable iPod models, see our home page: www.clarion.com

❏ Controlling the iPod

Operation keys

● iPod mode screen

Play mode icons

English

Owner’s manual

List keys

❏ Notes on using Apple iPod

• Do not connect an iPod to this unit with a

headphone connected to the iPod.

• When no data is present, the title display will

remain blank.

• Set the iPod’s language setting to English

before connecting your iPod. Some characters of the other languages may not be displayed correctly in this system.

● Precautions on battery consumption:

If the iPod is connected to this unit when the iPod’s internal battery has run down, this function may not operate correctly. You must connect the iPod after charging the battery if it has run down.

❏ Selecting the iPod mode

1. Connect your iPod to the USB connector.

The system will automatically detect the connected device, and change to the USB mode (iPod mode), and start playback after a while. See also “Connecting/Disconnecting an USB Media Device” (page 18).

● When an iPod is already connected

1. Press the [SRC] button to display the Source

screen.

2. Touch the [USB] key to select the iPod mode.

The system changes to the USB mode (iPod mode), and starts playback from the previous position.

[Options] key

[Music/Videos] key:

Switches the operation mode to the Video mode or Music mode.

• Enabled in the Simple Control mode.

List keys:

Displays the corresponding list screen to select track to be played. [Videos], [Playlists], and [Music] are available.

[Hide] key:

Hides the iPod mode screen to display the playback picture.

• Displayed only in the Video mode.

[Options] key:

Displays the Options screen. You can specify play modes and other settings from this screen.

Play mode icons:

Displays status of Repeat, Shuffle play.

: 1-track Repeat : All Repeat : Song Shuffle : Album Shuffle

[Music/Videos] key

Pausing playback

1. Touch the [p] key during playback. Playback pauses.

2. To resume playback, touch the [p] key again. Playback resumes.

NX700

Skipping a track (searching)

English

1. Touch the [{ (Track)] or [} (Track)] key during playback. Tracks are skipped, as many as the times the key is touched, and playback starts.

• Touching the [{ (Track)] key starts

Owner’s manual

playback from the beginning of the next track.

• Touching the [} (Track)] key starts

playback from the beginning of the current track. When this key is kept touching, playback starts from the beginning of the previous track.

Fast forward and fast backward

1. Touch and hold the [{ (Track)] or [} (Track)] key during playback. The playback speed becomes faster. Releasing the key resumes the normal speed playback.

Scrolling track titles

When a title or name displayed on the screen is longer than the text area, you can confirm the entire text by scrolling it.

1. Displaying the text you wish to scroll, touch the text area. The text will scroll once.

Controlling from the iPod

Setting this function to “On” enables to use the iPod buttons to control the iPod.

1. Touch the [Options] key.

2. Touch the [On] or [Off] key of the Simple Control item to specify the setting.

[On]:

Enables the iPod buttons. Only the above operations can be performed from this system.

[Off]:

Disables the iPod buttons. All controls are performed from this system.

3. Touch the [Back] key to return to the previous screen.

Other various play functions

1. Touch the [Options] key.

2. Touch a touch key of the function you want to play.

1-track repeat:

Touch the [One] key of the Repeat item.

• This operation plays back the current or

selected track repeatedly.

All repeat:

Touch the [All] key of the Repeat item.

• This operation plays back all the tracks

currently selected repeatedly.

Song shuffle:

Touch the [Song] key of the Shuffle item.

• This operation plays back all the tracks

currently selected in a random order.

Album shuffle:

Touch the [Album] key of the Shuffle item.

• When more than one album is selected, this

operation plays back the albums in no particular order. Tracks in an album are played back in the recorded order.

3. To cancel the shuffle play, touch the [Off] key of the function to cancel.

• The repeat play cannot be canceled.

Normally, it should be set to the All repeat play.

4. Touch the [Back] key to return to the previous screen.

Note:

• “All repeat” will be selected automatically when

you connect the iPod which is turned off the repeat function.

❏ Selecting tracks to be played

You can specify the tracks to be played by touching the following list keys:

● [Videos] key

The following category keys are displayed. You can narrow the listed items by selecting these categories.

• The category keys displayed may differ

depending on the connected iPod.

[Playlists]:

The list of all the Video Playlists stored in the iPod is displayed.

[Movies]:

The list of all the Movies stored in the iPod is displayed.

NX700

[Music Videos]:

You can narrow the Albums to be listed by specifying the Artist name.

[Rental]:

The list of all the Rental Movies stored in the iPod, which are downloaded with iTunes Movie Rentals, is displayed.

[TV Shows]:

You can narrow the Seasons to be listed by specifying the Program title.

[Video Podcasts]:

You can narrow the Tracks to be listed by specifying the Video Podcast name.

● [Playlists] key

The list of all the Playlists and Video Playlists stored in the iPod is displayed.

● [Music] key

The following category keys are displayed. You can narrow the listed items by selecting these categories.

• The category keys displayed may differ depending on the connected iPod.

[Playlists]:

The list of all the Playlists stored in the iPod is displayed.

[Artists]:

You can narrow the Albums to be listed by specifying the Artist name.

[Albums]:

The list of all the Albums stored in the iPod is displayed.

[Songs]:

The list of all the Tracks stored in the iPod is displayed.

[Genres]:

You can narrow the Artists to be listed by specifying the Genre name.

[Composers]:

You can narrow the Albums to be listed by specifying the Composer name.

Selecting tracks to be played from a list screen

1. Touch the desired Category key from the iPod mode screen to display the corresponding list screen.

2. Touch the desired item key on the screen to specify it.

• Touch the [{] or [}] key to scroll the list.

You can also use the ABC Search function to scroll the list (see below).

• When a track list of an Album, Playlist, or

Video Playlist is displayed, specifying a track starts playback of the specified album/ playlist from the specified track.

• When the track list of the Songs is

displayed, specifying a track starts playback of all the tracks stored in the iPod from the specified track.

• When the other list screen is displayed,

repeat this operation until you select the tracks to be played back.

• When video tracks are specified in the

Music mode, only the audio data will be played back.

3. Touch the [Back] key to return to the previous screen.

● Using the ABC Search function

1. Touch the [ABC Search] key when the list screen you wish to scroll is displayed.

2. Repeat touching the [A ]], [[ Z], or [0-9] key to specify the initial character of the list item you wish to display.

3. Touch the [Search] key. The list will scroll to display the first item started from the specified character (or a following character).

English

Owner’s manual

NX700

❏ Viewing video data in the iPod

English

(only for the iPod with video)

When you connect an iPod with video by using the optional connection cable, you can enjoy the video data stored in the iPod showing them on the operation panel of this unit (and the rear

Owner’s manual

monitor if connected).

WARNING

• Some videos may be recorded at a higher

volume level than desired. Increase the volume gradually from the minimal setting after the video has started.

• For your safety, the driver should not

watch the video or operate the controls while driving. Please note that watching and operating the video while driving are prohibited by law in some countries.

1. Play back your desired video tracks. The system will automatically enter into the Video mode and the playback starts. The specified video image is also displayed on the rear monitor if connected.

• When in the Simple Control mode, touch the

[Music/Videos] key to switch to the Video mode. To return to the Music mode, touch the [Music/Videos] key again.

2. Touch the [Hide] key to hide the iPod mode screen. The video image will be displayed on this unit.

3. To display the iPod mode screen, touch the screen.

Note:

• “Audio Only” is displayed when the automobile is

moving.

• Video data may no t be played back according to

the status of the iPod.

• The volume setting of video data is relatively lower

than audio data. Be sure to lower the volume setting before switching to the other mode.

• Do not select the categories with no track

registered from a list screen. The iPod may be frozen. If the iPod is frozen, reset the iPod by following the procedure described in the instruction manual of the iPod.

Selecting the Output Signal

This setting is used to select the audio signal of video tracks.

1. Touch the [Options] key.

2. Touch the [Digital] or [Analog] key of the Output Signal item to specify the setting.

[Digital]:

The digital audio data via the USB will be output. Normally select this setting.

[Analog]:

The analog audio data via the AUX will be output. Select this setting if your iPod cannot output digital signals.

3. Touch the [Back] key to return to the previous screen.

Note:

• Make sure to rec onnect the iPod after changing

this setting. The key ([Digital] or [Analog]) indicator and output setting will be chan ge d after reconnecting your iPod.

USB Memory Operations

Note:

• This system will not operate or may operate

improperly with some USB memory.

• Files protected with any DRM can not be played.

❏ Notes on using USB memories

● General notes

• When no data is present, the message “No

File” will be displayed.

• The USB memory is used with the equalizer

function turned OFF.

● Notes on the MP3/WMA/AAC files

• This system can play the MP3/WMA/AAC files

stored in the USB memory.

• This system cannot play DivX files stored in the

USB memory.

• For AAC files, this system supports only the

MPEG4 Audio files encoded by the iTunes.

• Set the Sampling Frequency to:

For MP3 files:

• MPEG1 Layer3: 32, 44.1, or 48 kHz

• MPEG2 Layer3: 16, 22.05, or 24 kHz

• MPEG2.5 Layer3: 8, 11.025, or 12 kHz

For WMA files: 8 to 48 kHz For AAC files: 8 to 48 kHz

NX700

• Set the Bit Rate to: For MP3 files:

• MPEG1 Layer3: 32 to 320 kbps (VBR)

• MPEG2 Layer3: 8 to 160 kbps (VBR)

• MPEG2.5 Layer3: 8 to 160 kbps (VBR) For WMA files: 32 to 192 kbps (VBR) For AAC files: 8 to 320 kbps (VBR)

• Add the following file extension using single byte characters: For MP3 files: “.MP3” or “.mp3” For WMA files: “.WMA” or “.wma” For AAC files: “.M4A” or “.m4a”

Note:

• Some files may not be played on this system even

though they meet all the above mentioned conditions.

● Notes on the folder structure

• The folder hierarchy must be within 8 hierarchical levels. Otherwise, playback will be impossible.

• The maximum allowable number of folders is 512 (including root directory and folders with no MP3/WMA/AAC file).

• The maximum allowable number of files in a folder is 255.

• You can store the MP3 files, WMA files, and AAC files together in a folder.

● Notes on the Tag titles

The limitations on the Tag titles are same as those in the MP3/WMA/AAC modes. See “Displaying MP3/WMA/AAC Tag titles” (page 31).

● Folder representation in the folder list

The limitations on the folder representation are same as those in the MP3/WMA/AAC modes. See “Folder representation in the folder list” (page 31).

❏ Selecting the USB Memory

mode

1. Connect your USB memory to the USB

connector. The system will automatically detect the connected device, and change to the USB mode (USB Memory mode), and start playback after a while. See also “Connecting/Disconnecting an USB Media Device” (page 18).

● When an USB memory is already connected

1. Press the [SRC] button to display the Source screen.

2. Touch the [USB] key to select the USB Memory mode. The system changes to the USB mode (USB Memory mode), and starts playback from the previous position.

❏ Playing back files in the USB

memory

The operations in the USB Memory mode are same as those in the MP3/WMA/AAC modes. See “Operating MP3/WMA/AAC playback” (page 32) for details.

Note:

• When performing the fast forward or fast backward

function, the playback speed wil l become 10-time faster. For the VBR files, it may differ depend ing on the file.

Navigation System Operations

Notes on the Navi functions

• Hereafter in this section, the Navigation system

will be called as “Navi”.

• The following functions are available:

• Showing the Navi display

• Showing the current location screen (The

[Map] key selection available on the Source screen).

• Navi guidance voice interruption

• When a voice interrupt of the Navi arises during

2-Zone ON, the sound of the Main zone is muted, and the sound of the Sub zone is output normally. When it arises during 2-Zone OFF, the audio signals to the 4ch speakers are attenuated, and the voice from the navigation system is output from the front two speakers.

Navi operations

Changes between the Navi display and the Audio/Visual (hereinafter, referred as “AV”) display.

English

Owner’s manual

NX700

● When in the AV mode

English

• Touch the [Map] key on the Source screen to switch to the Navi mode.

• When the image interruption from the Navi arises, the screen will be changed to the Navi display. When the interruption is finished, the

Owner’s manual

screen will return to the previous AV display.

Note:

• Depending on the distance to the next guidance

point and the vehicle’s speed, the image interruption may continue until the next route guidance finishes.

● When in the Navi mode

• Touch the [ ] key on the Navigation Menu screen to switch to the AV mode.

• Touch the key of the currently selected Source mode on the Source screen to switch to the relevant AV mode.

Note:

• For more information on the Navi mode, see the

User Manual.

Bluetooth Telephone Operations (Tel mode)

When the connection with your Bluetooth cellular phone is established, the following functions are available on this unit:

• Listening to your telephone calls on the car speakers.

• Answering to an incoming call.

• Making a call using the Phone Dialer screen.

• Making a call using the Phonebook data in the selected cellular phone.

• Making a call using the Call Log data of the dialed/received calls.

• Redialing

Note:

• You need to register your Bluetooth cellula r phone

(Pairing) before use.

Telephone operations

You can select the Tel mode from either AV or Navi mode.

● When in the AV mode

• Touch the [Tel] or [TEL] key on the Source screen to enter the Tel mode.

● When in the Navi mode

• Touch the [ ] key on the Navigation Menu to enter the Tel mode.

• Touch the [TEL] key on the Source screen to enter the Tel mode.

Note:

• For the details, refer to the supplied Bluetooth

telephone operation manual.

AUX Operations

This function is available when a VTR, etc. is connected to the AUX terminal.

WARNING

• For your safety, the driver should not

watch the video or operate the controls while driving. Please note that watching and operating the video while driving are prohibited by law in some countries.

Note:

Selecting the AUX mode

1. Press the [SRC] button, and touch the [AUX]

key. The system will enter into the AUX mode.

Showing the AUX mode screen

The AUX mode screen is used to adjust settings concerning the AUX mode.

1. Touch the screen.

The AUX mode screen is displayed. If you do not touch the screen for 7 seconds, the display will return to the video screen.

Switching to another AUX mode

1. Showing the AUX mode screen, touch the

[AUX] key. The system will enter into another AUX mode.

Changing the audio input level

The input audio level of the AUX terminals can be changed.

• The factory default setting is “High”.

1. Touch the screen to display the AUX mode

screen, then repeat touching the [Sense] key to select the level.

High: 10 dB Mid: 4 dB Low: 0 dB

NX700

Selecting the screen size

You can change the screen size to suit to the video image.

• The factory default setting is “Full Wide”.

1. Touch the screen to display the AUX mode screen.

2. Repeat touching the [S-Size] key until your desired screen size is selected.

• This key shows the current screen size

setting.

[Full Wide]:

The image is expanded so that the rectangle of the image fits to the screen (16:9). The aspect ratio of the image may be changed.

[Cinema]:

The image is expanded so that the top and bottom edges of the image fit to the screen.

[Normal]:

The image is expanded so that the top and bottom edges of the image fit to the screen, and that the aspect ratio of the image becomes 4:3. The aspect ratio of the image may be changed.

[Wide]:

The image is expanded so that the left and right edges of the image fit to the screen. The top and bottom areas of the image may be cut off.

3. Touch the [Hide] key to return to the video screen.

SYSTEM SETTINGS

Audio Settings

❏ Displaying the Audio screen

You can customize the various audio settings of this unit from the Audio screen.

1. Touch the [SET] key. The Settings screen appears.

2. Touch the [Audio] key. The Audio screen appears.

3. Touch the desired Tab key, and perform the adjustment. See the following sections for details.

• In the following sections, only the details

regarding adjustments are described, procedures to select items are skipped.

4. When the adjustment completes, touch the [Back] key to return to the previous screen.

English

Owner’s manual

NX700

❏ Setting the Beat EQ

English

This system provides 4 types of sound tone adjustment functions. You can select desired function and adjust the effect level.

• The factory default setting is “Off”.

Owner’s manual

3-1. Touch the [Beat EQ] key to display the Beat

EQ tab screen.

3-2. Touch the [BEQ1], [BEQ2], [BEQ3],

[Custom], or [Off] key to select the function you wish to apply.

[BEQ1]:

The bass sound area is emphasized.

[BEQ2]:

The mid sound area is reduced, and the bass and treble sound area are emphasized.

[BEQ3]:

The mid sound area is lowered, and the bass and treble sound area are extremely emphasized.

[Custom]:

You can adjust the sound tone of bass, mid, and treble areas individually. For details, see the following section.

[Off]:

No sound effect is applied.

3-3. When you select an item other than

“Custom” and “Off” in step 3-2, adjust the effect level by touching the [–] or [+] key. Setting range: –3 to +3

• The factory default setting is “0”.

Notes:

• The volume will change each time the Beat EQ function is switched.

• Sufficient effects may not be obtained with some speaker systems. In such cases, adjust the volume.

Adjusting the custom tone

3-1. Touch the [Beat EQ] key to display the Beat

EQ tab screen. 3-2. Touch the [Custom] key. 3-3. Perform the following settings to adjust the

sound tone.

● Adjusting the Bass

3-4. Touch the [Bass] key. 3-5. Touch the [–] or [+] key of the desired item

to adjust the effect level. Gain: –7 to +7

• The factory default setting is “0”. Frequency: 50Hz, 100Hz, 200Hz

• The factory default setting is “100Hz”. Q: 0.7, 1, 1.4, 2

• The factory default setting is “1”.

● Adjusting the Mid

3-4. Touch the [Mid] key. 3-5. Touch the [–] or [+] key of the desired item

to adjust the effect level. Gain: –7 to +7

• The factory default setting is “0”. Frequency: 500Hz, 1kHz, 2kHz

• The factory default setting is “1kHz”. Q: 0.7, 1, 1.4, 2

• The factory default setting is “1”.

● Adjusting the Treble

3-4. Touch the [Treble] key. 3-5. Touch the [–] or [+] key of the desired item

to adjust the effect level. Gain: –7 to +7

• The factory default setting is “0”. Frequency: 5

• The factory default setting is “10kHz”. Q: 0.7, 1, 1.4, 2

• The factory default setting is “1”.

kHz, 10kHz, 15kHz

❏ Adjusting the Balance/Fader

3-1. Touch the [BAL/FAD] key to display the

BAL/FAD tab screen.

3-2. Touch the [[] or []] key of the Balance item

to adjust the balance level.

[[]:

Emphasizes the sound from the left speakers.

[]]:

Emphasizes the sound from the right speakers. Adjustment range: left 12 to right 12

• The factory default setting is “0”.

NX700

3-3. Touch the [{] or [}] key of the Fader item

to adjust the fader level.

[{]:

Emphasizes the sound from the front

speakers.

[}]:

Emphasizes the sound from the rear

speakers.

Adjustment range: front 12 to rear 12

• The factory default setting is “0”.

❏ Adjusting the Low Pass Filter

You can adjust the cut-off frequency of the Low Pass Filter for the subwoofer output.

• The factory default setting is “Through”. 3-1. Touch the [Others] key to display the Others

tab screen.

3-2. Touch the [[] or []] key of the Low Pass

Filter item to adjust the setting. Settings: Through, 120Hz, 90Hz, 60Hz

English

Owner’s manual

❏ Setting the Sub Woofer

Control

You can adjust the volume output to the Sub Woofer.

• The factory default setting is “0”. 3-1. Touch the [Others] key to display the Others

tab screen. 3-2. Touch the [–] or [+] key of the Sub Woofer

Ctrl item to adjust the output level.

Setting range: –6 to +6

❏ Setting the Sub Woofer Phase

You can reverse the phase of the Sub Woofer output signal.

• The factory default setting is “Normal”. 3-1. Touch the [Others] key to display the Others

tab screen. 3-2. Touch the [Reverse] or [Normal] key of the

Sub Woofer Phase item to select the phase

setting.

❏ Adjusting the High Pass Filter

You can adjust the cut-off frequency of the High Pass Filter for the front/rear speaker output.

• The factory default setting is “Through”. 3-1. Touch the [Others] key to display the Others

tab screen. 3-2. Touch the [[] or []] key of the High Pass

Filter item to adjust the setting.

Settings: Through, 60Hz, 90Hz, 120Hz

❏ Setting the Amp Cancel

When an external amplifier is used, using this function reduces power noises of the audio lines.

• The factory default setting is “Off”. 3-1. Touch the [Others] key to display the Others

tab screen.

3-2. Touch the [}] key to display the next

screen.

3-3. Touch the [On] or [Off] key of the Amp

Cancel item to turn the Amp Cancel function on or off.

❏ Setting the BBE MP

This function works only for the sound in the USB mode, corrects the distorted waveform of the high-pass area when decoding the digital sound.

• The factory default setting is “Off”. 3-1. Touch the [Others] key to display the Others

tab screen.

3-2. Touch the [}] key to display the next

screen.

3-3. Touch the [[] or []] key of the BBE MP item

to set the correction level. Settings: Off, Low, Mid, High

❏ Turning on/off the Magna Bass

EXtend

The Magna Bass Extend does not adjust the low sound area like the normal sound adjustment function, but emphasizes the deep bass sound area to provide you with a dynamic sound.

• The factory default setting is “Off” 3-1. Touch the [Others] key to display the Others

tab screen.

3-2. Touch the [}] key to display the next

screen.

3-3. Touch the [On] or [Off] key of the Magna

Bass EX item to turn the Magna Extend function on or off.

Bass

NX700

❏ Setting the Audio

English

ATTenuation

The audio output can be attenuated when a voice interrupt of the navigation system arises.

• The factory default setting is “High”.

Owner’s manual

3-1. Touch the [Others] key to display the Others

tab screen. 3-2. Touch the [}] key to display the next

screen. 3-3. Touch the [[] or []] key of the Audio ATT

item to set the volume level when a voice

interrupt arises.

Settings: Mute, Low, Mid, High

General Settings

❏ Displaying the General screen

You can customize the various settings of this unit from the General screen.

1. Touch the [SET] key.

The Settings screen appears.

2. Touch the [General] key.

The General screen appears.

❏ Setting Camera Interrupt

When the optional Rear Vision Camera is connected to this unit, the rear view image is displayed on the screen when the gear lever is put in the reverse gear position.

• The factory default setting is “Off”. 3-1. Touch the [Display] key to display the

Display tab screen.

3-2. Touch the [NTSC], [PAL], or [Off] key of the

Camera Interrupt item to set to “NTSC”, “PAL”, or “Off”.

[NTSC]:

Turn on the function with the NTSC video system.

[PAL]:

Turn on the function with the PAL video system.

[Off]:

Turn off the function.

❏ Setting Camera Warning

The following warning message is displayed during use of the Rear Vision Camera: “Make sure of safety around your vehicle”.

• The factory default setting is “On”.

Note:

• This setting is disabled when the Camera Interrupt feature is set to Off.

3-1. Touch the [Display] key to display the

Display tab screen.

3-2. Touch the [On] or [Off] key of the Camera

Warning item to turn the Camera Warning function on or off.

3. Touch the desired Tab key, and perform the adjustment. See the following sections for details.

• In the following sections, only the details

regarding adjustments are described, procedures to select items are skipped.

4. When the adjustment completes, touch the [Back] key to return to the previous screen.

NX700

❏ Setting the AUX input (NTSC/

PAL)

• The factory default setting is “NTSC”.

Note:

• This setting is applied only to the AUX video input.

• If nonstandard video signals are input, the video

image may be disturbed.

• When you set to “Auto”, the vid eo image may be disturbed temporarily depending on the input video signal.

3-1. Touch the [Display] key to display the

Display tab screen.

3-2. Touch the [Auto], [NTSC], or [PAL] key of

the AUX input item to set the VTR system.

❏ Setting the Beep

The sound heard when you make operations is called “beep”. The system can be set so that it does not produce this beep sound.

• The factory default setting is “On”. 3-1. Touch the [System] key to display the

System tab screen.

3-2. Touch the [On] or [Off] key of the Beep item

to turn the Beep function on or off.

❏ Setting the Blink LED

You can set the unit to blink the Blink LED indication when the ACC power is turned off.

• The factory default setting is “Off”. 3-1. Touch the [System] key to display the

System tab screen.

3-2. Touch the [On] or [Off] key of the Blink LED

item to turn the Blink LED function on or off.

❏ Confirming the DivX

Registration Code and DivX URL

When you download a DivX VOD (Video-onDemand) file from a web site, entering the registration code of your playback system may be required to authorize the file. You can confirm the registration code of your system and the URL information by the following operation.

3-1. Touch the [System] key to display the

System tab screen.

3-2. Confirm the displayed information of the

DivX Registration Code and DivX URL items.

Note:

• The DivX registration code is not displayed when a disc is set in the DVD player.

❏ Performing the System Check

You can perform the system check by the following operation.

3-1. Touch the [System] key to display the

System tab screen.

3-2. Touch the [}] key to display the next

screen.

3-3. Touch the []] key of the System Check item.

The System Check screen is displayed.

3-4. Touch the [Start system check] key to

perform the system check manually. The system will be restarted after performing the system check.

❏ Resetting the navigation

system

You can reset the navigation system. 3-1. Touch the [System] key to display the

System tab screen.

3-2. Touch the [}] key to display the next

screen. 3-3. Touch the []] key of the System Check item. 3-4. Touch the [Reset NAVI module.] key to

reset the navigation system.

English

Owner’s manual

NX700

❏ Setting the anti-theft function

English

(CATS)

“CATS” is the acronym of “Clarion Anti-Theft System”. When you set a PIN code (called as “Personal Code”), a theft is prevented by disabling the operation of the unit at the theft.

Owner’s manual

In addition, set the Blink LED function to improve the effect of the CATS function (see page 49).

Setting your Personal Code

3-1. Touch the [System] key to display the

System tab screen.

3-2. Touch the [}] key to display the next

screen.

3-3. Touch and hold the blank area just below

the []] key of the System Check item for more than 2 seconds. The Personal Code screen appears.

• When a Personal Code is already set, the Erase Code screen will appear. Retry this operation after erasing the old Personal Code.

3-4. Enter your desired 4-digit Personal Code by

touching the [0] to [9] keys, then touch the [ENT] key.

• Touch the [BS] key when you make a mistake in entering.

3-5. Enter the same Personal Code again for

confirmation, then touch and hold the [ENT] key for more than 2 seconds. The entered Personal Code will be set, and it will return to the previous screen.

Note:

• Write down your Personal Code in case you forget it.

Erasing the Personal Code

3-1. Touch the [System] key to display the

System tab screen.

3-2. Touch the [}] key to display the next

screen.

3-3. Touch and hold the blank area below the []]

key of the System Check item for more than 2 seconds. The Erase Code screen appears.

3-4. Enter the Personal Code currently set by

touching the [0] to [9] keys, then touch and hold the [ENT] key for more than 2 seconds. The message “Personal Code has been erased” appears, and it will return to the previous screen.

When the ENTER PERSONAL CODE screen appears

The Personal Code screen will be displayed when turning the ACC power on after performing the following operations:

• The car battery was replaced.

• The backup power was cut off.

• The Reset button was pressed.

Note:

• If you forgot your Personal Code, please consult your dealer or an authorized Clarion service center.

1. Enter your Personal Code currently set.

2. When the correct Personal Code is entered,

the unit will restart from the initial startup screen.

Note:

• When you enter a wrong Personal Code, the message “Code Incorrect” is displayed and the Personal Code entry is prohibited for a while. This prohibited time is changed according to the number of times of wrong code entry as follows:

• 1 to 6 times: 15 seconds

• 7 times or more: 15 minu tes

NX700

❏ Setting the Auto Antenna

When an auto antenna which is extended automatically is used, you can set so that it is automatically extended/collapsed according to the power setting of this unit.

1. Touch the [SET] key to display the Settings screen.

2. Touch and hold the [Auto] or [Down] key of the Antenna item for more than 1 second to set this function.

Auto:

The auto antenna function is turned on.

Down:

The antenna is collapsed.

Adjusting the Monitor

You can customize the various monitor settings by the following operations.

❏ Setting the Screen mode

The system has two screen modes: the Day mode and Night mode. Each mode has the own dimmer setting. You can select these modes temporarily by performing the following operation.

• The factory default setting is “Auto”.

1. Press the [SRC] button to display the Source screen.

2. Touch the [Day], [Night], or [Auto] key to set the Screen mode.

[Day]:

Set the dimmer level temporarily to the Day mode (brighter).

[Night]:

Set the dimmer level temporarily to the Night mode (dimmer).

[Auto]:

The dimmer level is changed according to the status of the car light: When the car light is off: Day mode When the car light is on: Night mode

Note:

• When the Night Mod e setting of the navigation

system is set to “Automatic”, this setting also works upon the Color mode of the navigation system.

❏ Adjusting the Dimmer, Bright,

Color, Contrast, and Hue level

Note:

• The Bright, Color, Contrast, and Hue settings can be adjusted only when a video image is displayed on the screen, and the car is stopped with ap plying the parking brake.

• The Hue setting can be adjusted only when the NTSC mode is selected.

• The navigation screen has own dimmer setting separately from the AV screen. The dimmer adjustment in a mode does not affect each other screen.

• The Rear Vision Camera image cannot be adjusted directly. Perform the adjustme nts when displaying a video image of the other source.

1. Touch the [SET] key to display the Settings

screen.

2. Touch the [Monitor ADJ] key to display the

Monitor screen.

3. Touch the [Dimmer], [Bright], [Color],

[Contrast], or [Hue] key you wish to adjust, then touch the [–] or [+] key to adjust the level.

[Dimmer]:

Adjusts the panel brightness when the car lights are ON or OFF.

[+]: Press to make image brighter. [–]: Press to make image dimmer.

[Bright]:

Adjusts the brightness of the display.

[+]: Press to make image brighter. [–]: Press to make image dimmer.

[Color]:

Adjusts the color saturation.

[+]: Press to increase color depth. [–]: Press to decrease color depth.

[Contrast]:

Adjusts the contrast of the display.

[+]: Press to make contrast higher. [–]: Press to make contrast lower.

[Hue]:

Adjust the tone of color (red or green is emphasized). [+]: Press to increase green. [–]: Press to increase red.

4. When the adjustment completes, touch the

[Back] key to return to the previous screen.

English

Owner’s manual

NX700

English

8. TROUBLESHOOTING

If you have a problem with this system, check the following items to resolve it. See also our homepage (www.clarion.com) for additional information.

Owner’s manual

General

Problem Cause Measure

Power does not turn on. (No sound is produced.)

Nothing happens when buttons are pressed.

Display is not accurate.

The remote control unit does not work.

The display is dark. The Dimmer control is too

There are red, green and blue points in the display.

Fuse is blown. Replace with a fuse of the same amperage. If the

Incorrect wiring. Consult your store of purchase. The microprocessor has

malfunctioned due to noise, etc.

Direct rays of the sun fall on the light-receptive part of the remote control unit.

The battery of the remote control unit is dead or there is no battery in the remote control unit.

low. The operating condition is

not good.

The headlight of the vehicle is lit.

fuse blows again, consult your store of purchase.

Turn off the power. Press the Reset button with a thin rod.

Note:

When the Reset button is pressed, tur n off the ACC power.

Reset button

• The frequencies of radio stations, setting data, etc. stored in memory are not cleared even when the Reset button is pressed.

When direct rays of the sun fall on the lightreceptive part of the remote control unit, it may not work.

Check the battery of the remote control unit.

Adjust the Dimmer properly.

The temperature inside the vehicle may be 0°C or lower. Set to an appropriate temperature (25°C or so) and check it again.

The display is made dark at night to prevent the glare (when the headlight is the vehicle is lit in the daytime, the display gets dark).

This is not a failure, but a phenomenon peculiar to a liquid crystal display (The liquid crystal display is produced according to technology with very high precision. Note that, though there are effective pixels of 99.99% or more, pixel missing or normally lit pixels account for 0.01%).

NX700

DVD Player

Problem Cause Measure

Disc cannot be loaded.

Sound skips or is noisy.

Sound is bad directly after power is turned on.

The image is not displayed.

Disc cannot be played with the display “Parental Violation” shown.

Disc cannot be played.

The color of the display is light or a shade of color is not good.

Another disc is already loaded.

There is a foreign matter already in place.

Disc is dirty. Clean the disc with a soft cloth. Disc is heavily scratched or

warped. MP3/WMA/AAC files are

not encoded properly. Water droplets may form

on the internal lens when the car is parked in a humid place.

The parking brake is not engaged.

The view is limited. Release the view limitation or change the parental

File system is not correct. Use ISO9660 level 1/2, Romeo, Joliet, or Apple

The color is not adjusted adequately.

Eject the disc before loading the new one.

Eject the foreign matter forcibly.

Replace with a disc with no scratches.

Use MP3/WMA/AAC files encoded properly.

Let dry for about 1 hour with the power on.

Check that the parking brake is engaged.

level. See the subsection “Setting up the parental level” (page 25).

ISO file system for CD-R/RW, or UDF for DVD±R/ RW.

Check that the Bright, Color, Contrast, and Hue are adjusted properly.

English

Owner’s manual

NX700

USB Devices

English

Problem Cause Measure

USB device cannot be inserted.

Owner’s manual

USB device is not recognized.

No sound heard with the display “No File” shown.

Sound skips or is noisy.

The iPod’s video image is disturbed.

The USB device has been inserted with wrong direction.

The USB connector is broken.

The USB device is damaged.

Connectors are loose. No MP3/WMA/AAC file is

stored in the USB device.

MP3/WMA/AAC files are not encoded properly.

The TV Signal setting of the iPod is not set correctly.

Reversing the connection direction of the USB device, try it again.

Replace with a new USB device.

Disconnect the USB device and reconnect. If the device is still not recognized, try replacing with a different USB device.

Store these files properly in the USB device.

Use MP3/WMA/AAC files encoded properly.

Set the TV Signal setting (NTSC/PAL) of the iPod correctly.

9. ERROR DISPLAYS

If an error occurs, one of the following displays is displayed. Take the measures described below to solve the problem.

DVD Player

Display Cause Measure

Error 2 A disc is caught inside the

DVD player and is not ejected.

Error 3 A disc cannot be played

due to scratches, etc.

Error 6 A disc is loaded upside-

down inside the DVD player and does not play.

No MP3/WMA/AAC/DivX file is recorded on the disc.

Parental Violation Parental level error Set the correct Parental level. Wrong Region Region code error Eject the disc, and replace correct region code

DRM WMA files protected by

DRM are played.

Not Support Files not supported by this

unit are played.

This is a failure of DVD player’s mechanism. Consult your store of purchase.

Replace with a non-scratched, non-warped disc.

Eject the disc then reload it properly.

Write these files properly onto a disc.

disc. Perform the operation such as skipping a file.

(Repeat and random playback mode may be canceled.)

NX700

USB Devices

Display Cause Measure

Error 2 The connected USB device

Error 3 (USB memory)

Error 3 (iPod) The selected category has

Error 5 (iPod) The connected iPod is not

Bus Error Over-current or data error

Device Error The device is connected

DRM WMA files protected by

Not Support Files not supported by this

If an error display other than the ones described above appears, press the Reset button. If the problem persists, turn off the power and consult your store of purchase.

• The frequencies of radio stations, setting data, etc. stored in memory are not cleared even when the Reset button is pressed.

is not supported.

An error occurred when controlling the USB device.

no track data.

The iPod is frozen. Disconnect the iPod, reset it, and reconnect it

recognized.

is detected.

via the USB Hub.

DRM are played.

unit are played.

If the USB device is frozen, disconnect it, reset it, and reconnect it again.

Connect a proper USB device. Disconnect the USB device, and reconnect it

again. Touch the [{ (Track)] key. If the error is not

cleared, disconnect the iPod, and reconnect it again.

again. Disconnect the iPod, and reconnect it again. If the

iPod is still not recognized, try replacing with a different iPod.

If the iPod is frozen, disconnect it, reset it, and reconnect it again.

Turn off the ignition switch, disconnect the device, restart the engine and reconnect it again. If the device is still not recognized, try replacing with a different device.

Disconnect the device, and reconnect directly to the USB connector of this unit without using the USB Hub.

Perform the operation such as skipping a file. (Repeat and random playback mode may be canceled.)

English

Owner’s manual

NX700

English

10.SPECIFICATIONS

FM Tuner

Frequency Range: 87.9 MHz to 107.9 MHz

Owner’s manual

Usable Sensitivity: 9 dBf 50dB Quieting Sensitivity: 15 dBf Alternate Channel Selectivity: 70 dB Stereo Separation (1 kHz): 38 dB Frequency Response (±3 dB): 30 Hz to 15 kHz

AM Tuner

Frequency Range: 530 kHz to 1710 kHz Usable Sensitivity: 28 dBμV

DVD Player

System:

Digital Versatile Disc System with CDDA capable

Usable discs:

DVD video disc, Compact disc

Frequency Response:

20 Hz to 20 kHz (CD) (±1 dB) Signal to Noise Ratio: 100 dB (1 kHz) Dynamic Range: 100 dB (1 kHz) Distortion: 0.01%

USB

Specification: USB 2.0 Full Speed File system: FAT12/16/32, non-VFAT-compliant Playable audio format:

MP3 (.mp3): MPEG 1/2 Audio Layer-3

WMA (.wma): Ver. 7/8/9.1/9.2

AAC (.m4a): AAC format encoded by iTunes

and iTunes+ only Maximum number of folders: 512 Maximum number of files: 255 (for a folder) Maximum folder hierarchy: 8 levels (including Root) Maximum power supply: 500 mA

Input

Audio input sensitivity:

High: 0.65 V (at 2 V output) Mid: 1.3 V (at 2 V output) Low: 2.0 V (at 2 V output) (input impedance 10 kΩ or greater)

Video input:

1.0 ±0.2 Vp-p (input impedance 75 Ω)

Video Output

Video output:

1.0 ±0.2 Vp-p (output impedance 75 Ω)

LCD Monitor

Screen Size: 7-inch wide type

6" Width (152 mm) × 3-5/16" Height (85 mm)

Display method:

Transmission type TN liquid crystal display

Drive method: TFT (thin-film transistor)

active matrix driving

Pixels: 336,960 (1440 × 234)

General

Power source voltage:

14.4 V DC (10.8 to 15.6 V allowable) Ground: Negative Current consumption: 3.5 A (1 W) Auto Antenna Rated Current: 500 mA less Dimensions of the Main Unit:

7" Width (178 mm) × 3-15/16" Height (100 mm)

× 6-5/16" Depth (160 mm) Weight of the Main Unit: 2.6 kg Dimensions of the Remote Control Unit:

1-3/4" Width (43.4 mm) × 1/2" Height (12.5 mm)

× 4-1/2" Depth (112.7 mm) Weight of the Remote Control Unit:

60 g (including battery)

Bluetooth

Specification: Bluetooth Ver. 2.0 + EDR Profile:

HFP (Hands-Free Profile) DUN (Dial-up Networking Profil e) SPP (Serial Port Profile)

Send/Receive Sensitivity: Cl ass 2

Audio Amplifier

Maximum power output:

200 W (50 W × 4)

Speaker impedance: 4 Ω (4 to 8 Ω allowable)

NX700

6-5/16" (160mm)

6-3/4" (171 mm)

7" (178 mm)

Note:

• Specificati ons comply with JEITA Standards.

• Specificati ons and design are subject to change

without notice for further improvement.

3-15/16" 100 mm

2" (25mm)

Power Output:

20 W x 4 Channels RMS [4 Ω @

14.4 V ≤ 1 % THD+N]

Signal to Noise Ratio:

84 dBA (reference: 1 W into 4 Ω)

INSTALLATION AND WIRE CONNECTION MANUAL

English

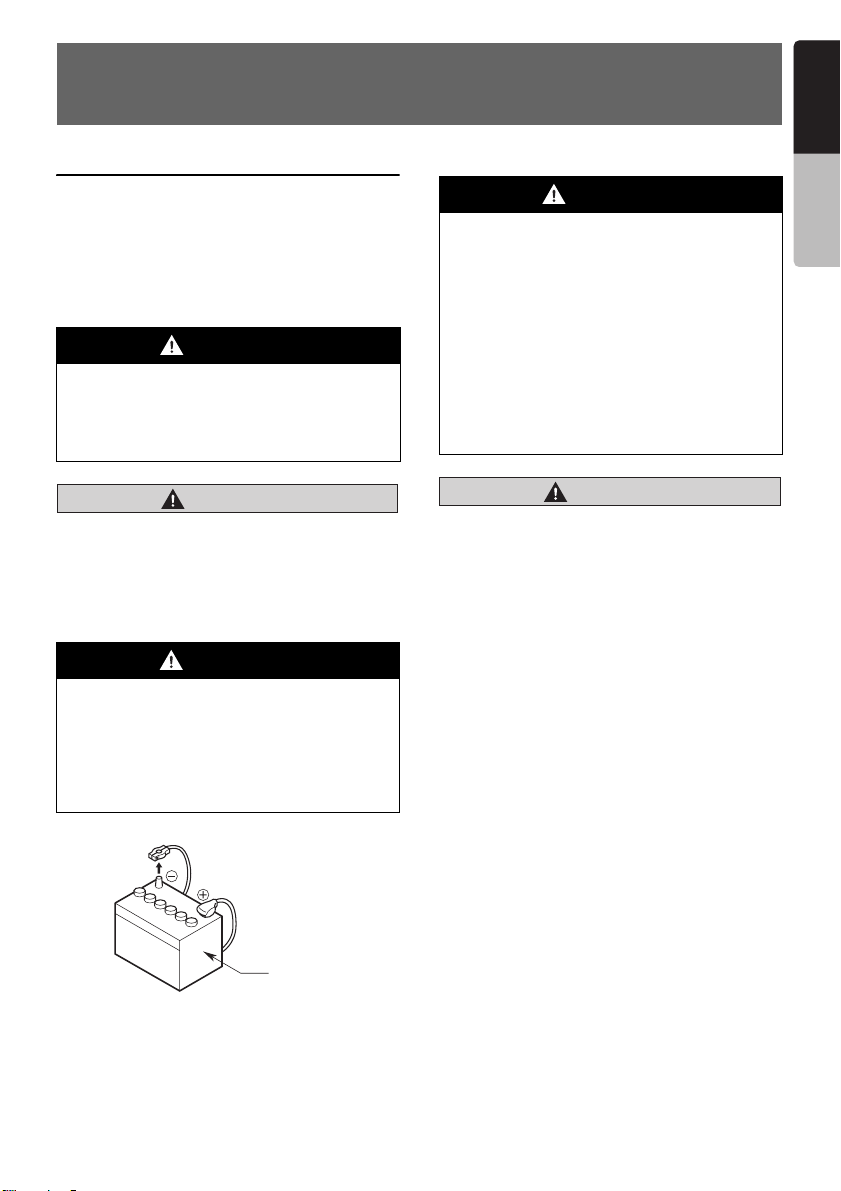

1. SAFETY PRECAUTIONS

Symbol Identification

This manual uses symbols and icons to indicate safety precautions and concerns during the installation procedure. Be sure to carefully read and understand each precaution prior to beginning the installation.

WARNING

This symbol is intended to alert the user to the presence of important operating instructions. Failure to heed the instructions may result in severe injury or death.

CAUTION

This symbol is intended to alert the user to the presence of important operating instructions. Failure to heed the instructions can result in injury or material damage.

Before Use

WARNING

• Confirm the battery voltage of the vehicle

to be installed. This unit is designed only for vehicles with DC 12V power supply.

• Disconnect the negative terminal of the

battery before connecting wires, otherwise an electric shock, injury by short circuit may occur.

Installation Precautions

WARNING

• When installing the unit to a vehicle with

an airbag system, never install it in a place where it may affect the operation of the airbag.

• Do not install this unit in the following

locations: A location interfering with the driver’s visual range or operation. A location where the gear shift or brake pedal are hindered. A location where passengers are at risk. An unstable location, or where the system may fall.

CAUTION

• Do not install the system in the locations

described below. This may cause a fire, accident or electrical shock: A location exposed to rain or dust. An unstable location, or where the system may fall.

• Do not install this unit in a place exposed to

direct sunlight, heat or a place where the vent holes or heat radiation holes are covered.

• When you install the antenna, mount it in a

place where the elements of the antenna do not protrude beyond the edge of the front, back, left and right of the vehicle. If it comes in contact with pedestrians, it may cause an accident.

INSTALLATION

MANUAL

Car battery

NX700

Installation Notes

English

WARNING

• Please note the position of pipes, tanks

and electrical wirings before installing the unit into the vehicle; failure in

INSTALLATION

MANUAL

avoiding these may cause a fire or malfunction.

CAUTION

• Use only the supplied parts.

If unspecified parts are used, they may cause damage.

• Any holes made in the body of the vehicle

should be sealed with a silicon adhesive. If exhaust fumes or water penetrates into the vehicle, this may cause an accident.

• Fasten the bolts securely when installing

the unit. If the bolts are loose an accident or malfunction could occur.

Connection Notes

WARNING

• Loom all cables according to the

instruction manual, so as not to hinder operation.

• Wire the connecting cords/cables away

from high temperature areas. If the coatings of the cables melt, it could cause an accident/fire by a short circuit. Take care when wiring in the engine compartment.

• When wiring the connecting cables in a

vehicle with an airbag system, never feed the cables through a place where it may affect the operation of the airbag. An airbag not operating correctly in an emergency may cause increased injury.

CAUTION

• Verify wires with a digital multi-meter prior

to making any connections. Many new vehicles use multiplexed and/or low voltage circuits that can be damaged if a test light or logic probe is used.

• Connect cables appropriately. If a wrong

connection is made, this may cause a fire or accident.

• When passing cables through the body of

the vehicle, use non-conductive grommets. If the coatings of the cables are worn out by rubbing, this may cause an accident, fire or a short circuit.

• After wiring cables, fix them with insulation

tape.

• Be sure to switch off the vehicle when

connecting or disconnecting cords to/from the unit, otherwise an electric shock, injury or accident may occur.

2. PACKAGE CONTENTS

1 Main unit 2 Quick Start Guide 3 Installation Manual 4 CD-ROM

• Owner’s manual & Installation Manual

• User Manual - Clarion Mobile Map

• User Manual - Bluetooth Connectivity

5 Power supply cord 6 RCA pin cord 7 Bag for accessories

Flat head screw (M5 × 8 mm)...................... 8

Hexagonal bolt (M5 × 8 mm) ....................... 8

Rubber cap (for RCA pin cord).................. 14

Lead holder.................................................. 3

Double-sided tape

for fastening GPS antenna.......................... 1

8 Remote control unit 9 Battery 0 Finisher ! Warranty card @ GPS antenna # Microphone

Note:

• The provided disc (CD-ROM manual) cannot be

played back on this unit.

NX700

3. GENERAL CAUTIONS

• Do not open the case. There are no userserviceable parts inside. If you drop anything into the unit during installation, consult your dealer or an authorized Clarion service center.

4. CAUTIONS ON

INSTALLATION

• Prepare all articles necessary for installing the main unit before starting.

• This model features an operation panel that slides forward. On some types of cars, the operation panel may make contact with the dashboard or gearshift lever, in which cause it cannot be installed. Before installing, check that the unit will not hamper operation of the gearshift lever or obstruct your view before selecting the installation location. (Figure 2)

Dashboard

Gearshift lever (check that it does not touch the LCD.)

• Install the unit within 30° of the horizontal plane. (Figure 3)

Figure 2

• Use the included screws for installation. Using other screws can cause damage. (Figure 4)

Chassis

Max. 3 mm (M4 screw)/ Max. 8 mm (M5 screw)

• This unit has a fan motor in the left side of the main unit so as not to raise the temperature in the main unit. When the fan motor vent is covered with cords or mounting bracket, it may cause a malfunction. Be sure not to cover it when wiring cords. (Figure 5)

Fan motor vent

Chassis

Damage

Figure 4

Figure 5

English

INSTALLATION

MANUAL

Max. 30°

Figure 3

• If you have to do any modification on the car body, such as drilling holes, consult your car dealer beforehand.

NX700

5. INSTALLING THE MAIN UNIT

English

This unit is designed for fixed installation in the dashboard.

• When installing the main unit in NISSAN vehicles, use the parts attached to the unit and follow the instructions in Figure 6.

INSTALLATION

When installing the main unit in TOYOTA

MANUAL

vehicles, use the parts attached to the vehicle and follow the instructions in Figure 7.

Mounting Screw Holes (Side View of the Main Unit)

For NISSAN vehicle For TOYOTA vehicle

Installing the Main Unit in a NISSAN Vehicle

• Wire as shown in Section 10 (see page 65).

• Reassemble and secure the unit in the dashboard and set the face panel and center panel.

Main Unit

Finisher (*1)

Mounting bracket (1 pair for the left and right sides)

Figure 6

Note:

*1 Position the face panel with its wide edge at the bottom. Fit the edge into the groove of the main unit.

NX700

6-Spacer (thickness: 1 mm)

6-Flat head screw (M5 × 8) (attached to the main unit)

Installing the Main Unit in a TOYOTA Vehicle

Install by using parts attached to the vehicle. (Screws marked ★ are attached to the vehicle.)

Main Unit

8-Hexagonal screw (M5 × 8)

English

INSTALLATION

MANUAL

Center Panel *2

Note:

*2 Some panel openings are too small for the unit

depending on the vehicle type an d model. In such a case, trim the upper and lower sides of the panel frame by about 0.5 to 1.5 mm so the unit can be inserted smoothly.

Figure 7

*3If a hook on the installation bracket in terferes

with the unit, bend and flatten it with a nipper or similar tool.

Mounting bracket (1 pair for the left and right sides)

Typical Mounting Brackets

Example 1 Example 2 Example 3

Affix the screws to the ● marks.

Vehicles other than NISSAN and TOYOTA

In some cases the center panel may require modification. (Trimming, filing, etc.)

NX700

6. REMOVING THE MAIN UNIT

English

When the main unit is to be removed, disassemble it in the reverse of the order in “INSTALLTING THE MAIN UNIT” (see page 60).

7. CAUTIONS ON WIRING

INSTALLATION

MANUAL

• Be sure to turn the power off before wiring. Be particularly careful where you route the wires.

• Keep them well away from the engine, and exhaust pipe, etc. Heat may damage the wires.

• If the fuse should blow, check to see if the wiring is correct. If a fuse is blown, replace it with a new one of the same specification as the original.

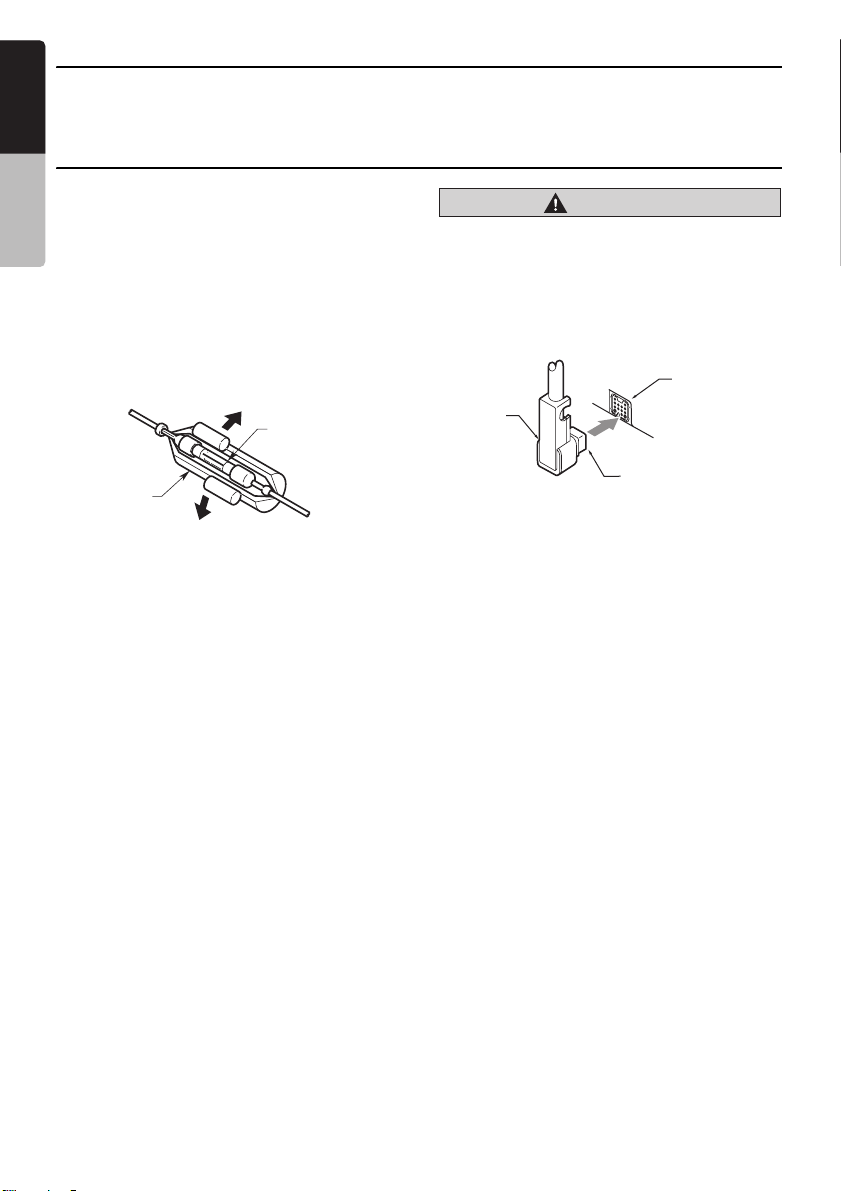

• To replace the fuse, remove the old fuse of the power supply cord and insert the new one. (Figure 8)

Fuse (15A FUSE)

Fuse holder

Figure 8

Note:

• There are various types of fuse holder. Do not let

the battery side touch other metal parts.

caution

CAUTION

After the connection, fix the cord by a clamp or insulation tape for protection.

• Connect the CeNET extension cable fully and securely until it locks. When the CeNET extension cable is pulled, hold the slide cap part and pull it towards you. (Figure 9)

CeNET terminal

Slide cap

CeNET cable

Figure 9

NX700

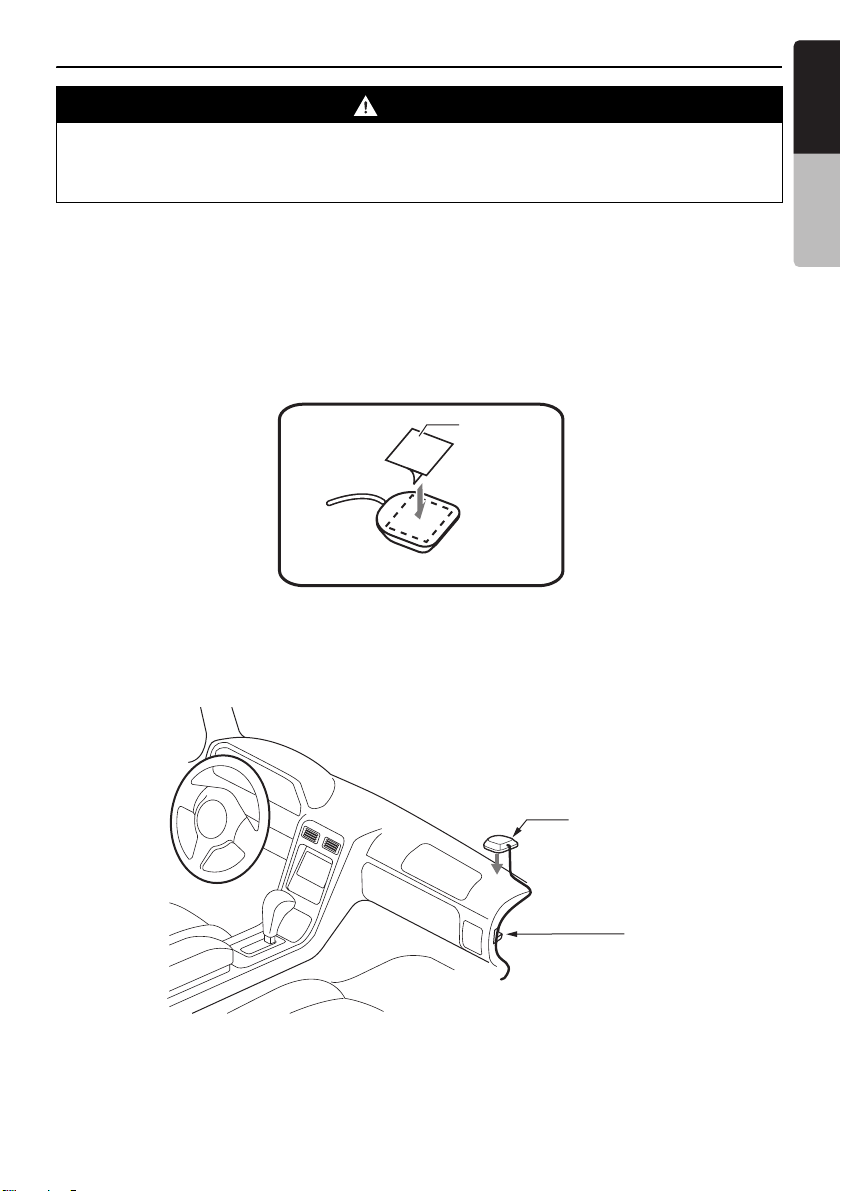

8. INSTALLING THE GPS ANTENNA

WARNING

• Do not install the GPS antenna in a place where it may interfere with the operation of the airbag or hinder the driver’s visual range.

• Do not use the navigation system with the GPS antenna cord cut off. The power cables in the cord may be short-circuited.

Note:

• The supplied GPS antenna is for installing inside the vehicle. Do not install it outside the vehicle.

• Install the GPS antenna more than 50 cm away from the main unit, other audio devices such as CD player, and a radar detector. If it is installed near these devices, GPS reception may be impaired.

• To improve the GPS signal reception, install the GPS antenna horizontally on a flat plane.

• Do not wax or paint the cover of the GPS antenna. This may reduce the performance of the GPS antenna.

• Install the GPS antenna at least 10 cm away from the windshield.

• Wipe off the dirt of the mounting surface before installing the GPS antenna.

• Stick the double-sided tape to the bottom face of the GPS antenna.

Double-sided tape

Bottom face of the GPS antenna

• Mount the GPS antenna.

Stick it surely on a flat plane of the passenger-side dashboard where GPS signal interruption is minimized.

• Wire the GPS antenna cord.

Fasten the cord using the cord holders.

English

INSTALLATION

MANUAL

(Shows an example in case of the left-hand traffic.)

GPS antenna

Cord holder

NX700

9. MICROPHONE ACCESSORY

English

Note:

• Do not leave the microphone of Bluetooth handsfree in the places with wind passing such as air outlet of the air conditioner, etc. This may cause a malfunction. In addition, if leave it in the places subjected to direct sun, high temperature can cause distort io n, di scoloration which may result in a malfunction.

INSTALLATION

MANUAL

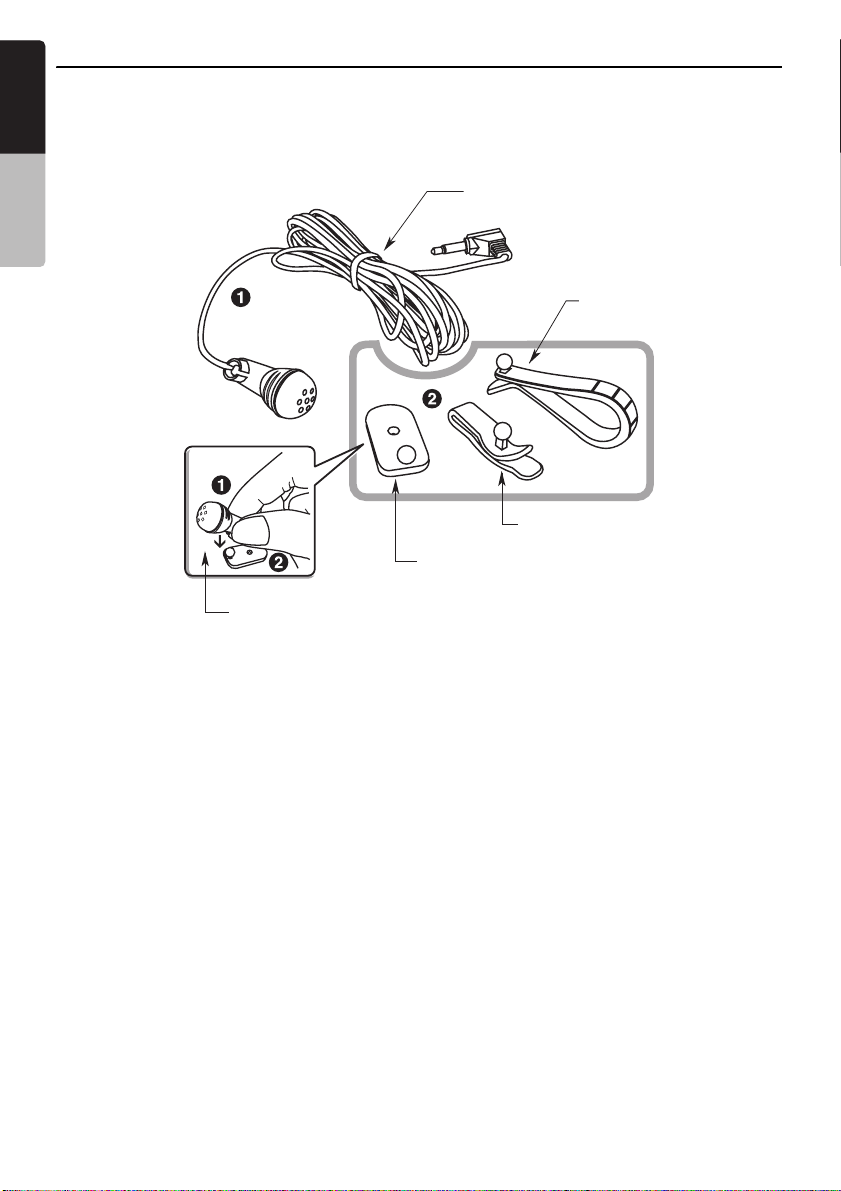

Attach the microphone with the MIC holder or visor clip

Microphone

Visor Clip Type A

Visor Clip Type B

MIC Holder

• External microphone has to be connected at the back of the main unit during installation if necessary.

NX700

10.WIRE CONNECTION

English

Gray

Black

Purple

Gray

Radio antenna jack

USB terminal

Red

Right

Left White Red

Right

Left White

Red

Subwoofer output

White Yellow

terminal (MONO 2ch)

Video output terminal

Microphone

Front audio output terminal

Rear audio output terminal

GPS antenna jack

Steering wheel remote control terminal

CeNET terminal

Refer to the following page.

Connection cable (included in your iPod/iPhone)

iPod with video/iPhone

Connection cable

(CCA-723/CCA-

748)

Connect to the AUX audio input terminal

and the iPod

video input terminal.

* Audio connection is required only

when [Analog] is selected for the iPod output signal (page 42).

4-Channel Amplifier

iPod/iPhone

INSTALLATION

MANUAL

Green

Black

Red

Right

Left White

Yellow

Rear Vision Camera

terminal

Yellow

AUX video input terminal Yellow

iPod video input terminal

Red

Right

Left White

(2-Zone audio output terminal)

Connect to the AUX audio/ video input terminal.

AUX audio input terminal

Rear Monitor

Wireless Headphone

VTR etc.

NX700

English

INSTALLATION

MANUAL

Blue/White

Orange/White

Blue

Grass-green

Purple/white

Purple Purple/Black Red

Gray

Gray/Black

White White/Black

Brown

Green Green/Black

Yellow

Black Yellow

Rear right + Rear right -

Front right + Front right Front left +

Front left No connection Rear left +

Rear left Amplifier turn-on cord

Illumination Auto antenna

Parking brake cord Reverse gear cord

+12V main power

Ground CeNET bus backup

+12V accessory

See next page for how to connect the parking brake cord.

NX700

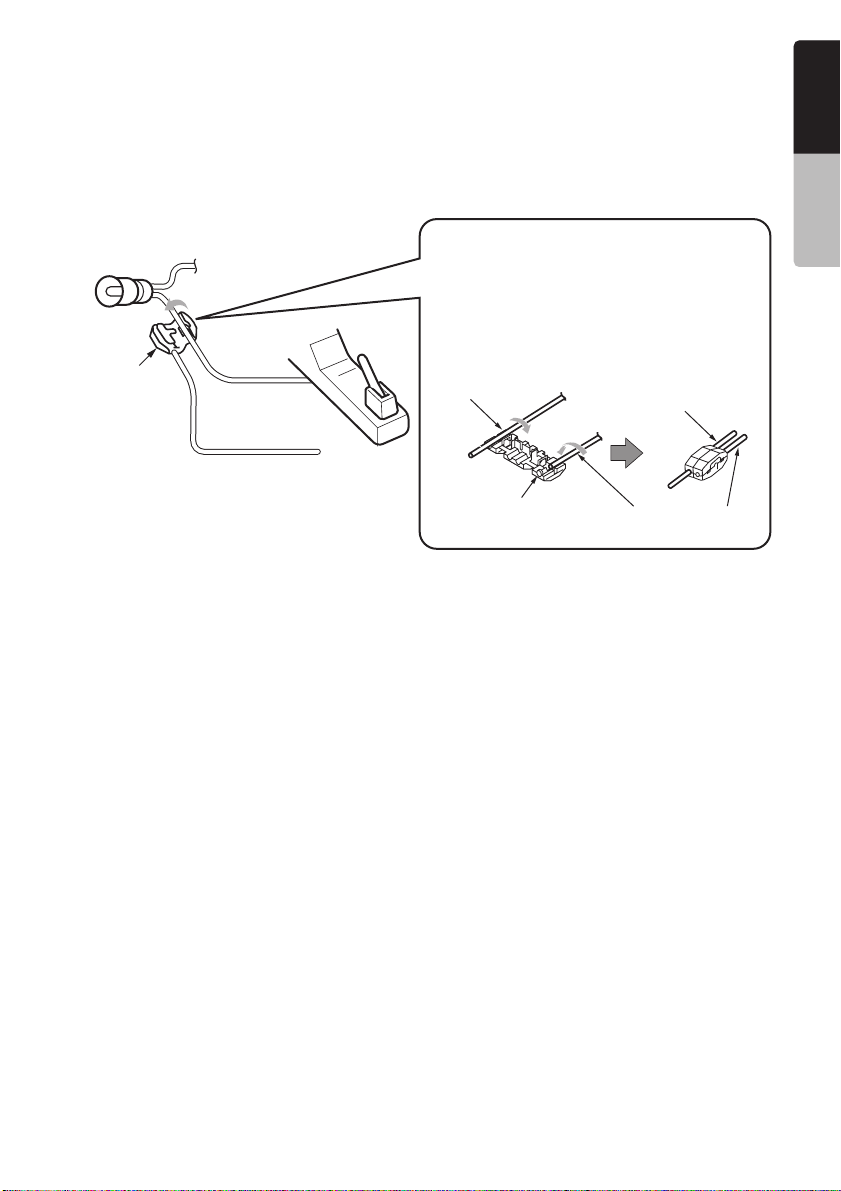

● Connecting the parking brake cord

Connect the cord to parking brake lamp ground in the meter panel.

Note:

• Connecting the parking brake cord to lamp ground allows you to watch video images when the parking brake is engaged.

• When the parking brake cord is not connected, th e monitor will not display video images.

• If “Audio Only” appears on the screen just after turn ing on the ACC power of the car, release the parking

brake while confirming safety, and then engage the parking brake again.

English

INSTALLATION

MANUAL

Parking brake lamp

Electro-tap (sold separately)

Parking brake cord (Grass-green)

+ cord to battery

Parking brake

Parking brake signal cord

● How to attach the electro-tap

1. Place the Parking brake cord at the stopper, and fold it back in the direction of the arrow.

2. Pass the Parking brake signal cord through, and fold it back in the direction of the arrow.

Parking brake signal cord

Stopper

Parking brake signal cord

Parking brake cord (Grass-green)

Connecting the Accessories

● Connection to the Rear Vision Camera for vehicle

The Rear Vision Camera for vehicle can be connected to Rear Vision Camera video input terminal of the RCA pin cord. For detailed information, refer to the instruction sheet or manual for the Rear Vision Camera.

Note:

• Be sure to connect the reverse gear cord to the veh icle’s relevant terminal.

• Connect the Rear Vision Camera to the RCA pin cord; if not, the screen turns black while the gearshift lever

is in the reverse gear position.

• The power supply box CAA185 (sold separately) is required for connection of the main unit and the Rear Vision Camera.

● Sirius Tuner and XM Mini-Tuner

Connect these tuners to the CeNET connector via Translator adapter sold separately. For detailed information, refer to the instruction manual of these tuners.

NX700

2010/1

Clarion Co., Ltd.

QY-5014B

280-8883-00

User Manual Clarion Mobile Map

NX700

The product and the information contained herein is subject to change without prior notification.

This manual may not, in whole or in part, be reproduced or transmitted in any form either electronically or mechanically, including photocopying and recording, without the express written consent of Clarion.

Thank you for choosing the Clarion NX700 as your in-car navigator. This document is the detailed description of the software.

You can easily discover Clarion Mobile Map while you are using it; however, we still recommend that you read this manual to understand the screens and the features of Clarion Mobile Map.

Table of contents

1 Warnings and Safety information .................................................................................. 7

2 Getting started with Clarion Mobile Map ..................................................................... 8

2.1 Simple and Advanced modes ..................................................................................................10

2.2 Buttons and other controls on the screen ............................................................................... 11

2.2.1 Using keyboards.............................................................................................................................12

2.3 Using the map ......................................................................................................................... 13

2.3.1 Checking the details of a map location ..........................................................................................13

2.3.2 Manipulating the map ....................................................................................................................14

2.3.3 Lane information and Signposts.....................................................................................................16

2.3.4 Status information and hidden controls on the map .......................................................................17

2.3.5 Using the Cursor (the selected map location) ................................................................................20

2.4 Clarion Mobile Map concepts ................................................................................................ 21

2.4.1 Smart Zoom ................................................................................................................................... 21

2.4.2 Position markers.............................................................................................................................22

2.4.2.1 Current GPS position and Lock-on-Road ............................................................................................... 22

2.4.2.2 Returning to normal navigation .............................................................................................................. 22

2.4.2.3 Selected location (Cursor) ...................................................................................................................... 23

2.4.2.4 Original position in the Cursor menu ..................................................................................................... 23

2.4.3 Daytime and night color profiles ...................................................................................................24

2.4.4 Color scheme in tunnels .................................................................................................................24

2.4.5 Route calculation and recalculation ...............................................................................................24

2.4.6 Itinerary ..........................................................................................................................................25

2.4.7 Track Logs ..................................................................................................................................... 26

2.4.8 Route demonstration ......................................................................................................................26

2.4.9 POI (Points of Interest) .................................................................................................................. 27

2.4.10 Road Safety Cameras ...................................................................................................................27

2.4.10.1 Camera types ........................................................................................................................................ 28

2.4.10.2 Camera directions................................................................................................................................. 29

2.4.11 Speed limit warning .....................................................................................................................30

3 Navigating with Clarion Mobile Map .......................................................................... 31

3.1 Selecting the destination of a route ........................................................................................ 31

3.1.1 Selecting the Cursor as the destination ..........................................................................................31

3.1.2 Entering an address or part of an address .......................................................................................32

3.1.2.1 Entering an address ................................................................................................................................ 32

3.1.2.2 Entering an address if house numbering is restarted ..............................................................................34

3.1.2.3 Entering an address without knowing the district/suburb ....................................................................... 35

3.1.2.4 Selecting an intersection as the destination ............................................................................................36

3.1.2.5 Selecting a city center as the destination ................................................................................................ 37

3.1.2.6 Entering an address with a ZIP code ...................................................................................................... 38

3.1.2.7 Tips on entering addresses quickly ......................................................................................................... 39

3.1.3 Selecting the destination from your Favorites ................................................................................40

3.1.4 Selecting the destination from the POIs .........................................................................................40

3.1.5 Selecting the destination with saved POI search criteria ............................................................... 41

3.1.6 Selecting the destination from the History .....................................................................................42

3.1.7 Selecting the destination by entering its coordinates .....................................................................42

3.2 Creating a multi-point route (inserting a via point)

............................................................... 43

3.3 Creating a multi-point route (appending a new destination) ................................................. 44

3.4 Editing the route ..................................................................................................................... 44

3.5 Viewing the entire route on the map (Fit-to-Screen) .............................................................. 45

3.6 Watching the simulation of the route ...................................................................................... 45

3.7 Enabling Safety Mode ............................................................................................................. 46

3.8 Pausing the active route ......................................................................................................... 46

3.9 Deleting the next via point from the route .............................................................................. 46

3.10 Deleting the active route....................................................................................................... 47

3.11 Using Track Logs .................................................................................................................47

3.12 Saving the active route .........................................................................................................49

3.13 Loading a saved route .......................................................................................................... 49

4 Reference Guide (Advanced mode) .............................................................................. 50

4.1 Map screen .............................................................................................................................51

4.1.1 Icons on the map ............................................................................................................................54

4.1.1.1 GPS position quality and Vehicle type indicator .................................................................................... 54

4.1.1.2 Status indicator strip ............................................................................................................................... 55

4.1.1.3 Phone call in progress ............................................................................................................................ 55

4.1.1.4 Next two route events (Turn Preview fields) ........................................................................................... 56

4.1.2 Objects on the map .........................................................................................................................57

4.1.2.1 Streets and roads .................................................................................................................................... 57

4.1.2.2 3D object types ....................................................................................................................................... 57

4.1.2.3 Elements of the active route .................................................................................................................... 57

4.1.3 Detour menu ..................................................................................................................................59

4.1.4 Cursor menu ...................................................................................................................................59

4.1.5 Position menu ................................................................................................................................61

4.1.6 Route Information screen ...............................................................................................................62

4.1.7 Trip Information screen ................................................................................................................. 63

4.1.7.1 Trip Computer screen ............................................................................................................................. 65

4.1.8 Quick menu ....................................................................................................................................66

4.1.9 GPS Data screen ............................................................................................................................ 67

4.2 Find menu ............................................................................................................................... 68

4.3 Route menu ............................................................................................................................. 69

4.4 Manage menu ......................................................................................................................... 70

4.4.1 Manage Saved Routes .................................................................................................................... 70

4.4.2 Manage History .............................................................................................................................. 71

4.4.3 Manage Track Logs ....................................................................................................................... 71

4.4.4 Manage Favorites ...........................................................................................................................72

4.4.5 Manage POIs .................................................................................................................................. 73

4.4.6 Manage Saved Search Criteria .......................................................................................................74

4.4.7 User Data Management .................................................................................................................. 75

4.5 Settings menu .......................................................................................................................... 76

4.5.1 Map Screen settings .......................................................................................................................77

4.5.2 Sound settings ................................................................................................................................ 78

4.5.3 Route Planning options ..................................................................................................................79

4.5.4 Regional settings ............................................................................................................................81

4.5.5 Navigation settings .........................................................................................................................82

4.5.6 Warning settings ............................................................................................................................83

4.5.7 Menu settings .................................................................................................................................84

4.5.8 Device settings ...............................................................................................................................84

4.5.9 Track Log settings ..........................................................................................................................85



5 Glossary ........................................................................................................................... 86

6 End User License Agreement ........................................................................................ 88

1 Warnings and Safety information

Clarion Mobile Map is a navigation system that helps you find your way to your destination with its GPS receiver. Clarion Mobile Map does not transmit your GPS position; others cannot track you.

It is important that you look at the display only when it is safe to do so. If you are the driver of the vehicle, we recommend that you operate Clarion Mobile Map before you start your journey. Plan the route before your departure and stop if you need to change something in the route.

Clarion Mobile Map has a Safety Mode: if you turn on Safety Mode, you cannot change anything in Clarion Mobile Map while the vehicle is moving at a speed of 10 km/h (6 mph) or higher. Unless only passengers operate Clarion Mobile Map, we strongly encourage you to turn on Safety Mode.

You must obey the traffic signs and follow the road geometry. If you deviate from the route that Clarion Mobile Map recommended, Clarion Mobile Map changes the instructions accordingly.

Never place any part of the navigation system where it obstructs the driver's view, where it is in the deployment zone of an airbag or where it might cause injuries in an accident.

For more information, consult the End User License Agreement (page 88).

2 Getting started with Clarion Mobile Map

Clarion Mobile Map is optimized for in-car use. You can use it easily by tapping the screen buttons and the map with your fingertips.

Clarion Mobile Map can plan routes throughout the whole installed map set; you do not need to change maps or switch to a poorly detailed general map to navigate between map segments or countries.

Tasks Instructions

Double tapping the screen

Tapping and holding the screen

You do not need to tap the screen twice for any action. With buttons and controls, a single tap is enough.

You do not need this to access the basic navigation functions. Tap and keep pressing the following buttons to reach extra functions:

x Tap and hold

maximum zoom level of Smart Zoom.

x Tap and hold any of the

you can set or reset the zoom value of the button (2D map).

x Tap and hold any of the

you can set or reset the tilt and zoom values of the button (3D map).

x Tap and hold

appears.

x Tap and hold any of the

buttons on the Map screen: you can rotate, tilt or scale the map continuously.

on the Map screen: you can set the minimum and

buttons on the Map screen:

on list and menu screens: the Navigation menu

, , , , , and

x Tap and hold

characters quickly.

x Tap and hold

continuously.

x Tap and hold the buttons in the Quick menu to open screens related with

the function of the button from the Manage menu or the Settings menu.

on keyboard screens: you can delete several

or in long lists: you can scroll pages

Start using Clarion Mobile Map

When Clarion Mobile Map is started the first time, you need to do the following:

1. Select the written language of the application interface. Later you can change it in Settings (page

81).

2. Select the language and speaker used for voice guidance messages. Later you can change it in Settings (page 81).

3. Read and accept the End User License Agreement (page 88).

Select whether to start the program in Simple mode or in Advanced mode. Later you can switch between the two operating modes in Settings.

5. Read and accept the road safety warning.

After this, the Navigation menu appears and you can start using Clarion Mobile Map.

The Navigation menu in Simple mode:

The Navigation menu in Advanced mode:

The typical way of using Clarion Mobile Map is to select a destination, and start navigating. You can select your destination in the following ways (not all of them are available in Simple mode):

x Use the selected location on the map (the Cursor) (page 31).

x Enter a full address or a part of an address, for example a street name without a house number or

the names of two intersecting streets (page 32).

x Enter an address with ZIP code (page 38). This way you do not need to select the name of the city

and the search for street names might be faster as well.

x Use a coordinate (page 42)

x Use a saved location:

x a Favorite (page 40)

a POI (page 40)

x the History of previously set destinations and waypoints (page 42)

2.1 Simple and Advanced modes

The two operating modes of Clarion Mobile Map mainly differ in the menu structure and the number of available features. The controls and screen layouts are the same.

x Simple mode: you have easy access to the most important navigation functions and the basic

settings only. The rest of the settings are set to values that are optimal for typical use.

x Advanced mode: you have access to the full functionality of Clarion Mobile Map.

To switch from Simple mode to Advanced mode: on the startup screen (Navigation Menu), tap

To switch from Advanced mode to Simple mode: on the startup screen (Navigation Menu), tap

The features and settings available in each mode are as follows:

Type of action Available in

Simple mode

Navigating to a selected map point Yes Yes See page 31

Navigating to a street address Yes Yes See page 32

Navigating to an incomplete address

Navigating to an intersection Yes Yes See page 36

Navigating to recent destinations (History)

Navigating to Favorites Yes Yes See page 40

Yes Yes See page 32

Yes Yes See page 42

Available in

Advanced mode

Explanation

Navigating to a POI Yes Yes See page 40

Navigating to coordinates No Yes See page 42

Creating a multi-point route No Yes See page 43

Saving a map point as a Favorite destination

Saving a map point as a POI No Yes See page 59

Saving a map point as a location of a Road Safety Camera

Mark a map point with a Pin No Yes See page 59

Saving the active route No Yes See page 49

Saving Track Logs No Yes See page 26

Map Screen settings Only color profiles (from

Yes Yes See page 59

No Yes See page 59

Yes See page 77

Quick Menu)

Menu settings Only background


Sound settings Yes (from Quick Menu) Yes See page 78

Route Planning options Yes Yes See page 79

Regional settings Only language selection Yes See page 81

Warnings No Yes See page 83

Yes See page 84

2.2 Buttons and other controls on the screen

When you are using Clarion Mobile Map, you usually tap buttons on the touch screen.

You only need to confirm selections or changes in Clarion Mobile Map if the application needs to restart, it needs to perform a major reconfiguration, or you are about to lose some of your data or settings. Otherwise, Clarion Mobile Map saves your selections and applies the new settings without confirmation as soon as you use the controls.

Type Example Description How to use it

Button

Tap it to initiate a function, to open a new screen, or to set a parameter.

Tap it once.

Icon

List

Slider

Shows status information.

When you need to select from several options, they appear in a list.

When a feature has several different unnamed values, Clarion Mobile Map shows an indicator on a gauge that displays and sets a value from a range.

Some icons also function as a button. Tap them once.

Move between pages

with the

buttons and tap the value that you want.

x Drag the handle

to move the slider to its new position.

x Tap the slider

where you want the handle to appear; the thumb jumps there.

and

Switch

Virtual keyboard

When there are only two choices, a checkmark shows whether the feature is enabled.

Alphabetic and alphanumeric keyboards to enter text and numbers.

Tap it to turn the switch on or off.

Each key is a touch screen button.

2.2.1 Using keyboards

You only need to enter letters or numbers in Clarion Mobile Map when you cannot avoid it. You can type with your fingertips on the full-screen keyboards and you can switch between various keyboard layouts, for example ABC, QWERTY, or numerical.

Task Details

Switching to another keyboard layout, for example from an English QWERTY keyboard to a Greek keyboard

Tap keyboard types.

, and select from the list of available

Correcting your entry on the keyboard

Entering a space, for example between a first name and a family name or in multi-word street names

Entering lowercase or capital letters

Entering symbols

Finalising the keyboard entry

Clarion Mobile Map remembers your last keyboard choice and offers it the next time you need to enter data.

Tap

Tap and hold the button to delete the entire input string.

Tap

Tap capitals or all capitals.

Tap

to remove the unneeded character(s).

to cycle through entering lowercase letters, initial

to switch to a keyboard offering symbol characters.

2.3 Using the map

The map screen is the most frequently used screen of Clarion Mobile Map. It can be accessed from the

Navigation menu by tapping

For further information about the map screen, see page 51.

2.3.1 Checking the details of a map location

x If you are interested in the details of your current position during navigation:

1. Check the bottom line of the map. It shows the current street and house number information.

2. For further details, tap

3. Tap displayed.

to open the Position menu.

. The address, the coordinate and the list of nearby POIs will be

x You can check the details of any other location by selecting it on the map:

1. Tap the map anywhere to open the map control buttons.

2. Tap the desired location on the map. The Cursor ( location is displayed at the bottom of the map.

3. For further details, tap

4. Tap displayed.

x It is even easier if you select the desired point in the Find menu. Then the Cursor menu opens

automatically. You only need to tap the

to open the Cursor menu.

. The address, the coordinate and the list of nearby POIs will be

) appears there. The address of the

button.

2.3.2 Manipulating the map

Position markers on the map:

x Current GPS position:

x Selected location (Cursor):

The following controls help you modify the map view to suit your actual needs the best. Most of these controls appear only if you tap the map once, and disappear after a few seconds of inactivity.

(page 22)

(page 23)

Action Button(s) Description

Moving the map No buttons

Opening/closing map control buttons

You can move the map into any direction. Tap the map at any desired location. The point you hit on the map moves to the center of the screen.

If GPS position is available and you have moved the map,

the GPS position.

Tap this button to show or hide the following map control buttons:

x Zoom in/out

x Rotate left/right (3D map only)

x Tilt up/down (3D map only)

button appears. Tap this button to return to the

Zooming in and out

Tilting up and down

x Zoom preset buttons (2D map only)

x Tilt and zoom preset buttons (3D map only)

x Return to GPS position button

x Smart Zoom button

Changes how much of the map is displayed on the screen.

Clarion Mobile Map uses high-quality vector maps that let you see the map at various zoom levels, always with optimized content. It always displays street names and other text with the same font size, never upside-down, and you only see the streets and objects that you need.

Map scaling has different limits in 2D and in 3D map view modes.

Changes the vertical view angle of the map in 3D mode.

Rotating left and right

Viewing modes

, ,

Changes the horizontal view angle of the map in 3D mode or in rotated 2D mode.

When GPS position is available, Clarion Mobile Map always rotates the map so its top faces your direction of travel (Track-Up orientation). You can turn away from Track-Up with these buttons.

If GPS position is available and you have rotated the map,

the automatic map rotation.

Gives you the following map perspectives in Clarion Mobile Map:

x classic top-down view (2D), the top of the map

x top-down view (2D), the top of the map always points

x perspective view (3D) the top of the map always

The icon always shows the mode the button switches to: If

button appears. Tap this button to re-enable the

always faces North

in the current driving direction

points in the current driving direction

Smart Zoom

Returning to normal navigation (back to the GPS position with automatic map rotation)

Zoom preset buttons (available in Advanced mode only)

you are in 3D mode, you can see the need to tap it to switch to 2D mode.

Clarion Mobile Map can automatically rotate, scale and tilt the map and give you the optimal view:

x When you are approaching a turn, Clarion Mobile

Map zooms in and raises the view angle to let you easily recognize your maneuver at the next junction.

x If the next turn is at a distance, Clarion Mobile Map

zooms out and lowers the view angle to show you the road in front of you.

Tap this button once

Tap&hold the button

Tap this button to move the map back to the current GPS position. If the map has been rotated, automatic map rotation is also re-enabled.

Tap one of the preset buttons predefined value. Smart Zoom is disabled. These buttons are available in 2D mode.

Tap&hold any of the buttons zoom level, or to reset it to its original value.

to enable Smart Zoom.

to set the zoom limits of Smart Zoom.

to set the zoom level to a fix,

to set its value to the current

button and you

Tilt and zoom preset buttons (available in Advanced mode only)

Map scale

Fit-to-screen

End Call

Repeat Voice Instruction

Tap one of the preset buttons to fix, predefined values. Smart Zoom is disabled. These buttons are available in 3D mode.

Tap&hold any of the buttons and zoom levels, or to reset it to its original value.

Clarion Mobile Map shows the scale of the map in 2D mode.

This button does not appear on the Map screen. It is available on the following screens:

x Plan on Map screen: When you have an active route,

you can display it in its full length on the map.

x Track Information screen: A track log can be

displayed in its full length on the map.

This button is displayed only during a phone call. Tap the button to hang up.

Tap this button to repeat the current voice instruction. The distance is updated to always describe the current situation.

to set the tilt and zoom levels

to set its value to the current tilt

2.3.3 Lane information and Signposts

When navigating on multilane roads, it is important to take the appropriate lane in order to follow the recommended route. If lane information is available in the map data, Clarion Mobile Map displays the lanes and their directions using small arrows either at the bottom or at the top of the map (the position of these arrows can be modified in Map Screen settings). Arrows in yellow represent the lanes you need to take.

Where there is additional information available, signposts substitute arrows. Signposts are always displayed at the top of the map. The color and style of the signposts are similar to the real ones you can see above road or by the roadside. They show the available destinations and the number of the road the lane leads to.

All signposts look similar when cruising (when there is no recommended route). When navigating a route, only that signpost is displayed in vivid colors that points to the lane(s) to be taken; all others are darkened out.

2.3.4 Status information and hidden controls on the map

The following information appears in the rounded field in the top left corner, the Turn Preview field. When tapping this area, the result depends on the information currently shown.

Icon Information Details Action

There is no active route in Simple mode

There is no active route in Advanced mode

There is no valid GPS position.

If the icon is a static picture, route calculation is needed

If there is no route to be navigated in Simple mode, this icon appears in the Turn Preview field.

If there is no route to be navigated in mode, this icon appears in the Turn Preview field.

If an active route exists, and there is no valid GPS position, the view of the sky above you is shown with colored dots for each satellite. Some dots need to turn green to be able to navigate.

GPS position and an active route are available, but automatic off-route recalculation is switched off, and you deviated from the route.

dvanced

Tap this area to open Find Address.

Tap this area to open Find.

Tap this area to open the Route Information screen.

Tap this area to make Clarion Mobile Map recalculate the recommended route.

If the icon is animated,

route calculation is in progress

Next route event (next maneuver)

Clarion Mobile Map is calculating or recalculating the route.

GPS position and an active route are available, and you navigate the recommended route. This area gives you information about the type and distance of the next route event.

Nothing happens if you tap this area of the screen.

Tap this area to open the Route Information screen.

The following area appears next to the above described rounded area. When tapping this area, the result depends on the information currently shown.

Icon Information Details Action

There is no valid GPS position

Traffic restriction When GPS position is

Second route event (maneuver after the next maneuver)

Approaching a Road Safety Camera

Stops the running simulation

If there is no valid GPS position, this symbol appears here.

available but there is no route to be navigated, the traffic restriction of the upcoming intersection is shown here if there is any.

When GPS position and an active route are both available, this field shows the route event that follows the next route event shown in the above described area.

This icon appears when you are approaching a Road Safety Camera, and the warning for cameras is enabled in Settings.

This icon appears during Route Fly Over, Route Simulation, and Track Log playback.

Tap this area to open the GPS Data screen to check the signal status or the connection settings.

Nothing happens if you tap this area of the screen.

Tap this area to open the Itinerary screen with the turn by turn guidance instructions.

Tap this area to suppress the audible camera warning.

Tap again to display the second route event with the possibility to open the Itinerary.

Tap this area to stop the simulation.

Route recalculation progress

Indicator strip

During route recalculation, this field shows the recalculation progress between 0% and 100%.

- sounds muted/enabled

- Track Log recording

- Bluetooth status

Nothing happens if you tap this area of the screen.

Tap this area to open the Itinerary screen with the turn by turn guidance instructions.

The following symbols appear in the Indicator strip:

Icon Description

The sound output of Clarion Mobile Map is muted.

The sound output of Clarion Mobile Map is enabled.

Clarion Mobile Map records a Track log when GPS position is available.

Track log recording is disabled.

The Bluetooth radio is switched off.

The Bluetooth radio is turned on, but no telephone is connected.

There is an error in the Bluetooth connection.

Clarion Mobile Map is connected to a telephone as a handsfree set via Bluetooth.

A phone call is in progress over the Bluetooth connection.

The following information can be seen in the three data fields shown on the map screen. Tap this area to open the Trip Information screen where you can select which values to be shown in these three fields.

When there is no active route, these fields show the following information: current speed, compass and the current time of day.

Icon Type More information

Compass

Speed information

Time information

Shows the direction of your heading both when the map is automatically rotated (3D) and when the map is always facing North (2D).

There are speed values that can be shown:

x Current speed

x Speed limit on the current road

There are time values that can be shown:

x Current GPS time

x Time remaining to reach the destination

x Time remaining to reach the next via point

x Estimated arrival time at the destination

x Estimated arrival time at the next via point

Distance information

The next area is a combined status indicator field. Tap this area to open the Quick menu (page 66).

There are distance type values that can be shown:

x Distance remaining to reach the destination

x Distance remaining to reach the next via point

x Current altitude

Icon Status for More information

GPS position quality

Vehicle type

A higher number of lit bars indicates better GPS position accuracy.

The symbol displays the vehicle type used for route calculation.

2.3.5 Using the Cursor (the selected map location)

First, place the Cursor at the desired map location with one of the following options:

x Use the Find menu to select a location. The map returns with the selected point (the Cursor) in the

middle, and the Cursor menu appears with the available options.

x Tap the screen to place the Cursor at the desired location. Now tap

menu.

You can perform the following actions in Simple mode:

Button Action

Creates a new route with the Cursor as the destination. The previous route (if exists) is deleted.

Saves the Cursor as a Favorite destination

Opens a screen with the name, address and coordinate information of the Cursor, and the list of POIs near it

to open the Cursor

The following options are available in Advanced mode only:

Button Action

In the active route, uses the Cursor as the start point by replacing the current GPS position (available in Advanced mode only)

Creates a new route with the Cursor as the destination. The previous route (if exists) is deleted.

In the active route, uses the Cursor as a via point (an intermediate destination) preceding the destination (available in Advanced mode only)

In the active route, uses the Cursor as the destination while keeping the previous destination as a via point (available in Advanced mode only)

Shows the different routes calculated by the available routing methods. Choose the one that suits your needs the best (available in Advanced mode only)

Marks the map with a Pin at the Cursor (available in Advanced mode only)

Saves the Cursor as a POI (available in Advanced mode only)

Saves the Cursor as a Road Safety Camera location (available in Advanced mode only)

This button is not displayed when GPS position is not available or if you are in certain countries where Road Safety Camera warning is prohibited. Even if the button is available, you are responsible for checking whether it is legal to use this feature at your location.

2.4 Clarion Mobile Map concepts

2.4.1 Smart Zoom

Smart Zoom provides much more than just a usual automatic zoom feature:

x While following a route calculated by Clarion Mobile Map: when approaching a turn, it will

zoom in and raise the view angle to let you easily recognize your maneuver at the next junction. If the next turn is at a distance, it will zoom out and lower the view angle to be flat so you can see the road in front of you.

x While driving without an active route in Clarion Mobile Map: Smart Zoom will zoom in if you

drive slowly and zoom out when you drive at high speed.

Enabling Smart Zoom

Tap the map to let the map control buttons appear, and then tap to enable Smart Zoom.

Fine-tuning Smart Zoom

Tap the map to let the map control buttons appear, and then tap and hold to open the Smart Zoom Settings window. Modify the zoom limits of Smart Zoom if necessary.

2.4.2 Position markers

2.4.2.1 Current GPS position and Lock-on-Road

When your GPS position is available, Clarion Mobile Map marks your current position with the icon on the map.

The nearest road to suppress GPS position errors, and the direction of the icon is aligned to the direction of the road.

To use the current GPS position, tap position as one of the following:

x a Favorite

x a Road Safety Camera

x a POI

x a map marker Pin

icon may not show your exact GPS position and heading. If roads are near, it is aligned to the

. The Position menu appears and you can save the GPS

2.4.2.2 Returning to normal navigation

When GPS position is available, and you have moved the map (the icon is moving or is not even

visible), or you have rotated the map in 3D mode, the to the GPS position and re-enable Track-up map orientation (automatic map rotation).

Note!

Even if you move the map while you are driving, Clarion Mobile Map continues navigating if there is an active route: it plays the voice instructions and displays the turn preview icons

button appears. Tap it to move the map back

according to your current GPS position.

2.4.2.3 Selected location (Cursor)

If you select a location in the Find menu, or you tap the map, the Cursor appears at the selected point on

the map. Clarion Mobile Map displays the Cursor with a radiating red dot ( zoom levels, even when it is in the background of a 3D map view.

When the Cursor is set, tap following:

x the start point of a route

x a via point in a route

x the destination of a route

You can also search for POIs around the Cursor.

Or you can save the location of the Cursor as:

x a Favorite

x a Road Safety Camera

x a POI

x a map marker Pin

. The Cursor menu appears and you can use the Cursor as one of the

) to make it visible at all

2.4.2.4 Original position in the Cursor menu

When the Cursor menu is open, a special icon ( ) shows the Cursor position the menu was opened with.

You can move and zoom the map, and you can set the Cursor to a different place. The usual Cursor

) appears, and the buttons of the Cursor menu initiate actions for this new location.

(

To return to the original Cursor position, tap

Cursor menu was opened, and the

icon appears again.

. The map jumps back to the position with which the

2.4.3 Daytime and night color profiles

Clarion Mobile Map uses different color profiles during the day and during the night.

x Daytime colors are similar to paper road maps.

x The night color profiles use dark colors for large objects to keep the average brightness of the

screen low.

Clarion Mobile Map offers different daytime and night color profiles. It can also switch automatically between the daytime and the night schemes depending on the illumination setting.

2.4.4 Color scheme in tunnels

When entering a tunnel, the colors of the map change. All buildings disappear, large objects (such as surface waters or forests) and empty areas between roads become black.

However, roads and streets keep their original colors from the daytime or night color scheme currently used.

After leaving the tunnel, the original colors return.

2.4.5 Route calculation and recalculation

Clarion Mobile Map calculates the route based on your preferences:

x Route calculation method:

x Fast

x Short

x Economical

x Easy

x Vehicle types :

x Car

x Taxi

x Bus

x Emergency vehicles

x Road types

x Unpaved Roads

x Permit Needed

x Freeways

x Toll Roads

x Charge Roads

x Ferries

x Cross-border Planning

x Carpool (appears only when used in the USA)

Clarion Mobile Map automatically recalculates the route if you deviate from the proposed itinerary.

For further information about Route Planning options, see page 79.

2.4.6 Itinerary

The Itinerary is the list of the route events, that is, the driving instructions.

When you are on the Map screen, you can display the Itinerary in one of the following ways:

x Tap the area between the Turn preview and the Travel data fields where the symbol of the second

next maneuver is displayed (for example

x In Advanced mode, tap the following buttons:

You have the following options on the Itinerary screen:

, , .

Button Description

Any of the list items Opens the map with the selected maneuver in the middle.

Changes the detail level of the Itinerary. The levels are as follows:

x Detailed Instructions: all intersections are listed

x Itinerary: only significant intersections (the ones announced in

voice guidance) are listed

x Road list: the list of the roads used while navigating the route

Moves between pages for additional list items.

When the map is open with a maneuver in the middle:

Button Description

Zooms in the map.

Zooms out the map.

Moves the map to show the previous or next maneuver.

Opens a screen where you can avoid a part of the route starting from the selected maneuver.

2.4.7 Track Logs

Clarion Mobile Map can log the track that you drive (page 47).

A Track Log is a recording of how your GPS position changed and it is independent of the route Clarion Mobile Map calculated.

Track Logs can be recorded, renamed, replayed, shown on the map, exported to a memory card in GPX format, and deleted. See page 71.

ndently of the normal track log, you can instruct Clarion Mobile Map to record the native GPS data

Indepe received from the GPS device. These logs are saved as separate text files on the memory card, and they cannot be shown or replayed in Clarion Mobile Map.

To turn on NMEA/SIRF log saving, tap the following buttons:

, , ,

2.4.8 Route demonstration

A simulation drives you through the route, following the driving instructions (page 45). You can choose from a simulation at high speed or at normal driving speed.

You can use it, for example, to see which bridge Clarion Mobile Map planned for the route; if you do not want to take that bridge, you can avoid it.

Route demonstrations can be started from the Route menu by tapping the

speed simulation) or the

(simulation at normal speed) button.

(high

2.4.9 POI (Points of Interest)

A point of interest (POI) is a location that someone might find useful or interesting. Clarion Mobile Map is delivered with thousands of POIs and you can also create your own POIs in the application.

POI locations are marked on the map with special icons. POI icons are quite large so you can easily recognize the symbol. The icons are semi-transparent: they do not cover the streets and intersections behind them.

POIs are grouped into several levels of categories and subcategories. The icon of a POI that comes with the map shows the symbol of the POI category. If you save your own POI, you can select an icon for it independently of the POI category you have put it in.

Saving POIs

To save a POI, place the Cursor ( ) at the desired location, then tap the following buttons: ,

, .

Managing POIs

You can select which POI groups to show and which ones to hide on the map, and from which zoom levels POI icons are visible. At the same place you can manage your saved POIs. A saved POI can be renamed, moved to a different POI group, its icon can be changed, or a phone number and additional

information can be added to it. Tap the following buttons:

, , .

2.4.10 Road Safety Cameras

The location of a Road Safety Camera is a special POI. These cannot be searched like other POIs, and there is a special proximity warning only for cameras.

Is Clarion NX700 shipped with a built-in database of Road Safety Cameras?

Can you upload Road Safety Camera locations from naviextras.com?

Can Road Safety Camera locations be uploaded in a text file?

Can you save the Cursor as the location of a Road Safety Camera? Yes

Yes

Saving Road Safety Cameras

To save the location of a Road Safety Camera, place the Cursor ( ) at the desired location, then tap

the following buttons:

Note!

, , .

Camera warning

The warning for Road Safety Cameras can be turned on in Warning Settings. Tap the following buttons:

, , , .

When you approach a Road Safety Camera with the warning enabled, the following happens:

x Visible Warning: The type and distance of the camera is displayed in the secondary Turn Preview

field (for example

x Audible Warning: If there is no speed limit specified for the camera, or your speed is under the

specified speed limit, single beeps warn you about the camera.

x If you exceed the speed limit of the camera, the following also happens:

x Visible Warning: A symbol with the speed limit appears in the corner of the map (for

example:

x Audible Warning: A special alert sound is played.

2.4.10.1 Camera types

There are different types of Road Safety Cameras.

Icon Type Description

Fixed Some speed cameras stand by the roadside, looking in one direction,

Mobile Some speed cameras are operated from vehicles. They do not always work

measuring one or both directions of the traffic. They measure your current speed. For these speed cameras you can specify the controlled traffic direction and the speed limit. Clarion Mobile Map warns you when you approach these speed cameras in the measured direction. If your speed exceeds the speed limit near the speed camera, Clarion Mobile Map plays a special warning sound.

and they are not set to check a preset speed limit. The warning is similar to

fixed speed cameras, but as there is no speed limit given, only the proximity is announced.

Built-in

Section control

Red light

Some speed cameras are built into traffic lights. They work like fixed speed cameras, but they are difficult to spot. The warning for proximity and speeding is the same as for the fixed speed cameras.

These speed cameras work in pairs, and do not measure your current speed but your average speed between the two speed cameras. Both identify your car and record the exact time you pass them. They use the difference between the two points in time to calculate your average speed.

Clarion Mobile Map warns you when you approach one of these speed cameras, but as you pass by, the warning stays on, and your average speed is measured until you reach another speed camera of this type. If your average speed exceeds the speed limit between the two speed cameras, you receive the same special warning sound as with the other speed camera types.

In the rare case Clarion Mobile Map cannot register the moment you pass the second speed camera (for example, it is placed at the exit of a tunnel where GPS position is not yet available) the warning continues. Just tap the speed camera symbol displayed on the screen to stop the warning.

Tap again to display the second route event with the possibility to open the Itinerary.

These cameras check if you obey traffic lights. The warning is similar to mobile speed cameras: as there is no speed limit given, only the proximity is announced.

2.4.10.2 Camera directions

A speed camera can measure the speed of one direction of the traffic, both directions, or even several directions in an intersection, when they are mounted on a rotating base. The same directions apply to red light cameras. Clarion Mobile Map warns you only if you drive in a measured or possibly measured direction. The measured direction of the camera appears with the following symbols:

Icon Description

The camera checks speed in the direction into which you are driving.

The camera checks speed in the opposite driving direction.

The camera checks speed in both directions on the road.

The camera can check speed in any direction.

2.4.11 Speed limit warning

Maps sometimes contain information about the speed limits of the road segments. This information may not be available for your region (ask your local dealer) or may not be fully correct for all roads on the map.

You can configure Clarion Mobile Map to warn you if you exceed the current limit. Tap the following

buttons:

When you exceed the speed limit, a voice message is played using the selected voice guidance profile.

, , , .

Clarion NX700 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
