Page 1

Owner’s manual

NX405E

DVD MULTIMEDIA STATION WITH BUILT-IN NAVIGATION &

6.0’’ TOUCH PANEL CONTROL

Page 2

CAUTIONS:

OBS!

English

This appliance contains a laser system and is

classied as a “CLASS 1 LASER PRODUCT”. To use this model properly, read this Owner’s

Manual carefully and keep this manual for your

future reference. In case of any trouble with this

player, please contact your nearest

“AUTHORIZED service station”. To prevent direct exposure to the laser beam, do not try to open the enclosure.

!CAUTION

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED IN THE OWNER’S MANUAL MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

Apparaten innehåller laserkomponenten som avger laserstrålning överstigande gränsen för laserklass 1.

VAROITUS

Suojakoteloa si saa avata. Laite sisältää laserdiodin, joka lähettää näkymätöntä silmille vaarallista lasersäteilyä.

English

Owner’s Manual

ADVARSEL.

Denne mærking er anbragt udvendigt på apparatet og indikerer, at apparatet arbejder med laserstråler af klasse 1, hvilket betyder,at der anvendes laserstråler af svageste klasse, og at man ikke på apparatets yderside kan blive udsat for utilladelig kraftig stråling. APPARATET BØR KUN ÅBNES AF FAGFOLK MED SÆRLIGT KENDSKAB TIL APPARATER MED LASERSTRÅLER! Indvendigt i apparatet er anbragt den her gengivne advarselsmækning, som advarer imod at foretage sådanne indgreb i apparatet, at man kan komme til at udsaætte sig for laserstråling.

1NX405E

Page 3

Contents

English

Owner’s Manual

1. FEATURES ...........................................................................................................4

Expanding Systems ...............................................................................................4

2. PRECAUTIONS ....................................................................................................5

3. CAUTIONS ON HANDLING .................................................................................8

Operation Panel.....................................................................................................8

USB Port ...............................................................................................................8

Cleaning ................................................................................................................8

Handling Discs ......................................................................................................9

4. OPERATION PANEL ..........................................................................................11

Functions of Buttons ............................................................................................11

5. REMOTE CONTROL ..........................................................................................12

Remote Control Functions ...................................................................................13

6. MAIN MENU .......................................................................................................15

7. DVD VIDEO PLAYER OPERATIONS .................................................................16

Discs ...................................................................................................................16

Change DVD System Settings .............................................................................17

Watching to a Disc ...............................................................................................17

Showing DVD Player Mode Screen .....................................................................18

Operate the DVD Player Menu ............................................................................18

Showing Video Files Player Mode Screen ...........................................................19

Operate the Video Files Player Menu ..................................................................20

Playable Video Disc Formats ...............................................................................21

8. CD PLAYER OPERATIONS ................................................................................22

Listening to a Disc/Ejecting a Disc.......................................................................22

Showing CD Player Mode Screen .......................................................................22

Operate the CD Player Menu ...............................................................................22

Listening to Compressed Audio ..........................................................................23

Tag Display Function ...........................................................................................23

Playback MP3/WMA/AAC menu .........................................................................24

9. USB AUDIO OPERATIONS ................................................................................25

Notes on Using USB Memories ........................................................................... 25

Select USB Audio Mode ......................................................................................25

Playing Audio Files in USB Memory ....................................................................26

10. USB VIDEO OPERATIONS ..............................................................................27

Notes on Using USB Memories ........................................................................... 27

Select USB Video Mode ......................................................................................27

Playing Video Files in USB Memory ....................................................................27

Playable Video Format .........................................................................................27

11. iPod OPERATIONS ..........................................................................................29

Notes on Using iPod/iPhone ................................................................................29

iPod Audio Menu Operations ...............................................................................29

iPod Audio ID3 Mode Screen ..............................................................................29

iPod Audio Playlist Mode Screen .........................................................................30

iPod Audio List Mode Screen ..............................................................................30

iPod Audio Simple Control Mode Screen ............................................................30

iPod Video Menu Operations ...............................................................................31

iPod Video ID3 Mode Screen iPod Video Menu Operations ................................31

iPod Video List Mode Screen ..............................................................................32

iPod Video Simple Control Mode Screen .............................................................32

iPod Video Play Mode Screen .............................................................................32

12. Bluetooth® AUDIO PLAYER OPERATIONS .................................................... 34

Selecting the Bluetooth Audio Mode ...................................................................34

Bluetooth Audio Player Settings ..........................................................................34

2 NX405E

Page 4

Registering Your Bluetooth Audio Player (Pairing) ...............................................34

Selecting the Bluetooth Audio Player...................................................................35

Controlling the Bluetooth Audio Player ................................................................35

13. Bluetooth® TELEPHONE OPERATIONS.........................................................36

Select the BT Phone Mode ..................................................................................36

Bluetooth Telephone Settings ..............................................................................36

Registering Your Cellular Phone (Pairing) ............................................................37

Select the Cellular Phone ....................................................................................37

Get the Phone Book Data ....................................................................................37

Telephone Operations .........................................................................................37

14. TUNER OPERATIONS .....................................................................................39

15. DAB OPERATIONS ..........................................................................................41

16. TV OPERATIONS ............................................................................................43

17. HDMI MODE .....................................................................................................44

Wire Connection of HDMI Mode Wire Connection of HDMI Mode ......................44

Select HDMI Source ...........................................................................................45

18. AUX ...................................................................................................................46

19. CAMERA INPUT OPERATIONS ......................................................................46

20. REAR SOURCE OPERATIONS .......................................................................47

DVD Video in Rear ...............................................................................................47

DVD Video Rear Source Control Info Mode .........................................................47

DVD Video Rear Source Control Direct Mode .....................................................47

iPod Video in Rear ...............................................................................................48

iPod Video Rear Source Control Play Mode ........................................................48

iPod Video Rear Source ID3 Mode ......................................................................48

21. SETTING OPERATIONS ..................................................................................49

General Setup Menu ...........................................................................................49

Video Setup Menu ...............................................................................................49

Audio Setup Menu ...............................................................................................50

Navigation Setup Menu .......................................................................................50

Others Setup Menu .............................................................................................50

Set the Anti-Theft Code .......................................................................................51

22. TROUBLESHOOTING ......................................................................................52

General ...............................................................................................................52

DVD Player ..........................................................................................................52

USB Device .........................................................................................................53

Bluetooth .............................................................................................................53

TFT Screen .........................................................................................................54

23. ERROR DISPLAY .............................................................................................55

DVD Player ..........................................................................................................55

24. SPECIFICATIONS ............................................................................................56

25. WIRE CONNECTION GUIDE ...........................................................................58

English

Owner’s Manual

3NX405E

Page 5

English

1. FEATURES

FLAC (Free Lossless Audio Codec)

Built-in Bluetooth® Handsfree (HFP) and Audio Streaming (A2DP & AVRCP)

Owner’s Manual

Front-Panel Auxiliary Input and 6ch RCA Output with Subwoofer Control

Expanding Systems

Expanding Audio Features

External Power

Amplier

iPod

(Connect via CCA-750)

iPhone

iPhone/ Smartphone via HDMI

(Connect via CCA-750)

(Connect via CCA-771,CCA-802)

Expanding Visual Features

Rear Monitor

Rear Vision

Camera

USB Memory

Expanding tuner/ TV feature

Bluetooth

Telephone

NOTE:

•

The items listed outside of the frames are the commercial products generally sold.

•

CCA-750,CCA-771,CCA-802:Sold separately.

4 NX405E

Page 6

2. PRECAUTIONS

English

WARNING

• For your safety, the driver should not watch any video sources and/or operate the controls while driving. Please note that watching and operating any video sources while driving are prohibited by law in some countries. Also, while driving, keep the volume to a level at which external sounds can be heard.

• Do not disassemble or modify this unit. It may cause an accident, re, or electric shock.

• Do not use this unit when a trouble exists, such as no screen content appears or no sound is

audible. It may cause an accident, re, or electric shock. For that case, consult your authorized dealer or a nearest Clarion service center.

• In case of a problem, such as any material has been entered in the unit, the unit gets wet, or smoke or strange smells come out of the unit, etc., stop using this unit immediately, and consult your authorized dealer or a nearest Clarion service center. Using it in that condition may cause an accident, re, or electric shock.

• Use a fuse with the same specication only when replacing the fuse. Using a fuse with a dierent specication may causes a re.

• For the installation of this unit or a change in the installation, ask your authorized dealer or a nearest Clarion service center for safety. Professional skills and experiences are required to do so.

• This navigation system should not be used to replace your own judgment. No itinerary suggested by this navigation system should ever override any highway regulations, your own judgment, or a knowledge of safe driving practices. Do not follow the navigation system’s suggested itinerary if it would cause you to perform a dangerous or illegal act, place you in a dangerous situation, or take you into an area you consider unsafe.

• The advice provided by the navigation system is to be regarded as a suggestion only. There may be times when the navigation system displays the vehicle’s location incorrectly, fails to suggest the shortest route, or fails to direct you to your desired destination. In such instances, rely on your own driving judgment, taking into account the driving conditions at the time.

• Do not use the navigation system to locate emergency services. The database does not contain a complete listing of emergency services such as police stations, re halls, hospitals and walk-in clinics. Please show discretion and ask for directions in such instances.

• As the driver, you alone are responsible for your driving safety.

• In order to avoid a trac accident, do not operate the system while driving.

• In order to avoid a trac accident, operate the system only when the vehicle is stopped at a safe

place and the parking brake is on.

• In order to avoid a trac accident or trac oense, remember that actual road conditions and trac regulations take precedence over the information contained on the navigation system.

• The software may contain inaccurate or incomplete information due to the passage of time, changing circumstances, and the sources of information used. Please respect current trac conditions and regulations at all times while driving.

• Where actual road conditions and highway regulations dier from the information contained on the navigation system, abide by the highway regulations.

• Keep the amount of time spent viewing the screen while driving to a strict minimum.

• The navigation system does not provide, nor represent in any way information on: trac and

highway regulations; technical aspects of the vehicle including weight, height, width, load and speed limits; road conditions including grade, percentage of incline and surface conditions; obstacles such as the height and width of bridges and tunnels; and other current driving or road conditions. Always rely on your own judgment when driving a car, taking into account current driving conditions.

English

Owner’s Manual

5NX405E

Page 7

English

Owner’s Manual

6 NX405E

Page 8

1.When the inside of the car is very cold and the

6E7

10R -04X XX X

D026223

player is used soon after switching on the heater, moisture may form on the disc (DVD/CD) or the optical parts of the player and proper playback may not be possible. If moisture forms on the disc (DVD/ CD), wipe it o with a soft cloth. If moisture forms

on the optical parts of the player, do not use the

player for about one hour. The condensation will disappear naturally allowing normal operation.

2.Driving on extremely bumpy roads which cause

severe vibration may cause the sound to skip.

3.This unit uses a precision mechanism. Even in

the event that trouble arises, never open the case, disassemble the unit, or lubricate the rotating parts.

English

Owner’s Manual

NX405E

7NX405E

Page 9

English

3. CAUTIONS ON HANDLING

Operation Panel

For a longer service life, be sure to read the following cautions.

Owner’s Manual

• The operation panel will operate properly in a temperature range of 0˚ to 60˚ C.

• Do not allow any liquids on the set from drinks, umbrellas etc. Doing so may damage the internal circuitry.

• Do not disassemble or modify the set in any way. Doing so may result in damage.

• Subjecting the operation panel to shocks may result in breakage, deformation or other damage.

• Do not let cigarettes burn the display.

USB Port

• If a problem should occur, have the set inspected at your store of purchase.

• The remote control unit may not work if the remote control sensor is exposed to direct sunlight.

• In extremely cold weather, the display movement may slow down and the display may darken, but this is not a malfunction. The display will work normally when the temperature increases.

• Small black and shiny spots inside the liquid crystal panel are normal for LCD products.

• The USB memory sticks must be recognized as “USB mass storage class” to work properly. Some models may not operate correctly.

When the memorized data is lost or damaged by any chance, Clarion shall not be liable for any damage.

• When using an USB memory stick, we recommend that you backup your data stored on it before by using a personal computer etc.

Cleaning

• Cleaning the cabinet

• Use a soft, dry cloth and gently wipe o the dirt. For

tough dirt, apply some neutral detergent diluted in water to a soft cloth, wipe o the dirt gently, then wipe again with a dry cloth.

Do not use benzene, thinner, car cleaner, etc., as

these substances may damage the cabinet or cause the paint to peel. Also, leaving rubber or plastic products in contact with the cabinet for long periods of time may cause stains.

• Data les may be broken when using USB memory sticks in the following situation: When disconnecting the USB memory stick or turning the power o during writing or reading data. When aected by static electricity or electric noise. Connect/ disconnect the USB memory stick when it is not accessed.

• Connecting with the computer is not supported.

• Connecting with the USB Hub is not supported.

• Cleaning the liquid crystal panel

The liquid crystal panel tends to collect dust, so wipe

it o occasionally with a soft cloth. The surface is easily scratched, so do not rub it with hard objects.

8 NX405E

Page 10

Handling Discs

Handling

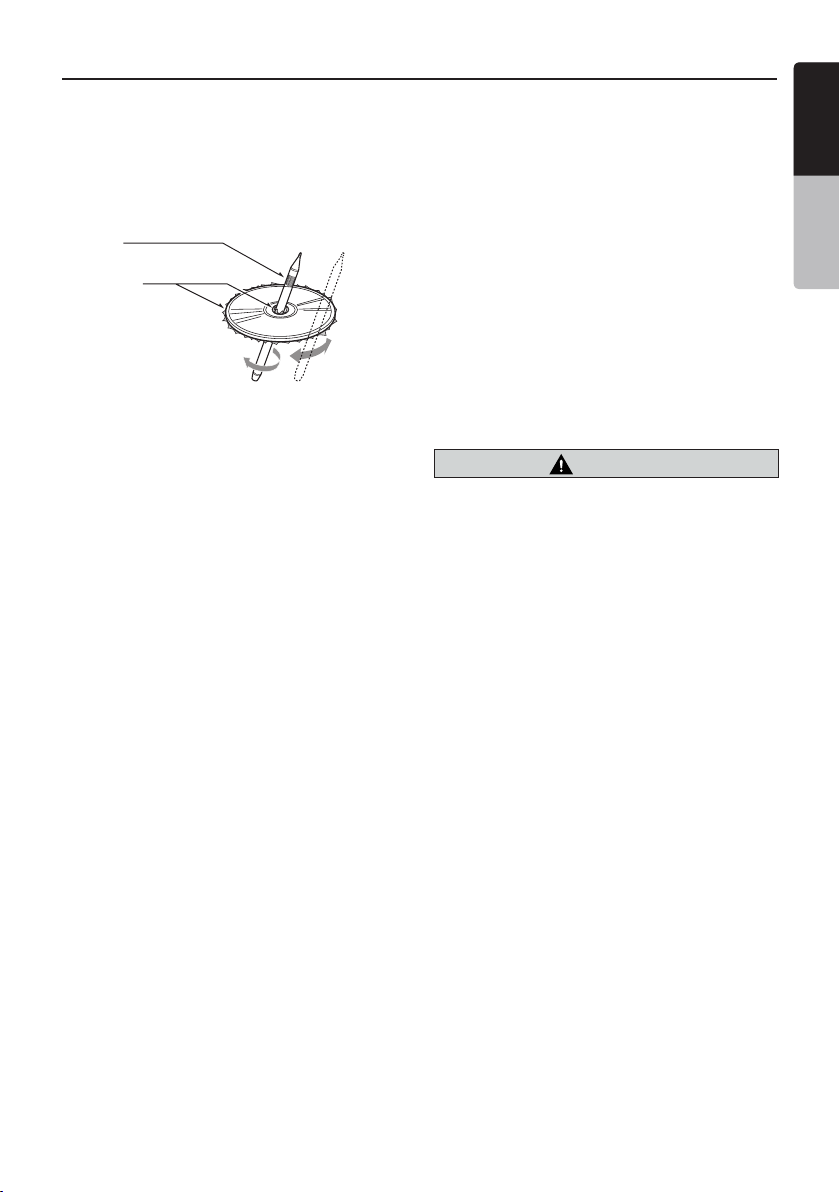

• New discs may have some roughness around the edges. If such discs are used, the player may not work or the sound may skip. Use a ball-point pen or the like to remove any roughness from the edge of the disc.

Ball-point pen

Roughness

• Never stick labels on the surface of the disc or mark the surface with a pencil or pen.

• Never play a disc with any cellophane tape or other glue on it or with peeling o marks. If you try to play such a disc, you may not be able to get it back out of the DVD player or it may damage the DVD player.

• Do not use discs that have large scratches, are misshapen, cracked, etc. Use of such discs may cause missoperation or damage.

• To remove a disc from its storage case, press down on the center of the case and lift the disc out, holding it carefully by the edges.

• Do not use commercially available disc protection sheets or discs equipped with stabilizers, etc. These may damage the disc or cause breakdown of the internal mechanism.

Storage

• Do not expose discs to direct sunlight or any heat source.

• Do not expose discs to excess humidity or dust.

• Do not expose discs to direct heat from heaters.

Cleaning

• To remove ngermarks and dust, use a soft cloth and wipe in a straight line from the center of the disc to the circumference.

• Do not use any solvents, such as commercially available cleaners, anti-static spray, or thinner to clean discs.

• After using special disc cleaner, let the disc dry o well before playing it.

On Discs

• Never turn o the power and remove the unit from the car with a disc loaded.

CAUTION

For your safety, the driver should not insert or eject a disc while driving.

English

Owner’s Manual

9NX405E

Page 11

About the registered marks, etc.

English

Owner’s Manual

• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited.

• Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

• "Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specically to iPod or iPhone, respectively, and has been certied by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may aect wireless performance. iPhone and iPod are trademarks of Apple Inc., register

ed in the U.S. and other countries.

Lightning is a trademark of Apple Inc.

• Android™ is the trademark of Google Inc.

• The Bluetooth

trademarks owned by the Bluetooth® SIG, Inc. And any use of such marks by Clarion Co., Ltd. is under license. Other trademarks and trade names are those of their respective owners.

word mark and logos are registered

10 NX405E

Page 12

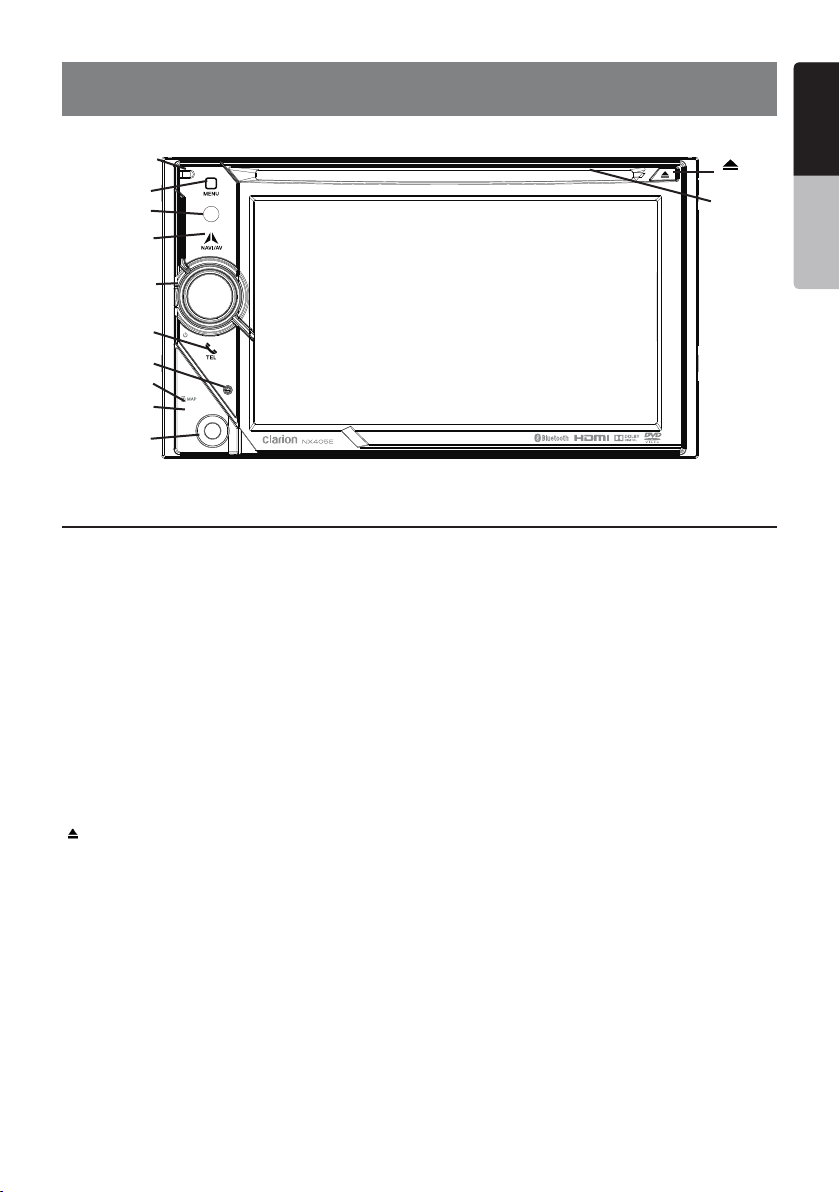

4. OPERATION PANEL

English

[Microphone]

[MENU]

[IR]

[NAVI/AV]

[POWER/VOL]

[TEL]

[RESET]

[microSD slot]

[Cover]

[AUX IN]

Only navigation map card is available and don’t remove it when unit is power on

Functions of Buttons

[POWER/VOL] Knob

• Press this knob to turn on the power.

• When the power is already on, it moves to the

Navigation mode. If Navigation mode is displayed, it moves to the Navigation menu.

• Keep pressing this knob more than 2 seconds to turn o the power.

• Turn this knob to left or right to decrease or increase the volume of the system.

[NAVI/AV] Button

• Press this button to display NAVI, press again to return current source.

• Press and hold this button for 2 seconds to display the Dimmer setting menu.

] Button

[

• Press to eject disc from the unit.

[MENU] Button

• Press this button to display main menu; press again to return current source.

• Press and hold this button for 2 seconds to turn o the monitor. Press any place of the screen to turn on the monitor again.

[RESET] Button

• Press this button to hardware reset the unit.

Note:

When the [RESET] button is pressed, frequencies of radio stations, titles, etc. stored in memory are cleared.

[microSD slot]

Note:

The microSD card is only for navigation. Please don’t insert microSD card for other purpose. After insertion of microSD card for MAP, don’t remove it; otherwise, the navigation function will be disabled.

[AUX IN]

AUX 1 Connector.

[Microphone]

This is used for Bluetooth phone. [IR] SENSOR

• Receiver for the remote control unit (operating range: 30 degree in all directions).

[TEL] Button

• Press this button to go to TEL mode.

• During incoming call press this button to pick

• up the call.

• During talking press this button to end the call.

[

]

[Disc slot]

English

Owner’s Manual

11NX405E

Page 13

English

5. REMOTE CONTROL

Owner’s Manual

*Remote control unit is sold separately.

[MUTE]

[ / ]

[ 0-9 ]

[SRCH]

[BACK]

[ , , , ]

[TITLE]

[ ], [ ]

[ZOOM]

[AUDIO]

Signal transmitter Operating range : 30°in all directions

[OPEN]

[POWER / SRC]

[VOLUME]

[NAV/ AV]

[BAND] [SET] [MENU] [PIC]

[ENT]

[TA]

[RPT]

[ROOT]

[ ], [ ]

[SUB.T]

[ANGLE]

Replacing the batteries

1. Press the retention tab and pull out the battery tray and remove the old battery.

2. Insert the new CR2025 battery and slide the battery tray back in the remote

control the same direction that you

removed it. Please ensure the tray is inserted in the correct direction.

12 NX405E

CAUTION

• Keep the battery out of the reach of children. Should the battery be swallowed, consult a doctor

immediately.

• Batteries (battery pack or batteries installed) must not be exposed to excessive heat such as sunshine, re or the like.

Page 14

CAUTION

• Use one CR2025 (3V) lithium battery.

• Remove the battery if the remote control is not used

for a month or longer.

• There is a danger of explosion if battery in incorrectly replaced. Replaced only with the same or equivalent type.

• Do not handle the battery with metallic tools.

• Do not store the battery with metallic objects.

• If the battery leaks, wipe the remote control

completely clean and install a new battery.

• When disposing of used batteries, comply with governmental regulations or environmental public institutions’ rules that apply in your country/area.

Important

• Do not store the remote control in high temperatures or direct sunlight.

• The remote control may not function properly in

direct sunlight.

• Do not let the remote control fail onto the oor, where it may become jammed under the brake or accelerator pedal.

Remote Control Functions

You can use the remote control to operate the NX405E.

Note:

• The wireless remote control operation may not be optimal in direct sunlight.

English

Owner’s Manual

/ ] Button

[

• Press this button to play or pause video and audio media.

• Press this button more than 1 second to stop video and audio media.

[MUTE] Button

• Mute or Unmute the speaker.

• The symbol

indicates that speaker is muted.

[POWER/SRC] Button

• Press this button to move the focus to next available source item on main menu.

• Press this button to power on when the unit is power o.

• Press this button more than 1 second to power o

when the unit is power on.

[0 - 9] Buttons

• Use in the Key Pad screen to select the radio.

• Use to select the track in the track list screen.

• Press to enter DVD video chapters/titles in the Key

Pad screen.

[VOLUME] Buttons

• Increase and decrease volume.

[NAVI/AV] Button

• Press this button to switch between current source and current position on navigation map.

[SRCH] Button

• Press this button to open chapter or title search window while playing DVD.

on upper right area of the screen

[BAND] Button

• Switch to next band alternately.

[SET] Button

• Press this button to open the Audio setting menu in any mode.

[BACK] Button

• Press this button to quit main menu if current screen is main menu.

[

], [ ], [ ], [ ] Buttons

• Press this button for cursor movement in main menu or Setting mode.

• From the main menu, you can select your desired source or change your settings.

[MENU] Button

• Press this button to enter the MAIN MENU or return current resource.

[PIC] Button

• Press and hold this button to change your monitor Dimmer.

[ENT] Button

• Press to x the entered data in the Key Pad screen or enter the item the cursor is on.

[TA] Button

• Press this button to set TA On or O.

[TITLE] Button

• Press to go to the title menu on the DVD.

[ROOT] Button

• Press to go to the root menu on the DVD.

13NX405E

Page 15

[RPT] Button

English

• Press to perform chapter repeat / title repeat / repeat o while playing DVD mode.

• Press to perform Repeat Track/Repeat All while playing CD.

Owner’s Manual

• Press to perform Repeat Track /Repeat Folder/Repeat All while playing MP3/WMA, or video les on disc.

• Press to perform Repeat Track /Repeat Folder/ Repeat All while playing MP3/WMA, or video les in USB memory.

[

], [ ] Buttons

• Press to seek the next available lower or higher station in Tuner mode.

• Press to select the next lower or higher chapter number in DVD video mode.

• Press to select the next lower or higher track in CD, USB Video, USB Audio mode.

• Press for movement of background source in Navigation mode.

[

], [ ]Buttons

• Press to manually select the next lower or higher station in Tuner modes.

• Press to perform fast-backward or fast-forward searching. Press again to change the speed to 2x, 4x, 8x or 16x.

• Press for movement of background source in Navigation mode.

[ZOOM] Button

• Press to turn on and zoom in while playing DVD. You can zoom in up to 3x. (No all DVD disc supports this function).

[AUDIO] Button

• Press to switch the AUDIO channel of the disc while playing DVD.

[SUB-T] Button

• Press to switch next available subtitle while playing DVD.

• Press to display Video menu in iPod mode.

[ANGLE] Button

• Press to switch the dierent ANGLE while playing DVD. (No all DVD disc supports this function)

• Press to display Audio menu in iPod mode.

[OPEN] Button

• Press to eject disc from the unit.

14 NX405E

Page 16

6. MAIN MENU

English

1 2

9 10 11 12

3 4

6 7 8

1 - Tuner---Touch the button to display the Tuner mode. 2 - HDMI---Touch the button to display the HDMI mode. 3 - Navi---Touch the button to display the Navigation

mode.

4 - TEL--- Touch the button to display the Telephone

mode.

5 - iPod Audio---Touch the button to display the iPod

Audio mode.

6 - USB Audio---Touch the button to display the USB

Audio mode.

7 - Disc Audio---Touch the button to display the Disc

Audio mode.

8 - DAB---Touch the button to display the DAB mode. 9 - iPod Video---Touch the button to display the iPod

Video mode.

10 - USB Video---Touch the button to display the USB

Video mode.

11 - Disc Video---Touch the button to display the Disc

Video mode.

12 - TV---Touch the button to display the TV mode. 13 - BT Audio--- Touch the button to display the Bluetooth

Audio mode.

14 - AUX1 ---Touch the button to display the AUX1 mode. 15 - AUX2 ---Touch the button to display the AUX2 mode. 16 - Camera---Touch the button to display the Camera

mode.

17 - Setting button---Touch the button to display the

Setting menu.

18 - Monitor o --- Touch the button to turn o the monitor. 19 - Day/Night --- Touch the button to change the dimmer. 20 - Audio o---Touch the button to make audio source

voice o.

21 - Rear---Touch the button to display the Rear mode.

English

Owner’s Manual

13 14 15 16

Scrolling the menu

Flicking to right or left it will switch to next or previous page of main menu.

Moving the menu position

1. Touch any quadrate icon on main menu more than 2 seconds, the icon will oat on main menu.

2. Scrolling the oating icon to any position you want.

15NX405E

Page 17

English

7. DVD VIDEO PLAYER OPERATIONS

Discs

Owner’s Manual

Playable discs

This DVD video player can play the following discs.

Playable discs

DVD video discs

MP3/WMA/AAC MP4

About CD Extra disc

A CD Extra disc is a disc in which a total of two sessions have been recorded. The rst session is Audio session and the second session is Data session. Your personally-created CDs with more than second data sessions recorded cannot be played on this DVD video player.

Note:

•

When you play a CD Extra disc, only the rst session will be recognized.

Discs that cannot be played back

This DVD video player cannot play back DVDAudio, DVD-RAM, Photo CDs, etc.

Note:

•

t may also not be possible to play back CDs recorded on a CD-R unit and CD-RW unit. (Cause: disc characteristics, cracks, dust/dirt, dust/dirt on player’s lens, etc.)

•

If a CD-R or CD-RW disc that has not been nalized is played, it will take a long time to start playing. Also, it may not be possible to play depending on its recording conditions.

•

You cannot play SuperAudio CD.

The CD player is not supported even if it is a

hybrid disc.

About MP3/WMA/AAC playback

This unit can play back CD-R/CD-RW, DVD-R/ RW and DVD+R/RW discs on which MP3/WMA/ AAC music data have been recorded. For a detailed information, see the section entitled “Listening to compressed audio”.

16 NX405E

Audio CD

Playable media les

CD TEXT

Note on region numbers

The DVD video system assigns a region number to DVD video players and DVD discs by sales area. DVD video players sold in Europe can play back DVD discs with the region number “ALL”, “2” or any combination of numbers that also incorporate a “2”. The DVD video region number is marked on the disc jacket as shown below.

ALL

Europe

Page 18

Change DVD System Settings

Note:

If the setup operation is performed in the middle of

DVD video play, the disc will restart from the beginning.

Selecting DVD Setup Menu

1. Touch the [Settings] button on the Main Menu to access the Video setup menu.

2. Touch [Video] button. The video menu is displayed.

Setting up the Screen Size

Touch the [DVD Wide Screen Mode] button to turn on or turn o the DVD wide screen mode. The factory default setting is “o”

Note: Not all DVD disc support this function.

Setting up the password for parental level control

The factory default pass code is “0000”.

1. In Main Menu Touch [Settings] button. Touch

[Others] button on the display. Touch the [Set Password] ---- and a numerical key pad will

appear.

Set rating for parental level control

1. Select Others screen while in Setting mode. Touch [Parental Control] button. Touch the desired rating for level control. Use this table to set the parental level.

Kid Safe Kid Safe G General Audiences PG Parental Guidance Suggested PG-13 Parents Strongly Cautioned PG-R Parental Guidance Restricted R Restricted NC-17 No One 17 And Under Admitted

Adult Only Adult

• The contents that the parental level restricts vary with the country code.

Note: The rating can be selected only under the password unlocked status, and the limits can be set only under the password locked status.

Watching to a Disc

1. To load a disc:

Insert the disc into the center of the insertion slot the label side facing up.

CAUTION

For your safety, the driver should not insert or eject a disc while driving.

Note:

• Never insert foreign objects into the disc insertion slot.

• If the disc is not inserted easily, there may be another disc in the mechanism or the unit may require service.

• 8cm (single play) discs cannot be used.

2. Disc starts playing automatically.

English

Owner’s Manual

Input a new password and come again. The password is set.

Note:

When a disc with view restrictions is inserted, you will be prompted to input this password. The disc will not be viewable until the correct password is entered.

Some videos may be recorded at higher

WARNING

than desired volume levels. Increase the

volume gradually from the minimal setting

after the video has started.

Ejecting a disc

1. To eject a disc press eject [ ] button. The play mode then switches to the Tuner mode.

If the disc is left in the ejected position for

10 seconds, the disc is automatically reloaded. In this case, the play mode will remain in the Tuner mode.

Note:

If you force a disc into before auto reloading, it may damage a disc.

17NX405E

Page 19

Showing DVD Player Mode Screen

English

After disc is loaded, the play mode is automatically engaged. Touch any place of the screen to display DVD Video menu touch the screen again to return the playback

Owner’s Manual

screen. The display will return to the playback screen, if you do not touch the screen for 10 seconds.

5 6

14 15

1 - Option button 2 - Show Cursor keys button 3 - Previous Chapter /Fast Backward button 4 - Play/Pause button 5 - Next Chapter /Fast Forward button 6 - Elapsed playing time 7 - Seek bar 8 - Total time

9 - Menu List button 10 - System time 11 - Bluetooth status indicator

12 - DVD playback information 13 - Shortcut button 14 - Repeat Switching button 15 - Audio Channel switching button 16 - Subtitle switching button 17 - Angle button 18 - Direct chapter or title searching button

1011

19 - Information button

Operate the DVD Player Menu

You can select the button items displayed in the DVD menu by directly touching it.

Play/Pause Playback

1. Touch [ ] button to pause during playback.

2. Touch [

Skip (Search) a Chapter

1. Touch [ ] or [ ] button during playback. Chapters are skipped down or up from current locations, as many times as the button is touched, and playback starts.

Skip use seek bar

Touch the triangle [ ] on seek bar and drag it to any position where you want to start playback.

Fast Forward/Fast Backward

1. Touch [ ] or [ ] button and hold 2 seconds to start fast backward or fast forward during playback. The playback speed starts at 2x, then will increase to 4x,

1817

8x, and 16x. Release the button will continue playing with normal speed.

Note:

• No audio is reproduced during fast forward and fast backward operation.

• The fast forward and fast backward speed may dier depending on the disc.

Search function

You can locate the beginning of a scene using the chapter numbers or title numbers recorded on the DVD Video disc.

1. Showing the DVD Video menu, touch [ The Key Pad screen appears with the chapter/Title number input mode.

Touching [ chapter number input mode. Touching [ number input mode.

• Title

A large segment to divide the data area of the disc.

• Chapter

A small segment to divide the data area of the disc.

2. Input the number of the title/chapter that you want to play with the [0] to [9] key.

3. Touch the [

] button again to resume playback.

] button.

] button turns the Key Pad to the

] button turns the Key Pad to the title

] button.

18 NX405E

Page 20

Playback starts from the scene of the input title number or chapter number.

Note:

* If the input title/chapter number does not exist or searching with a title/chapter number is not allowed, the screen image will not change.

4. Touch [

] button to close the key pad.

Repeat Playback

This operation plays back chapters recorded on the DVD-Video repeatedly.

1. Showing the DVD Video menu, touch [

2. Touch [ for Repeat Title.

3. Touch [ playback.

] button once for Repeat Chapter, again

] button again to turn o the repeat

] button.

Using the Title Menu

On DVD discs containing two or more titles, you can select from the title menu for playback.

1. Showing the DVD Video menu, touch [ ] button during playback. * Depending on the disc, the title menu may not be called.

2. Touch the title menu screen. And touch the Show Cursor keys.

3. Select the items in the title menu screen by directional buttons. * Depending on the disc, items may not be selected with the directional buttons.

4. Touch [ ] button to x on the selected item.

5. Touch [

] button.

Switching Audio

On discs in which two or more audios or audio languages have been recorded, you can switch among the audio languages during playback.

1. Showing the DVD Video menu, touch [ during playback.

• Each time you touch the button, you can switch among audio languages.

• It may take time to switch among audios.

Depending on the disc, up to 8 kinds of audios may

be recorded. For details, see the mark of the disc:

Indicates that 8 audios have been recorded).

(

When the power is turned on and when the disc is

changed to a new one, the language set as the factory default is selected. If that language has not been recorded on disc the language is specied on the disc.

Depending on the disc, switching may be completely

impossible or impossible on some scenes.

Switching Subtitles

On DVD discs in with two or more subtitle languages have been recorded, you can switch among the subtitle languages during playback.

1. Showing the DVD Video menu, touch [ to select a subtitle during playback. Each time you touch the button, you can switch among subtitles.

• It may take time to switch among subtitles.

Depending on the disc, up to 32 kinds of subtitles

may be recorded. For details, see the mark of the

Indicates that 8 kinds of subtitles have been

disc: ( recorded).

Depending on the disc, switching may be completely

impossible or impossible on some scenes.

2. To turn o subtitles, repeat touching [ until subtitles are turned o.

Displaying the playback status

Touch [ ] button on DVD Player mode screen, Playback status is displayed on screen.

Play video les

This system can play video les stored on disc.

Showing Video Files Player Mode Screen

1. After disc with video les is loaded, touch [Disc Video] button on MAIN MENU to show video les player mode screen.

2. Touch the screen of the playing video le to display Video les player menu touch the screen again to return the playback screen. The display will return to the playback screen, if you do not touch the screen for 10 seconds.

] button

English

Owner’s Manual

19NX405E

Page 21

English

Owner’s Manual

11 12

1 - Option button 2 - Previous Track /Fast Backward button 3 - Play/Pause button 4 - Next Track/Fast Forward button 5 - Elapsed playing time /Seek bar 6 - List Mode button 7 - System time 8 - Bluetooth status indicator

9 - Playback information 10 - Repeat button 11 - Audio button 12 - Subtitle button

Operate the Video Files Player Menu

You can select the button items displayed in the Video les player menu by directly touching it.

Play/Pause Playback

1. Touch [ ] button to pause during playback.

2. Touch [

Switch to Previous/Next File

1. Touch [ ] or [ ] button during playback to play

previous /next le

] button again to resume playback.

Skip using seek bar

Touch the ball on seek bar and drag it to any position where you want to start playback.

Fast Forward /Fast Backward

1. Touch [ ] or [ ] button and hold 2 seconds to start fast backward or fast forward during playback. The playback speed starts at 2x, then will increase to 4x, 8x, and 16x. Release the button will continue playback with normal speed.

Note:

* No audio is reproduced during fast forward and fast

backward operation.

* The fast forward and fast backward speed may dier

depending on the disc.

Repeat Playback

This operation plays back video les recorded on the disc repeatedly. The repeat set as the factory default is Repeat all.

1. Showing the video les player menu, touch [ button.

2. Touch [ for Repeat Folder.

3. Touch [

] button once for Repeat Track, again

] button again for Repeat All.

]

Switching Audio

Some video les will have two or more audio channels; you can switch among the audio channels during playback.

1. Touch [

• Each time you touch the button, you can switch among audio languages.

• It may take time to switch among audios.

Depending on the disc, switching may be impossible.

] button during playback.

Switching Subtitles

Some video les will have two or more subtitles have been recorded; you can switch among these subtitles during playback.

1. Touch the [ playback.

• Each time you touch the button, you can switch among subtitles.

• It may take time to switch among subtitles.

Depending on the disc, switching may be impossible.

] button to select a subtitle during

Video Files List

Showing the Video les player menu; touch the [ ] button to display video les list screen. Video les list operations is almost same as Disc Audio player mode. Please refer to CD Player Operations.

20 NX405E

Page 22

Playable Video Disc Formats

This system can play video les stored on disc. *.avi les

• format: MPEG4 Visual Simple @L1

• Picture size: 720 x 480

• Audio format: MP3

• Audio sampling frequency: 32/44.1/48 KHz

*.mp4 les:

• format: MPEG4 Visual Simple @L1

• Picture size: 720 x 405

• Audio format: AAC

• Audio sampling frequency: 32/44.1/48 KHz

*.mpg les

• format: MPEG2

• Picture size: 720 x 480

• Audio format: MP3

• Audio sampling frequency: 32/44.1/48 KHz

English

Owner’s Manual

21NX405E

Page 23

English

8. CD PLAYER OPERATIONS

Listening to a Disc/Ejecting a Disc

Please refer to Disc Video Player Operations -watching

Owner’s Manual

to a disc and Ejecting a disc.

Showing CD Player Mode Screen

1. After disc is loaded, the play mode is automatically engaged.

2. If disc have been loaded you can touch [Disc Audio] button on main menu to display CD player mode screen.

123

1 - Option button 2 - Elapsed playing time indicator 3 - Progress bar 4 - Page Turning button 5 - System time 6 - Bluetooth status indicator 7 - Repeat button 8 - Previous Track /Fast Backward button

9 - Shortcut button. 10 - Play/Pause button 11 - Next Track/Fast Forward button 12 - Shue button 13 - Direct Searching button

14 - Scan Start/Stop button 15 - Song Title 16 - Artist/album Information 17 - Close option menu Button

Operate the CD Player Menu

You can select the button items displayed in the CD player menu by directly touching it in list.

Play/Pause Playback

1. Touch [ ] button to pause during playback.

2. Touch [

Switch to Previous/Next le or track

Touch [ ] or [ ] button during playback to play previous /next le.

• Touching [

beginning of the next track.

• Touching [ beginning of the current track. When this button is touched again within 5 seconds, playback starts from the beginning of previous track.

Fast Forward /Fast Backward

1. Touch [ ] or [ ] button and hold more than 2 seconds to start fast backward or fast forward during playback. The playback speed starts at 2x, then will increase to 4x, 8x, and 16x. Release the button will continue playback with normal speed.

Note:

* The fast forward and fast backward speed may dier

depending on the disc.

Repeat Playback

* The repeat set as the factory default is Repeat All.

Touch [

Repeat All and Repeat Track.

Shue Playback

1. Touch [ ] button to shue the tracks during playback.

2. Touch this button again to turn o the feature.

Selecting a track on the Track List Screen

This function allows you to select tracks from a displayed list.

1. Touch the track title on the display list. The selected track will start playing.

2. When the desired track is not displayed, touch and ick the track list up or down.

3. Touch the desired track title button. The corresponding track is started playback.

] button again to resume playback.

] button starts playback from the

] button switch between Repeat Folder

22 NX405E

Page 24

Scanning the Tracks

1. Touch [ ] button to show [Scan ] button.

2. Touch [Scan

• It will play from next track, and each track will display for 10 seconds.

• The [Scan

button.

3. Touch [Scan

• It will continue playback from current track.

• [Scan

button. * The function will scan all tracks orderly in current folder once. After Scan stopped playback will continue.

] button during playback.

] button will switch to [Scan ]

] button.

] button will switch to [Scan ]

Searching with the Track Number

This operation allows searching using the track numbers recorded on the CDs.

1. Touch [

2. Touch [

appear on the screen and touch [

3. Input the track number that you want to play back with [0] to [9] key and touch [OK] button.

Playback starts from the track of the input track number.

• If the input track number does not exist or searching with track number is not allowed, the screen image will not change.

• Touch the [

keypad.

• Touch [

display playback screen.

] button to show [ ] button.

] button .The numerical keypad will

] button.

] button will close the numerical

] button will close the option window and

Listening to Compressed Audio

This system can play audio les stored on disc. MP3/ WMA/ AAC

Tag Display Function

This unit is an ID3 Tag compatible model. This unit supports the ID3 TAGs of the Version 2.4, 2.3,

1.1 and 1.0.

In displaying, this unit gives priority to the Version 2.3 and 2.4 TAGs.

Note:

• Some CDs recorded on CD-R/RW mode may not be usable.

Displaying MP3/WMA/AAC TAG titles

Tag information can be displayed for compressed audio le containing Tag information. Tag data: title, artist, album

Precautions when creating MP3 disc

• File extensions

1. Always add a le extension “.MP3” or “.mp3” to an MP3 le, and “.WMA” or “.wma” to a WMA and “.m4a” to a AAC le by using single byte letters. If you add a le extension other than specied or forget to add these le extension, the le cannot be played. In addition, if you use upper case and lower case letters (capital and small letters) mixed for le extensions, normal play may not be possible.

2. Files other than MP3/WMA/AAC data cannot be played.

• Playing les with a format not supported will be skipped, and the scan, random and repeat playback mode may be canceled.

• File and Disc Not Supported

Files and discs with following extensions are not supported: *.AAC, *.DLF, *.M3U, *.PLS, *.MP3 PRO les, les with DRM, open session discs.

• Logical format (File system)

1. When writing an MP3/WMA/AAC le on a disc, please select “ISO9660 level 1 or level 2 (without including expansion format)” as the writing software format. Normal playback may not be possible if the disc is recorded on another format.

2. The folder name and le name can be displayed as the title during MP3/WMA/AAC play .

• Entering File and Folder Names

Names using the code list characters are the only le names and folder names that can be entered and displayed. Using any other character will cause the le and folder names to be displayed incorrectly.

• Folder structure

1. A disc with a folder having more than 8 hierarchical levels will conict with the ISO9660 and playback will be impossible.

• Number of les or folders

1. The maximum allowable number of folders is 200 (including root directory); the maximum allowable number of les is 1500 (max. 200 per folder). This represents the maximum number of tracks that can be played back.

2. Tracks are played in the order that they were recorded onto a disc. (Tracks might not always be played in the order displayed on the PC).

• Some noise may occur depending on the type of encoder software used while recording.

English

Owner’s Manual

23NX405E

Page 25

• In case of a track recorded at VBR (variable bit rate),

English

Owner’s Manual

the display for the play time of the track may be slightly dierent from the actual play time. Also, the recommended value of VBR ranges from 32kbps to 320kbps.

• After disc selection, the play mode is automatically engaged.

Playback MP3/WMA/AAC menu

1. Repeat Playback

While playing MP3/WMA/AAC touch [ switch between Repeat Folder, Repeat All and Repeat Track, Repeat Folder and Repeat All.

2. Current Folder

• Showing title of current folder.

• The number on the folder symbol is the number of

les and folders number in current folder.

• Touch the title of current folder, playlist will show les and folders in upper folder.

* Other operations about playing MP3/WMA/AAC are almost same as CD Player mode.

Stop Playback

1. Touch [

2. Touch [

Playback resumes from start of the folder which playing track is in.

• Other operations about playing MP3/WMA/AAC are almost same as CD Player mode.

] button to stop playback. ] button again to resume playback.

] button can

24 NX405E

Page 26

9. USB AUDIO OPERATIONS

English

This system can play audio les (MP3/WMA/AAC/ FLAC) stored in an USB memory which is recognized as “USB Mass Storage Class device”. You can use your USB memory as an audio device by simply copying desired audio les into it.

Note:

• This system will not operate or may operate improperly with some USB memory.

• Files protected with any DRM cannot be played.

Notes on Using USB Memories

General notes

• When no support les, the le list display nothing.

Notes on the Audio les

• This system can play the MP3/WMA/AAC/FLAC les stored in the USB memory.

MP3 les:

• format: MPEG1/2 Audio layer3

• bit rate: 8k ~ 320Kbps

• sampling frequency: 8/12/16/24/32/44.1/48KHz

• le extension: . mp3

WMA les:

• format: Windows media Audio standard L3 prole

• bit rate: 32 ~ 192Kbps

• sampling frequency: 32/44.1/48KHz

• le extension: .wma

AAC les

• format: Advanced Audio Coding LC-AAC,HE-AAC

• bit rate: 32 ~ 320Kbps

• sampling frequency: 32/44.1/48KHz

• le extension: . m4a

FLAC les

• format: Free Lossless Audio Codec

• quantization bit rate: 16 or 24 bits

• sampling frequency: 44.1~192KHz

• le extension: . ac

Notes on the folder structure

• The folder hierarchy must be within 8 hierarchical levels. Otherwise, playback may be impossible.

• The maximum allowable number of folders is 65,535 (including root directory and folders with no MP3/ WMA/AAC/FLAC le).

• The maximum allowable number of les in a folder is 65,535.

• You can store the MP3/WMA/AAC/FLAC les together in a folder.

• The system may become slow if the les or folders exceed the limitation above.

Notes on the Tag titles

MP3: title, artist, album WMA: title, artist, album AAC: can not display tag information.

Select USB Audio Mode

Connect your USB memory with MP3/WMA/AAC/FLAC les to the USB connector. The system will automatically detect the connected device, and the [USB Audio] button on main menu will be enabled.

• When an USB memory is already connected Touch [USB Audio] button to select the USB Audio mode.

The system changes to the USB Audio mode and starts playback from the previous position or from the beginning.

Note:

This system has two USB connectors and can connect two USB.

You can select the desired USB by touching the list of USB root menu.

This system indicate the USB as “My USB1”, “My USB2” on the list.

1 - Option button 2 - Play/Pause button 3 - Previous Track /Fast Backward button 4 - Next Track/Fast Forward button 5 - Repeat button

1011

English

Owner’s Manual

25NX405E

Page 27

6 - Shue button

English

7 - Audio les in list 8 - Folders in list

9 - Page turning button 10 - System time 11 - Bluetooth status indicator

Owner’s Manual

12 - Album Art (MP3,FLAC) 13 - Shortcut button 14 - Current ID3 info area 15 - Elapsed playing time indicator/Seek bar 16 - Playback status information 17 - Alphabet search button 18 - Category list 19 - Direct button 20 - Scan button

Playing Audio Files in USB Memory

Play/Pause Playback

1. Touch [ ] button to pause during playback.

2. Touch [

Switch to Previous/Next le

Touch [ ] or [ ] button during playback to play previous /next le.

• Touch [

of the next track.

• Touch [

of the current track; when this button is touched again within about 5 seconds, playback starts from the beginning of previous track.

Fast Forward /Fast Backward Touch [

2 seconds to start fast backward or fast forward during playback. The playback speed starts at 2x, then will increase to 4x, 8x, and 16x .Release the button will continue playback with normal speed.

Note:

* The fast forward and fast backward speed may dier depending on the audio les.

Repeat Playback

* The repeat set as the factory default is Repeat All.

Touch the [

Repeat Folder, Repeat All.

Shue Playback

1. Touch [ ] button to shue the tracks in playing

folder during playback.

2. Touch this button again to turn o the feature.

Alphabet Search

• Touch [ ] button to search with alphabet in current

list.

Album Art work

If MP3 audio le contains album art image in ID3, the picture will be displayed in this area.

] button again to resume playback.

] button to start playback from the beginning

] or [ ] button and hold more than

] button once for Repeat Track, again for

ID3 Information Area

This area display ID3 information of playing le.

Skip Using Seek Bar

Touch on seek bar and drag it to any position where you want to start playback.

Select a Folder on Display List

Touch the folder title on the display list, the display list

will display les and folders in selected folder.

Selecting a Track on the Display List

This function allows you to select tracks from a displayed list.

1. Touch the track title on the display list. The selected track will start playing.

2. When the desired track is not displayed, touch and ick the track list up or down.

3. Touch the desired track title button. The corresponding track is started playback.

Scanning the Tracks

1. Touch [

2. Touch [Scan

• It will play from next track, and each track will display for 10 seconds.

• The [Scan

button.

3. Touch [Scan

• It will continue playback from current track.

• [Scan

* The function will scan all tracks orderly in current folder once .After Scan stopped, playback will continue.

] button to show [Scan ] button.

] button during playback.

] button will switch to [Scan ]

] button.

] button will switch to [Scan ] button.

Searching with the Track Number

This operation allows searching to use the track numbers in playing folder.

1. Touch [

2. Touch [ appear on the screen.

3. Input the track number that you want to play back with [0] to [9] key and touch [OK] button.

Playback starts from the track of the input track number.

• If the input track number does not exist or searching with a track number is not allowed, the screen image will not change.

• Touch [

display playback screen.

] button to show [ ] button.

] button .The numerical keypad will

] button will close the numerical keypad.

] button will close the option window and

26 NX405E

Page 28

10. USB VIDEO OPERATIONS

English

This system can play USB video les (MP4, 3GP etc.) stored in an USB memory which is recognized as “USB Mass Storage Class device”. You can use your USB memory as an video device by simply copying desired video les into it.

Note:

• This system will not operate or may operate improperly with some USB memory.

• Files protected with any DRM cannot be played.

Notes on Using USB Memories

General notes

When no support les, the le list display nothing.

Notes on the folder structure

The limitations on the folder structure are same as those

in USB Audio Player mode.

Notes on the Tag titles

The limitations on the Tag titles are same as those in USB Audio Player mode.

Select USB Video Mode

Connect your USB memory with video les to the USB connector. The system will automatically detect the connected device, and the [USB Video] button on main menu will be enabled.

• When an USB memory is already connected

Touch [USB Video] button on main menu to select the

USB Video mode. The system changes to the USB Video mode and starts playback from the previous position or from the beginning.

Note: This system has two USB connectors and can connect two USB.

You can select the desired USB by touching the list of USB root menu.

This system indicate the USB as “My USB1”, “My USB2” on the list.

Playing Video Files in USB Memory

If the video is playing, touch the screen of the playing video to display Operation buttons.

* The display will return to the playback screen, if you do not touch the screen for 10 seconds.

Playable Video Format

*.mp4 les

• format: MPEG4 Visual MPEG4 AVC (H.264)

• Picture size: 720X480 (MPEG4 Visual)

• 1920 x 1080 (MPEG4 AVC)

• Audio format: AAC

• Audio sampling frequency: 32/44.1/48 KHz

*.m4v les

• format: MPEG4 Visual MPEG4 AVC (H.264)

• Picture size: 720 x 480

• Audio format: AAC

• Audio sampling frequency: 32/44.1/48 KHz

*.mpg les

• format: MPEG2

• Picture size: 720 x 480

• Audio format: MP3

• Audio sampling frequency: 32/44.1/48 KHz

*.3gp les

• format: MPEG4 Visual H.263

• Audio format: AAC, AMR

• Audio sampling frequency: 8/16/32/44.1/48 KHz

Note:

Even if the le format is mentioned above, NX405E cannot play all les.

9 8 7

1 - Previous Track /Fast Backward button 2 - Play/Pause button 3 - Next Track/Fast Forward button 4 - Elapsed playing time indicator/Seek bar 5 - Menu List 6 - Repeat button 7 - System time 8 - Bluetooth status indicator 9 - Playback information

10 - Shortcut button

English

Owner’s Manual

27NX405E

Page 29

Play/Pause Playback

English

1. Touch [ ] button to Pause playback.

2. Touch [

] button to resume playback.

Switch to Previous/Next le

Touch [ ] or [ ] button during playback to play

Owner’s Manual

previous /next le.

• Touch [

beginning of the next track.

• Touch [

beginning of the current track; when this button is touched again within about 5 seconds, playback starts from the beginning of previous track.

] button to starts playback from the

Repeat Playback

* The repeat set as the factory default is Repeat All.

Touch the [

Repeat Folder, again for Repeat All.

] button once for Repeat Track, again for

Skip Using Seek Bar

Touch the on seek bar and drag it to any position where you want to start playback.

Switching USB Video Menu

Touch [ ] button playback will be paused, and the screen will switch to USB Video List.

5 6

1 - Option button 2 - Play/Pause button 3 - Previous Track /Fast Backward button 4 - Next Track/Fast Forward button 5 - Repeat button 6 - Shue button 7 - Video les in list 8 - System time

28 NX405E

9 - Bluetooth status indicator 10 - Playback status information 11 - Shortcut button 12 - Current le information area 13 - Elapsed playing time indicator/Seek bar 14 - Alphabet search button 15 - Direct button 16 - Scan button

Play/Pause Playback

* On USB Video menu screen, playback status is pause.

Touch [

go to video screen automatically.

] button to resume playback. The screen will

Switch to Previous/Next le

Touch [ ] or [ ] button during playback to play previous /next le.

• Touch [

] button to starts playback from the

beginning of the next track.

] button to starts playback from the beginning of the current track; when this button is touched again within about 5 seconds, playback starts from the beginning of previous track.

Repeat Playback

* The repeat set as the factory default is Repeat All.

Touch the [

Repeat Folder, again for Repeat All.

Shue Playback

1. Touch [ ] button to shue the tracks in playing folder during playback.

2. Touch this button again to turn o the feature.

] button once for Repeat Track, again for

Alphabet Search

Touch [ ] button to search with alphabet in current list.

Current File Information Area

This area displays information of current video le: le name, number of current le/total number in current folder, Elapsed playing time/total time of current le.

Skip Using Seek Bar

Touch on seek bar and drag it to any position where you want to start playback.

Select a Folder on Display List

This operation is same as this in USB Audio mode.

Selecting a Track on the Display List

This operation is same as this in USB Audio mode.

Scanning the Tracks

This operation is same as this in USB Audio mode.

Searching with the Track Number

This operation is same as this in USB Audio mode.

Page 30

11. iPod OPERATIONS

English

iPod/iPhone can be connected by using the connector cable supplied with the iPod/iPhone, but in this case, you can enjoy its audio sound only. To enjoy video movies stored in the iPod/iPhone with video displaying them on this unit, it is required to use the special connector cable (CCA-750) separately sold. However the new products such as the device with LightningTM connector only can connect 10-pin cable (no video signal output),so these new products cannot display video in video mode.

Note:

• This system will not operate or may operate improperly with unsupported versions.

• For detailed information on the playable iPod/iPhone models, see our home page: www.clarion.com

Notes on Using iPod/iPhone

• Do not connect an iPod/iPhone to this unit with a headphone connected to the iPod/ iPhone.

• After the iPod/iPhone has been connected to this unit, the buttons of iPod are disabled for operation in the Music mode. In the Video mode, do not operate the buttons of iPod.

• When in the iPod mode, the screen image input from the AUX terminal, is output to the rear monitor.

• When no data is present, the title display will remain blank.

• Set the language setting of iPod/iPhone to English before connecting your iPod/iPhone. Some characters of the other languages may not be displayed correctly in this system.

• Precautions on battery consumption:

If the iPod/iPhone is connected to this unit when the internal battery of iPod/iPhone has run down, this function may not operate correctly. You must connect the iPod/iPhone after charging the battery if it has run down.

iPod Audio Menu Operations

Connect your iPod/iPhone to the USB connector. The system will automatically detect the connected device.

Note:

1. This system has two USB connectors, please connect to the USB with the label of “iPod/iPhone”. By connecting another USB cable, iPod/iPhone can’t play back the music.

2. When the iPod mode and operate the audio player or internet radio other than iPod, there is a case that iPod doesn’t playback correctly.

The playback starts after a while, from where the iPod/ iPhone has been paused.

• When iPod/iPhone is already connected

Touch the [

The system changes to the iPod mode, and starts playback from the previous position.

] button on the Main Menu screen.

iPod Audio ID3 Mode Screen

5 3

1 - Option button 2 - Repeat button 3 - Shue button 4 - Previous Track /Fast Backward button 5 - Play/Pause button 6 - Next Track/Fast Forward button 7 - ID3 Information 8 - Next Page [

9 - Category list 10 - System time 11 - Bluetooth status indicator 12 - Playback status indicator 13 - Art work 14 - Shortcut button 15 - Progress bar

6 7

] / Previous Page [ ] button

1011

English

Owner’s Manual

29NX405E

Page 31

Play/Pause Playback

English

1. Touch [ ] button to pause during playback.

2. Touch [

] button again to resume playback.

Switch to Previous/Next le

• Touch [ ] or [ ] button during playback to play

Owner’s Manual

previous /next le.

• Touch [

the next track.

• Touch [

beginning of the current track; when this button is touched again within about 5 seconds, playback starts from the beginning of previous track.

] button to starts playback from the Touch of

] button to starts playback from the

Fast Forward /Fast Backward

Touch [ ] or [ ] button and hold more than 2 seconds to start fast backward or fast forward during playback.

Note:

* The fast forward and fast backward speed may dier depending on the audio les.

Repeat Playback

* depend on iPod.

1. Touch the [ for Repeat All.

] button once for Repeat Track, again

Shue Playback

1. Touch [ ] button to shue the tracks in playing folder during playback.

2. Touch this button again to turn o the feature.

Album Art work

If current audio le contains album art image in ID3,

the picture will be displayed in this area.

ID3 Information Area

This area display ID3 information of playing le: song

title, artist information, album information (Genre, playlist and release time).

Category List

Select dierent category songs to play. The category

is same as the iPod/iPhone.

1 - Back to father folder 2 - Playing list 3 - Page turning button

• In the ID3 information mode screen, touch the ID3 info area to switch the playing list, and in the playing list mode screen, touch the button [ ] to back to the father folder. If the list is in root, touch it to close the list.

iPod Audio List Mode Screen

1 2

1 - Back to father folder 2 - Alphabet search button

• Touch the button [ the list is in root, touch it to close the list.

• Touch the button [ current list

] to back to the father folder. If

] to search with alphabet in

iPod Audio Simple Control Mode Screen

iPod Audio Playlist Mode Screen

30 NX405E

1 - Simple Control button.

2 - Video Mode button.

Page 32

• If the Simple Control is set to [ ] in option menu, the screen will become Simple Control Mode. It can also display the video of iPod/iPhone regardless it is iPod Audio or iPod Video mode. But only “Previous Track”, “Play/Pause” and “Next Track” can be operated.

• Touch [

]the video will play from iPod.

Skipping a Track (Simple Control Mode)

Touch the [ ] or [ ] button during playback. Tracks are skipped, as many times as the button is touched, and playback starts.

• Touch the [

beginning of the next track.

• Touch the [

beginning of the current track.

When this button is touched again within about 5 seconds, playback starts from the beginning of the previous track.

Note: In Simple Control Mode, the best way is to control the iPod just on iPod.

] button to starts playback from the

Selecting a list item from a list screen

(1). Touch the list screen and ick up or down to scroll

the list.

(2). Touch a desired list item on the screen to display the

corresponding list of tracks.

(3). Touch the desired track name on the list to play it.

iPod Video Menu Operations

Connect your iPod/iPhone to the USB connector. The system will automatically detect the connected device.

• When an iPod/iPhone is already connected Touch the [

system changes to the iPod Video mode, and starts playback from the previous position. Touch MENU button on Operational Panel to return to the Main Menu.

• Viewing video data in the iPod/iPhone (only for the iPod/iPhone with video features)

When you connect an iPod/iPhone with video features by using the optional connector cable for iPod/iPhone with video, you can enjoy the video data and slide show data stored in the iPod/iPhone and show them on the display of this unit (and the rear monitor if connected).

] button on the Main Menu screen. The

iPod Video ID3 Mode Screen iPod Video Menu Operations

4 5 6213

1 - Option button 2 - Repeat button 3 - Previous Track button 4 - Play/Pause button 5 - Next Track button 6 - Playing File title 7 - Category list 8 - Next Page [

9 - System time 10 - Bluetooth Status indicator 11 - Playback Status indicator 12 - Art work 13 - Shortcut button 14 - Progress bar

] / Previous Page [ ] button

Play/Pause Playback

1. Touch [ ] button to pause during playback.

2. Touch [

] button again to resume playback.

Switch to Previous/Next le

• Touch [ ] or [ ] button during playback to play

previous /next le.

• Touch [

] button to starts playback from the

beginning of the next track.

] button to starts playback from the

beginning of the current track.

910

English

Owner’s Manual

31NX405E

Page 33

Repeat Playback

English

* The repeat set as the factory default is depend on

iPod/iPhone.

1. Touch the [ ] button once for Repeat One, again for Repeat All.

Album Art work

Owner’s Manual

If current video le contains album art image in ID3,

the picture will be displayed in this area.

ID3 Information Area

The area is display the title of the playing le.

Category List

Select dierent category movies to play. The category

is same as the iPod/iPhone.

iPod Video List Mode Screen

This operation is same as this in iPod Audio mode.

iPod Video Simple Control Mode Screen

This operation is same as this in iPod Audio mode.

iPod Video Play Mode Screen

1 - Previous Track /Fast Backward button 2 - Play/Pause button 3 - Next Track/Fast Forward button 4 - Progress bar 5 - Menu List button 6 - Repeat button 7 - System time 8 - Bluetooth status indicator 9 - Playback information

Play/Pause Playback

1. Touch [ ] button to pause during playback.

2. Touch [

] button again to resume playback.

Switch to Previous/Next Track

• Touch [ ] or [ ] button during playback to play previous /next track.

• Touch [

] button to starts playback from the

beginning of the next track.

] button to starts playback from the beginning of the current track; when this button is touched again within about 5 seconds, playback starts from the beginning of previous track.beginning of the current track.

Fast Forward /Fast Backward

Touch [ ] or [ ] button and hold more than 2 seconds to start fast backward or fast forward during playback. Release the button will continue playback with normal speed.

Note:

* The fast forward and fast backward speed may dier depending on the video les.

Repeat Playback

* The repeat set as the factory default is Repeat O.

Touch the [

Repeat All.

] button once for Repeat One, again for

63 4 52

32 NX405E

Page 34

Note:

The operation in iPod video mode is as same as iPod Audio mode. Please refer to the iPod Audio Mode operation.

Note:

Video playback is not available on all iPod/ iPhone devices. Please contact your Clarion dealer for details. An optional connection cable or accessory may be required for this feature.

Note:

• Video is not displayed when the automobile is moving.

• Image data may not be played back according to the status of the iPod/iPhone.

• The volume setting of video data is relatively lower than audio data. Be sure to lower the volume setting before switching to the other mode.

• Do not select the categories with no track registered from the iPod menu screen. The iPod/iPhone may be frozen. If the iPod/iPhone is frozen, reset the iPod/ iPhone by following the procedure described in the instruction manual of the iPod/iPhone.

• Audio may be played back slightly out of synchronization with video images.

English

Owner’s Manual

33NX405E

Page 35

English

12. Bluetooth® AUDIO PLAYER OPERATIONS

Some Bluetooth cellular phones have audio features, and some portable audio players support the Bluetooth feature. These devices will be called as “Bluetooth audio

Owner’s Manual

players” in this manual. This system can play audio data stored in a Bluetooth audio player.

Note:

• This system will not operate or may operate improperly with some Bluetooth audio players.

• For detailed information on the playable Bluetooth audio players, see our home page: www.clarion.com

Selecting the Bluetooth Audio Mode

1. Touch the [BT Audio] button to select the Bluetooth Audio mode.

The system changes to the Bluetooth mode. If the connection with a Bluetooth audio player has been already established, you may select the Music function.

2. Press MENU button on Operational Panel to return to the Main Menu.

• When the connection with blue icon a Bluetooth audio player has been established, the [ displayed at the top of the screen.

] icon is

Registering Your Bluetooth Audio Player (Pairing)

You can register up to 3 Bluetooth audio players. Your mobile phone Bluetooth version is under 2.0. Please input PIN code “0000”.

1. Turn on the power of the Bluetooth audio player you wish to register.

2. Touch the Device button to display the Device Select screen.

3. Touch the [ ] button to display the Inquiring Device screen.

Bluetooth Audio Player Settings

You can conrm various information concerning about the Bluetooth Interface features.

1. Touch the [ screen.

2. When you nish conrming the Bluetooth information,

touch the [

34 NX405E

] button to display the information on the

] button to return to the previous screen.

4. Touch your desired device button and touch [ button to register for the Bluetooth audio player. Then select an image of this device.

]

Page 36

When the pairing operation completes, the registered Bluetooth audio player is set as the current device, after selecting the favorite icon, the display return to the device list screen. Touch [ return to the Bluetooth audio mode screen.

• To delete the Bluetooth audio player registration

1. Touch the [ A conrmation screen is displayed.

2. Touch the [

] button to delete the device.

] button to conrm delete.

] button, the display will

Selecting the Bluetooth Audio Player

To change the current Bluetooth audio player to the other device which is already registered, perform the following operation.

1. Touch the device button to display the Device Select screen.

2. Touch the currently connected device button, then

touch the [

device.

3. Touch the desired Device button you wish to use.

Touch [

device. The corresponding cellular phone is set as current telephone.

4. Touch the [ screen.

] button to disconnect the active

] button to select it as your active

] button to return to the previous

Controlling the Bluetooth Audio Player

Note:

• Occasionally, depending on the environment, playback sounds may be fragmented, or switch noises may be generated.

Playing Music

After the connection with a Bluetooth audio player is established, the play mode is automatically engaged.

• When playback is not started for some devices, touch

Pausing Playback

1. Touch the [ ] button during playback.

Playback Pauses

2. To resume playback, touch the [ ] button.

Skipping a Track Searching

3. Touch the [ ] or [ ] button during playback.

Stopping Playback

4. Touch the [ ] button during playback.

Tracks are stopped, touch the [

the rst Track.

] button manually.

the [

Playback resumes.

] button to playback

English

Owner’s Manual

35NX405E

Page 37

English

13. Bluetooth® TELEPHONE OPERATIONS

When the connection with your Bluetooth cellular phone is established, the following functions are available on this unit:

Owner’s Manual

• Listening to your telephone calls on the car speakers.

• Answering to an incoming call.

• Making a call using the Ten-Key pad screen.

• Making a call using the Phone Book data in the

selected cellular phone.

• Making a call using the History data of the dialed/ received calls.

Note:

• Some cellular phones may not be able to transfer the Phone Book data to head unit.

• The Phone Book data transmission may take a long time. The operations of sending calls are disabled during the data transmission.

Select the BT Phone Mode

1. Touch the [TEL] button to select the Bluetooth Telephone mode.

• The Telephone screen is displayed.

2. Press MENU button on Operational Panel to return to the Main Menu.

• When no Bluetooth Telephone connected, the icon [ ] is displayed at the top of the screen.

• When the connection with a Bluetooth Telephone has been established, the icon [ of the screen.

] is displayed at the top

Bluetooth Telephone Settings

You can conrm various information concerning about the Bluetooth Interface features.

1. Touch the [ the screen.

2. Perform setting for the desired item. See the following sections for detail.

3. When you nish conrming the Bluetooth information,

touch the [

Setting Automatic Connection

The system automatically reconnects the cellular phone

after the connection is lost or the system is restarted.

• The factory default setting is “ON”. Touch the [ [

the function ON or OFF.

Setting Automatic Answer

If a call comes in, answer automatically after 5 seconds.

• The factory default setting is “OFF”. Touch the [ or [

the function ON or OFF.

Setting Microphone Gain

You can adjust the input level of the microphone in 30 levels.

• Touch the level indicator button of the Microphone Gain item to adjust the input level.

Note:

• The input level of the microphone can be aected by

its surroundings. Adjust the level if the person on the other end of the telephone has a reception problem.

] button to display the information on

] button to return to the previous screen.

] or

] button of the Automatic Connection item to set

]

] button of the Automatic Answer item to set

36 NX405E

Page 38

Registering Your Cellular Phone (Pairing)

You can register up to 3 cellular phones. The registering method is as same as “Registering your Bluetooth audio player”. Your mobile phone Bluetooth version is under 2.0. Please input PIN code “0000”.

1. Turn on the power of the cellular phone you wish to register.

2. Touch the Device button [ Select screen.

3. Touch the [ ] button to display the Inquiring Device screen.

] to display the Device

When the pairing operation completes, the registered

cellular phone is set as the current telephone, and the

display returns to the Telephone screen.

• To delete the cellular phone registration

1. Touch the [ A conrmation screen is displayed.

2. Touch the [

] button to delete the device.

] button to conrm delete.

Select the Cellular Phone

To change the current cellular phone to the other device which is already registered, perform the following operation.

1. Touch the device button to display the Device Select screen.

2. Touch the currently connected device, then touch [ ] button to disconnect the active device.

3. Touch the desired Device button you wish to use.

Touch [

device. The corresponding cellular phone is set as the current telephone.

• If the power of the cellular phone is not turned on, turn it on.

• The cellular phone may prompt to acknowledge the Bluetooth connection or to enter the Pass Key code of this unit. Perform these operations according to the message displayed.

4. Touch the [ screen.

] button to select it as your active

] button to return to the previous

Get the Phone Book Data

English

Owner’s Manual

4. Touch your desired Cellular button to select the button for the cellular phone to be registered, and

touch[

cellular phone.

You cannot select the Cellular button of which another cellular phone is already registered. Select a blank Cellular button.

5. If entering the Pass Key code is prompted on your cellular phone, enter the Pass Key code set in this unit.

] button to register for the Bluetooth

Sending the Phone Book data from the cellular phone enables you to make a call using the Phone Book function from this unit.

Telephone Operations

Making a call using the Ten-Key pad

1. Touch the [ ] button to display the Ten-Key pad screen.

2. Enter the telephone number by using the Ten-Key pad displayed on the screen.

37NX405E

Page 39

English

Owner’s Manual

3. Touch the [ ] (Send) button to call the entered number.

• The following Telephone Interrupt screen is displayed during phone call.

• Touch the [ ] button to talk by using the cellular phone and canceling the hands-free function (Private Mode). To return to the hands-free mode,

touch the [

• Touch the [

you can hear the other side, but the other side cannot hear your side.

• Touch the [

now you can answer to the other incoming call. Touch again to talk with previous call If during a call with a third-party call, you can keep the current call to answer a third party or hang up the current call to answer a third party. You can also ignore the thirdparty calls.

] button again.

] button to mute the microphone. Now

] button to hold the current phone call,

Making a Call Using the Phone Book

You can use the Phone Book data obtained from the cellular phone to make a call from this unit.

Note:

• Before using this function, the Phone Book data must be sent from the cellular phone.

• Only the Phone Book items with at least one telephone number registered in the captured Phone Book data are displayed on the Phone Book screen.

1. Touch the [ screen.

2. Touch the desired name button you wish to dial.

• Flick the list up and down to scroll the list.

3. Touch the [ The Telephone Interrupt screen is displayed, and calling starts.

• When the call is nished, touch the [ hang up.

] button to display the Phone Book

] button to call the specied number.

] button to

Making a Call Using the History

The system will memorize the Dialed/Received calls record data in the memory. You can conrm it and use it to make a call from this unit.

1. Touch the [ displayed.

• The items are sorted by Dialed, Missed and Received calls.

• Flick the list up and down to scroll the list.

2. Touch the desired History item key you wish to dial.

3. Touch the [ The Telephone Interrupt screen is displayed, and calling starts.

• When the call is nished, touch the [ hang up.

] button. The History List screen is

] button to call the specied number.

] button to

Answering to an incoming call

When a call comes in, the following Telephone Interrupt screen appears.

4. When the call is nished, touch [ ] button to hang up.

Note:

• Depending on some special cellular phone, the Telephone Interrupt screen may be closed and the connection with this system may be disconnected when entering the Private mode.

38 NX405E

You can answer to the incoming call on this system by the following operation.

1. Touch the [

2. When the call is nished, touch the [ hang up.

] button to answer the call.

] button to

Page 40

14. TUNER OPERATIONS

English

The tuner in this head unit contains RDS (Radio Data System) in FM band.

Listening to the Tuner

1. Touch the [Tuner] button on the main menu display. The tuner mode screen is displayed.

2. Touch the [FM1/FM2/FM3/AM] button to select the radio band. Each time the button is touched, the radio reception band changes in the following order: FM1->FM2->FM3->AM -> FM1...

10 9

1 - Preset Scan button 2 - Seek down button 3 - Seek up button 4 - Step down button 5 - Step up button 6 - Frequencies display 7 - System time 8 - Bluetooth status indicator

9 - Preset channel list 10 - DX/Local indicator 11 - Band button 12 - Shortcut button 13 - Option button

Seek Tuning

1. Touch the [FM1/2/3/AM] button to select the radio

band (FM or AM).

2. Touch the [

• When touch the [

the direction of higher frequency.

• When touch the [

the direction of lower frequency.

] or [ ] button

] button, the station is searched in

Step Tuning

1. Touch the [FM1/2/3/AM] button to select the radio

band (FM or AM).

2. Touch the [ tune up or down by one step.

] or [ ] button in frequency menu to

Recalling a preset station

1. Touch the [FM1/2/3/AM] button to select the desire band (FM or AM) on the tuner.

2. Press the preset station (1 to 6) on Preset list.

Manual memory

1. Touch the desired band button to select the band you wish to store.

2. Tune to a station you want to store using the seek tuning, step tuning, or preset tuning.

3. Touch and hold the desired Preset button you want to

store for about 2 seconds.

RDS Function Setting

Press the Option [ ] to set the RDS operation.

Note:

The RDS operation does not work during AM radio reception.

1. TA (Trac Announcement) Function

When a trac announcement broadcast starts during the TA standby mode, the trac announcement broadcast is received as higher priority regardless of the current function mode, so you can listen to it. The Trac Program (TP) automatic tuning is also available.

Setting TA Standby Mode

Turn TA switch to ON, TA standby mode is set and “TA” will be displayed at the top of the screen. When an RDS broadcast station with trac announcement program is received, “TP” will be displayed at the top of the screen.

Note: If no TP station is received this system continues the search operation. Performing the above procedure

again makes the “TA” turns to o, and stops TP station

searching.

Canceling a Trac Announcement

Broadcast

Press the [Cancel] button while a Trac Announcement broadcast is being received. The Trac Announcement broadcast reception is canceled, and the system goes into the TA standby mode.

Canceling TA Standby Mode

When “TA” is displayed on the screen, turn TA switch to OFF, “TA” on the screen goes o, and the TA standby mode is canceled.

Volume Setting of TA

The volume of TA can be set during TA interruption.

English

Owner’s Manual

39NX405E

Page 41

2. AF (Alternative Frequency) Function

English

The AF function switches to a dierent frequency on the same network in order to maintain optimum reception.

Auto Store

The Auto Store is a function for storing up to 6 stations

Owner’s Manual

that are automatically searched in sequentially. If the number of receivable stations cannot reach to 6, the previous stored station remains.

1. Touch the [FM1/2/3/AM] button to select the desired band. (FM or AM)

2. Touch the [ button to start the Auto Store.

A beep sounds and the stations with good reception are stored automatically to the preset list.

Notes:

1. After auto store, the previous stored stations will be overwritten.

2. The unit has 4 bands, but FM3 and AM can store by Auto Store function.

] button, and then touch the [ ]

Preset Scan

The Preset Scan receives the stations stored in the preset memory in order. This function is useful when searching for the desired station in memory.

1. Touch the [FM1/2/3/AM] button to select the desired band. (FM or AM)

2. Touch the [

The unit starts scanning each station for 10 seconds sequentially. But the station stored is not a valid station; the scanning time is only 2 seconds.

3. When the desired station is tuned in, touch the [ button again to stay in that station.

] button to start the Preset Scan.

DX/Local Setting

The DX / Local setting changes the tuner sensitivity in order to separate closely spaced stations. This feature is useful in areas that have many radio stations in close proximity.

]

40 NX405E

Page 42

15. DAB OPERATIONS

English

Setting to DAB

Before using DAB system, please set the adjust in Settings. Please select “DAB” in DAB/TV (Option) of Settings to activate DAB icon on Main menu.

Listening to the DAB

1. Touch the DAB button on the main menu display. The DAB mode screen is displayed.

2. Touch the [DAB1/DAB2/DAB3] button to select the DAB band. Each time the button is touched, the DAB reception band changes in the following order: DAB1->DAB2->DAB3->DAB1 -> DAB2...

Note:

1. DAB is not broadcast everywhere.

2. This content is optional. If you connect DAB unit, you can use DAB feature.

3. DAB unit is sold separately.

1 - DAB Information display 2 - Option button(open/close) 3 - Preset Scan button 4 - Previous Ensemble/Seek button 5 - Next Ensemble/Seek button 6 - Previous Service in Current Ensemble button 7 - Next Service in Current Ensemble button 8 - List Page Down button 9 - List Page Up button

10 - Preset List/Service List Switch button

1112

76543

11 - Service List display in each category (Preset/

Ensemble / PTY)

12 - Preset number/Channel number/Service number/

FM Link display 13 - DAB band button 14 - Service List Update button 15 - Service Link Mode button 16 - Software version display

Seek Tuning

You can tune to the Ensemble and select the Service which is currently broadcast.

1. 1Touch the [

next ensemble station manually step by step.

2. Long touch the [

previous or next available ensemble station.

3. Touch [

or next Service in current Ensemble.

Notes:

Total number and the current service number of the current Ensemble is displayed just below the Ensemble frequency display, as in the way “1/16”.

Preset List/Service List Display

You can select the list from Preset List, Ensemble List or PTY List.

1. Touch the [

want to display.

2. When you select “Preset”, the list area displays preset

services for each DAB Band. If you touch service in the list, you can listen to respective service in this list. If you touch and hold in the list, you can store current service in this list. Preset List will not be changed by Service Scan operation.

3. When you select “Ensemble”, the list area displays

Ensemble list which were stored by Service Scan. By selecting each Ensemble in the list, it will show the Services in this Ensemble. If you select “ALL Service”, you can see all Services in all Ensembles. To go back to Ensemble list just touch “back” button.

4. When you select “PTY”, the list area displays PTY

category list from NEWS, SPORT, CULTURE, POP and OTHERS. By selecting each PTY in the list, it will show the Services in this PTY category. To go back to Ensemble list just touch “back” button.

Note:

If you want to update the services in Ensemble list and PTY list with current broadcasting, please perform Service Scan.

] or [ ] button to tune to previous or

] or [ ] button to seek and tune to

] or [ ] button to select and tune to previous

] button to select the list you

English

Owner’s Manual

41NX405E

Page 43

Service Scan

English

When you want to update the list with the current services in Ensemble List or PTY List, please perform Service Scan.

1. Touch the option button [

Owner’s Manual

display.

2. In Option Menu, touch the [Start] button.

3. Touch the [OK] button to start updating the service list, touch the [Cancel] button to cancel this operation then back to previous menu.

] to open option menu

Preset Scan

Preset Scan tunes to the Services stored in the preset list in order.

1. Touch the [DAB1/2/3] button to select the desired band.

2. Touch the [ unit starts scanning each service for playing 10 seconds sequentially.

3. When the desired service is tuned in, touch the[ button again to stay in that service.

] button to start the Preset Scan.The

]

Service Link Setting

You can select Service Link mode from On or OFF. If this setting is set to On, and current Service signal gets weak, it is to be linked to the service with better signal.

1. Touch the option button[ display.

2. Touch the [

] button to switch On or OFF.

] to open option menu

4. When scanning the services, this image will display.

Notes:

After service scan, currently available services will be updated in the Ensemble List and PTY List.

DAB Band

When touch the DAB band button, the band will change as below DAB1->DAB2->DAB3->DAB1…

Note:

If the service is linked to the FM station, the FM indicator will be turned on.

42 NX405E

Page 44

16. TV OPERATIONS

English

When TV device connect to unit, you can watch TV program and operate DVB-T device. Dierent DVB-T device have dierent operate mode, please read the user manual of the DVB-T device connected to unit. This function is available when a DVB-T Black Box is connected. This unit can control the following DVB-T Black Box: (DTX502E) * DTX502E is sold separately.

Note:

For your safety, the unit has a safety function, which turns o the picture when car is moving, so only the audio can be

heard. The picture can be only watched, when the car is stopped and parking brake is applied.

Switching to DVB-T mode

• Touch [TV] key on Main Menu to select desired mode (when unit is reading). The LCD will display the external video. If there is no DVB-T signal, it will show you blank screen.

• Press [Menu] button on Operational Panel to return to the Main Menu.

English

Owner’s Manual

43NX405E

Page 45

English

NX405E

17. HDMI MODE

Wire Connection of HDMI Mode Wire Connection of HDMI Mode

iPhone 4, iPhone 4s, iPhone 5, iPhone 5s, iPhone 5c, iPhone 6 and iPhone 6 Plus can be connected by using the

Owner’s Manual

connector cable supplied with the iPhone 4, iPhone 4s, iPhone 5, iPhone 5s, iPhone 5c, iPhone 6 and iPhone 6 Plus and HDMI cable (sold in the market) or CCA-802 (sold separately) and digital Av adapter

Note:

The following is part of the wiring example. Depending on the device, there is a case to connect to the device directly with the CCA-771. Depending on the adapter or device, there is a case that the audio noise and video noise is generated.

(1) Connection with the iPhone 4 and iPhone 4s

HDMI cable sold in the market or CCA-802 iPhone 4 and iPhone 4s

30pin cable (supplied with iPhone)

(2) Connection with the iPhone 5, iPhone 5s, iPhone 5c, iPhone 6 and iPhone 6 Plus

HDMI cable sold in the market or CCA-802

Lightning cable

(3) Connection with the Android Phone

(4) Connection with the equipment with HDMI output

(supplied with iPhone}

Micro USB cable sold in the market

HDMI cable sold in the market or CCA-802

Electronic devices with HDMI output

HDMI cable sold in the

market

30pin-Digital AV adapter (made by Apple Inc.)

iPhone 5, iPhone 5s, iPhone 5c, iPhone 6 and iPhone 6 Plus

Lightning-Digital AV adapter (made by Apple Inc.)

MHL adaptor sold in

the market

Android phobe

44 NX405E

Page 46

Select HDMI Source

Touch the HDMI menu button, then appear the screen of the connected device.

This HDMI mode is only indicate the screen of the iPhone, Android. Can‘t operate by the touch screen of NX405E.

Note:

Depending on the application and model of the mobile phone, there is the case that black frame appears around the screen.

English

Owner’s Manual

45NX405E

Page 47

English

18. AUX

External peripheral devices, including a game console, camcorder, navigation unit, iPod/iPhone, etc. can be connected to the AUX connector on the front or back of this unit using the A/V media cables.

Owner’s Manual

Switching to AUX IN

Touch [AUX1]/[AUX2] button on Main Menu to select desired mode (when unit is reading). If the external device connected to AUX input have audio signal, the unit will broadcast audio of external device. Press Menu button on Operational Panel to return to the Main Menu. You cannot directly control external devices connected to AUX input.

19. CAMERA INPUT OPERATIONS

Switching to Camera mode

Touch [Camera] button on Main Menu. The LCD will display the external camera video. The screen will display “No Video Signal” message, if a valid camera is not connect to this head unit. Press MENU button on Operational Panel to return to the Main Menu.

Note:

If the reverse cable is connected correctly to the car, the unit goes to camera mode automatically when the car is in reverses.

46 NX405E

Page 48

20. REAR SOURCE OPERATIONS

English

If a monitor is installed in the rear zone and connected to the rear zone AV output, passengers in the back seat can watch the DVD/iPod Video/AUX1/ AUX2/ TV video separately from front source.

1 - Touch the button to access the front source. 2 - Touch the button to close the rear source.

Multi-Zone Operation

Independent sources can be played simultaneously on the unit. For example, a FM/AM console can be playback on the front screen while DVD video is available to rear passengers. But now can’t select DVD video in front.

Access Rear-Zone

1. Touch the Rear button on Main Menu to access the Rear Source.

2. Select a source to play.

Exit Rear-Zone

Touch the 2-Zone o button to close the Rear Source.

Note:

1. If the source is selected as the front, the source in rear can’t be selected.

2. If the source is selected as the rear, the source in front can’t be selected.

3. Touch the Front button to access the main menu but not close the Rear Source.

DVD Video in Rear

1 - Option button 2 - Show Cursor keys 3 - Previous Chapter /Fast Backward button 4 - Play/Pause button 5 - Next Chapter /Fast Forward button 6 - Elapsed playing time 7 - Menu List button 8 - Front/Rear button

If the screen displays Rear Source, touch Front/Rear button to switch to Front Source. If the screen displays Front Source, touch Front/Rear button to switch to Rear Source.

DVD Video Rear Source Control Info Mode

Touch BACK button to return.

DVD Video Rear Source Control Direct Mode

English

Owner’s Manual

2 3 4 5 6 1

Note: More detail please refer to DVD Video Front source.

47NX405E

Page 49

AUX1

English

Owner’s Manual

AUX2

iPod Video Rear Source ID3 Mode

iPod Video in Rear

iPod Video Rear Source Control Play Mode

1 2 3 4 5 6

1 - Previous Track /Fast Backward button 2 - Play/Pause button 3 - Next Track/Fast Forward button 4 - Progress bar 5 - Menu List button:

Press the Menu button to display the iPod Video Rear Source mode screen.

6 - Repeat button:

Same as iPod function of front source

7 - Front/Rear button

If the screen displays Rear Source, touch to switch to Front Source.

If the screen displays Front Source, touch to switch to Rear Source.

Note:

If the source is selected as the front, the source in rear can’t be selected. If the source is selected as the rear, the source in front can’t be selected. Touch the Front button to access the front main menu but the rear source will keep running.

48 NX405E

Page 50

21. SETTING OPERATIONS

English

Touch [ ] button on the Main menu screen. The Setting menu screen will be displayed.

General Setup Menu

System Language: Set the Language for system screen. Shortcut Menu: Select menu to be able to select from Shortcut menu and drag it to lower side area.

Time: Set system clock.

24-Hour Format: Set the time display mode. Beep: Turn on or turn o the beep conrmation sound. Bluetooth: Set the Bluetooth On or O. Wallpaper: Choose the desired wallpaper.

There are three optional images, which you can import from USB. Select “Imported 1/2/3” and touch [Import]. The format should be jpeg of less than 5M bytes.

Illumination Color: Set the illumination color on the panel. Input Aux Sense: AUX input switch, including Low, Middle, High. Tel Speaker: There are two options, Left and Right. For example, if current setting is Right, when BT phone is coming in, only right speaker can hear the phone. Version: Display the software version information.

Note:

• Time and 24-Hour Format can be adjusted when set the system time not to be synchronized with GPS local time.

Video Setup Menu

English

Owner’s Manual

DVD Wide Screen Mode: Set the DVD wide screen mode On or O.

Dimmer: Set Dimmer value from 0 to 20. Dimmer Mode: There are three options, Day, Night and

Auto.

49NX405E

Page 51

Audio Setup Menu

English

Owner’s Manual

Balance: Choose the desired volume for left and right speaker. Fader: Choose the desired volume for front and rear speaker. Beat EQ: Choose the desired mode: Bass Boost, Impact, Excite, Custom and OFF. Subwoofer Ctrl: Choose the desired subwoofer gain from 0 to 14. Subwoofer Phase: Choose the Subwoofer Phase normal or reverse. High Pass Filter: Choose the frequency about the high pass lter or enable. The frequencies include 60Hz, 90Hz and 120Hz. Low Pass Filter: Choose the frequency about the low pass lter or enable. The frequencies include 60Hz, 90Hz and 120Hz. Magna Bass EX: Choose the loudness On or O.

Note:

Optional cable (sold separately) is necessary when you use Audio line out.

Navigation Setup Menu

GPS Time: Set the system time to be synchronized with GPS local time or not. Navi Interrupt: There are three choices: On/Popup/O. “On”: The navigation screen will cover to AV screen when reaching some key point. “Popup”: When small turn info window will pop up in the top of the AV screen to indicate the key point. “O”: Turn o this function. Voice Guidance: There are three choose: On/Mute/ O. On: Interrupt function of voice guidance is on. While interrupting no attenuate function of AV sound. Mute: Interrupt function of voice guidance is on. While interrupting attenuate function sound is on. O: Disable the navigation voice guidance.

Others Setup Menu

50 NX405E

Set Password: Set the password for DVD parental control. Parental Control: Set the rating of the age. It contains Kid Safe/G/PG/PG-13/PG-R/R/NC-17/Adult.

Page 52

Audio Language: Set the Language for DVD Audio. Subtitle Language: Set the Language for DVD subtitle. PTY Language: Set the Language for PTY text. DAB/TV: Choose the connected device: DAB, TV and

O.

Blinking LED: Set blinking LED On or O. Screen Calibrate: The function of it is to select the TS

Calibrate YES or NO.

Factory Default: The function is to select to load

factory default or not.

Set the Anti-Theft Code

1. If your unit is unlocked, hold the [ ] button more than 2 seconds, then the Anti-Theft setting mode will display. Users can change anti-theft code.

• Touch [YES] button, the numerical keypad is displayed. Enter the new password twice, then anti-theft code is set and your unit is secured. When the Anti-theft is “On”, you need enter correct Anti-theft code to turn the unit on. If you enter wrong code three times, the unit is locked, and must be unlocked by the professionals.

2. If your unit is secured, hold the [ than 2 seconds, then the Anti-Theft setting mode will display. The numerical keypad is displayed, enter the right code to unlock.

Note:

If the anti-theft code is lost or forgotten, a charge will be incurred at the owner’s expense by a Clarion service

station to unlock the NX405E.

] button more

English

Owner’s Manual

51NX405E

Page 53

English

22. TROUBLESHOOTING

General

Owner’s Manual

Problem Cause Measure

Power does not turn on. (No sound is produced.)

Nothing happens when buttons are pressed.

Display is not accurate.

The remote control unit does not

work.

Fuse is blown. Replace with a fuse of the same

Incorrect wiring. Consult your installation center.

The microprocessor has

malfunctioned due to noise, etc.

Direct rays of the sun fall on the light-receptive part of the remote control unit.

The battery of the remote control unit is dead or there is no battery in the remote control unit.

DVD Player

amperage. If the fuse blows again, consult your store of purchase.

Press the reset button with a thin rod.

Note:

When the Reset button is pressed, turn o the ACC power.

* When the Reset button is pressed, frequencies of radio stations, titles, etc. stored in memory are cleared.

When direct rays of the sun fall on the light-receptive part of the remote control unit, it may not work.

Check the battery of the remote control unit.

Problem Cause Measure

Disc cannot be loaded. A disc is already loaded. Eject the disc before loading the

There is foreign matter already in the disc slot.

Sound skips or is noisy. Disc is dirty. Clean the disc with a soft cloth.

Disc is heavily scratched or warped. Replace with a disc in good

Sound is bad directly after power is turned on.

Video images are not displayed. The parking brake is not engaged. Check that the parking brake is

Disc cannot play with the display “PARENTAL VIOLATION” shown.

52 NX405E

Condensation may form on the internal lens when the car is parked in a humid place.

Feature exceeds set parental level. Release the view limitation or

new one. Remove the foreign matter, or

consult a service station.

condition. Let dry for about 1 hour with the

power on.

engaged.

change the parental level. See the subsection “Setting up the parental level”

Page 54

USB Device

Problem Cause Measure

USB device cannot be inserted. The USB device has been inserted

USB device is not recognized. The USB device is damaged. Disconnect the USB device and

No sound heard with the display “NO FILE” shown.

Sound skips or is noisy. MP3/WMA les are not encoded

The video image of iPod/iPhone is disturbed.

with wrong direction. The USB connector is broken. Replace with a new USB device.

Connectors are loose.

No MP3/WMA le is stored in the USB device.

properly. The TV Signal setting of the iPod/

iPhone is not set correctly.

Reversing the connection direction of the USB device, try it again.

reconnect. If the device is still not recognized, try replacing with a dierent USB device.

Store these les properly in the USB device.

Use MP3/WMA les encoded properly.

Set the TV Signal setting (NTSC/ PAL) of the iPod/iPhone correctly.

Bluetooth

Problem Cause Measure

Cannot pair the Bluetooth enable device with the car audio system.

The audio quality is poor after connection with a Bluetooth enabled device.

The device does not support the proles required for the system.

The Bluetooth function of the device is not enabled.

The Bluetooth reception is poor. Move the device closer to the car

Use another device to connect.

Refer to the user manual of the device for how to enable the function.

audio system or remove any obstacle between the device and the system.

English

Owner’s Manual

53NX405E

Page 55

TFT Screen

English

Problem Cause Measure

The image is not displayed. The parking brake is not engaged. Check that the parking brake is

Owner’s Manual

The display is dark. The Dimmer control is too low. Adjust the Dimmer properly.

The operating condition is not good. The temperature inside the vehicle

The headlight of the vehicle is lit The display is made dark at night to

There are red, green, and blue points in display.

-------------------- This is not a failure, but a

engaged.

may be 0°C or lower. Set to an appropriate temperature (25°C or so) and check it again.

prevent the glare (When the headlight of the vehicle is lit in the daytime, the display gets dark).

phenomenon peculiar to a liquid crystal panel (The liquid crystal panel is produced according to technology with very high precision. Note that, though there are eective pixels of 99.99% or more, pixel missing or normally lit pixels account for 0.01%).

54 NX405E

Page 56

23. ERROR DISPLAY

English

If an error occurs, one of the following displays is displayed. Take the measures described below to solve the problem.

DVD Player

Display Cause Measure BAD DISC A disc cannot be played due to

scratches, etc.

Invalid Disc A disc is loaded upside- down

inside the DVD deck and does not play.

PARENTAL VIOLATION Parental level error Set the correct Parental level. Region code error Region code error Eject the disc, and replace correct

Replace with a non-scratched, non-warped disc.

Eject the disc then reload it properly.

region code disc.

English

Owner’s Manual

55NX405E

Page 57

English

24. SPECIFICATIONS

FM Tuner

Frequency Range: 87.5MHz to 108.0MHz

Owner’s Manual

Usable Sensitivity: 8 dBµV Stereo Separation: 25 dB (1KHz) Frequency Response: 30Hz to 14KHz

AM Tuner

Frequency Range: 531KHz to 1602KHz Usable Sensitivity: 30dBµV

DVD Player System

Digital Versatile Disc System with CDDA capable

Usable discs:

DVD video disc, Compact disc

Frequency Response: 20Hz to 20KHz Signal/Noise Ratio: 88dbA (1W Ref) Distortion: 0.05% Video system: NTSC/PAL

Audio/Video Input

Audio input voltage: ≤ 2 Vrms Video input voltage: 1.0 Vp-p@75Ω

Audio input sensitivity (at 1 V output) High: 325mVrms Mid: 650mVrms Low: 1.3Vrms

Audio/Video output

Video output voltage: 1.0 Vp-p @75Ω Screen Size: 6.0” wide type

Pixels: 1,152,000 Resolution: 800 x 480 x 3 (RGB)

Bluetooth

Specication: Bluetooth Ver 2.1+EDR Prole: HFP1.5(Hands Free Prole)

HSP1.0 (Headset Prole) A2DP (Advanced Audio Distribution Prole) AVRCP1.2,1.3 (AV Remote Control Prole) PBAP (Phone Book Access Prole) SPP (Serial Port Prole)

Power Class: 2

USB

Specication: USB 1.1/2.0 (FS)

Playable Audio format:

MP3, WMA, AAC, FLAC

Playable Video format:

AVI, MP4, MPG/MPEG, 3gp

General

Power source voltage:

14.4 VDC (10.8 to 15.6 V allowable)

Ground: Negative Current consumption: 4.0 A @1 W Auto Antenna Rated Current: 500 mA less

Audio Amplier

Maximum power output: 180W (45W x 4) Speaker impedance: 4Ω (4Ω to 8Ω allowable)

Note:

• Specications and design are subject to change

without notice for further improvement.

56 NX405E

Page 58

English

165mm

NX405E dimensions: NX405E weight: 2.3 kg

mm001mm871

English

Owner’s Manual

172mm

57NX405E

Page 59

English

25. WIRE CONNECTION GUIDE

Note:

• Before installing, be sure to disconnect the negative cable of the car battery.

Owner’s Manual

• In the optional devices, the RCA cables and the Connector cables are separately-sold items.

• When connect the HDMI and USB cable, be sure to x with the clamp.

DTX502E or DAB404E

GPS Antenna

Video Out

Rear Vision Camera

CAMERA

YELLOW

iPod/iPhone

Radio Antenna

Refer to next page

VIDEO OUT

REAR_RCH

REAR_LCH

MIC

YELLOW

WHITE

RED

AUX2 VIDEO IN

AUX2 AUDIO IN LCH

AUX2 AUDIO IN RCH

Monitor

YELLOW WHITE RED RED RED REDWHITE WHITE WHITE

4-Channel Amlier

SUBWOOFER 1

SUBWOOFER 2

HDMI CABLE

CCA-750 (sold separately)

SWI

58 NX405E

Page 60

15A

Auto antenna

Blue

+12V accessory

Red

Brown

Amplier turn-on cord

Blue/white

Grass-green

Yellow

Ground

Black

Orange/white Illumination

Phone interrupt

Parking brake cord

+12V main power

English

Owner’s Manual

Purple/white Purple/black

Purple Gray/black Gray

White

White/black Green

Green/black

Note:

*1: Connecting the PHONE INTERRUPT terminal

The phoe interrupt will mute the audio if the lead receives a negative or ground signal.

Reverse gear cord Rear right-

Rear right+ Front rightFront right+ Front left+

Front leftRear left+ Rear left-

59NX405E

Page 61

Clarion Co., Ltd.

Page 62

NX405E

English

Owner’s manual

Page 63

Table of contents

1 Warnings and safety information ............................................................................ 5

2 Getting started ........................................................................................................... 6

2.1 Initial set-up ...................................................................................................................... 6

2.2 Screen controls .................................................................................................................. 7

2.2.1 Using the buttons and other controls....................................................................................... 8

2.2.2 Using the cursor ...................................................................................................................... 8

2.2.3 Using the keyboard ................................................................................................................. 8

2.2.4 Usi ng touch gestur es ............................................................................................................. 10

2.2.5 Manipulating the map ........................................................................................................... 11

2.3 Navigation view .............................................................................................................. 12

2.3.1 Streets and roads ................................................................................................................... 14

2.3.2 GPS position markers .......................................................................................................... 14

2.3.3 The planned route ................................................................................................................. 15

2.3.4 Turn preview and next street ................................................................................................ 15

2.3.5 Manoeuvre icons .................................................................................................................. 16

2.3.6 Lane information and signposts ........................................................................................... 17

2.3.7 Junction view ........................................................................................................................ 17

2.3.8 Tunnel view .......................................................................................................................... 18

2.3.9 Motorway services ................................................................................................................ 18

2.3.10 3D object types ................................................................................................................... 19

2.3.11 Traffic events ...................................................................................................................... 19

2.4 Navigation menu ............................................................................................................. 20

3 Using the navigation ................................................................................................ 22

3.1 Selecting a destination .................................................................................................... 22

3.1.1 Using combined search ......................................................................................................... 22

3.1.2 Selecting an address .............................................................................................................. 25

3.1.2.1 Entering an address with states .................................................................................................... 25

3.1.2.2 Entering an address starting with the street name ........................................................................ 28

3.1.2.3 Selecting a town centre ................................................................................................................. 30

3.1.2.4 Selecting the midpoint of a street .................................................................................................. 31

3.1.2.5 Selecting an intersection in a town ............................................................................................... 32

3.1.2.6 Using the postcode to select a destination .................................................................................... 33

3.1.3 Selecting a Place of Interest .................................................................................................. 34

3.1.3.1 Using Quick search categories ..................................................................................................... 34

3.1.3.2 Searching by category ................................................................................................................... 36

3.1.3.3 Searching by name ........................................................................................................................ 38

3.1.3.4 Finding help nearby ...................................................................................................................... 39

3.1.4 Selecting a Saved Location ................................................................................................... 40

3.1.5 Selecting a History item ........................................................................................................ 41

3.1.6 Selecting a saved route ......................................................................................................... 43

2 NX405E English

Page 64

3.1.7 Entering coordinates ............................................................................................................. 44

3.1.8 Selecting a location on the map ............................................................................................ 45

3.1.9 Planning a Multipoint Route ................................................................................................. 46

3.2 Checking Route Information and Alternatives ................................................................ 47

3.3 Checking Traffic Events .................................................................................................. 48

3.4 Editing the route ............................................................................................................. 50

3.4.1 Setting a new starting point................................................................................................... 50

3.4.2 Adding an additional destination .......................................................................................... 51

3.4.3 Modifying the list of destinations ......................................................................................... 52

3.4.4 Saving the planned route ....................................................................................................... 52

3.4.5 Deleting the planned route .................................................................................................... 53

3.4.6 Selecting a route alternative when planning the route .......................................................... 54

3.4.7 Selecting a route alternative for a n existing route ................................................................. 55

3.4.8 Pausing guidance .................................................................................................................. 56

3.5 Saving a location ............................................................................................................. 56

3.5.1 Editing a saved location ........................................................................................................ 57

3.6 Adding an Alert Point ..................................................................................................... 58

3.7 Running a Simulation ...................................................................................................... 59

3.8 Off-road navigation......................................................................................................... 60

3.8.1 Switching to off-road navigation .......................................................................................... 60

3.8.2 Selecting the destination in o f f-road mode ........................................................................... 60

3.8.3 Na vigating in off-road mode ................................................................................................. 60
