Clarion CMD4 User Manual

Owner’s manual

Mode d’emploi

Manual de instrucciones

Istruzioni per l’uso

CMD4

WATERTIGHT MARINE AM/FM/CD MULTIMEDIA
CONTROLLER

•

COMBINÉ NAUTIQUE ÉTANCHE RADIO AM/FM­LECTEUR CD MULTIMEDIA

•
CONTROLADOR MULTIMEDIA MARINO DE AM/FM/
DISCOS CD IMPERMEABLE

•

UNITÀ DI CONTROLLO MULTIMEDIALE PER USO
MARITTIMO AM/FM/CD IMPERMEABILE

Thank you for purchasing this Clarion product.

English

∗ Please read this owner’s manual in its entirety before operating this equipment.
∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment).
∗ Check the contents of the enclosed warranty card and keep it with this manual.
∗ This manual includes the operating procedures of the CD changer and Sirius satellite connected

via the CeNET cable. The CD changer and Sirius satellite have their own manuals, but no
explanations for operating them are described.

Contents

1. FEATURES...................................................................................................................................... 2

2. PRECAUTIONS .............................................................................................................................. 3

Handling Compact Discs ................................................................................................................. 4

Front Panel ...................................................................................................................................... 4

3. CONTROLS .................................................................................................................................... 5

4. NOMENCLATURE .......................................................................................................................... 6

Names of the Buttons and their Functions ...................................................................................... 6

Major button operations when external equipment is connected to this unit ................................... 7

Display Items ................................................................................................................................... 8

LCD Screen ..................................................................................................................................... 8

5. WIRED REMOTE CONTROL UNIT OPERATIONS ........................................................................ 9

6. OPERATIONS ................................................................................................................................11

Basic Operations ............................................................................................................................ 11

Radio Operations ........................................................................................................................... 12

CD Operations ............................................................................................................................... 14

Operations Common to Each Mode .............................................................................................. 15

7. ACCESSORIES ............................................................................................................................ 17

Sirius Satellite Radio Operations ................................................................................................... 17

CD Changer Operations ................................................................................................................ 20

8. TROUBLESHOOTING .................................................................................................................. 21

9. ERROR DISPLAYS ....................................................................................................................... 22

10. SPECIFICATIONS ......................................................................................................................... 23

1. FEATURES

• Meets ASTM B117 Salt/Fog Exposure
Standard

• Meets ASTM D4329 UV Exposure Standard

• Pelgan Z® Conformal Coated PCB and

Microprocessor

• Rotary Volume, Bass, Treble, and Fade
Controls

• Direct Access Source Selectors

• Rubber Tactile Action Control Buttons

• High Definition Positive LC Display

• Bright White LED Illumination

• Quick Release CD Door

2 CMD4

• Integrated Chassis Drip Shield and Mounting
Gasket

• Spring Loaded Silicon Oil Damped
Suspension System

• CD-R/CD-RW Compatible

• Magi-Tune+® Tuner with 6 AM/18FM Presets

• 2-Channel RCA Audio Auxiliary Input

• 6-Channel RCA Audio Output (Front/Rear/

Non-Fade)

• 4-Channel Speaker Output (53 x 4 Max)

2. PRECAUTIONS

1. When it is very cold in the boat and the unit is
used soon after switching on the heater, the
disc and the optical components may become
fogged and not operate properly. Wipe fogged
discs with a soft cloth. Fogged optical
components will naturally return to normal
when the unit is left for about one hour, after
which it will operate normally.

This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable
protection against harmful interference in a
residential installation.

This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation.

If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to consult the dealer or
an experienced radio/TV technician for help.

2. When the boat is underway in rough water the
CD may skip as a result of intense vibrations
and shock.

3. This unit uses a precision mechanism. Even
in the event that trouble arises, never open
the case, disassemble the unit, or lubricate
the rotating parts.

CAUTION

USE OF CONTROLS, ADJUSTMENTS, OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN, MAY
RESULT IN HAZARDOUS RADIATION
EXPOSURE.

THE COMPACT DISC PLAYER and MINI DISC
PLAYER SHOULD NOT BE ADJUSTED OR
REPAIRED BY ANYONE EXCEPT PROPERLY
QUALIFIED SERVICE PERSONNEL.

CHANGES OR MODIFICATIONS NOT
EXPRESSLY APPROVED BY THE
MANUFACTURER FOR COMPLIANCE COULD
VOID THE USER’S AUTHORITY TO OPERATE
THE EQUIPMENT.

INFORMATION FOR USERS:.

CHANGES OR MODIFICATIONS TO THIS
PRODUCT NOT APPROVED BY THE
MANUFACTURER WILL VOID THE
WARRANTY AND WILL VIOLATE FCC
APPROVAL.

Bottom View of Source Unit

Handling Compact Discs

English

Use only compact discs bearing the

mark.

Do not play heart-shaped, octagonal, or other
specially shaped compact discs.

Some CDs recorded in CD-R/CD-RW mode
may not be usable.

Handling

•

Compared to ordinary music CDs, CD-R and
CD-RW discs are easily affected by high
temperature and humidity. Prolonged exposure
to high heat and humidity may make the discs
unplayable. Therefore, do not leave them for a
long time in the boat.

• New discs may have
rough edges. If such
discs are used, the
player may not work,
or the sound may
skip. Use a ball-point
pen or the like to
remove any
roughness from the edge of the disc.

•

Never stick labels on the surface of the compact
disc or mark the surface with a pencil or pen.

• Never play a compact disc with any
cellophane tape or other glue on it or with
peeling off marks. If you try to play such a
compact disc, you may not be able to get it
back out of the CD player or it may damage
the CD player.

Ball-point pen

Roughness

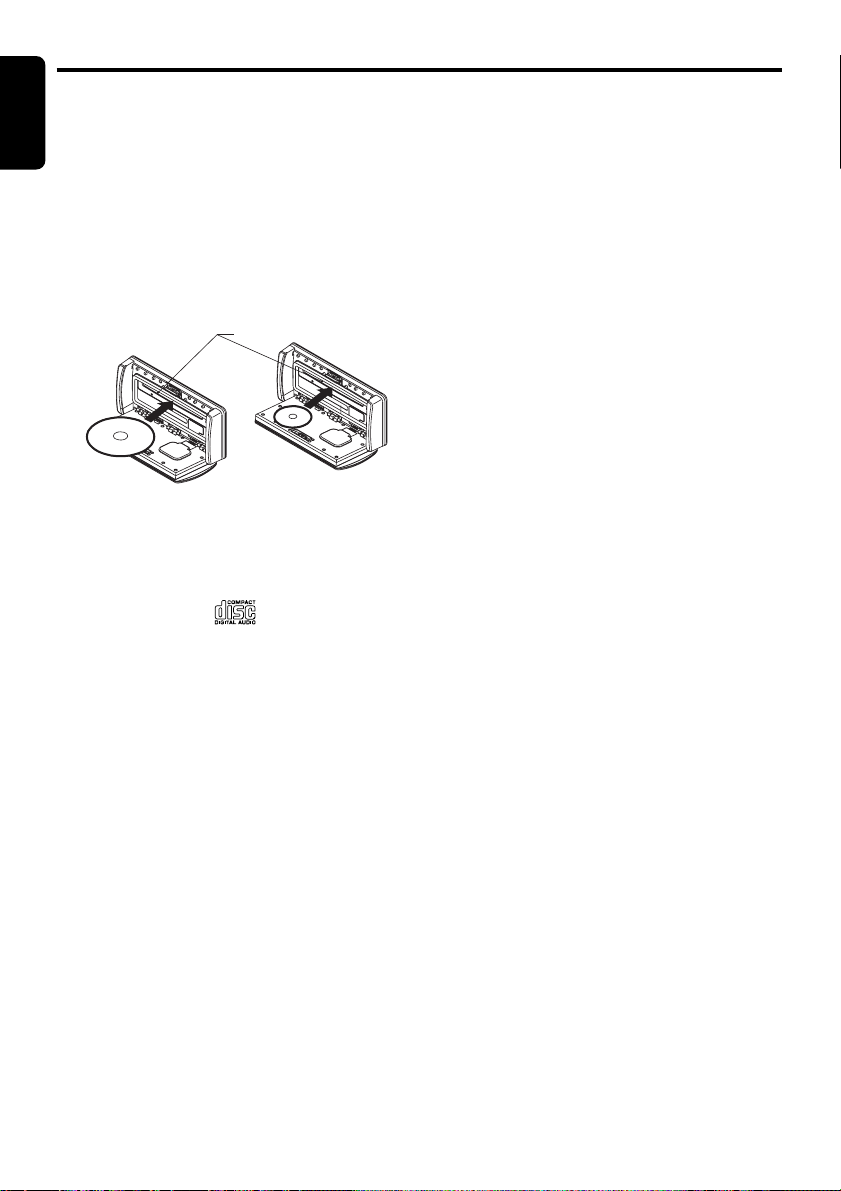

Front Panel

CAUTION

When opening and closing the front panel,
be careful not to catch your fingers. They
could be injured.

1. Always use this unit with the front panel

closed.

2. Do not force operations or use this device

abnormally when opening or closing the front
panel.

3. Do not use the front panel as a tray to place

objects on when it is open.

4. When closing the front panel, do not press

the [OPEN] button.

•

Do not use compact discs that have large
scratches, are misshapen, cracked, etc. Use of
such discs may cause misoperation or damage.

•

To remove a compact disc from its storage case,
press down on the center of the case and lift the
disc out, holding it carefully by the edges.

• Do not use commercially available CD
protection sheets or discs equipped with
stabilizers, etc. These may damage the disc or
cause breakdown of the internal mechanism.

Storage

• Do not expose compact discs to direct sunlight
or any heat source.

• Do not expose compact discs to excess
humidity or dust.

• Do not expose compact discs to direct heat
from heaters.

Cleaning

• To remove fingermarks and dust, use a soft
cloth and wipe in a straight line from the center
of the compact disc to the circumference.

• Do not use any solvents, such as commercially
available cleaners, anti-static spray, or thinner
to clean compact discs.

• After using special compact disc cleaner, let
the compact disc dry off well before playing it.

5. Strong impacts to the operating or display

section can cause damage or deformation.

6. If the front panel does not open fully, gently

open it with your hand.

7. Do not touch the panel OPEN detection

switch.

OPEN detection switch.

Be sure to unfold and read the next page.

Veuillez déplier et vous référer à la page suivante.

Cerciórese de desplegar y de leer la página siguiente.

Assicurarsi di aprire e leggere la pagina successiva.

English

English

3.CONTROLS / LES COMMANDES

English

4. NOMENCLATURE

CONTROLES / CONTROLLI

Source unit / Appareil pilote / Unidad fuente / Unità di fonte

Français

[

CD/CDC

Español

/MUTE

]

]

[

FADE

]

]

]

[

SCAN

[

RESET

]

]

[

Italiano

[

POWER

[ ], [ ]

[

BASS

[

TREBLE

With the front panel opened / Avec le panneau avant ouvert /
Con el panel frontal abierto / Con il frontalino aperto

Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.

Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre.

Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.

Nota: Assicurarsi di aprire questa pagina e fare riferimento a questi diagrammi quando si legge ciascun capitolo.

[

SAT

]

]

[

AM/FM

[

AUX

]

]

[

ROTARY

]

[

OPEN

]

[

CD SLOT

[

SEEK/MAN

]

[

MENU

[

CAT

[

RANDOM

[

REPEAT

]

]

]

[

ENT

[

DIRECT

[

DISP

[

DISC

]

]

[Q]

Note:

• Be sure to read this chapter referring to the front diagrams of chapter “3. CONTROLS” on page 5

(unfold).

Names of the Buttons and their Functions

[CD/CDC] (CD/CD changer) button

• Use to switch between CD and CD changer
mode.

]

[SAT] (Satellite) button

• Use to switch to SIRIUS mode.

• Switch the band.

[AM/FM] button

• Use to switch to radio mode.

• Switch the band.

[AUX] button

]

• Use to switch to AUX mode.

[ROTARY] knob

• Adjust the volume by turning the knob
clockwise or counterclockwise.

]

]

• Use the knob to perform function
adjustments.

[OPEN] button

• Open the panel by pressing the “Clarion
Marine” oval latch button. Audio will mute

with the front panel open.

[SEEK/MAN] (Seek/Manual) button

• Seek or manual tunings while in the radio
mode.

[MENU] button

• Press and hold the button for 1 second or
longer to switch to the menu mode.

[ENT] (Enter) button

• Performs various settings.

[DIRECT] (1–6) buttons

• Store a station into memory or recall it
directly while in the radio mode.

[DISP] (Display) button

• Switch the display indication (Main display,
Sub display, Clock display).

[RANDOM] button

• CD plays random track order.

[REPEAT] button

• Repeat play while in the CD mode.

[SCAN] button

• Plays 10 seconds of each track while in the
CD mode.

[FADE] (Fader) knob

• Adjust the fader by turning the knob
clockwise or counterclockwise.

[TREBLE] knob

• Adjust the treble by turning the knob
clockwise or counterclockwise.

[BASS] knob

• Adjust the bass by turning the knob clockwise
or counterclockwise.

[A], [D] buttons

• Select a station while in the radio mode or
select a track when listening to a CD. The
buttons are also used to adjust function
settings.

• Press and hold the button for 1 second or
longer to switch to fast-forward/fast-rewind.

[POWER] button

• Press the button to turn on the power.
Press and hold the button for 1 second or
longer to turn the power off.

• Switches operation between Radio, CD, Aux,
and CeNET modes.

[s/MUTE] (Play/Pause/Mute) button

• When held depressed for 1 second or longer,
performs Play or Pause.

• Turns mute ON/OFF.

[CD SLOT]

• CD insertion slot.

[Q] (Eject) button

• Eject a CD when it is loaded into the unit.

[RESET] button

• Press and hold the button for about 2
seconds when the following symptoms occur.

∗ Nothing happens when buttons are pressed.
∗ Display is not accurate.

Major button operations when external equipment is connected to this unit

Eng ish

English

● When the Sirius Satellite
Radio is connected

∗ For details, see the section “Sirius

Satellite Radio operations”.

[SAT] (Satellite) button

• Use to switch to SIRIUS mode.

• Switch the band.

[SEEK/MAN] (Seek/Manual) button

• Seek or manual tunings while in the radio

mode.

[MENU] (Title) button

• Use to perform title scroll.

[CAT] (Category) button

• Enter the category selection mode.

• When held depressed for 1 second or longer,

category scan is performed.

[DIRECT] (1–6) buttons

• Stores a station into memory or recall it

directly.

[DISP] (Display) button

• When held depressed for 1 second or longer,

switches title.

[A], [D] buttons

• Select a station.

● When the CD changer is
connected

∗ For details, see the section “CD Changer

Operations”.

[CD/CDC] (CD/CD changer) button

• Use to switch between CD and CD changer

mode.

[←DISC→] (Disc up/down) buttons

• Select the desired CD in the CD changer.

[RANDOM] button

• Perform random play. Also perform disc

random play when the button is pressed and
held.

[REPEAT] button

• Perform repeat play. When this button is

pressed and held, single disc repeat play is
performed.

[SCAN] button

• Perform scan play for 10 seconds of each

track. Disc scan play is performed when the
button is pressed and held.

[A], [D] buttons

• Select a track when listening to a disc.

• Press and hold the button for 1 second or

longer to switch to fast-forward/fast-rewind.

[s/MUTE] (Play/Pause/Mute) button

• When held depressed for 1 second or longer,

performs Play or Pause.

CMD4 75 CMD4 6 CMD4

Display Items

English

: A-LOUD indication

: Manual indication

: Stereo indication

: Disc indication

• Lights during disc scan, disc repeat, and disc random play.
: Scan indication

: Repeat indication

: Random indication

: Enter indication

: Mute indication

Disc In indications

• Lights when a disc is loaded.
Operation status indication

• Titles, frequency, clock, etc. are displays.

: Preset channel indication (1 to 6)
Disc number indication (1 to 6)

: SIRIUS indication
: Category indication

LCD Screen

In extreme cold, the screen movement may slow down and the screen may darken, but this is normal.
The screen will recover when it returns to normal temperature.

8 CMD4 CMD4 4CMD4 3

5.

WIRED REMOTE CONTROL UNIT OPERATIONS

■ Following operations are enabled by remote control with the Wired Remote Control Unit CMRC1 or

CMRC2 (sold separately).

WIRED REMOTE CONTROL UNIT

[

],[ ]

[

POWER/SOURCE

]

Display Items

Operation status indication
∗ Frequency, clock, etc. are displayed.

: Stereo indication

: SIRIUS indication

: Mute indication

English

[

BAND/DISC

]

[

],[ ]

[

MUTE/

]

Preset channel indication (1 to 6)
Disc number indication (1 to 6)

CMD4 9
