INSTRUCTION MANUAL OF UGZZ8-X01

Bluetooth

Specification V2.0+EDR support

Built-in Flash memory(16Mbit), system clock 26MHz(OSC)

B to B connector interface

Bluetooth

FPC Connector

1. BLUETOOTH MODULE SPECIFICATION
1-1. PRODUCT NAME

UGZZ8-X01

1-2. MANUFACTURER

ALPS ELECTRIC

Clarion Co., Ltd.

Confidential

1-3. FEATURES

™

Complete type of Bluetooth module, built-in various profile
Built-in Link controller, Link Manager Protocol
Output Power class2 compliant
Type with a chip antenna
Full custom package with pwb can be fit to only navigation products made by Clarion

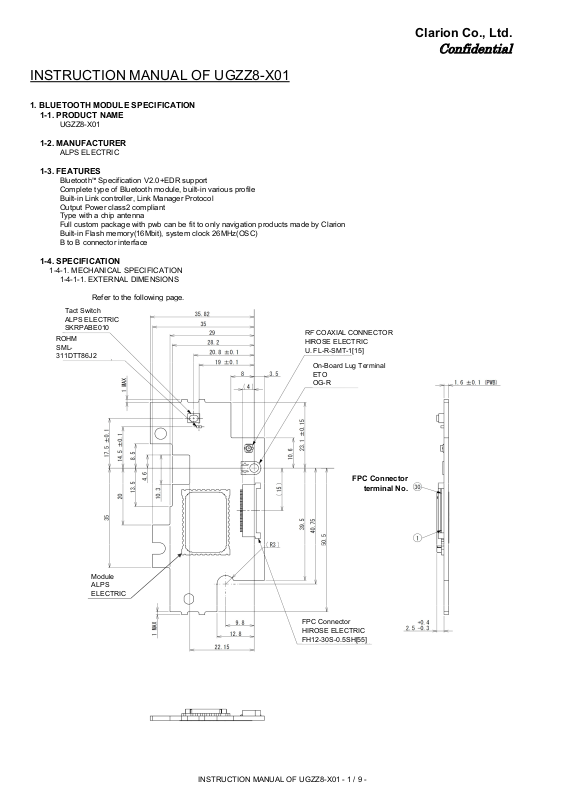

1-4. SPECIFICATION

1-4-1. MECHANICAL SPECIFICATION

1-4-1-1. EXTERNAL DIMENSIONS

Refer to the following page.

Tact Switch
ALPS ELECTRIC
SKRPABE010

ROHM
SML­311DTT86J2

ＲＦ COAXIAL CONNECTOR
HIROSE ELECTRIC
U. FL-R-SMT-1[15]

On-Board Lug Terminal
ETO
OG-R

Module
ALPS
ELECTRIC

terminal No.

FPC Connector
HIROSE ELECTRIC
FH12-30S-0.5SH[55]

INSTRUCTION MANUAL OF UGZZ8-X01 - 1 / 9 -

Clarion Co., Ltd.

Model Number

Lot Number

Label

IC: 419C-0608136

Model: UGZZ8-X01

Confidential

1-4-1-2. MASS

1-4-2. ELECTRIC SPECIFICATION

1-4-2-1. POWER-SUPPLY-VOLTAGE

1-4-2-2. TEMPERATURE RANGE

1-4-3. RF SPECIFICATION

1-4-3-1. NORMAL TRANSMIT POWER(AVERAGED POWER)

1-4-3-2. REFERENCE SENSITIVITY LEVEL(BER=0.001%)

10.17 [g] (Typ.)

DC +3.1 to +3.6 [V]

-40 to +85 [degree C]

-6 to +4 [dBm]

MAX. -70 [dBm]

1-5. LABEL INFORMATION

1-5-1. LABEL LAYOUT

Clarion

001WWDA1609

INSTRUCTION MANUAL OF UGZZ8-X01 - 2 / 9 -

1-5-2. CONTENTS OF LABEL

21

GND-Ground

20

GND-Ground

19

UART_RX

I

UART_RX

18

UART_TX

O

UART_TX

23

GND-Ground

22

GND-Ground

17

UART_CTS

I

UART_CTS

GND-Ground

16

UART_RTS

O

UART_RTS

NO.

PIN NAME

NO.

2

GND-1

GND-4

PIO[2] (PTE5)

O

3

PIO[0] (PTB1)

O

6NC-

5

PIO[1] (PTE0)

O

8NC-

7NC-

10

PCM_CLK

O

9

GND

-

12

PCM_IN

I

11

PCM_SYNC

O

24

ILL-

I

13

PCM_OUT

O

14

CLK11/12M

I1526

DVD_EJECT

O25ILL+

I

28NC-

27

RST#

I

30

VCC

I

29

VCCIDESCRIPTION

Ground

Ground

AV Master Clock Select(44.1kHz=Low, 48kHz=High)

PCM_Mute

PCM_Reset(Active Low), DAC PwrDown(PwrDown Enable=Low)

NCNCNC

Ground

Audio Clock

Audio Clock

AV/HF Input

Audio Clock

LED Signal

LED Signal

AV Master clock Input

Power Supply 3.3V

DISC Eject Signal

Reset (Active Low )

NC

Power Supply 3.3V

Model Number

Rev. Number

Clarion Parts

Lot Number

TELEC Mark & ID

Company Name

FCC ID & IC ID

001WWDA1609

SJ20608136

IC:419C-0608136

Clarion Co., Ltd.

Confidential

A

060-8136-01

1-6. CONNECTOR PIN ASSIGNMENT

FPC Connector terminal NO.

30

1

INSTRUCTION MANUAL OF UGZZ8-X01 - 3 / 9 -

Clarion Co., Ltd.

1-7. BLOCK DIAGRAM

Confidential

2. PROCEDURE TO BUILD IN
2-1. PROCEDURE FOR EXTERNAL ANTENNA

(1) Install External antenna to Upper cover (U-COVER AS)

External antenna

Upper cover

INSTRUCTION MANUAL OF UGZZ8-X01 - 4 / 9 -

(2) Install U-COVER AS to Navigation unit

Clarion Co., Ltd.

Confidential

Screw

U-COVER AS

1)Be careful so that a cable is not tucking

2)Tighten up a screw in order of one to two ( In addition, it is random order )

INSTRUCTION MANUAL OF UGZZ8-X01 - 5 / 9 -

2-2. PROCEDURE FOR UGZZ8-X01

※Take out an external antenna from a notch part

firmly-lock the FFC connector

FPC cable connection

External antenna

A notch

(1) Install UGZZ8-X01 to Navigation unit

Clarion Co., Ltd.

Confidential

BtoB connection

UGZZ8-X01

Screw

1)Install UGZZ8-X01 with a screw

Navigation unit

FSWA PCB

2)Install FSWA with a screw

3)Connected FSWA in order of 40pin-FFC cable, 80pin-FFC cable

　※

INSTRUCTION MANUAL OF UGZZ8-X01 - 6 / 9 -

(2)Connect External antenna to UGZZ8-X01 , FPC cable connection between UGZZ8-X01 and FSWA PCB

firmly-lock the

connector

External

Point of contact side

30pin FFC cable

More than 4

on a white print part

1)Connect the dot mark side to FSWA PCB

　※

A dot mark

ＦＦＣ

Navigation unit

Clarion Co., Ltd.

Confidential

2)connect a cable as follows. After placement , fix it in TAPE-DV1.

Arrange a cable between

TAPE-DV1

A cable do not be arranged

External antenna

More than 4.5

INSTRUCTION MANUAL OF UGZZ8-X01 - 7 / 9 -

(3) Install F-SHIELD-CASE-AS to Navigation unit

(5) Install REAR-COVER-AS to Navigation unit

(8) Pasting up of BT-COVER in Navigation unit

Pasting up standard

BT-COVER

(4) Install INNER-ESCUTCHEON-AS to Navigation unit

(6) FPC cable connection between Navigation unit and 8400US-MONITOR-AS
(7) Install 8400US-MONITOR-AS to Navigation unit

BT-COVER does not overlap the
throttle portion.

Clarion Co., Ltd.

Confidential

Pasting up standard

1)Pasting up of B-COVER in Navigation unit

　※

Lengthwise direction :An end face of A

cross direction :Right and left are equal

(9) Pasting up of Rating-label in Navigation unit
(10) Pasting up of Connector-sheet in Navigation unit

UGZZ8-X01 Installation position

INSTRUCTION MANUAL OF UGZZ8-X01 - 8 / 9 -
