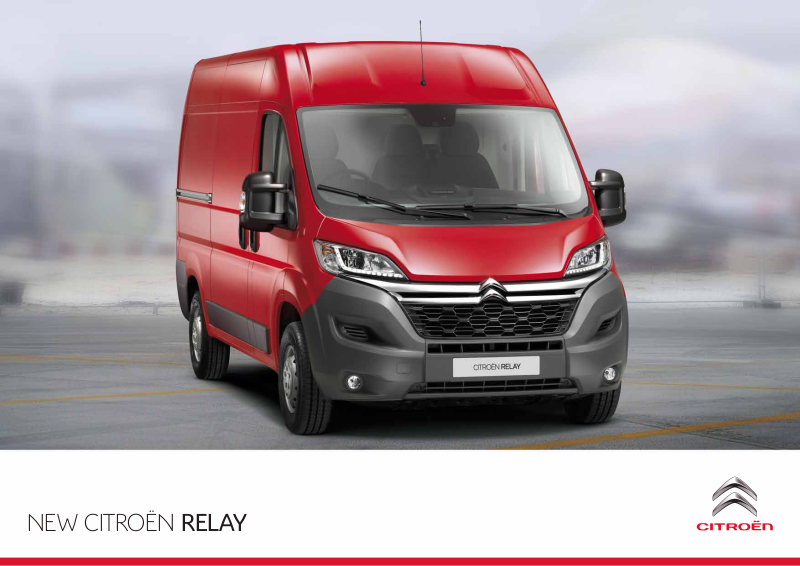

NEW CITROËN RELAY

Page 2

Page 3

Page 4

READY FOR ANYTHING. WHATEVER YOU

THROW AT IT, NEW CITROËN RELAY IS UP TO THE JOB, AND MORE.

THE AMAZING CHOICE OF SIZES AND PAYLOADS MEANS THAT ALL BASES ARE COMPREHENSIVELY COVERED. BRAND NEW CLEAR GLASS HEADLIGHTS, EDGED IN CHROME AND EQUIPPED WITH DAYTIME RUNNING LIGHTS, ARE POSITIONED HIGH AND SEND A BOLD MESSAGE AT A GLANCE – THIS DEFINITIVE VAN RANGE WITH A PEERLESS HERITAGE HAS MOVED ON.

CONTENTS: 4 LOAD CHAMPION 6 READY FOR ANYTHING 8 ENTERPRISING SOLUTIONS

9 COLOUR, WHEELS & TRIM 10 RANGE OVERVIEW 12 OPTIONS 13 WEIGHTS & PAYLOADS 14 EQUIPMENT SPECIFICATION 15 TECHNICAL SPECIFICATION 16 DIMENSIONS 18 ENVIRONMENTAL COMMITMENT 19 FINANCE, CARE & INSURANCE

Page 5

Page 6

AN EXTENSIVE CHOICE. THE NEW CITROËN

RELAY OFFERS AN IMPRESSIVE RANGE OF EQUIPMENT IN OVER 40 CONFIGURATIONS.

THE NEW CITROËN RELAY HAS A GROSS VEHICLE WEIGHT OF UP TO FOUR TONNES, WITH PAYLOADS OF ALMOST TWO TONNES. THE NEW RELAY IS AVAILABLE IN FOUR LENGTHS, THREE WHEELBASES AND THREE HEIGHTS, ENCOMPASSING USABLE LOAD SPACES FROM 8M

It is available in Panel Van, Enterprise, Chassis Cab and Crew Cab variants. With such a diverse and comprehensive range, the New Citroën Relay can be tailored to meet the needs of even the most specialist customer. Powering the New Relay are three diesel engines. HDi 110 optimised for low emissions and low fuel consumption, HDi 130 and HDi 150, all with exceptional pulling power. Each model now has ESC as standard and optional Intelligent Traction Control can be tted, which features Hill Descent Control to retain grip and stability on slippery slopes up to 20mph.

TO 17M3.

Page 7

WELL CONNECTED

New Citroën Relay’s audio technology has progressed – like everything else. Now there are new levels of functionality and connectivity that include DAB digital radio as standard across the range. On panel vans the Audio System with Connecting Box offers a host of features such as an LCD screen, Bluetooth

handsf ree, USB

2.0 socket, Apple device interface and steering-mounted controls. Enterprise panel vans also benet from a 5 inch colour Touch Screen, MP3 CD player and Bluetooth

handsfree with audio

streaming and SMS functions.

INTERIOR COMFORT

The New Citroën Relay has been designed to be a true extension of the ofce: three generous seats (driver’s seat with height and lumbar adjustment and dual passenger bench seat), a quiet, well-insulated cabin, and a dashboard with multiple storage areas and clever features. A document clipboard integrated into the top of the dashboard keeps paperwork tidy, while a panel integrated into the back of the front dual passenger seat unfolds to become a work surface. Once you’ve nished working, your laptop can be stowed safely in the central one of two lockable glove compartments, specially designed to accommodate a laptop computer.

PNEUMATIC SUSPENSION

FOR EASY LOADING

Optional rear pneumatic suspension gives even greater ride comfort. The load sill – already very low even with standard suspension – can be lowered by another 7cm, giving the New Citroën Relay one of the lowest load heights in its class.

777

Page 8

EVERYTHING. AND MORE. INCREDIBLY

VERSATILE, SPACIOUS AND COMFORTABLE, THE NEW CITROËN RELAY IS READY FOR ANY PROFESSIONAL CHALLENGE.

AVAILABLE WITH A HUGE VARIETY OF EQUIPMENT INCLUDING A FULL STEEL BULKHEAD, STANDARD ACROSS THE RANGE, AND REAR PARKING SENSORS STANDARD ON ENTERPRISE MODELS AND OPTIONAL ON PANEL VANS. THE NEW CITROËN RELAY HARNESSES CITROËN INNOVATIONS, INTELLIGENT DESIGN, DURABLE ENGINEERING AND THOUGHTFUL DETAILS TO CREATE THE COMPLETE WORKING PARTNER. ALWAYS VIGILANT, THE OPTIONAL TYRE PRESSURE SENSORS WARN YOU WHICH WHEEL IS AFFECTED WITH A CLEAR ON-SCREEN MESSAGE, WHILE ALL NEW RELAY ENTERPRISE MODELS GAIN AN ALARM, FOR COMPLETE PEACE OF MIND.

ALL KINDS OF CONTROL

Cruise control with programmable speed limiter makes it easy to maintain or limit speed in all conditions without using the accelerator pedal. The programmed speed can be changed instantly using the left hand stalk, or via the accelerator. Functions of the new system include acceleration and deceleration, vehicle speed memory, stored speed recall and automatic deactivation when the handbrake is engaged. This useful technology is standard on New Citroën Relay Enterprise and optional on other versions.

Page 9

COLOURS, WHEELS & TRIM

BODY COLOURS WHEELS

CONTROL IN FULL COLOUR

Available for the rst time in New Citroën Relay, the optional colour reversing camera works with rear parking sensors, transmitting bright clear images to the 5 inch colour LCD audio system screen. Engaging automatically when reverse gear is selected, the camera adds useful guide lines to the image you see to make the trickiest manoeuvres much easier – and bump free.

RELAX, YOU’RE ON COURSE

With its camera mounted above the rear view mirror, the Lane Departure Warning System senses when New Relay drifts across lane markings without indicating and sends you an audible and visual warning. This innovative and reassuring technology activates at speeds above 37mph (60 km/h) and is standard on New Relay 40 Heavy models or an option for all other versions.

SECURIT Y

Trafcmaster Smartnav on Panel Vans and Enterprise models guides you to your destination via a colour touchscreen displaying the route ahead. GPS Stolen Vehicle Tracking means that once you have arrived you can park and leave your vehicle in complete peace of mind. Includes 3 years’ Smartnav Touchscreen routes, up to 100 routes per month, 3 years’ Stolen Vehicle Tracking, 3 years’ automatically downloaded live trafc information, 10 Personal Assistant Smartnav routes and 3 months’ Safe Speed safety camera alerts.

Tyres: 215/70 R15 C

Polar White Pacic Blue

Tiz ia no Red

Imperial Blue

Golden White (M)

Carioca Yellow

Deep Red (P)

Lake Blue (M)

30, 33, 35 Panel Vans

15 INCH WHEEL TRIMS

Tyres: 215/70 R15 C

30, 33, 35 Panel Vans

Graphito Grey (M)

Arctic Steel (M)

15 INCH ALLOY WHEELS

TRIM

All versions

‘Magnet’ trim – dark grey cloth

Tyres: 215/70 R15 C

30, 33, 35 Panel Vans

with black and red twill

(P) Pearlescent

(M) Metallic

225/70 R15 C if pneumatic rear suspension specied.

Please note: Colours and pictures shown are for illustration purposes only. Please consult your Dealer for denitive colour and trim/upholstery details.

STANDARD STEEL

WHEELS

& Chassis Cabs

STANDARD STEEL

Tyres: 225/75 R16 C

35 Heavy & 40 Heavy

Panel Vans & Chassis Cabs

16 INCH WHEEL TRIMS

Tyres: 225/75 R16 C

35 Heavy & 40 Heavy Panel

Vans & Chassis Cabs

16 INCH ALLOY WHEELS

Tyres: 225/75 R16 C

35 Heavy & 40 Heavy Panel

Vans & Chassis Cabs

WHEELS

Page 10

READY FOR ANYTHING. WHATEVER

FORMAT AND EQUIPMENT LEVEL YOUR WORK DEMANDS, THE NEW CITROËN RELAY RANGE WILL DELIVER A TOUGH PROFESSIONAL PARTNER.

EVERY MODEL IN THE NEW CITROËN RELAY RANGE HAS A SUPERB SPECIFICATION, UNMISTAKABLE INTERIOR COMFORT AND HUGE LOAD VOLUMES AND PAYLOADS. IT’S TIME TO CHOOSE THE PERFECT FIT FOR YOUR BUSINESS...

Page 11

CITROËN RELAY PANEL VAN SPECIFICATION INCLUDES:

• ABS

• Electronic Stability Control (ESC)

• Emergency Braking Assistance

• Immobiliser

• Smartnav and Trackstar stolen vehicle tracking

• Driver’s airbag

• High frequency remote control central locking with plip

• Rear doors opening to 180°

• Nearside sliding side loading door

• Steel wheels

• Tinted windows

• Laminated windscreen

• Heated twin lens door mirrors with electric adjustment for passenger side

• Full steel bulkhead

• Mid-height interior protection in load compartment

• Driver’s seat height adjustment

• Height adjustable steering wheel

• Audio System with Connecting Box – DAB digital radio with steering mounted controls, Bluetooth

system and USB socket

• Steering wheel mounted controls

• Electric front windows

CITROËN RELAY ENTERPRISE PANEL VAN SPECIFICATION IN ADDITION TO PANEL VAN INCLUDES:

• Air conditioning

• Cruise control with programmable speed limiter

• Touch Screen Audio Pack – DAB digital radio and MP3 CD player with steering mounted controls, 5 inch colour touch screen,

Bluetooth

handsfree and USB socket

• Rear parking sensors

• Perimetric alarm

NEW CITROËN RELAY IS ALSO AVAILABLE AS A CHASSIS CAB, CHASSIS CREW CAB OR A BACK TO BACK MODEL DESIGNED TO BE ADAPTABLE FOR MANY DIFFERENT KINDS OF SPECIALIST CONVERSION. TO EXTEND THE NEW CITROËN RELAY RANGE FURTHER OUR SPECIALIST MODELS INCLUDE A STANDARD TIPPER, DROPSIDE OR A LUTON VAN. BUILT TO THE SAME HIGH STANDARD AS ANY OF OUR PANEL VANS, THESE MODELS OFFER NEAR ENDLESS POSSIBILITIES TO HELP YOU FIND YOUR FIT-FOR-PURPOSE, PERFECT MODEL.

ENGINE AVAILABILITY

30 L1H1 HDi 110 6-speed manual

30 L1H1 e-HDi 130 6-speed manual 33 L1H1 HDi 110 6-speed manual 33 L1H1 HDi 130 6-speed manual

35 L2H1 HDi 130 6-speed manual 33 L2H2 HDi 110 6-speed manual

33 L2H2 HDi 130 6-speed manual

35 L2 HDi 110 6-speed manual

35 L2H2 HDi 130 6-speed manual

35 L2 HDi 130 6-speed manual

40 Heavy L2H2 HDi 130 6-speed manual

33 L3H2 HDi 130 6-speed manual

35 L3H2 HDi 130 6-speed manual

1 Specialist Tipper: Relay chassis cab with Tipmaster tipper body

2 No factory options, colours (white only) or besp oke

conversion requirements are available on Specialist Models.

PANEL VAN

● ●

●

● ●

●

● ●

ENTERPRISE

CHASSIS CAB

●

● ●

2/3

2/4

1/2

CHASSIS CREW CAB

BACK TO BACK

TIPPER

DROPSIDE

LUTON

ENGINE AVAILABILITY

35 L3H2 e-HDi 130 6-speed manual

35 HDi 130 6-speed manual

35 L3 HDi 130 6-speed manual

35 L3H2 HDi 150 6-speed manual

35 Heavy L3H2 HDi 130 6-speed manual

35 Heavy L3 HDi 150 6-speed manual

35 L3H3 HDi 130 6-speed manual

40 Heavy L3 HDi 130 6-speed manual 35 Heavy L4H2 HDi 130 6-speed manual 40 Heavy L4H2 HDi 130 6-speed manual 35 Heavy L4H3 HDi 130 6-speed manual

35 Heavy L4 HDi 150 6-speed manual

3 Specialist Dropside: Relay chassis cab with Ingim ex dropside body

4 Specialist Luton: Relay chassis cab with Buckston e Motor Bodies Luton body

PANEL VAN

ENTERPRISE

CHASSIS CAB

●

● ● ● ●

● ●

●

● ●

●

● ●

2/3

2/4

1/2

CHASSIS CREW CAB

BACK TO BACK

TIPPER

DROPSIDE

LUTON

●

Page 12

OPTIONS

●

 Standard No cost option

Option available on special order

Not available on e-HDi versions.

Alloy wheels and wheel trims are incompatible.

Not available on Heavy versions.

Available on Heavy versions only.

Available on L4 Heavy versions only.

Standard on 40 Heavy versions.

Available as a special order on 40 Heavy versions only,

for conversions which do not legally require a tachograph or speed limiter.

Includes heated twin lens door mirrors with electric

adjustment for passenger side.

Incompatible with snow tyres.

Present when optional rear adjustable pneumatic

suspension is ordered.

Incompatible with intelligent traction control.

Present when optional intelligent traction

control is ordered.

Incompatible with puncture repair kit.

Incompatible with rear adjustable pneumatic suspension.

Present when optional heat-reecting windscreen

is ordered.

Includes front fog lights.

Incompatible with passenger bench seat .

Included when optional front passengers’, lateral and

curtain airbags are ordered.

Not available on H3 versions.

Present when optional headlight washers are ordered.

Mobile phone compatibility can vary by phone

manufacturer. Please consult your Dealer for further phone compatibility information.

Present when optional 180A uprated

alternator is ordered.

Not available on 40 Heavy versions.

Optional on 40 Heavy versions only.

Incompatible with delete tachograph option.

Standard on 40 Heavy except if rear adjustable pneumatic suspension is ordered.

Includes uprated tyres 225/70 on 30, 33 and 35

versions excluding 35 Heavy or 40 Heavy versions. Incompatible with Michelin 215/70 tyres, rear reinforced twin-leaf suspension and rear heavy duty reinforced twin-leaf suspension.

In addition to rear parking sensors. This option deletes the

digital radio from the Enterprise audio equipment.

Includes uprated Michelin tyres. Incompatible with 225/70

uprated tyres, 215/70 and 225/75 Michelin tyres.

Includes automatic windscreen wipers.

This option deletes the digital radio from the Enterprise audio equipment.

Incompatible with front passenger, lateral and curtain airbags.

OPTION SUMMARY

Cigar lighter

Uprated battery

180A uprated alternator with air conditioning

LED Daytime Running Lights with side markers

Electrically folding, heated door mirrors

Front passengers’, lateral and curtain airbags

Touch Screen Audio Pack – 5 inch colour

touch screen, DAB digital radio, MP3 CD

player with steering mounted controls, Bluetooth

180A uprated alternator

15 inch alloy wheels 16 inch alloy wheels

LED Daytime Running Lights

Under body protection plate

Tac ho gr aph

Delete tachograph

Conversion interface box

Lane Departure Warning System

270° opening rear doors

Puncture repair kit

Uprated tyres 225/70 Uprated Michelin tyres 225/70 Uprated Michelin tyres 225/75

225/70 snow tyres 225/75 snow tyres

215/70 Michelin Agilis tyres

225/75 Michelin Agilis tyres

Automatic windscreen wipers

Headlight washers

Front passenger’s airbag

125 litre fuel tank

Offside sliding side loading door

Fog lights

Ladder frame bulkhead

Full steel bulkhead with window

handsfree and USB socket

PANEL VAN

2/3 2/3 2/3 2

2/4 2/4 2/4

3 3

5 5

6 6 6

7 7 7

8 8

6 6 6

9 9 9 9

3/10/11 3/10/11 3/10/11 10/11

3/12 3/12 3/12 12

4/12 4/12 4/12

3/13 3/13 3/13 13

4/13 4/13 4/13

3/11/14 3/11/14 3/11/14 11/14

4/11 4/11 4/11

15 15 15 15 15

16 16 16 16 16

17 17 17 17

18 18 18 18

19 19

20 20 20 20 20

ENTERPRISE

21 21 21 21

●

CHASSIS CAB

● ● ●

CHASSIS CREW CAB

BACK TO BACK CAB

OPTION SUMMARY

Air conditioning

Cruise control with programmable speed limiter

Cruise control with xed 56mph speed limiter

Extended rear view mirrors (2.35m max.

Rear heavy duty reinforced twin-leaf suspension

Automatic air conditioning

conversion width)

Rear reinforced twin-leaf suspension

Wheel trims

Full-height interior protection

Rear adjustable pneumatic suspension

Rear parking sensors

PANEL VAN

24/25 24/25 24/25

14/26 14/26 14/26 14

2 2 2 2

27 27 27 27

ENTERPRISE

●

23 23

●

CHASSIS CAB

22 22 22

14 14

CHASSIS CREW CAB

BACK TO BACK CAB

Rear parking sensors and reversing camera

with Touch Screen Audio Pack

Reversing camera

Tyre pressure sensors

Intelligent traction control

Glazed rear doors and heated rear windows

Heat-reecting windscreen

29 29 29 29

30 30 30 30

Leather steering wheel and gear knob

Single passenger seat with armrest

Perimetric alarm

Single passenger seat with armrest, lumbar and

Look Pack – LED Daytime Running Lights,

City Pack – rear parking sensors, reversing camera

and electrically folding, heated door mirrors

Comfort Pack – automatic rain-sensitive

windscreen wipers, automatic air conditioning,

suspended driver’s seat and leather steering wheel

All-Road Pack – intelligent traction control and

Safety Pack – Lane Departure Warning System,

passenger airbag and tyre pressure sensors

and lumbar adjustment

height adjustment

front fog lights, wheel trims

underbody protection plate

18 18 18

31 31

32 32

23 23 23

●

Metallic/pearlescent paint

Page 13

WEIGHTS & PAYLOADS

GROSS VEHICLE

WEIGHT (GVW)

PAYLOAD WEIGHT

KERB WEIGHT

MASS IN SERVICE

MAX BRAKED TOWING WEIGHT

GROSS TRAIN WEIGHT (GTW)

30 L1H1 HDi 110 6-speed manual 3000 1155 1845 2020 2000 5000 1630 1650 30 L1H1 e-HDi 130 6-speed manual 3000 1140 1860 2035 2500 5500 1630 1650 33 L1H1 HDi 110 6-speed manual 3300 1455 1845 2020 2000 5300 1750 1900 33 L1H1 HDi 130 6-speed manual 3300 1440 1860 2035 2500 5800 1750 1900 35 L2H1 HDi 130 6-speed manual 3500 1600 1900 2082 2500 6000 1850 2000 33 L2H2 HDi 110 6-speed manual 3300 1390 1910 2092 2000 5300 1750 1900 33 L2H2 HDi 130 6-speed manual 3300 1375 1925 2107 2500 5800 1750 1900 35 L2H2 HDi 130 6-speed manual 3500 1575 1925 2107 2500 6000 1850 2000

40 Heavy L2H2 HDi 130 6-speed manual 4005 1995 2010 2192 2500 6505 2100 2400

33 L3H2 HDi 130 6-speed manual 3300 1325 1975 2117 2500 5800 1750 1900 35 L3H2 HDi 130 6-speed manual 3500 1525 1975 2167 2500 6000 1850 2000

35 L3H2 e-HDi 130 6-speed manual 3500 1525 1975 2167 2500 6000 1850 2000

35 L3H2 HDi 150 6-speed manual 3500 1525 1975 2167 2500 6000 1850 2000

35 Heavy L3H2 HDi 130 6-speed manual 3500 1485 2015 2207 3000 6500 2100 2400

35 L3H3 HDi 130 6-speed manual 3500 1500 2000 2192 2500 6000 1850 2000

35 Heavy L4H2 HDi 130 6-speed manual

40 Heavy L4H2 HDi 130 6-speed manual

35 Heavy L4H3 HDi 130 6-speed manual

PANEL VAN

3500 1440 2060 2252 3000 6500 2100 2400

3990 1885 2105 2280 2500 6490 2100 2400

3500 1410 2090 2282 3000 6500 2100 2400

MAX FRONT AXLE

MAX REAR AXLE

GROSS VEHICLE

WEIGHT (GVW)

PAYLOAD WEIGHT

KERB WEIGHT

MASS IN SERVICE

MAX BRAKED TOWING WEIGHT

GROSS TRAIN WEIGHT (GTW)

MAX FRONT AXLE

MAX REAR AXLE

CHASSIS CAB

35 L2 HDi 110 6-speed manual 3500 1880 1620 1695 2000 5500 1850 2000 35 L2 HDi 130 6-speed manual 3500 1865 1635 1710 2500 6000 1850 2000

35 L3 HDi 130 6-speed manual 3500 1835 1665 1730 2500 6000 1850 2000 35 Heavy L3 HDi 150 6-speed manual 3500 1805 1695 1770 3000 6500 2100 2400 35 Heavy L4 HDi 150 6-speed manual 3500 1790 1710 1785 3000 6500 2100 2400 40 Heavy L3 HDi 130 6-speed manual 4005 2310 1695 1770 2500 6505 2100 2400

CHASSIS CREW CAB

35 L3 HDi 130 6-speed manual 3500 1620 1880 1955 2500 6000 1850 2000

BACK TO BACK CAB

35 HDi 130 6-speed manual 3500

Up to 1995kg

payload on Panel Vans

SPECIALIST VEHICLES

35 L2 HDi 130 6-speed manual Tipper 3500 1235 2265 2220 2500 6000 1850 2000

35 L3 HDi 130 6-speed manual Dropside 3500 1502 1998 2140 2500 6000 1850 2000

35 L3 HDi 130 6-speed manual Luton 3500 1080 2420 2380 2500 6000 1850 2000

35 Heavy L4 HDi 150 6-speed manual Luton 3500 915 2585 2615 3000 6500 2100 2400

30 L1H1 HDi 110 6-speed manual 3000 1155 1845 2020 2000 5000 1630 1650

ENTERPRISE

33 L1H1 HDi 110 6-speed manual 3300 1455 1845 2020 2000 5300 1750 1900 33 L1H1 HDi 130 6-speed manual 3300 1440 1860 2035 2500 5800 1750 1900 35 L2H1 HDi 130 6-speed manual 3500 1600 1900 2082 2500 6000 1850 2000 33 L2H2 HDi 110 6-speed manual 3300 1390 1910 2092 2000 5300 1750 1900 33 L2H2 HDi 130 6-speed manual 3300 1375 1925 2107 2500 5800 1750 1900 35 L2H2 HDi 130 6-speed manual 3500 1575 1925 2107 2500 6000 1850 2000 35 L3H2 HDi 130 6-speed manual 3500 1525 1975 2167 2500 6000 1850 2000 35 L3H2 HDi 150 6-speed manual 3500 1525 1975 2167 2500 6000 1850 2000

35 Heavy L3H2 HDi 130 6-speed manual 3500 1485 2015 2207 3000 6500 2100 2400

35 L3H3 HDi 130 6-speed manual 3500 1500 2000 2192 2500 6000 1850 2000 35 Heavy L4H2 HDi 130 6-speed manual 3500 1440 2060 2207 3000 6500 2100 2400 40 Heavy L4H2 HDi 130 6-speed manual 3990 1885 2105 2280 2500 6490 2100 2400 35 Heavy L4H3 HDi 130 6-speed manual 3500 1410 2090 2282 3000 6500 2100 2400

Page 14

EQUIPMENT SPECIFICATION

High frequency remote control central locking with plip

Cruise control with programmable speed limiter

● Standard equipment

Optional factory fitted equipment

1 Standard on 40 Heavy versions, optional on all

other versions.

2 The operator of the ve hicle must have the tachogr aph

calibrated a nd sealed by an Approved Tacho graph Centre, and then chec ked every two years.

3 Incompatible with pivoting front seats with full

upholstered head restraints.

4 Not availal able on 40 Heavy versions.

5 Standard on 40 Heavy versions only.

6 Present when optional 180A reinforced

alternator is ordered.

7 Standard on 40 Heavy, only when optional

delete tachograph is ordered.

8 Standard on 40 Heavy, only if optional rear

adjustable pneumatic suspension is ordered.

9 Standard on 40 Heavy only, except if optional

rear adjustable pneumatic suspension is ordered instead. Optional on Chassis Crew Cab.

10 Not available on Chassis Crew Cabs.

11 Mobile phone compatibility can vary by phone

manufacturer. Please consult your Dealer for further compatibility information.

Heated twin lens door mirrors with electric adjustment for passenger side

Mid-height interior protection in load compartment

2 speed, intermittent front windscreen wipers (non-automatic)

Extended rear view mirrors (2.20m)

SAFETY & SECURITY

ABS

Immobiliser

Speedometer in mph

Tachograph

Lane Departure Warning System

Full steel bulkhead

Speed Limiter (56 mph)

Driver's airbag

Electronic Stability Control (ESC)

Emergency Braking Assistance

Laminated windscreen

Rear parking sensors

Deadlocks

Perimetric alarm

LIGHTING & VISIBILITY

Standard width door mirrors

STYLE

Unglazed rear doors

Nearside sliding side loading door

Steel wheels

Painted grille

Chrome grille

Tinted windows

Black front bumper

PANEL VAN

ENTERPRISE

CHASSIS/CREW CAB

● ● ● ●

● ●

1/2

●

●

● ● ● ●

● ● ●

● ● ● ●

● ●

● ● ● ●

● ●

● ● ● ●

● ●

● ● ● ●

● ●

● ● ● ●

●

1/2

●

●

●

●

●



 ● ●



● ●



BACK TO BACK CAB

PANEL VAN

ENTERPRISE

CHASSIS/CREW CAB

BACK TO BACK CAB

COMFORT & CONVENIENCE

Electric front windows

12 volt socket in cabin

Full size steel spare wheel

●

Variable assisted power steering

Steering wheel mounted audio controls

Height adjustable steering wheel

Rear doors opening to 180°

90 litre fuel tank

Air conditioning Without xed speed limiter Rear single-leaf suspension

Rear reinforced twin-leaf suspension

Metallic suspension

12 volt socket in rear

Second plip remote control

Smartnav and Trackstar

STORAGE

Lockable, non-illuminated glove box

Overhead storage shelf

SEATING

Driver’s seat height and lumbar adjustment

Passenger bench seat

AUDIO/NAVIGATION

Conversion interface box

Audio System with Connecting Box: DAB digital radio with steering

mounted controls, Bluetooth

Touch Screen Audio Pack – DAB digital radio and MP3 CD player

with steering mounted controls, 5 inch colour touch screen, Bluetooth

system and USB socket

handsfree and USB socket

● ● ● ●

● ●

● ● ● ●

●

●

●

● ● ● ●

● ●

● ● ● ●

 



●

●



●

●

●

●

●

● ●

●

●

●

●

Page 15

TECHNICAL SPECIFICATION

HDi 110 6-speed manual HDi 130 6-speed manual e-HDi 130 6-speed manual HDi 150 6-speed manual

ENGINE

Capacity (cc) 2198 2198 2198 2198

Cylinders 4 in line 4 in line 4 in line 4 in line

Bore and stroke (mm) 86.0 x 94.0 86.0 x 94.0 86.0 x 94.0 86.0 x 94.0

Max power CEE (kW/rpm) 81/3500 96/3500 96/3500 110/3500

Max torque CEE (Nm/rpm) 250/1750 320/2000 320/2000 350/2000

Fuel system High pressure direct diesel injection High pressure direct diesel injection High pressure direct diesel injection High pressure direct diesel injection

Euro status Euro 5 Euro 5 Euro 5 Euro 5

DIESEL MODELS

TRANSMISSION

Six speed manual

Six speed Stop & Start manual

● ● ●

●

ECONOMY Litres/100km (mpg)

Combined Min/Max 6.8/8.9 (41.5/31.7) 6.8/8.7 (41.5/32.5) 6.6/7.2 (42.8/39.2) 7.4/8.7 (38.2/32.5)

CO2 EMISSIONS (g/km) Min/Max

BRAKES

Front brakes/Rear brakes Ventilated discs/discs

STEERING

Number of turns lock to lock 3.87 3.87 3.87 3.87 Turning circle between kerbs/walls (m) L1 11.26/11.44 11.26/11.44 11.26/11.44 Turning circle between kerbs/walls (m) L2 12.64/12.84 12.64/12.84

Turning circle between kerbs/walls (m) L3 & L4 14.24/14.46 14.24/14.46 14.24/14.46

180–234 180–299 175/189 195/229

ABS with Emergency Braking Assistance (EBA)

Variable power assisted steering

SUSPENSION

Front Independent MacPherson type struts with triangulated lower suspension arms, coil springs with integral telescopic hydraulic dampers

Rear Longitudinal leaf springs with inclined telescopic hydraulic dampers

Pneumatic rear Pneumatic springs at a constant height; adjustable when vehicle is stationary

FUEL TANK CAPACITY Litres (gallons)

90 (19.8)

MPG gures are achieved under ofcial EU test conditions, intended as a guide for comparative purposes only, and may not reect actual on-the-road driving conditions.

Page 16

DIMENSIONS

Up to 17m

of loadspace

Maximum allowable measurement after

conversion. Exact value varies depending on specication of completed vehicle.

▲

2254 with HDi 110 engine; 3500 with

HDi 130 engine.

* 2200 with extra wide door mirrors

(tted as standard); 2350 with optional, wider door mirrors.

PANEL VANS ENTERPRISE

CHASSIS CAB/

CREW CAB

L1 L2 L3 L4 L1 L3 L2 L3 L4

H1 H1 H2 H2 H3 H2 H3 H1 H2

EXTERIOR DIMENSIONS

Length of frame to back of Chassis Cab 2920 3505 3870

Length of frame to back of Crew Cab 2634

Width – excluding door mirrors 2050 2050 2050 2050 2050 2050 2050 2050 2050 2050 2050 2050 2050

Width – with door mirrors unfolded 2508 2508 2508 2508 2508 2508 2508 2508 2508 Width – with extra wide door mirrors unfolded (max. converted vehicle width 2200mm) 2690 2690 2690 2690 Width – with extra wide door mirrors unfolded (max. converted vehicle width 2350mm) 2770 2770 2770 2770

(mm)

Length 4963 5413 5413 5998 5998 6363 6363 4963 5998 5258 5843 6208

Height 2254 2254 2524 2524 2764 2524 2764 2254 2524

Height of cab 2153 2153 2153 2153

Wheelbase 3000 3450 3450 4035 4035 4035 4035 3000 4035 3450 4035 4035

Front overhang 948 948 948 948 948 948 948 948 948 948 948 948 948

Rear overhang 1015 1015 1015 1015 1015 1380 1380 1015 1015 860 860 1225

Front track 1810 1810 1810 1810 1810 1810 1810 1810 1810 1810 1810 1810 1810

Rear track 1790 1790 1790 1790 1790 1790 1790 1790 1790 1790 1790 1790

LOAD COMPARTMENT DIMENSIONS

Load sill height – according to vehicle length and tyre size (mm) 507-509 503-506 494-558 504-556 505-555 594-601 555-561 509 504

Load length at mid-height, with bulkhead (mm) 2464 2914 2914 3555 3555 3920 3920 2464 3555

Maximum load compartment height (mm) 1662 1662 1932 1932 2172 1932 2172 1662 1932

Maximum load width between sides (mm) 1870 1870 1870 1870 1870 1870 1870 1870 1870

Maximum load width between wheel arches (mm) 1422 1422 1422 1422 1422 1422 1422 1422 1422

Load compartment volume (m

CONVERTIBLE AREA DIMENSIONS

Maximum length once converted

Maximum overhang once converted (excl. Motorhomes)

Maximum overhang once converted (Motorhomes only)

Maximum height once converted

Maximum width of conversion (excl. Motorhomes)

Maximum width of conversion (Motorhomes only)

Load length (mm) 2670 3120 3120 3705 3705 4070 4070 2670 3705

Sliding side door height (mm) 1485 1485 1755 1755 1755 1755 1755 1485 1755

Sliding side door width (mm) 1075 1250 1250 1250 1250 1250 1250 1075 1250

Rear door height (mm) 1520 1520 1790 1790 2030 1790 2030 1520 1790

Rear door width (mm) 1562 1562 1562 1562 1562 1562 1562 1562 1562

Degree to which doors open 180 180 180 180 180 180 180 180 180

) 8 10 11.5 13 15 15 17 8 13

(mm)

7383 7383 7383 2070 2400 2400 2243 2400 2400

2254/

3500 3500 3500

▲

3500

2200

(2350)

2200

(2350)

2430 2430 2430 2430

2200

BACK TO BACK CAB

Page 17

All measurements are in millimetres.

Page 18

GREEN EFFICIENCY. CITROËN HAS BEEN

PIONEERING CLEANER, MORE FUEL-EFFICIENT MOTORING, SUCH AS THE COMMON RAIL HDi ENGINES NOW FITTED IN ALL NEW CITROËN DIESELS, LONG BEFORE ALL THE HYPE...

CITROËN HAS ALWAYS BEEN AT THE FOREFRONT OF GREENER TECHNOLOGY AND THE NEW CITROËN RELAY MAINTAINS THAT TRADITION. IT’S WHY WE ARE FOUR-TIME WINNERS OF THE GREEN FLEET LCV MANUFACTURER OF THE YEAR, INCLUDING THEIR MOST RECENT, 2013 AWARD. TODAY, WE HAVE ONE OF THE UK’S WIDEST RANGES OF LOW EMISSION VEHICLES. WE ALSO PRODUCE ONE OF THE UK’S MOST ECONOMICAL LIGHT COMMERCIAL VEHICLES, THE CITROËN NEMO VAN.

We’ve been equipping more of our vehicles with more environmentally friendly breakthroughs, such as e-HDi which puts the engine into idle mode as you decelerate and stops altogether as you come to a halt. The moment you take your foot off the brake, it restarts silently and without vibration. The results are a dramatic reduction in both fuel consumption and CO combined with responsive performance wherever you go.

emissions,

AIRDREAM – A BENCHMARK

Citroën’s environmental commitment and advanced efciency are perfectly illustrated by Airdream. It’s a benchmarking scheme that has three demanding criteria which a vehicle must achieve before it can wear the name. Firstly it must emit no more than 140g/km CO produced at a plant that meets the rigorous ISO 14001 certication and also it must be 95% recoverable. Only e-HDi, electric or Hybrid4 engined Citroëns currently qualify. It’s no surprise that Citroën is one of the leaders in Europe for low CO

. Secondly it must be

emissions.

GO LO CO2 WITH B30

All Citroën HDi diesel vans

run on 30% bio-diesel

Citroën is a leader in

the manufacture of low CO

emissions vehicles

THE AWARD WINNING

CITROËN VAN RANGE

Citroën has an impressive range of vans to offer, full of innovations and technologies that raise the bar for comfort, safety, hard working efciency and style. Our four model van range goes from the fabulously compact Citroën Nemo to the hugely versatile New Citroën Relay and includes a number of Specialist models. Whichever you go for you’ll get plenty of ingenious storage and business focused equipment, all designed to make your work easier and extra efcient.

Page 19

DRIVE YOUR WAY. GET BEHIND

ESSENTIAL CARE. CITROËNS

THE WHEEL OF YOUR NEW CITROËN RELAY, WITH CITROËN’S RANGE OF FINANCE AND INSURANCE PRODUCTS.

FOR BUSINESS USERS

CITROËN CONTRACT

MOTORING

HIRE PURCHASE A tried and tested nance package that allows you to own your vehicle.

BUSINESS LEASE An alternative to vehicle ownership that allows you to control your business cash ow and gain tax efciencies.

LEASE PURCHASE Own a vehicle with a nance solution that offers ultimate exibility to complement your business cash ow.

CONTRACT HIRE A non-ownership nance solution that keeps costs xed and risks low.

FOR MORE INFORMATION ON CITROËN FLEET AND BUSINESS SALES, PLEASE CALL CITROËN FLEET CONNECT ON 08457 940 940 OR LOOK US UP AT WWW.CITROEN.CO.UK/FLEE T

CITROËN INSURANCE

INSTANT COVER To help you drive away your new van without delay, we offer Instant Cover insurance, providing you with 7 days comprehensive insurance, for free!

MOTOR INSURANCE Citroën Insurance has been designed specically for our vehicles. You don’t just get repairs you get Citroën expertise, service, quality and parts. So, when the time comes to renew your insurance cover, call Citroën Insurance on 0870 024 2725.

Lines open 8am - 8pm weekdays, 9am - 5pm Saturdays. Max call charge from a BT landline is 8p per minute. Calls from other networks may vary. Alternatively, visit www.citroen.co.uk for more information or to apply online.

Citroën Insurance is underwritten by U K Insurance Ltd which is authorised and regulated by the Financial Conduct Authorit y. Citroën Insurance is a trading style of Banque PSA Finance UK of Quadrant House, Princess Way, Redhill, Surrey, RH1 1QA.

ARE RENOWNED FOR THEIR RELIABILITY – AND THE NEW CITROËN RELAY IS NO EXCEPTION.

WITH THE ADDED REASSURANCE OF A WARRANTY, ROUTINE SERVICING AND MAINTENANCE, AS WELL AS 24-HOUR ROADSIDE ASSISTANCE, YOU ARE PROTECTED.

CITROËN WARRANTY

Every new Citroën van has the benet of a 3 year* warranty package, plus a 5 year anti-perforation** warranty and a 2 year paint warranty.

* 2 years’ unlimited warranty. No-fee customer

option of 1 year’s Dealer provided warranty, only on vans sourced from Citroën UK Limited. Note: Dealer provided warranty is limited to 100,000 miles for vans.

** Against all internal to external per foration to

bodywork or underbody.

CITROËN ASSISTANCE

In response to a free telephone call in the UK, Citroën Assistance brings rapid expert roadside assistance to you in an emergency. It comes free of charge for a full year and operates 24 hours a day in all parts of the UK and Europe. Services include nationwide recovery for both van and passengers, a home call service, replacement vehicle, hotel accommodation and vehicle storage if required. Please note, Citroën Assistance only applies to incidents covered by the new vehicle warranty, and excludes non-vehicle faults, such as running out of fuel, mis-fuelling, loss of keys, lock-ins, road trafc accidents and punctures/wheel changes.

Full details are available on request from [email protected]

Citroën UK via

CITROËN MAINTENANCE

From roadside assistance to replacing wear and tear parts or regular servicing, with Citroën Maintenance you have total peace of mind. For a one-off fee or low monthly payment, our experienced engineers will take care of your Citroën, whatever happens.

To nd out more, contact your Citroën Dealer or Citroën Authorised Repairer.

CITROËN SERVICING

Available up to 1 year from your vehicle’s registration date, but before its rst chargeable service, a Citroën Servicing Package enables you to pay in advance for your vehicle’s servicing needs for 3 years/35,000 miles.

For further information, please contact your Citroën Dealer.

Page 20

K124 02 J UNE 2014 DESIGNED AND PRODUCED BY ACUITY WWW.WEAREACUITY.COM

This brochure is made from paper from a well-managed forest. Citroën support responsible use of forest resources.

Please don’t throw me away, give me to a friend or recycle me.

CITROËN UK Ltd. Pinley House, 2 Sunbeam Way, Coventry CV3 1ND. www.citroen.co.uk

CRÉATIVE TECHNOLOGIE

NOTE: Every endeavour has been made to ensure that the information and details contained in this brochure were accurate at the time of going to press June 2014. However the company reserves the right, whilst preserving the essential char acteristics of the models described, to introduce at any time mo dications, changes of details, equipment or accessories. Ever y effort will be made to bring this brochure up to date, but in order to avoid any misunderstandings please consult y our Dealer. For full details of Citroën Care for Van and Driver, please see the full manufacturer’s price list. The Citroën Website contains full information on all Citroën products and offers available in the UK, together with details of our environmental and recycling p olicies. The site address is: www.citroen.co.uk or you can contact Citroën directly via [email protected]
