Cisco MERAKI MS250 Series, MS250-24, MS250-24P, MS250-48, MS250-48LP Installation Manual

MS250 Series Installation Guide

Model number Description

MS250-24

MS250-24P

MS250-48

MS250-48LP

MS250-48FP

Stackable Layer-3 24-port gigabit Ethernet switch with 4 SFP+ interfaces, hot-swappable

power supplies

Stackable Layer-3 24-port gigabit Ethernet 370W PoE switch with 4 SFP+ interfaces, hot-

swappable power supplies

Stackable Layer-3 48-port gigabit Ethernet switch with 4 SFP+ interfaces, hot-swappable

power supplies

Stackable Layer-3 48-port gigabit Ethernet 370W PoE switch with 4 SFP+ interfaces, hot-

swappable power supplies

Stackable Layer-3 48-port gigabit Ethernet 740W PoE switch with 4 SFP+ interfaces, hot-

swappable power supplies

Package contents

In addition to the MS switch, the following are provided:

1

Rack Mount Kit includes:

• US 12-24 mounting screws and cage nuts, 5 of each

• INTL M5 mounting screws and cage nuts, 5 of each

• INTL M6 mounting screws and cage nuts, 5 of each

• Mounting washers

Note: MS250 does not include stacking cables. Stacking cables sold separately.

If using a 640WAC or 1025WAC power supply, it will require to use a C15 power cable.

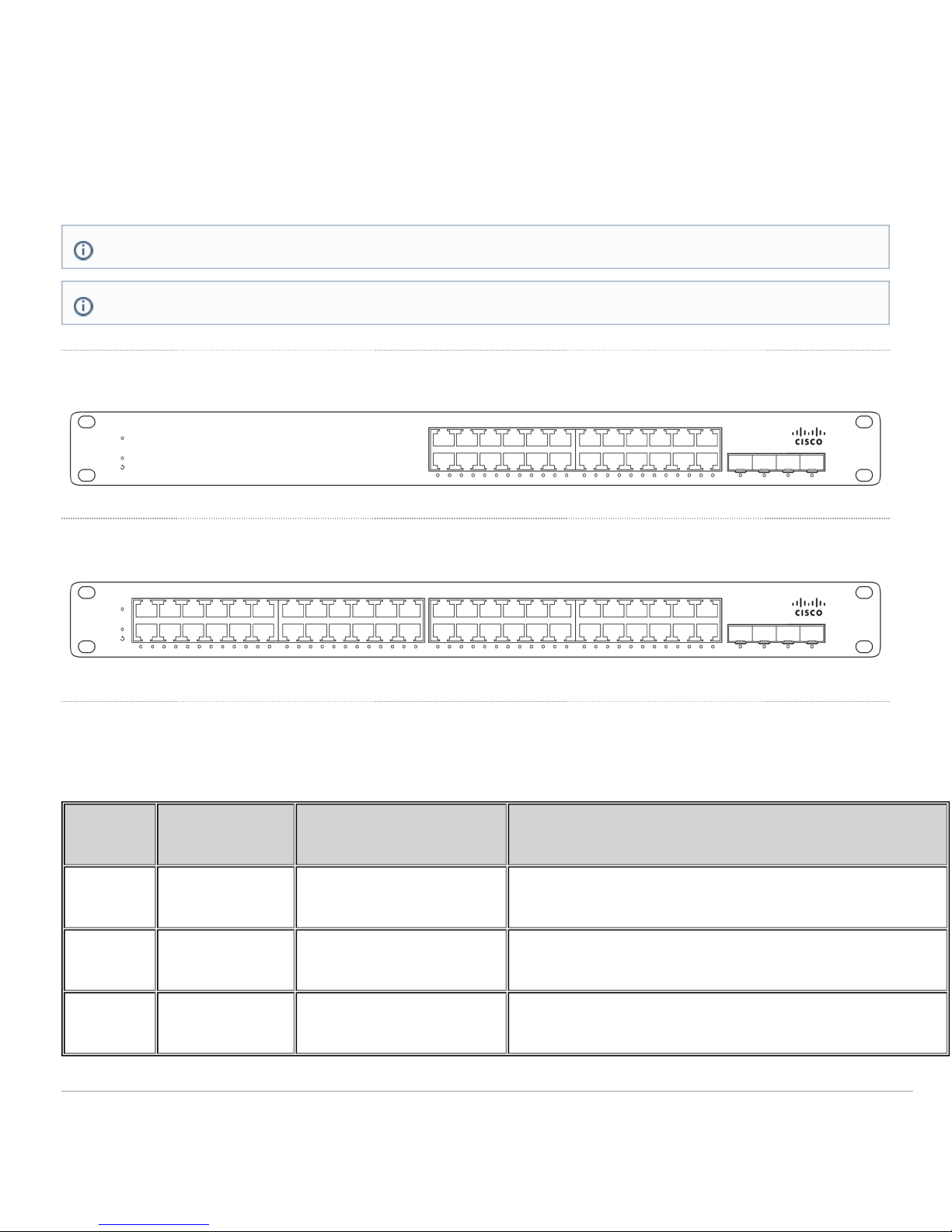

MS250-24 Series front panel

MS250-48 Series front panel

Ports and Status Indicators

The MS uses LEDs to inform the user of the device's status. When the device powers on, all the Internet LEDs flash

twice. Additional functions are described below, from left to right.

Item Function LED Status Meaning

1 Power Solid orange Switch is unable to connect to the Meraki cloud

Flashing white Firmware upgrade in process

Solid white Switch is fully operational and connected to the Meraki cloud

2
