Cisco vEdge Series, vEdge 100, vEdge 100m, vEdge 100wm, vEdge 1000 Hardware Installation Manual

Hardware Installation Guide for vEdge Routers

First Published: 2018-03-27

Americas Headquarters

Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 USA http://www.cisco.com Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

©

vEdge 100 Router

The vEdge 100 router delivers highly secure site-to-site data connectivity to small business and home offices (SOHO). The vEdge 100 router is a fixed-port-configuration router with the following features:

• Five built-in 10/100/1000 Mbps Ethernet ports

• Power over Ethernet (PoE) source support on one Ethernet port

• Encryption and QoS support

• 100 Mbps forwarding throughput (inclusive of encryption)

• Secure identification chip for anti-counterfeit and secure authentication

• Integrated power supply

• Kensington security lock slot to physically lock down the router

• GPS input for geographical location

• Desktop mount, wall mount, or rack-mountable in a 19-inch rack

Chassis Views

Figure 1 and Figure 2 show the front and back panels of the vEdge 100 router, indicating the location of the power interfaces, status indicators, and chassis identification labels.

Figure 1: Front Panel of the vEdge 100 Router

Figure 2: Back Panel of the vEdge 100 Router

Hardware Installation Guide for vEdge Routers

1

Declaration of Conformity

vEdge 100 Router

• Declaration of Conformity, on page 2

• Components and Specifications, on page 2

• General Safety Standards, on page 8

• Maintenance and Troubleshooting, on page 20

Declaration of Conformity

The Viptela products are controlled under the Commerce Control List (CCL) of the U.S. Export Administration Regulations (EAR) as networking equipment within the following U.S. Export Control Classification Numbers (ECCN): 5A002, 5D002, and 5E002.

The vEdge hardware and software products and the Viptela encryption technology can be delivered to most end users and destinations worldwide without a licensing requirement. The Viptela solution and products have undergone a one-time review by the Government of the United States of America and qualify for License Exception ENC. As such, they are eligible for export according to Section 740.17 of the EAR.

The Viptela solutions and products can be delivered to most end users worldwide, except to entities or end users in the following countries: Cuba, Iran, North Korea, Sudan, and Syria.

Controlled Technologies

Viptela manages technology subject to the U.S. Export Administration Regulations (EAR). These controlled technologies may include items under U.S. ECCN 5E002 encryption technology. The Viptela encryption technology is for the development, production, and use of Viptela products that implement or use encryption.

The Viptela software distribution policy allows only authenticated users to download the Viptela encryption software. Recipients of controlled technology are obliged to maintain adequate controls to prevent nationals from outside the U.S. and Canada from accessing Viptela information, subject to ECCN5E002, without first obtaining authorization from the U.S. government.

For additional information on controlled technologies, please contact Viptela support at support@viptela.com .

Components and Specifications

This article provides the chassis specifications of the vEdge 100 router and lists the other router components.

Hardware Installation Guide for vEdge Routers

2

vEdge 100 Router

Components and Specifications

Chassis Specifications

Table 1 lists the specifications for the vEdge 100 router chassis.

Table 1:

SpecificationItem

Services and Slot Density

RJ45 Ports 10/100/1000 Mbps

rate 115.2 Kbps)

Power Specifications

AC input voltage

Physical Specifications

5 ports, one of which has 802.3af PoE source capability

YesEmbedded hardware-based crypto acceleration (IPSec)

2 GBMemory DDR3 ECC DRAM

4 GBNAND storage (internal)

1USB host port (Type A USB 3.0)

1Mini USB connector console port (default baud

AC Input (C6 inlet connector)Power supply

90-264 Vrms

47-63 HzAC input line frequency

15 WattsTypical power consumption with PoE disabled on ge0/0

32 Watts maximumTypical power consumption with PoE enabled on ge0/0

Chassis height

Packaging Specifications

Package height

1.5 in. (3.8 cm)

9 in. (22.9 cm)Chassis width

5.5 in. (14 cm)Chassis depth

Can be accommodated in 1 RURack height

3.1 lb (1.4 kg)Chassis weight

Provided with the unitRack-mount accessory kit 19 in (48.3 cm) EIA

2.5 in. (6.4 cm)

12.4 in. (31.6 cm)Package width

9.6 in. (24.4 cm)Package depth

Hardware Installation Guide for vEdge Routers

3

Front and Rear Panel Components

Operating Condition

vEdge 100 Router

SpecificationItem

Temperature

Transportation/Storage Condition

Temperature

Reliability

MTBF

Regulatory Compliance

Safety

EMC

0 to 40°C (32 to 104°F) at sea level ( temperature de-rating of 1.5 deg C per 1000 feet of altitude applicable up to max of 10000 feet or 3000 m)

Max 3000 m (10000 ft)Altitude

10 to 85% RHHumidity

-40 to 70°C (-40 to 158°F)

5 to 95%RHHumidity

4570 m (15000 ft)Altitude

104K hours

AS/NZS 60950-1 CAN/CSA 60950-1 CB-IEC60950-1 CE Marking EN 60950-1 UL60950-1

AS/NZS CISPR22 Class A EN 300 386 EN 55022 Class A FCC Class A ICES Class A VCCI Class A

Front and Rear Panel Components

This article describes the components on the front and rear panels of the vEdge 100 router. See At a Glance for the exact location of these components on the router.

Front Panel LEDs

The vEdge 100 router has five chassis status LEDs located in the front. See Figure 1.

Figure 1: Chassis Status LEDs in a vEdge 100 Router

ROHS 6/6Environmental

Hardware Installation Guide for vEdge Routers

4

vEdge 100 Router

Front and Rear Panel Components

Table 1 describes the LEDs , their color and states, and the status they indicate.

Table 2:

StatusColorLED

(LED 0–4)

Green/RedPower

• Off: System is not on

• Green: System is healthy and operating fine

• Red: Power supply fault

Green/Yellow/RedStatus

• Off: System is not on

• Solid Green: System is fully functional

• Blinking Green: System is booting up

• Solid Yellow: No Internet connectivity or the system has detected a minor alarm

• Red: System has detected a major system level fault or alarm

Green/YellowEthernet Port

• Off: No link

• Solid Green: 1000 Mbps link detected

• Blinking Green: 1000 Mbps link detected and link activity

• Solid yellow: 10/100 Mbps link detected

• Blinking Yellow: 10/100 Mbps link detected and link activity

Rear Panel

The rear panel of the vEdge 100 router has a Reset button, a Kensington security lock slot, and a GPS antenna input. See Chassis Views for the location of these components.

Reset Button

The Reset button on the rear panel is recessed, to avoid accidentally pressing it while the router is operational. To press the Reset button, use a sharp narrow tool. Table 2 describes the effects of pressing the Reset button.

Hardware Installation Guide for vEdge Routers

5

Ports and Connectors

vEdge 100 Router

Table 3:

BehaviorPress

Duration

Pressing for two seconds resets and reboots the router.Short press

Pressing for 10 seconds resets the router and reboots it with factory default configuration.Long press

Kensington Security Lock Slot

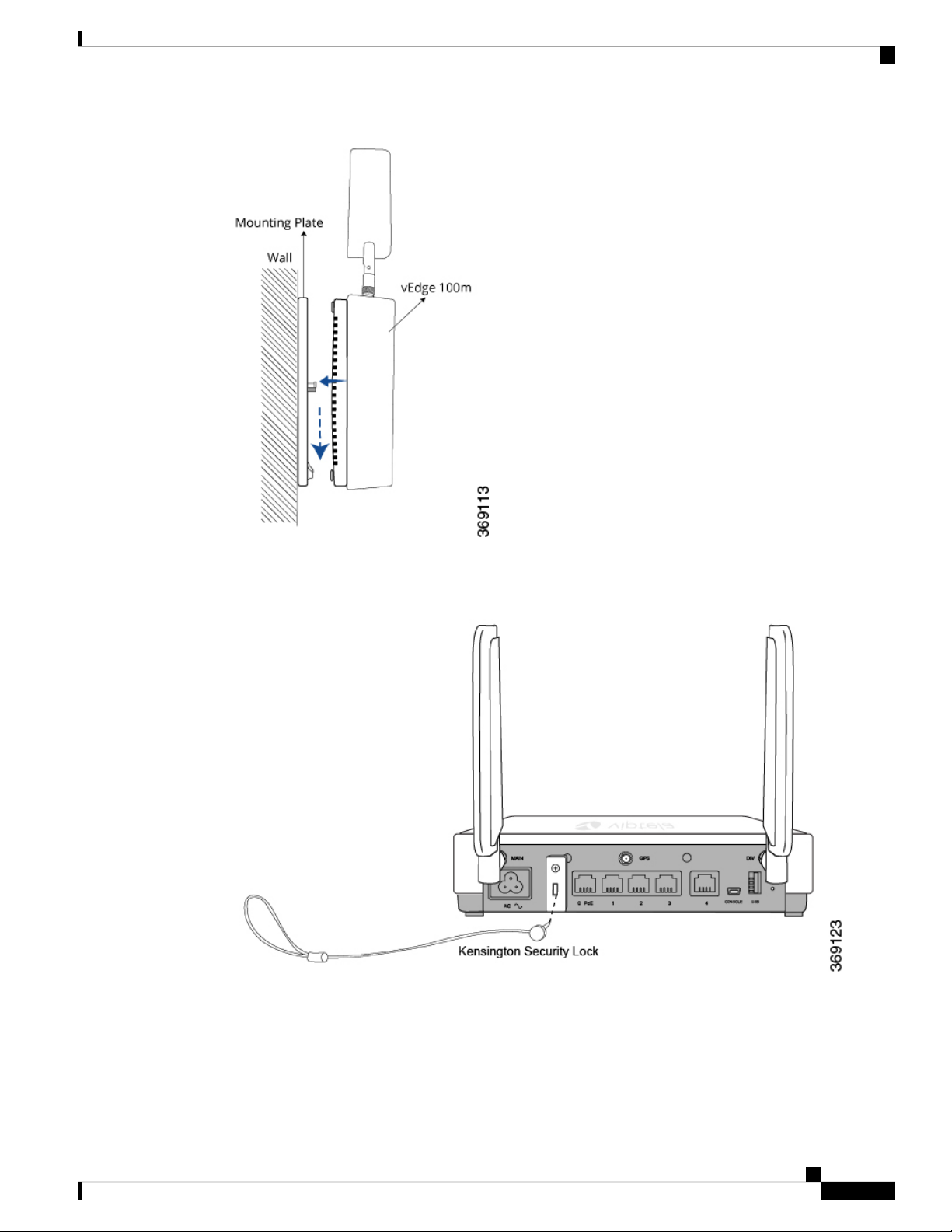

The rear panel of the vEdge 100 router has a small metal-enforced hole for attaching a Kensington lock to secure the router.

GPS Input

The GPS antenna input on the rear panel of the router allows you to connect an external GPS antenna that has an SMA connector. If you connect a GPS antenna to the router, it can automatically identify the router's geographical location.

Ports and Connectors

The vEdge 100 router supports three types of ports: RJ-45 Ethernet ports, USB port, and USB serial console port.

RJ-45 Ethernet Ports

There are five built-in RJ-45 Ethernet ports on the vEdge 100 router. These ports support 10/100/1000 Mbps and are numbered 0 through 4. Port 0 supports PoE capability.

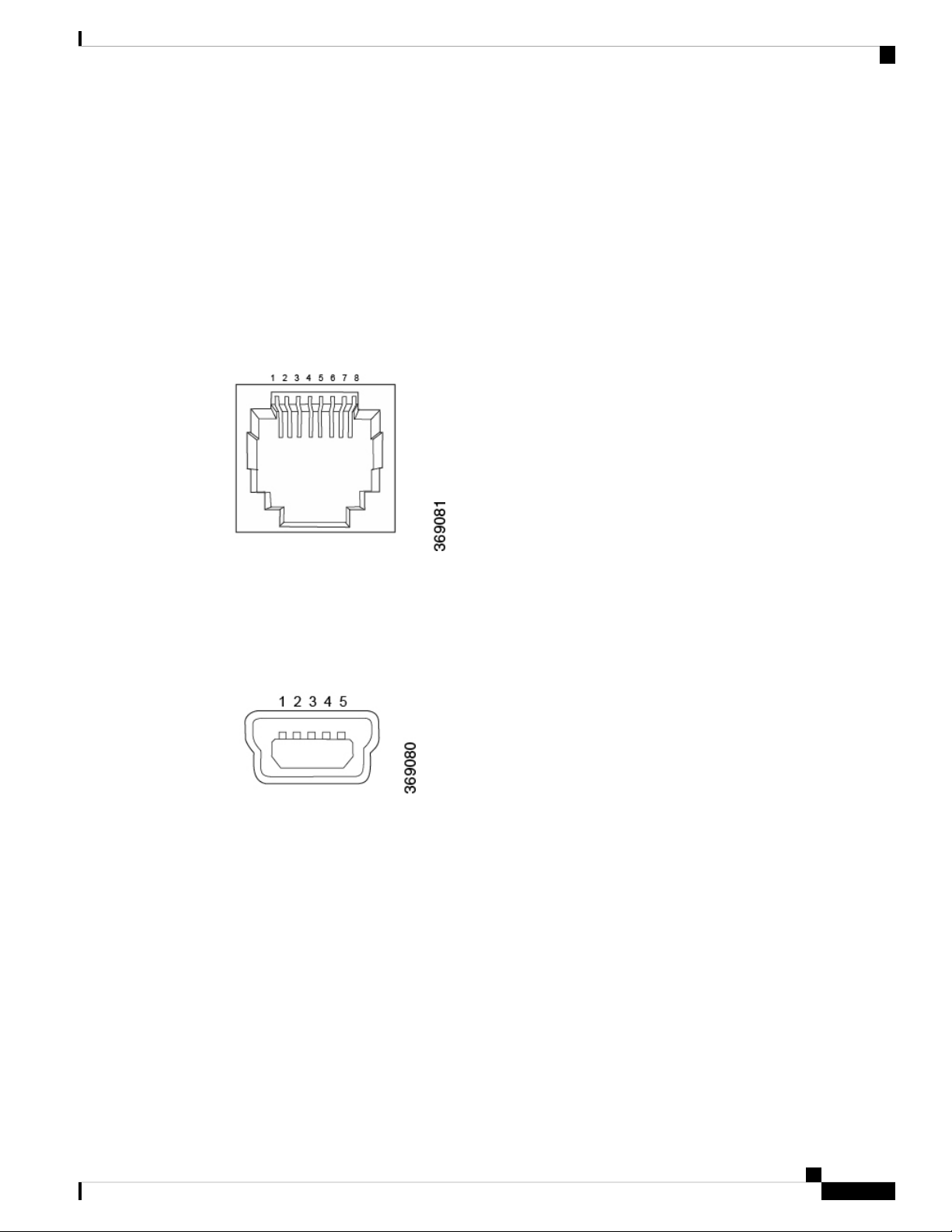

Figure 1 provides the pinout information for the RJ-45 ports. The RJ-45 ports comply with the 801 standards.

Figure 1: RJ-45 Ports Pinout Information

USB Port

There is one USB port on the vEdge 100 router with a type A connector. The USB port complies with USB

3.0 specification.

Hardware Installation Guide for vEdge Routers

6

vEdge 100 Router

Console Port

The console port on the vEdge 100 router is a serial port and is accessible via a USB Mini-B connector. See Figure 2.

Figure 2: USB Mini-B Connector

A USB Type-A to Mini-B connector cable is shipped with the vEdge 100 router as standard accessory for console port connection.

Power Supply and Cooling System

The vEdge 100 router has an built-in AC-to-DC power supply unit. Read this article to learn more about the AC power supply in the router as well as about the cooling system and airflow through the router chassis.

Power Supply and Cooling System

AC Power Supply in vEdge 100 Router

The vEdge 100 router has an integrated AC power supply that exposes a C6 male AC inlet connector externally. The unit can be powered by connecting the supplied power cord to AC mains with the C5 female connector end of power cord plugged into the unit.

Table 1 describes the AC power supply specifications for the vEdge 100 router.

Table 4:

SpecificationItem

90-264 VrmsAC input voltage

47-63 HzAC input line frequency

15 WattsTypical power consumption with PoE disabled on transport interface

Typical power consumption with PoE enabled on transport interface

32 Watts maximum

AC Power Cord Specifications

The vEdge 100 router ships with a detachable AC power cord. The power cord has a C5 female connector at one end and the other end is specific to the country/locality to which the product is shipped.

Cooling System in a vEdge 100 Router

The cooling system in a vEdge 100 router consists of internal heat sinks and an internal fan with adjustable speed. The fan speed is algorithmically controlled, based on readings obtained from internal temperature sensors that in turn is determined by factors such as external ambient as well as the traffic workload.

Hardware Installation Guide for vEdge Routers

7

General Safety Standards

If the ambient temperature inside the chassis rises above the acceptable range, the router raises an alarm. If the temperature inside the chassis rises above the maximum threshold temperature, the router shuts down automatically.

General Safety Standards

vEdge 100 Router

Caution

Before removing or installing router modules and components, ensure that the router chassis is electrically connected to ground. Ensure that you attach an ESD grounding strap to an ESD point and place the other end of the strap around your bare wrist making good skin contact. Failure to use an ESD grounding strap could result in damage to the router.

Some router components are hot-swappable and hot-insertable. You can remove and replace them without powering off or disconnecting power to the router. Do not, however, install the router or any of its component if they appear to be damaged.

• Install your vEdge router in compliance with the following local, national, and international electrical codes:

• United States—National Fire Protection Association (NFPA 70), United States National Electrical Code.

• Other countries—International Electromechanical Commission (IEC) 60364, Part 1 through Part

7.

• Evaluated to the TN power system.

• Canada—Canadian Electrical Code, Part 1, CSA C22.1.

• Permit only trained and qualified personnel to install or replace switch components.

• Locate the emergency power-off switch in the room in which you are working. In case of an electrical accident, quickly turn off the power.

• Disconnect power before installing or removing the router.

• If an electrical accident occurs, use caution and immediately turn off power to the router.

• Make sure that grounding surfaces are thoroughly cleaned and well-finished before grounding connections are made.

• Do not work alone if hazardous conditions exist.

• Always check that power is disconnected from a circuit. Never assume that it is disconnected.

• Carefully inspect your work area for possible hazards, such as moist floors, worn-out power cords, ungrounded power extension cords, and missing safety grounds.

• Operate the device within marked electrical ratings and product usage instructions.

• To ensure that the router and the FRUs function safely and correctly, use the specified cables and connectors, and make certain they are in good condition.

Hardware Installation Guide for vEdge Routers

8

vEdge 100 Router

Site Preparation Guidelines

Efficient operation of routers requires proper site planning and proper layout of your equipment rack or wiring closet:

• Ensure that the area around the router is kept free of dust and conductive material.

• Follow appropriate airflow guidelines so that the cooling system functions normally.

• Follow ESD prevention procedures to avoid any damage to the router.

• Install the router in an enclosed, secure area allowing only authorized personnel to access the device.

Environmental Requirements

Install the vEdge routers in a dry, clean, temperature-controlled, and well-ventilated environment:

• Maintain ambient airflow for the router to operate normally. The ambient intake air temperature should be in the range 0°C to 40°C (32°F to 104°F). If the airflow is blocked or if the air intake is too warm, the router can get overheated.

Site Preparation Guidelines

• Avoid temperature extremes. Ensure that the router is operating at an ambient temperature not more that 40°C (104°F) at sea level. For higher altitudes, a derating of 1.50°C per 1,000 feet applies.

• High humidity conditions can cause moisture to penetrate into the chassis. The devices support 10% to 85% humidity levels, non-condensing.

Rack Requirements

For the Cisco vEdge router models that support the rack mount option, you can mount the routers in a two-post or a four-post rack. Table 1 provides the rack requirements for the routers.

Table 5:

GuidelinesRack Requirement

Rack type

Use a two-post or a four-post rack that meets the size requirements for the router, provides bracket holes or hole patterns spaced at 1 U (1.75 in. or 4.45 cm) increments, and is strong enough to support the weight of the router.

Mounting brackets

Ensure that the holes in the mounting brackets are spaced at 1 U (1.75 in. or 4.45 cm). This allows you to mount the router in any location in the rack.

Rack size

It is recommended that the rack comply with the size and strength standards of a 19-inch rack as defined in Cabinets, Racks, Panels, and Associated Equipment (document number EIA-310–D), published by the Electronics Industry Association http://www.eia.org . Ensure that the rack rails are spaced widely enough to accommodate the external dimensions of the chassis and that the outer edges of the front mount brackets extend the width of the chassis to 19 in. (48.2 cm). You must also ensure that the spacing of rails and adjacent racks allows for the proper clearance around the router and rack.

building structure

For maximum stability, secure the rack to ceiling brackets and to floor brackets.Rack secured to

Hardware Installation Guide for vEdge Routers

9

Install the vEdge 100 Router

Airflow Requirements

When planning your site for installing vEdge routers, allow enough clearance around the installed router. Since the routers work with a front-to-back airflow there are no clearance requirements for the sides, but it is recommended that you provide at least 3 in. of clearance at the back.

Install the vEdge 100 Router

Once you have prepared your site for router installation, unpack the vEdge 100 router and mount it either on the wall or in a 19-inch rack.

Unpack the vEdge 100 Router

A vEdge 100 router is shipped in a cardboard carton and secured firmly in place with foam packing material. The carton contains a packing list and Quick Start instructions. It is recommended that you do not unpack the router till you are ready to install it.

To unpack the router:

1. Open the top flaps of the carton.

vEdge 100 Router

2. Gradually remove the packing foam holding the router and the accessories in place. See Figure 1.

3. Take out the router and each accessory.

4. Verify the router components against the packing list included in the box (see packing list below).

Figure 1: Unpacking the vEdge 100 Router

Hardware Installation Guide for vEdge Routers

10

vEdge 100 Router

Install the vEdge 100 Router

Note: It is recommended that you do not discard the shipping carton and packing material when you unpack the router. Flatten and store the box in case you need to move or return the router in the future. See Return Hardware .

Packing List for a vEdge 100 Router

The cardboard carton in which the router is packed includes a packing list. Check the parts you receive with your router against the items on the packing list. The packing list specifies the part number, name, and quantity of each item in the carton.

If any part on the packing list is missing, contact your customer service representative or contact Viptela customer support from within the U.S. or Canada by telephone at 800-525-5033 or by email to support@viptela.com .

Table 1 lists the parts shipped with the vEdge 100 router and their quantities.

Table 6:

QuantityComponent

1Router chassis

1AC power cord appropriate for your geographical location (ferrite bead attached)

1USB console cable

1 + 1Ferrite bead and key (to be attached to the USB cable)

Hardware Installation Guide for vEdge Routers

11

Install the vEdge 100 Router

Mount the vEdge 100 Router

You can mount the vEdge 100 router in one of the following ways:

vEdge 100 Router

QuantityComponent

2Mounting ears, left and right

1Wall-mount bracket

4Mounting ears screws (Packet A)

4Rack-mount screws (Packet B)

1Lock plate and screw (Packet C)

4Wall-mount screws (Packet D)

1Quick Start document

• Mount the router in a 19-inch rack

• Mount the router on the wall

In addition to the accessory box, you need the following tools to mount a vEdge 100 router:

• Number 2 Phillips (+) screwdriver

• Tape measure or level

Mount the vEdge 100 Router in a Rack

You can mount the vEdge 100 router on two front posts in a 19-inch rack using simple rack mount ear accessories. To do so:

1. Place the router chassis on the floor or on a sturdy table near the rack.

2. Verify the internal dimensions of the rack with a tape measure. The rack-mount tray is 440 mm wide and

must fit within the mounting posts.

3. Secure the left and right mounting ears to either side of the router chassis using the four screws (two on each side) in the packet marked A.

Figure 2: Attaching the Mounting Ears to the vEdge 100 Router Chassis

Hardware Installation Guide for vEdge Routers

12

vEdge 100 Router

Install the vEdge 100 Router

1. Grasp both sides of the router, then lift and position it in the rack, making sure that the mounting ear holes are aligned with the threaded holes in the rack rail.

Figure 3: Positioning the vEdge 100 Router in the Rack

1. Secure the mounting ears to the two front posts of the rack using the four rack-mount screws (two on each

side) in the packet marked B. Tighten the screws.

Figure 4: Attaching the Mounting Ears to the Rack

1. Use a tape measure or level to verify that the tray is installed straight and the holes at either ends of the

rack align properly.

Hardware Installation Guide for vEdge Routers

13

Install the vEdge 100 Router

2. Secure the router with a Kensington lock. To do so, first attach the lock plate from packet C to the back

Figure 5: Securing the Router with a Kensington Lock

Tip: It is recommended that you retain the dust covers on any unused ports.

Mount the vEdge 100 Router on the Wall

To mount the vEdge 100 router on the wall:

vEdge 100 Router

of the chassis, then insert the lock in the slot.

1. Screw the four shoulder screws in the packet marked D into the pre-drilled holes on the underside of the router chassis as shown in Figure 6. Tighten the screws until wrist tight. Note that the screw heads will not be flush with the chassis bottom.

Figure 6: Attach Screws to the Underside of the vEdge 100 Router Chassis

1. Secure the mounting plate to the wall using four screws appropriate for your wall type (screws not included).

Ensure that the L-shaped bracket of the mounting plate is to the upper left.

Figure 7: Securing the Mounting Plate to the Wall

Hardware Installation Guide for vEdge Routers

14

vEdge 100 Router

Install the vEdge 100 Router

1. Mount the router on the mounting plate by aligning the four screws on the underside of the router chassis to the holes in the mounting plate. Then gently slide the router chassis into the slots.

Figure 8: Mounting the vEdge 100 Router on the Mounting Plate

1. Secure the router by aligning the round hole on the L-shaped bracket of the mounting plate with the screw

hole in the rear of the router chassis. Then attach the L-shaped bracket to the router using a mounting ear screw from packet A.

Figure 9: Securing the vEdge 100 Router to the Mounting Plate

Hardware Installation Guide for vEdge Routers

15

Connect the vEdge 100 Router

vEdge 100 Router

1. Secure the router with a Kensington security lock using the slot in the rear of the chassis.

Figure 10: Securing the Router with a Kensington Security Lock

Connect the vEdge 100 Router

This article describes how to connect the vEdge 100 router to an AC power source and to a management console.

Hardware Installation Guide for vEdge Routers

16

vEdge 100 Router

Connect the vEdge 100 Router

Connect AC Power to the Router

To connect the vEdge 100 router to an AC power source, plug one end of the AC power cord into the back of the router, and plug the other end into an AC power outlet as shown in Figure 1.

Figure 1: Connecting AC Power Supply to a vEdge 100 Router

Note: It is strongly recommended that you use the power cord supplied with the vEdge 100 router.

Caution: If you are connecting AC power to the router, it is recommended that the building have an external surge protective device installed.

Connect the Router to LAN and WAN Interfaces

To connect the vEdge 100 router to the LAN, plug the appropriate cable into any port, except port 4, on the front of the router.

To connect the vEdge 100 router to a WAN, plug the appropriate cable into port 4 on the front of the router.

Figure 2: Connecting a vEdge 100 Router to LAN and WAN Interfaces

Hardware Installation Guide for vEdge Routers

17

Connect the vEdge 100 Router

Connect the Router to a Management Console

To connect the vEdge 100 router to a management console:

vEdge 100 Router

1. Connect one end of the USB Type-A to Mini-B connector cable into the console port, labeled CONSOLE, on the vEdge router.

2. Connect the other end of the console cable into the console server or to a management console.

To use the USB console from a Windows device:

1. Go to the Device Manager to determine which COM port is being used for the USB serial port.

2. In the PuTTY SSH/Telnet client, in Connection Type, select Serial. Then, specify the COM port and a

speed of 115200.

Hardware Installation Guide for vEdge Routers

18

vEdge 100 Router

vEdge 100 Router Default Configuration

You can download the Windows driver here .

To use the USB console from a Macintosh device:

1. Install the USB serial drivers attached here .

2. Launch the Terminal utility.

3. From a terminal shell, access the console port with this command:

$ screen /dev/tty.usbserial* 115200,cs8

vEdge 100 Router Default Configuration

The default configuration file looks like this:

vEdge100# show running-config system

vbond ztp.viptela.com aaa

auth-order local radius tacacs usergroup basic

task system read write task interface read write

Hardware Installation Guide for vEdge Routers

19

Maintenance and Troubleshooting

! usergroup netadmin ! usergroup operator

task system read task interface read task policy read task routing read

task security read ! user admin

password

$6$qtmMiZWj6W6Kh3nr$MAyIfWUVDPDP2q04LqhdIi6kSXySX7fudpwNOg1.6e4XgpKwwNMkV7gx69O4WWtnvLnUg8aoUGw972PHMNati1

!

! logging

disk

enable !

! ! omp

no shutdown

graceful-restart

advertise connected

advertise static ! security

ipsec

authentication-type ah-sha1-hmac sha1-hmac

! ! vpn 0

interface ge0/4

ip dhcp-client tunnel-interface

encapsulation ipsec allow-service dhcp allow-service dns allow-service icmp no allow-service sshd no allow-service ntp

no allow-service stun ! no shutdown

! ! vpn 512 !

vEdge 100 Router

Maintenance and Troubleshooting

Now that you have installed and connected the vEdge 100 router, you can monitor and troubleshoot the various LEDs and system alarms on the router.

Alarm Severity Levels

The system alarms on the vEdge 100 router have two types of severity levels:

• Major (red)—Indicates a critical situation on the router resulting from one of two conditions:

Hardware Installation Guide for vEdge Routers

20

vEdge 100 Router

Maintenance and Troubleshooting

One or more hardware components on the router has failed.•

• One or more hardware components on the router has exceeded the temperature threshold.

A major alarm condition requires immediate attention. If a temperature related major alarm persists for more than five minutes, the router will shut down.

• Minor (yellow)—Indicates a warning on the router that, if left unattended, might result in an interruption in router operation or degradation in router performance. A yellow alarm condition requires further monitoring and/or maintenance.

Hardware Alarms

Hardware alarms on the vEdge 100 router are predefined and are triggered by a physical condition on the router such as a power supply failure, excessive component temperature, or fan failure. The vEdge 100 router triggers the following types of hardware alarms:

• Main board temperature alarm—The main board of the router has one temperature sensing point (board sensor 0). If the temperature of the sensor location crosses the predefined threshold level, the system triggers an alarm.

• CPU temperature alarm—If the temperature of the system CPU crosses the predefined threshold level, the system triggers an alarm.

• Fan alarm—The router has a fixed built-in fan for system cooling which runs at a fixed speed. If the fan stops running, the system triggers an alarm. Also if the fan starts to run below a predefined RPM threshold, the system triggers an alarm.

Table 1 lists the yellow and red alarm threshold for the temperature sensing points in the system—one board sensor on the board and one CPU junction temperature sensor. The lower threshold value (Bad Fan) applies if a fan failure condition is also detected; otherwise the higher threshold value applies (normal).

Table 7:

Item

Yellow Alarm(degrees C)

Red Alarm(degrees C)

Bad FanNormalBad FanNormal

75806065Board sensor 0

90957580CPU junction

temperature

Checking Alarms and Notifications

To view the current chassis environment condition , enter the show hardware environment command at the system prompt. The system displays the power supply status, temperature sensor readings, fan speed, and related alarm status if any exists.

To view the severity of active alarms, enter the show hardware alarms command at the system prompt. The system displays the alarm severity and a brief description of the cause of each active alarm.

Hardware Installation Guide for vEdge Routers

21

Restore a vEdge Router

vEdge 100 Router

To view temperature thresholds at which green, yellow, and red alarms are generated, enter the show hardware temperature-thresholds command at the system prompt. The system displays the alarm temperature threshold

information for a specific board or all boards in the router and for the router's CPU.

To view all other events on a Viptela device, enter the show notification stream command. The system displays notifications about events that have occurred on the Viptela device.

LEDs

The chassis LEDs located on the front panel of the vEdge 100 router indicate the status of the router.

If there are one or more major alarms active in the router, the Status LED is lit red. If there are one or more minor alarms active in the router, the Status LED is lit solid yellow. See Front and Rear Panel Components for details of the LEDs and the status they indicate.

Additional Information

show hardware alarms show hardware environment show notification stream show hardware temperature-thresholds Front and Rear Panel Components Check Alarms and Events

Restore a vEdge Router

This article explains how to revert the configuration for a vEdge router to the factory-default values. It also explains how to do a soft and hard reset of the router.

Reverting to the vEdge Router Factory-Default Configuration

After you set up and start the virtual machines (VMs) for the vEdge Cloud routers and set up and start the hardware vEdge routers in your overlay network, they come up with a factory-default configuration . When you make and commit changes to the default configuration, a new configuration file is created. This new configuration file then becomes the active configuration.

If desired, you can revert to the default factory configuration:

vEdge# request software reset

Reset the Router

You can reset the vEdge router by doing either a hard press or a soft press. To perform either type of press, locate the Reset button on the front panel of the router. The Reset button is recessed to avoid accidentally pressing it while the router is operational. To press the Reset button, use a sharp narrow tool.

Perform a Long Press Reset

A long press reset of the vEdge router erases passwords, keys, and most other configuration parameters, restoring the router to its factory-default configuration.

To perform a long press reset, press the Reset button for more than 10 seconds. After you release the Reset button, the router will reboot and resume normal operation.

Perform a Short Press Reset

A short press reset of the Edge router is equivalent to a graceful software reboot and is the same as entering the reboot command at the CLI prompt.

Hardware Installation Guide for vEdge Routers

22

vEdge 100 Router

To perform a short press reset, press the Reset button for two seconds. The short press reset takes effect almost instantaneously and reboots the router.

Return Hardware

This article describes how to return a vEdge router or a hardware component to Viptela for repair or replacement.

Locate Serial and Model Number

To return a vEdge router or a hardware component to Viptela, you need the serial and model number of the router or the component being returned.

You can locate the serial and model number of a vEdge router in one of the following ways:

• In vManage NMS, select the Configuration ► Devices screen. The device table lists the serial and model

• Enter the show hardware inventory command at the CLI prompt.

• The serial number (sample shown in Figure 1) is printed on a label on the right side of the router; the

Return Hardware

numbers of the routers in the network.

model number is printed on a label on the back of the router.

Figure 1: Sample Serial Number Label for a vEdge Router

Obtain an RMA Number

If you are returning a vEdge router or a hardware component to Viptela for repair or replacement, contact the Viptela Customer Support team to open a support case and obtain a Return Materials Authorization (RMA) number.

Before you open a case and request an RMA number, keep the following information ready:

• Your existing service contract number, if you have one

• Serial number of the router or component

• Model number of the router or component

• Physical location of the router

• Your name, organization name, telephone number, fax number, and shipping address

• Failure or problem description with details

• Type of activity being performed on the router when the problem occurred

• Configuration data displayed by one or more show commands

To obtain an RMA number:

Hardware Installation Guide for vEdge Routers

23

Return Hardware

vEdge 100 Router

1. Open a support case with Viptela in one of the following ways:

• Log in to www.viptela.com/support

• Send email to support@viptela.com

• Call toll-free 800-525-5033

1. A Viptela Customer Support representative validates your request and issues an RMA number for returning the router or a hardware component.

Note: Do not return the router or any component to Viptela before first obtaining an RMA number. Viptela reserves the right to refuse to take any shipment that does not have an RMA number.

Repack the Router

If you need to move or return the vEdge router, repack the router in its original packing. Before you repack the router follow these steps:

1. Shut down the vEdge router by issuing the poweroff command at the CLI prompt.

2. Disconnect power to the router.

3. Remove the cables and transceivers.

You will need the following tools to repack the router:

• Phillips Number 2 (+) screwdriver

• Cardboard carton and original packing in which you received the router

To repack the router in its original packing:

1. If you do not have a vEdge 1000 router, skip this step. Otherwise:

1. If the router is installed in a rack using the rack-mount kit from Viptela, remove the front stopper

screwed along the front side of the rack-mount tray.

2. Then remove the rack-mount tray from the rack by having one person support the weight of the

rack-mount tray while a second person unscrews the rack-mount screws.

3. Place the rack-mount tray on a firm, flat surface.

4. Slide out the vEdge 1000 router from the rack-mount tray.

2. Place the router chassis in the plastic packing bag.

3. Place the side packing foam on both sides of the router chassis.

4. Secure the chassis in the cardboard carton.

5. Secure the top of the chassis by placing the top packing foam over the top of the chassis.

6. Close the cardboard shipping box and seal it with packing tape.

7. Write the RMA number on top of the box for purposes of tracking.

Hardware Installation Guide for vEdge Routers

24

vEdge 100 Router

Return Hardware

If you are returning any field-replaceable units with the router, repack them as described in Repack Router Components below.

Repack Router Components

If you need to return any router components, follow these steps:

1. Ensure that you have the antistatic bag for each component and an ESD grounding strap.

2. Place each component in its antistatic bag.

3. Pack each component in its original packing material. If you do not have the original packing material,

ensure that the component is packed adequately with packing material to prevent any damage in transit.

4. Place the component in the original cardboard box or another cardboard box if the original is not available.

5. Secure the box with tape.

6. Write the RMA number on top of the box for purposes of tracking.

Hardware Installation Guide for vEdge Routers

25

Return Hardware

vEdge 100 Router

Hardware Installation Guide for vEdge Routers

26

CHAPTER 2

vEdge 100b Router

The vEdge 100b router delivers highly secure site-to-site data connectivity to small business and home offices (SOHO). The vEdge 100b router is a fixed-port-configuration router with the following features:

• Five built-in 10/100/1000 Mbps Ethernet ports

• Encryption and QoS support

• 100 Mbps forwarding throughput (inclusive of encryption)

• Secure identification chip for anti-counterfeit and secure authentication

• External power supply

• Kensington security lock slot to physically lock down the router

• Desktop mount, wall mount, or rack-mountable in a 19-inch rack

• Fanless design

Chassis Views

Figure 1 and Figure 2 show the front and back panels of the vEdge 100b router, indicating the location of the power interfaces, status indicators, and chassis identification labels.

Figure 1: Front Panel of the vEdge 100b Router

Hardware Installation Guide for vEdge Routers

27

Declaration of Conformity

vEdge 100b Router

Figure 2: Back Panel of the vEdge 100b Router

• Declaration of Conformity, on page 28

• Components and Specifications, on page 29

• Planning and Installation, on page 34

• Maintenance and Troubleshooting, on page 46

Declaration of Conformity

The Viptela products are controlled under the Commerce Control List (CCL) of the U.S. Export Administration Regulations (EAR) as networking equipment within the following U.S. Export Control Classification Numbers (ECCN): 5A002, 5D002, and 5E002.

The vEdge hardware and software products and the Viptela encryption technology can be delivered to most end users and destinations worldwide without a licensing requirement. The Viptela solution and products

Hardware Installation Guide for vEdge Routers

28

vEdge 100b Router

Components and Specifications

have undergone a one-time review by the Government of the United States of America and qualify for License Exception ENC. As such, they are eligible for export according to Section 740.17 of the EAR.

The Viptela solutions and products can be delivered to most end users worldwide, except to entities or end users in the following countries: Cuba, Iran, North Korea, Sudan, and Syria.

Controlled Technologies

Viptela manages technology subject to the U.S. Export Administration Regulations (EAR). These controlled technologies may include items under U.S. ECCN 5E002 encryption technology. The Viptela encryption technology is for the development, production, and use of Viptela products that implement or use encryption.

The Viptela software distribution policy allows only authenticated users to download the Viptela encryption software. Recipients of controlled technology are obliged to maintain adequate controls to prevent nationals from outside the U.S. and Canada from accessing Viptela information, subject to ECCN5E002, without first obtaining authorization from the U.S. government.

For additional information on controlled technologies, please contact Viptela support at support@viptela.com .

Components and Specifications

This article provides the chassis specifications of the vEdge 100b router and lists the other router components.

Chassis Specifications

Table 1 lists the specifications for the vEdge 100b router chassis.

Table 8:

Services and Slot Density

RJ45 Ports 10/100/1000 Mbps

(IPSec)

rate 115.2 Kbps)

Power supply

SpecificationItem

5 ports

YesEmbedded hardware-based crypto acceleration

2 GBMemory DDR3 ECC DRAM

4 GBNAND storage (internal)

1Mini USB connector console port (default baud

12 Volt DC Input

Power Specifications

AC input voltage

External AC-DC power adapter provided

90-264 Vrms

47-63 HzAC input line frequency

Hardware Installation Guide for vEdge Routers

29

Components and Specifications

Physical Specifications

vEdge 100b Router

SpecificationItem

15 WattsTypical power consumption

Chassis height

Packaging Specifications

Package height

Operating Condition

Temperature

1.75 in. (4.4 cm)

6.75 in. (17 cm)Chassis width

5.5 in. (14 cm)Chassis depth

Can be accommodated in 1 RURack height

1.75 lb (0.79 kg)Chassis weight

Provided with the unitRack-mount accessory kit 19 in (48.3 cm) EIA

3.58 in. (9.09 cm)

7.75 in. (19.68 cm)Package width

13 in. (33 cm)Package depth

Fanless design

0 to 40°C (32 to 104°F) at sea level ( temperature de-rating of 1.5 deg C per 1000 feet of altitude applicable up to max of 10000 feet or 3000 m)

Transportation/Storage Condition

Temperature

Reliability

MTBF

Regulatory Compliance

Safety

EMC

Max 3000 m (10000 ft)Altitude

10 to 85% RHHumidity

-40 to 70°C (-40 to 158°F)

5 to 95%RHHumidity

4570 m (15000 ft)Altitude

Approximately 592,000 hours (about 67 years)

AS/NZS 60950-1 CAN/CSA 60950-1 CB-IEC60950-1 CE Marking EN 60950-1 UL60950-1

AS/NZS CISPR22 Class A EN 300 386 EN 55022 Class A FCC Class A ICES Class A VCCI Class A

Hardware Installation Guide for vEdge Routers

30

vEdge 100b Router

Front and Rear Panel Components

This article describes the components on the front and rear panels of the vEdge 100b router.

Front Panel

The front panel of the vEdge 100b router has the DC power socket, chassis status LEDs, and reset button. See Chassis Views for the location of these components.

DC Power Socket

The front panel of the vEdge 100b router has a DC power input socket for plugging in the external 12-Volt AC-DC power adapter that is shipped with the router.

Front and Rear Panel Components

SpecificationItem

ROHS 6/6Environmental

Chassis Status LEDs

The vEdge 100b router has a power LED, a status LED, and Ethernet port LEDs located in the front panel. Each RJ-45 port has two built-in LEDs. See Figure 1.

Figure 1: Chassis Status LEDs in a vEdge 100b Router

Table 1 describes the LEDs , their color and states, and the status they indicate.

Hardware Installation Guide for vEdge Routers

31

Front and Rear Panel Components

Table 9:

vEdge 100b Router

StatusColorLED

LEDs (0–4)

Green/RedPower

• Off: System is not on

• Green: System is powered on

• Red: Power supply fault

Green/Yellow/RedStatus (SYS)

• Off: System is not on

• Solid Green: System is fully functional and OMP connection is in the Up state

• Blinking Green: System is booting up

• Solid Yellow: System is up but OMP connection is in the Down state

• Solid Red: System has detected a major system level fault—one of the necessary daemons in the system is down (system will usually reboot shortly after this)

GreenRJ-45 Ethernet Port

• Off: No link and corresponding yellow LED is off

• Solid Green: 1000 Mbps link detected

• Blinking Green: 1000 Mbps link detected and link activity

YellowRJ-45 Ethernet Port

• Off: No link and corresponding green LED is off

• Solid Yellow: 10/100 Mbps link detected

• Blinking Yellow: 10/100 Mbps link detected and link activity

Reset Button

The Reset button on the front panel is recessed, to avoid accidentally pressing it while the router is operational. To press the Reset button, use a sharp narrow tool. Table 2 describes the effects of pressing the Reset button.

Table 10:

BehaviorPress

Duration

Pressing for two seconds resets and reboots the router.Short press

Pressing for 10 seconds resets the router and reboots it with factory default configuration.Long press

Rear Panel

The rear panel of the vEdge 100b router has a small metal-enforced hole for attaching a Kensington lock to secure the router. See Chassis Views for the location of these components.

Hardware Installation Guide for vEdge Routers

32

vEdge 100b Router

Ports and Connectors

The vEdge 100b router supports two types of interface ports: RJ-45 Ethernet ports and USB serial console port.

RJ-45 Ethernet Ports

There are five built-in RJ-45 Ethernet ports on the vEdge 100b router. These ports support 10/100/1000 Mbps and are numbered 0 through 4.

Figure 1 provides the pinout information for the RJ-45 ports. The RJ-45 ports comply with the 801 standards.

Figure 1: RJ-45 Ports Pinout Information

Ports and Connectors

Power Supply

Console Port

The console port on the vEdge 100b router is a serial port and is accessible via a USB Mini-B connector. See Figure 2.

Figure 2: USB Mini-B Connector

A USB Type-A to Mini-B connector cable is shipped with the vEdge 100b router as standard accessory for console port connection.

The vEdge 100b router has an external power supply and ships with a 12-Volt AC-DC power adapter.

AC-DC Power Adapter

The vEdge 100b router accepts a DC power input of 12 Volts. You can power the router by plugging one end of the AC power adapter into the front of the router, and the other end into an AC power outlet.

The AC-DC power adapter has the following wall-connector options:

• Type A (commonly used for Canada, Japan, Mexico, and US)

Hardware Installation Guide for vEdge Routers

33

Planning and Installation

vEdge 100b Router

• Type C (commonly used for Asia, Europe, and South America)

• Type G (commonly used for Ireland, Malaysia, Singapore, and United Kingdom)

• Type I (commonly used for Argentina, Australia, China, and New Zealand)

Table 1 describes the AC power supply specifications for the vEdge 100b router.

Table 11:

SpecificationItem

AC input voltage

consumption

Planning and Installation

This article provides general safety standards to adhere to when installing or connecting a vEdge 100b router or its components.

General Safety Standards

• Install your vEdge router in compliance with the following local, national, and international electrical codes:

• United States—National Fire Protection Association (NFPA 70), United States National Electrical Code.

• Other countries—International Electromechanical Commission (IEC) 60364, Part 1 through Part

7.

• Evaluated to the TN power system.

90-264 Vrms

47-63 HzAC input line frequency

15 WattsTypical power

• Canada—Canadian Electrical Code, Part 1, CSA C22.1.

• Locate the emergency power-off switch in the room in which you are working. In case of an electrical accident, quickly turn off the power.

• Disconnect power before installing or removing the router.

• If an electrical accident occurs, use caution and immediately turn off power to the router.

• Make sure that grounding surfaces are thoroughly cleaned and well-finished before grounding connections are made.

• Do not work alone if hazardous conditions exist.

• Always check that power is disconnected from a circuit. Never assume that it is disconnected.

Hardware Installation Guide for vEdge Routers

34

vEdge 100b Router

• Carefully inspect your work area for possible hazards, such as moist floors, worn-out power cords, ungrounded power extension cords, and missing safety grounds.

• Operate the device within marked electrical ratings and product usage instructions.

• To ensure that the router and the FRUs function safely and correctly, use the specified cables and connectors, and make certain they are in good condition.

Prepare for Router Installation

This article provide guidelines and requirements for preparing your site to install the vEdge 100b router.

Site Preparation Guidelines

Efficient operation of your vEdge 100b router requires proper site planning and proper layout of your equipment rack or wiring closet:

• Ensure that the area around the router is kept free of dust and conductive material.

• Follow appropriate airflow guidelines so that the cooling system functions normally.

Prepare for Router Installation

• Follow ESD prevention procedures to avoid any damage to the router.

• Install the router in an enclosed, secure area allowing only authorized personnel to access the device.

Environmental Requirements

Install the vEdge 100b router in a dry, clean, temperature-controlled, and well-ventilated environment:

• Maintain ambient airflow for the router to operate normally. The ambient intake air temperature should be in the range 0°C to 40°C (32°F to 104°F). If the airflow is blocked or if the air intake is too warm, the router can get overheated.

• Avoid temperature extremes. Ensure that the router is operating at an ambient temperature not more that 40°C (104°F) at sea level. For higher altitudes, a derating of 1.50°C per 1,000 feet applies.

• High humidity conditions can cause moisture to penetrate into the chassis. The device supports 10% to 85% humidity levels, non-condensing.

Rack Requirements

You can mount the vEdge 100b router in a two-post or a four-post rack. Table 1 provides the rack requirements for the router.

Table 12:

GuidelinesRack Requirement

Rack type

Mounting brackets

Use a two-post or a four-post rack that meets the size requirements for the router, provides bracket holes or hole patterns spaced at 1 U (1.75 in. or 4.45 cm) increments, and is strong enough to support the weight of the router.

Ensure that the holes in the mounting brackets are spaced at 1 U (1.75 in. or 4.45 cm). This allows you to mount the router in any location in the rack.

Hardware Installation Guide for vEdge Routers

35

Install the vEdge 100b Router

vEdge 100b Router

GuidelinesRack Requirement

Rack size

building structure

Install the vEdge 100b Router

Once you have prepared your site for router installation, unpack the vEdge 100b router and mount it either on the wall or in a 19-inch rack.

Unpack the vEdge 100b Router

A vEdge 100b router is shipped in a cardboard carton and secured firmly in place with foam packing material. The carton contains a packing list and Quick Start instructions. It is recommended that you do not unpack the router till you are ready to install it.

To unpack the router:

It is recommended that the rack comply with the size and strength standards of a 19-inch rack as defined in Cabinets, Racks, Panels, and Associated Equipment (document number EIA-310–D), published by the Electronics Industry Association http://www.eia.org . Ensure that the rack rails are spaced widely enough to accommodate the external dimensions of the chassis and that the outer edges of the front mount brackets extend the width of the chassis to 19 in. (48.2 cm). You must also ensure that the spacing of rails and adjacent racks allows for the proper clearance around the router and rack.

For maximum stability, secure the rack to ceiling brackets and to floor brackets.Rack secured to

1. Open the top flaps of the carton.

2. Gradually remove the packing foam holding the router and the accessories in place. See Figure 1.

3. Take out the router and each accessory.

4. Verify the router components against the packing list included in the box (see packing list below).

Figure 1: Unpacking the vEdge 100b Router

Hardware Installation Guide for vEdge Routers

36

vEdge 100b Router

Install the vEdge 100b Router

Note: It is recommended that you do not discard the shipping carton and packing material when you unpack the router. Flatten and store the box in case you need to move or return the router in the future. See Return Hardware.

Packing List for a vEdge 100b Router

The cardboard carton in which the router is packed includes a packing list. Check the parts you receive with your router against the items on the packing list. The packing list specifies the part number, name, and quantity of each item in the carton.

If any part on the packing list is missing, contact your customer service representative or contact Viptela customer support from within the U.S. or Canada by telephone at 800-525-5033 or by email to support@viptela.com .

Table 1 lists the parts shipped with the vEdge 100b router and their quantities.

Table 13:

QuantityComponent

1Router chassis

Hardware Installation Guide for vEdge Routers

37

Install the vEdge 100b Router

Mount the vEdge 100b Router

You can mount the vEdge 100b router in one of the following ways:

vEdge 100b Router

QuantityComponent

1USB console cable

2Mounting ears, left and right

6Mounting-ear screws (Packet A)

4Rack-mount screws (Packet B)

1 + 4AC power adapter and connectors

1Quick Start document

• Mount the router in a 19-inch rack

• Mount the router on the wall

In addition to the accessory box, you need the following tools to mount a vEdge 100b router:

• Number 2 Phillips (+) screwdriver

• Tape measure or level

Mount the vEdge 100b Router in a Rack

You can mount the vEdge 100b router on two front posts in a 19-inch rack using simple rack mount ear accessories. To do so:

1. Place the router chassis on the floor or on a sturdy table near the rack.

2. Verify the internal dimensions of the rack with a tape measure. The rack-mount tray is 440 mm wide and

must fit within the mounting posts.

3. Secure the left and right mounting ears to either side of the router chassis using the six screws (two on each side) in the packet marked A.

Figure 2: Attaching the Mounting Ears to the vEdge 100b Router Chassis

1. Grasp both sides of the router, then lift and position it in the rack, making sure that the mounting ear holes

are aligned with the threaded holes in the rack rail.

Hardware Installation Guide for vEdge Routers

38

vEdge 100b Router

Install the vEdge 100b Router

Figure 3: Positioning the vEdge 100b Router in the Rack

1. Secure the mounting ears to the two front posts of the rack using the four rack-mount screws (two on each

side) in the packet marked B. Tighten the screws.

Figure 4: Attaching the Mounting Ears to the Rack

1. Use a tape measure or level to verify that the tray is installed straight and the holes at either ends of the

rack align properly.

Hardware Installation Guide for vEdge Routers

39

Connect the vEdge 100b Router

Tip: It is recommended that you retain the dust covers on any unused ports.

Mount the vEdge 100b Router on the Wall

You can mount the vEdge 100b router on the wall either horizontally or vertically.

To mount the vEdge 100b router on the wall:

1. Measure the distance between the two wall-mount holes on the underside of the router chassis as shown in Figure 5.

Figure 5: Measuring the Distance Between the Wall-Mount Holes

vEdge 100b Router

1. Insert two wall-mount screws in the wall where you are mounting the router (screws not provided). The screws must align with the wall-mount holes on the router's underside.

2. Align the wall-mount holes on the router's underside to the screws in the wall, and gently slide the chassis, from side to side or up and down, onto the wall-mount screws.

Figure 6: Sliding the Router Chassis onto the Wall-Mount Screws

Connect the vEdge 100b Router

This article describes how to connect the vEdge 100b router to an AC power source and to a management console.

Hardware Installation Guide for vEdge Routers

40

vEdge 100b Router

Connect the vEdge 100b Router

Connect AC Power to the Router

To connect the vEdge 100 router to an AC power source, plug one end of the AC power adapter into the front of the router, and plug the other end into an AC power outlet as shown in Figure 1.

Figure 1: Connecting AC Power Supply to a vEdge 100b Router

Note: It is strongly recommended that you use the power adapter supplied with the vEdge 100b router.

Caution: If you are connecting AC power to the router, it is recommended that the building have an external surge protective device installed.

Connect the Router to LAN and WAN Interfaces

To connect the vEdge 100b router to the LAN, plug the appropriate cable into any port, except port 4, on the front of the router.

To connect the vEdge 100b router to a WAN, plug the appropriate cable into port 4 on the front of the router.

Hardware Installation Guide for vEdge Routers

41

Connect the vEdge 100b Router

Connect the Router to a Management Console

To connect the vEdge 100b router to a management console:

1. Connect one end of the USB Type-A to Mini-B connector cable into the console port, labeled CONSOLE, on the vEdge router (see Figure 2).

2. Connect the other end of the console cable into the console server or to a management console.

Figure 2: Connecting a vEdge 100b Router to a Management Console

vEdge 100b Router

To use the USB console from a Windows device:

1. Go to the Device Manager to determine which COM port is being used for the USB serial port.

2. In the PuTTY SSH/Telnet client, in Connection Type, select Serial. Then, specify the COM port and a

speed of 115200.

Hardware Installation Guide for vEdge Routers

42

vEdge 100b Router

vEdge 100b Router Default Configuration

You can download the Windows driver here .

To use the USB console from a Macintosh device:

1. Install the USB serial drivers attached here .

2. Launch the Terminal utility.

3. From a terminal shell, access the console port with this command:

$ screen /dev/tty.usbserial* 115200,cs8

vEdge 100b Router Default Configuration

Default Configuration for Software Releases 16.1 and Later

For Releases 16.1 and later, the default configuration file looks like this:

vEdge100b# show running-config system

vbond ztp.viptela.com aaa

auth-order local radius tacacs

Hardware Installation Guide for vEdge Routers

43

vEdge 100b Router Default Configuration

usergroup basic

task system read write

task interface read write ! usergroup netadmin ! usergroup operator

task system read

task interface read

task policy read

task routing read

task security read ! user admin

password

$6$3qFDal/MH1FMQrOU$bGhvUMbglG26UqXpZytrcCgUWvuV.PRJavnWjOvsUPNMWjomWCdUrwMe1sF/fI58nYYB03prGJJs59xSPKLov/

!

! logging

disk

enable !

! ! omp

no shutdown

graceful-restart

advertise connected

advertise static ! security

ipsec

authentication-type ah-sha1-hmac sha1-hmac

! ! vpn 0

interface ge0/4

ip dhcp-client tunnel-interface

encapsulation ipsec no allow-service bgp allow-service dhcp allow-service dns allow-service icmp no allow-service sshd no allow-service netconf no allow-service ntp no allow-service ospf

no allow-service stun ! no shutdown

! ! vpn 512

interface ge0/0

ip address 192.168.1.1/24 no shutdown

! !

vEdge 100b Router

Default Configuration for Software Releases 15.4 and Earlier

For Releases 15.4 and earlier, the default configuration file looks like this:

Hardware Installation Guide for vEdge Routers

44

vEdge 100b Router

vEdge 100b Router Default Configuration

vEdge100b# show running-config system

vbond ztp.viptela.com aaa

auth-order local radius tacacs usergroup basic

task system read write

task interface read write ! usergroup netadmin ! usergroup operator

task system read

task interface read

task policy read

task routing read

task security read ! user admin

password

$6$3qFDal/MH1FMQrOU$bGhvUMbglG26UqXpZytrcCgUWvuV.PRJavnWjOvsUPNMWjomWCdUrwMe1sF/fI58nYYB03prGJJs59xSPKLov/

!

! logging

disk

enable !

! ! omp

no shutdown

graceful-restart

advertise connected

advertise static ! security

ipsec

authentication-type ah-sha1-hmac sha1-hmac

! ! vpn 0

interface ge0/4

ip dhcp-client tunnel-interface

encapsulation ipsec no allow-service all no allow-service bgp allow-service dhcp allow-service dns allow-service icmp no allow-service sshd no allow-service netconf no allow-service ntp no allow-service ospf

no allow-service stun ! no shutdown

!

Hardware Installation Guide for vEdge Routers

45

Maintenance and Troubleshooting

Now that you have installed and connected the vEdge 100b router, you can monitor and troubleshoot the various LEDs and system alarms on the router.

Alarm Severity Levels

The system alarms on the vEdge 100b router have two types of severity levels:

• Major (red)—Indicates a critical situation on the router resulting from one of two conditions:

• One or more hardware components on the router has failed.

• One or more hardware components on the router has exceeded the temperature threshold.

A major alarm condition requires immediate attention. If a temperature related major alarm persists for more than five minutes, the router will shut down.

• Minor (yellow)—Indicates a warning on the router that, if left unattended, might result in an interruption in router operation or degradation in router performance. A yellow alarm condition requires further monitoring and/or maintenance.

vEdge 100b Router

Hardware Alarms

Hardware alarms on the vEdge 100b router are predefined and are triggered by a physical condition on the router such as a power supply failure, excessive component temperature, or fan failure. The vEdge 100b router triggers the following types of hardware alarms:

• Main board temperature alarm—The main board of the router has one temperature sensing point (board sensor 0). If the temperature of the sensor location crosses the predefined threshold level, the system triggers an alarm.

• CPU temperature alarm—If the temperature of the system CPU crosses the predefined threshold level, the system triggers an alarm.

Table 1 lists the yellow and red alarm threshold for the temperature sensing points in the system—one board sensor on the board and one CPU junction temperature sensor.

Table 14:

Item

temperature

In the unlikely event that the temperature measured by the sensors reaches the hardware enforced cut-off limit, the router shuts down without any software intervention.

Yellow Alarm (ºC)

Alarm (°C)

Hardware-Enforced Safety Cut-Off (°C)Red

1009085Board sensor 0

1009691CPU junction

Hardware Installation Guide for vEdge Routers

46

vEdge 100b Router

Restore a vEdge Router

Checking Alarms and Notifications

To view the current chassis environment condition , enter the show hardware environment command at the system prompt. The system displays the power supply status, temperature sensor readings, and related alarm status if any exists.

To view the severity of active alarms, enter the show hardware alarms command at the system prompt. The system displays the alarm severity and a brief description of the cause of each active alarm.

To view temperature thresholds at which green, yellow, and red alarms are generated, enter the show hardware temperature-thresholds command at the system prompt. The system displays the alarm temperature threshold information for a specific board or all boards in the router and for the router's CPU.

To view all other events on a Viptela device, enter the show notification stream command. The system displays notifications about events that have occurred on the Viptela device.

LEDs

The chassis LEDs located on the front panel of the vEdge 100b router indicate the status of the router.

If there are one or more major alarms active in the router, the Status LED is lit red. See Front and Rear Panel Components for details of the LEDs and the status they indicate.

Additional Information

show hardware alarms show hardware environment show notification stream show hardware temperature-thresholds Front and Rear Panel Components Check Alarms and Events

Restore a vEdge Router

This article explains how to revert the configuration for a vEdge router to the factory-default values. It also explains how to do a soft and hard reset of the router.

Reverting to the vEdge Router Factory-Default Configuration

After you set up and start the virtual machines (VMs) for the vEdge Cloud routers and set up and start the hardware vEdge routers in your overlay network, they come up with a factory-default configuration . When you make and commit changes to the default configuration, a new configuration file is created. This new configuration file then becomes the active configuration.

If desired, you can revert to the default factory configuration:

vEdge# request software reset

Reset the Router

You can reset the vEdge router by doing either a hard press or a soft press. To perform either type of press, locate the Reset button on the front panel of the router. The Reset button is recessed to avoid accidentally pressing it while the router is operational. To press the Reset button, use a sharp narrow tool.

Perform a Long Press Reset

A long press reset of the vEdge router erases passwords, keys, and most other configuration parameters, restoring the router to its factory-default configuration.

Hardware Installation Guide for vEdge Routers

47

Return Hardware

To perform a long press reset, press the Reset button for more than 10 seconds. After you release the Reset button, the router will reboot and resume normal operation.

Perform a Short Press Reset

A short press reset of the Edge router is equivalent to a graceful software reboot and is the same as entering the reboot command at the CLI prompt.

To perform a short press reset, press the Reset button for two seconds. The short press reset takes effect almost instantaneously and reboots the router.

Return Hardware

This article describes how to return a vEdge router or a hardware component to Viptela for repair or replacement.

Locate Serial and Model Number

To return a vEdge router or a hardware component to Viptela, you need the serial and model number of the router or the component being returned.

vEdge 100b Router

You can locate the serial and model number of a vEdge router in one of the following ways:

• In vManage NMS, select the Configuration ► Devices screen. The device table lists the serial and model numbers of the routers in the network.

• Enter the show hardware inventory command at the CLI prompt.

• The serial number (sample shown in Figure 1) is printed on a label on the right side of the router; the model number is printed on a label on the back of the router.

Figure 1: Sample Serial Number Label for a vEdge Router

Obtain an RMA Number

If you are returning a vEdge router or a hardware component to Viptela for repair or replacement, contact the Viptela Customer Support team to open a support case and obtain a Return Materials Authorization (RMA) number.

Before you open a case and request an RMA number, keep the following information ready:

• Your existing service contract number, if you have one

• Serial number of the router or component

• Model number of the router or component

• Physical location of the router

Hardware Installation Guide for vEdge Routers

48

vEdge 100b Router

Return Hardware

• Your name, organization name, telephone number, fax number, and shipping address

• Failure or problem description with details

• Type of activity being performed on the router when the problem occurred

• Configuration data displayed by one or more show commands

To obtain an RMA number:

1. Open a support case with Viptela in one of the following ways:

• Log in to www.viptela.com/support

• Send email to support@viptela.com

• Call toll-free 800-525-5033

1. A Viptela Customer Support representative validates your request and issues an RMA number for returning the router or a hardware component.

Note: Do not return the router or any component to Viptela before first obtaining an RMA number. Viptela reserves the right to refuse to take any shipment that does not have an RMA number.

Repack the Router

If you need to move or return the vEdge router, repack the router in its original packing. Before you repack the router follow these steps:

1. Shut down the vEdge router by issuing the poweroff command at the CLI prompt.

2. Disconnect power to the router.

3. Remove the cables and transceivers.

You will need the following tools to repack the router:

• Phillips Number 2 (+) screwdriver

• Cardboard carton and original packing in which you received the router

To repack the router in its original packing:

1. If you do not have a vEdge 1000 router, skip this step. Otherwise:

1. If the router is installed in a rack using the rack-mount kit from Viptela, remove the front stopper

screwed along the front side of the rack-mount tray.

2. Then remove the rack-mount tray from the rack by having one person support the weight of the

rack-mount tray while a second person unscrews the rack-mount screws.

3. Place the rack-mount tray on a firm, flat surface.

4. Slide out the vEdge 1000 router from the rack-mount tray.

2. Place the router chassis in the plastic packing bag.

3. Place the side packing foam on both sides of the router chassis.

Hardware Installation Guide for vEdge Routers

49

Return Hardware

vEdge 100b Router

4. Secure the chassis in the cardboard carton.

5. Secure the top of the chassis by placing the top packing foam over the top of the chassis.

6. Close the cardboard shipping box and seal it with packing tape.

7. Write the RMA number on top of the box for purposes of tracking.

If you are returning any field-replaceable units with the router, repack them as described in Repack Router Components below.

Repack Router Components

If you need to return any router components, follow these steps:

1. Ensure that you have the antistatic bag for each component and an ESD grounding strap.

2. Place each component in its antistatic bag.

3. Pack each component in its original packing material. If you do not have the original packing material,

ensure that the component is packed adequately with packing material to prevent any damage in transit.

4. Place the component in the original cardboard box or another cardboard box if the original is not available.

5. Secure the box with tape.

6. Write the RMA number on top of the box for purposes of tracking.

Hardware Installation Guide for vEdge Routers

50

CHAPTER 3

vEdge 100m Router

The vEdge 100m router delivers highly secure site-to-site data connectivity to small business and home offices (SOHO). The vEdge 100m router is a fixed-port-configuration router with the following features:

• Built-in LTE modem with mini-SIM (or 2FF) card

• Two multiband swivel-mount dipole antennas

• Supports a 4G/3G/2G–capable modem to connect to cellular networks

• Five built-in 10/100/1000–Mbps Ethernet ports

• Power over Ethernet (PoE) source support on one Ethernet port

• Encryption and QoS support

• 100 Mbps forwarding throughput (inclusive of encryption)

• Secure identification chip for anticounterfeit and secure authentication

• Integrated power supply

• Kensington security lock slot to physically lock down the router

• GPS input for geographical location

• Desktop mount or wall mount

Chassis Views

Figure 1 and Figure 2 show the front and back panels of the vEdge 100m router, indicating the locations of the power interfaces, status indicators, and chassis identification labels.

Figure 1: Front Panel of the vEdge 100m Router

Hardware Installation Guide for vEdge Routers

51

At a Glance

vEdge 100m Router

Figure 2: Back Panel of the vEdge 100m Router

• At a Glance, on page 52

• Components and Specifications, on page 53

• Planning and Installation, on page 61

• Maintenance and Troubleshooting, on page 77

• Restore a vEdge Router, on page 78

• Return Hardware, on page 79

At a Glance

Declaration of Conformity

The Viptela products are controlled under the Commerce Control List (CCL) of the U.S. Export Administration Regulations (EAR) as networking equipment within the following U.S. Export Control Classification Numbers (ECCN): 5A002, 5D002, and 5E002.

The vEdge hardware and software products and the Viptela encryption technology can be delivered to most end users and destinations worldwide without a licensing requirement. The Viptela solution and products

Hardware Installation Guide for vEdge Routers

52

vEdge 100m Router

Components and Specifications

have undergone a one-time review by the Government of the United States of America and qualify for License Exception ENC. As such, they are eligible for export according to Section 740.17 of the EAR.

The Viptela solutions and products can be delivered to most end users worldwide, except to entities or end users in the following countries: Cuba, Iran, North Korea, Sudan, and Syria.

Controlled Technologies

Viptela manages technology subject to the U.S. Export Administration Regulations (EAR). These controlled technologies may include items under U.S. ECCN 5E002 encryption technology. The Viptela encryption technology is for the development, production, and use of Viptela products that implement or use encryption.

The Viptela software distribution policy allows only authenticated users to download the Viptela encryption software. Recipients of controlled technology are obliged to maintain adequate controls to prevent nationals from outside the U.S. and Canada from accessing Viptela information, subject to ECCN5E002, without first obtaining authorization from the U.S. government.

For additional information on controlled technologies, please contact Viptela support at support@viptela.com .

Components and Specifications

This article provides specifications for the vEdge 100m chassis, wireless platforms, and multiband swivel-mount dipole antennas.

Chassis Specifications

Table 1 lists the specifications for the vEdge 100m router chassis.

Table 15:

Services and Slot Density

RJ45 Ports 10/100/1000 Mbps

(IPSec)

SpecificationItem

5 ports, one of which has 802.3af PoE source capability

YesEmbedded hardware-based cryptographic acceleration

2 GBMemory DDR3 ECC DRAM

115.2 Kbps)

4 GBNAND storage (internal)

1USB host port

1Mini USB connector console port (default baud rate

AC input (C6 inlet connector)Power supply

Hardware Installation Guide for vEdge Routers

53

Components and Specifications

Power Specifications

vEdge 100m Router

SpecificationItem

AC input voltage

interface ge0/0

Physical Specifications (excluding the multiband antennas)

Chassis height

Packaging Specifications

Package height

90-264 Vrms

47-63 HzAC input line frequency

20 WattsTypical power consumption with PoE disabled on

35 Watts maximumTypical power consumption with PoE enabled on

1.8 in. (4.5 cm)

9.25 in. (23.5 cm)Chassis width

5.75 in. (14.6 cm)Chassis depth

1.45 lbs (0.67 kg)Chassis weight

Provided with the unitWall-mount plate accessory

5.375 in. (13.6 cm)

Operating Condition

Temperature

Transportation/Storage Condition

Temperature

Reliability

MTBF

11.94 in. (30.3 cm)Package width

9.19 in. (23.3 cm)Package depth

0 to 40°C (32 to 104°F) at sea level (temperature derating of 1.5°C per 1000 feet of altitude, up to a maximum of 10,000 ft, or 3000 m)

Maximum 3000 m (10,000 ft)Altitude

10 to 85% RHHumidity

–40 to 70°C (–40 to 158°F)

5 to 95% RHHumidity

4570 m (15,000 ft)Altitude

104,000 hours

Hardware Installation Guide for vEdge Routers

54

vEdge 100m Router

Components and Specifications

SpecificationItem

Regulatory Compliance

Safety

AS/NZS 60950-1 CAN/CSA 60950-1 CB-IEC60950-1 CE Marking EN 60950-1 UL60950-1

EMC

AS/NZS CISPR22 Class B EN 300 386 EN 55022 Class B FCC Class B ICES Class B VCCI Class B

ROHS 6/6Environmental

Wireless Platform Specifications

Table 2 lists the specifications for the vEdge 100m wireless platforms.

Table 16:

SpecificationPlatform

vEdge 100m-AT

SKU

100m-AT

AT&TCarrier

Sierra Wireless MC7354Modem

4G LTE Bands

Band 2 (1900 MHz), Band 4 (AWS 1700/2100 MHz), Band 5 (850 MHz), Band 17 (700 MHz)

vEdge 100m-GB

SKU

4G LTE Bands

vEdge 100m-NA

SKU

United StatesRegion

100m-GB

GCFCertification

Sierra Wireless MC7304Modem

Band 1 (2100 MHz), Band 3 (1800 MHz), Band 7 (2600 MHz), Band 8 (900MHz), Band 20 (800 MHz)

Australia, Europe, Middle East, Latin America, Asia Pacific, JapanRegions

100m-NA

PTCRBCertification

Sierra Wireless MC7354Modem

Hardware Installation Guide for vEdge Routers

55

Components and Specifications

vEdge 100m Router

SpecificationPlatform

4G LTE Bands

vEdge 100m-NT

SKU

vEdge 100m-SP

Band 2 (1900 MHz), Band 4 (AWS 1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)

North AmericaRegion

100m-NT

NTT DocomoCarrier

Sierra Wireless MC7330Modem

Band 1 (2100 MHz), Band 19 (850 MHz), Band 21 (1500 MHz)4G LTE Bands

JapanRegion

100m-SPSKU

SprintCarrier

Sierra Wireless MC7354Modem

Band 25 (1900 MHz)4G LTE Bands

United StatesRegion

vEdge 100m-VZ

SKU

100m-VZ

VerizonCarrier

Sierra Wireless MC7354Modem

Band 4 (AWS 1700/2100 MHz), Band 13 (700 MHz)4G LTE Bands

United StatesRegion

Multiband Antenna Specifications

The vEdge 100m router ships with two multiband swivel-mount dipole antennas. The articulating joint of the antenna provides 0 to 90 degrees pivot and 180-degree swivel movement, allowing vertical and horizontal orientation of the antenna.

Table 3 lists the electrical, mechanical, and frequency specifications for the antennas.

Table 3: vEdge 100m Multiband Antenna Specifications

Hardware Installation Guide for vEdge Routers

56

vEdge 100m Router

Front and Rear Panel Components

Table 17:

SpecificationItem

MIMO, dipole swivelAntenna type

10 WattsInput power

SMA maleConnector

50 OhmsNominal

impedance

OmnidirectionalRadiation pattern

698MHz to 960MHz and 1710MHz to 2700MhzFrequency range

F (–40°C to 85°C)Temperature range

Antenna dimensions

Length: 6.37 in. (16.19 cm)

Width: 0.9 in. (2.38 cm)

Depth: 0.63 in. (1.59 cm)

Noncondensing, 65°C, 95% RHHumidity

Front and Rear Panel Components

This article describes the components on the front and rear panels of the vEdge 100m router. See At a Glance for the exact location of these components on the router.

Front Panel LEDs

The vEdge 100m router has five chassis status LEDs located on the front panel. Table 1 describes the LEDs , their color and states, and the status they indicate.

Table 18:

Green/RedPower

StatusColorLED

• Off: System is not on

• Green: System is healthy and operational

• Red: Power supply fault

Hardware Installation Guide for vEdge Routers

57

Front and Rear Panel Components

vEdge 100m Router

StatusColorLED

(LED 0–4)

Strength

Green/Yellow/RedSystem

• Off: System is not on

• Solid Green: System is fully functional

• Blinking Green: System is booting up

• Solid Yellow: No Internet connectivity or the system has detected a minor alarm

• Red: System has detected a major system level fault or alarm

Green/YellowEthernet Port

• Off: No link

• Solid Green: 1000 Mbps link detected

• Blinking Green: 1000 Mbps link detected and link activity

• Solid yellow: 10/100 Mbps link detected

• Blinking Yellow: 10/100 Mbps link detected and link activity

Green/Yellow/RedWWAN Signal

• Off: LTE interface disabled/off

• Solid Green: LTE enabled, excellent signal strength, dormant mode

• Blinking Green: LTE enabled, excellent signal strength, active mode

• Solid yellow: LTE enabled, good signal strength, dormant mode

• Blinking Yellow: LTE enabled, good signal strength, active mode

• Solid Orange: LTE enabled, poor signal strength, dormant mode

• Blinking Orange: LTE enabled, poor signal strength, active mode

• Solid Red: LTE enabled but faulty such as no connectivity with BTS, errors, or no signal

Figure 1 shows the location of the chassis status, LEDs on the front panel of the vEdge 100m router.

Hardware Installation Guide for vEdge Routers

58

vEdge 100m Router

Front and Rear Panel Components

Figure 1: Chassis Status LEDs in a vEdge 100m Router

Rear Panel

The rear panel of the vEdge 100m router has two antenna terminals, a GPS antenna input, a Kensington security lock slot, and a Reset button. See Chassis Views for the location of all components on the rear panel of the router.

Antenna Terminals

The rear panel of the vEdge 100m router has two SMA antenna terminals for attaching the two multiband swivel-mount dipole antennas that ship with the router. For antenna specifications, see Multiband Antenna Specifications .

GPS Input

The GPS antenna input on the rear panel of the vEdge 100m router allows you to connect an external GPS antenna that has an SMA connector. If you connect a GPS antenna to the router, it can automatically identify the router's geographical location.

Kensington Security Lock Slot

The rear panel of the vEdge 100m router has a small metal-enforced hole for attaching a Kensington lock to secure the router.

Reset Button

The Reset button on the rear panel of the vEdge 100m router is recessed, to avoid accidentally pressing it while the router is operational. To press the Reset button, use a sharp narrow tool. Table 2 describes the effects of pressing the Reset button.

Table 19:

BehaviorPress

Duration

Press for 2 seconds to reset and reboot the router.Short press

Press for 10 seconds to reset the router and reboot it with factory default configuration.Long press

Hardware Installation Guide for vEdge Routers

59

Ports and Connectors

The vEdge 100m router supports three types of ports:

• RJ-45 Ethernet ports

• USB port

• USB serial console port.

RJ-45 Ethernet Ports

The vEdge 100m router has five built-in RJ-45 Ethernet ports. These ports support 10/100/1000 Mbps and are numbered 0 through 4. Port 0 supports PoE capability.

Figure 1 provides the pinout information for the RJ-45 ports. The RJ-45 ports comply with the 801 standards.

Figure 1: RJ-45 Ports Pinout Information

vEdge 100m Router

USB Port

The vEdge 100m router has one USB port with a type A connector. The USB port complies with USB 3.0 specification.

Console Port

The vEdge 100m console port is a serial port and is accessible via a USB Mini-B connector. See Figure 2.

Figure 2: USB Mini-B Connector

A USB Type-A to Mini-B connector cable ships with the vEdge 100m router as standard accessory for console port connection.

Hardware Installation Guide for vEdge Routers

60

vEdge 100m Router

Power Supply and Cooling in a Cisco vEdge 100m Router

The vEdge 100m router has an built-in AC-to-DC power supply unit. This article describes the AC power supply in the router and the cooling system and airflow through the router chassis.

AC Power Supply in vEdge 100m Router

The vEdge 100m router has an integrated AC power supply that exposes a C6 male AC inlet connector externally. The unit can be powered by connecting the supplied power cord to AC mains with the C5 female connector end of power cord plugged into the unit.

Table 1 describes the AC power supply specifications for the vEdge 100m router.

Table 20:

SpecificationItem

90-264 VrmsAC input voltage

47-63 HzAC input line frequency

Typical power consumption with PoE enabled on transport interface

AC Power Cord Specifications

The vEdge 100m router ships with a detachable AC power cord. The power cord has a C5 female connector at one end, and the other end is specific to the country/locality to which the product is shipped.

Cooling System in a vEdge 100m Router

The cooling system in a vEdge 100m router consists of internal heat sinks and an internal fan with adjustable speed. The fan speed is algorithmically controlled, based on readings obtained from internal temperature sensors. The internal temperature is affected by factors such as the external ambient temperature and the traffic workload.

If the ambient temperature inside the chassis rises above the acceptable range, the router raises an alarm. If the temperature inside the chassis rises above the maximum threshold temperature, the router shuts down automatically.

Planning and Installation

20 WattsTypical power consumption with PoE disabled on transport interface

32 Watts maximum

Planning and Installation

This article provides general safety standards to adhere to when installing or connecting a vEdge 100m router or its components.

Hardware Installation Guide for vEdge Routers

61

Prepare for Router Installation

General Safety Standards

• Install your vEdge router in compliance with the following local, national, and international electrical

• Locate the emergency power-off switch in the room in which you are working. In case of an electrical

• Disconnect power before installing or removing the router.

• If an electrical accident occurs, use caution and immediately turn off power to the router.

vEdge 100m Router

codes:

• United States—National Fire Protection Association (NFPA 70), United States National Electrical Code.

• Other countries—International Electromechanical Commission (IEC) 60364, Part 1 through Part

7.

• Evaluated to the TN power system.

• Canada—Canadian Electrical Code, Part 1, CSA C22.1.

accident, quickly turn off the power.

• Make sure that grounding surfaces are thoroughly cleaned and well-finished before grounding connections are made.

• Do not work alone if hazardous conditions exist.

• Always check that power is disconnected from a circuit. Never assume that it is disconnected.

• Carefully inspect your work area for possible hazards, such as moist floors, worn-out power cords, ungrounded power extension cords, and missing safety grounds.

• Operate the device within marked electrical ratings and product usage instructions.

• To ensure that the router and the FRUs function safely and correctly, use the specified cables and connectors, and make certain they are in good condition.

Prepare for Router Installation

This article provide guidelines and requirements for preparing your site to install the vEdge 100m router.

Site Preparation Guidelines

Efficient operation of your vEdge 100m router requires proper site planning and proper layout of your equipment rack or wiring closet:

• Ensure that the area around the router is kept free of dust and conductive material.

• Follow appropriate airflow guidelines so that the cooling system functions normally.

• Follow ESD prevention procedures to avoid any damage to the router.

• Install the router in an enclosed, secure area allowing only authorized personnel to access the device.

Environmental Requirements

Install the vEdge 100m router in a dry, clean, temperature-controlled, and well-ventilated environment:

Hardware Installation Guide for vEdge Routers

62

vEdge 100m Router

• Maintain ambient airflow for the router to operate normally. The ambient intake air temperature should be in the range 0°C to 40°C (32°F to 104°F). If the airflow is blocked or if the intake air is too warm, the router can become overheated.

• The airflow to the router is from the top surface near the Viptela logo. To ensure that the airflow to the router is not blocked, keep an air gap of 2-3 inches (5-8 cm) above the router and do not place anything directly on top of the router.

• Avoid temperature extremes. Ensure that the router is operating at an ambient temperature not more that 40°C (104°F) at sea level. For higher altitudes, a derating of 1.5°C per 1,000 feet applies.

• High humidity conditions can cause moisture to penetrate into the chassis. The device supports 10% to 85% humidity levels, noncondensing.

Install the vEdge 100m Router

Once you have prepared your site for router installation, unpack the vEdge 100m router and install the SIM card and the antennas before you mount the router on the wall.

Install the vEdge 100m Router

Unpack the vEdge 100m Router

A vEdge 100m router is shipped in a cardboard carton and is secured firmly in place with foam packing material. The carton contains a packing list and Quick Start instructions. It is recommended that you not unpack the router until you are ready to install it.

To unpack the router:

1. Open the top flaps of the carton.

2. Gradually remove the packing foam holding the router and the accessories in place. See Figure 1.

3. Take out the router and each accessory.

4. Verify the router components against the packing list included in the box (see packing list below).

Figure 1: Unpacking the vEdge 100m Router

Hardware Installation Guide for vEdge Routers

63

Install the vEdge 100m Router

vEdge 100m Router

Note: It is recommended that you not discard the shipping carton and packing material when you unpack the router. Flatten and store the box in case you need to move or return the router in the future. See Return Hardware .

Packing List for a vEdge 100m Router

The cardboard carton in which the router is packed includes a packing list. Check the parts you receive with your router against the items on the packing list. The packing list specifies the part number, name, and quantity of each item in the carton.

If any part on the packing list is missing, contact your customer service representative or contact Viptela customer support from within the U.S. or Canada by telephone at 800-525-5033 or by email to support@viptela.com .

Table 1 lists the parts shipped with the vEdge 100m router and their quantities.

Hardware Installation Guide for vEdge Routers

64

vEdge 100m Router

Install the vEdge 100m Router

Table 21:

QuantityComponent

1Router chassis

2Multiband dipole antenna

1AC power cord appropriate for your geographical location (ferrite bead attached)

1USB console cable

1Wall-mount plate

1Quick Start document

Install the SIM Card Into the vEdge 100m Router

Before you connect power to the vEdge 100m router, you must install the SIM card that you received from your carrier. The SIM card socket is located on the bottom of the vEdge 100m chassis. See Figure 2.

Figure 2: SIM Card Holder

To install the SIM card into the socket:

1. Unscrew the socket cover and open it.

Figure 3: Opening the Socket Cover

Hardware Installation Guide for vEdge Routers

65

Install the vEdge 100m Router

1. Slide the SIM card holder cover towards the socket cover hinge and open it.

Figure 4: Opening the SIM Card Holder Cover

vEdge 100m Router

1. Insert the SIM card firmly into the socket.

Figure 5: Sliding the SIM Card into the Socket

1. Close the SIM card holder cover. Then close the socket cover and screw it shut.

Hardware Installation Guide for vEdge Routers

66

vEdge 100m Router

Install the vEdge 100m Router

Figure 6: Closing the SIM Card Holder Cover

If you need to change the SIM card later, make sure you disconnect the router's power first, before installing the new card.

Attach the Antennas to the vEdge 100m Router

The rear panel of the vEdge 100m router has two antenna terminals. To attach the multiband antennas to the router:

1. Screw one antenna into the terminal marked MAIN, and screw the other antenna into the terminal marked DIV.

Figure 7: Attaching the Antennas to the Rear of the Router

1. Turn each antenna so that it is vertical. See Figure 8.

Figure 8: Turning the Antenna to a Vertical Position

Hardware Installation Guide for vEdge Routers

67

Install the vEdge 100m Router

vEdge 100m Router

Mount the vEdge 100m Router on the Wall

In addition to the accessory box, you need the following tools to mount a vEdge 100m router:

• Number 2 Phillips (+) screwdriver

• Tape measure or level

To mount the vEdge 100m router on the wall:

1. Secure the mounting plate to the wall using four screws appropriate for your wall type (screws not included).

Figure 9: Securing the Mounting Plate to the Wall

1. Mount the router on the mounting plate by aligning the two slots on the underside of the router chassis

to the notches in the mounting plate. Then gently slide the router chassis down onto the notches.

Figure 10: Mounting the vEdge 100m Router on the Mounting Plate

Hardware Installation Guide for vEdge Routers

68

vEdge 100m Router

Connect the vEdge 100m Router

1. Secure the router with a Kensington security lock using the slot in the rear of the chassis.

Figure 11: Securing the Router with a Kensington Security Lock

Connect the vEdge 100m Router

This article describes how to connect the vEdge 100m router to an AC power source and to a management console.

Hardware Installation Guide for vEdge Routers

69

Connect the vEdge 100m Router

Connect AC Power to the Router

To connect the vEdge 100m router to an AC power source, plug one end of the AC power cord into the back of the router, and plug the other end into an AC power outlet as shown in Figure 1.

Figure 1: Connecting AC Power Supply to a vEdge 100m Router

vEdge 100m Router

Note: It is strongly recommended that you use the power cord supplied with the vEdge 100m router.

Caution: If you are connecting AC power to the router, it is recommended that the building have an external surge protective device installed.

Connect the Router to LAN and WAN Interfaces

To connect the vEdge 100m router to the LAN, plug the appropriate cable into any port except Port 4 on the front of the router.

To connect the vEdge 100m router to a WAN, plug the appropriate cable into Port 4 on the front of the router.

Figure 2: Connecting a vEdge 100m Router to LAN and WAN Interfaces

Hardware Installation Guide for vEdge Routers

70

vEdge 100m Router

Connect the vEdge 100m Router

Connect the Router to a Management Console

To connect the vEdge 100m router to a management console:

1. Connect one end of the USB Type-A to Mini-B connector cable into the console port, labeled CONSOLE, on the vEdge router.

2. Connect the other end of the console cable into a management console.

Figure 3: Connecting a vEdge 100m Router to a Management Console

To use the USB console from a Windows device:

1. Go to the Device Manager to determine which COM port is being used for the USB serial port.

Hardware Installation Guide for vEdge Routers

71

vEdge 100m Router Default Configuration

2. In the PuTTY SSH/Telnet client, in Connection Type, select Serial. Then, specify the COM port and a speed of 115200.

vEdge 100m Router

You can download the Windows driver here .

To use the USB console from a Macintosh device:

1. Install the USB serial drivers attached here .

2. Launch the Terminal utility.

3. From a terminal shell, access the console port with this command:

$ screen /dev/tty.usbserial* 115200,cs8

vEdge 100m Router Default Configuration

Default Configuration for Software Releases 16.3 and Later

For Releases 16.3 and later, the default configuration file looks like this:

vEdge100m# show running-config system

Hardware Installation Guide for vEdge Routers

72

vEdge 100m Router

vEdge 100m Router Default Configuration

host-name vedge vbond ztp.viptela.com aaa

auth-order local radius tacacs usergroup basic

task system read write

task interface read write ! usergroup netadmin ! usergroup operator

task system read

task interface read

task policy read

task routing read

task security read ! user admin

password

$6$qKmsMYJ084t8bH5e$vz1mCDB76u74UPJ29cFo7vK5JjNBTutvlT9WhH/EHgUCHwMwoWU9XzfQ4eqUtgwEMdFzWcskcAtb97GxLArXX1

!

! logging

disk

enable !

! ! omp

no shutdown

graceful-restart

advertise connected

advertise static ! security

ipsec

authentication-type ah-sha1-hmac sha1-hmac

! ! vpn 0

interface cellular0

ip dhcp-client tunnel-interface

encapsulation ipsec color lte no allow-service bgp allow-service dhcp allow-service dns allow-service icmp no allow-service sshd no allow-service netconf no allow-service ntp no allow-service ospf

no allow-service stun ! mtu 1428 profile 0 technology auto (in Releases 16.3.2 and later) no shutdown

! interface ge0/4

ip dhcp-client ipv6 dhcp-client

Hardware Installation Guide for vEdge Routers

73

vEdge 100m Router Default Configuration

tunnel-interface

encapsulation ipsec no allow-service bgp allow-service dhcp allow-service dns allow-service icmp no allow-service sshd no allow-service netconf no allow-service ntp no allow-service ospf

no allow-service stun ! no shutdown

! ! vpn 512

interface ge0/0

ip address 192.168.1.1/24 no shutdown

! !

Default Configuration for Software Releases 16.2 and Earlier

vEdge 100m Router

For Release 16.2, the default configuration file looks like this:

vEdge100m# show running-config system

host-name vedge

vbond ztp.viptela.com

aaa

auth-order local radius tacacs usergroup basic

task system read write

task interface read write ! usergroup netadmin ! usergroup operator

task system read

task interface read

task policy read

task routing read

task security read ! user admin

password

$6$fTBoB4hFbObL96Rh$Tx3voGhKPNeTSjRsQ4AVd3dvS3R.A0DsOcBaNjZgXJiiUU6OldFVpqKKBP1CafW56nMDIi2PNEvVeBSKMf1RL0

!

logging

disk

enable !

! ! omp

no shutdown

graceful-restart

advertise connected

advertise static ! security

Hardware Installation Guide for vEdge Routers

74

vEdge 100m Router

vEdge 100m Router Default Configuration

ipsec

authentication-type ah-sha1-hmac sha1-hmac

! ! vpn 0

interface ge0/4

ip dhcp-client tunnel-interface

encapsulation ipsec no allow-service bgp allow-service dhcp allow-service dns allow-service icmp no allow-service sshd no allow-service netconf no allow-service ntp no allow-service ospf

no allow-service stun ! no shutdown

! ! vpn 512

interface ge0/0

ip address 192.168.1.1/24 no shutdown

! !

For Releases 16.2.10 and later, after you install the software and issue the request software reset command, the default configuration file looks like this:

vEdge100m# show running-config system

host-name vedge

vbond ztp.viptela.com

aaa

auth-order local radius tacacs usergroup basic

task system read write

task interface read write ! usergroup netadmin ! usergroup operator

task system read

task interface read

task policy read

task routing read

task security read ! user admin

password

$6$qKmsMYJ084t8bH5e$vz1mCDB76u74UPJ29cFo7vK5JjNBTutvlT9WhH/EHgUCHwMwoWU9XzfQ4eqUtgwEMdFzWcskcAtb97GxLArXX1

!

! logging

disk

enable !

! ! omp

no shutdown

Hardware Installation Guide for vEdge Routers

75

vEdge 100m Router Default Configuration

graceful-restart advertise connected

advertise static ! security

ipsec

authentication-type ah-sha1-hmac sha1-hmac

! ! vpn 0

interface cellular0

ip dhcp-client tunnel-interface

encapsulation ipsec color lte no allow-service bgp allow-service dhcp allow-service dns allow-service icmp no allow-service sshd no allow-service netconf no allow-service ntp no allow-service ospf

no allow-service stun ! mtu 1428 profile 0 technology auto no shutdown

! interface ge0/4

ip dhcp-client ipv6 dhcp-client tunnel-interface

encapsulation ipsec

no allow-service bgp

allow-service dhcp

allow-service dns

allow-service icmp

no allow-service sshd

no allow-service netconf

no allow-service ntp

no allow-service ospf

no allow-service stun ! no shutdown

! ! vpn 512

interface ge0/0

ip address 192.168.1.1/24 no shutdown

! !

vEdge 100m Router

Hardware Installation Guide for vEdge Routers

76

vEdge 100m Router

Maintenance and Troubleshooting

You can monitor and troubleshoot the vEdge 100m router using the various LEDs and system alarms on the router.

Alarm Severity Levels

The system alarms on the vEdge 100m router have two severity levels:

• Major (red)—Indicates a critical situation on the router resulting from one of two conditions:

• One or more hardware components on the router has failed.

• One or more hardware components on the router has exceeded the temperature threshold.

Maintenance and Troubleshooting

A major alarm condition requires immediate attention. If a temperature related major alarm persists for more than five minutes, the router will shut down.

• Minor (yellow)—Indicates a warning on the router that, if left unattended, might result in an interruption in router operation or degradation in router performance. A yellow alarm condition requires further monitoring and/or maintenance.

Hardware Alarms

Hardware alarms on the vEdge 100m router are predefined and are triggered by a physical condition on the router such as a power supply failure, excessive component temperature, or fan failure. The vEdge 100m router triggers the following types of hardware alarms:

• Main board temperature alarm—The main board of the router has one temperature sensing point (board sensor 0). If the temperature of the sensor location crosses the predefined threshold level, the system triggers an alarm.

• CPU temperature alarm—If the temperature of the system CPU crosses the predefined threshold level, the system triggers an alarm.

• Fan alarm—The router has a fixed built-in fan for system cooling which runs at a variable speed. The Viptela software maintains the fan at an optimal fan speed, raising the speed as the ambient temperature increases and decreasing the speed as the temperature decreases, to keep the router operating at the lowest possible temperature in the green temperature threshold. If the fan stops running, the system triggers an alarm. Also if the fan starts to run below a predefined RPM threshold, the system triggers an alarm.

Table 1 lists the yellow and red alarm threshold for the temperature sensing points in the system—one board sensor on the board and one CPU junction temperature sensor. The lower threshold value (Bad Fan) applies if a fan failure condition is also detected; otherwise, the higher threshold value (normal) applies.

Hardware Installation Guide for vEdge Routers

77

Restore a vEdge Router

vEdge 100m Router

Table 22:

Item

temperature

Checking Alarms and Notifications

To view the current chassis environment condition , enter the show hardware environment command at the system prompt. The system displays the power supply status, temperature sensor readings, fan speed, and related alarm status if any exists.

To view the severity of active alarms, enter the show hardware alarms command at the system prompt. The system displays the alarm severity and a brief description of the cause of each active alarm.

To view temperature thresholds at which green, yellow, and red alarms are generated, enter the show hardware temperature-thresholds command at the system prompt. The system displays the alarm temperature threshold information for a specific board or all boards in the router and for the router's CPU.

To view all other events on a Viptela device, enter the show notification stream command. The system displays notifications about events that have occurred on the Viptela device.

Yellow Alarm (ºC)

Red Alarm (ºC)

Bad FanNormalBad FanNormal

85907075Board sensor 0

90957580CPU junction

LEDs

The chassis LEDs located on the front panel of the vEdge 100m router indicate the status of the router.

If one or more major alarms are active in the router, the Status LED is lit red. If one or more minor alarms are active in the router, the Status LED is lit solid yellow. See Front and Rear Panel Components for details of the LEDs and the status they indicate.

Restore a vEdge Router

This article explains how to revert the configuration for a vEdge router to the factory-default values. It also explains how to do a soft and hard reset of the router.

Reverting to the vEdge Router Factory-Default Configuration

After you set up and start the virtual machines (VMs) for the vEdge Cloud routers and set up and start the hardware vEdge routers in your overlay network, they come up with a factory-default configuration . When you make and commit changes to the default configuration, a new configuration file is created. This new configuration file then becomes the active configuration.

If desired, you can revert to the default factory configuration:

vEdge# request software reset

Hardware Installation Guide for vEdge Routers

78

vEdge 100m Router

Return Hardware

Reset the Router

You can reset the vEdge router by doing either a hard press or a soft press. To perform either type of press, locate the Reset button on the front panel of the router. The Reset button is recessed to avoid accidentally pressing it while the router is operational. To press the Reset button, use a sharp narrow tool.

Perform a Long Press Reset

A long press reset of the vEdge router erases passwords, keys, and most other configuration parameters, restoring the router to its factory-default configuration.

To perform a long press reset, press the Reset button for more than 10 seconds. After you release the Reset button, the router will reboot and resume normal operation.

Perform a Short Press Reset

A short press reset of the Edge router is equivalent to a graceful software reboot and is the same as entering the reboot command at the CLI prompt.

To perform a short press reset, press the Reset button for two seconds. The short press reset takes effect almost instantaneously and reboots the router.

Return Hardware

This article describes how to return a vEdge router or a hardware component to Viptela for repair or replacement.

Locate Serial and Model Number

To return a vEdge router or a hardware component to Viptela, you need the serial and model number of the router or the component being returned.

You can locate the serial and model number of a vEdge router in one of the following ways:

• In vManage NMS, select the Configuration ► Devices screen. The device table lists the serial and model numbers of the routers in the network.

• Enter the show hardware inventory command at the CLI prompt.

• The serial number (sample shown in Figure 1) is printed on a label on the right side of the router; the model number is printed on a label on the back of the router.

Figure 1: Sample Serial Number Label for a vEdge Router

Hardware Installation Guide for vEdge Routers

79

Return Hardware

vEdge 100m Router

Obtain an RMA Number

If you are returning a vEdge router or a hardware component to Viptela for repair or replacement, contact the Viptela Customer Support team to open a support case and obtain a Return Materials Authorization (RMA) number.

Before you open a case and request an RMA number, keep the following information ready:

• Your existing service contract number, if you have one

• Serial number of the router or component

• Model number of the router or component

• Physical location of the router

• Your name, organization name, telephone number, fax number, and shipping address

• Failure or problem description with details

• Type of activity being performed on the router when the problem occurred

• Configuration data displayed by one or more show commands

To obtain an RMA number:

1. Open a support case with Viptela in one of the following ways:

• Log in to www.viptela.com/support

• Send email to support@viptela.com

• Call toll-free 800-525-5033

1. A Viptela Customer Support representative validates your request and issues an RMA number for returning the router or a hardware component.

Note: Do not return the router or any component to Viptela before first obtaining an RMA number. Viptela reserves the right to refuse to take any shipment that does not have an RMA number.

Repack the Router

If you need to move or return the vEdge router, repack the router in its original packing. Before you repack the router follow these steps:

1. Shut down the vEdge router by issuing the poweroff command at the CLI prompt.

2. Disconnect power to the router.

3. Remove the cables and transceivers.

You will need the following tools to repack the router:

• Phillips Number 2 (+) screwdriver

• Cardboard carton and original packing in which you received the router

To repack the router in its original packing:

1. If you do not have a vEdge 1000 router, skip this step. Otherwise:

Hardware Installation Guide for vEdge Routers

80

vEdge 100m Router

Return Hardware

If the router is installed in a rack using the rack-mount kit from Viptela, remove the front stopper

1.

screwed along the front side of the rack-mount tray.

2. Then remove the rack-mount tray from the rack by having one person support the weight of the rack-mount tray while a second person unscrews the rack-mount screws.

3. Place the rack-mount tray on a firm, flat surface.

4. Slide out the vEdge 1000 router from the rack-mount tray.

2. Place the router chassis in the plastic packing bag.

3. Place the side packing foam on both sides of the router chassis.

4. Secure the chassis in the cardboard carton.

5. Secure the top of the chassis by placing the top packing foam over the top of the chassis.

6. Close the cardboard shipping box and seal it with packing tape.

7. Write the RMA number on top of the box for purposes of tracking.

If you are returning any field-replaceable units with the router, repack them as described in Repack Router Components below.

Repack Router Components

If you need to return any router components, follow these steps:

1. Ensure that you have the antistatic bag for each component and an ESD grounding strap.

2. Place each component in its antistatic bag.

3. Pack each component in its original packing material. If you do not have the original packing material,

ensure that the component is packed adequately with packing material to prevent any damage in transit.

4. Place the component in the original cardboard box or another cardboard box if the original is not available.

5. Secure the box with tape.

6. Write the RMA number on top of the box for purposes of tracking.

Hardware Installation Guide for vEdge Routers

81

Return Hardware

vEdge 100m Router

Hardware Installation Guide for vEdge Routers

82

CHAPTER 4

vEdge 100wm Router

The vEdge 100wm router delivers highly secure site-to-site data connectivity to small business and home offices (SOHO). The vEdge 100wm router is a fixed-port-configuration router with the following features:

• Built-in LTE modem with mini-SIM (or 2FF) card

• Two multiband swivel-mount dipole antennas

• Supports a 4G/3G/2G–capable modem to connect to cellular networks

• Wi-Fi access point capability

• Wi-Fi radio configurable for 2.4 GHz or 5.0 GHz

• Five built-in 10/100/1000–Mbps Ethernet ports

• Power over Ethernet (PoE) source support on one Ethernet port

• Encryption and QoS support

• 100 Mbps forwarding throughput (inclusive of encryption)

• Secure identification chip for anticounterfeit and secure authentication

• Integrated power supply

• Kensington security lock slot to physically lock down the router

• GPS input for geographical location

• Desktop mount or wall mount

Chassis Views

Figure 1 and Figure 2 show the front and back panels of the vEdge 100wm router, indicating the locations of the power interfaces, status indicators, and chassis identification labels.

Figure 1: Front Panel of the vEdge 100wm Router

Hardware Installation Guide for vEdge Routers

83

Declaration of Conformity

vEdge 100wm Router

Figure 2: Back Panel of the vEdge 100wm Router

• Declaration of Conformity, on page 84

• Components and Specifications, on page 85

• Planning and Installation, on page 93

• Maintenance and Troubleshooting, on page 105

Declaration of Conformity

The Viptela products are controlled under the Commerce Control List (CCL) of the U.S. Export Administration Regulations (EAR) as networking equipment within the following U.S. Export Control Classification Numbers (ECCN): 5A002, 5D002, and 5E002.

The vEdge hardware and software products and the Viptela encryption technology can be delivered to most end users and destinations worldwide without a licensing requirement. The Viptela solution and products have undergone a one-time review by the Government of the United States of America and qualify for License Exception ENC. As such, they are eligible for export according to Section 740.17 of the EAR.

The Viptela solutions and products can be delivered to most end users worldwide, except to entities or end users in the following countries: Cuba, Iran, North Korea, Sudan, and Syria.

Controlled Technologies

Viptela manages technology subject to the U.S. Export Administration Regulations (EAR). These controlled technologies may include items under U.S. ECCN 5E002 encryption technology. The Viptela encryption technology is for the development, production, and use of Viptela products that implement or use encryption.

Hardware Installation Guide for vEdge Routers

84

vEdge 100wm Router

The Viptela software distribution policy allows only authenticated users to download the Viptela encryption software. Recipients of controlled technology are obliged to maintain adequate controls to prevent nationals from outside the U.S. and Canada from accessing Viptela information, subject to ECCN5E002, without first obtaining authorization from the U.S. government.

For additional information on controlled technologies, please contact Viptela support at support@viptela.com .

Components and Specifications

This article provides specifications for the vEdge 100wm chassis, wireless platforms, and multiband swivel-mount dipole antennas.

Chassis Specifications

Table 1 lists the specifications for the vEdge 100wm router chassis.

Table 23:

Components and Specifications

Services and Slot Density

RJ45 Ports 10/100/1000 Mbps

(IPSec)

115.2 Kbps)

Power Specifications

AC input voltage

SpecificationItem

5 ports, one of which has 802.3af PoE source capability

YesEmbedded hardware-based cryptographic acceleration

2 GBMemory DDR3 ECC DRAM

4 GBNAND storage (internal)

1USB host port

1Mini USB connector console port (default baud rate

AC input (C6 inlet connector)Power supply

90-264 Vrms

47-63 HzAC input line frequency

interface ge0/0

Physical Specifications (excluding the multiband antennas)

20 WattsTypical power consumption with PoE disabled on

35 Watts maximumTypical power consumption with PoE enabled on

Hardware Installation Guide for vEdge Routers

85

Components and Specifications

vEdge 100wm Router

SpecificationItem

Chassis height

Packaging Specifications

Package height

Operating Condition

Temperature

1.8 in. (4.5 cm)

9.25 in. (23.5 cm)Chassis width

5.75 in. (14.6 cm)Chassis depth

1.45 lbs (0.67 kg)Chassis weight

Provided with the unitWall-mount plate accessory

5.375 in. (13.6 cm)

11.94 in. (30.3 cm)Package width

9.19 in. (23.3 cm)Package depth

0 to 40°C (32 to 104°F) at sea level (temperature derating of 1.5°C per 1000 feet of altitude, up to a maximum of 10,000 ft, or 3000 m)

Maximum 3000 m (10,000 ft)Altitude

10 to 85% RHHumidity

Transportation/Storage Condition

Temperature

–40 to 70°C (–40 to 158°F)

5 to 95% RHHumidity

4570 m (15,000 ft)Altitude

Reliability

MTBF

104,000 hours

Regulatory Compliance

Safety

AS/NZS 60950-1 CAN/CSA 60950-1 CB-IEC60950-1 CE Marking EN 60950-1 UL60950-1

EMC

AS/NZS CISPR22 Class B EN 300 386 EN 55022 Class B FCC Class B ICES Class B VCCI Class B

ROHS 6/6Environmental

Wireless Platform Specifications

Table 2 lists the specifications for the vEdge 100wm wireless platforms.

Hardware Installation Guide for vEdge Routers

86

vEdge 100wm Router

Components and Specifications

Table 24:

SpecificationPlatform

vEdge 100wm-AT

SKU

4G LTE Bands

vEdge 100wm-GB

SKU

4G LTE Bands

vEdge 100wm-NA

SKU

100wm-AT

AT&TCarrier

Sierra Wireless MC7354Modem

Band 2 (1900 MHz), Band 4 (AWS 1700/2100 MHz), Band 5 (850 MHz), Band 17 (700 MHz)

United StatesRegion

100wm-GB

GCFCertification

Sierra Wireless MC7304Modem

Band 1 (2100 MHz), Band 3 (1800 MHz), Band 7 (2600 MHz), Band 8 (900MHz), Band 20 (800 MHz)

Australia, Europe, Middle East, Latin America, Asia PacificRegions

100wm-NA

4G LTE Bands

vEdge 100wm-NT

SKU

vEdge 100wm-SP

PTCRBCertification

Sierra Wireless MC7354Modem

Band 2 (1900 MHz), Band 4 (AWS 1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)

North AmericaRegion

100wm-NT

NTT DocomoCarrier

Sierra Wireless MC7330Modem

Band 1 (2100 MHz), Band 19 (850 MHz), Band 21 (1500 MHz)4G LTE Bands

JapanRegion

Hardware Installation Guide for vEdge Routers

87

Components and Specifications

vEdge 100wm-VZ

vEdge 100wm Router

SpecificationPlatform

100wm-SPSKU

SprintCarrier

Sierra Wireless MC7354Modem

Band 25 (1900 MHz)4G LTE Bands

United StatesRegion

SKU

100wm-VZ

VerizonCarrier

Sierra Wireless MC7354Modem

Band 4 (AWS 1700/2100 MHz), Band 13 (700 MHz)4G LTE Bands

United StatesRegion

Multiband Cellular Antenna Specifications

The vEdge 100wm router ships with two multiband swivel-mount dipole antennas. The articulating joint of the antenna provides 0 to 90 degrees pivot and 180-degree swivel movement, allowing vertical and horizontal orientation of the antenna.

Table 3 lists the electrical, mechanical, and frequency specifications for the antennas.

Table 3: vEdge 100wm Multiband Cellular Antenna Specifications

Table 25:

SpecificationItem

MIMO, dipole swivelAntenna type

10 WattsInput power

SMA maleConnector

50 OhmsNominal

impedance

OmnidirectionalRadiation pattern

698MHz to 960MHz and 1710MHz to 2700MhzFrequency range

F (–40°C to 85°C)Temperature range

Hardware Installation Guide for vEdge Routers

88

vEdge 100wm Router

Front and Rear Panel Components

SpecificationItem

Antenna dimensions

Length: 6.37 in. (16.19 cm)

Width: 0.9 in. (2.38 cm)

Depth: 0.63 in. (1.59 cm)

Noncondensing, 65°C, 95% RHHumidity

Wi-Fi Specifications

The vEdge 100wm router provides the following Wi-FI capabilities:

• Embedded Wi-Fi radio for access point functionality

• Wi-Fi radio configurable for 2.4-GHz or 5.0-GHz operation

• Supports IEEE 802.11a, 802.11b, 802.11g, 802.11 n, and 802.11ac protocols

• Supports channel bandwidth of 20 MHz, 40 MHz, and 80 MHz

• Supports IEEE 802.11h DFS channels

• 3x3 MIMO with three spatial streams

• Supports up to four different SSIDs

• Supports up to 50 concurrent clients

• Supports wireless security and authentication:

• Personal and enterprise WPA/WPA2

• AES/CCMP encryption

• TKIP encryption

• Internal embedded antennas

Front and Rear Panel Components

This article describes the components on the front and rear panels of the vEdge 100wm router. For the exact location of these components on the router, see At a Glance .

Front Panel LEDs

The vEdge 100wm router has five chassis status LEDs located on the front panel. Table 1 describes the LEDs, their color and states, and the status they indicate.

Hardware Installation Guide for vEdge Routers

89

Front and Rear Panel Components

Table 26:

vEdge 100wm Router

StatusColorLED

(LED 0–4)

Green/RedPower

• Off: System is not on

• Green: System power is healthy and operational

• Red: Power supply fault

Green/Yellow/RedSystem

• Off: System is not on

• Solid Green: System is fully functional

• Blinking Green: System is booting up

• Solid Yellow: No Internet connectivity or the system has detected a minor alarm

• Red: System has detected a major system level fault or alarm

Green/YellowEthernet Port

• Off: No link

• Solid Green: 1000 Mbps link detected

• Blinking Green: 1000 Mbps link detected and link activity

• Solid yellow: 10/100 Mbps link detected

• Blinking Yellow: 10/100 Mbps link detected and link activity

GreenWiFi Status

• Off: WiFi interface disabled/off

• Solid Yellow: WiFi enabled

• Blinking Green: WiFi client connected and link activity

Green/Yellow/RedWWAN Signal

Strength

• Off: LTE interface disabled/off

• Solid Green: LTE enabled, excellent signal strength, dormant mode

• Blinking Green: LTE enabled, excellent signal strength, active mode

• Solid yellow: LTE enabled, good signal strength, dormant mode

• Blinking Yellow: LTE enabled, good signal strength, active mode

• Solid Orange: LTE enabled, poor signal strength, dormant mode

• Blinking Orange: LTE enabled, poor signal strength, active mode

• Solid Red: LTE enabled but faulty such as no connectivity with BTS, errors, or no signal

Figure 1 shows the location of the chassis status LEDs on the front panel of the vEdge 100wm router.

Hardware Installation Guide for vEdge Routers

90

vEdge 100wm Router

Front and Rear Panel Components

Figure 1: Chassis Status LEDs in a vEdge 100wm Router (UPDATE)

Rear Panel

The rear panel of the vEdge 100wm router has two cellular antenna terminals, a GPS antenna input, a Kensington security lock slot, and a Reset button. See Chassis Views for the location of these components.

Cellular Antenna Terminals

The rear panel of the vEdge 100wm router has two SMA antenna terminals for attaching the two multiband swivel-mount dipole antennas that ship with the router. For antenna specifications, see Multiband Cellular Antenna Specifications .

GPS Input

The GPS antenna input on the rear panel of the vEdge 100wm router allows you to connect an external GPS antenna that has an SMA connector. If you connect a GPS antenna to the router, it can automatically identify the router's geographical location.

Kensington Security Lock Slot

The rear panel of the vEdge 100wm router has a small metal-enforced hole for attaching a Kensington lock to secure the router.

Reset Button

The Reset button on the rear panel of the vEdge 100wm router is recessed, to avoid accidentally pressing it while the router is operational. To press the Reset button, use a sharp narrow tool. Table 2 describes the effects of pressing the Reset button.

Table 27:

BehaviorPress

Duration

Press for 2 seconds to reset and reboot the router.Short press

Press for 10 seconds to reset the router and reboot it with factory default configuration.Long press

Hardware Installation Guide for vEdge Routers

91

Ports and Connectors

The vEdge 100wm router supports three types of ports:

• RJ-45 Ethernet ports

• USB port

• USB serial console port.

RJ-45 Ethernet Ports

The vEdge 100wm router has five built-in RJ-45 Ethernet ports. These ports support 10/100/1000 Mbps and are numbered 0 through 4. Port 0 supports PoE capability.

Figure 1 provides the pinout information for the RJ-45 ports. The RJ-45 ports comply with the 801 standards.

Figure 1: RJ-45 Ports Pinout Information

vEdge 100wm Router

USB Port

The vEdge 100wm router has one USB host port with a type A connector. The USB port supports USB 3.0 speeds.

Console Port

The vEdge 100wm console port is a serial port and is accessible via a USB Mini-B connector. See Figure 2.

Figure 2: USB Mini-B Connector

A USB Type-A to Mini-B connector cable ships with the vEdge 100wm router as standard accessory for console port connection.

Hardware Installation Guide for vEdge Routers

92

vEdge 100wm Router

Power Supply and Cooling System

The vEdge 100wm router has an built-in AC-to-DC power supply unit. This article describes the AC power supply in the router and the cooling system and airflow through the router chassis.

AC Power Supply in vEdge 100wm Router

The vEdge 100wm router has an integrated AC power supply that exposes a C6 male AC inlet connector externally. The unit can be powered by connecting the supplied power cord to AC mains with the C5 female connector end of power cord plugged into the unit.

Table 1 describes the AC power supply specifications for the vEdge 100wm router.

Table 28:

Power Supply and Cooling System

SpecificationItem

90-264 VrmsAC input voltage

47-63 HzAC input line frequency

0

Typical power consumption with PoE enabled on ethernet port 0

AC Power Cord Specifications

The vEdge 100wm router ships with a detachable AC power cord. The power cord has a C5 female connector at one end, and the other end is specific to the country/locality to which the product is shipped.

Cooling System in a vEdge 100wm Router

The cooling system in a vEdge 100wm router consists of internal heat sinks and an internal fan with adjustable speed. The fan speed is algorithmically controlled, based on readings obtained from internal temperature sensors. The internal temperature is affected by factors such as the external ambient temperature and the traffic workload.

If the ambient temperature inside the chassis rises above the acceptable range, the router raises an alarm. If the temperature inside the chassis rises above the maximum threshold temperature, the router shuts down automatically.

Planning and Installation

20 WattsTypical power consumption with PoE disabled on ethernet port

35 Watts maximum

This article provides general safety standards to adhere to when installing or connecting a vEdge 100wm router or its components.

General Safety Standards

• Install your vEdge router in compliance with the following local, national, and international electrical codes:

Hardware Installation Guide for vEdge Routers

93

Prepare for Router Installation

• Locate the emergency power-off switch in the room in which you are working. In case of an electrical

• Disconnect power before installing or removing the router.

• If an electrical accident occurs, use caution and immediately turn off power to the router.

• Make sure that grounding surfaces are thoroughly cleaned and well-finished before grounding connections

• Do not work alone if hazardous conditions exist.

vEdge 100wm Router

United States—National Fire Protection Association (NFPA 70), United States National Electrical

• Code.

• Other countries—International Electromechanical Commission (IEC) 60364, Part 1 through Part

7.

• Evaluated to the TN power system.

• Canada—Canadian Electrical Code, Part 1, CSA C22.1.

accident, quickly turn off the power.

are made.

• Always check that power is disconnected from a circuit. Never assume that it is disconnected.

• Carefully inspect your work area for possible hazards, such as moist floors, worn-out power cords, ungrounded power extension cords, and missing safety grounds.

• Operate the device within marked electrical ratings and product usage instructions.

• To ensure that the router and the FRUs function safely and correctly, use the specified cables and connectors, and make certain they are in good condition.

Prepare for Router Installation

This article provide guidelines and requirements for preparing your site to install the vEdge 100wm router.

Site Preparation Guidelines

Efficient operation of your vEdge 100wm router requires proper site planning and proper layout of your equipment rack or wiring closet:

• Ensure that the area around the router is kept free of dust and conductive material.

• Follow appropriate airflow guidelines so that the cooling system functions normally.

• Follow ESD prevention procedures to avoid any damage to the router.

• Install the router in an enclosed, secure area allowing only authorized personnel to access the device.

Environmental Requirements

Install the vEdge 100wm router in a dry, clean, temperature-controlled, and well-ventilated environment:

• Maintain ambient airflow for the router to operate normally. The ambient intake air temperature should be in the range 0°C to 40°C (32°F to 104°F). If the airflow is blocked or if the intake air is too warm, the router can become overheated.

Hardware Installation Guide for vEdge Routers

94

Cisco vEdge Series, vEdge 100, vEdge 100m, vEdge 100wm, vEdge 1000 Hardware Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Hardware Installation Guide for vEdge Routers

CONTENTS

vEdge 100 Router

Declaration of Conformity

Components and Specifications

Front and Rear Panel Components

Ports and Connectors

Power Supply and Cooling System

General Safety Standards

Site Preparation Guidelines

Install the vEdge 100 Router

Connect the vEdge 100 Router

vEdge 100 Router Default Configuration

Maintenance and Troubleshooting

Restore a vEdge Router

Return Hardware

vEdge 100b Router

Declaration of Conformity

Components and Specifications

Front and Rear Panel Components

Ports and Connectors

Power Supply

Planning and Installation

Prepare for Router Installation

Install the vEdge 100b Router

Connect the vEdge 100b Router

vEdge 100b Router Default Configuration

Maintenance and Troubleshooting

Restore a vEdge Router

Return Hardware

vEdge 100m Router

At a Glance

Declaration of Conformity

Components and Specifications

Components and Specifications

Front and Rear Panel Components

Ports and Connectors

Power Supply and Cooling in a Cisco vEdge 100m Router

Planning and Installation

Planning and Installation

Prepare for Router Installation

Install the vEdge 100m Router

Connect the vEdge 100m Router

vEdge 100m Router Default Configuration

Maintenance and Troubleshooting

Maintenance and Troubleshooting

Restore a vEdge Router

Return Hardware

vEdge 100wm Router

Declaration of Conformity

Components and Specifications

Front and Rear Panel Components

Ports and Connectors

Power Supply and Cooling System

Planning and Installation

Prepare for Router Installation
