Set Up the SPA3000
Document ID: 108740
Contents
Introduction
How do you initially set up an SPA3000?
Related Information
Introduction
This article is one in a series to assist in the setup, troubleshooting, and maintenance of Cisco Small Business
products (formerly Linksys Business Series).
Refer to Cisco Technical Tips Conventions for more information on document conventions.
Q. How do you initially set up an SPA3000?
A. In setting up the SPA3000, make sure you have a one touch tone analog phone, your
NodePhone account details, and access to a standard phone port. You should also have these
package contents:
Phone Adapter Unit♦
Ethernet Cable Standard Phone Cable♦
A 5 Volt Power Adapter♦
Note: This guide has been prepared with firmware 2.0.13, the current supported firmware
release for NodePhone. If you are using an earlier firmware, the web configuration screen
might not look the same as the images in this document. Cisco recommends upgrading your
SPA3000 to version 2.0.13, which is available from the Cisco Download Center (
registered
customers only
) .
In order to set up the SPA3000, complete these steps:
Ensure the SPA3000 Power Supply is Connected Properly1.
Connect the SPA30002.
Ensuring the SPA3000 Power Supply is Connected Properly

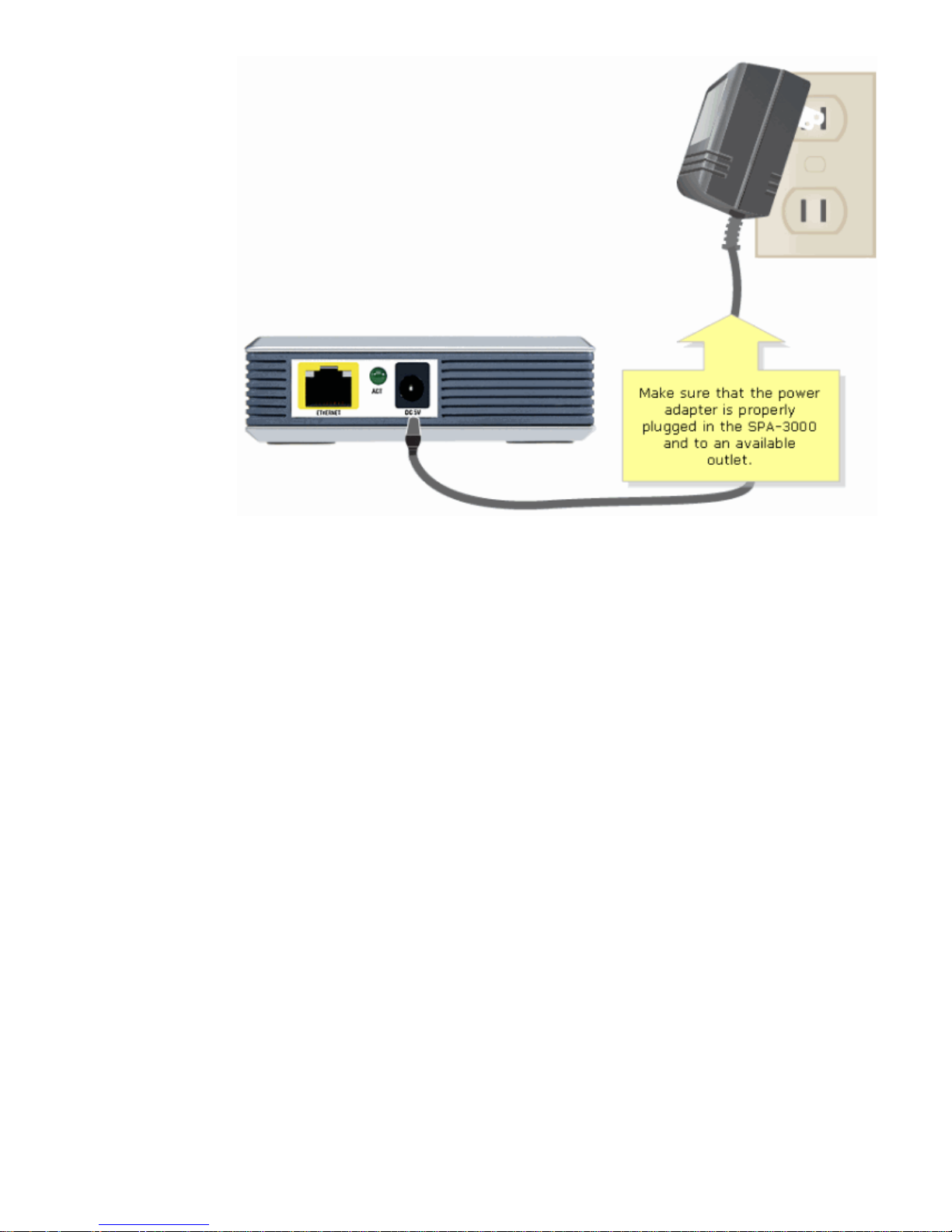

Make sure the power adapter is plugged to an available power outlet.1.
Page 2
After the plug is connected to the power adapter, connect the SPA3000. For
instructions, complete the next steps.
2.
Connecting the SPA3000
Connect the phone cable to the wall jack with ADSL service, and then connect the
other end to the LINE port of the gateway. Then, connect the Ethernet cable from the
SPA3000 to one of the Ethernet ports (1, 2, 3 or 4 ) of the Linksys gateway.
1.
Page 3
Connect the phone cable to the wall jack with ADSL service, then connect the other
end to the line port of the ADSL line filter.
2.
Connect the ADSL modem line to the ADSL port of the ADSL router, and the local
phone line should be connected to the LINE port of the SPA3000.
3.
Page 4
Connect the phone to the PHONE port on the SPA3000.4.
The PSTN phone line goes from the Local phone port of the Line Filter to the Line
port on the SPA3000. The Phone is connected to the Phone port of the SPA3000. The
Ethernet cable is connected between the ADSL router and the SPA3000.
5.
Page 5
Related Information
Technical Support & Documentation − Cisco Systems•
