Configuring Subscriber-End Broadband Access Router Features

This chapter contains procedures for manually configuring basic functionality on the Cisco uBR900 series cable access routers. For detailed descriptions of the commands used, refer to the Cisco IOS Multiservice Applications Command Reference publication.

This chapter includes the following sections:

• Subscriber-End Overview

• Cisco IOS Software Feature Sets

• Subscriber-End Broadband Access Router Data Operations

• Voice over IP Operations

• Subscriber-End Broadband Access Router Security Features

• Subscriber-End Broadband Access Router Configuration Options

• Subsriber-End Broadband Access Router Configuration Restrictions

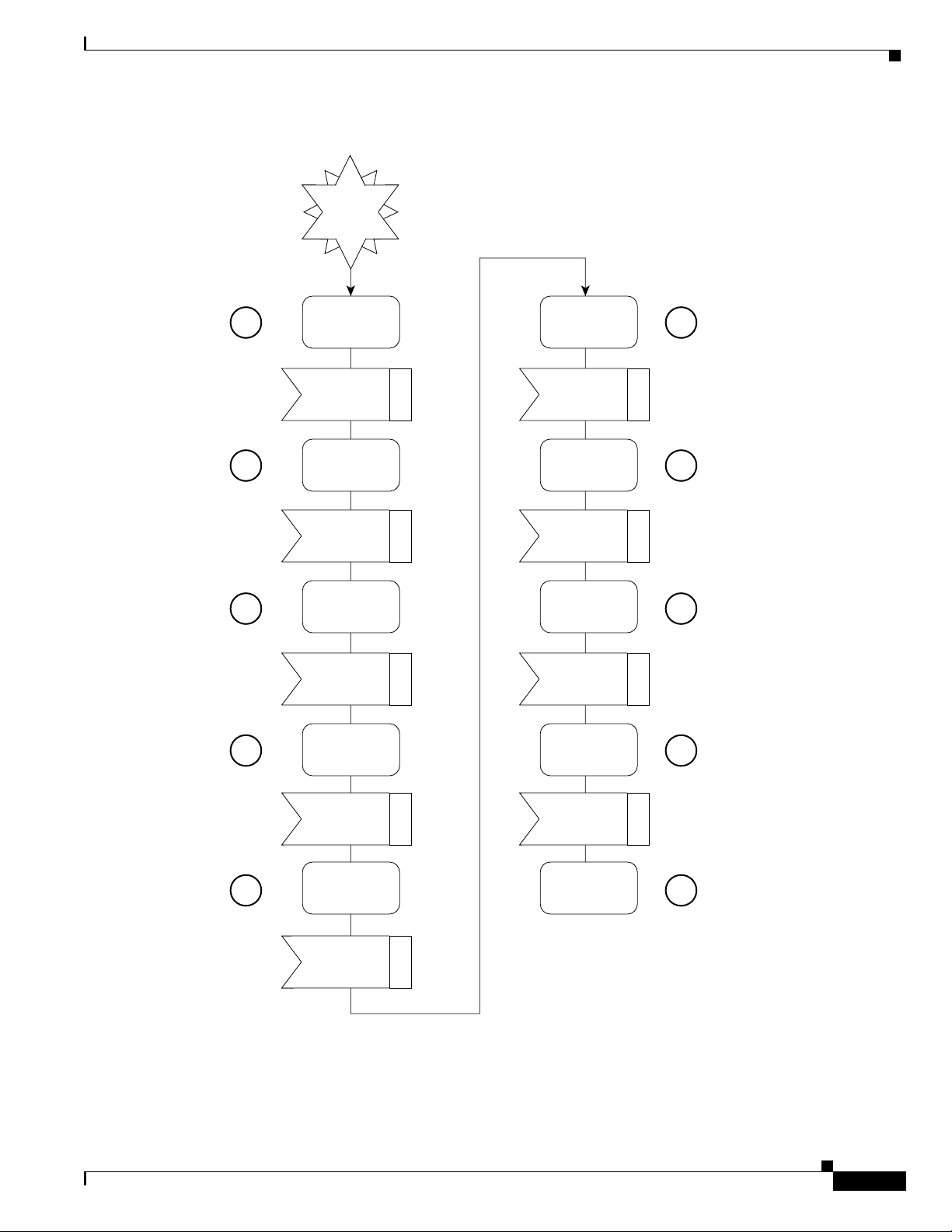

• Subscriber-End Broadband Access Router Initial Power-Up Sequence

• Subscriber-End Broadband Access Router Basic Troubleshooting

• Subscriber-End Broadband Access Router Configuration Prerequisites

• Subscriber-End Broadband Access Router Configuration Tasks

• Configuring a Host Name and Password

• Configuring Ethernet and Cable Access Router Interfaces

• Configuring Routing

• Configuring Bridging

• Reestablishing DOCSIS-Compliant Bridging

• Customizing the Cable Access Router Interface

• Using Multiple PCs with the Cable Access Router

• Subscriber-End Broadband Access Router Configuration Examples

Cisco IOS Multiservice Applications Configuration Guide

MC-607

Subscriber-end Overview

Cisco uBR900 series cable access routers are fully-functional Cisco IOS routers and standards-based bidirectional cable modems that give a residential or small office/home office (SOHO) subscriber high-speed Internet or intranet access and packet telephone services via a shared two-way cable system and IP backbone network. Cisco uBR900 series cable access routers are based on the current Data-over-Cable Service Interface Specifications (DOCSIS) standards, and interoperate with any bidirectional, DOCSIS-qualified headend cable modem termination system (CMTS).

Cisco uBR900 series routers connect computers, telephone equipment, and other customer premises (CPE) devices at a subscriber site to the service provider hybrid fiber-coaxial (HFC) and IP backbone network. Functioning as cable modems, the Cisco uBR900 series routers transport data and voice traffic on the same cable system that delivers broadcast TV signals.

Cisco uBR900 series cable access routers typically ship from the Cisco factory with a Cisco IOS software image stored in NVRAM. The standard Cisco IOS software image supports DOCSIS-compliant bridging operation for data as the default.

Based on the feature licenses purchased, other Cisco IOS images can be downloaded from Cisco Connection Online (CCO). Each Cisco uBR900 series router in your network can then be configured to support Voice over IP (VoIP) or other special operating modes based on your service offering and the practices in place for your network. A Cisco uBR900 series device can function as an advanced router, providing WAN data connectivity in a variety of configurations.

Configuring Subscriber-End Broadband Access Router Features

Cisco IOS Software Feature Sets

This section briefly describes the common feature sets supported by the Cisco uBR900 series cable access routers. Each feature set contains a number of features that provide a specific functionality such as VoIP or virtual private network (VPN) access.

The following feature set categories are currently available:

• Data operations

• Data and voice operations

The data and voice feature sets add VoIP support to the same base features contained in the data only feature sets. Telephones that are connected to the Cisco uBR924 cable access router can make voice calls over the Internet using either the H.323 (gateway/gatekeeper) voice control protocol or Simple Gateway Control Protocol (SGCP). (For more information on these protocols, refer to the “H.323 Protocol Stack” and “SGCP Protocol Stack” sections in this chapter.)

Because voice calls are real-time traffic, the Cisco uBR924 cable access router supports the DOCSIS QoS enhancements to give higher priority to IP packets containing voice traffic.

Note Voice features are available only on the Cisco uBR924 cable access router.

Note Feature sets and software images vary depending on the cable access router model you are

using and the Cisco IOS software release that is running. For a list of the available software images for your application, and the specific features contained in each image, refer to the release notes for the Cisco uBR900 series cable access router and Cisco IOS software release you are using.

MC-608

Cisco IOS Multiservice Applications Configuration Guide

Configuring Subscriber-End Broadband Access Router Features

The following feature sets are available in data and voice versions as well as in data only versions:

• Base IP Bridging Feature Set provides full DOCSIS 1.0-compliant cable modem support for users

who want a basic high-speed connection to the Internet.

• Home Office (Easy IP) Feature Set provides a high-speed connection to the Internet, along with

server functions that simplify the administration of IP addresses, so that the Cisco uBR900 series cable access router can connect a small number of computers to the Internet through the cable interface.

• Small Office Feature Set provides a firewall feature set in addition to the high-speed Internet

connection and server functions provided by the Home Office feature set. You can protect your office network from intrusion and interference while still having high-speed access to the Internet.

• Telecommuter Feature Set provides encryption and Layer 2 tunneling support in addition to the

high-speed Internet connection and server functions provided by the Home Office feature set. Businesses can establish secure high-speed Internet connections between employees’ homes and the office local network.

These feature sets are described in the following sections.

Cisco IOS Software Feature Sets

Base IP Bridging Feature Set

Base IP Bridging includes full and DOCSIS-compliant bridging and DOCSIS Baseline Privacy. The Base IP Bridging feature set allows the Cisco uBR900 series cable access router to function as a DOCSIS

1.0 cable modem and to interoperate with any DOCSIS 1.0-qualified CMTS. It provides basic high-speed Internet connectivity for users wanting to connect only one computer to the cable network.

DOCSIS-compliant bridging (also referred to as “plug-and-play” bridging) is the default configuration for Cisco uBR900 series cable access routers. While in plug-and-play bridging mode, the router locates a downstream and upstream channel; finds ToD, TFTP, and DHCP servers; obtains an IP address; downloads a DOCSIS configuration file; and obtains DHCP parameters to work in bridging mode.

Note This feature set does not include Easy IP and Routing.

In DOCSIS-compliant bridging mode, the Cisco uBR900 series cable access router acts as a transparent bridge for up to 254 CPE devices.

Note The ability of the Cisco uBR900 series cable access router to grant access to CPE devices

is controlled by the MAX CPE field in the DOCSIS configuration file. The MAX CPE field defaults to one CPE device unless otherwise set to a higher number.

Home Office (Easy IP) Feature Set

The Home Office feature set provides high-speed Internet connectivity for customers having a small home network (typically two to four computers). In addition to full DOCSIS 1.0 support and all of the functionality of the Base IP Bridging Feature Set feature set, the Home Office feature set (also known as Easy IP) supports intelligent DHCP server functions, including DHCP Relay Agent and DHCP Client functionality. It also supports Easy IP (NAT/PAT).

Cisco IOS Multiservice Applications Configuration Guide

MC-609

Subscriber-End Broadband Access Router Data Operations

This feature set allows the Cisco uBR900 series cable access router great flexibility in administering IP addresses for the PCs and other CPE devices it is connecting to the cable network. The DHCP functionality allows intelligent use of the IP addresses that allow customer premises computers and other equipment to connect to the Internet. The NAT/PAT functionality allows you to use private IP addresses on the local network, while still maintaining connectivity to the Internet.

Small Office Feature Set

In addition to full DOCSIS 1.0 support and all of the functionality of the Easy IP feature set, the Small Office feature set supports the Cisco IOS firewall feature set which provides a wide range of security features for Cisco uBR900 series cable access routers. Using the firewall feature set, Cisco uBR900 series cable access routers act as buffers between private enterprise networks and the Internet and other connected public networks.

In firewall mode, the Cisco uBR900 series cable access router provides a high-speed Internet connection for an office local network while protecting the computers on the office network from common attacks such as denial of service attacks and destructive Java applets. Real-time alerts of attempted attacks are also given.

The Small Office feature set can be extended with support for IPSec encryption to ensure that the traffic passed over the Internet cannot be intercepted. You can select either standard 56-bit IPSec Network Security encryption or high-security 168-bit Triple Data Encryption Standard (DES) encryption.

Configuring Subscriber-End Broadband Access Router Features

Telecommuter Feature Set

In addition to full DOCSIS 1.0 support and all of the functionality of the Easy IP feature set, the Telecommuter feature set supports IPSec encryption and the Layer 2 Tunneling Protocol (L2TP), which can establish secure high-speed Internet connections between employee homes and the office local network.

IPSec is an IP security feature that provides robust authentications and encryption of IP packets for the secure transmission of sensitive information over unprotected networks such as the Internet. You can select either standard 56-bit IPSec Network Security encryption or high-security 168-bit Triple DES encryption.

L2TP is an extension of PPP that allows computers on different physical networks to interoperate as if they were on the same LAN. These features are important components for VPNs.

Note The Telecommuter feature set does not require the firewall feature set because the

individual telecommuter has a secure connection to the office network. The office network, however, should implement a firewall for its own connection to the Internet.

Subscriber-End Broadband Access Router Data Operations

Figure 110 illustrates a typical broadband data cable system. Data transmitted to a Cisco uBR900 series cable access router from the service provider CMTS shares a 27 or 26 Mbps, 6 MHz data channel in the 88 to 860 MHz range. The Cisco uBR900 series cable access router shares an upstream data rate of up to 10 Mbps on a 200 kHz-wide to 3.2 MHz-wide channel in the 5 to 42 MHz range.

MC-610

Cisco IOS Multiservice Applications Configuration Guide

Configuring Subscriber-End Broadband Access Router Features

Note End-to-end throughput varies based on the design and loading of network components, the

mix of traffic, the processing speed and interface of the host server(s), the processing speed and local Ethernet performance of the subscriber computer, and other parameters. Because the network can be configured to support multiple levels of service to meet differing market price/performance requirements, the subscriber service-level agreement also affects throughput. DOCSIS further contains some fundamental performance limitations because standards are designed to give a larger number of customers good performance, rather than permitting a few users to consume the entire capacity.

Figure 110 Typical Cisco Broadband Data Cable System

Subscriber-End Broadband Access Router Data Operations

WAN

Internal backbone

worldwide internet

Operating Modes

The broadband data cable system uses multiple types of access control to ensure efficient use of bandwidth over a wide range of loading conditions. Advanced queueing techniques and service algorithms are used to define the acquisition and release of channels.

Cisco uBR900 series cable access routers support 64 or 256 Quadrature Amplitude Modulation (QAM) downstream, and Quadrature Phase Shift Keying (QPSK) or 16 QAM upstream transmission. The CMTS system administrator can set the preferred modulation scheme based on the quality of the cable plant.

Switch/router

Servers

and

CMTS

rack equipment

Cable System Headend

Upstream and downstream data interfaces Operation support system interface Downstream RF interface Upstream RF interface

Combiner

Cisco uBR900 series

cable access router

HFC cable plant

Fiber

18197

Residence or SOHO subscriber site: subscriber RF interface Ethernet interface

Note In noisy plant environments, 16 QAM upstream and 256 QAM downstream modulation

may not be viable. In high-quality HFC networks capable of supporting 16 QAM formats in the upstream direction, we recommend using QPSK for fixed-slot short packets like maintenance or data requests, and 16 QAM for variable-length data packets. This results in the most efficient use of the available upstream timeslots or minislots.

Cisco IOS Multiservice Applications Configuration Guide

MC-611

Subscriber-End Broadband Access Router Data Operations

The system uses TCP/IP to transmit data. TCP/IP transmits data in segments encased in IP datagrams, along with checksums to detect data corruption and sequence numbers to ensure an ordered byte stream on the TCP connection between the Cisco cable access router and the CMTS.

Cisco cable access routers also support multicast services—data streams sent to groups of subscribers. These applications utilize the User Datagram Protocol (UDP) instead of TCP. Because UDP does not mandate upstream acknowledgments, these applications can be very efficient in the network. Additionally, restricting upstream throughput will have no effect on downstream UDP streaming throughput.

Note Interactive games are the exception. Although low latency is required in gaming

applications, high upstream data throughput is not demanded because the volume of data transmitted upstream is typically small.

Data Specifications

Table 37 provides a summary of the upstream and downstream transmission characteristics of the Cisco uBR900 series cable access routers.

Configuring Subscriber-End Broadband Access Router Features

Table 38 Cisco uBR900 Series Cable Access Router Data Specifications

Description Downstream Values Upstream Values

Frequency Range 88 to 860 MHz 5 to 42 MHz

Modulation 64 QAM

256 QAM

Data Rate 30 Mbps/64 QAM

(27 Mbps after FEC overhead)

42.8 Mbps/256 QAM (36 Mbps after FEC overhead)

Bandwidth 6 MHz 200 kHz, 400 kHz, 800 kHz,

FEC RS (122, 128) Trellis Reed Solomon

One Channel Receive level of digital signal

–15 to +15 dBmV

Note Most field measurements are of

nearby or adjacent analog signal which is normally +6 to +10 dB (system specific) above the digital signal level.

QPSK

16 QAM

QPSK—320 kbps to 5 Mbps

16 QAM—640 kbps to 10 Mbps

1.6 MHz,

3.2 MHz

QPSK— +8 to +58 dBmV

16 QAM— +8 to +55 dBmV

MC-612

Cisco IOS Multiservice Applications Configuration Guide

Configuring Subscriber-End Broadband Access Router Features

Table 38 Cisco uBR900 Series Cable Access Router Data Specifications (continued)

Description Downstream Values Upstream Values

Signal-to-Noise Ratio (SNR)

64 QAM: >23.5 dB @ BER<10^8

256 QAM*: >30 dB @ BER <10^-8 (For input level from +15 to -8 dBmV, SNR must be greater than 30 dB. For input level from -8 to -15 dBmV, SNR must be greater than 33 dB.)

Note These performance numbers are

Subscriber-End Broadband Access Router Data Operations

in laboratory-controlled conditions against statistically pure noise sources (AWGN). Because such conditions do not exist in practice, a 6 dB or more SNR margin is required for reliable operation. Check with your local system guidelines.

QPSK: >15 dB @ BER<10^-8 (QPSK will work at 98% successful ping rate for SNR >13 dB. A SNR of 15 dB will be needed to get almost optimal packets per minute transition.)

16 QAM: >22 dB @ BER <10^-8 (For 16 QAM, a SNR >22 dB makes the grade for 98% ping efficiency. To get good packet rate, you need SNR >25 dB).

Note These measurements were

made for 0 and –10 dBmV input to the CMTS, 1280 kilosymbols/second, and 64 bytes packet size with a Cisco uBR904 cable access router and laboratory-controlled conditions.

Security DES decryption: DOCSIS Baseline

Service Assignments

Each Cisco uBR900 series cable access router on the network is configured to receive data on a particular downstream channel. A downstream channel contains upstream segment(s). Each upstream segment typically serves more than one fiber node.

DES encryption Privacy (BPI), 40-bit, 56-bit, and 168-bit DES encryption, as controlled by the headend and configuration files.

Note Cisco IOS images must contain

encryption software at both the CMTS and the Cisco uBR900 series. Both routers must be enabled and properly configured to support encryption.

Cisco IOS Multiservice Applications Configuration Guide

MC-613

Subscriber-End Broadband Access Router Data Operations

Partitioning the upstream plant into smaller segments significantly reduces the number of potential ingress sources and failure points. The CMTS divides the cable plant into downstream channels and upstream segments or clusters of nodes.

Downstream and Upstream Data Transfer

When operating normally, the Cisco uBR900 series cable access router receives data addressed to it from the CMTS. The router reads the address in the header of the message, filters the message, and forwards it to the appropriate device at the subscriber site.

Note Bandwidth at the subscriber site is shared by the active data users connected to the network

segment.

For upstream data transfer, the Cisco cable access router uses a request/grant mechanism to obtain upstream bandwidth. The CMTS configures, via MAC messages, upstream parameters associated with transmissions from all Cisco cable access routers on the system. Service class registration is granted based on class assignment and load provisioning. Upstream channels are time-slotted and divided into basic scheduling time units.

The CMTS informs the Cisco cable access router of minislot structures on the upstream channel. Some minislots are marked as contention-based—shared by routers to make bandwidth (timeslot) requests with the CMTS. Others are grouped into unicast grants for specific routers to send their data bursts. Yet others are grouped into maintenance slots for keepalive messages from routers to the CMTS.

Configuring Subscriber-End Broadband Access Router Features

Bridging Applications

In bridging applications, the Cisco uBR900 series cable access router acts as a transparent bridge for up to 254 devices, depending on the version of Cisco IOS software you are using. Older versions of software allow a maximum of three CPE devices to be bridged. The cable access router is connected to the Internet through the coaxial cable interface. All four 10BaseT Ethernet ports are treated as one Ethernet interface by the Cisco IOS software. The IP addresses for the CPE devices and the coaxial cable interface are typically in the same subnet, although this is not a requirement.

Figure 111 shows the Cisco uBR900 series cable access router in a typical bridging environment. The Cisco uBR900 series complies with the DOCSIS standards for interoperable cable access routers; it supports full transparent bridging and DOCSIS-compliant transparent bridging.

Note If the attached CPE devices and the coaxial cable interface are in different IP subnets, the

cable interface must have a secondary address.

MC-614

Cisco IOS Multiservice Applications Configuration Guide

Configuring Subscriber-End Broadband Access Router Features

Figure 111 Cisco uBR900 Series Cable Access Router in a Bridging Configuration

Subscriber-End Broadband Access Router Data Operations

PC or hub

13305

Cisco uBR7200 series

CMTS

HFC network

CATV

coaxial cable

Cisco uBR900 series

cable access router

Ethernet

DOCSIS-compliant transparent bridging is the factory default configuration of the Cisco uBR900 series cable access router. If your cable service provider is using a DHCP server, all you need to do is connect the cables and power on the cable access router; your service provider configuration program will automatically configure both the coaxial cable interface and the bridging functionality. You need not set up IP addresses for the attached PCs or enter any CLI configuration commands. This type of operation is called “plug-and-play” bridging.

In DOCSIS-compliant bridging mode, the cable access router is able to locate a downstream and upstream channel; find the ToD, TFTP, and DHCP server(s); obtain an IP address; download a DOCSIS configuration file; and obtain DHCP parameters to work in a bridging mode.

You can configure a customized bridging application on the Cisco uBR900 series using a downloadable configuration file or the CLI. For details, see the sections “Configuring Bridging” and “Customizing the Cable Access Router Interface” later in this chapter.

Routing Applications

The Cisco uBR900 series cable access router can be configured to act as a router to preserve IP address space and limit broadcasts that can impact the performance of the network. A typical use would be if you are connecting the cable access router to an internal Ethernet hub that is connected to an existing PC network. The Cisco uBR900 series supports Routing Information Protocol Version 2 (RIP V2) for this application.

When configured in routing mode, the Cisco uBR900 series is automatically configured to use the headend IP address as its IP default gateway. This allows the cable access router to send packets not intended for the Ethernet interface to the headend when IP host-routing is configured.

RIP V2 routing is useful for small internetworks in that it enables optimization of Network Interface Center (NIC)-assigned IP addresses by defining variable-length subnet masks (VLSMs) for network addresses, and it allows classless interdomain routing (CIDR) addressing schema.

Cisco IOS Multiservice Applications Configuration Guide

MC-615

Subscriber-End Broadband Access Router Data Operations

Figure 112 Cisco uBR900 Series Cable Access Router in a Routing Configuration with a Hub

Cisco uBR7246

CMTS

HFC network

L2TP Protocol

L2TP is an emerging Internet Engineering Task Force (IETF) standard that combines the best features of two existing tunneling protocols: Cisco Layer 2 Forwarding (L2F) and Microsoft Point-to-Point Tunneling Protocol (PPTP). L2TP is an extension of PPP, which is an important component for access VPNs.

Traditional dialup networking services only supported registered IP addresses, which limited the types of applications that could be implemented over VPNs. L2TP supports multiple protocols and unregistered and privately administered IP addresses over the Internet. This allows the existing access infrastructure such as the Internet, modems, access servers, and ISDN terminal adapters (TAs) to be used.

CATV

coaxial cable

Cable

Modem

Configuring Subscriber-End Broadband Access Router Features

Ethernet Ethernet

HUB

LAN

13306

Easy IP

L2TP can be initiated wherever PPTP or L2F is currently deployed, and can be operated as a client initiated tunnel such as PPTP, or a network access server-initiated tunnel such as L2F.

The current implementation of L2TP in Cisco IOS software is dependent on a PPP connection supported on one of the directly attached interfaces. A dialup PPP connection is required in order to initiate an L2TP tunnel connection. This is a requirement of the L2TP Access Concentrator (LAC). Currently the Cisco uBR900 series cable access router cannot function as the LAC; it can only function as the L2TP Network Server (LNS), which terminates a tunnel created elsewhere in the network.

DHCP Server

Cisco uBR900 series cable access routers support Intelligent DHCP Relay and DHCP Client functionality. A DHCP Relay Agent is any host that forwards DHCP packets between clients and servers. A DHCP Relay Agent enables the client and server to reside on separate subnets. If the Cisco IOS DHCP server cannot satisfy a DHCP request from its own database, it can forward the DHCP request to one or more secondary DHCP servers defined by the network administrator using standard Cisco IOS IP helper-address functionality.

Network Address Translation and Port Address Translation

Network address translation (NAT) reduces the need for globally unique IP addresses. NAT allows an organization with addresses that are not globally unique to connect to the Internet by translating those addresses into globally routable address space.

MC-616

Cisco IOS Multiservice Applications Configuration Guide

Configuring Subscriber-End Broadband Access Router Features

Port address translation (PAT) is a similar mechanism that enables all internal hosts to share a single registered IP address (many-to-one translation). When combined, NAT/PAT has the following capabilities:

• Allows customers to maintain their own private networks while giving them full Internet access

through the use of one or more global IP addresses

• Allows several private IP addresses to use the same global IP address by using address overloading

• Facilitates configuration and permits a large network of users to reach the network by using one

Cisco uBR900 series cable access router and the same DOCSIS cable interface IP address

• Eliminates the need to readdress all hosts with existing private network addresses (one-to-one

translation) or by enabling all internal hosts to share a single registered IP address (many-to-one translation, also known as PAT)

• Enables packets to be routed correctly to and from the outside world by using the Cisco uBR900

series cable access router

• Allows personal computers on the Ethernet interface to have IP addresses to be mapped to the cable

interface IP address

Routing protocols will run on the Ethernet interface instead of the cable interface, and all packets received are translated to the correct private network IP address and routed out the Ethernet interface. This eliminates the need to run RIP on the cable interface.

Voice over IP Operations

To implement NAT on the Cisco uBR900 series, the Ethernet interface is configured with an “inside” address and the cable interface is configured with an “outside” address. The Cisco uBR900 series also supports configuration of static connections, dynamic connections, and address pools.

Voice over IP Operations

Note Voice features are available only on the Cisco uBR924 cable access router.

The Cisco uBR924 cable access router uses packets to transmit and receive digitized voice over an IP network. Voice signals are packetized and transported in compliance with H.323 or SGCP. H.323 is an International Telecommunications Union (ITU) standard that specifies call signalling and control protocols for a shared IP data network. SGCP is an alternative to the H.323 protocol that provides signalling and feature negotiation using a remote call agent (CA).

SGCP eliminates the need for a dial plan mapper. It also eliminates the need for static configuration on the router to map IP addresses to telephone numbers because this function is provided by the remote CA.

Figure 113 illustrates a broadband cable system that supports VoIP transmission. QoS and prioritization schemes are used to enable real-time (voice) and nonreal-time traffic to coexist on the same channel. The CMTS routes IP telephony calls intermixed with other data traffic.

Cisco IOS Multiservice Applications Configuration Guide

MC-617

Voice over IP Operations

Figure 113 Simplified VoIP over Cable Network

Service

provider

backbone

CMTS rack

equipment

Configuring Subscriber-End Broadband Access Router Features

Gateway/PSTN

CMTS rack

equipment

Policy

server

Cisco uBR924

Called party

Residence or SOHO

subscriber site 2

HFC

cable plant

18194

HFC

cable plant

Cisco uBR924

Calling party

Residence or SOHO

subscriber site 1

Gatekeeper or

calling agents

You can deploy IP telephony as a local-loop bypass service where voice packets are transferred from the CMTS to one of the following, depending on the signalling protocol used:

• A telephony gatekeeper when using H.323; the Cisco uBR924 acts as an H.323 gateway.

• A call agent when using SGCP.

The gatekeeper or call agents manage voice calls; the gateway interconnects the IP network to the Public Switched Telephone Network (PSTN). The gatekeeper must be running Cisco IOS Release 12.1 or later in order to support registration of the full E.164 address for each Cisco uBR924 port.

Voice calls are digitized, encoded, compressed, and packetized in the originating gateway, then decompressed, decoded, and reassembled in the destination gateway. A server maintains subscriber profiles and policy information.

You can place and receive calls without using the local exchange carrier. Two simultaneous voice and fax calls are supported to and from each subscriber site. Multiple telephones and fax devices can be connected to each of the two VoIP telephone lines at a subscriber site, providing the 5 REN limit is adhered to for each telephone line.

MC-618

Note the following requirements and characteristics of VoIP applications using the Cisco uBR924 cable access router:

• The telephones at each subscriber site must support touch-tone dialing; rotary dialing is not

supported.

• Special telephone features such as call waiting, call forwarding, and conferencing are not supported.

• A two-line telephone can be connected to the V1+V2 port on the Cisco uBR924.

Cisco IOS Multiservice Applications Configuration Guide

Configuring Subscriber-End Broadband Access Router Features

• Fax devices—standard Group III and computer-based Group III machines up to 14,400 baud—are

supported in Cisco IOS images that support VoIP.

• In general, fax/modem cards are not supported over VoIP links.

Contact your network management, provisioning, or operations team to determine what your network supports.

Voice Compression and Decompression

The Cisco uBR924 cable access router supports the following compression and decompression algorithms (codecs):

• G.711 A-law 64000 bps

• G.711 U-law 64000 bps

• G.723.1 5300 bps

• G.723.1 6300 bps

• G.726 16000 bps

Voice over IP Operations

• G.726 24000 bps

• G.726 32000 bps

• G.728 16000 bps

• G.729 Annex A 8000 bps

• G.729 8000 bps (default codec for telephone calls)

Note Because voice transmission is delay-sensitive, a well-engineered network is critical.

Fine-tuning your network to adequately support VoIP typically involves a series of protocols and features geared to support QoS.

To achieve acceptable voice quality and reduce network bandwidth usage, several voice processing techniques and services are employed, including echo cancellation, voice compression, voice activity detection (VAD) or silence compression, and dual tone multifrequency (DTMF) tone detection and generation.

The Cisco uBR924 cable access router supports multiple QoS service IDs (SIDs), enabling multiple classes of service on the cable interface. This enables VoIP and data traffic to be treated separately, with all data assigned to a default class of service, while VoIP traffic is assigned to a different class of service. Thus, voice traffic from the Cisco uBR924 telephone ports can take precedence over the data traffic coming from the Ethernet interfaces.

Note Separate class of service (CoS) streams are only available when the Cisco uBR924 is

connected to a CMTS that supports multiple classes of service per router. In addition, the router configuration file must specify the use of multiple classes of service.

If the Cisco uBR924 interoperates with a DOCSIS 1.0 CMTS that does not support multiple CoS per router, voice traffic will be transmitted on a best-effort basis along with data traffic. This may cause poorer voice quality and lower data throughput when calls are being made from the router telephone ports.

Cisco IOS Multiservice Applications Configuration Guide

MC-619

Voice over IP Operations

Configuring Subscriber-End Broadband Access Router Features

The Cisco uBR924 cable access router supports the following service classes:

• The first CoS in the router configuration file is configured as the “Tiered Best Effort Type Class”

used by the router as the primary QoS for all regular data traffic. The class has no minimum upstream rate specified for the channel.

This service class results in the assignment of a primary SID for the router. The router uses this SID for all MAC message exchanges with the CMTS, and as a data SID. Any SNMP management traffic from the network to the Cisco uBR924 will also use this SID.

Although this class is strictly best effort, data traffic within this class can be prioritized into eight different priority levels. The CMTS system administrator, however, must define the supported upstream traffic priority levels and include the traffic priority fields in the configuration file downloaded to the Cisco uBR924.

• When creating a configuration for the Cisco uBR924, the CMTS system administrator typically

configures extra classes of service. These secondary classes of service are expected to be higher QoS classes and are used by higher priority traffic such as voice. These classes have a minimum upstream rate specified for the channel.

The multiple SID-per-router feature enables the Cisco uBR924 to use multiple SID queues for differentiated services. The Cisco uBR924 diverts voice call traffic to the higher QoS secondary SID, while forwarding best-effort data from the Ethernet interface and MAC messages on the primary SID.

H.323 Protocol Stack

H.323 is an ITU standard that specifies call signalling and control protocols for a shared IP data network. The Cisco uBR924 cable access router acts as an H.323 gateway. In architectures using the VoIP H.323 protocol stack, the session application manages two call legs for each call: a telephony leg managed by the voice telephony service provider; the VoIP leg managed by the cable system operator—the VoIP service provider. Use of the H.323 protocol typically requires a dial plan and mapper at the headend or other server location to map IP addresses to telephone numbers.

When both legs of the call have been set up, the session application creates a conference between them. The opposite leg transmit routine for voice packets is given to each provider. The CMTS router passes data to the gateway and gatekeeper. The H.323 stack provides signalling via H.225 and feature negotiation via H.245.

To make and receive H.323 calls, the Cisco uBR924 cable access router must know the following:

• The IP address of the gateway for the destination dialed. You can configure these IP addresses

statically using the voip dial peer group CLI commands, or you can obtain these addresses dynamically from the gatekeeper using Registration, Admission, and Status (RAS).

• The telephone numbers of the attached devices. You can configure the telephone numbers attached

to the Cisco uBR924 by configuring the IP addresses statically using the pots port CLI commands. When using Cisco Network Registrar (CNR) version 3.0 or later with the relay.tcl and setrouter.tcl scripts, you can obtain these addresses dynamically from CNR. The telephone numbers of attached devices are then sent in DHCP response messages. When the Cisco uBR924 processes the DHCP response, it automatically creates the pots dial peer for each port, creates the voip dial peer for the RAS target, and starts the H.323 RAS gateway support.

MC-620

Note To support voice configurations involving Cisco gatekeeper products using RAS, the

headend must have IP multicast enabled. The cable interface must be designated as the default for RAS to discover the gatekeeper. The gatekeeper then resolves all dialed destinations sent to the RAS protocol.

Cisco IOS Multiservice Applications Configuration Guide

Configuring Subscriber-End Broadband Access Router Features

SGCP Protocol Stack

The Cisco uBR924 cable access router supports SGCP, an out-of-band signalling protocol that interacts with an external call agent to provide call setup and teardown for VoIP calls made through the Internet or a local intranet. Using the call control agent, SGCP communicates with the voice gateways, allowing you to create a distributed system that enhances performance, reliability, and scalability while still appearing as a single VoIP gateway to external clients. SGCP eliminates the need for a dial plan mapper and static configuration on the router to map IP addresses to telephone numbers because this function is provided by the external call agent.

In architectures using the SGCP protocol stack, the session application implements the gateway functionality defined to support both trunk and residential gateways. The Cisco uBR924 functions in this mode as a residential gateway with two endpoints.

SGCP can preserve signalling System 7 (SS7) style call control information and additional network information such as routing information and authentication, authorization, and accounting (AAA) security information. SGCP allows voice calls to originate and terminate on the Internet; it also allows one end to terminate on the Internet and the other to terminate on a telephone or PBX on the PSTN.

Note The Cisco uBR924 cable access router supports both H.323 and SGCP call control, but only

one method can be active at a time.

Voice over IP Operations

Subscriber-End Broadband Access Router Voice Specifications

Table 39 Cisco uBR924 Cable Access Router Voice Specifications

Metric Value

Loss (between DCS and BTI gateway) Nominal: 4 dB ±0.5 dB (off hook)

Nominal: 9 dB ±0.5 dB (on hook)

Attenuation distortion: DCS <> BTI (200 Hz to 3.5 kHz) BTI<> DCS (304 Hz to 3004 Hz) DCS -> BTI (204 Hz to 3004 Hz)

Idle channel noise <= 18 dBmC (noise shall not exceed)

Signal to C-notched noise >= 35 dB

Intermodulation distortion: R2 R3

Single frequency interference: 0 to 12 kHz 0 to 4 kHz

Frequency shift (offset) <= ±0.2 Hz (max)

Nominal: +1 dB/–3 dB ±0.5 dB ±0.5 dB0

>= 52 dB >= 52 dB

<= –28 dBmO <= –40 dBmO

<= ±0.1 Hz (99.5%)

Cisco IOS Multiservice Applications Configuration Guide

MC-621

Voice over IP Operations

Configuring Subscriber-End Broadband Access Router Features

Table 39 Cisco uBR924 Cable Access Router Voice Specifications (continued)

Metric Value

Amplitude tracking (input level, dBmO): –37 to 0 (on-hook) –37 to +3 (off hook) –50 to –37 (off-hook) –55 to –50 (off-hook)

Crosstalk <= -65 dBmO

Amplitude jitter 20 to 300 Hz 4 to 300 Hz

Phase jitter 20 to 300 Hz 4 to 300 Hz

Envelope delay distortion: 1704 Hz to 604 Hz 1704 Hz to 2804 Hz 1704 Hz to 204 Hz 1704 Hz to 3404 Hz

Hybrid balance:

Max Dev. Ave. Dev. <= ±0.5 dB <= ±0.5 dB <= ±0.25 dB <= ±1.0dB <= ±0.5 dB <= ±3.0 dB <= ±1.5 dB

<= 2.5% Peak <= 2.9% Peak

<= 1.5 P-P

<= 1.8 P-P

<= 350 usec <= 195 usec <= 580 usec <= 400 usec

Echo Return Loss (ERL)

SRL

Clipping: Speech segments < 5 ms Speech segments > 5ms

Impulse noise: (>= 6 dB below receive signal) 0 in 93% of all 15 min intervals

Phase hits (>= 10 deg) 0 in 99.75% of all 15 min intervals

Gain hits (>= ± 3 dB) 0 in 99.9% of all 15 min intervals

Dropouts (>= 12) 0 in 99.9% of all 15 min intervals

Backup POTS Connection

The Cisco uBR924 cable access router provides an RJ-11 port (line) that connects to a standard analog telephone wall jack. In the event of a building power failure or a Cisco uBR924 power problem, the cutover port lets you dial out using the backup PSTN line. If the Cisco uBR924 loses power while VoIP calls are in progress, you can reestablish one of the two connections—dialing out over the PSTN.

> 26 dB (standard test line) > 14 dB (station off hook)

> 21 dB (standard test line) > 11 dB (station off hook)

< 0.5%

0.0%

<= 1 count in all 30 min intervals

<= 1 count in all 60 min intervals

MC-622

Cisco IOS Multiservice Applications Configuration Guide

Configuring Subscriber-End Broadband Access Router Features

Subscriber-End Broadband Access Router Security Features

Note The backup POTS connection enables only one of the VoIP ports on the Cisco uBR924 to

function during a power outage. Calls in progress prior to the power outage will be disconnected. If power is reestablished while a cutover call is in progress, the connection will remain in place until the call is terminated. Once the cutover call is terminated, the router automatically reboots.

Subscriber-End Broadband Access Router Security Features

Cisco uBR900 series cable access routers support the security features described in the following sections.

DOCSIS Baseline Privacy

Support for DOCSIS Baseline Privacy in the Cisco uBR900 series is based on the DOCSIS Baseline Privacy Interface Specification (SP-BPI-I01-970922). It provides data privacy across the HFC network by encrypting traffic flows between the cable access router and the CMTS.

Baseline Privacy security services are defined as a set of extended services within the DOCSIS MAC sublayer. Two new MAC management message types, BPKM-REQ and BPKM-RSP, are employed to support the Baseline Privacy Key Management (BPKM) protocol.

The BPKM protocol does not use authentication mechanisms such as passwords or digital signatures; it provides basic protection of service by ensuring that a cable modem, uniquely identified by its 48-bit IEEE MAC address, can only obtain keying material for services it is authorized to access. The Cisco uBR900 series cable access router is able to obtain two types of keys from the CMTS: the traffic exchange key (TEK), which is used to encrypt and decrypt data packets, and the key exchange key (KEK), which is used to decrypt the TEK.

To support encryption/decryption, Cisco IOS images must contain encryption/decryption software at both the CMTS router and the Cisco uBR924 cable access router. Both the CMTS router and the Cisco uBR924 cable access router must be enabled and configured per the software feature set.

IPSec Network Security

IPSec Network Security (IPSec) is an IP security feature that provides robust authentication and encryption of IP packets. IPSec is a framework of open standards developed by the IETF providing security for transmission of sensitive information over unprotected networks such as the Internet. IPSec acts at the network layer (Layer 3), protecting and authenticating IP packets between participating IPSec devices (peers) such as the Cisco uBR900 series cable access router.

IPSec provides the following network security services:

• Privacy—IPSec can encrypt packets before transmitting them across a network.

• Integrity—IPSec authenticates packets at the destination peer to ensure that the data has not been

altered during transmission.

• Authentication—Peers authenticate the source of all IPSec-protected packets.

• Anti-replay protection—Prevents capture and replay of packets; helps protect against

denial-of-service attacks.

Cisco IOS Multiservice Applications Configuration Guide

MC-623

Subscriber-End Broadband Access Router Security Features

Triple Data Encryption Standard

DES is a standard cryptographic algorithm developed by the United States National Bureau of Standards. The Triple DES (3DES) Cisco IOS software release images increase the security from the standard 56-bit IPSec encryption to 168-bit encryption, which is used for highly sensitive and confidential information such as financial transactions and medical records.

Firewall

Cisco uBR900 series cable access routers act as buffers between any connected public and private networks. In firewall mode, Cisco cable access routers use access lists and other methods to ensure the security of the private network.

Cisco IOS firewall-specific security features include the following:

• Context-based Access Control (CBAC). This intelligently filters TCP and UDP packets based on the

application-layer protocol. Java applets can be blocked completely, or allowed only from known and trusted sources.

• Detection and prevention of the most common denial of service (DoS) attacks such as ICMP and

UDP echo packet flooding, SYN packet flooding, half-open or other unusual TCP connections, and deliberate misfragmentation of IP packets.

Configuring Subscriber-End Broadband Access Router Features

• Support for a broad range of commonly used protocols, including H.323 and NetMeeting, FTP,

HTTP, MS Netshow, RPC, SMTP, SQL*Net, and TFTP.

• Authentication Proxy for authentication and authorization of web clients on a per-user basis.

• Dynamic Port Mapping. Maps the default port numbers for well-known applications to other port

numbers. This can be done on a host-by-host basis or for an entire subnet, providing a large degree of control over which users can access different applications.

• Intrusion Detection System (IDS) that recognizes the signatures of 59 common attack profiles.

When an intrusion is detected, IDS can either send an alarm to a syslog server or to a NetRanger Director, drop the packet, or reset the TCP connection.

• User-configurable audit rules.

• Configurable real-time alerts and audit trail logs.

For additional information, see the Cisco IOS Firewall Feature Set description in the Cisco Product Catalog, or refer to the sections on traffic filtering and firewalls in the Cisco IOS Security Configuration Guide and Cisco IOS Security Command Reference available on CCO and the Documentation CD-ROM.

NetRanger Support—Cisco IOS Intrusion Detection

NetRanger is an Intrusion Detection System (IDS) composed of the following three parts:

• A management console (director), used to view the alarms and to manage the sensors.

• A sensor that monitors traffic. This traffic is matched against a list of known signatures to detect

misuse of the network. This is usually in the form of scanning for vulnerabilities or for attacking systems. When a signature is matched, the sensor can track certain actions. In the case of the appliance sensor, it can reset (via TCP/rst) sessions, or enable “shuns” of further traffic. In the case of the IOS-IDS, it can drop traffic. In all cases, the sensor can send alarms to the director.

• Communications through automated report generation of standardized and customizable reports and

QoS/CoS monitoring capabilities.

MC-624

Cisco IOS Multiservice Applications Configuration Guide

Configuring Subscriber-End Broadband Access Router Features

Subscriber-End Broadband Access Router Configuration Options

The Cisco uBR900 series cable access router typically ships from the factory ready to work in the Base IP Bridging Feature Set (DOCSIS-compliant bridging) data-only mode. The cable access router is configured automatically at startup by one or more configuration file generated by the cable service provider and downloaded to the router; no configuration or setup is required other than to connect the router to the cable system. The CMTS provides a path from the cable access router to the DHCP server for PC address assignment.

The PCs connected to the Cisco uBR900 series must be configured for IP. Using DHCP, the CMTS assigns an IP subnet address to the cable access router each time it connects to the network. The IP addresses of the cable access router and the individual PCs attached to it enable the CMTS to route data to and from the PCs.

Note When the Cisco uBR900 series cable access router is shipped from the factory, it is

configured by default for DOCSIS-compliant bridging.

The configuration file or files downloaded to the Cisco uBR900 series by the CMTS at the headend are dependent on the services purchased by the individual cable service subscriber. The cable access router is provisioned in the following manner:

• When the cable access router is first brought online, the CMTS downloads a binary file to the router

that is in DOCSIS-specified format. This file configures the router for the desired level of service and sets other parameters as needed.

• If additional features are required beyond basic DOCSIS-compliant bridging, the DOCSIS

configuration file can specify a Cisco IOS image that the CMTS should also download to the router. (To speed up the time required to bring the router online, the cable service provider can preload the Cisco uBR900 series with the appropriate image at the warehouse.)

• To customize the cable access router configuration further, the DOCSIS configuration file can also

specify a Cisco IOS configuration file that the CMTS should download to the router. This second configuration file is an ASCII text file that contains the Cisco IOS commands needed to further configure the router as desired.

Note The CMTS typically downloads the DOCSIS configuration file, Cisco IOS image (if

needed), and the Cisco IOS configuration file (if needed) only once when the router is initially brought online. However, a new configuration file or image can be downloaded whenever necessary, such as when the cable service provider offers new services or subscribers upgrade their services.

To ensure that you obtain the exact services that you have ordered, the Cisco uBR900 series arrives from the factory with a unique identifier (UID) that consists of a serial number and MAC address. These factory-assigned values are on a label at the bottom of the cable access router; for convenience, these values are also in a barcode label that can be easily scanned for entry into the service provider provisioning and billing system.

Cisco IOS Multiservice Applications Configuration Guide

MC-625

Configuring Subscriber-End Broadband Access Router Features

Subscriber-End Broadband Access Router Configuration Restrictions

Using the MAC address of the cable access router as the key, the CMTS downloads the DOCSIS configuration file and Cisco IOS image that will provide the services that you have purchased. Service technicians at the headend typically create a number of standard configuration files to match the range of services offered by the provider; these configuration files can be created manually or with tools provided for this purpose by Cisco.

The following sections describe the initial power-up and provisioning sequences in more detail, and the requirements that must be met by both the cable access router and the CMTS before provisioning can be successful.

Subscriber-End Broadband Access Router Configuration Restrictions

When using the Cisco uBR900 series cable access router, be aware of the following restrictions and limitations:

• The Cisco uBR900 series is able to implement multiple classes of service (CoS) on the cable

interface; however, separate CoS streams are only available when the cable access router is connected to a headend that supports multiple CoS per cable access router. In addition, the configuration file downloaded to the cable access router must specify the use of multiple CoS.

• If the Cisco uBR900 series is connected to a DOCSIS 1.0 headend that does not support multiple

CoS per cable access router, voice and data will be mixed, and voice traffic will be transmitted on a best-effort basis. This may cause poorer voice quality and lower data throughput when calls are being made from the cable access router telephone ports. Voice quality is also affected when large files are downloaded or transmitted, and by other substantial network traffic.

Note The Cisco uBR900 series cable access router is typically configured by the headend CMTS.

Most cable service providers do not permit local configuration by individual subscribers.

Note Before attempting to reconfigure a Cisco uBR900 series cable access router at a subscriber

site, contact your network administrator, provisioning manager, or billing system administrator to ensure that remote configuration is allowed. If remote configuration is disabled, settings you make and save at the local site will not remain in effect after the cable access router is powered down and back up. Instead, settings will return to the previous configuration.

Subscriber-End Broadband Access Router Initial Power-Up Sequence

MC-626

When connected and first powered up, the Cisco uBR900 series cable access router performs the following boot procedures:

• Boots the ROM from the ROMMON partition of its Flash memory.

• Performs a self-test, initializes processor hardware, and boots the main operating system

software—the Cisco IOS release image stored in NVRAM.

Cisco IOS Multiservice Applications Configuration Guide

Configuring Subscriber-End Broadband Access Router Features

Next, the Cisco uBR900 series performs a series of DOCSIS-mandated procedures for automatic installation and configuration. These procedures are summarized in Table 40 and in Figure 114.

Table 40 Cable Access Router Initialization Sequences and Events

Sequence Event Description

1. Scan for a downstream channel

and establish synchronization with the CMTS.

Subscriber-End Broadband Access Router Initial Power-Up Sequence

The Cisco uBR900 series acquires a downstream channel by matching the clock sync signal that is regularly sent out by the CMTS on the downstream channel. The cable access router saves the last operational frequency in nonvolatile memory and tries to reacquire the saved downstream channel the next time a request is made.

Note An ideal downstream signal is one that

synchronizes QAM symbol timing, FEC framing, and MPEG packetization, and recognizes downstream sync MAC layer messages.

2. Obtain upstream channel

parameters.

3. Start ranging for power

adjustments.

The cable access router waits for an upstream channel descriptor (UCD) message from the CMTS and configures itself for the upstream frequency specified in that message.

The cable access router waits for the next upstream bandwidth allocation map message (MAP) from the CMTS to find the next shared request timeslot. The router then sends a ranging request message on the next available shared request timeslot, communicating its UID (its unique MAC address) using a temporary SID of 0 (zero) to indicate it has not yet been allocated an upstream channel.

In reply to the cable access router ranging request, the CMTS sends a ranging response containing a temporary SID to be used for the initial router configuration and bandwidth allocation. As needed, the router adjusts its transmit power levels using the power increment value given by the CMTS in its ranging response message.

Note At this point, the cable access router has

established connectivity with the CMTS but is not yet online. The next steps allocate “permanent” upstream and downstream frequencies, and the configuration required for IP network connectivity.

Cisco IOS Multiservice Applications Configuration Guide

MC-627

Subscriber-End Broadband Access Router Initial Power-Up Sequence

Table 40 Cable Access Router Initialization Sequences and Events (continued)

Sequence Event Description

4. Establish IP connectivity. After the next MAP message broadcast, the router uses

Configuring Subscriber-End Broadband Access Router Features

a shared require timeslot to invoke DHCP to establish IP connectivity with the TCP/IP network at the headend.

The DHCP server sends a response containing the router IP address and the IP addresses for the default gateway, ToD server, and TFTP server, and the DOCSIS configuration file to be downloaded. Depending on the particular network configuration, other information could be provided, such as the IP addresses for a syslog server or security server.

Note The DHCP server is typically a dedicated

server at the headend, but it could also be a CMTS such as a Cisco uBR7200 series universal broadband router.

The router configures itself for the specified IP address and gets the current date and time from the specified ToD ser ve r.

5. Establish the time of day. The cable access router accesses the ToD server for the

current date and time, which is used to create time stamps for logged events (such as those displayed in the MAC log file).

6. Establish security. Full Security, a planned enhancement to Baseline

Privacy, is not fully defined nor currently supported by the DOCSIS specification, and is therefore not supported by the Cisco uBR900 series.

MC-628

Cisco IOS Multiservice Applications Configuration Guide

Configuring Subscriber-End Broadband Access Router Features

Table 40 Cable Access Router Initialization Sequences and Events (continued)

Sequence Event Description

7. Transfer operational

parameters.

Subscriber-End Broadband Access Router Initial Power-Up Sequence

Using TFTP, the router downloads the specified DOCSIS configuration file and configures itself for the appropriate parameters. The DOCSIS configuration file defines the router operating mode such as the provisioned downstream and upstream service assignments, including assigned frequencies, data rates, modulation schemes, CoS, type of services to support, and other parameters. Cisco provides tools to help automate the creation of configuration files.

Note The DOCSIS configuration file must be in the

exact format given by the DOCSIS specification. An incorrect DOCSIS configuration file can cause the Cisco uBR900 series to constantly cycle offline. Such errors include wrong downstream frequency, wrong UCD, wrong downstream channel ID, invalid CoS, incorrect BPI privacy configurations or shared secret strings.

The cable access router sends another registration request to the CMTS containing the CoS parameters given in the DOCSIS configuration file.

The CMTS verifies that the router is using the appropriate CoS profile and converts the temporary SID into a data SID with a service class index that points to the applicable CoS profile.

8. Perform registration. The router completes its secondary ranging and is then

online, passing data between the HFC network and the PCs and other CPE devices that are connected to the router.

9. Comply with baseline privacy. If baseline privacy is configured and enabled on both

the router and CMTS, the router and CMTS negotiate the appropriate encryption/decryption parameters and exchange keys for privacy. After encryption is enabled, all information sent within Ethernet packets is encrypted to prevent interception or modification by an unauthorized party.

10. Enter the operational

maintenance state.

As soon as the Cisco uBR900 series cable access router has successfully completed the above sequence, it enters operational maintenance state.

At this point the router is online and operational in the basic DOCSIS bridging (“plug-and-play”) mode. If the DOCSIS configuration file specifies that the router must download a Cisco IOS image and a Cisco IOS configuration file, the router uses TFTP to download the image and configuration file into its local memory. It then installs the new Cisco IOS image and runs the configuration file.

Cisco IOS Multiservice Applications Configuration Guide

MC-629

Subscriber-End Broadband Access Router Initial Power-Up Sequence

Downloading a DOCSIS configuration file to a Cisco uBR900 series cable access router automatically causes the following actions:

• Ends all Telnet sessions

• Disables the cable access router console port, preventing local access to the CLI

• Performs a write-erase on the cable access router local configuration parameters

Telnet access to the router from the headend is still allowed, but only if the Cisco IOS configuration file includes enable and line vty passwords; if the configuration file does not include enable and line vty commands to specify these passwords, Telnet access and console access are both disabled.

The sequence numbers shown in Table 40 are also shown in Figure 114. The Cisco uBR900 series cable access router will complete all the steps shown in the table and flowchart each time it needs to reregister with the CMTS.

Configuring Subscriber-End Broadband Access Router Features

MC-630

Cisco IOS Multiservice Applications Configuration Guide

Configuring Subscriber-End Broadband Access Router Features

Figure 114 Cable Modem Initialization Flowchart

Power

Subscriber-End Broadband Access Router Initial Power-Up Sequence

Scan for

downstream

channel

Downstream

sync

established

Obtain

upstream

parameters

Upstream

parameter

acquired

Start

Ranging

Ranging and

auto adjust

completed

Establish

connectivety

Establish

security

Security

established

Transfer operational parameters

Transfer

complete

the Cisco uBR7246

Registration

complete

Baseline

privacy

initialization

complete

Establish

time of

day

Time of day established

Baseline

privacy

initialized

Operational

12960

Figure 115 illustrates the traffic flow during the initialization process.

Cisco IOS Multiservice Applications Configuration Guide

MC-631

Subscriber-End Broadband Access Router Basic Troubleshooting

Figure 115 Cisco uBR900 Series Cable Access Router Provisioning Overview

Configuring Subscriber-End Broadband Access Router Features

CMTS Interface

MAP Broadcast

Contains timesharing info Send UCD

DHCP Response: Contains IP addresses Default gateway, TOD server TFTP server address TFTP boot config file name

ToD Response

Registration Response Contains Assigned SID Cisco uBR900 series registered

Fail if QoS not available or authentication failed

Note For more detail on the provisioning process, see the DOCSIS 1.0 Radio Frequency

Cisco uBR900 series Cable Access Router

Power on Establish synch and wait for UCD

Obtain upstream parameters Use temporary SID Extract slot info and upstream

channel to use

Start ranging

Transmit ranging packet with SID

DHCP request/TFTP boot request Now in allocated slots

ToD Request

Registration Request

Send QoS Parameters Now in allocated slots

Cisco uBR900 series online

18195

Interface (RFI) specification (SP-RFII01-990731 or later revision).

After the Cisco uBR900 series cable access router goes online, it begins transferring data between the attached CPE devices and the network (Internet, intranet, VoIP). The cable service provider typically uses DHCP to assign IP addresses to the CPE devices. The number of IP addresses each subscriber can obtain depends on the services purchased from the provider.

Subscriber-End Broadband Access Router Basic Troubleshooting

A MAC-layer circular log file is stored inside the Cisco uBR900 series cable access router. This file contains a history of the log messages such as state event activities and time stamps. This is the most valuable information for troubleshooting the cable interface.

The MAC log file is displayed when you enter the show controllers cable-modem 0 mac log command in privileged EXEC mode.

The most useful display fields in this output are the reported state changes. These fields are preceded by the message through the various processes involved in establishing communication and registration with the CMTS. The normal operational state is is

wait_for_link_up_state.

Note Because the MAC log file holds only a snapshot of 1023 entries at a time, you should try

to display the file within 5 minutes after the reset or problem occurs.

CMAC_LOG_STATE_CHANGE. These fields show how the Cisco uBR900 series progresses

maintenance_state ; the normal state when the interface is shut down

MC-632

Cisco IOS Multiservice Applications Configuration Guide

Configuring Subscriber-End Broadband Access Router Features

The following is the normal progression of states as the Cisco uBR900 series registers with the CMTS:

wait_for_link_up_state ds_channel_scanning_state wait_ucd_state wait_map_state ranging_1_state ranging_2_state dhcp_state establish_tod_state security_association_state configuration_file_state registration_state establish_privacy_state maintenance_state

Following is an example of a MAC log file for a cable access router that has successfully registered with the headend CMTS. The output that is displayed is directly related to the messages that are exchanged between the Cisco uBR900 series and the CMTS.

uBR924# show controllers cable-modem 0 mac log

508144.340 CMAC_LOG_DRIVER_INIT_IDB_RESET 0x08098FEA

508144.342 CMAC_LOG_LINK_DOWN

508144.344 CMAC_LOG_LINK_UP

508144.348 CMAC_LOG_STATE_CHANGE ds_channel_scanning_state

508144.350 CMAC_LOG_WILL_SEARCH_DS_FREQUENCY_BAND 88/453000000/855000000/6000000

508144.354 CMAC_LOG_WILL_SEARCH_DS_FREQUENCY_BAND 89/93000000/105000000/6000000

508144.356 CMAC_LOG_WILL_SEARCH_DS_FREQUENCY_BAND 90/111250000/117250000/6000000

508144.360 CMAC_LOG_WILL_SEARCH_DS_FREQUENCY_BAND 91/231012500/327012500/6000000

508144.362 CMAC_LOG_WILL_SEARCH_DS_FREQUENCY_BAND 92/333015000/333015000/6000000

508144.366 CMAC_LOG_WILL_SEARCH_DS_FREQUENCY_BAND 93/339012500/399012500/6000000

508144.370 CMAC_LOG_WILL_SEARCH_DS_FREQUENCY_BAND 94/405000000/447000000/6000000

508144.372 CMAC_LOG_WILL_SEARCH_DS_FREQUENCY_BAND 95/123015000/129015000/6000000

508144.376 CMAC_LOG_WILL_SEARCH_DS_FREQUENCY_BAND 96/135012500/135012500/6000000

508144.380 CMAC_LOG_WILL_SEARCH_DS_FREQUENCY_BAND 97/141000000/171000000/6000000

508144.382 CMAC_LOG_WILL_SEARCH_DS_FREQUENCY_BAND 98/219000000/225000000/6000000

508144.386 CMAC_LOG_WILL_SEARCH_DS_FREQUENCY_BAND 99/177000000/213000000/6000000

508144.390 CMAC_LOG_WILL_SEARCH_SAVED_DS_FREQUENCY 699000000

508145.540 CMAC_LOG_UCD_MSG_RCVD 3

508146.120 CMAC_LOG_DS_64QAM_LOCK_ACQUIRED 699000000

508146.122 CMAC_LOG_DS_CHANNEL_SCAN_COMPLETED

508146.124 CMAC_LOG_STATE_CHANGE wait_ucd_state

508147.554 CMAC_LOG_UCD_MSG_RCVD 3

508147.558 CMAC_LOG_UCD_NEW_US_FREQUENCY 20000000

508147.558 CMAC_LOG_SLOT_SIZE_CHANGED 8

508147.622 CMAC_LOG_FOUND_US_CHANNEL 1

508147.624 CMAC_LOG_STATE_CHANGE wait_map_state

508148.058 CMAC_LOG_MAP_MSG_RCVD

508148.060 CMAC_LOG_INITIAL_RANGING_MINISLOTS 40

508148.062 CMAC_LOG_STATE_CHANGE ranging_1_state

508148.064 CMAC_LOG_RANGING_OFFSET_SET_TO 9610

508148.066 CMAC_LOG_POWER_LEVEL_IS 28.0 dBmV (commanded)

508148.068 CMAC_LOG_STARTING_RANGING

508148.070 CMAC_LOG_RANGING_BACKOFF_SET 0

508148.072 CMAC_LOG_RNG_REQ_QUEUED 0

508148.562 CMAC_LOG_RNG_REQ_TRANSMITTED

508148.566 CMAC_LOG_RNG_RSP_MSG_RCVD

508148.568 CMAC_LOG_RNG_RSP_SID_ASSIGNED 2

508148.570 CMAC_LOG_ADJUST_RANGING_OFFSET 2408

508148.572 CMAC_LOG_RANGING_OFFSET_SET_TO 12018

508148.574 CMAC_LOG_ADJUST_TX_POWER 20

508148.576 CMAC_LOG_POWER_LEVEL_IS 33.0 dBmV (commanded)

508148.578 CMAC_LOG_STATE_CHANGE ranging_2_state

508148.580 CMAC_LOG_RNG_REQ_QUEUED 2

Subscriber-End Broadband Access Router Basic Troubleshooting

Cisco IOS Multiservice Applications Configuration Guide

MC-633

Subscriber-End Broadband Access Router Basic Troubleshooting

508155.820 CMAC_LOG_RNG_REQ_TRANSMITTED

508155.824 CMAC_LOG_RNG_RSP_MSG_RCVD

508155.826 CMAC_LOG_ADJUST_RANGING_OFFSET -64

508155.826 CMAC_LOG_RANGING_OFFSET_SET_TO 11954

508155.828 CMAC_LOG_RANGING_CONTINUE

508165.892 CMAC_LOG_RNG_REQ_TRANSMITTED

508165.894 CMAC_LOG_RNG_RSP_MSG_RCVD

508165.896 CMAC_LOG_ADJUST_TX_POWER -9

508165.898 CMAC_LOG_POWER_LEVEL_IS 31.0 dBmV (commanded)

508165.900 CMAC_LOG_RANGING_CONTINUE

508175.962 CMAC_LOG_RNG_REQ_TRANSMITTED

508175.964 CMAC_LOG_RNG_RSP_MSG_RCVD

508175.966 CMAC_LOG_RANGING_SUCCESS

508175.968 CMAC_LOG_STATE_CHANGE dhcp_state

508176.982 CMAC_LOG_DHCP_ASSIGNED_IP_ADDRESS 188.188.1.62

508176.984 CMAC_LOG_DHCP_TFTP_SERVER_ADDRESS 4.0.0.1

508176.986 CMAC_LOG_DHCP_TOD_SERVER_ADDRESS 4.0.0.32

508176.988 CMAC_LOG_DHCP_SET_GATEWAY_ADDRESS

508176.988 CMAC_LOG_DHCP_TZ_OFFSET 360

508176.990 CMAC_LOG_DHCP_CONFIG_FILE_NAME platinum.cm

508176.992 CMAC_LOG_DHCP_ERROR_ACQUIRING_SEC_SVR_ADDR

508176.996 CMAC_LOG_DHCP_COMPLETE

508177.120 CMAC_LOG_STATE_CHANGE establish_tod_state

508177.126 CMAC_LOG_TOD_REQUEST_SENT

508177.154 CMAC_LOG_TOD_REPLY_RECEIVED 3107617539

508177.158 CMAC_LOG_TOD_COMPLETE

508177.160 CMAC_LOG_STATE_CHANGE security_association_state

508177.162 CMAC_LOG_SECURITY_BYPASSED

508177.164 CMAC_LOG_STATE_CHANGE configuration_file_state

508177.166 CMAC_LOG_LOADING_CONFIG_FILE platinum.cm

508178.280 CMAC_LOG_CONFIG_FILE_PROCESS_COMPLETE

508178.300 CMAC_LOG_STATE_CHANGE registration_state

508178.302 CMAC_LOG_REG_REQ_MSG_QUEUED

508178.306 CMAC_LOG_REG_REQ_TRANSMITTED

508178.310 CMAC_LOG_REG_RSP_MSG_RCVD

508178.312 CMAC_LOG_COS_ASSIGNED_SID 5/19

508178.314 CMAC_LOG_COS_ASSIGNED_SID 6/20

508178.316 CMAC_LOG_COS_ASSIGNED_SID 7/21

508178.318 CMAC_LOG_RNG_REQ_QUEUED 19

508178.320 CMAC_LOG_REGISTRATION_OK

508178.322 CMAC_LOG_REG_RSP_ACK_MSG_QUEUED 0

508178.324 CMAC_LOG_STATE_CHANGE establish_privacy_state

508178.326 CMAC_LOG_NO_PRIVACY

508178.328 CMAC_LOG_STATE_CHANGE maintenance_state

Configuring Subscriber-End Broadband Access Router Features

MC-634

You can display other aspects of the MAC layer by adding the following keywords to the show controllers cable-modem 0 mac command:

uBR924# show controllers cable-modem 0 mac ? errors Mac Error Log data hardware All CM Mac Hardware registers log Mac log data resets Resets of the MAC state Current MAC state

For examples and descriptions of how to use these keywords, see the show controllers cable-modem mac command reference page in the Cisco IOS Multiservice Applications Command Reference

publication.

The MAC log file gives a detailed history of initialization events that occur in the Cisco uBR900 series cable access router. All pertinent troubleshooting information is stored here.

Cisco IOS Multiservice Applications Configuration Guide

Configuring Subscriber-End Broadband Access Router Features

In the following paragraphs, a sample log file is broken down into the chronological sequence of events listed below. Sample comments are also included in the log file.

• Event 1—Wait for the Link to Come Up

• Event 2—Scan for a Downstream Channel, then Synchronize

• Event 3—Obtain Upstream Parameters

• Event 4—Start Ranging for Power Adjustments

• Event 5—Establish IP Connectivity

• Event 6—Establish the Time of Day

• Event 7—Establish Security

• Event 8—Transfer Operational Parameters

• Event 9—Perform Registration

• Event 10—Comply with Baseline Privacy

• Event 11—Enter the Maintenance State

Event 1—Wait for the Link to Come Up

When the Cisco uBR900 series cable access router is powered up and begins initialization, the MAC layer first informs the cable access router drivers that it needs to reset. The fields are similar to the shut and no shut conditions on a standard Cisco interface.

uBR924# show controllers cable-modem 0 mac log

528302.040 CMAC_LOG_LINK_DOWN

528302.042 CMAC_LOG_RESET_FROM_DRIVER

528302.044 CMAC_LOG_STATE_CHANGE wait_for_link_up_state

528302.046 CMAC_LOG_DRIVER_INIT_IDB_SHUTDOWN 0x08098D02

528302.048 CMAC_LOG_LINK_DOWN

528308.428 CMAC_LOG_DRIVER_INIT_IDB_RESET 0x08098E5E

528308.432 CMAC_LOG_LINK_DOWN

528308.434 CMAC_LOG_LINK_UP

Subscriber-End Broadband Access Router Basic Troubleshooting

LINK_DOWN and LINK_UP

Event 2—Scan for a Downstream Channel, then Synchronize

Different geographical regions and different cable plants use different RF frequency bands. A frequency band is a group of adjacent 6 MHz-wide channels. These bands are numbered from 88 to 99. Each band has starting and ending digital carrier frequencies and a 6 MHz step size. For example, a search of EIA channels 95 to 97 is specified using band 89. The starting frequency of band 89 is 93 MHz; the ending frequency is 105 MHz.

The Cisco uBR900 series’ default frequency bands correspond to the North American EIA CATV channel plan for 6 MHz channel slots from 90 to 858 MHz. For example, EIA channel 95 occupies the 90-to-96 MHz slot. The digital carrier frequency is specified as the center frequency of the slot, which is 93 MHz. Channel 95 is usually specified using the analog video carrier frequency of 91.25 MHz, which lies 1.75 MHz below the center of the slot.

Some CATV systems use alternative frequency plans such as the Incrementally Related Carrier (IRC) plan and Harmonically Related Carrier (HRC) plan. Cisco uBR900 series cable access routers support both of these plans. Most of the IRC channel slots overlap the EIA plan.

The Cisco uBR900 series uses a built-in default frequency scanning feature to find and lock onto a downstream channel. After the cable access router successfully finds a downstream frequency channel, it saves the channel to NVRAM. The router recalls this value the next time it needs to synchronize its frequency.

Cisco IOS Multiservice Applications Configuration Guide

MC-635

Subscriber-End Broadband Access Router Basic Troubleshooting

The downstream frequency search table is arranged so that the first frequencies that are scanned are above 450 MHz. Because many CATV systems have been upgraded from 450 MHz to 750 MHz coaxial cable, digital channels have a high chance of being assigned in the new spectrum. The search table omits channels below 90 MHz and above 860 MHz because the DOCSIS specification does not mandate their coverage.

The

CMAC_LOG_WILL_SEARCH_DS_FREQUENCY_BAND field tells you which frequencies the cable access

router will scan. The

CMAC_LOG_WILL_SEARCH_SAVED_DS_FREQUENCY field tells you the frequency the

router locked onto and saved to NVRAM for future recall. The field communicates the same information. The that the scanning and synchronization was successful.
