Cisco IR829 Integrated Services Router Hardware Installation Guide

August 2015

Americas Headquarters

Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 USA http://www.cisco.com Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

Text Part Number:

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR CISCO REPRESENTATIVE FOR A COPY.

The following information is for FCC compliance of Class A devices: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense.

The following information is for FCC compliance of Class B devices: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If the equipment causes interference to radio or television reception, which can be determined by turning the equipment off and on, users are encouraged to try to correct the interference by using one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Modifications to this product not authorized by Cisco could void the FCC approval and negate your authority to operate the product.

The Cisco implementation of TCP header compression is an adaptation of a program developed by the University of California, Berkeley (UCB) as part of UCB’s public domain version of the UNIX operating system. All rights reserved. Copyright © 1981, Regents of the University of California.

NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF THESE SUPPLIERS ARE PROVIDED “AS IS” WITH ALL FAULTS. CISCO AND THE ABOVE-NAMED SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR LIMITATION, THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.

IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL:

www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership

relationship between Cisco and any other company. (1110R)

Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual addresses and phone numbers. Any examples, command display output, network topology diagrams, and other figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone numbers in illustrative content is unintentional and coincidental.

Cisco IR829 Integrated Services Router Hardware Installation Guide

IMPLIED, INCLUDING, WITHOUT

CONTENTS

Cisco IR829 Integrated Services Router Hardware Installation Guide 1

CHAPTER

1 Product Overview 1-1

General Description 1-1

LEDs 1-4 Memory 1-6

SKU Information 1-6

Hardware Features 1-6

Platform Features for Cisco IR829 1-7 Reset Button 1-8

Antennas 1-8

Antennas and Installation Scenarios 1-8 Supported Cisco Antennas and Cables 1-10

Power Supply 1-22

SFP Modules 1-22

2 Installing the Router 2-1

Equipment, Tools, and Connections 2-2

Items Shipped with your Router 2-2 Additional Items 2-2 Ethernet Devices 2-3

CHAPTER

Installing the Router 2-3

Warnings 2-3 Accessing the SIM Cards 2-3 Installing Antennas 2-5 Mounting on a Wall, Table, or Other Flat Surface 2-5 Installing the Router Ground Connection 2-7

3 Connecting the Router 3-1

Preparing to Connect the Router 3-1

Preventing Damage to the Router 3-1 Connecting a PC, Server, or Workstation 3-2

Connecting a Terminal or PC to the Console Port 3-3

Cisco IR829 Integrated Services Router Hardware Installation Guide

Contents

Connecting to DC Power 3-3

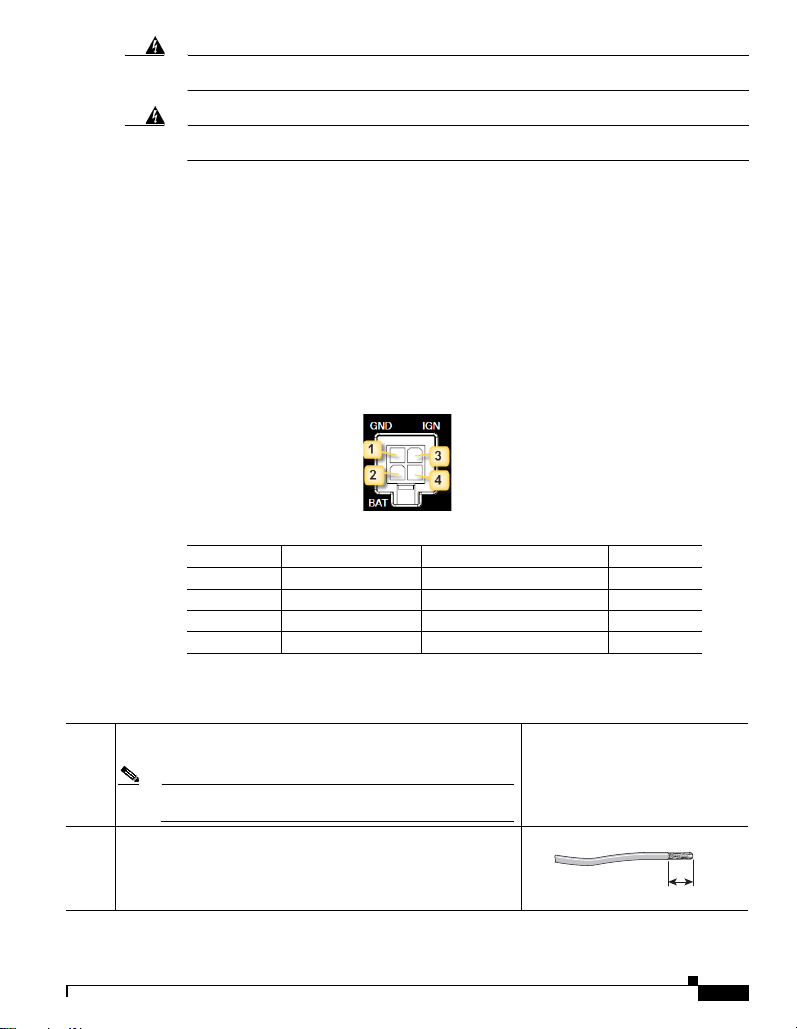

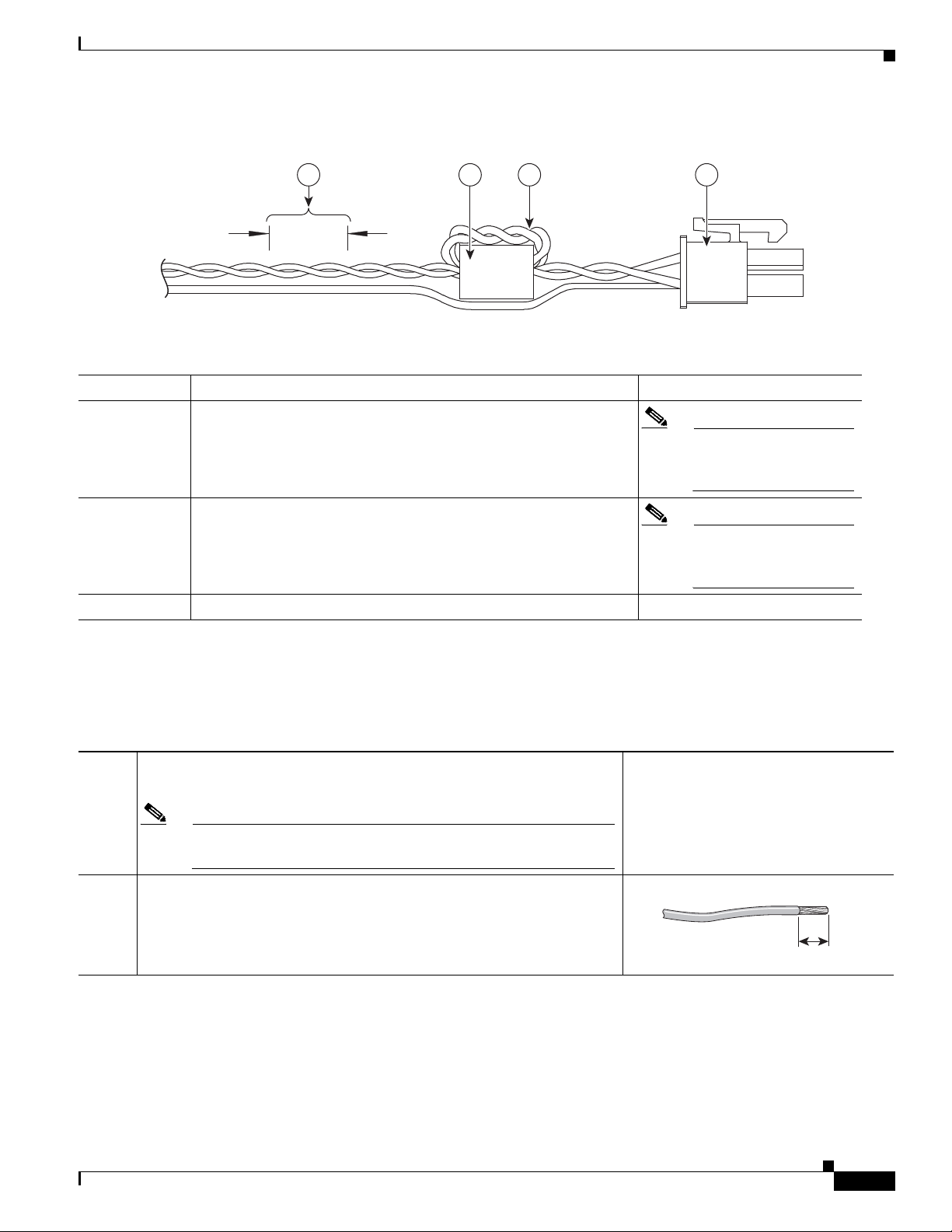

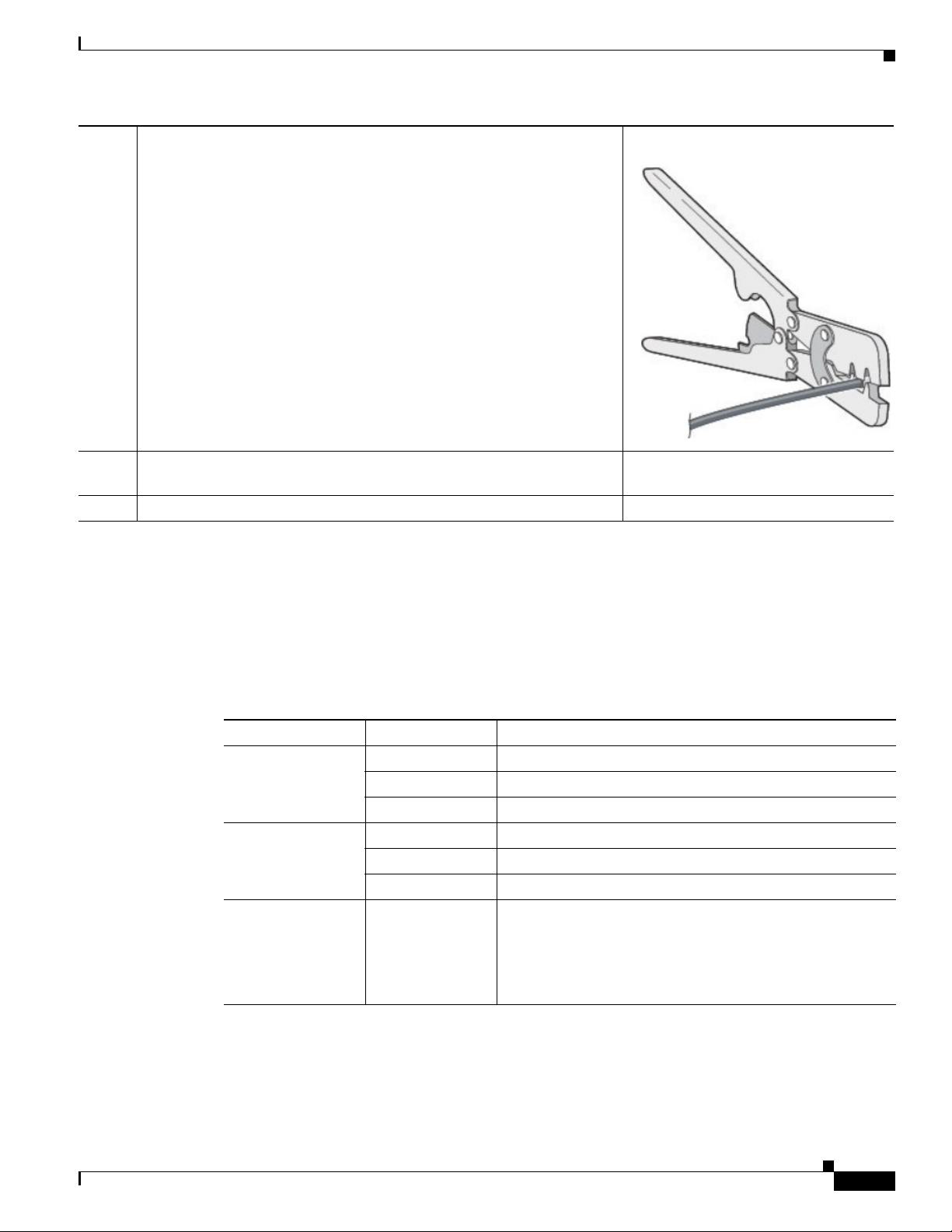

Plugs and Pin-Outs 3-4 Constructing a Power cable 3-4 Wiring the DC Power 3-5

Verifying Connections 3-6

CHAPTER

4 Initial Configuration 4-1

Setup Command Facility 4-1

Verifying the Initial Configuration 4-4

Where To Go From Here 4-4

800 Series Documentation 4-4

Cisco IR829 Differences 4-5

LEDs 4-5 Software Bundle Installation 4-6

5 Guest Operating System (Guest OS) Installation and Configuration 5-1

Guest Operating System Overview 5-1

Prerequisites 5-2

Guidelines and Limitations 5-2

Default Settings 5-2

Installation and Upgrade 5-2

Configuring Cisco IOS 5-3

Configuring the IR829 Ethernet Interface 5-3

IPv6 Gigabit Ethernet 5-3 Enabling IPv4 Gigabit Ethernet 5-4

Configuring DHCP Pool 5-4 Configuring Guest OS Interface on Cisco IOS 5-5 Enabling Guest OS Console 5-6

Configuring Guest OS 5-6

Starting Guest OS 5-6 Accessing Guest OS Console 5-6 Setting the Root Password 5-7 Enabling Remote SSH Access 5-7

Configuring NAT 5-8

Troubleshooting 5-9

Checking Connectivity 5-9

Related Documentation

• Regulatory Compliance and Safety Information for Cisco 800 Series and SOHO Series Routers

• Cisco IOS Release Notes

• Cisco 800 Series Integrated Services Routers Software Configuration Guide.

Searching Cisco Documents

To search an HTML document using a web browser, press Ctrl-F (Windows) or Cmd-F (Apple). In most browsers, the option to search whole words only, invoke case sensitivity, or search forward and backward is also available.

To search a PDF document in Adobe Reader, use the basic Find toolbar (Ctrl-F) or the Full Reader Search window (Shift-Ctrl-F). Use the Find toolbar to find words or phrases within a specific document. Use the Full Reader Search window to search multiple PDF files simultaneously and to change case sensitivity and other options. Adobe Reader’s online help has more information about how to search PDF documents.

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What’s revised Cisco

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What’s New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS

technical documentation, at:

New in Cisco Product Documentation, which also lists all new and

Ve r si o n 2.0.

Cisco 829 Integrated Services Router Hardware Installation Guide

Product Overview

This chapter provides an overview of the features available for the Cisco IR829 Integrated Services Routers (ISRs) and contains the following sections:

• General Description, page 1-1

• SKU Information, page 1-6

• Hardware Features, page 1-6

Note For compliance and safety information, see Regulatory Compliance and Safety Information for Cisco

800 Series and SOHO Series Routers.

General Description

CHA P T ER

The Cisco IR829 Integrated Services Router, part of the Cisco Integrated Services Routers Generation 2 (ISR G2) Family, is designed as a next generation ruggedized fixed form factor router. It is a a small-form factor cellular router targeting mobile/vehicle applications and includes WiFi to provide connectivity in non-carpeted IT spaces, Industrials, Utilities, Transportation, Infrastructure, Industrial M2M application, asset monitoring, Smart Grid, and Utility Application.

Figure 1-1 shows the IR829.

Figure 1-1 Cisco IR829 Integrated Services Router

Cisco IR829 Integrated Services Router Hardware Installation Guide

1-1

General Description

Chapter 1 Product Overview

Figure 1-2 shows the front panel details of the Cisco IR829.

Figure 1-2 Cisco IR829 Front Panel

1 CELLULAR 0 AUX 5 Serial Ports 2 Limited Modularity Slot 6 USB-A Port 3 Gigabit WAN 7 Power Input, Battery, and Ignition connector.

Refer to the DC Power section for pin-outs.

4 Gigabit LAN/PoE 8 WLAN ANT0 5GHz

Figure 1-3 shows the back panels details of the Cisco IR829.

Figure 1-3 Cisco IR829 Back Panel

1 WLAN ANT 0 2.4GHz 5 SIM connection 1 (SIM connection 0 is

above)

2 WLAN ANT 1 5GHz 6 WLAN ANT 1 2.4GHz 3 SIM Door Assembly 7 CELLULAR 0 MAIN 4 GPS SMA

1-2

Note Behind the SIM Door Assembly, there is a reset switch, Mini USB Debug connection, and Dual SIM

slots. See Figure 1-4 for details

Cisco IR829 Integrated Services Router Hardware Installation Guide

Chapter 1 Product Overview

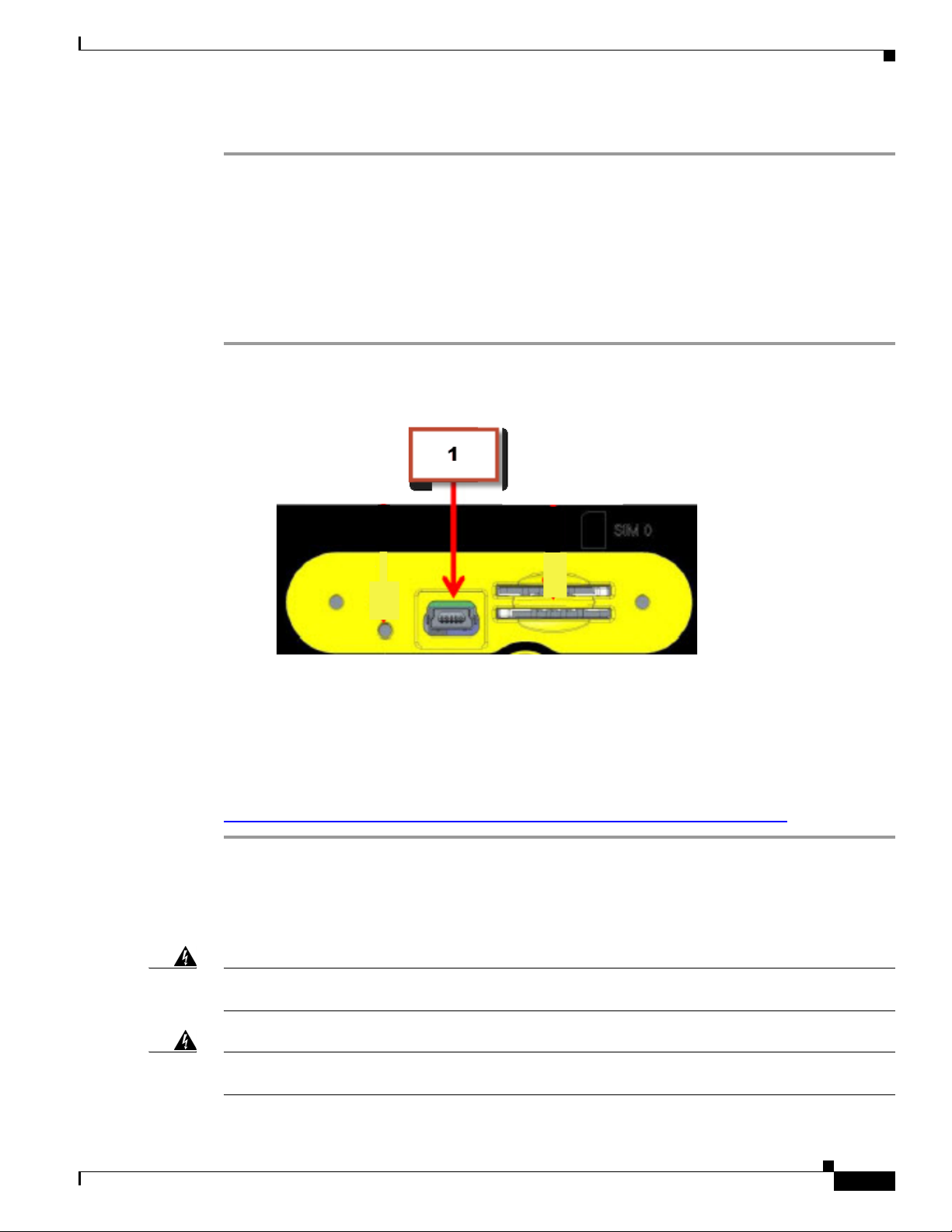

Figure 1-4 Behind the SIM Door

Figure 1-5 shows the top of the Cisco IR829.

General Description

Figure 1-5 Cisco IR829 Top Cover

Figure 1-6 shows the LED detail.

Cisco IR829 Integrated Services Router Hardware Installation Guide

1-3

General Description

LEDs

Chapter 1 Product Overview

Figure 1-6 Cisco IR829 LED Detail

The following section shows a detailed description of the LEDs.

The following table describes the LEDs for the Cisco IR829.

Ta b l e 1-1 LED Descriptions

LED Activity Description

PWR Power Status Off — No power

Green Steady on — Normal operation

Green Flashing — Boot up phase or in ROM Monitor mode

Yellow Steady on — System shutdown due to under or over voltage conditions

Yellow Flashing — System has an error, but has network connectivity

POE POE Power Supply

Status

Off — No -54V PoE power supply detected or no PoE board installed

Green Steady on — 53.5V POE power supply good and all powered port operating normally

Yellow Steady on — 53.5V POE power supply good, but one or more POE ports has a fault.

VPN VPN Off — No VPN tunnel

Steady on — At least one VPN tunnel is up

GE0 WAN Link Status Off — No link

Steady on — Link is up

Blink — Transmitting and Receiving data

1-4

Cisco IR829 Integrated Services Router Hardware Installation Guide

Chapter 1 Product Overview

Table 1-1 LED Descriptions (continued)

LED Activity Description

GPS GPS Status Off — GPS not configured

MOD

Ethernet LAN Switch Ports

GE1-GE4] Single LED per Port

WLAN 2.4GHz

On — GPS configured

Slow Flash — GPS Acquiring in Standalone GPS

Fast Flash — GPS Acquiring in Assisted GPS

Note Slow Flash is defined as the LED will be on for

Link Status/POE Status Off — No link

Green Steady on — Link is up

Green Blink — Transmitting and Receiving data

Yellow — POE Fault, implies no link

Off — Radio is down (no SSID configured)

General Description

0.25 seconds and off for 0.75 seconds. Fast Flash s defined as the LED will be on for

0.25 seconds and off for 0.25 seconds.

5GHz

CELLULAR0/

ACT

CELLULAR1

CELLULAR0/

RSSI

CELLULAR1

SIM0/SIM1 Sim cards

Figure 1-7 RSSI LED

RSSI RSSI (2) RSSI (1) RSSI (0)

<110dBm Off Off Off

-110 — 90dBm Off Off On - Yellow

Flashing Green — Bootloader, IOS Ethernet Initialization, IOS Start Up after system initialization.

Green to Red to Yellow — Discovery/Join process.

Rapid Flashing Green — Joined to a controller

Steady Green — One wireless client is associated.

Off — Module not powered on On — Module is powered on and connected but not transmitting or receiving Slow Blink — Module is powered on and searching for connection

Fast Blink — Module is transmitting or receiving.

The RSSI LEDs are a 3 LED bar graph to indicate signal strength. Their functionality is described in the RSSI LED figure below.

Off — No USIM Green — USIM installed and active

Green Green Green/Yellow

Cisco IR829 Integrated Services Router Hardware Installation Guide

1-5

SKU Information

Memory

Chapter 1 Product Overview

RSSI RSSI (2) RSSI (1) RSSI (0)

-90 — 75dBm Off Off On - Green

-75 — 60dBm Off On - Green On - Green

>60dBm On - Green On - Green On - Green

The Cisco IR829 uses flash memory and main memory. The flash memory contains the Cisco IOS software image and the boot flash contains the ROMMON boot code. All memory components are factory default and not upgradeable by the end user.

Table 1-2 shows the memory allocation.

Ta b l e 1-2 Cisco IR829 Memory

Memory Capacity

DDR 2GB

Boot ROM 16MB

System Flash 4GB

SKU Information

Table 1-1 lists the different SKUs available for the Cisco ISRs. All SKUs support external antenna.

Ta b l e 1-3 Supported SKUs for Cisco IR829s

SKU ID Description

IR829GW-LTE-VZAK9

IR829GW-LTE-NAAK9

IR829GW-LTE-GAEK9

IR829GW-LTE-GAZK9

Hardware Features

This section provides an overview of the following hardware features for the Cisco IR829.

• Platform Features for Cisco IR829, page 1-7

• Antennas, page 1-8

C829 Hardened WAN GE 4G LTE secure platform multi-mode Verizon LTE/DoRa with 802.11n, FCC compliant

C829 Hardened WAN GE 4G LTE secure platform multi-mode ATT and Canada LTE/HSPA+ with 802.11n, FCC compliant

C829 Hardened WAN GE 4G LTE secure platform multi-mode Global (Europe) LTE/HSPA+ with 802.11n, ETSI Compliant

C829 Hardened WAN GE 4G LTE secure platform multi-mode Global (Australia) LTE/HSPA+ with 802.11n, Australia Compliant

1-6

Cisco IR829 Integrated Services Router Hardware Installation Guide

Chapter 1 Product Overview

• Reset Button, page 1-8

• Supported Cisco Antennas and Cables, page 1-10

• Power Supply, page 1-22

Platform Features for Cisco IR829

The following lists the hardware platform features for the Cisco IR829.

• Intel Atom Dual-Core Rangeley CPU, 1250 MHz

• 2GB DDR3 memory capacity

• 64MB SPI BIOS NOR flash

• 8GB (4GB usable) “eMMC” bulk storage flash

• 4-port GE LAN switch, optional PoE 802.3at (30W max)

• WAN 1 GE SFP

• WWAN /WLAN

–

mini PCIe slots for 3G/4G/LTE modems, dual SIM

–

Single 802.11 a/b/n WiFi radio

Hardware Features

• Optional Limited Modularity (BYOI) slot'

• One RJ45 RS232 port

• One RJ45 RS232/RS485 Serial port

• One USB 2.0 Type A external port

• One mini USB connector

• Lithium Ion battery backed-up RTC

• External Reset/Recovery Push Button

• External Power

–

Direct-wire 12/24VDC vehicle charging system input (9 — 32VDC)

–

4-pin locking power connector

• External GPS SMA Connector

• Six External TNC/RP-TNC connectors (depends on the configuration) for connection to WWAN

/WLAN internal modules

• Class A EMC compliance

• RoHS6 compliance

• Mechanical

–

Fanless operation

–

Form-factor with no cable cover = 11.00” x 7.70” x 1.73” (WDH)

–

Horizontal, Vertical, wall, floor, cabinet-mount and shelf-mount

Cisco IR829 Integrated Services Router Hardware Installation Guide

1-7

Antennas

Reset Button

Note The rear cover must be removed to expose the reset switch.

Antennas

Chapter 1 Product Overview

The Reset button resets the router configuration to the default configuration set by the factory. To restore the router configuration to the default configuration set by the factory, use a standard size #1 paper clip with wire gauge 0.033 inch or smaller and simultaneously press the reset button while applying power to the router.

The IR829 has 4 x Wi-Fi antennas (2.4GHz & 5GHz) + 2 antennas for cellular RP-TNC bulkhead connectors.

Standard antennas are:

• Two multiband swivel-mount dipole antennae (ANT-4G-DP-IN-TNC) and one extender

(4G-AE010-R) are included with all the IR829s.

• WLAN: Three Cisco Multiband Swivel-Mount Dipole Antennae. (AIR-ANTM2050D-R) are

included for all IR829 SKUs that have WLAN functionality.

For detailed information about Cisco Antennas, please refer to the following guides:

Connected Grid Antennas Installation Guide:

http://www.cisco.com/c/en/us/td/docs/routers/connectedgrid/antennas/installing/cg_antenna_install_gu ide.html

Antennas for the Cisco 800 Series Routers:

http://www.cisco.com/c/en/us/support/routers/800-series-routers/products-installation-guides-list.html

Antennas and Installation Scenarios

Note Before choosing your antenna type and installation scenario, read through the following information.

Coexistence of radio standards:

When operating and planning installation of products with WiFi, 4G LTE, and GPS wireless standards coexisting on the IR829 platform, the user needs to provision greater than 15dB isolation between the WiFi and LTE antennas at all frequencies of 4G LTE and WiFI operation for minimum impact to performance.

Ideally, isolation should be 20-25dB or more. Specifically, users should not install 4G LTE dipoles and WiFi dipoles on the chassis at the same time, since doing so would generally result in less than 15dB isolation and may have a strong impact on performance depending on frequency bands in question.

Vehicular 5-in-1 and 2-in-1 installation and deployment notes

In the section that follows, the 5-in-1 antenna refers to ANT-5-4G2WL2G1-O, and 2-in-1 antenna refers to ANT-2-WLAN-D-O.

Cisco IR829 Integrated Services Router Hardware Installation Guide

1-8

Chapter 1 Product Overview

Figure 1-8 Sample Installation

Antennas

Installation

Users need to provision a 8 x 8" flat mounting surface with a mounting hole on the roof of the vehicle for the 5-in-1 antenna, and a 6 x 6" flat mounting surface with a mounting hole for the 2-in-1 WiFi antenna. Without a flat mounting surface, the antenna will not meet IP67 standards and may have reduced service life.

Ground plane

Cisco recommends having a 1 foot ground plane under both the 5-in-1 and 2-in-1 antennas. In case of a metal vehicle roof, the roof itself shall be the ground plane. While Cisco has investigated the effects of ground plane and no ground plane, wireless performance was certified with the 1 foot ground plane.

Isolation between 5-in-1 and 2-in-1 antennas

Cisco recommends 18" inch spacing between the 5-in-1 and the 2-in-1 antenna centers for optimal isolation.

Cisco recommends routing the 2.4GHz WLAN ports of the IR829 to the 2-in-1 antenna, and the 5GHz ports to the 5-in-1 antenna to optimize isolation between WiFi 2.4 GHz and cellular 4G LTE. The 5-in-1 antenna has been fully optimized for WiFI and cellular LTE coexistence and isolation. Connecting the

2.4GHz WiFi signals to a separate antenna simply allows to user to optimize the antenna isolation further. Both the 5-in-1 and 2-in-1 are dual band WiFi capable and fully support both 2.4 GHz or 5GHz WLAN signals.

Cisco IR829 Integrated Services Router Hardware Installation Guide

1-9

Antennas

MIMO ports on 5-in-1 and 2-in-1

Cellular and WLAN ports on the 5-in-1 and 2-in-1 antennas support MIMO technology. MIMO brings significant improvements in throughput and robustness of the wireless link in fading channels. Users choosing to connect only one wireless port on MIMO capable products are giving up significant wireless performance in both throughput and robustness of the link.

• The individual 4G antenna cables on the 5-in-1 antenna can be connected to either cellular port of

IR829. There is no one-to-one assignment requirement.

• The individual WLAN antenna cables on the 5-in-1 antenna and the 2-in-1 antenna can be connected

to any WLAN port of IR829. There is no one to one assignment requirement.

The following section shows some examples of different installation scenarios.

Supported Cisco Antennas and Cables

Table 1-4 lists the supported 4G/LTE Radio Modules/Cables/Antennas for Cisco IR829.

Ta b l e 1-4 4G/LTE Radio Modules/Cables/Antennas

Use Case Radio Module Indoor Cable

4G/LTE Case 1:

1' 2', 5', 10', 15' or 20' cable to mast mounted antenna, Stick Omni or Directional Flat Panel antenna

IR829GW-LTE

-GA-EK9

IR829GW-LTE

-GA-ZK9

IR829GW-LTE

-NA-AK9

IR829GW-LTE

-VZ-AK9

2x TNC(f)

None

Router located in outdoor protective enclosure

Lightning Arrestor or Adapter

Outdoor Cable Antenna

None RA-TNC(m) to

N(m), LMR-400-DB, 20', qty 2

• 37-1378-01

• "CAB-L400-2

0-TNC-N

Chapter 1 Product Overview

2x 4G Omni Stick, Standard Perf, 10” 2dBi, 1x N(f) each

• 07-1171-01

• ANT-4G-OMNI-O

UT-N

1x 4G Panel Antenna, 2x N(f) each

• 07-1172-01

4G/LTE Case 2: IR829GW-LTE

-GA-EK9

IR829GW-LTE

-GA-ZK9

IR829GW-LTE

-NA-AK9

IR829GW-LTE

-VZ-AK9

2x TNC(f)

Cisco IR829 Integrated Services Router Hardware Installation Guide

1-10

R/A-TNC(m) to N(m), LMR-240-FR/CMR, 2’, qty 2

• 37-100707-01 Note Not

available from Cisco

• ANT-4G-PNL-OUT

-N

1x 4G Panel Antenna, 2x N(f) each

• 07-1172-01

• ANT-4G-PNL-OUT

-N

Chapter 1 Product Overview

Table 1-4 4G/LTE Radio Modules/Cables/Antennas

Use Case Radio Module Indoor Cable

R/A-TNC(m) to N(m), LMR-240-FR/CMR, 1', qty 2

• 37-100705-01 Note Not

available from Cisco

R/A-TNC(m) to N(m), LMR-240-FR/CMR, 5', qty 2

• 37-100717-01

Antennas

Lightning Arrestor or Adapter Outdoor Cable Antenna

Note Not

available from Cisco

R/A-TNC(m) to N(m), LMR-240-FR/CMR, 10', qty 2

• 37-100754-01 Note Not

available from Cisco

R/A-TNC(m) to N(m), LMR-240-FR/CMR, 15', qty 2

• 37-100757-01 Note Not

available from Cisco

R/A-TNC(m) to N(m), LMR-240-FR/CMR, 20', qty 2

• 37-100758-01 Note Not

available from Cisco

Cisco IR829 Integrated Services Router Hardware Installation Guide

1-11

Antennas

Table 1-4 4G/LTE Radio Modules/Cables/Antennas

Use Case Radio Module Indoor Cable

4G/LTE Case 3:

Front Panel Swivel Mount 4G-LTE dipoles

IR829GW-LTE

-GA-EK9

IR829GW-LTE

-GA-ZK9

IR829GW-LTE

-NA-AK9

IR829GW-LTE

-VZ-AK9

2x TNC(f)

None

—OR

qty 2x

PID: 4G-AE010-R

CPN: 07-1144-01

10ft extension base for TNC dipole antennas

—OR

qty 2x

PID: 4G-AE015-R

CPN: 07-1145-01

Chapter 1 Product Overview

Lightning Arrestor or Adapter Outdoor Cable Antenna

None None Qty 2 x

4G Indoor Swivel Mount Dipole, 0 dBi, TNC(m), white

• 07-1174-01

• ANT-4G-DP-IN-TN

4G/LTE Case 4:

Front Panel Swivel Mount 4G-LTE dipoles

IR829GW-LTE

-GA-EK9

IR829GW-LTE

-GA-ZK9

IR829GW-LTE

-NA-AK9

IR829GW-LTE

-VZ-AK9

2x TNC(f)

15ft extension base for TNC dipole antennas

None

—OR

qty 2x

PID: 4G-AE010-R

CPN: 07-1144-01

10ft extension base for TNC dipole antennas

—OR

qty 2x

PID: 4G-AE015-R

CPN: 07-1145-01

15ft extension base for TNC dipole antennas

None None Qty 2 x

4G Indoor Swivel Mount Dipole, 0 dBi, TNC(m), black

• 07-1137-01

• 4G-LTE-ANTM-D

1-12

Cisco IR829 Integrated Services Router Hardware Installation Guide

Chapter 1 Product Overview

Table 1-4 4G/LTE Radio Modules/Cables/Antennas

Use Case Radio Module Indoor Cable

4G/LTE Case 5:

2x ceiling mount 4G-LTE antennas

IR829GW-LTE

-GA-EK9

IR829GW-LTE

None None None Qty 2 x

-GA-ZK9

IR829GW-LTE

-NA-AK9

IR829GW-LTE

-VZ-AK9

2x TNC(f)

GPS Case 1:

GPS Antenna with Integrated 15' coax cable, Mounted to top of Utility Cabinet Roof

Antennas

Lightning Arrestor or Adapter Outdoor Cable Antenna

4G Indoor omni-directional Ceiling Mount 2 dBi,

• 07-1121-01

• 4G-ANTM-OM-C

— OR

Qty 2 x

4G Dipole Ceiling Mount 2 dBi

• 07-1174-01

• ANT-4G-DP-IP-TN

GPS Antenna.

Need one with integrated coax cable and SMA(m) connector, 17ft, outdoor, IP67

• SMA(f), qty 1

qty 1

• 07-1183-01

• GPS-ACT-ANTM-S

MA=

Cisco IR829 Integrated Services Router Hardware Installation Guide

1-13

Antennas

Table 1-5 lists the supported Single Band Cisco WiFi antenna for the Cisco IR829.

Ta b l e 1-5 Supported Single Band Cisco WiFi Antenna

Use Case Radio Module Indoor Cable

WiFi Use Case 2:

Single Band, Front Panel Mounted Antennas

Dual Band Simultaneous

802.11n 2x2 MIMO WiFi

N/A N/A N/A 2x Single Band, Swivel

Connectors: 4x RP-TNC (jack)

WiFi Use Case 3:

Single Band, Single Element, Ceiling Mounted Antennas

Dual Band Simultaneous

802.11n 2x2 MIMO WiFi

Connectors: 4x RP-TNC (jack)

None

— OR

RP-TNC (jack) to RP-TNC (plug), Outdoor rated, Plenum rated, 0.195" O.D. cable, 5' long

Chapter 1 Product Overview

Lightning Arrestor or Adapter

Outdoor Cable Antenna

Mount Omni, RP-TNC(plug), 2.2dBi @ 2.4 GHz

07-1056-02

AIR-ANT4941

2x Single Band, Swivel Mount Omni, RP-TNC(plug), 3.5dBi @ 5 GHz

• 07-1055-02

• AIR-ANT5135

N/A N/A 2x Single Band, Ceiling

Mount Omni, 36” LONG RG-58 cable with RP-TNC (plug), 5.2dBi @ 2.4 GHz

• 74-1868-01

• AIR-ANT1728

2x Single Band, Ceiling Mount Omni, 36" LONG RG-58 cable with RP-TNC (plug), 5.2dBi @ 5 GHz

WiFi Use Case 4:

2.4 GHz, Dual Element, 5 GHz Single Element, Ceiling Mounted Antennas

Cisco IR829 Integrated Services Router Hardware Installation Guide

1-14

Dual Band Simultaneous

802.11n 2x2 MIMO WiFi

Connectors: 4x RP-TNC (jack)

• 37-1067-01

• AIR-CAB005

PL-R

None

— OR

RP-TNC(jack) to RP-TNC(plug), Outdoor rated, Plenum rated,

0.195” O.D. cable, 5’ long

37-1067-01

AIR-CAB005PL

-R

• 74-3733-01

• AIR-ANT5160V-R

N/A N/A 1x Single Band, Ceiling

Mount Omni, Dual Element, 36" LONG RG-58 cable with RP-TNC, 2.0dBi @ 2.4 GHz

• 800-33316-01

• AIR-ANT24020V-R

2x Single Band, Ceiling Mount Omni, 36" LONG RG-58 cable with RP-TNC (plug), 5.2dBi @ 5 GHz

• 74-3733-01

• AIR-ANT5160V-R

Chapter 1 Product Overview

Table 1-5 Supported Single Band Cisco WiFi Antenna(continued)

Lightning Arrestor or

Use Case Radio Module Indoor Cable

WiFi Use Case 5:

Single Band, Dual Element, Wall Mounted Antennas

Dual Band Simultaneous

802.11n 2x2 MIMO WiFi

None None

Adapter Outdoor Cable Antenna

— OR

RP-TNC lightning

arrestor, Connectors: 4x RP-TNC (jack)

qty 4

• 74-3722-

• AIR-AC

C245L A-R

None

— OR

RP-TNC(plug) to RP-TNC(jack)

LMR-400-DB, 5'

qty 4

• 37-0766-01

• AIR-CAB005LL

-R

— OR

RP-TNC(plug) to RP-TNC(jack)

LMR-400-DB, 20'

qty 4

• 72-2760-02

• AIR-CAB020LL

-R

— OR

Antennas

1x Single Band, Dual Element, Wall Mount Patch, 18" LONG RG-58 cable with RP-TNC, 6.5dBi @ 2.4 GHz

• 800-27066-01

• AIR-ANT2465P-R

1x Single Band, Dual Element, Wall Mount Omni, 18" LONG RG-58 cables with RP-TNC, 4.5dBi @ 5 GHz (INDOOR ONLY)

• 800-25716-06

• AIR-ANT5145V-R

— OR

1x Single Band, Dual Element, Wall Mount Patch, 18" LONG RG-58 cables with RP-TNC, 7.0dBi @ 5 GHz (INDOOR/OUTDOOR)

• 800-25718-05

• AIR-ANT5170P-R

RP-TNC(plug) to RP-TNC(jack)

LMR-400-DB, 50'

qty 4

• 72-2761-02

• AIR-CAB050LL

-R

— OR

RP-TNC(plug) to RP-TNC(jack)

LMR-600-DB, 100'

qty 4

• 72-2766-02

• AIR-CAB100U

LL-R

Cisco IR829 Integrated Services Router Hardware Installation Guide

1-15

Antennas

Table 1-5 Supported Single Band Cisco WiFi Antenna(continued)

Lightning Arrestor or

Use Case Radio Module Indoor Cable

WiFi Use Case 7:

Single Band, Dual Element, Wall Mounted Patch,

Dual Band Simultaneous

802.11n 2x2 MIMO WiFi

Indoor/ Outdoor Antennas

Connectors: 4x RP-TNC (jack)

Adapter Outdoor Cable Antenna

N(f) to N(f),

RF-adapter

qty 4

• 29-1008

18-01

• AIR-AC

C370NF-N F

RP-TNC(plug) to N(m)-R/A

LMR-240-DB, 5'

qty 4

• 37-1492-01

• AIR-CAB005LL

-R-N

Chapter 1 Product Overview

1x Single Band, Dual Element, Wall Mount Patch, 18" LONG RG-58 cable with N(m), 13dBi @ 2.4 GHz

• 07-1193-01

• AIR-ANT2413P2M-N

1x Single Band, Dual Element, Wall Mount Patch, 18" LONG RG-58 cable with N(m), 14dBi @ 5 GHz

• 07-1192-01

• AIR-ANT5114P2M-N

Table 1-6 lists the supported Dual Band Cisco WiFi antenna for Cisco IR829.

Ta b l e 1-6 Supported Dual Band Cisco WiFi Antenna

Use Case Radio Module Indoor Cable

WiFi Use Case 8:

Dual Band Front Panel Mounted Antennas

Dual Band Simultaneous

802.11n 2x2 MIMO WiFi

N/A N/A N/A 2x Dual Band, Swivel Mount

Connectors: 2x RP-TNC (jack)

Lightning Arrestor or Adapter

Outdoor Cable Antenna

Omni, RP-TNC(plug), 2dBi @ 2.4 GHz, 4dBi @ 5 GHz

• 07-1146-01

• AIR-ANT2524DB-R

1-16

Cisco IR829 Integrated Services Router Hardware Installation Guide

Chapter 1 Product Overview

Table 1-6 Supported Dual Band Cisco WiFi Antenna(continued)

Lightning

Arrestor or

Use Case Radio Module Indoor Cable

WiFi Use Case 9:

Dual Band, Dual Element, Wall Mounted Antennas

Dual Band Simultaneous

802.11n 2x2 MIMO WiFi

N/A N/A N/A 1x Dual Band, Dual Element

Adapter Outdoor Cable Antenna

Connectors: 2x RP-TNC (jack)

WiFi Use Case 10:

Dual Band Front Panel Mounted Antennas

Dual Band Simultaneous

802.11n 2x2 MIMO WiFi

Connectors: 2x RP-TNC (jack)

N/A N(f) to

N(f),

RF-adapter

qty 2

• 29-1008

18-01

• AIR-AC

C370NF-N F

RP-TNC(plug) to N(m)-R/A

LMR-240-DB, 5'

qty 2

• 37-1492-01

• AIR-CAB005LL

-R-N

Antennas

per Band, Omni, 18" LONG RG-58 cables with RP-TNC (plug), 2.0dBi @ 2.4 GHz (2 ports), 3.0dBi @ 5 GHz (2 ports)

• 07-1071-02

• AIR-ANT2451V-R

2400-2484MHz,

5150-5875MHz,

WiFi, omni-directional 4 dBi (2.4 GHz) 7 dBi (5 GHz) stick antenna indoor / outdoor with type N(m) connector,

qty 2

Antennas are IP66, IP67 and

-40 to +70C.

Table 1-7 lists the supported 7 in 1 antenna configuration for transportation for Cisco IR829.

Note In the following use cases, Lightning Arrestors are not required, and the Radio Modules are:

IR829GW-LTE-GA-EK9 IR829GW-LTE-GA-ZK9 IR829GW-LTE-NA-AK9 IR829GW-LTE-VZ-AK9

Ta b l e 1-7 7 in 1 Antenna Configuration for Transportation

• 07-1126-01

• AIR-ANT2547V-N=

White

— OR qty 2

• 07-1285-01

• AIR-ANT2547VG-N=

Gray

Cisco IR829 Integrated Services Router Hardware Installation Guide

1-17

Antennas

Chapter 1 Product Overview

1-18

Cisco IR829 Integrated Services Router Hardware Installation Guide

Chapter 1 Product Overview

Use Case Extension Cable Antenna

Transportation Use Case 1:

7 x RF ports, with the IR829 deployed in a transportation application.

(Default Configuration)

Quinta 5-in-1 antenna AND a WiFi 2-in-1 antenna to utilize all 7 ports.

The 5-in1 Quinta antenna and the 2-in1 WiFi antennas need to be separated 18" between mounting hole centers of the two antennas.

No extension cables are required if the IR829 is located within ~1.0ft of 5-in-1 antenna, and ~2.0ft of WiFi 2-in-1 antenna.

If these conditions are not met, this deployment requires the following extension cables:

Cellular extension cables (2 ports)

Qty 2X LMR-400-DB TNC(m)-R/A TNC(f), 5ft

• 4G-CAB-LMR400-5

• 37-100842-01

— OR

Qty 2X LMR-400-DB TNC(m)-R/A TNC(f), 10ft

• G-CAB-LMR400-10

Quinta 5 element 5-in-1 transportation antenna, black radome color, 2x 4G cellular, 2x dual band WiFi, 1xGPS

• ANT-5-4G2WL2G1-O

• 07-100261-01

Has the following integrated cables:

qty 2 x cellular, LMR-195, 2ft long, TNC(m)

qty 2 x WiFi, 2ft long, LMR-195 RPTNC (plug)

qty 1 x GPS, RG-174, 17ft long, SMA(m)

— AND

WiFi 2-in-1 2 element 2 in 1 transportation antenna, black radome color, 2x dual band WiFi

Antennas

• 37-100843-01

— OR

Qty 2X LMR-400-LLPL

plenum / indoor only

TNC(m)-R/A - TNC(f), 20ft

• 4G-CAB-ULL-20

• 37-1401-01

— AND

• ANT-2-WLAN-D-O

• 07-100265-01

Has the following integrated cables:

qty 2 x WiFi, 3ft long, LMR-240 RPTNC(plug)

Cisco IR829 Integrated Services Router Hardware Installation Guide

1-19

Antennas

Use Case Extension Cable Antenna

Transportation Use Case 1 Continued:

WiFi 2.4 GHz / 5GHz extension cables

(4 ports, can mix and match lengths per installation requirements if needed)

Qty 4x LMR-400-DB RPTNC(plug) STR RPTNC(jack) - STR, 5ft

• AIR-CAB005LL-R

• 37-0766-01

— OR

Qty 4x LMR-400-DB RPTNC(plug)-R/A RPTNC(jack)-STR, 10ft

• CAB-L400-10-R

• 37-100844-01

— OR

Qty 4x LMR-400-DB RPTNC(plug)-STR RPTNC(jack)-STR, 20ft

• AIR-CAB020LL-R

Chapter 1 Product Overview

• 72-2760-02

— AND

GPS port

No extension cable required, 5-in-1 antenna comes with integrated active GPS antenna with 17ft cable.

1-20

Cisco IR829 Integrated Services Router Hardware Installation Guide

Chapter 1 Product Overview

Use Case Extension Cable Antenna

Transportation Use Case 2:

7 x RF ports, with the IR829 deployed in a transportation application.

(Alternate Configuration, can be used in case the application calls for the WiFi antennas to be separate from the LTE antenna for example. a ceiling mount WLAN).

This case describes a Tercia 3-in-1 transportation antenna (which covers MIMO cellular and GPS) together with qty 2 x 2-in-1 WiFi antennas.

Note A CUSTOM CEILING

MOUNT BRACKET IS REQUIRED FOR THE 2-in-1 antenna if installed in a ceiling mount configuration (NOT SUPPLIED BY CISCO)

No extension cables are required if the IR829 unit is located within ~1.0ft of 3-in-1 antenna, and ~2.0ft of WiFi 2-in-1 antenna.

If these conditions are not met, this deployment requires the following extension cables:

Cellular extension cables:

(2 ports)

Qty 2X LMR-400-DB TNC(m)-R/A TNC(f), 5ft

• 4G-CAB-LMR400-5

• 37-100842-01

— OR

Qty 2X LMR-400-DB TNC(m)-R/A TNC(f), 10ft

• 4G-CAB-LMR400-10

• 37-100843-01

— OR

Qty 2X LMR-400-LLPL plenum / indoor

Tercia 3 element 3-in-1 transportation antenna, black radome color, 2x 4G cellular, 1xGPS

• ANT-3-4G2G1-O

• 07-100263-01

Has the following integrated cables:

qty 2 x cellular, LMR-195, 2ft long, TNC(m)

qty 1 x GPS, RG-174, 17ft long, SMA(m)

— AND

QTY 2 of 2-in-1 antennas

WiFi 2-in-1 2 element 2 in 1 transportation antenna, black radome color, 2x dual band WiFi

• ANT-2-WLAN-D-O

• 07-100265-01

Has the following integrated cables:

qty 2 x WiFi, 3ft long, LMR-240 RPTNC (plug)

only

TNC(m)-R/A - TNC(f), 20ft

• 4G-CAB-ULL-20

• 37-1401-01

Note A CUSTOM CEILING

— AND

WiFi 2.4 GHz / 5GHz extension cables (4 ports, can mix and match lengths per installation requirements if needed)

Qty 4x LMR-400-DB RPTNC(plug) STR RPTNC(jack) - STR, 5ft

• AIR-CAB005LL-R

Antennas

MOUNT BRACKET IS REQUIRED FOR THE 2-in-1 antenna if installed in a ceiling mount configuration (NOT SUPPLIED BY CISCO)

• 37-0766-01

— OR

Qty 4x LMR-400-DB RPTNC(plug)-R/A RPTNC(jack)-STR, 10ft

• CAB-L400-10-R

• 37-100844-01

— AND

GPS port - No extension cable required, 3-in-1 antenna comes with integrated active GPS antenna with 17ft cable.

Cisco IR829 Integrated Services Router Hardware Installation Guide

1-21

Power Supply

The Cisco IR829 comes with an external power connector.

• Direct-wire 12/24VDC vehicle charging system input (9 — 32VDC).

• 4-pin locking power connector.

SFP Modules

The router Ethernet SFP modules provide connections to other devices. These field-replaceable transceiver modules provide the uplink interfaces. Local connectors (LCs) provide the fiber-optic connection. RJ-45 connectors allow copper connections. You can use any combination of the supported SFP modules listed in the table that follows.

Type of SFP Module Model

Rugged and Industrial SFPs –40 to 185°F (–40 to 85°C)

Chapter 1 Product Overview

Table 1-8 Maximum Operating Temperature

GLC-SX-MM-RGD with digital optical monitoring

(DOM) support

GLC-LX-SM-RGD with digital optical monitoring

(DOM) support

GLC-ZX-SM-RGD with digital optical monitoring

(DOM) support

For minimum software requirements, refer to the Release Notes for your platform.

For the most up-to-date list of supported SFP models for Cisco Industrial Ethernet switches, see

http://www.cisco.com/en/US/docs/interfaces_modules/transceiver_modules/compatibility/matrix/OL_

6981.html#wp138176

1-22

Cisco IR829 Integrated Services Router Hardware Installation Guide

CHA P T ER

Installing the Router

This chapter describes the equipment and the procedures for successfully installing the Cisco IR829 and contains the following sections:

• Equipment, Tools, and Connections, page 2-2

• Installing the Router, page 2-3

Caution Do not place anything on top of the router that weighs more than 10 pounds (4.5 kilograms), and do not

stack routers on a desktop. Excessive weight on top of the router could damage the chassis.

Caution Do not install the router or power supplies next to a heat source of any kind, including heating vents.

Warning

Read the installation instructions before connecting the system to the power source.

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

No user-serviceable parts inside. Do not open.

Ultimate disposal of this product should be handled according to all national laws and regulations.

Statement 1040

Statement 1052

Statement 1073

Statement 1004

Cisco IR829 Integrated Services Router Hardware Installation Guide

2-1

Equipment, Tools, and Connections

Chapter 2 Installing the Router

Warning

This product is not intended to be directly connected to the Cable Distribution System. Additional regulatory compliance and legal requirements may apply for direct connection to the Cable Distribution System. This product may connect to the Cable Distribution System ONLY through a device that is approved for direct connection.

Equipment, Tools, and Connections

This section describes the equipment, tools, and connections necessary for installing your Cisco IR829. It contains the following topics:

• Items Shipped with your Router, page 2-2

• Additional Items, page 2-2

• Ethernet Devices, page 2-3

Items Shipped with your Router

Unpack the box and verify that all items listed on the invoice were shipped with the Cisco IR829.

The following items are shipped with your router:

• Getting Started Guide Part Number 78-100611

• Power Cable components

• Grounding Lug

• Ethernet Cable Part Number 75-1501-01

Statement 1078

Additional Items

The following items are not shipped with the router but are required for installation:

• ESD-preventive cord and wrist strap.

• Screws for mounting the router on a wall.

• Two number-10 wood screws (round- or pan-head) with number-10 washers or two number-10

• Two number-10 wall anchors with washers, for mounting the router on a hollow wall.

• Wire crimper for chassis grounding.

• Wire for connecting the chassis to an earth ground.

• AWG 14 (2 mm2) or larger wire for NEC-compliant chassis grounding.

• AWG 18 (1 mm2) or larger wire for EN/IEC 60950–compliant chassis grounding.

• Ethernet cables for connecting to the Fast Ethernet (FE) WAN and LAN ports.

• Ratcheting torque flathead screwdriver that exerts up to 15 in-lb (1.69 N-m) of pressure.

• A number-2 Phillips screwdriver.

Cisco IR829 Integrated Services Router Hardware Installation Guide

2-2

washer-head screws, for mounting on a wall stud. The screws must be long enough to penetrate at least 3/4 inch (20 mm) into the supporting wood or metal wall stud.

Chapter 2 Installing the Router

Ethernet Devices

Identify the Ethernet devices that you will connect to the router: hub, servers, and workstations or PCs. Ensure that each device has a network interface card (NIC) for connecting to Ethernet ports.

If you plan to configure the software using Cisco IOS commands through the console port, provide an ASCII terminal or a PC that is running terminal emulation software to connect to the console port.

Installing the Router

This section describes how to install the Cisco IR829. This router can be installed on a table top or other flat horizontal surface mounted on a wall or DIN rail.

The recommended clearance when horizontally mounted is 1.5 inches on both sides for floor mount bracket clearance and 2 inches on top. Top clearance is not required but stacking heat-dissipating objects on top of the router is not allowed. I/O side clearance is needed as it is required to access the cable connections. Clearance is not required on the backside (opposite side from I/O face) unless DIN rail mounting is required. Clearance is required to attach and mount the DIN rail bracket. The same clearances apply when mounted vertically.

Installing the Router

This section also describes how to attach external antennas to the routers and contains the following topics:

• Warnings, page 2-3

• Accessing the SIM Cards, page 2-3

• Installing Antennas, page 2-5

• Mounting on a Wall, Table, or Other Flat Surface, page 2-5

• Installing the Router Ground Connection, page 2-7

Warnings

Warning

This equipment needs to be grounded. Use a green and yellow 12 to 14 AWG ground wire to connect the host to earth ground during normal use.

Accessing the SIM Cards

This section describes how to install and/or replace a SIM card. Ensure that the router is not mounted to a wall, floor, or DIN rail.

Statement 242

Caution Do not touch any part of the exposed PCB circuit area when the SIM cover is removed.

Warning

The covers are an integral part of the safety design of the product. Do not operate the unit without the covers installed.

Statement 1077

Cisco IR829 Integrated Services Router Hardware Installation Guide

2-3

Installing the Router

Chapter 2 Installing the Router

Warning

Hot surface.

Statement 1079

Note High Temperature SIMs are required for 4G operations if the Ambient temperature is above 95F (35C)

To access the SIM card in the Cisco IR829, follow these steps:

Step 1 Place the router on its bottom and ensure that any installed antennas are carefully oriented. Step 2 Remove the SIM access panel using two Phillips head screws. (See Figure 2-1.) Step 3 Locate the SIM card you wish to install/replace. Details are shown in Figure 2-2. Step 4 Remove the SIM card (if present) and install the new card(s).

Figure 2-1 Accessing the SIM Cards

Figure 2-2 Sim Card Detail

1. Reset Switch

2. Mini USB Port

3. Dual Sim Slots

Step 5 Replace the panel and the screws.

2-4

Cisco IR829 Integrated Services Router Hardware Installation Guide

Chapter 2 Installing the Router

Installing Antennas

Note Before you install the Cisco IR829 Integrated Services Router on a table, wall, or DIN rail, install the

antennas on the front panel. It is difficult to install the antennas after the router is installed.

There are four TNC connectors on the front side of the chassis. There are two TNC and one SMA connectors on the back side of the chassis. Two TNC connectors are used to connect to the 4G modem. The four TNC connectors at the back will be connected to the two 4G modems. The front two TNC connectors will be used for WiFi.

Orient the antennas. For optimum wireless performance, the antennas should be perpendicular with respect to the floor.

If the router is being mounted on a desk, orient the antennas straight up.

To attach the radio antennas to your wireless router, follow these steps:

Step 1 Manually screw the antenna tight to the TNC connectors on the back of the router.

Installing the Router

Step 2 Orient the antennas. For optimum wireless performance, antennas should be generally perpendicular to

each other.

Mounting on a Wall, Table, or Other Flat Surface

The Cisco IR829 has mounting holes on the bottom of the chassis for mounting the unit on a wall or other vertical surface. The attachment hardware is provided.

Tip When choosing a location for wall-mounting the router, consider cable limitations and wall structure.

Warning

Step 1 Locate the mounting holes on the router. There are 4 holes are shown circled in red in Figure 2-3.

Read the wall-mounting instructions carefully before beginning installation. Failure to use the correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.

To mount the router on a wall, follow these steps:

Statement 378

Cisco IR829 Integrated Services Router Hardware Installation Guide

2-5

Installing the Router

Chapter 2 Installing the Router

Figure 2-3 Cisco IR829 Mounting Holes

Step 2 Install the router to a wall stud using two number-10 wood screws, round- or pan-head, with number-10

washers or two number-10 washer-head screws. The screws must be long enough to penetrate at least 1.0 inch (25.4 mm) into the supporting wood or metal wall stud. (See

Figure 2-4 Mounted to wall

Note For hollow-wall mounting, each bracket requires two wall anchors with washers. Wall anchors and

Figure 2-4.)

washers must be size number 10.

2-6

Step 3 Route the cables so that they do not put a strain on the connectors or mounting hardware. Cables should

be routed down relative to the router to prevent water from traveling on the cables.

Cisco IR829 Integrated Services Router Hardware Installation Guide

Chapter 2 Installing the Router

Installing the Router Ground Connection

The router must be connected to a reliable earth ground. Install the ground wire in accordance with local electrical safety standards.

• For NEC-compliant grounding, use size 14 AWG (2 mm2) or larger copper wire and a ring terminal

with an inner diameter of 1/4 in. (5 to 7 mm).

• For EN/IEC 60950-compliant grounding, use size 18 AWG (1 mm2) or larger copper wire.

Installing the Router

Warning

This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority or an electrician if you are uncertain that suitable grounding is available.

This equipment needs to be grounded. Use a green and yellow 12 to 14 AWG ground wire to connect the host to earth ground during normal use.

Statement 242

Statement 1024

To install the ground connection, follow these steps:

Step 1 Locate the grounding lug attached to the back of the Cisco IR829. It will be attached underneath two

screws. Remove the screws holding it to the router and set it aside for reuse.

Step 2 Strip one end of the ground wire to the length required for the terminal. Step 3 Crimp the ground wire to the grounding lug using the wire crimper. Step 4 Attach the grounding lug to the chassis using the screws set aside in step 1. Tighten the screw to a torque

of 8 to 10 inch-pound (0.9 to 1.1 newton meter). (See

Figure 2-5 Chassis Ground Connection Points

Figure 2-5.)

Step 5 Connect the other end of the ground wire to a known reliable earth ground point at your site. Step 6 If you are using this router in a vehicle, attach the ring terminal to the chassis using one of the screws

provided and the green or green and yellow striped wire. Connect the other end of the wire to the vehicle ground.

After you install and properly ground the router, you can connect the power wiring, the LAN cables, and the cables for administrative access as required for your installation.

Cisco IR829 Integrated Services Router Hardware Installation Guide

2-7

Installing the Router

Chapter 2 Installing the Router

2-8

Cisco IR829 Integrated Services Router Hardware Installation Guide

CHA P T ER

Connecting the Router

This chapter describes how to connect Cisco IR829 Integrated Services Router (ISRs) to Ethernet devices and a network. The chapter contains the following sections:

• Preparing to Connect the Router, page 3-1

• Connecting a PC, Server, or Workstation, page 3-2

• Connecting a Terminal or PC to the Console Port, page 3-3

• Connecting to DC Power, page 3-3

• Verifying Connections, page 3-6

Note For compliance and safety information, see the Regulatory Compliance and Safety Information

Roadmap that ships with the router and

Series and SOHO Series Routers.

Regulatory Compliance and Safety Information for Cisco 800

Preparing to Connect the Router

Before you connect the router to the devices, install the router according to the instructions in Chapter 2,

“Installing the Router”.

Preventing Damage to the Router

To prevent damage to your router, follow these guidelines when connecting devices to your router:

• Turn off power to the devices and to the router until all connections are completed.

Caution Do not turn on the devices until after you have completed all connections to the router.

• If you must supply your own cable, see the “Technical Specifications” section on page 6-1 for

cabling specifications. If this appendix does not provide specifications for a particular cable, we strongly recommend ordering the cable from Cisco.

Cisco IR829 Integrated Services Router Hardware Installation Guide

3-1

Chapter 3 Connecting the Router

Connecting a PC, Server, or Workstation

To connect a PC (or other Ethernet devices) to an Ethernet switch port, follow these steps:

Step 1 Connect one end of the Ethernet cable to an Ethernet switch port on the router. In this example a PC is

being connected to GE LAN Port 2. See

Preparing to Connect the Router

Figure 3-1.

Figure 3-1 Connecting a Server, PC, or Workstation

1 Ethernet cable 3 RJ-45 port on the PC, Server, or Workstation 2 Ethernet switch port on the router

Step 2 Connect the other end of the cable to the RJ-45 port on the network interface card (NIC) that is installed

in the PC, server, or workstation.

Cisco IR829 Integrated Services Router Hardware Installation Guide

3-2

Chapter 3 Connecting the Router

Connecting a Terminal or PC to the Console Port

Step 3 (Optional) Connect additional servers, PCs, or workstations to the other Ethernet switch ports.

Connecting a Terminal or PC to the Console Port

Connect a terminal or PC to the Console port either to configure the software by using the CLI or to troubleshoot problems with the router.

To connect a terminal or PC to the console port on the router and access the CLI, follow these steps:

Step 1 Connect the mini-USB side of a cable to the USB Console port on the router. Figure 3-2 shows the

mini-USB location (1) for the Console port on the router.

Figure 3-2 Connecting a Terminal or PC to the Console Port

Step 2 Connect the opposite end of the mini-USB cable to the USB port on your laptop or PC. Step 3 To communicate with the router, wait for your laptop or PC to discover the new device. Step 4 If your laptop or PC warns you that you do not have the proper drivers to communicate with the router,

you can obtain them from your computers manufacturer, or go here:

https://www.silabs.com/products/mcu/Pages/USBtoUARTBridgeVCPDrivers.aspx

Connecting to DC Power

Warning

This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than 36 VDC, 5A

This product requires short-circuit (overcurrent) protection, to be provided as part of the building installation. Install only in accordance with national and local wiring regulations.

Statement 1005

Statement 1045

Cisco IR829 Integrated Services Router Hardware Installation Guide

3-3

Chapter 3 Connecting the Router

Plugs and Pin-Outs

The IR829 ships with a DC power accessory kit that contains a 4-pin locking connector and pins to use for the power connections. Four contacts are supplied, but only three are used. One is a spare.

The power entry receptacle is on the IR829. The pin-outs are shown in Figure 3.

Figure 3 Power Connector Pin-outs

Figure 4 Power connector Descriptions

Pin Number Name Description Color

1 DC In - DC Power Return (GND-) Black

2 Ignition Ignition Input (IGN) Blue

3 DC In + DC Power In (BAT+) Red

4N/A N/A N/A

Connecting to DC Power

Constructing a Power cable

Special care should be taken when making the connections for DC power. It is easy to make a mistake when crimping connections, and there is a very good tutorial available at Molex:

http://www.molex.com/tnotes/crimp.html

The specifications for the wiring are as follows:

• 16 AWG (1.02-to-1.29mm)

• UL1015 Rated

• Wires will be wound at 1 twist per inch

The example in Figure 3-5 shows a cable constructed with a ferrite for a different certification. You can build your cable without the ferrite eliminating items 2 and 3 in the diagram.

Cisco IR829 Integrated Services Router Hardware Installation Guide

3-4

Chapter 3 Connecting the Router

4 3 2 1

349790

Figure 3-5 Power cable

Details listed in the power cable example are:

1 4-pin locking connector

2 2 loops of DC power and power return wires only. Other wires that

may be used should run outside the Ferrite.

Connecting to DC Power

Note Ferrite bead and the

loops of wire are not needed at this time.

3 Ferrite Bead

4 Wires wound at 1 twist per inch

Wiring the DC Power

To connect the DC power on your Cisco IR829, follow these steps:

Step 1

Step 2

Identify the DC power source and measure 4 strands of copper wire 16 AWG (1.29mm) long enough to connect to the DC power source.

Note The maximum length of the cable before twisting is 15 feet (4.6

meters).

Using an 16-gauge wire-stripping tool, strip each of the wires coming from each DC-input power source to 0.25 inch (6.3 mm) ± mm). Do not strip more than 0.27 inch (6.8 mm) of insulation from the wire. Stripping more than the recommended amount of wire can leave exposed wire from the power connector after installation.

Note Ferrite bead and the

loops of wire are not needed at this time.

0.02 inch (0.5

333084

Cisco IR829 Integrated Services Router Hardware Installation Guide

3-5

Chapter 3 Connecting the Router

Verifying Connections

Step 3

Step 4

Step 5

Using the pins included in the kit, crimp each pin onto a wire.

Insert the pins into the power connector, referring to previous figures for guidance.

Plug the connector into the power entry receptacle.

Verifying Connections

To verify that all devices are properly connected to the router, first turn on all the connected devices, then check the LEDs. To verify router operation, refer to

For full LED description, see Chapter 1, “LEDs”

Ta b l e 3-1 Verifying the Router Operation

Power and Link LEDs to Check Normal Patterns

PWR Green steady On Normal operation

Green (blinking) Boot up phase or in ROM Monitor mode

Yel lo w System shutdown due to under or over voltage conditions

GE0 WAN Steady On Link is up

Flashing Transmitting and Receiving data

Off No network activity.

Ethernet LAN Switch Ports

Single LED per port

Off — No link

Green Steady on — Link is up

Green Blink — Transmitting and Receiving data

Yellow — POE Fault, implies no link

Table 3-1.

Cisco IR829 Integrated Services Router Hardware Installation Guide

3-6

Chapter 3 Connecting the Router

Table 3-1 Verifying the Router Operation (continued)

Power and Link LEDs to Check Normal Patterns

Sim cards SIM0/SIM1

Cellular Modems CELLULAR0/

CELLULAR1

Verifying Connections

Off — No USIM Green — USIM installed and active

Off — Module not powered on On — Module is powered on and connected but not transmitting or receiving Slow Blink — Module is powered on and searching for connection

Fast Blink — Module is transmitting or receiving.

Cisco IR829 Integrated Services Router Hardware Installation Guide

3-7

Initial Configuration

This chapter provides instructions for initial configuration of the Cisco IR829 Integrated Services Routers (ISRs). To create the initial configuration, the setup command facility prompts you for basic information about your router and network.

This chapter contains the following sections:

• Setup Command Facility, page 4-1

• Verifying the Initial Configuration, page 4-4

• Where To Go From Here, page 4-4

Setup Command Facility

The setup command facility guides you through the configuration process by prompting you for the specific information that is needed to configure your system. Use the setup command facility to configure a hostname for the router, to set passwords, and to configure an interface for communication with the management network.

To use the setup command facility, you must set up a console connection with the router and enter the privileged EXEC mode.

To configure the initial router settings by using the setup command facility, follow these steps:

CHA P T ER

Step 1 Set up a console connection to your router, and enter privileged EXEC mode. Step 2 In privileged EXEC mode, at the prompt, enter setup.

yourname# setup

The following message is displayed:

--- System Configuration Dialog ---

Would you like to enter the initial configuration dialog? [yes/no]:

You are now in the setup command facility.

The prompts in the setup command facility vary, depending on your router model, on the installed interface modules, and on the software image. The following steps and the user entries (in bold) are shown as examples only.

Cisco IR829 Integrated Services Router Hardware Installation Guide

4-1

Setup Command Facility

Step 3 When the following messages appear, enter yes to enter basic management setup.

Step 4 Enter a hostname for the router (this example uses Router).

Chapter 4 Initial Configuration

Note If you make a mistake while using the setup command facility, you can exit and run the setup

command facility again. Press Ctrl-C and enter the setup command at the privileged EXEC mode prompt (Router#). To proceed using the setup command facility, enter yes.

Would you like to enter the initial configuration dialog? yes

At any point you may enter a question mark '?' for help. Use ctrl-c to abort configuration dialog at any prompt.

Default settings are in square brackets '[]'.

Basic management setup configures only enough connectivity for management of the system, extended setup will ask you to configure each interface on the system

Would you like to enter basic management setup? [yes/no]: yes

Configuring global parameters: Enter host name [Router]: Router

Step 5 Enter an enable secret password. This password is encrypted (more secure) and cannot be seen when

viewing the configuration.

The enable secret is a password used to protect access to privileged EXEC and configuration modes. This password, after entered, becomes encrypted in the configuration. Enter enable secret: xxxxxx

Step 6 Enter an enable password that is different from the enable secret password. This password is not

encrypted (less secure) and can be seen when viewing the configuration.

The enable password is used when you do not specify an enable secret password, with some older software versions, and some boot images. Enter enable password: xxxxxx

Step 7 Enter the virtual terminal password, which prevents unauthenticated access to the router through ports

other than the console port.

The virtual terminal password is used to protect access to the router over a network interface. Enter virtual terminal password: xxxxxx

Step 8 Respond to the following prompts as appropriate for your network:

Configure SNMP Network Management? [yes]: Community string [public]:

A summary of the available interfaces is displayed. The following is an example summary and may not reflect your configuration:

Current interface summary

4-2

Any interface listed with OK? value "NO" does not have a valid configuration

Interface IP-Address OK? Method Status Protocol GigabitEthernet0 20.1.0.165 YES DHCP up up GigabitEthernet1 unassigned NO unset up up

Cisco IR829 Integrated Services Router

Chapter 4 Initial Configuration

Async0 unassigned YES unset up down Async1 unassigned YES unset up down GigabitEthernet2 unassigned NO unset up up Cellular0 unassigned NO unset down down Cellular1 unassigned NO unset down down

Step 9 Choose one of the available interfaces for connecting the router to the management network.

Enter interface name used to connect to the management network from the above interface summary: GigabitEthernet0

Step 10 Respond to the following prompts as appropriate for your network:

Configuring interface GigabitEthernet0:

Use the 100 Base-TX (RJ-45) connector? [yes]: yes Operate in full-duplex mode? [no]: yes Configure IP on this interface? [yes]: yes IP address for this interface: 172.1.2.3 Subnet mask for this interface [255.255.0.0] : 255.255.0.0 Class B network is 172.1.0.0, 26 subnet bits; mask is /16

The configuration is displayed:

The following configuration command script was created:

Setup Command Facility

Configure IP on this interface? [yes]: yes

hostname Router enable secret 5 $1$D5P6$PYx41/lQIASK.HcSbfO5q1 enable password xxxxxx line vty 0 4 password xxxxxx snmp-server community public ! no ip routing ! interface GigabitEthernet0 no shutdown speed 100 duplex auto ip address 172.16.2.3 255.255.0.0 !

Step 11 Respond to the following prompts. Enter 2 to save the initial configuration.

[0] Go to the IOS command prompt without saving this config. [1] Return back to the setup without saving this config. [2] Save this configuration to nvram and exit.

Enter your selection [2]: 2 Building configuration... Use the enabled mode 'configure' command to modify this configuration.

Press RETURN to get started! RETURN

The user prompt is displayed. Router>

Step 12 Verify the initial configuration. See the “Verifying the Initial Configuration” section on page 4-4 for

verification procedures.

Cisco IR829 Integrated Services Router Hardware Installation Guide

4-3

Verifying the Initial Configuration

After the initial configuration file is created, you can use the Cisco IOS CLI to perform additional configuration.

Verifying the Initial Configuration

To verify that the new interfaces are operating correctly, perform the following tests:

• To verify that the interfaces and line protocol are in the correct state—up or down—enter the show

interfaces command.

• To display a summary status of the interfaces configured for IP, enter the show ip interface brief

command.

• To verify that you configured the correct hostname and password, enter the show configuration

command.

After you complete and verify the initial configuration, you can configure your Cisco router for specific functions.

Chapter 4 Initial Configuration

Where To Go From Here

There are a wide variety of configuration options available on the Cisco IR829. The rest of this chapter will discuss different pieces of documentation to refer to, as well as point out the differences between this device and the rest of the 800 series routers.

800 Series Documentation

The home for all of the 800 series router documentation is here:

http://www.cisco.com/c/en/us/support/routers/800-series-routers/tsd-products-support-series-home.ht ml

Most of the Cisco IR829 configuration tasks are available in the Cisco 800 Series Integrated Services Routers Software Configuration Guide:

http://www.cisco.com/c/en/us/td/docs/routers/access/800/software/configuration/guide/SCG800Guide. htm

Some common tasks between the Cisco 800 series and the Cisco IR829 are listed here:

Configuring Wireless Devices

http://www.cisco.com/c/en/us/td/docs/routers/access/800/software/configuration/guide/SCG800Guide/ SCG800_Guide_BookMap_chapter_01001.html

Cisco 4G LTE Software Installation Guide

http://www.cisco.com/c/en/us/td/docs/routers/access/interfaces/software/feature/guide/EHWIC-4G-LT ESW.html

4-4

Cisco IR829 Integrated Services Router

Chapter 4 Initial Configuration

Cisco IR829 Differences

This section will discuss some of the ways that the Cisco IR829 differs from the rest of the 800 series.

LEDs

The Cisco IR829 has LEDs that are discussed in previous chapters in this guide. There is also a command that will show you the status of the LEDs if you are not near the device. Use the show platform led command with options to view the different output.

IR800#show platform led

LED STATUS: ==================================================

GE PORTS : GE0 GE1 GE2 GE3 GE4 LINK LED : GREEN GREEN GREEN GREEN OFF ================================================== PoE LED : GREEN

Cisco IR829 Differences

Cellular PORTS: Cellular0 RSSI LED 1 : Green RSSI LED 2 : Green RSSI LED 3 : Off GPS LED : Slow Blinking SIM0 LED : Green SIM1 LED : Off ================================================== VPN LED : OFF

System LED: amber, blinking

IR800#show platform led summary Ports LINK/ENABLE

-------+--------------GE0 GREEN GE1 GREEN GE2 GREEN GE3 GREEN GE4 OFF

-------+--------------PoE LED : GREEN

RSSI 1 RSSI 2 RSSI 3 GPS

-----+------------+------------+------------+------------Ce0 Green Green Off Slow Blink

-----+------------+------------+------------+-------------

Cellular SIM0 SIM1

--------+-------+------Ce0 Green Off

--------+-------+------VPN LED : OFF

System LED: amber, blinking

Cisco IR829 Integrated Services Router Hardware Installation Guide

4-5

Cisco IR829 Differences

IR800#show platform led system System LED: amber, blinking Summary of the LED status providers: Client Type Status

------------------------------ -------- -------GigabitEthernet5 critical OK

Note There may be a lag time between the LED indication on the router and what the show led commands

return.

Software Bundle Installation

The Cisco IR829 ships with the latest software available with the configuration that was ordered. There should be no reason to have to upgrade unless a failure occurs or you have been instructed to reload all software. Should the need arise, the following steps will assist in performing a bundle installation.

Overview:

1. Download the bundle to flash memory from a TFTP server.

2. Install the bundle from the Command Line Interface

Chapter 4 Initial Configuration

3. Save the configuration and reload the router to use the new image.

4. Download the 4G firmware upgrade.

Example:

Step 1 Copy the bundle from a TFTP server to your router.

IR800#copy tftp flash Address or name of remote host [223.255.254.254]? your ip address here Source filename [path to file/ir800-universalk9-bundle.SSA.156-0.3.T]? Destination filename [ir800-universalk9-bundle.SSA.156-0.3.T]? Accessing tftp://223.255.254.254/tachen/ir800-universalk9-bundle.SSA.156-0.3.T... Loading tachen/ir800-universalk9-bundle.SSA.156-0.3.T from 223.255.254.254 (via Vlan1): ! *Jun 25 18:28:45.685: %ARP-4-NULL_SRC_MAC: NULL MAC address from 99.99.0.1 on wl0!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!! [OK - 143536651 bytes]

143536651 bytes copied in 774.390 secs (185354 bytes/sec)

Step 2 The bundle download is complete, and now needs to be installed. Perform the bundle install flash:

< bundle iOS image name>

IR800#bundle install flash:ir800-universalk9-bundle.SSA.156-0.3.T Installing bundle image:

/ir800-universalk9-bundle.SSA.156-0.3.T...................................................

........................................

updating Hypervisor image... Sending file modes: C0444 23753557 ir800-hv.srp.SPA.0.28

command.

4-6

SRP md5 verification passed!

Cisco IR829 Integrated Services Router

Chapter 4 Initial Configuration

updating IOS image... Sending file modes: C0644 61505652 ir800-universalk9-mz.SSA.156-0.3.T

IOS md5 verification passed! Done!

IR800# *Jun 25 18:51:16.975: %SYS-5-CONFIG_I: Configured from console by bundle install command *Jun 25 18:51:16.975: %IR800_INSTALL-6-SUCCESS_BUNDLE_INSTALL: Successfully installed bundle image.

Step 3 Save the configuration and reload the router.

IR800#reload

Do you want to reload the internal AP ? [yes/no]: yes

System configuration has been modified. Save? [yes/no]: yes Building configuration...

[OK] Proceed with reload? [confirm]press return

*Jun 25 19:03:13.685: %SYS-5-RELOAD: Reload requested by console. Reload Reason: Reload Command.

Cisco IR829 Differences

Step 4 Download the 4G firmware or AP image. Instructions for uploading firmware are located here:

http://www.cisco.com/c/en/us/td/docs/routers/access/interfaces/software/feature/guide/EHWIC-4G-LT ESW.html

Search for “Upgrading the Modem Firmware”.

Cisco IR829 Integrated Services Router Hardware Installation Guide

4-7

Cisco IR829 Differences

Chapter 4 Initial Configuration

4-8

Cisco IR829 Integrated Services Router

CHA P T ER

Guest Operating System (Guest OS) Installation and Configuration

This chapter details Guest Operating System (Guest OS) installation for the Cisco IR829.

This chapter contains the following sections:

• Guest Operating System Overview, page 5-1

• Prerequisites, page 5-2

• Guidelines and Limitations, page 5-2

• Installation and Upgrade, page 5-2

• Configuring Cisco IOS, page 5-3

• Configuring Guest OS, page 5-6

• Configuring NAT, page 5-8

• Troubleshooting, page 5-9

• Related Documentation, page 5-9

Guest Operating System Overview

The IR829 supports a Hypervisor architecture to support multiple user-specified operating systems within independent Virtual Machines (VMs). Specific functions include Serial Relay and Network Address Translation (NAT).

Cisco IOS interacts closely with the platform and underlying Hypervisor. Cisco Guest OS allows you to run the Linux operating system (if within the memory, disk, and CPU budget) next to Cisco IOS on the Hypervisor. Cisco Guest OS does not require signing, allowing maximum deployment latitude; however you must ensure the integrity and proper behavior for any Guest OS that you install.

When you install the IR829 software bundle (image) on the router, the image automatically installs the supported Guest OS (Cisco IOS and Linux OS) instance(s). You can use the Linux Guest OS running on a VM on the IR829 to run utility applications.

The following example shows connectivity of Guest OS and Cisco IOS. A virtual interface (see

Configuring Guest OS Interface on Cisco IOS) managed by Cisco IOS provides network connectivity to

Guest OS. Cisco IOS forwards traffic from Guest OS through regular IP forwarding mechanisms.

Cisco IR829 Integrated Services Router Hardware Installation Guide

5-1

Prerequisites

Figure 5-1 Connectivity Between Cisco IOS and Guest OS

In this example, number 1 is the interface being used on the router and number 2 is the interface on the Linux OS. For the Cisco IR829, 1 is Gigabit Ethernet 5 and 2 is Eth 0.

Prerequisites

• Router must be running Cisco IOS.

Chapter 5 Guest Operating System (Guest OS) Installation and Configuration

Guidelines and Limitations

• The bundled Guest OS is based on Linux kernel version 3.8.11.

• You must configure Cisco IOS to provide Guest OS Connectivity.

Default Settings

The bundled Linux Guest OS:

• uses DHCP to acquire the IP address.

• does not have a default root password.

Installation and Upgrade

By default, IR829s ship with a software bundle that includes the latest versions of all of the required images such as Cisco IOS, Guest OS, and Hypervisor.

Use the following procedure to upgrade your router to the latest software bundle. It can take several minutes for the router to upgrade and install all of the images (Hypervisor, Cisco IOS, and Guest OS).

DETAILED STEPS

5-2

Step 1 Copy the bundle image to the IR829 IOS flash partition using scp or sftp.

Example bundle name: ir800-universalk9-bundle.SPA.<VERSION>

Step 2 Enter the following commands at the IR829 prompt:

Cisco IR829 Integrated Services Router

Chapter 5 Guest Operating System (Guest OS) Installation and Configuration

Command Purpose

bundle install flash: <bundle name>.CG Installs the specified bundle.

copy running config-config startup-config Saves the current running configuration.

reload Reloads the router.

Configuring Cisco IOS

This section describes how to configure the Cisco IOS VM to provide network connectivity to the Guest OS VM.

Guest OS connects to the network through a virtual Network Interface Card (VNIC) provided by the Hypervisor. Network attributes on the interface are statically configured or configured for DHCP to dynamically obtain IP addresses. Guest OS network connectivity is only through Cisco virtual network interface provided by the Hypervisor. Network attributes such as IP address, can be configured statistically or dynamically, and are obtained from Cisco IOS using DHCP requests. The bundled Linux Guest OS is configured to use DHCP.

Configuring Cisco IOS

IOS, using the

This section outlines the task to configure a Cisco IOS DHCP pool to provision the Linux Guest OS with an IP address, and an external Ethernet interface in Cisco IOS to allow the Guest OS network connectivity.

This section includes the following topics:

• Configuring the IR829 Ethernet Interface, page 5-3

• Configuring Guest OS Interface on Cisco IOS, page 5-5

• Enabling Guest OS Console, page 5-6

Configuring the IR829 Ethernet Interface

You must enable one of the external Ethernet interfaces on the IR829 to provide network connectivity. For details on interface configuration refer to the Cisco 800 Series Integrated Services Routers Software Configuration Guide:

http://www.cisco.com/c/en/us/td/docs/routers/access/800/software/configuration/guide/SCG800Guide. html

IPv6 Gigabit Ethernet

On Guest OS, IPv6 is enabled by default. The following example configuration uses IPv6 on Guest OS, where Guest OS is automatically assigned an IPv6 address by enabling prefix delegation on the Cisco IOS interface GigabitEthernet 5.

The following example configures G 0 for external connectivity:

interface GigabitEthernet 0 no switchport

ipv6 address autoconfig default ipv6 enable

Cisco IR829 Integrated Services Router Hardware Installation Guide

5-3

Chapter 5 Guest Operating System (Guest OS) Installation and Configuration

Configuring Cisco IOS

ipv6 dhcp client pd prefix-from-provider end

The following example configures G5 to allow the Guest OS network connectivity:

interface GigabitEthernet 5

duplex auto speed auto ipv6 address prefix-from-provider ::2:0:0:0:1/64 ipv6 enable end

Enabling IPv4 Gigabit Ethernet

To enable an external Gigabit Ethernet IPv4 interface on the IR829 to provide network connectivity, enter the following commands:

Command Purpose

config terminal Enters global configuration mode.

interface gig 0 Configures an IPv4 address on Gigabit Ethernet

interface 0, and enters interface configuration mode.

ip address 9.1.1.5 255.255.255.0 Sets the IP address and subnet mask for Gigabit

Ethernet interface 0.

no shutdown Enables the Gigabit Ethernet interface.

Configuring DHCP Pool

To configure a local DHCP pool, enter the following commands, one per line:

Note The subnet used for the local DHCP pool must be reachable externally. If you cannot allocate the whole

subnet to Guest OS, use a NAT-based configuration. See Configuring NAT.

Command Purpose

config terminal Enters global configuration mode.

ip dhcp pool gospool Names the local DHCP pool.

network 9.1.2.0 255.255.255.0 Sets the network address.

default-router 9.1.2.1 Sets the router address.

domain-name utility.com Sets the subnet address.

dns-server 9.1.1.1 Sets the DNS server address.

lease 5 Sets the duration of the IP address lease to five

days.

5-4

Cisco IR829 Integrated Services Router

Chapter 5 Guest Operating System (Guest OS) Installation and Configuration

Configuring Guest OS Interface on Cisco IOS

The Guest OS Ethernet port (eth0) connects to GigabitEthernet 5 on Cisco IOS. To configure the GigabitEthernet 5 interface with the default gateway address of the DHCP pool, enter the following commands:

Note IPv6 must always be enabled on GigabitEthernet 5.

Command Purpose

interface GigabitEthernet 5 Set the internal virtual interface that

ipv6 enable Enables IPv6.

ipv6 address 2001:DB8:FFFF:0000:0000:0000:0001 Sets the IPv6 address.

ipv4 enable Enables IPv4.

ipv4 address 9.1.2.1 255.255.255.0 Sets the IPv4 address.

no shutdown

Configuring Cisco IOS

connects to the Linux Guest OS.

Note There exists a condition where the IR829 could display slow performance if the guest OS is consuming

too many CPU resources.

By default, Guest OS gets 50% of one of the cores of the CPU. The following command allows you to change the percentage of CPU allocation to VDS out of 100. The rest will go to Guest OS. In the situation where you don't use the Guest OS, the CPU can be allocated 90% to VDS.

For Example:

IR800>en IR800#config t Enter configuration commands, one per line. End with CNTL/Z. IR800(config)#iox hypervisor ? sched-policy percentage of CPU ticks to VDS

IR800(config)#iox hypervisor sched-policy ? 10 VDS 10% Guest OS 90% 20 VDS 20% Guest OS 80% 30 VDS 30% Guest OS 70% 40 VDS 40% Guest OS 60% 50 VDS 50% Guest OS 50% 60 VDS 60% Guest OS 40% 70 VDS 70% Guest OS 30% 80 VDS 80% Guest OS 20% 90 VDS 90% Guest OS 10%

IR800(config)#iox hypervisor sched-policy 90

Cisco IR829 Integrated Services Router Hardware Installation Guide

5-5

Configuring Guest OS

Enabling Guest OS Console

For heightened security, Guest OS console is disabled by default. To enable Guest OS console, enter the following commands:

Command Purpose

config terminal Enters global configuration mode.

line 1/4 Specifies line 1/4 for configuration and enters line

transport input all Defines which protocols to use to connect to a

Configuring Guest OS

This section describes how to set the root password for Guest OS and enable SSH access. By default, SSH is disabled in Guest OS, this section describes the steps to reverse-Telnet into Guest OS, and enable SSH access.

Chapter 5 Guest Operating System (Guest OS) Installation and Configuration

configuration collection mode.

specific line of the router.

Starting Guest OS

By default, Guest OS starts after installation. To manually start the Guest OS, enter the following commands:

Command Purpose

show iox host list detail Displays OS: RUNNING if Guest OS is already

guest-os 1 start Starts Guest OS.

During start up, Guest OS sends a DHCP request and is assigned an IP address from the local DHCP pool. Guest OS is then configured with a hostname and sync time from IOS.

Note It can take a few minutes for the Guest OS to start.

Accessing Guest OS Console

The Guest OS console is accessible at port 2070 on any Cisco IOS interface. Use the following commands to access the Linux Guest OS console from Cisco IOS.

running. If it is, go to

Console.

Accessing Guest OS

5-6

Note You must first enable the Guest OS console as described in Enabling Guest OS Console.

Cisco IR829 Integrated Services Router

Chapter 5 Guest Operating System (Guest OS) Installation and Configuration

Command Purpose

telnet 9.1.2.1 2070 Accesses the Guest OS console. This uses the

EXAMPLE

Poky 9.0 (Yocto Project 1.4 Reference Distro) 1.4 qemux86 ttyS0

qemux86 login: root root@qemux86:~#

Setting the Root Password

Guest OS does not have a default root password. To set a root password, at the GOS prompt enter the following command.

Configuring Guest OS

address of the Gigabit Ethernet 5 port. The

following is the example result:

Note You must set a root password before turning on SSH access.

Command Purpose

[GOS] # passwd Runs the following UNIX password script. Enter

EXAMPLE

Changing password for user root. New UNIX password: Retype new UNIX password: passwd: all authentication tokens updated successfully. [GOS]#

An alternate method for changing the root password is shown in the following example:

IR800#iox host exec "resetpw cisco" IR800-GOS-1 Password reset successfully.

Enabling Remote SSH Access

By default, SSH access is disabled to prevent unauthorized access to Guest OS. To enable SSH server on the guest OS:

your desired password at the prompt.

Step 1 Launch the vi editor to edit the sshd_config file:

vi /etc/ssh/sshd_config

Step 2 Set the PermitRootLogin and PasswordAuthentication parameters to yes.

Cisco IR829 Integrated Services Router Hardware Installation Guide

5-7

Configuring NAT

Note Ensure that the PermitEmptyPasswords parameter is set to no.

Step 3 Restart SSHD:

Step 4 From the IOS command line, enter the following:

Chapter 5 Guest Operating System (Guest OS) Installation and Configuration

PermitRootLogin yes PasswordAuthentication yes PermitEmptyPasswords no

[GOS]# /etc/init.d/sshd stop Stopping sshd: [ OK ] [GOS]# /etc/init.d/sshd start Starting sshd: [ OK ] [GOS]#

IR800#iox host exec enablessh IR800-GOS-1

ssh enabled successfully.

You now have remote SSH access to Guest OS.

Configuring NAT

The following example configuration uses NAT for Guest OS network connectivity, where:

• 9.1.1.0 is the externally reachable subnet.

• 9.1.1.131 is the external IP address made available for Guest OS access.

• 192.168.1.0 is the private subnet created for Guest OS to Cisco IOS connectivity. This is not directly

reachable outside the IR829.

• The IP address acquired by Guest OS through IOS local DHCP pool is 192.168.1.2. This address

can be obtained using show iox host list details command from IOS.

ip dhcp pool gospool

network 192.168.1.0 255.255.255.0 default-router 192.168.1.1 domain-name utility.com dns-server 9.1.1.1 lease 5

interface gig 5

ip nat inside ip address 192.168.1.1 255.255.255.0 ipv6 enable no shutdown

interface gig 0

ip nat outside ip address 9.1.1.5 255.255.255.0 no shutdown

5-8

ip nat inside source static 192.168.1.2 9.1.1.131

! End of configuration

IR800#sh ip nat trans

Cisco IR829 Integrated Services Router

Chapter 5 Guest Operating System (Guest OS) Installation and Configuration

Pro Inside global Inside local Outside local Outside global tcp 9.1.1.131:22 192.168.1.2:22 9.1.1.3:53649 9.1.1.3:53649 tcp 9.1.1.131:60100 192.168.1.2:60100 9.1.1.3:22 9.1.1.3:22

--- 9.1.1.131 192.168.1.2 --- ---

Troubleshooting

To determine common causes of configuration failure, enter the following commands:

Command Purpose

ifconfig eth0 Checks if Guest OS is assigned an IP address. The

eth0 Link encap:Ethernet HWaddr 02:00:03:f1:cd:05

inet addr:9.1.2.2 Bcast:0.0.0.0 Mask:255.255.255.248 UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1 RX packets:2 errors:0 dropped:0 overruns:0 frame:0 TX packets:5 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000 RX bytes:684 (684.0 B) TX bytes:894 (894.0 B)

[GOS]#

netstat -r Displays the Guest OS route table. The following

Kernel IP routing table Destination Gateway Genmask Flags MSS Window irtt Iface default 9.1.2.1 0.0.0.0 UG 0 0 0 eth0

9.1.2.0 * 255.255.255.0 U 0 0 0 eth0 [GOS]#

show ip arp Verifies that Cisco IOS learned Guest OS ARP

Protocol Address Age (min) Hardware Addr Type Interface Internet 9.1.1.1 - 0022.bdef.c562 ARPA GigabitEthernet0 Internet 9.1.2.1 - 0022.bdef.c569 ARPA GigabitEthernet5 Internet 9.1.2.2 112 0022.bdef.c56d ARPA GigabitEthernet5 IR800#

Troubleshooting

following is example output:

is example output:

mapping.The following is example output:

Checking Connectivity

Use standard Linux tools (for example, ping and traceroute) to check Guest OS connectivity.

Related Documentation

Find Cisco 1000 Series Connected Grid Routers product documentation at:

www.cisco.com/go/cgr1000-docs.

Find Connected Grid Modules for Cisco 1000 Series Connected Grid Routers documentation at:

www.cisco.com/go/cg-modules

Cisco IR829 Integrated Services Router Hardware Installation Guide

5-9

Related Documentation

Chapter 5 Guest Operating System (Guest OS) Installation and Configuration

For information on supporting systems referenced in this guide, see the following documentation on Cisco.com:

Cisco ASR 1000 Series Aggregation Services Routers Configuration Guide

Cisco 3945 Series Integrated Services Router

Cisco 2000 Series Connected Grid Routers

Installation and Configuration Guide for Cisco Services Ready Engine Virtualization 1.1

Cisco IOS IP Application Services Command Reference

5-10

Cisco IR829 Integrated Services Router

Technical Specifications

This appendix provides router, port, cabling specifications, and power adapters for the Cisco IR829 Integrated Services Router (ISRs).

Note For compliance and safety information, see the Regulatory Compliance and Safety Information

Roadmap that was shipped with the router and

Cisco 800 Series and SOHO Series Routers.

Router Specifications

Table 6-1 lists the operational limits of the Cisco IR829. Operating the router outside of the limits

specified is not supported.

Ta b l e 6-1 Cisco IR829 Specifications

CHA P T ER

Regulatory Compliance and Safety Information for

Description Design Specification

Physical Characteristics

Dimensions (H x W x D) (height x width x depth x) are 7.70 x 11 x 1.73 in. (19.6 x 27.9 x 4.39 cm).

5 lb (1.0 kg)

Weight

Maximum Power Consumption 70 Watts with PoE

Environmental Operating Ranges

Operating Temperature and Altitude –40 to 140°F (–40 to 60°C). -500 to 5,000 feet. Derate max operating temperature

1.5°C per 1000 feet. 10,000 ft maximum

Humidity 10% — 95% non-condensing

Environmental Tests

Ingress Protection Rating IP 40 per IEC 60529 for Vertical Falling Water, Pollution Degree 3

Humidity Non-condensing Relative Humidity: 5% to 95%

Cisco IR829 Integrated Services Router Hardware Installation Guide

6-1

Chapter 6 Technical Specifications

Table 6-1 Cisco IR829 Specifications (continued)

Description Design Specification

Military Standard MIL-STD-810G Method 514.6: Procedure 1 Category 4, Secured Cargo - Common

MIL-STD-810G Method 514.6: Procedure 1 Category 20, Ground Vehicles

MIL-STD-810G Method 516.6. Procedure 1, Functional Shock

MIL-STD-810G Method 516.6. Procedure 5, Crash Hazard

MIL-STD-810G Method 516.6. Procedure 6, Bench Handling

Vibration and Shock (Railway Vehicles)

EN61373 Functional Random Vibe - Category 1, Class B

EN61373 Simulated Non-op Long-life Vibe - Category 1, Class B

EN61373 Non-op Shock, Class B

Heavy-Duty Vehicle Applications SAE J1455 Operating Random Vibe, Cab Mounted Truck

SAE J1455 Operating Sinusoidal Vibe, Category 3

SAE J1455 Non-operating Sinusoidal Vibe, Category 3

SAE J1455 Handling Drop Test

Certifications

Standard Safety Certifications UL 60950-1, 2nd edition; CAN/CSA C22.2 No. 60950-1, 2nd edition, EN 60950-1,

2nd edition; CB to IEC 60950-1, 2nd edition with all group differences and national deviations

Transportation/Storage Conditions

Tem p e r a ture –40 to158°F (–40 to 85°C)

Humidity 5–95%

Altitude 4570 m (15,000 ft)

6-2

Cisco IR829 Integrated Services Router

IMPORTANT! READ ALL THE SAFETY INFORMATION

EFORE INSTALLING THE HARDWARE

Getting Started and Product Document of Compliance for the Cisco IR829 Integrated Services Router

• Cisco Information, page 2

• Introduction, page 2

• Items Shipped with your Router, page 2

• Equipment that you supply, page 2

• Related Documentation, page 3

• Installation Warning and Caution Statements, page 4

• Grounding the Router, page 5

• Connecting DC Power, page 6

• Connecting to the Router Gateway Ports, page 8

• Connecting to the USB Port, page 8

• EMC Information, page 9

Cisco Systems, Inc.

www.cisco.com

Cisco Information

Table 1 Cisco Company Name and Address Details

Company Name Cisco Address

Cisco Systems, Inc. 170 West Tasman Drive, San Jose, CA 95134-1706, United States.

Introduction

The purpose of this document is to provide the instal ler the necessary information for installing the Cisco IR829 Integrated Services Router. The documentation is on-line, and subject to change. Make sure that you are downloading or viewing on-line the latest version before beginning an installation.

This document also contains Product Compliance and Safety information.

Items Shipped with your Router

Unpack the box and verify that all items listed on the invoice were shipped with the Cisco IR829.

The following items are shipped with your router:

• This document Part Number 78-100611

• Power Cable components

• Grounding Lug

• Ethernet Cable Part Number 75-1501-01

Equipment that you supply

• ESD-preventive cord and wrist strap.

• Wire-stripping tools for stripping 14- and 18-gauge wires

• Crimping tool

• Ratcheting torque screwdriver that exerts up to 15 in-lb (1.69 N-m) of pressure.

Getting started with the Cisco 829 Integrated Services Router

78-100611-01A0

Related Documentation

To access resources or to display the latest Cisco 800 Series Router documentation on-line, go to this URL:www.cisco.com/go/800

This portal has all of the information you need to get to know your router, install and configure it, as well as access software. Look at the right side of the page under Support. You will see the following categories as well as other important information:

• All support information for Cisco 800 Series Routers: Provides the most requested resources and

a list of all of the models in the series.

• Software Downloads, Release and General Information: Links to the Software Download site,

Compatibility Information, Licensing Information, and Product Release notes.

• Install and Upgrade: This is your starting point for Installing the Router. look under The Install

and Upgrade Guide section for this model,

• Configure: These links provide configuration information. Look first under the Configuration

Guide section for this model.

Other important and helpful links to Cisco information are here:

• Cisco.com: www.cisco.com

• Warranty Information: www.cisco-warrantyfinder.com

• Cisco Information Packet, consisting of Cisco Limited Warranty, Disclaimer of Warranty, End User

License Agreement, and United States Federal Communications Commission Notice:

www.cisco.com/en/US/docs/general/warranty/English/SL3DEN__.html

• Cisco Marketplace: www.cisco.com/pcgi-bin/marketplace/welcome.pl

• Cisco Product Documentation: www.cisco.com/go/techdocs

• Regulatory Compliance and Safety Information:

http://www.cisco.com/en/US/docs/routers/access/800/rcsi/800srcsi.html

• Cisco Support: www.cisco.com/cisco/web/support/index.html

78-100611-01A0

Getting started with the Cisco 829 Integrated Services Router

Installation Warning and Caution Statements

Warning

IMPORTANT SAFETY INSTRUCTIONS This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device.

Statement 1071

In order to comply with FCC radio frequency (RF) exposure limits, antennas for this product should be located a minimum of 7.9 in. (20 cm) or more from the body of all persons.

Read the installation instructions before connecting the system to the power source.

This product relies on the building’s installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 10A

Statement 1005

This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

Statement 1017

Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

Statement 1030

Statement 332

Statement 1004

Statement 1024

Warning

Ultimate disposal of this product should be handled according to all national laws and regulations.

Statement 1040

To prevent the system from overheating, do not operate it in an area that exceeds the maximum recommended ambient temperature of: 140°F (60°C) Statement 1047

Use twisted-pair supply wires suitable for 86°F (30°C) above surrounding ambient temperature outside the enclosure.

Installation of the equipment must comply with local and national electric codes.

Getting started with the Cisco 829 Integrated Services Router

Statement 1067

Statement 1074

78-100611-01A0

Warning

Avoid using or servicing any equipment that has outdoor connections during an electrical storm. There may be a risk of electric shock from lightning.

Caution The equipment shall only be used in an area of not more than pollution degree 2, as defined in IEC

60664-1. The equipment shall be installed in a certified ATEX enclosure that provides a degree of protection not less than IP 54 in accordance with IEC 60079-15.

Caution Airflow around the Router must be unrestricted. The dimensions (height x width x depth) are 7.70 x 11

x 1.73 in. (19.6 x 27.9 x 4.39 cm). To prevent the Router from overheating, there must be a minimum of

1.0 in. (25.4 mm) around all surfaces of the Router.

Statement 1088

Contact your Cisco Technical Assistance Centre (TAC) if tighter spacings are required.

Caution This equipment is suitable for use in Class I, Division 2, Groups A, B, C, D, or only nonhazardous

locations.

Note This equipment is rated as follows:

- DC Input Voltage: Maximum Operating Range: 9.6V to 32VDC; Nominal: 12/24 VDC

Note This product is suitable for use in environmental air space in accordance with section 300.22.C of the

National Electrical Code and sections 2-128, 12-010(3), and 12-100 of the Canadian Electrical Code, Part 1, C22.1. You should not install the power supply or power injector in air handling spaces.

Note The maximum ambient operating temperature range is –40 to 140°F (–40 to 60°C).

Grounding the Router

Make sure to follow any grounding requirements at your site.

Warning

78-100611-01A0

This equipment is intended to be grounded to comply with emission and immunity requirements. Ensure that the switch functional ground lug is connected to earth ground during normal use.

Statement 1064

Caution To make sure that the equipment is reliably connected to earth ground, follow the grounding procedure

instructions, and use 14-to-16 AWG wire.

Statement 1024

Getting started with the Cisco 829 Integrated Services Router

Caution Use at least a 4 mm

conductor to connect to the external grounding screw.

The ground lug is supplied with the device.

To ground the router to earth ground by using the ground screw, follow these steps:

Step 1

Locate the ground lug in the packaging kit. Store the ground screw for later use.

Step 2

Use a wire stripping tool to strip the 14-16 AWG (2.08-1.31mm²) grounding wire to 0.22 in. (5.56 mm).

Step 3

Insert the ground wire into the ring terminal lug, and using a crimping tool, crimp the terminal to the wire.

Step 4

Slide the ground screw through the ground lug.

Step 5

Insert the ground screw into one of the two screw positions shown in the graphic.

Step 6

Use a ratcheting torque screwdriver to tighten the ground screw and ring t erminal to the router side panel to 3.5 in-lb (0.4 N-m). The torque should not exceed 3.5 in-lb (0.4 N-m).

Step 7

Attach the other end of the ground wire to a grounded bare metal surface, such as a ground bus, a grounded DIN rail, or a grounded bare rack.

332163

Connecting DC Power

Warning

When you connect or disconnect the power and/or alarm connector with power applied, an electrical arc can occur. This could cause an explosion in hazardous area installations. Be sure that all power is removed from the switch and any other circuits. Be sure that power cannot be accidentally turned on or verify that the area is nonhazardous before proceeding.

Explosion Hazard—The area must be known to be nonhazardous before installing, servicing, or replacing the unit.

Getting started with the Cisco 829 Integrated Services Router

Statement 1058

Statement 1082

78-100611-01A0

Warning

Explosion Hazard—Substitution of components may impair suitability for Class I, Division 2/Zone 2.

Statement 1083

Warning

Connect the unit only to DC power source that complies with the safety extra-low voltage (SELV) requirements in IEC 60950 based safety standards.

Plugs and Pin-Outs

The following is a brief overview of connecting to DC power. Details can be found in the Cisco IR829 Integrated Services Router Hardware Installation Guide and should be understood before beginning. See

Cisco Systems IR829GW LTE Users manual

Specifications and Main Features

Frequently Asked Questions

User Manual
