Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

About This Guide vii

Obtaining Documentation, Obtaining Support, and Security Guidelines vii

CHAPTER

1 Fault Management Overview 1-1

Managing Events 1-1

Basic Concepts and Terms 1-2

Alarm 1-2 Event 1-3 Event Sequence 1-3 Repeating Event Sequence 1-4 Flapping Events 1-4 Correlation By Root Cause 1-5 Ticket 1-5 Sequence Association and Root Cause Analysis 1-6

Severity Propagation 1-6

Event Processing Overview 1-7

2 Fault Detection and Isolation 2-1

Unreachable Network Elements 2-1

Sources of Alarms On a Device 2-3

Alarm Integrity 2-3

CHAPTER

OL-14284-01

Integrity Service 2-3

3 Cisco ANA Event Correlation and Suppression 3-1

Event Suppression 3-1

Root-Cause Correlation Process 3-2

Root-Cause Alarms 3-3

Correlation Flows 3-3

Correlation by Key 3-3 Correlation by Flow 3-3 DC Model Correlation Cache 3-4 Using Weights 3-4

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

iii

Contents

Correlating TCA 3-4

CHAPTER

4 Advanced Correlation Scenarios 4-1

Device Unreachable Alarm 4-1

Connectivity Test 4-1 Device Fault Identification 4-2

Device Unreachable Example 1 4-2 Device Unreachable Example 2 4-2

IP Interface Failure Scenarios 4-3

IP Interface Status Down Alarm 4-3

Correlation of Syslogs and Traps 4-4 All IP Interfaces Down Alarm 4-5 IP Interface Failure Examples 4-5

Interface Example 1 4-6

Interface Example 2 4-6

Interface Example 3 4-7

Interface Example 4 4-7

Interface Example 5 4-8 ATM Examples 4-9 Ethernet, Fast Ethernet, Giga Ethernet Examples 4-9

Interface Example 6 4-9

Interface Example 7 4-9 Interface Registry Parameters 4-10

ip interface status down Parameters 4-10

All ip interfaces down Parameters 4-10

Multi Route Correlation 4-11

Multi Route Correlation Example 1 4-11 Multi Route Correlation Example 2 4-11 Multi Route Correlation Example 3 4-12 Multi Route Correlation Example 4 4-13

Generic Routing Encapsulation (GRE) Tunnel Down/Up 4-13

GRE Tunnel Down/Up Alarm 4-13 GRE Tunnel Down Correlation Example 1 4-14 GRE Tunnel Down Correlation Example 2 4-15

BGP Process Down Alarm 4-17

MPLS Interface Removed Alarm 4-17

LDP Neighbor Down Alarm 4-17

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Contents

CHAPTER

5 Correlation Over Unmanaged Segments 5-1

Cloud VNE 5-1

Types of Unmanaged Networks Supported 5-1 Fault Correlation Across the Frame Relay or ATM or Ethernet Cloud 5-2

Cloud Problem Alarm 5-3

Cloud Correlation Example 5-3

6 Event and Alarm Configuration Parameters 6-1

Alarm Type Definition 6-1

Event (Sub-Type) Configuration Parameters 6-2

General Event Parameters 6-2 Root Cause Configuration Parameters 6-2 Correlation Configuration Parameters 6-3 Network Correlation Parameters 6-3 Flapping Event Definitions Parameters 6-4 System Correlation Configuration Parameters 6-4

7 Impact Analysis 7-1

APPENDIX

Impact Analysis Options 7-1

Impact Report Structure 7-2

Affected Severities 7-2

Impact Analysis GUI 7-3

Affected Parties Tab 7-3 Viewing a Detailed Report For the Affected Pair 7-4

Disabling Impact Analysis 7-6

Accumulating Affected Parties 7-6

Accumulating the Affected Parties In an Alarm 7-7 Accumulating the Affected Parties In the Correlation Tree 7-7 Updating Affected Severity Over Time 7-7

A Supported Service Alarms A-1

Shelf Out A-4

Rx Dormant A-5

Tx Dormant A-5

Link Over Utilized A-5

OL-14284-01

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

Contents

APPENDIX

B Event and Alarm Correlation Flow B-1

Software Function Architecture B-2

Event Correlation Flow B-3

Event Creation (VNE level) B-3 Event Correlation B-3

Local Correlation (Event Correlator) B-3

Network Correlation (Event Correlator, Flow) B-3 Correlation Logic (Event Correlator) B-4 Alarm Sending (Event Correlator) B-4 Post-Correlation Rule (Event Correlator) B-4

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

About This Guide

This guide includes the following chapters:

• Chapter 1, “Fault Management Overview”—Describes how to manage events, and introduces some

of the key concepts of Cisco ANA alarm management.

• Chapter 2, “Fault Detection and Isolation”—Describes unreachable network elements and the

sources of alarms on devices. In addition, it describes alarm integrity and the integrity service

• Chapter 3, “Cisco ANA Event Correlation and Suppression”—Describes how Cisco ANA performs

correlation logic decisions.

• Chapter 4, “Advanced Correlation Scenarios”—Describes specific alarms which use advanced

correlation logic on top of the root cause analysis flow.

• Chapter 5, “Correlation Over Unmanaged Segments”—Describes how Cisco ANA performs

correlation decisions over unmanaged segments.

• Chapter 6, “Event and Alarm Configuration Parameters”—Describes the details of various

configurable alarm parameters.

• Chapter 7, “Impact Analysis”—Describes the impact analysis functionality available in Cisco ANA.

• Appendix A, “Supported Service Alarms”—Provides the list of service alarms that are supported in

Cisco ANA.

• Appendix B, “Event and Alarm Correlation Flow”—Describes in detail the flow of alarms and

events during the correlation process.

Obtaining Documentation, Obtaining Support, and Security Guidelines

For information on obtaining documentation, obtaining support, providing documentation feedback, security guidelines, and also recommended aliases and general Cisco documents, see the monthly What’s New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

vii

Obtaining Documentation, Obtaining Support, and Security Guidelines

About This Guide

viii

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Fault Management Overview

This chapter describes the challenge of managing an overabundance of events, and introduces some of the key concepts of Cisco ANA alarm management.

• Managing Events—Describes how to manage events effectively.

• Basic Concepts and Terms—Describes the basic concepts and terms used throughout this guide.

• Severity Propagation—Describes the concept of severity, and how severity is propagated.

• Event Processing Overview—Describes the process for identifying and processing raw events.

Managing Events

The challenge of dealing effectively with events and alarms is to know how to understand and efficiently process and organize bulks of raw events that may be generated as a result of single root cause events.

CHA PTER

OL-14284-01

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

1-1

Basic Concepts and Terms

Figure 1-1 Event Flood

Chapter 1 Fault Management Overview

Lost

Connectivity

Trap: DLSw Peer Down

Syslog: HSRP Standby -> Active

Syslog: FR DLCI Down

! !

Unmanaged

Network

Syslog: Lost BGP Neighbor

Ping: Device Unreachable

IP Backbone

Trap: Link Down

Syslog: Lost OSPF neighbor

Ping: Device Unreachable

Syslog OSPF neighbor

: Lost

Syslog: LSP Reroute

Trap: Link Down

Syslog: Lost

BGP Neighbor

Syslog: Lost OSPF neighbor

Trap: DLSw Peer Down

Lost

Connectivity

Syslog: Lost BGP Neighbor

Syslog: Lost Neighbor

Meeting the event management challenge is done by correlating related events into a sequence that represents the alarm lifecycle, and using the network dependency model to determine the causal inter-relationship between alarms.

Cisco ANA can be used for analyzing and managing faults using fault detection, isolation and correlation. Once a fault is identified, the system uses the auto-discovered virtual network model to perform fault inspection and correlation in order to determine the root cause of the fault and, if applicable, to perform service impact analysis.

Basic Concepts and Terms

Alarm

An alarm represents a scenario which involves a fault occurring in the network or management system. Alarms represent the complete fault lifecycle, from the time that the alarm is opened (when the fault is first detected) until it is closed and acknowledged. Examples of alarms include:

• Link down

• Device unreachable

154391

1-2

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Chapter 1 Fault Management Overview

• Card out

• An alarm is composed of a sequence of events, each representing a specific point in the alarm’s

lifecycle.

Event

An event is an indication of a distinct occurrence that occurred at a specific point in time. Events are derived from incoming traps and notifications, and from detected status changes. Examples of events include:

• Port status change.

• Connectivity loss between routing protocol processes on peer routers (for example BGP neighbor

loss).

• Device reset.

• Device becoming reachable by the management station.

• User acknowledgement of an alarm.

Events are written to the Cisco ANA database once and never change.

The collected events are displayed in Cisco ANA EventVision. Refer to the Cisco Active Netowrk Abstraction EventVision User Guide for more information.

Basic Concepts and Terms

Event Sequence

An event sequence is the set of related events which comprises a single alarm. For example, link down > ack > link up.

Figure 1-2 Event Sequence Example

Typically, a complete event sequence includes three mandatory events:

• Alarm open (in this example a link-down event).

• Alarm clear (in this example a link-up event).

• Alarm acknowledge.

OL-14284-01

Optionally, there can be any number of alarm change events which can be triggered by new severity events, affected services update events, and so on.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

1-3

Basic Concepts and Terms

Note The event types that will belong to each sequence can be configured in the system registry.

An event sequence can consist of a single event (for example, “device reset”). The set of events that should participate in Cisco ANA alarm processing can be configured in the system registry.

Repeating Event Sequence

If a new opening event arrives within a configurable timeout after the clearing event of the same alarm, the alarm is updatable, and a repeating event sequence is created, that is, the event is attached to the existing sequence and updates its severity accordingly. If the new opening event occurs after the timeout, it opens a new alarm (new event sequence).

Figure 1-3 Repeating Event Sequence

Chapter 1 Fault Management Overview

Flapping Events

If a series of events that are considered to be of a same sequence occur in the network in a certain configurable time window a certain (configurable) amount of times, the virtual network element (VNE) may (upon configuration) reduce further the number of events, and will issue a single event which will be of type “event flapping”. Only when the alarm stabilizes and the event frequency is reduced, will another update to the event sequence be issued as “event stopped flapping”. Another update will be issued with the most up-to-date event state.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

1-4

OL-14284-01

Chapter 1 Fault Management Overview

Figure 1-4 Flapping Event

Correlation By Root Cause

Basic Concepts and Terms

Root cause correlation is determined between alarms or event sequences. It represents a causal relationship between an alarm and the consequent alarms that occurred because of it.

For example, a card-out alarm can be the root cause of several link-down alarms, which in turn can be the root cause of multiple route-lost and device unreachable alarms, and so on. A consequent alarm can serve as the root cause of other consequent alarms.

Figure 1-5 Root Cause Correlation Hierarchy Example

Ticket

OL-14284-01

A ticket represents the complete alarm correlation tree of a specific fault scenario. It can be also identified by the topmost or “root of all roots” alarm. Both Cisco ANA NetworkVision and Cisco ANA EventVision display tickets and allow drilling down to view the consequent alarm hierarchy.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

1-5

Severity Propagation

From an operator’s point of view, the managed entity is always a complete ticket. Operations such as Acknowledge, Force-clear or Remove are always applied to the whole ticket. The ticket also assumes an overall, propagated severity.

Sequence Association and Root Cause Analysis

There are two different types of relationships in Cisco ANA alarm management:

• Sequence Association—The association between events, which creates the event sequences and

alarms.

• Root Cause Analysis—The association between alarms (event sequences) which represents the root

cause relationship.

The following figure shows how both types of relationship are implemented in the ticket hierarchy:

Figure 1-6 Sequence Association vs. Root Cause Analysis

Chapter 1 Fault Management Overview

In the above figure, the alarms are correlated into a hierarchy according to root cause. Within each alarm is its respective event sequence representing the lifecycle of the alarm.

Severity Propagation

Each event has an assigned severity (user-configurable). For example, a link-up event may be assigned critical severity, while its corresponding link-up event will have normal severity.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

1-6

OL-14284-01

Chapter 1 Fault Management Overview

The propagated severity of the alarm (the whole event sequence) is always determined by the last event in the sequence. In the above example, when the link-down alarm is open it will have critical severity; when it clears it moves to normal severity. An exception to this rule is the informational event (severity level of info) such as user acknowledge event, which does not change the propagated severity of the sequence (the alarm).

Each ticket assumes the propagated severity of the alarm with the topmost severity, within all the alarms in the correlation hierarchy at any level.

Note Each alarm does not assume the propagated severity of the correlated alarms beneath it. Each alarm

assumes its severity only from its internal event sequence, as described above, while the ticket assumes the highest severity among all the alarms in the correlation tree.

Event Processing Overview

Cisco ANA provides a customizable framework for identifying and processing raw events. The raw events are collected into the Event Manager, forwarded to their respective VNE, and then processed as follows:

Event Processing Overview

Step 1 The event data is parsed to determine its source, type, and alarm-handling behavior.

Step 2 If the event type is configured to try and correlate, the VNE attempts to find a compliant cause alarm.

This is done in the VNE fabric.

Step 3 The event fields are looked up and completed.

Step 4 The event is sent to the Cisco ANA gateway, where:

• The event is written to the event database.

• If the event belongs to an alarm, it is attached to its respective event sequence and correlated to the

respective root-cause alarm within the ticket, or a new sequence and new ticket is opened.

• If the event is marked as ticketable, and it did not correlate to any other alarm, a new ticket will be

opened where the alarm that triggered the ticket will be the root cause of any alarms in the correlation tree.

OL-14284-01

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

1-7

Event Processing Overview

Chapter 1 Fault Management Overview

1-8

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Fault Detection and Isolation

This chapter describes unreachable network elements and the sources of alarms on devices. In addition, it describes alarm integrity and the integrity service:

• Unreachable Network Elements—Describes how the various VNEs use reachability to check

connectivity with the NEs.

• Sources of Alarms On a Device—Describes the four basic alarm sources that indicate problems in

the network.

• Alarm Integrity—Describes what happens when a VNE with associated open alarms shuts down.

• Integrity Service—Describes the integrity service tests that run on the gateway and/or the units.

Unreachable Network Elements

Reachability used by the VNEs (checks the reachability between the VNEs and NEs) depends on the configuration of the VNE, and involves multiple connectivity tests, using SNMP, Telnet/SSH and/or ICMP, as appropriate.

The table describes the various situations below when a NE fails to respond to the protocols:

CHA PTER

Table 2-1 Unreachable Network Elements

VNE Type Checks reachability using When the NE fails to respond When the NE is reachable

ICMP VNE ICMP only. During the ICMP

test the unit pings the NE every configured interval.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

ICMP ping is suspended, and a VNE Unreachable alarm is sent to the

Cisco ANA Gateway. Only the reachability tests are executed thereafter to detect when the device is reachable again.

ICMP ping is restarted, and the alarm is cleared.

2-1

Chapter 2 Fault Detection and Isolation

Unreachable Network Elements

Table 2-1 Unreachable Network Elements (continued)

VNE Type Checks reachability using When the NE fails to respond When the NE is reachable

Generic VNE

Full VNE

• SNMP only (default).

During the SNMP test the unit’s “

SNMP get” the

sysoid of the NE and expects to receive a response

• SNMP only (default),

and adding an ICMP test.

• SNMP only (default).

During the SNMP reachability test, the VNE polls the device’s SysOID MIB using a standard “

SNMP Get”

command, and expects to receive a response

• SNMP only (default),

General polling is suspended, and a VNE Unreachable alarm is sent to the

Cisco ANA Gateway. Only the reachability tests are executed thereafter to detect when the device is reachable again.

If more than one protocol is used, it is enough for one of them to become unreachable in order to generate the alarm. The alarm is generic to all the protocols.

General polling is suspended, and a VNE Unreachable alarm is sent to the Cisco ANA Gateway. Only the reachability tests are executed thereafter to detect when the device is reachable again.

If more than one protocol is used, it is enough for one of them to become unreachable in order to generate the alarm. The alarm is generic to all the protocols.

• General polling is restarted.

• The first time the VNE is

started, all the commands are submitted to the queue, and the collector initiates an immediate session with the NE. The commands are sent to the NE in a serial fashion.

• The alarm is cleared.

• The first time the VNE is

started, all the commands are submitted to the queue and the collector initiates an immediate session with the NE. The commands are sent to the NE in a serial fashion.

• The alarm is cleared.

and adding ICMP and Teln e t. Durin g the Tel n et test the unit sends "

Enter" via the open

session and expects to get a prompt back.

2-2

Each of these scenarios have two possible settings in the registry, namely:

• track reachability (true/false). The default is true.

When this parameter is true reachabilty is tracked according to the specific protocol, for example, ICMP, SNMP, Telnet, and so on.

When this parameter is false then the test is not performed.

• lazy reachability (true/false). The default is false. This parameters determines whether there is a

dedicated reachability command ‘in-charge’ of tracking reachability or whether reachability is determined by the regular polled commands.

When this parameter is true reachability is based on polling, and a dedicated command not activated.

When this parameter is false a dedicated SNMP command is activated, and this test verifies the response from a specific SNMP oid (sysoid is the default that can be changed).

Note Changes to the registry should only be carried out with the support of Cisco Professional Services.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Chapter 2 Fault Detection and Isolation

Sources of Alarms On a Device

The following basic sources of alarms exist in the system which indicate a problem in the network:

• Service Alarms—Alarms generated by the VNE as a result of polling (for example SNMP, Telnet).

Usually such alarms (for example link down, card out, device unreachable and so on) are configured in such a way that they can become root cause alarms, according to the correlation algorithms. Service alarms can also be generated by the gateway, for example. the vpn leak alarm.

• SNMP Traps—Traps sent by the network elements and captured by the Cisco ANA platform. The

platform supports SNMP v1, v2 and v3 traps. The traps are then forwarded to the specific VNEs for further processing and correlation logic. In addition, reliable traps (inform commands) are supported, when configured in the registry, where the VNE acknowledges that a trap was received.

• Syslogs—Syslog messages sent by the network elements and captured by the Cisco ANA platform.

The Syslogs are then forwarded to the specific VNEs for further processing and correlation logic.

• TCA—Cisco ANA can be used to set a TCA for soft properties. The TCA can be enabled to assign

a condition to the property which will trigger an alarm when violated. The alarm conditions could be:

–

Equal or not equal to a target value.

–

Exceeding a defined value range (defined by maximum and minimum thresholds, including hysteresis), for example CPU level of a device.

Sources of Alarms On a Device

–

• System Alarms—Alarms generated by the gateway and/or the units, for example, disk full, database

full, unit unreachable and so on. For more information see Integrity Service.

For information about TCAs see the Cisco Active Network Abstraction Customization User Guide.

Alarm Integrity

When the VNE shuts down while it still has open alarms associated with it, “fixing” events which occur during the down period will be consolidated when the VNE is reloaded.

Integrity Service

The integrity service is an internal service that runs on the gateway and/or the units, which is responsible for the stability of the system by running integrity tests in order to maintain the database and eliminate clutter in the system. In order to prevent the session from stopping, the integrity service tests are run on a different thread in a separate directory called integrity.

The service integrity tests are run:

• Manually—The integrity service tests are accessed as part of the Cisco ANA Shell management

services, and they can be accessed by telneting the gateway.

Exceeding a defined rate (calculated across time), for example bandwidth or utilization rate of a link.

OL-14284-01

To run a test, the user should cd to the integrity dir, and then enter name. The user can pass parameters to the tests using Cisco ANA Shell.

• Automatically—The integrity service tests are scheduled as crontab commands, to run specific tests

at specific intervals. By default the integrity service tests run automatically every 12 hours.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

executeTest followed by the test

2-3

Integrity Service

Note Changes to the registry should only be carried out with the support of Cisco Professional Services.

Chapter 2 Fault Detection and Isolation

For example, this line in crontab runs the file every_12_hours.cmd at 11:00AM and 11:00PM:

0 11,23 * * * local/cron/every_12_hours.cmd > /dev/null 2>&1

The integrity service tests can be defined inside the cmd file, for example:

echo “`date '+%d/%m/%y %H:%M:%S -'` running integrity.executeTest alarm” cd ~/Main ; ./mc.csh localhost 8011 integrity.executeTest alarm >& /dev/null

The first line prompts the user when a test starts to run, the next line runs the test.

The integrity service test parameters are defined in the registry. The registry entries responsible for the integrity service can be found at:

mmvm/agents/integrity

The integrity service tests include, for example, the following:

• Alarm—Deletes cleared alarms if the alarm count is above the defined threshold.

• businessObject—Checks for invalid OIDs in business objects.

• Capacity—Checks the disk space capacity.

• archiveLogs—Deletes Oracle logs.

• tablespace—Checks that there is enough disk space for tablespace growth.

• workflowEngine—Deletes all complete workflows that started before a configured period of time.

2-4

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Cisco ANA Event Correlation and Suppression

This chapter describes how Cisco ANA performs correlation logic decisions:

• Event Suppression—Describes enabling or disabling port-down, port-up, link-down and link-up

alarms on a selected port.

• Root-Cause Correlation Process—Describes the root-cause correlation concept.

• Root-Cause Alarms—Describes the root-cause alarm and weights concepts.

• Correlation Flows—Describes correlation by flow and correlation by key. In addition, it describes

the DC model correlation cache.

Event Suppression

The user can enable or disable the port-down, port-up, link-down, and link-up alarms on a selected port. By default, alarms are enabled on all ports except for xDSL. When the alarms are disabled on a port, no alarms will be generated for the port, and they will not be displayed in the ticket pane. Using the Registry Editor advanced tool, it is possible to enable or disable service alarms on network entities other than ports, such as the MPBGP (for enabling or disabling BGP neighbor down events), or the MPLS TE Tunnel (for TE-Tunnel down service alarm). It is also possible to enable or disable alarm specific types without regard to a specific network entity.

By default, port-down alarms are suppressed on xDSL ports. Cisco ANA supports selectively enabling sending of port-down alarms on xDSL ports. This can be done by:

CHA PTER

OL-14284-01

• Using a command available in the GUI, right-click on the port in the inventory, select Enable

Sending Alarms.

• Setting a flag in the registry under the OID of the port. Changes to the registry should only be carried

out with the support of Cisco Professional Services.

Refer to the Cisco Active Network Abstraction NetworkVision User Guide for information about disabling or enabling a port alarm.

Events can also be filtered according to their DC type source, for example, all the events that come from any ATM DC can be filtered by configuring the registry. The following alarm under DC types is filtered by default:

• VRF—duplicate ip on vpn

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

3-1

Root-Cause Correlation Process

Root-cause correlation is implemented in various stages within the Cisco ANA VNEs. Initially, the system tries to find the root-cause alarm. When a VNE detects a fault and opens an alarm, it attempts to find another open alarm within the same device, which qualifies as the root-cause of the new alarm. For example, in the case of a “link-down syslog” alarm , the VNE will look for a root-cause alarm within the device, for example, “link down”. When such a root cause is found and qualified, the correlation relationship is set in the alarm database. This process is correlation by key.

A more complex scenario is finding the root cause in a different device, which could be many network hops away. In the above example, the link-down alarm could cause multiple BGP Neighbor Down events throughout the network. In such cases, the BGP Neighbor Down is configured by default to actively go and search for a root cause in other VNEs, by initiating correlation by flow. In this example, the VNE that detected the BGP Neighbor Down uses the network topology model maintained in the Cisco ANA fabric to trace the path to its lost neighbor. During this trace it will encounter the faulty link, and qualify it as the BGP Neighbor Down root cause.

The following figure illustrates the local and active correlation processes.

Figure 3-1 Root-Cause Correlation Process

Chapter 3 Cisco ANA Event Correlation and Suppression

Cisco ANA

Gateway

Alarm Database

BGP lost

Cisco ANA

Due to

Link 1-2

down

BGP lost

Network

Segment

BGP Neighbor lost (in IP 1.2.3.4)

Card out

Network A

Link down

1.2.3.4

Card out

Link down

Card out

Cisco ANA - Virtual NE

Unmanaged

cloud

Two devices share the same IP!

1.2.3.4

Network B

1.2.3.4

154392

3-2

The correlation mechanisms are highly configurable (per alarm), as described in the following sections.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Chapter 3 Cisco ANA Event Correlation and Suppression

Root-Cause Alarms

Potential root-cause alarms have a determined weight according to the specific event customization. Refer to Chapter 6, “Event and Alarm Configuration Parameters” for additional information about setting the weights. For example, a link-down alarm is configured to allow other alarms to correlate to it, thus when a link-down event is recognized, other alarms that occur in the network may choose to correlate to it, hence identifying it as the cause for their occurrence. However an event that is configured to be the cause for other alarms can in its turn correlate to another alarm. The topmost alarm in the correlation tree is the root cause for all the alarms.

Correlation Flows

The VNEs utilize their internal device component model (DCM) in order to perform the actual correlation. This action is considered to be a correlation flow. There are two basic correlation mechanisms used by the VNE:

1. Correlation by Key (correlation in the same VNE).

2. Correlation by Flow (correlation across VNEs or in the same VNE).

Root-Cause Alarms

Each event can be configured to:

• Not correlate at all.

• Perform correlation by key.

• Perform correlation by flow.

For more information about these parameters, see Chapter 6, “Event and Alarm Configuration

Parameters”.

In addition, the DC model cache enables the system to issue correlation flows over an historical network snapshot that existed in the network before a failure occurred. For more information see DC Model

Correlation Cache.

Correlation by Key

When the root cause problem is at the box level, attempts to correlate to other events are restricted to the specific VNE. This means that the correlation flow does not cross the DCM models of more than one VNE. An example is a port-down syslog event correlating to a port-down event.

An exception for this behavior is the link-down alarm. Since a link entity connects two endpoints in the DCM model, it involves the DCM of two different VNEs, but on each VNE the events are correlated to their own copy of the link-down event.

Correlation by Flow

OL-14284-01

Network problems and their effects are not always restricted to one network element. This means that a certain event could have the capability of correlating to an alarm several hops away. To do this the correlation mechanism within the VNE uses an active correlation flow that runs on the internal VNE’s DCM model and tries to correlate along a specified network path to an alarm. This is similar to the Cisco ANA PathTracer operation when it traces a path on the DCM model from point A to point Z, except that it is trying to correlate to a root-cause alarm along the way, rather than just tracing a path.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

3-3

Correlation Flows

This method is usually applicable for problems in the network layer and above (OSI network model) that might be caused due to a problem upstream or downstream. An example is an OSPF Neighbor Down event caused by a link-down problem in an upstream router. Another important distinction between Cisco ANA PathTracer and the correlation flow is that the correlation flow may run on an historical snapshot of the network.

DC Model Correlation Cache

The DC model correlation cache represents the network as it was before an event occurred or during a specific time frame by enabling the DC cache to be stored.

A flow of packets occurs on the virtual network, as part of correlation of all DCs, from one VNE to a destination VNE while simulating the virtual network state of a past moment in time, and these packets are forwarded via the message processing mechanism from one DC to another DC according to the rules of the flow. If there are active DCs, and if there is a change in the DC’s property value or if a DC was removed, all the DC properties that are marked as cache-based will be stored in the DC model cache for a configurable period of time as defined in the registry and these property values can be restored.

The DC model cache implements this so that the VNE holds cache information for each flow related to a DC (for example, routing entries or bridge entries) and for forwarding tables, so when a VNE needs to reflect its DC model, as it was at some point of time in the past, the VNE will be able to do so based on the cached information it keeps. The DC Property mechanism stores the related data of each property (when cache management is enabled) for a configurable period of time. The default is 10 minutes. The cache can be enabled or disabled in the registry (by default it is enabled).

Chapter 3 Cisco ANA Event Correlation and Suppression

The cached data (the data that is old according to the configured value in the registry) is periodically cleaned up, in order to maintain the latest valid VNE cache information. This includes old property values and also previously removed DCs, so that removed DCs are kept in a cache only for the defined amount of time. The Cache Manager Component of the DA repeatedly (the period of time is defined in the registry) sends itself a cleanup message in order to initiate a cleanup of the old property values, and all of the DCs that were removed outside of the defined period. So after 10 minutes all the DC properties with a timeout are automatically cleared.

Using Weights

In cases where there are multiple potential root causes along the same service path, Cisco ANA enables the user to define a priority scheme (weight) which can determine the actual root cause.

The correlation system will use the following information to identify more precisely the root-cause alarm:

• weight: >=0 The correlation flow will collect the alarm, but will not stop.

The correlation mechanism will choose the alarm with the highest weight as the root cause for the alarm that triggered the correlation by flow.

Correlating TCA

TCAs participate in the correlation mechanism, and can correlate or be correlated to other alarms.

3-4

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

CHA PTER

Advanced Correlation Scenarios

This chapter describes the specific alarms which use advanced correlation logic on top of the root cause analysis flow:

• Device Unreachable Alarm—Describes the device unreachable alarm, its correlation and provides

various examples.

• IP Interface Failure Scenarios—Describes the ip interface status down alarm and its correlation. In

addition, it describes the all ip interfaces down alarm, its correlation and provides several examples.

• Multi Route Correlation—Describes support for multi route scenarios and their correlation. In

addition, it provides several examples.

• Generic Routing Encapsulation (GRE) Tunnel Down/Up—Provides an overview of GRE tunneling,

describes the GRE tunnel alarm, and provides correlation examples.

• BGP Process Down Alarm—Describes the BGP process down alarm, and its correlation.

• MPLS Interface Removed Alarm—Describes the MPLS interface removed alarm, and its

correlation.

• LDP Neighbor Down Alarm—Describes the LDP Neighbor Down alarm, and its correlation.

Device Unreachable Alarm

Connectivity Test

Connectivity tests are used to verify connectivity between the VNEs and managed network elements. The connectivity is tested using each protocol the VNE uses to poll the device. The supported protocols for connectivity tests are SNMP, Telnet and ICMP.

A device unreachable alarm will be issued if one or more of the connectivity test fails, that is, the device does not respond on this protocol. The alarm will be cleared when all the protocol connectivity test are passed successfully.

Note The ICMP connectivity test is enabled in Cisco ANA Manage.

OL-14284-01

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

4-1

Device Unreachable Alarm

Device Fault Identification

When a network element stops responding to queries from the management system, one of two things has happened:

• Connectivity to that device is lost.

• The device itself crashes or restarts.

Cisco ANA implements an algorithm that uses additional data to heuristically resolve the ambiguity and declare the root cause correctly. Refer to the following examples:

• Device Unreachable Example 1

• Device Unreachable Example 2

Device Unreachable Example 1

In this example, the router (R1) goes down. As a result the links, L2, L3, and L4 go down in addition to the R1 session.

Chapter 4 Advanced Correlation Scenarios

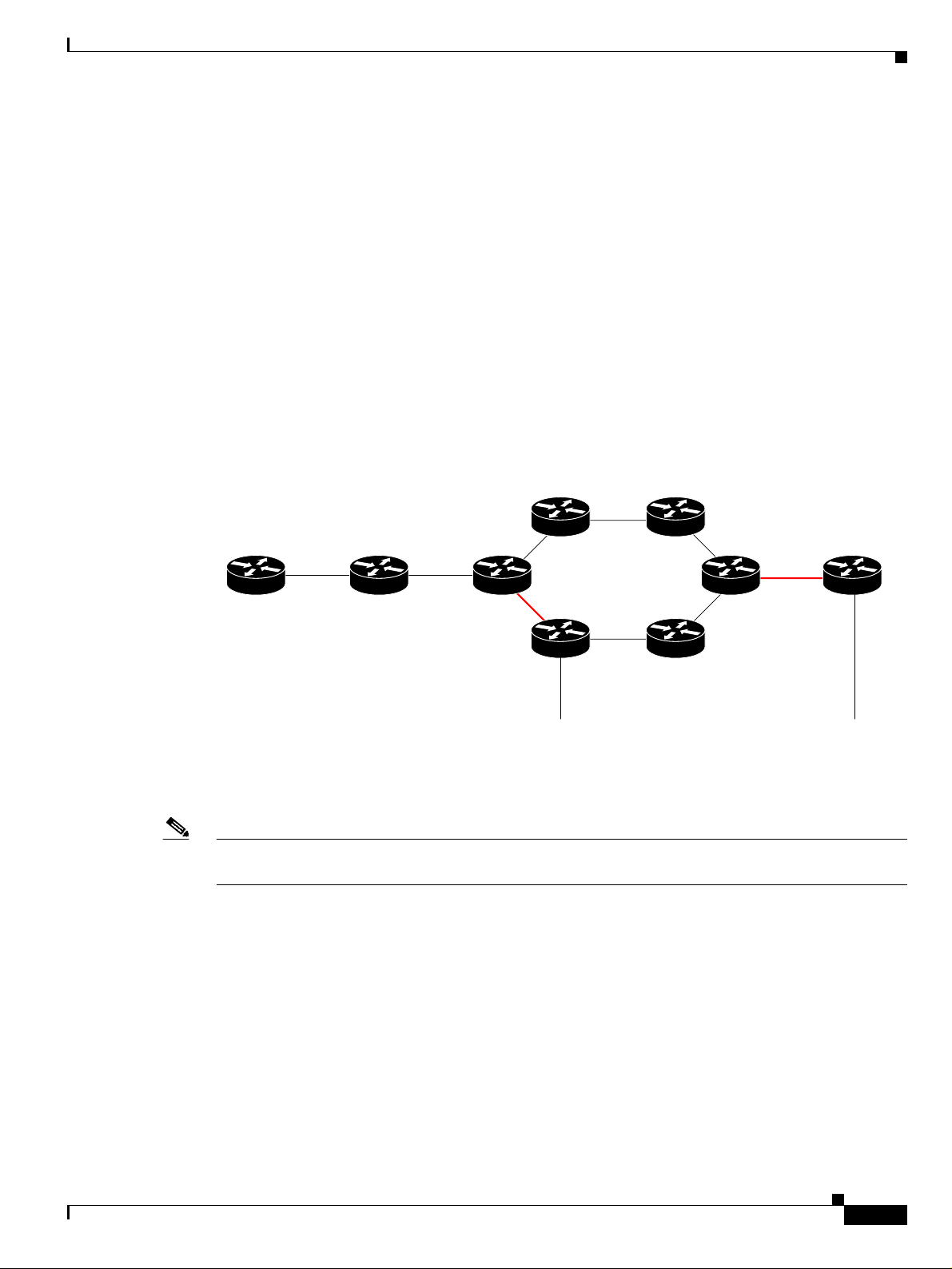

Figure 4-1 Device Unreachable Example 1

SW1

ANA Unit

Physical links

Management connectivity

L3 L4

In this case the system will provide the following report:

• Root cause—Device Unreachable (R1)

• Correlated events:

–

L2 down

–

L3 down

–

L4 down

154607

Device Unreachable Example 2

In this example, the router (R1) goes down. As a result the links, L2, L3, and L4 go down as well as the R1 session. The router R2, accessed by the link L3 is also unreachable.

Note No link-down alarm is displayed for L3 as its state cannot be determined.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

4-2

OL-14284-01

Chapter 4 Advanced Correlation Scenarios

Figure 4-2 Device Unreachable Example 2

ANA Unit

SW1

IP Interface Failure Scenarios

L3 L4

Physical links Management connectivity

Note If the device has a single link and it is being managed through that link (in-band management), there is

no way to determine if the device is unreachable due to a link down, or the link is down because the device is unreachable. In this case, Cisco ANA shows that the device is unreachable due to link down.

In this case the system will provide the following report:

• Root cause—Device Unreachable (R1)

• Correlated events:

–

L2 down

–

Device Unreachable (R2)

–

L4 down

IP Interface Failure Scenarios

This section includes:

• IP Interface Status Down Alarm

R2 SW2

154608

• All IP Interfaces Down Alarm

• IP Interface Failure Examples

IP Interface Status Down Alarm

Alarms related to subinterfaces, for example, line-down trap, line-down syslog, and so on, are reported on IP interfaces configured above the relevant subinterface. This means that in the system, subinterfaces are represented by the IP interfaces configured above them. All events sourcing from subinterfaces without a configured IP are reported on the underlying Layer 1.

An “ip interface status down” alarm is generated when the status of the IP interfaces (whether it is over an interface or a subinterface) changes from up to down or any other non-operational state. All events sourced from the subinterfaces correlate to this alarm. In addition an “All ip interfaces down” alarm is generated when all the IP interfaces above a physical port change state to down.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

4-3

Chapter 4 Advanced Correlation Scenarios

IP Interface Failure Scenarios

Table 4-1 IP Interface Status Down Alarm

Name Description Ticketable Correlation allowed Correlated to Severity

Interface status down/up

Sent when an IP interface changes oper status to “down”

Yes Yes Link Down/Device

unreachable/Configuration changed

Major

The alarm’s description includes the full name of the IP interface, for example Serial0.2 (including the identifier for the subinterface if it is a subinterface) and the source of the alarm source points to the IP interface (and not to Layer1).

All syslogs and traps indicating changes in subinterfaces (above which an IP is configured) correlate to the “ip interface status down” alarm (if this alarm was supposed to be issued). The source of these events is the IP interface. Syslogs and traps that indicate problems in Layer1 (that do not have a subinterface qualifier in their description) are sourced to Layer1.

Note In case a syslog or trap is received from a subinterface that does not have an IP configured above it, the

source of the created alarm is the underlying Layer 1.

For example:

• Line-down trap (for subinterface).

• Line-down syslogs (for subinterface).

For events that occur on subinterfaces:

• When sending the information northbound, the system uses the full subinterface name in the

interface name in the source field, as described in the ifDesc/ifName OID (for example Serial0/0.1 and not Serial0/0 DLCI 50).

• The source of the alarm is the IP interface configured above the subinterface.

• If there is no IP configured, the source is the underlying Layer 1.

In case the main interface goes down, all related subinterfaces’ traps and syslogs are correlated as child tickets to the main interface parent ticket.

The following technologies are supported:

• Frame Relay/HSSI

• AT M

• Ethernet, Fast Ethernet, Gigabit Ethernet

• POS

• CHOC

Correlation of Syslogs and Traps

4-4

When receiving a trap or syslog for the subinterface level, immediate polling of the status of the relevant IP interface occurs and a polled parent event (for example, ip interface status down) is created. The trap or syslog is correlated to this alarm.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Chapter 4 Advanced Correlation Scenarios

Where there is a multipoint setup and only some circuits under an IP interface go down, and this does not cause the state of the IP interface to change to down, then no “ip interface status down” alarm is created. All the circuit down syslogs correlate by flow to the possible root cause, for example, Device unreachable on a customer edge (CE) device.

All IP Interfaces Down Alarm

• When all the IP interfaces configured above a physical interface change their state to down, the All

ip interfaces down alarm is sent.

• When at least one of the IP interfaces changes its state to up, a clearing (active ip interfaces found)

alarm is sent.

• The ip interface status down alarm for each of the failed IP interfaces is correlated to the All ip

interfaces down alarm.

Note When an All ip interfaces down alarm is cleared by the active ip interfaces down alarm but there are still

correlated ip interface status down alarms for some IP interfaces, the severity of the parent ticket is the highest severity among all the correlated alarms. For example, if there is an uncleared interface status down alarm, the severity of the ticket remains major, despite the fact that the Active ip interfaces found alarm has a cleared severity.

IP Interface Failure Scenarios

Table 4-2 All IP Interfaces Down

Name Description Ticketable Correlation allowed Correlated to Severity

All ip interfaces down/Active ip interfaces found

Sent when all the IP interfaces configured above a physical port change their oper status to down

The All ip interfaces down alarm is sourced to the Layer1 component. All alarms from “the other side”, for example, device unreachable correlate to the All ip interfaces down alarm.

Yes Yes Link

Down/Configuration Change

Major

IP Interface Failure Examples

Note In all the examples that follow it is assumed that the problems that result in the unmanaged cloud, or the

problems that occurred on the other side of the cloud (for example, an unreachable CE device from a provider edge (PE) device) cause the relevant IP interfaces’ state to change to down. This in turn causes the ip interface status down alarm to be sent. If this is not the case, as in some Ethernet networks, and there is no change to the state of the IP interface, all the events on the subinterfaces that are capable of correlation flow will try to correlate to other possible root causes, including “cloud problem”.

OL-14284-01

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

4-5

IP Interface Failure Scenarios

Interface Example 1

In this example there is multipoint connectivity between a PE and number of CEs through an unmanaged Frame Relay network. All the CEs (Router2 and Router3) have logical connectivity to the PE through a multipoint subinterface on the PE (Router10). The keep alive option is enabled for all circuits. A link is disconnected inside the unmanaged network that causes all the CEs to become unreachable.

Figure 4-3 Interface Example 1

Chapter 4 Advanced Correlation Scenarios

unreachable

10.222.1.2

unreachable

10.222.1.3

The following failures are identified in the network:

The following correlation information is provided:

Interface Example 2

In this example there is point-to-point connectivity between a PE and a CE through an unmanaged Frame Relay network. CE1 became unreachable, and the status of the IP interface on the other side (on the PE1) changed state to down. The “keep alive” option is enabled. The interface is shut down between the unmanaged network and CE1.

Multipoint

connectivity

Frame-Relay

cloud

interface Serial0/0.55

multipoint

10.200.1.10

multipiont

IP interface

State "down"

Router10

10.222.1.10

180434

Router2

interface Serial0/0.100

point-to-point

10.200.1.2

interface Serial0/0.101

point-to-point

10.200.1.3

• A device unreachable alarm is generated for each CE.

• An ip interface status down alarm is generated for the multipoint IP interface on the PE.

• The root cause is IP subinterface down.

• All the device unreachable alarms are correlated to the ip interface status down alarm on the PE.

4-6

Figure 4-4 Interface Example 2

unreachable

CE1

60.60.60.4

Point-to-point

State unknown

interface Serial1/0.500

point-to-point

102.0.0.2

IP interface

Point-to-point

connectivity

Frame-Relay

cloud

interface Serial1/0.100

point-to-point

102.0.0.1

Point-to-point

IP interface

State "down"

The following failures are identified in the network:

• A device unreachable alarm is generated on the CE.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

Routing Protocol

neighbor down syslog

(BGF, OSPF)

PE1

80.80.80.69

180435

OL-14284-01

Chapter 4 Advanced Correlation Scenarios

• An ip interface status down alarm is generated on the PE.

The following correlation information is provided:

• The root cause is device unreachable:

–

The ip interface status down alarm is correlated to the device unreachable alarm.

–

The syslogs and traps for the related subinterfaces are correlated to the ip interface status down alarm.

Interface Example 3

In this example there is a failure of multiple IP interfaces above the same physical port (mixed point-to-point and multipoint Frame Relay connectivity). CE1 (Router2) has a point-to-point connection to PE1 (Router10). CE1 and CE2 (Router3) have multipoint connections to PE1. The IP interfaces on PE1 that are connected to CE1, and CE2 are all configured above Serial0/0. The “keep alive” option is enabled. A link is disconnected inside the unmanaged network that has caused all the CEs to become unreachable.

Figure 4-5 Interface Example 3

IP Interface Failure Scenarios

unreachable

Router2

10.222.1.2

unreachable

Router2

10.222.1.3

interface Serial0/0.100

point-to-point

10.200.1.2

interface Serial0/0.101

point-to-point

10.200.1.3

interface Serial0/0.100

point-to-point

10.200.3.3

Mixed Multipoint and

Point-to-point

connectivity

Frame-Relay

cloud

interface Serial0/0.55

multipoint

10.200.1.10

interface Serial0/0.100

point-to-point

10.200.3.10

All IP interface

above Serial0/0 change

state to "down"

Router10

10.222.1.10

180436

The following failures are identified in the network:

• All the CEs become unreachable.

• An ip interface status down alarm is generated for each IP interface above Serial0/0 that has failed.

The following correlation information is provided:

• The root cause is All IP interfaces down on Serial0/0 port:

–

The ip interface status down alarms are correlated to the All IP interfaces down alarm.

–

The device unreachable alarms are correlated to the All IP interfaces down alarm.

–

The syslogs and traps for the related subinterfaces are correlated to the All IP interfaces down alarm.

Interface Example 4

In this example there is a link down. In a situation where a link down occurs, whether it involves a cloud or not, the link failure is considered to be the most probable root cause for any other failures. In this example, a link is disconnected between the unmanaged network and the PE.

OL-14284-01

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

4-7

IP Interface Failure Scenarios

Figure 4-6 Interface Example 4

Chapter 4 Advanced Correlation Scenarios

unreachable

Router2

10.222.1.2

unreachable

Router2

10.222.1.3

interface Serial0/0.100

point-to-point

10.200.1.2

interface Serial0/0.101

point-to-point

10.200.1.3

Mixed Multipoint and

Point-to-point

connectivity

Frame-Relay

cloud

interface Serial0/0.55

multipoint

10.200.1.10

Link is "down"

above Serial0/0 change

Router10

10.222.1.10

All IP interface

state to "down"

The following failures are identified in the network:

• A link-down alarm is generated on Serial0/0.

• A device unreachable alarm is generated for each CE.

• An ip interface status down alarm is generated for each IP interface above Serial0/0.

• An All interfaces down alarm is generated on Serial0/0.

The following correlation information is provided:

• The device unreachable alarms are correlated to the link-down alarm

• The ip interface status down alarm is correlated to the link-down alarm

• The All interfaces down alarm is correlated to the link-down alarm

180437

Interface Example 5

In this example on the PE1 device that has multipoint connectivity, one of the circuits under the IP interface has gone down and the CE1 device which is connected to it has become unreachable. The status of the IP interface has not changed and other circuits are still operational.

Figure 4-7 General Interface Example

The following failures are identified in the network:

• All the traps and syslogs for the subinterfaces are correlated to the link-down alarm

CE1 unreachable

CE2

CE3

Mixed Multipoint

and Point-to-point

connectivity

PE1

Cloud

Circuit

down

syslog

180440

• A device unreachable alarm is generated on CE1.

4-8

• A Syslog alarm is generated notifying the user about a circuit down.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Chapter 4 Advanced Correlation Scenarios

The following correlation information is provided:

• device unreachable on the CE:

–

The Syslog alarm is correlated by flow to the possible root cause, for example, a device unreachable alarm on CE1

ATM Examples

Similar examples involving ATM technology have the same result, assuming that a failure in an unmanaged network causes the status of the IP interface to change to down (ILMI is enabled).

Ethernet, Fast Ethernet, Giga Ethernet Examples

Interface Example 6

In this example there is an unreachable CE due to a failure in the unmanaged network.

IP Interface Failure Scenarios

Figure 4-8 Interface Example 6

Subinterface with

The following failures are identified in the network:

The following correlation information is provided:

Interface Example 7

In this example there is a link down on the PE that results in the CE becoming unreachable.

Figure 4-9 Interface Example 7

CE1 unreachable

Etherenet

cloud

IP configured

PE1

Subinterface with

IP configured

180438

• A device unreachable alarm is generated on the CE.

• A cloud problem alarm is generated.

• No alarms are generated on a PE for Layer1, Layer2 or for the IP layers.

• The device unreachable alarm is correlated to the cloud problem alarm.

OL-14284-01

CE1 unreachable

Subinterface with

IP configured

PE1

Etherenet

cloud

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

Link is "down"

Subinterface with

IP configured

180439

4-9

IP Interface Failure Scenarios

The following failures are identified in the network:

• A link-down alarm is generated on the PE.

• An ip interface status down alarm is generated on the PE.

• A device unreachable alarm is generated on the CE.

The following correlation information is provided:

• Link down on the PE:

–

The ip interface status down alarm on the PE is correlated to the link-down alarm.

–

The device unreachable alarm on the CE is correlated to the link-down alarm on the PE.

–

The traps and syslogs for the subinterface are correlated to the link down alarm on the PE

Interface Registry Parameters

ip interface status down Parameters

Chapter 4 Advanced Correlation Scenarios

The following ip interface status down parameters can be controlled through the registry:

• is-correlation-allowed

• severity

• timeout

• time-stamp-delay

• weight

• is-ticketable

Note For more information about these parameters see Chapter 6, “Event and Alarm Configuration

Parameters”.

All ip interfaces down Parameters

The following All ip interfaces down parameters can be controlled through the registry:

• is-correlation-allowed

• is-ticketable

• severity

• activate-flow

4-10

• correlate

• timeout

• weight

Note For more information about these parameters, see Chapter 6, “Event and Alarm Configuration

Parameters”.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Chapter 4 Advanced Correlation Scenarios

Multi Route Correlation

The correlation mechanism supports multi route scenarios, thereby eliminating false correlation, and guaranteeing that the correct root cause alarm is reported.

The correlation mechanism ensures that if multi-route segments exist then all the alarms found on a certain path (after eliminating invalid paths) are collected into an alarm set. These alarm sets are input into a multi route filtering algorithm which eliminates irrelevant alarms from these sets, and outputs the potentially root cause alarms. The root-cause alarm is determined from this group.

Multi Route Correlation Example 1

In this example, a link went down in the multi route segment between P1 and P4, and another link went down in the single route segment between P6 and PE2. As a result, CE1 lost connectivity to its management port, and became unreachable.

Figure 4-10 Multi Route Correlation Example 1

Multi Route Correlation

Device

unreachable

CE1 PE1 P1

In this case the system will provide the following report:

• Root cause—Device Unreachable. Link Down #2 is identified as the root-cause for Device

Unreachable (CE1).

Note Link Down #1 is not the root-cause of the alarm because after it occurs there is still an alternative route

from CE1 to its management port.

Multi Route Correlation Example 2

In this example, there are traffic engineering routes (RSVP) from router CE2, so that CE2 can reach P1 through only three possible paths, namely:

• CE2->PE3->P7->P8->P1

Link down

P2 P3

MNG core MNG core

Link down

P6 PE2

182428

OL-14284-01

• CE2->PE3->P8->P1

• CE2->PE3->P7->P1

Several links went down, and as a result, router CE2 became unreachable.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

4-11

Multi Route Correlation

Chapter 4 Advanced Correlation Scenarios

Figure 4-11 Multi Route Correlation Example 2

CE1

Device

unreachable

CE2

PE1

Link

down #1

In this case the system will provide the following report:

• Root cause—Device Unreachable. Link Down #1, Link Down #2 or Link Down #3 is identified as

the root cause for Device Unreachable (CE2), depending on which one occurred closest in time to the Device Unreachable event.

Multi Route Correlation Example 3

Link down #2

Link down #1

Link down #3

P8PE3

P2 P3

MNG core MNG core

Link down

P6 PE2

182429

In this example, two paths exists from CE1 to PE2. Several links went down and as a result router CE1 became unreachable. In addition, router P4 is an unmanaged device.

Figure 4-12 Multi Route Correlation Example 3

Device

unreachable

CE1 PE1 P1

Link down

P2 P3

Unmanaged device

MNG core

Link down

P6 PE2

MNG core

In this case the system will provide the following report:

• Root cause—Device Unreachable. Link Down #1 or Link Down #2 is identified as the root cause for

Device Unreachable (CE1), depending on which one occurred closest in time to the Device Unreachable event.

182430

4-12

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Chapter 4 Advanced Correlation Scenarios

Multi Route Correlation Example 4

In this example, two paths exists from CE1 to PE2. Several links went down, and there is a MPLS black hole in the multi route segment. As a result router CE1 became unreachable.

Figure 4-13 Multi Route Correlation Example 4

Device

unreachable

Generic Routing Encapsulation (GRE) Tunnel Down/Up

Link down

P2 P3

Link down

CE1 PE1 P1

Link down

MNG core MNG core

MPLS

Black hole

P6 PE2

In this case the system will provide the following report:

• Root cause—Device Unreachable. Link Down #2 is identified as the root cause for Device

Unreachable (CE1).

Generic Routing Encapsulation (GRE) Tunnel Down/Up

Generic Routing Encapsulation (GRE) is a tunneling protocol that encapsulates a variety of network layer packets inside IP tunneling packets, creating a virtual point-to-point link to devices at remote points over an IP network. It is used on the Internet to secure virtual private networks (VPNs). GRE encapsulates the entire original packet with a standard IP header and GRE header before the IPsec process. GRE can carry multicast and broadcast traffic, making it possible to configure a routing protocol for virtual GRE tunnels. The routing protocol detects loss of connectivity and reroutes packets to the backup GRE tunnel, thus providing high resiliency.

GRE is stateless, which means that the tunnel endpoints do not monitor the state or availability of other tunnel endpoints. This feature helps service providers support IP tunnels for clients, who don't know the service provider's internal tunneling architecture. It gives clients the flexibility of reconfiguring their IP architectures without worrying about connectivity.

182431

GRE Tunnel Down/Up Alarm

When a GRE tunnel link exists, if the status of the IP interface of the GRE tunnel edge changes to down, a GRE Tunnel Down alarm is created. The IP Interface Down alarms of both sides of the link will correlate to the GRE Tunnel Down alarm. The GRE Tunnel Down alarm will initiate an IP based flow toward the GRE destination. If an alarm is found during the flow, it will correlate to it.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

4-13

Generic Routing Encapsulation (GRE) Tunnel Down/Up

Note The GRE Tunnel Alarm Down is supported only on GRE tunnels that are configured with keepalive.

When keepalive is configured on the GRE tunnel edge, if a failure occurs in the GRE tunnel link, both IP interfaces of the GRE tunnel will be in Down state. If keepalive is not configured on the GRE tunnel edge, since the alarm is generated arbitrarily from one of the tunnel devices when the IP Interface changes to the Down state, the GRE Tunnel Down alarm might not be generated.

When a failure occurs, the GRE tunnel link is marked orange. When the IP interface comes back up, a fixing alarm is sent, and the link is marked green. The GRE Tunnel Down alarm is cleared by a corresponding GRE Tunnel Up alarm. It will also be cleared when the GRE link is discovered again.

GRE Tunnel Down Correlation Example 1

The following provides an example of a GRE Tunnel Down correlation for a single GRE tunnel.

In this example:

• Router 1 (R1) is connected to Router 3 (R3) through a physical link L1.

• Router 3 is connected to Router 2 through a physical link L2.

• Router 1 is connected to Router 2 through a GRE tunnel.

Chapter 4 Advanced Correlation Scenarios

Figure 4-14 GRE Tunnel Down Example 1 (Single GRE Tunnel)

GRE tunnel

Physical links

GRE tunnel

183047

When a Link Down occurs on L2, a Link Down alarm appears. A GRE Tunnel Down alarm is issued as the IP interfaces of the tunnel edge devices go down. The IP Interface Status Down alarms will correlate to the GRE Tunnel Down alarm. The GRE tunnel down will correlate to the Link Down alarm.

The system provides the following report:

• Root cause—Link down: L2 Router 2 <-> Router 3

• Correlated events:

GRE tunnel down Router1:tunnel <-> Router 2:tunnel

–

IP interface down Router 1:tunnel

4-14

–

IP interface down Router 2:tunnel

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Chapter 4 Advanced Correlation Scenarios

GRE Tunnel Down Correlation Example 2

This example provides a real world scenario, whereby multiple GRE tunnels cross through a physical link. When this link is shut down by an administrator, many alarms are generated. All the alarms are correlated to the root cause ticket "Link down due to admin down”, as illustrated in Figure 4-15.

Figure 4-15 GRE Tunnel Down Example 2 (Multiple GRE Tunnels)

Generic Routing Encapsulation (GRE) Tunnel Down/Up

OL-14284-01

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

4-15

Generic Routing Encapsulation (GRE) Tunnel Down/Up

Figure 4-16 shows the Correlation tab of the Ticket Properties dialog box, which displays all the alarms

that are correlated to the ticket, including the correlation for each GRE tunnel and its interface status.

Figure 4-16 Alarms Correlation to GRE Tunnel Down Ticket

Chapter 4 Advanced Correlation Scenarios

4-16

As illustrated, the system provides the following report:

• Root cause—Link down due to admin down

• Correlated events:

GRE tunnel down ME-6524AGRE:Tunnel2 <-> ME-6524B GRE:Tunnel2

–

Interface status down ME-6524A IP:Tunnel2

–

Interface status down ME-6524B IP:Tunnel2

GRE tunnel down ME-6524AGRE:Tunnel3 <-> ME-6524B GRE:Tunnel3

–

Interface status down ME-6524A IP:Tunnel3

–

Interface status down ME-6524B IP:Tunnel3

etc.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Chapter 4 Advanced Correlation Scenarios

BGP Process Down Alarm

The BGP process down alarm is issued when the BGP process is shut down on a device. If a BGP process is shutdown on a device, the BGP neighbor down events will correlate to it as well as all the device unreachable alarms from the CE devices that lost connectivity to the VRF due to the BGP process down on the route reflector. The syslogs that the device issues expedite the status check of the BGP process and BGP neighbors.

MPLS Interface Removed Alarm

The MPLS interface removed alarm is issued when a MPLS IP interface is removed and there is no MPLS TE tunnel on the same interface. In addition, this may lead to two black holes on either side and MPLS black hole found alarms may be issued. The black holes will send a flood message to the PEs and check for any broken LSPs, and broken LSP discovered alarms may be issued. The MPLS black hole found and broken LSP discovered alarms are correlated to the MPLS interface removed alarm. The syslogs that the device issues expedite the status check of the label switching table and MPLS status.

BGP Process Down Alarm

LDP Neighbor Down Alarm

The "LDP neighbor down" alarm is issued if a session to an LDP neighbor goes down. This can happen as the result of a failure in the TCP connection used by the LDP session, or if the interface is no longer running MPLS. The “LDP neighbor down” alarm is cleared by a corresponding “LDP neighbor up” alarm.

The alarm is issued when a peer is removed from the table in the LDP Neighbours tab. The alarm runs a correlation flow to detect what event happened in the network core, and then performs a Root Cause Analysis to find its root cause. The alarm initiates an IP based flow towards the “Peer Transport Address" destination. If an alarm is found during the flow, it will correlate to it.

Note The "LDP neighbor down" alarm can correlate to the “MPLS interface removed" alarm. See MPLS

Interface Removed Alarm, page 4-17.

OL-14284-01

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

4-17

LDP Neighbor Down Alarm

Chapter 4 Advanced Correlation Scenarios

4-18

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Cloud VNE

CHA PTER

Correlation Over Unmanaged Segments

This chapter describes how Cisco ANA performs correlation decisions over unmanaged segments, namely, clouds.

• Cloud VNE—Describes managing more than one network segment that interconnects with others,

over another network segment which is not managed.

• Cloud Problem Alarm—Describes the cloud problem alarm, its correlation, and provides an

example.

In some scenarios Cisco ANA is required to manage more than one network segment that interconnects with others over another network segment which is not managed. In such setups, faults on one device might be correlated to faults on another device that is located on the other side of the unmanaged segment of the network, or to unknown problems in the unmanaged segment itself.

A virtual cloud is used for representing unmanaged network segments. It represents the unmanaged segment of the network as a single device that the two managed segments of the network are connected to, and has that device simulate the workings of the unmanaged segment.

Virtual clouds support specific network setups. The types of unmanaged networks that are supported are:

• Frame Relay

• AT M

• Ethernet

Types of Unmanaged Networks Supported

This section describes the types of unmanaged networks that are supported when a VNE simulates an unmanaged segment of a network.

Note The unmanaged segments referred to in this section must be pure switches, no routing can be involved

with the segment.

OL-14284-01

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

5-1

Chapter 5 Correlation Over Unmanaged Segments

Cloud VNE

Table 5-1 Cloud Types Supported

Technology Type Supported When... Logical Inventory Physical Inventory

ATM An ATM cloud (representing

unmanaged network segments) comprised of ATM switches is connected to routers (managed

The IP interface connected to a routing entity or VRF component, for the ATM interface or sub-interface.

The ATM port connected to the VC encapsulation, for the ATM interface or sub-interface.

segments) with ATM interfaces. The ATM interface or sub-interface in the router is IP over an ATM VC encapsulation interface with a VC (VPI or VCI) or VP (VPI) configuration.

Frame Relay A Frame Relay cloud

(representing unmanaged network segments) comprised of Frame Relay switches is

The IP interface connected to a routing entity or VRF component, for the Frame Relay interface or sub-interface.

The Frame Relay port connected to the VC encapsulation, for the Frame Relay interface or

sub-interface. connected to routers (managed segments) with Frame Relay interfaces. The Frame Relay interface or sub-interface in the router is IP over a Frame Relay VC encapsulation interface with a DLCI configuration.

Ethernet A Ethernet LAN cloud

(representing unmanaged network segments) comprised of Ethernet LAN switches is

The IP interface connected to a routing entity or bridges, for the ethernet interface or sub-interface.

The ethernet port connected to

the VLAN encapsulation, for the

ethernet interface or

sub-interface. connected to routers (managed segments) with Ethernet interfaces. The ethernet interface or sub-interface in the router can be either native or VLAN interfaces.

Fault Correlation Across the Frame Relay or ATM or Ethernet Cloud

When a Layer 3 or Layer 2 event (for example, reachability problem, neighbor change, Frame Relay DLCI down, ATM PVC down) occurs, it triggers a flow along the physical and logical path modeled on the VNEs. This is done in order to correlate to the actual root cause of this fault. If the flow passes over a cloud along the path flow, it marks it as a potential root cause for the fault. If there is no other root cause found on the managed devices, then the cloud becomes the root cause. A ticket is then issued and the original event correlates to it.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

5-2

OL-14284-01

Chapter 5 Correlation Over Unmanaged Segments

Cloud Problem Alarm

For some events, when there is no root cause found, a special cloud problem alarm is created. These events are then correlated to the alarm. The cloud problem alarm has a major severity, and is automatically cleared after a delay.

Note When required a correlation filter, filters the cloud problem. This enables or disables the ability of an

alarm to create a cloud problem alarm, and to correlate to it. The default value is false for all alarms in the system, meaning that an alarm does not correlate to the cloud problem alarm by default. However, there are several alarms that override the default configuration and are set to true, as follows: BGP neighbor down syslog OSPF neighbor loss syslog EIGRP router query to neighbors timeouted syslog ipx 3 bad igrp sap syslog

Cloud Correlation Example

Cloud Problem Alarm

In this example, two devices that have OSPF configured are connected through a cloud. A malfunction occurs inside the unmanaged network that causes the OPSF neighbor down alarm to be generated. In this case the OSPF neighbor down alarm is correlated to the cloud problem.

Figure 5-1 Cloud Correlation Example

Routing Protocol

neighbor down syslog

ISDN

Backup

Interface Serial

1/0.500

point-to-point

102.0.0.2 Frame Relay

CE1

60.60.60.4

Interface Serial

1/0.100

point-to-point

102.0.0.2

Point-to-point

interface

State "down"

PE1

80.80.80.69

180456

On the PE1 device, the OSPF neighbor down alarm was received, and no root cause was detected in any of the managed devices. A disconnected link inside the unmanaged network caused the OSPF neighbor down alarm. The following alarms are generated and correlated:

• Cloud problem on the cloud:

–

OSPF neighbor down on the PE1 is correlated to the cloud problem alarm.

OL-14284-01

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

5-3

Cloud Problem Alarm

Chapter 5 Correlation Over Unmanaged Segments

5-4

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Event and Alarm Configuration Parameters

This chapter describes the different options that exist to modify the alarm behavior by editing the appropriate alarm parameters in the system registry.

• Alarm Type Definition—Describes the alarm type concept.

• Event (Sub-Type) Configuration Parameters—Describes the event and alarm configuration

parameters and values that can be controlled through the registry.

The parameters described in the following section are defined per event (subtype) that belongs to the alarm.

Note Changes to the registry should only be carried out with the support of Cisco Professional Services.

Alarm Type Definition

CHA PTER

The alarm type serves as an identifier which enables group events from different subtypes to share the same type and source in a single event sequence.

The event subtype is a specific occurrence of fault in the network. For example, link down and link up are two subtypes that share the same type.

OL-14284-01

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

6-1

Chapter 6 Event and Alarm Configuration Parameters

Event (Sub-Type) Configuration Parameters

General Event Parameters

Parameter Name Description Permitted Values

severity Severity level of the event. Either:

is-ticketable Determines whether the alarm will generate a new

ticket, if there is no root-cause alarm to correlate to.

functionality-type Determines the event type. Either:

• CRITICAL

• MAJOR

• MINOR

• WA R NI N G

• CLEARED

• UNKNOWN

• INFO

True (ticketable) False (not ticketable)

• SERVICE

(Cisco ANA-generated)

Root Cause Configuration Parameters

These parameters define the behavior of the alarm when serving as the root cause of other alarms.

Name Description Permitted Values

is-correlation-allowed Defines whether the alarm may serve as a

root cause, and allow child alarms to correlate to it.

short description Textual description that describes the event. User defined text

gw-correlation-timeout The period of time in milliseconds for how

long an alarm with the severity Clear or Info is open for sequence. Alarms with non-cleared severity are always open for a consequent alarm. This parameter is deprecated for non-clearing events (its value is defined as a very large number, so that it does not interfere with correlation decisions from a VNE). This parameter only affects chaining to clearing events.

• SYSLOG

• TRAP

True (correlates) or False (will not correlate)

Positive integer

6-2

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Chapter 6 Event and Alarm Configuration Parameters

Name Description Permitted Values

select-root-cause-method Used to determine the most fitting alarm

correlation-filters Used to define a set of filters that will

post-correlationapplications

Event (Sub-Type) Configuration Parameters

from the set of possible root causes sets. This set may be a result of a correlation flow or may represent all alarms in the local Event Correlator component having a correlation key that matches one of the EventData object correlation keys.

remove, from the potential set of alarms, unnecessary root causes. For example, remove from the list all the root causes that have a weight lower than the event that wants to correlate.

Used to define a set of applications that will be invoked after the event was correlated. For example, running affected is such an application.

Select the class name to be used from the set of classes

For more information about root cause see Correlation By Root Cause, page 1-5.

Correlation Configuration Parameters

These parameters define the behavior of the alarm in finding its root-cause alarm:

Name Description Permitted values

correlate Determines whether the alarm should attempt to

find and correlate to a root-cause alarm. If this parameter is set to true at least box level correlation will be performed.

Network Correlation Parameters

These parameters control the alarm’s behavior in initiating an active correlation-search flow:

Name Description Permitted values

activate-flow Determines whether to initiate network level

correlation.

weight Defines the weight of an alarm as a correlation

candidate. The heavier the alarm, the more likely it will be chosen as the root cause.

True or false

Positive integer

OL-14284-01

Note All delays should be smaller than the expiration time to allow correlation to take place. Flow activation

delay is being counted only when the correlation delay has expired.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

6-3

Event (Sub-Type) Configuration Parameters

Flapping Event Definitions Parameters

If a flapping event application is enabled on an event, then the following parameters control the alarm’s behavior regarding its flapping state:

Name Description Permitted values

Flapping interval

Flapping threshold

Update interval

Clear interval

Update threshold

The maximum amount of time in milliseconds between two alarms which can be considered as a flapping change.

After this amount of changes (each change arriving at an interval lower then the flapping interval), the event will be considered as flapping.

After this interval in milliseconds an update will be sent. Positive integer

The amount of time in milliseconds an event has to stay in one state to be considered as a normal alarm and not in a flapping state.

After this number of flapping alarms, an update will be sent to the gateway updating the alarm with the number of events received.

Chapter 6 Event and Alarm Configuration Parameters

Positive integer

System Correlation Configuration Parameters

These parameters correctly correlate all the events that occur within the specified timeframe.

Name Description Permitted values

correlation-delay Period of time in milliseconds to wait before

attempting to find and correlate to a root-cause parameter (it is system-wide, not configured per event).

time-stamp-delay Used for normalization of the event occurrence

time. The value in milliseconds is subtracted from the event time, to compensate for the time difference with the root-cause alarm. It is also used for running the network correlation against the historic network configuration.

Positive integer

6-4

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

CHA PTER

Impact Analysis

This chapter describes the impact analysis functionality:

• Impact Analysis Options—Describes automatic and proactive impact analysis.

• Impact Report Structure—Describes the structure of the impact report that is generated.

• Affected Severities—Describes the severities used for automatic impact analysis.

• Impact Analysis GUI—Describes how the user can view impact analysis information in Cisco ANA

NetworkVision.

• Disabling Impact Analysis—Describes enabling and disabling impact analysis for specific alarm,

and which alarms support this feature.

• Accumulating Affected Parties—Describes how Cisco ANA NetworkVision automatically

calculates the accumulation of affected parties during automatic impact analysis.

Impact Analysis Options

Impact analysis is available in two modes:

• Automatic impact analysis—When a fault occurs which has been identified as potentially service

affecting, Cisco ANA automatically generates the list of potential and actual service resources that were affected by the fault, and embeds this information in the ticket along with all the correlated faults.

Note This only applies to specific alarms. Not every alarm initiates affected calculation.

• Proactive impact analysis—Cisco ANA provides “what-if” scenarios for determining the possible

affect of network failures. This enables on-demand calculation of affected service resources for every link in the network, thus enabling an immediate service availability check and analysis for potential impact and identification of critical network links. Upon execution of the “what-if” scenario, the Cisco ANA fabric initiates an end-to-end flow, which determines all the potentially affected edges.

Note For more information about fault scenarios which are considered as service affecting in an MPLS

network and supported by Cisco ANA, refer to the Cisco Active Network Abstraction MPLS User Guide.

OL-14284-01

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

7-1

Impact Report Structure

Note Each fault which has been identified as potentially service affecting triggers a generation of impact

analysis calculation event if it is reoccurring in the network.

This chapter describes the automatic impact analysis. For more information about proactive impact analysis, refer to the Cisco Active Network Abstraction NetworkVision User Guide.

Impact Report Structure

The impact report contains a list of pairs of endpoints when the service between them has been affected.

Each endpoint has the following details:

• Endpoint physical or logical location—An endpoint can be a physical entity (for example, a port)

or a logical one (for example, a subinterface). The impact report contains the exact location of the entity. All the location identifiers start with the ID of the device which holds the endpoint. The other details in the location identifier are varied according to the endpoint type, for example VC, VP, IP interface.

• Business tag properties—Key, name, type (if attached to the entity).

Chapter 7 Impact Analysis

Note For specific information about the report structure in MPLS networks, refer to the Cisco Active Network

Abstraction MPLS User Guide.

Affected Severities

In automatic mode, the affected parties can be marked with one of the following severities:

• Potentially affected—The service might be affected but its actual state is not yet known.

• Real affected—The service is affected.

• Recovered—The service is recovered. This state relates only to entries that were marked previously

as potentially affected. It indicates only the fact that there is an alternate route to the service, regardless of the service quality level.

• The initial impact report might mark the services as either potentially or real affected. As time

progresses and more information is accumulated from the network, the system might issue additional reports to indicate which of the potentially affected parties are real or recovered.

• The indications for these states are available both through the API and in the GUI.

Note The reported impact severities vary between fault scenarios. For more information about fault scenarios

in an MPLS network see the Cisco Active Network Abstraction MPLS User Guide.

7-2

Note There is no clear state for the affected services when the alarm is cleared.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Chapter 7 Impact Analysis

Impact Analysis GUI

The Impact Analysis GUI is available in Cisco ANA NetworkVision and displays the list of affected service resources which are embedded in the ticket information. This section describes this list.

Affected Parties Tab

The Affected Parties tab displays the service resources (affected pairs) that are affected (automatic impact analysis) for an event, an alarm, or a ticket depending on which properties window is opened. In the case of an alarm or a ticket, NetworkVision automatically calculates the accumulation of affected parties of all the subsequent events. For more information about accumulating affected parties, see

Viewing a Detailed Report For the Affected Pair, page 7-4.

The Affected Parties tab is displayed below.

Figure 7-1 Affected Parties Tab

Impact Analysis GUI

OL-14284-01

The Affected Parties tab is divided into two areas, Source and Destination. The Source area displays the set of affected elements, A side and Z side. The following columns are displayed in the Affected Parties tab providing information about the affected parties:

• Location—A hyperlink that opens the Inventory window, highlighting the port with the affected

parties.

• Key—The unique value taken from the affected element’s business tag key, if it exists.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

7-3

Impact Analysis GUI

Chapter 7 Impact Analysis

• Name—The subinterface (site) name or business tag name of the affected element, if it exists. For

more information, refer to the Cisco Active Network Abstraction Managing MPLS User Guide.

• Type—The business tag type.

• IP Address—If the affected element is an IP interface, the IP address of the subinterface site is

displayed. For more information, refer to the Cisco Active Network Abstraction Managing MPLS User Guide.

• Highest Affected Severity—The severest affected severity for the affected pair (destination). The

same source can be part of multiple pairs, and therefore each pair can have different affected severities. The highest affected severity reflects the highest among these. The affected pair can have one of the following severities:

–

Potential

–

Real

–

Recovered

–

N/A—From the Links view this indicates not relevant.

When an affected side (a row) is selected in the Source area, the selected element’s related affected pairs are displayed in the Destination area.

The following additional columns are displayed in the Destination area table in the Ticket Properties window:

• Affected Severity—The severity of the affected pair as calculated by the client according to the

rules defined above.

• Alarm Clear State—An indication for each pair of the clear state of the alarm. The following states

exist:

–

Not cleared—There are one or more alarms that have not been cleared for this pair.

–

Cleared—All the related alarms for this pair have been cleared.

In addition, you can view a detailed report for every affected pair that includes a list of the events that contributed to this affected pair.

Viewing a Detailed Report For the Affected Pair

You can view a detailed report for every affected pair in NetworkVision. The detailed report includes a list of the events that contributed to the affected pair.

For information about how to reach a detailed affected report, refer to the Cisco Active Network Abstraction NetworkVision User Guide.

The Affected Parties Destination Properties dialog box is displayed.

7-4

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Chapter 7 Impact Analysis

Figure 7-2 Detailed Report For the Affected Pair

Impact Analysis GUI

The following fields are displayed at the top of the Affected Parties Destination Properties dialog box:

• Affected Pair—The details of A side and Z side of the affected pair.

• Alarm Clear State—An indication for each pair of the clear state of the alarm. The following states

exist:

–

Not Cleared—There are one or more alarms that have not been cleared for this pair.

–

Cleared—All the related alarms for this pair have been cleared.

• Affected Severity—The severity of the affected pair as calculated by the client according to the

rules defined in Viewing a Detailed Report For the Affected Pair, page 7-4.

• Name—The name of the destination from which you opened the detailed report.

Each row in the Instances table represents an event that was reported for the affected pair. The following columns are displayed in the Instances table of the Affected Parties Destination Properties dialog box:

• Alarm OID—The ID of the alarm to which the event is correlated as a hyperlink to the relevant

alarm’s properties.

• Alarm Description—A description of the alarm to which the event is correlated.

• Alarm Clear State—The alarm’s calculated severity.

• Event OID—The ID of the event as a hyperlink to the relevant event’s properties.

• Event Description—A description of the event.

• Event Time Stamp—The event’s time stamp. The date and time of the event.

• Affected Severity—The actual affected severity of the pair that was reported by the selected event.

OL-14284-01

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

7-5

Disabling Impact Analysis

You can disable impact analysis for a specific alarm. This option can be set in the Cisco ANA Registry. If impact analysis is disabled the system will report the event with no impact information. The settings can be changed dynamically during system runtime.

The following alarms can be disabled:

• Link down

• Port down

• Dropped or discarded packets

• MPLS black hole

• BGP neighbor loss

• MPLS TE tunnel down

• L2 tunnel down

Chapter 7 Impact Analysis

Accumulating Affected Parties

This section describes how NetworkVision automatically calculates the accumulation of affected parties during automatic impact analysis. This information is embedded in the ticket along with all the correlated faults.

In the example below the following types of alarms exist in the correlation tree:

• Ticket root-cause alarm (Card out).

• An alarm which is correlated to the root cause and has other alarms correlated to it (Link A down).

• An alarm with no other alarms correlated to it (Link B down and BGP neighbor loss).

An event sequence is correlated to each of these alarms.

Figure 7-3 Correlation Tree Example

Card out

----- Link A down

----- Link A down | |

| | | ------BGP neighbor loss

| ------BGP neighbor loss |

----- Link B down

NetworkVision provides a report of the affected parties for each type of alarm. This report includes the accumulation of:

180110

7-6

• The affected parties reported on all the events in the alarm event sequence. This also applies to

flapping alarms.

• The affected parties reported on the alarms that are correlated to it.

Each report includes the accumulation of the affected report of all the events in its own correlation tree.

For example, in the diagram:

• BGP neighbor loss includes the accumulation of the affected report of its own event sequence.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Chapter 7 Impact Analysis

• Link A down includes the accumulation of the report of its own event sequence. It also includes the

report of the BGP neighbor loss.

Accumulating the Affected Parties In an Alarm

When there are two events that form part of the same event sequence in a specific alarm, the reoccurring affected pairs are only displayed once in the Affected Parties tab. Where there are different affected severities reported for the same pair, the pair is marked with the severity that was reported by the latest event, according to the time stamp.

Accumulating the Affected Parties In the Correlation Tree

Where there are two or more alarms that are part of the same correlation tree, that report on the same affected pair of edgepoints, and have different affected severities, then the reoccurring affected pairs are only displayed once in the Affected Parties tab. Where there are different affected severities reported for the same pair, the pair is marked with the highest severity.

In this example, X and Y are the OIDs of edgepoints in the network and there is a service running between them. Both of the alarms, link B down and BGP neighbor loss, report on the pair X<->Y as affected:

• Link B down reports on X<->Y as potentially affected.

Accumulating Affected Parties

• BGP neighbor loss reports on X<->Y as real affected.

The affected severity priorities are:

• Real—Priority 1

• Recovered—Priority 2

• Potentially—Priority 3

Card out reports on X<->Y as real, affected only once.

Updating Affected Severity Over Time

Cisco ANA can update the affected severity of the same alarm report over time due because in some cases, the affect of the fault on the network cannot be determined until the network has converged.

For example, a link-down alarm creates a series of affected severity updates over time. These updates are added to the previous updates in the system database. In this case, the system provides the following reports:

• The first report of a link down reports on X<->Y as potentially affected.

• Over time the VNE identifies that this service is real affected or recovered, and generates an updated

report.

• The Affected Parties tab of the Ticket Properties dialog box displays the latest severity as real

affected.

OL-14284-01

• The Affected Parties Destination Properties dialog box displays both reported severities.

This functionality is currently only available in the link-down scenario in MPLS networks.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

7-7

Accumulating Affected Parties

Chapter 7 Impact Analysis

7-8

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Supported Service Alarms

This appendix provides the list of service alarms that are supported by Cisco ANA 3.6.

Note If the source of the alarm is an interface with technology which is not supported by Cisco ANA, then the

alarm will not be generated.

Note If the source of the alarm is an entity which is not modeled by Cisco ANA, for example, an unsupported

module, then the alarm will not be generated.

The columns displayed in Tab le A -1 relate to the configuration parameters described in this guide. For more information about these parameters, see Event (Sub-Type) Configuration Parameters, page 6-2.

The following table lists the supported service alarms:

Ta bl e A - 1 S e r vi ce Al ar ms

APPENDIX

Item Name Description

1 HSRP group status

changed

• Primary HSRP

interface is not active/Primary HSRP interface is active

• Secondary

HSRP interface is not active/ Secondary HSRP interface is active

2 BGP process down/

BGP process up

Sent when an active HSRP group member is not active anymore, a link was shut down

Secondary member of an HSRP group is active.

When the BGP process is shut down on a device.

is-correlation

-allowed correlate is-ticketable severity weight

true true true MAJOR 720

true false true CRITICAL 850

OL-14284-01

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

A-1

Appendix A Supported Service Alarms

Table A-1 Service Alarms (continued)

is-correlation

Item Name Description

3 All ip interfaces

down Active ip interfaces found

4 Interface status

down/up

Sent when all IP interfaces configured above a physical port change operating status to down.

Sent when an IP interface changes operating status to

-allowed correlate is-ticketable severity weight

true true true MAJOR 750

true true true MAJOR

down.

• interface status

down connection

Sent when an IP interface changes operating status to

500

down on a point to point link.

• interface status

down non connection

• interface status

down GRE tunnel

Sent when an IP interface changes operating status to down on a multipoint link.

Sent when an IP interface changes operating status to down on a GRE tunnel link.

700

5 Card out/in Card in, card out. true true true MAJOR 100 000

• sub card out Sub card out. 1000

6 Link down/up Link down, link up. true true true CRITICAL 850

• link down due to

admin down

Sent when an administrator shuts down one of the ports

false

on one of the ends.

• link down due to

card

• link down due to

oper down

Sent when a card is removed from one of the sides.

Sent when there is an operational error between the

true

endpoints.

• link down on

unreachable

• link down

flapping

7 Component

Unreachable

8 CPU Over Utilized The device CPU percentage

Sent when one of the devices is unreachable.

Sent when a link is down and is in a flapping state.

The component is no longer reachable.

true

true true true MAJOR 600

false false true MAJOR 0 has passed the configured threshold.

9 Memory Over

Utilized

The device memory utilization has passed the

false false true MAJOR 0

configured threshold.

10 Device Unsupported The device is not supported in

false false true CRITICAL 0 Cisco ANA.

A-2

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Appendix A Supported Service Alarms

Table A-1 Service Alarms (continued)

is-correlation

Item Name Description

11 Discard Packets The port discard packets

-allowed correlate is-ticketable severity weight

false true true MINOR 0 value has passed the configured settings.

12 Dropped Packets The port dropped packets

false false true MINOR 0 value has passed the configured settings.

13 MPLS interface

removed/MPLS interface added

When the MPLS interface is removed and there is no MPLS TE tunnel on the same

true false true MAJOR 700

interface.

14 Card Down/Up When the card status changes

true false true MAJOR 100 000 from an OK state, to a non-OK state (whether this state is admin-down, disable, loading-IOS etc.).

15 Port Down Port down. true false true MAJOR 100 000

• Port down card

out

• Port down

flapping

16 Rx Over Utilized The percentage of the traffic

The port is down as the entire card is out.

The port is down and is in a flapping state.

true 900

false 100 000

false true true MINOR 0 on the port passed the configured threshold.

17 Tx Over Utilized The percentage of the traffic

false true true MINOR 0 on the port passed the configured threshold.

18 BGP Neighbor Loss When a BGP neighbor’s state

true true true MAJOR 800 has changed from established to any other state or an entry is found for a neighbor that no longer exists.

19 Cloud Problem A problem in an unmanned

true false true MAJOR 2000 segment.

20 Broken LSP

discovered

When the MPLS black hole’s backward flow meets LSE

false true true MAJOR 0

components on the edge of the core.

21 MPLS Black hole

found

When a BGP (destination) entry in the label switching

true true true WARNING650

table becomes untagged. This event is created per outgoing interface and nextHop.

22 Layer 2 Tunnel Down When a martini tunnel goes

false true true MINOR 0 down.

OL-14284-01

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

A-3

Shelf Out

Table A-1 Service Alarms (continued)

Item Name Description

23 MPLS TE Tunnel

Down/Flapping

24 LDP Neighbor

Down/Up

25 GRE Tunnel Down/

GRE Tunnel Up

26 Shelf Out A shelf was removed from a

27 Rx Dormant The traffic received by the

28 Tx Dormant The traffic transmitted by the

29 Link Over Utilized The traffic on the link

When a traffic engineering tunnel goes down.

If a session to an LDP neighbor goes down as the result of a failure in the TCP connection used by the LDP session, or if the interface is no longer running MPLS.

When the state of an IP interface for a GRE tunnel edge is identified as Down or Up.

network element.

port (measured as a percentage) dropped below the configured threshold.

(measured as a percentage) exceeded the configured threshold.

Appendix A Supported Service Alarms

is-correlation

-allowed correlate is-ticketable severity weight

true true true MAJOR 800

true true true MAJOR 670

true true true MAJOR 50

true false true MAJOR 110000

false false true MINOR 0

true true true MINOR 0

Note The service alarms specified in this guide are VNE-related and therefore the level of support provided

Shelf Out

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

A-4

for each technology may vary. The user should refer to the Virtual Network Element Reference Guide for details.

A Shelf out alarm is issued when a shelf is removed from a network element. This alarm applies only to network elements that support removable or subtended shelves, such as the ECI HiFocus and the Alcatel ASAM. The Shelf in alarm is issued after the problem has been fixed.

OL-14284-01

Appendix A Supported Service Alarms

Rx Dormant

An Rx Dormant alarm is issued when the traffic received over a physical port (measured as a percentage of the port’s capacity) drops below a predefined threshold. The alarm description includes the current traffic percentage compared with the defined threshold. This alarm provides service providers with a method for identifying customer services that have slowed down significantly or stopped altogether. An Rx Dormant Normal alarm is issued after the traffic percentage exceeds a predefined upper threshold. By default, the Rx Dormant alarm is disabled. This alarm is enabled and its thresholds are configured using the Cisco ANA Registry Editor.

Note Changes to the registry should be carried out only with the support of Cisco Professional Services.

Tx Dormant

A Tx Dormant alarm is issued when the traffic transmitted over a physical port (measured as a percentage of the port’s capacity) drops below a predefined threshold. The alarm description includes the current traffic percentage compared with the defined threshold. This alarm provides service providers with a method for identifying customer services that have slowed down significantly or stopped altogether. A Tx Dormant Normal alarm is issued after the traffic percentage exceeds a predefined upper threshold. By default, the Tx Dormant alarm is disabled. This alarm is enabled and its thresholds are configured using the Cisco ANA Registry Editor.

Rx Dormant

Link Over Utilized

A link over utilized alarm is issued when the traffic transmitted over a port that is connected to another port via a network link (measured as a percentage of the port’s capacity) exceeds a predefined threshold. The port over utilization alarm is correlated into a link over utilized alarm. If the ports at both ends of a link are overutilized, the two port over utilization alarms are correlated into a single link over utilization alarm. The alarm description includes the direction of the overutilization. A link utilization normal alarm is issued when the utilization level falls below a predefined threshold. The overutilization thresholds are configured using the Cisco ANA Registry Editor.

OL-14284-01

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

A-5

Link Over Utilized

Appendix A Supported Service Alarms

A-6

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

APPENDIX

Event and Alarm Correlation Flow

This chapter describes in detail the flow of alarms and events during the correlation process.

• Software Function Architecture—Provides an event correlation flow diagram.

• Event Correlation Flow—Includes the following sections:

–

Event Creation (VNE level)

–

Event Correlation

–

Correlation Logic (Event Correlator)

–

Alarm Sending (Event Correlator)

–

Post-Correlation Rule (Event Correlator)

OL-14284-01

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

B-1

Software Function Architecture

Figure B-1 Event Correlation Flow (VNE level)

New Event

Appendix B Event and Alarm Correlation Flow

Event Correlation Application

Store alarm

for future

correlation

to it

Wait for

flow

results

Read Registry

parameters

Ye s

correlation

alarm to gateway

correlation

allowed

Send

Start

flow

Flow

correlation

enabled

Ye s

Pass to event

correlation

application

Correlate

Yes (correlation delay of two minutes)

Flow or

correlation by

key

Continue

B-2

Correlation by key

Send alarm

to gateway

Post

correlation

Pass control

bark to

Event

Manager

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

Correlation by

key

Send to gateway

182784

OL-14284-01

Appendix B Event and Alarm Correlation Flow

Event Correlation Flow

Event Creation (VNE level)

An event (EventCorrelationData) is created in the VNE level by three different sources:

• Device Component (DC)—When processing service alarms.

• EventProcessor—After parsing Syslog and SNMP trap.

• TCA Extension—After identifying a change in a property in the IMO.

The EventCorrelationData holds the following information:

Table B-1 Event Correlation Data Parameters

Name Description Type

Event Type The type of the event. Alarms with the same Source and

Event Sub Type The sub type of the event (identifies the exact event

Source The OID of the IMO on which the event occurred on. Oid

Correlation key The object used for correlation Correlation key

iFlowForwardData All forwarding data for the flow (if activate-flow is

Event time The time the event occurred (as determined in the VNE). Long

Description A description of the event. String

Event Correlation Flow

String

Event Type will be considered as a single alarm.

String

definition that needs to be loaded).

array

iFlowForwardData

enabled).

Event Correlation

Local Correlation (Event Correlator)

Local correlation will be performed if the correlate flag is set true and after waiting the time specified by the correlation-delay value.

The event correlation key is used to extract alarms that were waiting for correlation on that specific key. If alarms with the same correlation key exist the correlation logic is invoked to determine the best candidate of the locally available alarms. If the event did not find an alarm to correlate to, it will be put into the waiting for correlation event queue with its respective correlation key.

Network Correlation (Event Correlator, Flow)

Network correlation will be performed if the event has the activate_flow flag set to true. The following actions will be executed:

1. The Event Correlation application receives an event and it checks the correlation delay depending

on whether it is box-level or flow-level correlation.

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

B-3

Event Correlation Flow

If it is box-level correlation the event is stored in the application for the correlation delay period and during this period collects all possible root causes having the same correlation delay.

If it is flow-level correlation, then the flow will start after the correlation delay.

2. The flow starting and ending points are defined by the event correlation parameters (see Table B -1).

3. After the flow finishes it will get a message that contains all the collected alarms. Alarms are

collected on every DC that the flow intercepts regardless of the original correlation key of the event that triggered it.

Correlation Logic (Event Correlator)

The correlation logic is used for determining the most fitting alarm to serve as a root cause for the specified event. It selects from the alarms, the most fitting alarm (root cause), based on the correlation filters and selects the root cause method.

Alarm Sending (Event Correlator)

Appendix B Event and Alarm Correlation Flow

Once an event has gone through the correlation process it will be transformed into an alarm and will be sent to the gateway.

Post-Correlation Rule (Event Correlator)

The post-correlation rule is used for performing logic which needs to be performed after the event had been sent. Usually the post-correlation rule is used for triggering additional behaviors such as search for affected services that where influenced by the alarm.

B-4

Cisco Active Network Abstraction Fault Management User Guide, Version 3.6 Service Pack 1

OL-14284-01

Cisco Fault Management User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Cisco Active Network Abstraction Fault Management User Guide Version 3.6 Service Pack 1

CONTENTS

About This Guide

Obtaining Documentation, Obtaining Support, and Security Guidelines

Fault Management Overview

Managing Events

Basic Concepts and Terms

Alarm

Event

Event Sequence

Repeating Event Sequence

Flapping Events

Correlation By Root Cause

Ticket

Severity Propagation

Sequence Association and Root Cause Analysis

Event Processing Overview

Fault Detection and Isolation

Unreachable Network Elements

Sources of Alarms On a Device

Alarm Integrity

Integrity Service

Event Suppression

Root-Cause Correlation Process

Root-Cause Alarms

Correlation Flows

Correlation by Key

Correlation by Flow

DC Model Correlation Cache

Using Weights

Correlating TCA

Advanced Correlation Scenarios

Device Unreachable Alarm

Connectivity Test

Device Fault Identification

Device Unreachable Example 1

Device Unreachable Example 2

IP Interface Failure Scenarios

IP Interface Status Down Alarm

Correlation of Syslogs and Traps

All IP Interfaces Down Alarm

IP Interface Failure Examples

Interface Example 1

Interface Example 2

Interface Example 3

Interface Example 4

Interface Example 5

ATM Examples

Ethernet, Fast Ethernet, Giga Ethernet Examples

Interface Example 6

Interface Example 7

Interface Registry Parameters

ip interface status down Parameters

All ip interfaces down Parameters

Multi Route Correlation

Multi Route Correlation Example 1

Multi Route Correlation Example 2

Multi Route Correlation Example 3

Multi Route Correlation Example 4

Generic Routing Encapsulation (GRE) Tunnel Down/Up

GRE Tunnel Down/Up Alarm

GRE Tunnel Down Correlation Example 1

GRE Tunnel Down Correlation Example 2

BGP Process Down Alarm

MPLS Interface Removed Alarm

LDP Neighbor Down Alarm

Cloud VNE

Correlation Over Unmanaged Segments

Types of Unmanaged Networks Supported

Fault Correlation Across the Frame Relay or ATM or Ethernet Cloud

Cloud Problem Alarm

Cloud Correlation Example

Event and Alarm Configuration Parameters

Alarm Type Definition

Event (Sub-Type) Configuration Parameters

General Event Parameters
